USER MANUAL 5200 Silent GARDENA

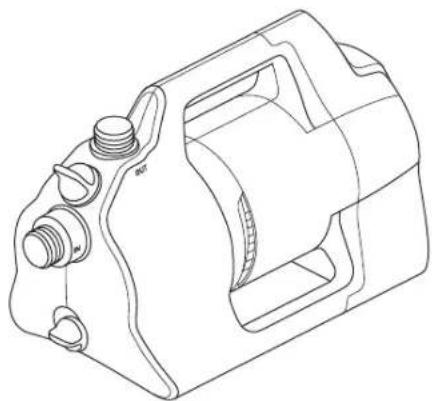

Technical line drawing of a mechanical component with threaded ports and housing (no text or symbols)

Technical line drawing of a mechanical component with threaded ports and mounting flanges (no text or symbols)

5000 Silent Art. 9080

5200 Silent Art. 9084

5400 Silent Art. 9086

Diagram showing a pipe connection with a checkmark and directional arrows, no text or symbols present

Diagram showing a pipe fitting and a mechanical component with motion arrows (no text or symbols)

A2

A2 MAX

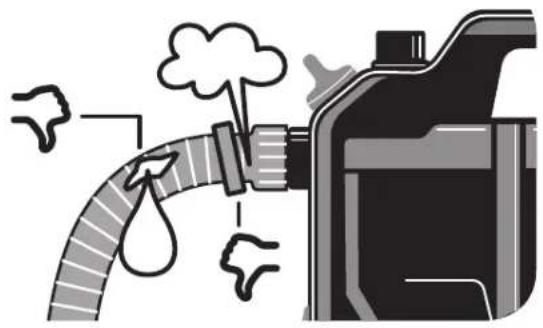

Illustration of a pipe with a droplet and smoke, connected to a container (no text or symbols)

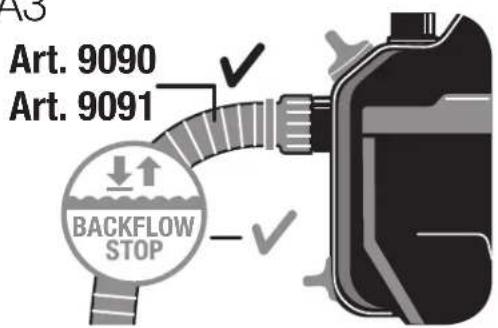

A3

Art. 9090 Art. 9091 BACKFLOW STOP

Diagram illustrating a valve mechanism with labeled components and directional arrows indicating flow or movement.

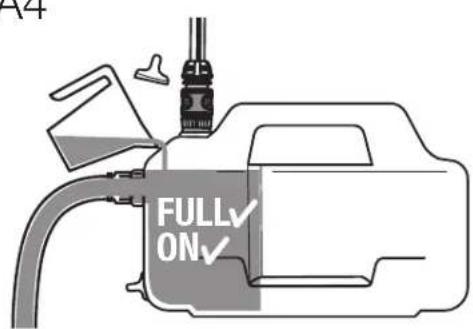

A4

FULL ON

ON

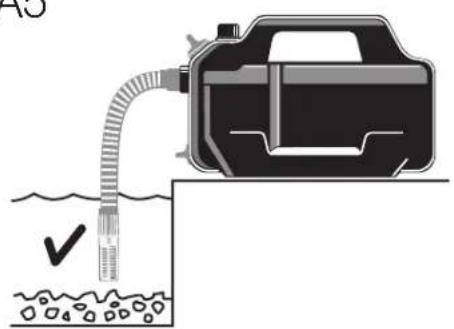

A5

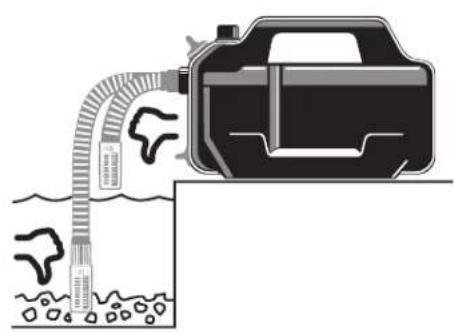

Diagram showing a water pump connected to a container with a checkmark indicating inspection or verification.

Diagram of a car connected to a pipe in a water tank (no text or symbols)

A6
-AW2C]

de Gartenpumpe 5000 Silent/5200 Silent/5400 Silent

Translation of the original instructions.

1. SAFETY WARNINGS

1.1 Explanation of the symbols on the product

Read operator's manual.

1.2 General safety warnings

1.2.1 General pump safety warnings

DANGER! Electric shock

Risk of injury due to electrical current.

→ The product must be supplied with power via a residual current device (RCD) with a rated tripping current of no more than 30 mA.
→ Unplug the product before decommissioning, servicing, or replacingparts.
→ Protect connecting the pump to the mains from third parties, such as children.

1.3 Garden pump safety warnings

1.3.1 Safe operating practices:

The water temperature should not exceed 35 °C.

The pump must not be used when people are in the water.

Pollution of the liquid could occur due to leakage of lubricants.

1.3.2 Circuit breakers:

Thermal protection switch:

In the event of an overload, the pump is switched off by the built-in thermal motor protection. After sufficient cooling of the motor, the pump is operational again.

1.4 Additional safety warnings

1.4.1 Intended use

This product may be used under supervision, or if instruction regarding the safe use of the product has been provided and the resulting dangers have been understood, by children aged 8 and above, as well as by persons with physical, sensory or mental disabilities or a lack of experience and knowledge. Children must not be allowed to play with the product. Cleaning and user maintenance shall not be carried out by children unless they aged 8 years and above and supervision.

The use of this product by young people under the age of 16 is not recommended.

The GARDENA Garden pump is intended to pump ground water and rain water, tap water and water containing chlorine in private domestic gardens and allotments.

The product is not intended for long term use (professional use).

The product is not intended for continuous running.

1.4.2 Liquids to be pumped:

The GARDENA Garden Pump must only be used to pump water.

DANGER!

Risk of injury!

→ The pump must not be used for the delivery of salt water, muddy water, corrosive, easily inflammable or explosive liquids (e. g. petrol, paraffin, thinners), oil, heating oil or foodstuffs.

1.4.3 Pressure amplification:

The inlet pressure must be protected by an adjustable pressure relief valve. When the pump is used for pressure amplification, the maximum permissible internal pressure must not exceed 6 bar. The maximum inlet pressure is therefore:

GARDENA Garden pump 5000 Art. 9080 → Max. 2.4 bar

GARDENA Garden pump 5200 Art. 9084 → Max. 2.1 bar

GARDENA Garden pump 5400 Art. 9086 → Max. 1.7 bar

1.4.4 Additional electrical safety warnings

DANGER!

Risk of cardiac arrest!

This product generates an electromagnetic field while it operates. This electromagnetic field may affect the functionality of active or passive medical implants (e.g. pacemakers), which may result in serious injury or death.

→ Consult your doctor and the manufacturer of your implant before using this product.
→ After using the product, disconnect the mains plug from the mains socket.

→ Place the pump in a stable and flood-proof manner so that it is protected against falling into the water.
→ Place the pump at a safe distance (min. 2 m) from the pumped medium.
→ An approved personal circuit breaker can be used as additional safety for the residual current device (RCD). Ask a qualified electrician about this.
→ The information on the type plate must match the data from the mains.
→ Unplug the pump before anyone enters a swimming pool connected to it.
→ If the mains connection cable of this appliance is damaged, it must be replaced by the manufacturer or his customer service or a similarly qualified person to avoid hazards.
→ Protect the mains plug and power cord from heat, oil and sharp edges.
→ Do not carry the pump on the cable or use the cable, to unplug the pump from the socket.

→ Place the pump in a flood-proof location.

→ Avoid continuous use of the pump in wet or humid environments.
→ Check the lead line regularly.

→ Subject the pump to the pump before use The pump (especially the mains connection cable and mains plug) must always be visually inspected.
→ A damaged pump must not be used.
→ In the event of damage, be sure to have the pump checked by GARDENA Service.
→ Electrical changes may only be carried out by a qualified electrician.
→ Disconnect the pump from the mains before filling, disassembling and servicing.
→ When using our pumps with a generator, follow the instructions of the generator manufacturer.

1.4.5 Cables:

If extension cables are used, these must comply with the minimum cross-sections in the table below:

Voltage Cable length Cross section

230 - 240 V / 50 Hz Up to 20 m 1.5 mm²

230 - 240 V / 50 Hz 20 - 50 m 2.5 mm ^a

1.4.6 Additional personal safety warnings

DANGER!

Risk of suffocation!

Small parts can be easily swallowed.

→ Keep toddlers away when you assemble the product.

DANGER!

Risk of injury from hot water!

Pumped water is under pressure and when it hits the body or eyes directly can cause injury.

If the pump is operated for prolonged periods of time (> 5 min.) with the delivery side closed, the water in the pump may heat up so that there is a risk of scalding yourself with hot water.

→ Let the pump operate for max. 5 minutes against the closed pressure side or with missing water supply. If the water supply on the intake side of the pump fails, the water in the pump can heat up so that if water emerges, injuries could be caused by the hot water.
→ Disconnect the pump from the mains and let the water cool.
→ Do not open any caps and screw connections when the water is hot.
→ Before restarting, secure the water supply on the suction side and fill the pump completely with water.
→ If hoses or pipes are exposed to the sun, they can become very hot.

→ Do not use the product while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while you operate the product may result in serious personal injury.
→ Before restarting, ensure the water supply on the suction side and fill the pump completely with water.

→ If hoses or pipes are in the sun, they may heat up considerably.

→ Do not use the product with your hair down.

→ Do not connect the pump to the drinking water supply.

→ To prevent the pump from running dry Make sure that the end of the suction hose is always in the pumped medium.
→ Fill the pump with water slowly and until it overflows before each start-up.
→ Sand and other abrasive substances lead to faster wear and reduced performance of the pump.
→ Use an additional pump pre-filter for water with a high sand content.
→ The pumping of contaminated water, e.g. stones, pine needles, etc. can cause damage to the pump.

2. ASSEMBLY

DANGER!

Risk of injury!

Risk of injury due to accidental starting.

→ Unplug the plug of the mains cable from the mains socket.

2.1 Installation site:

• When installing below the water level, a shut-off device must be installed to prevent unwanted water loss.
• The installation site must be horizontal, solid and dry and allow the pump to stand securely.
• It must be at a distance of at least 2 m from the water.
• The pump must be installed in a flood-proof location with sufficient ventilation in the area of the ventilation slots.
  • The distance to the walls must be at least 5 cm.
• Dirt (e. g. sand or soil) must not be sucked in through the ventilation slots.

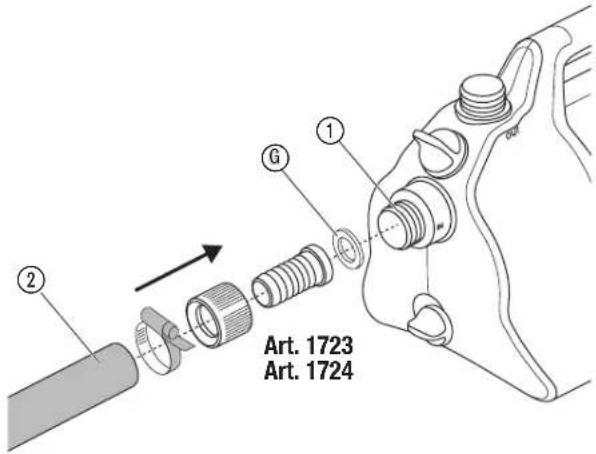

2.2 To connect the hose to the suction side [Fig. A6]:

The connector on the suction side ① is equipped with a 33.3 mm (G 1") external thread.

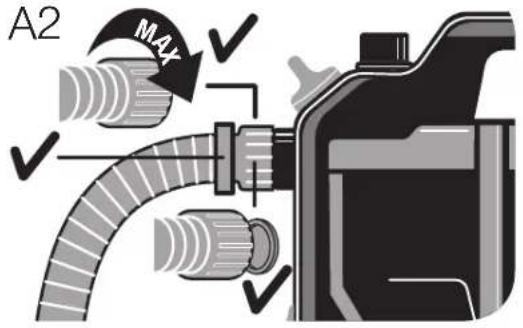

The connection piece on the suction side may only be tightened by hand [Fig. A2].

In order to reduce the suction time, it is advisable to use a suction hose with backflow preventer avoiding automatic draining of the suction hose when the pump has been switched off [Fig. A3].

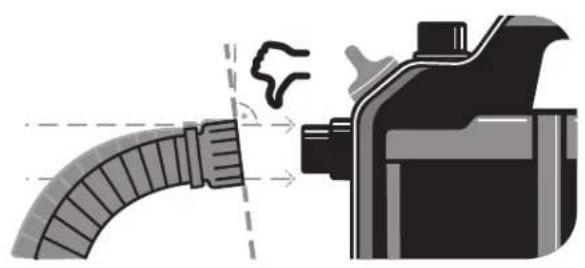

Sucking in air in the suction system can lead to functional failure and increased noise generation.

→ Connect the suction system carefully.
→ Check the gasket regularly and replace it if necessary.

Don't use any hose quick connection system fittings on the suction side.

A vacuum-resistant suction hose must be used on the suction side:

• e.g. the GARDENA Suction Unit Art. 9090/9092/9091
• or the GARDENA Bore Hole Suction Hose Art. 1729.
- Connect suction hoses ② without threaded connection via a suction hose connection piece (e.g. Art. 1723/1724) to the connection of the suction side and screw it airtight.

2.2.1 There are 2 types of connection systems:

Intended for flat gasket:

No thread sealing tape is required.

→ Make sure that the flat gasket ^⑤ is inserted in the suction hose connection piece and is undamaged.

Intended for thread sealing tape:

No flat gasket is required.

An unsuitable sealing system can lead to leaks.

→ Use the sealing system intended for this purpose.

1. Make sure that the flat gasket ⑥ is inserted in the suction hose connectionpiece.
2. Screw the vacuum-resistant suction hose ② airtight on the connector on the suction side ①. The connection piece must be placed straight on [Fig. A1].
3. Lay the suction hose ② straight and free of twists.
4. For suction heights exceeding 3 m: Fix the suction hose② additionally. (e.g. by fastening it to a wooden post). Therefore, the pump is relieved of the weight of the suction hose.

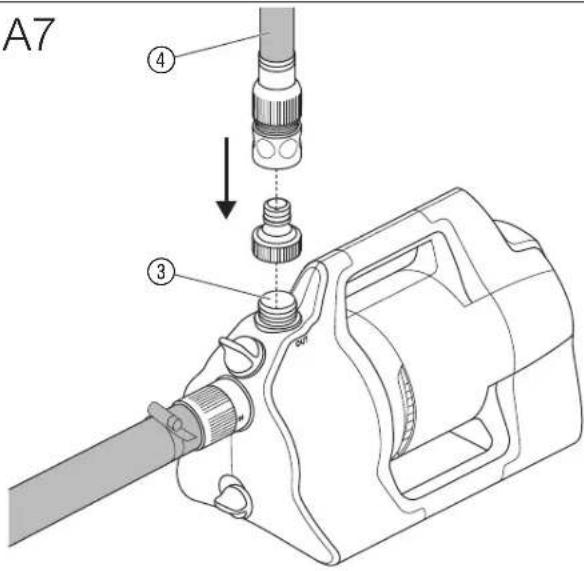

2.3 To connect the hose to the pressure side [Fig. A7]:

To ensure proper venting, do not connect the pressure hose until the pump has been filled (see 3.1 To start / To stop the pump [ Fig. O1 / O2 ]). The connector on the pressure side ③ is equipped with a 33.3 mm (G 1") external thread.

The connection pieces on the pressure side may only be tightened by hand.

Optimised use of the pump capacity is achieved by connecting 19 mm (3/4") hoses with:

• e.g. the GARDENA Pump Connection Set Art. 1752
- or by connecting 25 mm (1") hoses with the GARDENA Quick Thread Coupling with female thread Art. 7109 / Quick Coupling Hose Connector Art. 7103.

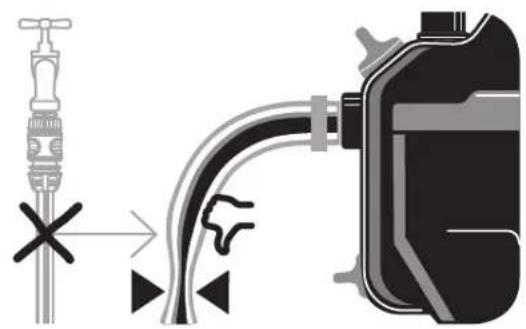

Hold or fix the pressure hose vertically to avoid kinking of the pressure hose at the vertical pump outlet.

Lay the hose flat on the ground; avoid u-shaped elevations of the hose and coiling it. In order to allow the air to escape optimally, lay out the pressure hose completely and give it a rising course as seen from the pump.

→ Connect the pressure hose ④ with the connector on the pressure side ③.

2.3.1 To connect the pressure hose via the GARDENA quick connection system:

19 mm (3/4") / 16 mm (5/8") and 13 mm (1/2") hoses can be connected via the GARDENA Connection System.

Hose diameter Pump connection

13 mm (1/2") GARDENA Pump Connection Set Art. 1750
16 mm (5/8") GARDENA Tap Connector	Art. 18222
GARDENA Hose Connector	Art. 18216

19 mm (3/4") GARDENA Pump Connection Set Art. 1752

2.3.2 Parallel connection of pressure hoses:

When connecting more than one pressure hose in parallel, we recommend the use of:

• e.g. the GARDENA 2- or 4-Channel Water Distributor Art. 8193/8194
• or the GARDENA Twin-Tap Connector Art. 940.

These can be screwed directly onto the connector of the pressure side③.

3. OPERATION

3.1 To start / To stop the pump [Fig. O1 / O2]:

CAUTION!

Dry-Running of the pump!

Make sure that the pump is filled with water up to the overflow (min. 1.1 l) before each starting procedure.

3.1.1 To start the pump:

1. Connect the suction hose (In).
2. Disconnect the pressure hose (Out).
3. Unscrew the screw connection⑤ on the filling opening ⑥ by hand.
4. Slowly fill in at least 1.1 l of water via the filler opening ^⑥ until a stable water level is reached at the level of the suction side connection [Fig. A4].

5. If a non-return valve is used: Fill the suction hose with water. This speeds up the suction process.

6. Empty the residual water in the pressure h@ before connecting. This allows the air to escape during the suction process.

7. After filling the pump: Connect the pressure hose (Out) to the pump.

8. Tighten the screw connection⑤ on the filling opening ⑥ by hand (do not use pliers).

9. Open any shut-off valves in the pressure line (connection devices, water stop, etc.). All consumers must be opened to the max. possible position.
10. Insert the plug of the mains cable into a mains socket.

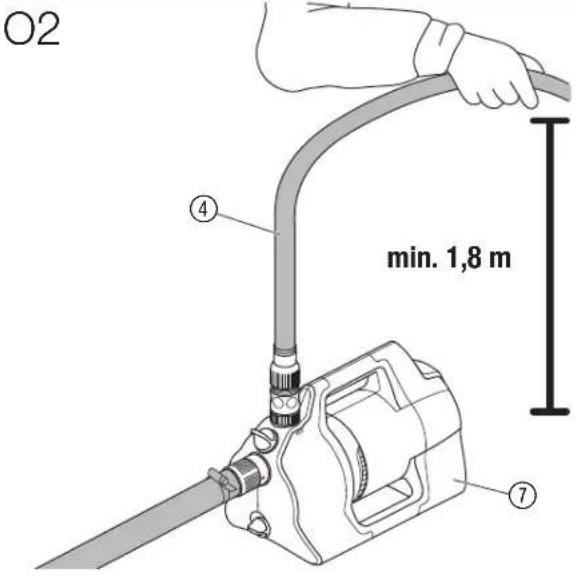

11. For high suction heights: Lift and hold the pressure hose④ at least 1.8 m vertically above the pump during the suction process.
12. Push the On / Off switch to the position On. The pump starts (the On/Off switch lights) and pumps the water after the suction process. The suction process can take up to 5 minutes.

If the pump does not pump water after 5 minutes:

1. Push the On / Off switch to the position Off. The pump stops.

2. Let the pump cool down.

3. Search in the 6.2 Troubleshooting table for possible causes.

4. Start the pump again (see 3.1.1 To start the pump).

3.1.2 To stop the pump:

→ Push the On/Off switch ⑦ to the position Off. The pump stops.

3.2 Hints to pump:

3.2.1 General tip on suction:

The specified maximum self-priming height is only reached when the pump is filled to the overflow via the filling opening and the pressure hose ④ is held upwards during the priming process so that no water can escape from the pump via the pressure hose ④. Fill the pump before hoses, fixed piping etc. are connected to the pump on the pressure side. This ensures that the pump can be completely filled with water (1.1 l) (air can escape).

The pump is to be filled with 1.1 l of water.

3.2.2 Silent operation:

The pump is silent. This advantage can only be maintained with the correct installation:

→ Choose a low-vibration base (e. g. do not place on metal sheets or plastic tanks).

3.2.3 Assembly of the prefilter:

If a prefilter is too long, it can be assembled in another position (e.g. horizontally) instead of in the vertical position still below.

4. MAINTENANCE

DANGER!

Risk of injury!

Risk of injury due to accidental starting.

→ Unplug the plug of the mains cable from the mains socket.

4.1 To clean the Pump:

DANGER!

Damage to the product due to improper cleaning.

Improper cleaning of the pump may result in damage to the product.

→ Do not clean the pump with a water jet, especially not with a high-pressure water jet.

→ Do not clean with aggressive chemicals, including petrol or solvents. Some of these substances can destroy critical plastic components.

The airflow slots must always be clean.

1. Clean the pump housing with a damp cloth.
2. Clean the airflow slots with a soft brush (do not use sharp objects).

4.2 To flush the pump:

After pumping chlorinated water, the pump must be flushed.

1. Pump through lukewarm water (max. 35 °C), possibly adding a mild cleaning agent (e.g. detergent) until the pumped water runs clear.
2. Dispose of the residues in accordance with local waste disposal regulations.

5. STORAGE

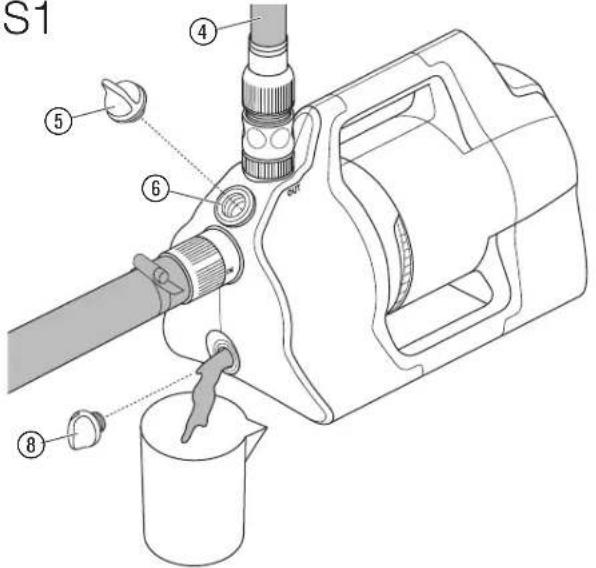

5.1 To put into storage [Fig. S1]:

CAUTION!

Damage to the pump due to frost!

→ Store the pump in a frost-free place.

The product must be stored away from children.

1. Unplug the plug of the mains cable from the mains socket.
2. Close any shut-off valves in the suction line.
3. Open any shut-off valves in the pressure line (accessories, water stop, etc.). Therefore the pressure line is depressurized.
4. Unscrew the screw fitting ⑤ of the filler neck ⑥ and the water drain screw ⑧ by hand. Therefore the pump is drained.
5. Tilt the pump in the direction of the drain (approx. 80°) so that the pump empties completely.
6. Unscrew the suction hose and the pressure hose.
7. Tighten the screw connection ⑤ on the filling opening ⑥ and the water drain screw ⑧ by hand (do not use pliers).
8. Clean the pump (see 4. MAINTENANCE).
9. Store the pump in a dry, enclosed and frost-free place.

6. TROUBLESHOOTING

DANGER!

Risk of injury!

Risk of injury due to accidental starting.
→ Unplug the plug of the mains cable from the mains socket.

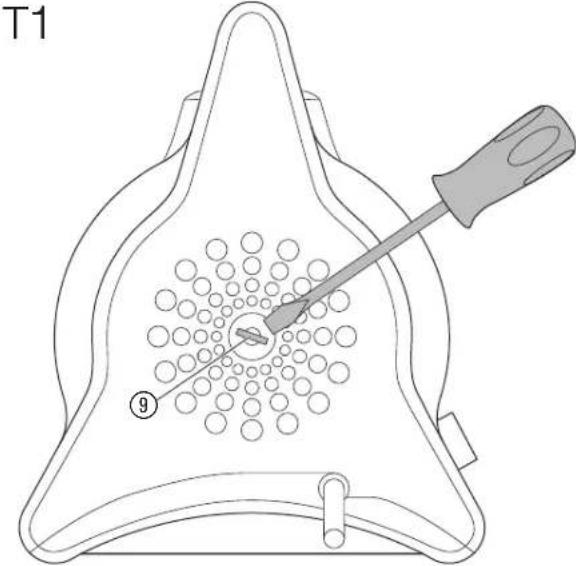

6.1 To loosen the impeller [Fig. T1]:

An impeller blocked by dirt can be loosened.

→ Turn the shaft of the impeller ⑨ clockwise with an insulated screw-driver.

Therefore the blocked impeller is loosened.

6.2 Troubleshooting table:

Problem Possible Cause Remedy

Pump is running,but the suction actiondoesn't take place	Leaky or damaged suction line[Fig. A2].	→ Check the suction linefor damage and seal sois airtight.
	Pump sucks in air at a con- nection point [Fig. A2].	→ Seal the suction side con- nections airtight.
	No water available inthe cistern, water tank,water pipe, etc.	→ Make sure that the watersupply is on the suction side.

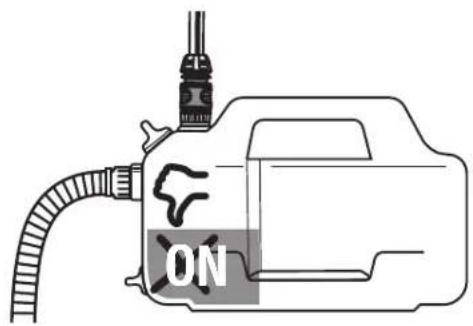

	Pump was not filled with water[Fig. A4].	→ Fill the pump(see 3.1.1 To start thepump).
	Water escapes during thesuction process via thepressure hose.	1. Fill the pump again.2. Hold up the pressure hose.3. Start the pump again(sec 3.1.1 To start thepump).
	Absolutely vacuum-resistant connection is achieved byusing GARDENA Suction Hoses (see8. ACCESSORIES/SPARE PARTS).
	Screw fitting on the filler neckis leaking [ Fig. A2 ].	→ Check the seal (replaceif necessary) and tightenthe screw fitting by hand(do not use pliers).
	Air cannot escape, since thedelivery line is closed orremaining water is in thepressurehose.	→ Open any shut-off valves(e. g. nozzle) in the deliveryline, or drain the pressurehose.
	Air cannot escape because thepressure hose is coiled.	1. Lay out the pressure hosestraight along its entirelength.2. Lay the hose from the pumpoutlet upwards.3. Do not kink the pressurehose at the pump outlet.4. Open all consumers maxi-mum.
	Suction time of 5 min. wasnot waited for.	→ Wait up to 5 minutes for thepump to pump water.
	Suction filter or backflowpreventer in the suction hoseare clogged.	→ Clean the suction filter orthe back flow preventer.
	The end of the suction hose isnot in the water [Fig. A5].	→ Submerge the end of thesuction hose deeper in thewater.
	Suction height is too high[Fig. A5].	→ Reduce the suction height.
	In case of any other difficulties concerning the suction action,use GARDENA Suction Hoses with Backflow Preventer(see 8. ACCESSORIES/SPARE PARTS). Fill the pump withwater before starting it.
Pump does not start,or stops suddenly duringoperation	Thermal switch has turnedthe pump off because of over-heating.	→ Let the pump cool down,empty the pump and fill itagain.→ Observe the max. mediaTemperature (35 °C).
	No power supply to the pump. →	Check the fuses and electricalplug connections.
	RCD has triggered(residual current).	→ Unplug the plug from themalns socket and contactthe GARDENA Service.
	Pump is not switched on.	→ Push the On/Off switch to thepositionOn.
Pump is running,but the deliverydrops suddenly	The end of the suction hose isnot in the water [Fig. A5].	→ Submerge the end of thesuction hose deeper in thewater.
	Suction filter or backflowpreventer in the suction hoseare clogged.	→ Clean the suction filter or theback flow preventer.
Problem Possible Cause	Remedy
Pump is running,but the deliverydrops suddenly	No water available in thecistern, water tank, waterpipe, etc.	→ Make sure that the watersupply is on the suction side.
	Suction line is leaking [Fig. A2]. → Eliminate the leak.
	Impeller is blocked.	→ Loosen the impeller.
	Pressure hose is kinked.	→ Lay the pressure hose withoutkinks and do not kink thepressure hose at the pumpoutlet.

NOTE:

Repairs must only be done by the GARDENA service departments or specialist dealers approved by GARDENA.

→ For any other malfunctions please contact the GARDENA service department.

1. TECHNICAL DATA

Garden pump	Unit	Value (Art. 9080)	Value (Art. 9084)	Value (Art. 9086)
Rated power	W	550	600	650
Mains voltage	V (AC)	220 – 240	230	230
Mains frequency	Hz	50	50	50
Max. delivery capacity	l/h	5100	5300	5400
Max. pressure / Max. delivery head	bar / m	3.737	3.939	4.343
Max. self-priming suction height	m	8	8	8
Permitted internal pressure (delivery side)	bar	6	6	6
Power cable	m	1.5 (H07RN-F)	1.5 (H07RN-F)	1.5 (H07RN-F)
Weight without cable (approx.)	kg	5.6	5.8	6.3
Sound pressure level L_pA Distance: 1 m5 m10 m	dB	604640	614741	645044
Sound power level L_WA^1) : measured/guaranteed Uncertainty k_WA	dB (A)	73 / 752.52	71 / 742.58	73 / 752.20
Max. media temperature	°C	35	35	35

Measuring process complying with: ^11 RL 2000/14/EU

1. ACCESSORIES / SPARE PARTS

GARDENA Suction Hoses	Kink-proof and vacuum-proof, optionally available by the metre Art. 1720/1721 (19 mm (3/4") / 25 mm (1")) without connecting fittings or in fixed length Art. 9090/9091 complete with connecting fittings.
GARDENA Suction Hose Fitting	For connection on the suction side.	Art. 1723/1724
GARDENA Pump Connection Set	For connection on the delivery side.	Art. 1750/1752
GARDENA Suction Filter with backflow preventer	To equip suction hoses with backflow preventer sold by the meter.	Art. 9093
GARDENA Pump Preliminary Filter	Recommended for pumping sandy water.	Art. 1730/1731
GARDENA Bore Hole Suction Hose	For vacuum-resistant connection of the pump to boreholes or pipe networks. Length 0.5 m. With 33.3 mm (G1) female thread at both ends.	Art. 1729
GARDENA Floater for floating suction	Can be attached to suction filter 9090 / 9092 / 9093 and enables dirt-free suction under the surface of the water.	Art. 9094
GARDENA Quick coupling	For pressure-side connection of 1" pressure hoses.	Art. 7109/7103

9. SERVICE

The current contact information for our service department can be found online: www.gardena.com/contact

10. DISPOSAL

10.1 Disposal of the pump:

(according to Directive 2012/19/EU)

The symbol means that the product is not domestic waste. Recycle it through your local collection system for electrical and electronic equipment.

This contributes to proper end of life waste management. Contact local authorities, domestic waste services, your GARDENA servicing dealer or retailer for information. Incorrect disposal may have potential negative effects on the environment and human health, due to the potential presence of hazardous substances.

IMPORTANT!

→ Dispose of the product through or via your local recycling collection centre.

fr Pompe d'arrosage de surface 5000 Silent/5200 Silent/5400 Silent

1. CONSIGNES DE SÉCURITÉ ..... 12
2. MONTAGE....13
3. UTILISATION....14
4. MAINTENANCE....15
5. ENTREPOSAGE ....15
6. DÉPANNAGE....15
7. CARACTÉRISTIQUES TECHNIQUES....16
8. ACCESSOIRES/PIÈCES DE RECHANGE ..... 16
9. SERVICE....16
10. ÉLIMINATION ..... 16

Performance characteristics

Courbes de performance

Prestatiegrafiek

Kapacitetskurva

Ydelses karakteristika

Pumpun ominaiskäyrä

Pumpekarakteristikk

Curva di rendimento

(1) https://doi.org/10.103.com

Australia

Husqarna Australia Pty. Ltd

Lecesol Seg 5

Central Sea

R3012252

Phone: 1+ 61102 243527400

customer schizelsnasqalme.com

www.ganoea.com, www.nes.com, is being to have

Azerbaijan

Progres Xifusi Ermas

Alpər Alpər 213, Baku, Azerbaijan

Sales: [phone]

Allersales -994 77 326 07 14

www.progressjarden@

[e-mail]

Bahrain

M. II. A-Malynos

BUDINS 208, BLOIS 356

ROAD

Sariya

Phone: [phone]

e-mail:[e-mail]

Belarus / Беларусы

СОО «Мастер Гарге

2201-8, F. AMICE,

gardena,[e-mail]

Chile

Unit3-5, 7, Last Tower D, No.788, In Zhang Rd.,

Chang Ming Dist., Shanghai PRC 200335

Colombia

51000 Dominican Republic

Phone: [phone]

25, Abdel Hamid Lotty St.

Giza

Phone: 1-20, 0 761 57 57

Estonia

Husqama Test CÜ

Valdeka 132

II 11216 Talina

[e-mail]

Finland

Су Неската 50

Jinuralkmle 5 B 5

01513 Vanta

www.garcena.

France

Нистырна France

+70. Bellashville street

0159 Hills, Georgia

Number ([phone]

[e-mail],ge

www.transporter.com.co

Service Address and

Importer to Great Britain

Husqama UK Ltd

Preslum Road

cyclite industrial Park

Koewon Aysilla

County Durham

DL5 60P Payee (€44,29) 244 844 4556

info@[e-mail]

mrc. (c) 3716 e-1054, (n) 3716

Greece

П.ПАЛАДОПОУНОЕ АЕВЕ

Aeay, A### 92

ABPVA

TK104 42

E000

InP. (1+30) 210 5186 100

mio-speciespecios.com

Hong Kong

Tung Ta Company

151 153 Hot Bun Road

Kaur Torg, Kowcur

Heng Kong

Phone: [phone]

www.longwise.com

Hungary

Port No. 185 industrial Area

Page-5. Box Defer

Chantivach

1600'2 lada

Page: (+9): 98140 06530

[e-mail]

Iraq

Ashlemai Alakdar Company

Al Republic, Near Estate Bank

Mocul

Phone: [phone]

Ireland

Ireland Little Distributors Ltd

309 Mi Business Park, Balwocker

15 Dublin

Pupc: ([phone]

[e-mail]

Israel

HANGLIN LTD

2 Nana Hart St

812201 Yavne

[e-mail]

Phone: (1972) 8-932-040.

Italy

Husparna taia Sp.A.

Centro Dragonae Planu

ASSOCIATED FINANCIAL BANK

Japan

Husqarna Zeman Co. Ltd. Japan

1-2 Mineral, Kavagoe

350-1165 Saitan

Japan

gardenia p.m.u.s.p.m.rgroup.com

Kazakhstan

Too Na

Husayan
