1. SAFETY INSTRUCTIONS

Read the enclosed safety warnings, the additional safety warnings and the instructions. Failure to follow the safety warnings and the instructions may result in electric shock, fire and/or serious injury. Save the safety warnings and the instructions for future reference.

The following symbols are used in the user manual or on the product:

Read the user manual.

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Risk of electric shock.

Do not use in rain.

Class II machine - Double insulation - You don't need any earthed plug.

Switched-mode power supply.

In case of failure, the transformer is not dangerous.

Do not throw the battery into fire.

Do not throw the battery into water.

Separate collection for Li-ion battery.

Do not dispose of the product in unsuitable containers.

The product is in accordance with the applicable safety standards in the European directives.

SAFETY NOTES

THIS APPLIANCE CAN BE USED BY CHILDREN AGED FROM 8 YEARS AND ABOVE AND PERSONS WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES OR LACK OF EXPERIENCE AND KNOWLEDGE IF THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE

IN A SAFE WAY AND UNDERSTAND THE HAZARDS INVOLVED. CHILDREN SHALL NOT PLAY WITH THE APPLIANCE. CLEANING AND USER MAINTENANCE SHALL NOT BE MADE BY CHILDREN WITHOUT SUPERVISION.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Product use and safety
a) Do not vacuum materials that are harmful to one's health, e. g. dust from beech or oak wood, masonry dust, asbestos. These materials are considered carcinogenic. Inform yourself about the valid regulations/laws for your country concerning the handling of materials that are hazardous to one's health.
b) Use the vacuum cleaner only when you fully understand and can perform all functions without limitation, or have received appropriate instructions. A thorough introduction reduces operating errors and injuries.
c) The vacuum cleaner is suitable only for vacuuming dry materials. The penetration of liquids increases the risk of an electric shock.
d) The vacuum cleaner may only be used and stored indoors. The penetration of rain or moisture into the vacuum cleaner lid increases the risk of an electric shock.
e) Do not vacuum hot or burning dusts, and in rooms with an explosion hazard. Dusts can ignite or explode.
f) Remove the battery pack from the vacuum cleaner before maintaining or cleaning, making any adjustments, changing accessories or placing the vacuum cleaner aside. This safety measure prevents accidental starting of the vacuum cleaner.
g) Provide for good ventilation at the working place.
h) Have the vacuum cleaner repaired only through qualified specialists and only using original

spare parts. This ensures that the safety of your vacuum cleaner is maintained.

i) Do not clean the vacuum cleaner with a water jet pointed directly at it. The penetration of water into the vacuum cleaner lid increases the risk of an electric shock.
j) When the vacuum cleaner is not in use, store it securely.
k) The storage place must be dry and lockable. This prevents the vacuum cleaner being damaged when it is stored or being used by inexperienced people.
1) The device is not suitable for commercial or industrial use.

• Do not use for vacuuming up damp substances or liquids.
• Do not use for vacuuming up ash or soot.
• Do not use for vacuuming up building rubble.

2) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion. NOTE The temperature „130 °C“ can be replaced by the temperature „265 °F“.
g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions.

Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

3) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

SAFETY WARNINGS FOR BATTERY

a) Do not open the battery. Danger of short-circuiting.
b) Protect the battery against heat, e. g., against continuous intense sunlight, fire, water, and moisture. Danger of explosion.
c) In case of damage and improper use of the battery, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system.
d) Use the battery only in conjunction with your Vonroc product. This measure alone protects the battery against dangerous overload.
e) The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit can occur and the battery can burn, smoke, explode or overheat.

SAFETY WARNINGS FOR CHARGER

Intended use

Charge only CD828AA and CD829AA type rechargeable Battery packs with the charger. Other types of batteries may burst causing personal injury and damage.

a) The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
b) Children being supervised not to play with the appliance.
c) Do not recharge non-rechargeable batteries!
d) During charging, batteries should be placed in a well ventilated area!

Electrical safety

Always check that the voltage of the power supply corresponds to the voltage on the rating plate.

• Do not use the machine if the mains cable or the mains plug is damaged.
• Only use extension cables that are suitable for the power rating of the machine with a minimum thickness of 1.5 mm ^2 . If you use an extension cable reel, always fully unroll the cable.

2. MACHINE INFORMATION

Intended use

Your handheld vacuum cleaner is suitable for dry vacuuming with the aid of the accompanying HEPA filter. The vacuum is not intended for the vacuum of flammable, explosive or hazardous dusts. The vacuum cleaner may only be used and stored indoors, in private households and in enclosed spaces in a domestic environment at room temperature. The device is not suitable for commercial or industrial use.

TECHNICAL SPECIFICATIONS

This manual has been drawn up for different sets / article numbers. Check the corresponding article number in below specifications table for the correct composition and contents of your set.

Model No. VC511DC
Voltage 20V	---
Suction force ≥7 kPA, 4 m3/min
Container capacity 600 ml
Tube diameter ∅ 32 mm
Weight 2.3 kg

Model No.	CD828AA
Battery type Lithium-Ion
Voltage	20V
Capacity	2.0 Ah / 40 Wh
USB-C® Input / Output	5/9/12/15V 3A Max, 20V 2.25A Max (45W)
Recommended charger	CD802AA, CD820AA, CD830AA, CD831AA
Recommended charging temperature	+10°C - +35°C
Recommended storage temperature	0°C - 40°C
Weight	0.3 kg

Model No.	CD829AA
Battery type Lithium-Ion
Voltage	20V
Capacity	4.0 Ah / 80 Wh
USB-C® Input / Output	5/9/12/15V 3A Max, 20V 2.25A Max (45W)
Recommended charger	CD802AA, CD820AA, CD830AA, CD831AA
Recommended charging temperature	+10°C - +35°C
Recommended storage temperature	0°C - 40°C
Weight	0.65 kg

* USB Type-C® and USB-C® are registered trademarks of USB Implementers Forum

Only use the following batteries of the VONROC VPOWER 20V battery platform. Using any other batteries could cause serious injury or damage the tool. CD828AA 20V, 2Ah Lithium-Ion CD829AA 20V, 4Ah Lithium-Ion

The following charger of the can be used to charge these batteries.

CD802AA Quick charger CD828AA Dual quick charger CD830AA Charger CD831AA Dual charger

The batteries of the VONROC VPOWER 20V battery platform are interchangeable with all the VONROC VPOWER 20V battery platform tools.

DESCRIPTION

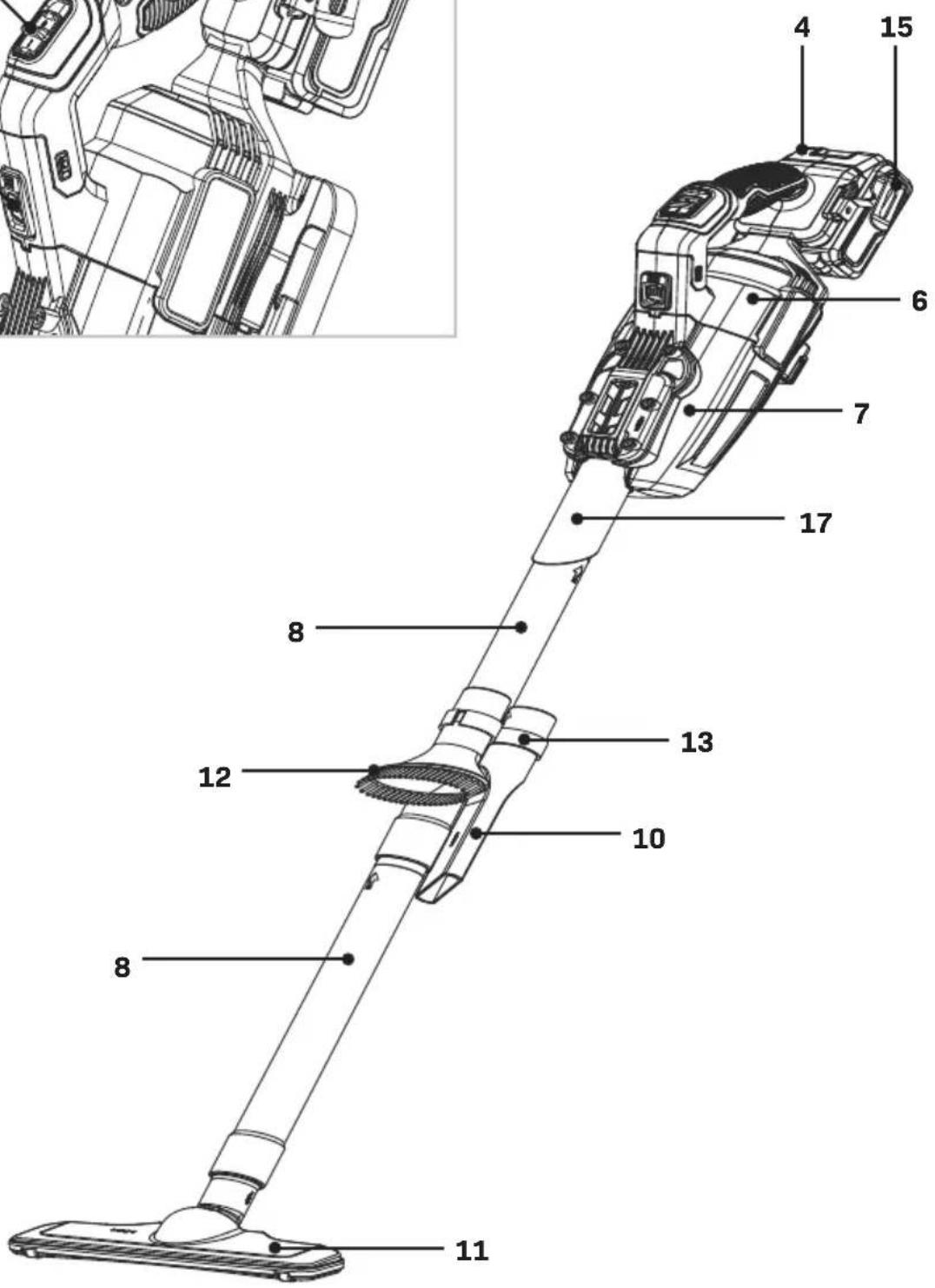

The numbers in the text refer to the diagrams on page 2-7.

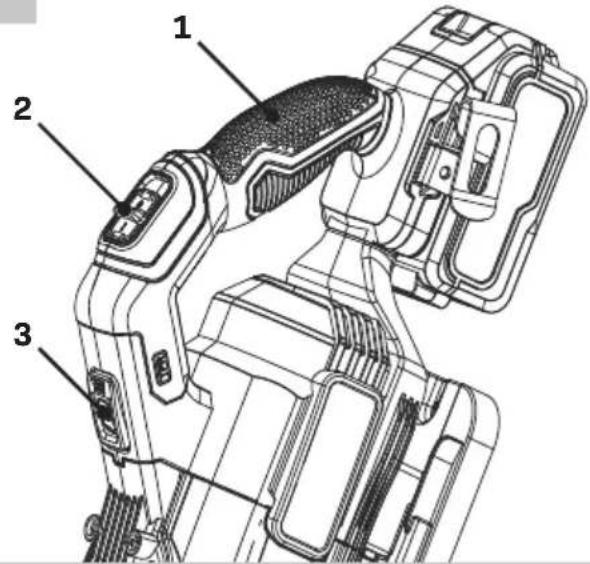

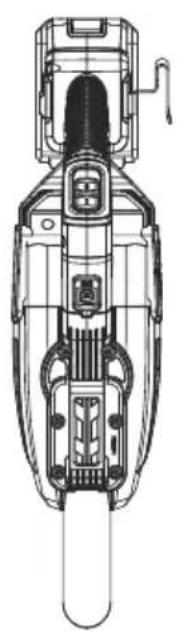

1. Handle
2. On/Off switch
3. Release button for dust cup
4. Battery
5. Battery unlock button
6. Motor housing
7. Dust cup
8. Extension tube
9. Suction hose
10. Crevice nozzle
11. Floor nozzle
12. Brush nozzle
13. Holder for nozzles
14. Storage holder
15. Belt hook

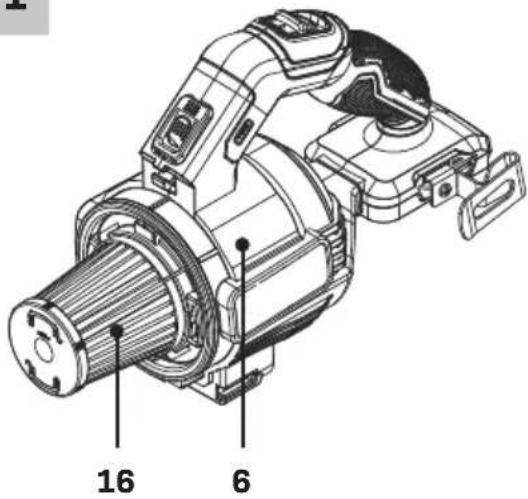

16. HEPA filter
17. Suction opening
18. LED indicator button
19. Charger
20. Battery LED indicators
21. Charger LED indicators

3. ASSEMBLY

Before any work on the power tool, remove the battery.

The battery must be charged before first use.

Inserting the battery into the machine (Fig. C)

Ensure that the exterior of the battery is clean and dry before connecting to the charger or machine.

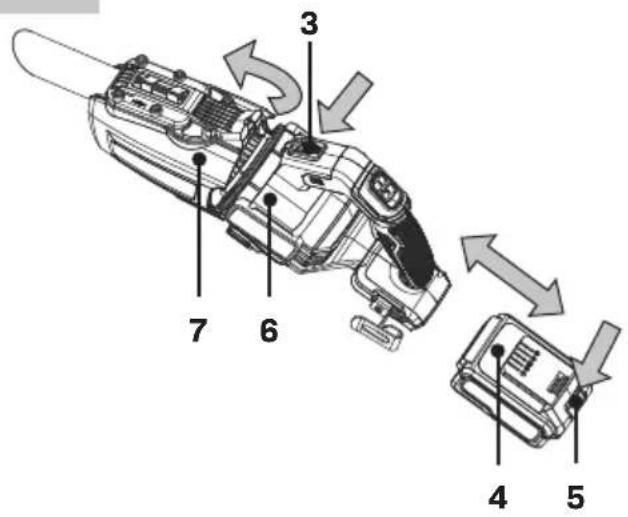

1. Insert the battery (4) into the base of the machine as shown in Fig. C1.
2. Push the battery further forward until it clicks into place.

Removing the battery from the machine (Fig. C)

1. Push the battery unlock button (5).
2. Pull the battery out of the machine like shown in Fig. C1.

Checking the battery charging status (Fig. G)

- To check the battery charge status, push the

button (18) on battery shortly.

• The battery has 3 lights indicating the charge level, the more lights that burn, the more charge the battery has left.
• When the lights are not burning it means the battery is empty and must be charged immediately.

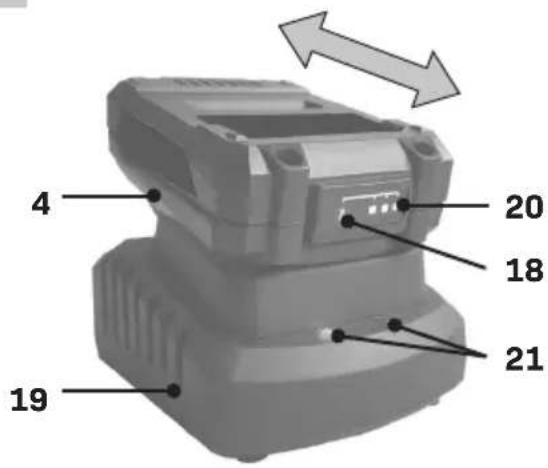

Charging the battery with the charger (Fig. G)

1. Take the battery (4) from the machine.
2. Turn the battery (4) to upside down position and slide it onto the charger (19) as shown in Fig. G.
3. Push the battery until it is fully pushed into the slot.
4. Plug the charger plug into an electrical outlet and wait for a while. The LED indicators on the charger (19) will lighten up and show the charger status

LED indicator (18) (Fig. G)

The charger has 2 LED indicators (19) which indicate the status of the charging process:

Green LED status	Green LED status	Charger status
Off Off No power
Off On		Standby mode:-No battery is inserted or,-Battery inserted but charging has finished
On Off		Battery charging in progress

• Fully charging the 2Ah battery may take up to 60 minutes.
• Fully charging the 4Ah battery may take up to 120 minutes.

After the battery is fully charged remove the charger plug from the outlet and remove the battery from the charger.

When the machine is not being used over a longer period of time it is best to store the battery in charged condition.

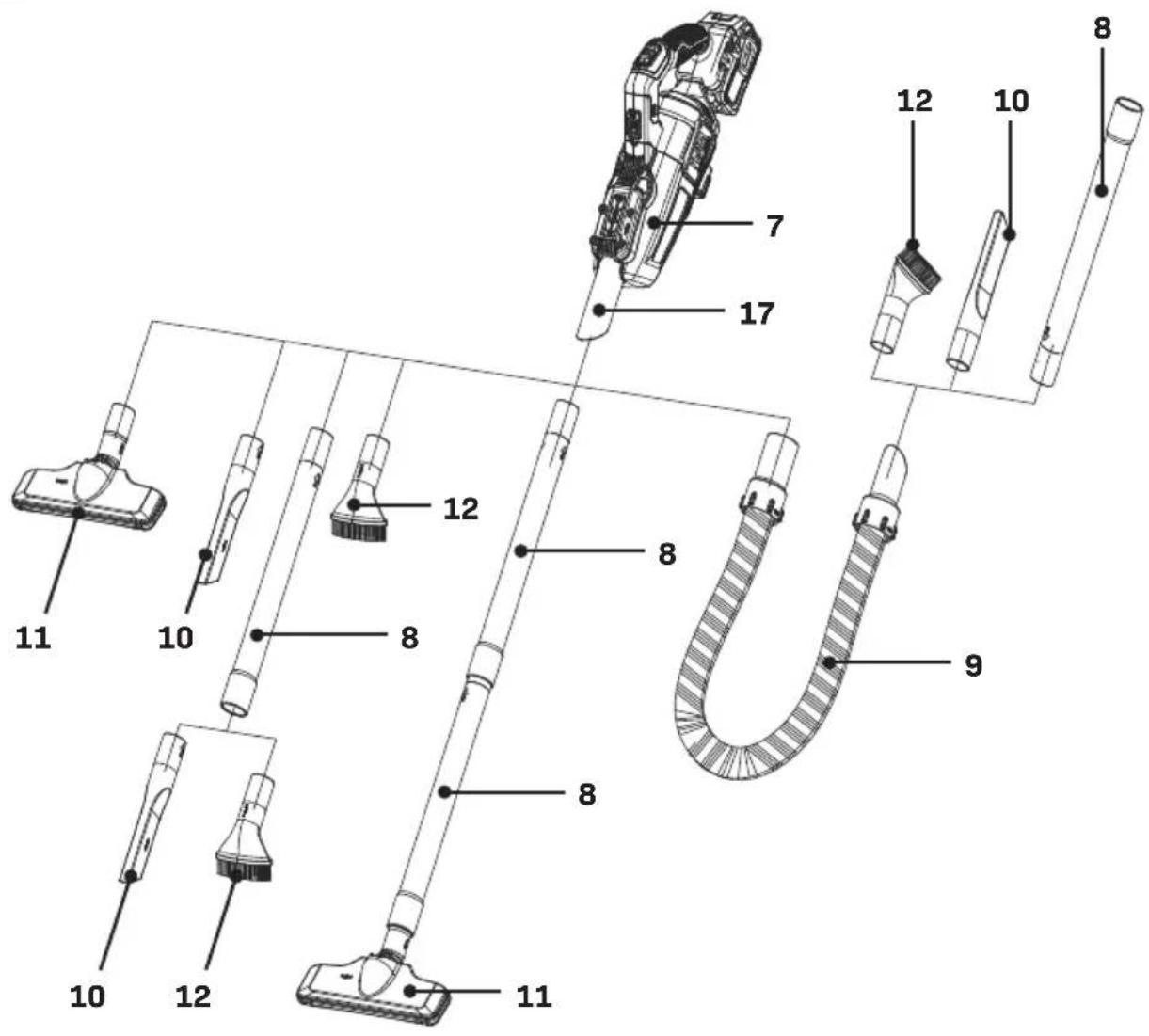

Assembly of the nozzles (Fig. B)

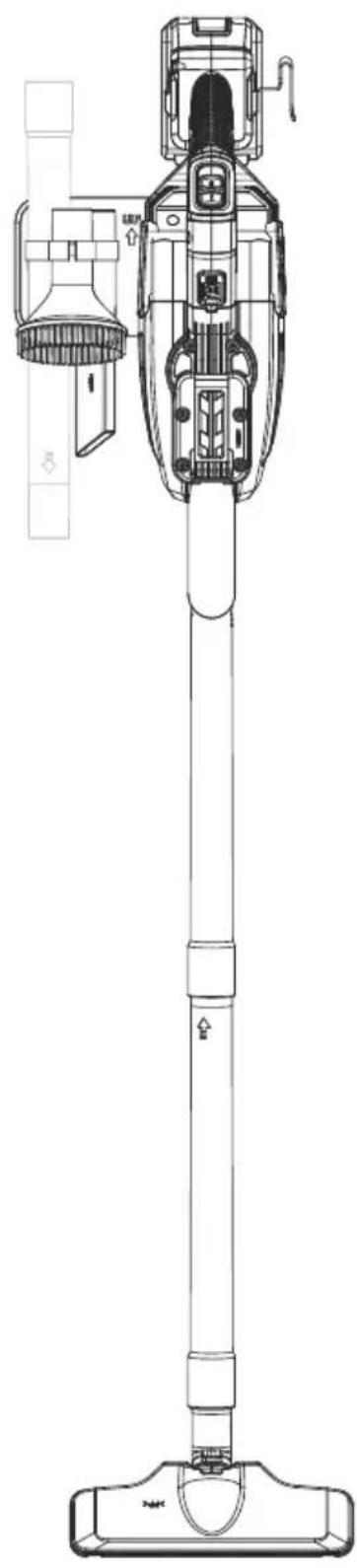

Either assembly the nozzles (10, 11, 12) directly to the suction opening (17) of the machine or use the extension tube (8). Nozzles can also be used

with the suction hose (9) and give more freedom of movement.

Floor nozzle (11)

The floor nozzle is designed for domestic dry vacuuming in, for example, the house, workroom or car.

Crevice nozzle (10)

The crevice nozzle is designed for domestic dry vacuuming, edges and other areas that are difficult to access.

Brush nozzle (12)

The brush nozzle is designed for domestic dry vacuuming, for example cushions of sofa's or textile furniture.

Nozzle holder (13)

The nozzle holder is designed to hold the included nozzles. It can be attached to the storage holder (14) or it can be attached to the extension tube (8)

Storage holder (14)

Put the vacuum cleaner and accessories in the provided storage holder (14) on the wall.

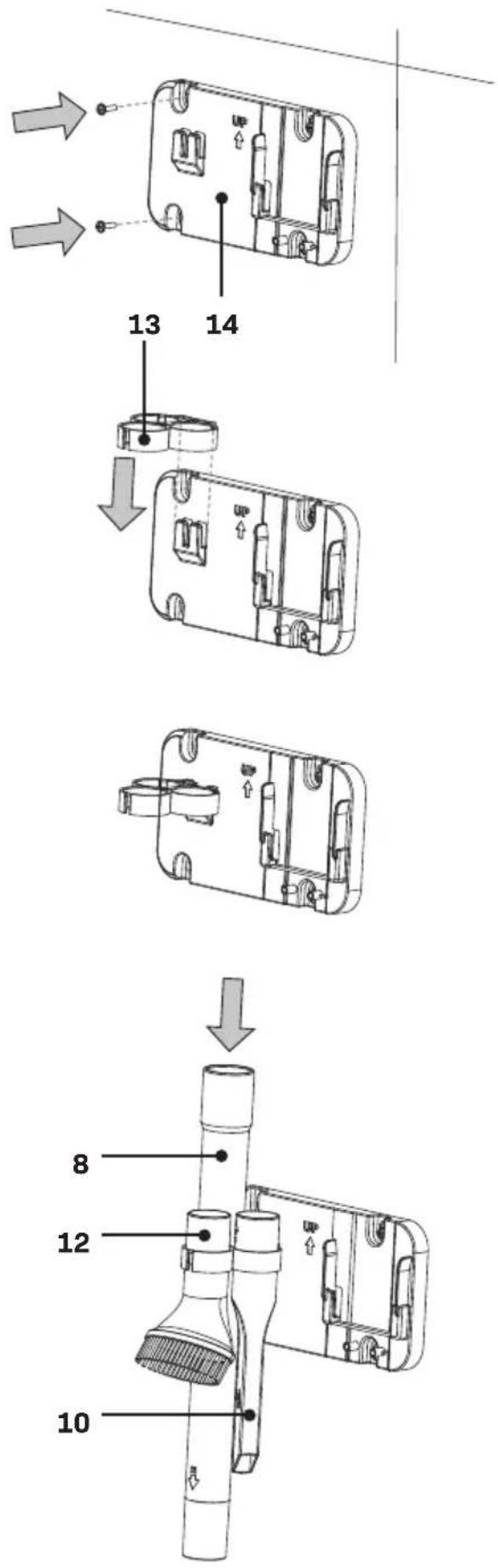

Installation and assembly of the storage holder (Fig. E)

1. Drill holes on the designated position in the wall.
2. Mount the storage holder (14), with UP Arrow pointing up. Mount the storage holder with screws and plugs firmly.
3. Slide the nozzle holder in the slot until it clamped tight.
4. Store accessories in the nozzle holder.

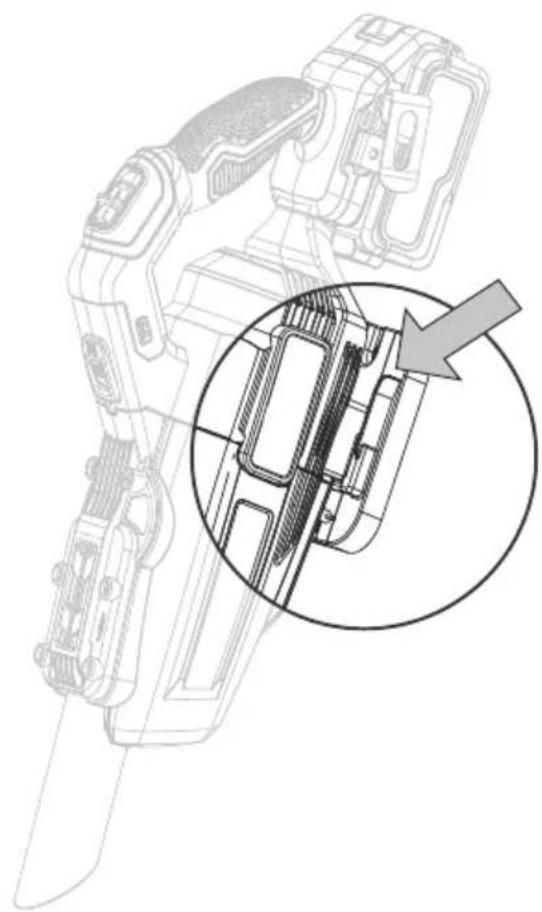

5. Slide vacuum cleaner with bottom side to storage holder until the machine is locked in place (Fig. F).

4. OPERATION

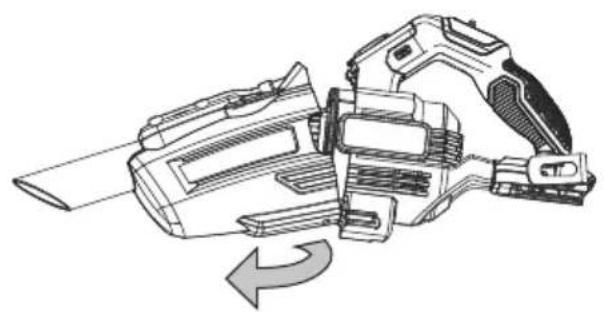

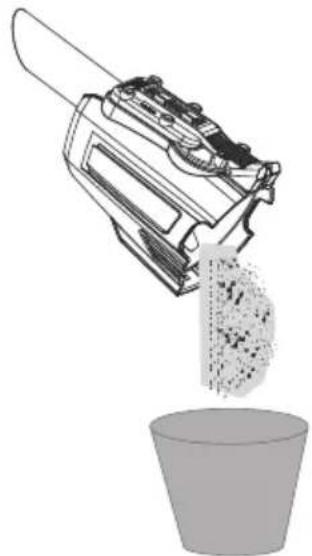

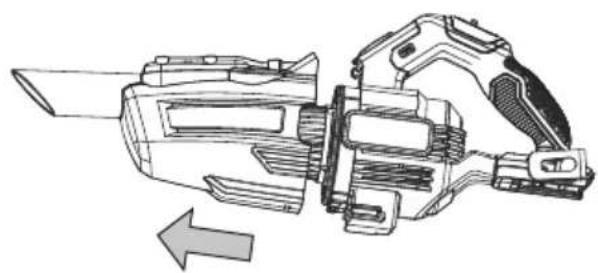

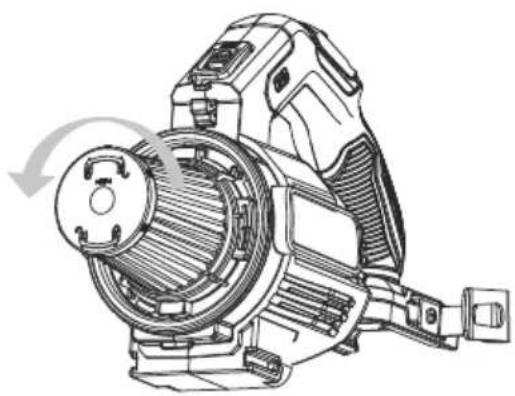

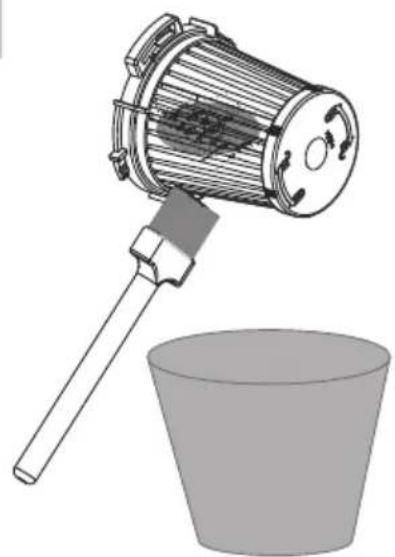

Note: Regular emptying of the dust cup and cleaning of the filter assembly ensures optimal vacuum capacity.

Switching on and off (Fig. A)

• To switch on the machine, slide the on/off switch (2) to the front.
• To switch off the machine, slide the on/off switch (2) to the rear.

5. MAINTENANCE

Before cleaning and maintenance, always switch off the machine and remove the battery pack from the machine.

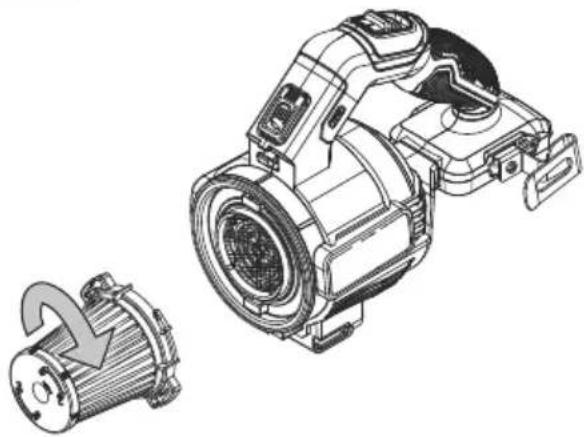

Clean the machine casings regularly with a soft cloth, preferably after each use. Make sure that the ventilation openings are free of dust and dirt. Remove very persistent dirt using a soft cloth moistened with soapsuds. Do not use any solvents such as gasoline, alcohol, ammonia, etc. Chemicals such as these will damage the synthetic components.

WARRANTY

VONROC products are developed to the highest quality standards and are guaranteed free of defects in both materials and workmanship for the period lawfully stipulated starting from the date of original purchase. Should the product develop any failure during this period due to defective material and/or workmanship then contact VONROC directly. The following circumstances are excluded from this guarantee:

• Repairs and or alterations have been made or attempted to the machine by unauthorized service centers;
• Normal wear and tear;
• The tool has been abused, misused or improperly maintained;
• Non-original spare parts have been used.

This constitutes the sole warranty made by company either expressed or implied. There are no other warranties expressed or implied which extend beyond the face hereof, herein, including the implied warranties of merchantability and fitness for a particular purpose. In no event shall VONROC be liable for any incidental or consequential damages. The dealers remedies shall be limited to repair or replacement of nonconforming units or parts.

The product and the user manual are subject to change. Specifications can be changed without further notice.
