1. SAFETY INSTRUCTIONS

Read the enclosed safety warnings, the additional safety warnings and the instructions. Failure to follow the safety warnings and the instructions may result in electric shock, fire and/or serious injury. Save the safety warnings and the instructions for future reference.

The following symbols are used in the user manual or on the product:

Read the user manual.

Denotes risk of personal injury, loss of life or damage to the tool in case of nonobservance of the instructions in this manual.

Risk of electric shock.

Immediately remove the mains plug from the mains if the mains cable becomes damaged and during cleaning and maintenance.

Class II machine - Double insulation - You don't need any earthed plug.

Wear eye protection.

Risk of flying objects. Keep bystanders away from the work area.

Do not dispose of the product in unsuitable containers.

The product is in accordance with the applicable safety standards in the European directives.

SAFETY NOTES

THIS APPLIANCE CAN BE USED BY CHILDREN AGED FROM 8 YEARS AND ABOVE AND PERSONS WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES OR LACK OF EXPERIENCE AND KNOWLEDGE IF THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE IN A SAFE WAY AND UNDERSTAND THE HAZARDS INVOLVED. CHILDREN SHALL NOT PLAY WITH THE

APPLIANCE. CLEANING AND USER MAINTENANCE SHALL NOT BE MADE BY CHILDREN WITHOUT SUPERVISION. IF THE SUPPLY CORD IS DAMAGED, IT MUST BE REPLACED BY THE MANUFACTURER, ITS SERVICE AGENT OR SIMILARLY QUALIFIED PERSON IN ORDER TO AVOID A HAZARD. THE PLUG MUST BE REMOVED FROM THE SOCKETOUTLET BEFORE CLEANING OR MAINTAINING THE APPLIANCE.

1) Keep your work area clean: Cluttered work areas and workbenches are a source of injury.

2) The vacuum cleaner should be properly assembled before use.

3) Use only extension cords approved for outdoor use (when the vacuum is used outside) and make sure that they are always in good condition.

4) Protect the electric cables and, in particular, make sure that they are not crushed, pulled, or damaged by edges, sharp pieces, or moving parts; or damaged by corrosive liquids.

5) Do not use a damaged extension cord. Do not make any permanent or temporary repairs to the cable itself.

6) Do not use a vacuum cleaner that has a damaged electric cord. Have a new cable installed by an authorized service center.

7) Do not attach anything else to the socket, electric cords, or extension cord.

8) Before plugging your vacuum cleaner into the electrical outlet, make sure that the voltage and the outlet requirements match what is indicated on the label next to the cord.

9) Do not pull the device by the cord.

10) Your machine should always be turned off before unplugging it from the outlet or the extension cord.

11) Before leaving the device unsupervised (even for a brief time) turn it off and unplug it from the electrical outlet. This should also be done if there is a loss of power.

12) Do not underestimate its power. Always maintain a balanced and stable stance.

13) Keep children and pets away from the machine. When the machine is operating, everyone should stay at a safe distance.

14) The device should not be used by children or by persons who are not familiar with the device or who have not read this instruction manual.

15) The user of the device is responsible for the safety of others while using it.

16) The vacuum should only be used for its intended purposes.

17) Before performing any maintenance, adjustment or cleaning procedures on the vacuum cleaner, turn it off, unplug it from the electrical outlet, and wait for the motor to stop.

18) Be very careful when checking, cleaning, or performing maintenance on the device and wear thick work gloves to protect your hands.

19) Neither the security devices nor the electric cords should be modified or removed from the machine.

20) When using the machine, it should be kept steady and on a stable surface or supported by the body.

21) Only work in full daylight or with appropriate artificial light.

22) We recommend using some type of hearing protection for your ears.

23) If the machine vibrates abnormally, stop the motor and look for the cause immediately. Vibrations usually mean a problem.

24) The vacuum cleaner should be properly checked before each use. Do not use a machine that is not in perfect condition. If you notice a problem that could constitute a danger to the user, have the machine repaired before using it.

25) For safety reasons, replace worn or damaged parts. Use only manufacturer approved replacement parts. Parts from sources other than the manufacturer may not fit properly or may be dangerous or cause injuries. The power cord can only be replaced by specialized customer service centers.

26) Only use the vacuum cleaner in areas that are dry and protected from bad weather. Do not use it outside when it is raining.

27) Store the vacuum in a dry place, out of the reach of children.

28) Do not leave the power cord lying around once cleanup is done; someone could trip.

29) Take care when emptying extremely heavy tanks.

30) To avoid spontaneous combustion, empty the tank after every use.

31) Do not use this machine to vacuum up flammable or combustible liquids, such as gasoline, photocopier powder, or volatile substances; and do not use the machine in areas where these liquids are present. Do not vacuum up acids.

32) Do not vacuum up any materials that are toxic, cancer causing, combustible, or any other dangerous materials, such as asbestos, asbestos dust, arsenic, barium, beryllium, lead, pesticides, or any other substances hazardous to your health.

33) Extreme caution should be used when vacuuming up wood or charcoal, soot, cement, plaster, or plasterboard dust. These particles are extremely fine and can pass through the filters affecting the motor's performance or be blown into the air. If necessary, therefore we strongly recommend a HEPA filter in combination with a dust collection bag when cleaning these types of materials.
34) Do not vacuum up anything that is burning or smoldering, such as cigarettes, cigarette butts, matches, or hot ashes.
35) Never vacuum up salt water; it may destroy the motor.

SAFETY WARNINGS SPECIFIC FOR BLOWING

a) Direct air discharge at work area only. Never at people or animals.
b) Risk of flying objects. Keep bystanders away from the work area.
c) Always wear safety goggles before using the blowing function.

Electrical safety

When using electric machines always observe the safety regulations applicable in your country to reduce the risk of fire, electric shock and personal injury. Read the following safety instructions and also the enclosed safety instructions.

Always check that the power supply corresponds to the voltage on the rating plate.

Connecting to the power supply

Check that the power supply and plug used in accordance with your machine. Have a look at the rating plate on the machine. Any changes should always be carried out by a qualified electrician.

Warning! This machine must be earthed. If not properly earthed this machine can cause an electrical shock. Be sure that the power supply outlet is earthed. If there is any doubt, have it checked by a qualified electrician.

Warning! Avoid contact with the terminals on the plug when installing (removing) the plug to (from) the power supply outlet. Contact will cause a severe electrical shock.

Replacing cables or plugs

Immediately throw away old cables or plugs when they have been replaced by new ones. It is dangerous to insert the plug of a loose cable in the wall outlet.

Using extension cables

Only use an approved extension cable suitable for the power input of the machine. The minimum conductor size is 1.5mm^2 . When using a cable reel always unwind the reel completely.

2. MACHINE INFORMATION

Intended use

This shampoo vacuum cleaner is intended for domestic wet and dry vacuuming in, for example, the house, work room, car or garage. The vacuum cleaner is equipped with a detergent spraying function, this can be used to clean stains in carpet and furniture. This product is not intended for commercial or industrial use.

TECHNICAL SPECIFICATIONS

Model No. VC509AC
Mains voltage 220-240V~
Mains frequency 50-60 Hz
Protection class Class II
Power 1400W
Cable length 6m
Ingress length IPX4
Suction force ≥20kPa
Airflow rate 26 L/s
Container capacity 20 L
Detergent tank capacity 3.5 L
Filter (dry) HEPA filter
Filter (wet) Foam filter

DESCRIPTION

The numbers in the text refer to the diagrams on pages 2-10.

1 On/Off switch

2 Top section

3 Container

4 HEPA filter

5 Foam filter (optional)

6 Foam filter

7 Dust bag

8 Carpet cleaning nozzle

9 Furniture cleaning nozzle

10 Wet & dry floor brush

11 Crevice nozzle

12 Suction tube

13 Handle / detergent spray gun

14 Flexible hose

15 Carrying handle

16 Detergent tank

17 Locking clamp

18 Castor wheel

19 Rear wheel

20 Detergent tube

21 Screw

22 Filter cage

23 Water separator

24 Shut-off float

25 Spray gun trigger

26 Airflow adjustment slider

27 Blower port

28 Fiilter cleaning button

29 Detergent tube

30 Detergent inlet

31 Detergent outlet

3. ASSEMBLY

Before assembly, always switch off the machine and remove the mains plug from the mains.

Attaching the wheels (Fig. B)

1. Press the castor wheels (18) into the base of the machine

2. Use the supplied screws (21) to attach the rear wheels (19) to the base

Attaching the detergent tank (Fig. C-1, C-2, C-3)

1. Fit the detergent tank (16) on the base of the machine

2. Press the detergent tank (16) onto the stainless steel container (3) and secure it.

Install the filters (see next paragraph) before proceeding to attach the detergent tube (29) to the top section (2).

Filters (Fig. D-2, D-3, D-4, D-5)

Ensure to mount the correct filter, depending on the intended application of the machine.

For dry vacuum cleaning:

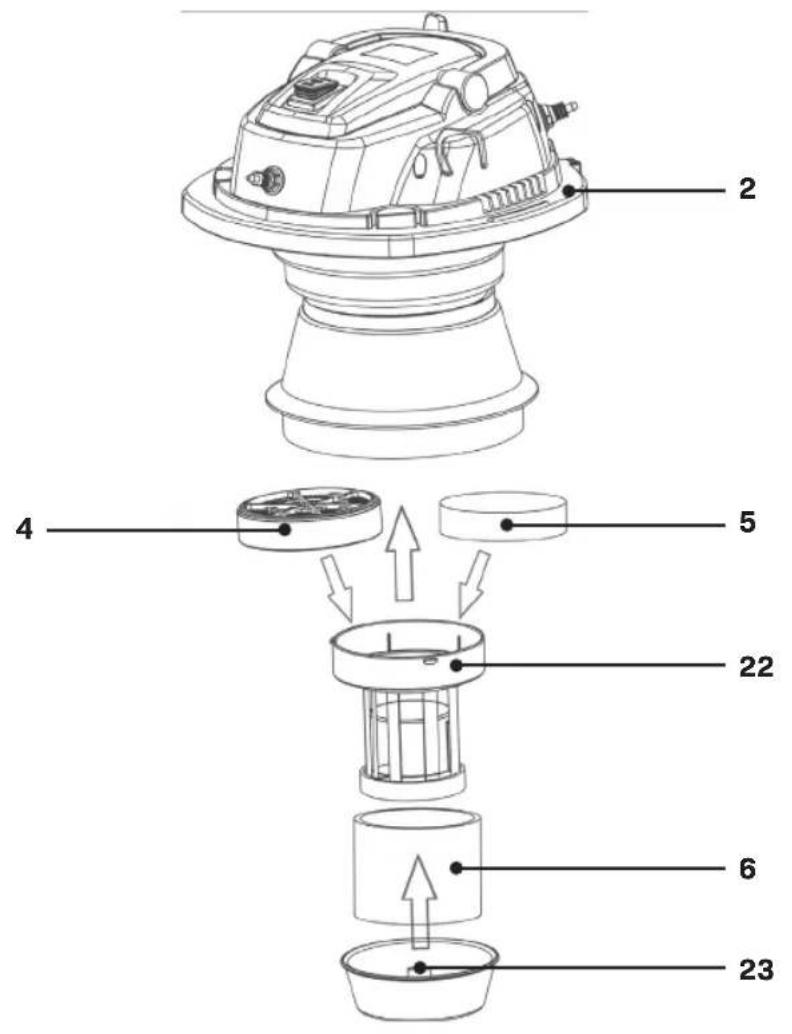

1. Place the HEPA filter (4) in the filter cage (22).
2. Fit the filter cage (22) and water separator (23) onto the top section (2) of the vacuum cleaner.

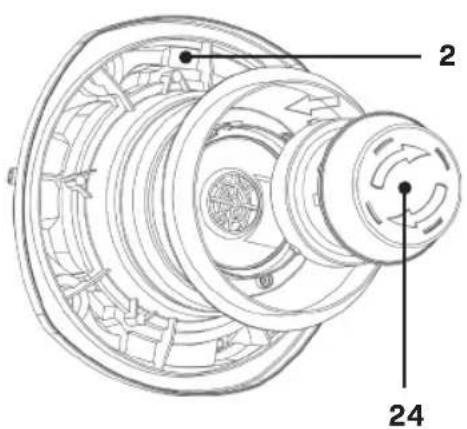

3. Insert the shut-off float (24) and turn clockwise to lock it in place (fig. D-2).

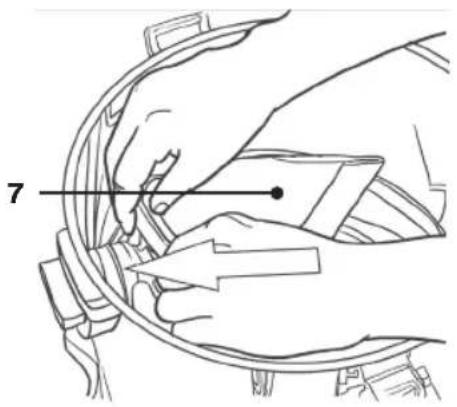

4. Optional/recommended: Place a dust bag (7) in the container (3) (fig. D-3).

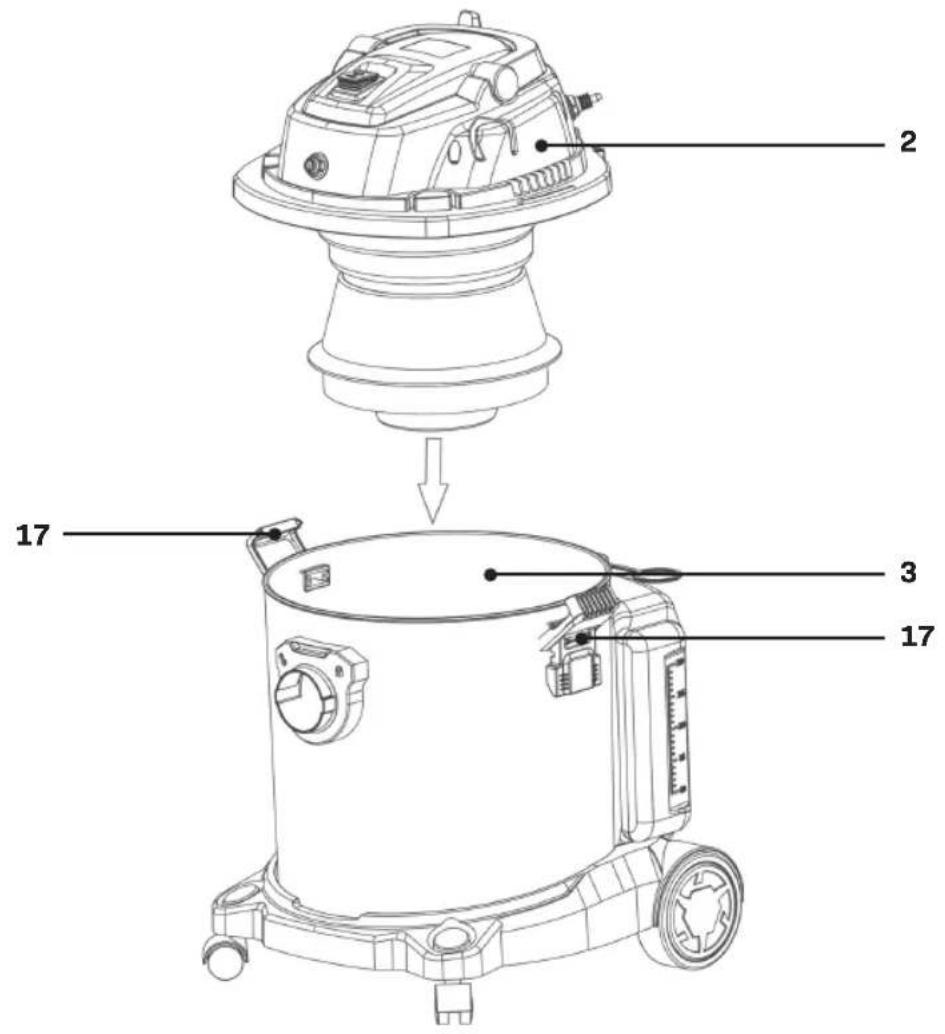

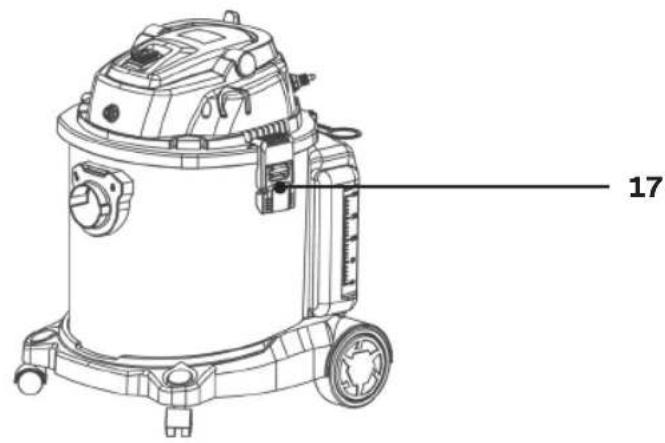

5. Install the top section (2) on the container (3) and secure using the clamps (17) (fig. D-4, D-5).
6. Connect the detergent tube (29) to the inlet (30) on the top section (2) (fig. C-2).

For wet vacuum cleaning:

1. Slide the foam filter (6) onto the filter cage (22).
2. Fit the filter cage (22) and water separator (23) onto the top section (2) of the vacuum cleaner.
3. Insert the shut-off float (24) and turn clockwise to lock it in place (fig. D-2).
4. Install the top section (2) on the container (3) and secure using the clamps (17) (fig. D-4, D-5).
5. Connect the detergent tube (29) to the inlet (30) on the top section (2) (fig. C-2).

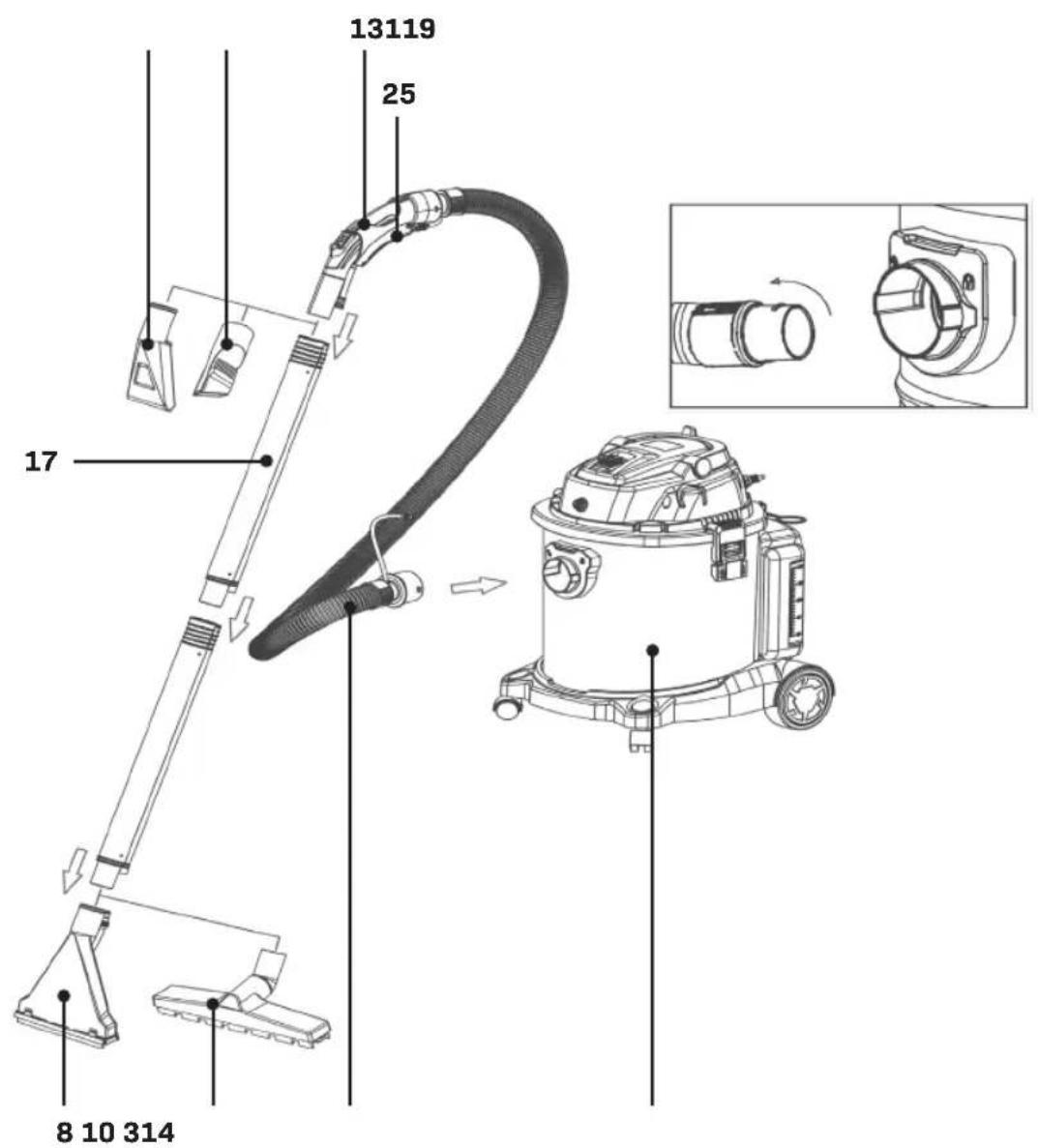

Flexible hose (Fig. E-1, E-2)

1. Insert the end of the flexible hose (14) into the container (3) and turn clockwise to secure.

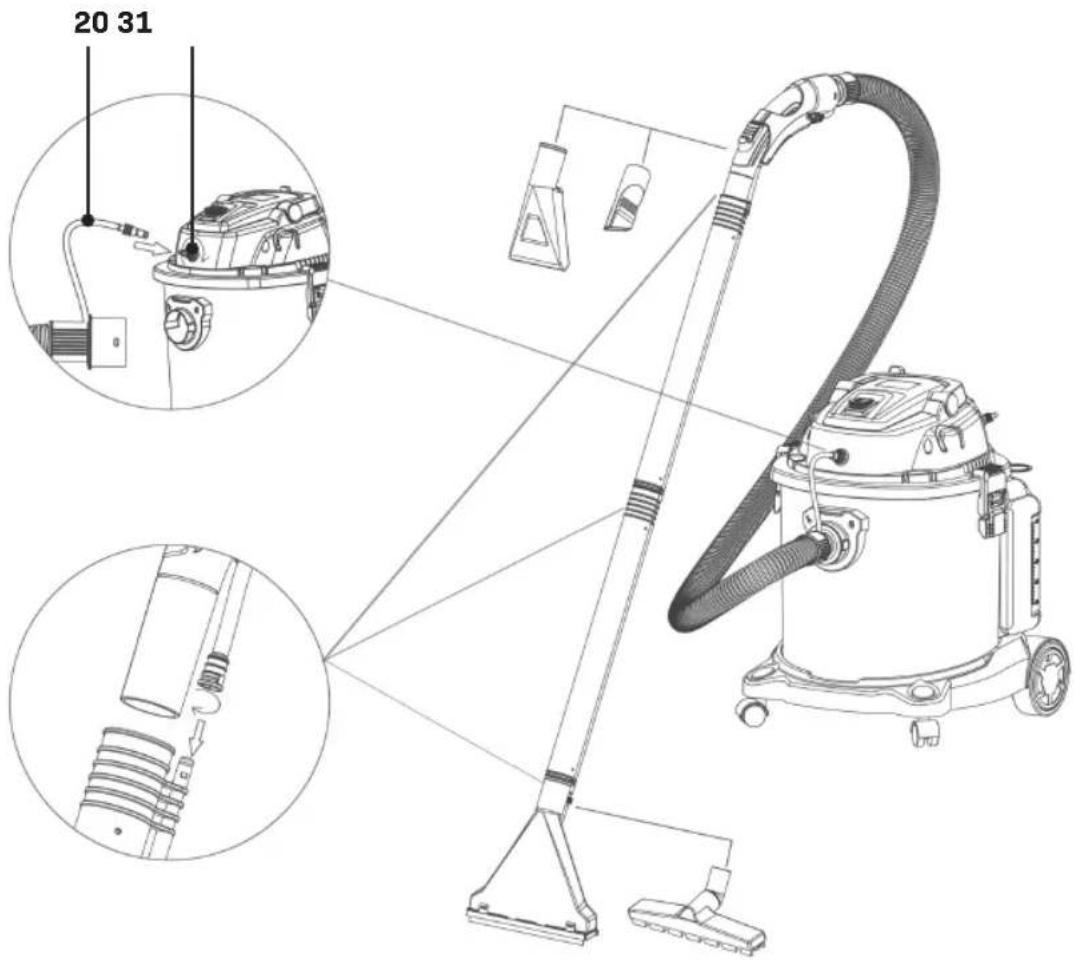

2. Connect the detergent tube (20) to the outlet (31) on the top section (2).

Nozzle/brush (Fig. E-1, E-2)

Select a brush or nozzle depending on the intended application of the machine.

For cleaning carpets:

1. Connect the suction tubes (12) to the handle (13).
2. Mount the carpet cleaning nozzle (8) on the end of the tube (12).

For cleaning furniture:

1. Remove the suction tube (12) from the handle (13).
2. Mount the furniture cleaning nozzle (9) on the handle (13).

For vacuuming floors:

1. Connect the suction tubes (12) to the handle (13).
2. Mount the wet & dry floor brush (10) on the end of the tube (12).

For vacuuming small crevices:

1. Remove the suction tube (12) from the handle (13).
2. Mount the crevice nozzle (11) on the handle (13).

4. OPERATION

Do not operate the vacuum cleaner without a filter installed.

Keep the machine fully upright at all times, especially when vacuuming liquids. If the machine is tilted or turned over liquids may enter into the motor and cause irreparable damage.

Switching on/off and selecting operating mode (Fig. F)

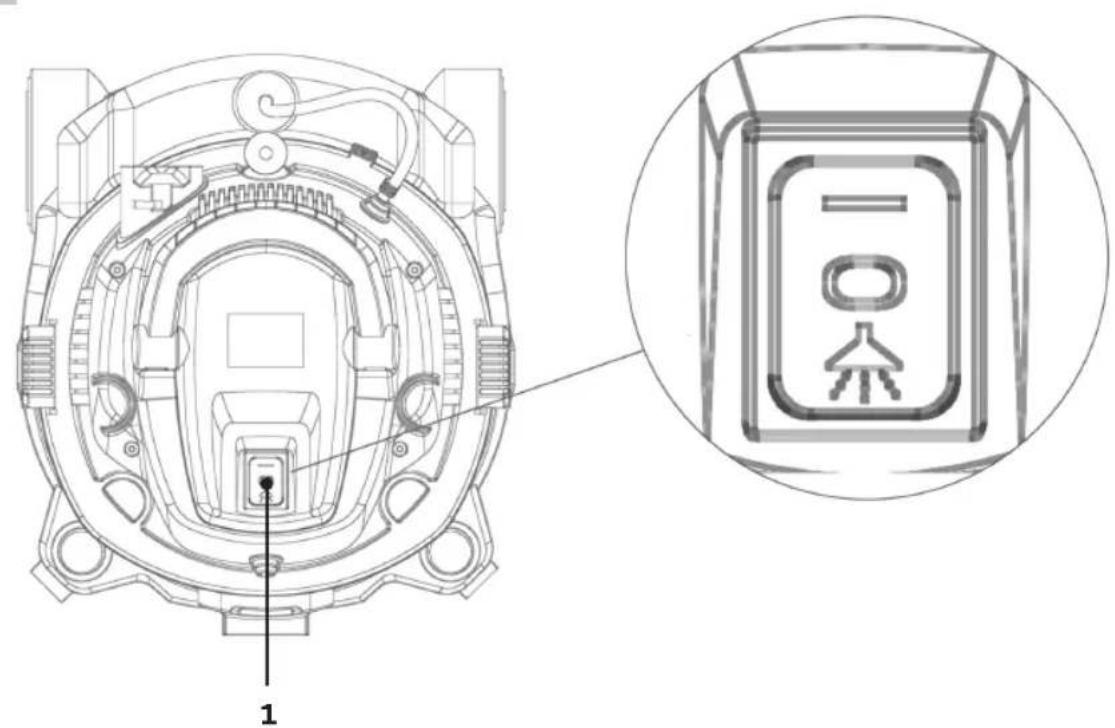

The on/off switch (1) has three settings:

I On, vacuum cleaning only

0 Off

☐ Vacuum cleaning on and detergent spray enabled

Carpet and furniture cleaning (Fig. G)

Vacuuming will remove larger particles, which can't be cleaned effectively with the cleaning nozzles. It is highly recommended to first vacuum the carpet or furniture before cleaning. Use the crevice nozzle (11) to remove particles from furniture crevices.

Preparation:

1. Remove the dust bag (7) from the container (3).

2. Install the foam filter (6) (refer to the previous paragraph "Filters").

3. Mount the applicable cleaning nozzle (8/9) on the machine (refer to the previous paragraph "Nozzle/brush").

4. Fill the detergent tank (16)
5. Set the on/off switch (1) to the position.
6. Press and hold the spray gun trigger (25) until detergent starts to spray from the nozzle (8/9). Note that it may take some time before the detergent fills the tube (20) and reaches the nozzle.

Cleaning:

1. Apply the nozzle (8/9) to the carpet or furniture surface.
2. Press the trigger (25) to spray detergent while moving the nozzle slowly and evenly across the surface.

Dry vacuuming

Clean the HEPA filter (4) regularly to maintain the suction power.

To avoid clogging of the HEPA filter (4) it is recommended to use a dust collection bag (7).

Very small particles, such as dust from cement, soot and plaster are too fine to be used with only the HEPA filter (4) and risk getting into the motor and damaging it. Therefore we strongly recommend using a dust collection bag (7) when cleaning these types of materials.

An overfilled, clogged dust collection bag (7) can burst. Make sure to replace the dust collection bag in a timely manner!

1. Install the HEPA filter (4) (refer to the previous paragraph "Filters").
2. Place a dust bag (7) in the container (3).
3. Mount the applicable brush or nozzle (10/11) on the machine (refer to the previous paragraph "Nozzle/brush").
4. Set the on/off switch (1) to the "I" position.

Wet vacuuming

The vacuum cleaner is equipped with a cut-off float (24). The suction power will be cut off when the maximum filling level is reached. When this happens, switch the

vacuum cleaner off immediately. Remove the power plug from the mains outlet and empty the container (3).

Clean the float (24) at regular intervals, and inspect it for damage. A damaged float must be replaced to ensure the safe operation of the machine.

Never reach into the water to be suctioned up. Danger of electric shock.

Immediately switch the machine off if foam forms or liquids escape!

Do not use a dust collection bag (7) when vacuuming liquids.

1. Remove the dust bag (7) from the container (3).
2. Install the foam filter (5) (refer to the previous paragraph "Filters").
3. Mount the applicable brush or nozzle (10/11) on the machine (refer to the previous paragraph "Nozzle/brush").
4. Set the on/off switch (1) to the "l" position.

Airflow adjustment (Fig. G)

Use the slider (26) on the handle (13) to adjust the suction.

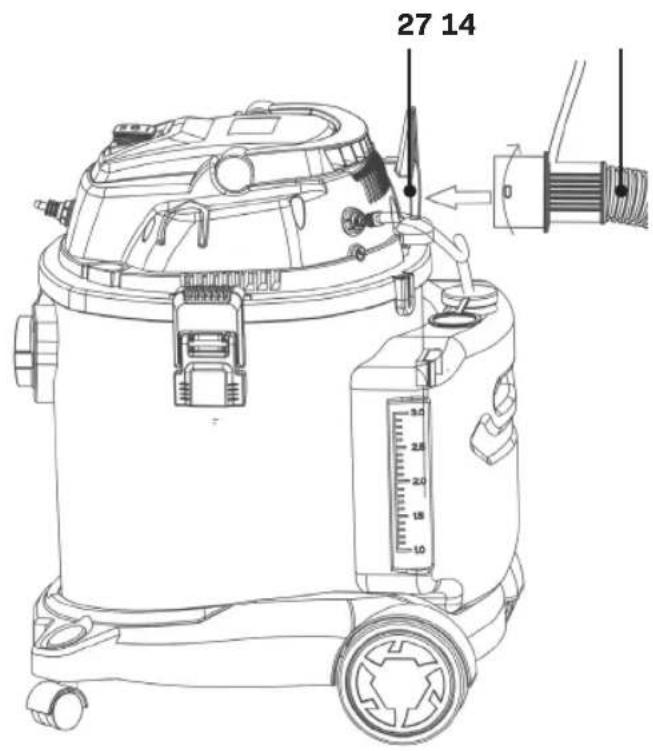

Blower function (Fig. A, H)

Empty the container (3) and make sure it is clear of debris before using the blower function. The performance of the blower function may be improved by removing the filters (4/5/6).

Always wear safety goggles before using the blower function.

Risk of flying objects. Keep bystanders away while using the blower function.

1. Disconnect the flexible hose (14) from the container (3).

2. Insert the end of the flexible hose (14) in the blower port (27) on the other side of the machine and turn clockwise to lock it in place.

3. Set the on/off switch (1) to the "I" position. Air will blow out of the flexible hose.

Shut-off float

When the machine is used to clean up liquids the container may become full at a certain point. The shut-off float (24) in the air inlet will activate once the container is at full capacity. Activation of the float will cut off the suction power to prevent water from entering into the air inlet. When this happens, turn off the machine immediately and empty the container before continuing to use the machine.

The shut-off float (24) may also be activated when the machine is tilted or turned over. Turn off the machine immediately and ensure it is in a fully upright position before continuing to use it.

5. MAINTENANCE

Before cleaning and maintenance, always switch off the machine and remove the mains plug from the mains.

Clean the machine casings regularly with a soft cloth, preferably after each use. Make sure that the ventilation openings are free of dust and dirt. Remove very persistent dirt using a soft cloth moistened with soapsuds. Do not use any solvents such as gasoline, alcohol, ammonia, etc. Chemicals such as these will damage the synthetic components.

Container

Always empty and dry the container (3) after using to the machine to vacuum liquids. The container is not designed to store liquids for a prolonged period and may corrode if it is not dried out after each use.

Built-in filter cleaning function (Fig. I)

When you notice a decrease in suction power, the filters may be clogged. The machine is equipped with a cleaning function to help unclog the filters.

1. Set the on/off switch (1) to the "I" position.

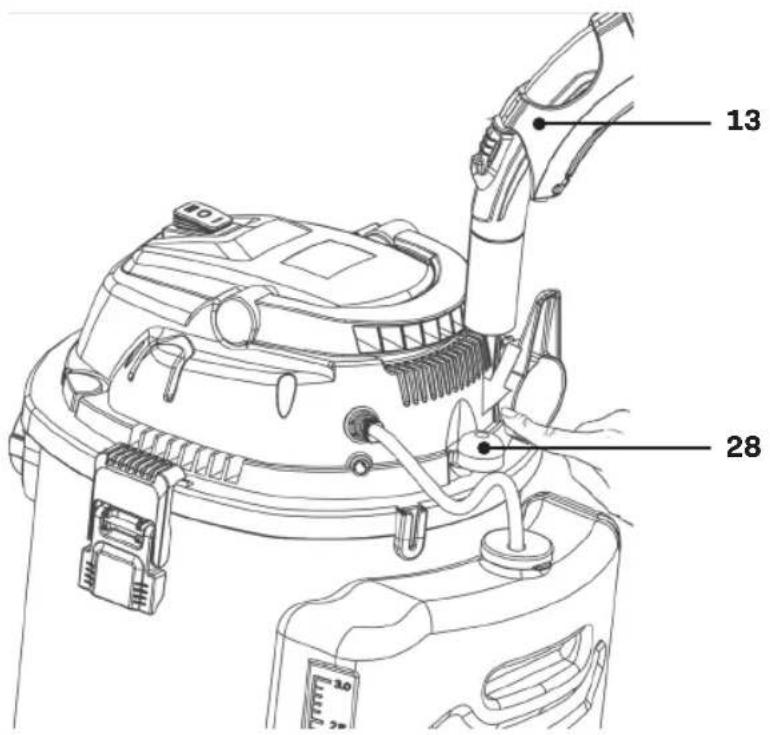

2. Push down on the filter cleaning button (28) a few times to unclog the filter.

Temporarily blocking the vacuum cleaner suction will make this cleaning function more effective at unclogging the filter. The vacuum handle (13) may be blocked by hand, while pressing the button (28) with the other hand. For one-handed operation, use the tip of the handle (13) to press down on the button (28) – this will simultaneously enable the cleaning function and block the airflow in the handle.

Manually cleaning the filters

For optimal performance it is recommended to regularly change or clean the filters (4/5/6) depending on level of use.

1. Release the clamps (17) and remove the top section (2) from the container (3).
2. Carefully remove the filters (4/5/6) from the filter cage (22).
3. Use a mild soap and water solution to clean the filters. Rinse the filters with clean water afterwards.
4. Allow the filters to air-dry before re-installing and using them again.
5. Re-install the filters (refer to previous paragraph "Filters")

Shut-off float and filter cage

Regularly clean the shut-off float and the filter cage using a soft cloth. While cleaning, inspect the parts for damage. A damaged shut-off float or filter cage must be replaced to ensure safe operation of the machine.

ENVIRONMENT

Faulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

WARRANTY

VONROC products are developed to the highest quality standards and are guaranteed free of defects in both materials and workmanship for the period lawfully stipulated starting from the date of original purchase. Should the product develop any

failure during this period due to defective material and/or workmanship then contact VONROC directly.

The following circumstances are excluded from this guarantee:

• Repairs and or alterations have been made or attempted to the machine by unauthorized service centers;
• Normal wear and tear;
• The tool has been abused, misused or improperly maintained;
• Non-original spare parts have been used.

This constitutes the sole warranty made by company either expressed or implied. There are no other warranties expressed or implied which extend beyond the face hereof, herein, including the implied warranties of merchantability and fitness for a particular purpose. In no event shall VONROC be liable for any incidental or consequential damages. The dealers remedies shall be limited to repair or replacement of nonconforming units or parts.

The product and the user manual are subject to change. Specifications can be changed without further notice.

VEILIGHEIDSWAARSCHUWINGEN

DIT APPARAAT MAG WORDEN GEBRUIKT DOOR KINDEREN VANAF 8 JAAR EN DOOR PERSONEN MET VERMINDERDE LICHAMELIJKE, ZINTUIGLIJKE OF GEESTELIJKE VERMOGENS, OF MET EEN GEBREK AAN ERVARING EN KENNIS, MITS ZIJ ONDER TOE- ZICHT STAAN OF GEÏNSTRUEERD ZIJN BETREFFENDE HET VEILIG GEBRUIK VAN HET APPARAAT EN ZICH

BEWUST ZIJN VAN DE ERMEE VERBONDEN RISICO'S. KINDEREN MOGEN NIET MET HET APPARAAT SPELEN. ZONDER TOEZICHT MOGEN REINIGING EN ONDERHOUD NIET DOOR KINDEREM WORDEN UITGEVOERD. OM GEVAARLIJKE SITUATIES TE VOORKOMEN MOET HET NETSNOER DOOR DE FABRIKANT, ZIJN SERVICEMEDEWERKERS OF ANDERE GEKWALIFI-CEERDE PERSONEN WORDEN VERVANGEN ALS HET IS BESCHADIGD. DE STEKKER MOET UIT HET STOP-CONTACT WORDEN GETROKKEN VOORDAT U HET APPARAAT REINIGT OF ONDERHOUD UITVOERT.

2. INFORMATIE OVER HET APPARAAT

Bedoeld gebruik
