USER MANUAL PLSD 60 C3 PARKSIDE

Two black industrial soldering tools: one with a digital temperature display and the other a perforated device (no visible text or symbols)

DIGITALE LÖTSTATION/DIGITAL SOLDERING STATION/STATION DE SOUDAGE NUMÉRIQUE PLSD 60 C3

DE AT CH

DIGITALE LÖTSTATION

Gebrauchsanleitung

GB IE

DIGITAL SOLDERING STATION

Instructions for use

FR BE

STATION DE SOUDAGE NUMÉRIQUE

Mode d'emploi

NL BE

GB/IE Instructions for use Page 15

Labeled diagram of a soldering iron with numbered parts for identification

B

16 17 20 POWER SET 888°C 18 300 400 - + 19

List of pictograms used ...... Page 16

Introduction Page 16

Intended use.... Page 17

Scope of delivery ...... Page 17

Parts list ...... Page 17

Technical data.... Page 17

General safety instructions.... Page 18

Before use.... Page 19

Replacing the soldering tip.... Page 19

Use Page 19

Switching the product on/off Page 19

Setting the solding temperature.... Page 20

Using the temperature selectors.... Page 20

Solder sponge Page 20

Soldering.... Page 21

Cleaning and maintenance Page 21

Replacement parts/Accessories.... Page 21

Disposal Page 22

Warranty.... Page 22

Warranty claim procedure.... Page 23

Service Page 23

List of pictograms used
	DANGER! – Designating a hazard with high risk, which will result in death or severe injury if not avoided (e.g. risk of suff ocation)		Danger – risk of electric shock!
	WARNING! – Designating a hazard with moderate risk, which can result in death or severe injury if not avoided (e.g. risk of electric shock)		Alternating current/voltage
	CAUTION! – Designating a hazard with low risk, which could result in minor or moderate injury if not avoided (e.g. risk of scalding)		Read the user manual.
	NOTICE! – Warns of possible damage to property/the product if not avoided (e.g. risk of short circuit)		Symbol for a Protection Class II product
V~	Voltage Watt	W
	Inhaling the vapours may lead to headaches and fatigue symptoms.		Always remove the mains plug 4 from the mains socket before cleaning and maintenance.
	CE mark indicates conformity with relevant EU directives applicable for this product.	[3722]	Safety information Instructions for use

DIGITAL SOLDERING STATION

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal.

Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

The product is intended for electronic soldering for hobby and DIY applications. The product is intended for the following applications:

-Soldering
-Welding of plastics
-Application of ornaments

Due to its design, the product is particularly suitable for hard-to-reach areas and fine soldering work.

■ Only use the product as described and only for the indicated field of application.
■ The product is not intended for commercial use.
■ Only use the product in dry indoor areas.
■ Any other use or modification of the product is considered to be unauthorised use and entails considerable risk of accidents.
The manufacturer assumes no liability for damages resulting from unauthorised use.

- Scope of delivery

1 Digital soldering station
2 Soldering tips with pointed head (1 × pre-fitted)

1 Soldering tip with flat head
1 Solder, ∅ 0.8 mm, 10 g
1 Solder, ∅ 1.0 mm, 10 g
1 Soldering sponge
1 User manual

Parts list

Fig. A

1 (On/off button)
2 Storage compartment for solder and soldering tip
3 Solder
4 Mains cord with mains plug
5 Soldering iron holder
6 Soldering sponge
7 Soldering iron

8 Retaining nut
9 Soldering tip with pointed head
10 Fixing sleeve
11 Soldering tip with flat head
12 + (Increase the soldering temperature)

13 – (Decrease the soldering temperature)
14 400 (Temperature selector for 400 °C)
15 300 (Temperature selector for 300 °C)

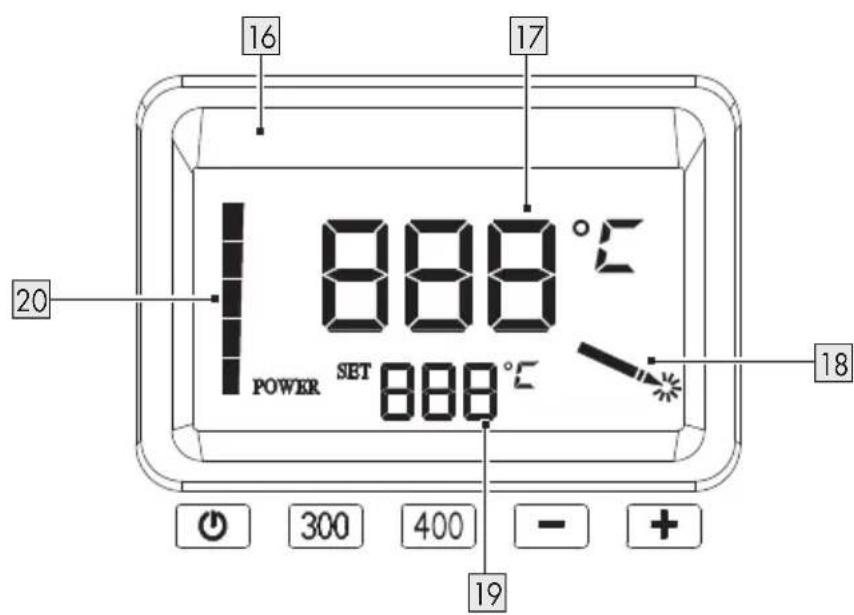

Fig. B

16 LCD display
17 Actual temperature
18 (Soldering iron indicator)
19 Set temperature
20 POWER indicator (Heating of the soldering tip)

● Technical data

Rated voltage: 230 V~ (AC)
Rated frequency: 50 Hz
Rated power consumption: 60 W
Protection class:	II / ☐(double insulation)
Temperature range:	approx.200 °C to 480 °C
Mains cord:-From the soldering station to the mains plug: 1.5 m-From the soldering iron to the soldering station:	1.2 m

General safety instructions

BEFORE USING THE PRODUCT, FAMILIARISE YOURSELF WITH ALL OF THE SAFETY INFORMATION AND INSTRUCTIONS FOR USE! WHEN PASSING THIS PRODUCT ON TO OTHERS, ALSO INCLUDE ALL THE DOCUMENTS!

In the case of damage resulting from non-compliance with these operating instructions the warranty claim becomes invalid! No liability is accepted for consequential damage! In the case of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions, no liability is accepted!
This product can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.
Children shall not play with the product. Keep the product and its mains cord out of reach of children.
If the mains cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

⚠️ DANGER! Danger of death and accidents for toddlers and children! Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Always keep children away from the packaging material.

⚠ NOTICE! Risk of electric shock!

- Do not use the product if the handle, mains cord or mains plug is damaged. Never open the product. - In case of danger, immediately remove the mains plug from the mains socket.

⚠️ CAUTION! Risk of burns!

Before using, check that the soldering tip is properly attached to the product.
■ Never touch the heated soldering tip or the molten solder.
- Allow the product to cool down before changing, cleaning or checking any components.
The hot soldering tip and its mounting must not come into contact with skin, hair, etc.
■ After use: Allow the product to cool down only in the air. Under no circumstances quench with water!

⚠️ CAUTION! Risk of fire!

■ Only use the soldering iron holder for putting down the hot product.
During work breaks: Place the product in the soldering iron holder. Remove the mains plug from the mains socket.
- Keep the product away from inflammable material.
During use: Do not apply excessive pressure to the soldering tips. When pressure is applied, the thin soldering tips may bend.
- Handle the product carefully to avoid starting a fire.
■ Never leave the product unattended when it is switched on.

⚠️ CAUTION! Risk of injury! Keep your hands away from the heated workpiece. Heat can be released through the workpiece.

⚠️ CAUTION! Risk of poisoning!

■ Do not breathe fumes.

In the case of working for prolonged periods, in which hazardous fumes may arise, always ensure adequate ventilation of the workplace. Wear protective clothing such as protective gloves, mouth protection and a working apron.
- Avoid eating, drinking and smoking in rooms where soldering is taking place. Otherwise, traces of lead adhering to the hands could get into the human organism through food or cigarettes.
Before use: Remove inflammable objects, liquids and gases from the working area of the product. Keep your work area clean to prevent accidents.
■ Always thoroughly wash your hands after soldering.

⚠ NOTICE! Risk of product damage!

• Do not let the hot soldering tip touch the plastic parts of the soldering iron holder.
  ■ After use: Put the product in the soldering iron holder and allow it to cool off completely.
• When the product is not being used: Keep the product in a safe place protected from dust and moisture.

Before use

● Replacing the soldering tip

CAUTION! Risk of burns!

▶ Never heat the soldering iron 7 without fitting a soldering tip 9/11.

NOTE

Only remove the soldering tip 9/11, after:

-the product has been switched off -the soldering tip has cooled down

1. Before using the product for the first time and also when using a new soldering tip 9/11: Tin the soldering tip (see "Soldering").
2. Before use: Remove the protective cap from the soldering tip 9/11.
3. Loosen and remove the retaining nut 8.
4. Pull the fixing sleeve 10 off the soldering iron 7.
5. Replace the soldering tip 9/11.
6. Reassembling the soldering iron 7: Proceed in reverse order.

Use

- Switching the product on/off

Switching on

NOTE

When restarting the product: The last temperature setting shows on the set temperature 19 indicator.

1. Connect the mains plug 4 with a suitable mains socket.
2. Press 1.

The LCD display 16 first shows the set temperature (200 °C).

Afterwards the LCD display shows the actual temperature 17. The POWER indicator 20 indicates when the product is in heating mode.

Switching off

NOTE

If the product has not been used for the last 30 minutes: The product switches off.

1. Press ⏻ 1. 18 flashes on the LCD display 16. The product is cooling down to approx. 60 °C. The product switches off.

2. Place the product in the soldering iron holder 5.

3. Remove the mains plug 4 from the mains socket.

- Setting the solding temperature

NOTE

The prerequisite for perfect soldering is the use of suitable solder.
▶ Perfect soldering can only be achieved when the correct soldering temperature is achieved.
If the soldering temperature is: -Too low: The solder does not flow sufficiently and causes dirty soldering joints (so-called cold soldering joints). -Too high: The solder burns and the solder does not flow. In addition, the materials to be processed can be destroyed.

☐ The following temperature settings are for the most common applications.

Temperature	Application
approx. 200 °C	Melting point of the most commonly used soft solder.
approx. 300 °C	Normal operation, e.g. when using lead-free solder.
approx. 400 °C	High soldering temperature, e.g. for removing solder from small soldered joints.
approx. 450 °C to 480 °C	Maximum soldering temperature, e.g. for removing solder from larger soldered joints.
Differences are possible depending on the solder/manufacturer.

Changing the soldering temperature continually in 5 °C increments

1. Press and hold + 12 or - 13.
2. Release + 12 or - 13 when you have reached the required temperature.
   The actual temperature 17 is displayed in the LCD display 16 after 3 seconds.

Changing the soldering temperature in 5 °C increments

☐ Press + 12 or - 13. The set temperature 19 is displayed on the LCD display 16.

● Using the temperature selectors

NOTE

In addition to the temperature setting with +12 or -13, the product has 2 temperature selectors:

$$ - 3 0 0 ^ {\circ} \mathrm{C} $$

$$ - 4 0 0 ^ {\circ} \mathrm{C} $$

□ Press 400 14 or 300 15.

The selected temperature is shown in the set temperature 19 indicator.

- Solder sponge

⚠ NOTICE! Risk of product damage!

The hot soldering tip 9/11 must never come into contact with a dry solder sponge 6. Risk of damaging the solder sponge.

NOTE

▶ Use the soldering sponge 6 to clean the soldering tip 9/11.

Before using the solder sponge 6:

1. Moisten the solder sponge 6 slightly.

2. Remove any excess liquid from the vicinity of the product.

Soldering

⚠️ CAUTION! Risk of poisoning!

Inhaling soldering vapours may lead to headaches and fatigue symptoms.

NOTE

Flux is a chemical compound that helps prepare the metal surfaces for soldering by removing oxides, promoting wetting, and enhancing the flow of solder.
The fl ux is either contained in the solder or it is applied separately.
When purchasing fl ux: Find out about the type of application and the appropriate solder.

1. Clean the soldering tip 9/11 on a moist solder sponge 6.
2. After cleaning: The soldering tip 9/11 must be tinned. Tin the hot soldering tip 9/11 by melting solder 3 on it.
3. Move the soldering tip 9/11 to the soldering point and heat it.
4. Place the solder 3 (with fl ux) in between the soldering point and the soldering tip 9/11.
5. Apply additional solder 3 until the entire joint is covered in solder.
6. Immediately remove the soldering tip 9/11 to avoid overheating the molten solder.
7. Let the solder solidify and avoid vibrations.

● Cleaning and maintenance

⚠ WARNING! Risk of injury!

Always remove the mains plug 4 from the mains socket before cleaning and maintenance.

⚠ WARNING! Risk of injury!

Allow the product to cool down before cleaning or maintaining the product.

⚠ NOTICE! Risk of product damage!

▶ Never use sharp objects, petrol, solvents or cleaners that can damage plastic.
Do not allow liquids to enter the inside of the product.

□ Clean the product after each use: Use a cloth and a mild detergent, if required, to clean the product's housing.

● Replacement parts/Accessories

□ Customers can obtain compatible replacement parts and accessories via www.optimex-shop.com.
□ Have the order number ready for your order.
☐ Orders can only be placed and processed online.
☐ Contact the Lidl service hotline (see “Service”) for further information.

Part Order number
3 Solder 0.8 mm 10 g Lead-free On a plastic roll	99945870202
6 Soldering sponge	99945870201

Disposal

CAUTION! Risk of poisoning!

▶ Never throw soldering waste into household waste. Soldering waste is hazardous waste. National and international safety, health and work safety regulations must be observed.

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics/20–22: paper and fibreboard/80–98: composite materials.

Product:

The product and packaging materials are recyclable and are subject to extended producer responsibility. Dispose them separately, following the illustrated Info-tri (sorting information), for better waste treatment.

The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of material or manufacturing defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Keep the original sales receipt in a safe location as this document is required as proof of purchase.

Any damage or defects already present at the time of purchase must be reported without delay after unpacking the product.

Should the product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. The warranty period is not extended as a result of a claim being granted. This also applies to replaced and repaired parts.

This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty covers material or manufacturing defects. This warranty does not cover product parts subject to normal wear and tear, thus considered consumables (e.g. batteries, rechargeable batteries, tubes, cartridges), nor damage to fragile parts, e.g. switches or glass parts.

● Warranty claim procedure

So that your request can be processed quickly, please observe the following instructions:

For all inquiries, please have the receipt and item number (IAN 458702_2401) ready as proof of purchase.

The article number can be taken from the identification label on the product, engraving on the product, the front cover of your manual (at the bottom left), or the sticker on the back or bottom of the product.

If malfunctions or other defects arise, first contact the service department indicated below by phone or email.

You can then send a product recorded as defective to the communicated service address postage-free, making sure to enclose proof of purchase (receipt) and information on the details of the defect and when it occurred.

PDF ONLINE parkside-diy.com

You can download and view this and numerous other manuals at parkside-diy.com. This QR code takes you directly to parkside-diy.com. Choose your country and use the search screen to search for the operating instructions. Entering the item number (IAN) 458702_2401 takes you to the operating instructions for your item.

Service

GB Service Great Britain

Tel.:[phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.:[phone]

E-Mail: [e-mail]

WAARSCHUWING! Verwondingsgevaar!

WAARSCHUWING! Verwondingsgevaar!

⚠️ FORSIGTIG! Brandfare!

⚠️ FORSIGTIG! Fare for forgiftning!

⚠️ FORSIGTIG! Fare for forgiftning!

⚠️ FORSIGTIG! Fare for forgiftning!
