Introduction

Congratulations on the purchase of your new device. With it, you have chosen a high quality product.

During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed.

The operating instructions constitute part of this product. They contain important information on safety, use and disposal. Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified.

Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.

Intended purpose

The device can be used for cutting notches, edges, long holes and profiles on workpiece surfaces made from wood, plastics, light-weight materials.

Any other use that is not explicitly approved in these instructions may result in damage to the equipment and represent a serious danger to the user.

For security reasons, the device is not intended for children and young people under the age of 16. Young people aged 16 and over may only use the device under adult supervision.

The device is not designed for commercial use. Commercial use will invalidate the guarantee. The manufacturer cannot be held liable for damage when the appliance is not used in conformity with its intended purpose or due to incorrect operation.

The electric tool was designed for the following cutter types:

• Profile cutter (∅ 25 mm, R 4 mm)
• Rounding cutter (∅ 22 mm, R 6.3 mm)
• V-notch cutter (∅ 12.7 mm, < 90°)
• Notch cutter (∅ 12 mm)
• Notch cutter (∅ 6 mm)
• Fillet cutter (∅ 22 mm, R 6.3 mm)

The device is part of the X 12 V TEAM series from Parkside and can be operated using batteries of the X 12 V TEAM series from Parkside. The batteries may only be charged using chargers of the X 12 V TEAM series from Parkside.

General description

The illustrations are on the front and back foldout pages.

Extent of the delivery

Carefully unpack the appliance and check that it is complete. Dispose of the packaging material correctly.

• Cordless Router
• Suction adapter
• Parallel stop
• Collet chuck 6 mm
• Collet chuck 8 mm (preassembled)
• 6-part cutter set
• Combination wrench
• Case
• Instruction Manual

Battery and charger are not included.

Overview

Machine:

1 Rechargeable battery

2 Battery release button

3 Upper handle

4 Right handle

5 Drive unit

6 Button for cutting depth rough adjustment

7 Setting knob for cutting depth fine adjustment

8 Locking screw Cutting depth adjustment

9 Baseplate

10 Spindle locking button

11 Cap nut

12 Collet chuck 8 mm, preassembled (not visible)

13 Recess for suction adapter

14 Parallel stop receptor

15 Retaining screw

16 Cutting depth adjustment locking knob

17 Battery charge level indicator

18 On/Off switch

Accessories:

19 Combination wrench

20 Collet chuck 6 mm

21 Suction adapter

22 Parallel stop

23 Charger

6-part cutter set:

24 Profile cutter (∅ 25 mm, R 4 mm)

25 Rounding cutter

(∅ 22 mm, R 6.3 mm)

26 V-notch cutter (∅ 12.7 mm, <90°)

27 Notch cutter (∅ 12 mm)

28 Notch cutter (∅ 6 mm)

29 Fillet cutter (∅ 22 mm, R 6.3 mm)

Functional description

The battery-powered router cutter is a power tool equipped with a rotating cutting tool (milling cutter) and a baseplate. Stepless cutting depth adjustment and dust suction enable comfortable working. Refer to the following descriptions for a functional description of the controls.

Technical data

Cordless Router ...... POFA 12 B3

Motor voltage U_max .....12 V === Idling speed n_o .....19000 rpm Milling cutter diameter.....max. 36 mm Rotational speed of cutter n .....max. 35000 rpm Tool holder .....6 mm/8 mm Weight (without rechargeable battery) .....approx.1,1 kg Sound pressure level

(L_pA) .....66,8 dB; K_pA=3 dB Sound power level (L_WA) .....77,8 dB; K_WA=3 dB Vibration (a_h) .....2,031 m/s²; K=1.5 m/s² Temperature.....max. 50 °C Charging process.....4-40 °C Operation.....-20 - 50 °C Storage.....0-45 °C

Noiseandvibrationvalueshavebeen determined according to the standards and regulations mentioned in the declaration of conformity.

The specified vibration emission value and the stated noise emission value have been measured according to a standardised test method and can be used to compare one power tool with another.

The specified vibration emission value and the stated noise emission value can also be used for a provisional assessment of the load.

Warning: The vibration emission value whilst actually using the power tool may vary from the given values depending on the type and way in which the power tool is used as well as the type of workpiece being processed in particular. Try to keep the exposure to vibrations as low as possible. One example of a measure to reduce vibration exposure when using the tool is limiting the working hours. All parts of the operating cycle have to be considered while doing so (for example, times when the power tool is switched off and times when it is switched on but running without any load).

Charging time

The device is part of the X 12 V TEAM series from Parkside and can be operated using batteries of the X 12 V TEAM series from Parkside. Batteries of the X 12 V TEAM series from Parkside may only be charged using chargers of the X 12 V TEAM series from Parkside.

We recommend that you operate this appliance with the following batteries only: PAPK 12 A3, PAPK 12 B3, PAPK 12 D1 We recommend charging these batteries with the following chargers: PLGK 12 A2, PLGK 12 B2, PDSLG 12 A1.

Charging time (min.)	PAPK 12 A1 12 A3	PAPK 12 A2	PAPK 12 B1 12 B2 12 B3	PAPK 12 D1
PLGK 12 A1 PLGK 12 A2 PLGK 12 A3	60 6	0 120	150
PLGK 12 B2 PDSLG 12 A1	30 4	5 60 80

Safety instructions

Ensure that the safety instructions are observed when operating the appliance.

Symbols in the manual

Warning symbols with information on damage and injury prevention.

Hazard symbol with information on the prevention of personal injury caused by electric shock.

Instruction symbols with information on preventing damage.

Wear protective gloves.

Remove the battery from the device.

Help symbols with information on improving tool handling.

Symbols on the appliance

Attention!

Remove the battery from the device before all cleaning and maintenance work. Risk of injury!

Read the manual.

Wear ear protection.

Wear eye protection.

Wear breathing protection.

Do not wear gloves while milling.

Electrical appliances must not be disposed of with the domestic waste.

Direction of rotation of the milling utter

Milling cutter fine adjustment

This device is part of the X 12 V TEAM series

General safety instructions for power tools

WARNING! Read all safety notices, instructions, illustrations and technical data that have been provided with this power tool. Omissions in the compliance with safety directions and instructions can cause electrical shock, fire and/or severe injuries.

Retain all safety directions and instructions for future use.

The term "Power Tools" used in the safety instructions refers to mains-operated power tools (with power cord) and to battery-operated power tools (without power cord).

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

GBMT

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operation of the power tool in a damp environment is unavoidable, please use a residual current circuitry. The use of a residual current circuitry reduces the risk of an electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention white operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and

collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

h) Do not allow yourself to be lulled into a false sense of security and do not disregard the safety rules for power tools, even if you are familiar with the power tool after using it many times. Careless action can lead to serious injuries within a fraction of a second.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may af-

fect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grip surfaces dry, clean and free from oil and grease. Slippery handles and grip surfaces do not permit safe operation and control over the power tool in unexpected situations.

5) CAREFUL HANDLING AND USE OF BATTERY DEVICES

a) Charge the batteries only in chargers that are recommended by the manufacturer. Risk of fire if a charger that is suitable for a specific type of battery is used with other batteries.

b) In the power tools, use only the batteries designed for the purpose. The use of other batteries may result in injuries and risk of fire.

c) Keep the unused battery away from paper clips, coins, keys, nails, screws and other small metal objects, which could cause bridging of the contacts.

A short circuit between the battery contacts may cause burns or fire.

GBMT

d) If used incorrectly, liquid may leak from the battery. Avoid contact with this. In the event of accidental contact, rinse off with water. If the liquid gets into eyes, seek medical assistance. Leaking battery fluid may cause skin irritations or burns.
e) Do not use damaged or altered batteries. Damaged or altered batteries can be unpredictable and lead to fire, explosion or risk of injury.
f) Do not expose batteries to fire or elevated temperatures. Fire or temperatures over 130°C can cause an explosion.
g) Follow all instructions for charging and never charge the battery or the battery-powered tool outside the temperature range stated in the operating instructions. Incorrect charging or charging outside the permitted temperature range may destroy the battery and increase the risk of fire.
6) SERVICE
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b) Never repair damaged batteries. All battery repairs should be carried out by the manufacturer or authorised customer service centres only.

Safety notices for milling cutters

Warning! Milling can result in the formation of dusts hazardous to health, which can pose a risk to the

operator or persons nearby. Make sure that the workplace is well ventilated. Always wear safety goggles and respiratory protection. Attach a dust extraction system.

Materials hazardous to health such as lead, materials coated in paint containing lead or materials containing asbestos may not be worked on using this device!

• Fasten and secure the workpiece by means of clamps or with another method on a stable underground. If you hold the workpiece only with your hand or against your own body, it will stay instable and this can lead to a loss of control.
• The permissible rotation speed of the attachment tools must be at least as high as the highest rotation speed indicated on the power tool. Accessories that run faster than the permissible speed can be destroyed.
• Cutters and other accessories must be exactly matching the tool holder (collet chuck) of your power tool. Attachment tools that are not exactly matching the tool holder of the power tool rotate unevenly, vibrate very strongly and can ultimately lead to a loss of control.
• Ensure that the cutter is assembled correctly. A cutter that is not assembled correctly can break during the milling or be ejected and present a risk of injury.
• Move the power tool against the workpiece only when it is turned on. Otherwise, there is a risk of kick-back if the attachment tools jam in the workpiece.

- Do not put your hands in the cutting area and neither on the cutter. Hold the upper handle or the motor housing with your other hand. When holding the milling cutter with both hands, they cannot be injured by the cutter.

- Never mill over metal objects, nails or screws. The milling cutter can be damaged and lead to increased vibrations.

- Use suitable detectors in order to find hidden supply lines or ask the local utility company. Contact with electrical cables can lead to electric shock and fire, contact with a gas pipe can result in an explosion. Damage to a water pipe can lead to property damaged and electric shock.

- Do not use any blunt or damaged tools. Blunt or damaged tools can cause uncontrollable situations.

- Hold the power tool tightly with both hands while working and ensure a secure footing. The power tool is guided more securely with both hands.

- Wait until the power tool has stopped before placing it down. The attachment tools can jam and lead to a loss of control over the power tool.

- Avoid contact with the tool or the workpiece immediately after processing. The parts may be hot and cause burn injuries.

- Use only milling cutters which have the correct shank diameter and are suitable for the speed of the power tool.

- Do not use any accessories that are not recommended by PARKSIDE. This can result in electric shock or fire.

Residual risks

Even if properly operating and handling this electric tool, some residual risks will remain. Due to its construction and build, this electric tool may present the following hazards:

a) Injuries caused by moving parts;
b) Ear damage if working without ear protection;
c) Lung damage, if suitable respiratory protection is not worn;
d) Eye injuries if no suitable eye protection is worn.
e) Damage to your health caused by swinging your hands and arms when operating the appliance for longer periods of time or if the unit is not held or maintained properly.

Warning! During operation, this electric tool generates an electromagnetic field which, under certain circumstances, may impair the functionality of active or passive medical implants. To reduce the risk of serious or lethal injuries, we recommend that persons with medical implants consult their doctor and the manufacturer of their medical implant before operating the machine.

Observe the safety information and notes on charging and proper use as shown in the instruction manual for your battery and charger from the PARKSIDE X 12 V TEAM series.

A detailed description of the charging process and further information can be found in the separate operating instructions.

Initial operation

Remove the battery from the power tool before carrying out any work. Risk of injury!

Before you turn on the machine, you must

• change collet chuck if necessary
• connect the dust suction,
• insert the desired cutter,
• adjust the cutting depth,
• mount the parallel stop if necessary,
• clamp in the workpiece.
• insert the battery

Change collet chuck

The collet chucks suitable for the device can be used with a shank diameter of 6 mm or 8 mm.

Only use the cutter with a shank diameter suitable for the installed collet chuck.

Use only cutters that are suitable for the speed of the power tool.

All cutters of the 6-part cutter set included in the delivery are provided with an 8-mm cutter shaft.

Change the collet chuck for cutters with a 6-mm cutter shaft.

1. Press the spindle locking button (10) on the side of the device and keep it pressed down.
2. Screw off the cap nut (11) using the combination wrench (A 19).
3. Release the spindle locking button (10).

4. Take out the 8 mm collet chuck (12) using pliers and insert the 6 mm collet chuck (20) that is included in the delivery. You will hear it click into place.

5. Screw the cap nut (11) loosely back on.

Tighten the cap nut only when a cutter is inserted. The collet chuck might get damaged.

Mounting the suction adapter

You can reduce dust formation while you work by connecting a dust suction system. The suction adapter (21) can be inserted in two positions to enable suction from left or right.

1. Unlock the cutting depth rough adjustment by turning the locking knob (16) anticlockwise about half way.
2. Press and hold the cutting depth rough adjustment button (6).
3. Now move the drive unit (5) fully up to the top. The drive unit (5) and baseplate (9) are now at the maximum distance from one another.
4. Let go of the button (6).
5. Fit the suction adapter (21) into the recesses provided (13) in the baseplate (9).
6. To lock, turn the suction adapter (21) clockwise as far as it allows.
7. Connect the suction hose of a vacuum cleaner to the suction adaptor (21).

The vacuum cleaner must be suitable for the workpiece to be processed. Use a special vacuum cleaner if dusts with hazard for health are created.

Inserting/changing cutters

To insert and replace cutters, wear protective gloves to prevent cuts and burns.

1. Press the spindle locking button (10) on the side of the device and keep it pressed down.
2. Use the combination wrench (19) to loosen the cap nut (11) as much as needed, so that the cutter can be inserted.
3. Release the spindle locking button (10).
4. Insert the desired cutter into the already mounted collet chuck (12). The cutter shaft must be pushed in at least 20 mm.
5. Use the combination wrench (19) to tighten the cap nut (11) while keeping the spindle locking button (10) pressed.

Tighten the cap nut only when a cutter is inserted. The collet chuck might get damaged.

E

Mounting the parallel stop

1. Unscrew both retaining screws (15) on the top side of the baseplate.
2. Now insert the parallel stop (22) into the receptor (14) provided on the base-plate (9).
3. Fix the parallel stop into the desired position using the retaining screws (15).

F

Adjust cutting depth

The cutting depth may only be set when the device is switched off

1. Place the device with inserted cutter onto the edge of the workpiece to be processed while allowing space below the cutter.
2. Unlock the cutting depth rough adjustment by turning the locking knob (16) anticlockwise about half way.

3.. Press the cutting depth rough adjustment button (6) and keep it pressed.
4. Now move the drive unit (5) downwards/upwards and roughly set the desired cutting depth.
5. Let go of the button (6).
6. Use the adjusting knob (7) for fine adjustment: one entire rotation corresponds to 1 mm:

Counter-clockwise rotation: greater cutting depth.
Clockwise rotation: lesser cutting depth.

1. Fix the desired cutting depth by turning the locking knob (16) clockwise until you sense resistance.

We recommend testing the cutting depth adjustment by means of a test cut on a reject piece.

To secure the finely adjusted cutting depth, you can screw in the locking screw (8) into the adjusting knob (7) of the cutting depth fine adjustment from the underside of the baseplate (9).

Inserting/removing the battery

1. To remove the battery (1) from the appliance, press the release buttons (2) on the battery and pull out the battery.
2. To insert the battery (1), push the battery along the guide rail into the device. You will hear it click into place.

GBMT

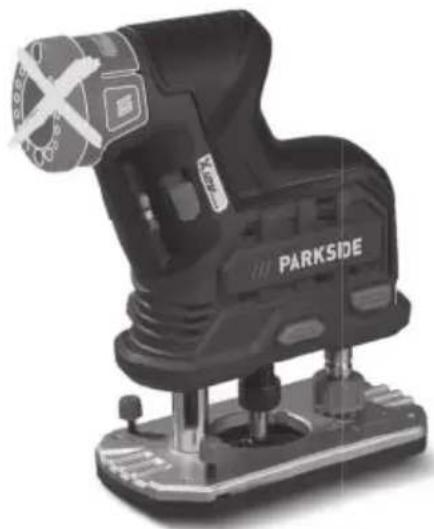

Only insert the battery once the battery-operated tool is fully ready for use. Risk of injury!

Checking the battery charge level

The battery's (1) charge level is indicated by the charge state indicator.

- The charge level of the battery is indicated by illumination of the corresponding LED lights (17) while the device is in operation.

red-yellow-green => Battery fully charged red and yellow => Battery half charged red => Battery needs

to be charged

Operation

Wear breathing protection (fine dust mask of protection class FFP2).

Do not wear gloves while milling.

Switching on and off

Ensure your stance is stable and hold the appliance tightly with both hands and away from your body. Before switching the device on, ensure it is not in contact with the workpiece.

1. Ensure that the battery (1) is inserted (see „Removing/inserting the battery“).

Switching on:

1. Press and hold the on/off switch (18).

2. Switching on: Slide the on/off switch (18) upwards so that "I" appears on the switch.

3. Release the on/off switch (18).

Switching off:

1. Press and hold the on/off switch.
2. Switching off: Slide the on/off switch (18) downwards so that "0" appears on the switch.
3. Release the on/off switch (18).

Practical tips

Milling

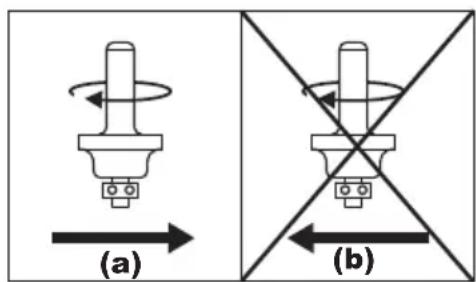

Always mill in counter direction: in the process, the machine is moved counter to the rotation direction of the cutter.

Never mill in the rotation direction (synchronous operation). There is the risk of accidents, as the machine might be torn out of your hands.

• Use only the cutter that has a specified permissible rotation speed, which is at least as high as the maximum rotation speed of the machine that is specified on the machine.
  • Always use the proper tools.
• Do not use any blunt or damaged tools or accessories.

• Be aware that the cutter will protrude from the bottom of the baseplate. Ensure you do not damage your workpiece or other objects as a result.

• Fasten the workpiece securely on the work surface.

• Insert the cutter.
• Set the desired cutting depth.
• Turn the device on.
• Move the device to the location you wish to work on.

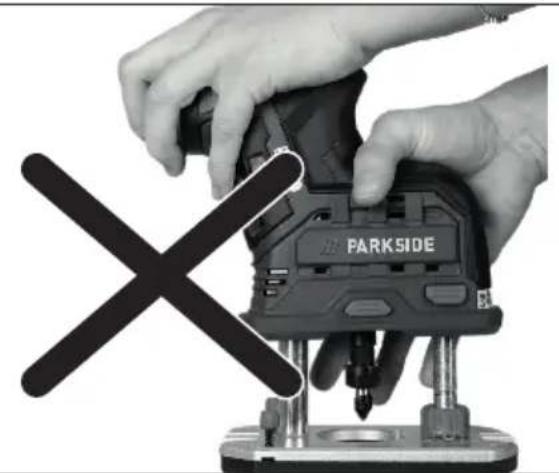

1. Hold the device firmly with both hands while working. While doing so, ensure none of your fingers protrude into the area beneath the drive unit (A 5) and mill with a consistent feed motion.

2. Turn off the device.

After the device has been switched off, the cutter continues moving for some time. Do not touch the moving cutter and do not put the device down before the cutter has come to a complete standstill. Risk of injury!

Edge and profile cutting

When edge or profile cutting without parallel stop, the cutter must be equipped with a stop ring (a) as guide.

1. Move the turned on machine to the workpiece until it sits on the stop ring on the workpiece edge to be processed.
2. Move the machine with both hands along the workpiece edge. Avoid excessive pressure.

Milling with parallel stop

You can mill notches and profiles with the parallel stop by moving the parallel stop along the workpiece edge at a pre-set distance.

Solid materials can only be milled in small steps (max. 1-2 mm cutting depth).

Deeper grooves must be milled in several steps.

1. Insert the parallel stop (22) into the receptor (14) provided on the baseplate. Tighten the retaining screws (15).

2. Place the battery-powered router cutter onto the edge of the workpiece while allowing space below the cutter.

3. Set the cutting depth to 1-2 mm and fix in place.

4. Make sure that the parallel stop (22) lies against the workpiece edge correctly.

5. Begin to remove 1-2 mm of wood in small steps using the battery-powered router cutter. To do so, move the turned-on device along the workpiece edge with lateral pressure on the parallel stop (22).

The parallel stop (22) acts as the lateral guide for the battery-powered router cutter.

Continuously check that the groove has a right angle.

1. For deeper grooves, repeat work steps 4-5 until you achieve the desired result.

Cleaning/maintenance

Ask our service centre to carry out any work that is not described in these instructions. Use only original parts. In this way you avoid damage to the appliance and possible injury to people.

GBMT

Remove the battery from the device before all cleaning and maintenance work and before transporting it. If the device is switched on accidentally, there is a danger of injury.

Always wear protective gloves when handling cutters to avoid cutting yourself.

The following cleaning and servicing should be done regularly. This will ensure a long and reliable service life.

cleaning

Do not spray the appliance with water and do not immerse it in water. Electric shock hazard!

Do not use cleaning agents or solvents. You may otherwise irreparably damage the appliance.

Keep clean the ventilation slots, motor housing and handles of the appliance. Use a damp cloth or a brush.

General maintenance

- Prior to every use, check the appliance for obvious defects such as loose, worn or damaged parts.

- If the ball bearing (a) of a cutter has come loose, re-tighten it using an Allen key.

Storage

• Clean the device prior to storage.
• Store the appliance in a dry place well out of reach of children.
• Store the cutter in the packaging included in the delivery. Avoid contact with other metal parts or cutter blades.

Disposal/environmental protection

Remove the battery from the device and recycle the device, battery, and packaging in an environmentally-friendly manner.

Machines do not belong with domestic waste.

Directive 2012/19/EU on waste electrical and electronic equipment: Consumers are legally obliged to recycle electrical and electronic equipment in an environmentally sound manner at the end of its life. In this way, environmentally friendly and resource-saving recycling is ensured.

Depending on the implementation in national law, you may have the following options:

• Return to a shop,
• Hand over to an official collection point,
• Return to the manufacturer/distributor.
  This does not affect accessories enclosed with the old devices or tools without any electrical components.

Do not throw batteries into domestic waste, fire (risk of explosion) or water. Damaged batteries can harm the environment and your health if poisonous or liquids escape.

Dispose of the batteries according to local standards. Defective or used batteries must be recycled in accordance with Directive 2006/66/EC. Hand in the batteries at a used battery collection point where they are recycled in an environmentally friendly manner. For more information, please

contact your local waste management provider or our service centre.

Dispose of batteries in a discharged state. We recommend covering the contacts with an adhesive strip to protect against short circuits. Do not open the battery.

Spare parts/accessories

Spare parts and accessories can be obtained at www.grizzlytools.shop

If you do not have internet access, please contact the Service Centre via telephone (see "Service-Center" Page 40). Please have the order number mentioned below ready.

Position instruction manual	Position exploded drawing	Description Order No.
A 11/12	31/32	Collet chuck (86mp nut)		91105642
A 21	10	Suction adapter		91105641
A 22	9	Parallel stop		91105640
A 24-29		6-part cutter set		91104255n=max.
		(MAN /
24	Profil cutter ( 25.0x12.0x8 / R 4 mm)**
25	Rounding cutter ( 22.0x11x8 / R 6.3 mm)**
26	V-notch cutter (12.7x9.0x8 / 90°)**
27	Notch cutter ( 12.0x20.0x8)**
28	Notch cutter ( 6.0x20.0x8)**
29	Fillet cutter (22.0x13.x8 / R 6.3 mm)**

* MAN = approved for manual feeds.

n = max. rotation speed (min ^1 ) for which the cutter is approved.

HW = cutting blades are made of hard metal.

** Dimensions of the cutter (mm): Cutter diameter ∅ x length of the cutter head x shaft diameter R = radius of the profile (mm)

◀ = angle of the V-notch

Troubleshooting

In the event of an accident or malfunction, remove the battery from the device immediately! Failure to comply may result in injuries from cuts.

Problem Possible cause	Error correction
Appliance does not start	Battery (1) discharged	Recharge battery (1)(Observe the separate operating instructions for the rechargeable battery and charger)
	Battery (1) not in	Insert battery (1)(Observe the separate operating instructions for the rechargeable battery and charger)
	On/off switch (18) is broken	Repair by Customer Care
	Motor faulty
Engine is slower and stops	Device is overloaded through workpiece	Reduce the pressure
		Increase rotation speed
		Workpiece unsuitable
The milling is not straight	Parallel stop (22) not inserted	Mounting the parallel stop.
The milled work-piece has burn marks	Unsuitable or blunt cutter Adjust	cutting depth
	Cutting depth is set too large	Use the step stop to mill in multiple steps
The fringes of the milled part tear off, there are grooves and uneven parts in the milling	Cutter is worn out and dull Change the cutter
	Cutter blades are damaged Change the cutter
Dust is not being sucked off	Vacuum is not switched on Turn	on vacuum before milling
	Suction hose or suction adapter (21) is clogged	Remove clogging

Guarantee

Dear Customer,

This equipment is provided with a 3-year guarantee from the date of purchase.

In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase.

If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.

If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. cutter, accessories) or to cover damage to breakable parts (e.g. switches, or parts made of glass).

This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided.

The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure efficient handling of your query, please follow the directions below:

- Please have the receipt and identification number (IAN 408294_2207) ready as proof of purchase for all enquiries.

- Please find the item number on the rating plate.

- Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the process

GBMT

ing of your complaint.

- After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

Repair service

For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.

We can handle only equipment that has been sent with adequate packaging and postage.

Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.

Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.

We will dispose of your defective devices free of charge when you send them to us.

Service-Center

Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IAN 408294_2207

MT Service Malta Tel.: [phone]

E-Mail: [e-mail]

IAN 408294_2207

Importer

Please note that the following address is not a service address. Please initially contact the service centre specified above.

Afzuigadapter monteren .....71

Service-Center......80

Importeur 80

PLGK 12 A2, PLGK 12 B2, PDSLG 12 A1

Laadtijd(min.)	PAPK12 A112 A3	PAPK12 A2	PAPK12 B112 B212 B3	PAPK12 D1
PLGK 12 A1PLGK 12 A2PLGK 12 A3	60 60	120	150
PLGK 12 B2PDSLG 12 A1	30 45	60 80

Afzuigadapter monteren

Service-Center....98

Importer 98

Service-Center....118

Dovozce....118

Service-Center....134

Dovozca....134

Drejning mod uret:

større fræsedybde.

Drejning med uret:

lavere fræsedybde.

R = radius of profilen (mm)

◀ = V-notens vinkel

Fejlsøgning

Service-Center......171

Importador 171

R = radius of profilen (mm)

◀ = V-notens vinkel

Hibakeresés

Vrtenje v nasprotni smeri urnega kazalca:

višja globina rezkanja.

Vrtenje v smeri urnega kazalca: nižja globina rezkanja.

Pooblaščeni serviser:

Tel.: [phone]

E-Mail: [e-mail]

(Birotehnika, Hodošček Renata s.p., Lendavska ULICA 23, 9000 Murska Sobota)

Garancijski list

Introducere ......247

Service-Center......265

Importator 265

Raducerea Declaratiei Originale de Conformitate CE ......320

We hereby confirm that the Cordless Router POFA 12 B3 series Serial no. 000001 - 042000 conforms with the following applicable relevant version of the EU guidelines:
2006/42/EC • 2014/30/EU • 2011/65/EU* & (EU) 2015/863
In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied:
EN 62841-1:2015 • EN 62841-2-17:2017 EN IEC 55014-1:2021 • EN IEC 55014-2:2021 • EN IEC 63000:2018
This declaration of conformity is issued under the sole responsibility of the manufacturer:
	Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 63762 Großostheim, GERMANY 30.01.2023
		Christian Frank Documentation Representative

* The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.

Close-up of hands using a black tool to press or install a parkside device (no visible text or symbols)

Close-up of hands using a parkside tool to press or install a device, with a large 'X' symbol overlay (no text or symbols on the device itself)

FR ©

GRIZZLY TOOLS GMBH & CO. KG

FSC www.fsc.org MIX From responsible sources FSC® C142550

FSC www.fsc.org MIXTE Issu de sources responsables FSC® C142550
