USER MANUAL PBSG 95 F6 PARKSIDE

BOHRERSCHÄRFGERÄT/DRILL BIT SHARPENER/AFFÜTEUSE DE FORETS PBSG 95 F6

DE AT CH

BOHRERSCHÄRFGERÄT

Operation and safety notes

Translation of the original instructions

NL BE

BOORSLIJPER

Intended use.. Page 28
Parts description.. Page 28
Scope of delivery.. Page 28
Technical data.. Page 28

General power tool safety warnings.. Page 30

Before use.. 35

Initial use.. 35

Grinding drills . Page 35
Replacing the brick.. 36

Maintenance and cleaning.. 37

Replacement parts/Accessories.. Page 38

Storage. 38

Transportation . Page 38

Disposal. Page 38

Service Page 39

Warranty

Warranty claim procedure . Page 41
Service.. Page 42

Declaration of conformity. 43

List of pictograms used
	Read the instruction manual.		Wear eye protection.
	Wear hearing protection.		Risk of electric shock! Unplug the mains plug from the socket prior to performing maintenance or repairs.
	Protection class II (double insulation)		Safety information Instructions for use
~	Alternating current/voltage	CE	CE mark indicates conformity with relevant EU directives applicable for this product.

Drill bit sharpener

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The

instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product

as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intendeduse

This product is intended for sharpening HSS drill bits with diameter of 3-13 mm. Carbide drills must not be sharpened. Any other use or modification of the product shall be considered as improper use and could give rise to considerable dangers. The manufacturer assumes no liability for damages due to improper use. Not intended for commercial use.

- Partsdescription

1 Dial ("STONE" = brick)
2 Brick cover
3 Screw, brick cover
4 ON/OFF switch
5 Brick
6 Metal ring
7 Screw connection
8 Brick holder
9 Spring
10 Louvres
11 Drill guide

Scope of delivery

1 Drill bit sharpener
2 Bricks (1 pre mounted)
1 Instructions for use

Technicaldata

Total weight: 1070g

Rated voltage: 220-240V~

(AC) 50 ~Hz

Rated power: 95W

Rated idle

speed: n_0 1350 min^-1

For drill : 3-13mm

Protection

class: II/

Noise emission value:

The measured values have been determined in accordance with EN 62841.

The A-rated noise level of the power tool is typically:

Load (grinding):

Noise level L_pA : 61 dB

Uncertainty

K_pA : 3dB

Sound power

level L_WA : 74dB

Uncertainty

K_WA : 3dB

Wear hearing protection.

Note: Levels of noise and vibration were determined according to the standards and regulations in the declaration of conformity.

The specified total vibration value and the stated noise emission value have been measured according to a standardised test method and can be used to compare one power tool with another. The specified total vibration value and the stated specified noise emission value can also be used for a provisional assessment of the load.

The vibration and noise emissions may deviate from the specified values during actual use of the power tool, depending on how the power tool is being used and, in particular, what kind of material is being worked on.

Safety measures for the protection of the operator are to be determined that are based on an estimate of the actual vibration load under the real operating conditions (for this, all parts of the operating cycle are to be taken into

account, for example, times in which the power tool is turned off, and those during which it is turned on but running without a load).

General power tool safety warnings

WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (cored) power tool or battery-operated (cordless) power tool.

1) Work area safety a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded

surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is

unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch

is in the offposition before connecting to power source and/or battery pack, picking up or carrying the tool.

Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care a) Do not force the power tool. Use the correct power tool for your application.

The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled

with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.

Power tools are dangerous in the hands of untrained users.

e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If

damaged, have the power tool repaired before use.

Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease.

Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts.

This will ensure that the safety of the power tool is maintained.

Additional safety instructions

If the replacement of the supply cord is necessary, this has to be done by the manufacturer or his agent in order to avoid a safety hazard.

Residual risks

There will always be residual risks even if you operate this power tool according to the instructions. The following hazards may occur in connection with the type and design of this power tool: a) Lung damage if suitable respiratory protection is not worn.
b) Hearing damage if suitable ear protection is not worn.

c) Damage to health as a result of

• touching the area of the grinding tool which is not covered;

• ejection of parts of workpieces or damaged grindstone. d) Health injuries resulting from the effect of vibration on the hands and arms in the event that the device is used over a longer period of time or is not used and maintained properly.

Warning! During operation, this power tool produces an electromagnetic field.

Under certain circumstances, this field may negatively affect active or passive medical implants. In order to reduce the danger of serious or fatal injuries, we recommend that individuals who wear medical implants should consult their doctor and the manufacturer of the implant before operating the machine.

- Before use

Note: Remove all packaging material from the product.

The operator should stand in front and stay close to the power tool to prevent overreach.
In case of blockage, switch off the appliance and unplug from the mains. Then clear the jam.

- Initial use

Grinding drills

Note: First rough grind severely damaged drills with a grinding block.

Fully lower the brick. To do so, turn the dial 1 all the way in the DOWN direction.
Insert the drill into the smallest drill guide 11 on the sharpener it will

fit. Please refer to the markings (3 to 13) for the exact sizes () of the respective drill guides [11].

Set the ON/OFF switch 4 to position "l" to switch on the product.
Turn the dial 1 in the UP direction until you hear a grinding noise.

Note: The dial 1 controls the position of the brick inside the grinding head, thus the grinding pressure the brick applies to the drill. The more the dial 1 is turned in the UP direction, the greater the grinding pressure. Be sure not to raise the brick too high. The brick may otherwise get in contact with the housing.

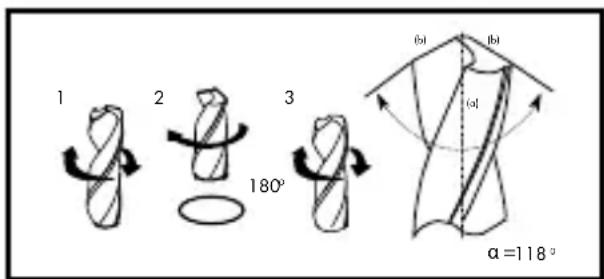

Loosely and quickly rotate the drill back and forth about 10 times between the left and right stop, applying light

pressure (small drills about 5 times).

Slightly pull out the drill, turn 180^ around its own axis and reinsert up to the brick.
If necessary, repeat the entire process until both faces are sharp. Polish so the angle (a) between the two cutting edges (b) is 118^ . Both cutting edges (b) must have the same angle to the drilling axle (a) and have the same length for the drill to run centred (see images below).

Set the ON/OFF switch 4 to position "0" to switch off the product.

Replacing the brick

WARNING!RISK OF

INJURY! Always unplug from the mains before working on the product. Replace a worn or damaged brick (diminished, uneven grinding, broken brick). You will need a torx screwdriver for this step.

Unscrew the 4 screws 3 on the brick cover 2 and remove the cover 2 (see Fig. A).
Remove the brick 5.
Loosen the screw connection 7 keeping the brick 5 in the brick holder 8 with a 23mm open-end spanner (not included) or a nut driver (see Fig. B).

Note: Turn clockwise to open!

Remove the metal ring 6

• Secure the new brick in the brick holder 8 with the flattened edge down and reinstall the metal ring 6.
  Tighten the screw connection with a 23mm open-end spanner. Note: Turn counterclockwise to close!
  Be sure the spring 9 is installed in the product as shown in Fig. D and insert the brick into the product. Turn the brick until it is again precisely fitted as shown in Fig. A or the brick cover 2 will not fit.
  Reattach the brick cover 2 and fasten in place with the 4 screws 3.

- Maintenance and cleaning

This product is maintenance-free except for replacing the bricks.

AWARNING!

OF ELECTRIC SHOCK!

Unplug the mains plug from the socket prior to performing maintenance or repairs.

Clean the product regularly, preferably immediately after every use.
Use a dry cloth to clean the housing. Never use petrol, solvents or cleaning agents that attack plastic.

WARNING! RISK OF INJURY!

Never open the product except to replace the brick. Always have repairs or parts replacements performed at the service centre or by an electrician. If the replacement of the supply cord is necessary, this has to be done by the manufacturer or his

agent in order to avoid a safety hazard.

- Replacement parts/Accessories

Compatible replacement parts for this device can be purchased at www.Optimex-Shop.com. Please have the order-no. ready for your order. Orders can only be placed and processed online. If you are not sure where you can purchase compatible parts, please contact the Lidl Service Hotline.

Position Description	Order-No
Brick 5	999479351001

Storage

Store the appliance in a dry place well out of reach of children.

- Transportation

Protect the product against shocks and strong vibrations that occur especially during transport in vehicles.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for

waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7:

plastics/20-22: paper and fibreboard/80-98: composite materials.

Contact your local refuse disposal authority for more

details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the prod

uct properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

The product incl. accessories, manual and packaging materials are recyclable and

are subject to extended producer responsibility. Disposethem separately, following the illustrated Info-tri (sorting information), for better waste treatment.

Service

WARNING!

Have your product repaired at the service centre or an electrician, using only original manufacturer parts. This will maintain the safety of this product.

Always have a plug or power cord replaced by the product manufacturer or its service centre. This will maintain the safety of this product.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of material or manufacturing defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Keep the original sales receipt in a safe location as this document is required as proof of purchase.

Any damage or defects already present at the time of purchase must be reported without delay after unpacking the product.

Should the product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you. The warranty period is not extended as a result of a claim being granted. This also applies to replaced and repaired parts.

This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty covers material or manufacturing defects. This warranty does not cover product parts subject to normal wear and tear, thus considered consumables (e.g. batteries, rechargeable batteries, tubes, cartridges), nor damage to fragile parts, e.g. switches or glass parts.

Warrantyclaim procedure

So that your request can be processed quickly, please observe the following instructions:

o For all inquiries, please have the receipt and item number (IAN 479351_2410) ready as proof of purchase.
o The article number can be taken from the identification label on the product, engraving on the product, the front cover of your manual (at the bottom left), or the sticker on the back or bottom of the product.
o If malfunctions or other defects arise, first contact the service department indicated below by phone or email.
o You can then send a product recorded as defective to the communicated

service address postage-free, making sure to enclose proof of purchase (receipt) and information on the details of the defect and when it occurred.

0

You can download and view this and numerous other manuals at parkside-diy.com. This QR code takes you directly to parkside-diy.com. Choose your country and use the search screen to search for the operating instructions. Entering the

item number (IAN)

479351_2410 takes you

to the operating instruc

tions for your item.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.:[phone]

E-Mail: [e-mail]

Declaration of conformity

EU DECLARATION OF CONFORMITY (No 479351_2410)
IAN:	479351_2410
Product identification:	*PARKSIDE" Drill Bit Sharpener
Model Number:	HG10154

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

Directive 2006/42/EC

Directive 2014/30/EU

Directive 2011/65/EU and all related amendments

References to the relevant harmonised standards used or references to the other technical specifications in relation to which conformity is declared:

N° / Parts

Directive 2006/42/EC

EN 62841-1:2015/A11:2022

EN ISO 12100:2010

Directive 2014/30/EU

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019/A1:2021

EN 61000-3-3:2013/A2:2021

The object of the declaration described above is in conformity with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment:

N°/Parts

EN IEC 63000:2018

Keeper of the technical documentation: OWIM GmbH & Co.KG

Signed for and on behalf of:

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Translations of the original declaration of conformity

Neckarsulm	20.01.2025	ppa. Boudiel	ppa. Budnei
Place	Date	ppa. Stefan Haensel-Authorised Signatory	ppa. Jürgen BuchheimAuthorised Signatory

= 0 = 0 = 0 = 0 = 0 = 0 = 0 = 0 = 0 = 0 = 0 = 0 = 0 = 0 = 0 = 0 = 0 = 0 = 0 = 0 = 0 = 0 = 0 = 0 = 0 = 0
o W razie wystapienia jakichkolwiek usterek w dziataniu lub innych wad nalezy najpierw

Dermed sikres det, at el-vaerktojets sikkerhed bibeholds.
