ELECTRIC CHAINSAW PEKS 1600 C3 ELEKTRO-KETTENSÄGE PEKS 1600 C3 TRONÇONNEUSE ÉLECTRIQUE PEKS 1600 C3

Electric chainsaw

Operating and Safety Instructions

Translation of the original operating instructions

Read carefully before use and store safely for future reference.

Before reading, unfold the page with the illustrations and then familiarise yourself with all the functions of the product.

DE AT CH

GB / IE / NI / CY / MT Operating and Safety Instructions Page 1

Diagram of a wooden log being cut with a curved arrow indicating rotation (no text or symbols)

7 2 1

8 1 2

9 1 2 3

10

12 45°

11 2/3 1/3 45° A 5 cm B 1/10

Table of contents

1 Explanation of the symbols on the product 2
2 Introduction.... 4
3 Product description (Fig. 1-4) 4
4 Scope of delivery 4
5 Proper use.... 4
6 Safety instructions 5
7 Technical data.... 9
8 Unpacking.... 10
9 Before commissioning 10
10 Operation 12
11 Working instructions 14
12 Cleaning and maintenance 17
13 Storage and transport.... 20
14 Electrical connection.... 20
15 Repair & ordering spare parts.... 21
16 Disposal and recycling.... 21
17 Troubleshooting.... 22
18 EU Declaration of Conformity 23
19 Warranty certificate.... 24
20 Exploded view.... 287

1 Explanation of the symbols on the product

Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures.

ATTENTION

Before initial commissioning, read the operating manual thoroughly and be sure to follow the safety instructions!

It is recommended to attend a professional safety course “Electric chainsaw training course certificate of attendance” with a country-specific training standard on the use and maintenance of the chainsaw as well as a first aid course. If you do not use the electric chainsaw for an extended period of time and for practice, you should always make simple cuts in safely supported wood again before starting to familiarise yourself with the chainsaw.

Keep the operating manual in a safe place!

Note:

Please note that some national regulations such as work and environmental safety could restrict the use of the chainsaw.

	Before commissioning, read and observe the operating manual and safety instructions!		Release chain brake.
	Attention! Failure to observe the safety signs and warning information affixed to the product and failure to observe the safety and operating manual can result in serious injury or even death.		AC motor.
	Wear a safety helmet with face protection or safety goggles and hearing protection.		Saw chain speed.
	Wear safety gloves! Chainsaw guide bar le
	Wear sturdy footwear! Number of drive li
	It is important to wear protective clothing for hands, forearms, legs and feet.		Chain pitch.
	Do not expose the product to rain. The product may only be stationed, stored and operated in dry ambient conditions.		Groove width.
	Only for two-handed operation. Power consu ion.
	Warning! Risk of kick-back.Beware of the kick-back of the product and avoid making contact with the rail tip.		Weight kg.
	Position of the chain brake. Oil tank conten
	Running direction of the saw chain.		Only carry out maintenance, conversion, adjustment and cleaning work when the product is switched off and the mains plug is disconnected!
	Filling port for saw chain oil.		In case of damage or cutting through the mains cable, immediately pull the mains plug out of the socket!
	Increase/decrease chain tension.		Guaranteed sound power level of the product.
	Chain oil level indicator.		Protection class II (double insulation).
	Apply chain brake.		The product complies with the applicable European directives.

2 Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer

We hope your new product brings you much enjoyment and success.

Note:

In accordance with the applicable product liability laws, the manufacturer of this product assumes no liability for damage to the product or caused by the product arising from:

• Improper handling
  • Non-compliance with the operating manual
  • Repairs carried out by third parties, unauthorised specialists
• Installing and replacing non-original spare parts
• Improper use
• Failures of the electrical system in the event of the electrical regulations and VDE provisions 0100, DIN 57113 / VDE0113 not being observed.

Note:

The operating manual is part of this product.

It includes important instructions for the safe, proper and economic operation of the product, for avoiding danger, for minimising repair costs and downtimes and for increasing the reliability and extending the service life of the product. In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the product in your country.

Familiarise yourself with all operating and safety instructions before using the product. Only operate the product as described and for the specified areas of application. Keep the operating manual in a good place and hand over all documents when passing the product on to third parties.

3 Product description (Fig. 1-4)

1. Mains plug
2. Rear handle
3. Switch lock
4. Oil tank cover
5. Chain cover
   5a. Chain catcher
6. Chain tensioning wheel
7. Saw (guide rail)
   7a. Deflection star
8. Saw chain
9. Strain relief
10. Rear hand guard

11. On/off switch

12. Oil tank

13. Oil level indicator
14. Front handle
15. Claw stop
16. Chain brake/front hand guard
17. Guide rail cover
18. Chain wheel
19. Stud bolts
20. Guide pin
21. Oil opening

4 Scope of delivery

Item Quantity Designation

1. 1 x Saw (guide rail)

2. 1 x Saw chain

3. 1 x Guide rail cover

1 x Electric chainsaw

1 x Operating manual

5 Proper use

The petrol chainsaw is designed for sawing wood only. The product is not intended for any other types of application (e.g. cutting masonry, plastic or food).

The product may only be used in the intended manner. Any use beyond this is improper. The user/operator, not the manufacturer, is responsible for damages or injuries of any type resulting from this.

An element of the intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the operating manual.

Persons who operate and maintain the product must be familiar with the manual and must be informed about potential dangers.

The liability of the manufacturer and resulting damages are excluded in the event of modifications of the product.

The product may only be operated with original parts and original accessories from the manufacturer.

The safety, operating and maintenance specifications of the manufacturer, as well as the dimensions specified in the technical data, must be observed.

Please note that our products were not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the product is used in commercial or industrial applications, or for equivalent work.

Explanation of the signal words in the operating manual

DANGER

Signal word to indicate an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in minor or moderate injury.

ATTENTION

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in product or property damage.

6 Safety instructions

General power tool safety warnings

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

WARNING

Read all safety warnings, instructions, illustrations and specifications provided with this power tool.

Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

1) Work area safety

a) Keep your work area clean and well-lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) The connection plug of the electric tool must fit into the socket. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Wear personal protective equipment and always safety goggles. Protective equipment such as a dust mask, non-skid safety shoes, safety helmet or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or rechargeable battery, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting tools or spanners/keys before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Avoid abnormal postures. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust extraction can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such precautionary measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and attachments. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use electric tools, insertion tools, etc. according to these instructions. Take into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Service

a) Only have your power tool repaired by qualified specialists and only with original spare parts. This will ensure that the safety of the power tool is maintained.

Safety instructions for chainsaws

General chainsaw safety warnings

a) Keep all body parts away from the saw chain when the saw is running. Before starting the pruning saw, ensure that the saw chain is not touching anything. When working with a chain-saw, a moment of carelessness can result in clothing or body parts being caught by the saw chain.
b) Always hold the chainsaw with your right hand on the rear handle and your left hand on the front handle. Holding the chainsaw using the opposite grip increases the risk of injuries and shall be avoided at all times.
c) Only hold the chainsaw by the insulated gripping surfaces, as the saw chain could hit hidden power lines or its own mains cable. Contact between the saw chain and a live power line can also electrify metal device parts and lead to an electric shock.
d) Wear eye protection. Further protective equipment for hearing, head, hands, legs and feet is recommended. Suitable protective clothing reduces the risk of injury from flying chips and accidental contact with the saw chain.
e) Do not work with the chainsaw in a tree, on a ladder, or from a roof or an unstable standing surface. There is a serious risk of injury if operated in such a manner.
f) Always make sure you have a firm footing and only use the chainsaw when standing on firm, safe and level ground. Slippery ground or unstable standing surfaces can cause loss of balance or loss of control of the chainsaw.
g) When cutting a branch that is under tension, expect it to spring back. If the tension in the wood fibres is released, the tensioned branch can hit the operator and/or wrest the chainsaw from control.
h) Be especially careful when cutting undergrowth and young trees. The thin material can get caught in the saw chain and hit you or throw you off balance.
i) Carry the chainsaw by the front handle when switched off, with the saw chain facing away from your body. Always put the protective cover on when transporting or storing the chainsaw. Careful handling of the chainsaw reduces the likelihood of accidental contact with the running saw chain.

j) Follow the instructions for lubrication, chain tensioning and replacing the guide bar and chain. An improperly tensioned or lubricated chain can break or increase the risk of kick-back.
k) Only saw wood. Do not use the chainsaw for work for which it is not intended. Example: Do not use the electric chainsaw to saw metal, plastic, brickwork or building materials other than wood. Using the chainsaw for unintended work can cause dangerous situations.
I) Do not attempt to fell a tree until you have a clear understanding of the risks and how to avoid them. The user or other persons can be seriously injured by a falling tree.

Causes and avoidance of kickback

Kickback can arise if the tip of the guide rail touches an object or if the wood bends and the saw chain jams in the cut.

Touching with the rail tip can sometimes lead to an unexpected backward reaction, whereby the guide rail whips up and in the direction of the user.

If the saw chain jams on the top edge of the guide rail, the rail can jerk back in the direction of the user suddenly.

Each of these reactions can lead to you losing control of the saw and possibly suffering a serious injury. Never rely solely on the safety equipment integrated in the chainsaw. As the chainsaw user, you should implement various measures to work without a risk of accidents and injuries.

Kickback is the result of incorrect use or misuse of the cordless chainsaw. It can be prevented by suitable precautionary measures, as described in the following:

a) Hold the saw firmly with both hands, with the thumbs and fingers enclosing the chainsaw handles. Bring your body and arms into a position in which you can absorb the kickback forces. If suitable measures are implemented, the user will be able to withstand the kickback forces. Never let go of the chainsaw.
b) Avoid an unusual body stance and never saw above shoulder height. This will help to avoid unintentional contact with the rail tip, and enable improved control of the chainsaw in unexpected situations.
c) Always use replacement guide rails and saw chains prescribed by the manufacturer. Incorrect replacement rails and saw chains may cause the chain to break and/or lead to kick-back.
d) Adhere to the instructions of the manufacturer when sharpening and maintaining the saw chain. If the depth limiter is too low, this increases the tendency towards kickback.

Additional safety instructions

- Follow all instructions when clearing debris, storing or servicing the chainsaw. Make sure the switch is off and the mains plug is removed.

Unexpected operation of the chainsaw saw while clearing a buildup of material or during maintenance can cause serious injury

• If the mains connection cable for the product is damaged then it must be replaced by the manufacturer or their customer services personnel or by a similarly qualified person, in order to avoid hazards.
• Use a residual current circuit breaker with a trigger current of 30 mA or less.
• Lay the connecting cable so that it is not caught by branches or similar during sawing.
• Only use approved and appropriately identified extension cables for use outdoors (H07RN-F).
• Carefully follow the maintenance, inspection and service instructions in this operating manual. Damaged protective devices and parts must be repaired properly or replaced by our service centre unless otherwise specified in the operating manual.
• Always stand above the tree trunk when sawing on slopes. In order to maintain full control at the moment of “cutting all the way through”, reduce the pressing force towards the end of the cut, without loosening your firm grip of the handles of the product. Ensure that the saw chain does not come into contact with the ground. After completing the cut, wait for the product to stop before removing the product.

Always switch off the product and disconnect the mains plug before switching from tree to tree.

• Dirt, stones, loose bark, nails, staples and wire must be removed from the tree.
• Do not use the product without lubrication and always ensure that it is topped up in good time before the tank is empty.
• Use only lubricants recommended by the manufacturer.
• We recommend that a person using the tool for the first time should at least practice by cutting logs on a sawhorse or stand.
• Do not use accessories that are not recommended by the manufacturer. This can lead to electric shock or fire.
• Do not use the product in a thunderstorm - Danger of lightning strike!

The saw chain can be resharpened at an authorised specialist workshop. Do not attempt to sharpen the saw chain yourself if you do not have a suitable tool and the necessary experience.

Safety devices (Fig. 1)

- Rear handle (2) with hand guard (10)

- Protects the hands from branches and twigs and if the saw chain jumps off.

- Switch lock (3)

- To switch on the product, the switch lock must be unlocked. The switch lock prevents accidental starting of the product.

- Chain catcher (5a)

- Reduces the risk of injury if the saw chain breaks or jumps off.

- Saw chain (8) with low kick-back

– Helps you to intercept kick-backs with specially developed safety devices.

- On/off switch (11) with chain instant stop

- Switches the product off immediately if the on/off switch is released.

- Claw stop (15)

- Reinforces stability when vertical cuts are performed and makes sawing easier.

Note:

The saw chain does not run when the chain brake is engaged.

- Chain brake/front hand guard (16)

- Safety devices that stop the saw chain immediately in the event of kick-back.

- The lever can also be manually actuated.

- Protects the left operator's left hand if it slips off the front handle.

- Electric motor

– Is double insulated for safety reasons.

6.1 Personal Protective Equipment (PPE)

DANGER

Danger of injury!

Always wear personal protective equipment (PPE)!

- Wear a safety helmet with face protection or safety goggles and hearing protection.

- Wear close-fitting protective clothing with a cut protection insert.

- Wear non-slip safety shoes.

- Wear protective gloves.

- Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

- The product shall not be operated by persons (including children) with reduced physical, sensory or mental abilities or who have inadequate experience or knowledge.

- Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

- Always wear sturdy footwear and long trousers when operating the product. Do not operate the product barefoot or in open sandals. Avoid wearing loose-fitting clothing or clothing with hanging strings or ties.

- Wear a safety helmet for all work in the forest. This provides protection from falling branches. Check the safety helmet regularly for damage. This must be replaced after 5 years at the latest. Only use approved safety helmets.

- The face guard or safety goggles protect against shavings and wood splinters. To prevent injuries to the eyes, you must always wear a face guard or safety goggles when working with the product.

- Wear hearing protection.

- Wear protective gloves.

- Wear a dust protection mask when sawing dry wood. Sawdust may form.

- When working in the tree, the user may fall down. The user can be seriously injured or killed. Wear fall protection equipment.

6.2 Environmental safety

- National and/or municipal regulations may impose time restrictions on the use of noise-generating, motorised products. Ask your local administration about this.

- Only work in daylight.

- Also, do not work in adverse weather conditions, such as rain or wind. There is an increased risk of accidents in these instances!

- Disorder in the work area can lead to accidents.

- Keep children and other people away while using the product. Distractions may cause you to lose control of the product.

- Never operate the product while people, especially children, or animals are nearby.

- Do not work near wire fences or in areas with loose old wire.

Residual risks

The product has been built according to state-of-the-art and the recognised technical safety rules. However, individual residual risks can arise during operation.

• Residual risks can be minimised if the "Safety Instructions" and the "Intended Use" together with the operating manual as a whole are observed.
• Use the product in the way that is recommended in this operating manual. This is how to ensure that your product provides optimum performance.
• Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.
• Keep your hands away from the working area when the product is in operation.
• Damage to hearing if the stipulated hearing protection is not worn.
• Damage to the lungs if the stipulated respiratory protection is not worn.
• Risk of injury from tools thrown away due to improper holding or guiding.
• Health hazard due to electrical power, with the use of improper electrical connection cables.
• Avoid accidental start-up of the product: when inserting the plug into the socket, do not press the on/off switch.
• Before performing setting or maintenance work, release the on/off switch and pull out the mains plug.

WARNING

This power tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain circumstances. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the power tool.

WARNING

In case of extended working periods, the operating personnel may suffer circulatory disturbances in their hands (vibration white finger) due to vibrations.

Raynaud's syndrome is a vascular disease that causes the small blood vessels on the fingers and toes to cramp in spasms. The affected areas are no longer supplied with sufficient blood and therefore appear extremely pale. The frequent use of vibrating products can cause nerve damage in people whose circulation is impaired (e.g. smokers, diabetics).

If you notice unusual adverse effects, stop working immediately and seek medical advice.

7 Technical data

AC motor 220-240V AC /50/60 Hz
Nominal power S1* 1600 W
Protection class II
Protection category IPX0
Chain speed 15 m/s
Guide rail 14"
Chainsaw guide bar length 415 mm
Cutting length 340 mm
Chain pitch 3/8"
Number of chain wheel teeth 52 teeth
Type of saw chain 3/8LP-52
Type of guide bar	AP14-52-507P
Tank / chain oil	0.35 l
Weight (with chainsaw guide bar and saw chain)	approx. 4.8 kg
Weight (without chainsaw guide bar, saw chain and cable)	approx. 4.2 kg

Subject to technical changes!

*Operating mode S1 (continuous operation)

The product can be operated continuously with the specified power.

Noise and vibration

WARNING

Noise can have serious effects on your health. If the machine noise exceeds 85 dB, please wear suitable hearing protection for you and persons in the vicinity.

Noise data

Sound pressure level L_pA	95.3 dB
Measurement uncertainty K_pA	3 dB
Measured sound power level L_wA	103.3 dB
Guaranteed sound power level L_wA	106 dB
Measurement uncertainty K_wA	3 dB

Vibration parameters

Vibration a_h
Front handle	3.26 m/s ^2
Rear handle	3.51 m/s ^2
Measurement uncertainty K	1.5 m/s ^2

The total vibration emission values specified and the device emissions values specified have been measured in accordance with a standardised test procedure and can be used for comparison of one electric tool with another.

The total noise emission values specified and the total vibration emission values specified can also be used for an initial estimation of the load.

WARNING

The noise emission values and vibration emission value can vary from the specified values during the actual use of the power tool, depending on the type and the manner in which the electric tool is used, and in particular the type of workpiece being processed.

Try to keep the stress as low as possible. For example: Limit working time. In doing so, all parts of the operating cycle must be taken into account (such as times in which the power tool is switched off or times in which it is switched on, but is not running under a load).

8 Unpacking

WARNING

The product and the packaging material are not children's toys!

Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

• Open the packaging and carefully remove the product.
• Remove the packaging material, as well as the packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the product and accessory parts for transport damage. Immediately report any damage to the transport company that delivered the Product. Later claims will not be recognised.
• If possible, keep the packaging until the expiry of the warranty period.
• Familiarise yourself with the product by means of the operating manual before using for the first time.
• With accessories as well as wearing parts and replacement parts use only original parts. Spare parts can be obtained from your specialist dealer.
• When ordering please provide our article number as well as type and year of manufacture for the product.

9 Before commissioning

WARNING

Always remove the mains plug before carrying out adjustments on the product.

WARNING

Danger of injury!

Only insert the mains plug into the socket when the product is ready for use.

DANGER

Danger of injury!

If an incompletely assembled product is used, serious injuries can be caused.

• Do not use the product until it has been fully fitted.
• Before each use, carry out a visual inspection to check that the product is complete and does not contain any damaged or worn components. Safety and protective devices must be intact.

WARNING

Danger of injury when handling the saw chain or the blade!

- Wear cut-resistant gloves.

Notes:

• A new saw chain stretches and needs to be re-tensioned more often. Check and adjust the chain tension regularly after each cut.
• Only use saw chains and blades designed for this product.

CAUTION

An incorrectly installed saw chain leads to uncontrolled cutting behaviour by the product!

When fitting the saw chain, observe the prescribed running direction!

• Place the product on a level, even surface.
• Familiarise yourself with the product by means of the operating manual before using for the first time.

It is mandatory to carefully check the product for any damage before each use or after it has been dropped. If damage is identified, it must be rectified immediately by you or an authorised service centre.

The following points must be observed to ensure that the product functions perfectly and has a long service life:

• Correct seating of the guide rail.
• Installation/running direction, as well as flawless (sharp) saw chain.
• Tension of the saw chain (check and readjust several times if the chain is new).

• Function of the chain lubrication.

• Function of the chain brake.

- Function of the clutch (chain does not move when idle).

- Faultless condition and completeness of the guards and the cutting device.

- All screw connections are tight.

- Smooth running of all moving parts.

9.1 Fit the guide bar (7) and saw chain (8) (Fig. 2)

1. Turn the chain tensioning wheel (6) anti-clockwise, so that the chain cover (5) is removed.
2. Lay out the saw chain (8) in a loop so that the cutting edges are aligned clockwise. To align the saw chain (8), follow the symbols (arrows) on the saw chain (8) or above the guide pin (20).
3. Place the saw chain (8) in the groove of the guide bar (7).
   For assembly, hold the guide bar (7) swivelled upwards at an angle of approx. 45 degrees to make it easier to feed the saw chain (8) into the chain wheel (18). The saw chain (8) is steered via the deflection star (7a).
4. Insert the guide bar (7) on the guide pin (20) and the stud bolt (19). The guide pin (20) and the stud bolt (19) must be in the elongated hole on the guide bar (7).
5. Guide the saw chain (8) around the chain wheel (18) and check the alignment of the saw chain (8).
6. Fit the chain cover (5) back on. Ensure that the sprocket cover (5) is seated in the groove on the housing.
7. Tighten the tensioning wheel (6) clockwise hand-tight.
8. Check the fit of the saw chain (8) again and tension the saw chain (8).

Note:

Please note that the product will re-oil after use and oil may leak if the product is stored horizontally or upside down. This is a normal procedure due to the necessary ventilation opening at the upper edge of the tank and is no reason for complaint. As this product is inspected and tested with oil during production, there could be a small residue in the tank despite emptying, which could easily stain with oil during transport of the housing. Please clean the housing with a cloth. Before changing the saw chain, the groove of the guide rail must be cleaned of dirt, as the saw chain can jump out of the rail if dirt deposits are present. The deposits can also soak up the chain oil. The consequence would be that the chain oil does not reach the underside of the guide bar, or only to a small extent, and lubrication is reduced.

9.2 Tensioning the saw chain (8) (Fig. 3)

WARNING

Risk of injury from the saw chain jumping off!

An insufficiently tensioned saw chain can come off during operation and cause injuries.

- Check the saw chain tension frequently.

- The chain tension is too low if the drive links come out of the groove on the underside of the guide rail.

- Adjust the tension of the saw chain properly if the saw chain tension is too low.

1. Ensure that the chain brake (16) is released (see 10.1.2).
2. Set the chain tension using the chain tension wheel (6).
3. Clockwise - increases the chain tension
4. Anti-clockwise - reduces the chain tension
5. Turn the saw chain (8) by hand, to check it runs freely. It must glide freely in the guide bar (7).

The saw chain (8) must not sag, although it should be possible to pull it 1-2 millimetres away from the guide bar (7) in the centre of the chainsaw guide bar.

The chain tension and chain lubrication have a considerable influence on the service life of the saw chain.

The saw chain is correctly tensioned when it does not sag on the underside of the chainsaw guide bar and can be pulled all the way round with a gloved hand. When pulling on the saw chain with 9 N (approx. 1 kg) tractive force, the saw chain and chainsaw guide bar must not be more than 2 mm apart.

Note:

• The tension of a new chain must be checked after a few minutes in operation, and adjusted if necessary.
• The tensioning of the saw chain should be carried out in a clean place free from sawdust and the like.
• Correct tensioning of the saw chain is for the safety of the user and reduces or prevents wear and chain damage.
• We recommend that the user check the chain tension before starting work for the first time.

ATTENTION

When working with the saw, the saw chain heats up and expands slightly as a result. This “stretching” is to be expected especially with new saw chains.

9.3 Fill in chain oil (Fig. 4)

DANGER

Always switch off the product and let the motor cool down before filling with oil. There is a risk of fire if oil overflows.

WARNING

The guide bar and saw chain must never be without oil. If you operate the electric chainsaw with too little oil, the cutting performance and service life of the saw chain will be reduced as the saw chain will become blunt more quickly. You can see that there is too little oil by smoke being produced or by the guide bar discolouring.

ATTENTION

Environmental damage!

Spilled oil can pollute the environment permanently. The liquid is highly toxic and can quickly lead to water pollution.

– Fill/empty oil only on level, paved surfaces.
- Use a filling nozzle or funnel.
– Collect drained oil in a suitable container.
- Wipe up spilled oil carefully immediately and dispose of the cloth according to local regulations.
– Dispose of oil as per local regulations.

The saw chain will be lubricated automatically while the product is running. To lubricate the saw chain sufficiently, there must always be enough saw chain oil in the oil tank. Check the amount of oil remaining in the oil tank at regular intervals.

Note:

• The cover is equipped with an anti-loss device.
• Preferably fill the electric chainsaw with biodegradable chain oil*.

• Ensure that the cover of the oil tank is in place and closed before switching on the product.

• Open the oil tank (12). To do this, unscrew the oil tank cover (4) anti-clockwise.

• To prevent oil from leaking, use a funnel*.

• Carefully add the saw chain oil* until it reaches the top mark on the oil level indicator (13). Oil tank capacity: max. 350 ml.

• Screw the oil tank cover (4) clockwise to close the oil tank (12).

• Wipe up any spilled oil carefully immediately and dispose of the cloth* according to local regulations.
• To check the product lubrication, hold the chain-saw with the saw chain over a sheet of paper and give it full throttle for a few seconds. You can see on the paper whether the chain lubrication is working.

* = may not be included in the scope of delivery!

10 Operation

The electric chainsaw is driven by an electric motor. The saw chain runs around the edge of the chainsaw guide bar (guide rail).

The product is equipped with a quick-stop chain brake. An automatic oil system ensures continuous chain lubrication. The electric chainsaw is equipped with various protective devices to protect the user.

Please refer to the following descriptions for the function of the controls.

ATTENTION

Always make sure the product is fully assembled before commissioning!

ATTENTION

Make sure that the ambient temperature does not exceed 50^ C and does not fall below -20^ C during work.

DANGER

Danger of injury!

If the product is jammed, do not try to pull the product out by using force.

• Switch off the engine.
• Use a lever arm or wedge to get the product free.

10.1 Chain brake (16) (Fig. 1, 5)

WARNING

The chain brake must be checked before each use.

The chain brake brakes the saw chain immediately in the event of kick-back.

WARNING

If the chain brake is not working properly, you may not use the electric chainsaw. There is a danger of injury due to the saw chain continuing to run. Contact customer service.

WARNING

Product damage!

Increased motor speed for too long with the chain brake locked will damage the motor and the saw chain drive.

If the saw chain still moves, contact the customer service.

Note:

The saw chain does not run when the chain brake is engaged.

10.1.1 Activating the chain brake/front hand guard (16)

1. Do not tilt the chain brake/front hand guard (16) in the direction of the guide bar (7).

10.1.2 Loosening the chain brake/front hand guard (16)

1. Pull the chain brake/front hand guard (16) in the direction of the front handle (14). The chain brake/front hand guard (16) engages audibly.

10.1.3 Checking the chain brake/front hand guard (16)

1. Release the chain brake/front hand guard (16) as described under 10.1.2.
2. Hold the chainsaw tight in both hands.
3. Switch on the chainsaw as described under 10.2.
4. Do not tilt the chain brake/front hand guard (16) in the direction of the guide bar (7). The saw chain (8) must stop immediately!

Note:

If the saw chain still moves, do not use the product. There is a danger of injury due to the saw chain continuing to run. Contact customer service.

10.2 Switching the product on/off and operating it (Fig. 1)

WARNING

Danger of injury due to kickback!

- Never use the product one-handed!

Switching on

1. Check that there is saw chain oil* in the oil tank (12).
2. Form a loop from the end of the extension cable* and hook it into the strain relief (9) on the rear handle (2).
3. Insert the mains plug into a properly fused mains socket.
4. Pull the cover of the guide rail (17) off the guide bar (7).
5. Release the chain brake (16). The chain brake (16) engages audibly.
6. Hold the front handle (14) with your left hand and the rear handle (2) with your right hand. Thumb and fingers must firmly grasp the handles (2/14).
7. Bring your body and arms into a position in which you can absorb the kickback forces.
8. Push the switch lock (3) on the rear handle (2) forwards and hold it in this position.
9. To switch on the product, push the on/off switch (11).
10. Release the switch lock (3).

Note:

It is not necessary to keep the switch lock pressed after starting the product. The switch lock is intended to prevent accidental starting of the product.

Continuous operation is not possible.

Switching off

1. To switch it off, simply release the on/off switch (11).
2. Activate the chain brake (16).
3. Replace the guide rail cover (17) supplied with the product after each use.
4. Pull the mains plug out of the socket when the product is not in use.
5. Remove the extension cable* from the strain relief (9).
   * = may not be included in the scope of delivery!

10.3 Overload protection

In the event of overloading, the product will switch itself off. After a cool-down period (time varies), the product can be switched back on again.

10.4 Checking the saw chain lubrication (Fig. 4)

Note:

Before starting work, check the oil level and the function of the chain lubrication.

1. To check the product lubrication, hold the chainsaw with the saw chain over a sheet of paper and give it full throttle for a few seconds. You can see on the paper whether the chain lubrication is working.

Note:

If there is no trace of oil, clean the oil opening if necessary or have the electric chainsaw repaired by our customer service.

1. Clean the oil opening (21) to ensure trouble-free, automated oiling of the saw chain (8) during operation. To do this, use a brush* or cloth* to wipe out any residue from the oil opening (21).

* = may not be included in the scope of delivery!

11 Working instructions

DANGER

Danger of injury!

This section examines the basic working technique for using the product.

The information provided here does not replace the many years of training and experience of a specialist. Avoid any work that you are not adequately qualified for!

Careless use of the product can lead to serious injuries and even death!

DANGER

Danger of injury!

Sawing and felling work as well as all related work may only be carried out by specially trained and briefed persons.

WARNING

For safety reasons, we advise inexperienced users against felling a tree trunk with a guide bar length that is smaller than the trunk diameter.

Notes:

Before switching on, make sure that the product does not touch any objects.

Observe the country-specific regulations for felling work and obtain information from the relevant authority.

• Make sure that no one can be harmed by the falling branches and trees.
• Only the persons required for the felling work may be in the work area.
• Keep the work area at the trunk clear and tidy so that operators have a safe standing area.

• Keep escape routes clear and tidy in order to be able to leave the work area quickly.

• Do not carry out felling work in stronger wind conditions, bad weather or poor visibility.

• Keep distances to the nearest workplace of at least 2 1/2 tree lengths.
• Switch off the motor if the saw comes into contact with a foreign object. Check the saw and repair it if necessary.
• Protect the saw chain from dirt and sand. Even small amounts of dirt can quickly dull the saw chain and increase the risk of kickback.
• Start by sawing smaller logs for practice to get a feel for your product before tackling more difficult tasks.
• Press the housing of the electric chainsaw against the tree trunk when you start sawing.
• Let the saw work for you. Apply only light downward pressure.
• To avoid losing control of the product after the saw chain has come out of the wood, do not apply pressure to the saw towards the end of the cut.
• Do not cut wood that is lying on the ground or try to cut roots that are sticking out of the ground.
• Avoid abnormal postures. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
• You have better control when you saw with the underside of the bar (with a pulling chain).
• The saw chain must not touch the ground or any other object during or after sawing.
• Also observe the precautions against kick-back (see safety instructions).

11.1 Holding the device correctly

DANGER

Danger of injury!

• Never work on unstable ground!
  – Never work above shoulder height!
  – Never work when standing on ladders!
• Do not bend too far when working!
• Only use the device when the weather and terrain conditions are favourable!
• Stand with both legs firmly on the ground.
• Be aware of obstacles in the working area.
• During work, always hold the product tight in both hands!

11.2 How to saw correctly!

• Exert regular pressure on the product and do not apply excessive force.

• If possible, apply the product to the branch you wish to saw with the claw stop.

• Never work without the claw stop. The product can pull the operator forward.

• Use the claw stop for cutting tree trunks or thick branches.
• Using the claw stop increases work safety, reduces personal strain when working and vibrations are also reduced.
• If it came into contact with a foreign object. Inspect the product for damage and perform the required repairs before starting again and working with the product. If the product begins to experience exceptionally strong vibrations, switch it off immediately and check it.

11.3 Sawing techniques

11.3.1 Pull sawing

With this technique, sawing takes place with the underside of the chainsaw guide bar from top to bottom.

The saw chain pulls the product forwards and away from the user. With this action, the front edge of the product forms a support, which absorbs the forces that arise on the tree trunk during sawing. With pull sawing, the user has significantly greater control over the product and is able to better avoid kickbacks.

11.3.2 Push sawing

DANGER

Life-threatening injuries!

If the chainsaw guide bar jams, the product can be thrown towards the user with great force. If the user does not balance the backward force of the saw chain with their body strength, there is a risk that only the tip of the chainsaw guide bar will remain in contact with the wood and kick-back will occur.

With this technology, sawing takes place with the top side of the guide rail from bottom to top.

The saw chain pushes the product backwards, towards the user.

11.3.3 Cutting to length

This is the sawing of felled tree trunks into small sections. If possible, the trunk should be underpinned and supported by branches, beams or wedges.

• Always make sure you have a firm footing and only use the chainsaw when standing on firm, safe and level ground. Slippery ground or unstable standing surfaces can cause loss of balance or loss of control of the chainsaw.
• Always stand above the branch when sawing on slopes. Ensure that the saw chain does not come into contact with the ground. After completing the cut, wait for the saw chain to stop before removing the product.

- Always switch off the product's engine before switching from workplace to workplace.

11.3.3.1 Trunk lying on the floor (Fig. 6)

• The saw chain must not touch the ground or any other object during or after sawing.
• Saw all the way through the trunk from the top.
• If it is possible to turn the trunk, saw 2/3 through it. Then turn the trunk over and saw through the rest of the trunk from above.

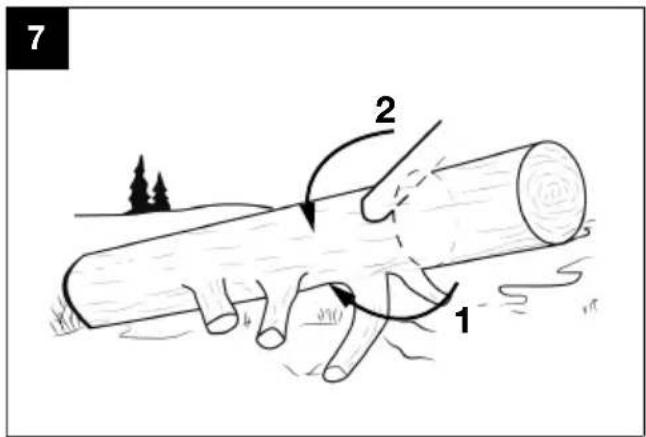

11.3.3.2 Trunk is supported at one end (Fig. 7)

• First saw through 1/3 of the trunk diameter from bottom to top (with the top side of the chainsaw guide bar) to avoid fragments.
• Then saw from top to bottom (with the underside of the chainsaw guide bar) towards the first cut to avoid jamming.

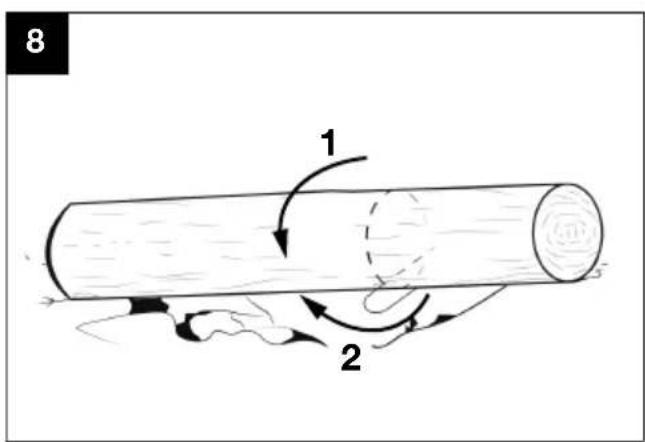

11.3.3.3 Trunk is supported at both ends (Fig. 8)

• First saw through 1/3 of the trunk diameter from top to bottom (with the underside of the chainsaw guide bar).
• Then saw from the bottom up (with the top of the chainsaw guide bar) until the cuts meet.

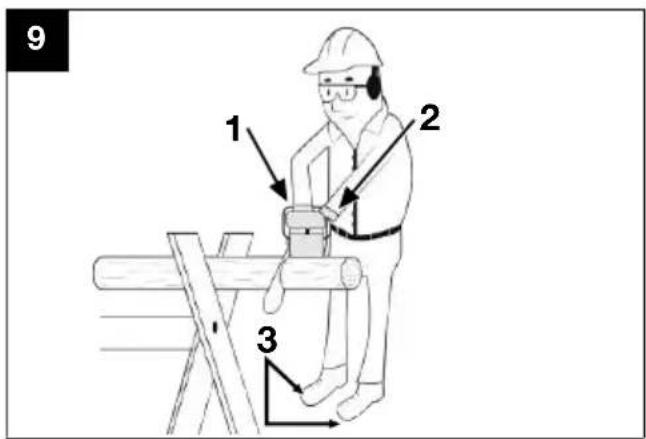

11.3.3.4 Sawing on a trestle (Fig. 9)

1. Hold the product firmly with both hands and guide the product in front of your body while sawing.
2. When cutting the trunk, guide the product past the body on the right. Keep your left arm as straight as possible. Watch out for the falling trunk.
3. Position yourself so that the severed trunk does not pose a hazard.
4. Pay attention to your feet. The cut trunk could cause injuries if it falls.
5. Make sure your body is balanced and that you have a secure stance.

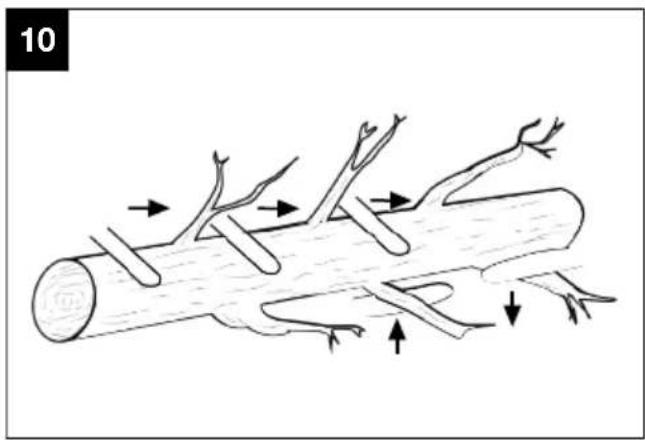

11.3.4 Delimbing (Fig. 10)

WARNING

Danger of injury!

Many accidents happen during delimbing.

1. Hold the product firmly with both hands and guide the product in front of your body while sawing.
2. Do not lean too far forward during operation.
3. Never saw off branches when standing on the tree trunk.
4. Keep an eye on the kick-back area if branches are tensioned.

Delimbing is the term for removing branches and twigs from a tree.

• Remove supporting branches only after cutting to length.
• Tensioned branches must be sawn from the bottom upwards to prevent the product from jamming.
• When sawing off thicker branches, use the same technique as for cutting to length.
• Work to the left of the trunk and as close as possible to the product. If possible, let the weight of the product rest on the trunk.
• Change your position to cut branches on the other side of the trunk.
• Branched boughs are cut to length individually.
• When delimbing, leave larger downward branches that support the tree for the time being. Separate smaller branches with one cut.
• Remove the branches hanging downwards by making the cut above the branch.
• Never delimb above shoulder height.

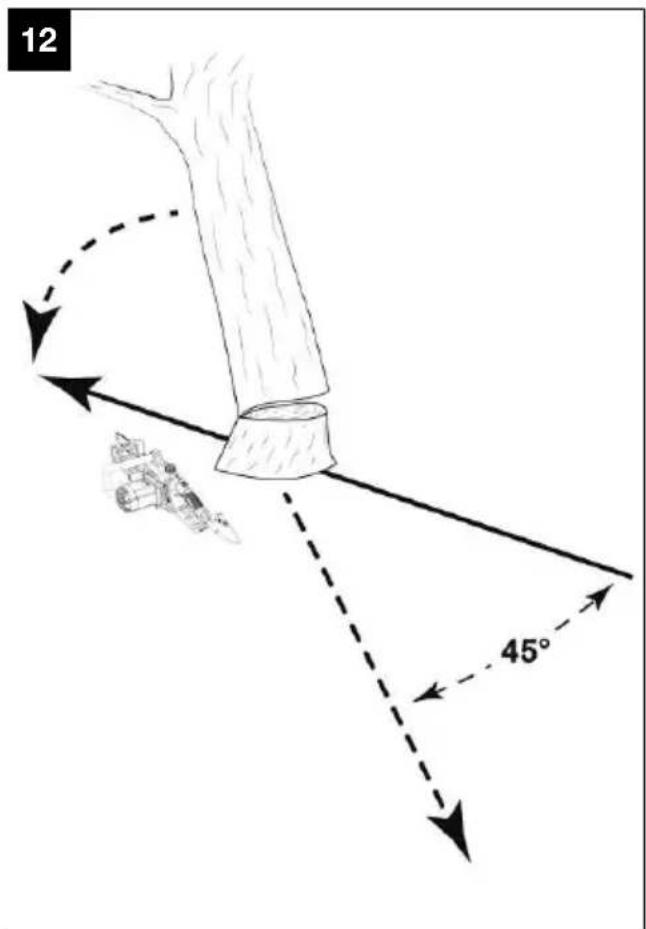

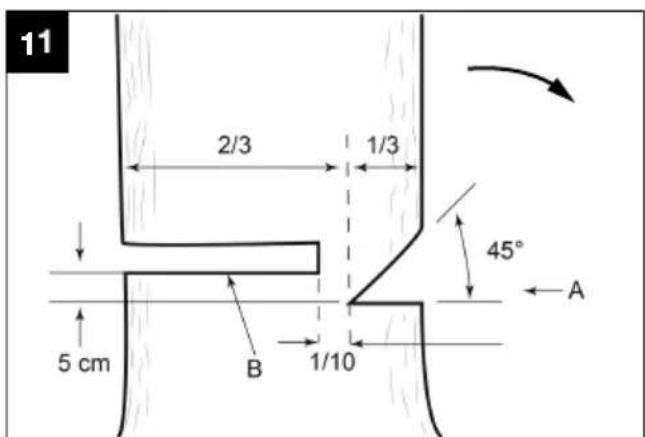

11.3.5 Felling a tree (Fig. 11, 12)

DANGER

Danger of injury!

Sawing and felling work as well as all related work may only be carried out by specially trained and briefed persons.

DANGER

A lot of experience is needed to fell trees. Only fell trees if you can handle the product safely. Never use the product if you feel unsafe.

DANGER

Life-threatening injuries!

– Never saw fully through the trunk!
– During felling, only stand to the side of the tree you intend to fell!

DANGER

Do not fell a tree if a strong or changing wind is blowing, if there is a risk of property damage or if the tree could hit electrical lines.

DANGER

When felling trees, care must be taken not to expose other persons to danger, not to hit supply lines and not to cause damage to property. Should a tree come into contact with a supply line, the utility company must be informed immediately.

• Ensure that no other people or animals are present in the work area. The safety distance between the tree to be felled and the nearest workplace must be 2.5 tree lengths.
• Pay attention to the felling direction: The user must be able to move safely in the vicinity of the felled tree in order to be able to cut to length and delimb the tree easily. The falling tree must be prevented from becoming entangled in another tree. Observe the natural fall direction which depends on the inclination and curvature of the tree, wind direction and number of branches.
• Small trees with a diameter of 15-18 cm, can usually be sawn with one cut.
• Always stand above the branch when sawing on slopes. Ensure that the saw chain does not come into contact with the ground. After completing the cut, wait for the saw chain to stop before removing the product.
• Always stand above the tree trunk when sawing on slopes. In order to maintain full control at the moment of “cutting all the way through”, reduce the pressing force towards the end of the cut, without loosening your firm grip of the handles of the product. Ensure that the saw chain does not come into contact with the ground. After completing the cut, wait for the product to stop before removing the product. Always switch off the product and disconnect the mains plug before switching from tree to tree.
• For trees with a larger diameter, notch cuts and a felling cut must be made.
• Ensure that the saw chain does not become jammed in the saw cut. The branch must not break or splinter.
• Dirt, stones, loose bark, nails, staples and wire must be removed from the tree.

WARNING

Fold up the hearing protection immediately after finishing the sawing process so that you can hear sounds and warning signals.

Delimbing:

- Remove the branches hanging downwards by making the cut above the branch. Never delimb above shoulder height.

Escape route:

- Remove the undergrowth around the tree to ensure an easy retreat. The escape route should be about 45^ behind the planned felling direction.

Cutting the notch cut:

• Place a notch cut in the direction that the tree should fall.

• Start with the bottom, horizontal cut.

• The cutting depth should be about 1/3 of the trunk diameter.
  This avoids jamming the saw chain or guide rail when setting the second notch.

• Now make cut at an angle of about 45^ from above which meets the lower saw cut precisely.

DANGER

Never step in front of a tree that is notched.

Felling cut:

• Perform the felling cut from the other side of the trunk while standing to the left of the tree trunk and sawing with the saw chain pulling.
• The felling cut must run horizontal at least 5 cm above the horizontal notch cut.
• It should be deep enough so that the distance to the notch cut line is at least 1/10 of the trunk diameter.
• The part of the trunk that has not been sawn through is called the bar (felling bar). The bar prevents the tree from turning and falling in the wrong direction. Do not saw through the bar.
• As the felling cut approaches the bar, the tree should begin to fall.
• If it appears that the tree is potentially not falling in the desired direction or is leaning back and the saw chain is jammed, stop the felling cut and use wooden, plastic or aluminium wedges to open the cut and move the tree to the desired fall line.
• If the trunk diameter is greater than the length of the chainsaw guide bar, make two cuts.
• After performing the felling cut, the tree falls by itself or with the help of the felling wedge or crowbar.

DANGER

As soon as the tree begins to fall, remove the product from the cut, stop the engine, place the product down and leave the workplace via the escape route. Watch out for falling branches and do not trip.

11.3.6 Release a jammed chainsaw

If the chainsaw becomes jammed during cutting, proceed as follows:

1. Switch off the chainsaw and secure it on the inside of the tree trunk (i.e. towards the tree trunk) or attach it to a separate tool rope.
2. Pull the chainsaw out of the notch while lifting the branch as far as necessary.
3. If necessary, use a handsaw or second chainsaw to loosen the jammed chainsaw by cutting at least 30 cm away from the jammed chainsaw.

Regardless of whether a hand saw or a chainsaw is used to release a trapped chainsaw, the cuts to release the chainsaw should always be made on the outside (towards the tips of the branches) so that the chainsaw does not get carried away with the sawn-off parts and further complicate the situation.

11.4 After use

• Always switch the product off before placing it down and wait until the product has come to a standstill.
• Place the guide rail cover on the chainsaw guide bar.
• Activate the chain brake.
• Allow the product to cool.
• Pull the mains plug out of the socket when the product is not in use.

12 Cleaning and maintenance

WARNING

Have maintenance and repair tasks that are not described in this operating manual, carried out by a specialist workshop. Use only original spare parts.

There is a risk of accident! Always carry out maintenance and cleaning work with the motor switched off and the mains plug disconnected. There is a danger of injury! Let the Product cool down before all maintenance and cleaning tasks. Elements of the engine are hot. There is a danger of injury and burning!

The product can start unexpectedly and cause injuries.

• Switch off the motor before carrying out any cleaning or maintenance work.
• Allow the motor to cool down.
  – Pull out the mains plug!

WARNING

Danger of injury when handling the saw chain or the blade!

- Wear cut-resistant gloves.

12.1 Cleaning

1. We recommend that you clean the product directly after every use.

2. Use a brush* or hand brush* to clean the saw chain and no liquids.

3. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

4. If necessary, clean the handles with a damp cloth* washed in soapy water.
5. Keep protective devices, air vents and the motor housing as free of dust and dirt as possible. Rub the product clean with a clean cloth* or blow it off with compressed air* at low pressure. We recommend that you clean the product directly after every use.
6. Ventilation openings must always be free.
7. Do not use any cleaning products or solvents; they could attack the plastic parts of the product. Make sure that no water can penetrate the product interior.
8. Clean the groove of the chainsaw guide bar using a brush or compressed air.
9. Clean the chain wheel.

* = may not be included in the scope of delivery!

12.2 Maintenance

Note:

Maintain the product carefully. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the product's operation. Have damaged parts repaired before using the product.

Note:

Place the product on a level, even surface.

12.2.1 Checking the sprocket (18) (Fig. 2)

1. Turn the chain tensioning wheel (6) anti-clockwise to slacken the chain tension and remove the chain cover (5).
2. Remove the guide bar (7) and the saw chain (8).
3. Check the grooving on the chain wheel (18) with a test gauge*.
4. If the grooves are deeper than a=0.5 mm, do not use the product and consult a specialist dealer. The chain wheel (18) must be replaced.
5. Refit the guide bar (7) and the saw chain (8) as described under 9.1.

* = may not be included in the scope of delivery!

12.2.2 Checking the guide bar (7) (Fig. 1)

1. Turn the chain tensioning wheel (6) anti-clockwise to slacken the chain tension and remove the chain cover (5).
2. Remove the guide bar (7) and the saw chain (8).
3. Measure the groove depth of the guide bar (7) with the scale on a file gauge*.
4. The guide bar (7) must be replaced if any of the following apply:

5. The chainsaw guide bar is damaged.

6. The measured groove depth is smaller than the minimum groove depth of the chainsaw guide bar (4 mm).

7. The groove of the chainsaw guide bar has narrowed or spread.

8. Fit the guide bar (7) and saw chain (8) as described under 9.1.

* = may not be included in the scope of delivery!

12.2.3 Changing the guide bar (7) (Fig. 2)

1. Turn the chain tensioning wheel (6) anti-clockwise to slacken the chain tension and remove the chain cover (5).
2. Remove the guide bar (7) and the saw chain (8). For dismantling, hold the guide bar (7) swivelled upwards at an angle of approx. 45 degrees to make it easier to remove the saw chain (8) from the groove of the guide bar (7).
3. Replace the guide bar (7) and fit the guide bar (7) and saw chain (8) as described under 9.1.

12.2.4 Replace the saw chain (8) and allow it to run in (Fig. 2)

DANGER

Serious injuries possible due to tearing or jumping off of the sawtooth!

- Never fit a new saw chain on a worn sprocket or on a damaged or worn guide rail. The saw chain could jump off or break.

• Only use saw chains and blades designed for this product.

• Before changing the saw chain, clean the groove of the guide bar, as the saw chain may jump out of the bar if it dirty. The deposits can also soak up the chain oil. The consequence would be that the chain oil does not reach the underside of the guide bar, or only to a small extent, and lubrication is reduced.

• Turn the chain tensioning wheel (6) anti-clockwise to slacken the chain tension and remove the chain cover (5).

• Remove the guide bar (7) and the saw chain (8).
• Lay out the saw chain (8) in a loop so that the cutting edges are aligned clockwise. To align the saw chain (8), follow the symbols (arrows) on the saw chain (8) or above the guide pin (20).
• Place the saw chain (8) in the groove of the guide bar (7).
• Insert the guide bar (7) on the guide pin (20) and the stud bolt (19). The guide pin (20) and the stud bolt (19) must be in the elongated hole on the guide bar (7).

• Guide the saw chain (8) around the chain wheel (18) and check the alignment of the saw chain (8).

• Fit the chain cover (5) back on. Ensure that the sprocket cover (5) is seated in the groove on the housing.

• Tighten the tensioning wheel (6) clockwise hand-tight.
• Check the fit of the saw chain (8) again and tension the saw chain (8).

Note:

With a new saw chain, the tensioning force decreases after some time. Therefore, you must retension the saw chain after the first 5 cuts, or after 10 minutes of sawing at the latest.

12.2.5 Sharpening the saw chain (8)

WARNING

Increased risk of accidents due to an incorrectly sharpened saw chain!

Deviations from the dimensions of the cutting edge geometry during sharpening increase the risk of kickback of the product.

– Have the saw chain sharpened by a professional.

The saw chain can be resharpened at an authorised specialist workshop. Do not attempt to sharpen the saw chain yourself if you do not have a suitable tool and the necessary experience.

CAUTION

Special tools are required to sharpen the chain; these ensure that the cutting tools are sharpened at the correct angle and to the correct depth. All cutting links must have the same width and length after sharpening.

Notes:

A sharp saw chain ensures optimum cutting performance. It effortlessly eats through the wood, leaving behind large, long wood chips.

A saw chain is blunt if you have to push the cutting equipment through the wood and the wood chips are very small. With a very blunt saw chain, no chips are produced at all, only wood dust.

1. Pull out the mains plug.
2. For sharpening, the saw chain (8) should be taut to allow proper sharpening.
3. A round file* with a diameter of 4.0 mm is required for sharpening.

CAUTION

Other diameters damage the saw chain and can lead to hazards when working!

1. Only sharpen from the inside out. Guide the file* from the inside of the cutting tooth to the outside. Lift off the file* when you pull it back.
2. First sharpen the teeth on one side. Then turn the saw chain (8) over and sharpen the teeth on the other side.
3. The saw chain (8) is worn and must be replaced with a new saw chain (8) when only approx. 4 mm of the cutting tooth is left.
4. After sharpening, all cutting links must be the same length and width.
5. After every third sharpening, the sharpening depth (depth limit) must be checked and the height must be re-filed using a flat file ^* . The depth limit should be set back from the cutting tooth by approx. 0.65 mm. After resetting, round off the depth limit slightly towards the front.
   * = may not be included in the scope of delivery!

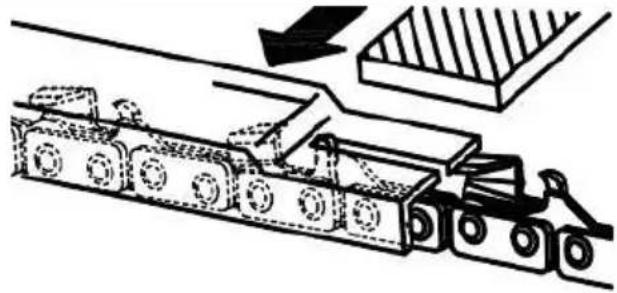

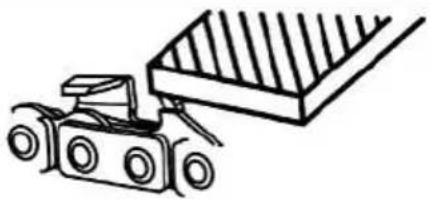

12.2.5.1 Instructions for sharpening the chain

Saw chain type	File diameter Top angle Bottom angle (55°) Standard depth				gauge
		Clamping rotation angle	Clamping tilt angle	Side angle
21PBX approx. 4.8 mm 30° 10°		85° 0.64 mm
Depth stop File

13 Storage and transport

Store the product and its accessories in a dark, dry and frost-free place that is inaccessible to children.

The optimum storage temperature is between 5^ C and 30^ C.

Store the product in its original packaging.

Cover the product to protect it from dust or moisture.

Store the operating manual with the product.

13.1 Preparation for storage

1. Attach the chain guide.
2. Empty the product completely.
3. Clean and check the product for damage.

13.2 Transport

- The product may only be transported on the handle provided for this purpose.

14 Electrical connection

The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions. The customer's mains connection as well as the extension cable used must also comply with these regulations.

Note:

• The product fulfils the requirements of EN 61000-3-11 and is subject to special connection requirements. This means that use at any freely selectable connection points is not permitted.
• The product can cause temporary voltage fluctuations in unfavourable mains conditions.
• The product is intended exclusively for use at connection points which a) do not exceed a maximum permitted mains impedance "Z" (Zmax. = 0.415 Ω), orb) have a continuous current carrying capacity of the mains of at least 100 A per phase.

- As the user, you are required to ensure that the connection point at which you wish to operate the product fulfils one of the requirements mentioned, a) or b). If necessary, consult with your energy supplier in this regard.

14.1 Important information

In the event of overloading, the motor will switch itself off. After a cool-down period (time varies) the motor can be switched back on again.

14.2 Damaged electrical connection cables

The insulation on electrical connection cables is often damaged.

This may have the following causes:

• Pressure points, where connection cables are passed through windows or doors,
• Kinks where the connection cable has been improperly fastened or routed,
• Places where the connection cables have been cut due to being driven over,
• Insulation damage due to being ripped out of the wall socket,
• Cracks due to the insulation ageing.

Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage.

Check the electrical connection cables for damage regularly. Ensure that the connection cables are disconnected from electrical power when checking for damage.

Electrical connection cables must comply with the applicable VDE and DIN provisions. Only use connection cables with the same designation "H05VV-F".

The printing of the type designation on the connection cable is mandatory.

Safety information for replacing damaged or defective mains connection cables

Connection type Y

If it is necessary to replace the mains connection cable, this must be done by the manufacturer or their representative to avoid safety hazards.

14.3 AC motor

• The mains voltage must be 230 V - 240V\~.
• Extension cables up to 25 m long must have a cross-section of 1.5 mm ^2 .

15 Repair & ordering spare parts

With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.

ATTENTION

According to the German Product Liability Act, no liability is accepted for damage caused by improper repairs or by not using original spare parts.

Such work should be performed by a customer service centre or an authorised specialists. The same applies to accessory parts.

Spare parts and accessories can be obtained from our Service Centre. To do this, scan the QR code on the front page.

15.1 Ordering spare parts

Please provide the following information when ordering spare parts:

• Model designation
• Item number
• Type plate data

Spare parts / accessories

Oil tank cover 3910207003

15.2 Permitted set of blade and saw chains

Guide rails:
Kangxin AP14-52-507P chainsaw guide bar	3910207001
Saw chains:
Kangxin 3/8LP-52 saw chain 3910207002

16 Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

Notes on the electrical and electronic equipment act [ElektroG]

Waste electrical and electronic equipment does not belong in household waste, but must be collected and disposed of separately!

- Used batteries or rechargeable batteries that are not installed permanently in the old device must be removed non-destructively before disposal! Their disposal is regulated by the battery act.

• Owners or users of electrical and electronic devices are legally obliged to return them after use.
• The end user is responsible for deleting their personal data from the old device being disposed of!
• The symbol of the crossed-out dustbin means that waste electrical and electronic equipment must not be disposed of with household waste.
• Waste electrical and electronic equipment can be handed in free of charge at the following places:

– Public disposal or collection points (e.g. municipal works yards)
- LIDL offers you return options directly in the shops and markets. Return and disposal are free of charge.
- Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity.
- Further supplementary take-back conditions of the manufacturers and distributors can be obtained from the respective customer service.

• If the manufacturer delivers a new electrical device to a private household, the manufacturer can arrange for the free collection of the old electrical device upon request from the end user. Please contact the manufacturer's customer service for this.
  • These statements only apply to devices installed and sold in the countries of the European Union and which are subject to the European Directive 2012/19/EU. In countries outside the European Union, different regulations may apply to the disposal of waste electrical and electronic equipment.

You can find out how to dispose of the disused device from your local authority or city administration.

Fuels and oils

• Before disposing of the product, the fuel tank and the engine oil tank must be emptied!
• Fuel and engine oil do not belong in household waste or drains, but must be collected or disposed of separately!
• Empty oil and fuel tanks must be disposed of in an environmentally friendly manner.

17 Troubleshooting

Fault Possible cause Remedy
The product cannot be started.	Mains plug not connected to the mains.	Insert the mains plug into a mains socket.
	No mains voltage.House fuse responds.	Check sockets, mains connection cable, cable, mains plug, repair by qualified electrician if necessary.Check the house fuse.
	Chain brake is activated. Check chain	chain brake, release chain brake if necessary.
	On/off switch is defective. Please contact our service department.
	Carbon brushes worn out.
	The motor is defective.
Saw chain does not run. Chain break blocked. Check chain brake, release chain brake if necessary.
Poor cutting performance. Saw chain fitted incorrectly. Fit the saw chain correctly.
Product runs with difficulty/saw chain jumps off.	Chain tension insufficient.	Check the saw chain. Tension the saw chain if necessary.
Saw chain gets hot, smoke development during sawing, discoulouration of the rail.	Too little saw chain oil.	Check the automatic oil system. Fill up with saw chain oil if necessary.
Unusual vibration	Chainsaw guide bar is loose.	Check that the chainsaw guide bar is tightly fitted.

18 EU Declaration of Conformity

Translation of the original Declaration of Conformity

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

We declare under our sole responsibility that the product described here complies with the applicable directives and standards.

Brand: Parkside

Art. designation: ELECTRIC CHAINSAW -

PEKS 1600 C3

Item No. 3910207974, 3910207976 -

3910207980, 39102079915,

39102079959

IAN no. 459177_2401

Series no. 01001-50810

EU directives:

2006/42/EC, 2014/30/EU, 2000/14/EC & 2005/88/EC, 2011/65/EU*, (EU) 2015/863

* The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Applied standards:

EN 62841-1:2015/A11:2022; EN 62841-4-1:2020;

EN IEC 55014-1:2021; EN IEC 55014-2:2021;

EN IEC 61000-3-2:2019/A1:2021;

EN IEC 61000-3-11:2019; EN IEC 63000:2018

2006/42/EG - Appendix IV

Notified body: TÜV SÜD Product Service GmbH

Ridlerstraße 65

80339 Munich

Germany

Number: 0123

Certificate number: M6A 011284 0455

2000/14/EG\_2005/88/EC - Appendix: V

Guaranteed sound power level ( L_WA ): 106 dB

Measured sound power level ( L_WA ): 103.3 dB

Documentation authorised representative:

Tobias Ihle

Günzburger Str. 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Warranty certificate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. Of course, if you would prefer to call us then we are also happy to offer our assistance under the service number printed below. Please note the following terms under which guarantee claims can be made:

• These guarantee terms cover additional guarantee rights and do not affect your statutory warranty rights. We do not charge you for this guarantee.
• Our guarantee only covers problems caused by material or manufacturing defects, and it is restricted to the rectification of these defects or replacement of the device. Please note that our devices have not been designed for use in commercial, trade or industrial applications. Consequently, the guarantee is invalidated if the equipment is used in commercial, trade or industrial applications or for other equivalent activities. The following are also excluded from our guarantee: compensation for transport damage, damage caused by failure to comply with the installation/assembly instructions or damage caused by unprofessional installation, failure to comply with the operating instructions (e.g. connection to the wrong mains voltage or current type), misuse or inappropriate use (such as overloading of the device or use of non-approved tools or accessories), failure to comply with the maintenance and safety regulations, ingress of foreign bodies into the device (e.g. sand, stones or dust), effects of force or external influences (e.g. damage caused by the device being dropped) and normal wear resulting from proper operation of the device.

The guarantee is rendered null and void if any attempt is made to tamper with the device.

• The guarantee is valid for a period of 3 years starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies when an on-site service is used.
• In order to assert your guarantee claim, please contact the service partner shown below. If the complaint is within the guarantee period, we will provide you with a return slip, with which you can return your defective device free of charge to us. It would help us if you could describe the nature of the problem in as much detail as possible. If the defect is covered by our guarantee then your device will either be repaired immediately and returned to you, or we will send you a new device.

Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.

Processing of warranty claims

To ensure that your request is processed quickly, please follow the instructions below:

• Please have the receipt and article number (e.g. IAN 459177_2401) ready as proof of purchase for all enquiries.
• Please refer to the type plate on the product, an engraving on the product, the title page of your instructions (bottom left) or the sticker on the back or underside of the product for the article number.
• If functional faults or other defects occur, first contact the service department named below by telephone or e-mail.
• You can then send a product recorded as defective to the service address provided to you free of charge, enclosing the proof of purchase (receipt) and stating what the defect is and when it occurred.
• You can view and download these and many other manuals at parkside-diy.com. This QR code will take you directly to parkside-diy.com. Select your country and use the search mask to search for the operating instructions. Enter the article number (IAN) 459177_2401 to access the operating instructions for your article.

Service contact (GB): Service contact (IE):

Name: Forest Park & Garden

Coed Court,

Taffsmead Road

Treforest, Ind. Estate,

Pontypridd CF375SW

Name: Forest Park & Garden

Coed Court,

Taffsmead Road

Treforest, Ind. Estate,

Pontypridd CF375SW

Tel: [phone] Tel: [phone]

E-Mail: service.GB@schep-

pach.com

Location: Great Britain Location: Great Britain

PDF ONLINE parkside-diy.com

Service contact (NI): Service contact (CY): Service contact (IT):

Name: Forest Park & Garden

Coed Court,

Taffsmead Road

Treforest, Ind. Estate,

Pontypridd CF375SW

Name: GEORGE C

SOLOMONIDES & SON LTD

PO.BOX 56236 / 169,

LEONTIOS A'

GR - 3022 LIMASSOL/

CYPRUS

Tel: [phone]

E-Mail: [e-mail]

Location: Great Britain

Tel: [phone]

E-Mail: [e-mail]

Location: Cyprus

Name: TeleMarCom European

Services GmbH

Am Ziegelweiher 24

DE - 61130 Nidderau

Tel: [phone]

E-Mail: [e-mail]

Location: Germany

Inhaltsverzeichnis

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Head of Project Management

Garantieurkunde

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Certificat de garantie

Chère Cliente, Cher Client,

Günzburger Straße 69

D-89335 Ichenhausen

Geachte klant,

11.3.4 Snoeien (afb. 10)

WAARSCHUWING

Gevaar voor letsel!

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Garantiebewijs

Geachte klant,

Servicecontact (NL): Servicecontact (BE):

Naam: TeleMarCom European

Services GmbH

Am Ziegelweiher 24

DE - 61130 Nidderau

Naam: TeleMarCom European

Services GmbH

Am Ziegelweiher 24

DE - 61130 Nidderau

Telefoon: 00800 4003 4003 Telefoon: 00800 4003 4003

E-mail: [e-mail] E-mail: [e-mail]

Günzburger Straße 69

Diagram of a conveyor belt system with rollers and a truck, showing mechanical components and a sloped surface (no text or symbols)

Simple line drawing of a toy truck and a ramp (no text or symbols)

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Günzburger Straße 69

89335 Ichenhausen, Germania

Egregio cliente,

Günzburger Straße 69

D-89335 Ichenhausen

2000/14/EG\_2005/88/CE - Allegato: V

Division Manager Product Center

Andreas Pecher

Head of Project Management

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazníku,

Diagram of a conveyor belt system with rollers and a truck, showing mechanical components and a sloped surface (no text or symbols)

Simple line drawing of a robotic arm pulling a rectangular block (no text or symbols)

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

V. Gondron

Andreas Pecher

Head of Project Management

Záruční list

Važena zakaznice, važeny zakazniku,

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazník,

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Záručný list

Günzburger Straße 69

D-89335 Ichenhausen

Tisztelt Ügyfelünk!

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

JÓTÁLLÁSI TÁJÉKOZTATÓ

Günzburger Straße 69

D-89335 Ichenhausen

Szanowny Kliencie

Diagram of a conveyor belt system with rollers and a truck, showing mechanical components and a sloped surface (no text or symbols)

Simple line drawing of a toy truck and a ramp (no text or symbols)

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Gwarancja

Drodzy Klienci,

Günzburger Straße 69

D-89335 Ichenhausen, Tyskland

Kære kunde

Günzburger Straße 69

D-89335 Ichenhausen, Tyskland

Division Manager Product Center

Andreas Pecher

Head of Project Management

Garantibevis

Kære kunde,

Exploded view diagram of a battery pack assembly with numbered parts for identification

Notizen

CE

SCHEPPACH GMBH

Günzburger Str. 69

D-89335 Ichenhausen

FR RECO

FSC

www.fsc.org

MIX

Paper from responsible sources

C179096 C179096 C179096 C ^39

FSC

www.fsc.org

MIXTE
