USER MANUAL PPHKS 1800 A1 PARKSIDE

QR code image with a central logo, likely linking to a digital resource or website.

PDF ONLINE

parkside-diy.com

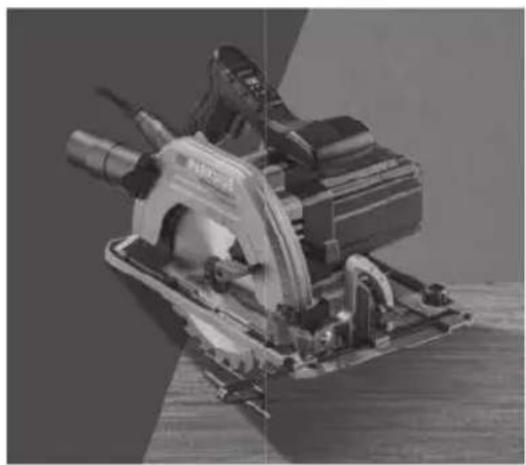

Black-and-white photo of a Puma tool on a wooden surface (no visible text or symbols)

HANDKREISSÄGE/CIRCULAR SAW/SCIE CIRCULAIRE PPHKS 1800 A1

DE AT CH

HANDKREISSÄGE

Bedienungsanleitung

Translation of the original instructions

FR BE

SCIE CIRCULAIRE

Mode d'emploi

GB/IE User manual Page 28

J 6 27 28 29

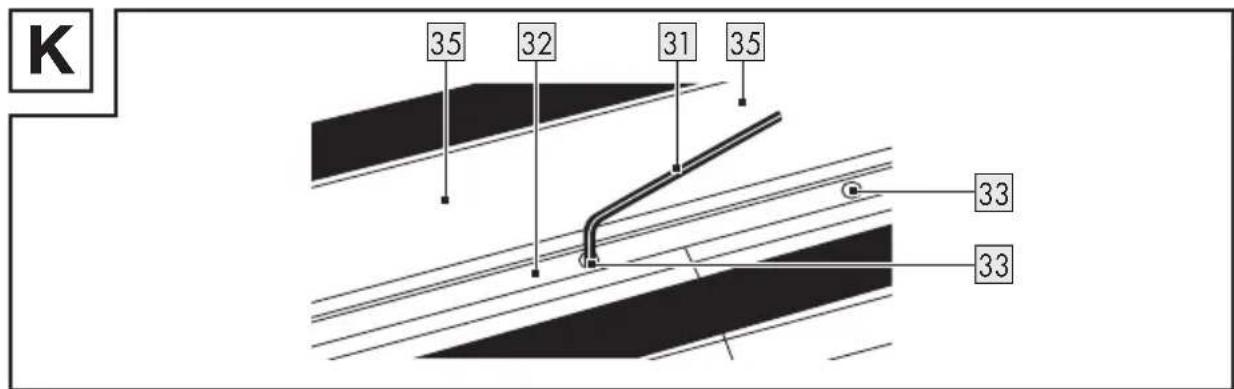

K 35 32 31 35 33 33

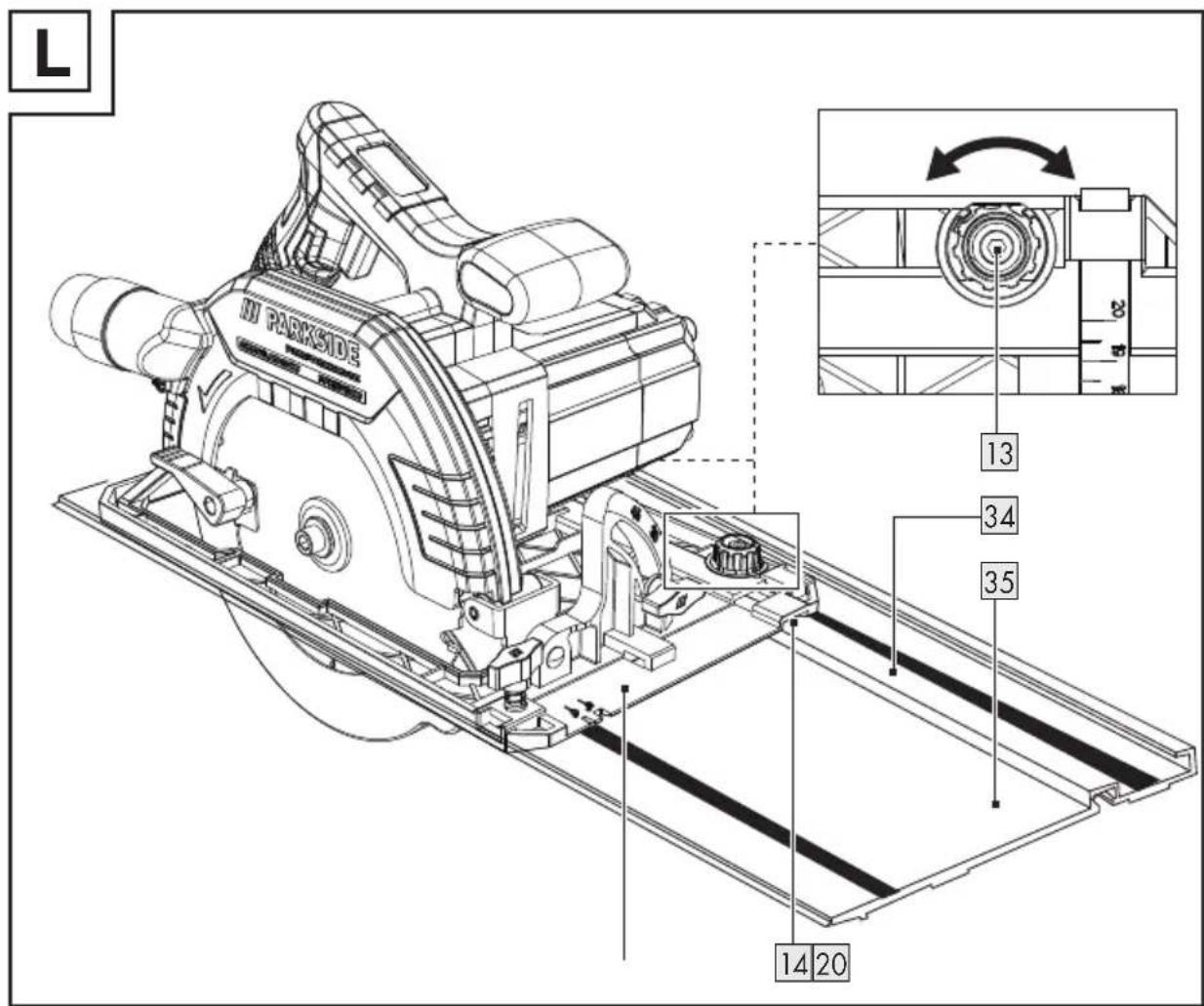

L III PARKSIDE 13 34 35 14 20

Intended use.... Page 30

Scope of delivery ...... Page 30

Parts description.... Page 30

Technical data.... Page 31

Safety instructions ...... Page 32

General power tool safety warnings.... Page 32

Vibration and noise reduction.... Page 34

Behaviour in emergency situations. Page 34

Residual risks....Page 35

Safety instructions for circular saws.... Page 35

Further safety instructions for all saws.... Page 35

Lower guard function ...... Page 36

Additional safety warnings ...... Page 37

Safety information for the saw blade .... Page 37

Before first use.... Page 38

Unpacking the product.... Page 38

Accessories Page 38

Preparation.... Page 38

Checking the function of the lower guard .... Page 38

Installing/changing the saw blade .... Page 38

Connecting to the dust extraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 39

Mounting the parallel fence ...... Page 39

Adjusting the cutting angle.... Page 40

Adjusting the cutting depth ...... Page 40

Operation.... Page 40

Selecting the speed level ...... Page 40

Connecting/disconnecting the mains cord.... Page 41

Switching on/off Page 41

Work instructions ...... Page 41

Using the guide rail (not included) Page 41

Cleaning and care Page 42

Cleaning Page 42

Maintenance.... Page 42

Repair Page 43

Storage Page 43

Transportation.... Page 43

Disposal Page 43

Warranty.... Page 43

Warranty claim procedure.... Page 44

Service Page 44

EU declaration of conformity....Page 45

List of pictograms used
	This symbol means that the operating instructions must be observed when using the product.	∅	Diameter
		TCT	Tungsten Carbide Tips
	DANGER! – Designating a hazard with high risk, which will result in death or severe injury if not avoided (e.g. risk of suffocation)		Locked
			Unlocked
	WARNING! – Designating a hazard with moderate risk, which can result in death or severe injury if not avoided (e.g. risk of electric shock)		Switch off the product and remove the mains plug 29 from the mains outlet before making any adjustments, performing maintenance, cleaning and when the product is not in use.
	CAUTION! – Designating a hazard with low risk, which could result in minor or moderate injury if not avoided (e.g. risk of scalding)		Alternating current/voltage
			Symbol for a Protection Class II product
			Saw blade diameter
	NOTICE! – Warns of possible damage to property/the product if not avoided (e.g. risk of short circuit)		Maximum cutting depth 65 mm at 0° cutting angle
	Danger – risk of electric shock! Suit: or cutting wood
	Wear hearing protection! Do not tou W teeth.
	Wear breathing protection!		Do not use any damaged saw blade.
	Wear eye protection!		Rotational direction arrow marked on saw blade
	Wear protective gloves!		Rotational direction arrow marked on upper guard
	CE mark indicates conformity with relevant EU directives applicable for this product.		Safety information Instructions for use

CIRCULAR SAW

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This circular saw (hereinafter “product” or “power tool”) is suitable for sawing the following materials:

-nature wood

-plywood

-chipboard

–similar light weight construction materials

• Cutting in wet condition and cutting metal are prohibited.
  ■ Any other use or modification of the product are considered improper use and can result in hazards such as death, life-threatening injuries and damage.
  ■ The manufacturer is not liable for any damages caused by improper use.
• The product is exclusively intended for domestic use.

The product is not intended for commercial use, industrial operations or similar purposes.
- Observe all applicable local safety regulations, standards and ordinances. The use of noise emitting power tools may be restricted to certain times by national or local regulations.

- Scope of delivery

WARNING!

The product and the packaging are not children's toys! Children must not play with plastic bags, sheets and small parts! There is a danger of choking and suffocation!

After unpacking the product, check if the delivery is complete and if all parts are in good condition. Remove all packaging materials before use.

1 Circular saw
1 Mains cord with mains plug
1 TCT saw blade (pre-installed)
1 Hex key
1 Parallel fence
1 Adaptor
1 User manual

Parts description

(Fig. A)

1 On/off switch
2 Speed display
3 Speed control button
4 Cutting depth scale

5 Switch lock
6 Main handle
7Hex key storage
8 Hex key (6 mm)
9 Lock lever
(operate with cutting depth scale)
10Auxiliary handle
11 Spindle lock
12Bevel scale
13 Eccentric screw
14 Groove
15 Wing screw (operate with bevel scale)
16Cutting guide (0° and 45°)
17 Wing screw (operate with parallel fence)
18Parallel fence
19 Lower guard
20Base plate
21 Saw blade
22Flange
23Clamping screw
24 Lever (operate with lower guard)
25 Upper guard
26 Dust port
27 Cord socket
28Coupler
29Mains cord with mains plug

(Fig. B)

30Adaptor

(Fig. C)*

31Hex key (3 mm)

32 Connector

33Grub screw

34Slide rail

35Guide rail (×2)

* The par31-35 are not included.

(Fig. D)

23aSpindle

• Technical data

Circular saw PPHKS 1800 A1
Model number:-with VDE plug: HG12136-with BS plug: HG12136-BS
Rated input voltage: 220–240 V~, 50 Hz
Nominal output: 1 800 W
Idle speed n0: 3 000–6 000 min-1
Max. cutting depth:-at 0°: approx. 64 mm-at 90°: approx. 47 mm
Thread size:	M8
Protection class:	II/☐(double insulation)

Saw blade dimensions

Model number:	HG12456
Teeth:	24
Diameter:	190 mm
Bore size: 30 mm
Teeth thickness:	2.4 mm
Allowable rotational speed:	max. 7,000 min ^-1

Noise emission value

Noise measurement value determined in accordance with EN 62841. The A-rated noise level of the power tool at the working location is typically as follows:

Sound pressure level L_pA :	94.5 dB
Uncertainty K_pA :	3 dB
Sound power level L_WA :	102.5 dB
Uncertainty K_WA :	3 dB

WARNING!

Wear hearing protection!

Vibration emission value

Vibration value ( a_h ) when sawing in wood:

Main handle: 3.654 m/s	2
Uncertainty K: 1.5 m/s	2
Auxiliary handle: 3.762 m/s	2
Uncertainty K: 1.5 m/s	2

NOTE

The vibration emission values and the noise emission values given in these instructions have been measured in accordance with a standardised test procedure and can be used for comparison of the power tool with another tool.
The specified total vibration values and the noise emission values can also be used to make a provisional load estimate.

WARNING!

Depending on the manner in which the power tool is being used and, in particular, the kind of workpiece being worked, the vibration and noise emission values can deviate from the values given in these instructions during actual use of the power tool.
It is necessary to establish safety measures to protect the operator based on an estimation of the vibration load during actual use (wherein all states of operation must be included, e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).

Safety instructions

● General power tool safety warnings

WARNING!

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for

safe handling and control of the tool in unexpected situations.

Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

● Vibration and noise reduction

To reduce the impact of noise and vibration emission, limit the time of operation, use low-vibration and low-noise operating modes as well as wear personal protective equipment.

Take the following points into account to minimise the vibration and noise exposure risks:

■ Only use the product as intended by its design and these instructions.
■ Ensure that the product is in good condition and well maintained.
■ Use correct accessory tools for the product and ensure they are in good condition.
- Keep tight grip on the handles/grip surface.
- Maintain this product in accordance with these instructions and keep it well lubricated (where appropriate).
- Plan your work schedule to spread any high vibration tool use across a longer period of time.

● Behaviour in emergency situations

Familiarise yourself with the use of this product by means of this instruction manual. Memorise the safety warnings and follow them to the letter. This will help to prevent risks and hazards.

■ Always be alert when using this product, so that you can recognise and handle risks early. Fast intervention can prevent serious injury and damage to property.
■ Switch the product off and disconnect it from the mains if there are malfunctions. Have the product checked by a qualified professional and repaired, if necessary, before you operate it again.

- Residual risks

Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain. The following dangers can arise in connection with the structure and design of this product:

■ Health defects resulting from vibration emission if the product is being used over long periods of time or not adequately managed and properly maintained.
Injuries and damage to property due to broken accessory tools or the sudden impact of hidden objects during use.
■ Danger of injury and property damage caused by flying objects.

● Safety instructions for circular saws

Sawing method

a)

Danger! Keep hands away from cutting area and the blade. Keep your second hand on auxiliary handle, or motor housing. If both hands are holding the saw, they cannot be cut by the blade.

b) Do not reach underneath the workpiece. The guard cannot protect you from the blade below the workpiece.

c) Adjust the cutting depth to the thickness of the workpiece. Less than a full tooth of the blade teeth should be visible below the workpiece.

d) Never hold the workpiece in your hands or across your leg while cutting. Secure the workpiece to a stable platform. It is important to support the work properly to minimise body exposure, blade binding, or loss of control.

e) Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a “live” wire will also make exposed metal parts of the power tool “live” and could give the operator an electric shock.

f) When ripping always use a rip fence or straight edge guide. This improves the accuracy of cut and reduces the chance of blade binding.

g) Always use blades with correct size and shape (diamond versus round) of arbour holes. Blades that do not match the mounting hardware of the saw will run off-centre, causing loss of control.

h) Never use damaged or incorrect blade washers or bolt. The blade washers and bolt were specially designed for your saw, for optimum performance and safety of operation.

● Further safety instructions for all saws

Kickback – causes and related warnings

- A kickback is a sudden reaction to a pinched, jammed or misaligned saw blade, causing an uncontrolled saw to lift up and out of the workpiece toward the operator;

• when the blade is pinched or jammed tightly by the kerf closing down, the blade stalls and the motor reaction drives the unit rapidly back toward the operator;
• if the blade becomes twisted or misaligned in the cut, the teeth at the back edge of the blade can dig into the top surface of the wood causing the blade to climb out of the kerf and jump back toward the operator.

Kickback is the result of saw misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

a) Maintain a firm grip with both hands on the saw and position your arms to resist kickback forces. Position your body to either side of the blade, but not in line with the blade. Kickback could cause the saw to jump backwards, but kickback forces can be controlled by the operator, if proper precautions are taken.
b) When blade is binding, or when interrupting a cut for any reason, release the trigger and hold the saw motionless in the material until the blade comes to a complete stop. Never attempt to remove the saw from the work or pull the saw backward while the blade is in motion or kickback may occur. Investigate and take corrective actions to eliminate the cause of blade binding.
c) When restarting a saw in the workpiece, centre the saw blade in the kerf so that the saw teeth are not engaged into the material. If a saw blade binds, it may walk up or kickback from the workpiece as the saw is restarted.

d) Support large panels to minimise the risk of blade pinching and kickback. Large panels tend to sag under their own weight. Supports must be placed under the panel on both sides, near the line of cut and near the edge of the panel.
e) Do not use dull or damaged blades. Unsharpened or improperly set blades produce narrow kerf causing excessive friction, blade binding and kickback.
f) Blade depth and bevel adjusting locking levers must be tight and secure before making the cut. If blade adjustment shifts while cutting, it may cause binding and kickback.
g) Use extra caution when sawing into existing walls or other blind areas. The protruding blade may cut objects that can cause kickback.

● Lower guard function

a) Check the lower guard for proper closing before each use. Do not operate the saw if the lower guard does not move freely and close instantly. Never clamp or tie the lower guard into the open position. If the saw is accidentally dropped, the lower guard may be bent. Raise the lower guard with the retracting handle and make sure it moves freely and does not touch the blade or any other part, in all angles and depths of cut.
b) Check the operation of the lower guard spring. If the guard and the spring are not operating properly, they must be serviced before use. Lower guard may operate sluggishly due to damaged parts, gummy deposits, or a build-up of debris.

c) The lower guard may be retracted manually only for special cuts such as “plunge cuts” and “compound cuts”. Raise the lower guard by the retracting handle and as soon as the blade enters the material, the lower guard must be released. For all other sawing, the lower guard should operate automatically.
d) Always observe that the lower guard is covering the blade before placing the saw down on bench or floor. An unprotected, coasting blade will cause the saw to walk backwards, cutting whatever is in its path. Be aware of the time it takes for the blade to stop after switch is released.

Additional safety warnings

a) Do not allow the ejected cutting chip come into contact with your hands. You may be injured or cut by high-speed saw chip.
b) Do not use the saw above the level of your head. Doing so will mean you have inadequate control of the power tool.
c) Do not use grinding discs with this tool. It will be broken easily and cause personal injury.
d) Use suitable detectors to determine if utility lines are hidden in the work area or call the local utility company for assistance. Contact with electric lines can lead to fire and electric shock. Damaging a gas line can lead to explosion. Penetrating a water line causes property damage or may cause an electric shock.
e) Do not modify and operate the power tool as stationary tool. It is not suitable for operation as a table saw.

f) Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand.
g) Do not use HSS (High Speed Steel) saw blades. Such saw blades can easily break and jam into wood during cutting works.
h) Do not saw any ferrous metals. Hot chips may ignite the plastic parts of the tool. Metal cutting dust goes into motor and electrical circuit will cause electric shock.

● Safety information for the saw blade

■ Do not use any grinding discs.
■ Use only saw blades with diameters corresponding to the label on the saw.
- When working with wood or materials that produce dust hazardous to health, the appliance must be connected to a suitable, tested extraction appliance.
■ Wear a dust mask when sawing wood.
■ Only use recommended saw blades.
■ Always wear ear muffs.
- Avoid overheating the sawtooth tips.
- When sawing plastic, avoid melting the plastic.
■ Use the correct saw blade according to the material to be sawn.
Use only saw blades specified by the manufacturer which, if intended for cutting wood or similar materials, comply with EN 847-1.
- Tools may only be used by trained and experienced persons who are familiar with the use of tools.
■ Circular saw blades with torn bodies must be taken out of service (repair is not permitted).
The maximum speed indicated on the tool must not be exceeded. If specified, the speed range must be observed.

WARNING!

Wear protective gloves!

Wear breathing protection!

Wear safety goggles!

Wear hearing protection!

Before first use

- Unpacking the product

1. Take the product out of the packaging and remove all packaging materials and plastic wrappings.
2. Check to make sure that all listed parts are included (see "Scope of delivery").
3. Check whether the product and all parts are in good condition, if any damage or defect is detected, do not use the product, but follow the procedure described in chapter "Warranty".

Accessories

1. To operate this product safely and correctly, accessories, i.e. tools and saw blades, are necessary.
2. Accessories and saw blades are available through your authorised dealer. When buying always consider the technical requirements of this product (see "Technical data").
3. If you are not certain, ask a qualified specialist and get advice from your trusted dealer.

● Preparation

- Checking the function of the lower guard

⚠ WARNING! Risk of injury!

Always remove the mains plug 29 from the mains outlet before carrying out any work on the product.

NOTE

After releasing the lever ^24 : The lower guard 19 must not be jammed and able to swing back to the original position.
If the lower guard ^19 cannot function properly: Do not operate the product and contact the service center for checking and repairing.

1. Before operating the product: Check the freedom of movement of the lower guard 19.
2. Opening the lower guard 19: Pull up the lever 24.

● Installing/changing the saw blade

CAUTION! Risk of injury!

Saw blades can be sharp and become hot during use. Always wear protective gloves when handling saw blades 21.

(Fig. D)

☐ Place the product on the edge of a table so that the saw blade 21 is freely accessible.

Removing the saw blade

1. Press and hold the spindle lock 11.

2. Loosening the clamping screw 23 : Use the hex key 8 and turn it in rotational direction b.

3. Remove the clamping screw 23 and flange 22 from the spindle 23a.

4. Release the spindle lock 11.
5. Swivel the lower guard 19 until it is completely retracted into the upper guard 25.
6. Exposing the saw blade 21: Hold the lower guard 19 with the lever 24.
7. Remove the saw blade 21 from the spindle 23a.
8. Bring the lower guard 19 into its original position.

Installing the saw blade

CAUTION! Risk of injury!

the saw blade 21 has to align on the upper guard 25.

NOTE

It is not required to tighten the clamping screw ^23 too much. The rotational action of the saw blade ^21 tightens the saw blade during operation.
Always store the hex key 8 in the hex key storage 7 in the bottom of the main handle 6.
When putting the flange ^22 on the saw blade ^21 : The concave side of the flange has to make contact with the saw blade.

1. Swivel the lower guard 19 until it is completely retracted into the upper guard 25.
2. Hold the lower guard 19 in position. Place the saw blade 21 to the spindle 23a.
3. Check that the bore of the saw blade 21 is sitting on the spindle 23a so that the centre is aligned.
4. Bring the lower guard 19 into its original position.

5. Put the flange 22 on saw blade 21 so that it covers the bore hole.

6. Screw the first threads of the clamping screw 23 into the spindle 23a by hand. Turn in rotational direction a.

7. Press and hold the spindle lock 11.
8. Tightening the clamping screw 23: Use the hex key 8 and turn it in rotational direction a until the clamping screw is securely fastened.

- Connecting to the dust extraction

(Fig. H)

NOTE

The adaptor30 can be fitted for most of the commonly available dust extraction systems or devices (e.g. vacuum cleaner hose).

Installing the adaptor

1. Push the adaptor 30 into the dust port 26 of the upper guard 25.
2. Connect the adaptor 30 to the dust extraction system.

Removing the adaptor

1. Turn the adaptor 30 in clockwise and anti-clockwise directions repeatedly.
2. Pull the adaptor 30 away from the dust port 26.

- Mounting the parallel fence

(Fig. G)

NOTE

The cutting width is showing on the scale of the parallel fence 18.
Measuring the cutting width when the product is set to a cutting angle of 0^ or 45^ : The cutting guide 16 indicates the reference point.
The distance scale on the parallel fence 18 is an appropriate value.

1. Set the cutting angle to 0^ (see “Adjusting the cutting angle”).
2. Loosen the wing screw 17.
3. Insert the parallel fence 18 to the holder on the base plate 20.
4. Adjust the distance of the parallel fence 18 to the desired cutting width. Refer to the mark 0° on the base plate 20.
5. Fixing the parallel fence 18 in place: Tighten the wing screw 17.

- Adjusting the cutting angle

(Fig. F)

1. Loosen the wing screw 15 of the bevel scale 12 .
2. Hold the base plate 20 with one hand.
3. Setting the desired cutting angle: Move the main handle 6 with the other hand. Check the angle on the bevel scale 12.
4. Tighten the wing screw 15.

● Adjusting the cutting depth

(Fig. E)

1. Unlocking the cutting depth scale 4: Turn the lock lever 9 in anti-clockwise direction.
2. Hold the base plate 20 with one hand.
3. Setting the desired cutting depth: Move the main handle 6 with the other hand. Check the cutting depth on the cutting depth scale 4.
4. Locking the cutting depth scale 4: Turn the lock lever 9 in clockwise direction.

Operation

- Selecting the speed level

(Fig. I)

NOTE

The speed level can be set from 1 (lowest level) to 6 (highest level).
The product has a memory function and is started at the last selected speed.
The back light of the number on the speed display 2 indicates the selected speed level.
When the highest speed level 6 is reached, pressing the speed control button 3 again switches back to the speed level 5.

☐ Press the speed control button 3 either to increase or decrease the speed by 1 level. The speed levels are changed in the following order: 1-2-3-4-5-6 or 6-5-4-3-2-1.

Recommended speed level selection

The following table shows the most common fields of application and the recommended speed level selection.

Material Setting	mm *1	*2
Soft wood/ plywood	≤ 25 mm	1-3 *3
	> 25 mm	4-6 *3
Hard wood	≤ 18 mm	1-4 *3
	> 18 mm	3-6 *3
Chipboard	≤ 18 mm	1-5 *3
	> 18 mm	4-6 *3
*1 Thickness of cut*2 Recommended speed level selection*3 Higher speed with faster cutting but lower in cutting quality of cutting edge appearance.

- Connecting/disconnecting the mains cord

(Fig. J)

WARNING! Risk of injury!

Always remove the mains plug 29 from the mains outlet before carrying out any work on the product.

Connecting

1. Unlock the coupler 28 by turning it anti-clockwise.
2. Connect the mains cord 29 to the connection socket 27.
3. Lock the Unlock the coupler 28 by turning it anti-28 by turning it clockwise.
4. Check the connection by pulling lightly on the mains cord 29. The mains cord must be firmly seated.

Disconnecting

1. Unlock the coupler 28 by turning it anti-clockwise.
2. Pull the mains cord 29 out of the connection socket 27.

Switching on/off

(Fig. I)

Switching on

1. Connect the mains cord 29 to the connection socket 27.
2. Connect the mains plug 29 to a suitable mains outlet.
3. Press and hold the switch lock 5.
4. Press the on/off switch 1. The product starts operation.
5. Release the switch lock 5

Switching off

1. Release the on/off switch 1.
2. Remove the mains plug 29 from the mains outlet.

Work instructions

NOTE

Always hold the product firmly with both hands: Hold the main handle 6 with one hand and the auxiliary handle 10 with the other hand.
Allowing the saw blade to spin up to the pre-selected speed level: Switch on the product for a short while before the actual operation.
Saw forward with a suitable and moderate pressure applied to the product.
Moving the product sideways during cutting works cause jamming of the saw blade [21] and burning of the cutting teeth and the blade body. This could result in kickback.
Using the guide rail (not included) 35 with the product provides an accurate straight cut.

● Using the guide rail (not included)

NOTE

Use the guide rail35 to achieve an accurate and straight cut.
The guide rail 35 consists of 2 parts that are connected with the connector 32.

Assembling the guide rail

(Fig. K)

1. Slide the connector 32 into the slide rail 34 of both parts of the guide rail 35
2. Push both parts of the guide rail 35 together.
3. Secure the connection by tightening the grub screws 33 of the connector 32 with the hex key 31.

Adjusting the product on the guide rail (Fig. L)

1. Place the product on the guide rail 35. The groove 14 of the base plate 20 must lie on the guide rail 34.
2. Use the eccentric screws 13 to adjust the product parallel to the slide rail 34.
   -To reduce the play between the product and the slide rail 34, turn the eccentric screws 13 clockwise.
3. The product must be able to slide on the guide rail 35 without play and without friction.

Cutting with the guide rail

NOTE

The guide rail35 is fitted with a splinter guard (black rubber lip).
The splinter guard must be adjusted before the first cut.

1. Place the guide rail 35 on the workpiece.
2. Set a cutting depth of approx. 10 mm. Switch on the product.
3. Set the speed level 2.
4. Push the product lightly and evenly in the cutting direction.

● Cleaning and care

WARNING!

Always switch the product off, remove the mains plug 29 from the mains outlet and let the product cool before performing inspection, maintenance and cleaning work!

Cleaning

□ Never allow fluids to get into the product.

☐ The product must always be kept clean, dry and free from oil or grease. Remove debris from it after each use and before storage.
☐ Regular and proper cleaning will help ensure safe use and prolong the life of the product.
□ Clean the product with a dry cloth. Use a soft brush for areas that are hard to reach.

NOTE

Do not use chemical, alkaline, abrasive or other aggressive detergents or disinfectants to clean this product as they might be harmful to its surfaces.

Maintenance

■ The product is maintenance-free.
Before and after each use, check the product and accessories (e.g. saw blades) for wear and damage. If required, exchange them for new ones as described in this instruction manual. Observe the technical requirements (see “Technical data”).
☐ Check covers and safety devices for damages and correct installation. Replace as necessary.
☐ Replace a blunt or bent saw blade or one which has been damaged in some other way.

Replacement parts/Accessories

□ Customers can obtain compatible replacement parts and accessories via www.optimex-shop.com.
□ Have the order number ready for your order.
☐ Orders can only be placed and processed online.
□ Contact the Lidl service hotline (see „Service“) for further information.

Part Order number
8 Hex key (6 mm)	99945971603
18 Parallel fence	99945971602
21 Saw blade(24 teeth) 99945971603

Repair

If the mains cord 29 is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.
☐ This product does not contain any parts that can be repaired by the user. Contact an authorised service centre or a similarly qualified person to have it checked and repaired.

Storage

☐ Before storage: Clean the product (see “Cleaning”).
☐ Store the product and its accessories in a dark, dry, frost-free, well-ventilated place.
□ Always store the product in a place that is inaccessible to children.
□ Store the product in its original package.

Transportation

□ Transport the product in its original package.
☐ Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles.
☐ Secure the product to prevent it from slipping or falling over.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics/20–22: paper and fibreboard/80–98: composite materials.

Product:

The product and packaging materials are recyclable and are subject to extended producer responsibility.

Dispose them separately, following the illustrated Info-tri (sorting information), for better waste treatment.

The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of material or manufacturing defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 5 years from the date of purchase. The warranty period begins on the date of purchase. Keep the original sales receipt in a safe location as this document is required as proof of purchase.

Any damage or defects already present at the time of purchase must be reported without delay after unpacking the product.

Should the product show any fault in materials or manufacture within 5 years from the date of purchase, we will repair or replace it at our choice free of charge to you. The warranty period is not extended as a result of a claim being granted. This also applies to replaced and repaired parts.

This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty covers material or manufacturing defects. This warranty does not cover product parts subject to normal wear and tear, thus considered consumables (e.g. batteries, rechargeable batteries, tubes, cartridges), nor damage to fragile parts, e.g. switches or glass parts.

● Warranty claim procedure

So that your request can be processed quickly, please observe the following instructions:

For all inquiries, please have the receipt and item number I 459716_2404) ready as proof of purchase.

The article number can be taken from the identi cation label on the product engraving on the product, the front cover of your manual (at the bottom left), or the sticker on the back or bottom of the product.

If malfunctions or other defects arise contact the service department indicated below by phone or email.

You can then send a product recorded as defective to the communicated service address postage-free, making sure to enclose proof of purchase (receipt) and information on the details of the defect and when it occurred.

PDF ONLINE parkside-diy.com

You can download and view this and numerous other manuals at parkside-diy.com. This QR code takes you directly to parkside-diy.com. Choose your country and use the search screen to search for the operating instructions. Entering the item number I 459716_2404 takes you to the operating instructions for your item.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

E-Mail: [e-mail]

● EU declaration of conformity

EU DECLARATION OF CONFORMITY (No. 459716\_2404)

IAN: 459716_2404

Product identification:

"PARKSIDE" Circular saw

Model Number: HG12136

The object of the declaration described above is in conformity with the relevant Union harmonisation

Directive 2006/42/EC

Directive 2014/30/EU

Directive 2011/65/EU and all related amendments

References to the relevant harmonised standards used or references to the other technical specifications in relation to which conformity is declared:

N° / Parts

Directive 2006/42/EC

EN 62841-1:2015/A11:2022

EN 62841-2-5:2014

Directive 2014/30/EU

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019/A1:2021

EN 61000-3-3:2013/A2:2021

The object of the declaration described above is in conformity with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment:

N° / Parts

Directive 2011/65/EU

EN IEC 63000:2018

Keeper of the technical documentation: OWIM GmbH & Co.KG

Signed for and on behalf of:

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Translation of the original declaration of conformity

Neckarsulm 21.10.2024

Place

Date

ppa. Gussel ppa. Budnein ppa. Stefan Haensel ppa. Jens Buchheim Authorised Signatory Authorised Signatory

EN

CE
