20 V / 4,5 A AKKU-SCHNELLLADEGERÄT / 20V / 4.5A FAST BATTERY CHARGER / 20 V / 4,5 A CHARGEUR RAPIDE DE BATTERIE PLG 20 C3

DE AT CH

20 V / 4,5 A ÄKKU- SCHNELLLADEGERÄT PLG 20 C3

Assembly, operating and safety instructions

FR BE

20 V / 4,5 A CHARGEUR RAPIDE DE BATTERIE PLG 20 C3

Technical diagram of a mobile phone chassis with labeled components including front panel, rear panel, and internal wiring.

B

6 4in/102mm

Silhouette of a person throwing trash into a bin (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Gerät entsorgen

QR code image containing encoded data, with a central logo or watermark symbol

PDF ONLINE
parkside-diy.com

Service

Service Deutschland

Tel.: [phone]

E-Mail:[e-mail]

Service Österreich

Tel.:[phone]

E-Mail:[e-mail]

Service Schweiz

Tel.:[phone]

E-Mail:[e-mail]

Warnings and symbols used .. Page 37

Introduction..... Page 39

Intended use..... Page 40

Scope of delivery ..... Page 40

Parts description..... Page 40

Technical data..... Page 41

Safety notes ...... Page 43

Operation..... Page 47

Charging the battery pack .. Page 47

Charging status ..... Page 48

Wall mounting..... Page 49

Cleaning and care .... Page 51

Disposal..... Page 52

Simplified EU declaration

of conformity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Warranty Page 55

Warranty claim procedure... Page 57

Service ...... Page 59

Warnings and symbols usedThe following warnings are used in this instruction manual, on the packaging and on the rating label:
	Read the instruction manual.
	Follow the warnings and safety notes!
	Alternating current/voltage
	Direct current/voltage
	Protection class II (double insulation)
	Use in dry indoor rooms only.
	Fuse
	This symbol in combination with the word “Info” provides additional useful information.
	Safety-relevant information and other notesInstructions for use

20V / 4.5A FAST BATTERY CHARGER

● Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This product is exclusively intended for charging Parkside 20 V batteries of X 20 V Team series.

The product is not intended for commercial use. Any other usage or modification of the product is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage(s) attributable to misuse.

Scope of delivery

1 Fast battery charger
1 Instruction manual

Parts description

1 Battery pack*
2 Mains cord with mains plug
3 Charger

4 Charging control LED – Red
5 Charging control LED – Green
6 Mounting holes (underside)
* Battery pack not included

- Technical data

Charger: PLG 20 C3

Input:

Rated voltage: 230–240 V\~

Rated frequency: 50 Hz

Rated power

consumption: 120 W

Fuse (internal): 3.15 A

T3.15A

Output:

Rated voltage: 21.5 V

Rated current: 4.5 A

Battery pack type* Charging time
PAP 20 B1, 2.0 Ah 35 minutes
PAP 20 B3, PAPS 204 A1 / B1, 4.0 Ah	60 minutes
PAPS 208 A1, 8.0 Ah 120 minutes

NOTE: The actual charging time may be slightly different from the above stated depending on the ambient temperature and the condition of the battery pack. The information is subject to change without prior notice.

Protection class:

II/☐ (double insulation)

* Battery pack not included

Customers can order compatible replacement batteries and chargers from Lidl online shops for the following countries:

Germany (lidl.de), France (lidl.fr), Belgium (lidl.be), Czech Republic (lidl.cz), Netherlands (lidl.nl), Poland (lidl.pl), Slovakia (lidl.sk), Spain (lidl.es)

Customers from all other countries can order from www.optimex-shop.com.

Net weight: 0.395 kg

Recommended ambient temperature:

While charging: +4 to +40 °C

During operation: +4 to +40 °C

During storage: +20 to +26 °C

Safety notes

This product can be used by children aged from 8 years and above and

persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.

Children shall not play with the product. Cleaning and user maintenance shall not be made by children without supervision.

- Do not charge regular or non-rechargeable batteries. Disregarding this instruction is hazardous.

If the mains cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

■ Protect the electrical parts against moisture.

Do not immerse such parts in water or other liquids to avoid electrical

shock. Never hold the product under running water. Pay attention to the instructions provided for cleaning, maintenance and repair.

The product is suitable for indoor use only.

⚠️ATTENTION! This product is only designed for charging following battery pack types:

Parkside 20 Vbattery pack
PAP 20 B1	2 Ah	5 cells
PAP 20 B3	4 Ah	10 cells
PAPS 204A1/B1	4 Ah	5 cells
PAPS 208A1 8 Ah	10 cells

Operation

● Charging the battery pack

i INFO:

The battery pa1 may be charged at any time without reducing its service life.

Interrupting the charging process does not damage the battery pack.

- Charge the battery pack 1 before use when it is at medium or low charging level.

1. Insert the battery pack into the charger 3.
2. Connect the mains plug 2 to a socket-outlet.
3. When the battery pack is fully charged, remove the battery pack from the charger. Disconnect the mains plug from the socket-outlet.

● Charging status

The charging control LEDs (green 5 and red 4) indicate the status of the charger 3 and the battery pack 1 (Fig. A):

LED Status
Red LED lights up	Battery pack charging
Green LED lights up	Battery pack fully charged
Green and red LED flash	Battery pack defective
Red LED flashes	Battery pack 1 too cold or too warm
Green LED lights up (without battery pack)	Charger 3 ready for use

Wall mounting

WARNING! RISK OF INJURY AND DAMAGE!

When drilling, be careful not to damage any supply lines. Use suitable search devices to find these or consult an installation plan for guidance.

- Contact with electrical cables can lead to electric shock and fire. Contact with a gas pipe can result in an explosion. Damage to a water pipe can lead to property damage and electric shock.

i INFO:

The charg 3 can be used either free-standing or mounted on the wall.

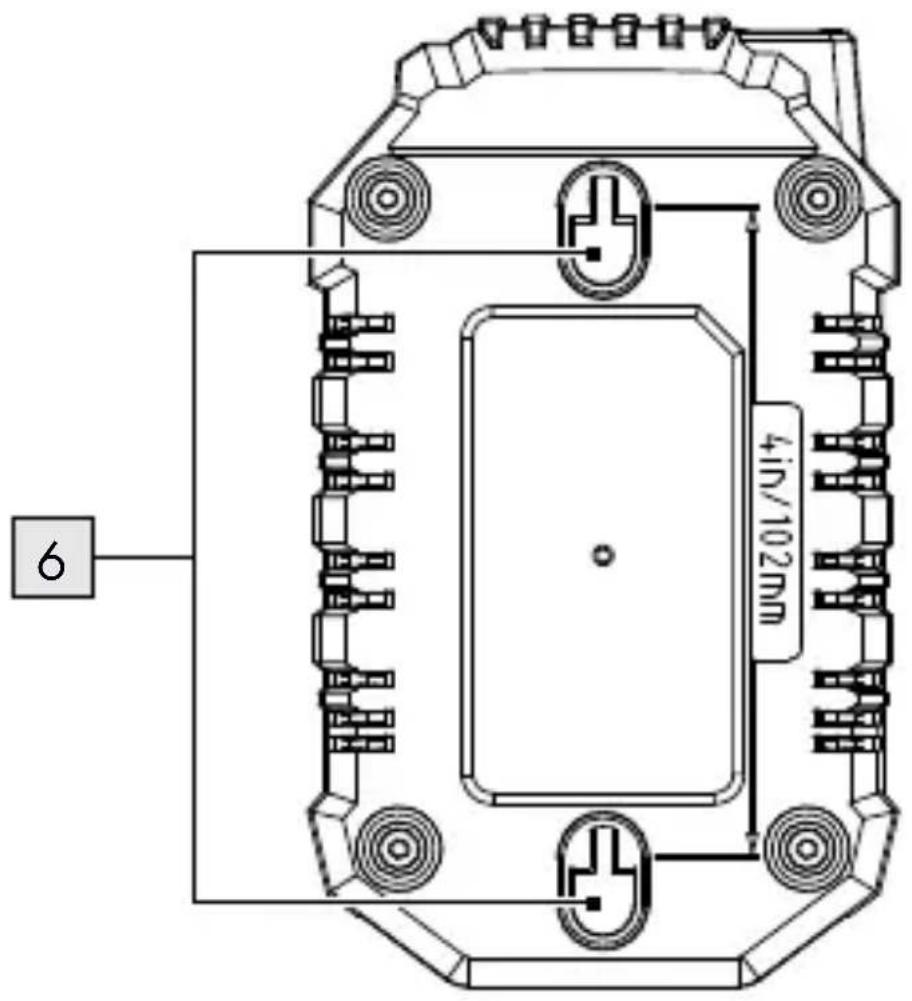

1. Drill 2 holes in the wall with a spacing of 102 mm.
2. Insert dowels into the drilled holes.
3. Screw round-head screws (screw head diameter: 6–8 mm) into the dowels.

Leave the screw head protruding with a distance of approx. 10 mm from the wall.

1. Hang the charger 3 onto the screws using the mounting holes 6 located on the underside of the charger (Fig. B).

The charging control LEDs 4/5 must be located at the bottom when the charger is mounted on the wall.

● Cleaning and care

NOTICE! RISK OF DAMAGE!

Do not use chemical, alkaline, abrasive or other aggressive detergents or disinfectants to clean this product as they might be harmful to its surfaces.
■ Never allow fluids to get into the product.

i INFO:

■ Regular and proper cleaning will help ensure safe use and prolong the service life of the product.

□ Keep the product clean, dry and free from oil or grease. Remove debris from it after each use and before storage.

□ Clean the product with a dry cloth. Use a soft brush for areas that are hard to reach.

□ Always keep the vents clear. Clean the air vents after every use with a cloth and soft brush.

● Disposal

The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.

b a

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics/20–22: paper and fibreboard/80–98: composite materials.

Product:

The product incl. accessories, manual and packaging materials are recyclable and are subject to extended producer responsibility.

Dispose them separately, following the illustrated Info-tri (sorting information), for better waste treatment.

The Triman logo is valid in France only.

Silhouette of a person disposing of trash into a bin (no text or symbols)

Contact your local refuse disposal authority for more details of how to dispose of your wornout product.

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

● Simplified EU declaration of conformity

CE mark indicates conformity with relevant EU directives applicable for this product.

● Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of material or manufacturing defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Keep the original sales receipt in a safe location as this document is required as proof of purchase.

Any damage or defects already present at the time of purchase must be reported without delay after unpacking the product.

Should the product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. The warranty period is not extended as a result of a claim being granted. This also applies to replaced and repaired parts.

This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty covers material or manufacturing defects.

● Warranty claim procedure

So that your request can be processed quickly, please observe the following instructions:

For all inquiries, please have the receipt and item number (e.g., IAN 505122_2501) ready as proof of purchase.

The article number can be taken from the identification label on the product, engraving on the product, the front cover of your manual (at the bottom left), or the sticker on the back or bottom of the product.

If malfunctions or other defects arise, first contact the service department indicated below by phone or email.

You can then send a product recorded as defective to the communicated service address postage-free, making sure to enclose proof of purchase (receipt) and information on the details of the defect and when it occurred.

You can download and view this and numerous other manuals at parkside-diy.com. This QR code takes you directly to parkside-diy.com. Choose your country and use the search screen to search for the operating instructions. Entering the item number (IAN) 505122_2501 takes you to the operating instructions for your item.
