TAUCHSÄGE/PLUNGE SAW/ SCIE PLONGEANTE PTSS 1200 D2

DE AT CH

TAUCHSÄGE

Bedienungsanleitung

Translation of the original instructions

FR BE

SCIE PLONGEANTE

Mode d'emploi

GB/IE User manual Page 25

Technical diagram of a mechanical device with numbered parts for identification and assembly reference.

A B 24 17 11 11 16 16 14 14a 14b 8a 9a N PARKSIDE

18 20 19

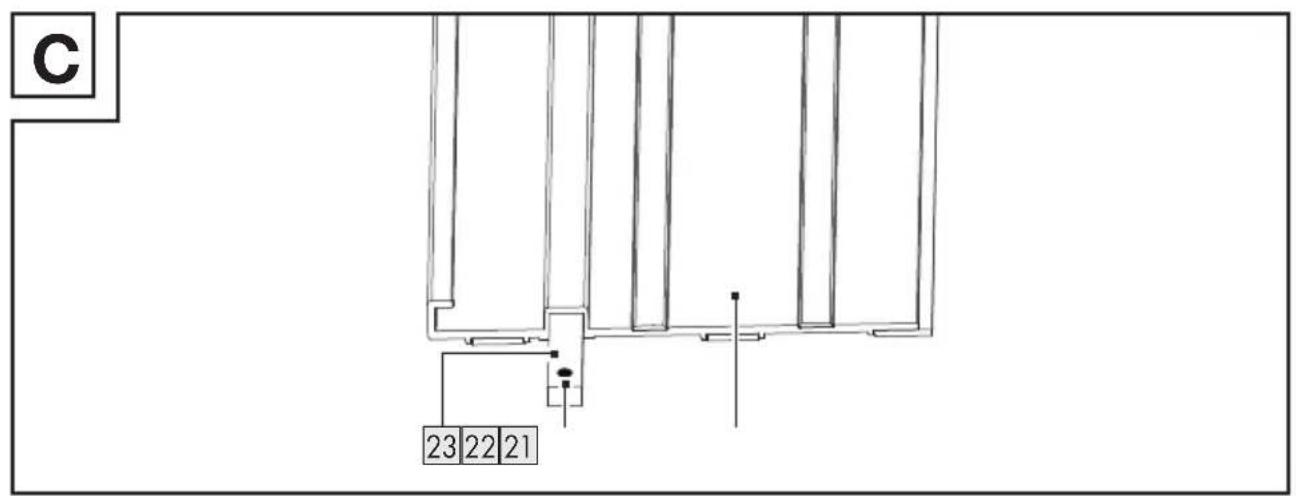

C 23 22 21

Warnings and symbols used.... Page 26

Introduction ...... Page 26

Intended use.... Page 26

Scope of delivery Page 27

Parts description. Page 27

Technical data. Page 27

Safety instructions ...... Page 28

General power tool safety warnings.... Page 28

Safety instructions for all saws.... Page 30

Safety instructions for plunge type saws....Page 31

Further safety instructions for all saws.... Page 31

Additional safety instructions for all saws with a splitting wedge ..... Page 32

Supplementary notes Page 33

Original accessories/auxiliary equipment.... Page 33

Vibration and noise reduction.... Page 33

Behaviour in emergency situations.... Page 34

Residual risks Page 34

Before use.... Page 34

Fitting/changing the saw blade ...... Page 34

Connecting the sawdust extractor....Page 35

Checking blade guard functionality Page 35

Operation.... Page 36

Switching on and off.... Page 36

Selecting the cutting depth Page 36

Setting the cutting angle (mitre angle) Page 36

Note the cut line Page 36

Connecting the guide rails Page 36

Eccentric screws.... Page 37

Working instructions ...... Page 37

Sawing (without guide rail) Page 37

Sawing (with the guide rail). Page 38

Cleaning and care Page 38

Cleaning Page 39

Maintenance....Page 39

Repair Page 39

Storage Page 39

Transportation.... Page 39

Disposal Page 39

Warranty.... Page 40

Warranty claim procedure. Page 40

Service Page 41

EU declaration of conformity....Page 42

Warnings and symbols usedThe following warnings are used in the user manual, on the packaging and on the rating label:
	Read the instruction manual.		Always switch the product off, remove the power plug from the mains power socket and let the product cool before performing inspection, maintenance and cleaning work and when the product is not in use.
	Follow the warnings and safety notes!		Protection class II (double insulation)
	Risk of electric shock! Alternating current/voltage
	CE mark indicates conformity with relevant EU directives applicable for this product.	n_0	No load speed
[X2D1G]	Safety informationInstructions for use

PLUNGE SAW

● Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This product is suitable for sawing longitudinal and cross cuts in a plunge cut into firmly supported following materials:

Solid wood
Chip board
Plastics
■ Lightweight construction materials

Working with metals is not permitted.

This product can be used with the provided guide rails – exclusively for the cutting techniques described.

Any other use or modification of the product are considered improper use and can result in hazards such as death, life-threatening injuries and damage. The manufacturer is not liable for any damages caused by improper use. The product is

exclusively intended for domestic use. The product is not intended for commercial use, industrial operations or similar purposes.

Observe all applicable local safety regulations, standards and ordinances. The use of noise emitting power tools may be restricted to certain times by national or local regulations.

- Scope of delivery

WARNING!

The product and the packaging are not children's toys! Children must not play with plastic bags, sheets and small parts! There is a danger of choking and suffocation!

1 Plunge saw
1 Saw blade 165 mm/48 teeth (pre-fitted)
2 Guide rails
1 Connector
1 Chip ejector adapter
2 Hex keys
1 User manual

Parts description

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the product.

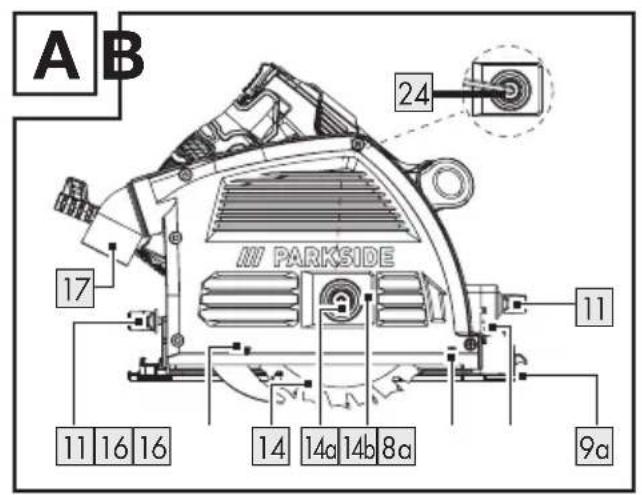

1 Safety lock-out
2 On/off switch
3 Handle
4 Hex key (small)
5 Hex key (large)
6 Motor unit
7 Chip ejector adapter
8 Fine adjustment screws for 0° cutting angle
8a Fine adjustment screw for 45° cutting angle
9 Base plate
9a Cut line markings
10 Eccentric screw (x2)

11 Adjustment wheel for cutting angle adjustment (x2)
12 Cutting depth adjustment
13 Cutting depth scale
14Saw blade
14aClamping screw/washer
14b Mounting cut-out
15Additional handle
16Cutting width marking
17 Chip ejector (rotatable)
18 Clamping lever for changing saw blades
19Spindle lock
20Groove for guide rails
21 Guide rail
22Grub screws
23 Connector
24Flange (factory-fitted)

- Technical data

Plunge saw PTSS 1200 D2
Model number HG091	59VDE plug
Rated voltage 230 V~,	50 Hz(Alternating current)
Rated power consumption 1,200 W
Rated idle speed n0	5,200 min-1
Saw blade holder ∅ 20 mm
Saw blade diameter ∅	165 mm
Tooth size 2.6 mm
Maximum cutting depth	56 mm at a 90° mitre angle45 mm at a 45° mitre angle5 mm less when using guide rails
Protection class II/(double insulation)
Accessories	2 guide rails180 mm700 mm

Noise emission value

Noise measurement value determined in accordance with EN 62841. The A-rated noise level of the power tool is typically as follows:

Sound pressure level L	pA	: 89 dB
Uncertainty K	pA	: 3 dB
Sound power level L	wA	: 100 dB
Uncertainty K	wA	: 3 dB

WARNING!

Wear ear protection!

Total vibration value

Total vibration values (vector total of three directions) determined in accordance with EN 62841:

Sawing wood a h,B	: 1.3 m/s2
Uncertainty K: : 1.5 m/s	2

NOTE

The declared vibration total values and the declared noise emission values have been measured in accordance with a standard test method and may be used for comparing one tool with another.
The declared total vibration values and the declared noise emission values may also be used for a preliminary assessment of exposure.

WARNING!

The vibration and noise emissions during actual use of the power tool can differ from the declared values depending on the manner in which the tool is used, especially what kind of workpiece is processed. Try to minimise exposure to vibration and noise. Examples of measures to reduce vibration include wearing gloves when using the tool and limiting working time. All parts of the operating cycle must be taken into account (e.g. times when the power tool is switched off and when it is running idle in addition to the trigger time).

Safety instructions

● General power tool safety warnings

WARNING!

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

1) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

2) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
3) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

1) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

2) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

3) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

4) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

5) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

6) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

1) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

2) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

3) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

4) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

5) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

6) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

7) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
8) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

Power tool use and care

1) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
2) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
3) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
4) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
5) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the

power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

6) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
7) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
8) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Service

1) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

● Safety instructions for all saws

Sawing method

1)

DANGER! Keep your hands clear of the sawing area and the saw blade. Hold the auxiliary handle or motor housing with your other hand. If you are holding the saw with both of your hands, neither can be injured by the saw blade.

2) Do not reach underneath the workpiece. The blade guard cannot protect you from the saw blade underneath the workpiece.

3) Set the cutting depth to match the thickness of the workpiece. The blade should not extend more than one full tooth depth under the workpiece.
4) Never hold the workpiece that you want to saw in your hand or over your leg. Fasten the workpiece onto a stable working surface. It is important to fasten the workpiece securely to minimise the danger of bodily contact, jamming of the saw blade or loss of control.
5) Always hold the power tool by the insulated gripping surfaces when performing an operation during which the cutting tool may hit hidden wiring or the tool's own power cord. Contact with a live wire will also make exposed metal parts of the power tool live and could give the operator an electric shock.
6) When making longitudinal cuts, always use a rip fence or a straight edge guide. This will improve the accuracy of your cut and reduce the likelihood of the saw blade jamming.
7) Always use saw blades of the correct size and with an appropriate central attachment hole (e.g. star-shaped or round). Blades that do not match the mounting hardware of the saw will run eccentrically, causing loss of control.
8) Never use damaged or incorrect blade washers or bolts. The saw blade washers and screws have been specially designed for your saw to provide optimum performance and operational safety.

● Safety instructions for plunge type saws

1) Check the guard for proper closing before each use. Do not operate the saw if the guard does not move freely and enclose the blade instantly. Never clamp or tie the guard so that the blade is exposed. If the saw is accidentally dropped, the guard may be bent. Check to make sure that the guard moves freely and does not touch the blade or any other part, in all angles and depths of cut.
2) Check the operation and condition of the guard return spring. If the guard and the spring are not operating properly, they must be serviced before use. The guard may operate sluggishly due to damaged parts, gummy deposits, or a build-up of debris.
3) Assure that the base plate of the saw will not shift while performing a "plunge cut". Blade shifting sideways will cause binding and likely kick back.
4) Always observe that the guard is covering the blade before placing the saw down on bench or floor. An unprotected, coasting blade will cause the saw to walk backwards, cutting whatever is in its path. Be aware of the time it takes for the blade to stop after the switch is released.

● Further safety instructions for all saws

Kickback – causes and corresponding safety tips

-A kickback is a sudden reaction caused as a result of the saw blade catching, jamming or being falsely aligned that cause the saw to jump up uncontrollably and out of the

workpiece in the direction of the operator;

- if the saw blade catches or jams in a narrowing saw cut, the blade can no longer rotate and the power of the motor throws the appliance back in the direction of the operator;

- if the saw blade twists in the saw cut or becomes misaligned, the teeth at the rear edge of the saw blade can become caught in the surface of the workpiece, causing the saw blade to jump out of the cut and the saw to jump backwards in the direction of the operator.

Kickback is a result of saw misuse and/or incorrect operating procedures or conditions. This can be avoided by taking proper precautions as given below.

1) Hold the saw firmly in both hands and position your arms such that they can absorb the force of a kickback. Always stand to the side of the saw blade and never in line with it. If a kickback occurs, the circular saw may jump backwards. However, the operator can control the kickback forces by taking appropriate precautions.

2) If the saw blade jams or you stop working, switch the saw off and hold it steadily in the workpiece until the saw blade has completely stopped turning. Never attempt to remove the saw from the workpiece or pull it backwards while the saw blade is still moving as this could lead to a kickback. Investigate and take corrective actions to eliminate the cause of the jam.

3) If you want to restart a saw that is still in the workpiece, centre the saw blade in the cut and check to ensure that the teeth are not caught

anywhere in the workpiece. If the saw blade catches, it can jump out of the workpiece or cause a kickback when the saw is restarted.

4) Support large panels to minimise the risk of the blade jamming and kickback. Large panels tend to bend under their own weight. Panels must be supported on both sides, in the vicinity of the saw cut and also at the edge.

5) Do not use blunt or damaged saw blades. Saw blades with blunt or misaligned teeth may cause excessive friction if the saw cut is too narrow, and this can cause a saw blade jam and kickback.

6) Before sawing, ensure that the fastenings for the cut depth and cut angle settings are tightened. If the settings change while sawing, the saw blade might jam and cause a kickback.

7) Be particularly careful when sawing in existing walls or other obscured areas. The inserted saw blade could get caught on hidden objects and cause a kickback.

● Additional safety instructions for all saws with a splitting wedge

Function of the splitting wedge

1) Use the appropriate saw blade for the splitting wedge. For the splitting wedge to work, the saw blade's main blade must be thinner than the splitting wedge and the tooth width must be more than the splitting wedge thickness.

2) Adjust the splitting wedge as described in these operating instructions. Incorrect spacing, position and alignment can be the reason why the splitting wedge does not effectively prevent a kickback.
3) The splitting wedge must be positioned in the sawing gap before it will work. For short cuts, the splitting wedge is ineffective in preventing kickback.
4) Do not operate the saw with a bent splitting wedge. Even a minor fault can slow down the closing of the blade guard.

- Supplementary notes

■ Do not use any grinding discs.
■ Use only saw blades with diameters corresponding to the label on the saw.
- When working with wood or materials that produce dust hazardous to health, the appliance must be connected to a suitable, tested extraction appliance.
■ Wear a dust mask when sawing wood.
■ Only use recommended saw blades.
■ Always wear ear muffs.
- Avoid overheating the sawtooth tips.
- When sawing plastic, avoid melting the plastic.
■ Use the correct saw blade according to the material to be sawn.
■ Use only saw blades specified by the manufacturer which, if intended for cutting wood or similar materials, comply with EN 847-1.
- Tools may only be used by trained and experienced persons who are familiar with the use of tools.
■ Circular saw blades with torn bodies must be taken out of service (repair is not permitted).
■ Use only saw blades that are marked with a speed equal or higher than the speed marked on the tool.

Circular saw blades (symbols)

WARNING!

Wear protective gloves!

Wear a dust mask!

Wear safety goggles!

Wear ear muffs!

● Original accessories/auxiliary equipment
■ Use only the accessories and additional equipment that are specified in the operating instructions and are compatible with the appliance.
● Vibration and noise reduction

To reduce the impact of noise and vibration emission, limit the time of operation, use low-vibration and low-noise operating modes as well as wear personal protective equipment.

Take the following points into account to minimise the vibration and noise exposure risks:

■ Only use the product as intended by its design and these instructions.
■ Ensure that the product is in good condition and well maintained.
■ Use correct accessory tools for the product and ensure they are in good condition.
- Keep tight grip on the handles/grip surface.
- Maintain this product in accordance with these instructions and keep it well lubricated (where appropriate).

■ Plan your work schedule to spread any high vibration tool use across a longer period of time.

● Behaviour in emergency situations

Familiarise yourself with the use of this product by means of this instruction manual. Memorise the safety warnings and follow them to the letter. This will help to prevent risks and hazards.

■ Always be alert when using this product, so that you can recognise and handle risks early. Fast intervention can prevent serious injury and damage to property.
- Switch the product off and disconnect it from the mains if there are malfunctions. Have the product checked by a qualified professional and repaired, if necessary, before you operate it again.

- Residual risks

Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain. The following dangers can arise in connection with the structure and design of this product:

■ Health defects resulting from vibration emission if the product is being used over long periods of time or not adequately managed and properly maintained.
Injuries and damage to property due to broken accessory tools or the sudden impact of hidden objects during use.
■ Danger of injury and property damage caused by flying objects.

NOTE

This product produces an electromagnetic field during operation! This field may under some circumstances interfere with active or passive medical implants! To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their doctor and the medical implant manufacturer before operating this product!

WARNING!

Always switch the product off, disconnect it from the mains and let the product cool down before making any adjustments!

CAUTION! RISK OF INJURY!

Saw blades can be sharp and become hot during use. Always wear protective gloves when handling saw blades.

Before use

WARNING!

Always switch the product off, disconnect it from the mains and let the product cool down before making any adjustments!

● Fitting/changing the saw blade

NOTE

▶ Position the base plate for this operation on the edge of a stable surface so that the saw blade 14 can be lowered.

1. Activate the safety lock-out 1 and push the motor unit 6 forwards a little way.

2. Open the clamping lever 18. Then push the motor unit 6 forward until you hear the lock click into place. Release the safety lock-out 1. The movement of the motor unit is blocked upward and downward.

3. The clamping screw/washer 14a is now located in the mounting cut-out 14b .
4. Press the spindle lock button 19 (until it engages) and use the hex key 5 to release the clamping screw/washer 14a.
5. Remove the saw blade 14.

D 24

NOTE

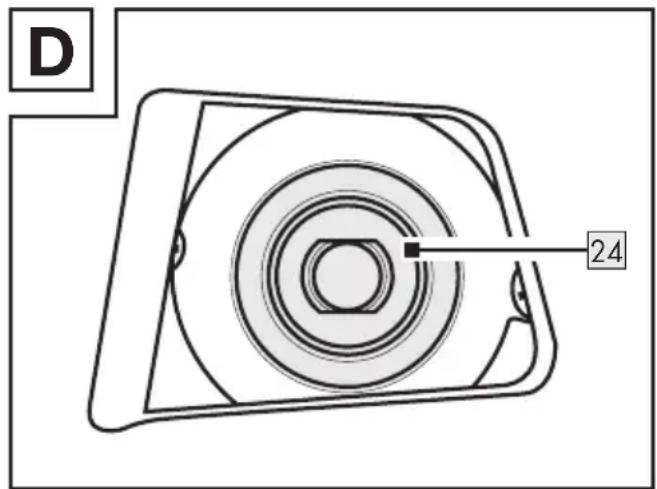

▶ Ensure that the factory-fitted flange 24 stays in place during installation and removal (Fig. D).

☐ To fit a saw blade 14, carry out the above steps in reverse order.

WARNING!

The direction of rotation of the saw blade and the product must match.

- Connecting the sawdust extractor

NOTE

When working on wood for long periods of time, and especially when working on materials that generate dust that is hazardous to health, connect the unit to an external dust extraction device suitable for the material.
▶ Check that the dust extraction unit is correctly attached.
Also observe the operating instructions for the dust extraction device.
Observe the regulations valid in your country for the materials to be processed.

☐ If required, attach the chip ejector adapter 7 for dust extraction to the chip ejector 17.
□ Connect an approved dust and chip extraction device.

- Checking blade guard functionality

NOTE

▶ Position the base plate for this operation on the edge of a stable surface so that the saw blade 14 can be lowered.

1. Activate the safety lock-out 1 and lower the circular saw.
2. Check whether the saw blade 14 rubs against the blade guard and whether it moves back to its starting position automatically.

Operation

- Switching on and off

Switching on

1. Activate the safety lock-out 1 and keep it in that position.
2. Press the on/off switch 2. Once the product is running, release the safety lock-out 1.

Switching off

☐ Release the on/off switch 2.

- Selecting the cutting depth

☐ Undo the screw for the cutting depth adjustment 12. Push the stop to the desired cutting depth on the cutting depth scale 13:

Guide rail Mark
without guide rail A
with guide rail B

☐ Retighten the screw for the cutting depth adjustment 12.

NOTE

Adjust the cutting depth to the thickness of the workpiece. The blade should not extend more than one full tooth depth under the workpiece.

- Setting the cutting angle (mitre angle)

1. Undo the 2 adjustment wheels for the cutting angle 11.
2. Tilt the motor to the desired cutting angle.
3. Retighten the adjustment wheels for the cutting angle 11.

NOTE

If you have set the cutting angle adjustment to 0^ or 45^ , you can use the fine adjustment screws 8 and 8a to make any fine adjustment that you require.

Note the cut line

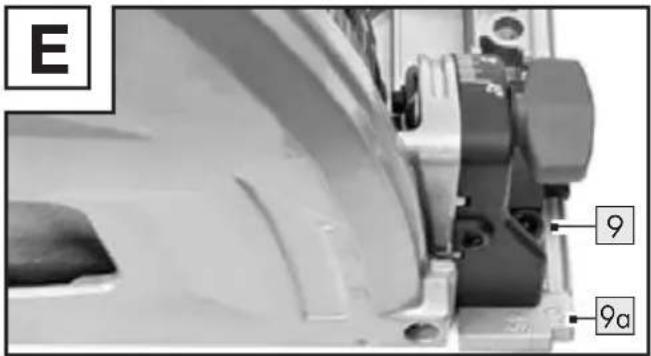

- Cut line markings 9a of 0°/45° are imprinted into the base plate 9.

E 9 9a

☐ Align the product to the corresponding 0^ or 45^ cut line markings 9a in accordance with the set cutting angle (Fig. E).
The inclined surfaces are reference points for this.

- Connecting the guide rails

The guide rails 21 helps you to make straight cuts.

F 23 4 22

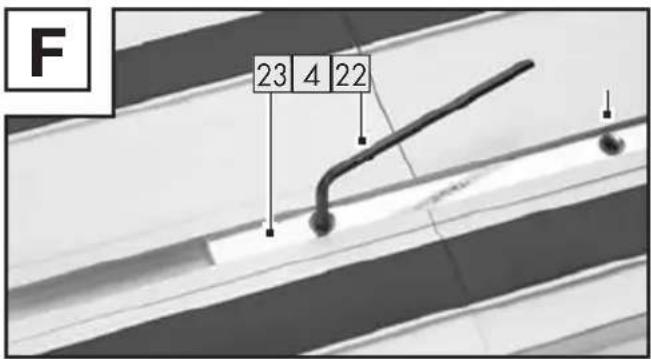

☐ To connect the 2 guide rails, push the connector 23 into the groove of the guide rails. Tighten the grub screws 22 using the small hex key 4 (Fig. F).

NOTE

The guide rails ^21 have a splinter guard (black rubber lip). The splinter guard must be adjusted before making the first cut. Place the guide rail onto a workpiece. Set a cutting depth of approx. 10 mm. Switch the circular saw on and push it gently and evenly in the cutting direction.

Eccentric screws

The eccentric screws 10 are intended for the adjustment of the fit of the base plate 9 on the guide rail 21.
☐ Tighten the eccentric screws 10 to reduce the play between the circular saw and the guide rails 21.

● Working instructions

CAUTION! RISK OF INJURY!

Always wear protective gloves when handling or working with the product.

CAUTION! RISK OF INJURY AND DAMAGE TO PROPERTY!

▶ Wear gloves when handling the saw blade. In this way, you avoid injury from cuts.
Do not use any blunt or bent blades or blades which are damaged in any other way.
Before sawing the workpiece, check for hidden foreign objects such as nails, screws. These must be removed.
Always insert a suitable saw blade.
▶ Secure the workpiece with the aid of clamping devices on the workbench.

CAUTION! RISK OF INJURY AND DAMAGE TO PROPERTY!

Apply only as much pressure as is required for sawing. If there is excessive pressure, the sawing blade may bend and break.
Switch the product off immediately if the sawing blade jams. Spread the saw cut out and pull the blade out carefully.
Always stand to the side of the product when working.
Always make sure that the workplace is well ventilated.
Avoid over-stressing the product while working.

● Sawing (without guide rail)

Right-angled sawing

1. Hold the product with both hands firmly on the handles 3 15.
2. Switch on the product (see "Switching on and off").
3. Place the product with the front part of the base plate 9 on the workpiece.
4. Swivel the motor down and saw forwards with moderate pressure – never backwards.

1. Adjust the cutting angle (see "Setting the cutting angle (mitre angle)").
2. Hold the product with both hands firmly on the handles 315.
3. Switch on the product (see "Switching on and off").
4. Place the product with the front part of the base plate 9 on the workpiece.
5. Swivel the motor down and saw forwards with moderate pressure – never backwards.

Plunge cuts

1. When making a “plunge cut” that is not at right angles, secure the base plate of the saw to prevent any lateral movement. Lateral movement can cause the saw blade to jam, thus causing a kickback.
2. Adjust the desired cutting depth (see "Selecting the cutting depth").
3. Place the product onto the workpiece.
4. Avoid a kickback and place the rear edge against a stop (see "Plunge cutting using the guide rail").
5. Switch on the product (see "Switching on and off").
6. Hold the product with both hands firmly on the handles 315 and pivot it.

NOTE

The cutting width marking 16 on the side of the blade guard shows the front and rear cutting point of a 165 mm saw blade at maximum cutting depth. This applies both for plunge cuts using the guide rail 21 and plunge cuts without using the guide rail.

● Sawing (with the guide rail)

Right-angled sawing with the guide rail

1. Apply the guide rail 21 with the foam rubber elements onto the workpiece.
2. Place the product with the groove 20 onto the guide rail 21.
3. Switch on the product (see "Switching on and off")
4. Hold the product with both hands firmly by the handles 315 and pivot it.

1. Apply the guide rail 21 with the foam rubber elements onto the workpiece.

2. Place the product with the groove 20 onto the guide rail 21 .

3. Adjust the cutting angle (see "Setting the cutting angle (mitre angle)").

4. Hold the product with both hands firmly on the handles 3 15.
5. Switch on the product (see "Switching on and off").
6. Place the product with the front part of the base plate 9 on the workpiece.
7. Swivel the motor down and saw forwards with moderate pressure – never backwards.

Plunge cutting using the guide rail

1. Apply the guide rail 21 with the foam rubber elements onto the workpiece.
2. Place the product with the groove 20 onto the guide rail 21.
3. Adjust the desired cutting depth (see "Selecting the cutting depth").
4. Place the rear edge (as far as possible) against a stop.
5. Switch on the product (see "Switching on and off")
6. Hold the product with both hands firmly on the handles 315 and pivot it.

NOTE

The cutting width marking ^16 on the side of the blade guard shows the front and rear cutting point of a 165 mm saw blade at maximum cutting depth. This applies both for plunge cuts using the guide rail ^21 and plunge cuts without using the guide rail.

Further applications are not permitted.

● Cleaning and care

WARNING!

Always switch the product off, remove the power plug from the mains power socket and let the product cool before performing inspection, maintenance and cleaning work!

Cleaning

NOTE

Do not use chemical, alkaline, abrasive or other aggressive detergents or disinfectants to clean this product as they might be harmful to its surfaces.

■ Never allow fluids to get into the product.
The product must always be kept clean, dry and free from oil or grease. Remove debris from it after each use and before storage.
- Regular and proper cleaning will help ensure safe use and prolong the life of the product.
■ The vents must always be clear.
□ Clean the product with a dry cloth. Use a soft brush for areas that are hard to reach.
☐ In particular clean the air vents after every use with a cloth and soft brush.

Maintenance

■ The product is maintenance-free.
Before and after each use, check the product and accessories (e.g. saw blades) for wear and damage. If required, exchange them for new ones as described in this instruction manual. Observe the technical requirements (see “Technical data”).
☐ Check covers and safety devices for damages and correct installation. Replace as necessary.
☐ Replace a blunt or bent saw blade or one which has been damaged in some other way.

NOTE

Replacement parts not listed (such as carbon brushes, switch) can be ordered via our service hotline.

Repair

This product does not contain any parts that can be repaired by the user. Contact an authorised service centre or a similarly qualified person to have it checked and repaired.

Storage

□ Clean the product (see "Cleaning").
☐ Store the product and its accessories in a dark, dry, frost-free, well-ventilated place.
□ Always store the product in a place that is inaccessible to children.

- Transportation

☐ Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles.
☐ Secure the product to prevent it from slipping or falling over.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics/20–22: paper and fibreboard/80–98: composite materials.

Product:

The product incl. accessories and packaging materials are recyclable and are subject to extended producer responsibility.

Dispose them separately, following the illustrated Info-tri (sorting information), for better waste treatment.

The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of material or manufacturing defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Keep the original sales receipt in a safe location as this document is required as proof of purchase.

Any damage or defects already present at the time of purchase must be reported without delay after unpacking the product.

Should the product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of

charge to you. The warranty period is not extended as a result of a claim being granted. This also applies to replaced and repaired parts.

This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty covers material or manufacturing defects. This warranty does not cover product parts subject to normal wear and tear, thus considered consumables (e.g. batteries, rechargeable batteries, tubes, cartridges), nor damage to fragile parts, e.g. switches or glass parts.

● Warranty claim procedure

So that your request can be processed quickly, please observe the following instructions:

For all inquiries, please have the receipt and item number (IAN 472068_2407) ready as proof of purchase.

The article number can be taken from the identification label on the product, engraving on the product, the front cover of your manual (at the bottom left), or the sticker on the back or bottom of the product.

If malfunctions or other defects arise, first contact the service department indicated below by phone or email.

You can then send a product recorded as defective to the communicated service address postage-free, making sure to enclose proof of purchase (receipt) and information on the details of the defect and when it occurred.

PDF ONLINE parkside-diy.com

You can download and view this and numerous other manuals at parkside-diy.com. This QR code takes you directly to parkside-diy.com. Choose your country and use the search screen to search for the operating instructions. Entering the item number (IAN) 472068_2407 takes you to the operating instructions for your item.

Service

GB Service Great Britain Tel.: [phone] E-Mail: [e-mail]

Service Ireland Tel.: [phone] E-Mail: [e-mail]

● EU declaration of conformity

EU DECLARATION OF CONFORMITY (No 472068\_2407)

IAN: 472068_2407

Product identification:

"PARKSIDE" Plunge Saw

Model Number: HG09159

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

Directive 2006/42/EC

Directive 2014/30/EU

Directive 2011/65/EU and all related amendments

References to the relevant harmonised standards used or references to the other technical specifications in relation to which conformity is declared:

N° / Parts

Directive 2006/42/EC

EN 62841-1:2015+A11

EN 62841-2-5:2014

Directive 2014/30/EU

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019+A1:2021

EN 61000-3-3:2013+A1:2019+A2:2021

The object of the declaration described above is in conformity with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment:

N° / Parts

EN IEC 63000:2018

Keeper of the technical documentation: OWIM GmbH & Co.KG

Signed for and on behalf of:

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Translation of the original declaration of conformity

Neckarsulm 06.12.2024

Place

Date

ppa. Gru sel ppa. Budhei ppa. Stefan Haense ppa. Jens Buchheim

Authorised Signatory Authorised Signatory

EN

CE

Sciage (sans rail de guidage) Page 56

● Sciage (sans rail de guidage)
