USER MANUAL SS-3875 Sogo

EN Instructions for use

FR Mode d'emploi

QR code image containing encoded data, no visible human-readable text

Black and gold SOGO curling iron with attached cable (no visible text or symbols)

Descarga tu manual

Download your manual

Declaration of conformity, Responsibility of Electronic products disposal, Importers Details and After-sales service on the last pages.

Two abstract line drawings of a mechanical or architectural component, possibly a valve or pump, with no visible text or symbols.

• Always read the instruction book carefully before using.
- This manual can be downloaded from our web page www.sogo.es
- Keep these instructions for future reference.

2. Safety instructions for the user

General precautions during the use of electrical equipment

• Do not use the appliance for any other purpose than described in this manual.
• Do not use or store the appliance outdoors.
  • Always place the appliance on to the flat and even surface.
• The unit must be used only for the intended purposes. No liability is accepted for damages arising from improper use or wrong handling. Misuse or improper handling may cause problems in the appliance and cause injury to the user.
• This appliance is intended to be use used in household and similar applications. Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.
• Always remove the plug from the power socket when the appliance is not in use. Do not leave the appliance unattended when switched on.
• Close supervision is necessary when any appliance is being used by or near children.
• Before cleaning or storing your appliance, always unplug the appliance from the power supply and let it cool down.
• The device is not completely disconnected from the power source, even after it has been turned off. To disconnect it completely, disconnect it from the mains plug.

Restrictions on use to avoid personal injury

• Do not place or operate this appliance near water sources.
• Do not place or operate the appliance and its power cord on or near hot surfaces (e.g., stove plates) or open flames.
• Do not leave the power cord hanging from sharp edges and keep away from hot objects and flames.
• Do not wind the cord around the appliance and do not bend it.
• Never use accessories that are not recommended by the manufacturer.
• The use of accessories not recommended or sold by the appliance

manufacturer may result in fire, electric shock or injury to persons.

• When you want to remove the plug from the wall contact, please do this at the plug itself and not by pulling on the cable or the appliance itself.
• To avoid electric shock, make sure your hands are dry before plugging or unplugging.
• Do not use the device with wet hands, on damp floors or when the atmosphere is humid, there is a risk of electric shock
• Never immerse the appliance or the plug-in water or any other liquid. In the event of the appliance falling in water, disconnect immediately from the mains supply and take it to an authorized service agent for repair before reusing.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not use the appliance if the cable or plug is damaged. In case of the cord be damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid Hazard.
• In case of appliance malfunction, or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair or adjustment.

Restrictions on use when used with children and elders

• Children should be supervised to ensure that they do not play with the appliance.
• Keep the appliance and its cord out of the reach of the children less than 8 years.
  • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Do not allow the children to use the appliance.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instructions concerning use of the appliance in a safe way and understand the hazards involved.
• The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance in a safe way and understand the hazards involved.

Instructions to follow when using the appliance

• This appliance works with high temperature, therefore during the use always hold it by the handle and use extreme caution.
• Do not use the appliance inside a bathroom, shower, sauna, etc.
• Never use hairspray with the dryer on ionization.
• Do not use it with styling mousse / Spray / hair spray while using this curler.

Note: When the curler is used on dyed hair, it might leave the stains on the curler. This situation doesn't not affect the use of curler.

• Do not leave the device exposed to the weather (rain, sun, frost...)
• Do not use while bathing.
• Do not place or store appliance where it can fall or be pulled into a tub or sink.
• Do not place in or drop into water or other liquid.
• If an appliance falls into water, “unplug it” immediately. Do not reach into the water.
• Never drop or insert any object into any opening or hose.
• Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.
• The curler becomes VERY HOT while in use. Take care to avoid contact between the surface of the plates and the skin, particularly around the ears, face and neck. DO NOT exceed the recommended application times as it might cause burning of hair.
• Do not use the curler on artificial hair, wigs or pet hair.
• Trip hazard beware of trailing cables when in use and while in storage.
• Cord entanglement hazard. The cable of the appliance can give rise to risks of entanglement, strangulation or tripping if not placed correctly. Please make sure that the electric cable is positioned safely.
• Do not touch the shaded areas when in use or right after use since they will be very hot. Doing so may cause serious burn.
• ▲Danger! Risk of electrocution! Make sure that no objects such as hair clips or hair pins are inserted into the appliance. These can cause a short circuit.
• 4WARNING: : Do not use this appliance near water. Do not use this appliance near bathtubs, showers, basins or other vessels contain water.

⚠️READ ALL INSTRUCTIONS BEFORE USING⚠️

KEEP AWAY FROM WATER

CLEANING AND MAINTENANCE: Kindly refer to the cleaning and maintenance section for details on how to clean the appliance.

3. TECHNICAL SPECIFICATIONS

Voltage Frequency Power
AC 100-240V	50-60Hz	45W

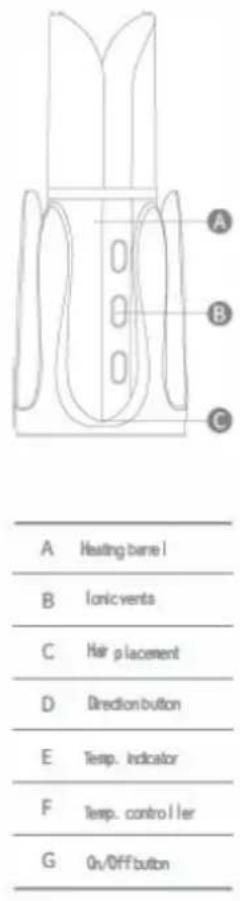

4. PARTS DESCRIPTION

A. Heating barrel
B. Ionic vents
C. Hair placement
D. Direction button
E. Temperature indicators
F. Temperature controller
G. ON/OFF Button

D G/150°C D/150°C G/Tape C F G

A B C

A Heating bare!

B Ionic venta

C Hair placement

D Direction button

E Temp. Indicator

F Temp. controller

G 0h/Off button

ON / Off BUTTON: Hair curler can be turned on by pressing the power button. Press once for 0.5 seconds to switch on the hair curler and press it again to turn it off.

TEMPERATURE SETTINGS: This unit is provided with 3 temperature settings. Minimum temperature setting is 170°C which can be used for regular hair, 190°C can be used for rough hair and 210°C can be used for styling hair. By pressing temperature setting "°C" button we can change the temperature as per our requirement.

LEFT AND RIGHT DIRECTION ARROW BUTTONS: This hair curler has been provided with a unique feature which includes curling of hairs in any direction. To rotate the hair curler barrel in left side, press the left direction arrow button and by pressing right direction arrow button hair curler will start rotating in right side.

5. FUNCTIONS

Auto Curler: An auto curler is a hair styling tool that automatically curls hair by drawing sections into a heated chamber. The device wraps the hair around an internal barrel, heats it evenly, and releases perfectly formed curls or waves with minimal effort. Key features of this hair curler include adjustable temperature settings, multiple curl directions to give your hair a salon-quality curls.

Antiscald function: An anti-scalding functioning curler is a hair styling tool designed with safety features to prevent accidental burns while curling hair. It typically includes a protective outer casing or shield around the heated barrel, ensuring that the user's hands and scalp are not exposed to high temperatures.

These curlers are ideal for both beginners and experienced users, providing a safe, comfortable, and easy curling experience without the risk of burns or scalp damage.

Auto shut off: An auto shut-off feature in hair curlers is a safety mechanism designed to automatically turn off the device after a certain period of inactivity. This function helps prevent overheating, reduces the risk of fire hazards, and conserves energy by ensuring the curler doesn't remain on accidentally when not in use.

This hair curler will turn off automatically, after inactiveness of units for 30 minutes.

IONIC FUNCTION TECHNOLOGY

This hair dryer works with Ionic technology. This technology helps you to dry your hair faster than normal hair dryer functioning and even at a lower temperature.

This ionic technology helps you to:

• Nourish Your hair through the ionization process, in which hair dryer emits multiple negative ions and break the water to get more coverage in less time with no damage.
• Fortifies and beautifies the hair from the inside out
• Healthy, shiny and more manageable hair
• Charge ions delivered with warm air, break down water molecules, which are then easily absorbed by your hair.

6. INSTRUCTIONS FOR USE

1. Wash the hair before hair styling and then dry and comb the hairs.
2. Make sure that there are not any impurities on the surface of the hair curler, to avoid any kind of accidents of issue caused by the high temperature.
3. You can choose the temperature as per your hairs care and curling requirement.

How to use your Hair curler:

1. Unwind the cable cord and plug in to mains supply.
2. Press On / Off button for 0.5 seconds and unit turn on automatically. The default temperature is 190°C. To choose the adequate temperature for your hairs, press temperature control buttons.
   Note: We can choose Min. temperature setting as 170°C to Max. temperature setting as 210°C.
3. By pressing Left direction arrow button temperature values decreases and by pressing Right

direction button temperature will increase.

1. Once you have fixed the temperature, unit emits a buzzer noise twice.

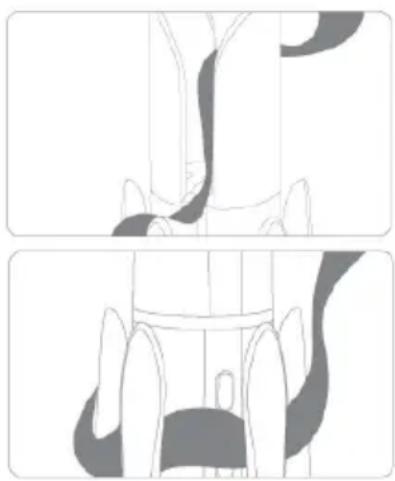

There are 2 ways to place the hairs in the newly designed barrel curler.

A. Clip in placement

B. Wound placement

A. Clip in placement: This technique is used to secure a section of hairs by using hair curler. This method ensures the hair remains in place while being heated and curled, allowing for even heat distribution and consistent curls.

B. Wound placement: Wound placement technique, refers to the way in which hair strands are wrapped around the curler to achieve different types of curls or waves. The technique can influence the curl's direction, tightness, and overall look.

Two abstract line drawings of a mechanical or architectural component, possibly a valve or connector, with no visible text or symbols.

Please keep in mind below mentioned advices before curling your hairs:

1. Before using hair curler make sure that your hairs are clean and dry. You can apply a heat protectant spray to shield your hair from heat damage.
2. Always Divide hair into manageable sections, typically starting from the bottom layers and moving towards up way side. Make sure to keep away the hair which are not in curling process. To do this hair clips can be used.
3. Position the section of hair between the barrel. Start near the roots, leaving about half an inch away from the scalp to avoid burns.
4. Make sure to twist the curler away from your face, guiding the hair around the barrel. Hold it in place for a few seconds, allowing the heat to set the curl.
5. Once the curl has been created you can remove the clip and release the curl from hair curler.
6. Let the curled hair cool down.
7. Continue this process with each section of hair until your entire hair are curled.

Tips:

• For tighter curls, use smaller sections of hair.
• For looser waves, use larger sections and a wider barrel.
• Always curl away from your face for a more flattering look.

7. CLEANING AND MAINTENANCE

1. Please, disconnect the device first.
2. Switch off, unplug and always allow the curler to cool (at least 30 minutes) before storing or cleaning.
3. Clean the plastic surface of the housing with a damp cloth and dry it with a dry one. Do not use alcohol or abrasive products.
4. It is recommended to clean hair curler periodically by removing the hair and other debris.
5. This hair curler model is maintenance free.
6. There is not any need of lubrication or any cleaning liquids.
7. Always make sure to keep the appliance clean for proper operation.
8. Please do not immerse the device in water.
9. Please clean the hair curler from dust and hair by regular cleaning.

Q & A

1. How to choose the temperature?

170°C temperature is recommended for regular hair, 190°C is recommended for rough and stiff hair and 210°C is recommended for professional hair styling. For the first time we recommend to use it with lower temperatures.

2. Unable to bot?

Please check if the power cord plug is correctly connected to the power socket. If you see by pressing the power button but still can't boot Contact your after sales service.

3. There is any smoke appearing while using?

Oily hair will evaporate the redundant grease on the surface of hair when met heat, which will help clean the oil to some extent and makes hair more fleeciness and more styling.

4. Products auto shut off when using?

The section of hair is too large, please reduce the amount of hair while using curler.

5. Hair tangles while using?

Changing direction during styling will result to hair tangles. Please unplug the power cord and remove the hair from another direction, then start style again.

PORTANT:

A B C D E F G Heating barrel Ionic venta Hair p lacement Directionbutton Temp. Indicator Temp. controller Dr/Offibution

Abstract line drawing of a stylized human figure with curved lines and a crescent shape (no text or symbols)

Abstract line drawing of a stylized human figure with raised hands (no text or symbols)

Abstract line drawing of a mechanical or architectural component (no text or symbols)

Abstract line drawing of a stylized human figure with curved limbs and a rectangular body (no text or symbols)

PERGUNTAS E RESPOSTAS

A B C D E F G I J K L M N O P Q R S T U V W X Y Z A B C D E F G I J K L M N O P Q R S T U V W X Y Z I J K L M N O P Q R S T U V W X

Abstract line drawing of a mechanical or architectural component (no text or symbols)

Abstract line drawing of a stylized human figure with abstract shapes (no text or symbols)

Abstract line drawing of a mechanical or architectural component (no text or symbols)

Abstract line drawing of a symmetrical abstract shape with no text or symbols

D OF PC OF MC OF MC E F G C D

A Heating barrel B Ionic vents C Hair placement D Direction button E Temp. indicator F Temp. controller G Qn/Off button

Abstract line drawing with curved and straight lines, no text or symbols present

Abstract line drawing of a stylized human figure with no text or symbols

D C#1 sec O norm O norm E C F G

A B C

A floating barrel
B lonicventa
C. Hair placement
D Dredion button
E temp. indicator
F temp. controller
G Qh/Off button

Abstract line drawing of a stylized animal head and tail (no text or symbols)

Simple line drawing of a symmetrical abstract shape with no text or symbols

Diagram of a bottle-like object with labeled parts and directional arrows indicating movement or flow.

A B C

A Heating barre!
B lonic vents
C Hair placement
D Direction button
E Temp. Indicator
F Temp. controller
G Qh/Off button

ON / OFF BUTTON: Kodralnik za lase lahko vklopite s pritiskom na gumb za vklop. Enkrat pritisnite za 0,5 sekunde, da vklopite kodralnik za lase, in ga ponovno pritisnite, da ga izklopite.

Abstract line drawing of a stylized human figure with curved lines and a crescent shape (no text or symbols)

Abstract line drawing of a stylized human figure with raised hands (no text or symbols)

A B C Ileeding barrel B Ionic vents C Hair placement D Direction button E Temp. Indicator F Temp. control for G Gr/Off button

Pure mechanical component diagram without any text, numbers, or symbols

Abstract line drawing of a stylized human figure with abstract features (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Abstract line drawing of a symmetrical abstract shape with no text or symbols

D E C F G

A B C

A Heating barrel

B lonicvents

C Hair placement

D Direction button

E Temp. Indicator

F temp. control ter

G 0h/Off/bullet

Two abstract line drawings of a mechanical or architectural component, possibly a valve or pump, with no visible text or symbols.

Two abstract line drawings of a mechanical or architectural component, possibly a valve or pump, with no visible text or symbols.

A Heating bare l B Ionicvents C Hair placement D Direction button E Temp. Indicator F Temp. controller G On/Off button

Two abstract line drawings of a mechanical or architectural component, possibly a valve or pump, with no visible text or symbols.

PREGUNTES I RESPOSTES

1. Com triar la temperatura?

DÉCLARATION DE CONFORMITÉ

DECLARATION OF CONFORMITY

This device complies with EU Low Voltage Directive 2014/35/EC.

Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical.

Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain Product manufactured in CHINA. After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161
