SS-7128 - Croque monsieur clip Sogo - Free user manual and instructions

Product Type	Panini press / Toaster
Brand	Sogo
Model	SS-7128
Power supply	AC 220-240 V, 50-60 Hz
Power	1000 W
Cooking plate material	Steel with non-stick ceramic coating
Functions	Closed toaster, open grill at 180°, large cooking surface
Indicator light	Orange light (heating) and off (ready)
Opening	Red release button for 180° opening
Safety	Hot surface, do not immerse, short cord, grounded plug
Cleaning	Wipe plates with a damp cloth after cooling, do not use abrasive products
Maintenance	Unplug and let cool before cleaning, do not put in dishwasher
Usage	Indoor, household only, flat and clean surface
Preheating	About 2 minutes until the light goes out
Approximate cooking time	About 5 minutes for a sandwich
Recommended utensils	Plastic or wooden spatula, no metal
Compatible foods	Sandwiches, meats, fish, vegetables (except chicken with bones)
Standby consumption	< 0.3 W in off mode
After-sales service	www.sogosat.com / 0034 902 222 161
Origin	Made in China, distributed by Sanysan Appliances S.L., Spain

Frequently Asked Questions - SS-7128 Sogo

How to use the Sogo SS-7128 for the first time?

Before first use, lightly grease the cooking plates with a little oil and heat the closed appliance for about 10 minutes to eliminate the new smell. Then clean it as indicated in the manual.

How long does it take to preheat the toaster?

Preheating takes about 2 minutes. The orange light goes out when the cooking temperature is reached.

Can the toaster be opened 180 degrees?

Yes, press the red release button located under the right arm to open the appliance flat. This provides a large cooking surface for grilling steaks, fish or vegetables.

What utensils should be used to avoid damaging the non-stick coating?

Use a plastic or wooden spatula. Never use metal utensils, as they would scratch the ceramic coating.

How to clean the Sogo SS-7128?

Unplug the appliance and let it cool. Wipe the plates with a soft cloth or paper towel. For stubborn residue, pour a little hot soapy water and clean with a non-abrasive sponge. Never immerse the appliance in water and do not put it in the dishwasher.

What foods can be cooked with the open grill?

You can cook hamburgers, steaks, fish fillets, vegetables and boneless poultry. Avoid chicken with bones as cooking would not be even.

What to do if the light does not turn on?

Check that the appliance is properly plugged into a working power outlet. If the problem persists, contact Sogo after-sales service.

Is the appliance safe for children?

Children aged 8 and older can use the appliance under supervision. Supervise them to avoid any risk of burns or playing with the appliance.

How to store the toaster?

Unplug it and let it cool completely. Wrap the cord around the base and store it in a dry, dust-free place.

Where to find spare parts or after-sales service?

After-sales service is provided by Sogo. Contact www.sogosat.com or by phone at 0034 902 222 161.

USER MANUAL SS-7128 Sogo

Download your manual

1. IMPORTANT:
2. Always read the instruction book carefully before using. This manual can be downloaded from our web page www.sogo.es
3. Keep these instructions for future reference.
4. Safety instructions for the user

GENERAL PRECAUTIONS General precautions during the use of electrical equipment

• Do not use the appliance for any other purpose than described in this manual.
• Do not use or store the appliance outdoors. Always place the appliance on a flat and even surface.
• This product is intended for indoor, non-industrial, non-commercial and only for household use. Do not use the item outdoors or for any other purpose. Misuse or improper handling may cause problems in the appliance and cause injury to the user.
• The unit must be used only for the intended purposes. No liability is accepted for damages arising from improper use or wrong handling.
• Ensure that the voltage indicated on the name-plate matches the mains voltage before plugging in the appliance.
• Always remove the plug from the power socket when the appliance is not in use. Do not leave the appliance unattended when switched on.
• Close supervision is necessary when any appliance is being used by or near children.
• Before cleaning or storing your appliance, always unplug the appliance from the power supply and let it cool down.
• The device is not completely disconnected from the power source, even after it has been turned off. To disconnect it completely, disconnect it from the mains plug.
• The appliances are not intended to be operated by means of an external timer or separate remote-control system.
• Avoid spillage on the connector.

Restrictions on use to avoid personal injury

• Do not place or operate this appliance near water sources.
• Do not place or operate the appliance and its power cord on or near hot surfaces (e.g., stove plates) or open flames.
• Do not leave the power cord hanging from sharp edges and keep away from hot objects and flames. Do not wind the cord around the appliance and do not bend it.
• Neither immerse the housing, which contains electrical components and the heating elements in water, nor rinse it under the tap.
• Never use accessories that are not recommended by the manufacturer.
• The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or injury to persons.
• When you want to remove the plug from the wall contact, please do this at the plug itself and not by pulling on the cable or the appliance itself.
• To avoid electric shock, make sure your hands are dry before plugging or unplugging.
• Do not use the device with wet hands, on damp floors or when the atmosphere is humid there is a risk of electric shock.
• While using the appliance, make sure that the power cord must not be caught or crushed.
• Do not let the motor unit, cord or plug get wet to protect against risk of electric shock.
• Be careful, while handling electrical appliances, as the surface of the heating element is subject to residual heat after use. Any misuse may cause potential injury to the user and may damage the appliance.
• Do not touch the outer surface of the appliance as it can get very hot during operation. Instead, use the handle or mitts.
• Never immerse the appliance or the plug in water or any other liquid. In the event of the appliance falling in water, disconnect immediately from the mains supply and take it to an authorized service agent for repair before reusing.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not use the appliance if the cable or plug is damaged. In case of the cord being damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid hazard.
• In case of appliance malfunction, or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair or adjustment.

Restrictions on use when used with children and elders

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental

capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Do not allow the children to use the appliance without supervision.

Instructions to follow when using the appliance

• Do not touch the top and bottom housing of the device. These can become very hot during operation. Use the handle instead.
• Do not cover the appliance with anything.
• Do not toast bread for too long as it may burn and cause a fire.
• Do not position the device beneath a curtain, wall cabinets or combustible materials.
• The kitchen surface can get hot while operating the device.
• Always preheat the cooking plate before starting to cook. 2 minutes is sufficient.
• In order to prevent the non-stick cooking plates from being damaged, do not use sharp or pointed objects while removing the sandwiches.
• GROUNDED PLUG: To reduce the risk of electric shock this appliance has a grounded plug. If the plug does not fit fully into the electrical outlet contact a qualified electrician. Do not modify the plug in any way or use an adaptor.
• To avoid a circuit overload when using this product, do not operate another high-wattage product on the same electrical circuit.
• A short power supply cord is provided with this product. An extension cord is not recommended for use with this product, but if one must be used:
• The marked electrical rating of the cord must be at least as great as that of the product.
• Arrange the extension cord so that it does not hang where it can be tripped over or pulled unintentionally.

When this symbol is used, it means "Caution: Hot surfaces"

Note: When your Grill Toaster is heated for the first time, it

may emit slight smoke or odor. This is normal with many heating appliances. This does not affect the safety of your appliance.

CLEANING AND MAINTENANCE

Kindly refer to the cleaning and maintenance section for details on how to clean surfaces which come in contact with food.

3. TECHNICAL SPECIFICATIONS

Model Vo	tage Frequency	Power
SS-7128 AC 220-240V 50-60Hz 1000W
This product complies with EU regulation 2023/826 under directive 2009/125 EC on the Eco design requirements. Power consumption in off mode: <0.3W Power consumption in standby mode: N/A Time after which the product enters into off mode: N/A

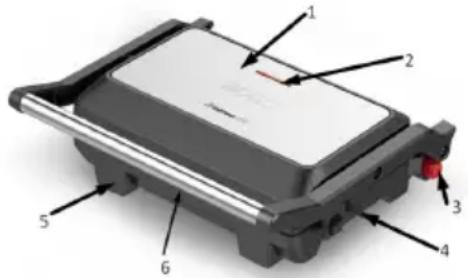

4. PARTS DESCRIPTION

1. Upper housing
2. Power and ready light
3. 180°C opening button (Red colour Release knob)
4. Locking lever
5. Bottom housing
6. Ceramic coated grill plates

5. INSTRUCTIONS OF USE

BEFORE USE

Before you start using the appliance for the first time, grease the non-stick coated cooking plates lightly with a small amount of oil or fat, and let the appliance heat up for about 10 minutes with the cooking plates closed. This will remove the smell typically encountered when first switching on a sandwich toaster. Please ensure sufficient ventilation. Then, clean the sandwich toaster afterwards as described in "Cleaning and Care".

HOW TO USE THE APPLIANCE

Heating stage (Orange light):

The orange power light illuminates when the appliance is switched on and actively heating, providing a clear indication that the unit is in heating mode.

Ready stage (no light):

When the appliance has reached the desired temperature, the orange light turns off, meaning the appliance is ready for use. You can place the food on the grill plates and cook it.

• Close the grill and plug it into the wall outlet. The orange light turns on, indicating that the grill has begun preheating. It will take approximately 2 minutes to reach cooking temperature, then the orange light will go off.
• Open the grill, place the sandwich, meat, or other foods on the bottom cooking plate.
• Close the grill; the orange light will turn on again. Cook for about 5 minutes, or until golden brown and the orange light keeps flashing.
• When the food is cooked, use the handle to open the lid. Remove the food with the help of a plastic spatula. Never use metal tongs or a knife, as these can damage the non-stick coating of the cooking plates.
• Once you are finished cooking, disconnect the plug from the wall outlet and leave the unit open to cool.

HOW TO USE YOUR 180° OPEN GRILL

• Place the Grill Toaster on a clean, flat surface where you intend to cook. The Grill Toaster can be positioned in a flat position.
• The upper and lower plates line up to create one large cooking surface. To adjust the Grill Toaster to this position, locate the release knob (red) under the right arm.
• When using the open grill for cooking, press the release knob (red) to set it to the 180-degree state. After finishing the open state, press the release knob (red) again to return it to the original state.
• Use the Grill Toaster as an open grill to cook burgers, steak, poultry (we do not recommend cooking bone-in chicken, since it does not cook evenly on an open grill), fish, and vegetables.
• Cooking on the open grill is the most versatile method of using the Grill Toaster. In the open position, you have double the surface area for grilling.
• You have the option of cooking different types of foods on separate plates without combining their flavors, or cooking large amounts of the same type of food. The open position also accommodates different cuts of meat with varying thicknesses, allowing you to cook each piece to your liking.

6. CLEANING AND MAINTENANCE

• Always unplug the Grill Toaster and allow it to cool before cleaning. The unit is easier to clean when slightly warm. There is no need to disassemble the Grill Toaster for cleaning. Never immerse the Grill Toaster in water or place it in the dishwasher.
• Wipe the cooking plates with a soft tissue or paper to remove food residue. To remove stubborn food residue, squeeze some warm water mixed with detergent over the residue, then clean with a nonabrasive plastic scouring pad or place wet kitchen paper over the grill to moisten the residue.
• Do not use anything abrasive that can scratch or damage the non-stick coating.
• Do not use metal utensils to remove your food; they can damage the non-stick surface.
• Wipe the outside of the Grill Toaster with a damp cloth only. Do not clean the outside with any abrasive scouring pad or steel wool, as this will damage the finish. Do not immerse it in water or any other liquid.
• Do not place it in the dishwasher.

STORAGE

• Always unplug the Grill Toaster before storage.
• Always make sure the Grill Toaster is cool and dry before storing.
• The power cord can be wrapped around the bottom of the base for storage.

1. IMPORTANT:

WHAT IS THE 180° OPEN GRILL

BEFORE FIRST USE

Before using the appliance for the first time, wipe the non-stick plates with a small amount of oil or butter and let the appliance heat up for about 10 minutes with the plates closed. This will remove the smell that usually occurs during the first use of the toaster. Ensure adequate ventilation. Then clean the toaster as described in the section "Cleaning and Care".

HOW TO USE THE APPLIANCE

Heating phase (orange indicator):

The orange indicator lights up when the appliance is switched on and is actively heating, clearly indicating that the appliance is in heating mode.

Ready state (indicator off):

When the appliance reaches the desired temperature, the orange indicator turns off, indicating that the appliance is ready for use. You can place food on the grill plates and cook them.

Close the grill and plug it into the outlet, the orange indicator lights up, indicating that the grill is preheating. - Reaching the cooking temperature takes about 2 minutes, after which the orange indicator turns off. Open the grill, place the food, meat, or other products on the lower plate for cooking. Close the grill, the orange indicator lights up again. - Cook for about 5 minutes or until golden brown, while the orange indicator continues to blink. When the food is cooked, open the lid using the handle. Remove the food with a plastic spatula. Never use metal utensils or knives, as they can damage the non-stick coating of the cooking plates. - After cooking, unplug the appliance from the outlet and leave it open to cool down.

HOW TO USE THE 180° OPEN GRILL

• Place the grill toaster on a flat, stable surface where you intend to cook. The grill toaster can be placed in a horizontal position. The top and bottom plates join together, creating a single large cooking surface. Position the grill toaster in its place, find the release button (red) under the right hand. When using the open grill for cooking, press the release button (red) to open it 180 degrees; after use, close the grill by pressing the release button (red) again to return it to the closed position. Use the grill toaster as an open grill for cooking burgers, steaks, poultry (we do not recommend cooking fish with bones, as it does not cook evenly on the open grill), fish, and vegetables.
• Cooking on the open grill is the most versatile way to use the grill toaster. In the open position, you get a full cooking surface for grilling.

You can cook different products separately, without mixing flavors, or cook a large quantity of one type of product. The open position also allows you to place different pieces of meat of varying thickness, giving you the ability to cook each piece to its own taste.

6. CLEANING AND MAINTENANCE

• Before cleaning, unplug the grill toaster from the power outlet and let it cool down.
• Clean the appliance when it is slightly warm. For cleaning, you need to disassemble the grill toaster. Never immerse the grill toaster in water and do not place it in the dishwasher.
• Wipe the cooking plates with a soft cloth or paper towel to remove food residues. To remove stubborn residues, apply warm water with a little detergent to them, then wipe them off with a soft cloth or place them on a damp cloth.

Kitchen paper absorbs food residues.

Do not use abrasive agents that may scratch or damage the non-stick coating. - Do not use metal utensils for cleaning the plates, as they may damage the non-stick surface. - Wipe the exterior surface of the grill toaster only with a damp cloth. Do not clean the exterior surface with abrasive cleaners or steel wool, as this may damage the coating. Do not immerse in water or any other liquid. Do not place in the dishwasher.

7. STORAGE

• Before storing, unplug the grill toaster from the power outlet.
• Before storing, make sure the grill toaster has cooled down and dried.
• Wrap the cord around the cord storage on the base for storage.

IMPORTANT:

DECLARATION OF CONFORMITY

This device complies with EU Low Voltage Directive 2014/35/EC.

Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical.

Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol on the product or on the packaging indicates that this product cannot be disposed of as normal rubbish or household waste. All electrical and electronic equipment and battery-operated units must be recycled in a proper manner and according to local municipal laws. You can recycle them by taking them to government-authorized disposal centers or specialized bins, which you can find in any nearby large supermarkets, electronics or electro-domestic products stores, or malls that have these types of facilities available.

Designed by: SOGO based on European quality standards. Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain. Product manufactured in CHINA. After-sales service: www.sogosat.com, [e-mail] / 0034 902 222 161
