USER MANUAL SS-21345 Sogo

Exterior view of a modern office building (no signage)

VENTILADOR DE PIE DELUXE 10" (25CM) 10" (25CM) DELUXE STAND FAN VENTILATEUR SUR PIED DELUXE 10" (25CM) VENTOINHA DE PE DELUXE DE 10" (25CM) 10" (25CM) DELUXE STANDVENTILATOR VENTILATORE A PIEDE DELUXE DA 10" (25CM)

This manual can be downloaded by scanning this QR code in the following languages. SPANISH, ENGLISH, FRENCH, PORTUGUESE, GERMAN, ITALIAN, CZECH, DANISH, SLOVENIAN, CROATIAN, POLISH, ROMANIAN, UKRAINIAN and CATALAN

ÍNDICE

1. Important Note P. 12

2. Symbol definitions P. 12

3. Safety instructions for the user P. 12

I. General precautions during the use of electrical equipment P. 12

II. Restrictions on use to avoid personal injury P. 13

III. Product use restrictions due to poor condition or breakdown P. 14

IV. Restrictions on use when used with children and elders P. 15

V. IMPORTANT WARNING P. 16

VI. Instructions to follow while using the device P. 16

1. Technical specifications P. 18

2. Parts description P. 18

3. Instructions for use P. 18

4. Cleaning and maintenance P. 20

5. Declaration of conformity P. 60

6. Responsibility of disposal, details of the manufacturer and after-sales service P. 61

ÍNDICE

Diagram illustrating four steps of a mechanical device with labeled components and directional arrows indicating movement.

37.90 mm 84.00 mm Vertical Swing Horizontal Swing Speed Tasser ON/OFF Please remove the insulation film before use. My Case Call

Ajuste de altura:

• Always read the instruction book carefully before using.
- This manual can be downloaded from our web page www.sogo.es
- Keep these instructions for future reference.

2. Symbol definitions

GENERAL PRECAUTIONS

1- Important information and useful hinds on use
2- Warning against dangerous situations in terms of life and property
3- Cautions while using electrical and electronic equipment.

3. Safety instructions for the user

GENERAL PRECAUTIONS

General precautions during the use of electrical equipment

• Do not use the appliance for any other purpose than described in this manual.
• Do not use or store the appliance outdoors.
  • Always place the appliance on to the flat and even surface.
• This product is intended for indoor, non-industrial, non-commercial and only for household use. Do not use the item outdoors or for any other purpose. Misuse or improper handling may cause problems in the

appliance and cause injury to the user.

• The unit must be used only for the intended purposes. No liability is accepted for damages arising from improper use or wrong handling.
• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.
• Always remove the plug from the power socket when the appliance is not in use. Do not leave the appliance unattended when switched on.
• Close supervision is necessary when any appliance is being used by or near children.
• The device is not completely disconnected from the power source, even after it has been turned off. To disconnect it completely, disconnect it from the mains plug.
• The appliances are not intended to be operated by means of an external timer or separate remote-control system.

II. ▲Restrictions on use to avoid personal injury

• Do not let the appliance operate unattended.
• Do not place or operate this appliance near water sources.
• Do not place or operate the appliance and its power cord on or near hot surfaces (e.g., stove plates) or open flames.
• Do not leave the power cord hanging from sharp edges and keep away from hot objects and flames. Do not wind the cord

around the appliance and do not bend it.

• Never use accessories that are not recommended by the manufacturer.
• The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or injury to persons.
• When you want to remove the plug from the wall contact, please do this at the plug itself and not by pulling on the cable or the appliance itself.
• To avoid electric shock, make sure your hands are dry before plugging or unplugging.
• Do not use the device with wet hands, on damp floors or when the atmosphere is humid, there is a risk of electric shock.
• While using the appliance, make sure that the power cord must not be caught or crushed.
• Do not let the motor unit, cord or plug get wet to protect against risk of electric shock.

III. ⚠️Product use restrictions due to poor condition or breakdown

- Never immerse the appliance or the plug-in water or any other liquid. In the event of the appliance falling in water, disconnect immediately from the mains supply and take it to an authorized service agent for repair before reusing.

- Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.

• Do not use the appliance if the cable or plug is damaged. In case of the cord be damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid Hazard.
• In case of appliance malfunction, or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair or adjustment.
• In case of hardware problems, do not attempt to repair the product yourself. Repairs should only be carried out by qualified technicians.

IV. ⚠️! Restrictions on use when used with children and elders

• Cleaning and user maintenance shall not be made by children without supervision.
  • Children shall not play with the appliance.
• The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
  • Children should be supervised to ensure that they do not play with the appliance.

V. IMPORTANT WARNING

• To avoid a circuit overload when using this product, do not operate another high-wattage product on the same electrical circuit.
• A short power supply cord is provided with this product. An extension cord is not recommended for use with this product, but if

one must be used:

• The marked electrical rating of the cord must be at least as great as that of the product.
• Arrange the extension cord so that it does not hang where it can be tripped over or pulled unintentionally.

VI. Instructions to follow while using the device

• Children aged less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Please make sure that the fan will not meet any obstruction when oscillating.
• Do not put your fingers or any other object into the front case of the fan at any times. Please pay special attention when using the fan near children, to avoid children play with fan.
• Do not let hair, net curtains, tablecloth, clothes or curtains be next to the inlet or outlet of the fan. They could be sucked into the fan, causing damage or injuries.
• Do not use this fan with any semi-conductors speed control.
• Do not operate the fan in an area where gasoline is used or stocked, painting or such flammable liquids.
• Once the fan is assembled, it is forbidden to

di-sassemble the housing when cleaning.

- If the unit requires external cleaning, make sure it is unplugged from the power supply. Use a soft tissue or dry cloth for general cleaning. To remove more persistent dirt or grime with a warm soapy dampened cloth. Do not use any solvents (such as thinners), and these may damage the plastic casing.

CLEANING AND MAINTENANCE

Kindly refer to the cleaning and maintenance section for details on how to clean surfaces which comes in the contact of food.

4. TECHNICAL SPECIFICATIONS

Model No. Voltage Power Frequency
SS-21345 220-240V 50W 50-60Hz

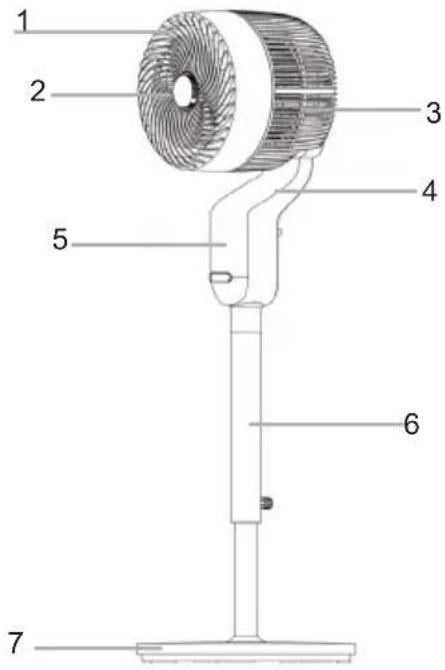

5. PARTS DESCRIPTION

1. Front Grille
2. Logo panel
3. Back Grille
4. Support rack
5. Control panel
6. Extensible Column
7. Base

1 2 3 4 5 6 7

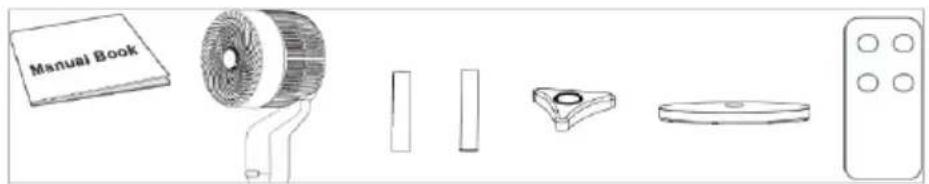

Part list

Manual Book

Manual book
Main part
Stand column
BaseScrew Driver Remote

6. INSTRUCTIONS FOR USE

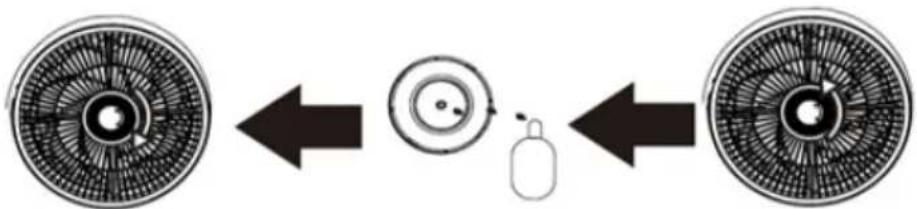

Aroma installation instructions:

1. Switch the cap of the amora holder in the center counterclockwise to remove it. (Fig. 1)
2. Dipping the aroma essence into the aroma tablet. (Fig. 2)
3. Install back to the center of the fan head clockwise. (Fig. 3)

Diagram showing three circular components with internal patterns, connected by arrows indicating direction (no text or symbols)

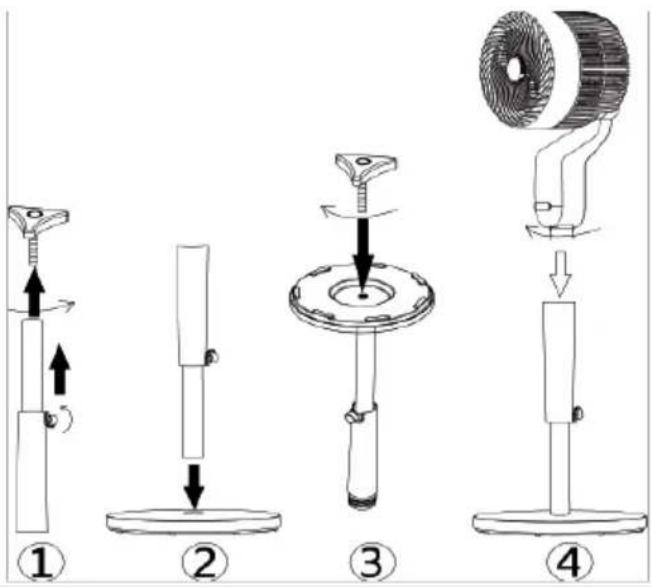

Assembly instructions:

Take out all parts from the carton box:

1. Take off the screw from the bottom of the column.
2. Put the column into the hole of the base.
3. Fasten the screw.
4. Install the main part by rotating it into the column.

Diagram illustrating four steps of a mechanical device with labeled components and directional arrows indicating movement.

Control Panel and Remote control Instructions:

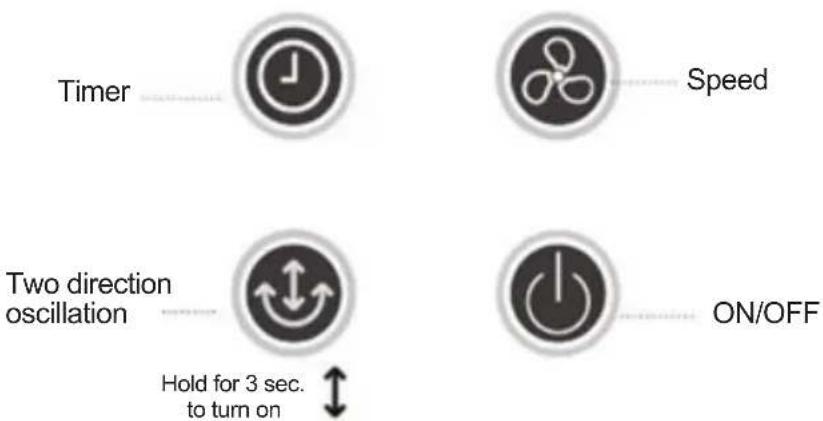

Control panel:

Timer Speed Two direction oscillation ON/OFF Hold for 3 sec. to turn on

ON/OFF: The fan beeps and turns on when touch this button, all buttons flash once and set into stand-by mode.

Oscillation: A quick touch to turn on or turn off the left-right swing, hold on for 3 sec. to turn on or turn off the up-down swing.

Speed: the default speed is 'F1' when turn on the fan, and speed increase 1 level by one touch until 3, and back to speed 1 by one more touch.

Timer: The timer increased 1 hour by one touch until 12 hours, displays from '0H', '1H'... to '12' in a cycle.

Display Screen: the screen displays the fan speed and timer. It displays '——' when turn the fan on. The screen turns off without operation for 3 minutes, and awakens by touch on any button.

180° Oscillation Fan Function

Advanced 180° oscillation function is designed to deliver superior airflow distribution, ensuring a comfortable environment in every corner of your space. Its innovative oscillation system rotates the fan head a 180-degree range in all directions including Up, Down and left, Right creating a broad and consistent airflow pattern that enhances the cooling experience.

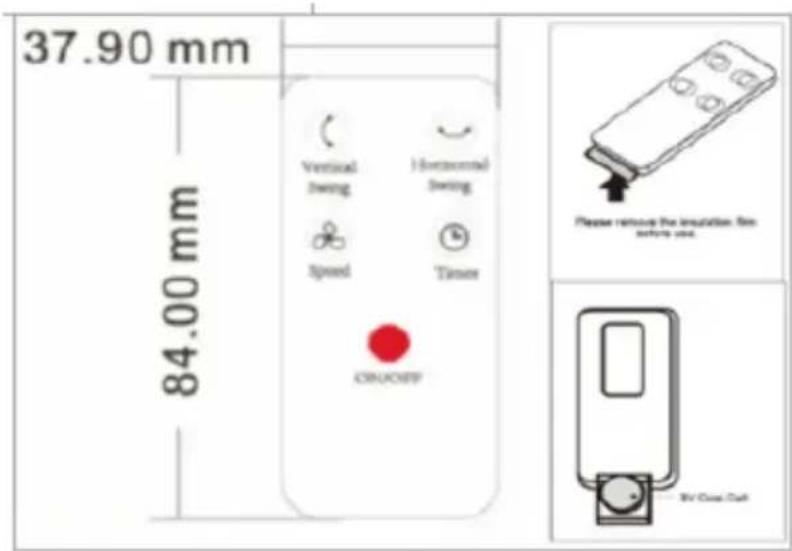

Remote control

This fan has been provided a remote control.

To use the remote control, insert 1 coin cell (Battery not provided) in the battery compartment and now your remote control is ready to use.

With the help of remote control, you can turn on and turn off the fan with on/Off button.

Remote control has Time, speed and Oscillation buttons as well. With the help of all these buttons you can change same fan settings, as you can change with fan control panel.

37.90 mm 84.00 mm Vertical Swing Horizontal Swing Speed Timer CINUCOFF Please remove the insulation. Sun before use. BV Case Call

Height Adjustment:

To adjust the fan height, grip the extension column and loosen the height adjustment locking nut. Move upwards or downwards the extension column and once get the desired height, tighten up again with the help of height adjustment locking nut.

7. CLEANING AND MAINTENANCE

1. Always disconnect the cord from the electrical outlet when cleaning your fan.
2. Light accumulated dust may be removed by using a soft cloth to wipe away the dust at the back grille of the fan.
3. Wipe the exterior surfaces of the fan occasionally with a damp cloth (not dripping wet) and dry thoroughly with a soft dry cloth before operating the fan.
4. Do not use harsh cleaners or materials to clean this unit, doing so will cause damages to it.

Storage

1. Follow cleaning instructions 1-4 above. Make sure to disassemble and clean fan before storing.
2. Retain the original packaging to store your fan.
3. Always store in a dry place.
4. Never store while still plugged in.
5. Never wrap cord tightly around the fan or put any stress on the cord where it enters the fan as it could cause the cord to fray or break.

1. IMPORTANT:

Diagram illustrating four steps of a mechanical device with labeled components and directional arrows indicating movement.

37.90 mm 84.00 mm Vertical Swing Hemorrhonal Swing Speed Timer CINACHS Please remove the insulation film before use. BY Cable Call

Diagram illustrating four steps of a mechanical device with labeled components and directional arrows indicating movement.

37.90 mm 84.00 mm Vertical Swing Horizontal Swing Speed Timer ON/OFFP Please remove the insulation film before use Xin Case Cell

Ajuste de altura:

Diagram showing three circular components with internal patterns, connected by arrows indicating direction (no text or symbols)

Technical diagram showing four steps of a mechanical assembly with labeled components and directional arrows indicating motion.

37.90 mm 84.00 mm Vertical lwing Horizontal lwing speed Taser ON/OFFS Please remove the insulation film before use. 3V Case Call

Anpassung der Höhe:

Diagram showing three circular components with internal patterns, connected by arrows indicating direction (no text or symbols)

Diagram illustrating four steps of a mechanical device with labeled components and directional arrows indicating movement.

37.90 mm 84.00 mm Vertical Swing Horizontal Swing Speed Tensure ONADISP Please remove the insulation. On before use. 35° Close Call

Directive 2009/125/EC

Directive 2009/125/EC

Description Symbol Value Unit
Alimentation / Fonte de energia		220 – 240V~ 50Hz
Puissance / Potência		50W
Classe / Class		II
Débit du ventilateur / Caudal do ventilador		F m3/min	15.35
Puissance d'entrée du ventilateur / Entrada de energia do ventilador		P	35.1	W
Valeur du service / Valor do serviço		SV (m3/min)	0.437
Consommation électrique en veille / Consumo de energia em espera		P_SB	0.161	W
Consommation d'électricité utilisée / Consumo de eletricidade em uso		Q	16.18	kWh/a
Niveau de puissance acoustique du ventilateur / Nível de potência sonora do ventilador		L WA	51.1	dB(A)
Vitesse de l'air / Velocidade do ar		C	3.8	Meters/sec
Norme de mesure pour voler du service /Padrão de medição para sair do serviço		IEC 60879:2019
Détails du contact /Detalhes do contato	SANYSAN APPLIANCES S.L.C/BARCAS 2°, 2A, 46002, VALENCIA, SPAIN

Directive 2009/125/EC

Description Symbol Value Unit
Alimentazione / Stromversorgung 220 – 240V~ 50Hz
Potere / Potenz 50W
Clase / Klasse II
Portata del ventilatore / Lüfterdurchfluss F m3/min			15.35
Potenza assorbita dal ventilatore / Lüfterleistungseingang P W			35.1
Valore del servicio / Servicewert SV (m3/min) /W			0.437
Consumo energético in standby / Standby-Stromverbrauch P		SB	0.161	W
Consumo di elettricità in uso / Stromverbrauch im Einsatz Q kWh/a			16.18
Livello di potenza sonora del ventilatore / Lüfter-Schallleistungspegel		L WA	51.1	dB(A)
Velocità dell'aria / Luftgeschwindigkeit		C	3.8	Meters/sec
Standard di misura per volare dal servicio / Mess standard, um vom Dienst zu fliegen		IEC 60879:2019)
Detalles de contacto / Contact details	SANYSAN APPLIANCES S.L.C/BARCAS 2°, 2A, 46002, VALENCIA, SPAIN

DÉCLARATION DE CONFORMITÉ

DECLARATION OF CONFORMITY

This device complies with EU Low Voltage Directive 2014/35/EC.

Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical.

Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards

Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain

Product manufactured in CHINA. After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161
