USER MANUAL Spirit Calypso II HAMA

Line drawing of a pair of outdoor headphones (no text or symbols)

GB Operating Instructions D Bedienungsanleitung F Mode d'emploi E Instrucciones de uso

NL Gebruiksaanwijzing I Istruzioni per l'uso PL Instrukcja obsługi H Használati útmutató

RO Manual de utilizare CZ Návod k použití SK Návod na použitie P Manual de instruções

GB Operating Instructions

Thank you for choosing a Hama product.

Take your time and read the following instructions\$

and information completely. Please keep these

instructions in a safe place for future reference

you sell the device, please pass these operating

instructions on to the new owner.

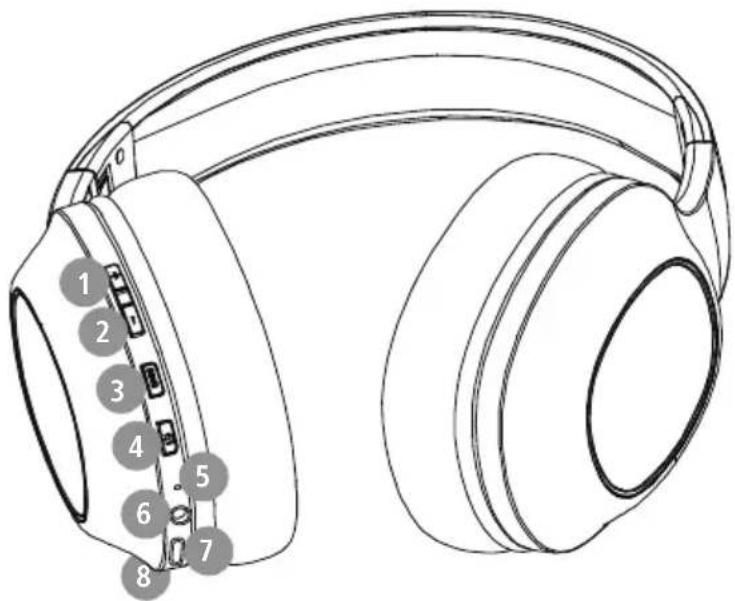

Controls and displays

1\$. + key
2. - key
3. Extra bass
4. Multi-function key (MFB)
5. Status LED
6. Audio input (3.5 mm)
7. USB-C connection
8. microphone

Technical diagram of a multi-band headphones with numbered labels pointing to specific parts

1. Explanation of warning symbols and notes

Warning

This symbol is used to indicate safety instructions or to draw your attention to specific hazards and risks.

Note

This symbol is used to indicate additional information or important notes

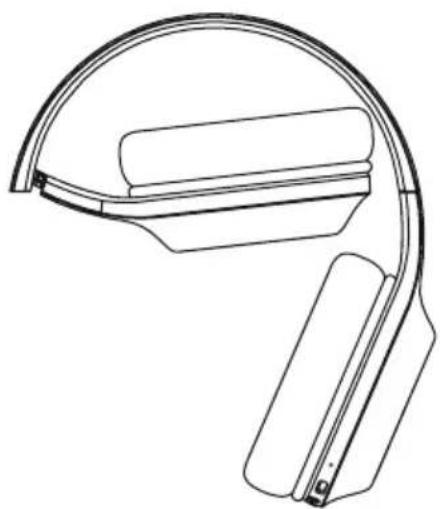

2. Package contents

1 "Spirit Calypso II" Bluetooth over-ear stereo headphones
1x USB-C charging cable
1 x quick guide
1 x warning and safety instructions

Line drawing of a helmet with adjustable straps and a front panel (no text or symbols)

3. Safety instructions

• The product is intended for private, non-commercial use only

- Use the product only for the intended purpose.

• Children should be supervised to ensure that the do not play with the product

- Do not use the product in areas in which electronic products are not permitted

- Do not attempt to service or repair the product yourself. Leave any and all service work to qualified experts

- Do not open the device or continue to operate it becomes damaged

- Do not bend or crush the cable.

- Do not drop the product and do not expose any major shocks.

- Dispose of packaging material immediately in accordance with the locally applicable regulations.

- Do not modify the product in any way. Doing voids the warranty

- Protect the product from dirt, moisture and overheating and use it in dry environments only

- Do not use the product in the immediate vicinity of heaters, other heat sources or in direct sunlight

- Only use the article under moderate climatic conditions.

- As with all electrical products, this device should be kept out of the reach of children

- Do not operate the product outside the power limits specified in the technical data

- Do not use the product in a damp environment and avoid splashing water

- While driving a car or using sports equipment, do not allow yourself to be distracted by your produce and keep an eye on the traffic situation and your surroundings.

- The battery is permanently installed and cannot be removed; dispose of the product as a whole accordance with the statutory regulations

- Do not incinerate the battery or the product.

• Do not tamper with or damage/heat/disassemble the batteries/rechargeable batteries
• Do not use the product during the charging process!

eWarning - rechargeable battery

• Only use suitable charging devices or USB connections to charge the product.
• Do not use defective chargers or USB ports and do not attempt to repair them.
• Do not overcharge the product or allow the battery to completely discharge.
• At Avoid storing, charging and using in extreme temperatures and at extremely low atmospheric pressures (such as at high it altitudes).
• Charge regularly (at least quarterly) during periods of prolonged storage.

Warning - magnets

- This product generates magnetic fields. Persons with a cardiac pacemaker should consult a doctor before using this product, as the pacemaker's proper function could be affected.

Do not store bank or similar cards with magnetic strips near the charging box or earphones. The data on the cards could be damaged or completely deleted

Warning - high volume

• High sound pressure!
• There is a risk of hearing damage.
• To prevent any loss of hearing, avoid listening at loud volumes for prolonged periods.
do Always keep the volume at a sensible level.
uctloud volumes, even over short periods, can urcause hearing loss.

- Using this product limits your perception of ambient noise. For this reason, do not inoperate any vehicles or machines while using this product.

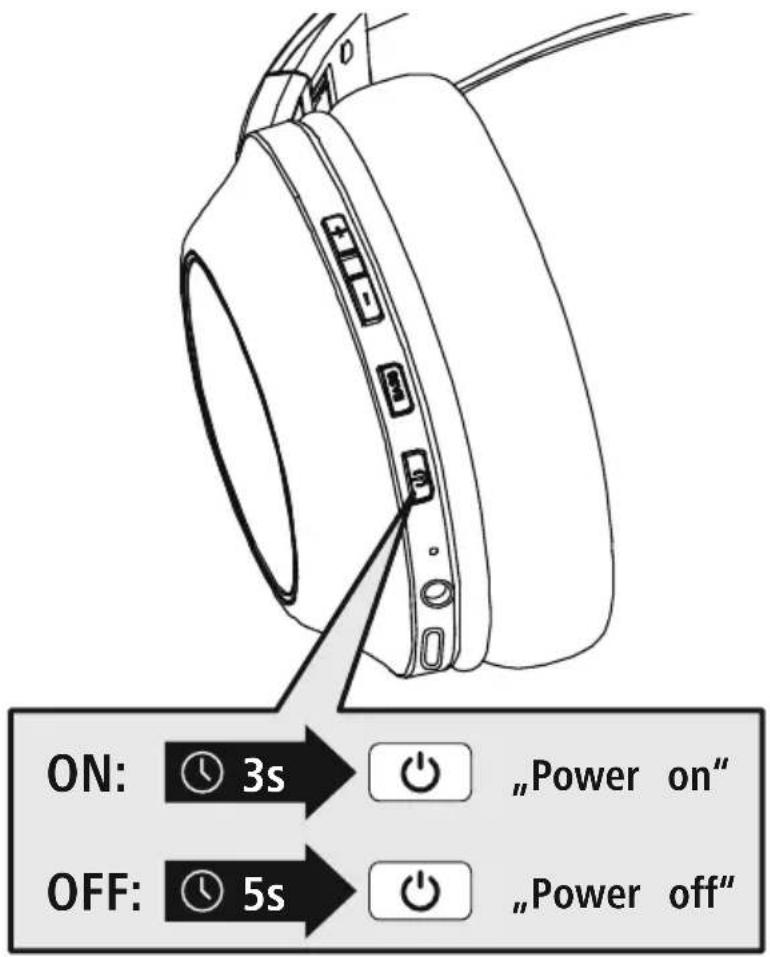

4. Switching on/off

Press the MFB key (4) for approx. 3 seconds until the announcement "Power ON" is heard and the LED (5) flashes blue.

To switch off, press the MFB key (4) for approx. 5 seconds until the announcement "Power OFF" is heard, the LED (5) flashes red and then goes out.

ON: 3s "Power on" OFF: 5s "Power off"

Note - Automatic switch-off of the headphones

The headphones are equipped with an automatic switch-off mechanism. If there is no connection to your device within 3 minutes, they switch off automatically

5. Charging

Fully charge the headphones once before using them for the first time.

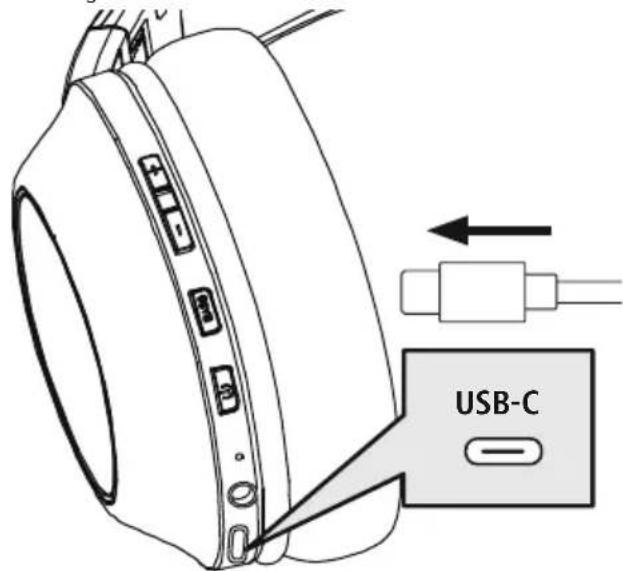

1 Switch off the headphones and connect them

Ensure that the headphones are switched off before charging them.

Connect the USB charging cable included to the charging socket (7). Connect the free plug on USB-C charging cable to a suitable USB chargedo this, consult the operating instructions for the USB charger you are using.

USB-C

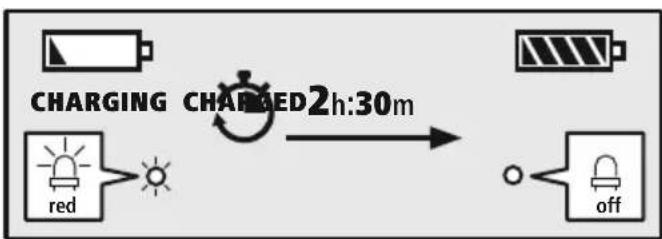

2 Charging process for the headphones

The LED (5) lights up solid red during the charging process.

Once the charging process is complete, the LED (5) goes out.

It can take up to 2.5 hours for the battery to be fully charged.

3 Battery capacity

When the headphone battery capacity is low, the LED (5) flashes red and the announcement

"Battery Low" is heard

Note

During the charging process, the Bluetooth connection is automatically disconnected.

6. Bluetooth® pairing

Note - Pairing

• Make sure that your Bluetooth capable device is switched on and that Bluetooth is activated.
• For more information, please refer to the operating instructions of your device.

The headphones and the device should not be more than 1 metre apart. The shorter the distance, the better.

Switch the headphones on using the MFB key (4).

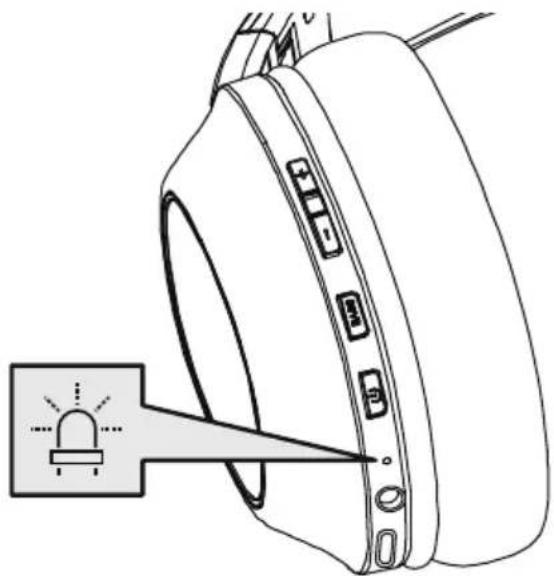

1 Check the status of the status LED (5) and the announcements

Diagram of a device with a light bulb and indicator lights, showing internal components without any text or symbols.

If the LED (5) is flashing alternately and the announcement is: Headphones searching for a Bluetooth connection.

If the LED (5) is flashing and the announcement is: Headphones already paired with a Bluetooth device.

10s blue "Your device is connected"

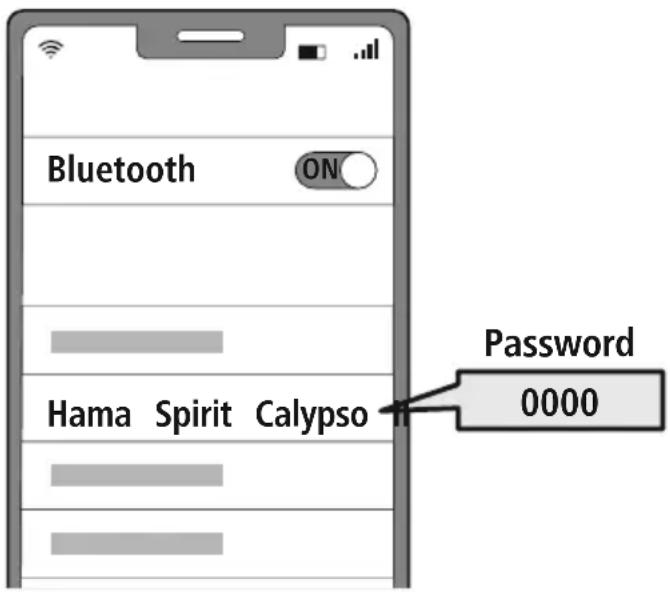

2 Search using your device for the headphones (only required on the first connection)

Open the Bluetoothsettings on your device and wait until the list of found Bluetooth shows Hama Spirit Calypso II

Select Hama Spirit Calypso II and wait until the headphones are shown as connected in your device's Bluetooth® settings.

Bluetooth ON Hama Spirit Calypso Password 0000

Note - Bluetooth@password

Some devices require a password in order to connect to another ^® deviceeth

- If your device requests a password to connect to the headphones, enter 0000.

3 Multi-point technology

These headphones can connect to two Blue® enabled devices simultaneously (multi-point).

Two smartphones with sound waves between them, no text or symbols present

• First connect the first device to the headphones.
• Then deactivate the Bluetooth® function on this device.
• Then connect the second device to the headphones.
• Activate the Bluetooth function on the first device again. The headphones then connect to this device too.

4 Disconnecting the Bluetooth connection

Disconnect the headphones via your device's Bluetooth settings.

Alternative:

7. Controls

Note

• Please be aware that your terminal device must support some functions if they are to be used.
• For more information, please refer to the operating instructions of your device.

7.1 Voice assistant function

Siri/Google

Bass

Press and hold the BASS button (3) for around 2 seconds to initiate communication with Siri or the Google Assistant. As soon as you hear a signal tone, your voice assistant is ready to assist you.

Note - Siri

Siri is only available on suitable devices running iOS 5 (iPhone 4s or later) or higher.

Note - Google Assistant

• The Google Assistant is only available on suitable devices running Android 5.0 or higher with Google Play Services, >1.5 GB of free memory and a minimum screen resolution of 720P.
• The Google Assistant App must be available on your device and be set as the default voice assistant.

7.2 Additional bass amplification

Note

Please note that this function is only possible when a Bluemotion is active.

Extra Bass Boost

Bass

These headphones are equipped with an extra bass function to amplify the bass effect. Press the Bass (3) key to switch on this function while playing music. To switch this function off again, press the Bass (3) key again.

7.3 Hands-free function

It is possible to use the earphones like a hands-free facility for your mobile phone

1 Make a call

Dial the number directly via your device to make a call.

2 Accept a call

Press the MFB key (4) to accept an incoming call.

3 Reject a call

Press and hold the MFB key (4) for around 2 seconds or use your device to reject an incoming call.

4 End a call

During the call, press the MFB key (4) once to end the call.

5 Last number redial

Press the MFB key (4) twice to redial the last number.

Note

The "Last number redial" function is only available for the device which was paired first in a multi-pairing situation.

7.4 Audio playback

Note

Please note that this function is only possible when a Bluebond is active.

1 Start playback on your device.

2 Play / Pause

Press the MFB key (4) once to pause or start audio playback.

3 Next track

Press and hold the + key (1) for around 2 seconds to ski to the next track.

4 Previous track

Press and hold the -key (2) for around 2 seconds to skip to the previous track.

7.5 Volume control

1 Increase volume

Press the + key (1) once to increase the volume. Once the maximum volume is reached, the announcement "Maximum volume" is heard

2 Reduce volume

Press the -key (2) once to reduce the volume. Once the minimum volume is reached, you will hear "beep beep".

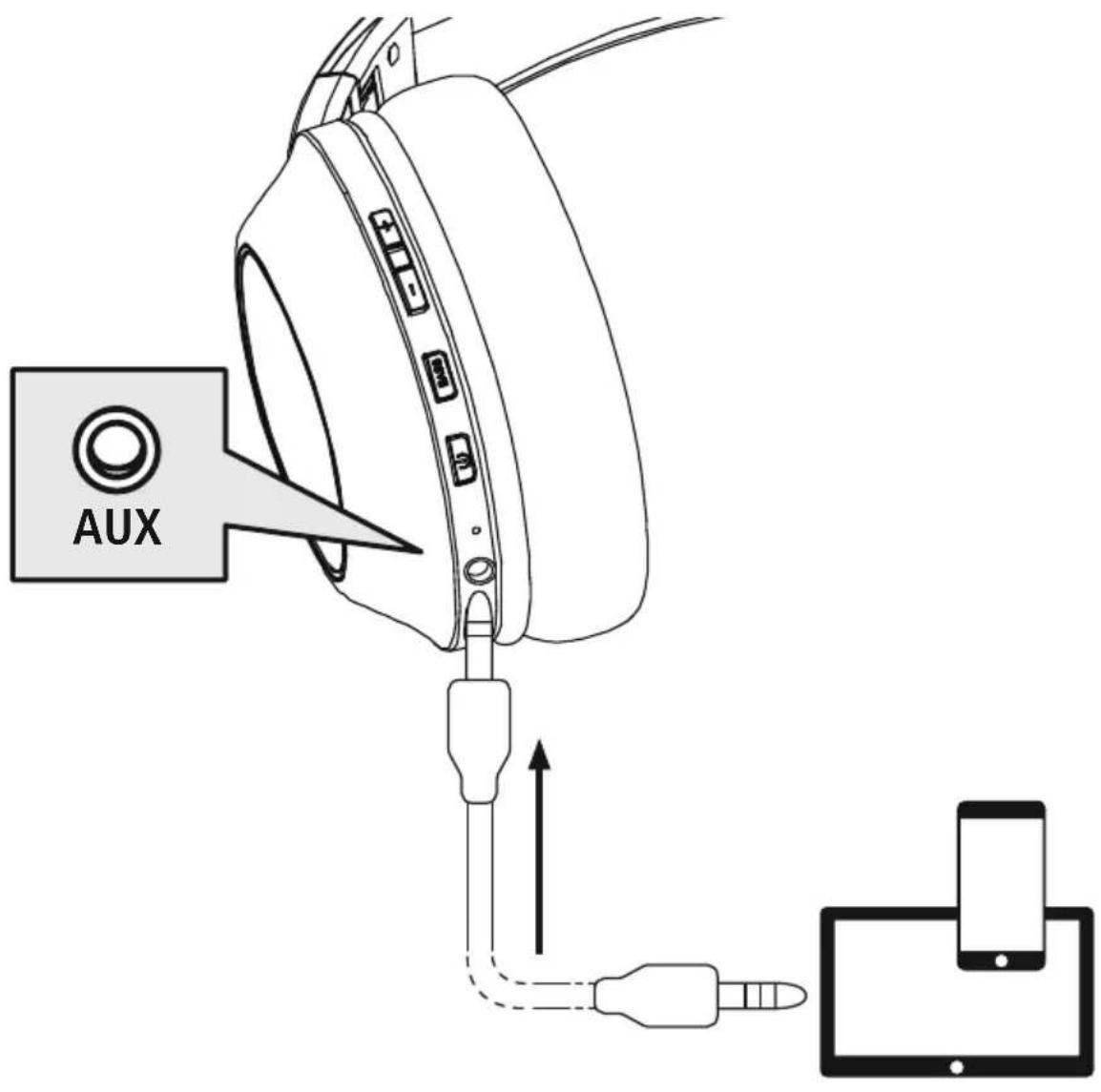

7.6 Audio playback via an audio cable (Not included in the package contents)

In addition to the connection via Bluetooth can also connect these headphones using an AUX cable. To do this, plug one end into the device and the other end into the audio input (6). When the audio cable is inserted, the Bluetooth connection is automatically disconnected. The headphones now function like cabled headphones.

AUX

1. Technical data

Bluetooth®headphones
Impedance headphones / microphone	32Ω / < 2.2kΩ
Frequency headphones / microphone	20 Hz - 20kHz / 100 Hz - 10kHz
Sensitivity headphones / microphone	100dB / -42dB
Range max. 10 m
Bluetooth® technology v5	.3 + EDR
Profiles HFP V1.6.2 / A2DP V1.3.2 / AVRCP V1.6.2
Transmission frequency 2	.4 - 2.48GHz
Rechargeable battery Li-Po 3.7V
Min. capacity 490 mAh
Power consumption max	. 250 mA
Charging voltage max. 5 V USB
Total weight 180	g
Standby / music / talk time	max. 180 d / 60h / 60h

9. Care and Maintenance

Only clean this product with a slightly damp, lint-free cloth and do not use aggressive cleaning agents.

10. Warranty Disclaimer

Hama GmbH & Co KG assumes no liability and provides no warranty for damage resulting from improper installation/mounting, improper use of the product or from failure to observe the operating instructions and/or safety notes

11. Service and Support

Please contact Hama Product Consulting if you have any questions about this product.

Hotline: [phone] (German/English)

Further support information can be found here:.hama.com

13. Declaration of Conformity

CE Hama GmbH & Co KG hereby declares that the radio equipment type [00184176, 0018417] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity can be found on the following website:

https://uk.hama.com → 00184176, 00184177→Downloads

Frequency band(s) 2402MHz - 2480MHz

Maximum radio-frequency power transmitted 2,5mW E.I.R.P.

Line drawing of a helmet with a strap and seat (no text or symbols)

ON: 3s "Power on" OFF: 5s "Power off"

Diagram of a device with a warning light icon pointing to a circular component (no text or symbols present)

10s blue "Your device is connected"

Two smartphones with sound waves between them, no text or symbols present

7. Bedienelemente

Hinweis

Line drawing of a helmet with a curved head and front panel (no text or symbols)

ON: 3s "Power on" OFF: 5s "Power off"

Diagram of a device with a warning light icon and connector ports, no text or symbols present

Two smartphones with sound waves between them, no text or symbols present

Remarque - Google Assistant

Technical diagram of a headband with numbered labels pointing to specific components

Line drawing of a helmet with a strap and front panel (no text or symbols)

ON: 3s "Power on" OFF: 5s "Power off"

Diagram of a device with a warning light icon and control buttons, no text or symbols present

10s blue "Your device is connected"

Two smartphones with sound waves between them, no text or symbols present

7. Controles

Nota

Nota - Google Assistant

Technical diagram of a headband with numbered labels pointing to specific components

Line drawing of a car head with a curved arm and rectangular panel (no text or symbols)

ON: 3s "Power on" OFF: 5s "Power off"

Diagram of a device with a warning light icon pointing to a circular component (no text or symbols present)

10s blue "Your device is connected"

Two smartphones with sound waves between them, no text or symbols present

7. Bedieningselementen

Aanwijzing

Technical diagram of a headband with numbered labels pointing to specific components

Line drawing of a helmet with adjustable straps and a front panel (no text or symbols)

ON: 3s "Power on" OFF: 5s "Power off"

Technical line drawing of a mechanical component with a warning symbol and pin labels (no readable text or symbols)

Two smartphones with sound waves between them, no text or symbols present

Line drawing of a helmet with a strap and seat (no text or symbols)

ON: 3s "Power on" OFF: 5s "Power off"

Diagram of a device with a light bulb and indicator lights, showing no text or symbols

10s blue "Your device is connected"

Two smartphones with sound waves between them, no text or symbols present

Diagram showing playback control icons: left arrow, clock with '2 s' and right arrow, minus sign

Line drawing of a helmet with a curved head and front panel (no text or symbols)

ON: 3s "Power on" OFF: 5s "Power off"

Technical line drawing of a device with a warning light icon and connector port (no text or symbols)

Two smartphones with sound waves between them, no text or symbols present

7. Kezelőelemek

Megjegyzés

Line drawing of a helmet with a strap and seat (no text or symbols)

ON: 3s "Power on" OFF: 5s "Power off"

Diagram of a device with a warning light icon and a magnified view of the lens (no text or symbols)

Two smartphones with sound waves between them, no text or symbols present

7. Elementele de operare

Indicatie

Technical diagram of a multi-band headphones with numbered labels pointing to specific parts

Line drawing of a helmet with adjustable straps and a front panel (no text or symbols)

ON: 3s "Power on" OFF: 5s "Power off"

Diagram of a device with a warning light icon pointing to a circular component (no text or symbols present)

10s blue "Your device is connected"

Two smartphones with sound waves between them, no text or symbols present

7. Obslužné prvky

Upozornění

Technical diagram of a multi-band headphones with numbered labels pointing to specific parts

Line drawing of a helmet with a curved arm and rectangular panel (no text or symbols)

ON: 3s "Power on" OFF: 5s "Power off"

Diagram of a device with a warning light icon pointing to a circular component (no text or symbols present)

10s blue "Your device is connected"

Two smartphones with sound waves between them, no text or symbols present

7. Ovládacie prvky

Upozornenie

Technical diagram of a multi-band headphones with numbered labels pointing to specific parts

Line drawing of a helmet with adjustable straps and a front panel (no text or symbols)

ON: 3s "Power on" OFF: 5s "Power off"

Diagram of a device with a warning light icon pointing to a button, no text or symbols present

10s blue "Your device is connected"

Two smartphones with sound waves between them, no text or symbols present

7. Elementos de comando

Observação

Line drawing of a helmet with a strap and seat (no text or symbols)

ON: 3s "Power on" OFF: 5s "Power off"

Diagram of a device with a warning light icon and a magnified view of the internal components (no text or symbols)

Two smartphones with sound waves between them, no text or symbols present

7. Manöverelement

Information

Information – Google Assistant

Line drawing of a helmet with a strap and seat (no text or symbols)

ON: 3s "Power on" OFF: 5s "Power off"

Diagram of a device with a light bulb and indicator lights, showing no text or symbols

Two smartphones with sound waves between them, no text or symbols present
    note right of B: "Your device is disconnected"

Line drawing of a helmet with a strap and seat (no text or symbols)

3. Указания за безопасност

ON: 3s "Power on" OFF: 5s "Power off"

Diagram of a device with a warning light icon and control buttons, no text or symbols present

10s blue "Your device is connected"

Two smartphones with sound waves between them, no text or symbols present

Diagram showing a play button, clock icon labeled '2s', and a plus sign, likely indicating a second play time.

Diagram showing playback control icons: left arrow, clock with '2s' label, right arrow with minus sign

Technical diagram of a multi-band headphones with numbered labels pointing to specific parts

Line drawing of a helmet with a curved arm and rectangular panel (no text or symbols)

ON: 3s "Power on" OFF: 5s "Power off"

Diagram of a device with a light bulb and control buttons, no text or symbols present

10s blue "Your device is connected"

Two smartphones with sound waves between them, no text or symbols present

Technical diagram of a multi-band headphones with numbered labels pointing to specific parts

Line drawing of a helmet with a strap and front panel (no text or symbols)

ON: 3s "Power on" OFF: 5s "Power off"

Diagram of a device with a light bulb and control buttons, no text or symbols present

Two smartphones with sound waves between them, no text or symbols present
    note right of B: "Your device is disconnected"

Diagram showing a play button, clock icon labeled '2s', and a plus sign, likely indicating a second play time.

Diagram showing playback control icons: left arrow, clock with '2s' label, right arrow with minus sign

Line drawing of a helmet with a strap and seat (no text or symbols)

ON: 3s "Power on" OFF: 5s "Power off"

Diagram of a device with a warning light icon pointing to a button, no text or symbols present

Two smartphones with sound waves between them, no text or symbols present

7. Käyttöpainikkeet

Huomautus
