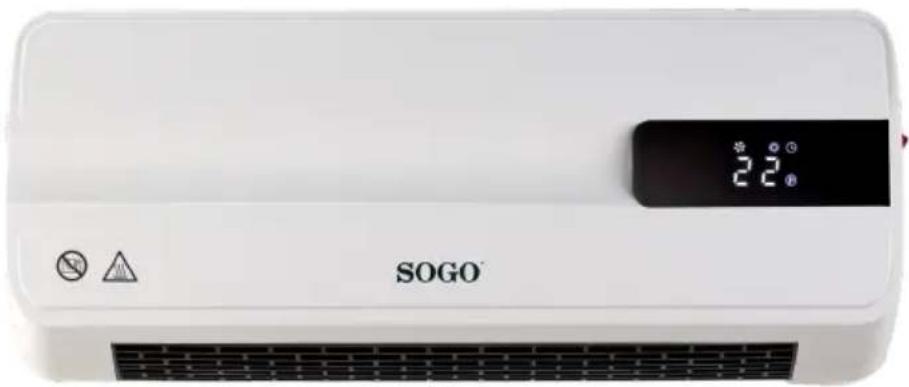

SOGO® SS-18360

5. INSTRUCCIONES DE USO

≥30cm ≥30cm ≥30cm 2m ~10mm

Remove B A Install

MODO DE EMPLEO:

Uso:

Red rectangular button with a white circular mark and horizontal line, no visible text or symbols

• Always read the instruction manual carefully before use.
- This manual can be downloaded from our website www.sogo.es.
- Keep these instructions for future reference.

2. Safety instructions for the user

GENERAL PRECAUTIONS

General precautions during the use of electrical equipment

• Do not use or store the appliance outdoors.
• This product is designed for indoor domestic, non-industrial and non-commercial use. Do not use the item outdoors or for any other purpose. Misuse or improper handling may cause problems with the appliance and may cause injury to the user.
• The unit must only be used for its intended purpose. No liability is accepted for damage resulting from improper use or incorrect handling.
  • Make sure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.
  • Always remove the plug from the socket when the appliance is not in use. Do not leave the appliance unattended when it is switched on.
• It is necessary to supervise when any electrical appliance is being used by or near children.
• Before cleaning or storing your appliance, always unplug the appliance from the power supply and allow it to cool down.
• The device is not completely disconnected from the power supply, even after it has been switched off. To disconnect it completely, unplug it from the mains socket.
• The appliances are not designed to be operated by an external timer or a separate remote-control system.

Restrictions on use to avoid personal injury

• Do not leave the appliance unattended.
• Do not place or use this appliance near water sources.
• Do not place or use the appliance and its power cord on or near hot surfaces (e.g., hotplates) or open flames.
• Do not leave the power cord hanging over sharp edges and keep it away from hot objects and naked flames. Do not coil the cord around the appliance or bend it.
• Never use accessories not recommended by the manufacturer.
• The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or injury to persons.
  • To avoid electric shock, make sure your hands are dry before plugging

or unplugging the appliance.

- Do not use the appliance with wet hands, on wet floors or when the environment is damp, there is a risk of electric shock.

- Never immerse the appliance or the plug-in water or any other liquid. Should the appliance fall into water, disconnect it immediately from the mains and take it to an authorised service centre for repair before using it again.

- Don't use this heater in the immediate surroundings of a bath, a shower or a swimming pool. Never locate the heater where it may fall into bathtub or other water container.

- Do not use the appliance if it has fallen on the floor, if it shows visible signs of damage or if it is leaking.

- Do not use the appliance if the cable or plug is damaged. In the event of damage to the cord, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid hazards.

- In case of malfunction of the appliance, or if it has been damaged in any way, return the appliance to the nearest authorised service centre for examination, repair or adjustment.

- To avoid overloading the circuit when using this product, do not operate another high voltage product on the same electrical circuit.

- It is not recommended to use an extension cord with this product, but if an extension cord should be used:

- The marked electrical rating of the cable must be at least as good as that of the product.

- Arrange the extension cord so that it does not hang down where it can be tripped over or pulled unintentionally.

Restrictions for use with children and the elderly

- Children should be supervised to ensure that they do not play with the appliance.

- Cleaning and maintenance of the user must not be carried out by children without supervision.

• Children must not play with the appliance.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Keep the appliance and its cord out of the reach of children under 8 years of age.

- Children under 3 years of age should be kept away from the appliance unless they are under constant supervision.

- Children from 3 to 8 years of age are allowed to operate the on/off button ONLY if the appliance is installed and ready for operation and

the children have been supervised and instructed in safe operation of the appliance and they understand all associated risks.

- Children aged 3 to 8 years MUST NOT: insert the plug into the socket, make adjustment, clean the appliance or carry out user maintenance operations.

Instructions to be followed when using the device

• The heater must be installed at least 1.8 m above the floor.
• Warning! Do not touch hot surface. The air outlet gets hot when the appliance is operating (more than 80 degree Celsius). Keep the mains lead away from the hot body of the heater.
• Do not leave your home, while the appliance is turned on: assure that the switch is in position OFF (0) (Turned-off) and the thermostat switch is in position-minimum. Always disconnect the plug of the device from the socket.
• Don't use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
• The heater is to be installed in such a manner that switches and other controls cannot be touched by a person in the bath or shower.
• Never locate the heater where it may fall into bathtub or other water container.
• Do not cover or obstruct any of the heat outlet grilles or the air intake openings of the heater.
  • Always ensure that the heater is not positioned close to curtains or furniture as this could create a fire hazard.
• The heater must not be located immediately below an electrical socket-outlet.
• Do not insert any object through the heat outlet or air intake grilles of the heater.
• Do not place this heater near flammable materials, surfaces or substances, as there may be a risk of fire.
• WARNING: Keep inflammable objects as furniture, cushions, bedding, paper, clothes, curtains etc. at a distance of minimum 100cm away from the fan heater.
• The most common reason for over-heating is the accumulation of dust and dirt in the appliance. You should clean regularly ventilation openings with a vacuum cleaner. Before cleaning you must disconnect the appliance from the mains. Keep the fan heater always clean.
• In order to avoid any overheating of the electric cord it is recommended to unreel the whole electric cord, in case appliance is covered or incorrectly positioned there is a danger of fire.

• Place the electric cord in such a way that it does not hamper the movement of people and not to be stepped on! You must use approved connection blocks, which are suitable for the appliance, i.e., there is a sign of compliance.

• The electric cord must not be in touch with the hot parts of the appliance.

• Particular care should be taken when the heater is situated in areas occupied by children or invalids.
  • Always unplug the heater when moving it.
• The room which is to be heated should not contain any easy inflammable materials (e.g., petrol, solvents, spray canisters etc.) or other easy combustible materials (e.g., wood or paper). Keep such materials away from equipment. Risk of fire!!
• During usage of the heater, please do not open the door or window continually otherwise it will influence the heating effect.
• If you want to close the machine, press the on/off switch to off, then the machine will keep the fan working 30 seconds until it blows out cool wind, then the machine will stop working, and you may pull out the plug from the wall socket.
• The timer sets the heater working hours.
• For the Infrared Remote Controller, please use 1 x 3V CR2025 Lithium Button battery. On first use, pls make sure the battery seal is taken out and then the battery connected normally into the remote-control unit.
• The battery must be removed from the appliance before it is disposed off.
• The battery is to be disposed off safely at the point of battery disposal. (PIs consult your local municipal waste disposal service or your local supermarket or appliance store).
• Do not use the fan heater for laundry drying.
• There may be trace of odour during the first few minutes of initial use. This is normal and will quickly disappear.
• The heater is hot when in use. To avoid burns, do not let bare skin touch hot surface.
• WARNING: In order to avoid overheating, do not cover heater.
• WARNING: This heater is not equipped with a device to control the room temperature.
• CAUTION: Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.
  • CAUTION: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

Warning: DO NOT COVER

CLEANING AND MAINTENANCE

Kindly refer to the cleaning and maintenance section for details on how to clean surfaces of electrical appliances

3. TECHNICAL SPECIFICATIONS

Voltage Frequency Power Class
AC 220-240V 50-60Hz 2000W II

This product complies with EU regulation 2023/826 under directive 2009/125/EC on the Eco design requirements.

Power consumption in off mode: 0.00W

Power consumption in standby mode: 0.39W

Time after which the product enters into off mode: 0 min.

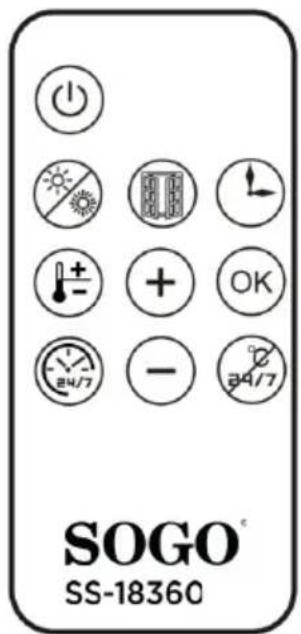

4. REMOTE CONTROL FUNCTION/ SYMBOLS DESCRIPTION

Fan:

Low heat 1000W:

High heat 2000W:

Timer:

Week timer:

Light on: Set temperature mode, temperature range 18-45°C

Light Flickering: Open window detection start up

SOGO® SS-18360

5. INSTRUCTIONS FOR USE

Features and Before first Use

NOTE: It is normal when the heaters are turned on for the first time or when they are turned on after having not been used for a long period of time, they may emit some smell and fumes. This will disappear when the heater has been on for a short while.

FEATURES:

1. High quality plastic shell and long using life.
2. PTC ceramic heater elements, high efficiency heating, quickly heating, noiseless, odour-free, non-polluting, no flame and will not kill the oxygen.
3. Two level heat setting, you can arrange the temperature as your preference.
4. There is temperature fuse for fear of overheating and motor overheat protection. Automatically turn off when the wind outlet is blocked and turn on again when the sundries are cleared away.
5. Natural/hot wind for selection. You could close the heat element in summer; the appliance could blow cool wind for air circulation.
6. Safety thermostat. Overheat protection.
7. Remote control for easy operation.
8. Daily and Weekly timer settings.

INSTALLATION

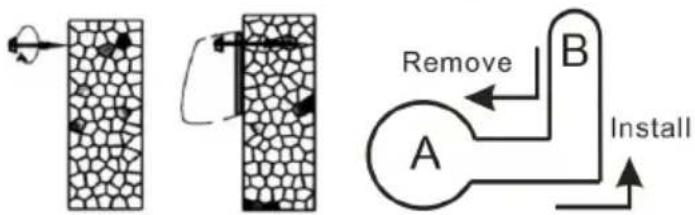

Drill two holes in wall and have a distance of above 2.0m from the ground, the diameter of the hole just contained the expansion bolt, which the diameter is 6mm. After tucked the expansion bolt, fixed pothook on the expansion bolt with screw. Make sure pothook should be inserted the bottom. See the drawing as following for a better understanding. (See the picture) Use the machine's components (screws and expansion pipe) fix on the wall as following figure, then mounted the machine.

Note: max weight is 4.1kg, the wall should be able to carry this weight.

315mm

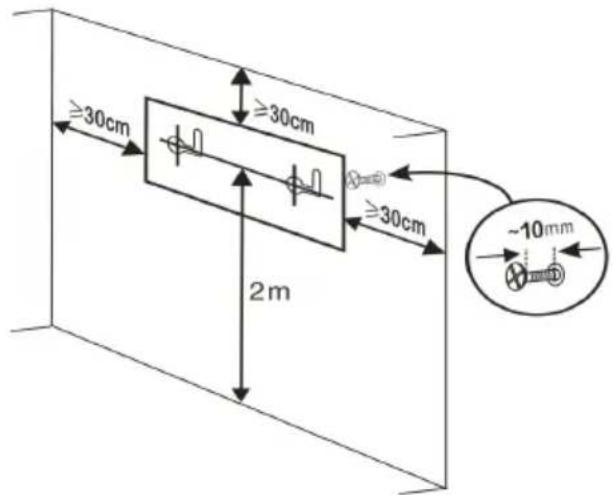

1. The distance between the product and the ceiling (and the side) should be ≥ 30cm .
2. Product installation size see Figure.
3. Note: when the product is installed, The hook (screw) is aligned with the hole "A" on the product. After hanging, must be moved to the "B", in order to firmly fix.
   To remove the product from the wall, it must be moved from "B" to "A" then take out.

≥30cm ≥30cm 2m ≥30cm ~10mm

Remove B A Install

HOW TO USE:

Usage:

1. Please make sure the capacity should be 220-240V\~, 50-60Hz.
2. Put the plug in the wall socket.
3. Switch the appliance on by selecting the desired setting.
4. Please operate the machine according the control keys on the control panel or the infrared controller. (You can see the control panel and infrared controller in this paper)

Red rectangular button with a white circle and horizontal bar, no visible text or symbols

"0" is "OFF". "I": is "ON".

1. Turn on the power switch, LED displays current room temperature, the appliance is standby.
2. At the right side of the appliance a switch is located. Press "START/STOP", High heat, press again, the appliance will shutdown.
3. All functions need to be operated by remote control.
4. Fan keeps working for 30 seconds when the appliance is shut down (after heating)

25

Note: The indicator lights up when corresponding function is working.

Remote control:
Power	Press “” as follows: ON (Fan working), OFF (Fan keep working for 30 seconds when shutdown the appliance after heating).
Heating	Press “” as follows: Low heat, High heat, FAN working.
Timer	Press “” to set timer as follows: 1H, 2H, 3H... 8H. When week timer is start up, you cannot set this timer function.
Set temperature	Set temperature modeLight On	1. Press “-set temperature mode is stand by, Press “+” “-” to adjust temperature, Temperature range: 18-45°C.Press “-”, Set temperature is equal to or lower than Environment temperature, stop heating.Press “+”, Set temperature is 1-2°C higher than Environment temperature, Low heating.Set temperature is higher or equal to Environment temperature +3°C, High heating.2. Press OK, or after LED flickering 5s, set temperature mode is start up.
Open window detection	Open window detectionLight flickering	1. Open window detection only can be start up when appliance in heating mode (cannot start up when appliance is only fan working) or in set temperature mode.2. Press “” Open window detection on, Open window detection off.3. Temperature detection start up after 1 minute from Open window detection start up.Per 10 minutes (temperature slow down detection check point) as a round, in one round, detect the temperature once every 5 minutes(temperature fast down detection check point). Detail in the following table.
		Time roundMin: s	TimeMin: s
		00:00 - 01:00	00:00 Open window detection starts up
		01:00 - 11:00	01:00 Temperature detection start upTemperature detection starting check point
			06:00 Temperature detection check point1 (temperature fast down detection check point).1. Temperature detection check point 1 reduce from Temperature detection starting check point ≤8°C, the appliance keeps heating and Open window detection keep working.

				2. Temperature detection check point 1 reduce from Temperature detection starting check point >8°C. The appliance stops heating and stand by, Open window detection stop. (See Remarks)3. Temperature detection check point 1(**°C) ≥ Temperature detection starting check point, the appliance keeps heating and Open window detection keep working**°C: Maximum detection temperature 51°C(See power-off protection)
			11:00 Temperature detection check point 2(temperature slow down detection check point)1. Temperature at this point is end of this round and start of next round.2. Per 10 minutes as a round, in one round, detect the temperature once every 5 minutes3. At Temperature detection check point 2, test method is the same as Temperature detection check point 1.(compare with Temperature detection starting check point)
		Remarks 1.	When the appliance stops heating, alarm 5s and fan keep working 30s, then stand by, set temperature mode light flickering and LED display OFF and flickering.1.1 Press to restart to the same working mode before the appliance stop.After restart, Open window detection start a new time round.1.2. Press to turn off, then LED displays current room temperature and the appliance is on standby.
	Week timer only can be start up when appliance in heating mode (cannot start up when appliance is only fan working) or in set temperature mode.
Week timer	Present time	First time to start up	First time to start up (start up after power cut off), need to set Present time.Setting method:a. Set day in one week: LED display 01, is Monday, press + or - to adjust Present Day, 01-07, is from Monday to Sunday. Press OK to finish setting.b. Set hours: LED display 00, is 0H, press + or - to adjust Present Hour, 00 to 23, is from 0H to 23H. Press OK to finish setting.c. Set minutes: LED display 00, is 0min, press + or - to adjust Present Minute, 00 to 59, is from 0min to 59min. Press OK to finish setting.Note:1. Not press OK within 10s after adjust, setting Present time is failure.2. Cut off power first then to reset Present time.
		Present time set finished	LED display P1
	P1 Default	Mode (see detail in Mode table)	Press LED display P1, press OK, select P1 Mode. (Not press OK within 10s, Week timer setting is failure)
	P2		Press LED display P2, press OK, select P2 Mode. (Not press OK within 10s, Week timer setting is failure)
	P3		Press LED display P3, press OK, select P3 Mode. (Not press OK within 10s, Week timer setting is failure)
	P4		Press LED display P4, press OK, select P4 Mode. (Not press OK within 10s, Week timer setting is failure)
	P5		Press LED display P5, press OK, select P5 Mode. (Not press OK within 10s, Week timer setting is failure)
	P6	Free mode	Press LED display P6, press OK, select P6 Mode. P6 is free mode. (Not press OK within 10s, Week timer setting is failure) LED display 1, press + or _, from 1 to 7, set from Monday to Sunday.
			LED display 1 and flickering (Monday)	Press OK	Pre-set Mode at Monday a. LED display 00, press + or - to set from 0H to 24H, then press OK, start time set completed. The appliance start to work at this time. b. LED display 00, press + or - to set from 0H to 24H, then press OK, stop time set completed. c. set start time is 00, stop time is 00, that Pre-set Mode default shutdown.
				Flickering 5s	Not set in 5s, Pre-set Mode in Monday shutdown and skip to 2(Tuesday)
			Pantalla LED 2-7	Setting method for 2 to 7 are the same as 1.
			Note 1. In per day, only can set one working time round (from start to stop) 2. Only can set hours, no minutes. 3. Pre-set Mode need to set start and stop time both. 4. Pre-set Mode all 1-7 must set completed or default showdown, after set the 7, week time will start up. Week timer light is on.
			Quick setting	1. LED 1-7 flickering, press + or - to adjust and press OK to select day from Monday to Sunday, not selected day default shutdown (start: 00, stop: 00). Must set start and stop time at 7(set start: 00, stop: 00 if need to shutdown on 7(Sunday), then press OK), Week timer is start up. 2. It has memory function after set week timer (cancel week timer, the setting is in record) Setting record delete after power cut off.
	Week timer shutdown	/	Seventh times to press Week timer shutdown.

	Display description	1. LED display current room temperature after setting, week timer indicator light and corresponding function indicator light are on.2. Heating mode (Low heat or High heat, not Set temperature Mode), when setting week timer, LED displays current room temperature and Week timer light and Low heat or High heat light flickering. Set temperature mode, when setting week timer, set temperature mode light is on.3. Swing, Low heat, High heat, set temperature, Open window detection function are all can be operated when in week timer mode or normal working mode.4. The indicator light is on when corresponding function is working.
	Mode table:
	Mode	Monday	Tuesday	Wednesday	Thursday	Friday	Saturday	Sunday
	P1 8:	00-17:00 8:00	0-17:00 8:00	17:00 8:00-17:00	00 8:00-17:00	00 8:00-17:00	00 8:00-17:00
	P2	18:00-7:00a	18:00-7:00a	18:00-7:00a 18:00	-7:00a 18:00	-7:00a 18:00-7:00a	18:00-7:00a
	P3	8:00-17:00	8:00-17:00	8:00-17:00	8:00-17:00	8:00-17:00	OFF	OFF
	P4	18:00-7:00a	18:00-7:00a	18:00-7:00a 18:00	-7:00a 18:00	-7:00a	OFF OFF
	P5 O	OFF OFF	OFF	OFF OFF			00:00-23:59	00:00-23:59
	P6	Free mode	Free mode	Free mode	Free mode	Free mode	Free mode	Free mode
	Note	a: P2/P4 Mode, stop time is at the second day
		P6: Time set range, 00-24H, start time must before than stop time, otherwise, set failure.
Cancelar	Cancelar Ajustar modo de temperatura	1. When in setting, press to cancel.2. After setting temperature completed, must press first then press, to cancel.3. When set temperature mode on low heat, after cancel, return to low heat.When set temperature mode on high heat, after cancel, return to high heat.4. Press set temperature mode showdown.
	Cancel Week timer	1. When in setting, press to cancel.2. After setting week timer completed, must press first then press, to cancel.3. Set temperature Mode to set week timer, when cancel week timer, Working on High heat.3.2. When heating mode(not Set temperature mode) on Low heat, after cancel week timer, return to Low heat.When heating mode(not Set temperature mode) on High heat, after cancel week timer, return to High heat.
Power-off protection	Default start up	Maximum detection temperature is 51°C, the appliance shutdown when detected temperature reaches 51°C.

6. CLEANING AND MAINTENANCE

1. Don't install this heater near to any heat flames or in direct path of sun light to avoid the heater change colours and distort.
2. If you don't use the heater for a long time, please wipe the surface. Wait for the machine being cool and pull out the plug, then clean it. Wipe it clean with washcloth or cleaner. Never directly wash with water, do not drop the water into the machine. Never clean it with acids, chemical thinner, gasoline benzene etc.
3. Before using it again, please check it and make sure the wind outlet have no dust and other things to block it.
   Warning: Don't touch the working machine and don't cover the wind outlet and inlet.

VIS IMPORTANT :

Attention: NE PAS COUVRIR

NETTOYAGE ET ENTRETIEN :

SOGO® SS-18360

5. MODE D'EMPLOI

≥30cm ≥30cm ≥30cm 2m ~10mm

Remove B A Install

MODE D'EMPLOI :

Utilisation :

SOGO® SS-18360

≥30cm ≥30cm ≥30cm 2m ~10mm

Remove B A Install

MODO DE USAR:

Utilização:

Red rectangular button with a white circular mark and horizontal line, no visible text or symbols

SOGO® SS-18360

≥30cm ≥30cm 2m ~10mm

Remove B A Install

ANWENDUNGSWEISE:

Verwendung:

SOGO® SS-18360

5. ISTRUZIONI PER L'USO

≥30cm ≥30cm ≥30cm 2m ~10mm

Remove B A Install

COME SI USA:

Utilizzo:

Red rectangular button with a white circle and horizontal line, mounted on a black frame (no text or symbols visible)

SOGO® SS-18360

≥30cm ≥30cm ≥30cm 2m ~10mm

Remove B A Install

NÁVOD K POUŽITÍ:

Použití:

Red rectangular button with a white circle and horizontal line, mounted on a black frame (no text or symbols visible)

SOGO® SS-18360

5. BRUGSANVISNING

≥30cm ≥30cm 2m ≥30cm ~10mm

Remove B A Install

SÅDAN BRUGER DU:

Anvendelse:

Red rectangular button with a white circular mark and a horizontal line, mounted on a black base (no text or symbols visible)

SOGO® SS-18360

5. NAVODILA ZA UPORABO

≥30cm ≥30cm ≥30cm 2m ~10mm

Remove B A Install

KAKO UPORABLJATI:

Uporaba:

Red rectangular button with a white circular mark and a horizontal line, mounted on a black frame (no text or symbols visible)

SOGO® SS-18360

≥30cm ≥30cm ≥30cm 2m ~10mm

Remove B A Install

KAKO KORISTITI:

Upotreba:

1. Molimo provjerite je li kapacitet 220-240 V\~, 50-60 Hz.
2. Uključite utikač u židnu útičnicu.
3. Uključite uređaj odabirom željene postavke.
4. Molimo upravljajte strojem prema tipkama na upravljačkoj ploči ili infracrvenom upravljaču. (Možete vidjeti upravljačku ploču panel i infracrveni kontroler u ovom radu)

Red rectangular button with a white circular mark and a horizontal line, mounted on a black frame (no text or symbols visible)

"0" je "ISKLJUČENO". "I": je "UKLJUČENO".

1. Uključite prekidač za napajanje, LED prikazuje trenutnu sobu temperatura, uređaj je u stanju pripravnosti.
2. Na desnoj strani uređaja nalazi se prekidač. Pritisnite "START/STOP", Visoka temperatura, pritisnite ponovno, uređaj će gašenje.
3. Sve funkcije moraju se upravljati daljinskim upravljačem.
4. Ventilator nastavlja raditi 30 sekundi kada je uređaj uključen isključiti (nakon zagrijavanja)

25

SOGO® SS-18360

≥30cm ≥30cm ≥30cm 2m ~10mm

Remove B A Install

SPOSÓB UŻYCIA:

Zastosowanie:

Red rectangular button with a white minus sign and circular button, no visible text or symbols

SOGO® SS-18360

5. INSTRUCTIUNI DE UTILIZARE

≥30cm ≥30cm 2m ≥30cm ~10mm

Remove B A Install

MOD DE UTILIZARE:

Utilizare:

Red rectangular button with a white minus sign and circular button, no visible text or symbols

„0“ este „OFF“. „I“: este „ON“.

SOGO® SS-18360

≥30cm ≥30cm 2m ≥30cm ~10mm

Remove B A Install

ЯК ВИКОРИСТОВУВАТИ:

Використання:

Red rectangular button with a white minus sign and circular button, no visible text or symbols

SOGO® SS-18360

5. INSTRUCCIONS D'ÚS

≥30cm ≥30cm ≥30cm 2m ~10mm

Remove B A Install

INSTRUCCIÓN D'ÚS:

Red rectangular button with a white minus sign and circular button, no visible text or symbols

DÉCLARATION DE CONFORMITÉ

DECLARATION OF CONFORMITY

This device complies with EU Low Voltage Directive 2014/35/EC.

Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical.

Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain Product manufactured in CHINA. After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161

Prohibition sign with crossed-out document and diagonal line, indicating no text or document restrictions

ref. SS-18360
