Product Type	Oil-Filled Radiator
Brand	Sogo
Model	CAL-SS-18211
Power	2500 W
Voltage/Frequency	220-240 V ~ 50/60 Hz
Number of Heating Elements	11
Heat Levels	3 (I: low, II: medium, I+II: high)
Adjustable Thermostat	Yes
Overheat Protection	Yes, automatic shut-off
Wheel/Foot Type	4 swivel casters with U-bolt attachment
Carrying Handle	Yes
Cord Storage	Yes, built-in cord winder
Minimum Room Area	5 m²
Safety Distance to Flammable Materials	1 meter in front and on sides
Maintenance	Clean with a damp cloth (not soaked), do not use abrasive cleaners
Storage	Wind the cord, store in a clean and dry place
Approximate Dimensions (W x D x H)	60 x 25 x 65 cm
Approximate Weight	14 kg
Compliance	CE, directives 2014/35/EU, 2014/30/EU, 2011/65/EU, 2009/125/EC
After-Sales Service	www.sogosat.com / 0034 902 222 161

Frequently Asked Questions - CAL-SS-18211 Sogo

How to assemble the wheels of the Sogo CAL-SS-18211 radiator?

Place the radiator upside down on a stable surface. Insert the U-bolt between the first and second fins (front) or between the last two fins (rear). Attach the wheel mounting plate with the wing nuts. Finally, screw the caster onto the plate. Do not overtighten to avoid damaging the radiator.

What are the available power levels?

Three levels: position I (low power), position II (medium power), and both switches on (high power). Use the thermostat to set the desired temperature.

The radiator makes a clicking noise initially, is that normal?

Yes, it is normal. The noise is due to the expansion of the oil inside the radiator. It disappears after a few minutes of operation.

Can I use an extension cord with this radiator?

It is not recommended to use an extension cord as it may overheat and cause a fire risk. Plug the appliance directly into a properly grounded wall outlet.

How to clean the oil-filled radiator?

Unplug the appliance and let it cool down. Clean the exterior with a damp cloth (not soaked). Never use abrasive cleaners or chemicals. Do not immerse the radiator in water.

What to do in case of oil leakage?

The radiator contains a precise amount of special oil. In case of leakage, contact the manufacturer or its after-sales service immediately. Do not attempt to repair it yourself as it requires opening the oil circuit.

Does the radiator heat up quickly?

Yes, the oil-filled radiator takes a few minutes to heat up, then emits a gentle and constant heat. It continues to radiate heat even after being turned off.

Can I use this radiator in a bathroom?

No, never use it near a bathtub, shower, or swimming pool. It is not designed for damp rooms.

How to use the thermostat to save energy?

Set the thermostat to the desired temperature. The radiator automatically turns off once that temperature is reached, then turns back on as needed. This maintains a constant temperature without wasting electricity.

What if the radiator does not turn on?

Check that the outlet works and that the thermostat is not on the minimum setting. Ensure the switches are properly activated. If the problem persists, contact after-sales service.

USER MANUAL CAL-SS-18211 Sogo

Exterior view of a white SOGO solar oil heater with cooling wheels (no text or symbols visible on the device body)

SS-18207

SS-18209

SS-18211

Radiador De Aceite

Oil Filled Radiator

Caution: please read and preserve these important instructions

ref. SS-18207

SS-18209

SS-18211

SÓLO PARA USO DOMÉSTICO Y EN INTERIORES ADVERTENCIA: POR FAVOR, LEA ESTE MANUAL DE INSTRUCCIONES DETENIDAMENTE ANTES DE SU USO

INSTRUCCIONES DE USO

When using an electrical appliance, basic safety precautions should always be observed, including the following:

This instruction manual can also be downloaded from our web page www.sogo.es

When using your Oil filled heater, basic safety precautions should always be observed, including the following:

1. This appliance should not be used by children younger than 8 years of age and by people with reduced physical, sensor and mental capabilities, as well as by people with insufficient experience and knowledge unless they are supervised or instructed in safe operation of the appliance and understand the related risk.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Connect the appliance to single phase AC supply of the voltage specified on the rating plate.
4. In order to avoid overheating, do not cover the heater.
5. Never leave the heater unattended while it is in use. Always turn the product to the OFF position and unplug it from the

electrical outlet when not in use.

1. Extreme caution is necessary when any heater is used by or near children, invalids or elderly person and whenever the heater is left operating and unattended.
2. The heater must not be located immediately below an electrical socket outlet.
3. Do not run cord under carpeting and do not cover cord with throw rugs, runners or the like. Arrange cord away from traffic area and where it will not be tripped over.
4. Do not operate the heater with a damaged cord or plug, or after the heater malfunctions, has been dropped, or damaged in any manner.
5. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person to avoid a hazard.
6. Avoid the use of an extension cord as this may overheat and cause a risk of fire.
7. Use the heater in a well-ventilated area. Do not insert or allow objects to enter any ventilation or exhaust opening. To prevent a possible fire, do not block air intakes or exhaust openings in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked. Use the heater on flat, dry surfaces only.
8. Do not place this heater near flammable materials, surfaces or substances, as there may be a risk of fire. Keep the above flammable materials, surfaces or

substances at least 1m from the front of the product and keep them away from the sides and rear. 14. Do not use the heater in any areas where petrol, paint or other flammable liquids are stored e.g. Garages or workshops as there are hot, arcing or sparking parts inside the heater.

1. Don't use this heater in the immediate surroundings of a bath, a shower or a swimming pool. Never locate the heater where it may fall into bathtub or other water container.
2. This heater is hot when in use. To avoid burns and personal injury, do not let bare skin touch hot surfaces. If provided, use handles when moving the product.
3. Be sure that no other appliances are in use on the same electrical circuit as your product as an overload can occur.
4. This heater is filled with a precise quantity of special oil.
5. Repair requiring opening of the oil container are only to be made by the manufacturer or his service agent who should be contacted if there is an oil leakage.
6. Regulations concerning the disposal of oil when scrapping the appliance have to be followed.
7. The heater should not be used in a room, of which the floor area is less than 5 M2.

8. The cord shouldn't be placed nearby the hot surface of the appliance.

9. NOTE: It is normal when the heaters are turned on for the first time or when they are turned on after having not been used for a long period of time the heaters may have noise inside. This will disappear when the heater has been switched on for a short while.

10. Children under 3 year of age should be kept away from the appliance unless they are under constant supervision.
11. Children from 3 to 8 years of age are allowed to operate the on/off button ONLY, provide that the appliance is installed and ready for operation and such children have been supervised and instructed in safe operation of the appliance and they understand all related risks.
12. Children from 3 to 8 years of age MUST NOT: connect the plug to power sockets, make adjustment, clean it or carry out user maintenance operations.
13. You must never move the appliance by pulling it by its electric cord. You must never use the electric cord for moving of other objects.
14. Do not use this appliance with a programmer, counter or another device which can automatically turn it on because if the appliance is covered or incorrectly positioned there is a danger of fire.
15. Place the electric cord in such a way that it does not hamper the movement of people and not to be stepped on! You must use approved connection blocks, which are

suitable for the appliance, i.e. there is a sign of compliance.

1. The electric cord must not be in touch with the hot parts of the appliance.

2. Do not use the heater for laundry drying.

WARNING: This heater is not equipped with a device to control the room temperature. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

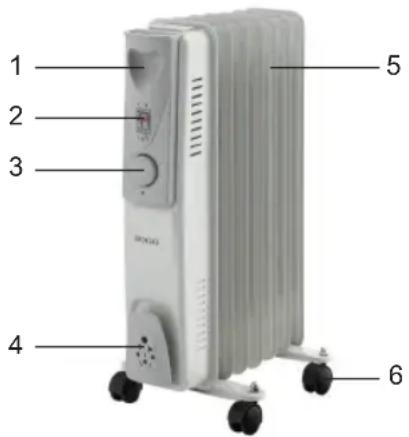

1. Carry handle
2. Power switch
3. Thermostat knob
4. Cord storage
5. Radiant fins
6. Castor

ASSEMBLY INSTRUCTIONS

The heater is packaged with the feet unattached. You must attach them before operating the heater.

WARNING: Do not operate without feet attached. Do operate the heater only in upright position (feet on the bottom, controls on the top), any other position could create a hazardous situation.

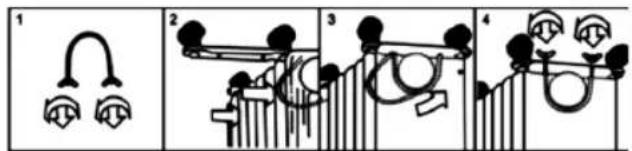

1. Place the radiator body upside-down on a scratch-free location, make sure it is stable and will not fall.
2. Screw off the wing nuts from the U-shaped bolt provided, attach the U-shaped bolt to the U-facing flange between first and second fins (near the front cover).

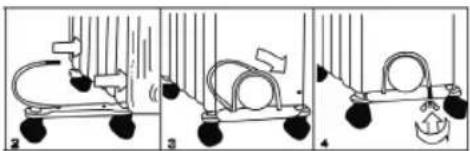

3. To attach the castor mounting plate to the radiator body, you should insert the threaded ends of the U bolt in the holes on the castor mounting plate.
4. Screw the wing nuts back to the U bolt and fasten the wing nut properly.
   Note: do not over tighten, which may cause the damage of radiator flange.
   5 Screw off spherical nut from the castor, align the shaft to the hole of the castor mounting plate, insert in, and screw on the spherical nut.
   6 Repeat 2, 3, 4 and 5 on the rear of radiator for mounting of the rear castors.
   Note: the rear castors must be mounted between the last two fins.

INSTRUCTIONS FOR USE

1. Before using the heater, make sure that it is on a flat and stable surface. Damage may occur if it is placed on an incline or decline.
2. Set all the controls to OFF position and insert the plug into a socket-outlet with well grounded. Be sure that plug fits firmly.
3. Rotate the thermostat knob clockwise to MAX position and switch the heater on as follow: the switch I for low heat, the switch II for medium heat and both switches on for high heat.
4. When your room reaches the desired temperature, now slowly rotate the thermostat knob counter clockwise until the pilot light goes out. The thermostat can now be left at

this setting. As soon as the room temperature has dropped below the set temperature, the unit will switch it self on automatically until the set temperature has been reached again. In this way the room temperature remains constant with the most economical use of electricity.

1. If you want to change the room temperature setting, rotate the thermostat knob clockwise to raise the temperature, or counter clockwise to lower it.
2. This heater includes an overheat protection system that shuts off the heater when parts of the heater are getting excessively hot.
3. To completely shut the heater off, turn all the controls to OFF, and remove plug from the socket-outlet.

MAINTENANCE

1. Always remove the plug from the socket-outlet and allow the radiator to cool down before clean the heater.
2. Wipe radiator with a soft damp (not wet) cloth.
   Do not immerse the heater in water.
   Do not use any cleaning chemicals such as detergents and abrasives.
   Do not allow the interior to get wet as this could create a hazard.
3. To store away the heater, wind the cable round bobbin and store the heater in a clean dry place.
4. In case of malfunction or doubt, do not try to repair the radiator yourself, it may result in a fire hazard or electric shock.

WARNING:

TECHNICAL SPECIFICATION

MODEL NO.: SS-18207

VOLTAGE / FREQUENCY:

220 - 240V \~ 50/60Hz

POWER: 1.500 W

MODEL NO.: SS-18209

VOLTAGE / FREQUENCY:

220 - 240V \~ 50/60Hz

POWER: 2000W

MODEL NO.: SS-18211

VOLTAGE / FREQUENCY:

220 - 240V \~ 50/60Hz

POWER: 2500W
