USER MANUAL Acoustic Pro FENDER

Professional Acoustic Amplifier

Fender®

3D rendering of a green electronic device with control knobs and buttons (no visible text or symbols)

CONTENTS

ENGLISH owner's manual .. 2....

The Fender Acoustic Pro amplifier sets a new standard for acoustic guitar sound and style. A perfect performance partner for acoustic-electric players who need full, natural tone and power with uncluttered controls and features, it has a gracefully curved, acoustically designed wood back and sides that complement an acoustic guitar's form and speak to the aesthetic sensibilities of the acoustic musician.

The perfect grab-and-go system for solo performances in any venue, the Acoustic Pro has two universal channels designed for instrument or microphone use, each with its own lively hall reverb control. Its 200-watt output power and neodymium 12" woofer make it ideal for pro-level monitoring onstage with a band, along with other convenient player features including an integrated handle, tilt-back kickstand, universal 100-240 volt operation and a fitted cover.

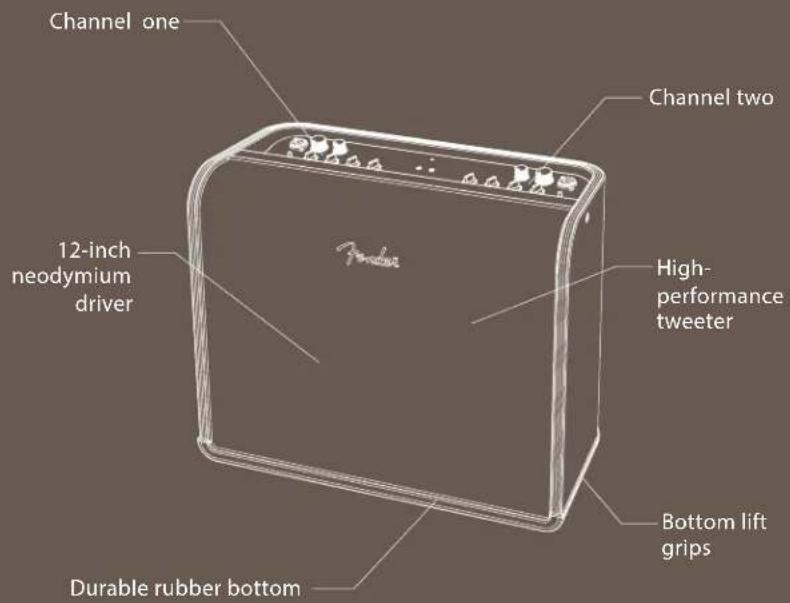

Channel one 12-inch neodymium driver Channel two High-performance tweeter Bottom lift grips Durable rubber bottom

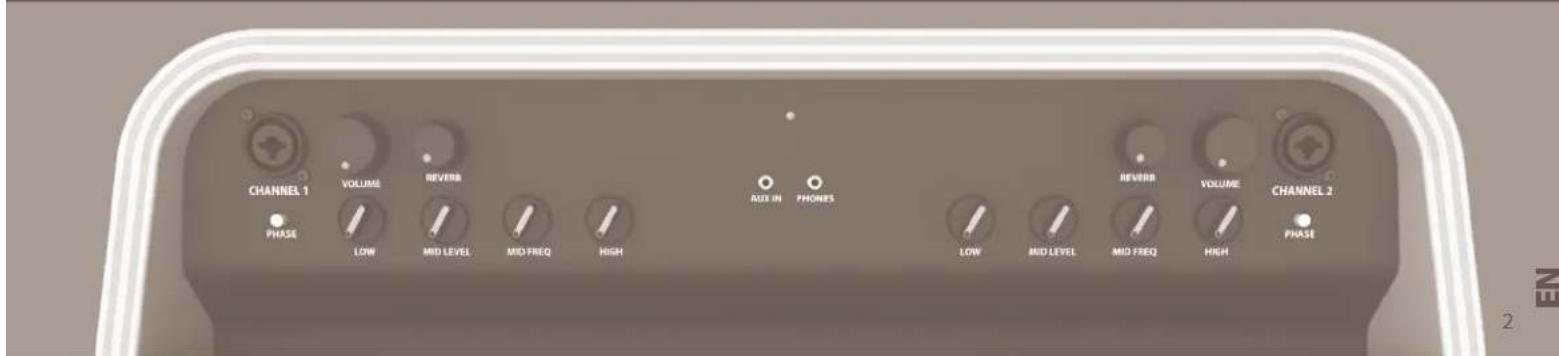

CHANNEL 1 VOLUME REVERB PHASE LOW MID LEVEL MID FREQ HIGH AUX IN PHONES REVERB VOLUME CHANNEL 2 LOW MID LEVEL MID FREQ HIGH PHASE 2

Top Panel Features

123

4

3

5

678

9

10 11

1 CHANNEL ONE INPUT: Combination jack for channel one accepts 14 " or XLR inputs. Plug in an instrument or microphone here; XLR input provides phantom power for microphones that require it (do not use ribbon mics, which can be damaged by phantom power).*
2 VOLUME: Adjusts master volume of channel one.*
3 REVERB: Adjusts reverb level of channel one. Reverb for each channel can be bypassed using optional footswitch.*

4 PHASE: Press to reverse channel one speaker polarity, which can help reduce feedback.*
5 LOW: Adjusts bass tone of channel one.*
6 MID FREQ: Adjusts midrange frequency of channel one. Used in conjunction with mid level control (7) to tailor midrange frequencies and reduce midrange feedback.*
7 MID LEVEL: Adjusts midrange frequency level of channel one. Operates at midrange frequency set by mid frequency control (6).*

NOTE: The best way to adjust this pair of controls is to first set mid level control (7) to its minimum or maximum, in order to clearly discern the mid frequency control (6) setting by ear. Second, set mid frequency control to desired frequency for adjustment. Third, adjust mid level control to desired setting.

8 HIGH: Adjusts treble tone of channel one.*
9 POWER INDICATOR: Illuminates when the Acoustic Pro is on.

10 AUX IN: 1/8" input. Plug in external audio player here; use external device's volume control to adjust accompaniment volume level.
11 PHONES: 1/8" headphone output for both channels automatically mutes speaker output.

* Indicates identical channel two feature on opposite side of top control panel.

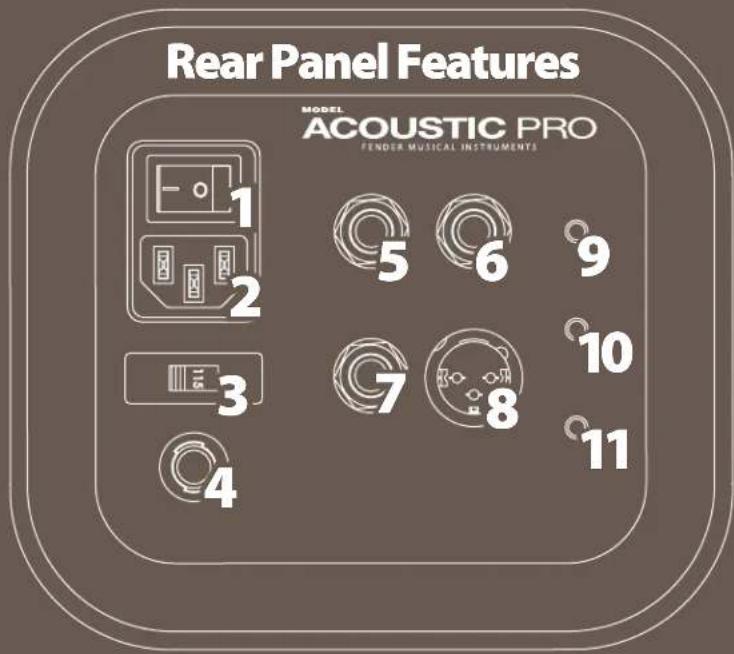

Rear Panel Features MODEL ACOUSTIC PRO FENDER MUSICAL INSTRUMENTS 1 2 3 4 5 6 7 8 9 10 11

1 POWER: Turns the Acoustic Pro on and off.
2 IEC POWER INLET: IEC power cord connects to the Acoustic Pro here.
3 VOLTAGE SELECTOR: Used to select correct voltage range (100V-120V or 220V-240V) for operation in accordance with available power supply.

4 FUSE: Provides electrical over-current protection for the Acoustic Pro. Make sure that a replacement for a blown fuse is of the type and rating indicated next to the fuse holder. Make sure power is disconnected, then remove fuse holder by rotating it counterclockwise with a flat-head screwdriver.

5 EFFECTS SEND: Connect this 1/4" jack to the input of an external effects device or device chain.
6 EFFECTS RETURN: Connect this 14 " jack to the output of an external effects device or device chain.

NOTE: The effects send and return jacks accept standard instrument cables and balanced TRS cables, the latter of which can reduce line noise when used with TRS-compatible equipment.

7 FOOTSWITCH: Connect optional two-button footswitch (PN 7706500000) using this 14 " input jack. Footswitch enables reverb bypass for each channel.
8 BALANCED LINE OUT: Connect to inputs of external sound reinforcement and recording devices using this balanced XLR output jack. Works in conjunction with mic/line button (10).

9 EFFECTS LOOP LEVEL: Choose one of two settings for compatibility with external effects devices. "Out" position is -20dBV for use with most battery-powered effects units; "in" position is +4dBu for use with most rack-mount effects units.
10 MIC/LINE: Choose one of two settings to accommodate signal compatibility of external sound reinforcement and recording equipment. Working in conjunction with balanced line output (8), the "out" position provides mic level; "in" position provides line level.
11 GROUND/LIFT: Leave this button in the "out" position for normal (grounded) operation. The "in" position disconnects balanced line output (8) ground connection, which can help alleviate line noise in some situations.

SPECIFICATIONS

TYPE PR3238

POWER 200W into 8Ω

INPUT IMPEDANCES INSTRUMENT (1/4"/6.35mm): 18.2kΩ balanced MIC (XLR): 1.8kΩ balanced

OUTPUT IMPEDANCE 3.3kΩ balanced line out

PHANTOM POWER 16V (XLR inputs)

EFFECTS LOOP LEVELS -20dBV/+4dBu (switchable)

TONE CONTROLS SWEEPABLE MID

FREQUENCY: 300Hz to 3.5kHz

LEVEL: -16dB to +16dB (at frequency selected)

FUSE F6.3AH, 250V

FOOTSWITCH (optional) Two-Button Acoustic Pro/SFX PN 7706500000

FITTED COVER (included) PN 7707389000

SPEAKERS DRIVER: 12" neodymium PN 7707090000 TWEETER: 5550029131

DIMENSIONS HEIGHT: 17.5" (44.5 cm)

WIDTH: 21" (53.3 cm)

DEPTH: 10.5" (26.7 cm)

WEIGHT 27 lbs. (12.2 kg)

Product specifications subject to change without notice.

CAUTION: To prevent electric shock hazard, do not connect to mains power supply while grille is removed.

Technical line drawing of a device casing with internal components and a labeled annotation (no readable text or symbols)

The Acoustic Pro's integrated top handle is conveniently designed to hold personal mobile devices (i.e., smart phones, tablets). To avoid audio interference, these devices should be set to "airplane" mode.

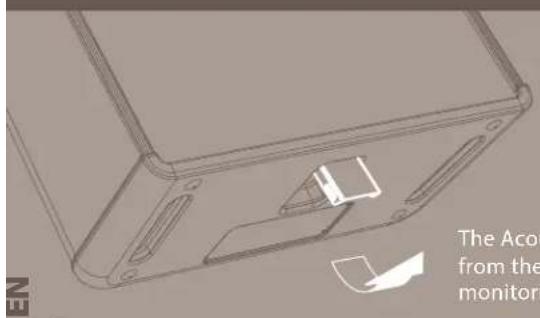

The Acoustic Pro's tilt-back kickstand flips out from the bottom of the cabinet for convenient monitoring.

Line drawing of a portable electronic device with a smartphone on top (no text or symbols)

Line drawing of a device with a smartphone on top (no text or symbols)

Line drawing of a device with a smartphone and control panel (no text or symbols)

LARGURA: 21" (53.3 cm)

PROFUNIDADE: 10.5" (26.7 cm)

PESO

27lbs. (12.2 kg)

Line drawing of a portable electronic device with indicator lights and a label 'Panasonic' (no other text or symbols)

Technical line drawing of a mechanical housing component (no text or symbols visible)

Line drawing of a portable electronic device with a speaker and ports (no text or symbols)

Line drawing of a portable electronic device with a smartphone on top (no text or symbols)

Technical line drawing of a device casing with internal components and a plastic clip, no text or symbols present

Line drawing of a portable electronic device with a speaker and ports (no text or symbols)

Technical line drawing of a device casing with internal components and a labeled part (no readable text or symbols)

Line drawing of a portable electronic device with buttons and a label (no readable text or symbols)

HMOTNOST 27 lbs. (12.2 kg)

Technical line drawing of a device casing with internal components and a labeled section (no readable text or symbols)

Line drawing of a portable electronic device with a smartphone on top (no text or symbols)

Technical line drawing of a device casing with internal components and a small inset detail (no text or symbols)

Line drawing of a portable electronic device with a smartphone on top (no text or symbols)

Technical line drawing of a mechanical housing component with mounting holes and internal slots (no text or symbols)

Line drawing of a portable electronic device with a smartphone on top (no text or symbols)

Line drawing of a portable electronic device with a smartphone on top (no text or symbols)

PART NUMBERS / REFERENCIAS / RÉFÉRENCE / NÚMERO DAS PEÇAS / NUMERO PARTI / TEILENUMMERN NUMERY REFERENCYJNE / REFERENČNÍ ČÍSLA / REFERENČNÉ ČÍSLA / REFERENČNE ŠTEVILKE 部品番号 / 型号

2271100000 (120V, 60Hz)
2271101000 (110V, 60Hz) TW
2271103000 (240V, 50Hz) AU
2271104000 (230V, 50Hz) UK
2271105000 (220V, 50Hz) ARG
2271106000 (230V, 50Hz) EU
2271107000 (100V, 50/60Hz) JP
2271108000 (220V, 50Hz) CN
2271109000 (220V, 60Hz) ROK
2271113000 (240V, 50Hz) MA

Acoustic Pro

Fender ^® is a trademark of FMIC.

Other trademarks are property of their respective owners.

Copyright © 2015 FMIC. All rights reserved.

ALL PN 7707084000 REV. A
