USER MANUAL Hot Rod Deville ML 212 FENDER

Inspired by Michael Landau

Black and white portable guitar with 'Tender' logo on top, no visible text or symbols on body

OWNER'S MANUAL | MANUAL DE INSTRUCCIONES

MODE D'EMPLOI | MANUAL DO PROPRIETÁRIO

MANUALE UTENTE | BEDIENUNGSHANDBUCH

INSTRUKCJA OBSŁUGI | NÁVOD K POUŽITÍ

NÁVOD NA POUŽITIE | UPORABNIŠKI PRIROČNIK

オーナーズ・マニュアル 用户手册

Fender®

IMPORTANT SAFETY INSTRUCTIONS

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15) To completely disconnect this apparatus from the AC mains, disconnect the power supply cord plug from the AC receptacle.

16) The mains plug of the power supply cord shall remain readily operable.

17) WARNING – To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

18) Do not expose this equipment to dripping or splashing and ensure that no objects filled with liquids, such as vases, are placed on the equipment.

19) Maintain at least 6 inches (15.25 cm) of unobstructed air space behind the unit to allow for proper ventilation and cooling of the unit.

20) CAUTION – For rack mounted power amplifiers, keep all wiring and materials away from the sides of the unit and allow the unit to cool down for 2 minutes before pulling from a rack enclosure.

21) Amplifiers and loudspeaker systems, and ear/headphones (if equipped) are capable of producing very high sound pressure levels which may cause temporary or permanent hearing damage. Use care when setting and adjusting volume levels during use.

22) FCC COMPLIANCE NOTICE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not used in accordance with the instructions, may cause harmful interference to radio communications and there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: reorient or relocate the receiving antenna, increase the separation between the equipment and receiver, connect the equipment into an outlet on a circuit different from that of the receiver. Consult the dealer or an experienced radio/TV technician if help is needed with interference. NOTE: FMIC will not be responsible for unauthorized equipment modifications that could violate FCC rules, and/or void product safety certifications.

23) WARNING - To maintain product safety, products with internal or external (battery pack) batteries: •Batteries and/or the product in which they are installed, shall not be exposed to excessive heat such as sunshine, fire or the like. •There may be a danger of explosion if the battery is incorrectly connected/replaced. Replace only with the same or equivalent type battery specified in the instructions or on the product.

24) CAUTION – Unplug unit and allow it to cool before touching/ replacing vacuum tubes.

25) WARNING – Provide an earthing connection before the mains plug is connected to the mains. And, when disconnecting the earthing connection, be sure to disconnect after pulling out the mains plug from the mains.

26) Apparatus with CLASS I construction (grounded type with a three-prong plug) must be connected to a MAINS socket outlet with a protective earthing connection.

27) WARNING – Use only the AC/DC adapter provided with the amplifier. The unit must only be connected to a safety agency certified power source (adapter), approved for use and compliant with applicable local and national regulatory safety requirements.

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

Stylized metallic logo with 'M' and star on black background (no text or symbols)

HOT ROD DEVILLE™ ML

Inspired by Michael Landau

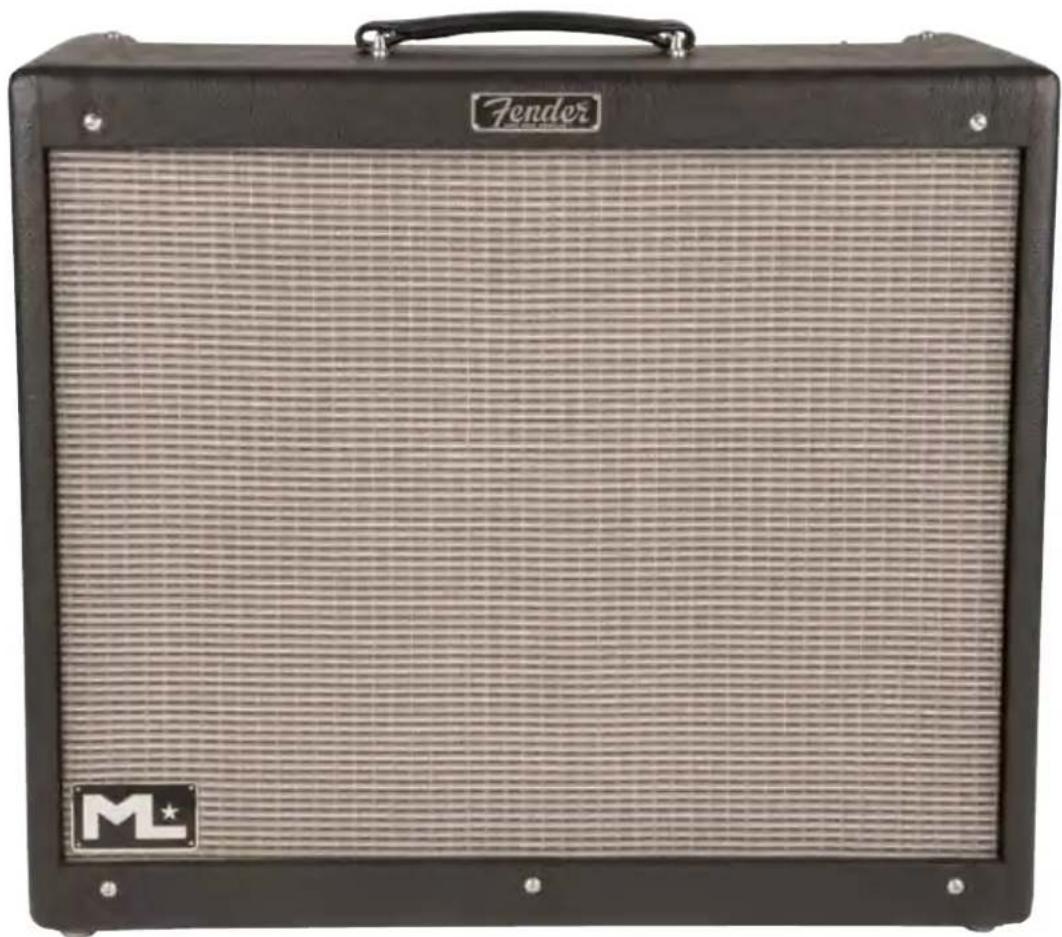

The Hot Rod DeVille ML amplifier delivers beautiful tube tone with features inspired by instrumental solo artist, world-class sideman, session master and "players' player" Michael Landau. An influential guitarist known for creating rich, expressive tones, Landau has used Hot Rod DeVille amps on stage for many years, with a special two-amp setup fed by a variety of stomp boxes.

Designed in conjunction with Michael Landau, the new ML model is based on the Fender Hot Rod DeVille III, with tube circuitry and 60-watt output, two 12" speakers, spring reverb and an effects loop. The ML version ups the ante by incorporating several cool features that guitar players are sure to appreciate, such as volume-switching and boost capabilities.

The following changes have been incorporated:

• Drive-channel capabilities have been replaced by two identical preamp channel volume controls that can be set to different levels and accessed by footswitch
• An additional "boost" mode can be selected by footswitch for extra volume on channel two when needed
• Two 12", 70-watt Celestion® V-type speakers
• Hand-soldered speaker wiring and heavy duty Switchcraft® speaker plug
• "ML" logo badge on grille
• Wide padded leatherette handle

Cover and two-button volume/boost footswitch included.

PRODUCT REGISTRATION — Please visit: www.fender.com/product-registration

HOT ROD DEVILLE™ ML

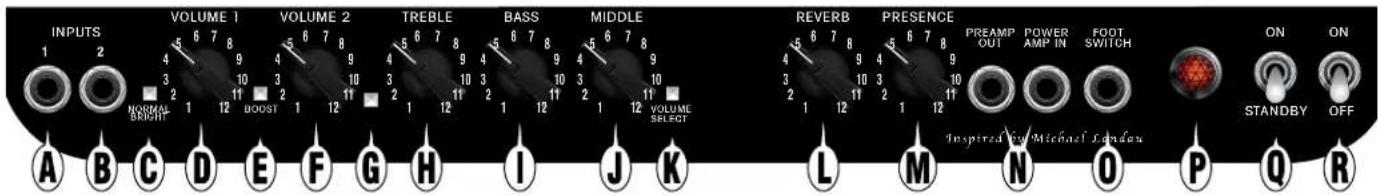

INPUTS VOLUME 1 VOLUME 2 TREBLE BASS MIDDLE REVERB PRESENCE PREAMP OUT POWER AMP IN FOOT SWITCH ON ON A B C D E F G H I J K L M N O P Q R N Inspired by Michael London STANDBY OFF

A. INPUT 1— A normal sensitivity input, ideal for use with most guitars.

Either input jack can be used with any type of guitar depending on the tone character you prefer. Experiment and use the input that sounds the best to you.

B. INPUT 2— A lower sensitivity input (-6dB) that provides cleaner response with high-output and pre-amplified guitars.

You can use Input 1 and Input 2 simultaneously with two guitars or a guitar and a microphone, for example. Input sensitivities become equal when used simultaneously.

C. NORMAL / BRIGHT—Press IN to boost the high-frequency tones.

Normal

Bright

D. VOLUME 1—Adjusts the loudness of the amplifier when Volume 1 is selected.

E. BOOST—Press IN to boost the gain and distortion when Volume 2 is selected (Note: The BRIGHT switch is disabled when BOOST is selected).

Normal

Boost

F. VOLUME 2—Adjusts the loudness of the amplifier when Volume 2 is selected.

G. CHANNEL INDICATOR—

Off Volume 1 Yellow Volume 2 Red Volume 2 with Boost selected

H. TREBLE — Adjusts high-frequency tone.

I. BASS — Adjusts low-frequency tone.

J. MIDDLE—Adjusts mid-frequency tone.

K. VOLUME SELECT—Press to switch between active volume controls.

Volume 1

Volume 2

L. REVERB—Adjusts the level of the Reverb effect.

M. PRESENCE—Adjusts tone at a point in the signal path after the distortion circuitry to provide unique ultra high-frequency tone shaping.

N. PREAMP OUT / POWER AMP IN — Multi-functional input/output jacks that can be used in a variety of configurations:

(1) Effects Loop—Connect PREAMP OUT to the input of your effects device and connect the effects output to the POWER AMP IN jack.

(2) Multiple Hot Rod Amps—Connect PREAMP OUT on the primary unit to POWER AMP IN on the auxiliary unit. The primary unit is used to control the auxiliary unit, except for REVERB and PRESENCE which remain active on the auxiliary unit.

(3) Recording or Sound Reinforcement—Connect PREAMP OUT to the input jack of sound equipment.

Use instrument (shielded) cables with TS (Tip-Sleeve) plugs → for connections. Both PREAMP OUT and POWER AMP IN jacks are located before Reverb and Presence in the signal path.

O. FOOTSWITCH — Connect the included footswitch here to enable remote selection of the Volume 1 / Volume 2 / Volume 2 with Boost channels. The VOLUME SELECT {K} b panel is disabled when the footswitch

Speaker cable (unshielded) is superior to instrument cable (shielded) for connecting the footswitch.

P. POWER INDICATOR—Illuminates when the unit is ON. Unscrew the red jewel to access the bulb (type T47) for replacement.

Q. STANDBY—Use Standby instead of switching the power off during short breaks to avoid having to wait for the tubes to warm up when you want to start playing again. Also, keep the amplifier on Standby for the first 30 seconds when you first switch the power on to give the tubes a gentle warm up cycle.

Using Standby will extend the life span of your amplifier's vacuum tubes by reducing the shock of the heat-up/cool-down cycle on the tube filaments.

R. POWER SWITCH—Switches the unit ON/OFF.

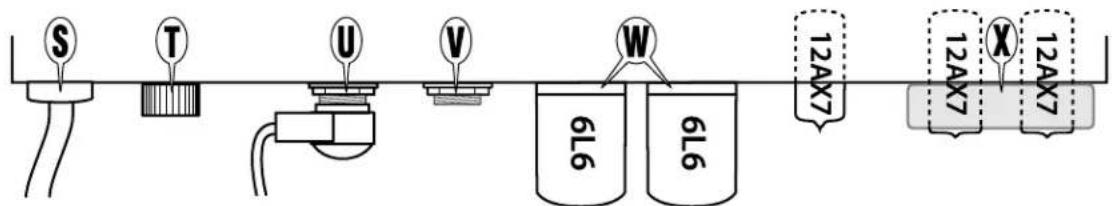

Rear Panel

S T U V W 6L6 6L6 12AX7 12AX7 X 12AX7

S. POWER CORD—Connect to a grounded outlet in accordance with the voltage and frequency ratings specified on the rear panel of your amplifier.
T. FUSE—The fuse protects the unit from electrical faults. Replace fuses only with the type and rating specified on the fuse holder. If the unit repeatedly blows fuses, have the unit tested at an authorized Fender® Service Center.
U. INTERNAL SPEAKER JACK—One of the following speaker configurations (internal or external) must always be connected when the unit is ON to prevent damage to the amplifier:

1. 4Ω 2. 4Ω + 4Ω 3.* + 2Ω

*Insert an open plug (without speakers connected) into the Internal Speaker jack {U} for configuration three (3).

V. EXTERNAL SPEAKER JACK — This jack is wired in parallel with the internal speaker jack and must only be used with a speaker load or an open plug connected to the internal speaker jack, as shown above in the INTERNAL SPEAKER JACK diagram.

W. OUTPUT TUBES GT6L6R—Your new Fender amplifier comes equipped with the highest quality tubes available, sourced from various manufacturers worldwide. Because of occasional irregularities in supply, the specific tube type used in each amplifier is subject to change without notice.

CAUTION, SHOCK HAZARD: To replace the power tubes please contact an authorized service center for this periodic maintenance. Removing the back panel exposes dangerous high voltage components and is not a user-serviceable procedure.

When replacing power tube sets with the same rating and type of tubes, no adjustment should be needed. When tweaking the performance characteristics of your amplifier with a different power tube set, you should have a qualified service technician re-bias your amp to meet the optimum performance specifications for the new tubes.

In the future, if you experience any sonic performance issues with your amp, or have further questions concerning the tubes in your amplifier, please contact your Fender dealer or authorized service center.

X. PREAMP TUBE STABILIZER—A vibration-absorbing

stabilizer is installed around the preamp tubes to minimize the tube microphonics that normally develop over time. The stabilizer can be used with all preamp tubes compatible with your Hot Rod amplifier.

Specifications

TYPE:	PR	247
POWER REQUIREMENT:			180W
POWER OUTPUT: 60W into 8Ω or 4Ω at 5% THD
INPUT IMPEDANCES:	INPUT 1: 1MΩ		INPUT 2: 136kΩ
PREAM OUTPUT IMPEDANCE:	1.5kΩ	max
POWER AMP INPUT IMPEDANCE / SENSITIVITY: 200mV for clipping / 54kΩ
TUBES:	One: 7025/12AX7A ECC83S GT-GOLD (P/N 0074287400)		Two: 7025/12AX7WC RUSN FENDER (P/N 0070228000)
Two: 6L6GC/5881WXT GT-6L6-R (P/N 0039214100)
FUSE:	F3AL, 250V fuse (100V–120V versions)		F1.6AL, 250V fuse (220V–240V versions)
SPEAKERS:	Two: 12" Celestion® G12V-70 (P/N 7700343000)
ACCESSORIES (INCLUDED):	2-button Footswitch, Volume Select/Boost (P/N 7705958000)		Fitted cover (P/N 0050698000)
DIMENSIONS:	HEIGHT: 21 in (53.3 cm)	WIDTH: 24.25 in (61.6 cm)	DEPTH: 10.75 in (27.3 cm)
WEIGHT:	62	lb (28.2 kg)

Product specifications are subject to change without notice.

CE

Logo of the Manchester Motor (ML) with a star symbol on top, set against a black background with corner markers (no text or additional elements)

HOT ROD DEVILLE™ ML

Inspired by Michael Landau

INPUTS VOLUME 1 VOLUME 2 TREBLE BASS MIDDLE REVERB PRESENCE PREAMP POWER FOOT ON OUT AMP IN AMP SWITCH STANDBY OFF A B C D E F G H I J K L M N O P Q R Inspired by Michael Lowdow

Stylized metallic logo with 'M' and star symbol on black background (no text or numbers)

HOT ROD DEVILLE™ ML

Inspired by Michael Landau

INPUTS VOLUME 1 VOLUME 2 TREBLE BASS MIDDLE REVERB PRESENCE PREAMP OUT POWER AMP IN FOOT SWITCH ON ON A B C D E F G H I J K L M N O P Q R N Inspired by Michael London STANDBY OFF

Stylized metallic logo featuring a stylized 'M' with a star, set against a black background (no text or symbols)

HOT ROD DEVILLE™ ML

Inspired by Michael Landau

ALTURA: 21 in (53.3 cm)

LARGURA: 24.25 in (61.6 cm)

PROFUNIDADE: 10.75 in (27.3 cm)

PESO:

62 lb (28,2 kg)

CE

Stylized metallic logo with 'M' and star on black background (no text or symbols)

HOT ROD DEVILLE™ ML

Inspired by Michael Landau

INPUTS VOLUME 1 VOLUME 2 TREBLE BASS MIDDLE REVERB PRESENCE PREAMP OUT POWER AMP IN FOOT SWITCH ON ON A B C D E F G H I J K L M N O P Q R N Inspired by Michael London STANDBY OFF

Logo of the Manchester Motor (ML) with a star symbol on a black background (no text or numbers present)

HOT ROD DEVILLE™ ML

Inspired by Michael Landau

ZUBEHÖR (INKLUSIVE):

Fitted cover (P/N 0050698000)

ABMESSUNGEN:

HÖHE: 53,3 cm (21")

Stylized metallic logo with 'M' and star symbol on black background (no text or numbers)

HOT ROD DEVILLE™ ML

Inspired by Michael Landau

INPUTS VOLUME 1 VOLUME 2 TREBLE BASS MIDDLE REVERB PRESENCE PREAMP OUT POWER AMP IN FOOT SWITCH ON ON NORMAL BRICH 1 12 BOOST 1 12 VOLUME SELECT Inspired by Michael Leuclau STANDBY OFF A B C D E F G H I J K L M N O P Q R

Stylized metallic logo with 'M' and star on black background (no text or symbols)

HOT ROD DEVILLE™ ML

Inspired by Michael Landau

INPUTS VOLUME 1 VOLUME 2 TREBLE BASS MIDDLE REVERB PRESENCE PREAMP POWER FOOT ON OUT AMP IN SWITCH STANDBY OFF A B C D E F G H I J K L M N O P Q R Inspired by Michael London

Stylized metallic logo with 'M' and star symbol on black background (no text or numbers)

HOT ROD DEVILLE™ ML

Inspired by Michael Landau

INPUTS VOLUME 1 VOLUME 2 TREBLE BASS MIDDLE REVERB PRESENCE PREAMP OUT POWER AMP IN FOOT SWITCH ON ON NORMAL BRICH 1 12 BOOST 1 12 VOLUME SELECT Inspired by Michael Leuclau STANDBY OFF A B C D E F G H I J K L M N O P Q R

Stylized metallic logo with 'M' and star symbol on black background (no text or numbers)

HOT ROD DEVILLE™ ML

Inspired by Michael Landau

INPUTS VOLUME 1 VOLUME 2 TREBLE BASS MIDDLE REVERB PRESENCE PREAMP OUT POWER AMP IN FOOT SWITCH ON ON A B C D E F G H I J K L M N O P Q R N STANDBY OFF Inspired by Michael London

Stylized metallic logo with 'M' and star on black background (no text or symbols)

HOT ROD DEVILLE™ ML

Inspired by Michael Landau

INPUTS VOLUME 1 VOLUME 2 TREBLE BASS MIDDLE REVERB PRESENCE PREAMP OUT POWER AMP IN FOOT SWITCH ON ON A B C D E F G H I J K L M N O P Q R N Inspired by Michael London STANDBY OFF

Stylized metallic logo with 'M' and star on black background (no text or symbols)

HOT ROD DEVILLE™ ML

Inspired by Michael Landau

INPUTS VOLUME 1 VOLUME 2 TREBLE BASS MIDDLE REVERB PRESENCE PREAMP OUT POWER AMP IN FOOT SWITCH ON ON A B C D E F G H I J K L M N O P Q R N Inspired by Michael London STANDBY OFF

Empty rounded rectangle with a single horizontal line inside (no text or symbols)

Fender ^® and Hot Rod Deville ^™ are trademarks of FMIC.

Other trademarks are property of their respective owners. © 2014 FMIC. All rights reserved.
