OWNER'S MANUAL

MANUAL DE INSTRUÇÕES

操作方法

Fender® www.fender.com

ENGLISH - PAGES ..... 6-8

ESPAÑOL - PAGINAS .....9-11

FRANÇAIS - PAGES .....12-14

ITALIANO - PAGINE .....15-17

IMPORTANT SAFETY INSTRUCTIONS

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15) To completely disconnect this apparatus from the AC mains, disconnect the power supply cord plug from the AC receptacle.

16) The mains plug of the power supply cord shall remain readily operable.

17) WARNING - To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

18) Do not expose this equipment to dripping or splashing and ensure that no objects filled with liquids, such as vases, are placed on the equipment.

19) Maintain at least 6 inches (15.25 cm) of unobstructed air space behind the unit to allow for proper ventilation and cooling of the unit.

20) CAUTION For rack mounted power amplifiers, keep all wiring and materials away from the sides of the unit and allow the unit to cool down for 2 minutes before pulling from a rack enclosure.

21) Amplifiers and loudspeaker systems, and ear/headphones (if equipped) are capable of producing very high sound pressure levels which may cause temporary or permanent hearing damage. Use care when setting and adjusting volume levels during use.

22) FCC Part 15 Compliance Statement (for digital products, as applicable) - Part 15.21: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment.

23) WARNING - To maintain product safety, products with internal or external (battery pack) batteries: -Batteries and/or the product in which they are installed, shall not be exposed to excessive heat such as sunshine, fire or the like. -There may be a danger of explosion if the battery is incorrectly connected/replaced. Replace only with the same or equivalent type battery specified in the instructions or on the product.

24) CAUTION - Unplug unit and allow it to cool before touching/ replacing vacuum tubes.

25) WARNING - Provide an earthing connection before the mains plug is connected to the mains. And, when disconnecting the earthing connection, be sure to disconnect after pulling out the mains plug from the mains.

26) Apparatus with CLASS I construction (grounded type with a three-prong plug) must be connected to a MAINS socket outlet with a protective earthing connection.

The world's most popular tube amps just got better.

Fender® Hot Rod series amplifiers are employed on every stage in the world, large and small, by guitarists from all walks of life. Whether rockers, punkers, pop stars or cowboys, they can all agree that Hot Rod amps deliver unmistakable Fender tone, a perfect platform for crafting your own sound. These no frills amps are affordable, reliable, loud & proud. They respond extremely well to your favorite stomp boxes.

HOT ROD De Ville™ 410 III

The Hot Rod DeVille 410 III is a 60-Watt combo with classic 4 x 10 speaker configuration borrowed from the legendary Super Reverb® and '59 Bassman® amps, the bottom end headroom characteristic of 6L6 tubes, and a versatile all-12AX7 tube preamp, with amazing clean and overdriven tones, luscious Fender spring reverb, effects loop, and more. An 8 Ohm extension speaker output even lets you add a cabinet for additional stage coverage.

HOT ROD De Ville™ 212 III

The Hot Rod DeVille III is a 60-Watt combo with the classic 2 x 12 speaker configuration borrowed from the legendary Twin Reverb® amp, the bottom end headroom characteristic of 6L6 tubes, and a versatile all-12AX7 tube preamp, with amazing clean and overdriven tones, luscious Fender spring reverb, effects loop, and more. A 4 Ohm extension speaker output even lets you add a cabinet for additional stage coverage.

HOT ROD Deluxe™ III

The Hot Rod Deluxe III is a 40-Watt single 12 combo, the world standard for gigging guitarists everywhere. It's got the bottom end headroom characteristic of 6L6 tubes and a versatile all-12AX7 tube preamp, with luscious Fender spring reverb, effects loop, and more. If you want to add a little output, fullness, and stage coverage, you can even add a matching 112 extension enclosure (P/N 223-1010-000).

Specially selected

12AX7 and 6L6 tubes inside!

Limited 5-year warranty US and Canada, other territories may vary.

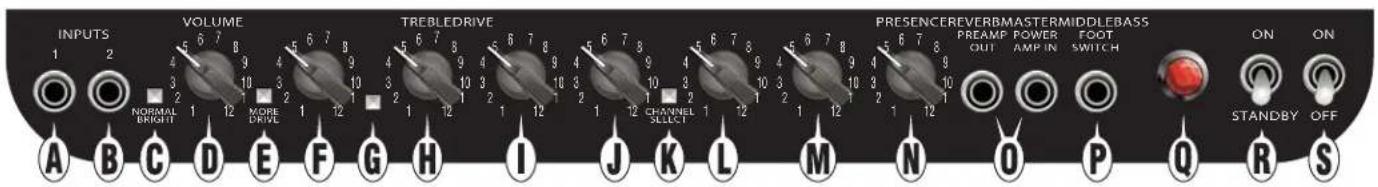

INPUTS VOLUME TREBLEDRIVE PRESENCEVERBMASTERMIDDLEBASS ON ON 1 2 4 5 6 7 8 3 4 5 6 7 8 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 NORMAL BRIGHT 1 12 MORE DRIVE 1 12 Channel SELECT A B C D E F G H I J K L M N O P Q R S PREAM POWER FOOT OUT AMP IN SWITCH STANDBY OFF

A. INPUT 1 — A normal sensitivity input, ideal for use with most guitars.

Either input jack can be used with any type depending on the tone character you prefer. Experiment and use the input that sounds the best to you.

B. INPUT 2—A lower sensitivity input (-6dB) that provides cleaner response with high-output and pre-amplified guitars.

You can use Input 1 and Input 2 simultaneously with two guitars or a guitar and a microphone, for example. Input sensitivities become equal when used simultaneously.

C. NORMAL / BRIGHT — Press IN to boost the high-frequency tones of the Normal channel.

Normal

Bright

D. VOLUME —Adjusts the volume of the Normal channel.

E. MORE DRIVE—Press IN to boost the gain and distortion of the Drive channel.

Drive

More Drive

F. DRIVE—Increase the Drive setting to produce more distortion and sustain. Use lower Drive settings to produce cleaner sounds.

G. CHANNEL INDICATOR—

H. TREBLE — Adjusts high-frequency tone.

I. BASS—Adjusts low-frequency tone.

J. MIDDLE—Adjusts mid-frequency tone.

K. CHANNEL SELECT—

Normal channel

Drive channel

L. MASTER— Use to adjust the loudness of the Drive and More Drive channels in conjunction with DRIVE {F}.

M. REVERB—Adjusts the level of the Reverb effect.

N. PRESENCE—Adjusts tone at a point in the signal path after the distortion circuitry to provide unique ultra high-frequency tone shaping.

O. PREAMP OUT / POWER AMP IN — Multi-functional input/output jacks that can be used in a variety of configurations:

(1) Effects Loop—Connect PREAMP OUT to the input of your effects device and connect the effects output to the POWER AMP IN jack.

(2) Multiple Hot Rod Amps—Connect PREAMP OUT on the primary unit to POWER AMP IN on the auxiliary unit. The primary unit is used to control all auxiliary units, except for REVERB and PRESENCE which remain active on each auxiliary unit.

(3) Recording or Sound Reinforcement—Connect PREAMP OUT to the input jack of sound equipment.

Use instrument (shielded) cables with TS (Tip-Sleeve) plugs → for connections. Both PREAMP OUT and POWER AMP IN jacks are located before Reverb and Presence in the signal path.

P. FOOTSWITCH—Connect the included footswitch here to enable remote selection of the Normal / Drive / More Drive channels. The CHANNEL SELECT {K} button on the control panel is disabled when the footswitch is connected.

Speaker cable (unshielded) is superior to instrument cable (shielded) for connecting the footswitch.

Q. POWER INDICATOR—Illuminates when the unit is ON. Unscrew the red jewel to access the bulb (type T47) for replacement.

R. STANDBY—Use Standby instead of switching the power off during short breaks to avoid having to wait for the tubes to warm up when you want to start playing again. Also, keep the amplifier on Standby for the first 30 seconds when you first switch the power on to give the tubes a gentle warm up cycle.

Using Standby will extend the life span of your amplifier's vacuum tubes by reducing the shock of the heat-up /cool-down cycle on the tube filaments.

S. POWER SWITCH—Switches the unit ON/OFF.

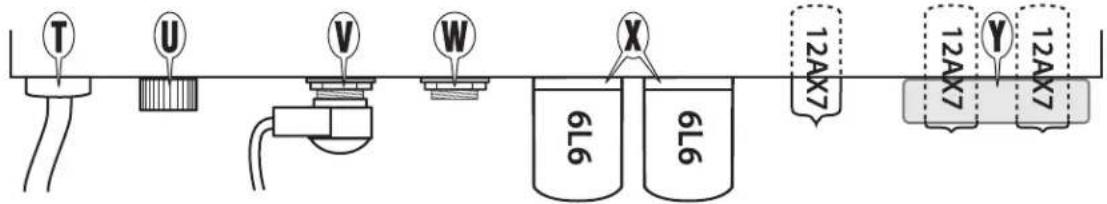

Rear Panel

T U V W X 6L6 6L6 12AX7 12AX7 Y 12AX7

T. POWER CORD—Connect to a grounded outlet in accordance with the voltage and frequency ratings specified on the rear panel of your amplifier.
U. FUSE—The fuse protects the unit from electrical faults. Replace fuses only with the type and rating specified on the fuse holder. If the unit repeatedly blows fuses, have the unit tested at an authorized Fender® Service Center.

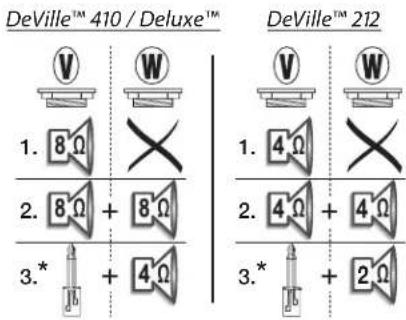

V. MAIN SPEAKER JACK—One of the following speaker configurations (internal or external) must always be connected when the unit is ON to prevent damage to the amplifier:

DeVille™ 410 / Deluxe™ 1. 8Ω 2. 8Ω + 8Ω 3.* + 4Ω DeVille™ 212 1. 4Ω 2. 4Ω + 4Ω 3.* + 2Ω

*Insert an open plug (without speakers connected) into the Main Speaker jack {V} for configuration three (3).

W. EXTERNAL SPEAKER JACK—This jack is wired in parallel with the main speaker jack and must only be used with a speaker load or an open plug connected to the main speaker jack, as shown above in the MAIN SPEAKER JACK diagram.

X. FENDER® GROOVE TUBES® GT6L6B—Your new Fender amplifier comes equipped with the highest quality tubes available, sourced from various manufacturers worldwide. Because of occasional irregularities in supply, the specific tube type used in each amplifier is subject to change without notice.

When replacing output tubes, please note the specific tube markings on the original tubes factory supplied with your amplifier. For example, 6L6 output tube types used by Fender include, but are not limited to: 6L6GC; 6L6WXT; 6L6C; 6L6GE; etc. The installation of a different type may require significant adjustment by a qualified technician to avoid reduction in performance and tube life.

Additionally, Groove Tubes® tests and sorts many of our output tubes based on their measured performance. The sorted tubes are marked with a label on the base with coarse ratings of BLUE, WHITE, & RED plus fine ratings of 1-10. If your amp came supplied with, for example, a pair of matched GT-6L6-GE power tubes ranked at WHITE-6, then any pair of GT-6L6-GE power tubes marked with a course rating of WHITE will be a good replacement. If the tube replacements are marked as WHITE-6, they will be a perfect direct replacement.

If you have questions or concerns, contact your Fender dealer or authorized service center.

Y. PREAMP TUBE STABILIZER—A vibration-absorbing stabilizer is installed around the preamp tubes to minimize the tube microphonics that normally develop over time. The stabilizer can be used with all preamp tubes compatible with your Hot Rod amplifier.

Specifications

	DEVILLE 410	DEVILLE 212	DELUXE
TYPE: PR 1110 PR 1123 PR 1110
PART NUMBERS:	2230100000 (120V, 60Hz)	2230000000 (120V, 60Hz)	2230200000 (120V, 60Hz)
2230101000 (110V, 60Hz) TW 2230001000 (110V, 60Hz) TW	2230201000 (110V, 60Hz) TW
	2230103000 (240V, 50Hz) AUS	2230003000 (240V, 50Hz) AUS	2230203000 (240V, 50Hz) AUS
	2230104000 (230V, 50Hz) UK	2230004000 (230V, 50Hz) UK	2230204000 (230V, 50Hz) UK
	2230105000 (220V, 50Hz) ARG	2230005000 (220V, 50Hz) ARG	2230205000 (220V, 50Hz) ARG
	2230106000 (230V, 50Hz) EUR	2230006000 (230V, 50Hz) EUR	2230206000 (230V, 50Hz) EUR
	2230107000(100V, 50/60Hz) JPN	2230007000 (100V, 50/60Hz) JPN	2230207000 (100V, 50/60Hz) JPN
	2230109000 (220V, 60Hz) ROK	2230009000 (220V, 60Hz) ROK	2230209000 (220V, 60Hz) ROK
POWER REQUIREMENT / POWER OUTPUT:	180W / 60W into 8Ω or 4Ω at 5% THD	180W / 60W into 4Ω or 2Ω at 5% THD	180W / 40W into 4Ω or 2Ω at 5% THD
INPUT 1 / INPUT 2 IMPEDANCES:	1MΩ / 136kΩ	1MΩ / 136kΩ	1MΩ / 136kΩ
PREAM OUTPUT IMPEDANCE:	1.5kΩ max	1.5kΩ max	1.5kΩ max
POWER AMP INPUT IMPEDANCE / SENSITIVITY:	200 mV for clipping / 54kΩ	200 mV for clipping / 54kΩ	200 mV for clipping / 54kΩ
TUBES:	3 Fender Groove Tubes GT12AX7 (099-4005-000)	3 Fender Groove Tubes GT12AX7 (099-4005-000)	3 Fender Groove Tubes GT12AX7 (099-4005-000)
*(Tube label color: Red=1, White=2, Blue=3)	2 Fender Groove Tubes GT6L6B (099-4401-*02)	2 Fender Groove Tubes GT6L6B (099-4401-*02)	2 Fender Groove Tubes GT6L6B (099-4401-*02)
FUSE:	3AL, 250V fuse (100V-120V versions)	3AL, 250V fuse (100V-120V versions)	3AL, 250V fuse (100V-120V versions)
	1.6AL, 250V fuse (220V-240V versions)	1.6AL, 250V fuse (220V-240V versions)	1.6AL, 250V fuse (220V-240V versions)
SPEAKERS:	4 10" 8Ω Fender Model V 1030 Special Design (048332)	2 12" 8Ω Celestion G12-P80 (076501)	1 12" 8Ω Celestion G12-P80 (076501)
FOOTSWITCH:	2 button, Gain/Channel (079606)	2 button, Gain/Channel (079606)	2 button, Gain/Channel (079606)
DIMENSIONS	HEIGHT: 23.5 in (59.7 cm)	21 in (53.3 cm)	18.75 in (47.6 cm)
	WIDTH: 23.5 in (59.7 cm)	24.25 in (61.6 cm)	23.5 in (59.7 cm)
	DEPTH: 10.75 in (27.3 cm)	10.75 in (27.3 cm)	10.5 in (26.7 cm)
WEIGHT:	50 lb (22.7 kg)	53.5 lb (24.3 kg)	49.5 lb (22.5 kg)

Product specifications are subject to change without notice.

HOT ROD™

Fender®, Hot Rod DeVille™ and Hot Rod Deluxe™ are trademarks of FMIC.

Groove Tubes ^® is a registered trademark of ROKR Ventures, Inc., a wholly-owned subsidiary of FMIC.

Other trademarks are property of their respective owners.

Copyright © 2010 FMIC. All rights reserved.

P/N 0079607000 REV A
