USER MANUAL SBS-BW-3000/1000S STEINBERG

Safety & Operating Instructions

Digital scale balance with a digital display showing 8.0, no text or symbols on the device itself

$$ = , X 1, X 2, X 3, X 4, X 5, X 6 $$

This User Manual has been translated using machine translation. We have made every effort to ensure the translation is accurate, but please note that automated translations are not perfect and are not meant to replace human translators. The official version of the User Manual is in English. Any differences between the translated version and the original English are not legally binding. If you have any questions about the accuracy of the translation, please refer to the English version, which is the official reference. More language versions are available upon request via [e-mail].

Technical data

Parameter description	Parameter value
Product name	Floor scale
Model	SBS-BW-3000/1000S	SBS-BW-1000/200S	SBS-BW-5000/2000XL	SBS-BW-3000/1000XL	SBS-BW-3000/1000M	SBS-BW-1000/200M
Battery / power supply	Battery: 6V, 4500mAh;Power supply: 8 V, 500 mA
Maximum load [kg]	3000	1000	5000	3000	3000	1000
Minimum load [kg]	3	600	6	3	3	600
Graduation [g]	1000	200	2000	1000	1000	200
Dimensions of the weighing platform [mm]	1000 x 1000		1500 x 1500		1200 x 1200
Weight [kg]	64.7	65	123	123	86.3	87

1. General Description

The manual is intended to assist in safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components and maintaining the highest quality standards.

CAREFULLY READ AND UNDERSTAND THIS MANUAL BEFORE STARTING THE WORK.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is

designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Explanation of symbols

The product complies with applicable safety standards.

Read the manual before use.

Recyclable product.

CAUTION! or WARNING! or REMEMBER! describing a given situation (general warning sign).

For indoor use only.

CAUTION! The figures in this manual are illustrative only and may vary in some details from the actual appearance of the product.

2. Safety of use

CAUTION!

Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or death.

The term "device" or "product" in the warnings and the description of the instructions refers to Floor Scale

2.1. Electrical safety

Applies to the battery charger:

a) The plug of this device must fit into the outlet. Do not modify the plug in any way. Original plugs and matching outlets reduce the risk of electric shock.
b) Avoid touching grounded parts, such as pipes, heaters, ovens, and refrigerators. There is an increased risk of electric shock if your body is grounded and touches the device while exposed to direct rain, wet pavement,

or while working in a damp environment. If water enters the device, there is an increased risk of damage to the unit and electric shock.

c) Do not touch the device with wet or damp hands.
d) Do not use the cord in an unintended manner. Never use it to carry the device or to pull the plug out of the socket. Keep the cord away from heat sources, oil, sharp edges, or moving parts. Damaged or tangled cords increase the risk of electric shock.
e) If you cannot avoid using the product in a wet environment, use a residual current device (RCD) to connect it to electrical mains. Using an RCD reduces the risk of electric shock.
f) Do not use the device if the power cord is damaged or shows signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service department.
g) CAUTION – DANGER TO LIFE! When cleaning or using the appliance, never immerse it in water or other liquids.

2.2. Safety in the workplace

a) Keep the work area tidy and well-lit. Disorder or poor lighting can lead to accidents. Be foresighted, watch what you are doing, and use common sense when using the device.
b) If in doubt as to whether the product is working properly or found to be damaged, contact the manufacturer's technical service.
c) Repairs to the device may only be carried out by the manufacturer's service. Do not attempt to repair the product on your own!
d) In the event of ignition or fire, use only powder or snow (CO2) fire extinguishers to suppress the live device.
e) Keep this manual for future reference. If the product is to be handed over to a third party, hand it over with this user manual.
f) Keep packaging components and small installation parts out of the reach of children.

Remember! Keep children and other bystanders safe while operating the appliance.

2.3. Personal safety

a) Do not operate this device if you are tired, ill, or under the influence of alcohol, drugs, or medication that could impair your ability to operate the device.
b) The device is not intended to be used by persons (including children) with reduced mental, sensory, or intellectual functions or persons who lack experience and/or knowledge unless they are supervised or have been instructed by a person responsible for their safety on how to operate the device.

c) The appliance is not a toy. Children should be watched to ensure that they do not play with the appliance.

2.4. Safe use of the device

a) Do not overload the device. Use tools that are suitable for the application. A correctly selected product will do a better and safer job for which it was designed.

b) Do not use the device if the ON/OFF switch does not function properly (does not turn on and off). Units that cannot be controlled by the switch are unsafe, cannot operate, and must be repaired.

c) Keep unused product out of the reach of children and anyone unfamiliar with the device or this manual. Products are dangerous when used by inexperienced users.

d) Keep the product out of the reach of children.

e) Repairs and maintenance should be carried out by qualified personnel using only original spare parts. This will ensure the safety of use.

f) To ensure the designed operational integrity of the device, do not remove factory-installed covers or loosen screws.

g) Clean the device regularly to prevent permanent dirt build-up.

h) Do not overload the weight. This can damage the strain gauge sensors.

i) Before taking a measurement, make sure that the unit is placed on a stable surface, and is not exposed to vibrations or sudden temperature changes that may adversely affect the measurement results.

j) Do not leave any weight on the scale for a long time. This reduces the accuracy of the balance and shortens the life of the strain gauge sensors.

k) Do not use the scale during a storm or rain.

I) Avoid extreme temperatures. Do not place the scale directly in the sun or near air conditioning systems.

m) The scale should not be used near power-consuming devices such as welding machines or large electric motors.

n) Do not leave the battery in the scale if it is not used for a long time.

o) Avoid high humidity that could cause condensation and direct contact with water.

p) Do not place the scale near open windows or doors, air-conditioning systems, or fans, which may cause unstable measurement results due to improper air circulation.

q) The balance should be kept clean. Do not put objects on the scale when it is not in use.

CAUTION! Although the product has been designed to be safe, with adequate safeguards, and despite the additional safety features provided to the user, there is still a slight risk of accident or injury when handling the unit. Caution and common sense are advised when using the product.

3. Instructions for use

The device is designed to measure the weight of elements placed on the pan. Do not exceed the maximum load of the scale - it may damage it!

The user is responsible for any damage resulting from misuse.

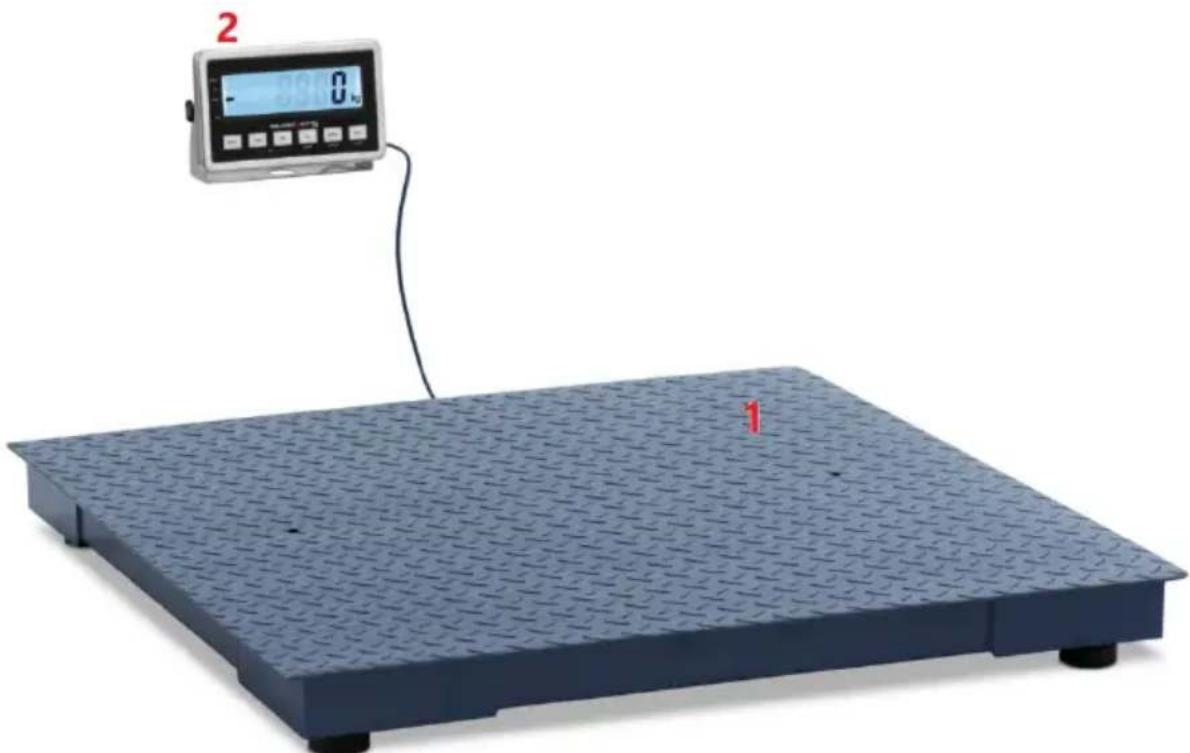

3.1. Product overview

Digital scale reading with a digital display showing 0.8, mounted on a blue metal plate (no text or symbols visible)

1 - Weighing pan.
2 - Control panel with display.

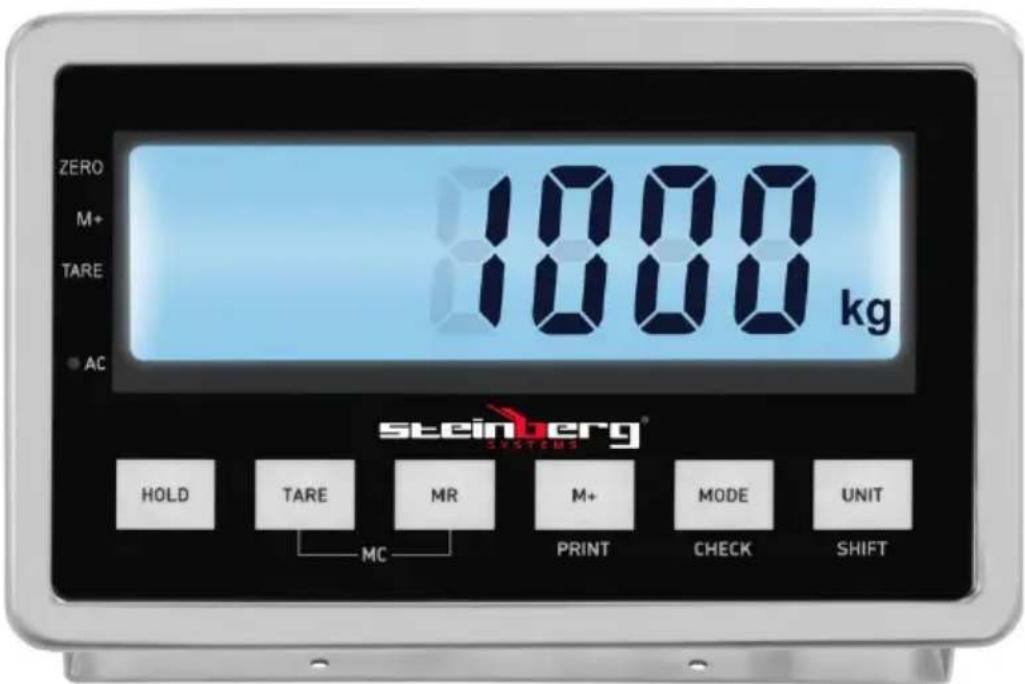

ZERO M+ TARE AC 1000 kg STEINERG® SYSTEMS HOLD TARE MR M+ PRINT MODE UNIT MC CHECK SHIFT

ZERO (also used as TARE; display indicator) The zero function should only be used when there is nothing on the pan and the display does not show "0". The scale may not read "0" due to dust, dirt, or moisture on the weighing pan or when a heavy object is dropped on the scale. The zeroing function essentially corrects the true zero on the scale and informs it that there is nothing on the pan.

TARE - The tare function (display indicator) indicates the weight of the package itself. It is the difference between the total weight of the goods with the packaging and the weight of the goods without packaging. The tare is used to remove the weight of an item that should not be included in the overall weight measurement.

AC - an indicator of the connected power supply (battery charging).

HOLD - holding the weighing result on the display - during weighing, press the HOLD button, and the scale will hold the weighing result on the display for 10 seconds. If the HOLD button is not pressed for 10 seconds, the scale will return to weighing mode showing the current weighing result on the display.

MR - data memorizing button; pressing the button will store a single weight value or the total weight.

MC - press TARE and MR to show the stored value in memory on the display, pressing TARE and MC again will erase the data from memory.

M + - storing data in memory / adding a single weight value to the total weight value.

PRINT - data printing function.

CHECK / MODE - button to change between counting mode and quantity check mode, also used to set the alarm. In the setting mode, this button can be used to change modes in the settings.

UNIT / SHIFT - button for changing weighing units in weighing mode. In the setting mode, the button for changing parameter display modes.

Control panel - rear view:

ON-POWER-OFF RS-232® RS-232® IC-1 charger 1 2 3 4

1 - main switch
2 - weighing platform cable connection socket
3 - RS232 sockets
4 - power supply connection socket

3.2. Preparation for operation

POSITIONING OF THE UNIT

The ambient temperature must not exceed 40^ and ambient humidity should not exceed 85% . Place the unit in a way that ensures good air circulation. Maintain a minimum clearance of 10 cm from any wall of the unit. Keep the unit away from any hot surfaces. Always operate the unit on a level, stable, clean, fireproof, and dry surface and out of the reach of children and persons with impaired mental, sensory, and intellectual functions. Place the unit in such a way that the main plug can be reached at any time. Ensure that the power supply to the unit corresponds to that specified on the identification plate!

3.3. Working with the unit

3.3.1. Weight control setting

Press and hold the CHECK button for about 2 seconds. The display will show "H" - the value of the upper check limit. Press SHIFT to move the cursor, HOLD to decrease the value, and TARE to increase the upper limit value.

Press MODE again, and the display will show "L" - check the lower limit value. Press SHIFT to move the cursor, HOLD to decrease the value, and TARE to increase the lower limit value.

Press MODE again to confirm the settings made and return to weighing mode.

If the weight check alarm has been activated then a slow beep will sound each time you weigh for a load lower than the lower limit. At a load higher than the upper limit, a quick beep will sound. For any load with a value between the upper and lower limits, there is no audible signal.

3.3.2. ALARM FUNCTION

a) Overload: when the platform is loaded with a load greater than 0.3% of the maximum load, an audible signal will sound and the display will show "----OVR" - take the load off the platform immediately!

b) Low battery alarm: When the power is turned on, the battery level is checked. If the charge level is too low, the battery icon will flash and a beep will be heard. Charge the battery as soon as possible. During charging, the AC LED lights up red, when charging is complete, it lights up green.

3.3.3. Counting function

a) Press the MODE key to enter the counting mode, the window will show "SAP X" (X is the sample number).
b) Press the SHIFT key to select the number of samples from 10, 20, 50, 100, 200, 500, 1000, 5000, and 10,000 pieces. Press the M + key.
c) After selecting the number of samples, the display will show "LOAD-C" - place the indicated number of samples, then press the M+ key to finish setting the number of samples.
d) Once the sample setting is complete:

• if the correct sample number is selected, the window will show "CXXXXXX" (X is the current count number),
• if the message "-CSL-" appears in the window, it means that the unit weight of the sample is not sufficient (the unit weight is too small, less than the scale division) - press the M + key to reselect the sample number.

e) To ensure the accuracy of the scale, the unit weight should not be less than the scale.

f) During counting mode, press the MODE key to return to weighing mode.

3.3.4. Storage/reading of weighing data

a) In weighing mode, press the M + key to save the current weight and add it to the total weight (weight accumulation). The display will show ADD XXX (XXX is the cumulative number). After about 2 seconds, the cumulative total weight will be displayed, and then the weighing status will be restored. If the weighing value is negative, it will not be saved.
b) Press the [MR] key to display ADD XXX, where XXX is the number of the next weighing record, followed by the weight value of that record. After a while, the next record will be displayed, up to the last record. After displaying the last record, the display of ADD UP means that the number that will be displayed on the next screen is the total weight after accumulation. After the total weight is displayed, the weighing status will be returned.
c) Press and hold the [MR] key for 2 seconds to display the weighing record. Press the [MR] key again to display the weighing record in cycles (no long holding is necessary at this time).
d) When the weighing log is displayed, press the [SHIFT] key to return to weighing mode.
e) When a weighing record or accumulation is displayed, press the [MC] key (simultaneously press the [TARE] and [MR] keys) to display "CLR" to clear the record and accumulation and return to weighing mode.
f) You can make a maximum of 40 entries. When the number of records exceeds 40, each press of the [M +] key will overwrite the previous records.

3.3.5. Printing

Serial port 1:

Data format: 10-bit (bit) ---- 1-bit start bit, 8-bit data bit, 1-bit stop bit.

The serial port sends data continuously in the following format (all in ASCII):

$$ = , X 1, X 2, X 3, X 4, X 5, X 6 $$

For example: an instrument weighing 123.45 kg sends:

$$ = 5 4. 3 2 1 = 5 4. 3 2 1 = 5 4. 3 2 1 \dots $$

The weight is 12345 kg. The instrument sends:

$$ = 5 4 3 2 1 0 = 5 4 3 2 1 0 = 5 4 3 2 1 0 \dots $$

The weight is - 123.45 kg. The instrument sends:

$$ = 5 4. 3 2 1 - = 5 4. 3 2 1 - = 5 4. 3 2 1 - \dots $$

Baud rate: 9600

Transmission method: continuous transmission

Serial port 2: RS232 communication protocol

Press and hold [HOLD]+[M+] keys at the same time to turn on the device, then release it, the screen will show "CLOSE" (default), press [MODE] and [UNIT] to select the sending method:

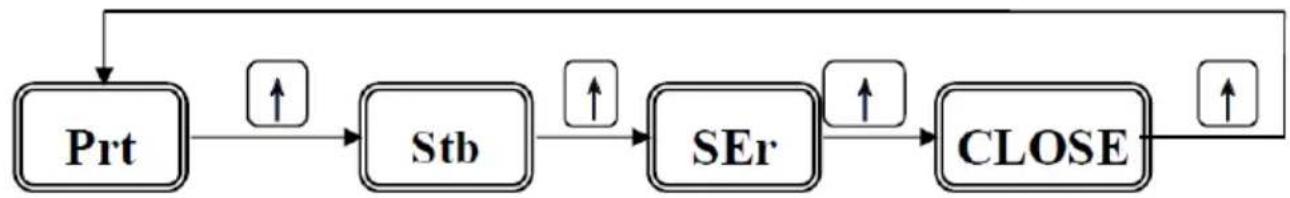

Setting the transmission method

Press the [UNIT] button to select the method: "Stb" = printing when the balance is stable, "Prt" = printing once after pressing the [PRINT] button, "Ser" = series (continuous printing) or "CLOSE" = printing disabled. Then press the [UNIT] button to select the method or press the [Mode] button to confirm and set the next parameter. (The default mode is "Close").


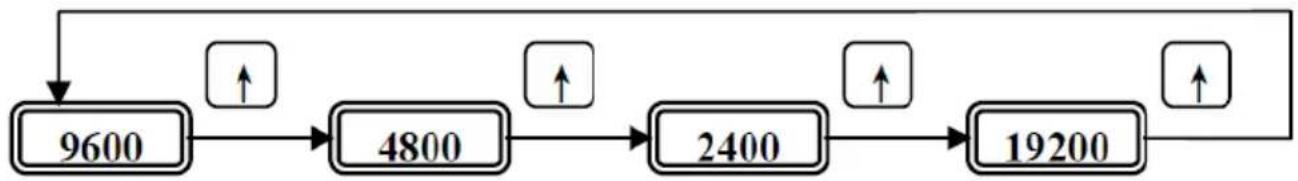

Baud rate settings

Press the [UNIT] button to select the desired baud rate from "19200", "2400", "4800", "9600", then press the [MODE] button to confirm the selection and exit the settings (the default baud rate is 9600).

3.3.6. Weight settings

3.3.6.1. Zero tracking range

• Connect the Load Cell
• Press the 【TARE】and 【MODE】keys, switch on the scale, then release both keys.
  • The display will show:

(X represents the zero track range)

- Press the 【UNIT】key to choose the value, then press 【MODE】to confirm and proceed to the next step (choosing capacity).

3.3.6.2. Weight load

• The display will show:

• Use the 【UNIT】key to move the cursor to the desired number position.
• Use the and keys to adjust the capacity.
- Press【MR】to set the decimal point position.
- Press【MODE】to confirm and proceed to the next step (choosing accuracy value).

3.3.6.3. Accuracy value

• The display will show:

• Use the 【UNIT】key to change the accuracy value.
- Press【MODE】to confirm and proceed to the next step (choosing calibration weight).

3.3.6.4. Calibration weight value:

• The display will show:

• Use the 【UNIT】key to move the cursor to the desired number position.
• Use the and keys to select the number.
- Press【MODE】to confirm.
• The display will then show:

Once the display stabilizes and a beep sound is heard, press 【MODE】to confirm and proceed to the next step (calibration).

3.3.6.5. Calibration

• The display will show:

At this stage, the selected weight should be placed on the scale. Once the display shows three stable arrows, press to confirm. This completes the calibration procedure.

Switch off the scale and remove all weights. Turn the scale back on; it is now ready for use.

Example: Calibration for 30kg Capacity with 2g Division

1- While pressing [CHECK/MODE], [TARE/<], turn on the power switch. The display will show a version code (230005) for three seconds.
2- Display "F1 3" appears; press 【MODE】to select it.
3- Display "ZE 6" appears; press【MODE】to select it.
4- Display “C XXXXX” appears. Adjust “XXXXX” to “30.000” using [SHIFT], 【TARE】, and [ZERO] 【MODE】
5- Display "d XXXXX" appears. Adjust "XXXXX" to "0.002" using [SHIFT]. Press 【MODE】to confirm.
6- Display “E XXXXX” appears. Adjust “XXXXX” to “20.000” (2/3 capacity) using [SHIFT], 【TARE】, and [ZERO]. Press 【MODE】 to confirm.
7- Display “C XXXXX” appears. When the stability indicator appears, press 【MODE】.
8- Display "L XXXXX" appears. Load a 20kg weight. After a few seconds, a beep sound will indicate successful calibration. If no beep is heard, press 【MODE】to finish weight calibration manually or reset the indicator.

3.3.6.6. Selection of weighing units

The display shows "Kg xxxxx", where "xxxxx" indicates whether the unit is ON or OFF.

• "Kg" represents the weight unit, with options to select kg, lb, and t.
• Kg is the default unit and cannot be turned off, while other units (lb and t) can be toggled ON or OFF.

Unit Selection Process:

1. Press the【MODE】key to cycle through the available weight units.
2. Press the [SHIFT] key to toggle the selected unit ON or OFF.
3. After selecting the last unit, press 【MODE】 again to return to the weighing state.

3.3.7. User settings

Turn on the scale while holding down the [TARE] key to enter the user settings mode.

Weighing alarm:

There are two alarm modes "OFF" and "ON". "ON" means that the weighing alarm is turned on, and "OFF" means that the weighing alarm is turned off. Press the

[MODE] key to select the alarm mode during weighing and select "ON" or "OFF" with the [SHIFT] key.

Automatic backlight:

This function is used to select the ON / OFF backlight. "ON" means the backlight is turned on; "OFF" means the backlight is turned off.

In the user setting mode, press the [MODE] key to select the backlight setting item.

When "LTXXX" appears in the display, where "XXX" is the current status. Press the [SHIFT] key to change it. Press the [MODE] key to select the next item.

3.4. Cleaning and maintenance

a) Pull out the mains plug before each cleaning and when the unit is not in use.
b) Use only non-corrosive cleaning agents for cleaning the surfaces.
c) Store the unit in a dry and cool place protected from moisture and direct sunlight.
d) Do not spray the unit with a stream of water or immerse it in water.
e) Make sure that no water enters through the ventilation openings in the casing.
f) Clean the ventilation openings with a brush and compressed air.
g) Perform regular inspections of the unit checking technical fitness and any damages.
h) Do not leave the batteries in the unit when it will not be used for a long time.
i) Use a soft, damp cloth for cleaning.
j) Do not use sharp and/or metal objects (e.g. wire brush or metal spatula) as they may damage the surface of the material from which the device is made.
k) Do not clean the product with acidic substances, medical agents, thinners, fuel, oils or other chemicals. It may cause damage to the device.

INSTRUCTIONS FOR THE SAFE DISPOSAL OF BATTERIES.

The devices are equipped with 6 V, 4500 mAh batteries.

Remove used batteries from the unit in the same way you put them in.

Return the batteries to a unit responsible for their disposal.

DISPOSAL OF USED UNITS.

At the end of its useful life, this product should not be disposed of with normal household waste but should be taken to a collection point for the recycling of electrical and electronic equipment. This is indicated by the symbol on the product, operating instructions, or packaging. The materials used in this appliance are recyclable according to their marking. By reusing, recycling, or applying other forms of use of waste machines, you make a significant contribution to the protection of our environment.

Your local administration will provide you with information about the appropriate disposal point for used appliances.

UWAGA! The figures in this manual are illustrative only and may vary in some details from the actual appearance of the product.

Digital scale balance with a digital display showing 8.0, no text or symbols on the device itself

$$ = , X 1, X 2, X 3, X 4, X 5, X 6 $$

Digital scale measuring a blue metal plate with a digital display showing 8.0 units (no text or symbols on the scale itself)

Digital scale balance with a digital display showing 8.0, no text or symbols on the device itself

Digital scale reading device with a blue digital display showing 0.5V, placed on a dark blue metal plate (no text or symbols visible)

$$ = , X 1, X 2, X 3, X 4, X 5, X 6 $$

Digital scale reading device with a blue digital display showing 0.5V, placed on a dark blue square platform (no text or symbols visible)

Digital scale with a digital display showing approximately 0.5V, placed on a blue metal plate (no text or symbols visible)

1 - Mérőtál.

=543210 =543210 =543210 .....

Digital scale measuring a blue metal plate with a digital display showing 0.82 and 0.65, no text or symbols on the device itself.

1 - Vejeskål.
2 - Kontrolpanel med display.

ZERO M+ TARE AC 1000 kg STEINERG® SYSTEMS HOLD TARE MR M+ PRINT MODE UNIT MC CHECK SHIFT

APPARATETS PLACERING

$$ = , X 1, X 2, X 3, X 4, X 5, X 6 $$

For eksempel: et instrument, der vejer 123,45 kg, sender:

$$ = 5 4. 3 2 1 = 5 4. 3 2 1 = 5 4. 3 2 1 \dots $$

Transmissionsmetode: kontinuerlig transmission

[ XXXXXX (for AD indre kode)

Digital scale measuring a blue metal plate with a digital display showing 8.0 units (no text or symbols on the scale itself)

1 - Punnitusastia.

$$ = , X 1, X 2, X 3, X 4, X 5, X 6 $$

Digital scale balance with a digital display showing 8.0, no text or symbols on the device itself

Transmissiemethode: continue transmissie

Digital scale reading with a digital display showing 0.8, mounted on a blue metal plate (no text or symbols visible)

$$ = , X 1, X 2, X 3, X 4, X 5, X 6 $$

Digital scale reading device with a blue digital display showing 0.5V, placed on a dark blue metal plate (no text or symbols visible)

1 - Vågpanna.
2 - Kontrollpanel med display.

ZERO M+ TARE AC 1000 kg STEINERG® SYSTEMS HOLD TARE MR M+ PRINT MODE UNIT MC CHECK SHIFT

PLACERING AV APPARATEN

$$ = , X 1, X 2, X 3, X 4, X 5, X 6 $$

Digital scale measuring a square metal plate with a digital display showing 0.5V, no text or symbols present.

$$ = , X 1, X 2, X 3, X 4, X 5, X 6 $$

Digital scale balance with a digital display showing 0.5 and 1 unit, no text or symbols on the device itself.

$$ = , X 1, X 2, X 3, X 4, X 5, X 6 $$

Digital scale balance with a digital display showing 8.0, no text or symbols on the device itself

1 - Теглилка.
2 - Контролен панел с дисплей.

ZERO M+ TARE AC 1000 kg STEINJERG® HOLD TARE MR M+ PRINT MODE UNIT MC CHECK SHIFT

$$ = , X 1, X 2, X 3, X 4, X 5, X 6 $$

Digital scale balance with a digital display showing 8.0, no text or symbols on the device itself

Digital scale reading with a digital display showing 0.8, mounted on a blue metal plate (no text or symbols visible)

$$ = , X 1, X 2, X 3, X 4, X 5, X 6 $$

Digital scale reading with a digital display showing 0.8, mounted on a square metal plate (no text or symbols visible)

1 - Svérimo indas.
2 - Valdymo skydelis su ekranu.

ZERO M+ TARE AC 1000 kg STEINERG® SYSTEMS HOLD TARE MR M+ PRINT MODE UNIT MC CHECK SHIFT

$$ = , X 1, X 2, X 3, X 4, X 5, X 6 $$

Pavyzdžiui: 123,45 kg sveriantis instrumentas siunčia:

$$ = 5 4. 3 2 1 = 5 4. 3 2 1 = 5 4. 3 2 1 \dots $$

Svoris 12345 kg. Prietaisas siunčia:

$$ = 5 4 3 2 1 0 = 5 4 3 2 1 0 = 5 4 3 2 1 0 \dots $$

Svoris - 123,45 kg. Prietaisas siunčia:

$$ = 5 4. 3 2 1 - = 5 4. 3 2 1 - = 5 4. 3 2 1 - \dots $$

Digital scale reading with a digital display showing 0.8, mounted on a blue metal platform (no text or symbols visible)

$$ = , X 1, X 2, X 3, X 4, X 5, X 6 $$

De exemplu: un instrument cu o greutate de 123,45 kg trimite:

$$ = 5 4. 3 2 1 = 5 4. 3 2 1 = 5 4. 3 2 1 \dots $$

Digital scale reading with a digital display showing 0.8, mounted on a blue metal plate (no text or symbols visible)

Environmental and disposal information

Producer to customer

Dear Sir or Madam,

Let's take care of the environment! The product you own should not be disposed of with household waste. According to applicable regulations (Directive 2012/19/EU and other local regulations), used equipment must be taken to designated collection points for proper disposal and recycling.

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

How to Handle the Product at the End of Its Lifecycle?

1. Electrical and Electronic Equipment: Products marked with the crossed-out wheeled bin symbol must not be disposed of with household waste. You can:

Take it to your local collection point for electrical and electronic equipment.
Use the “one-for-one” system (returning the old device when purchasing a new one, if available in your region).

1. Batteries and Accumulators: If the product contains batteries, remove them before recycling and take them to designated battery collection points.

2. Packaging Materials: Packaging, such as cardboard or plastic, should be sorted and placed in recycling bins.

Why is This Important?

Proper disposal of equipment and packaging materials:

• Protects the environment from harmful substances.
• Enables the recovery of valuable resources.
• Reduces the amount of waste sent to landfills.

Where to Find Information?

Information about waste collection points can be found on local authorities' websites or through your recycling service provider. If needed, contact our customer service team, who will gladly provide further details.

Thank you for your care for the environment and commitment to recycling!

Contact

expondo Polska sp. z o.o. sp. k.
