USER MANUAL Aspire C15X-P4A HUSQVARNA

Silhouette of a mechanical device with a handle and shaft (no text or symbols)

Aspire C15X-P4A

EN Operator's manual 20-47

Technical diagram of a chain-link robotic device with numbered parts and labeled control panel interface

23 - / +

25 yyyywwxxxxx

26 POWER FOR ALL 18V ALLIANCE

27

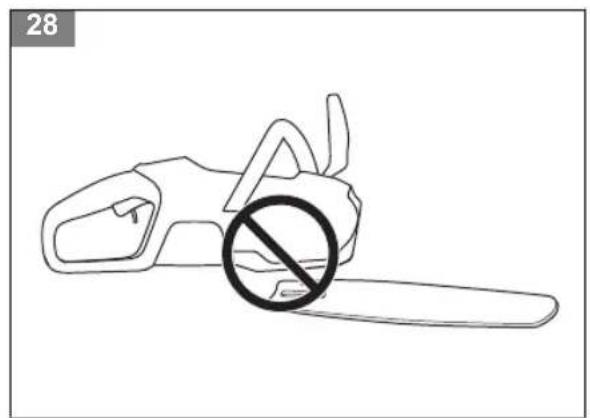

Line drawing of a chainsaw with a prohibition symbol (no text or labels)

29

30

Illustration of a person using a saw to cut wood or wood fragments, with an arrow indicating the process (no text or symbols present)

32

Line drawing of a VR headset with motion lines indicating speed (no text or symbols)

34

Illustration of a person wearing a full-body mask standing next to a first aid kit, fire extinguisher, and shovel (no text or symbols)

Line drawing of a microwave oven with control buttons and indicator lights (no text or symbols)

Line drawing of a chain saw with a handle and blade (no text or symbols)

38

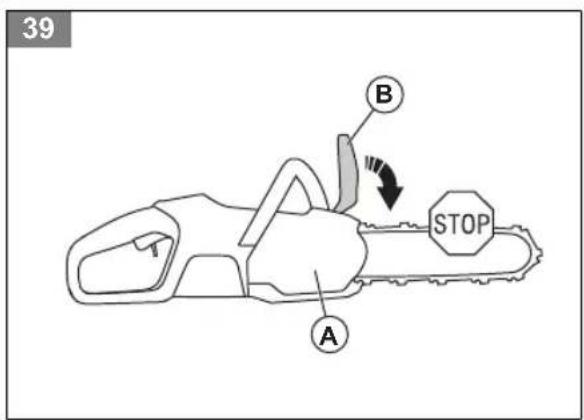

39 A B STOP

Illustration of a person in protective gear using a tool to lift a rolled log, no text or symbols present

Illustration of a person in uniform carrying a long pole, no text or symbols present

Line drawing of a chain car being struck by an object, showing motion direction (no text or symbols)

Line drawing of a chain saw with a hand operating it (no text or symbols)

Line drawing of a chain with a gear and motion arrow (no text or symbols)

Illustration of a person using a power tool to cut a saw, with a black arrow indicating motion (no text or symbols)

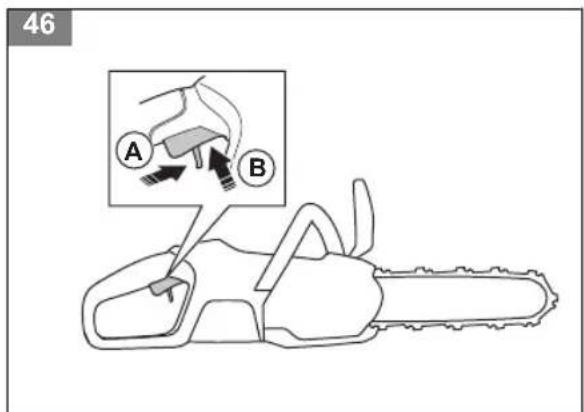

46 A B

Line drawing of a chain saw with an arrow indicating motion or force (no text or symbols)

Line drawing of a car's side profile with an arrow pointing to the front wheel (no text or symbols)

Simple line drawing of a mechanical component with a starburst effect (no text or symbols)

Technical line drawing of a mechanical component with a downward arrow indicating force or displacement (no text or symbols)

Simple line drawing of a mechanical component with a droplet above it, no text or symbols present.

Line drawing of a mechanical device with control panel and buttons (no text or symbols)

Technical illustration of a mechanical assembly with a close-up view of internal components (no text or symbols)

55 C D A B

56 C

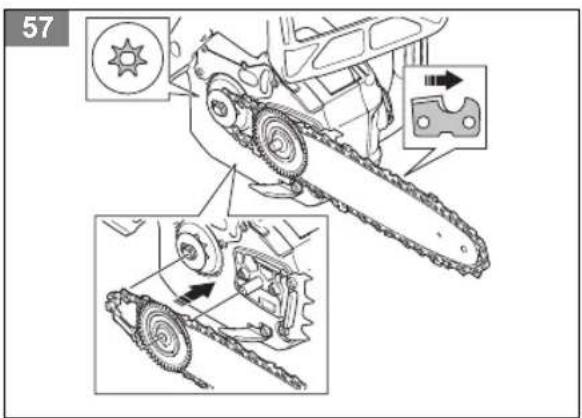

57

Technical line drawing of a chain drive mechanism with gear and chains (no text or symbols)

59

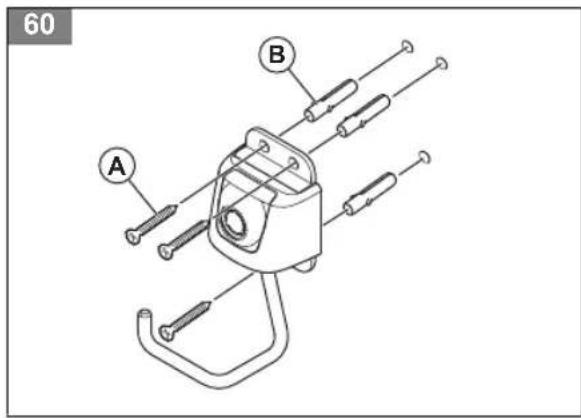

60 A B

Diagram of a robotic arm with a hook, showing a left-hand rule and right-hand rule (no text or symbols)

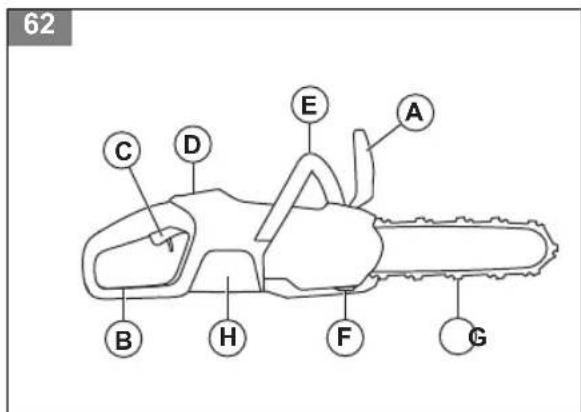

62 C D E A B H F G

Simple black silhouette of a stylized mask with a droplet above it, no text or symbols present.

Technical illustration of a car interior showing a roof-mounted housing and its internal components, with no visible text or symbols.

65

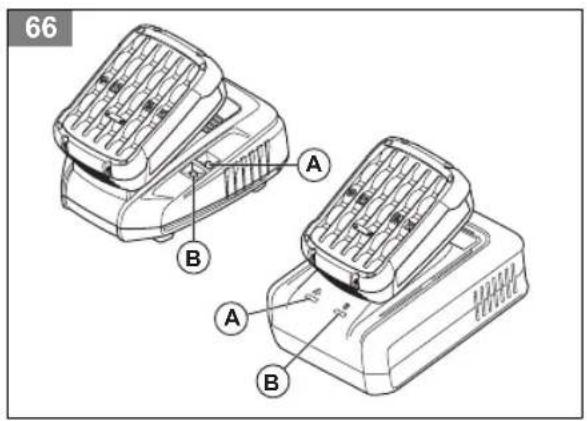

66 A B A B

67

Line drawing of a chain-linking tool with a hand operating it (no text or symbols)

Illustration of a worker cutting wood with a saw, no text or symbols present

Line drawing of a person using a chainsaw to lift a wooden block, with an arrow indicating motion (no text or symbols)

Line drawing of a chain-linking device with a battery nearby (no text or symbols)

72

Line drawing of a chain-linking device with a separate box component, no text or symbols present

Line drawing of a chain-linking tool with arrows indicating motion (no text or symbols)

Line drawing of a chain saw cutting a circular object with motion arrows (no text or symbols)

76

Illustration of two workers handling large logs, one holding a tool and the other carrying a bag (no text or symbols)

Line drawing of a tool cutting a circular object with a curved arrow indicating rotation (no text or symbols)

79

80

81

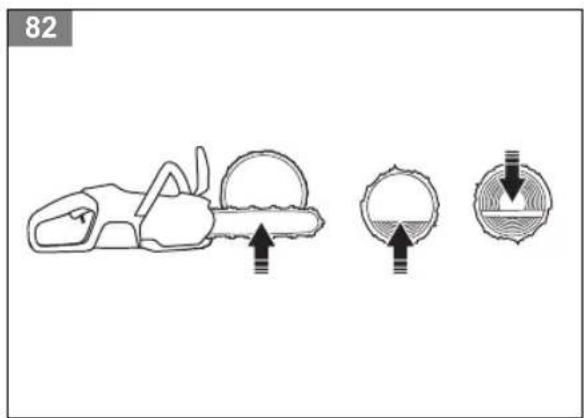

82

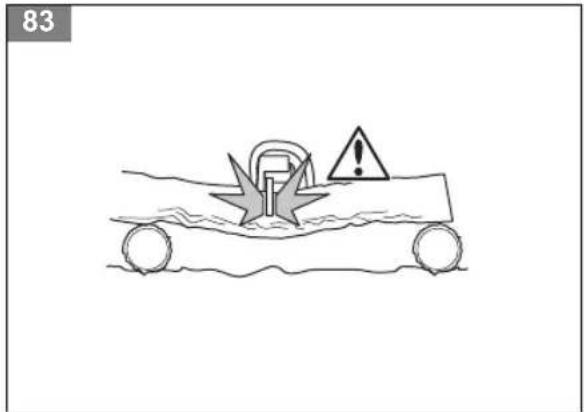

83

84

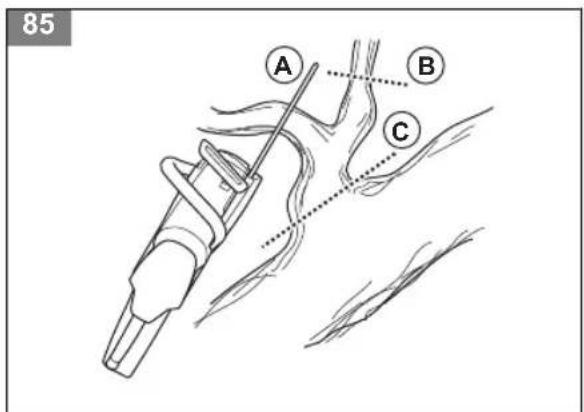

85 A B C

Medical illustration showing a surgical procedure on a patient's foot (no text or labels present)

Illustration of a hand using a power saw to cut tree bark, with an arrow indicating the process (no text or symbols present)

Line drawing of a person using a manual saw to cut tree bark, with a black arrow indicating the direction (no text or symbols present)

Illustration of a person standing near tree branches with radiating lines, no text or symbols present

91

92

Diagram of a circular ring with concentric rings and a vertical line, marked with arrows (no text or symbols)

95 A B

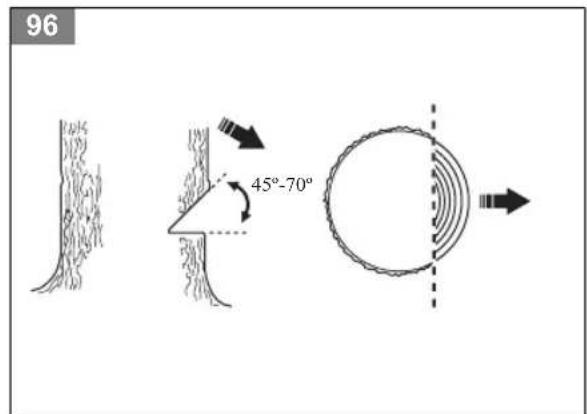

96 45°-70°

97

Simple line drawing of a mechanical tool or bracket with no text or symbols

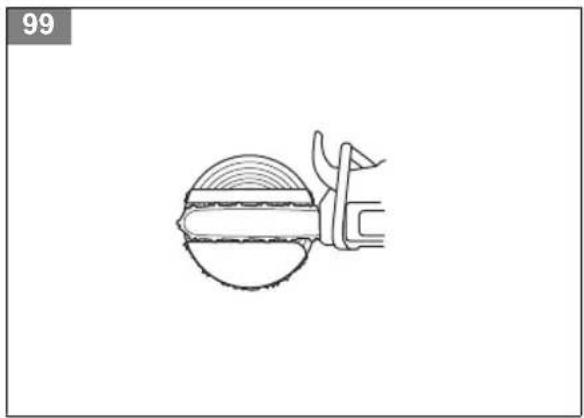

Simple line drawing of a mechanical component or tool with no visible text, numbers, or symbols.

Technical diagram of a mechanical component with a circular cross-section and internal structure (no text or symbols)

Technical line drawing of a mechanical component with a curved housing and internal structure (no text or symbols)

Technical diagram of a mechanical component with a curved arrow indicating direction (no text or symbols)

103

104

105

Simple line drawing of a tractor pulling a tree with a lever (no text or symbols)

106

Simple line drawing of a mechanical device with lever and base, no text or symbols present

107

Simple line drawing of a curved path with a ball and a downward arrow, no text or symbols present

108

Diagram of a mechanical or fluid system with arrows indicating direction, no text or symbols present

109

Diagram showing layered geological strata with no text or symbols

110

Diagram showing a structure with an upward arrow, no text or symbols present

111

Diagram of a curved structure with directional arrows indicating flow or movement (no text or symbols)

112

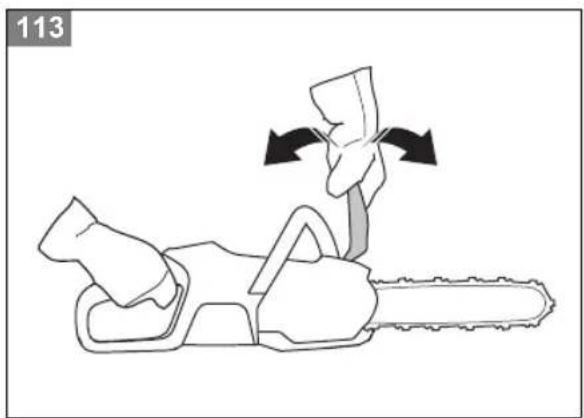

Line drawing of a chainsaw with an arrow indicating the blade (no text or symbols)

Diagram of a chainsaw being struck by an object, showing motion direction (no text or symbols)

Illustration of a worker using a saw to cut tree bark, no text or symbols present

Line drawing of a chainsaw with two blades, no text or symbols present

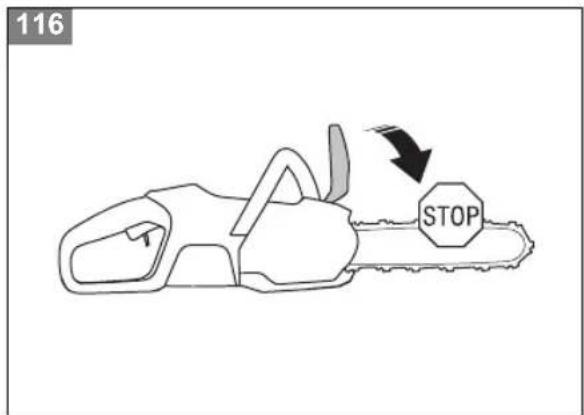

116 STOP

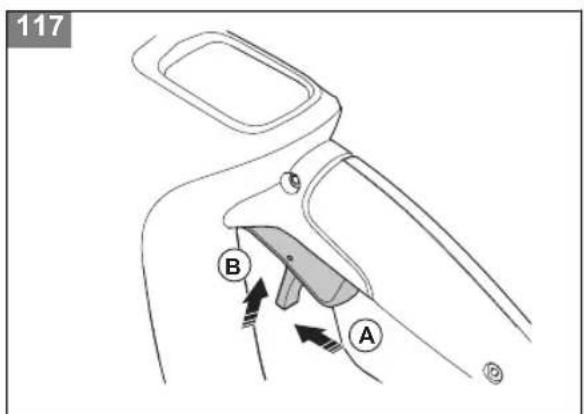

117 B A

Line drawing of a car interior showing a handle and seat with a directional arrow indicating movement (no text or symbols)

Line drawing of a car interior showing a handle and seat area with directional arrows (no text or symbols)

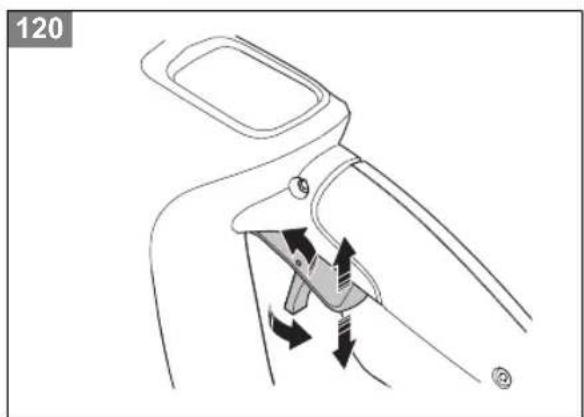

Diagram of a car interior showing directional arrows and a handle (no text or symbols)

121

Line drawing of a chain saw with an arrow indicating motion (no text or symbols)

122

Technical line drawing of a chain-linking device with a separate clamping kit (no text or symbols)

123

Line drawing of a portable electronic device with a prohibition symbol overlay (no text or symbols present)

124

Line drawing of a chain-linking tool with handle and jaw (no text or symbols)

125

126

127

PITCH = D/2 D

128

Pure mechanical linkage diagram without any text, numbers, or symbols

129

130

Technical drawing of a mechanical part with a cylindrical shaft and flange, shown with dimension arrows (no text or symbols)

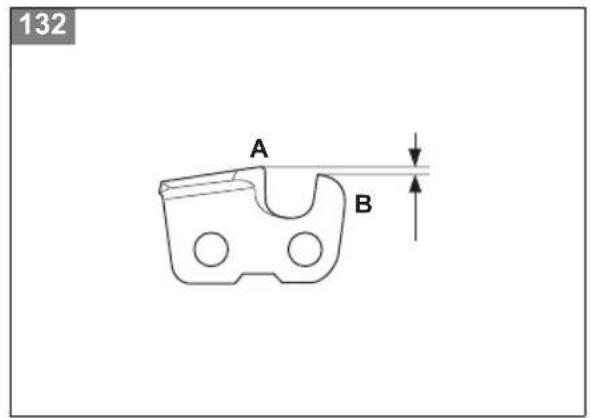

132 A B

Technical line drawing of a mechanical tool with a curved component and a diagonal bar, no text or symbols present

Simple line drawing of a mechanical component with curved arrows indicating motion (no text or symbols)

Line drawing of a screwdriver with a handle and lever (no text or symbols)

Simple line drawing of a dropper with a small circular symbol (no text or labels)

137

Three technical line drawings of mechanical components: a pipette, a gear-like component, and a digital device (no text or symbols)

138

Mechanical assembly diagram showing a clamp or bracket with diagonal hatching and mounting holes (no text or symbols)

139

A B C

140

141

Technical line drawing of a mechanical tool or connector assembly (no text or symbols)

142

Technical line drawing of a mechanical component with a circular feature and chain links (no text or symbols)

143

Technical line drawing of a mechanical component with internal components and a circular arrow indicating rotation (no text or symbols)

144

Diagram illustrating car interior components with directional arrows and labeled parts, including a vehicle interior view.

Technical line drawing of a mechanical component with a circular arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical component with chainings and a circular opening (no text or symbols)

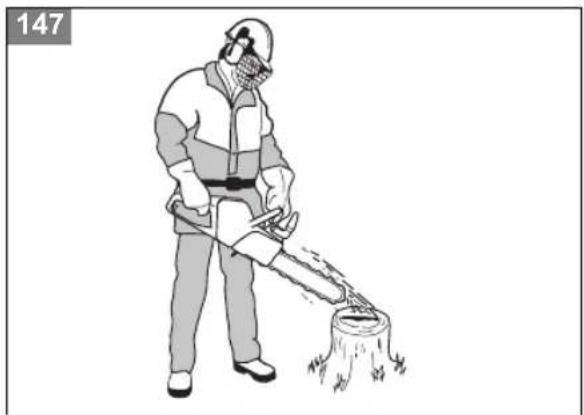

Illustration of a person in protective gear using a bucket cover to cut tree bark (no text or symbols)

Simple line drawing of a switch handle with a black arrow pointing to the button (no text or symbols)

Line drawing of a hand holding a tool, no text or symbols present

Line drawing of a hand gripping a seated object with an arrow indicating rotation (no text or symbols)

Technical illustration of a mechanical assembly with a close-up inset showing a gear-like component (no text or symbols)

152

Technical line drawing of a mechanical part with a curved cutout and dimension arrow (no text or symbols)

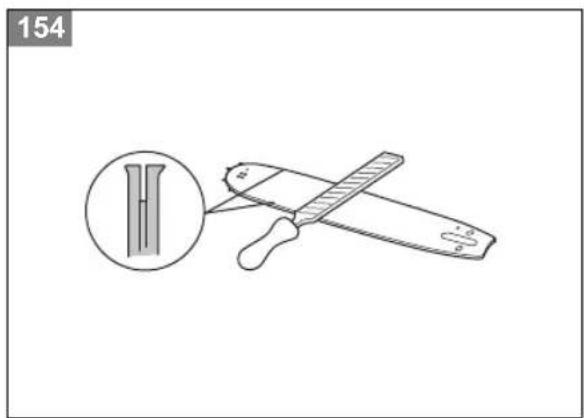

154 a b

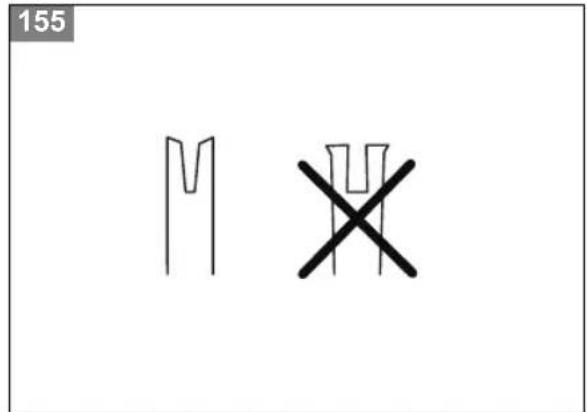

155 M X

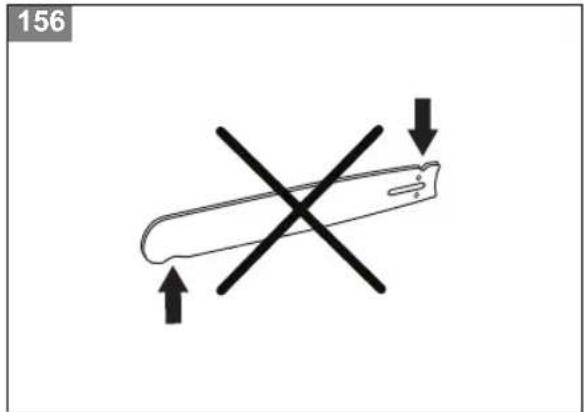

156

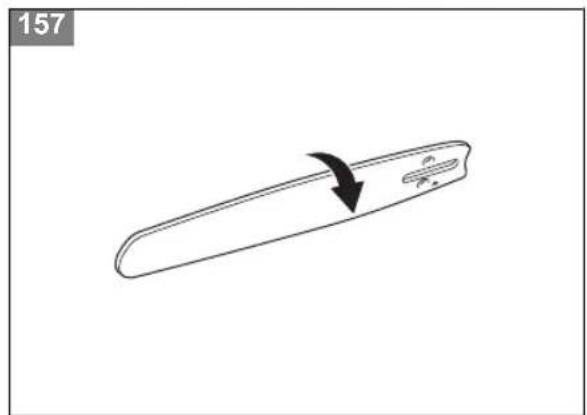

Simple line drawing of a pen-like object with an arrow indicating direction (no text or symbols)

Contents

Introduction 20

Safety 21

Assembly 29

Operation 29

Maintenance 35

Troubleshooting 39

Transportation, storage and disposal 40

Technical data 41

Accessories 42

Declaration of Conformity 44

Licenses 46

Introduction

Intended use

This product is intended for garden clearing work and pruning. The product can be used for minor tree felling and wood work. Do not use the product for other tasks.

Note: National regulations can set limit to the operation of the product.

Product description

The product Husqvarna Aspire C15X-P4A is a battery chainsaw.

Product overview

(Fig. 1)

1. Front hand guard

2. Front handle

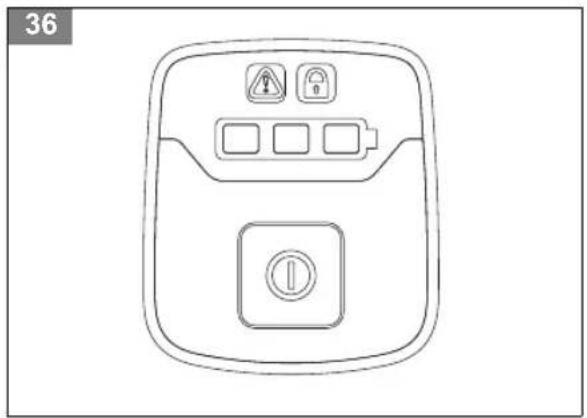

3. User interface

4. On/off button

5. Warning indicator

6. Brake indicator

7. Indicator for state of charge

8. Rear handle with right hand guard

9. Housing

10. Chain oil tank

11. Transportation cover

12. Power trigger lockout

13. Power trigger

14. Drive sprocket cover with bar knob

15. Chain tensioner

16. Chain catcher

17. Spiked bumper

18. Bar tip sprocket

19. Saw chain

20. Guide bar

21. Battery release button

22. Battery

23. Battery charger (P4A 18-C70)

24. Connector

25. Power on and warning indicator

26. Bio chain oil

Work is constantly in progress to increase your safety and efficiency during operation. Speak to your servicing dealer for more information.

Quick guide

Scan the QR code for advice on how to use the product.

(Fig. 27)

1. Storage hook, screws and wall plugs

2. Operator's manual

3. Battery charger (P4A 18-C100)

Symbols on the product

(Fig. 2) WARNING: This product can be dangerous and cause serious injury or death to the operator or others. Be careful and use the product correctly.

(Fig. 3) Read the operator's manual carefully and make sure that you understand the instructions before you use the product.

(Fig. 4) Use approved protective helmet, hearing protection and eye protection.

(Fig. 5) Use 2 hands when you operate the product.

(Fig. 6) Do not operate the product with 1 hand only.

(Fig. 7) Do not let the guide bar tip touch an object.

(Fig. 8) Do not use in rain.

(Fig. 9) Warning! Kickback can occur when the guide bar tip touches an object. This causes the guide bar to be thrown in the direction of the operator. Risk of serious injury or death.

(Fig. 10) Rated voltage, V

(Fig. 11) Chain oil.

(Fig. 12) The direction in which the saw chain rotates and maximum length of the guide bar.

(Fig. 13) Chain brake, engaged (forward)

(Fig. 14) Direct current.

(Fig. 15) Environmental mark. The product or package of the product is not domestic waste. Recycle it at an approved disposal location for electrical and electronic equipment.

(Fig. 16) This product complies with the applicable EU Directives.

(Fig. 17) This product conforms to the applicable UK regulations.

(Fig. 18) Noise emission to the environment label as per European Directive 2000/14/EC, UK directives and regulations and New South Wales legislation "Protection of the Environment Operations (Noise Control) Regulation 2017". The guaranteed sound power level of the product is specified in Technical data on page 41 and on the label.

(Fig. 23) Tension adjustment.

(Fig. 24) Chain direction.

(Fig. 25) The rating plate shows se-

rial number. yyyy is the production year, ww is the production week.

Note: Other symbols/decals on the product refer to certification requirements for some markets.

Symbols on the battery and/or on the battery charger

(Fig. 26) Use the battery on-

ly in products from POWER FOR ALL System partners.

(Fig. 19) Recycle this product at a recycling station for electrical and electronic equipment. (Applies to Europe only)

(Fig. 20) Fail-safe transformer.

(Fig. 21) Use and keep the battery charger indoors only.

(Fig. 22) Double insulation.

Manufacturer

Husqvarna AB

We are not responsible for damages to our product if:

• the product is incorrectly repaired.
- the product is repaired with parts that are not from the manufacturer or not approved by the manufacturer.
- the product has an accessory that is not from the manufacturer or not approved by the manufacturer.
- the product is not repaired at an approved service center or by an approved authority.

Safety

Safety definitions

Warnings, cautions and notes are used to point out specially important parts of the manual.

WARNING: Used if there is a risk of injury or death for the operator or bystanders

if the instructions in the manual are not obeyed.

CAUTION: Used if there is a risk of damage to the product, other materials or the adjacent area if the instructions in the manual are not obeyed.

Note: Used to give more information that is necessary in a given situation.

General machine safety warnings

WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this machine. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

- Save all warnings and instructions for future reference. The term "machine" in the warnings refers to your mains-operated (corded) machine or battery-operated (cordless) machine.

Work area safety

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate machines in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Machines create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a machine. Distractions can cause you to lose control.

Electrical safety

• Machine plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) machines. Unmodified plugs and matching outlets will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
• Do not expose machines to rain or wet conditions. Water entering a machine will increase the risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the machine. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
• When operating a machine outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
• If operating a machine in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of a RCD reduces the risk of electric shock.

Personal safety

- Stay alert, watch what you are doing and use common sense when operating a machine. Do

not use a machine while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating machines may result in serious personal injury.

• Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the machine. Carrying machines with your finger on the switch or energising machines that have the switch on invites accidents.
• Remove any adjusting key or wrench before turning the machine on. A wrench or a key left attached to a rotating part of the machine may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of the machine in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
• Do not let familiarity gained from frequent use of machines allow you to become complacent and ignore machine safety principles. A careless action can cause severe injury within a fraction of a second.

Machine use and care

• Do not force the machine. Use the correct machine for your application. The correct machine will do the job better and safer at the rate for which it was designed.
• Do not use the machine if the switch does not turn it on and off. Any machine that cannot be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the machine before making any adjustments, changing accessories, or storing machines. Such preventive safety measures reduce the risk of starting the machine accidentally.
• Store idle machines out of the reach of children and do not allow persons unfamiliar with the machines or these instructions to operate the machines. Machines are dangerous in the hands of untrained users.
• Maintain machines and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the machines's operation. If

damaged, have the machine repaired before use. Many accidents are caused by poorly maintained machines.

• Keep cutting tools sharp and clean. Properly maintained cutting machines with sharp cutting edges are less likely to bind and are easier to control.
• Use the machine, accessories and bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the machine for operations different from those intended could result in a hazardous situation.
• Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the machine in unexpected situations.

Battery machine use and care

• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
• Use machines only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritations or burns.
• Do not use a battery pack or machine that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
• Do not expose a battery pack or machine to fire or excessive temperature. Exposure to fire or temperature above 130^ / 265^ may cause explosion.
• Follow all charging instructions and do not charge the battery pack or machine outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

Service

- Have your machine serviced by a qualified repair person using only identical replacement parts.

This will ensure that the safety of the machine is maintained.

- Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

General chain saw safety warnings

• Keep all parts of the body away from the saw chain when the chain saw is operating. Before you start the chain saw, make sure the saw chain is not contacting anything. A moment of inattention while operating chain saws may cause entanglement of you clothing or body with the saw chain.
• Always hold the chain saw with your right hand on the rear handle and your left hand on the front handle. Holding the chain saw with a reversed hand configuration increases the risk of personal injury and should never be done.
• Hold the chain saw by insulated gripping surfaces only, because the saw chain may contact hidden wiring. Saw chains contacting a "live" wire may make exposed metal parts of the chain saw "live" and could give the operator an electric shock.
• Wear eye protection. Further protective equipment for hearing, head, hands, legs and feet is recommended. Adequate protective equipment will reduce personal injury from flying debris or accidental contact with the saw chain.
• Do not operate a chain saw in a tree, on a ladder, from a rooftop, or any unstable support. Operation of a chain saw in this manner could result in serious personal injury. ^1
  • Always keep proper footing and operate the chain saw only when standing on fixed, secure and level surface. Slippery or unstable surfaces may cause a loss of balance or control of the chain saw.
• When cutting a limb that is under tension, be alert for spring back. When the tension in the wood fibres is released, the spring loaded limb may strike the operator and/or throw the chain saw out of control.
• Use extreme caution when cutting brush and saplings. The slender material may catch the saw chain and be whipped toward you or pull you off balance.
• Carry the chain saw by the front handle with the chain saw switched off and away from your body. When transporting or storing the chain saw, always fit the guide bar cover. Proper handling of the chain saw will reduce the likelihood of accidental contact with the moving saw chain.
• Follow instructions for lubricating, chain tensioning and changing the bar and chain.

Improperly tensioned or lubricated chain may either brake or increase the chance for kickback.

• Cut wood only. Do not use chain saw for purposes not intended. For example: do not use chain saw for cutting metal, plastic, masonry or non-wood building materials. Use of the chain saw for operations different than intended could result in a hazardous situation.

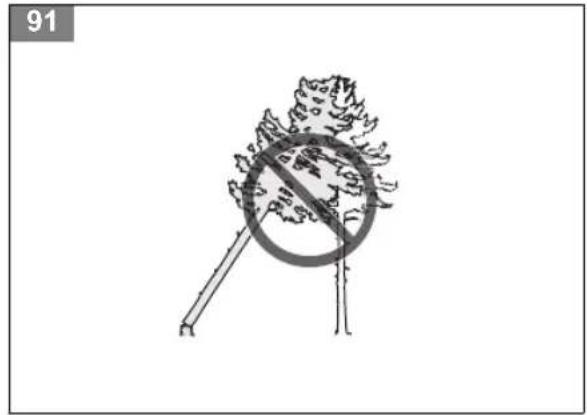

• Do not attempt to fell a tree until you have an understanding of the risks and how to avoid them. Serious injury could occur to the operator or bystanders while felling a tree.
• Follow all instructions when clearing jammed material, storing or servicing the chain saw. Make sure the switch is off and the battery pack is removed. Unexpected actuation of the chain saw while clearing jammed material or servicing may result in serious personal injury.
• Do not operate a chain saw in a tree unless you have been specifically trained to do so. Operation of a chain saw in a tree without proper training could increase the risk of serious personal injury.

Causes and operator prevention of kickback

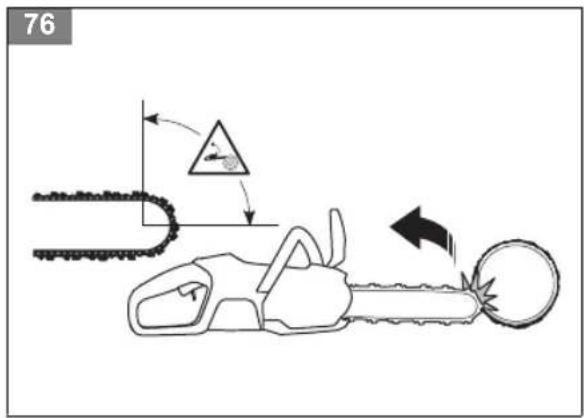

Kickback may occur when the nose or tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut. Tip contact in some cases may cause a sudden reverse reaction, kicking the guide bar up and back towards the operator. Pinching the saw chain along the top of the guide bar may push the guide bar rapidly back towards the operator. Either of these reactions may cause you to lose control of the saw which could result in serious personal injury. Do not rely exclusively upon the safety devices built into your saw. As a chain saw user, you should take several steps to keep your cutting jobs free from accident or injury. Kickback is the result of chain saw misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below:

• Maintain a firm grip, with thumbs and fingers encircling the chain saw handles, with both hands on the saw and position your body and arm to allow you to resist kickback forces. Kickback forces can be controlled by the operator, if proper precautions are taken. Do not let go of the chain saw.
• Do not overreach and do not cut above shoulder height. This helps prevent unintended tip contact and enables better control of the chain saw in unexpected situations.
• Only use replacement guide bars and saw chains specified by the manufacturer. Incorrect replacement guide bars and saw chains may cause chain breakage and/or kickback.
• Follow the manufacturer's sharpening and maintenance instructions for the saw chain. Decreasing the depth gauge height can lead to increased kickback.

SAVE THESE INSTRUCTIONS.

General safety instructions

WARNING: Read the warning instructions that follow before you use the product.

• This product is a dangerous tool if you are not careful or if you use the product incorrectly. This product can cause serious injury or death to the operator or others. It is very important that you read and understand the contents of this operator's manual.
• Do not change the product without an approval from the manufacturer. Do not use a product that has been changed by others and always use original accessories. Changes that are not approved from the manufacturer can result in serious injury or death to the operator or others.
• Long term inhalation of chain oil fumes and sawdust can cause health problems.
• This product produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To decrease the risk of serious injury or death, we recommend persons with medical implants to turn to their physician and the medical implant manufacturer before operating this product.

Safety instructions for operation

WARNING: Read the warning instructions that follow before you use the product.

• The information in this operator's manual is not a replacement for professional knowledge and experience. If you do not feel safe in the situation that you are in, stop the product. Turn to your servicing dealer or a professional chainsaw operator. Do not attempt any task that you feel unsure of!
• Turn to your servicing dealer or Husqvarna if you have questions about the operation of the product. We can give you information about how to operate your product effectively and safely. Participate in a training class in chainsaw operation if possible. Your servicing dealer, forestry school or your library can give you information about training materials and classes that are available.
• You must understand the effects of kickback and how to prevent them before you use this product. Refer to Kickback information on page 31 and Common questions about kickback on page 31 for instructions.
• Do not use a product, battery or battery charger that is damaged or does not operate correctly.

• Do not touch a rotating saw chain. It can cause serious injuries of death.

• Do not use the product if you are tired, while under the influence of alcohol or drugs, medicine or anything that could have a negative effect on your vision, alertness, coordination or judgment.

• Working in bad weather is tiring and often brings added risk. Due to the added risk, it is not recommended to use the machine in very bad weather, for instance in dense fog, heavy rain, strong winds, intense cold, risk of lightning, etc
• Do not start a product unless the guide bar, saw chain and all covers are assembled correctly. If not, the drive sprocket can come loose and cause serious injuries. Refer to Assembly on page 29 for instructions.

(Fig. 28)

• Sometimes chips get stuck in the sprocket cover causing the saw chain to jam. Always stop the motor before cleaning.

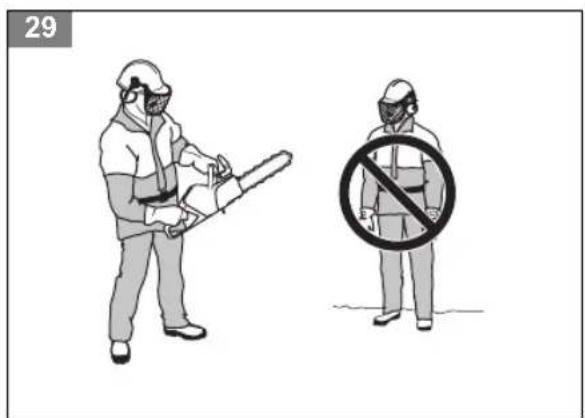

• Look around you. Make sure that there is no risk that persons or animals touch or influence on your control of the product.

(Fig. 29)

• Do not let children use or be near the product. The product is easy to start and children may be able to start it if they are not fully supervised. This can mean a risk of serious injury.
• Remove the battery when you do not have full view of the product or leave the product for any length of time.
• You must be stable on your feet in order to have full control of the product. Do not use the product if you are on a ladder or in a tree. Do not use the product if you are not on stable ground.

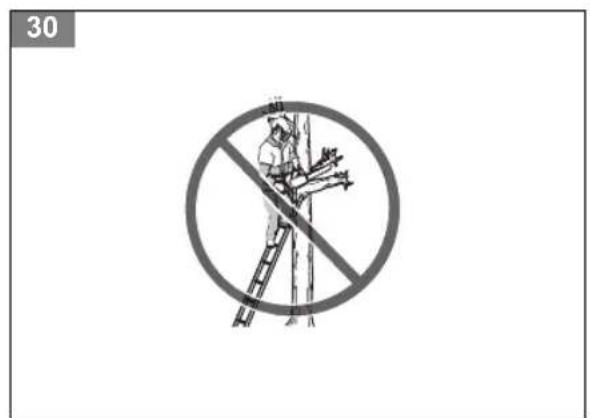

• Working in a tree requires the use of special cutting and working techniques which must be observed in order to reduce the increased risk of personal injury. Never work in a tree unless you have received specific, professional training for such work, including training in the use of safety and other climbing equipment, such as harnesses, ropes, belts, climbing irons, snap hooks, carabiners, etcetera.
• Never attempt to catch falling sections. Never cut in the tree when you are only secured with one rope. Always use two secured ropes.

(Fig. 30)

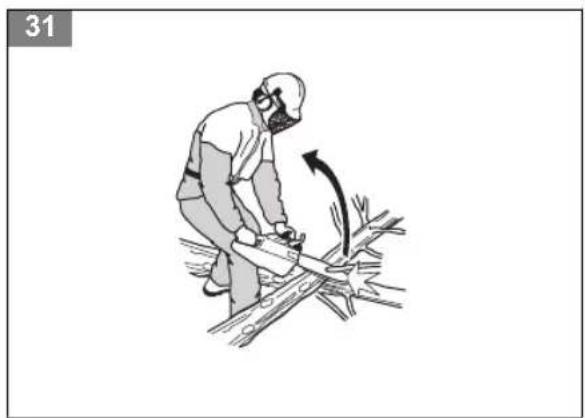

- If you are not careful, the risk of kickback increases. A kickback can occur if the kickback zone of the guide bar accidentally touches a branch, tree or other objects.

(Fig. 31)

• Do not hold the product with one hand. This product is not safely controlled with one hand.

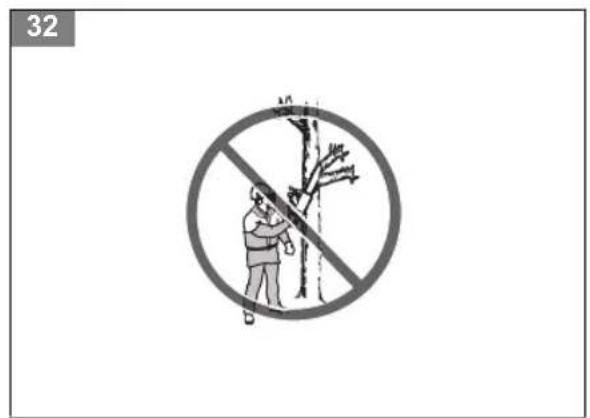

• Do not use the product above shoulder height and do not try to cut with the guide bar tip.

(Fig. 32)

• Do not use a product in a situation where you can not call for help if an accident occur.
• Stop the product and engage the chain brake before you move the product. Hold the product with the guide bar and saw chain pointing rearward. Put on a transportation guard on the guide bar before transportation or before you move it for any distance.
• When you put the product on the ground, engage the chain brake and have a constant view of the product. Stop the product and remove the battery before you leave your product for any length of time.

- There is a risk that wood chips get stuck in the drive system. This can cause the saw chain to get stuck. Always stop the product and remove the battery before you clean it.

• Make sure that you can move around safely. Examine the conditions and the terrain around you for possible obstacles such as roots, rocks, branches, ditches and more. Be careful when you do work on sloping ground.

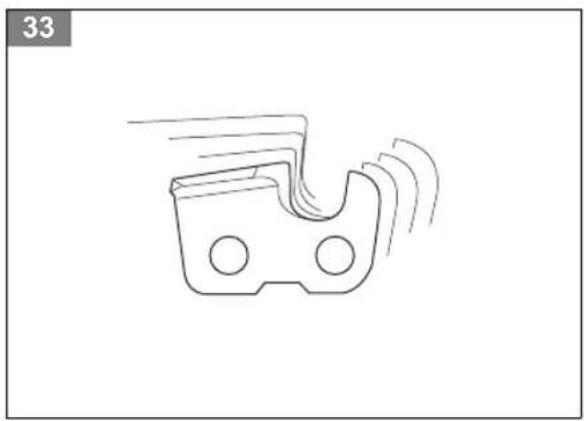

• The vibration level increases if you cut with cutting equipment that is incorrect or not correctly sharpened. Cutting hardwoods, such as broadleaf trees, causes more vibration than cutting softwoods, such as conifers.

(Fig. 33)

• Overexposure to vibration can lead to circulatory damage or nerve damage in persons who have decreased circulation. Speak to your physician if you experience symptoms of overexposure to vibration. Such symptoms include numbness, loss of feeling, tingling, pricking, pain, loss of strength, changes in skin colour or condition. These symptoms usually occur in the fingers, hands or wrists increases in cold temperatures.

- The vibration and noise emissions during actual use of the power tool can differ from the declared values depending on the ways in which the tool is used, especially what kind of workpiece is processed; Operators should identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

- Prevent situations which you think is beyond your capability.

- It is not possible to include each possible situation you can face when you use this product. Always be careful and use your common sense.

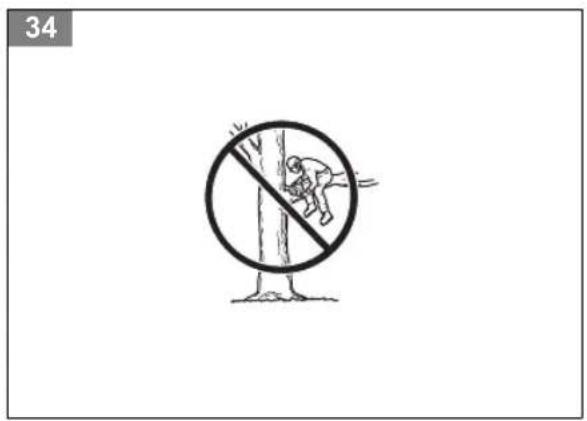

(Fig. 34)

Personal protective equipment

WARNING: Read the warning instructions that follow before you use the product.

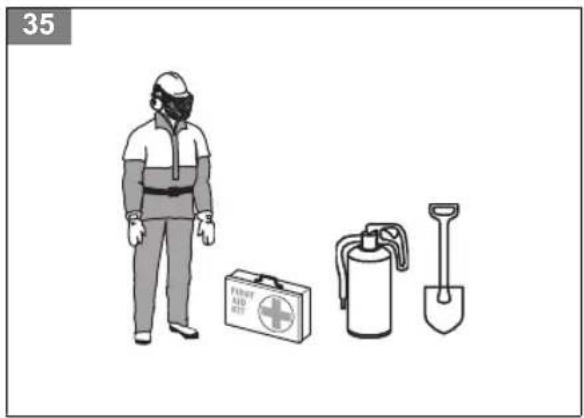

(Fig. 35)

• Most chainsaw accidents occur when the saw chain touches the operator. You must use approved personal protective equipment during operation. Personal protective equipment does not give you full protection from injuries but it decreases the degree of injury if an accident occurs. Speak to your servicing dealer for recommendations about which equipment to use.
• Your clothing must be close-fitting but not limit your movements. Regularly do a check of the condition of the personal protective equipment.
• Use an approved protective helmet.
• Use approved hearing protection. Long-term exposure to noise can result in permanent damage to the hearing.
• Use approved protective glasses or a face visor to decrease the risk of injury from thrown objects. The product can throw objects, such as wood chips, small pieces of wood and more, at large force. This can result in serious injury, especially to the eyes.
• Use gloves with saw protection.
• Use pants with saw protection.
• Use boots with saw protection, steel toe-cap and non-slip sole.
  • Always have a first-aid kit with you.
• Risk of sparks. Keep fire extinguishing tools and a shovel near to prevent forest fires.

Safety devices on the product

WARNING: Read the warning instructions that follow before you use the product.

• Do not use a product with safety devices that are damaged or do not operate correctly.
• Do a check of the safety devices regularly. Refer to Maintenance and checks of the safety devices on the product on page 36.
• If the safety devices are damaged or do not operate correctly, speak to your Husqvarna servicing dealer.

Functions of the user interface

The user interface includes the on/off button, the battery status, the warning indicator and brake indicator. The brake indicator is yellow if the chain brake is engaged. The warning indicator flashes red if there is a risk of overload or the product is too hot. When the warning indicator flashes red the product stops and you cannot use the product until the temperature decreases. If the warning indicator shows a solid light, speak to your servicing dealer.

(Fig. 36)

For more information about the user interface, refer to Product overview on page 20.

The automatic stop function

The product has an automatic stop function that stops the product if you do not use it for 3 minutes.

Chain brake and front hand guard

Your product has a chain brake that stops the saw chain if you get a kickback. The chain brake decreases the risk of accidents but only you can prevent them.

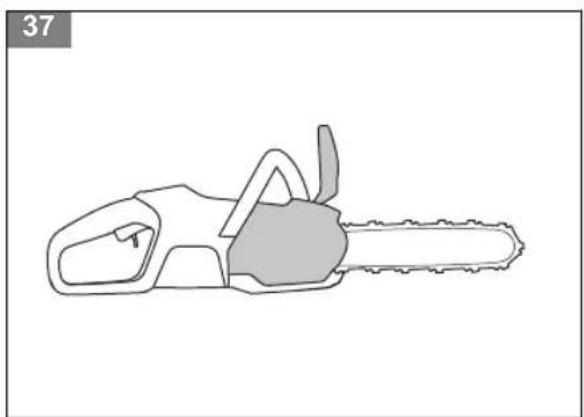

(Fig. 37)

WARNING: Do not engage in situations where there is a risk of kickback. Be careful when you use your product and make sure that the kickback zone of the guide bar does not touch an object.

(Fig. 38)

The chain brake engages (A) manually by your left hand or automatically by the inertia release mechanism. Push the front hand guard (B) forward to engage the chain brake manually. This movement starts a spring-loaded mechanism that stops the drive sprocket.

(Fig. 39)

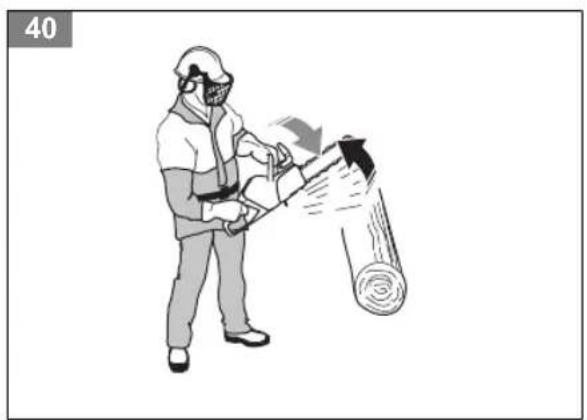

How the chain brake is engaged is in relation to the force of the kickback and position of the product. If you get an intense kickback while the kickback zone is farthest away from you, the chain brake engages by the inertia release. If the kickback is small or the kickback zone is nearer you, the chain brake engages manually by your left hand.

(Fig. 40)

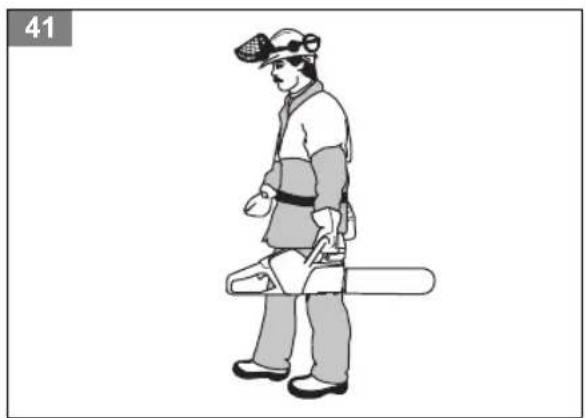

Use the chain brake as a parking brake when you start the product and when you move short distances. This decreases the risk that you or a person near you touches the saw chain.

(Fig. 41)

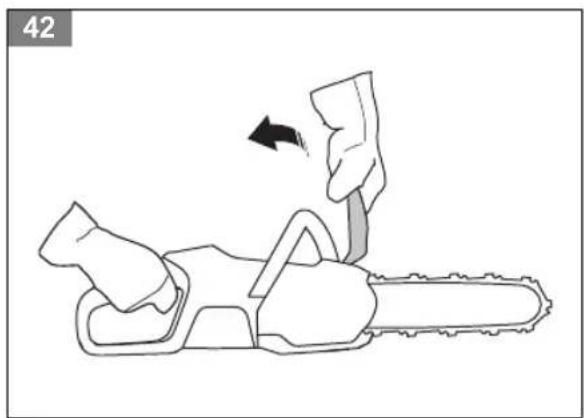

Pull the front hand guard rearward to disengage the chain brake.

(Fig. 42)

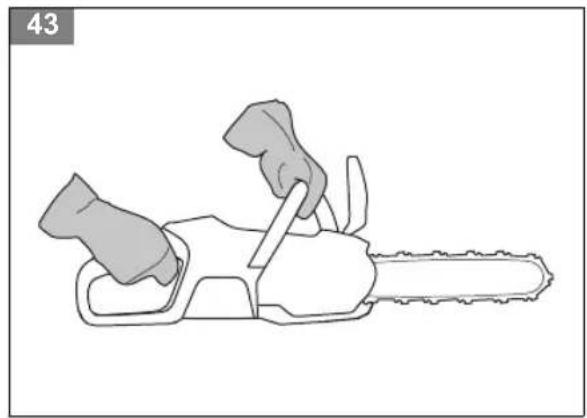

A kickback can be very sudden and intense. Most kickbacks are small and do not always engage the chain brake. If a kickback occurs when you use the product, hold tightly around the handles and do not let go.

(Fig. 43)

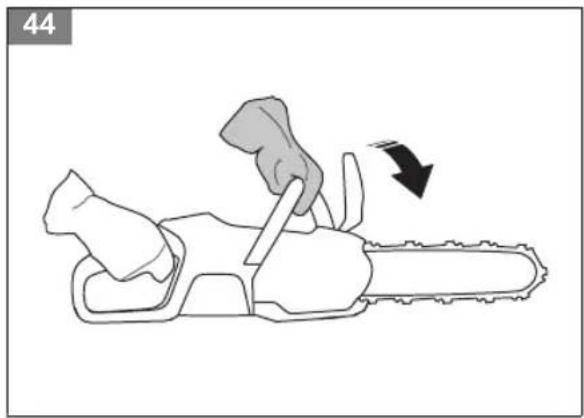

The front hand guard also decreases the risk to touch the saw chain if your hand lets go of the front handle.

(Fig. 44)

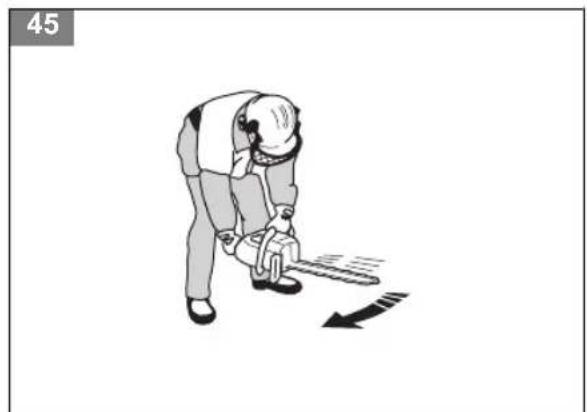

In the felling position you cannot engage the chain brake manually. The chain brake can in this position only be engaged by the inertia release mechanism.

(Fig. 45)

Power trigger lockout

The power trigger lockout prevents accidental operation of the power trigger. If you push the power trigger lockout forward (A), you can push the power trigger (B). If you release the handle, the power trigger and the power trigger lockout move back to their initial positions.

(Fig. 46)

Chain catcher

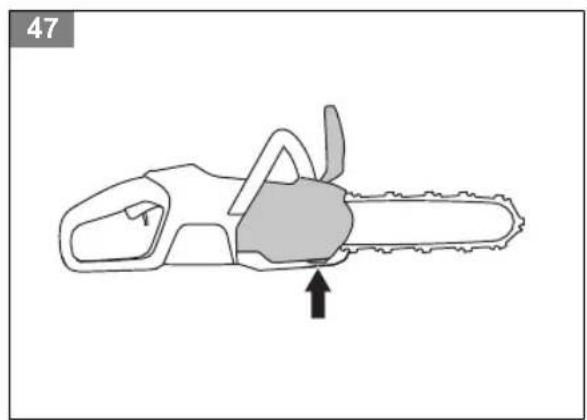

The chain catcher catches the saw chain if it breaks or comes loose. If you have the correct chain tension, the risk decreases. You also decrease the risk if you do the correct maintenance on the guide bar and saw chain. See Assembly on page 29 and Maintenance on page 35 for instructions.

(Fig. 47)

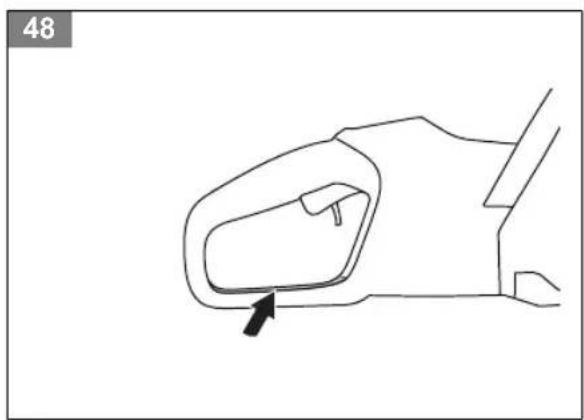

Right hand guard

The right hand guard works as a protection for your hand if the saw chain breaks or comes loose. It also prevents interference from branches and twigs when you use the product.

(Fig. 48)

Battery safety

WARNING: Read all the safety and general instructions. Failure to observe the safety and general instructions may result in electric shock, fire and / or serious injury. Keep all the safety information and general instructions for future reference.

• These safety instructions apply only to 18V Li-ion rechargeable batteries for the POWER FOR ALL system.
- Use the rechargeable battery only in products from POWER FOR ALL System partners. 18 V rechargeable batteries labelled with POWER FOR ALL are fully compatible with the following products:
- All products of the 18V POWER FOR ALL battery system.
- All 18 V products from POWER FOR ALL System partners.
- Observe the battery recommendations in the operating manual of your product. Only this way can the rechargeable battery and the product be operated without danger and the rechargeable batteries protected from hazardous overloading.
- Only charge the batteries using chargers recommended by the manufacturer or by POWER FOR ALL system partners. A charger that is suitable for one type of battery may pose a fire risk when used with a different battery.
• The battery is supplied partially charged. To ensure full battery capacity, fully charge the battery

in the charger before using your power tool for the first time.

• Keep battery packs out of the reach of children.
• Do not open the battery. There is a risk of shortcircuiting.
  • In case of damage and improper use of the battery, vapours may be emitted. The battery can set alight or explode. Ensure the area is well ventilated and seek medical attention should you experience any adverse effects. The vapours may irritate the respiratory system.
• If used incorrectly or if the battery is damaged, flammable liquid may be ejected from the battery. Contact with this liquid should be avoided. If contact accidentally occurs, rinse off with water. If the liquid comes into contact with your eyes, seek additional medical attention. Liquid ejected from the battery may cause irritation or burns.
• If the battery is damaged liquid can be ejected and cover nearby surfaces. Check affected parts. Clean these parts or change them if necessary.
• Do not short-circuit the battery pack. When the battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
• The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit may occur, causing the battery to burn, smoke, explode or overheat.
• Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.
• Protect the battery against heat, e. g. against continuous intense sunlight, fire, dirt, water and moisture. There is a risk of explosion and short-circuiting.
• Use the battery in the product only when the ambient temperature is between -5^ - 40^ .
• Only store the battery at an ambient temperature between -20°C — 50°C. Do not leave the battery in your car in the summer, for example. At temperatures of < 0 °C some devices may experience a loss of power.
• Only charge the battery at an ambient temperature which is between 0°C — 35°C. Charging outside of this temperature range can increase the risk of damage to the battery and pose a fire hazard.

Battery charger safety

WARNING: Read all the safety and general instructions. Failure to observe the safety and general instructions may result in electric shock, fire and / or serious

injury. Store these instructions in a safe place. Only use the charger if you can fully evaluate all functions and carry them out without restrictions, or if you have received corresponding instructions.

- This charger is not intended for use by children or persons with physical, sensory or mental limitations or a lack of experience or knowledge. This charger can be used by children aged 8 or older and by persons who have physical, sensory or mental limitations or a lack of experience or knowledge if a person responsible for their safety supervises them or has instructed them in the safe operation of the charger and they understand the associated dangers. Otherwise, there is a risk of operating errors and injuries.

• Supervise children during use, cleaning and maintenance. This will ensure that children do not play with the charger.

- Only charge 18V POWER FOR ALL system batteries with a capacity of 1.5 Ah and above. The battery voltage must match the battery charging voltage of the charger. Do not charge any non-rechargeable batteries. Otherwise there is a risk of fire and explosion.

- Only use the charger in enclosed spaces and do not expose it to wet conditions. Water entering a power tool will increase the risk of electric shock.

- Keep the charger clean. Dirt poses a risk of electric shock.

• Always check the charger, cable and plug before use. Stop using the charger if you discover any damage. Do not open the charger yourself, and have it repaired only by Husqvarna or by an authorised after-sales service centre using only original replacement parts. Damaged chargers, cables and plugs increase the risk of electric shock.

- Do not operate the charger on an easily ignited surface (e. g. paper, textiles, etc.) or in a flammable environment. There is a risk of fire due to the charger heating up during operation.

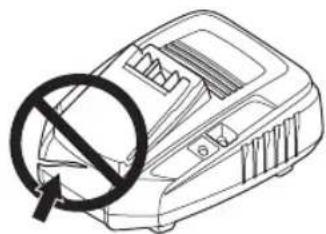

- Do not cover the ventilation slots of the charger. Otherwise, the charger may overheat and no longer function properly.

- Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

- In case of damage and improper use of the battery, vapours may also be emitted. Ensure the area is well ventilated and seek medical attention should you experience any adverse effects. The vapours may irritate the respiratory system.

• Under abusive conditions, liquid may be ejected from the battery. Contact with this liquid should be avoided. If contact accidentally occurs, rinse off with water. If the liquid comes into contact with your eyes, seek additional medical

attention. Liquid ejected from the battery may cause irritation or burns.

- Products sold in GB only: Your product is fitted with an BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362). If the plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place by an authorised customer service agent. The replacement plug should have the same fuse rating as the original plug. The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains socket elsewhere.

Safety instructions for maintenance

WARNING: Read the warning instructions that follow before you do maintenance on the product.

• Remove the battery before you do maintenance, other checks or assemble the product.
• The operator must only do the maintenance and servicing shown in this operator's manual. Turn to your servicing dealer for maintenance and servicing of a larger extension.
• Do not clean the battery or the battery charger with water. Strong detergent can cause damage to the plastic.
• If you do not do maintenance, it decreases the life cycle of the product and increases the risk of accidents.
• Special training is necessary for all servicing and repair work, especially for the safety devices on the product. If not all checks in this operator's manual are approved after you have done maintenance, turn to your servicing dealer. We guarantee that there are professional repairs and servicing available for your product.
• Only use original spare parts.

Safety instructions for the cutting equipment

WARNING: Read the warning instructions that follow before you use the product.

• Only use approved guide bar/saw chain combinations and filing equipment. Refer to Technical data on page 41 for instructions.
• Use protective gloves when you use or do maintenance on the saw chain. A saw chain that does not move can also cause injuries.
• Keep the cutting teeth correctly sharpened. Obey the instructions and use the recommended file gauge. A saw chain that is damaged or incorrectly sharpened increases the risk of accidents.

(Fig. 49)

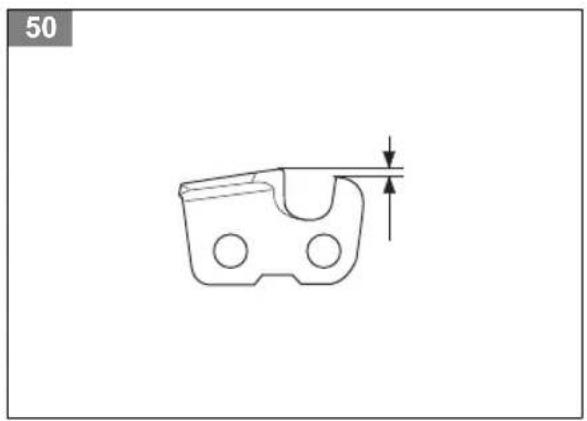

- Keep the correct depth gauge setting. Obey the instructions and use the recommended depth gauge setting. Too large depth gauge setting increases the risk of kickback.

(Fig. 50)

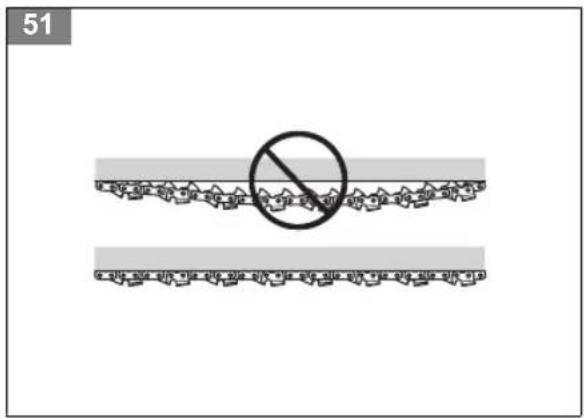

- Make sure that the saw chain has the correct tension. If the saw chain is not tight against the guide bar, the saw chain can derail. An incorrect saw chain tension increases wear on the guide bar, saw chain

and chain drive sprocket. Refer to Accessories on page 42.

(Fig. 51)

- Do maintenance on the cutting equipment regularly and keep it correctly lubricated. If the saw chain is not correctly lubricated, the risk of wear on the guide bar, saw chain and chain drive sprocket increases.

(Fig. 52)

Assembly

To assemble the guide bar and saw chain

WARNING: Always remove the battery before you assemble or do maintenance on the product.

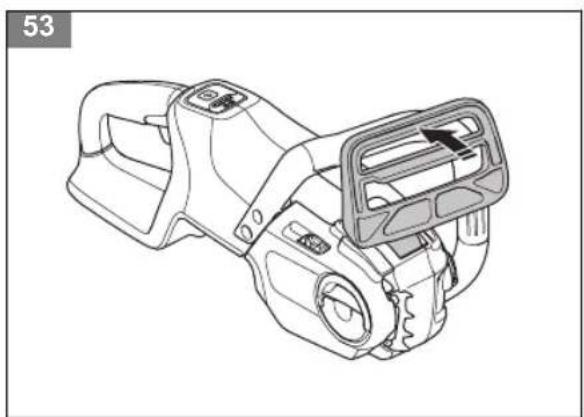

1. Disengage the chain brake. (Fig. 53)

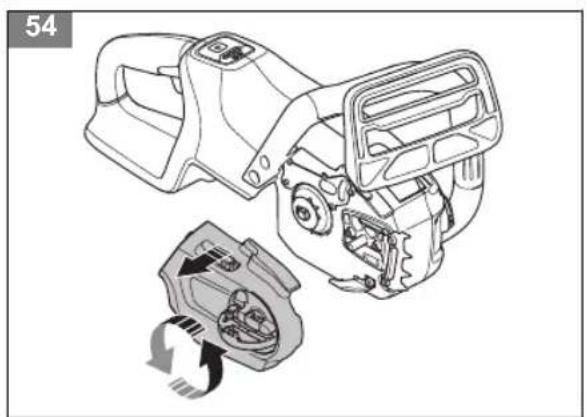

2. Loosen the knob and remove the drive sprocket cover. (Fig. 54)

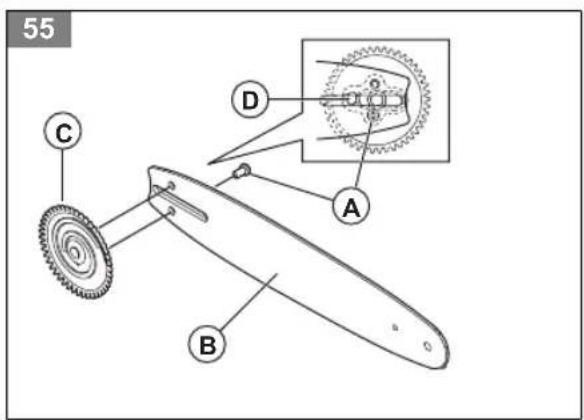

3. Put the tension wheel (C) on the guide bar (B). Make sure that detail (D) on the tension wheel points forward. Make sure that the 2 pins on the tension wheel engage in the holes on the guide bar. (Fig. 55)

4. Install the screw (A) and tighten it.

5. Put the saw chain in position on the guide bar. Start on the top edge of the guide bar. Make sure that the edges of the cutters point forward on the top edge of the guide bar.

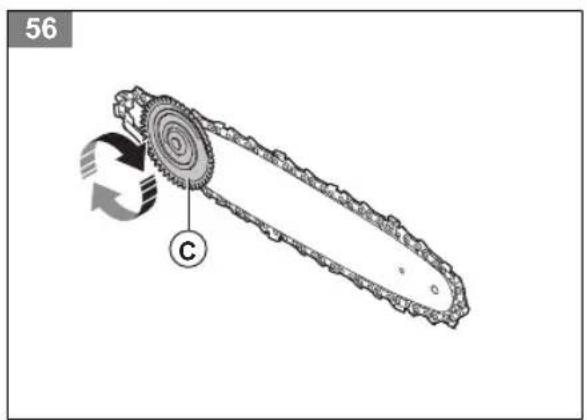

6. Turn the tension wheel (C) clockwise as far as it will go. (Fig. 56)

7. Lift the saw chain above the drive sprocket and put the guide bar together with the tension wheel in position. Make sure that the parts are assembled correctly as shown in the illustration below: (Fig. 57)

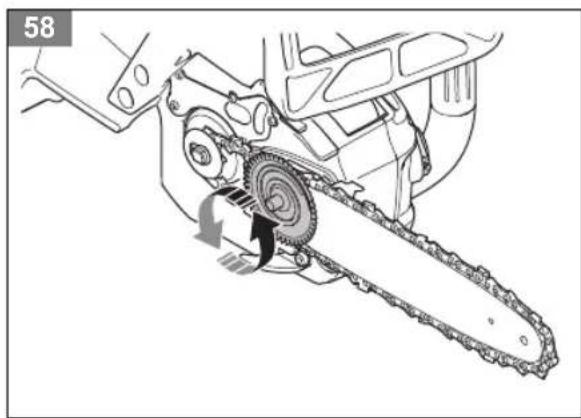

8. Rotate the tension wheel counterclockwise to apply tension to the saw chain. Make sure that the guide bar are tight against the saw and that the saw chain is correctly engaged in the groove on the guide bar. (Fig. 58)

Note: The saw chain is tightened correctly when you can turn is easily by hand but is tight against the

guide bar. Refer to To tighten the saw chain on page 38.

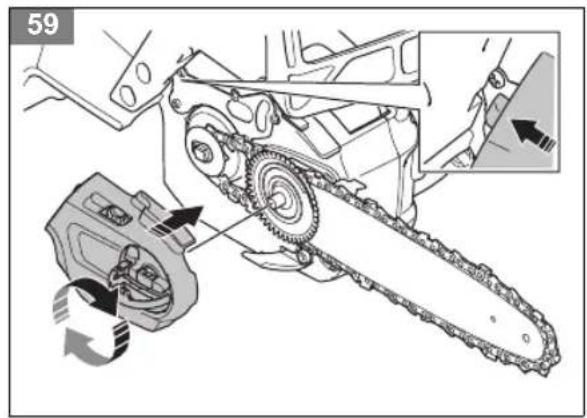

1. Install the drive sprocket cover. Make sure that the flange on the cover is put correctly in the hole on the front handle. (Fig. 59)
2. Tighten the bar knob.

To install the hook on the wall

• Install the hook indoors.
- Keep the hook out of sunlight and in ambient temperature of -10^ to 70^ .
• Install the hook on a drywall, wood or concrete wall.

CAUTION: Make sure that the wall can hold loads of minimum 30 kg.

• Install the hook on the wall with the 3 screws (A). Use wall plugs (B) if it is necessary. (Fig. 60)

CAUTION: Make sure that the screws are applicable for your wall type.

- Speak to your Husqvarna service agent for information about available storage accessories for your product.

To hang the product on the hook

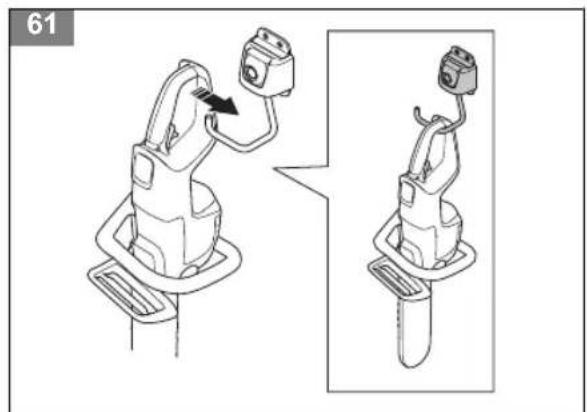

- Hang the chainsaw on the hook as shown in the illustration: (Fig. 61)

Operation

Introduction

WARNING: Read and understand the safety chapter before you use the product.

To do a function check before you use the product

1. Do a check of the chain brake (A) to make sure that it operates correctly and that it is not damaged.

2. Do a check of the rear right hand guard (B) to make sure that it is not damaged.

3. Do a check of the power trigger and the power trigger lockout (C) to make sure that they operate correctly and that they are not damaged.

4. Do a check of the user interface (D) to make sure that it operates correctly.
5. Make sure that there is no oil on the handles (E).
6. Do a check to make sure that all parts are correctly attached and not damaged or missing.
7. Do a check of the chain catcher (F) to make sure that it is attached correctly.
8. Do a check of the chain tension (G).
9. Charge the battery (H) and make sure that it is correctly attached to the product.
10. Make sure that the saw chain stops when you release the power trigger. (Fig. 62)

To use the correct chain oil

WARNING: Do not use waste oil, which can cause injury to you and the environment. Waste oil also causes damage to the oil pump, the guide bar and the saw chain.

WARNING: The saw chain can break if the lubrication of the cutting equipment is not sufficient. Risk of serious injury or death to the operator.

WARNING: Use the correct chain oil for this function to operate correctly. Speak to your servicing dealer when you select your chain oil.

• Use Husqvarna chain oil for maximum saw chain life and to prevent negative effects on the environment. If Husqvarna chain oil is not available, we recommend you to use a standard chain oil.
• Use a chain oil with good adherence to the saw chain.
• Use a chain oil with correct viscosity range that agrees with the air temperature.

CAUTION: In temperatures below 0°C/32°F some chain oils become too thick, which can cause damage to the oil pump components.

• Use the recommended cutting equipment. Refer to Accessories on page 42.
• Remove the cap to the chain oil tank.
• Fill the chain oil tank with chain oil.
• Attach the cap carefully.

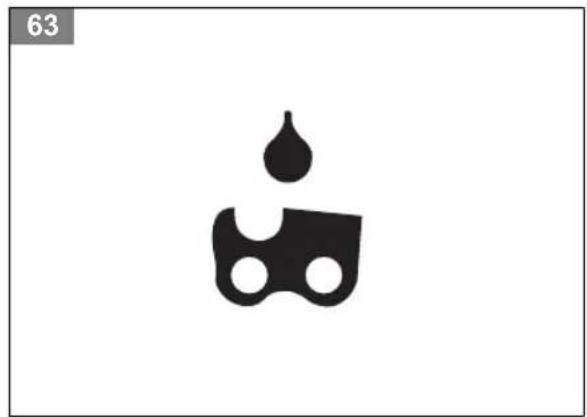

(Fig. 63)

Note: To see where the chain oil tank is on you product, refer to Introduction on page 20.

Battery

WARNING: Before you use the battery, you must read and understand the safety chapter. You must also read and understand the operator's manual for the battery and the battery charger.

Keep the battery and the battery charger in correct ambient temperatures.

	Ambient temperature
Operation of the battery in the product	-5°C — 40°C
Charging of the battery	0°C — 35°C

To charge the battery

Charge the battery before the first use.

Note: The charging process is only possible when the temperature of the battery is within the permitted charging temperature range ((0–35 °C)).

1. Connect the power cord for the battery charger in a grounded mains socket.

CAUTION: Make sure that the mains socket has the correct voltage and frequency.

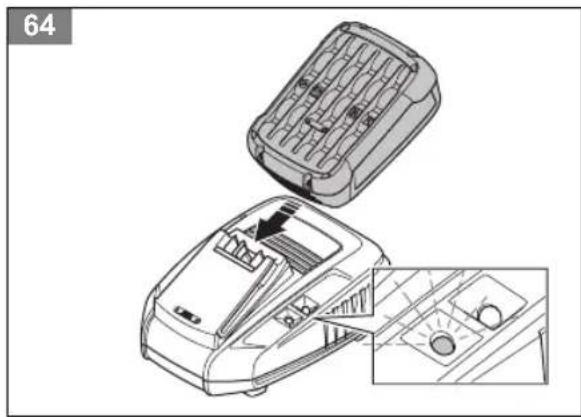

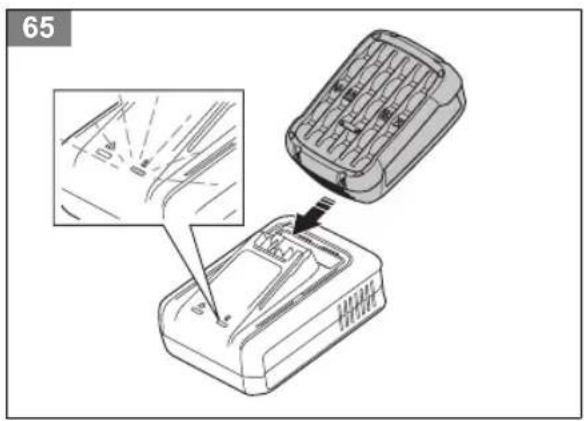

1. Put the battery in the battery charger. The battery is connected to the battery charger when the green LED flashes. (Fig. 64) (Fig. 65)
2. The battery is fully charged when the green LED on the battery charger is on. Charge the battery for maximum 24 hours.
3. Disconnect the battery charger from the mains.

CAUTION: Do not pull the power cord.

1. Remove the battery from the battery charger.

Battery status LED on the battery charger

The red LED (A) and the green LED (B) on the battery charger show the battery status. Refer to Battery status LED on the battery charger on page 30.

(Fig. 66)

LED Battery status
The green LED flashes quickly.	The battery is charging.
The green LED flashes slowly.	The battery is 80% charged.
The green LED is on. The battery is fully charged.
The red LED is on. Refer to Battery charger on page 40.
The red LED flashes quickly.	Refer to Battery charger on page 40.

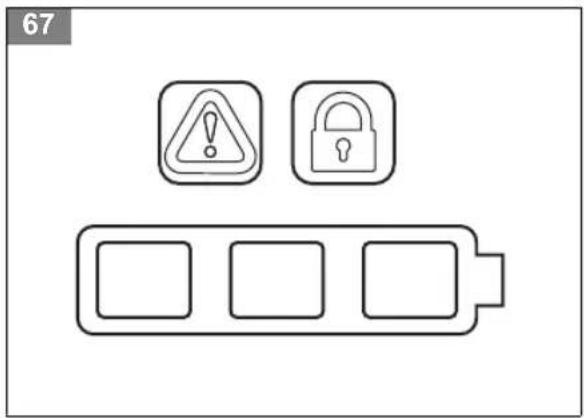

Battery status LED on the product

When the battery is installed in the product, the LEDs on the product show the battery status.

(Fig. 67)

LED	Battery status
LED 1, 2 and 3 are lit.	Fully charged.
LED 1 and 2 are lit. Sufficiently charged
LED 1 is lit. The battery power is low.
LED 1 flashes. The battery is empty. The battery status indicator flashes.Charge the battery. Refer to To charge the battery on page 30 .

To connect the battery to the product

WARNING: Only use the battery with products of the POWER FOR ALL system 18V.

1. Make sure that the battery is fully charged.

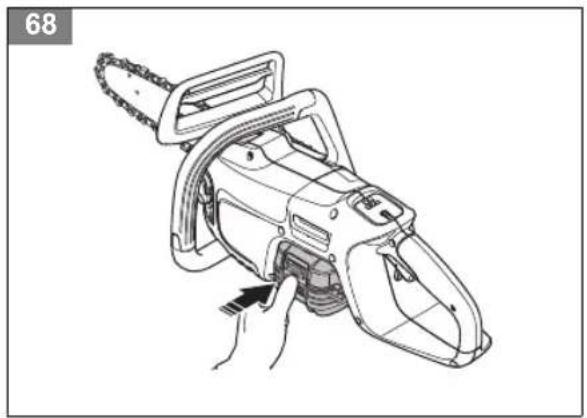

2. Slide the battery into the battery holder of the product. The battery must slide into the holder easily, if not, it is not installed correctly. (Fig. 68)
3. The battery locks into position when you hear a click.

Automatic shutdown function

The product has an automatic shutdown function that stops the product if it is not used. The product shuts down after 3 minutes.

Kickback information

WARNING: A kickback can cause serious injury or death to the operator or others. To decrease the risk you must know

the causes of kickback and how to prevent them.

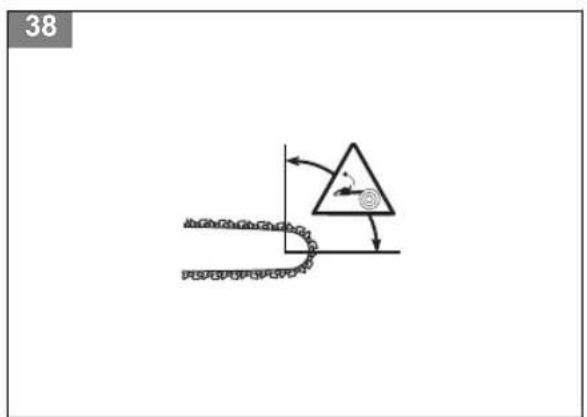

A kickback occurs when the kickback zone of the guide bar touches an object. A kickback can occur suddenly and with large force, which throws the product in the direction of the operator.

(Fig. 38)

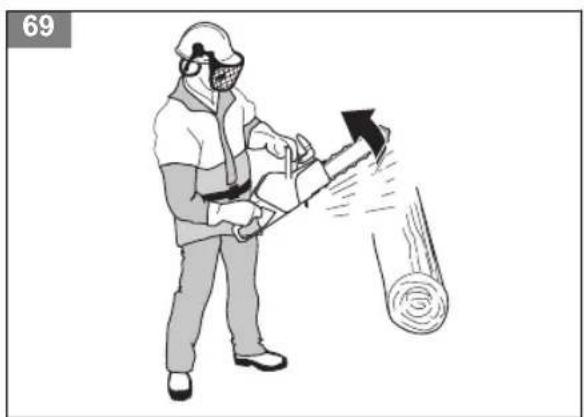

Kickback always occurs in the cutting plane of the guide bar. Usually, the product is thrown against the operator but can also move in a different direction. It is how you use the product when the kickback occurs that causes the direction of the movement.

(Fig. 69)

Kickback only occurs if the kickback zone of the guide bar touches an object. Do not let the kickback zone touch an object.

(Fig. 38)

A smaller bar tip radius decreases the force of the kickback.

Use a low kickback saw chain to decrease the effects of kickback. Do not let the kickback zone touch an object.

WARNING: No saw chain fully prevents kickback. Always obey the instructions.

Common questions about kickback

- Will the hand always engage the chain brake during a kickback?

No. It is necessary to use some force to push the front hand guard forward. If you do not use the force necessary, the chain brake will not be engaged. You must also hold the handles of the product stable with two hands during work. If a kickback occurs, it is possible that the chain brake does not stop the saw chain before it touches you. There are also some positions in which your hand can not touch the front hand guard to engage the chain brake.

- Will the inertia release mechanism always engage the chain brake during kickback?

No. First, the chain brake must operate correctly. Refer to Maintenance and checks of the safety devices on the product on page 36 for instructions about how to do a check of the chain brake. We recommend you to do this each time before you use the product. Second, the force of the kickback must be large to engage the chain brake. If the chain brake is too sensitive, it can engage during rough operation.

- Will the chain brake always protect me from injury during a kickback?

No. The chain brake must operate correctly to give protection. The chain brake must also be engaged during a kickback to stop the saw chain. If you are

near the guide bar, it is possible that the chain brake does not have time to stop the saw chain before it hits you.

WARNING: Only you and the correct working technique can prevent kickbacks.

To start the product

1. Do a check of the power trigger and power trigger lockout. Refer to To do a check of the power trigger lockout on page 36.

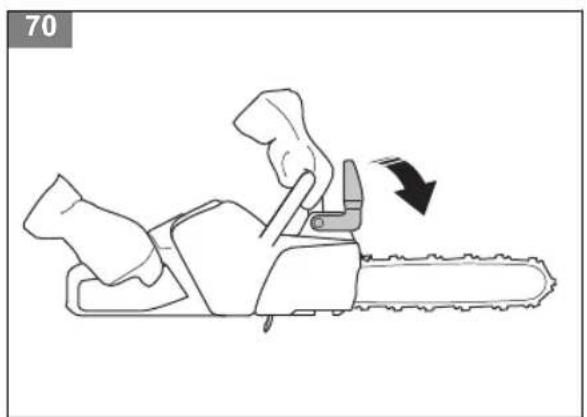

2. Engage the chain brake. (Fig. 70)

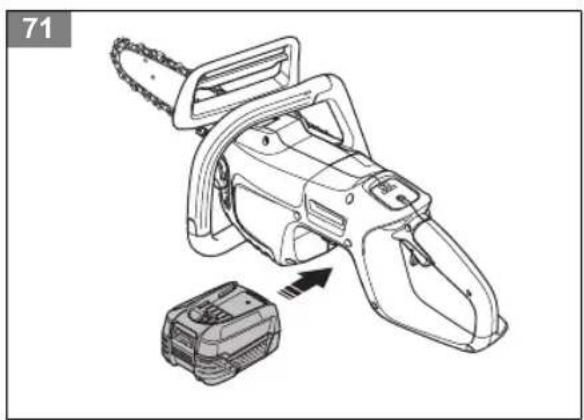

3. Put the battery in the battery holder. (Fig. 71)

CAUTION: Make sure that the battery is installed correctly into the battery holder. If the battery does not move easily into the battery holder, the position is not correct.

1. Push on the lower part of the battery until you hear a click sound. (Fig. 68)

2. Push and hold the on/off button until the green LED comes on. (Fig. 72)

To stop the product

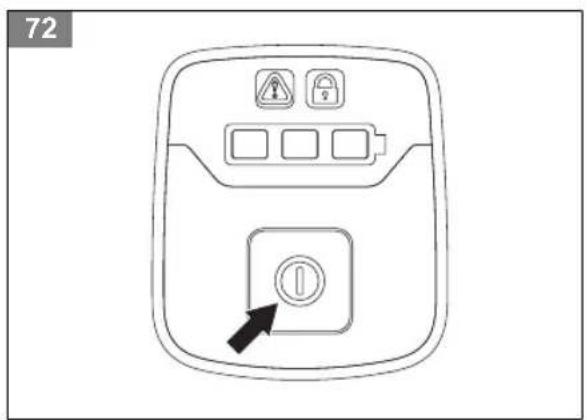

1. Push the on/off button until the green LED light goes off. (Fig. 72)

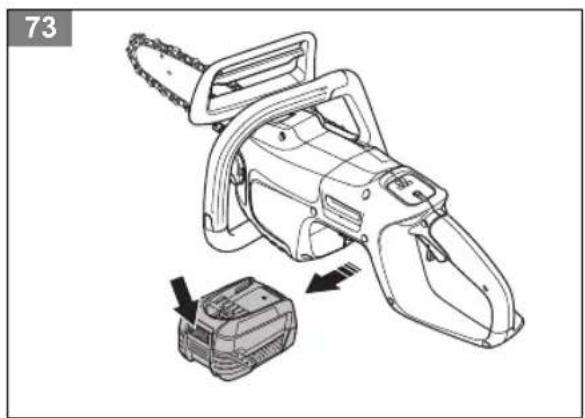

2. Push the battery release button and remove the battery from the battery holder to prevent accidental start. (Fig. 73)

Pull stroke and push stroke

You can cut through wood with the product in 2 different positions.

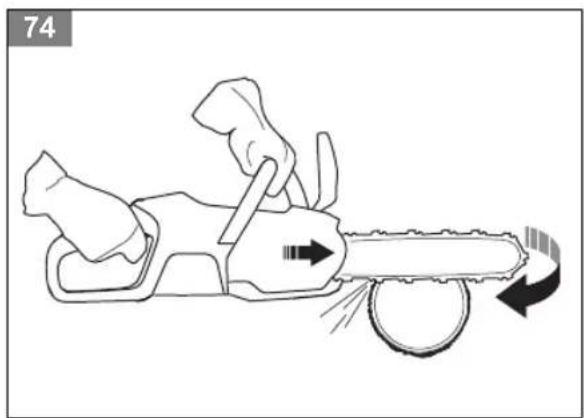

• To cut on the pull stroke is when you cut with the bottom of the guide bar. The saw chain pulls through the tree when you cut. In this position you have better control of the product and the position of the kickback zone.

(Fig. 74)

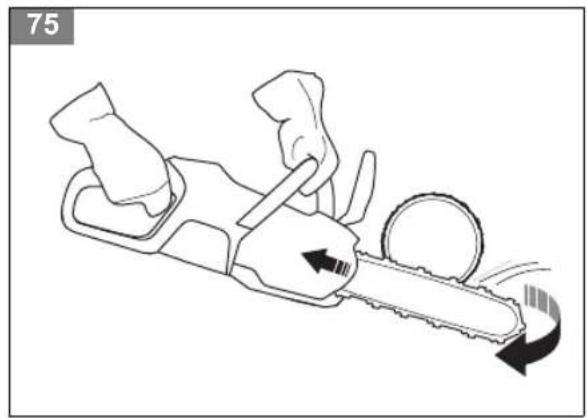

• To cut on the push stroke is when you cut with the top of the guide bar. The saw chain pushes the product in the direction of the operator.

(Fig. 75)

WARNING: If the saw chain is caught in the trunk, the product can be pushed at you. Hold the product tightly and make sure that the kickback zone of the guide bar does not touch the tree and causes a kickback.

(Fig. 76)

To use the cutting technique

CAUTION: Do not let the motor operate for too long without load. This can cause damage to the motor.

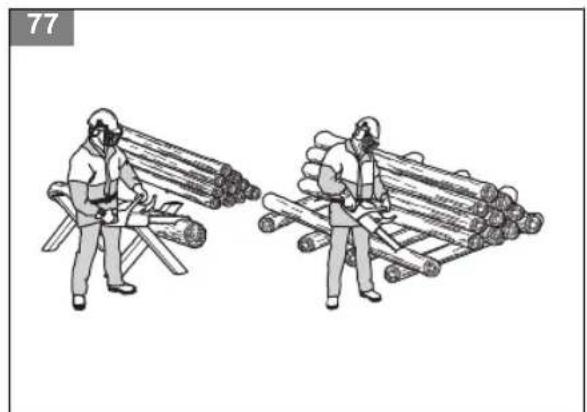

1. Put the trunk on a saw horse or runners. (Fig. 77)

WARNING: Do not cut trunks in a pile. That increases the risk of kickback and can cause serious injury or death.

1. Remove the cut pieces from the work area.

WARNING: Cut pieces in the work area increase the risk of kickback and that you cannot keep your balance.

To use the spiked bumper

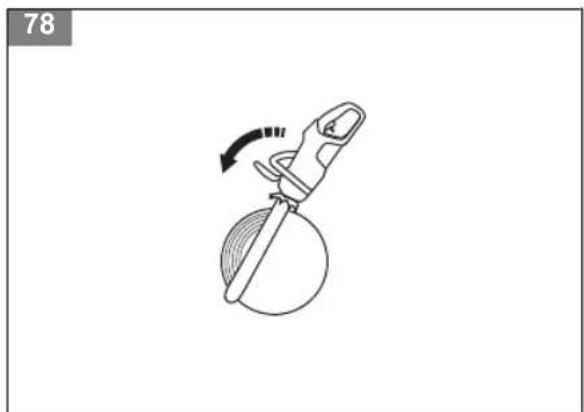

1. Push the spiked bumper into the trunk of the tree.
2. Apply full power and rotate the product. Keep the spiked bumper against the trunk. This procedure makes it easier to apply the force necessary to cut through the trunk. (Fig. 78)

To cut a trunk on the ground

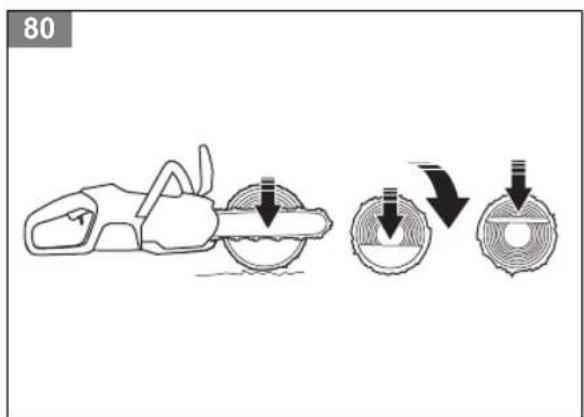

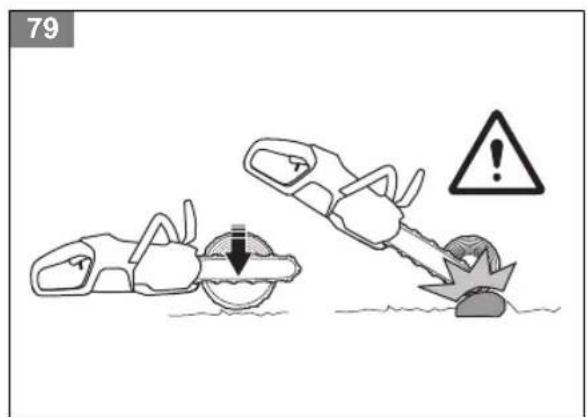

1. Cut through the trunk on the pull stroke. Keep full power but be prepared for sudden accidents. (Fig. 79)

WARNING: Make sure that the saw chain does not touch the ground when you complete the kerf.

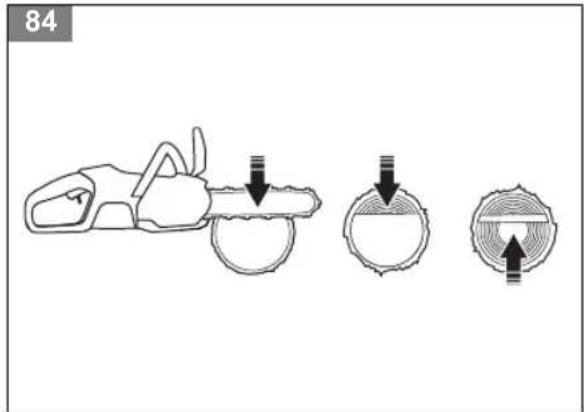

1. Cut approximately 13 through the trunk and then stop. Turn the trunk and cut from the opposite side. (Fig. 80)

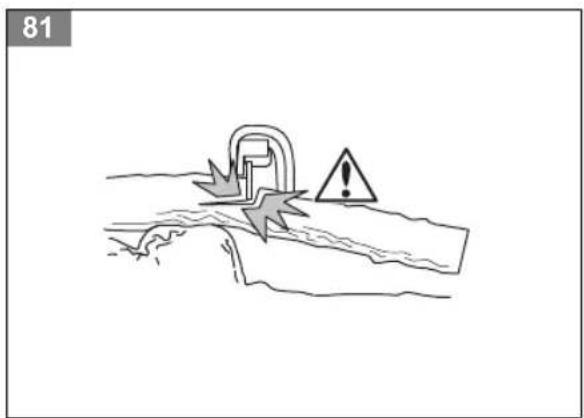

To cut a trunk that has support on one end

WARNING: Make sure that the trunk does not break during cutting. Obey the instructions below.

(Fig. 81)

1. Cut on the push stroke approximately 13 through the trunk.
2. Cut through the trunk on the pull stroke until the two kerfs touch. (Fig. 82)

To cut a trunk that has support on two ends

WARNING: Make sure that the saw chain does not get caught in the trunk during cutting. Obey the instructions below.

(Fig. 83)

1. Cut on the pull stroke approximately 13 through the trunk.
2. Cut through the remaining part of the trunk on the push stroke to complete the cut. (Fig. 84)

WARNING: Stop the motor if the saw chain gets caught in the trunk. Use a lever to open up the kerf and remove the product. Do not try to pull the product out by hand. This can result in injury when the product suddenly breaks free.

To use the limbing technique

Note: For thick branches, use the cutting technique. Refer to To use the cutting technique on page 32.

WARNING: There is a high accident risk when you use the limbing technique. Refer to Kickback information on page 31 for instructions how to prevent kickback.

WARNING: Cut limbs one by one. Be careful when you remove small limbs and do not cut bushes or many small limbs at the same time. Small limbs can get caught in the saw chain and prevent safe operation of the product.

Note: If it is necessary, cut the limbs piece by piece. Cut the smaller branches (A) and (B) before you cut the limb near the trunk (C).

(Fig. 85)

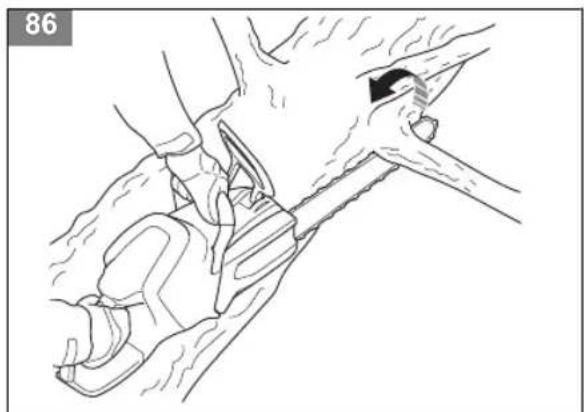

1. Remove the limbs on the right side of the trunk.
   a) Keep the guide bar on the right side of the trunk and keep the body of the product against the trunk.
   b) Select the applicable cutting technique for the tension in the branch. (Fig. 86)

WARNING: If you are not sure about how to cut the branch, speak to a professional chainsaw operator before you continue.

1. Remove the limbs on the top of the trunk.

a) Keep the product on the trunk and let the guide bar move along the trunk.

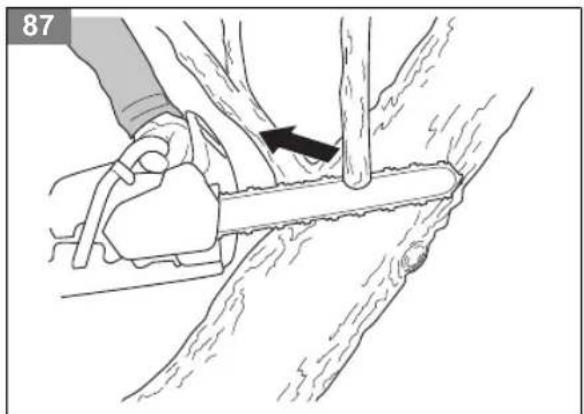

b) Cut on the push stroke. (Fig. 87)

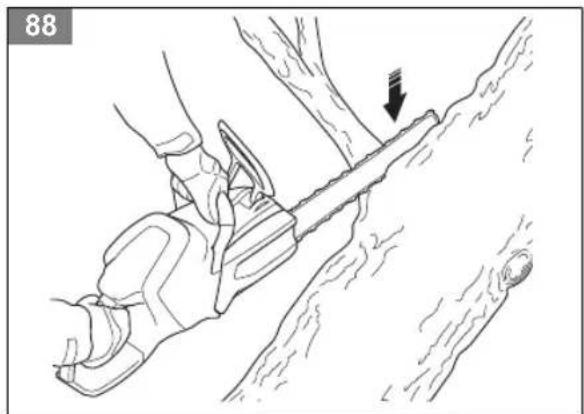

1. Remove the limbs on the left side of the trunk.

a) Select the applicable cutting technique for the tension in the branch. (Fig. 88)

WARNING: If you are not sure about how to cut the branch, speak to a professional chainsaw operator before you continue.

Refer to To cut trees and branches that are in tension on page 35 for instructions on how to cut branches that are in tension.

To use the tree felling technique

WARNING: You must have experience to fell a tree. If possible, engage in a training course in chainsaw operation. Speak to an operator with experience for more knowledge.

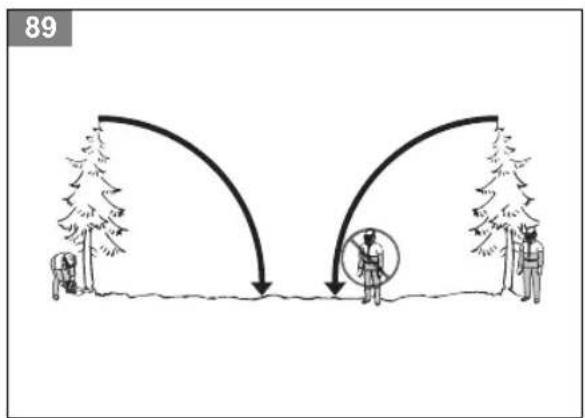

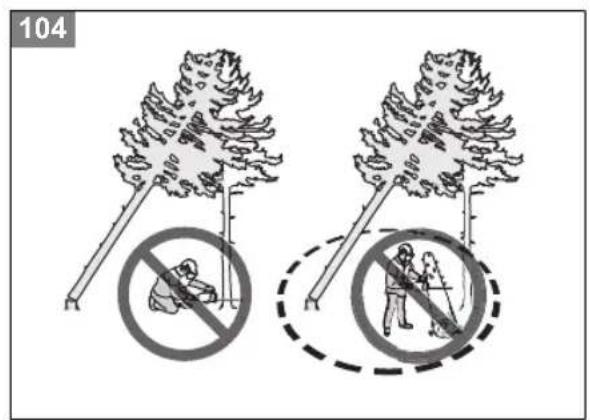

To keep a safe distance

1. Make sure that persons around you keep a safe distance at a minimum of 2 1/2 tree lengths. (Fig. 89)
2. Make sure that no person is in the risk zone before or during felling. (Fig. 90)

To calculate the felling direction

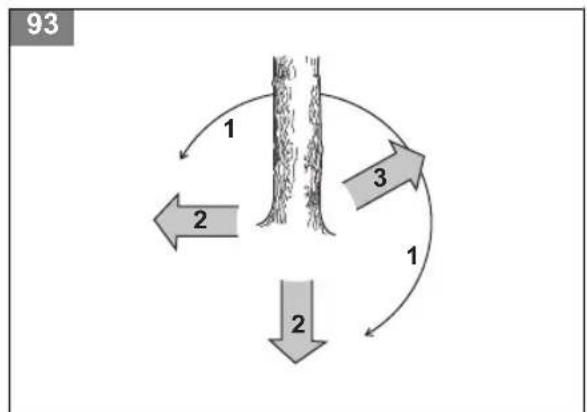

1. Examine in which direction it is necessary for the tree to fall. The goal is to fell it in a position where you can limb and cut the trunk easily. It is also important that you are stable on your feet and can move about safely.

WARNING: If it is dangerous or not possible to fell the tree in its natural direction, fell the tree in a different direction.

1. Examine the natural fall direction of the tree. For example the tilt and bend of the tree, wind direction, the location of the branches and weight of snow.

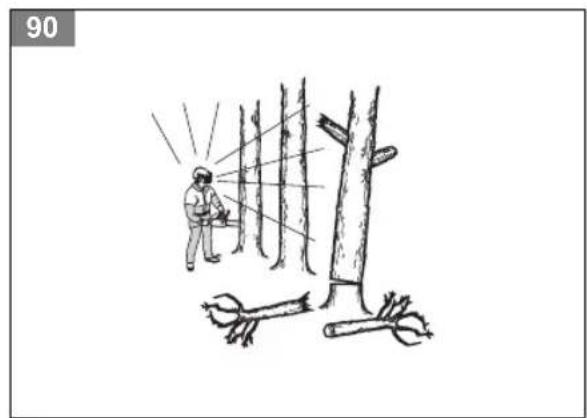

2. Examine if there are obstacles, for example other trees, power lines, roads and/or buildings around.
3. Look for signs of damage and rot in the stem.

WARNING: Rot in the stem can mean a risk that the tree falls before you complete the cutting.

1. Make sure the tree has no damaged or dead branches that can break off and hit you during felling.
2. Do not let the tree fall onto a different standing tree. It is dangerous to remove a caught tree and there is a high accident risk. Refer to To free a trapped tree on page 34. (Fig. 91)

WARNING: During critical felling operations, lift your hearing protection immediately when the sawing is

complete. It is important that you hear sounds and warning signals.

To clear the trunk and prepare your path of retreat

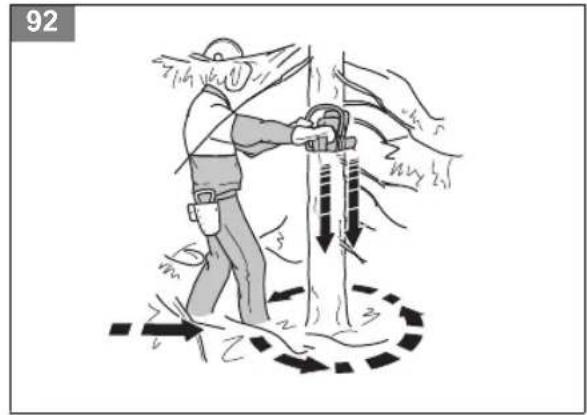

Cut off all branches from your shoulder height and down.

1. Cut on the pull stroke from the top down. Make sure that the tree is between you and the product. (Fig. 92)
2. Remove undergrowth from the work area around the tree. Remove all cut off material from the work area.

3. Do a check of the area for obstacles such as stones, branches and holes. You must have a clear path of retreat when the tree starts to fall. Your path of retreat must be approximately 135 degrees away from the felling direction.

4. The danger zone

5. The path of retreat

6. The felling direction

(Fig. 93)

To fell a tree

Husqvarna recommends you to make the directional cuts and then use the safe corner method when you fell a tree. The safe corner method helps you to make a correct felling hinge and control the felling direction.

WARNING: Do not fell trees with a diameter that is more than two times larger than the guide bar length. For this, you must have special training.

The felling hinge

The most important procedure during tree felling is to make the correct felling hinge. With a correct felling hinge, you control the felling direction and make sure that the felling procedure is safe.

The thickness of the felling hinge must be equal and a minimum of 10% of the tree diameter.

WARNING: If the felling hinge is incorrect or too thin, you have no control of the felling direction.

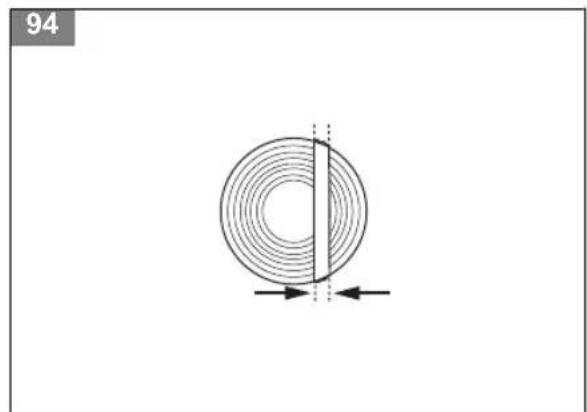

(Fig. 94)

To make the directional cuts

1. Make the directional cuts. Run the directional cuts 1/4 of the diameter of the tree. Make a 45^ angle between the top cut and bottom cut.

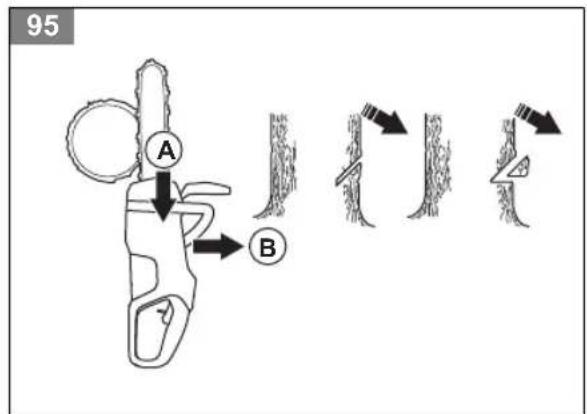

a) Make the top cut first. Align the felling direction mark (A) of the product with the felling direction of the tree (B). Stay behind the product and keep the tree on your right side. Cut with a pull stroke.

b) Make the bottom cut. Make sure that the end of the bottom cut is at the same point as the end of the top cut. (Fig. 95)

1. Make sure that the directional cut line is perfectly horizontal and at right angles (90°) to the felling direction. The directional cut line goes through the point where the two directional cuts touch. (Fig. 96)

To use the safe corner method

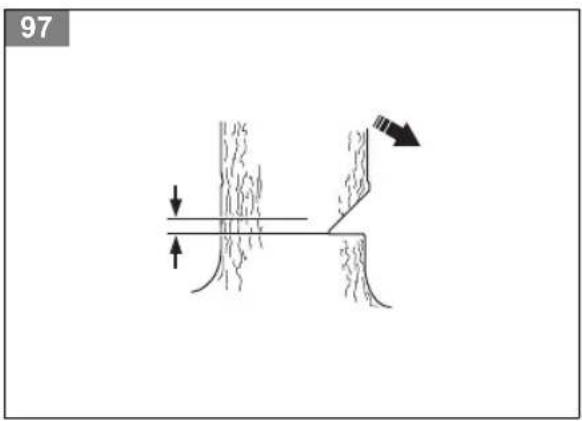

The felling cut must be made slightly above the directional cut.

(Fig. 97)

WARNING: Be careful when you cut with the guide bar tip. Start to cut with the lower section of the guide bar tip as you make a bore cut into the trunk.

(Fig. 98)

1. If the usable cutting length is longer than the tree diameter, do these steps (a-d).

a) Make a bore cut straight into the trunk to complete the felling hinge width. (Fig. 99)
b) Cut on the pull stroke until 13 of the trunk is left.
c) Pull the guide bar 5-10 cm/2-4 in rearward.
d) Cut through the remaining of the trunk to complete a safe corner that is 5-10 cm/2-4 in wide. (Fig. 100)

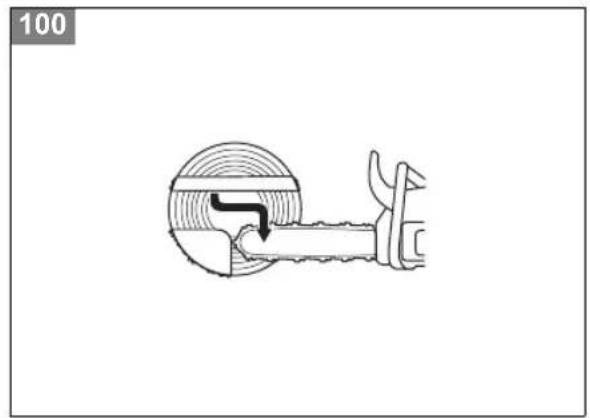

1. If the usable cutting length is shorter than the tree diameter, do these steps (a-d).

a) Make a bore cut straight into the trunk. The bore cut must extend 3/5 of the tree diameter.

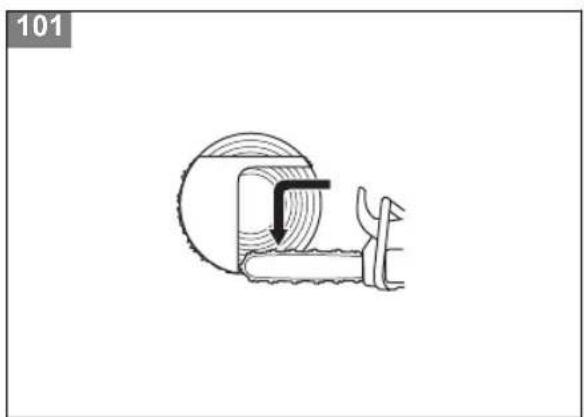

b) Cut on the pull stroke through the remaining trunk. (Fig. 101)

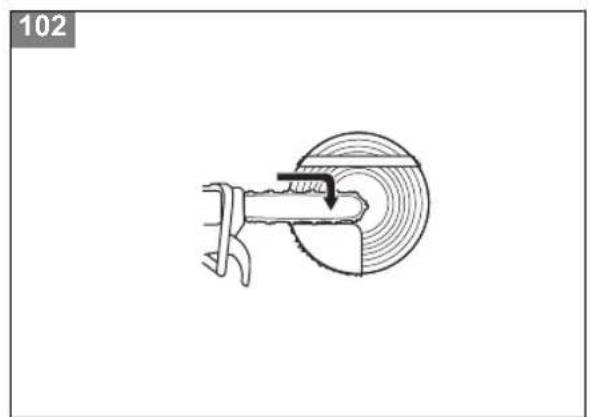

c) Cut straight into the trunk from the other side of the tree to complete the felling hinge.
d) Cut on the push stroke, until 13 of the trunk is left, to complete the safe corner. (Fig. 102)

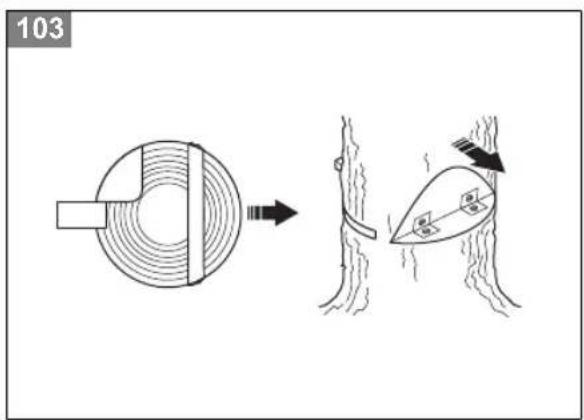

1. Put a wedge in the kerf straight from behind. (Fig. 103)

2. Cut off the corner to make the tree fall.

Note: If the tree does not fall, hit the wedge until it does.

1. When the tree starts to fall, use the path of retreat to move away from the tree. Move a minimum of 5 m/15 ft away from the tree.

To free a trapped tree

WARNING: It is very dangerous to remove a trapped tree and there is a high accident risk. Keep out of the risk zone and do not try to fell a trapped tree.

(Fig. 104)

The safest procedure is to use one of the following winches:

- Tractor-mounted

(Fig. 105)

- Portable

(Fig. 106)

To cut trees and branches that are in tension

1. Figure out which side of the tree or branch that is in tension.

2. Figure out where the point of maximum tension is. (Fig. 107)

3. Examine which is the safest procedure to release the tension.

Note: In some situations the only safe procedure is to use a winch and not your product.

1. Keep a position where the tree or branch can not hit you when the tension is released. (Fig. 108)

2. Make one or more cuts of sufficient depth necessary to decrease the tension. Cut at or near the point of maximum tension. Make the tree or branch break at the point of maximum tension. (Fig. 109)

WARNING: Do not cut straight through a tree or branch that is in tension.

WARNING: Be very careful when you cut a tree that is in tension. There is a risk that the tree moves quickly before or after you cut it. Serious injury can occur if you are in an incorrect position or if you cut incorrectly.

1. If you must cut across tree/branch, make 2 to 3 cuts, 1 in. apart and with a depth of 2 in. (Fig. 110)

2. Continue to cut more into the tree until the tree/ branch bends and the tension is released. (Fig. 111)

3. Cut the tree/branch from the opposite side of the bend, after the tension is released.

Maintenance

Introduction

WARNING: Read and understand the safety chapter before you do maintenance on the product.

The following is a list of the maintenance steps that you must do on the product. See Maintenance on page 35 for more information.

Maintenance schedule

WARNING: Remove the battery before you do maintenance.

Maintenance Before	use	Weekly Monthly
Clean the external parts of the product. X
Make sure that the power trigger and the power trigger lockout function correctly from a safety point of view.	X
Clean the chain brake and make sure that it operates safely. Make sure that the chain catcher is not damaged. Replace it if necessary.	X
Turn the guide bar for more equal wear. Make sure that the lubrication hole in the guide bar is not clogged. Clean the bar groove.	X
Make sure that the cutter and cutter guard have no cracks and that they are not damaged. Replace the cutter or cutter guard if they have cracks or if they have been exposed to impact.	X
Make sure that the guide bar and saw chain have sufficient oil. X
Do a check of the saw chain. Look for cracks and make sure that the saw chain is not rigid or unusually worn. Replace if necessary.	X
Sharpen the saw chain. Do a check of its tension and condition. Do a check for wear on the drive sprocket and replace is necessary.	X
Clean the air inlet on the product. X
Make sure that the screws and nuts are tight. X
Make sure that the user interface works correctly and that it is not damaged. X
Use a file to remove burrs from the edges of the guide bar. X
Do a check of the connections between the battery and the product. Do a check of the connection between the battery and the battery charger.
Empty and clean the oil tank. X
Blow through the product and battery cooling slots gently with compressed air. X

Maintenance and checks of the safety devices on the product

To do a check of the front hand guard

Regularly do a check of the front hand guard and the inertia brake release.

1. Make sure that the front hand guard does not have damages such as cracks. (Fig. 112)
2. Make sure that the front hand guard moves freely and that it is attached safely to the product. (Fig. 113)

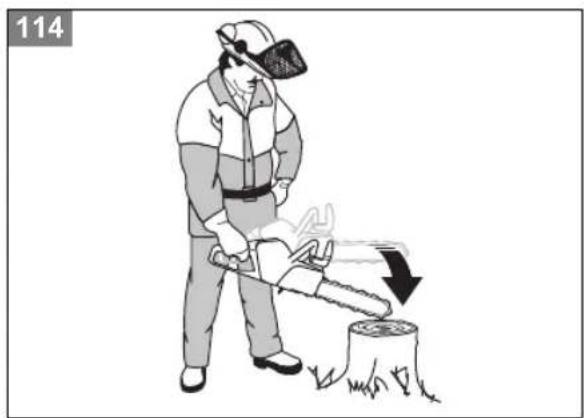

3. Put the product, with the motor off, on a stump or other stable surface.
4. Hold the rear handle and let go of the front handle. Let the product fall against the stump. (Fig. 114)
5. Make sure that the chain brake engages as the guide bar hits the stump.

To do a check of the brake trigger

1. Put the product on stable ground and start it. See Operation on page 29.

WARNING: Make sure that the saw chain does not touch the ground or other objects.

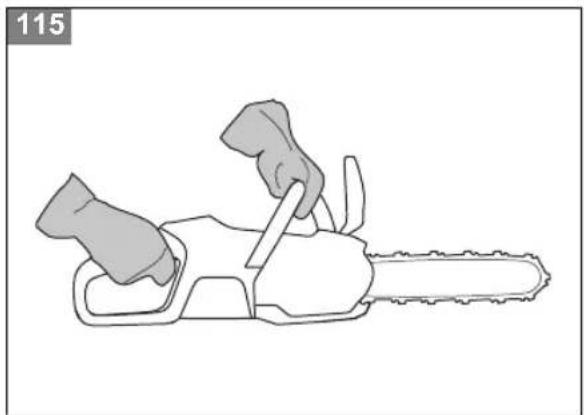

1. Wrap your fingers and thumbs around the handles and hold the product tight. (Fig. 115)

2. Apply full power and tilt your left wrist against the front hand guard to engage the chain brake. The saw chain must stop immediately. (Fig. 116)

WARNING: Do not let go of the front handle!

To do a check of the power trigger lockout

The power trigger lockout prevents accidental start. When you push the power trigger lockout (A), it releases the power trigger (B). When you release the handle, the power trigger and the power trigger lockout move back to their initial positions.

(Fig. 117)

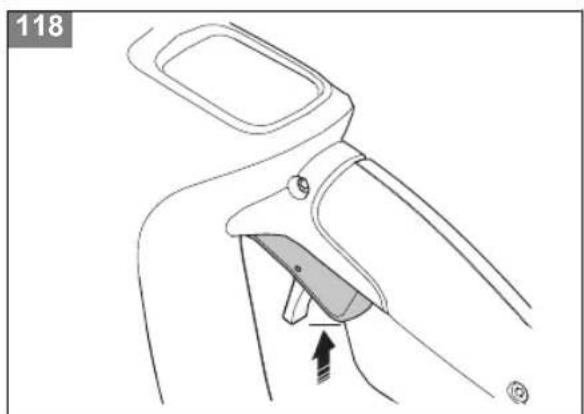

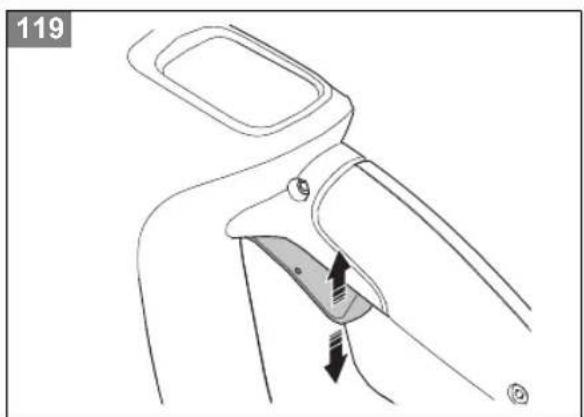

1. Make sure that the power trigger is locked when the power trigger lockout is in its initial position. (Fig. 118)
2. Push the power trigger and make sure that it moves back to its initial position when you release it. (Fig. 119)
3. Make sure that the power trigger and the power trigger lockout moves freely and that the return spring works correctly. (Fig. 120)
4. Start the product. Refer to To start the product on page 32.
5. Release the power trigger and make sure that the saw chain stops fully.

To do a check of the chain catcher

1. Make sure that there is no damage on the chain catcher.
2. Make sure that the chain catcher is stable and attached to the body of the product. (Fig. 121)

To do a check of the functions of the user interface

1. Start the product. Refer to To start the product on page 32.
2. Push and hold the on/off button.
3. Make sure that the product stops and that the LEDs go off. (Fig. 72)

To do a check of the battery and the battery holder

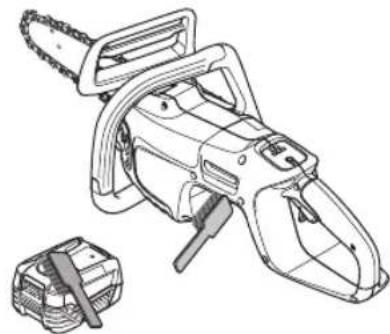

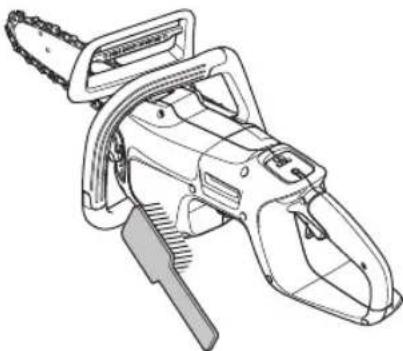

1. Clean the battery and the battery holder with a soft brush.
2. Clean the cooling slots and battery connectors. (Fig. 122)
3. Make sure that the battery has no cracks or other damages.

To do a check of the battery charger

1. Make sure that the battery charger and the power supply cord is not damaged. Look for cracks and other damages. (Fig. 123)

To clean the cooling system

The cooling system keeps the motor temperature down. The cooling system includes the air intake on the left side of the product and a fan on the motor.

1. Clean the cooling system with a brush weekly or more frequently if it is necessary. (Fig. 124)

2. Make sure that the cooling system is not dirty or blocked.

CAUTION: A dirty or blocked cooling system can cause the product to become too hot. This causes damage to the product.

To sharpen the saw chain

Information about the guide bar and saw chain

WARNING: Use protective gloves when you use or do maintenance on the saw chain. A saw chain that does not move can also cause injuries.

Replace a worn or damaged guide bar or saw chain with the guide bar and saw chain combination recommended by Husqvarna. This is necessary to keep the safety functions of the product. Refer to Accessories on page 42, for a list of replacement bar and chain combinations that we recommend.

- Guide bar length, in/cm. Information about the guide bar length can usually be found on the rear end of the guide bar.

(Fig. 125)

• Number of teeth on bar tip sprocket (T).

(Fig. 126)

- Chain pitch, in. The distance between the drive links of the saw chain must align with the distance of the teeth on the bar tip sprocket and drive sprocket.

(Fig. 127)

• Number of drive links. The number of drive links is decided by the type of guide bar.

(Fig. 128)

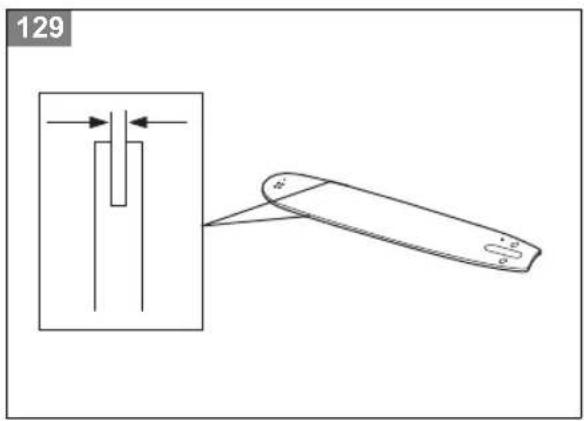

- Bar groove width, in/mm. The groove width in guide bar must be the same as the chain drive links width.

(Fig. 129)

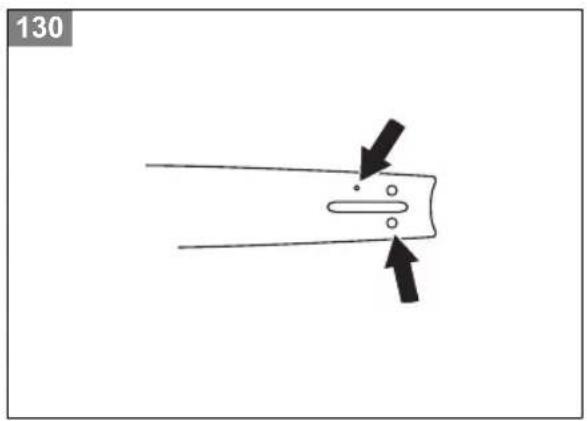

- Chain oil hole and hole for chain tensioner. The guide bar must align with product.

(Fig. 130)

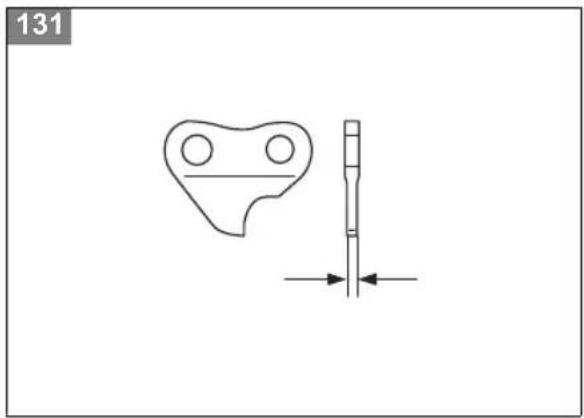

- Drive link width, mm/in.

(Fig. 131)

General information about how to sharpen the cutters

Do not use a blunt saw chain. If the saw chain is blunt, you must apply more pressure to push the guide bar through the wood. If the saw chain is very blunt, there will be no wood chips but sawdust.

A sharp saw chain eats through the wood and the wood chips becomes long and thick.

The cutting tooth (A) and the depth gauge (B) together makes the cutting part of the saw chain, the cutter. The difference in height between the two gives the cutting depth (depth gauge setting).

(Fig. 132)

When you sharpen the cutter, think about the following:

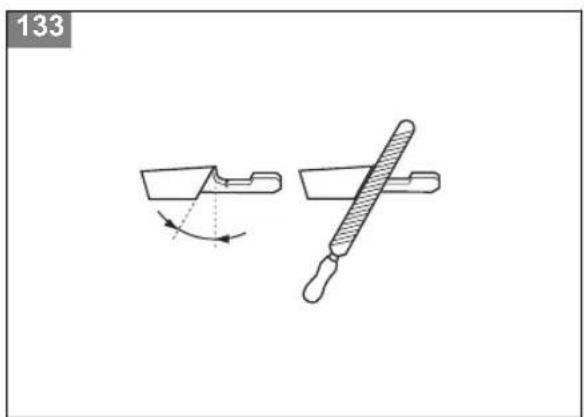

- Filing angle.

(Fig. 133)

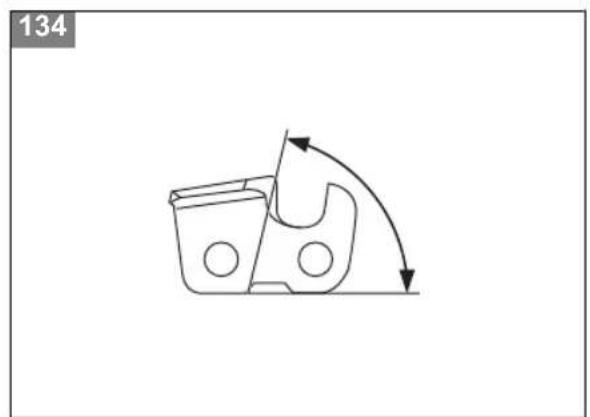

- Cutting angle.

(Fig. 134)

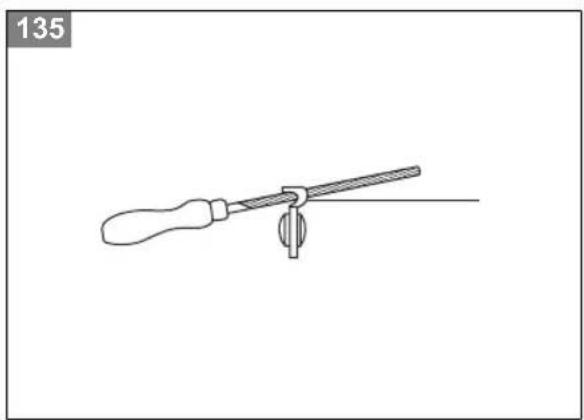

- File position.

(Fig. 135)

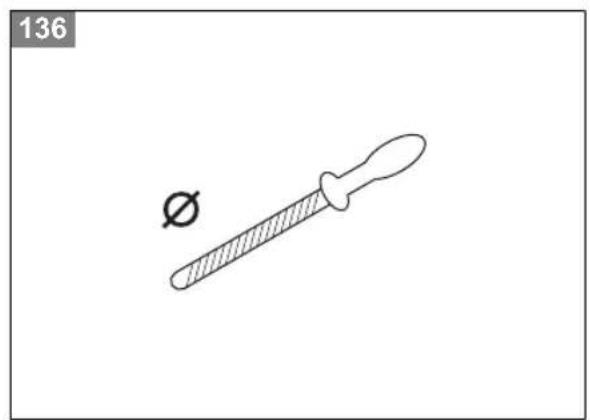

- Round file diameter.

(Fig. 136)

It is not easy to sharpen a saw chain correctly without the correct equipment. Use a Husqvarna recommended file gauge. This will help you to keep maximum cutting performance and the kickback risk at a minimum.

WARNING: The force of the kickback increases a lot if you do not follow the sharpening instructions.

Note: Refer to Accessories on page 42 for information about sharpening of the saw chain.

To sharpen the cutters

1. Use a round file and a file gauge to sharpen the cutting teeth. (Fig. 137)

Note: Refer to Accessories on page 42 for information about which file and gauge that Husqvarna recommends for your saw chain.

1. Apply the file gauge correctly on to the cutter. Refer to the instruction supplied with the file gauge.
2. Move the file from the inner side of the cutting teeth and out. Decrease the pressure on the pull stroke. (Fig. 138)
3. Remove material from one side of all the cutting teeth.
4. Turn the product around and remove material on the other side.
5. Make sure that all cutting teeth are the same length.

General information about how to adjust the depth gauge setting

The depth gauge setting (C) decreases when you sharpen the cutting tooth (A). To keep maximum cutting performance you must remove filing material from the depth gauge (B) to receive the recommended depth gauge setting. See Accessories on page 42 for instructions about how to receive the correct depth gauge setting for your saw chain.

(Fig. 139)

WARNING: The risk of kickback increases if the depth gauge setting is too large!

To adjust the depth gauge setting

Before you adjust the depth gauge setting or sharpen the cutters, refer to To sharpen the cutters on page 37, for instructions. We recommend you to adjust the depth gauge setting after each third operation that you sharpen the cutting teeth.

We recommend that you use our depth gauge tool to receive the correct depth gauge setting and bevel for the depth gauge.

(Fig. 140)

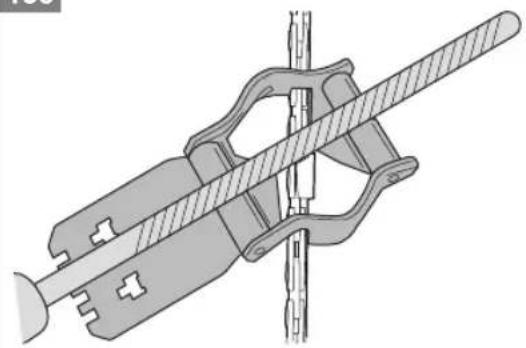

1. Use a flat file and a depth gauge tool to adjust the depth gauge setting. Only use a Husqvarna recommended depth gauge tool to get the correct depth gauge setting and bevel for the depth gauge.
2. Put the depth gauge tool on the saw chain.

Note: See the package of the depth gauge tool for more information about how to use the tool.

1. Use the flat file to remove the part of the depth gauge that extends through the depth gauge tool. (Fig. 141)

To tighten the saw chain

WARNING: A saw chain without the correct tension can come loose from the guide bar and cause serious injury or death.

The more you use a saw chain the longer it becomes. It is important to adjust the saw chain regularly.

Do a check of the saw chain tension each time you refill with chain oil.

Note: A new saw chain has a running-in period during which you must do a check of the tension more frequently.

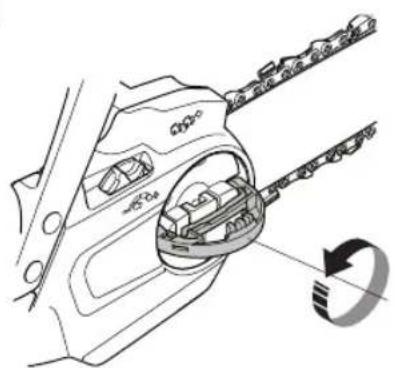

1. Fold the knob out until it opens. (Fig. 142)
2. Turn the knob counterclockwise to loosen the drive sprocket cover. (Fig. 143)

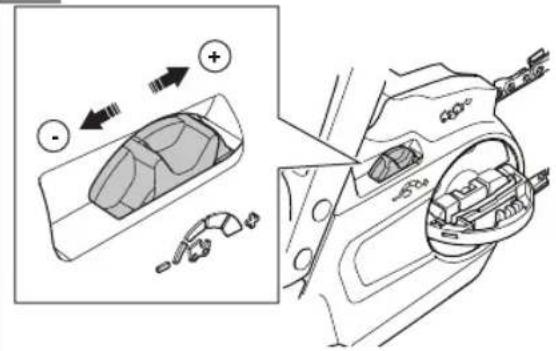

3. Turn the chain tensioner wheel to adjust the tension on the saw chain. The saw chain must be tight against the guide bar. (Fig. 144)

Note: Turn the wheel forward (+) for more tension and rearward (-) for less tension. The saw chain is tightened correctly when you can turn is easily by hand but is tight against the guide bar.

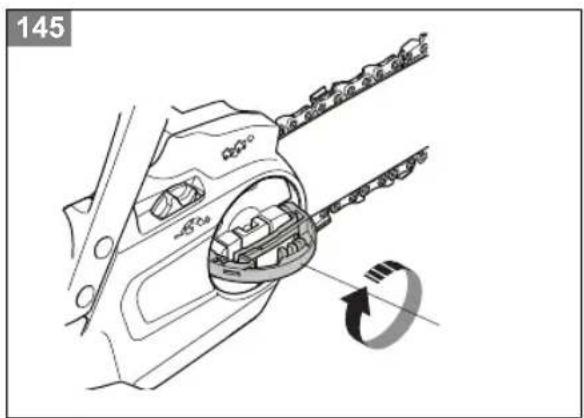

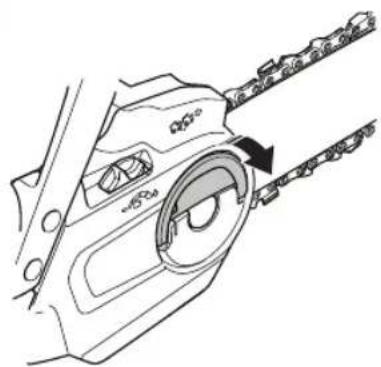

1. Turn the knob clockwise to tighten the bar knob. (Fig. 145)

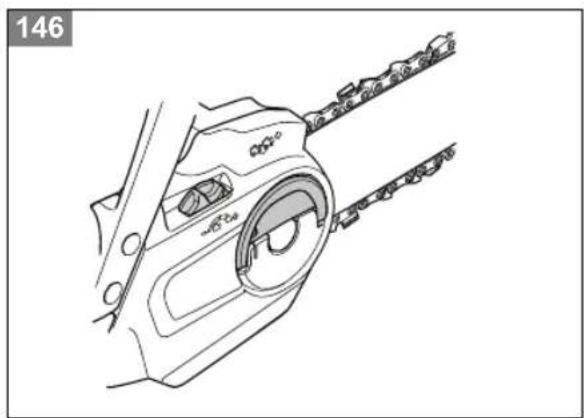

2. Fold down the knob to lock the tension. (Fig. 146)

To do a check of the saw chain lubrication

Do a check of the saw chain lubrication each third battery charge.

1. Start the product and let it run at full power. Hold the bar approximately 20 cm (8 inches) above a light colored surface.
2. If the saw chain lubrication is correct, you will see a clear line of oil on the surface after 1 minute. (Fig. 147)
3. If the saw chain lubrication is not correct, do the following checks.
   a) Do a check of the oil channel in the guide bar to make sure that it is not blocked. Clean if necessary. (Fig. 148)
   b) Do a check of the groove in the edge of the guide bar to make sure that it is clean. Clean if necessary. (Fig. 149)

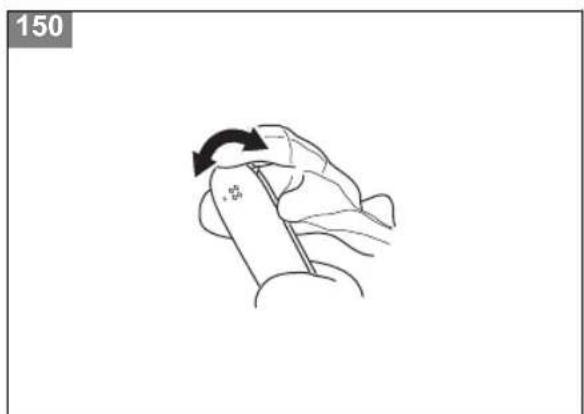

   c) Make sure that the bar tip sprocket turns freely and that the lubricating hole in the guide bar tip sprocket is not blocked. Clean and lubricate if necessary. (Fig. 150)
4. If the saw chain lubrication does not work after following the steps above, speak to your servicing dealer.

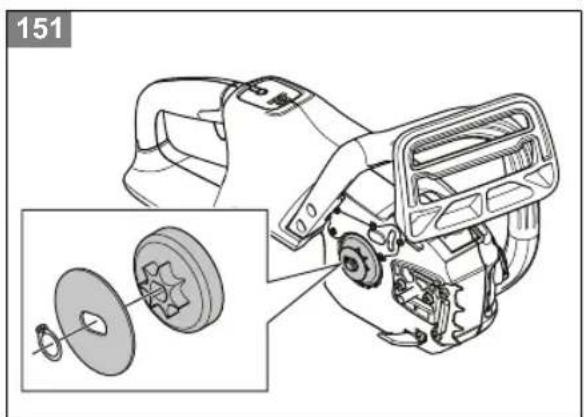

To do a check of the chain drive sprocket

• Examine the chain drive sprocket for wear. Replace the chain drive sprocket if it is necessary.
• Replace the chain drive sprocket each time that you replace the saw chain. (Fig. 151)

To examine the cutting equipment

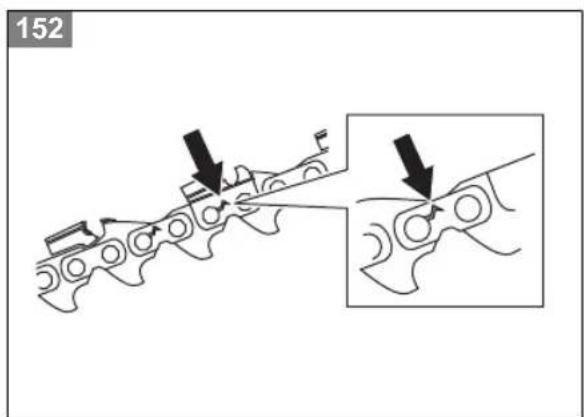

1. Make sure that there are no cracks in rivets and links and that no rivets are loose. Replace if it is necessary. (Fig. 152)
2. Make sure that the saw chain is easy to bend. Replace the saw chain if it is rigid.
3. Compare the saw chain with a new saw chain to examine if the rivets and links are worn.

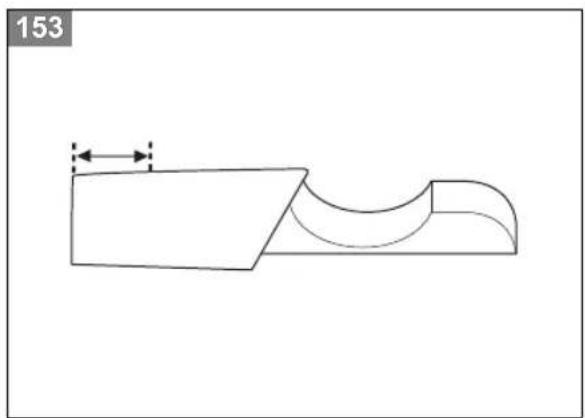

4. Replace the saw chain when the longest part of the cutting tooth is less than 4 mm/0.16 in. Also replace the saw chain if there are cracks on the cutters. (Fig. 153)

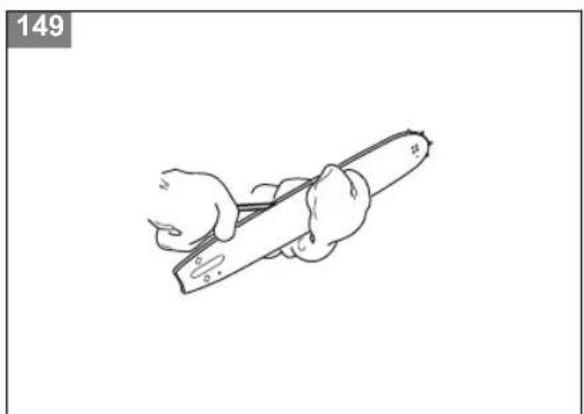

To do a check of the guide bar

1. Make sure that the oil channel is not blocked. Clean if it is necessary. (Fig. 148)
2. Examine if there are burrs on the edges of the guide bar. Remove the burrs using a file. (Fig. 154)
3. Clean the groove in the guide bar. (Fig. 149)
4. Examine the groove in the guide bar for wear. Replace the guide bar if it is necessary. (Fig. 155)
5. Examine if the guide bar tip is rough or very worn. (Fig. 156)
6. Make sure that the bar tip sprocket turns freely and that the lubricating hole in the bar tip sprocket is not blocked. Clean and lubricate if it is necessary. (Fig. 150)
7. Turn the guide bar daily to extend its life cycle. (Fig. 157)

Troubleshooting

User interface

LED screen Possible faults Possible solution
The warning indicator flashes. Temperature	ature deviation. Let the product to cool down.
	Overload. The saw chain can not move.	Release the saw chain.
	The power trigger and the on/off button are pushed at the same time.	Release the power trigger to activate the product.
The brake indicator is on/flashes. Chain	brake is engaged. Disengage the chain in brake.
The warning indicator and state of charge indicator flashes in one, and then the other.	The battery is empty. Charge the battery.
	Temperature deviation. Let the battery become cool.
	The battery is damaged. Speak to your servicing agent.
State of charge indicator flashes. Low	battery voltage. Charge the battery.
The warning indicator is on. Service. S	peak to your servicing dealer.

Battery charger

LED on the battery charger	Cause Solution
The green LED is on and the red LED flashes.	The battery is not correctly installed in the battery charger.	Remove the battery from the charger and install the battery in the battery charger again.
	The battery connectors and the battery charger connectors are dirty.	Clean the battery connectors and the battery charger connectors. For example, insert and remove the battery from the battery charger several times.
	The battery is damaged. Replace the battery.
	The charger identifies an internal error.	Make sure that all batteries are fully inserted. Remove the mains plug and reinsert. If the error occurs again, ask an authorized after-sales service center for Husqvarna products to do a check of the battery charger.
The red LED is on. The battery temperature is out of the charging range.		Wait until the battery temperature drops to the permitted charging temperature (0-35 °C).
The green LED and the red LED are off.	The battery charger is not correctly connected to the mains outlet.	Connect the battery charger to a mains outlet.
	Faulty mains outlet. Connect the battery charger to the voltage and frequency that is specified on the rating plate.
	The plug socket, mains cable or battery charger is damaged.	Do a check of the mains voltage. If necessary, speak to an approved service agent.
Other errors. If other errors occur, make sure that the product is off, remove the battery and speak to an approved service agent.

Transportation, storage and disposal

Transportation and storage

• The supplied Li-ion batteries obey the Dangerous Goods Legislation requirements.
• Obey the special requirement on package and labels for commercial transportation, including by third parties and forwarding agents.
• Speak to a person with special training in dangerous material before you send the product. Obey all applicable national regulations.
• Use tape on open contacts when you put the battery in a package. Put the battery in the package tightly to prevent movement.
• Remove the battery for storage or transportation.
• Put the battery and the battery charger in a space that is dry and free from moisture and frost.

• Do not keep the battery in an area where static electricity can occur. Do not keep the battery in a metal box.

• Put the battery in storage where the temperature is between -20^ / -4^ and +50^ / 122^ and away from open sunlight.

• Put the battery charger in storage where the temperature is between 5^ / 41^ and 45^ / 113^ and away from open sunlight.
• Use the battery charger only when the surrounding temperature is between 0^ / 32^ and 35^ / 95^ .
• Put the product in storage where the temperature is between -40^ / -40^ and +60^ / 140^
• Charge the battery 30% to 50% before you put it in storage for long periods.
• Put the battery charger in storage in a space that is closed and dry.
• Keep the battery away from the battery charger during storage. Do not let children and other not approved persons to touch the equipment. Keep the equipment in a space that you can lock.

• Clean the product and do a full servicing before you put the product in storage for a long time.

• Use the transportation guard on the product to prevent injuries or damage on the product during transportation and storage.

• Attach the product safely during transportation.
• Keep the product in storage horizontally or hang the product on the supplied hook. Refer to To hang the product on the hook on page 29.

Disposal of the battery, battery charger and product

The symbol below means that the product is not domestic waste. Recycle it at a recycling station

for electrical and electronic equipment. This helps to prevent damage to the environment and to persons.

Speak to local authorities, domestic waste service or your dealer for more information.

(Fig. 19)

Note: The symbol shows on the product or package of the product.

Technical data

Technical data

	Aspire C15X-P4A
Motor
Type BLDC (brushless) 18V
Lubrication system
Type of oil pump Automatic
Oil tank capacity, ml/cm3	90
Weight
Chainsaw without battery, guide bar, saw chain and empty chain oil tank, kg 2	3
Noise emissions2
Sound power level, measured dB(A) 101
Sound power level, guaranteed LWA dB(A) 103
Sound levels3
Sound pressure level at the operator's ear, measured according to EN 62841-1	89
Vibration levels4
Front handle m/s2	4.4
Rear handle m/s2	3.6
Saw chain/guide bar
Recommended bar lengths, in/cm 10-12/25.4-30.5

^2 Noise emissions in the environment measured as sound power ( L_WA ) in conformity with EC directive 2000/14/EC and EN ISO 22868, has a typical statistical dispersion (standard deviation) of 3 dB (A).
^3 Reported data for sound pressure level for the machine has a typical statistical dispersion (standard deviation) of 3 dB (A).
^4 Vibration level, according to EN 62841-4-1. Reported data for vibration level has a typical statistical dispersion (standard deviation) of ±1.5 m/s^2 . Declared vibration data from measurements when the machine is fitted with a bar length and recommended chain type. If the machine is fitted with a different bar length, the vibration level may vary by ±1.5 m/s^2 .

	Aspire C15X-P4A
Usable cutting length, in/cm 10-12/25.4-30.5
Type of drive sprocket/number of teeth 7
Maximum chain speed, m/s 14.9

Accessories

Guide bar and saw chain

combinations

The cutting attachments below are approved for the product.

Guide bar Saw chain
Type Length, in	Pitch, in Gauge	mm Max. nose ra-		dius	Type Drive link	count
529340760 10	1/4" mini 1.1 7T				Husqvarna SP11G (529340660)	60
529340768 12	1/4" mini 1.1 7T				Husqvarna SP11G (529340668)	68

Saw chain filing and file gauge

Use the recommended file gauge to get the correct filing angles. We recommend you to always use the recommended file gauge to restore the sharpness of the saw chain.

If you do not know which saw chain you have on your product, speak to your servicing dealer.

		[KWAB]		[OKC3]	[SH3D]	[5CEZ]
	mm/in mm/in	15	U
SP11G 3.5	9/64 60° 30°	0°	0.4/0.016	5299371-01

Approved batteries

Battery	P4A 18-B72
Type	Lithium-ion
Battery capacity, Ah	4.0
Nominal voltage, V	18
Battery P4A 18-B72
Weight, kg/lb 1.43/0.65
Number of cells (Li-ion) 10

Approved battery chargers

Battery charger P4A 18-C70 P4A 18-C100
Input voltage, V Refer to charger rating information. Refer to charger rating information.
Frequency, Hz 50–60 50–60
Power, W 70 105

Declaration of Conformity

EU Declaration of Conformity

We, Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel: [phone], declare on our sole responsibility that the product:

Description Cordless chainsaws
Brand Husqvarna
Type / Model Aspire C	15X-P4A
Identification Serial numbers dating from 2024 and onwards

complies fully with the following EU directives and regulations:

Directive/Regulation	Description
2006/42/EC "relating to machinery"
2014/30/EU "relating to electromagnetic compatibility"
2011/65/EU	“on the restriction of the use of certain hazardous substances in electrical and electronic equipment”
2000/14/EC "relating to the noise emissions in the environment"

The following standards have been applied: EN 62841-1:2015/A11:2022, EN 62841-4-1:2020, EN IEC 63000:2018, EN IEC 55014-1:2021, EN IEC 55014-2:2021.

Notified body: DEKRA Testing and Certification GmbH, Handwerkstraße 15, 70565 Stuttgart, Germany, 0158, has carried out voluntary EC type examination in accordance with machinery directive's (2006/42/EC) article 12, point 3b. The certificate for EC type examination has the number: 4815039.24001.

Applied conformity assessment procedure in accordance with Directive 2000/14/EC, Annex V.

For information relating to noise emissions, refer to Technical data on page 41.

Huskvarna, 2024-03-20

$$ \Delta \cdot \mathrm {d u} $$

Claes Losdal, R&D Manager, Husqvarna AB Responsible for technical documentation

UK Declaration of Conformity

We, Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel: [phone], declare on our sole responsibility that the product:

Description Cordless chainsaws
Brand Husqvarna
Type / Model Aspire C15X-P4A
Identification Serial numbers dating from 2024 and onwards

complies fully with the following UK regulations:

Description

The Supply of Machinery (Safety) Regulations 2008

Electromagnetic Compatibility Regulations 2016

The Noise Emission in the Environment by Equipment for use Outdoors Regulations 2001

The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012

and that the following standards and/or technical specifications are applied: EN 62841-1:2015/A11:2022, EN 62841-4-1:2020, EN IEC 63000:2018, EN IEC 55014-1:2021, EN IEC 55014-2:2021.

Notified body: DEKRA Testing and Certification GmbH, Handwerkstraße 15, 70565 Stuttgart, Germany, 0158, has carried out voluntary EC type examination in accordance with machinery directive's (2006/42/EC) article 12, point 3b. The certificate for EC type examination has the number: 4815039.24001.

Applied conformity assessment procedure in accordance with UK regulations Noise Emission in the Environment by Equipment for Use Outdoors Regulations 2001, Schedule 8.

For information relating to noise emissions, refer to Technical data on page 41.

Huskvarna, 2024-03-20

$$ \Delta J u u $$

Claes Losdal, R&D Manager, Husqvarna AB Responsible for technical documentation

Licenses

Copyright © 2012–2020 STMicroelectronics

The warranty does not cover defects which are the result of normal wear and tear, negligence, defective use, unauthorised repair or the suction apparatus being connected to the incorrect voltage.

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
• Neither the name of STMicroelectronics nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Apache 2.0 License

Copyright © 2009-2019 Arm Limited. All rights reserved.

Version 2.0, January 2004 http://www.apache.org/licenses/

TERMS AND CONDITIONS FOR USE, REPRODUCTION, AND DISTRIBUTION

1. Definitions.

"License" shall mean the terms and conditions for use, reproduction, and distribution as defined by Sections 1 through 9 of this document. "Licensor" shall mean the copyright owner or entity authorized by the copyright owner that is granting the License. "Legal Entity" shall mean the union of the acting entity and all other

entities that control, are controlled by, or are under common control with that entity. For the purposes of this definition, "control" means (i) the power, direct or indirect, to cause the direction or management of such entity, whether by contract or otherwise, or (ii) ownership of fifty percent (50%) or more of the outstanding shares, or (iii) beneficial ownership of such entity. "You" (or "Your") shall mean an individual or Legal Entity exercising permissions granted by this License. "Source" form shall mean the preferred form for making modifications, including but not limited to software source code, documentation source, and configuration files. "Object" form shall mean any form resulting from mechanical transformation or translation of a Source form, including but not limited to compiled object code, generated documentation, and conversions to other media types. "Work" shall mean the work of authorship, whether in Source or Object form, made available under the License, as indicated by a copyright notice that is included in or attached to the work (an example is provided in the Appendix below). "Derivative Works" shall mean any work, whether in Source or Object form, that is based on (or derived from) the Work and for which the editorial revisions, annotations, elaborations, or other modifications represent, as a whole, an original work of authorship. For the purposes of this License, Derivative Works shall not include works that remain separable from, or merely link (or bind by name) to the interfaces of, the Work and Derivative Works thereof. "Contribution" shall mean any work of authorship, including the original version of the Work and any modifications or additions to that Work or Derivative Works thereof, that is intentionally submitted to Licensor for inclusion in the Work by the copyright owner or by an individual or Legal Entity authorized to submit on behalf of the copyright owner. For the purposes of this definition, "submitted" means any form of electronic, verbal, or written communication sent to the Licensor or its representatives, including but not limited to communication on electronic mailing lists, source code control systems, and issue tracking systems that are managed by, or on behalf of, the Licensor for the purpose of discussing and improving the Work, but excluding communication that is conspicuously marked or otherwise designated in writing by the copyright owner as "Not a Contribution." "Contributor" shall mean Licensor and any individual or Legal Entity on behalf of whom a Contribution has been received by Licensor and subsequently incorporated within the Work.

2. Grant of Copyright License.

Subject to the terms and conditions of this License, each Contributor hereby grants to You a perpetual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable copyright license to reproduce, prepare Derivative Works of, publicly display, publicly perform, sublicense,

and distribute the Work and such Derivative Works in Source or Object form.

3. Grant of Patent License.

Subject to the terms and conditions of this License, each Contributor hereby grants to You a perpetual, worldwide, nonexclusive, no-charge, royalty-free, irrevocable (except as stated in this section) patent license to make, have made, use, offer to sell, sell, import, and otherwise transfer the Work, where such license applies only to those patent claims licensable by such Contributor that are necessarily infringed by their Contribution(s) alone or by combination of their Contribution(s) with the Work to which such Contribution(s) was submitted. If You institute patent litigation against any entity (including a crossclaim or counterclaim in a lawsuit) alleging that the Work or a Contribution incorporated within the Work constitutes direct or contributory patent infringement, then any patent licenses granted to You under this License for that Work shall terminate as of the date such litigation is filed.

4. Redistribution.

You may reproduce and distribute copies of the Work or Derivative Works thereof in any medium, with or without modifications, and in Source or Object form, provided that You meet the following conditions:

• You must give any other recipients of the Work or Derivative Works a copy of this License; and
• You must cause any modified files to carry prominent notices stating that You changed the files; and – You must retain, in the Source form of any Derivative Works that You distribute, all copyright, patent, trademark, and attribution notices from the Source form of the Work, excluding those notices that do not pertain to any part of the Derivative Works; and
• If the Work includes a "NOTICE" text file as part of its distribution, then any Derivative Works that You distribute must include a readable copy of the attribution notices contained within such NOTICE file, excluding those notices that do not pertain to any part of the Derivative Works, in at least one of the following places: within a NOTICE text file distributed as part of the Derivative Works; within the Source form or documentation, if provided along with the Derivative Works; or, within a display generated by the Derivative Works, if and wherever such third-party notices normally appear. The contents of the NOTICE file are for informational purposes only and do not modify the License. You may add Your own attribution notices within Derivative Works that You distribute, alongside or as an addendum to the NOTICE text from the Work, provided that such additional attribution notices cannot be construed as modifying the License. You may add Your own copyright statement to Your modifications and may provide additional or different license terms and conditions for use, reproduction, or distribution of Your modifications, or for any such Derivative Works as a whole, provided Your use, reproduction, and

distribution of the Work otherwise complies with the conditions stated in this License.

5. Submission of Contributions.

Unless You explicitly state otherwise, any Contribution intentionally submitted for inclusion in the Work by You to the Licensor shall be under the terms and conditions of this License, without any additional terms or conditions. Notwithstanding the above, nothing herein shall supersede or modify the terms of any separate license agreement you may have executed with Licensor regarding such Contributions.

6. Trademarks.

This License does not grant permission to use the trade names, trademarks, service marks, or product names of the Licensor, except as required for reasonable and customary use in describing the origin of the Work and reproducing the content of the NOTICE file.

7. Disclaimer of Warranty.

Unless required by applicable law or agreed to in writing, Licensor provides the Work (and each Contributor provides its Contributions) on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied, including, without limitation, any warranties or conditions of TITLE, NON-INFRINGEMENT, MERCHANTABILITY, or FITNESS FOR A PARTICULAR PURPOSE. You are solely responsible for determining the appropriateness of using or redistributing the Work and assume any risks associated with Your exercise of permissions under this License. 8. Limitation of Liability. In no event and under no legal theory, whether in tort (including negligence), contract, or otherwise, unless required by applicable law (such as deliberate and grossly negligent acts) or agreed to in writing, shall any Contributor be liable to You for damages, including any direct, indirect, special, incidental, or consequential damages of any character arising as a result of this License or out of the use or inability to use the Work (including but not limited to damages for loss of goodwill, work stoppage, computer failure or malfunction, or any and all other commercial damages or losses), even if such Contributor has been advised of the possibility of such damages.

9. Accepting Warranty or Additional Liability.

While redistributing the Work or Derivative Works thereof, You may choose to offer, and charge a fee for, acceptance of support, warranty, indemnity, or other liability obligations and/or rights consistent with this License. However, in accepting such obligations, You may act only on Your own behalf and on Your sole responsibility, not on behalf of any other Contributor, and only if You agree to indemnify, defend, and hold each Contributor harmless for any liability incurred by, or claims asserted against, such Contributor by reason of your accepting any such warranty or additional liability. END OF TERMS AND CONDITIONS

Съдържание

Въведение 48

Безопасност 50

Монтаж 59

Операция 60

Поддръжка 67

TYTO POKYNY SI USCHOVEJTE.

Copyright © 2012–2020 STMicroelectronics

Copyright © 2012–2020 STMicroelectronics

Copyright © 2012–2020 STMicroelectronics

Copyright © 2012–2020 STMicroelectronics

Copyright © 2012–2020 STMicroelectronics

Copyright © 2012-2020 STMicroelectronics

Claes Losdal, responsible R&D, Husqvarna AB

Responsable de la documentation technique

Licences

Copyright © 2012-2020 STMicroelectronics

A11:2022, EN 62841-4-1:2020, EN IEC 63000:2018, EN

IEC 55014-1:2021, EN IEC 55014-2:2021.

Prijavljeno tijelo: DEKRA Testing and Certification

GmbH, Handwerkstraße 15, 70565 Stuttgart, Germany,

0158, provelo je dobrovoljno ispitivanje tipa EZ

sukladno direktivi o strojevima (2006/42/EC) članak 12.,

točka 3b. Broj certifikata za tipsko ispitivanje EZ je:

4815039.24001

Copyright © 2012–2020 STMicroelectronics

Copyright © 2012–2020 STMicroelectronics

Copyright © 2012–2020 STMicroelectronics

All rights reserved.

Copyright © 2009-2019 Arm Limited. All rights reserved.

EN 62841-4-1:2020, EN IEC 63000:2018, EN IEC

55014-1:2021, EN IEC 55014-2:2021.

Notifikuotoji ıstaiga: DEKRA Testing and Certification

GmbH, Handwerkstraße 15, 70565 Stuttgart, Germany,

Copyright © 2012–2020 STMicroelectronics

A11:2022, EN 62841-4-1:2020, EN IEC 63000:2018, EN

IEC 55014-1:2021, EN IEC 55014-2:2021.

Kontrollorgan: DEKRA Testing and Certification GmbH,

Handwerkstraße 15, 70565 Stuttgart, Germany, 0158,

Copyright © 2012–2020 STMicroelectronics

Copyright © 2012–2020 STMicroelectronics

Copyright © 2012–2020 STMicroelectronics

Copyright © 2012–2020 STMicroelectronics

Copyright © 2012–2020 STMicroelectronics

Avtorske pravice © 2012–2020 STMicroelectronics

Copyright © 2012–2020 STMicroelectronics

Telif Hakki© 2012–2020 STMicroelectronics

A11:2022, EN 62841-4-1:2020, EN IEC 63000:2018, EN

IEC 55014-1:2021, EN IEC 55014-2:2021.

Copyright © 2012–2020 STMicroelectronics

1144548-38 Rev. A

2024-11-15
