| Product type | Grill plate for induction hob |
| Brand | BORA |
| Model | KWGPFI |
| Dimensions (Length x Depth x Height) | 469 x 270 x 64 mm |
| Cooking surface (Length x Depth) | 408 x 246 mm |
| Weight | 2.8 kg |
| Material | Aluminium with silicone |
| Coating | DURIT-Resist™ non-stick |
| Maximum temperature | 250 °C |
| Power supply | Wireless, used on induction hob |
| Main functions | Grilling, searing, healthy cooking without added fats |
| Compatible use | BORA continuous induction hobs and BORA X BO oven |
| Removable silicone feet | Yes, reference KWGPSF |
| Maximum capacity in the oven | 3 kg |
| Recommended cleaning | By hand with hot water and dish soap |
| Dishwasher | Compatible (but may reduce coating lifespan) |
| Safety | Do not heat empty, do not use without feet, observe maximum power levels |
| Recommended oils | High-temperature resistant oils (rapeseed, sunflower, safflower) |
| Included accessories | Grill plate only |
| Warranty | Consult manufacturer |
Frequently Asked Questions - KWGPFI BORA
User questions about KWGPFI BORA
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Cooker in PDF format for free! Find your manual KWGPFI - BORA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. KWGPFI by BORA.
USER MANUAL KWGPFI BORA
DE GEBRAUCHSANLEITUNG GRILLPFANNE FÜR FLÄCHENINDUKTION 4 EN USER INSTRUCTIONS GRILL PAN FOR SURFACE INDUCTION 8 ES MANUAL DE INSTRUCCIONES SARTÉN GRILL PARA INDUCCIÓN TOTAL 11 FR MANUEL D'UTILISATION PLAQUE À GRILLER POUR TABLE À INDUCTION 15 IT ISTRUZIONI PER L'USO BISTECCHIERA PER INDUZIONE "FULL" 18 NL GEBRUIKSAANWIJZING GRILLPAN VOOR OPPERVLAKTE-INDUCTIE 21 BG ИНСТРУКЦИЯ ЗА УПОТРЕБА ГРИЛ ТИГАН ЗА ПОВЪРХНОСТНА ИНДУКЦИЯ.... 25 CS NÁVOD K POUŽITÍ GRILOVACÍ PÁNEV NA VARNOU DESKU S CELOPLOŠNOU INDUKCÍ 29 DA BRUGSANVISNING GRILLPANDE TIL FLEKSIBEL INDUKTION 32 EL OΔΗΓΕΣ ΧΡΗΣΗΣ ΕΠΑΓΩΓΙΚΟ ΤΗΓΑΝΙ ΓΚΡΙΛΙΕΡΑ (ΣΧΑΡΟΤΗΓΑΝΟ) 35 ET KASUTUSJUHEND GRILLPANN TASAPIND-INDUKTSIOONPLIIDILE 39 FI KÄYTTÖOHJE GRILLIPANNU RAJATTOMILLE INDUKTIOKEITTOTASOILLE 42 HE 45 HR UPUTE ZA UPORABU TAVA ZA ROŠTILJ ZA INDUKCIJSKU PLOČU S FLEKSIBILNIM ZONAMA.... 48 HU HASZNÁLATI ÚTMUTATÓ GRILLTEPSI ADAPTÍV INDUKCIÓS FÓZŐLAPHOZ 52 IS NOTKUNARHANDBÓK GILLPANNA FYRIR SPANHELLUR 55 LT NAUDOJIMO INSTRUKCIJA GRILIO KEPTUVĖ VISOS PLOKŠTUMOS INDUKCINEI KAITLENTEI.... 58 LV LIETOŠANAS INSTRUKCIJA GRILA PANNA VIRSMAS INDUKCIJAS PLĪTĪM 62 NO BRUKSANVISNING GRILLPANNE FOR INDUKSJONSTOPP MED REKTANGULÆRE SONER 66 PL INSTRUKCJA OBSŁUGI PATELNIA DO INDUKCJI PEŁNOPOWIERZCHNIOWEJ 69 PT INSTRUÇÃO DE UTILIZAÇÃO PLACA DE GRELHAR PARA INDUÇÃO SURFACE 73 RO MANUAL DE INSTRUCTIUNI TIGAIE GRILL PENTRU INDUCTIE PE TOATĂ SUPRAFAȚA.... 77 SV BRUKSANVISNING GRILLPANNA FÖR FLEXINDUKTION 80 SR UPUTSTVO ZA UPOTREBU TIGANJ ZA ROŠTILJ ZA INDUKCIJSKE PLOČE S FLEKSIBILNIM ZONAMA ..... 83 SK NÁVOD NA POUŽITIE GRILOVACIA PANVICA PRE CELOPLOŠNÚ INDUKCIU 87 SL NAVODILA ZA UPORABO PONEV ZA ŽAR ZA FLEX-INDUKCIJO 91
1 General
These instructions contain important information to protect you from injury and prevent damage to the product. Read these instructions carefully before using the product for the first time.
The product complies with the stipulated safety requirements. The user is responsible for the safe use of the product, cleaning and maintenance. Improper use can lead to personal injury and damage to property. Keep the instructions for future use or for a subsequent owner.
BORA Holding GmbH, BORA Vertriebs GmbH & Co KG, BORA APAC Pty Ltd and BORA Lüftungstechnik GmbH – hereinafter referred to as BORA – do not assume any liability for damage arising from disregard for or non-adherence to the documents included in the scope of delivery!
Furthermore, BORA shall not be held liable for damage caused by improper use or failure to observe the safety and warning information!
2 Safety
The product is solely intended for preparing food in private households.
DANGER
Risk of fire from overheated oil or fat
Oil or fat in the pot can quickly heat up and ignite.
▶ Never leave the product unattended when cooking with oil or fat. ▶ Never extinguish oil and fat fires with water. ▶ Switch off the appliance. ▶ Suffocate the fire, for example by using a fire blanket.
DANGER
Risk of burns from hot cookware and food
Handles projecting over the edge of the worktop are asking to be grabbed.
Keep children away from hot cooking zones or ensure they are supervised at all times. Do not turn cookware handles so they stick out beyond the worktop. ▶ Make sure that hot cookware cannot be pulled down. If necessary, use suitable stove guards or covers. Only use stove guards and covers that are approved by the appliance manufacturer; otherwise, there is a risk of accidents. To choose a suitable stove guard, contact your specialist supplier or the BORA Service Team.
WARNING
Risk of burns from hot pan and handle!
Touching hot surfaces can cause serious burns.
▶ Please use suitable accessories (pot holders, oven gloves, etc.).
▶ Allow the grill pan to cool after use.
WARNING
Risk of burns from hot steam
Liquid between the cooking zone and cookware base can evaporate and cause burns.
▶ Make sure that the cooking zone and the cookware base are always dry.
WARNING
Risk of burns from hot food!
Food can spill over when the grill pan is moved. Touching hot food can cause serious burns.
When moving the grill pan, ensure that no hot food or liquids spill over. ▶ Do not use the grill pan to heat large amounts of liquid. ▶ Only use the grill pan on the middle shelf level of the oven chamber.
The grill pan is designed for BORA surface induction cooktops. It must not be used on a radiant or gas cooktop, on the Tepan stainless steel grill, in the microwave or over open flames.
Keep children away from the hot grill pan or ensure they are supervised at all times. Children must not play with the product.
Metal objects with sharp edges (e.g. Tepan spatula, pan scourers, knives, etc.) damage the grill pan coating. Only use cooking utensils made of wood or heat-resistant plastic on the grill pan.
Check the product for transport damage. Do not use the product if damaged.
Always place the hot grill pan on a heat-resistant base.
Clean the grill pan after every use.
3 Designation

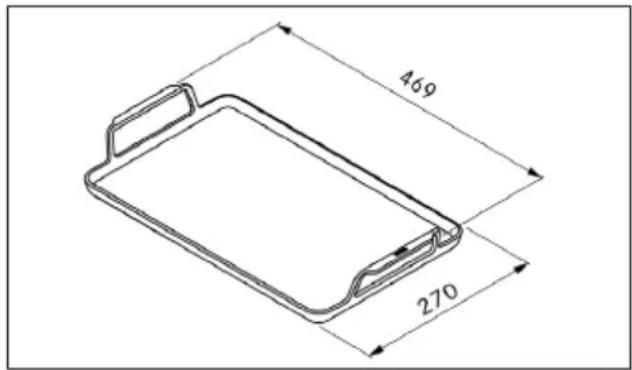

Fig. 3.1 Isometric dimensions
Fig. 3.2 Side view dimensions
| Description Value | |
| Dimensions (W x D x H): 469 x 270 x 64 mm | |
| Grill surface (W x D): 408 x 246 mm | |
| Material: Aluminium/silicone | |
| Coating: DURIT-Resist | TM |
| Weight: 2.8 kg | |
| Heat-resistant up to 250°C | |
Tab. 3.1 Technical data
4 Before using for the first time
Clean the grill pan with warm water and washing-up liquid. Dry the grill pan before using for the first time.
5 Using the grill pan
5.1 BORA surface induction cooktops
Never use the grill pan without silicone feet. The silicone feet can be reordered from www.mybora.com (Product No.: KWGPSF).
Dirt between the grill pan and surface induction cooktop can scratch the glass ceramic.
Only use cooking oils and fats that can be heated to high temperatures on the grill pan (e.g. safflower oil, rapeseed oil or sunflower oil, etc.). Other cooking oils and fats burn at high
temperatures and produce smoke that is harmful to health. Burnt oils and fats leave behind residues that affect the non-stick coating.
When cold, the grill pan may be warped; this issue resolves itself when the pan is heated up again.
▶ Place the grill pan in the centre of the surface induction cooktop. For simple operation, use the bridging function on your surface induction cooktop. ▶ Regardless of which BORA model you own, the following are the maximum power levels to be used with the grill pan:
power level 7 power level 8
The empty grill pan can be preheated on the above power levels for a maximum of 5 minutes and must then be used on a lower setting. ▶ Ensure that the food is placed in the grill pan as soon as it is hot. ▶ Never use higher power levels than those specified above as this can permanently damage the grill pan!
5.2 BORA X BO
The grill pan can be used in the BORA X BO.
▶ Slide the grill pan with its handles into the middle shelf level. ▶ Place the grill pan in the centre of the shelf level. ▶ Ensure that the grill pan handles are level. When removing the grill pan from the oven chamber, it must be lifted over the shelf stop.
In the BORA X BO, the grill pan can have a maximum load of 3 kg.
The grill pan is not a spare food support and should not be used as a conventional food support.
The grill pan cannot stay inside the oven chamber when the cleaning programme is running.
6 Cleaning
Do not clean the grill pan until it has cooled. Plunging the hot grill pan in water can cause permanent damage.
To extend the service life of the non-stick coating, we recommend cleaning it by hand. The grill pan is dishwasher safe.
▶ Remove any large pieces of dirt with a cloth. ▶ Soak any stubborn dirt. ▶ Wash the grill pan with warm water, a soft sponge or brush and washing-up liquid. ▶ Dry the grill pan thoroughly after washing.
6.1 Cleaning agents
▶ Never use steam cleaners, abrasive sponges, scouring pads or chemically aggressive cleaning agents (e.g. oven cleaner spray).
▶ Make sure that the cleaning agent does not contain any sand, soda, acids, lyes or chloride.
7 Disposal of transport packaging
The packaging protects the product from damage during transport. The packaging materials have been selected taking into account the environment and their disposal and are therefore recyclable.
Recycling the packaging saves raw materials and reduces waste. Your specialist retailer will take the packaging back.
▶ Give the packaging to your specialist retailer or ▶ dispose of the packaging correctly observing regional regulations.
1 General information
Power level 7 Power level 8
Level 7 Level 8
Power level 7 Power level 8
Power level 7 Power level 8.
An empty grill tray may be heated for a maximum of 5 minutes at the power levels listed above, after which a lower power level must be set. ▶ Never heat an empty grill tray. ▶ Never use a power level higher than those listed above, as the grill tray may be permanently damaged!
5.2 BORA X BO
The grill tray can be used in the BORA X BO steam oven.
Power level 7 Power level 8
Power level 7 Power level 8
Power level 7 Power level 8
Power level 7 Power level 8
An empty grill tray may be heated for a maximum of 5 minutes at the power levels listed above, and then must continue to be used at lower power levels. Never use a heated grill tray without food for grilling. Never use power levels higher than those listed above, as this may permanently damage the grill tray!
5.2 BORA X BO
The distribution and duplication of this document, as well as the use and disclosure of its contents are prohibited unless expressly authorised.
Great care was taken when devising these operating and installation instructions. However, it may be the case that later technical changes have not yet been added or the corresponding contents have not yet been modified. We apologise for this. An up-to-date version can be requested from the BORA Service team. Misprints and errors excepted.
