USER MANUAL SG501DC Vonroc

White silhouette of a stylus or tool against a black background (no text or symbols)

EN Original Instructions 04

Technical diagram of a handheld device with labeled parts, showing internal components and a tip component.

C

9 3 8

UONROC

Close-up of a hand using a soldering iron to work on a circuit board (no visible text or symbols)

1. SAFETY INSTRUCTIONS

Read the enclosed safety warnings, the additional safety warnings and the instructions. Failure to follow the safety warnings and the instructions may result in electric shock, fire and/or serious injury. Save the safety warnings and the instructions for future reference.

The following symbols are used in the user manual or on the product:

Read the user manual.

Denotes risk of personal injury, loss of life or damage to the tool in case of nonobservance of the instructions in this manual.

Warning of electrical voltage and shock.

Class III appliance.

Caution: hot surface.

Wear safety goggles.

Do not throw the battery into fire.

Do not throw the battery into water.

Do not dispose of the product in unsuitable containers.

Separate collection for Li-ion battery.

The product is in accordance with the applicable safety standards in the European directives.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

1) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.

f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion. NOTE The temperature „130 °C“ can be replaced by the temperature „265 °F“.

g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

2) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

c) Integrated batteries may only be removed for disposal by qualified personnel.

SPECIFIC SOLDERING IRON SAFETY INSTRUCTIONS

Risk of fire! When putting the soldering iron down, make sure that the hot tip does not come into contact with combustible materials. Do not leave the device unatten ded while it is hot. Allow it to cool down before you store it away.

The soldering tip reaches temperatures of about 450°C. Touching the metal parts can cause severe burns.

The device must always be placed on a non-combustible surface when it is not in use. There is a potential fire hazard.

WARNING! This tool must be placed on its stand when not in use.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and
  cerming use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Always turn the device on before it comes into contact with the material that is to be worked on.
• Vapours which are harmful to health are produced during the soldering process. Ensure good ventilation or suitable vapour removal.
• Protect your eyes with safety goggles and your body with suitable working clothes against solder splashes and corrosive vapours.
• The device must never be used for heating up liquids or plastics.
• Never leave the device unattended when it is switched on.
• Ask our service centre to carry out any work that is not described in these instructions. Use only original parts.
• This tool must be placed on its support when not in use.
• Use only the battery charger supplied.
• The appliance cannot be used to weld plastic material.

2. MACHINE INFORMATION

Intended use

The cordless soldering iron is suitable for soldering electronic components. This appliance is designed for domestic use. This soldering iron is suitable for soldering on printed circuit boards, soldering of plastic and for burning work on wood and leather. All other applications are specifically excluded.

TECHNICAL SPECIFICATIONS

Model No. SG501DC
Rated voltage 4V DC Li-ion
Power Max 8W
Battery capacity 1500mAh
Insulation class III
Protection class IP20
Pre heating time 25 sec
Temperature Max 450°C
Automatic shutdown After 10min
Weight (machine) 0.11kg

Recommended USB Charger adapter
Rated output	USB 5V DC
Recommend output current	1000-2000mA

Operating and storage temperature
Charge	0~+45°C
Discharge	-20~+60°C
Storage	-5~+35°C

DESCRIPTION

The numbers in the text refer to the diagrams on pages 2-3.

1. Soldering tip
2. Soldering tip holder
3. Soldering iron
4. On/Off switch
5. Soldering iron base
6. Sponge
7. Solder wire
8. Charger cable
9. LED indication light
10. LED Worklight

3. ASSEMBLY

The soldering tip has to be mounted before initial use. See installing/replacing soldering tip.

Make sure that the soldering iron is turned off and cold.

Soldering iron base (Fig. A)

• Place the soldering iron base (5) on the table/flat surface.
• Put the soldering iron (3) into the base (5).
• Ensure that it is firmly placed.
• Fit the sponge (6) on the soldering iron base (5) and lightly moisten the sponge with some tap water.

Tip! Make sure to absorb the sponge (6) in water before using the soldering iron (3) and keep the sponge damp at all times during use.

Installing /replacing soldering tip (Fig. B)

Make sure that the soldering iron is turned off and cold.

• To install the soldering tip, hold the soldering iron and screw the soldering tip (1) tightly into the soldering tip holder (2)
• To replace the soldering tip (1), unscrew the soldering tip (1) that is already inserted and take it off, then screw the new soldering tip (1) into the soldering tip holder (2).

4. OPERATING

The battery must be charged before first use.

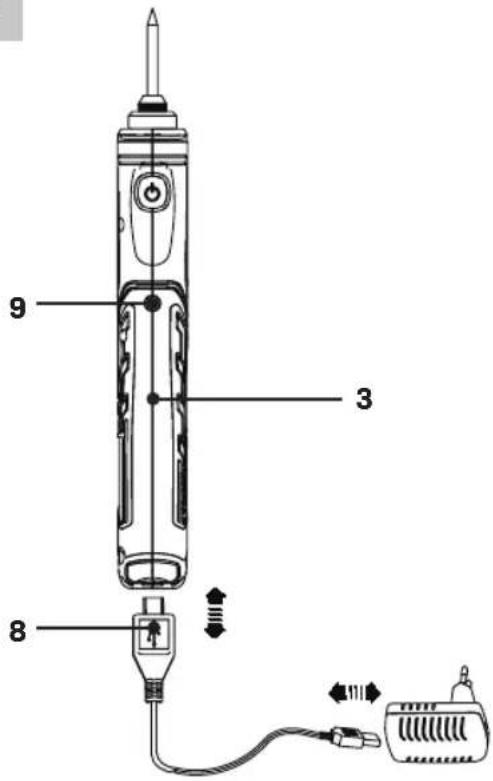

Charging the machine (Fig. C)

The device cannot be used while it is being charged.

• Plug the charger cable (included) into an adapter (not included).
• Plug the charger cable (8) into the machine.
• Plug the charger plug into an electrical outlet and wait for a while. The LED indication light (9) will lighten up and show the charging status.
• Note: the machine can also be charged by connecting the charger cable to a suitable USB outlet.

LED Charger status
Red Battery charging in progress
Green	Battery charging finished, battery fully charged

Fully charging the battery may take up to 2 - 3 hours.

If the LED indicator light (9) is red and flashing, when this happens there is problem with the battery. Stop charging immediately and consult a qualified electrician or a service workshop.

Switching on and off

Caution, danger of burns! Do not touch the hot soldering tip.

When starting work:

1. Take out the soldering iron (3) from the soldering iron base (5).

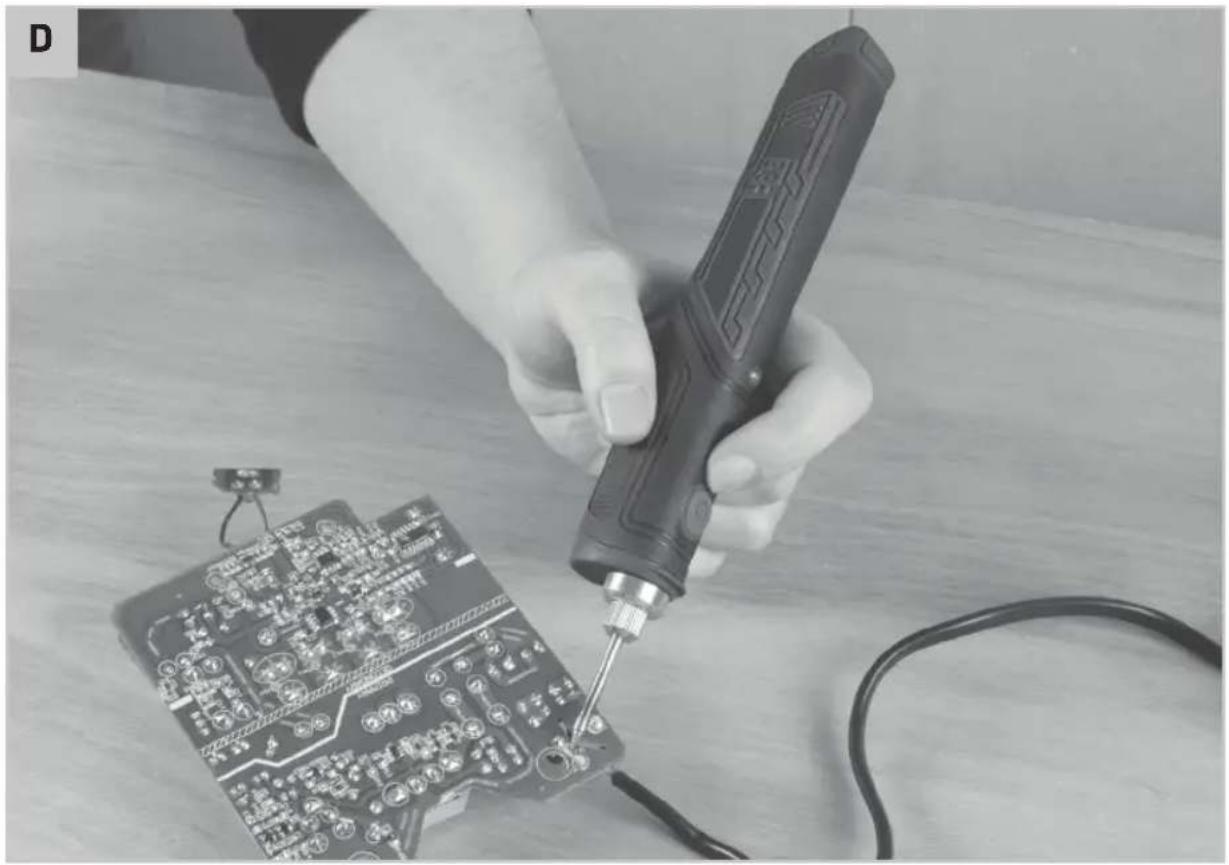

2. Hold the soldering iron in your hand like a pen, as shown on figure D.
3. Press the on/off switch (4) to turn on the machine, the LED indicator light (9) turns red. The LED working lights (10) will turn on to bright up the working area.
4. The indicator light (9) changes from red to green after approx. 25 seconds; now the soldering tip has reached a working temperature of approx. 450°C.
5. The soldering tip will keep the temperature for 10min, after this the soldering iron stops automatically and the LED indicator light (9) and the LED working lights (10) will turn off.
6. To continue using the soldering iron, repeat step 2 to 4.

Switching off:

• Press the on/off switch (4) to turn off the machine. Make sure that the hot soldering tip (1) does not touch anything until it has cooled down.
• Cleaning the solder tip on the wet sponge (6)
• Put the soldering iron back on the soldering iron base (5).

Working Instructions

• In order to obtain a perfect soldering point, the soldering point must be completely clean and free of grease.
• Before initial use, the soldering tip has to be tin-coated, i.e. coated with soldering tin. Only good tin coating ensures perfect soldering and

heat transfer.

• Make sure that the soldering tip is always clean and free of scaling and excess soldering tin. Clean the soldering tip regularly with a wet sponge. Never use a file for this purpose.
• Before soldering, establish a mechanical connection between the metals which are to be connected together if possible. For example, twist the wires together so that they do not slip. In this way you will obtain stable soldering points and avoid heat damage through excessive soldering.
• For the soldering of two metals, hold the soldering tip on the connection point and briefly add some solder. The solder melts and flows into the soldering point. If the tin has spread, remove the soldering iron and allow the soldering point to cool down without vibrations. Never heat solder directly and do not use too much solder.
• In the case of electronic components, the parts to be soldered must not be heated too much in order to avoid damage.
• Place the soldering tip on a heat-resistant surface or insert it into the base during working.
• Cleaning the solder tip on the wet sponge after work and put the soldering iron back into the base.

5. MAINTENANCE

Repairs may only be carried out by a qualified electrician or at a service workshop!

These machines have been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper machine care and regular cleaning.

Cleaning

Never use solvents such as petrol, alcohol, ammonia water, etc. These solvents may damage the plastic parts.

Do not spray the appliance with water and do not immerse it in water. Electric shock hazard!

Do not use cleaning agents or solvents. You may otherwise irreparably damage the appliance.

- Wipe off the warm soldering tip (1) after use on a damp sponge.

- Never scrape or file any solder residues off the soldering tip with hard objects, as this will damage the soldering tip (1).

ENVIRONMENT

To prevent damage during transport, the appliance is delivered in a solid packaging which consists largely of reusable material. Therefore please make use of options for recycling the packaging.

Faulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

WARRANTY

VONROC products are developed to the highest quality standards and are guaranteed free of defects in both materials and workmanship for the period lawfully stipulated starting from the date of original purchase. Should the product develop any failure during this period due to defective material and/or workmanship then contact VONROC directly.

The following circumstances are excluded from this guarantee:

• Repairs and or alterations have been made or attempted to the machine by unauthorized service centers;
• Normal wear and tear;
• The tool has been abused, misused or improperly maintained;
• Non-original spare parts have been used.

This constitutes the sole warranty made by company either expressed or implied. There are no other warranties expressed or implied which extend beyond the face hereof, herein, including the implied warranties of merchantability and fitness for a particular purpose. In no event shall VONROC be liable for any incidental or consequential damages.

The dealers remedies shall be limited to repair or replacement of nonconforming units or parts.

The product and the user manual are subject to change. Specifications can be changed without further notice.
