USER MANUAL DWST08061 DEWALT

English (original instructions) 20

Technical diagram of an electronic device with numbered components and directional arrows indicating motion or assembly.

18V JUSTERBAR ARBEJDSLYGTE OG OPBEVARING DWST08061

Tillykke!

Installation of Tool Connect™ Chip

You have chosen a DEWALT tool. Years of experience, thorough product development and innovation make DEWALT one of the most reliable partners for professional power tool users.

Technical Data

	DWST08061
Type 1
Battery type Li-Ion
Voltage V	DC 18
Lumens
Articulating head LED lm	Low - 500Mid - 1000High - 2000
Weight (without battery packs) kg 4.83
Recommended operating temperatures
Minimum 4 °C (39.2 °F)
Maximum 40 °C (104 °F)

WARNING: To reduce the risk of injury, read the instruction manual.

Definitions: Safety Guidelines

The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation when, if not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

Dilutes risk of electric shock.

Dilotes risk of fire.

Specific Safety Rules for Lights

WARNING: Do not place the light in a position which may cause anyone to intentionally or unintentionally stare into the light. Serious eye injury could result.

WARNING: Fire hazard. Do not operate light or charger flammable liquids or in gaseous or explosive atmospheres. Internal sparks may ignite fumes causing personal injury.

Additional Safety Rules for Work Lights

WARNING: To reduce the risk of fire, do not place a pointing next to or on top of the lens during or after operation of the light.

CAUTION: Do not put any magnets near the ON/OFF switch. The light could be turned on by a strong magnet near the work light's switch.

• Risk of electric shock. Do not expose to rain. Store indoors.
• Do not submerge work light in any liquid.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Before using work light, read all instructions and cautionary markings on work light, charger and battery.
• Store the work light indoors when not in use. Keep out of reach of children.
• Place the work light away from any heat source.
• Do not disassemble work light. Take it to an authorized service center when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution or fire.
• Remove the battery pack from the work light before attempting any cleaning. This will reduce the risk of electric shock.
• The temperature of the aluminum case inside the bumper is high. Take care to avoid coming into contact with the hot surface.

Residual Risks

In spite of the application of the relevant safety regulations and the implementation of safety devices, certain residual risks cannot be avoided. These are:

• Impairment of hearing.
  • Risk of personal injury due to flying particles.
• Risk of burns due to accessories becoming hot during operation.
  • Risk of personal injury due to prolonged use.

SAVE THESE INSTRUCTIONS

Chargers

DEWALT chargers require no adjustment and are designed to be as easy as possible to operate.

Electrical Safety

The electric motor has been designed for one voltage only. Always check that the battery pack voltage corresponds to the voltage on the rating plate. Also make sure that the voltage of your charger corresponds to that of your mains.

Batteries Chargers/Charge				Times (Minutes)***
Cat # V	DC	Ah Weight (kg)		DCB104 DCB107		DCB112/DCB1102	DCB113	DCB115/DCB1104	DCB116 DCB117 DCB118 DCB132 DCB119
DCB546	18/54	6.0/2.0	1.08	60	270	170	140	90	80	40	60	90	X
DCB547/G	18/54	9.0/3.0	1.46	75*	420	270	220	135*	110*	60	75*	135*	X
DCB548	18/54	12.0/4.0	1.46	120	540	350	300	180	150	80	120	180	X
DCB181	18	1.5	0.35	22	70	45	35	22	22	22	22	22	45
DCB182	18	4.0	0.61	60/40**	185	120	100	60	60/45**	60/40**	60/40**	60	120
DCB183/B/G	18	2.0	0.40	30	90	60	50	30	30	30	30	30	60
DCB184/B/G	18	5.0	0.62	75/50**	240	150	120	75	75/60**	75/50**	75/50**	75	150
DCB185	18	1.3	0.35	22	60	40	30	22	22	22	22	22	40
DCB187	18	3.0	0.54	45	140	90	70	45	45	45	45	45	90
DCB189	18	4.0	0.54	60	185	120	100	60	60	60	60	60	120
DCBP034/G	18	1.7	0.32	27	82	50	40	27	27	27	27	27	50
DCBP518/G	18	5.0	0.75	50	240	150	120	75	60	50	50	75	150

*Date code 201811475B or later
**Date code 201536 or later
***Battery charge times matrix provided for guidance only; charge times will vary depending on temperature and condition of batteries.

Your DEWALT charger is double insulated in accordance with EN60335; therefore, no earth wire is required.

If the supply cord is damaged, it must be replaced only by DEWALT or an authorised service organisation.

Mains Plug Replacement (U.K. & Ireland Only)

If a new mains plug needs to be fitted:

• Safely dispose of the old plug.
- Connect the brown lead to the live terminal in the plug.
- Connect the blue lead to the neutral terminal.

WARNING: No connection is to be made to the earth terminal.

Follow the fitting instructions supplied with good quality plugs. Recommended fuse: 3 A.

Using an Extension Cable

An extension cord should not be used unless absolutely necessary. Use an approved extension cable suitable for the power input of your charger (refer to Technical Data). The minimum conductor size is 1 mm ^2 ; the maximum length is 30 m. When using a cable reel, always unwind the cable completely.

Important Safety Instructions for All Battery Chargers

SAVE THESE INSTRUCTIONS: This manual contains important safety and operating instructions for compatible battery chargers (refer to Technical Data). Before using charger, read all instructions and cautionary markings on charger, battery pack, and product using battery pack.

WARNING: Shock hazard. Do not allow any liquid to get inside charger. Electric shock may result.

WARNING: We recommend the use of a residual current device with a residual current rating of 30 mA or less.

CAUTION: Burn hazard. To reduce the risk of injury, charge only DEWALT rechargeable batteries. Other types of batteries may burst, causing personal injury and damage.

CAUTION: Children should be supervised to ensure that they do not play with the appliance.

NOTICE: Under certain conditions, with the charger plugged into the power supply, the exposed charging contacts inside the charger can be shorted by foreign material. Foreign materials of a conductive nature such as, but not limited to, steel wool, aluminum foil or any buildup of metallic particles should be kept away from charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug charger before attempting to clean.

• DO NOT attempt to charge the battery pack with any chargers other than the ones in this manual. The charger and battery pack are specifically designed to work together.
  • These chargers are not intended for any uses other than charging DEWALT rechargeable batteries. Any other uses may result in risk of fire, electric shock or electrocution.
• Do not expose charger to rain or snow.

• Pull by plug rather than cord when disconnecting charger. This will reduce risk of damage to electric plug and cord.

• Make sure that cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress.

- Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire, electric shock, or electrocution.

- Do not place any object on top of charger or place the charger on a soft surface that might block the ventilation slots and result in excessive internal heat. Place the charger in a position away from any heat source. The charger is ventilated through slots in the top and the bottom of the housing.

• Do not operate charger with damaged cord or plug—have them replaced immediately.
• Do not operate charger if it has received a sharp blow, been dropped, or otherwise damaged in any way. Take it to an authorised service centre.
• Do not disassemble charger; take it to an authorised service centre when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution or fire.
• In case of damaged power supply cord, the supply cord must be replaced immediately by the manufacturer, its service agent or similar qualified person to prevent any hazard.
• Disconnect the charger from the outlet before attempting any cleaning. This will reduce the risk of electric shock. Removing the battery pack will not reduce this risk.
• NEVER attempt to connect two chargers together.
• The charger is designed to operate on standard 230V household electrical power. Do not attempt to use it on any other voltage. This does not apply to the vehicular charger.

Charging a Battery (Fig. B)

1. Plug the charger into an appropriate outlet before inserting battery pack.
2. Insert the battery pack 15 into the charger, making sure the battery pack is fully seated in the charger. The red (charging) light will blink repeatedly, indicating that the charging process has started.
3. The completion of charge will be indicated by the red light remaining ON continuously. The battery pack is fully charged and may be used at this time or left in the charger. To remove the battery pack from the charger, push the battery release button 16 on the battery pack.

NOTE: To ensure maximum performance and life of lithium-ion battery packs, charge the battery pack fully before first use.

Charger Operation

Refer to the indicators below for the charge status of the battery pack.

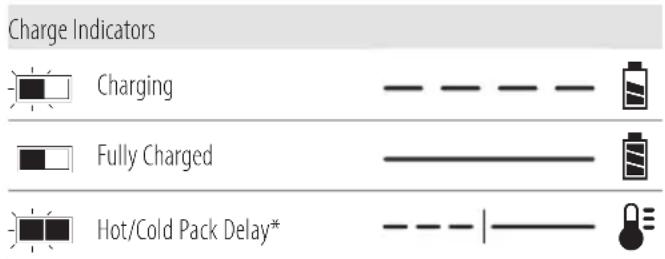

Charge Indicators Charging Fully Charged Hot/Cold Pack Delay*

* The red light will continue to blink, but a yellow indicator light will be illuminated during this operation. Once the battery pack has reached an appropriate temperature, the yellow light will turn off and the charger will resume the charging procedure. The compatible charger(s) will not charge a faulty battery pack. The charger will indicate faulty battery by refusing to light.

NOTE: This could also mean a problem with a charger. If the charger indicates a problem, take the charger and battery pack to be tested at an authorised service centre.

Hot/Cold Pack Delay

When the charger detects a battery pack that is too hot or too cold, it automatically starts a Hot/Cold Pack Delay, suspending charging until the battery pack has reached an appropriate temperature. The charger then automatically switches to the pack charging mode. This feature ensures maximum battery pack life.

A cold battery pack will charge at a slower rate than a warm battery pack. The battery pack will charge at that slower rate throughout the entire charging cycle and will not return to maximum charge rate even if the battery pack warms.

The DCB118 charger is equipped with an internal fan designed to cool the battery pack. The fan will turn on automatically when the battery pack needs to be cooled. Never operate the charger if the fan does not operate properly or if ventilation slots are blocked. Do not permit foreign objects to enter the interior of the charger.

Electronic Protection System

XR Li-Ion tools are designed with an Electronic Protection System that will protect the battery pack against overloading, overheating or deep discharge.

The tool will automatically turn off if the Electronic Protection System engages. If this occurs, place the lithium-ion battery pack in the charger until it is fully charged.

Wall Mounting

These chargers are designed to be wall mountable or to sit upright on a table or work surface. If wall mounting, locate the charger within reach of an electrical outlet, and away from a corner or other obstructions which may impede air flow. Use the back of the charger as a template for the location of the mounting screws on the wall. Mount the charger securely using drywall screws (purchased separately) at least 25.4 mm long with a screw head diameter of 7–9 mm, screwed into wood to an optimal depth leaving approximately 5.5 mm of the screw exposed. Align the slots on the back of the charger with the exposed screws and fully engage them in the slots.

Charger Cleaning Instructions

WARNING: Shock hazard. Disconnect the charger of the AC outlet before cleaning. Dirt and grease may be removed from the exterior of the charger using a cloth or soft non-metallic brush. Do not use water or any cleaning solutions. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

Battery Packs

Important Safety Instructions for All Battery Packs

When ordering replacement battery packs, be sure to include catalogue number and voltage.

The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below. Then follow charging procedures outlined.

READ ALL INSTRUCTIONS

- Do not charge or use battery in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery from the charger may ignite the dust or fumes.

• Never force battery pack into charger. Do not modify battery pack in any way to fit into a non-compatible charger as battery pack may rupture, causing serious personal injury.
• Charge the battery packs only in DEWALT chargers.
  • DO NOT splash or immerse in water or other liquids.
• Do not store or use the tool and battery pack in locations where the temperature may fall below 4 °C (39.2 °F) (such as outside sheds or metal buildings in winter), or reach or exceed 40 °C (104 °F) (such as outside sheds or metal buildings in summer).
• Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and materials are created when lithium-ion battery packs are burned.
• If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation ceases. If medical attention is needed, the battery electrolyte is composed of a mixture of liquid organic carbonates and lithium salts.
• Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek medical attention.

WARNING: Burn hazard. Battery liquid may be flammable is exposed to spark or flame.

WARNING: Never attempt to open the battery pack for any reason. If battery pack case is cracked or damaged, do not insert into charger. Do not crush, drop or damage battery pack. Do not use a battery pack or charger that has received a sharp blow, been dropped, run over or damaged in any way (i.e., pierced with a nail, hit with a hammer, stepped on). Electric shock or electrocution may result. Damaged battery packs should be returned to service centre for recycling.

WARNING: Fire hazard. Do not store or carry the battery pack so that metal objects can contact exposed battery terminals. For example, do not place the battery pack in aprons, pockets, tool boxes, product kit boxes, drawers, etc., with loose nails, screws, keys, etc.

CAUTION: When not in use, place tool on its side on a stable surface where it will not cause a tripping or falling hazard. Some tools with large battery packs will stand upright on the battery pack but may be easily knocked over.

Transportation

WARNING: Fire hazard. Transporting batteries can probably cause fire if the battery terminals inadvertently come into contact with conductive materials. When transporting batteries, make sure that the battery terminals are protected and well-insulated from materials that could contact them and cause a short circuit. NOTE: Lithium-ion batteries should not be put in checked baggage.

DEWALT batteries comply with all applicable shipping regulations as prescribed by industry and legal standards, which include UN Recommendations on the Transport of Dangerous Goods; International Air Transport Association (IATA) Dangerous Goods Regulations; International Maritime Dangerous Goods (IMDG) Regulations; and the European Agreement Concerning The International Carriage of Dangerous Goods by Road (ADR). Lithium-ion cells and batteries have been tested to section 38.3 of the UN Recommendations on the Transport of Dangerous Goods Manual of Tests and Criteria.

In most instances, shipping a DEWALT battery pack will be excepted from being classified as a fully regulated Class 9 Hazardous Material. In general, only shipments containing a lithium-ion battery with an energy rating greater than 100 Watt Hours (Wh) will require being shipped as fully regulated Class 9. All lithium-ion batteries have the Wh rating marked on the pack. Furthermore, due to regulation complexities, DEWALT does not recommend air shipping lithium-ion battery packs alone regardless of Wh rating. Shipments of tools with batteries (combo kits) can be air shipped as excepted if the Wh rating of the battery pack is no greater than 100 Wh.

Regardless of whether a shipment is considered excepted or fully regulated, it is the shipper's responsibility to consult the latest regulations for packaging, labeling/marking and documentation requirements.

The information provided in this section of the manual is provided in good faith and believed to be accurate at the time the document was created. However, no warranty, expressed or implied, is given. It is the buyer's responsibility to ensure that its activities comply with the applicable regulations.

Storage Recommendations

1. The best storage place is one that is cool and dry away from direct sunlight and excessive heat or cold. For optimum battery performance and life, store battery packs at room temperature when not in use.
2. For long storage, it is recommended to store a fully charged battery pack in a cool, dry place out of the charger for optimal results.

nOTE: Battery packs should not be stored completely depleted of charge. The battery pack will need to be recharged before use.

Labels on Charger and Battery Pack

In addition to the pictographs used in this manual, the labels on the charger and the battery pack may show the following pictographs:

Read instruction manual before use.

Refer to Technical Data for charging time.

Do not probe with conductive objects.

Do not charge damaged battery packs.

Do not expose to water.

Have defective cords replaced immediately.

Charge only between 4 °C and 40 °C.

Only for indoor use.

Discard the battery pack with due care for the environment.

Charge DEWALT battery packs only with designated DEWALT chargers. Charging battery packs other than the designated DEWALT batteries with a DEWALT charger may make them burst or lead to other dangerous situations.

Do not incinerate the battery pack.

Battery Type

The following tools operate on an 18-volt battery pack: DWST08061.

These battery packs may be used: DCB181, DCB182, DCB183, DCB183B, DCB183G, DCB184, DCB184B, DCB184G, DCB185, DCB187, DCB189, DCBP034, DCBP034G, DCBP518, DCBP518G, DCB546, DCB547, DCB547G, DCB548, DCB549. Refer to

Technical Data for more information.

Package Contents

The package contains:

1 Toughsystem 2.0 half size open tote
1 Li-Ion battery pack (C1, D1, G1, L1, M1, P1, S1, T1, X1, Y1 models)
2 Li-Ion battery packs (C2, D2, G2, L2, M2, P2, S2, T2, X2, Y2 models) 1 Instruction manual

NOTE: Battery packs, are not included with N models. Battery packs are not included with NT models. B models include Bluetooth® battery packs.

NOTE: The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth®, SIG, Inc. and any use of such marks by DEWALT is under license. Other trademarks and trade names are those of their respective owners.

• Check for damage to the tool, parts or accessories which may have occurred during transport.
  • Take the time to thoroughly read and understand this manual prior to operation.

Markings on Tool

The following pictograms are shown on the tool:

Read instruction manual before use.

Only for indoor use.

Hot surface

Do not stare at light source.

Date Code Position (Fig. A)

The production date code 26 consists of a 4-digit year followed by a 2-digit week and is extended by a 2-digit factory code.

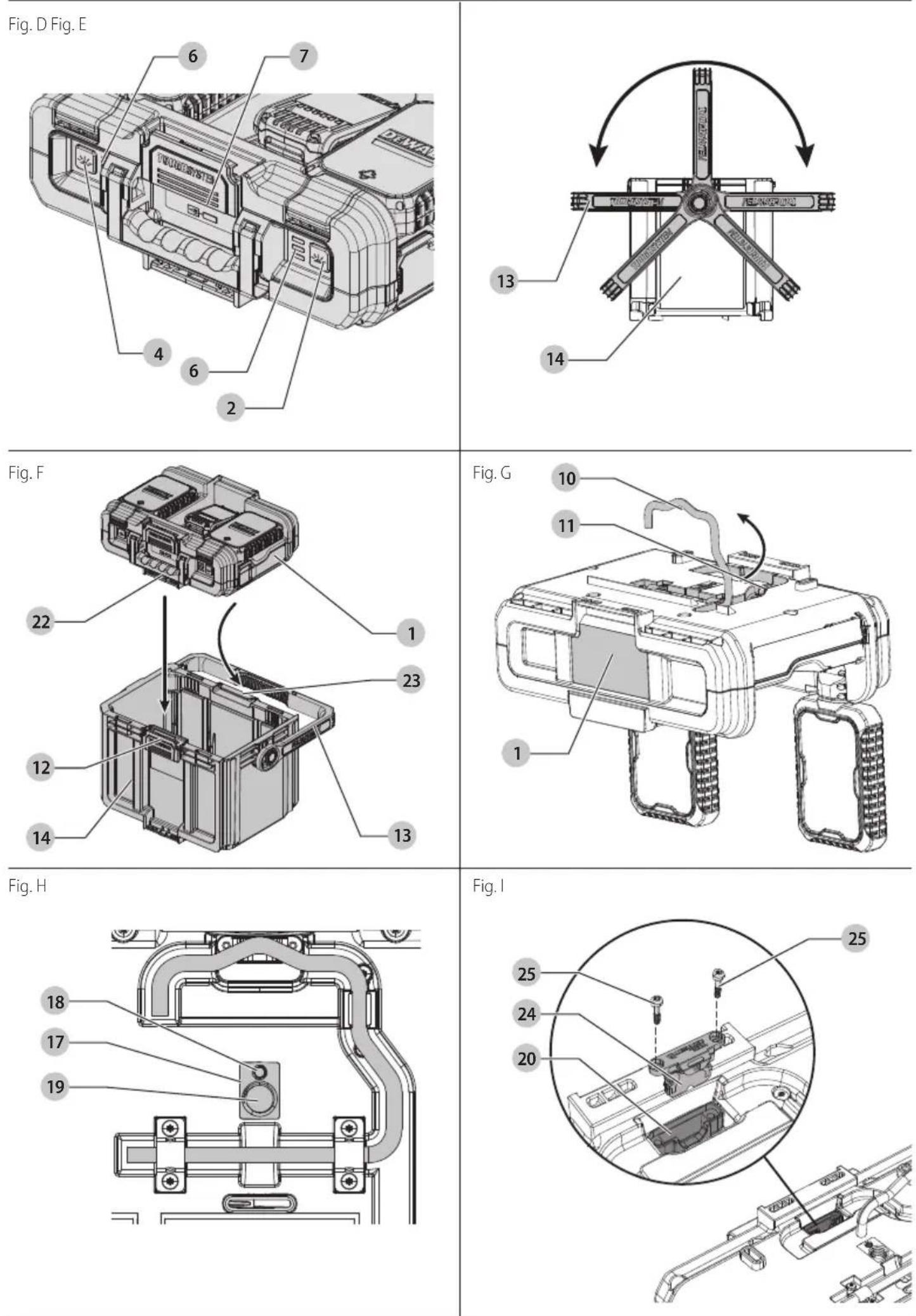

Description (Fig. A)

WARNING: Never modify the power tool or any part of it. Damage or personal injury could result.

1 Light box
2 Right LED On/Off button
3 Right articulating head LED
4 Left LED On/Off button
5 Left articulating head LED
6 Brightness indicator LEDs
7 State of charge indicator LEDs
8 Battery port
9 Top handle
10 Hanging hook
11 Hanging hook clasp
12 Stacking latch
13 Carry handle
14 Storage compartment
15 Battery
16 Battery release button
17 Side tool mounting
18 1/4" threaded mount
19 5/8" threaded mount
20 Tool Connect™ mount

Intended Use

The DWST08061 has been designed for professional lighting applications.

DO NOT use under wet conditions or in the presence of flammable liquids or gases.

DO NOT let children come into contact with the tool. Supervision is required when inexperienced operators use this tool.

• Young children and the infirm. This appliance is not intended for use by young children or infirm persons without supervision.
• This product is not intended for use by persons (including children) suffering from diminished physical, sensory or mental abilities; lack of experience, knowledge or skills unless they are supervised by a person responsible for their safety. Children should never be left alone with this product.

OPERATION

Instructions for Use

WARNING: Always observe the safety instructions and applicable regulations.

WARNING: To reduce the risk of serious personal injury, turn tool off and disconnect battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

Positioning the Articulating Head LEDs (Fig. A, C)

WARNING: Do not to attempt to operate the stimulating head LEDs in the closed position, or with the lens facing the light box, as the surface the light may get hot.

The articulating head LED 3, 5 pivots up and down 0^-160^ and swivels from 0^-270^ .

NOTE: The light box is equipped with magnetic sensors. If the articulating head LED 3, 5 is stored with the lens facing the light box, the articulating head LED 3, 5 will not turn on and will turn off automatically.

1. To move the left articulating head LED 5 or right articulating head LED 3 first pull it upwards and away from the light box 1.
2. To adjust the light beam, swivel the left articulating head LED 5 or right articulating head LED 3 by twisting it into the desired position.
3. When not in use fold the left articulating head LED 5 or right articulating head LED 3 with the lens side facing into the stored position, secured in the light box 1.

On/Off Switch (Fig. A, D)

WARNING: The lens gets very hot during use. To reduce the risk of burns, do not touch hot lens.

WARNING: Keep objects at least 20" (51 cm) away from the lenses when they are in use to prevent the objects from overheating.

WARNING: To reduce the risk of fire, keep away from combustible materials while in operation.

CAUTION: Do not stare into box light lens. Serious eye injury could result.

nOTE: For best results, make sure your battery pack is fully charged.

1. To turn on the right articulating head LED 3, press the right LED On/Off button 2.
2. To turn on the left articulating head LED 5, press the left LED On/Off button 4.
3. Each articulating head LED 3, 5 has three brightness levels, up to 2000 lumens. Continue to press the On/Off buttons to change the brightness level.
4. Continue cycling the On/Off buttons until the lights turn off.

NOTE: The light box is equipped with magnetic sensors. If the articulating head LED 3, 5 is stored with the lens facing the light box, the articulating head LED 3, 5 will not turn on and will turn off automatically.

Low Battery Indicator

As the battery nears a fully discharged state, the light will blink twice. The light will continue to blink twice every 45 seconds until the battery is fully discharged at which time the light will turn off. Indication time will vary based on battery pack capacity.

CAUTION: Stop work and replace the battery when this occurs.

Thermal Protection Mode

In cases of overheating, the articulating head LEDs 3 lumen output automatically switches to the next lower brightness setting. If the temperature continues to increase, the light box will power off until a normal operating temperature is reached.

Top Handle (Fig. A)

This light box 1 has a built in top handle 9 that allows you to carry the light box 1 when not attached to the storage compartment 14.

Carry Handle (Fig. E)

This DWST08061 has a built in carry handle 13 that allows you to carry the DWST08061 when not attached to a ToughSystem® storage box.

Storage Compartment (Fig. F)

WARNING: Avoid overfilling the storage compartment.

WARNING: Do not forcefully attach the light box and the storage compartment. If the light box will not fully close or the latches will not lock easily, ensure the storage compartment is not overfilled. Remove a few items and try attaching the light box again. If needed you can stack the storage compartment on top of the light box.

WARNING: When stacking an additional ToughSystem 2.0 when top of the light box, the battery must be removed first, unless it is smaller than 6Ah.

WARNING: Ensure the light panels are facing down before stacking another ToughSystem 2.0 unit on top of the light box to prevent possible activation of the LED lights.

This DWST08061 has a storage compartment 14 to carry your extra batteries, cords or tools.

The light box and the storage compartment are ToughSystem 2.0 compatible and can be stacked together or individually with all ToughSystem 2.0 products.

1. To access the storage compartment 14 first unlock the light box 1 from the storage compartment 14 by pressing the stacking latch 12 and then lift the light box 1 off the storage compartment 14.
2. To install the light box 1 onto the storage compartment 14, pivot the light box slot 22 into the storage compartment slot 23. Press the light box 1 down

and inward until an audible click is heard. Ensure the light box 1 is securely held in place.

Suspending the Light Box (Fig A, G)

CAUTION: When the light box hangs by the hang hook, do not shake the light box or the object from which it hangs. Do not hang the light box from any electrical wires or anything that is not secure. Personal injury or property damage may occur.

CAUTION: Only use the hang hook for hanging the light box as shown in Fig. A, G. The hang hook is not intended to support additional weight. Do not attach or hang anything additional to the light box or risk of breakage may occur.

CAUTION: Do not use the hang hook to reach with or to support your weight in any situation.

CAUTION: Do not stand underneath the light box when it is mounted overhead. Serious personal injury or damage to the light box may result if the light box falls.

C!TION: Do not mount the light box to the ceiling.

Hang Hook

The hang hook 10 may be used to suspend the light box 1 from 2x4 lumber or pipes up to 2-1/2" (64 mm) diameter.

1. The hang hook 10 folds out from under light box 1. Be sure to fully extend the hang hook 10 before using.

2. To store the hang hook 10 fold it into the hang hook recess and ensure the hang hook 10 clips into the hang hook clasp 11.

Mounting the Light Box Using the Threaded Accessory Mounts (Fig. A, H)

WARNING: Since accessories, other than those offered by DEWALT, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only DEWALT recommended accessories should be used with this product.

If you need any assistance in locating any accessory, please contact your nearest DEWALT service centre or go to www.DEWALT.com.

The DWST08061 is equipped with 1/4 x 20 18 and 5/8 x 11 19 female threaded mount. This threaded mount is to accommodate current or future DEWALT accessories.

1. Place the mounting screw of the accessory into the appropriate threaded mount and secure the accessory to the light.

NOTE: Follow the directions included with the accessory.

1. Ensure the light is securely attached.

MAINTENANCE

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

Your DEWALT product has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper care and regular cleaning.

WARNING: The light source contained in this luminaire shall only be replaced by the manufacturer or a DEWALT service centre or a similar qualified person.

Storage and Transportation

• Always store with battery removed!
- Avoid using the DWST08061 outdoors or transporting in an open vehicle.
- Do not use in rain. Do not expose to rain.
- Store indoors..
- Store the DWST08061 in a place that is as cool and dry as possible.
- Store the DWST08061 in a place where it cannot be accessed by children or unauthorized persons.
- Check the DWST08061 for damage before use after long periods of storage.

Lubrication

Your power tool requires no additional lubrication.

Cleaning

WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

Optional Accessories

WARNING: Since accessories, other than those offered by DEWALT, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, onlyDEWALT-recommended accessories should be used with this product.

Consult your dealer for further information on the appropriate accessories.

Tool Connect™ Chip (Fig. I)

Optional Accessory

WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect it from power source and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

Your tool is Tool Connect™ Chip ready and has a location for installation of a Tool Connect™ Chip.

Tool Connect™ chip 24 communicates with an optional application for your smart device (such as a smart phone or tablet) that connects the device to utilize the mobile application for inventory management functions.

Refer to Tool Connect™ Chip Instruction Sheet for more information.

Installing the Tool Connect™ Chip

1. Insert the Tool Connect™ Chip 24 into the empty pocket 20.
2. Ensure that the Tool Connect™ Chip is flush with the housing. Secure it with the retaining screws 25 and tighten the screws.
3. Refer to Tool Connect™ Chip Instruction Sheet for further instructions.

Protecting the Environment

Separate collection. Products and batteries marked with this symbol must not be disposed of with normal household waste.

Products and batteries contain materials that can be recovered or recycled, reducing the demand for raw materials. Please recycle electrical products and batteries according to local provisions. Further information is available at www.2helpU.com.

Rechargeable Battery Pack

This long-life battery pack must be recharged when it fails to produce sufficient power on jobs that were easily done before. At the end of its technical life, discard it with due care for our environment:

• Run the battery pack down completely, then remove it from the tool.
• Li-lon cells are recyclable. Take them to your dealer or a local recycling station. The collected battery packs will be recycled or disposed of properly.

LUZ DE TRABAJO DE 18 V AJUSTABLE Y ALMACENAMIENTO DWST08061

¡Enhorabuena!

Bloc-batterie rechargeable
