USER MANUAL PRO-III Advanced Safety DUCATI

This manual is valid for the following electric scooters:

Pro-I Evo (Black Edition / White Edition), Pro-I Evo AS,

Pro-I Evo SR (Black Edition/White Edition), Pro-I Evo Max SR,

Pro-II Plus, Pro-II Plus AS, Pro-II Evo, Pro-II Evo AS, Pro-III, Pro-III R

User manual

DU-MO-000001 rev. 3

Instructions translated from the original Italian

Thank you for choosing this product.

For information, technical support, assistance and for consulting the warranty general terms, please consult your dealer or visit www.ducatiurbanemobility.com

Contents

1. Safety instructions
2. Package contents and assembly
3. Product overview
4. Battery charging and activation

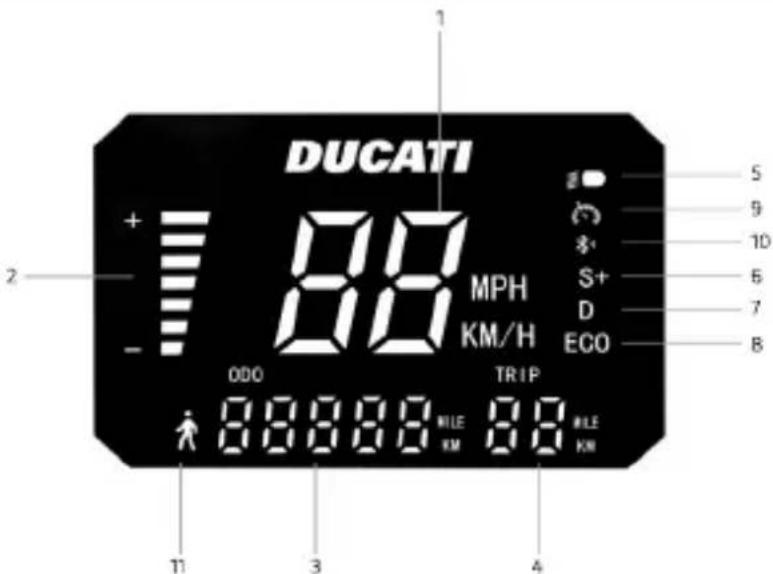

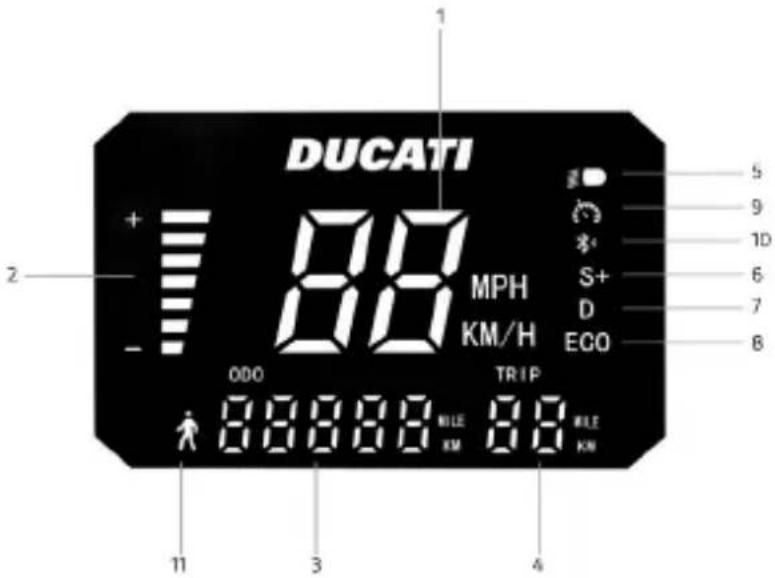

5. Command information / Control panel
6. Quick guide

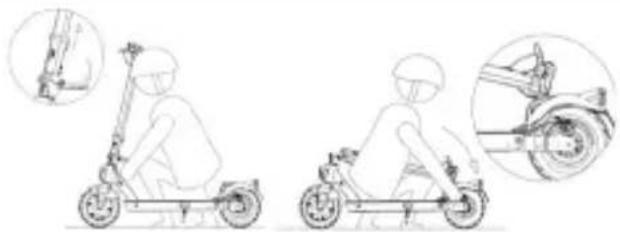

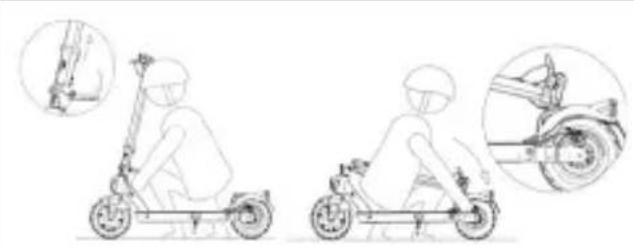

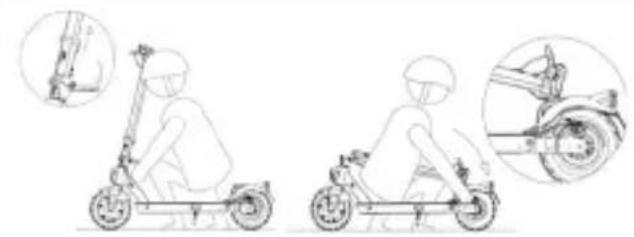

7. Folding and carrying
8. Range and performance
9. Storage, maintenance and cleaning
10. App configuration
11. Technical data sheet
12. Troubleshooting
13. Liability and general terms of warranty

1. Safety instructions

IMPORTANT! Read and follow the following instructions carefully before using the product. Keep this manual for future reference or new users.

Take the time to learn the basics to avoid any serious accidents that may occur in the first few months. Contact your dealer for appropriate support on the correct way to use the product or to be directed to an appropriate training organisation.

The company disclaims all direct or indirect liability arising from the c active use of the product, non-compliance with both road traffic regulations and the instructions in this manual, accidents and disputes caused by non-compliance with regulations and illegal actions.

This product is intended to be used for recreational purposes, to be used by one person only and not for transporting passengers, therefore it cannot be used by more than one person at the same time.

Do not change the purpose of use in any way, this product is not suitable for stunts, competitions, transporting objects, towing other vehicles or appendages.

The electric scooter must be used with caution, always respecting the rules imposed by the Highway Code of the country in which it is used, in order to avoid danger and to take maximum care of yourself and others.

CAUTION

* Before using the product, check and follow the local regulations in force regarding the minimum age of the driver.
Indicative vehicle design requirements:

Scooter model	Pro-I Evo Black and White edition	Pro-I Evo SR Black and White edition	Pro-I Evo Max SR	Pro-I Evo AS	Pro-II Plus
Product code without indicators	DU-MO-210001 DU-MO-210004	-- - DU-MO-210005
Product code with indicators included	DU-MO-210011 DU-MO-220004	-- -			DU-MO-210010 DU-MO-220008
Product code with two brake controls	-	DU-MO-220019 DU-MO-220023 DU-MO-220025	DU-MO-220009 DU-MO-220002	DU-MO-230003 DU-MO-220026
MIN weight (Kg) 30 30 30 30 30
MAX weight (Kg) 100 100 100 100 100
MIN age *	14 14 14 14	14
MAX age *	65 65 65	65 65
MIN height (cm)	120 120 120 120 120
MAX height (cm)	200	200	200	200	200
Scooter model Pro-II Plus AS Pro-II Evo Pro-II Evo AS Pro-III Pro-III R
Product code without indicators	- DU-MO-210009	- - -
Product code with indicators included	-	DU-MO-210012DU-MO-220005	- - -
Product code with two brake controls	DU-MO-220020	-	DU-MO-220012DU-MO-220013DU-MO-220022	MN-DUC-PRO3DU-MO-210013DU-MO-220006DU-MO-220021DU-MO-220024	DU-MO-220003DU-MO-220016
MIN weight (Kg) 30 30 30 30 30
MAX weight (Kg)	100	100	100	100	100
MIN age *	14	14 14	14	14
MAX age *	65	65 65 65 65
MIN height (cm)	120	120	120	120	120
MAX height (cm)	200	200	200	200	200

The A-weighted emission sound pressure level (noise) at the rider's ear is less than 70 dB(A).

Visual representation of the safety warnings

To identify the safety messages in this manual, the following graphic symbols will be used. They draw the focus of attention of the reader/user to the proper, safe use of the item.

Pay attention

Highlights the rules to follow to prevent damage to the item and/or prevent hazardous situations from arising.

Residual risks

Highlights the presence of hazards causing residual risks, which the user must be aware of to prevent injury or damage to property.

General warnings

It is important to bear in mind that when out in a public space or on the road, even when the instructions in the manual are observed down to the letter, the rider is not immune to injury caused by infractions or inappropriate actions taken towards other vehicles, obstacles or persons. Misuse of the item or non-compliance with the instructions provided in this manual may cause severe injury.

This product is an electric vehicle. The faster you ride, the longer the braking distance. Emergency braking on slippery, muddy, wet or icy roads may result in wheel spin and loss of balance. Adequate speeds and safety distances from other vehicles or pedestrians must be adhered to. Take extra care when riding on unfamiliar roads. Do not open the kickstand when using the item, risk of severe personal injury and damage to item.

On wet roads, the braking distance increases and the grip decreases compared to dry roads!

Drive more carefully, keep a safe distance!

For personal safety, wear a helmet, and knee and elbow pads to protect against falls and injuries while riding the item. When allowing others to use the item, ensure that the rider wears the safety equipment and explain the operation of the vehicle. To avoid injury, do not allow other persons to use the item if they do not know how to use it. Wear shoes before using the item.

Children must not play with the scooter or its parts, nor should they be allowed to clean it or perform maintenance operations.

When riding, take special care to not frighten children or pedestrians. When passing behind them, warn them by sounding the horn and slow down using the minimum speed of 6km/h.

CAUTION

Frequency information:

The frequency hopping data transmission equipment Bluetooth® is operating between the band 2,4000 GHz and 2,4835 GHz.

The maximum transmitted radio frequency power is 100mW.

Instructions and warnings on rider behaviour

Conditions Appropriate/intended use Improper use
Riders One		More than one person, with children or animals
Safety equipment	Helmet, knee pads, elbow pads, reflective vest	No safety equipment
Pre-riding check	Prior to each use, check brakes and any wear, check tyre pressure (see side of tyre for recommended value), wheel wear, accelerator, indicators, lights and charge status of battery.If any unusual noises or faults are detected, do not use the item and contact your dealer or the Authorised Technical Support Department	Never checking the item prior to useUsing the item when noise or faults are present
Walking while pushing the item	Not accelerating Press the acceleratorPushing while walking across pedestrian crossingsIn pedestrian areas when not in pedestrian mode (6 km/h)In overcrowded areas	Riding the vehicle on pedestrian crossingsRiding the vehicle in pedestrian areas when not in pedestrian mode (6 km/h)Riding the vehicle in overcrowded areas
Stationary	The person riding the item must be able to easily place both feet on the ground while holding the handlebars at the correct height	Not being able to keep the item stationary and balanced.Sitting on the item while it is running or stationary
Riding under normal conditions	No objects hanging from handlebars	Objects hanging from handlebars result in instability and may impede manoeuvring
	Riding with both hands on handlebars. One-handed or hand-free ridingNot using devices such as phones, smartwatches, music players, or headphones	Using devices such as phones, smartwatches, music players, or headphones
	Riding with both feet on the footrest comfortably and safely	Riding with one or both feet outside the footrestIt is prohibited to place or amass weight on the rear mudguard.
	Riding with helmet and protective equipment	Riding without helmet and protective equipment
Riding under normal conditions	Riding on easily accessible, smooth and compact roads, avoiding areas with intense traffic or overcrowded areas:e.g. dedicated cycle path, smooth paved surfacesComplying with local regulations and the highway code	Riding on motorways, long-distance roadsRiding on busy roadsRiding on pavementsRiding in overcrowded areasRiding on very rough roadsRiding near: ravines, escarpments, harbours, sea, lakes or riversFailure to comply with regulations and the highway code
	Looking ahead and watching out for obstacles, vehicles or nearby pedestrians	Becoming distracted while riding
	Changing direction, making sure to be seen, moderating speedAnticipating the route and moderating speed while observing the highway code and those that are the most vulnerableUsing direction indicators, if included on the item	Changing direction abruptly at high speed without making sure that you have been seenBraking and cornering at the same time makes the vehicle unstableNot using direction indicators
	Slowing down when pedestrians are presentUsing pedestrian mode in pedestrian areas (6 km/h)Warning others of your presence by using the bell	Accelerating or maintaining a constant speed when pedestrians are presentRiding without using pedestrian mode in pedestrian areas (6 km/h)Not warning others of your presence by using the bell
Uneven road conditions: speed bumps/steps/rough road surfaces	Riding at moderate speeds High-speed ridingBend knees slightly for better shock absorption when traversing uneven surfaces.	Accelerating over bumps or ditches, going down steps, jumping over obstacles, climbing pavements, riding harshly.
Behaviour:around bends, down slopes,in the presence of nearbyobstacles, vehicles andpedestrians	Keeping at a safe distance Not observing safety distancesStop accelerating/Brake and slow down AcceleratingRiding at moderate speed and braking safelyPaying attention to doors and other highobstacles	Riding at high speed, brakingsuddenlyTraversing beneath high obstacles
Visibility conditions	Only ride if there is enough light to ridesafely. When riding in unfavourable lightingconditions (from half an hour followingsunset, throughout the entire periodof darkness and even during the day, ifweather conditions preclude road visibility,when driving through tunnels), rememberto switch on the item's lights and wear areflective vest, belts or bands.	Riding in unfavourable lightingconditions with lights off and withoutusing a reflective vest, belts or bands.
Weather conditions Driving in optimal conditions (no rain)		Driving in adverse conditions:in the rain, in case of snowfall, in thepresence of ice or mud on the road, incase of strong wind and fog.
Parking	In designated areas without impedingmovement of vehicles or pedestriansOn smooth surfaces, ensuring stability ismaintainedSwitching off the item and using an anti-theft device. Using the kickstand provided	Everywhere, impeding movement ofvehicles or pedestriansOn uneven surfaces and withoutensuring stabilityLeaving the item switched on,unattended with no anti-theft device
Engaging in extreme sports/acrobatics	NO	YESRiding near: ravines, escarpments,harbours, sea, lakes or riversRiding through puddlesRacing with other vehicles
Subjecting the item to forceful impact	NO	YESjumping over object or persons,jumping off steps or from high places

What to do after a fall:

Check that the accelerator lever works properly. To do this, accelerate and decelerate several times.

Check that the brakes work properly. To do this, get off the item, push it forward and brake to ensure it responds to the controls.

Check that all vehicle components are in place and securely fastened.

Check tyre wear and pressure (see side of tyre for recommended value).

Check the wear of the brakes and cables.

DANGER

The brakes may become hot during use. Do not touch after use.

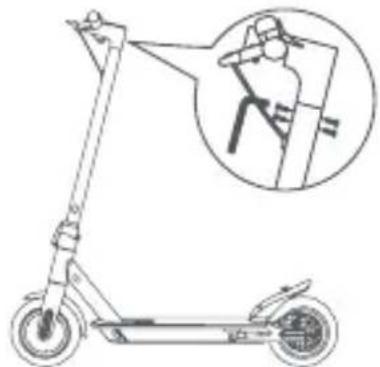

Assembled item, the handlebar must be installed using the special screws contained in the package.

1. Package contents and assembly

Model Reference picture In the package Handlebar assembly
Pro-I Evo (Black & White edition)DU-MO-210001DU-MO-210004DU-MO-210011DU-MO-220004Pro-I Evo SR(Black & White edition)DU-MO-220019DU-MO-220023DU-MO-220025Pro-I Evo ASDU-MO-230003		Accessories:- Allen keys- 4 screws for handlebars- Spare inner tube- Inflator adapter- Battery charger	Insert the 4 screws manually without tightening them, then use the hex wrench supplied to tighten them and secure the handlebars.
Pro-I Evo Max SRDU-MO-220009DU-MO-220002		Accessories:- Allen keys- 4 screws for handlebars- Spare inner tube- Inflator adapter- Battery charger	Insert the 4 screws manually without tightening them, then use the hex wrench supplied to tighten them and secure the handlebars.
Pro-II PlusDU-MO-210005DU-MO-210010DU-MO-220008DU-MO-220026Pro-II Plus ASDU-MO-220020Pro-II EvoDU-MO-210009DU-MO-210012DU-MO-220005Pro-II Evo ASDU-MO-220012		Accessories:- Allen keys- Components for assembly handlebars (hook, plastic parts, 4 screws)- Tyre inflation adapter- Charger- Electronic horn (DU-MO-220012 DU-MO-220020 DU-MO-220026)*	Method:1. Open the kickstand2. Lift and secure the steering column by bending the lever of the folding mechanism and lower the safety ring (if present)3. Install the handlebar on the shaft4. Install the hook (see photo) by approaching it to the rod, making sure that it is aligned with the holes, then insert the screws.5. Insert the screw on the outside into the hole located under the control panel.6. Tighten the screws.7. Align the plastic plate (see photo) with the second hole/ profile of the control panel, then insert and tighten the screw.
Pro-II Evo ASDU-MO-220013DU-MO-220022		Accessories:- Allen keys- Components for assembly handlebars (hook, plastic parts, 4 screws)- Tyre inflation adapter-Charger	Method:——1. Lift the steering column and insert the handlebars taking care not to damage the electronic horn or crush the cables.2. Lift and secure the steering column by bending the lever of the folding mechanism and lower the safety ring (if present)3. Install the handlebar on the shaft4. Install the hook (see photo) by approaching it to the rod, making sure that it is aligned with the holes, then insert the screws.5. Insert the screw on the outside into the hole located under the control panel.6. Tighten the screws.7. Align the plastic plate (see photo) with the second hole/ profile of the control panel, then insert and tighten the screw.
Model Reference	picture In the package Handlebar	assembly
Pro-III		Accessories:- Allen keys- Components for handlebar assembly (hook, plastic parts, screws)- Tyre inflation adapter- Charger- 2 RF keys for scooter ignition	Method:1. Open the kickstand2. Pick up the handlebar, place the lever in the closed position and lower the safety ring.3. Connect the light cable to the display wiring and insert the handlebars into the column.4. Install the hook on the column, making sure that it is aligned with the holes, and insert the 2 M6 screws.5. Insert the M6 screw on the outside into the hole located under the control panel and tighten all three M6 screws.
MN-DUC-PRO3
DU-MO-210013
DU-MO-220006
DU-MO-220021
DU-MO-220024
Pro-III R
DU-MO-220003

*Pro-II Plus AS (DU-MO-220020 - DU-MO-220026) / Pro-II EVO AS (DU-MO-220012)

Electronic horn.

USB charging port (lower side, under the rubber protection)

Left button: Press and hold to activate anti-theft mode.

Close-up of a black plastic mechanical component with four circular ports and a central hole (no text or symbols visible)

Right button:

Press and hold to deactivate anti-theft mode.

Central button (Horn):

• Press to sound the horn.
• Press twice quickly to change the sound.

Charging the device: Insert the USB cable into the charging port (lower side).

*Instructions for installing the headlamp
Headlamp	M5		Washer
	1. Insert the M5 screw (without washer) into the lower hole of the light, then insert the washer between the screw and the column and tighten it just enough to avoid damaging the light dashboard.
	M6
	2. Insert the M6 screw into the upper hole of the light and tighten it.

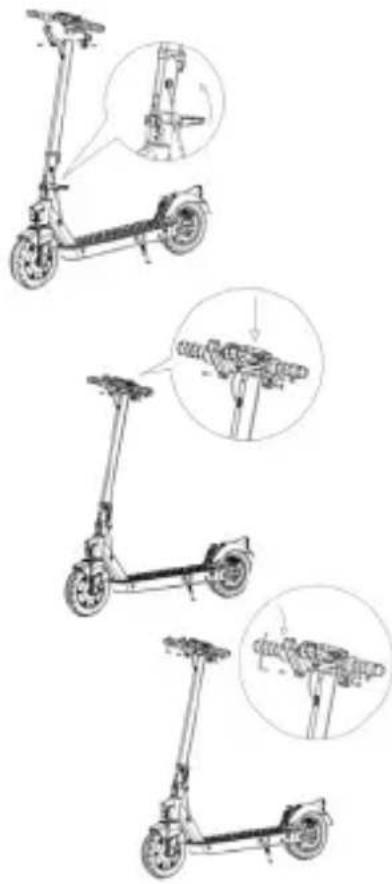

Method:

• Take the item out of the packaging
- Open the kickstand and check that the item is stable
- Open the handlebar stem and secure it by closing the lever of the closing mechanism
- Connect the display power cable to the main wiring (if necessary)
- Connect the front light to the 2-pin cable coming from the display (if necessary).
• Install the handlebar on the stem (do not crush the cables)
- Tighten the screws on the stem using the wrench supplied
- Adjust the column closing mechanism
- Check the tyre pressure (see the side of the tyre for the recommended value).

Model Reference picture * Adjustment
Pro-I Evo(Black and White edition)		Adjusting the handlebar stem:If the handlebar stem is not very stable after closing, adjust the screw in the mechanism, by tightening or loosening it as required to increase the stability of the steering column.
Pro-I Evo SR(Black and White Edition)
Pro-I Evo AS
Pro-I Evo Max SR
Pro-II PlusPro-II Plus ASPro-II EvoPro-II Evo AS		Adjusting the handlebar stem:As shown in the figure, if the steering column vibrates during use, adjust the screw (if present) using the hexagon wrench.
Pro-IIIPro-III R		Adjust the handlebar:If the handlebar stem vibrates during use, adjust the screw by means of the hexagon wrench as illustrated in the figure.

CAUTION

Assemble the item correctly. If, during assembly, any factory defects are detected, certain steps are unclear or issues with assembly or adjustments occur, do not ride the vehicle and contact your dealer or visit www.ducatiurbanemobility.com for technical support.

Keep children away from plastic items (including packaging materials) and small parts that may result in suffocation.

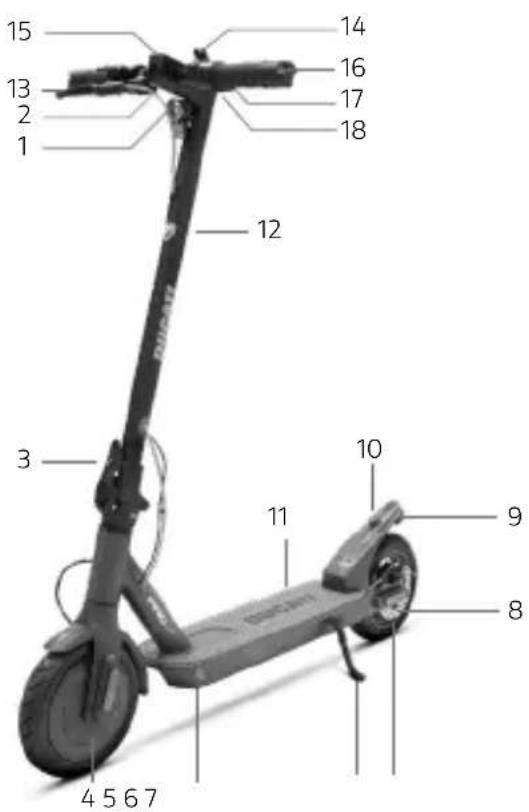

3. Product overview

It is forbidden to modify or transform the item or any its parts in any way, as this may impair efficiency, reduce structural integrity and cause damage. In the interest of technological development, the manufacturer reserves the right to modify the item with no prior notice and this manual will not be automatically updated.

For further information and to consult different versions of the manual, www.ducatiurbanemobility.com

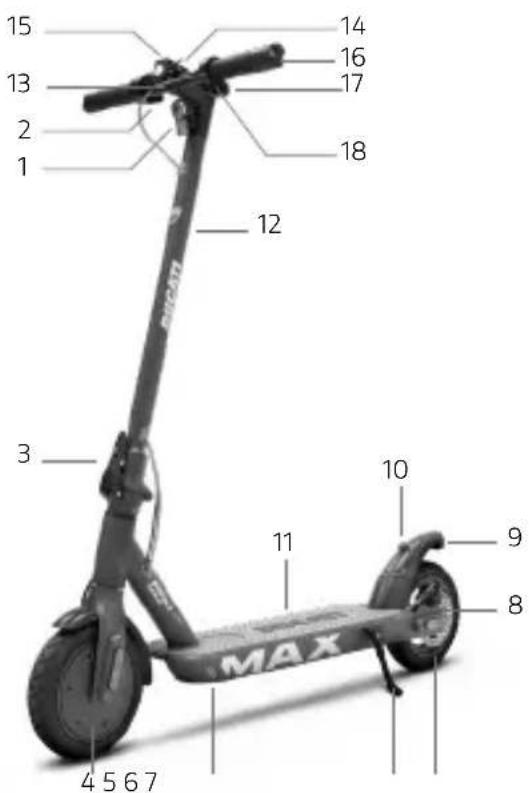

15 14 13 16 2 17 18 12 3 10 9 11 8 4 5 6 7

Pro-I Evo (Black and White edition)

Pro-I Evo SR (Black and White edition)

Pro-I Evo AS

1. Headlamp
2. Accelerator
3. Folding mechanism
4. Drive sprocket
5. Charging port
6. Stand
7. Free wheel
8. Disc brake
9. Light
10. Locking catch
11. Footrest
12. Steering column
13. Brake lever
14. Bell
15. Display
16. Indicator lights

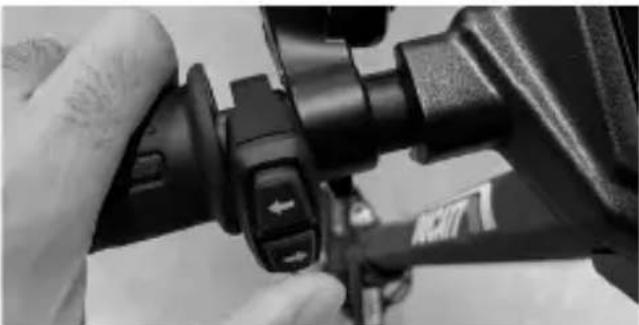

17. Controls of the indicators (if present)
18. Electric brake lever (Pro-I Evo SR only)

15 14 13 16 17 2 18 12 3 11 10 9 MAX 4 5 6 7 8

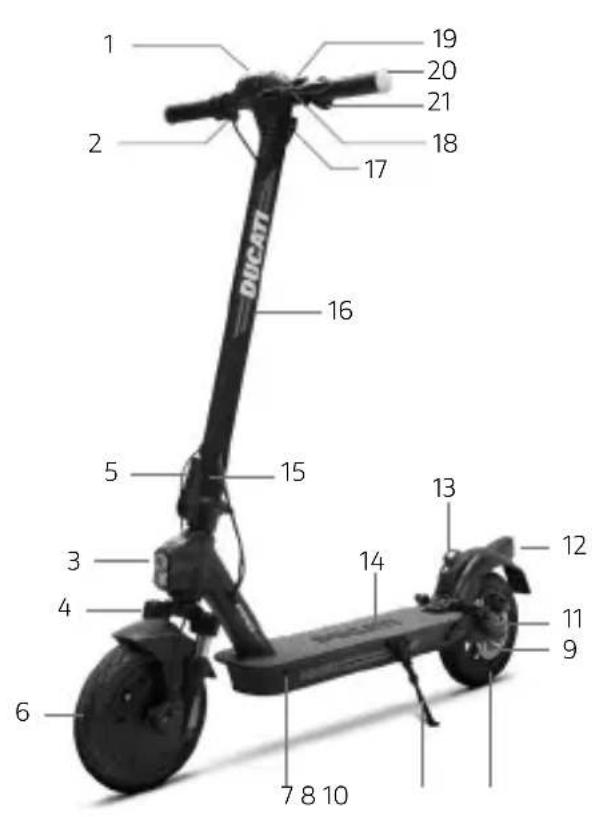

Pro-I Evo Max SR

1. Headlamp
2. Accelerator
3. Folding mechanism
4. Drive sprocket
5. Charging port
6. Stand
7. Free wheel
8. Disc brake
9. Light
10. Locking catch
11. Footrest
12. Steering column
13. Brake lever
14. Bell
15. Display
16. Indicator lights
17. Command of the turn signals
18. Electric brake lever

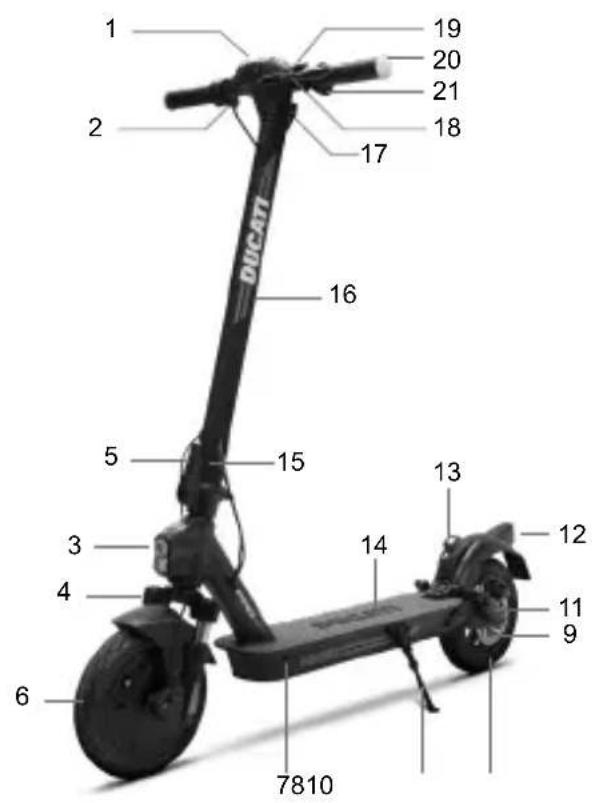

1 2 17 16 5 15 3 4 6 7 8 10 13 14 12 11 9 18 20 21 19

Pro-II Plus / Pro-II Plus AS / Pro-II Evo

1. Display
2. Accelerator
3. Headlamp
4. Suspension fork (Pro-II Evo)
5. Folding mechanism
6. Drive sprocket
7. Charging port
8. Stand
9. Disc brake
10. Free wheel
11. Suspension (Pro-II Evo)
12. Light
13. Fastening clip
14. Footrest
15. Safety ring (if present)
16. Steering column
17. Locking catch
18. Brake lever
19. Bell
20. Indicator lights
21. Controls of the indicators (if present)

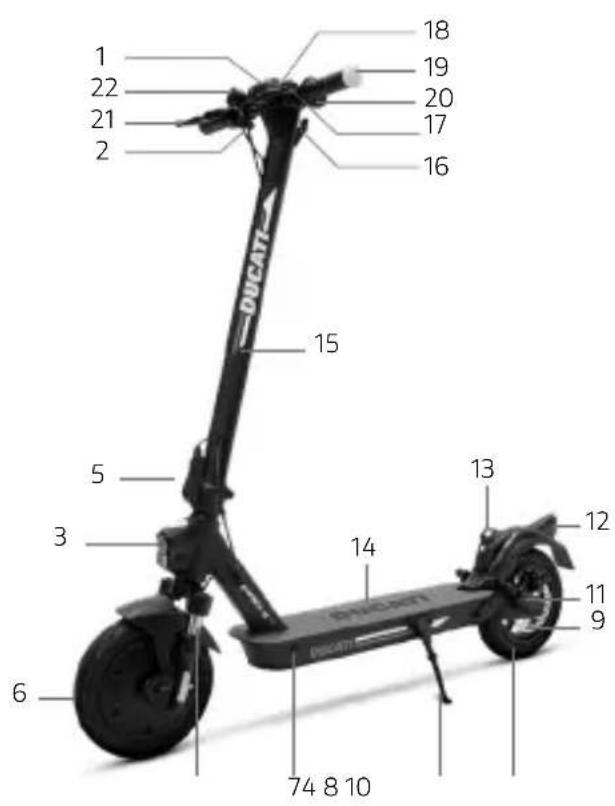

1 2 22 21 2 18 19 20 17 16 15 5 3 14 13 12 11 9 6 74 8 10

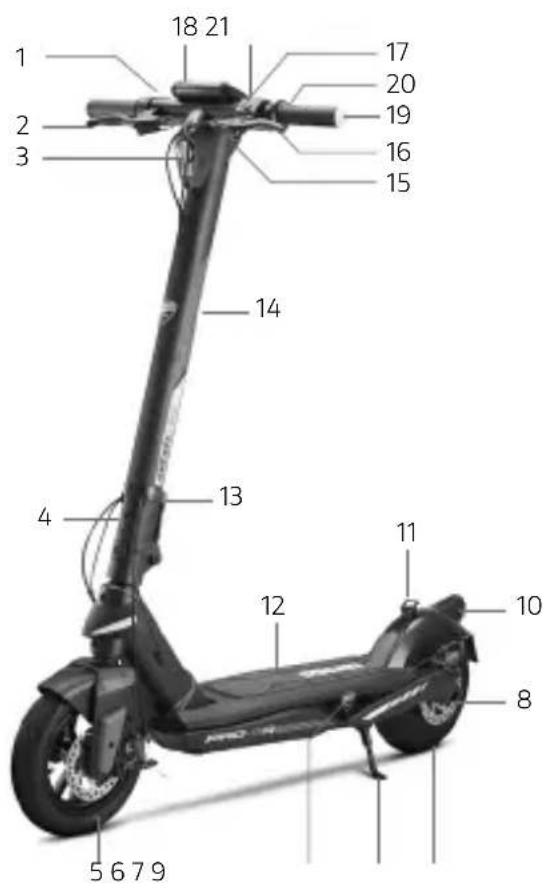

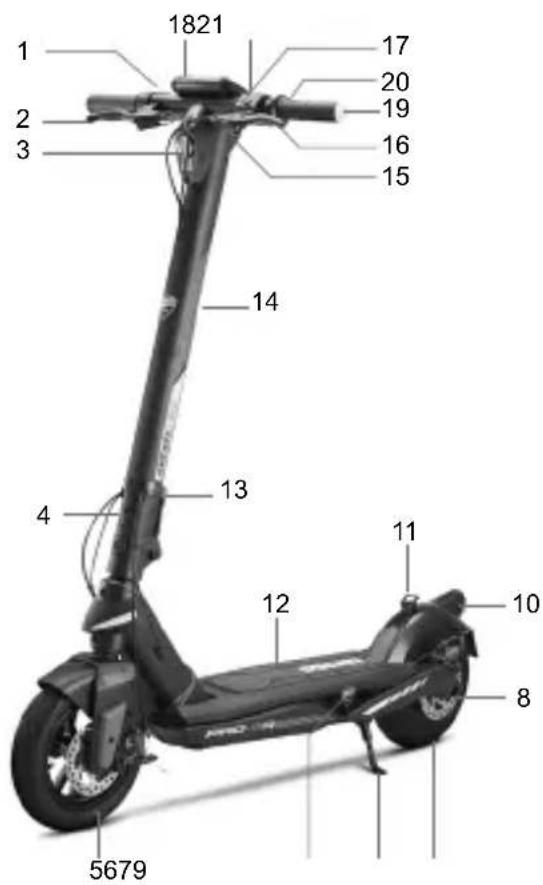

Pro-II Evo AS

1. Display
2. Accelerator
3. Headlamp
4. Suspension fork
5. Folding mechanism
6. Drive sprocket
7. Charging port
8. Stand
9. Disc brake
10. Free wheel
11. Suspension fork
12. Light
13. Fastening clip
14. Footrest
15. Steering column
16. Locking catch
17. Brake lever
18. Bell
19. Indicator lights
20. Command of the turn signals
21. Brake lever
22. Electronic horn (except DU-MO-220012)

18 21 1 2 3 17 20 19 16 15 14 13 4 12 11 10 8 5 6 7 9

Pro-III / Pro-III R

1. Accelerator
2. Brake lever
3. Headlamp
4. Folding mechanism
5. Free wheel
6. Charging port
7. Stand
8. Disc brake
9. Drive sprocket
10. Light
11. Fastening clip
12. Footrest
13. Safety ring (if present)
14. Steering column
15. Fastening clip
16. Brake lever
17. Bell
18. Display
19. Indicator lights
20. Controls of the indicators (if present)
21. USB port

4. Battery charging

CAUTION

Prior to using the item for the first time, charge to 100%. Make sure that the item, the battery charger and the charging port are dry.

Instructions:

- Open the kickstand

- Switch off the item

Battery charging

CAUTION

Charge the device before the first use. We also recommend charging it after each use and before storing it. Allow the vehicle to discharge completely to prevent damage to the battery.

The red light on the charger will turn green when charging is complete.

Model Reference	picture Instructions
Pro-I Evo(Black and White edition)Pro-I EvoSR(Black and White edition)Pro-I EvoMax SRPro-I Evo ASPro-II PlusPro-II Plus ASPro-II EvoPro-II Evo AS				1. Remove the rubber cover from the charging socket.2. Connect the battery charger to the electrical outlet and then to the charging socket. When the item is fully charged, the light on the charger changes from red (charging) to green (charging complete).3. After charging, disconnect the battery charger from the vehicle and reinsert the rubber cover. Unplug the battery charger from the electrical outlet.Do not switch the scooter on while it is charging.
				CAUTIONThe red light on the charger will turn green when charging is complete.
Pro-IIIPro-III R				Switch off the electric scooter and open the kickstand.Turn the Ducati logo, open the waterproof cover, then connect the battery charger to the electrical outlet, connect the connector to the charging port.After charging, disconnect the connector from the charging port, close the waterproof cover.

To recharge this product, use the battery charger supplied ONLY.

Model Product code Battery charger model Output voltage				Charging time
Pro-I Evo(Black and White edition)Pro-I Evo SR(Black and White edition)	DU-MO-210001DU-MO-210004DU-MO-210011DU-MO-220004DU-MO-220019DU-MO-220023DU-MO-220025	XHK-916-42015 42V - 1.5A 4 h
Pro-I Evo AS DU-MO-230003 GJ	S150-4200150 42V - 1.5A 4 h
Pro-I Evo Max SR	DU-MO-220009DU-MO-220002	FY-4202000 42V - 1.5A 5 h
Pro-II PlusPro-II Plus AS	DU-MO-210005DU-MO-210010DU-MO-220008DU-MO-220020DU-MO-220026	CP4215XVE063-4200150	42V - 1.5A 4 h
Pro-II Evo	DU-MO-210009DU-MO-210012DU-MO-220005	CP4215XVE063-4200150	42V - 1.5A 7 h
Pro-II Evo AS	DU-MO-220012DU-MO-220013DU-MO-220022	CP4215 42V - 1.5A 7 h
Pro-III	MN-DUC-PRO3DU-MO-210013DU-MO-220006DU-MO-220021DU-MO-220024	CP4215XVE063-4200150	42V - 1.5A 8 h
Pro-III R	DU-MO-220003DU-MO-220016	CP546200 54.6V - 2A 6 h

Using another type of charger may damage the scooter or entail other potential risks.

Never leave the item unsupervised while it is charging. Do not switch the product on while it is charging.

After each use, fully recharge the battery to extend its useful life. Do not recharge the item immediately after use. Allow the scooter to cool for an hour before recharging.

The item should not be charging for extended periods. Overcharging reduces battery life and poses additional potential hazards.

Allow the vehicle to discharge completely to prevent damage to the battery.

Damage caused by the battery being left uncharged for a long period is irreversible and is not covered by the limited warranty. Once the damage has occurred, the battery cannot be recharged (the battery must not be dismantled by unqualified personnel, as this could lead to electric shocks, short circuits or even major safety incidents). If the owner is away, e.g. on holiday, and the device is entrusted to a third party, leave it in a partial charge state (20-50% charge), not fully charged.

Carry out regular visual inspection of the charger and charger cables. If the battery charger cable is clearly damaged, do not use it to avoid further damage and/or risks; please contact us for a replacement.

The battery charger can be used by children of at least 8 years of age and by people with reduced physical, sensory or mental abilities or lack of experience and knowledge if they have been supervised or have received instructions on how to use the appliance safely and understand the risks involved. Children must not play with the battery charger. Cleaning and maintenance operations must not be performed by children without supervision.

Battery warnings

The battery consists of lithium-ion cells and chemical elements that are hazardous to health and the environment. Do not use the item if it emits odours, substances or excessive amounts of heat. Do not dispose of the item or the battery with household waste. The end user is responsible for the disposal of electrical and electronic equipment and batteries in compliance with all applicable regulations.

Avoid used, defective and/or non-original batteries of other models or brands.

Do not leave the battery near fire or heat sources. Fire and explosion hazard.

Do not open the battery or take it apart. Do not strike, throw, or puncture the battery or attach objects onto it.

Do not touch any substances leaking from the battery, as they are deemed hazardous. Do not allow children or pets to touch the battery.

Do not overcharge or short-circuit the battery. Fire and explosion hazard.

Do not immerse or expose the battery to water, rain or other liquids. Do not expose the battery to direct sunlight, excessive heat or cold (for example, do not leave the item or battery in a car in direct sunlight for extended periods of time), or environments containing explosive gases or flames.

Do not carry or store the battery with metal objects such as hairpins, necklaces, etc. Contact between metal objects and battery contacts may cause a short circuit resulting in physical injury or death.

5. Command information / Control panel

Model
Pro-I Evo(Black and White edition)Pro-I Evo SR(Black and White Edition)Pro-I Evo Max SR	1. Headlamp2. Controls of the indicators(if present)3. Electric brake lever (if present)4. Multifunction button5. Display6. Accelerator7. Bell lever8. Disc brake leverMultifunction button (4):Switching on and off: press and hold for a few seconds to switch the electric scooter on and off.Lights: press the button once to switch the lights on and off.Speed mode: press the button twice to select the speed mode.
	1. Speedometer: Displays the current speed ofthe scooter.2. Battery level: indicates the remainingbattery level.3. Lights: lights indicator light4. Bluetooth: Bluetooth indicator light5. SPORT mode: the display will show SPORT6. COMFORT mode: the display will show D7. ECO mode: the display will show E8. Cruise control: speed control. It is activatedafter the same speed has been maintainedfor a few seconds.9. Pedestrian mode10. Fault: if on, check for a possible solution byconsulting the error code table
	CAUTIONThe accelerator is activated once the speed of travel exceeds 3 km/h.Cruise control is deactivated when the brake or accelerator is pressed for the first time.
Pro-I Evo AS	1. Projector2. Control unit3. Brake lever4. Brake lever5. Multifunction button6. Display7. AcceleratorMultifunction button (4):Switching on and off: press and hold for a few seconds to switch the electric scooter on and off.Lights: press the button once to switch the lights on and off.Speed mode: press the button twice to select the speed mode.
	1. Speedometer: Displays the current speed of the scooter.Battery level: indicates the remaining battery level.Lights: lights indicator lightBluetooth: Bluetooth indicator lightSPORT mode: the display will show SPORTCOMFORT mode: the display will show DECO mode: the display will show ECruise control: speed control. It is activated after the same speed has been maintained for a few seconds.Pedestrian modeFault: if on, check for a possible solution by consulting the error code table
	CAUTIONThe accelerator is activated once the speed of travel exceeds 3 km/h.Cruise control is deactivated when the brake or accelerator is pressed for the first time.
Pro-II PlusPro-II Plus ASPro-II EvoPro-II Evo ASPro-IIIPro-III R	1. Accelerator2. Multifunction button3. Brake lever
	Multifunction button (2):• Switching on and off: press and hold for a few seconds to switch the electric scooter on and off.• Lights: press the button twice quickly to switch the lights on and off.• Speed mode: press the button once to select the speed mode.
	1. Speedometer: Displays the current speed of the scooter.2. Battery level: indicates the remaining battery level.3. ODO: total distance travelled.4. TRIP: distance of single session.5. Lights: lights indicator light.6. SPORT mode: The display will show S+.7. COMFORT mode: The display will show D.8. ECO mode: The display will show ECO.9. Cruise control: speed control. It is activated after the same speed has been maintained for a few seconds.10. Bluetooth: Bluetooth indicator light11. PEDESTRIAN modeCAUTIONThe accelerator is activated once the speed of travel exceeds 3 km/h.Cruise control is deactivated when the brake or accelerator is pressed for the first time.

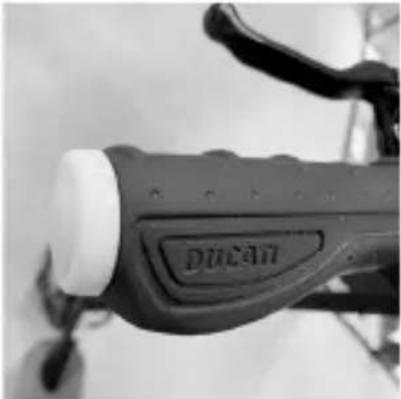

CAUTION

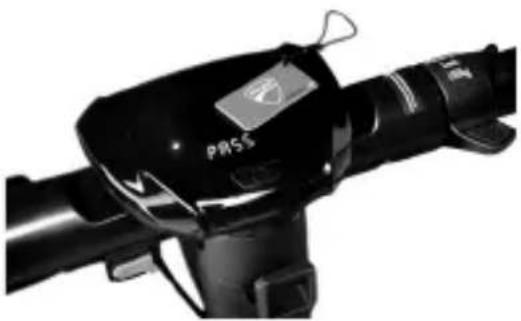

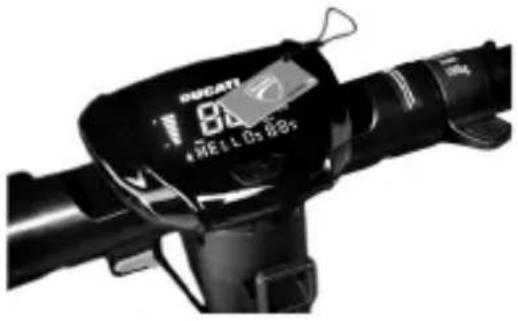

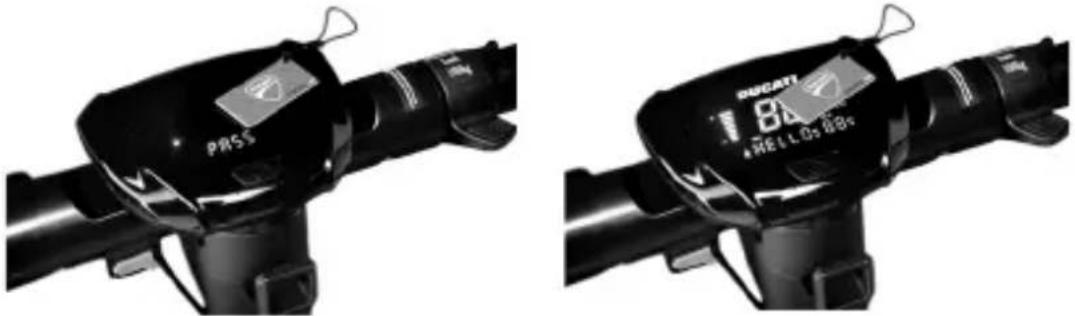

Model Indications on RF KEY
Pro-IIIPro-III R	When the scooter is started, there is a motor block integrated into the system that needs to be unblocked in one of the following ways*:RF KEY: Approach the RF key (supplied) to the display to activate the electric scooter.Smart-phone: Use the Ducati Urban E-Mobility application via the lock/unlock button in the settings menu.

Direction indicators (if present)

Models *
Pro-I Evo(Black and White edition)
Pro-I Evo SR(Black and White edition)	On models where they are fitted, the direction indicators are placed at the ends of the handlebars (left and right side).The direction indicators are required to provide early warning of any change in direction while riding.
Pro-I Evo AS
Pro-I Evo Max SR
Pro-II Plus	Drive:
Pro-II Plus AS
Pro-II Evo
Pro-II Evo AS
Pro-III
Pro-III R
	CAUTIONBefore each use of the product, check the correct operation of the direction indicators.

6. Quick guide

• Prior to using the item for the first time, charge to 100%.
• Check tyre pressure (see side of tyre for recommended value). If the item does not reach at least 60% of the declared kms, or the maximum speed within the first 3 months of use, it is likely that the wheels have deflated once more. In this case, restore pressure as indicated.
• Check and adjust the brakes.
• Turn on the display.
• Place the item on a flat surface.
• Hold the handlebar firmly using both hands. Step onto the footrest with one foot and use the other to give yourself a gentle push and accelerate.

CAUTION

Zero Start Function: the accelerator is activated once the forward speed exceeds 3 km/h.

For safety reasons, the item is initially set up to avoid standing starts.

• When riding the item, tilt body in the riding direction during a turn and slowly turn the handlebars.
  • To stop the item, release the accelerator, pull the brake lever
  • To get off, first stop the item completely. Getting off the moving item can cause injury.
• Prior to each use, check brakes and any wear, check tyre pressure (see side of tyre for recommended value), wheel wear, accelerator and charge status of battery.

Brake lever adjustment

Brake levers

Refer to point A (see photo) to adjust the position of the brake lever, if necessary.

Close-up of a mechanical tool or device with a labeled section 'A' (no readable text or symbols beyond the label)

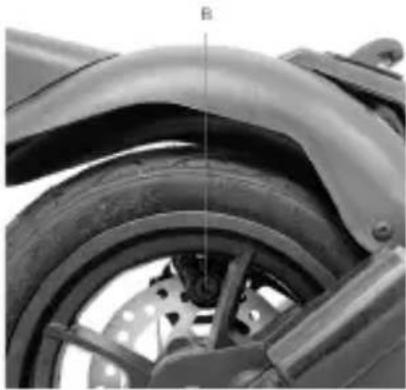

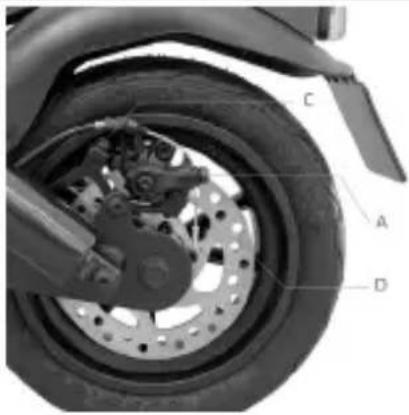

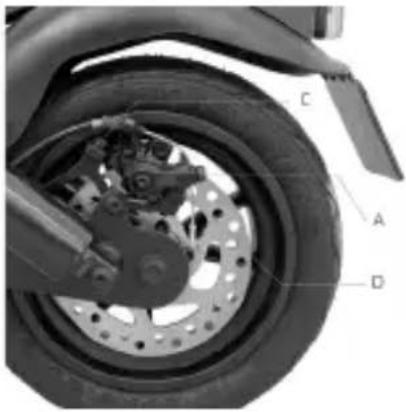

Adjusting the brake calliper

If the brake is too tight or too loose, use the hex wrench to loosen the nut (A), then adjust the brake cable, (shorten the brake cable at the top if it is too tight; if it is too loose, pull the brake cable downwards) and then, retighten the nut (A). If the wire is too loose or too tight even after following the first step, it may be necessary to adjust the (fixed) brake pad by means of the wheel located on the opposite side; use the hex wrench to move the brake pad (B) closer or further away (see picture).

Check the correct alignment between the brake caliper and the disc. Use screws C and D to adjust the position / alignment on the disc, if necessary.

C A D

Close-up of a motorcycle wheel rim and disc, showing tread pattern and mounting bracket (no text or symbols)

7. Folding and carrying

Make sure the electric scooter is turned off. Hold the handlebar stem with your hand, pull the lever, fold the stem towards the footrest and fasten it.

Models: Pro-I Evo, Pro-I Evo SR, Pro-I Evo AS, Pro-I Evo Max SR

Line drawing of a person riding an electric scooter with a magnified inset showing the lever mechanism (no text or symbols)

Line drawing of a person riding an electric scooter with a close-up inset showing the wheel assembly (no text or symbols)

Closing: Switch off the electric scooter, unlock the closing mechanism: press the red hook and pull the lever outwards (see picture), move the handlebar stem inwards and make sure it is locked.

Opening: Unlock the handlebar stem from the mudguard: press the clip to release the handlebar, lift the handlebar stem all the way and lock it in place by pushing the lever inwards. Switch on the electric scooter.

Always carry the scooter with one or both hands holding the handlebar stem.

Two identical line drawings of a person standing with a wheeled cart, no text or symbols present.

Models: Pro-II Plus, Pro-II Plus AS, Pro-II Evo, Pro-II Evo AS, Pro-III, Pro-III R

Two line drawings of a person riding an electric scooter, with zoomed-in insets showing the wheel assembly (no text or symbols)

Make sure the electric scooter is turned off. Hold the handlebar rod with your hand, then pull the lever and align the handlebar hook with the hook located on the rear mudguard.

Two identical line drawings of a person standing on either side of a bicycle, showing no text or symbols.

After folding, hold the handlebar stem with one or both hands.

After folding, lift it by holding the handlebar stem with one or both hands.

CAUTION

Make sure to secure the item during transportation. If the item cannot be lifted, do not transport with the item raised. If dropped, the item may cause severe injury and damage.

8. Range and performance

The maximum range and performance of the vehicle depends on a number of variables:

Terrain: riding on smooth roads provides greater range and performance than riding on rough roads and climbs.

Weight of user: the greater the weight, the lower the range and performance of the vehicle.

Temperature: riding the scooter in very cold or hot conditions affects range and performance.

Speed and riding style: riding smoothly and at constant speed extends the autonomy. Continuous acceleration, deceleration and manoeuvring greatly reduce the range. A lower speed extends the range.

Maintenance: prompt recharging, proper maintenance and regular checking of tyre pressure (see reference value in section 10) increase range and ensure consistent performance over time.

The level of battery charge affects performance – the lower the level, the lower the speed, especially on climbs.

9. Storage, maintenance and cleaning

If there are stains on the body of the scooter, wipe with a damp cloth. If the stains persist, apply neutral soap, brush out with a toothbrush, then wipe with a damp cloth. If there are scratches on the plastic components, use sandpaper or other abrasive material to remove them. Do not clean the items with alcohol, petrol, paraffin or other corrosive or volatile chemical solvents to prevent severe damage. Do not wash the item using high-pressure water jets. When cleaning the scooter, make sure that it is switched off, that the charging cable is disconnected, and the rubber cap is closed, as a water leak may cause an electric shock or other serious problems. Water seeping into the battery may cause damage to internal circuits and risk of fire or explosion. Should you suspect that water may have entered the battery, stop using the battery immediately and return it to your dealer's after-sales service for checking.

When the item is not in use, store it indoors in a cool, dry place. Do not store outdoors or inside cars for extended periods of time. Excessive sunlight, overheating, and excessive cold accelerate tyre ageing and jeopardize the life of both the item and the battery. Do not expose it to rain or water or immerse it in water to wash it.

Regularly check the tightness of the bolted parts, in particular wheel axles, the folding and transportation system, the steering system, the braking system, the state of the frame, the forks and the suspension. Nuts and all other self-locking fasteners may lose their effectiveness. Periodically check and tighten these components.

Like all mechanical components, the item is subject to wear and tear. Different materials and components may react to wear or stress fatigue in a variety of ways. If the service life of a component is exceeded, it may break suddenly, resulting in injury to the rider. Any cracks, scratches or changes in colour in areas subject to high levels of stress indicate that the life of the component has been reached and must be replaced.

Check the condition of the tyres: there must be no cuts, cracks, foreign bodies, abnormal swelling, missing parts or other damage. For tyre pressure, refer to the value indicated in section 10 in this instruction manual.

Do not attempt to disassemble or repair the scooter yourself. Replacement of all scooter components should be carried out by the technical service department. For further information, contact your dealer or visit the website www.ducatiurbanemobility.com

10. App configuration

This product can be combined with the Ducati Urban e-Mobility app. The app allows you to control the product directly from your smartphone.

Scan the QR CODE to download and install the app. If the app is not found, search for it on your reference app service.

Open the app and follow the instructions on your reference app service.

The app may require several authorisations necessary for the use and functionality of the app.

The app version may have been updated on your app service. We recommend that you constantly check the app updates for new features and always install the latest app release on your device.

Do not use your device while driving.

11. Technical data sheet

General information
	Pro-III Pro-III R
Frame Magnesium alloy Magnesium alloy
Sunspensions - -
Speed	Product code:MN-DUC-PRO3DU-MO-220024DU-MO-210013DU-MO-220021L1 = ≤ 6km/hL2 = ≤ 15km/hL3 = ≤ 20km/hL4 = ≤ 25km/h*	Product code:DU-MO-220006L1 = ≤ 6km/hL2 = ≤ 10km/hL3 = ≤ 15km/hL4 = ≤ 20km/h*	Product code:DU-MO-220003DU-MO-220016L1 = ≤ 6km/hL2 = ≤ 15km/hL3 = ≤ 20km/hL4 = ≤ 25km/h*
Maximum slope ** 18% 22%
Brakes Front and rear disc brakes Front and rear semi-hydraulic disc brake
Tyres	Size 10" tubelessRecommended pressure: 44 psi / 3 bar		Size 10" tubelessRecommended pressure: 44 psi / 3 bar
Maximum load 100 kg 100 kg
Rider Check the current legislation in your country
Operating temperature -0 °C/ 45 °C -0 °C/ 45 °C
Protection level	IPX4: MN-DUC-PRO3DU-MO-210013DU-MO-220006DU-MO-220024IPX5: DU-MO-220021		IPX4: DU-MO-220003IPX5: DU-MO-220016
Charging time Approx. 8 hours	Approx. 6 hours
Autonomy**	Up to 50km		Up to 40km
Electrical system
Rated power of motor	0.35kW; 350W Brushless, 18.9Nm 0.50kW; 500W		Brushless, 28Nm
Maximum power of motor	0,515kW; 515W		0.80kW; 800W
Display	3.5" colour LED with USB port		3.5" colour LED with USB port
Battery	36V 13Ah 468Wh 48V 10.4Ah 486Wh
Low voltage protection	31V± 0.5V		36.4V ± 0.5V
Current limit	18A		20A
Kers	No		No
Lights	Front and rear LEDs		Front and rear LEDs
Features	Bluetooth with App - NFC		Bluetooth with App - NFC
Dimensions and weight
Net weight	17.5Kg		17.6Kg
Gross weight	21Kg		21Kg

* Always respect the highway code and the regulations in force in the country where the electric scooter is used.
** Subject to variations based on the rider's weight, on the road conditions and on the temperature.

General information
	Pro-II Evo Pro-II Evo AS
Frame Magnesium alloy Magnesium alloy
Sunspensions Front and rear Front and rear
Speed	Product code:DU-MO-210009DU-MO-210012L1 = ≤ 6km/hL2 = ≤ 15km/hL3 = ≤ 20km/hL4 = ≤25km/h*	Product code:DU-MO-220005L1 = ≤ 6km/hL2 = ≤ 10km/hL3 = ≤ 15km/hL4 = ≤20km/h*	Product code:DU-MO-220012DU-MO-220022L1 = ≤ 6km/hL2 = ≤ 15km/hL3 = ≤ 20km/hL4 = ≤25km/h*	Product code:DU-MO-220013L1 = ≤ 6km/hL2 = ≤ 10km/hL3 = ≤ 15km/hL4 = ≤20km/h*
Maximum slope ** 20% 20%
Brakes Front electric brake and rear disc brake Front electric brake and rear disc brake
Tyres	Size 10" tubelessRecommended pressure: 44 psi / 3 bar		Size 10" tubelessRecommended pressure: 44 psi / 3 bar
Maximum load 100 kg 100 kg
Rider Check the current legislation in your country
Operating temperature -0 °C/ 45 °C -0 °C/ 45 °C
Protection level IPX4			IPX4: DU-MO-220012IPX5: DU-MO-220013DU-MO-220022
Charging time	Approx. 7 hours		Approx. 7 hours
Autonomy**	Up to 40km		Up to 40km
Electrical system
Rated power of motor	0.35kW; 350W Brushless, 18.9Nm 0.35kW; 350W		Brushless, 18.9Nm
Maximum power of motor	0,515kW; 515W		0,515kW; 515W
Display	built-in 3.5" colour LED		built-in 3.5" colour LED
Battery	36V 10Ah 360Wh 36V 10Ah 360Wh
Low voltage protection	27.5V ± 0.5V		27.5V ± 0.5V
Current limit	18A		18A
Kers	Yes		Yes
Lights	Front and rear LEDs		Front and rear LEDs
Features	Bluetooth with App		Bluetooth with App
Dimensions and weight
Net weight	16.7Kg 16.7Kg
Gross weight	20.7Kg		20.7Kg

* Always respect the highway code and the regulations in force in the country where the electric scooter is used.
** Subject to variations based on the rider's weight, on the road conditions and on the temperature.

General information
	Pro-I Evo Max SR Pro-II Plus
Frame Aluminium alloy Magnesium alloy
Sunspensions - Rear
Speed	Product code:DU-MO-220002L1 = ≤ 6km/hL2 = ≤ 15km/hL3 = ≤ 20km/hL4 = ≤ 25km/h*	Productcode:DU-MO-220009L1 = ≤ 6km/hL2 = ≤ 10km/hL3 = ≤ 15km/hL4 = ≤ 20km/h*	Product code:DU-MO-210005DU-MO-210010DU-MO-220026L1 = ≤ 6km/hL2 = ≤ 15km/hL3 = ≤ 20km/hL4 = ≤25km/h*	Product code:DU-MO-220008L1 = ≤ 6km/hL2 = ≤ 10km/hL3 = ≤ 15km/hL4 = ≤20km/h*
Maximum slope ** 18% 20%
Brakes Front electric brake and rear disc brake Front electric brake and rear disc brake
Tyres	Size 8.5" with inner tubeRecommended pressure 50 psi / 3.4 bar		Size 10" tubelessRecommended pressure: 44 psi / 3 bar
Maximum load 100 kg 100 kg
Rider Check the current legislation in your country
Operating temperature -0 °C/ 45 °C -0 °C/ 45 °C
Protection level	IP54: DU-MO-220002IPX5: DU-MO-220009		IPX4: DU-MO-210005,DU-MO-210010,DU-MO-220008IPX5: DU-MO-220026
Charging time Approx. 5 hours	Approx. 4 hours
Autonomy**	Up to 35km		Up to 25km
Electrical system
Rated power of motor	0.35kW; 350W Brushless, 17Nm		0.35kW; 350W Brushless, 18.9Nm
Maximum power of motor	0.48kW; 480W		0,515kW; 515W
Display	built-in colour LED		built-in 3.5" colour LED
Battery	36V 10Ah 360Wh		36V 7.5Ah 270Wh
Low voltage protection	27V ± 0.5V		31V ± 0.5V
Current limit	18A		18A
Kers	Yes		Yes
Lights	Front and rear LEDs		Front and rear LEDs
Features	Bluetooth with App		Bluetooth with App
Dimensions and weight
Net weight	13.28Kg		15.5Kg
Gross weight	15.28Kg		18.9Kg

* Always respect the highway code and the regulations in force in the country where the electric scooter is used.
** Subject to variations based on the rider's weight, on the road conditions and on the temperature.

General information
	Pro-II Plus AS
Frame Magnesium alloy
Sunspensions Rear
Speed	Product code:DU-MO-220020L1 = ≤ 6km/hL2 = ≤ 15km/hL3 = ≤ 20km/hL4 = ≤25km/h*
Maximum slope ** 20%
Brakes Front electric brake and rear disc brake
Tyres	Size 10" tubelessRecommended pressure: 44 psi / 3 bar
Maximum load 100 kg
Rider Check the current legislation in your country
Operating temperature -0 °C/ 45 °C
Protection level IPX5:
Charging time Approx. 4 hours
Autonomy** Up to 25km
Electrical system
Rated power of motor 0.35kW; 350W Brushless, 18.9Nm
Maximum power of motor 0,515kW; 515W
Display built-in 3.5" colour LED
Battery 36V 7.5Ah 270Wh
Low voltage protection 31V ± 0.5V
Current limit	18A
Kers	Yes
Lights	Front and rear LEDs
Features	Bluetooth with App
Dimensions and weight
Net weight	15.5Kg
Gross weight 18.9Kg

* Always respect the highway code and the regulations in force in the country where the electric scooter is used.
** Subject to variations based on the rider's weight, on the road conditions and on the temperature.

General information
	Pro-I Evo Pro-I Evo SR
Frame Aluminium alloy Alumnium alloy
Sunspensions - -
Speed	Product code:DU-MO-210001DU-MO-210004DU-MO-210011L1 = ≤ 6km/hL2 = ≤ 15km/hL3 = ≤ 20km/hL4 = ≤25km/h*	Product code:DU-MO-220004L1 = ≤ 6km/hL2 = ≤ 10km/hL3 = ≤ 15km/hL4 = ≤20km/h*	Product code:DU-MO-220019DU-MO-220023DU-MO-220025L1 = ≤ 6km/hL2 = ≤ 15km/hL3 = ≤ 20km/hL4 = ≤25km/h*
Maximum slope ** 15% 15%
Brakes Front electric brake and rear disc brake Front electric brake and rear disc brake
Tyres	Size 8.5" with inner tubeRecommended pressure 50 psi / 3.4 bar		Size 8.5" with inner tubeRecommended pressure 50 psi / 3.4 bar
Maximum load 100 kg 100 kg
Rider Check the current legislation in your country
Operating temperature -0 °C/ 45 °C -0 °C/ 45 °C
Protection level	IP54: DU-MO-220004IPX5: DU-MO-210001DU-MO-210004DU-MO-210011		IPX5
Charging time Approx. 4 hours	Approx. 4 hours
Autonomy**	Up to 25km		Up to 25km
Electrical system
Rated power of motor	0.35kW; 350W Brushless, 15Nm		0.35kW; 350W Brushless, 15Nm
Maximum power of motor	0.5kW; 500W		0.5kW; 500W
Display	built-in colour LED		built-in colour LED
Battery	36V 7.8Ah 280Wh		36V 7.8Ah 280Wh
Low voltage protection	31V ± 0.5V		31V ± 0.5V
Current limit	15A		15A
Kers	Yes		Yes
Lights	Front and rear LEDs		Front and rear LEDs
Features	Bluetooth with App		Bluetooth with App
Dimensions and weight
Net weight	12Kg		12Kg
Gross weight	14.4Kg		14.4Kg

* Always respect the highway code and the regulations in force in the country where the electric scooter is used.
** Subject to variations based on the rider's weight, on the road conditions and on the temperature.

General information
	Pro-I Evo AS
Frame Aluminium alloy
Sunspensions -
Speed	Product code:DU-MO-230003L1 = ≤ 6km/hL2 = ≤ 15km/hL3 = ≤ 20km/hL4 = ≤25km/h*
Maximum slope ** 15%
Brakes Front electric brake and rear disc brake
Tyres	Size 8.5" with inner tubeRecommended pressure 50 psi / 3.4 bar
Maximum load 100 kg
Rider Check the current legislation in your country
Operating temperature -5 °C/ 50 °C
Protection level IPX5
Charging time Approx. 5 hours
Autonomy** Up to 30km
Electrical system
Rated power of motor 0.35kW; 350W Brushless, 15Nm
Maximum power of motor 0.499kW; 499W
Display built-in colour LED
Battery 36V 7.8Ah 280Wh
Low voltage protection 30V ± 0.5V
Current limit	17A ± 1A
Kers	Yes
Lights	Front and rear LEDs
Features	Bluetooth with App
Dimensions and weight
Net weight	12Kg
Gross weight 14Kg

* Always respect the highway code and the regulations in force in the country where the electric scooter is used.
** Subject to variations based on the rider's weight, on the road conditions and on the temperature.

12. Troubleshooting

Error Cause Solution
The motor is not running	Electrical issue, error code present	Request technical assistance
The drive wheel does not turn	Problems with the brakesMotor is blocked	Adjust the brakes; if the problem persists, request technical assistanceCheck that the wheel is properly tightened, check that the wheel turns without starting the vehicle. If the problem persists, request technical assistance
The motor stops while it is running	Motor overheating Stop the vehiclePresence of error code Request technical assistance	and wait for it to cool
After charging it, the item does not switch on or it switches off after a few km.	Damaged battery Request technical assistance
The battery does not charge or the item does not switch on	Connection problems Request technical assistanceThe battery is not connected (models with removable battery)The battery is depleted Charge the battery to 100%Damaged battery Request technical assistanceProblems with the battery charger	Check that the power connector is connected.battery to 100%Replace the battery charger

Pro-I Evo, Pro-I Evo SR, Pro-I Evo Max SR
Error code Indications
E.1 Motor Malfunction
E.2	MOS failure or motor phase short-circuit failure
E.3 Brake malfunction
E.4 Accelerator lever malfunction
E.5 Low voltage protection
E.6	Communication fault between instrumentation and control system
E.7 High voltage protection
E.9	Fault caused by rotor locking due to external force

Pro-II Plus, Pro-II Plus AS, Pro-II Evo, Pro-II Evo AS, Pro-III, Pro-III R
Error Code Indications
E01 Overcurrent protection
E02 Low voltage protection
E03 High voltage protection
E04 Drive wheel guard
E05 Controller MOS Fault (up)
E06 Controller MOS Fault (down)
E07 Controller general fault
E08 Overheating protection
E09 Accelerator lever malfunction
E11	Headlight malfunction
E12 Control unit signal error
E13 On/off button malfunction

Pro-I Evo AS
Error Code Problem	Indications
E10 Display communication error		Indicates a possible break in communication between the electric scooter display and the control unit, causing loss of information. Check the connection between the display and control unit, or request technical assistance.
E11 Motor current sensor error		Indicates a fault in the electric scooter motor current sensor. Check the motor wiring, or seek technical assistance
E14 Accelerator sensor error		Indicates a fault in the acceleration sensor of the electric scooter. Check the sensor and wiring, or seek technical assistance.
E15 Brake sensor error		Indicates a fault in the brake sensor of the electric scooter. Check sensor and wiring, or seek technical assistance.
E16 Motor sensor error		If the error occurs at start-up, check that the motor hall wiring is normal. If it occurs during braking, check and replace the motor or controller to resolve the problem, or request technical assistance.
E21 BMS communication error Request technical assistance
E50 High-voltage main line error		If the error occurs at start-up, check if the battery voltage is normal. If it occurs while driving, you will need to replace the battery or controller to solve the problem, or request technical assistance.
E55 High controller temperature error		If the controller temperature is too high, switch off the vehicle and let it cool down before restarting it. If the error occurs at start-up, the controller will have to be replaced to solve the problem.

13. Liability and general terms of warranty

The rider assumes all liability for any injury when not wearing a helmet or other protective devices.

The rider must respect current local regulations regarding:

1. the minimum age allowed for the rider,
2. restrictions on the types of riders who can use the product
3. all other regulatory aspects

The rider must always keep the product clean and in a perfect state of efficiency and maintenance, diligently perform the safety checks he/she is responsible for as described in the previous section, not tamper with the product in any way and keep all the maintenance documents.

The company shall not be liable for any damages caused and is in no way responsible for damages caused to property or persons when:

• the item is used incorrectly or in a manner that does not comply with the instructions of the user guide;
• after the purchase, the item is modified or tampered with in all or some of its components.

In the event of item malfunction due to causes not attributable to inappropriate rider behaviour or a consultation of the general terms of the warranty, contact your dealer or visit the website www.ducatiurbanemobility.com

The Legal Guarantee never covers any Product faults or malfunctions caused by accidental events and/or events attributable to the Purchaser, or due to use of the Product in non-compliance with its intended use and/or with the provisions of the technical documentation attached to the Product, or due to failure to regulate mechanical parts, the natural wear of consumable materials, or due to assembly errors, lack of maintenance and/or use of said product in non-compliance with the instructions.

For example, the following are to be considered excluded from the statutory guarantee regarding products:

• damage caused by impacts, accidental falls or collisions, punctures;
- damage caused by use, exposure or storage in an unsuitable environment (e.g. presence of rain and/or mud, exposure to humidity or excessive heat, contact with sand or other substances)
- caused by failure to adjust for road use and/or maintenance of mechanical parts, mechanical disc brakes, handlebars, tyres, etc.; incorrect installation and/or assembly of parts and/or components
- the natural wear and tear of consumable materials: mechanical disc brake (e.g. pads, callipers, disc, cables), tires, platforms, gaskets, bearings, led lights and bulbs, kickstand, knobs, mudguards, rubber parts (platform), wiring cable connectors, grilles and stickers, etc.;
- improper maintenance and/or improper use of the product battery;
• tampering with and/or forcing parts of the product;
- incorrect or inadequate maintenance or alteration of the Product;
- improper use of the product (e.g.: excess load, use in competitions and/or for commercial or rental activities);
- maintenance, repairs and/or technical interventions on the product carried out by unauthorised third parties;
• damage to the products resulting from transport, if carried out by the purchaser;
- damage and/or defects resulting from the use of non-original parts.

Please refer to the latest version of the warranty terms available at www.ducatiurbanemobility.com/assistance/

Treatment of the electrical or electronic device at the end of its service life (applicable in all countries of the European Union and in other European systems with separate collection systems)

Simple line drawing of a trash bin with no text or symbols

This symbol on the product or packaging indicates that the product should not be considered as normal household waste, but should be taken to a facility authorised to dispose of waste from electrical and electronic equipment (WEEE).

By ensuring the item is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which may otherwise be caused by inappropriate disposal. Recycling materials will help to conserve natural resources.

For more detailed information about the recycling and disposal of this item, you can contact the local waste disposal service or the point of sale where you purchased it.

In any case, disposal must be carried out in accordance with the legislation in force in the country of purchase.

More specifically, consumers must not dispose of WEEE as municipal waste, but must dispose of this type of waste separately, in one of two possible ways:

• By taking it to municipal collection centres (also called eco-collection centres or recycling facilities), directly or through the collection services of municipal companies, where these are available;
• By taking it to shops selling new electrical and electronic equipment.

Here, very small items of the WEEE type (with the longest side less than 25 cm) can be left free of charge, while larger ones can be left on a 1-for-1 basis, i.e., you can leave the old item when you buy a new one having the same function.

Moreover, the 1-on-1 mode is always guaranteed when the consumer purchases a new EEE, regardless of the size of the WEEE.

In the event of unauthorised disposal of electrical or electronic equipment, the sanctions provided for by current environmental legislation may be applied (Italian legislation – check the regulations in effect in the country of use/disposal of the vehicle).

If the WEEE contains batteries or accumulators, they must be removed and subjected to specific separate collection.

Handling of spent batteries (applicable in all countries in the European Union and in other European systems with separate collection systems)

Symbol of a trash bin crossed out by diagonal lines, no text or labels present

This symbol on the product or packaging indicates that the battery pack should not be treated as normal household waste. On some types of batteries, this symbol may be used in combination with a chemical symbol.

The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead.

By ensuring that the batteries are disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which may otherwise be caused by inappropriate disposal. Recycling materials will help to conserve natural resources. In the case of items which, for safety, performance, or data protection purposes, require a fixed connection to an internal battery, said battery should only be replaced by qualified service personnel.

Deliver the product at the end of its service life to collection centres suitable for the disposal of electrical and electronic equipment: this ensures that the battery inside it is also treated correctly.

For more detailed information about disposal of the dead battery, contact the local waste disposal service or the shop where it was purchased.

In any case, disposal must be carried out in accordance with the legislation in force in the country of purchase.

Pro-I Evo (Black Edition / White Edition), Pro-I Evo AS,

Pro-I Evo SR (Black Edition/White Edition), Pro-I Evo Max SR,

Pro-II Plus, Pro-II Plus AS, Pro-II Evo, Pro-II Evo AS, Pro-III, Pro-III R

Manuale d'uso

DU-MO-000001 rev. 3

Close-up of a black plastic mechanical component with four circular ports and a central hub (no text or symbols visible)

Pulsante destro:

Pro-I Evo (Black and White edition)

Pro-I Evo SR (Black and White edition)

Pro-I Evo AS

Close-up of a mechanical lever handle assembly with labeled point A (no text or symbols beyond label)

Close-up of a motorcycle wheel rim and tire, showing mechanical components (no text or symbols visible)

Modelli: Pro-I Evo, Pro-I Evo SR, Pro-I Evo AS, Pro-I Evo Max SR

Line drawing of a person riding an electric scooter with a magnified inset showing the lever mechanism (no text or symbols)

Line drawing of a person riding an electric scooter with a close-up inset showing the wheel assembly (no text or symbols)

Two stick figures in standing poses, one holding a wheeled cart and the other holding a bicycle (no text or symbols)

Modelli: Pro-II Plus, Pro-II Plus AS, Pro-II Evo, Pro-II Evo AS, Pro-III, Pro-III R

Line drawing of a person riding an electric scooter with two views of the side view showing mechanical components (no text or symbols)

Two identical line drawings of a person standing on either side of a bicycle, showing no text or symbols.

Icon of a bicycle with a curved roof and wheels, labeled 'DUCATI' below (no additional text or symbols)

Download on the App Store

GET IT ON Google Play

Symbol of a trash bin crossed out by a diagonal line, no text or labels present

Symbol of a trash bin crossed out by a diagonal line, no text or numbers present

Pro-I Evo (Black Edition / White Edition), Pro-I Evo AS,

Pro-I Evo SR (Black Edition/White Edition), Pro-I Evo Max SR,

Pro-II Plus, Pro-II Plus AS, Pro-II Evo, Pro-II Evo AS, Pro-III, Pro-III R

Manual del usuario

DU-MO-000001 rev. 3

Close-up of a black plastic mechanical component with four circular ports and a central hub (no text or symbols visible)

Botón derecho:

Pro-I Evo (Black and White edition)

Pro-I Evo SR (Black and White edition)

Pro-I Evo AS

Close-up of a mechanical tool or connector with a labeled section A (no visible text or symbols)

Close-up of a motorcycle wheel and tire with visible mechanical components (no text or symbols)

Modelos: Pro-I Evo, Pro-I Evo SR, Pro-I Evo AS, Pro-I Evo Max SR

Line drawing of a person riding an electric scooter with a magnified inset showing the lever mechanism (no text or symbols)

Line drawing of a person riding an electric scooter with a close-up inset showing the wheel assembly (no text or symbols)

Two identical line drawings of a person standing with a scooter, no text or symbols present

Modelos: Pro-II Plus, Pro-II Plus AS, Pro-II Evo, Pro-II Evo AS, Pro-III, Pro-III R

Two line drawings of a person riding an electric scooter, with zoomed-in insets showing the wheel assembly (no text or symbols)

Two identical line drawings of a person standing upright on a bicycle, viewed from the side (no text or symbols)

Icon of a bicycle with 'DUCATI' text below, no other symbols or text present

Simple line drawing of a trash bin with no text or symbols

Simple line drawing of a trash bin with no text or symbols

Pro-I Evo (Black Edition / White Edition), Pro-I Evo AS, Pro-I Evo SR (Black Edition/White Edition), Pro-I Evo Max SR, Pro-II Plus, Pro-II Plus AS, Pro-II Evo, Pro-II Evo AS, Pro-III, Pro-III R

Mode d'emploi

DU-MO-000001 rév. 3

Close-up of a black cylindrical device with four circular ports and a central hub (no text or symbols visible)

Bouton droit :

Pro-I Evo (Black and White edition)

Pro-I Evo SR (Black and White edition)

Pro-I Evo AS

Close-up of a mechanical lever handle assembly with labeled point A (no text or symbols beyond label)

Close-up of a motorcycle wheel rim and tire, showing tread pattern and mounting bracket (no text or symbols)

Modèles : Pro-I Evo, Pro-I Evo SR, Pro-I Evo AS, Pro-I Evo Max SR

Line drawing of a person riding an electric scooter with a magnified inset showing the lever mechanism (no text or symbols)

Line drawing of a person riding an electric scooter with a magnified inset showing the wheel assembly (no text or symbols)

Two identical line drawings of a person standing with a wheeled cart, no text or symbols present.

Modèles : Pro-II Plus, Pro-II Plus AS, Pro-II Evo, Pro-II Evo AS, Pro-III, Pro-III R

Two line drawings of a person riding an electric scooter, with inset showing the wheel assembly (no text or symbols)

Two line drawings of a person standing on a bicycle, viewed from the side (no text or symbols)

Icon of a bicycle with 'DUCATI' text below, no other symbols or text present

Symbol of a trash bin crossed with no text or labels, enclosed in a rectangle (no readable text or symbols)

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

Pro-I Evo (Black Edition / White Edition), Pro-I Evo AS, Pro-I Evo SR (Black Edition/White Edition), Pro-I Evo Max SR, Pro-II Plus, Pro-II Plus AS, Pro-II Evo, Pro-II Evo AS, Pro-III, Pro-III R

Benutzerhandbuch

DU-MO-000001 Rev. 3

Close-up of a black cylindrical device with a circular vent and four radial slots (no text or symbols visible)

Rechte Taste:

Pro-I Evo (Black and White edition)

Pro-I Evo SR (Black and White edition)

Pro-I Evo AS

Close-up of a mechanical lever handle assembly with labeled point A (no text or symbols beyond label)

Close-up of a motorcycle wheel and tire assembly (no visible text or symbols)

Modelle: Pro-I Evo, Pro-I Evo SR, Pro-I Evo AS, Pro-I Evo Max SR

Line drawing of a person riding an electric scooter with a magnified inset showing the wheel assembly (no text or symbols)

Line drawing of a person riding an electric scooter with a close-up inset showing the wheel assembly (no text or symbols)

Two identical line drawings of a person standing with a wheeled cart, no text or symbols present.

Modelle: Pro-II Plus, Pro-II Plus AS, Pro-II Evo, Pro-II Evo AS, Pro-III, Pro-III R

Line drawing of a person riding an electric scooter with two views of the side view showing mechanical components (no text or symbols)

Two identical line drawings of a person standing upright on a wheeled vehicle, with no text or symbols present.

Icon of a bicycle with 'DUCATI' text below, no other symbols or text present

Symbol of a trash bin crossed with diagonal lines, no text or labels present

Symbol of a trash bin with no text or labels, crossed by diagonal lines and a blank bottom bar (no text or symbols present)

Pro-I Evo (Black Edition / White Edition), Pro-I Evo AS,

Pro-I Evo SR (Black Edition/White Edition), Pro-I Evo Max SR,

Pro-II Plus, Pro-II Plus AS, Pro-II Evo, Pro-II Evo AS, Pro-III, Pro-III R

Handleiding

DU-MO-000001 herz. 3

Pro-I Evo (Black and White edition)

Pro-I Evo SR (Black and White edition)

Pro-I Evo AS

Pro-II Plus / Pro-II Plus As / Pro-II Evo

Close-up of a mechanical tool or connector with labeled point A (no text or symbols beyond label)

Close-up of a motorcycle wheel and tire with visible mechanical components (no text or symbols)

Modellen: Pro-I Evo, Pro-I Evo SR, Pro-I Evo AS, Pro-I Evo Max SR

Line drawing of a person riding an electric scooter with a magnified inset showing the lever mechanism (no text or symbols)

Line drawing of a person riding an electric scooter with a magnified inset showing the wheel assembly (no text or symbols)

Two stick figures in a row, one standing and one seated, both holding wheeled scooters (no text or symbols visible)

Modellen: Pro-II Plus, Pro-II Plus AS, Pro-II Evo, Pro-II Evo AS, Pro-III, Pro-III R

Line drawing of two people riding an electric scooter, with zoomed-in insets showing the wheel assembly (no text or symbols)

Two line drawings of a person standing upright and standing down, showing different bicycle positions (no text or symbols)

Icon of a bicycle with 'DUCATI' text below, no other symbols or text present

Symbol of a trash bin crossed with no text or labels, enclosed in a rectangle (no readable text or numbers)

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Pro-I Evo (Black Edition / White Edition), Pro-I Evo AS,

Pro-I Evo SR (Black Edition/White Edition), Pro-I Evo Max SR,

Pro-II Plus, Pro-II Plus AS, Pro-II Evo, Pro-II Evo AS, Pro-III, Pro-III R

Instrukcja obsługi

DU-MO-000001 akt. 3

Close-up of a mechanical lever handle assembly with labeled point A (no text or symbols beyond label)

Close-up of a motorcycle's wheel and tire, showing tread pattern and mounting bracket (no text or symbols)

Modele: Pro-I Evo, Pro-I Evo SR, Pro-I Evo AS, Pro-I Evo Max SR

Line drawing of a person riding an electric scooter with a magnified inset showing the lever mechanism (no text or symbols)

Line drawing of a person riding an electric scooter with a close-up inset showing the wheel assembly (no text or symbols)

Two identical line drawings of a person standing on either side, holding a wheeled cart (no text or symbols)

Modele: Pro-II Plus, Pro-II Plus AS, Pro-II Evo, Pro-II Evo AS, Pro-III, Pro-III R

Two line drawings of a person riding an electric scooter, with inset showing the wheel assembly (no text or symbols)

Two line drawings of a person standing and holding a bicycle, shown from different angles (no text or symbols)

Simple line drawing of a trash bin with no text or symbols

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Pro-I Evo (Black Edition / White Edition), Pro-I Evo AS,

Pro-I Evo SR (Black Edition/White Edition), Pro-I Evo Max SR, Pro-II Plus, Pro-II Plus AS, Pro-II Evo, Pro-II Evo AS, Pro-III, Pro-III R

Návod k použití

DU-MO-000001 rev. 3

Close-up of a black plastic mechanical component with four circular ports and a central hole (no text or symbols visible)

Pravé tlačítko:

Pro-I Evo (Black and White edition)

Pro-I Evo SR (Black and White edition)

Pro-I Evo AS

Close-up of a mechanical lever handle assembly with labeled point A (no text or symbols beyond label)

Close-up of a motorcycle's wheel rim and disc, showing tread pattern and mounting bracket (no text or symbols)

Modely: Pro-I Evo, Pro-I Evo SR, Pro-I Evo AS, Pro-I Evo Max SR

Line drawing of a person riding an electric scooter with a magnified inset showing the lever mechanism (no text or symbols)

Line drawing of a person riding an electric scooter with a close-up inset showing the wheel assembly (no text or symbols)

Two identical line drawings of a person standing on either side, holding a wheeled cart (no text or symbols)

Modely: Pro-II Plus, Pro-II Plus AS, Pro-II Evo, Pro-II Evo AS, Pro-III, Pro-III R

Line drawing of two people riding a scooter, with inset showing the wheel assembly (no text or symbols)

Two line drawings of a person standing and holding a bicycle, shown from different angles (no text or symbols)

Icon of a bicycle with a curved roof and wheels, labeled 'DUCATI' below (no additional text or symbols)

Symbol of a trash bin with no text or labels, crossed by diagonal lines and a black rectangle at the bottom (no readable text or symbols)

Symbol of a trash bin crossed with no text or labels, enclosed in a rectangle (no readable text or symbols)

Pro-I Evo (Black Edition / White Edition), Pro-I Evo AS,

Pro-I Evo SR (Black Edition/White Edition), Pro-I Evo Max SR, Pro-II Plus, Pro-II Plus AS, Pro-II Evo, Pro-II Evo AS, Pro-III, Pro-III R

Návod na použitie

DU-MO-000001 rev. 3

Close-up of a black plastic mechanical component with four circular ports and a central hub (no text or symbols visible)

Pravé tlačidlo:

Pro-I Evo (Black and White edition)

Pro-I Evo SR (Black and White edition)

Pro-I Evo AS

Close-up of a mechanical lever handle and lever arm (no text or symbols visible)

Nastavenie svorky brzdy

Close-up of a motorcycle's wheel and tire assembly (no visible text or symbols)

7. Skladanie a preprava

Modely: Pro-I Evo, Pro-I Evo SR, Pro-I Evo AS, Pro-I Evo Max SR

Line drawing of a person riding an electric scooter with a magnified inset showing the lever mechanism (no text or symbols)

Line drawing of a person riding an electric scooter with a close-up inset showing the wheel assembly (no text or symbols)

Two identical line drawings of a person standing on either side of a scooter, viewed from the side (no text or symbols)

Modely: Pro-II Plus, Pro-II Plus AS, Pro-II Evo, Pro-II Evo AS, Pro-III, Pro-III R

Two line drawings of a person riding an electric scooter, with inset diagrams showing the wheel assembly (no text or symbols)

Two line drawings of a person standing and holding a bicycle, shown from different angles (no text or symbols)

Symbol of a trash bin crossed out by diagonal lines, no text or labels present

Symbol of a trash bin crossed out by two diagonal lines, no text or labels present

Pro-I Evo (Black Edition / White Edition), Pro-I Evo AS,

Pro-I Evo SR (Black Edition/White Edition), Pro-I Evo Max SR, Pro-II Plus, Pro-II Plus AS, Pro-II Evo, Pro-II Evo AS, Pro-III, Pro-III R

Εγχειρίδιο χρήσης

DU-MO-000001 αναθ. 3

Pro-I Evo (Black and White edition)

Pro-I Evo SR (Black and White edition)

Pro-I Evo AS

Close-up of a mechanical tool or connector with a labeled section A, showing no visible text or symbols.

Close-up of a motorcycle's wheel and side panel, showing tread pattern and mounting bracket (no text or symbols)

Μοντέλα: Pro-I Evo, Pro-I Evo SR, Pro-I Evo AS, Pro-I Evo Max SR

Line drawing of a person riding an electric scooter with a magnified inset showing the lever mechanism (no text or symbols)

Line drawing of a person riding an electric scooter with a close-up inset showing the wheel assembly (no text or symbols)

Two identical line drawings of a person standing with a wheeled cart, no text or symbols present.

Μοντέλα: Pro-II Plus, Pro-II Plus AS, Pro-II Evo, Pro-II Evo AS, Pro-III, Pro-III R

Two line drawings of a person riding an electric scooter, with inset showing the wheel assembly (no text or symbols)

Two line drawings of a person standing on either side of a bicycle, showing different positions (no text or symbols present)

Icon of a bicycle with 'DUCATI' text below, no other symbols or text present

Symbol of a trash bin crossed out by diagonal lines, no text or labels present

Symbol of a trash bin crossed out by diagonal lines, no text or labels present

Pro-I Evo (Black Edition / White Edition), Pro-I Evo AS, Pro-I Evo SR (Black Edition/White Edition), Pro-I Evo Max SR,

Pro-II Plus, Pro-II Plus AS, Pro-II Evo, Pro-II Evo AS, Pro-III, Pro-III R

Navodila za uporabo

DU-MO-000001 rev. 3

Close-up of a black cylindrical device with a circular vent and four radial slots (no text or symbols visible)

Desni gumb:

Držite dolgo pritisnjeno, da dezaktivirate način proti kraji.

Sredinski gumb (hupa):

• Pritisnite, da potrobite.

- Hitro dvakrat pritisnite, da spremenite zvok.

Polnjenje naprave: Kabel USB vstavite v vratca za polnjenje (spodaj).

Pro-I Evo (Black and White edition) Pro-I Evo SR (Black and White edition)

Pro-I Evo AS

Close-up of a mechanical tool or connector with a central lever and handle (no visible text or symbols)

Close-up of a motorcycle wheel and tire with visible mechanical components (no text or symbols)

7. Upogniti in prevažati

Prepričajte se, da je električni skiro izklopljen. Z roko primite gred krmila, potegnite ročico, nagnite gred krmila proti podnožju in jo zaskočite.

Modeli: Pro-I Evo, Pro-I Evo SR, Pro-I Evo AS, Pro-I Evo Max SR

Line drawing of a person riding an electric scooter with a magnified inset showing the lever mechanism (no text or symbols)

Line drawing of a person riding an electric scooter with a magnified inset showing the wheel assembly (no text or symbols)

Two identical line drawings of a person standing with a scooter, no text or symbols present

Modeli: Pro-II Plus, Pro-II Plus AS, Pro-II Evo, Pro-II Evo AS, Pro-III, Pro-III R

Two line drawings of a person riding an electric scooter, with inset showing the wheel assembly (no text or symbols)

Prepričajte se, da je električni skiro izklopljen. Z roko primate drog krmila, nato povlecite ročico in spono krmila poravnajte s spono, ki se nahaja na zadnjem blatniku.

Two line drawings of a person standing upright on a bicycle, showing different positions (no text or symbols)

Po zgibanju skiroja držite drog krmila z eno ali obema rokama.

Po tem, ko ste izdelek upognili, ga dvignite tako, da držite gred krmila z eno ali obema rokama.

POZOR

Icon of a bicycle with 'DUCATI' text below, no other symbols or text present

Symbol of a trash bin crossed out by diagonal lines, no text or labels present

Simple line drawing of a trash bin with no text or symbols

Pro-I Evo (Black Edition / White Edition), Pro-I Evo AS,

Pro-I Evo SR (Black Edition/White Edition), Pro-I Evo Max SR, Pro-II Plus, Pro-II Plus AS, Pro-II Evo, Pro-II Evo AS, Pro-III, Pro-III R

Uputstvo za upotrebu

DU-MO-000001 rev. 3

Prevod originalnih uputstava

Hvala vam što ste izabrali ovaj proizvod.

Za informacije, tehničku podršku, pomoć i za konsultovanje opštih termina garancije obratite se svom prodavaču ili posetite stranicu www.ducatiurbanemobility.com

Sadržaj

Pro-I Evo (Black and White edition)

Pro-I Evo SR (Black and White edition)

Pro-I Evo AS

1. Prednje svetlo
2. Akcelerator
3. Mehanizam preklapanja
4. Pogonski točak
5. Priključak za punjenje
6. Stalak
7. Slobodan točak
8. Disk kočnica
9. Zadnje svetlo
10. Kuka za zatvaranje
11. Platforma
12. Stub volana
13. Poluga kočnice
14. Zvonce
15. Ekran

16. Svetla za smer

17. Kontrola pokazivača smera (ako postoji)

18. Poluga električne kočnice (samo Pro-I Evo SR)

Pro-I Evo Max SR

1. Prednje svetlo
2. Akcelerator
3. Mehanizam preklapanja
4. Pogonski točak
5. Priključak za punjenje
6. Stalak
7. Slobodan točak
8. Disk kočnica
9. Zadnje svetlo
10. Kuka za zatvaranje
11. Platforma
12. Stub volana
13. Poluga kočnice
14. Zvonce
15. Ekran
16. Svetla za smer
17. Kontrola pokazivača pravca
18. Poluga električne kočnice

1 2 17 19 20 21 18 16 5 15 3 4 6 7810 14 13 12 11 9

Pro-II Plus / Pro-II Plus AS / Pro-II Evo

1. Ekran
2. Akcelerator
3. Prednje svetlo
4. Suspenzijska viljuška (Pro-II Evo)
5. Mehanizam preklapanja
6. Pogonski točak
7. Priključak za punjenje
8. Stalak
9. Disk kočnica
10. Slobodan točak
11. Suspenzija (Pro-II Evo)
12. Zadnje svetlo
13. Spojnica za zatvaranje
14. Platforma
15. Potporni prsten (ako postoji)
16. Stub volana
17. Kuka za zatvaranje
18. Poluga kočnice
19. Zvonce
20. Svetla za smer
21. Kontrola pokazivača smera (ako postoji)

1 2 22 21 2 18 19 20 17 16 15 5 3 14 13 12 11 9 6 74810

Pro-II Evo AS

1. Ekran
2. Akcelerator
3. Prednje svetlo
4. Amortizovana viljuška
5. Mehanizam preklapanja
6. Pogonski točak
7. Priključak za punjenje
8. Stalak
9. Disk kočnica
10. Slobodan točak
11. Amortizovana viljuška
12. Zadnje svetlo
13. Spojnica za zatvaranje
14. Platforma
15. Stub volana
16. Kuka za zatvaranje
17. Poluga kočnice
18. Zvonce
19. Svetla za smer
20. Kontrola pokazivača pravca
21. Poluga kočnice
22. Elektronska truba (bez DU-MO-220012)

1821 1 17 20 19 16 15 14 13 4 12 11 10 8 5679

Pro-III / Pro-III R

1. Akcelerator
2. Poluga kočnice
3. Prednje svetlo
4. Mehanizam preklapanja
5. Slobodan točak
6. Priključak za punjenje
7. Stalak
8. Disk kočnica
9. Pogonski točak
10. Zadnje svetlo
11. Spojnica za zatvaranje
12. Platforma
13. Potporni prsten (ako postoji)
14. Stub volana
15. Spojnica za zatvaranje
16. Poluga kočnice
17. Zvonce
18. Ekran
19. Svetla za smer
20. Kontrola pokazivača smera (ako postoji)
21. USB utor

4. Punjenje baterije

PAŽNJA

Prilikom prve upotrebe, napunite proizvod do 100 % Proverite da li su proizvod, punjač i priključak za punjenje suvi.

Uputstva:

- Otvorite stalak

Close-up of a mechanical tool or connector with a labeled section A, showing no visible text or symbols.

Podešavanje čeljusti kočnice

U slučaju da je kočnica previše zategnuta ili previše labava, koristite imbus ključ da olabavite maticu (A), a zatim podesite sajlu kočnice (skratite sajlu kočnice nagore ako je previše zategnuta, ako je previše zategnuta povucite kabl kočnice nadole), a zatim ponovo pritegnite maticu (A). Ako je previše labav ili previše zategnut čak i posle izvođenja prvog koraka, možda će biti potrebno namestiti kočionu pločicu (fiksnu) koju možete podesiti kroz točak sa suprotne strane, koristite šestougaoni ključ da udaljite/približite pločicu(B) (vidi sliku).

Proverite pravilno poravnanje između čeljusti kočnice i diska. Pomoću vijaka C i D podesite položaj / poravnanje na disku ako je potrebno.

C A D

Close-up of a motorcycle's wheel and tire with visible mechanical components (no text or symbols)

7. Sklapanje i nošenje

Uverite se da je električni trotinet isključen. Držite držač upravljača rukom, povucite ručicu, preklopite držač upravljača prema osloncu za noge i zakačite.

Modeli: Pro-I Evo, Pro-I Evo SR, Pro-I Evo AS, Pro-I Evo Max SR

Line drawing of a person riding an electric scooter with a magnified inset showing the lever mechanism (no text or symbols)

Line drawing of a person riding an electric scooter with a magnified inset showing the wheel assembly (no text or symbols)

Zatvaranje: Isključite električni trotinet, otključajte mehanizam za zaključavanje: pritisnite crvenu kuku i povucite ručicu ka spolja (pogledajte sliku), uvucite šipku upravljača prema unutra i uverite se da je efikasno zaključana.

Otvaranje: Deblokirajte šipku upravljača od blatobrana: pritisnite kopču da biste oslobodili upravljač, podignite šipku upravljača do kraja i blokirajte je guranjem poluge prema unutra. Uključite električni trotinet.

Two identical line drawings of a person standing upright on a scooter, viewed from the side (no text or symbols)

Modeli: Pro-II Plus, Pro-II Plus AS, Pro-II Evo, Pro-II Evo AS, Pro-III, Pro-III R

Two line drawings of a person riding an electric scooter, showing front and side views with no text or symbols.

Two line drawings of a person standing and holding a bicycle, shown from different angles (no text or symbols)

Posle preklapanja držite šipku upravljača s jednom ili s obe ruke.

Posle sklapanja, podignite držeći držač upravljača jednom ili obema rukama.

PAŽNJA

Obavezno čvrsto držite proizvod za vreme transporta. Ako niste sigurni da li možete da držite težinu proizvoda, nemojte nastaviti transport sa podignutim proizvodom. Ako se naglo ispusti, proizvod može izazvati ozbiljne povrede i oštetiti se.

8. Autonomija i performanse

Maksimalna autonomija i performanse vozila zavise od nekoliko varijabli:

Teren: vožnja po glatkom kolovozu rezultira većom autonomijom i boljim performansama od vožnje po neravnim putevima i brdima.

Icon of a bicycle with 'DUCATI' text below, no other symbols or text present

Symbol of a trash bin crossed out by diagonal lines, no text or labels present

Ovaj simbol na proizvodu ili na ambalaži označava da proizvod ne treba smatrati normalnim kućnim otpadom, već ga treba odnijeti na odgovarajuće sabirno mjesto za recikliranje električne i elektronske opreme (OEEO).

Pravilnim odlaganjem ovog proizvoda pomoći ćete u sprečavanju potencijalnih negativnih posledica po životnu sredinu i zdravlje ljudi koje bi inače mogle nastati usled neodgovarajućeg odlaganja. Recikliranje materijala pomaže u očuvanju prirodnih resursa.

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Ovaj simbol na proizvodu ili ambalaži označava da se baterija ne bi trebala smatrati normalnim kućnim otpadom. Na nekim vrstama baterija simbol se može koristiti u kombinaciji sa hemijskim simbolom.

Pro-I Evo (Black Edition / White Edition), Pro-I Evo AS,

Pro-I Evo SR (Black Edition/White Edition), Pro-I Evo Max SR,

Pro-II Plus, Pro-II Plus AS, Pro-II Evo, Pro-II Evo AS, Pro-III, Pro-III R

Close-up of a black plastic mechanical component with four circular ports and a central hub (no text or symbols visible)

Десен бутон:

Pro-I Evo (Black and White edition)

Pro-I Evo SR (Black and White edition) Pro-I Evo AS

Close-up of a mechanical lever handle assembly with labeled point A (no text or symbols beyond label)

Close-up of a motorcycle's wheel rim and disc, showing tread pattern and mounting bracket (no text or symbols)

Модели: Pro-I Evo, Pro-I Evo SR, Pro-I Evo AS, Pro-I Evo Max SR

Line drawing of a person riding an electric scooter with a magnified inset showing the lever mechanism (no text or symbols)

Line drawing of a person riding an electric scooter with a close-up inset showing the wheel assembly (no text or symbols)

Two identical line drawings of a person using a wheeled cart, no text or symbols present

Модели: Pro-II Plus, Pro-II Plus AS, Pro-II Evo, Pro-II Evo AS, Pro-III, Pro-III R

Two line drawings of a person riding an electric scooter, with inset showing the wheel assembly (no text or symbols)

Two line drawings of a person standing upright, showing front and side views of a bicycle (no text or symbols)

Icon of a bicycle with 'DUCATI' text below, no other symbols or text present

Symbol of a trash bin crossed out by diagonal lines, representing no waste or disposal (no text or labels present)

Symbol of a trash bin crossed out by two diagonal lines, no text or labels present

Pro-I Evo (Black Edition / White Edition), Pro-I Evo AS, Pro-I Evo SR (Black Edition/White Edition), Pro-I Evo Max SR, Pro-II Plus, Pro-II Plus AS, Pro-II Evo, Pro-II Evo AS, Pro-III, Pro-III R

دليل الاستخدام

(Black and White edition) Pro-I Evo (Black and White edition) Pro-I Evo SR

Pro-I Evo AS

1. الكشف

.2.الصّر

	الموديل
1. الكشفالIterكيم فيإشرارات الاتجاه (إن وجد)2. رافعة الفرام الكهربائية (إن وجدت)3. زر متعدد الوظ'affف4. الشاشة5. المُسْرَع6. رافعة الجرس7. رافعة الفرام القурсية8. زر متعدد الوظ'aff (4):التشغيل والإطفاء: استمر في الضغط لبيض ôوان لتشغيل السكوتر الكهربائي أو إطفاءه.م catsابح: ا Compact مرة واحدة على الزر لتشغيل أو إطفاء الم catsابح.وضع السرعة: ا Compact مرتين على الزر ل-acختيار وضع السرعة.	Pro-I Evo(الاصدار الأسود)(والأبيض)Pro-I Evo SR(ال Churchill الأسود)(والأبيض)Pro-I Evo Max SR
1. عدد السرعة: يعرض السرعة الحالية للسكوتر.2. مستوى bipolarية: يشر إلى مستوى_SHحن المتبقي.3. الم catsابح: لمبة بيان horizontally.4. بلوتوث: لمبة بيان performances.SPORT. الوضع الرياضي: س tighter الشاشة كلمة D 6. charges-raحة: س tighter الشاشة الحرف E7. الوضع اقتصادي: س tighter الشاشة الحرف :Cruise Control.8. بعد الحفاط على نفس السرعة لبيض ôوان.9. charges السائر10. العصل: إذا أضاء، ف tighter من وجود حل مكان من خلال الإلاع على جدول أكواد الخطاً.___ 7___ 6___ 8___ 10___ 2يتم تشthyط الصّرّ بمجرد أن تج coronavirus سرعة التقدم 3 كم/ساعة.يتم تعطيل مثبت السرعة عند الضغطة الأول على الفرملة أو المُسْرَع.
1. جهاز عرض. وحدة التحكم.2. ذراع الفرامل.3. رافعة الفرامل.4. زر متعدد الوظatlّف.5. tighter.6. المسرع.7.
	: زر متعدد الوظatlّف (4).التشغيل والإطفاء: استمر فيال Forgط لبيض ثوان لتشغيل السكتور الكهربان أو إطفاء.ه. • المصابيح: ا Forgط مرة واحدة على الزر لتشغيل أو إطفاء المصابيح. • وضع السرعة: ا Forgط مرتين على الزر ل bakingتار وضع السرعة.
1. عدد السرعة: يعرض السرعة الحالية للسكوتر.2. مستوى bipolarية: يشر إلى مستوى الشحن المتبقي.3. المصابيح: لمبة بيان المصابيح.4. يلوتوث: لمبة بيان البلوتوث. SPORT.5. الوضع الرياضي: ستعرض الشاشة كلمة D 6. وضع الراحة: ستعرض الشاشة الحرف E 7. الوضع اقتصادي: ستعرض الشاشة الحرف.8. الحفاظ على السرعة. يتم تを作يطه: Cruise Control.9.rizد الحفاظ على نفس السرعة لبيض ثوان.10. عطل: إذا أضاء، فتحقق من وجود حل مكن من خلال الإطلاع على جدول أكواد الخطاً.	—— 1
	— 7 — 6 — 8 — 10 — 2
	يتم تを作يط الصّرّم ب myocardد أن تجازوز سرعة التقدم 3 كم/ساعة، يتم تعطيل مثبت السرعة عند الضغطة الأول على الفرملة أو المُشرّع.Pro-II PlusPro-II Plus ASPro-II EvoPro-II Evo ASPro-IIIPro-III R
. المُسْرَع١. زر متعدد الوظائق2. 3. ذراع الفرام
: زر متعدد الوظائق (2). اتشغيل والإطفاء: استمر فال ldغسط لبيض ثوان لتشغيل السكتور الكهربان أو إطفاءه. • المصابيع: اضغط بسرعة مرتين لتشغيل أو إطفاء المصابيع. • وضع السرعة: اضغط مرة واحدة على الزر ل-acختيار وضع السرعة.
.1. عداد السرعة: ي express السرعة الحالية للسكوتر. . مستوى periطارية: يشر إلى مستوى_SHحن المتبقي. . : ODO .3. مسافة الجلسة على حدة. : TRIP .4. المصابيع: لمبة بيان المصابيع. .5. Household: س tighter الشاشة .S+ .6. Household: س tighter الشاشة الحرف .D .7. Household: س tighter الشاشة .ECO .8. Household: س tighter الشاشة .Cruise Control .9. Household: س tighter Household: بلوتوث : لمبة بيان Household .10. Household: س tighter Household .11. Household: س tighter Household .12. Household: س tighter Household .13. Household: س tighter Household .14. Household: س tighter Household .15. Household: س tighter Household .16. Household: س tighter Household .17. Household: س tighter Household .18. Household: س tighter Household .19. Household: س tighter Household .20. Household: س tighter Household .21. Household: س tighter Household .22. Household: س tighter Household .23. Household: س tighter Household .24. Household: س tighter Household .25. Household: س tighter Household .26. Household: س tighter Household .27. Household: س tighter Household .28. Household: س tighter Household .29. Household: س tighter Household .30. Household: س tighter Household .31. Household: س tighter Household .32. Household: س tighter Household .33. Household: س tighter Household .34. Household: س tighter Household .35. Household: س tighter Household .36. Household: س tighter Household .37. Household: س tighter Household .38. Household: س tighter Household .39. Household: س tighter Household .40. Household: س tighter Household .41. Household: س tighter Household .42. Household: س tighter Household .43. Household: س tighter Household .44. Household: س tighter Household .45. Household: س tighter Household .46. Household: س tighter Household .47. Household: س tighter Household .48. Household: س tighter Household .49. Household: س tighter Household .50. Household: س tighter Household .51. Household: س tighter Household .52. Household: س tighter Household .53. Household: س tighter Household .54. Household: س tighter Household .55. Household: س tighter Household .56. Household: س tighter Household .57. Household: س tighter Household .58. Household: س tighter Household .59. Household: س tighter Household .60. Household: س tighter Household .61. Household: س tighter Household .62. Household: س tighter Household .63. Household: س tighter Household .64. Household: س tighter Household .65. Household: س tighter Household .66. Household: س tighter Household .67. Household: س tighter Household .68. Household: س tighter Household .69. Household: س tighter Household .70. Household: س tighter Household .71. Household: س tighter Household .72. Household: س tighter Household .73. Household: س tighter Household .74. Household: س tighter Household .75. Household: س tighter Household .76. Household: س tighter Household .77. Household: س tighter Household .78. Household: س tighter Household .79. Household: س tighter Household .80. Household: س tighter Household .81. Household: س tighter Household .82. Household: س tighter Household .83. Household: س tighter Household .84. Household: س tighter Household .85. Household: س tighter Household .86. Household: س tighter Household .87. Household: س tighter Household .88. Household: س tighter Household .89. Household: س tighter Household .90. Household: س tighter Household .91. Household: س tighter Household .92. Household: س tighter Household .93. Household: س tighter Household .94. Household: س tighter Household .95. Household: س tighter Household .96. Household: س tighter Household .97. Household: س tighter Household .98. Household: س tighter Household .99. Household: س tighter Household .100. Household: س tighter Household .101. Household: س tighter Household .102. Household: س tighter Household .103. Household: س tighter Household .104. Household: س tighter Household .105. Household: س tighter Household .106. Household: س tighter Household .107. Household: س tighter Household .108. Household: س tighter Household .109. Household: س tighter Household .110. Household: س tighter Household .111. Household: س tighter Household .112. Household: س tighter Household .113. Household: س tighter Household .114. Household: س tighter Household .115. Household: س tighter Household .116. Household: س tighter Household .117. Household: س tighter Household .118. Household: س tighter Household .119. Household: س tighter Household .120. Household: س tighter Household .121. Household: س tighter Household .122. Household: س tighter Household .123. Household: س tighter Household .124. Household: س tighter Household .125. Household: س tighter Household .126. Household: س tighter Household .127. Household: س tighter Household .128. Household: س tighter Household .129. Household: س tighter Household .130. Household: س tighter Household .131. Household: س tighter Household .132. Household: س tighter Household .133. Household: س tighter Household .134. Household: س tighter Household .135. Household: س tighter Household .136. Household: س tighter Household .137. Household: س tighter Household .138. Household: س tighter Household .139. Household: س tighter Household .140. Household: س tighter Household .141. Household: س tighter Household .142. Household: س tighter Household .143. Household: س tighter Household .144. Household: س tighter Household .145. Household: س tighter Household .146. Household: س tighter Household .147. Household: س tighter Household .148. Household: س tighter Household .149. Household: س tighter Household .150. Household: س tighter Household .151. Household: س tighter Household .152. Household: س tighter Household .153. Household: س tighter Household .154. Household: س tighter Household .155. Household: س tighter Household .156. Household: س tighter Household .157. Household: س tighter Household .158. Household: س tighter Household .159. Household: س tighter Household .160. Household: س tighter Household .161. Household: س tighter Household .162. Household: س tighter Household .163. Household: س tighter Household .164. Household: س tighter Household .165. Household: س tighter Household .166. Household: س tighter Household .167. Household: س tighter Household .168. Household: س tighter Household .169. Household: س tighter Household .170. Household: س tighter Household .171. Household: س tighter Household .172. Household: س tighter Household .173. Household: س tighter Household .174. Household: س tighter Household .175. Household: س tighter Household .176. Household: س tighter Household .177. Household: س tighter Household .178. Household: س tighter Household .179. Household: س tighter Household .180. Household: س tighter Household .181. Household: س tighter Household .182. Household: س tighter Household .183. Household: س tighter Household .184. Household: س tighter Household .185. Household: س tighter Household .186. Household: س tighter Household .187. Household: س tighter Household .188. Household: س tighter Household .189. Household: س tighter Household .190. Household: س tighter Household .191. Household: س tighter Household .192. Household: س tighter Household .193. Household: س tighter Household .194. Household: س tighter Household .195. Household: س tighter Household .196. Household: س tighter Household .197. Household: س tighter Household .198. Household: س tighter Household .199. Household: س tighter Household .200. Household: س tighter Household .201. Household: س tighter Household .202. Household: س tighter Household .203. Household: س tighter Household .204. Household: س tighter Household .205. Household: س tighter Household .206. Household: س tighter Household .207. Household: س tighter Household .208. Household: س tighter Household .209. Household: س tighter Household .210. Household: س tighter Household .211. Household: س tighter Household .212. Household: س tighter Household .213. Household: س tighter Household .214. Household: س tighter Household .215. Household: س tighter Household .216. Household: س tighter Household .217. Household: س tighter Household .218. Household: س tighter Household .219. Household: س tighter Household .220. Household: س tighter Household .221. Household: س tighter Household .222. Household: س tighter Household .223. Household: س tighter Household .224. Household: س tighter Household .225. Household: س tighter Household .226. Household: س tighter Household .227. Household: س tighter Household .228. Household: س tighter Household .229. Household: س tighter Household .230. Household: س tighter Household .231. Household: س tighter Household .232. Household: س tighter Household .233. Household: س tighter Household .234. Household: س tighter Household .235. Household: س tighter Household .236. Household: س tighter Household .237. Household: س tighter Household .238. Household: س tighter Household .239. Household: س tighter Household .240. Household: س tighter Household .241. Household: س tighter Household .242. Household: س tighter Household .243. Household: س tighter Household .244. Household: س tighter Household .245. Household: س tighter Household .246. Household: س tighter Household .247. Household: س tighter Household .248. Household: س tighter Household .249. Household: س tighter Household .250. Household: س tighter Household .251. Household: س tighter Household .252. Household: س tighter Household .253. Household: س tighter Household .254. Household: س tighter Household .255. Household: س tighter Household .256. Household: س tighter Household .257. Household: س tighter Household .258. Household: س tighter Household .259. Household: س tighter Household .260. Household: س tighter Household .261. Household: س tighter Household .262. Household: س tighter Household .263. Household: س tighter Household .264. Household: س tighter Household .265. Household: س tighter Household .266. Household: س tighter Household .267. Household: س tighter Household .268. Household: س tighter Household .269. Household: س tighter Household .270. Household: س tighter Household .271. Household: س tighter Household .272. Household: س tighter Household .273. Household: س tighter Household .274. Household: س tighter Household .275. Household: س tighter Household .276. Household: س tighter Household .277. Household: س tighter Household .278. Household: س tighter Household .279. Household: س tighter Household .280. Household: س tighter Household .281. Household: س tighter Household .282. Household: س tighter Household .283. Household: س tighter Household .284. Household: س tighter Household .285. Household: س tighter Household .286. Household: س tighter Household .287. Household: س tighter Household .288. Household: س tighter Household .289. Household: س tighter Household .290. Household: س tighter Household .291. Household: س tighter Household .292. Household: س tighter Household .293. Household: س tighter Household .294. Household: س tighter Household .295. Household: س tighter Household .296. Household: س tighter Household .297. Household: س tighter Household .298. Household: س tighter Household .299. Household: س tighter Household .300. Household: س tighter Household .301. Household: س tighter Household .302. Household: س tighter Household .303. Household: س tighter Household .304. Household: س tighter Household .305. Household: س tighter Household .306. Household: س tighter Household .307. Household: س tighter Household .308. Household: س tighter Household .309. Household: س tighter Household .310. Household: س tighter Household .311. Household: س tighter Household .312. Household: س tighter Household .313. Household: س tighter Household .314. Household: س tighter Household .315. Household: س tighter Household .316. Household: س tighter Household .317. Household: س tighter Household .318. Household: س tighter Household .319. Household: س tighter Household .320. Household: س tighter Household .321. Household: س tighter Household .322. Household: س tighter Household .323. Household: س tighter Household .324. Household: س tighter Household .325. Household: س tighter Household .326. Household: س tighter Household .327. Household: س tighter Household .328. Household: س tighter Household .329. Household: س tighter Household .330. Household: س tighter Household .331. Household: س tighter Household .332. Household: س tighter Household .333. Household: س tighter Household .334. Household: س tighter Household .335. Household: س tighter Household .336. Household: س tighter Household .337. Household: س tighter Household .338. Household: س tighter Household .339. Household: س tighter Household .340. Household: س tighter Household .341. Household: س tighter Household .342. Household: س tighter Household .343. Household: س tighter Household .344. Household: س tighter Household .345. Household: س tighter Household .346. Household: س tighter Household .347. Household: س tighter Household .348. Household: س tighter Household .349. Household: س tighter Household .350. Household: س tighter Household .351. Household: س tighter Household .352. Household: س tighter Household .353. Household: س tighter Household .354. Household: س tighter Household .355. Household: س tighter Household .356. Household: س tighter Household .357. Household: س tighter Household .358. Household: س tighter Household .359. Household: س tighter Household .360. Household: س tighter Household .361. Household: س tighter Household .362. Household: س tighter Household .363. Household: س tighter Household .364. Household: س tighter Household .365. Household: س tighter Household .366. Household: س tighter Household .367. Household: س tighter Household .368. Household: س tighter Household .369. Household: س tighter Household .370. Household: س tighter Household .371. Household: س tighter Household .372. Household: س tighter Household .373. Household: س tighter Household .374. Household: س tighter Household .375. Household: س tighter Household .376. Household: س tighter Household .377. Household: س tighter Household .378. Household: س tighter Household .379. Household: س tighter Household .380. Household: س tighter Household .381. Household: س tighter Household .382. Household: س tighter Household .383. Household: س tighter Household .384. Household: س tighter Household .385. Household: س tighter Household .386. Household: س tighter Household .387. Household: س tighter Household .388. Household: س tighter Household .389. Household: س tighter Household .390. Household: س tighter Household .391. Household: س tighter Household .392. Household: س tighter Household .393. Household: س tighter Household .394. Household: س tighter Household .395. Household: س tighter Household .396. Household: س tighter Household .397. Household: س tighter Household .398. Household: س tighter Household .399. Household: س tighter Household .400. Household: س tighter Household .401. Household: س tighter Household .402. Household: س tighter Household .403. Household: س tighter Household .404. Household: س tighter Household .405. Household: س tighter Household .406. Household: س tighter Household .407. Household: س tighter Household .408. Household: س tighter Household .409. Household: س tighter Household .410. Household: س tighter Household .411. Household: س tighter Household .412. Household: س tighter Household .413. Household: س tighter Household .414. Household: س tighter Household .415. Household: س tighter Household .416. Household: س tighter Household .417. Household: س tighter Household .418. Household: س tighter Household .419. Household: س tighter Household .420. Household: س tighter Household .421. Household: س tighter Household .422. Household: س tighter Household .423. Household: س tighter Household .424. Household: س tighter Household .425. Household: س tighter Household .426. Household: س tighter Household .427. Household: س tighter Household .428. Household: س tighter Household .429. Household: س tighter Household .430. Household: س tighter Household .431. Household: س tighter Household .432. Household: س tighter Household .433. Household: س tighter Household .434. Household: س tighter Household .435. Household: س tighter Household .436. Household: س tighter Household .437. Household: س tighter Household .438. Household: س tighter Household .439. Household: س tighter Household .440. Household: س tighter Household .441. Household: س tighter Household .442. Household: س tighter Household .443. Household: س tighter Household .444. Household: س tighter Household .445. Household: س tighter Household .446. Household: س tighter Household .447. Household: س tighter Household .448. Household: س tighter Household .449. Household: س tighter Household .450. Household: س tighter Household .451. Household: س tighter Household .452. Household: س tighter Household .453. Household: س tighter Household .454. Household: س tighter Household .455. Household: س tighter Household .456. Household: س tighter Household .457. Household: س tighter Household .458. Household: س tighter Household .459. Household: س tighter Household .460. Household: س tighter Household .461. Household: س tighter Household .462. Household: س tighter Household .463. Household: س tighter Household .464. Household: س tighter Household .465. Household: س tighter Household .466. Household: س tighter Household .467. Household: س tighter Household .468. Household: س tighter Household .469. Household: س tighter Household .470. Household: س tighter Household .471. Household: س tighter Household .472. Household: س tighter Household .473. Household: س tighter Household .474. Household: س tighter Household .475. Household: س tighter Household .476. Household: س tighter Household .477. Household: س tighter Household .478. Household: س tighter Household .479. Household: س tighter Household .480. Household: س tighter Household .481. Household: س tighter Household .482. Household: س tighter Household .483. Household: س tighter Household .484. Household: س tighter Household .485. Household: س tighter Household .486. Household: س tighter Household .487. Household: س tighter Household .488. Household: س tighter Household .489. Household: س tighter Household .490. Household: س tighter Household .491. Household: س tighter Household .492. Household: س tighter Household .493. Household: س tighter Household .494. Household: س tighter Household .495. Household: س tighter Household .496. Household: س tighter Household .497. Household: س tighter Household .498. Household: س tighter Household .499. Household: س tighter Household .500. Household: س tighter Household .501. Household: س tighter Household .502. Household: س tighter Household .503. Household: س tighter Household .504. Household: س tighter Household .505. Household: س tighter Household .506. Household: س tighter Household .507. Household: س tighter Household .508. Household: س tighter Household .509. Household: س tighter Household .510. Household: س tighter Household .511. Household: س tighter Household .512. Household: س tighter Household .513. Household: س tighter Household .514. Household: س tighter Household .515. Household: س tighter Household .516. Household: س tighter Household .517. Household: س tighter Household .518. Household: س tighter Household .519. Household: س tighter Household .520. Household: س tighter Household .521. Household: س tighter Household .522. Household: س tighter Household .523. Household: س tighter Household .524. Household: س tighter Household .525. Household: س tighter Household .526. Household: س tighter Household .527. Household: س tighter Household .528. Household: س tighter Household .529. Household: س tighter Household .530. Household: س tighter Household .531. Household: س tighter Household .532. Household: س tighter Household .533. Household: س tighter Household .534. Household: س tighter Household .535. Household: س tighter Household .536. Household: س tighter Household .537. Household: س tighter Household .538. Household: س tighter Household .539. Household: س tighter Household .540. Household: س tighter Household .541. Household: س tighter Household .542. Household: س tighter Household .543. Household: س tighter Household .544. Household: س tighter Household .545. Household: س tighter Household .546. Household: س tighter Household .547. Household: س tighter Household .548. Household: س tighter Household .549. Household: س tighter Household .550. Household: س tighter Household .551. Household: س tighter Household .552. Household: س tighter Household .553. Household: س tighter Household .554. Household: س tighter Household .555. Household: س tighter Household .556. Household: س tighter Household .557. Household: س tighter Household .558. Household: س tighter Household .559. Household: س tighter Household .560. Household: س tighter Household .561. Household: س tighter Household .562. Household: س tighter Household .563. Household: س tighter Household .564. Household: س tighter Household .565. Household: س tighter Household .566. Household: س tighter Household .567. Household: س tighter Household .568. Household: س tighter Household .569. Household: س tighter Household .570. Household: س tighter Household .571. Household: س tighter Household .572. Household: س tighter Household .573. Household: س tighter Household .574. Household: س tighter Household .575. Household: س tighter Household .576. Household: س tighter Household .577. Household: س tighter Household .578. Household: س tighter Household .579. Household: س tighter Household .580. Household: س tighter Household .581. Household: س tighter Household .582. Household: س tighter Household .583. Household: س tighter Household .584. Household: س tighter Household .585. Household: س tighter Household .586. Household: س tighter Household .587. Household: س tighter Household .588. Household: س tighter Household .589. Household: س tighter Household .590. Household: س tighter Household .591. Household: س tighter Household .592. Household: س tighter Household .593. Household: س tighter Household .594. Household: س tighter Household .595. Household: س tighter Household .596. Household: س tighter Household .597. Household: س tighter Household .598. Household: س tighter Household .599. Household: س tighter Household .600. Household: س tighter Household .601.
الإشرارات على مفتاح التردد اللا스لکي	الموديل
عند التشفيل، يكون هناك قفل للمحرك المدمج فيانظام وبمجرد تشغيله، يجب إلغاء قفله باستخدم إحدى الطرق :التالية* :مفتاح التردد اللا스لکي: قمر بتقريب مفتاح التردد اللا스لکي RF (المرفق) من الشاشة لتنشيط/Stكوتر الكهربائي. عبر مفتاح القفل/الetricير في قائمة الإعدادات.	Pro-IIIPro-III R

Close-up of a mechanical tool or connector with a labeled section A (no visible text or symbols)

روافع الفرام

Close-up of a motorcycle wheel and tire with visible mechanical components (no text or symbols)

ضبط كماشة الفرملة

Line drawing of a person riding an electric scooter with a helmet, accompanied by an inset showing the same scooter assembly (no text or symbols present)

Simple line drawing of a person standing with a bicycle (no text or symbols)

Simple line drawing of a person standing next to a scooter (no text or symbols)

Line drawing of a person riding an electric scooter with a magnified inset showing wheel assembly (no text or symbols)

Line drawing of a person standing beside a bicycle (no text or symbols)

Line drawing of a person standing beside a multi-wheeled vehicle (no text or symbols)

Line drawing of a person riding an electric scooter with a magnified inset showing the side view of the seat (no text or symbols)

Illustration of a person riding a three-wheeled scooter with an inset showing the wheel assembly (no text or symbols)

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

Simple line drawing of a trash bin with no text or symbols

Pro-I Evo (Black Edition / White Edition), Pro-I Evo AS,

Pro-I Evo SR (Black Edition/White Edition), Pro-I Evo Max SR, Pro-II Plus, Pro-II Plus AS, Pro-II Evo, Pro-II Evo AS, Pro-III, Pro-III R

Kullanım kılavuzu

DU-MO-000001 rev. 3

Close-up of a black plastic mechanical component with four circular ports and a central hole (no text or symbols visible)

Sağ düğme:

Pro-I Evo (Black and White edition)

Pro-I Evo SR (Black and White edition)

Pro-I Evo SR

Close-up of a mechanical tool or pipe fitting with a labeled section A (no text or symbols on the object itself)

Close-up of a motorcycle's wheel and tire, showing tread pattern and mounting bracket (no text or symbols)

Modeller: Pro-I Evo, Pro-I Evo SR, Pro-I Evo AS, Pro-I Evo Max SR

Line drawing of a person riding an electric scooter with a magnified inset showing the lever mechanism (no text or symbols)

Line drawing of a person riding an electric scooter with a close-up inset showing the wheel assembly (no text or symbols)

Two identical line drawings of a person standing with a wheeled cart, no text or symbols present.

Modeller: Pro-II Plus, Pro-II Plus AS, Pro-II Evo, Pro-II Evo AS, Pro-III, Pro-III R

Line drawing of a person riding an electric scooter with two views of the side view showing mechanical components (no text or symbols)

Two line drawings of a person standing and holding a bicycle, shown from different angles (no text or symbols)

Icon of a bicycle with 'DUCATI' text below, no other symbols or text present

Symbol of a trash bin with no text or labels, crossed by diagonal lines and a black rectangle below (no readable text or symbols)

Simple line drawing of a trash bin with no text or symbols

Pro-I Evo (Black Edition / White Edition), Pro-I Evo AS,

Pro-I Evo SR (Black Edition/White Edition), Pro-I Evo Max SR, Pro-II Plus, Pro-II Plus AS, Pro-II Evo, Pro-II Evo AS, Pro-III, Pro-III R

Pro-I Evo (Black and White edition)

Pro-I Evo SR (Black and White edition)

Pro-I Evo AS

Close-up of a mechanical lever handle and lever arm (no text or symbols visible)

Podešavanje čeljusti kočnice

U slučaju da je kočnica previše zategnuta ili prelabava, ključem otpustite maticu (C), zatim podesite sajlu kočnice (skratite sajlu kočnice prema gore ako je prečvrsto. je prelabavo, povucite kočnicu kabel prema dolje), a zatim ponovno zategnite vijak (A). Ako bude previše labavo ili pretijesno čak i nakon što ste slijedili prvi korak, možda će biti potrebno prilagoditi kočionu pločicu (fiksnu) koju možete podesiti pomoću kotačića na suprotnoj strani, koristite imbus ključ da odmaknete pločicu /bliže (B) (vidi sliku).

Close-up of a motorcycle's wheel and side panel, showing tire and disc (no text or symbols visible)

Modeli: Pro-I Evo, Pro-I Evo SR, Pro-I Evo AS, Pro-I Evo Max SR

Line drawing of a person riding an electric scooter with a magnified inset showing the lever mechanism (no text or symbols)

Line drawing of a person riding an electric scooter with a close-up inset showing the wheel assembly (no text or symbols)

Two identical line drawings of a person standing with a wheeled cart, no text or symbols present.

Modeli: Pro-II Plus, Pro-II Plus AS, Pro-II Evo, Pro-II Evo AS, Pro-III, Pro-III R

Line drawing of two people riding an electric scooter, with zoomed-in insets showing the wheel and suspension components (no text or symbols)

Two line drawings of a person standing upright on a bicycle, showing different positions (no text or symbols)

Icon of a bicycle with 'DUCATI' text below, no other symbols or text present

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed out by two diagonal lines, no text or labels present

Ovaj simbol na proizvodu ili pakiranju pokazuje da se pakiranje ne treba tretirati kao normalni kućni otpad. Na nekim vrstama baterija ovaj se simbol može koristiti u kombinaciji s kemijskim simbolom.

Pro-I Evo (Black Edition / White Edition), Pro-I Evo AS,

Pro-I Evo SR (Black Edition/White Edition), Pro-I Evo Max SR,

Pro-II Plus, Pro-II Plus AS, Pro-II Evo, Pro-II Evo AS, Pro-III, Pro-III R

Manual de utilizare

DU-MO-000001 rev. 3

Avertizor acustic electronic.

Close-up of a black plastic mechanical component with four circular ports and a central hub (no text or symbols visible)

Buton dreapta:

Buton central (claxon):

Pro-I Evo (Black and White edition)

Pro-I Evo SR (Black and White edition)

Pro-I Evo AS

Close-up of a mechanical tool or device with a labeled section A, showing no visible text or symbols.

Close-up of a motorcycle wheel rim and disc, showing tread pattern and mounting bracket (no text or symbols)

Modele: Pro-I Evo, Pro-I Evo SR, Pro-I Evo AS, Pro-I Evo Max SR

Line drawing of a person riding an electric scooter with a magnified inset showing the wheel assembly (no text or symbols)

Line drawing of a person riding an electric scooter with a close-up inset showing the wheel assembly (no text or symbols)

Two identical line drawings of a person standing with a wheeled cart, no text or symbols present.

Modele: Pro-II Plus, Pro-II Plus AS, Pro-II Evo, Pro-II Evo AS, Pro-III, Pro-III R

Two line drawings of a person riding an electric scooter, showing front and side views with no text or symbols.

Two line drawings of a person standing and holding a bicycle, shown from different angles (no text or symbols)

Logo featuring a stylized bicycle and a circular outline, with the text 'DUCATI' below (no additional symbols or text)

Symbol of a trash bin crossed out by diagonal lines, no text or labels present

Symbol of a trash bin crossed out by diagonal lines, no text or labels present

Pro-I Evo (Black Edition / White Edition), Pro-I Evo AS, Pro-I Evo SR (Black Edition/White Edition), Pro-I Evo Max SR, Pro-II Plus, Pro-II Plus AS, Pro-II Evo, Pro-II Evo AS, Pro-III, Pro-III R

Close-up of a black plastic mechanical component with four circular ports and a central hub (no text or symbols visible)

Botão direito:

Pro-I Evo (Black and White edition)

Pro-I Evo SR (Black and White edition)

Pro-I Evo AS

Close-up of a mechanical tool or device with a labeled section 'A' (no readable text or symbols beyond the label)

Close-up of a motorcycle wheel rim and disc, showing tread pattern and mounting bracket (no text or symbols)

7. Dobrar e transportar

Modelos: Pro-I Evo, Pro-I Evo SR, Pro-I Evo AS, Pro-I Evo Max SR

Line drawing of a person riding an electric scooter with a magnified inset showing the lever mechanism (no text or symbols)

Line drawing of a person riding an electric scooter with a close-up inset showing the wheel assembly (no text or symbols)

Two identical line drawings of a person standing on either side, holding a wheeled cart (no text or symbols)

Modelos: Pro-II Plus, Pro-II Plus AS, Pro-II Evo, Pro-II Evo AS, Pro-III, Pro-III R

Line drawing of a person riding an electric scooter with two views of the side view showing mechanical components (no text or symbols)

Two line drawings of a person standing and holding a bicycle, shown from different angles (no text or symbols)

Logo featuring a stylized bicycle and a circular outline, with the text 'DUCATI' below (no additional symbols or text)

Simple line drawing of a trash bin with no text or symbols

Simple line drawing of a trash bin with no text or symbols

EC Declaration of Conformity

accordingtotheECMachineryDirective2006/42/EC,AnnexII1.A.

PLATUMbyM.T.DistributionS.R.L

Address:ViaBargellino10c/d,40012CalderaradiReno(BO),Italy

This declaration of conformity is issued under the sole responsibility of the Manufacturer

ProductBrand:DUCATI

ProductModel:PRO-IEVO

Descriptionofproduct:ElectricScooter

Serialidentificationnumber(s): DCMN0XXX0XXXXX

The object of the declaration described above fulfils all the relevant provisions of the following Directives:

2006/42/ECMachineryDirective

2014/53/EU Radio Equipment Directive on the harmonization of the laws of the Member States relatingtothemakingavailableonthemarketofradioequipment.

2011/65/EU RoHS on the restriction of the use of certain hazardous substances in electrical and electronicequipment

Applicableharmonizedstandard(s):

EN300328V2.2.2

EN301489-1V1.9.2

EN62479:2010

EN62368-1:2014+AC:2015

ENIEC63000:2018

Otherstandardortechnicalspecificationsapplied

EN17128:2020

ETSIEN301489-17V3.2.4

Manufacturer: ZhuhaiChangJingTradeCo., Ltd

Address: Room 2-502 HGSS Building, Ianpu Road, XiangZhou Area, Zhunhai City, China 519000

Date:27/03/2023

PLATUM.COM

HEADQUARTERS:VIABARGELLINO10C/D-40012CALDERARADIRENO(BO)

SALESOFFICE:VIAPARACELSO24,PALAZZOCASSIOPEA2-20864AGRATEBRIANZA(MB)

MARCHIO REGISTRATO DI M.T. DISTRIBUTION SRL P. IVA 04177060375 CF 01119840377 REA BO-236546

AuthorizedRepresentativeintheEU:

MTDISTRIBUTIONS.R.L ViaBargellino10,40012, Calderaradi Reno(BO), Italy

TechnicalfileavailablefromEUheadquarter DeclarationPlace:Bologna,Italy

Authorizedperson-Firstnameandsurname:AlessandroSumma Position:CEO

M.T. DISTRIBUTION SRL Via Osgesano, 19 bis 40012 CALDERAR SALINO (BO) Gri. Fino: 19-17 28 & 6-3-7. Parola No. 24-17

NOTE: This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.

PLATUM.COM

HEADQUARTERS:VIABARGELLINO10C/D-40012CALDERARADIRENO(BO)

SALESOFFICE:VIAPARACELSO24,PALAZZOCASSIOPEA2-20864AGRATEBRIANZA(MB)

MARCHIO REGISTRATO DI M.T DISTRIBUTION SRL P. IVA 04177060375CF 01119840377 REA BO-236546

CE

EC Declaration of Conformity

according to the EC Machinery Directive 2006/42/EC, Annex II 1.A.

PLATUM by M.T. Distribution S.R.L

Address: Via Bargellino 10 c/d, 40012 Calderara di Reno (BO), Italy

This declaration of conformity is issued under the sole responsibility of the Manufacturer

Product Brand: Ducati

Product Model: PRO-I EVO Black Safe Ride / PRO-I EVO White Safe Ride

Description of product: Electric Scooter

Serial identification number(s): 1) MNDS0XXX0XXXXX

2) DCMN0XXX0XXXXX

The object of the declaration described above fulfils all the relevant provisions of the following Directives:

2006/42/EC Machinery Directive

2014/53/EU Radio Equipment Directive on the harmonization of the laws of the Member States relating to the making available on the market of radio equipment.

2011/65/EU RoHS on the restriction of the use of certain hazardous substances in electrical and electronic equipment

Applicable harmonized standard(s):

EN 300 328 V2.2.2

EN 301 489-1 V1.9.2

EN 62479:2010

EN 62368-1:2014 + AC:2015

EN IEC 63000:2018

Other standard or technical specifications applied

EN 17128:2020

ETSI EN 301 489-17 V3.2.4

Manufacturer: Zhunhai Chang Jing Trade Co., Ltd

Address: Room 2-502 HGSS Building, Ianpu Road, XiangZhou Area, Zhunhai City, China 519000

Date: 22/02/2023

PLATUM.COM

HEADQUARTERS: VIA BARGELLINO 10 C/D - 40012 CALDERARA DI RENO (BO)

SALES OFFICE: VIA PARACELSO 24, PALAZZO CASSIOPEA 2 - 20864 AGRATE BRIANZA (MB)

MARCHIO REGISTRATO DI M.T. DISTRIBUTION SRL P. IVA 04177060375 CF 01119840377 REA BO-236546

Authorized Representative in the EU:

MT DISTRIBUTION S.R.L

Via Bargellino 10, 40012, Calderara di Reno (BO), Italy

Technical file available from EU headquarter

Declaration Place: Bologna, Italy

Authorized person - First name and surname:

Alessandro Summa

Position: CEO

M.T. DISTRIBUTION SRL Via Bengelino, 10-5c 40012 CALDERARA GORENO (BO) Cod. Finer: 0.4.5.1 GB 4.0.8.7.7 Partite No. 3-6-1

NOTE:

This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.

PLATUMCOM

HEADQUARTERS: VIA BARGELLINO 10 C/D - 40012 CALDERARA DI RENO (BO)

SALES OFFICE: VIA PARACELSO 24, PALAZZO CASSIOPEA 2 - 20864 AGRATE BRIANZA (MB)

MARCHIO REGISTRATO DI M.T. DISTRIBUTION SRL P. IVA 04177060375 CF 01119840377 REA BO-236546

EC Declaration of Conformity

accordingtotheECMachineryDirective2006/42/EC,AnnexII1.A.

PLATUMbyM.T.DistributionS.R.L

Address:ViaBargellino10c/d,40012CalderaradiReno(BO),Italy

This declaration of conformity is issued under the sole responsibility of the Manufacturer

ProductBrand:DUCATI

ProductModel:PRO-IEVOMAXSR

Descriptionofproduct:ElectricScooter

Serialidentificationnumber(s): DCMN0XXX0XXXXX

The object of the declaration described above fulfils all the relevant provisions of the following Directives:

2006/42/ECMachineryDirective

2014/53/EU Radio Equipment Directive on the harmonization of the laws of the Member States relating to themaking available on themarketofradioequipment.

2011/65/EU RoHS on the restriction of the use of certain hazardous substances in electrical and electronicequipment

Applicableharmonizedstandard(s):

EN300328V2.2.2

EN301489-1V1.9.2

EN62479:2010

EN62368-1:2014+AC:2015

ENIEC63000:2018

Otherstandardortechnicalspecificationsapplied

EN17128:2020

ETSIEN301489-17V3.2.4

Manufacturer: ZhuhaiChangJingTradeCo., Ltd

Address: Room 2-502 HGSS Building, Ianpu Road, XiangZhou Area, Zhunhai City, China 519000

Date:27/03/2023

PLATUM.COM

HEADQUARTERS:VIABARGELLINO10C/D-40012CALDERARADIRENO(BO)

SALESOFFICE:VIAPARACELSO24,PALAZZOCASSIOPEA2-20864AGRATEBRIANZA(MB)

MARCHIO REGISTRATO DI M.T. DISTRIBUTION SRL P. IVA 04177060375 CF 01119840377 REA BO-236546

AuthorizedRepresentativeintheEU:

MTDISTRIBUTIONS.R.L

ViaBargellino10,40012, Calderaradi Reno(BO), Italy

TechnicalfileavailablefromEUheadquarter

DeclarationPlace:Bologna, Italy

Authorizedperson-Firstnameandsurname:AlessandroSumma Position:CEO

M.T. DISTRIBUTION SRL Via Osgesano, 19 bis 40012 CALDERAR SALINO (BO) Gri. Fino: 19.17.208 6.0.3.7.7 Parola No. 24-17.208

NOTE:

This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.

PLATUM.COM

HEADQUARTERS:VIABARGELLINO10C/D-40012CALDERARADIRENO(BO)

SALESOFFICE:VIAPARACELSO24,PALAZZOCASSIOPEA2-20864AGRATEBRIANZA(MB)

MARCHIO REGISTRATO DI M.T DISTRIBUTION SRL P. IVA 04177060375CF 01119840377 REA BO-236546

CE

EC Declaration of Conformity

according to the EC Machinery Directive 2006/42/EC, Annex II 1.A.

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Manufacturer:	Wuyi Jinyue Engine Science and Technology Co., Ltd. No.1 Rose Road, Wuyi County, Jinhua City, Zhejiang Province, China
Authorized representative:	Platum By MT Distribution S.r.lVia Bargellino 10 C/D, 40012, Calderara di reno (BO)
Person authorized to compile the technical file:	Platum By MT Distribution S.r.lVia Bargellino 10 C/D, 40012, Calderara di reno (BO)

Object of the declaration:

Model code	Generic denomination	Commercial name	Trademark	Serial identification number (s) and/or batch number (s)
DU-MO-230003	Electric Scooter	PRO-I EVO AS	DUCATI	DCMN2XXXM00001 to DCMN2XXXMXXXXX

The object of the declaration described above fulfils all the relevant provisions of the following Directives:

2006/42/EC Machinery Directive

2014/53/EU Radio Equipment Directive on the harmonization of the laws of the Member States relating to the making available on the market of radio equipment.

2011/65/EU RoHS on the restriction of the use of certain hazardous substances in electrical and electronic equipment

Harmonized standards or other technical specifications applied:

EN 300 328 V2.2.2	EN 63000:2018
EN 301 489-1 V1.9.2	EN 17128:2020
EN 62479:2010	ETSI EN 301 489-17 V3.2.4
EN 62368-1:2014 +AC:2015

Place of issue

Name, function, signature

Alessandro Summa, CEO

Translation of the original Declaration of Conformity

CE

Declaration of conformity

M.T. Distribution S.R.L

Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy

This declaration of conformity is issued under the sole responsibility of the Manufacturer

Product brand:	Ducati
Product model:	PRO-II PLUS
Description of product:	Electric scooter

Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:

2006/42/EC Machinery Directive

RED 2014/53/EU Radio Equipment Directive

2014/30/EU Electromagnetic Compatibility Directive 2014/35/EU Low Voltage Directive Applicable harmonized standard(s):

EN 14619:2019

EN 60335-1:2012+AC:2014+A11:2014+A13:2017+A1:2019+A2:2019

ETSI EN 301 489-1 V2.2.3:2019-11

ETSI EN 301 489-17 V3.2.4:2020-09

Factory address: NO.509 Tengyun Road, Jiaojiang District, Taizhou City, Zhejiang, China

Date: 29/06/2021

Technical file available from EU headquarter

Declaration Place: Bologna, Italy

First name and surname: Alessandro Summa

Position: CEO

MT DISTRIBUTION S.R.L

Via Bargellino 10, 40012, Calderara di Reno (BO), Italy

Authorized person: Alessandro Summa

Position: CEO

NOTE:

This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.

Alessandro Summa M.T. DISTRIBUTION SRL Via Borgellado, 10 b/c 40012 CALDER/RAID RENO (BO) FEDR Fise: 8-7-13 840377 NOKARI CO-GROME, QUALIFICA E TIMBRO AZIENDALE

EC Declaration of Conformity

accordingtotheECMachineryDirective2006/42/EC,AnnexII1.A.

PLATUMbyM.T.DistributionS.R.L

Address:ViaBargellino10c/d,40012CalderaradiReno(BO),Italy

This declaration of conformity is issued under the responsibility of the manufacturer

ProductBrand:DUCATI

ProductModel:PRO-IIPLUSAS

Descriptionofproduct:ElectricScooter

Serialidentificationnumber(s):DCMN10XXX0XXXXX

The object of the declaration described above fulfils all the relevant provisions of the following Directives:

2006/42/ECMachineryDirective

2014/53/EU Radio Equipment Directive on the harmonization of the laws of the Member States relatingtothemakingavailableonthemarketofradioequipment.

2011/65/EU RoHS on the restriction of the use of certain hazardous substances in electrical and electronicequipment

Applicableharmonizedstandard(s):

EN300328V2.2.2

EN301489-1V1.9.2

EN62479:2010

EN62368-1:2014+AC:2015

ENIEC63000:2018

Otherstandardortechnicalspecificationsapplied

EN17128:2020

ETSIEN301489-17V3.2.4

Manufacturer: Taizhou Siweiluo Vehicleco., Limite.

Address: NO.509TengyunRoad, Jiaojiang District, Taizhou City, Zhejiang, China

Date:28/02/2023

PLATUM.COM

AuthorizedRepresentativeintheEU:

MTDISTRIBUTIONS.R.L

ViaBargellino10,40012, Calderaradi Reno(BO), Italy

TechnicalfileavailablefromEUheadquarter

DeclarationPlace:Bologna,Italy

Authorizedperson-Firstnameandsurname:AlessandroSumma Position:CEO

M.T. DISTRIBUTION SRL Via Bargelino, 10-b/c 40012 CALDERASABRENO (80) Ond. Fisso: 0-17 2005 08 77 Partie No. 0-6 1/1993 0

CE

Declaration of conformity

M.T. Distribution S.R.L

Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy

This declaration of conformity is issued under the sole responsibility of the Manufacturer

Product brand:	Ducati
Product model:	PRO-II EVO
Description of product:	Electric scooter

Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:

2006/42/EC Machinery Directive

RED 2014/53/EU Radio Equipment Directive

2014/30/EU Electromagnetic Compatibility Directive 2014/35/EU Low Voltage Directive Applicable harmonized standard(s):

EN 14619:2019

EN 60335-1:2012+AC:2014+A11:2014+A13:2017+A1:2019+A2:2019

ETSI EN 301 489-1 V2.2.3:2019-11

ETSI EN 301 489-17 V3.2.4:2020-09

Factory address: NO.509 Tengyun Road, Jiaojiang District, Taizhou City, Zhejiang, China

Date: 29/06/2021

Technical file available from EU headquarter

Declaration Place: Bologna, Italy

First name and surname: Alessandro Summa

Position: CEO

MT DISTRIBUTION S.R.L

Via Bargellino 10, 40012, Calderara di Reno (BO), Italy

Authorized person: Alessandro Summa

Position: CEO

NOTE:

This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.

Alessandro Summa M.T. DISTRIBUTION SRL Via Borgellao, 10 b/c 40012 CALDERARAD RENO (BO) FEDRIS Piso: 8-7-13 9840377 NOKART DO GROME, QUALIFICA E TIMBRO AZIENDALE

EC Declaration of Conformity

accordingtotheECMachineryDirective2006/42/EC,AnnexII1.A.

PLATUMbyM.T.DistributionS.R.L

Address:ViaBargellino10c/d,40012CalderaradiReno(BO),Italy

This declaration of conformity is issued under the sole responsibility of the Manufacturer

ProductBrand:DUCATI

ProductModel:PRO-IIEVOAS

Descriptionofproduct:ElectricScooter

Serialidentificationnumber(s):DCMN11XXX0XXXXX

The object of the declaration described above fulfils all the relevant provisions of the following Directives:

2006/42/ECMachineryDirective

2014/53/EU Radio Equipment Directive on the harmonization of the laws of the Member States relatingtothemakingavailableonthemarketofradioequipment.

2011/65/EU RoHS on the restriction of the use of certain hazardous substances in electrical and electronicequipment

Applicableharmonizedstandard(s):

EN300328V2.2.2

EN301489-1V1.9.2

EN62479:2010

EN62368-1:2014+AC:2015

ENIEC63000:2018

Otherstandardortechnicalspecificationsapplied

EN17128:2020

ETSIEN301489-17V3.2.4

Manufacturer: TaizhouSiweiluoVehicleco., Limite.

Address: NO.509TengyunRoad, JiaojiangDistrict, TaizhouCity, Zhejiang, China

Date:28/02/2023

PLATUM.COM

HEADQUARTERS:VIABARGELLINO10C/D-40012CALDERARADIRENO(BO)

SALESOFFICE:VIAPARACELSO24,PALAZZOCASSIOPEA2-20864AGRATEBRIANZA(MB)

MARCHIO REGISTRATO DI M.T. DISTRIBUTION SRL P. IVA 04177060375 CF 01119840377 REA BO-236546

AuthorizedRepresentativeintheEU:

MTDISTRIBUTIONS.R.L

ViaBargellino10,40012, Calderaradi Reno(BO), Italy

TechnicalfileavailablefromEUheadquarter

DeclarationPlace:Bologna, Italy

Authorizedperson-Firstnameandsurname:AlessandroSumma Position:CEO

M.T. DISTRIBUTION SRL Via Osgesano, 19 bis 40012 CALDERAR SALINO (BO) Gri. Fino: 19-17 28 & 6-3-7. Parola No. 24-17

NOTE:

This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.

PLATUM.COM

HEADQUARTERS:VIABARGELLINO10C/D-40012CALDERARADIRENO(BO)

SALESOFFICE:VIAPARACELSO24,PALAZZOCASSIOPEA2-20864AGRATEBRIANZA(MB)

MARCHIO REGISTRATO DI M.T DISTRIBUTION SRL P. IVA 04177060375CF 01119840377 REA BO-236546

CE

Declaration of conformity

M.T. Distribution S.r.l.

Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy

This declaration of conformity is issued under the sole responsibility of the Manufacturer

Product Brand	Ducati
Product model	PRO-III
Product description	Electric scooter

It complies with the requirements of the Council Directives for the approximation of the laws of the Member States relating to:

2006/42/EC Machinery Directive

RED 2014/53/EU Radio Equipment Directive

2014/30/EU Electromagnetic Compatibility Directive 2014/35/EU Low Voltage Directive Applicable harmonised standards

EN 60335-1:2012+A2:2019

EN 14619:2019

EN 62233:2008

ETSI EN 301 489-1 V2.2.3: 2019-11

ETSI EN 301 489-17 V3.2.4: 2020-09

Factory name: Taizhou Siweiluo Vehicle Co., Limited

Factory address: NO. 509 Tengyun Road, Jiaojiang District, Taizhou City,

Zhejiang, China

Date: 04/08/2021

Technical file available at EU headquarters

Place of declaration: Bologna, Italy

First name and surname: Alessandro Summa

Position: CEO

MT DISTRIBUTION S.R.L

Via Bargellino 10, 40012, Calderara di Reno (BO), Italy

Authorised person: Alessandro Summa

Position: CEO

NOTE:

This declaration of conformity is only applicable to electric scooters sold in countries that follow the CE marking directives.

Alessandro Summa M.T. DISTRIBUTION SRL Via Borgellado, 10 b/c 40012 CALDERARAD RENO (BO) FEDRIS Fisi: 8-7-13 840377 NOKART CO GROME, QUALIFICA E TIMBRO AZIENDALE

CE

EC Declaration of Conformity

according to the EC Machinery Directive 2006/42/EC, Annex II 1.A.

This declaration of conformity is issued under the sole responsibility of the manufacturer

Manufacturer:

Taizhou Siweiluo Vehicle co., Ltd.

NO.509 Tengyun Road, Jiaojiang District, Taizhou City, Zhejiang, China

Authorized representative:

Platum By MT Distribution S.r.l

Person authorized to compile the technical file:

Platum By MT Distribution S.r.l

Object of the declaration:

Model code	Generic denomination	Commercial name	Trademark	Serial identification number (s) and/or batch number (s)
DU-MO-220021	Electric scooter	PRO-III AS	DUCATI	DCMN0323000001 to DCMNXXXX0XXXXX

The object of the declaration described above fulfils all the relevant provisions of the following Directives:

2006/42/EC Machinery Directive

2014/53/EU Radio Equipment Directive on the harmonization of the laws of the Member States relating to the making available on the market of radio equipment.

2011/65/EU RoHS on the restriction of the use of certain hazardous substances in electrical and electronic equipment

Harmonized standards or other technical specifications applied:

EN 300 328 V2.2.2	EN 63000:2018
EN 301 489-1 V1.9.2	EN 17128:2020
EN 62479:2010	ETSI EN 301 489-17 V3.2.4
EN 62368-1:2014 +AC:2015

Place of issue

Name, function, signature

Alessandro Summa, CEO

Translation of the original Declaration of Conformity

EC Declaration of Conformity

according to the EC Machinery Directive 2006/42/EC, Annex II 1.A.

PLATUM by M.T. Distribution S.R.L

Address: Via Bargellino 10 c/d, 40012 Calderara di Reno (BO), Italy

This declaration of conformity is issued under the sole responsibility of the Manufacturer

Product Brand: Ducati

Product Model: PRO-III R

Description of product: Electric Scooter

Serial identification number(s) : DCMN0XXX0XXXXX

The object of the declaration described above fulfils all the relevant provisions of the following Directives:

2006/42/EC Machinery Directive

2014/53/EU Radio Equipment Directive on the harmonization of the laws of the Member States relating to the making available on the market of radio equipment.

2011/65/EU RoHS on the restriction of the use of certain hazardous substances in electrical and electronic equipment

Applicable harmonized standard(s):

EN 300 328 V2.2.2

EN 301 489-1 V1.9.2

EN 62479:2010

EN 62368-1:2014 + AC:2015

EN IEC 63000:2018

Other standard or technical specifications applied

EN 17128:2020

ETSI EN 301 489-17 V3.2.4

Manufacturer: Taizhou Siweiluo Vehicle co., Limited

Address: NO.509 Tengyun Road, Jiaojiang District, Taizhou City, Zhejiang, China

Date: 14/03/2022

PLATUM.COM

HEADQUARTERS: VIA BARGELLINO 10 C/D - 40012 CALDERARA DI RENO (BO)

SALES OFFICE: VIA PARACELSO 24, PALAZZO CASSIOPEA 2 - 20864 AGRATE BRIANZA (MB)

MARCHIO REGISTRATO DI M.T. DISTRIBUTION SRL P. IVA 04177060375 CF 01119840377 REA BO-236546

Authorized Representative in the EU:

MT DISTRIBUTION S.R.L

Via Bargellino 10, 40012, Calderara di Reno (BO), Italy

Technical file available from EU headquarter

Declaration Place: Bologna, Italy

Authorized person - First name and surname: Position: CEO

Alessandro Summa

M.T. DISTRIBUTION SRL Via Bepalino, 10-5c 40012 CALDERARASIRENO (BO) Cnd. Floo: 0-73-1288 1-6-8-77 Partite No. 041-1996

NOTE:

This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.

PLATUMCOM

HEADQUARTERS: VIA BARGELLINO 10 C/D - 40012 CALDERARA DI RENO (BO)

SALES OFFICE: VIA PARACELSO 24, PALAZZO CASSIOPEA 2 - 20864 AGRATE BRIANZA (MB)

MARCHIO REGISTRATO DI M.T. DISTRIBUTION SRL P. IVA 04177060375 CF 01119840377 REA BO-236546

Download the Ducati Urban e-Mobility app for a better use of the product

Download on the App Store GOTTON Google Play

PLATUM

Shaping urban e-mobility

Imported and distributed by M.T. Distribution S.r.l.

Ducati Motor Holding S.p.A. Official Licensed Product

Errors and omissions excepted
