Index01 electric scooter User manual Thank you for choosing this product.

or visit the website www.ducatiurbanemobility.com English02 Indice

Contents Product overview Control information/Control panel Assembly and set-up Fold and carry

Adjusting the brakes Range Storage and cleaning General warnings App configuration Learn to drive

Responsibilities Maintenance and daily care Data sheet Troubleshooting Error code table03

1. Safety instructions

Please read the following instructions carefully before using the product. Save this manual for future reference or new users.

• The company will not assume any liability deriving from misuse of the product or non- compliance with road regulations and the instructions in this manual.

• This electric scooter is not a toy. Use it responsibly, with care and respect for others.

• Check the local regulations in force regarding the use of this type of product before

to people and obstacles to avoid accidents.

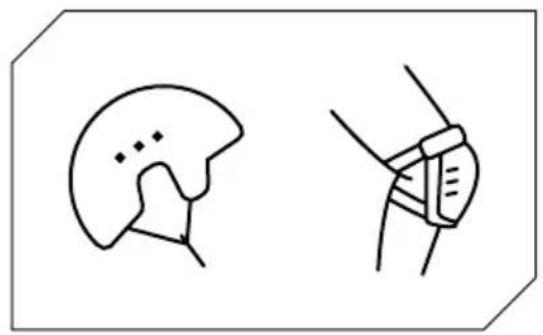

• Always use the recommended clothing: non-slip gloves, knee and elbow pads and wear a helmet.

• The person driving this scooter must be able to place both feet on the floor easily when holding the handlebars at the correct height.

• The maximum load capacity for the product is 100kg.

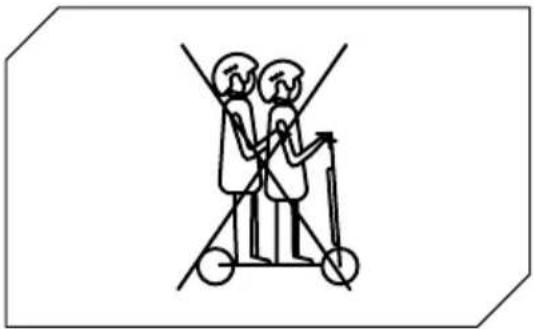

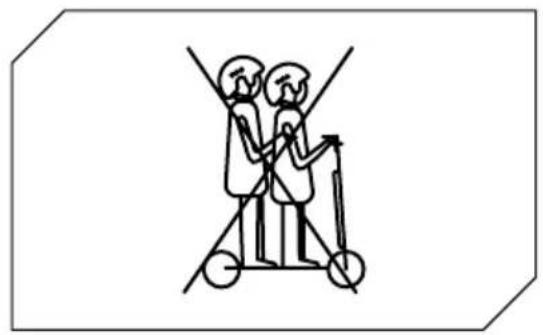

• This product may not be used by more than one person at the same time.

• Misuse of the product or non-compliance with the instructions in this manual may cause serious damage.

• Should technical problems occur, contact the Technical Assistance Service at your dealer.

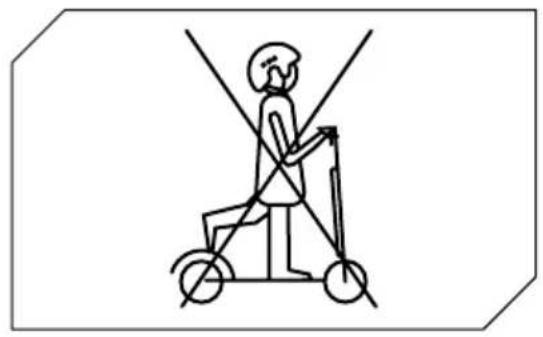

• Do not sit on the product either when driving or stationary.

• In the event that the user who is going to use the product is not familiar with driving this type of vehicle, it is recommended that they be instructed on the basics of driving by an adult before using it for the first time, regarding the following aspects:

4. Basic driving rules04

scooter is a device that requires periodic charging to work.

stated km or reached the maximum speed in the first 3 months of use, it is likely that the wheels have deflated again, it will thus be necessary to restore the pressure as indicated.

• Put your hands on the handlebar. Step onto the footplate with one foot and use the other to give yourself a gentle push and accelerate.

• To drive the scooter, tilt your body in the direction of travel when turning and slowly turn the handlebars.

• To stop the scooter, release the accelerator and press the electronic or lever brake on

motion can cause injury.

and wear a reflective vest.ò For your own safety, wear a helmet and knee pads to protect yourself against falls and injuries while learning to ride the electric scooter. The rider assumes all risks for not wearing a helmet or other protective gear. The accelerator is activated once the forward speed exceeds 3 km/h.

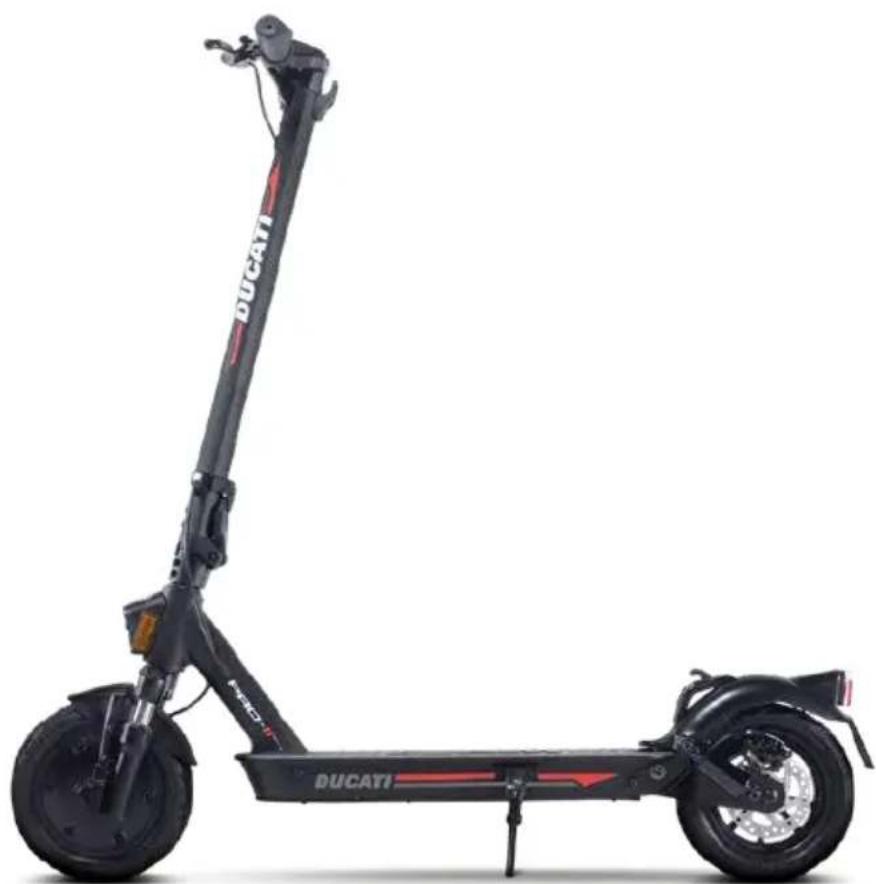

In the package: - charger - charger cable - hook, front plastic, 4 screws - allen wrench 4 and 5 - valve nozzle adapter Assembled scooter, the handlebar will be installed with the appropriate screws.0606

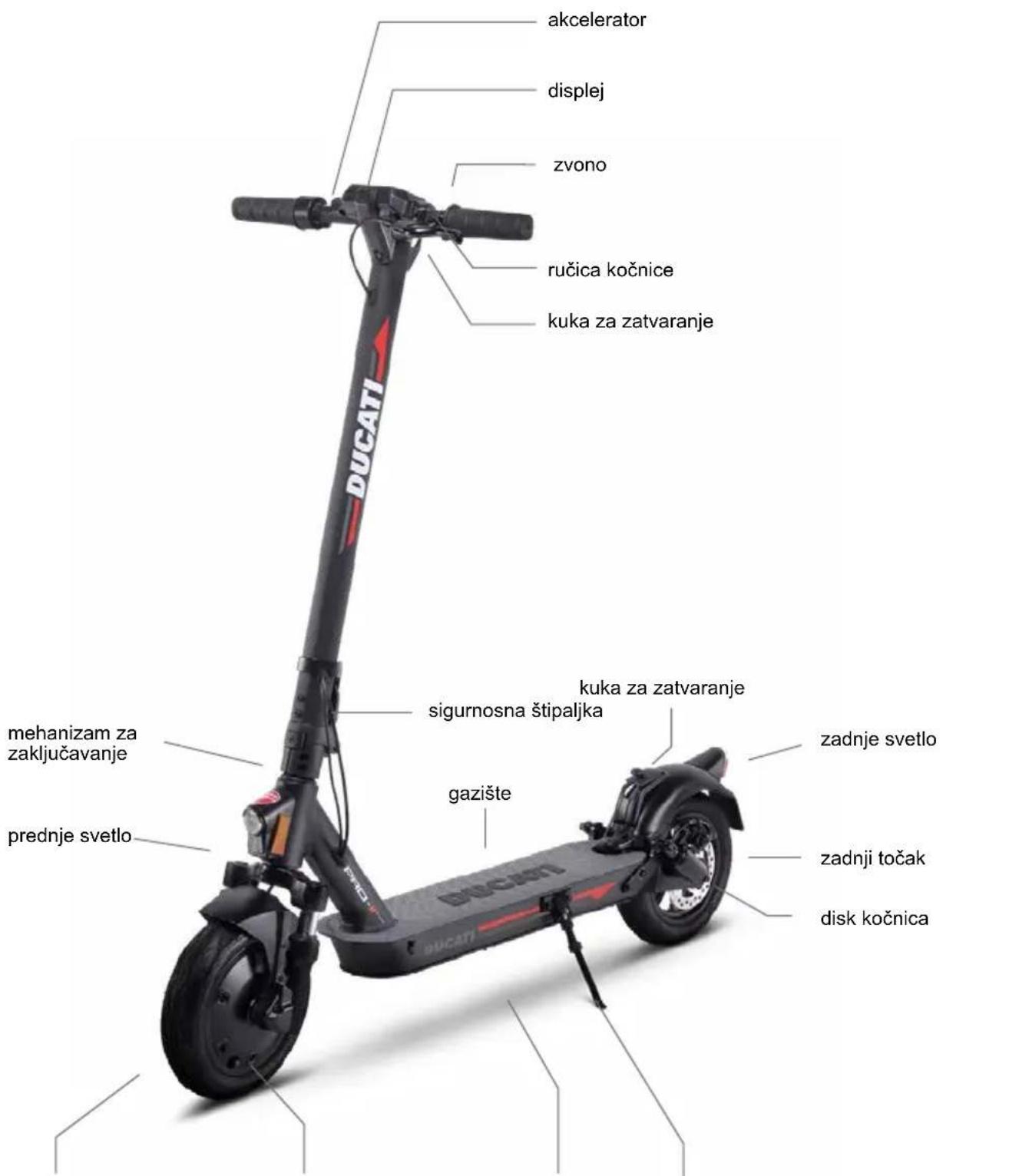

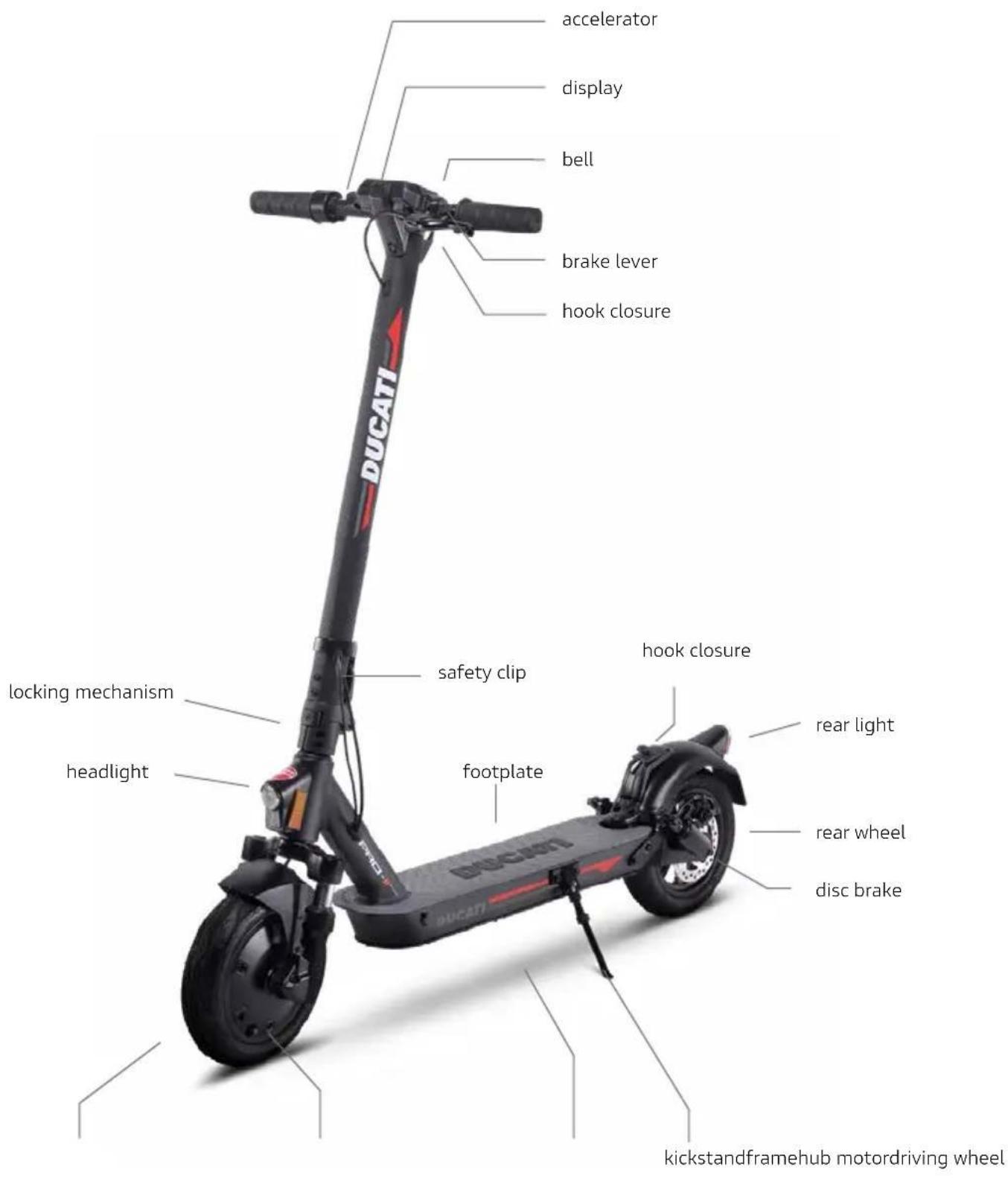

brake lever safety clip footplate hook closure disc brake rear wheel rear light kickstandframehub motordriving wheel headlight locking mechanism bell accelerator display hook closure0707

5. Control information/Control panel

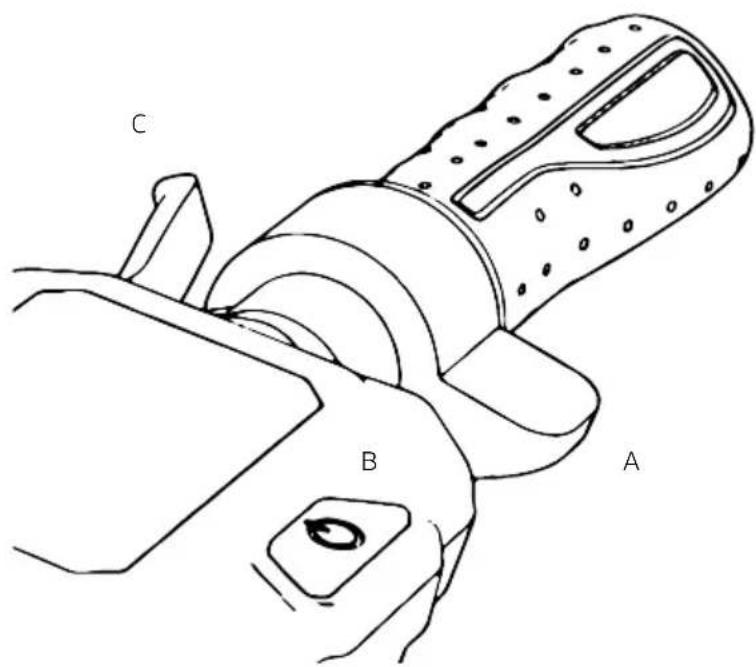

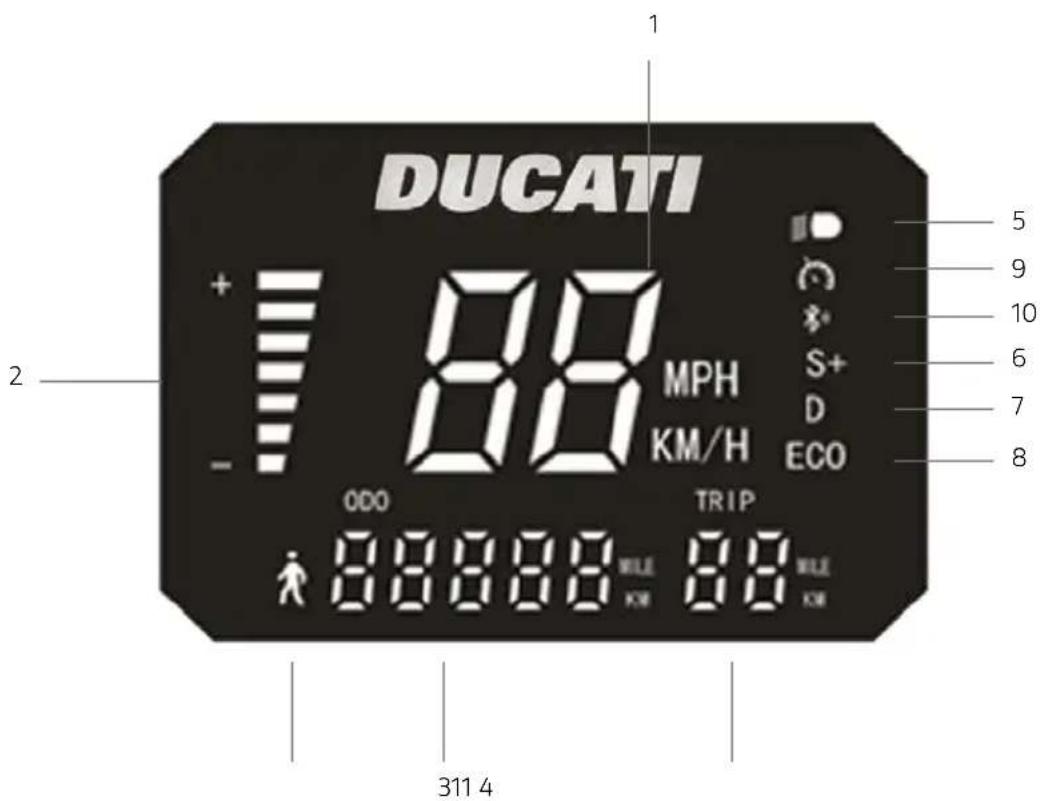

1. Speedometer: Displays the current speed of the scooter.

5. Headlights: Headlight indicator light.

maintained for a few seconds.

The accelerator is activated once the forward speed exceeds 3 km/h. NOTICE A09

6. Assembly and configuration

The vehicle is delivered folded and with the handlebar removed. NOTICE Steps:

2. Pick up the handlebar, place the lever in the closed position and lower the safety ring.

6. Tighten the screws.

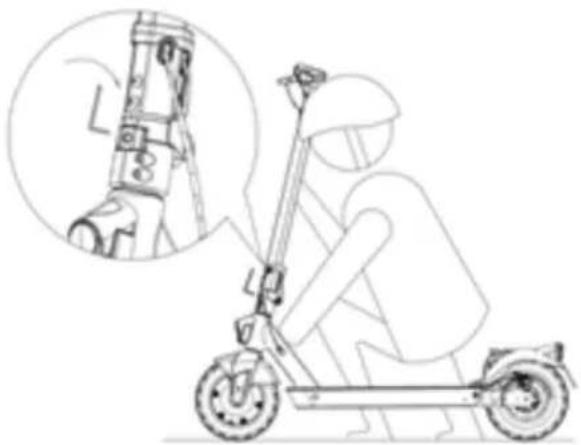

9. Adjust the folding mechanism**

speed in the first 3 months of use, it is likely that the wheels have deflated again, it will

increase the safety grip.10

screw with the hex key.

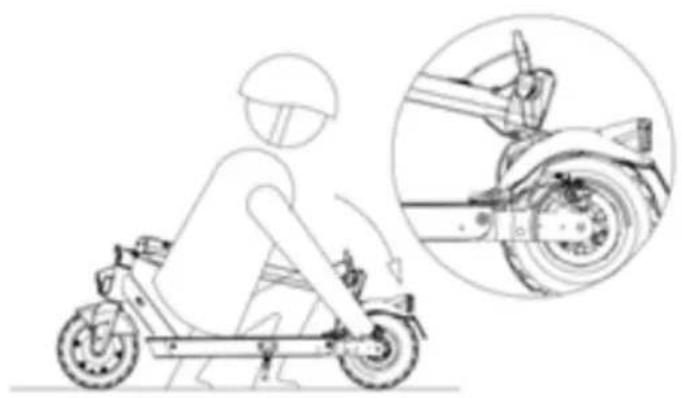

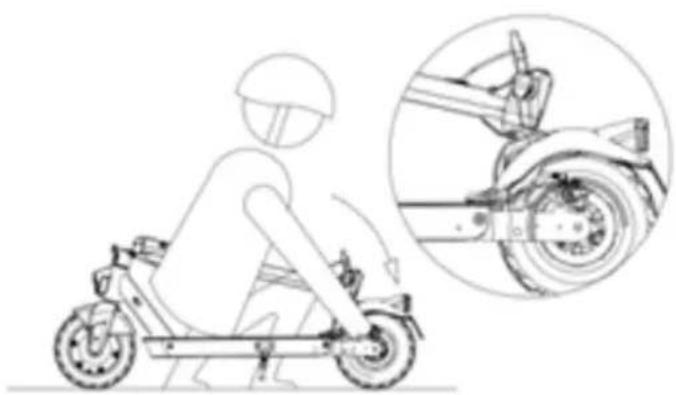

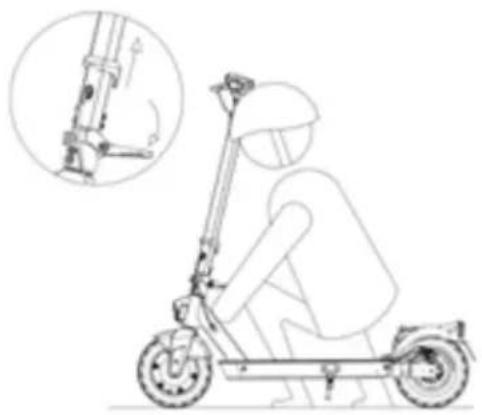

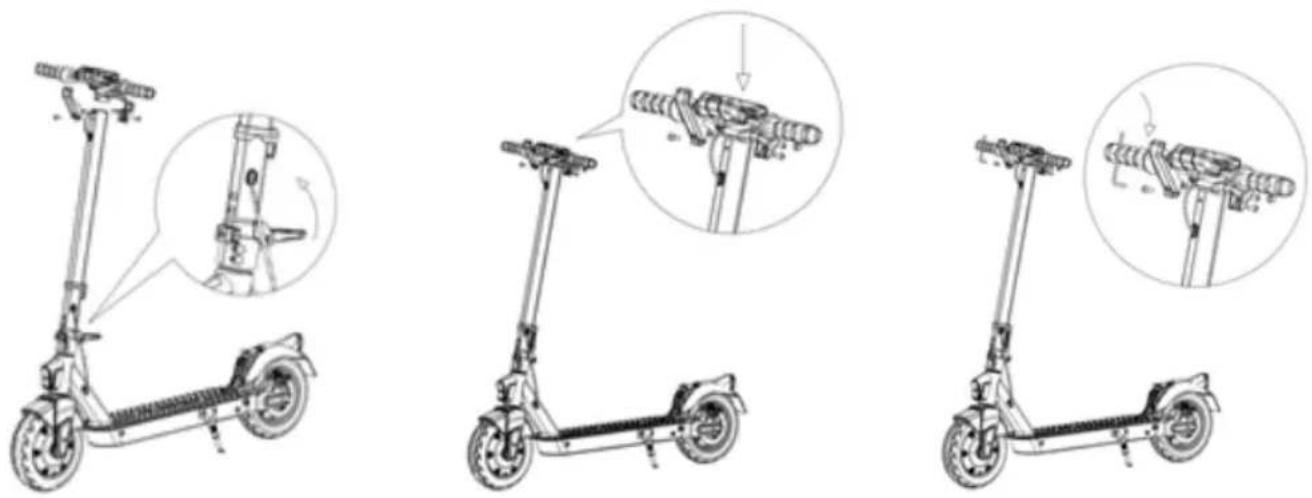

your hand, then pull the lever and align the handlebar hook with the hook located on the rear mudguard. Fold and hold the handlebar rod with one or both hands.11

It is advisable to charge the device for 6 to 8 hours before the first use.

each use and before storing it. Do not allow the vehicle to fully discharge

LED light on the charger changes from red

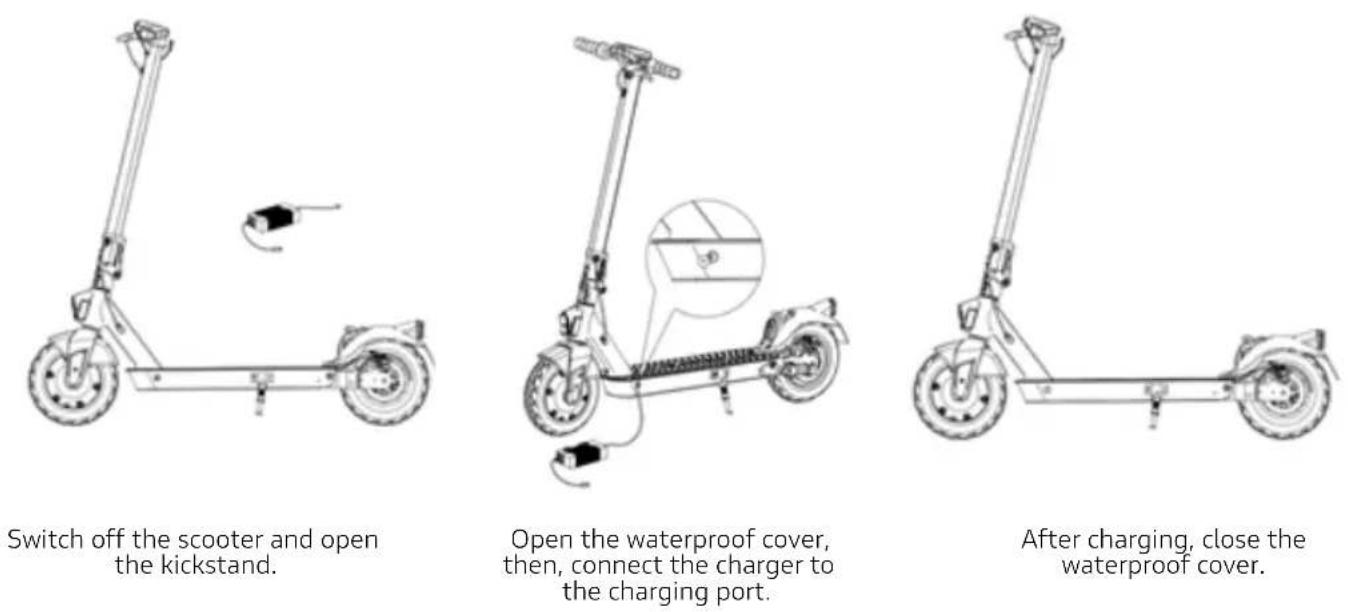

the kickstand. Open the waterproof cover, then, connect the charger to

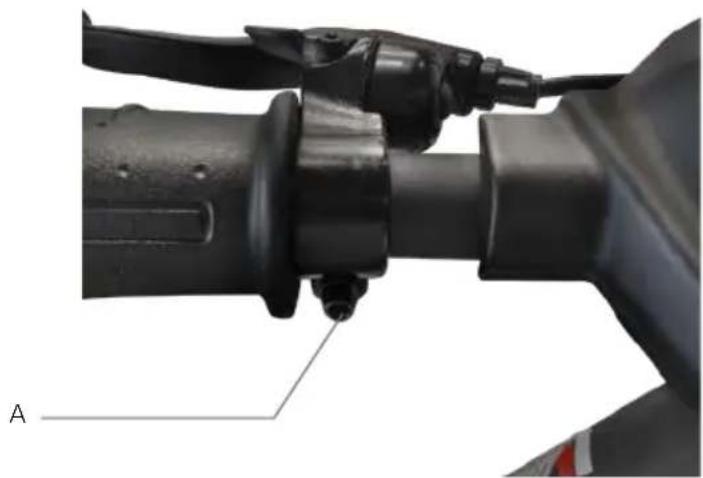

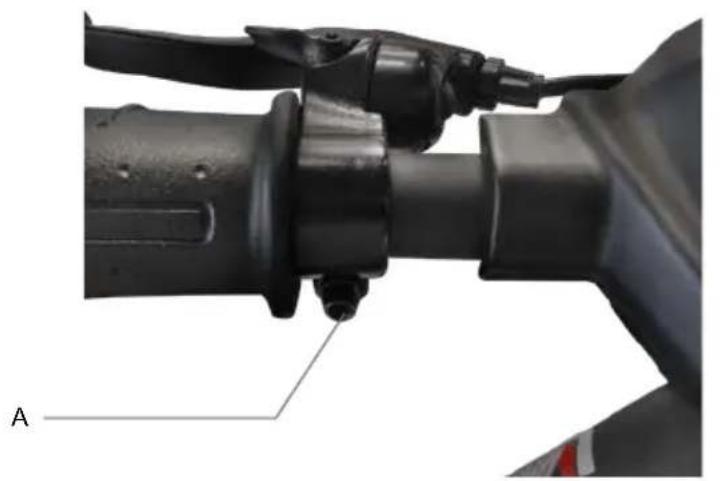

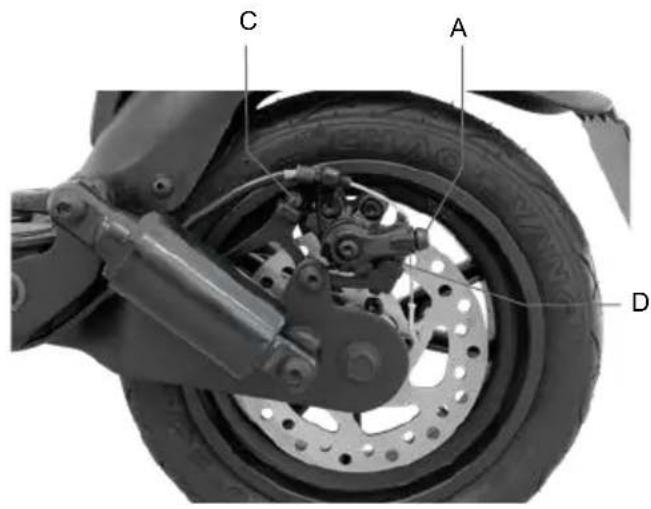

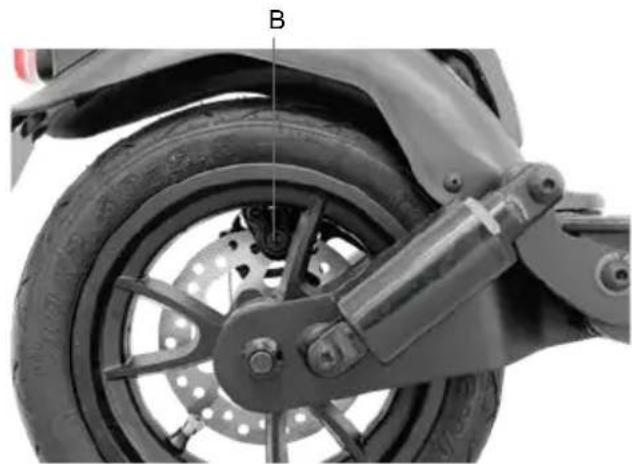

Brake levers: The position of the brake lever can be adjusted if necessary through point A (see photo). Brake calliper adjustment: Brake caliper adjustment: If the brake is too tight or too loose, use the hex wrench to loosen the nut (A), then adjust the brake cable, (shorten the brake cable upwards if it is too tight, pull the brake cable down if it is too loose) and then, retighten the nut (A). If, even after following the first step, the brake is too loose or too tight it may be necessary to adjust the brake pad (fixed) that can be adjusted through the wheel on the opposite side, using the hex wrench to move the pad further away/closer (B) (see image). Check the correct alignment between the brake caliper and the disc. Use screws C and D to adjust the position / alignment on the disc if necessary.

C13 Maximum range depends on several variables:

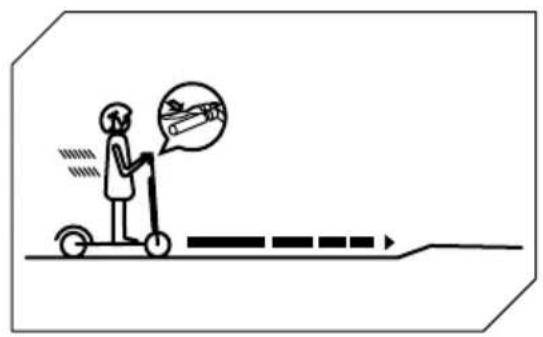

Speed and driving style: Driving smoothly and at constant speed extends the range. Acceleration and aggressive manoeuvering reduce the range. Lower speed prolongs the range. Maintenance: Timely recharging and correct maintenance increases the range.

electronic components. Do not use alcohol, gas, kerosene or other corrosive and volatile chemical solvents. This can damage both the appearance and the internal structure of the electric scooter. Do not use pressurised water guns or running water for cleaning. The electric scooter is not waterproof. Do not expose it to rain or water, or immerse it in water to wash it.

11. Storage and cleaning14

If you notice unusual noises or any anomalies, do not use the product and contact the Technical Assistance Service at your dealer.

its structure and cause problems.

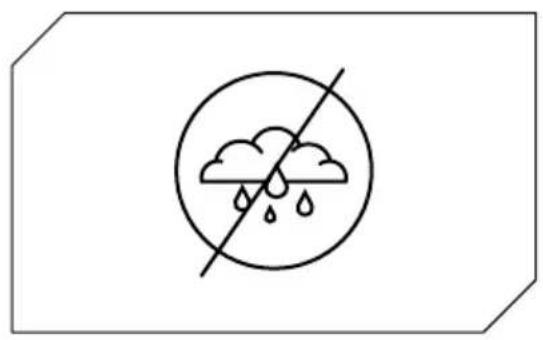

• Do not drive the vehicle in the rain, snow or fog.

• Make sure the vehicle's electrical components do not come into contact with water or other liquids.

• Avoid driving near rivers or lakes.

• Supervise children to ensure they do not play with the product. Strict supervision is required if the product is being used by or near children.

Instructions on driving behaviour

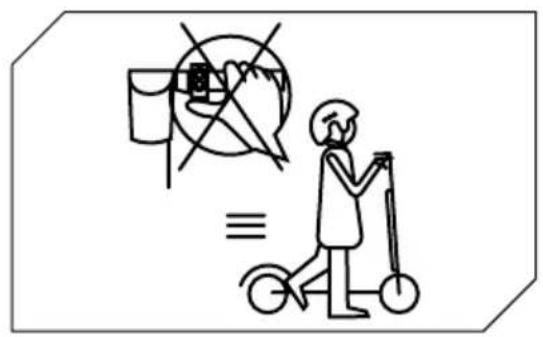

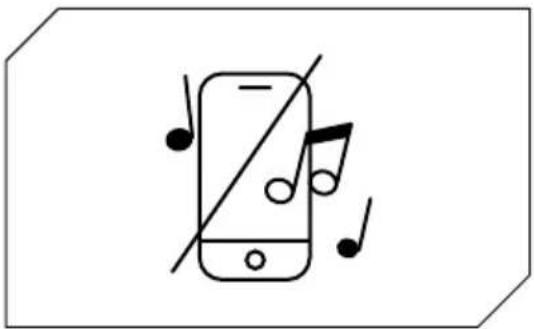

• Do not use the phone or listen to music while riding the scooter.

• Only drive if there is enough light to drive safely. If you are driving in unfavourable light conditions, remember to switch on the scooter lights and wear a reflective jacket.

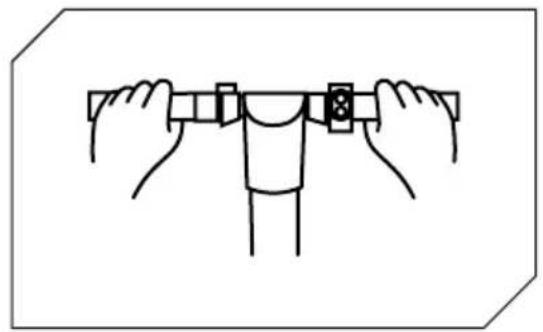

• Always grasp the handlebar with both hands when driving.

• Do not get distracted while driving and always look ahead.

• Always drive at a speed at which you can brake safely.

• Do not get into competition with other drivers.

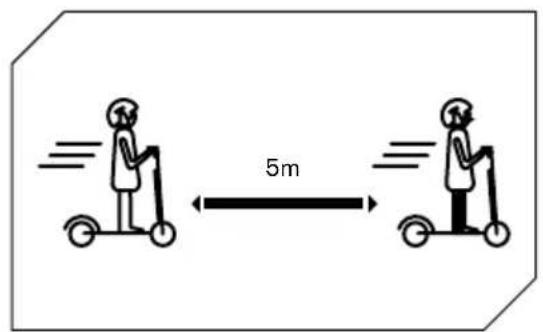

• Maintain a minimum safety distance of 5 m from other vehicles.

• Set the driving modes

• Display cruising speed

• Display the temperature of the driving wheel Access the app store to download and install the Ducati Urban e-Mobility app

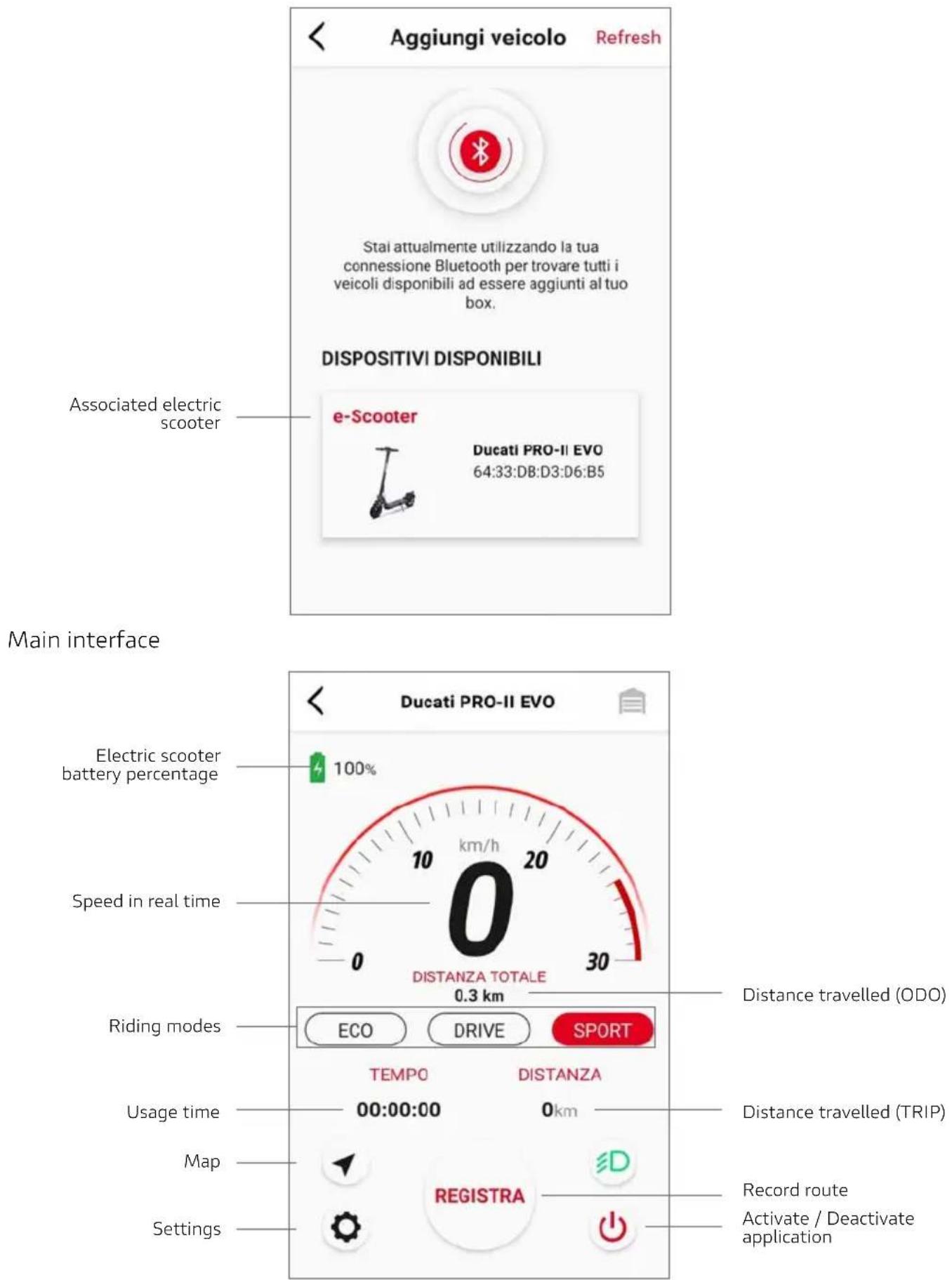

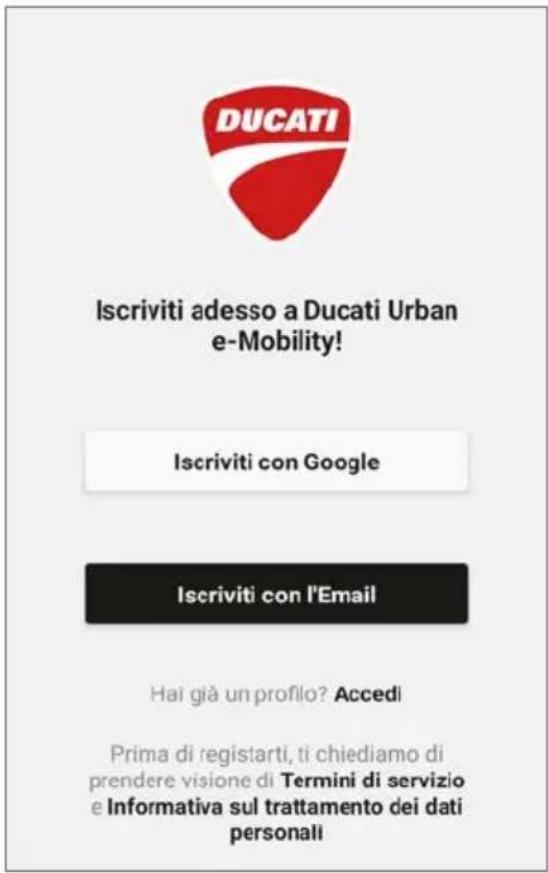

Bluetooth within 1-2 metres; *If this is your first time using this app, fill in the “e-mail” field to register and authenticate the verification code.

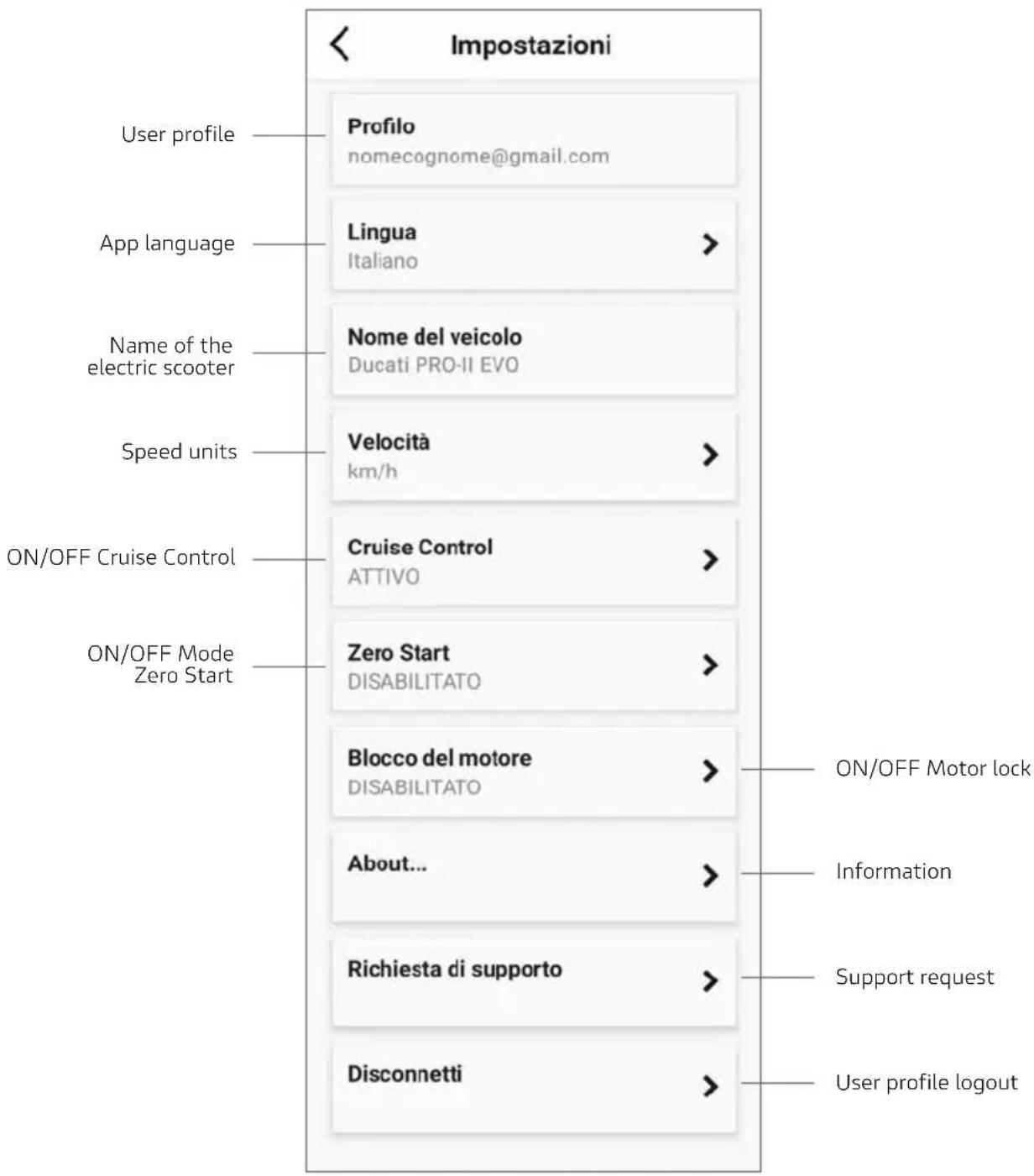

Information on “Cruise Control”: Activate the “Cruise Control” function in the app, keep the electric scooter at a constant

signal will indicate that “Cruise Control” is active, so it will not be necessary to keep the accelerator lever held down. Press the accelerator lever or brake lever again to deactivate the function.

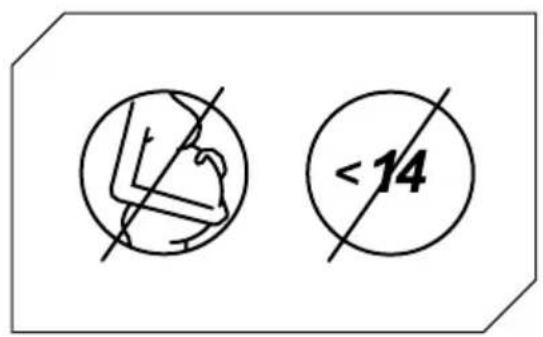

User profile logout19 Follow the safety instructions before riding the scooter. Use approved equipment such as helmets and knee pads. Do not use the electric scooter in the rain. The electric scooter cannot be used by more than one person at the same time. Children under the age of 14* and pregnant women should not use this electric scooter.

14. Learning to ride20

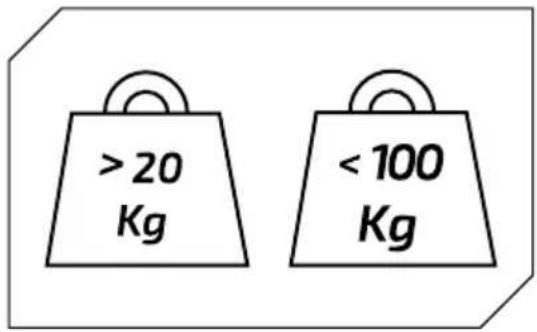

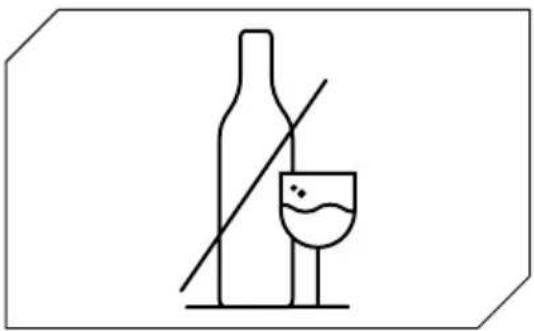

Minimum weight allowed on the electric scooter: 20 kg. Maximum weight allowed on the electric scooter: 100 kg. Do not ride the Electric scooter if you have been drinking alcohol and/or taking medicines. Do not use the phone or listen to music while riding the scooter.

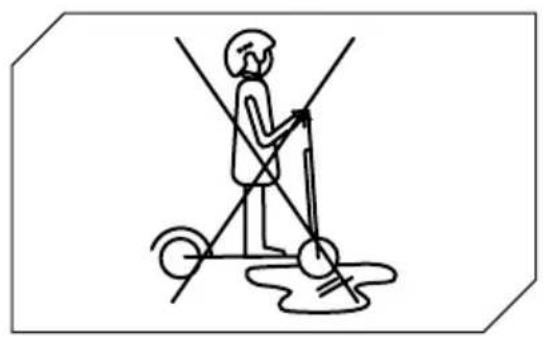

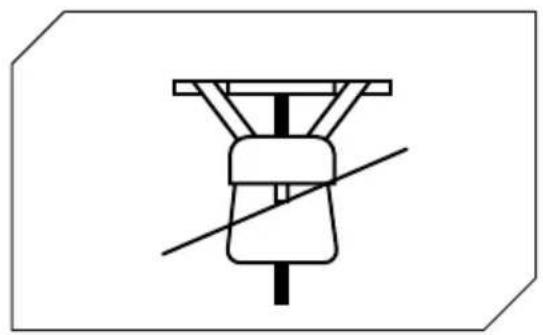

are bumps, sand, puddles, frost, snow, stairs, in dark places or at night or in the wet.21 Do not use the electric scooter in dangerous areas, in the presence of flammable and/or

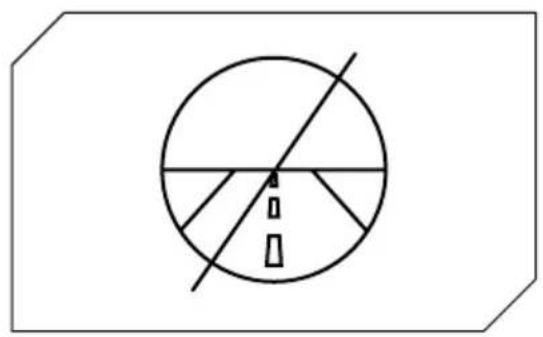

This electric scooter is not designed to be driven on roads and highways. Consult the legislative decree in force in your municipality regarding where electric scooter circulation is allowed. Do not place heavy objects on the handlebar. Avoid going up or down stairs with the electric scooter.22 Always ride with both hands on the handlebar. Do not ride on the electric scooter with just one foot. Do not press the accelerator when walking with the electric scooter. Do not ride the electric scooter in puddles or on wet surfaces.23

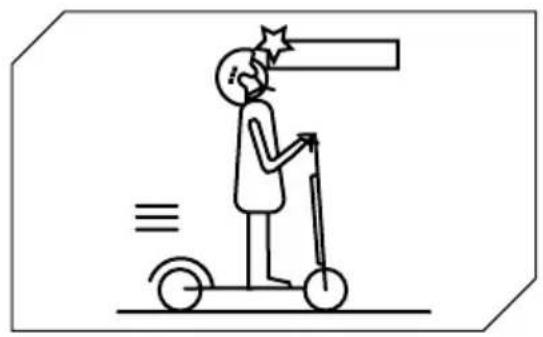

under canopies, doors and the like.

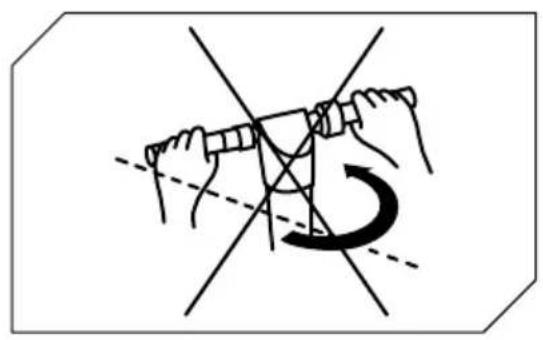

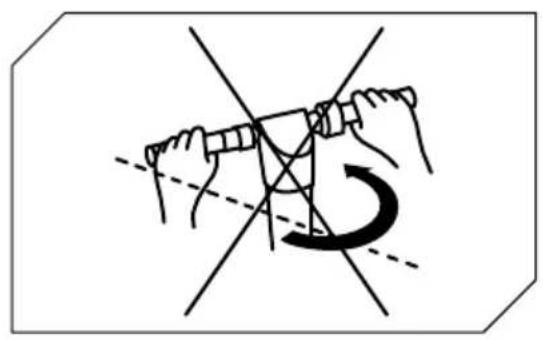

speed, do not turn the handlebar abruptly.

you can avoid obstacles, curves and areas

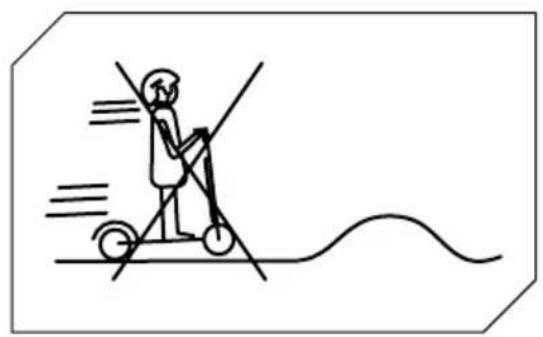

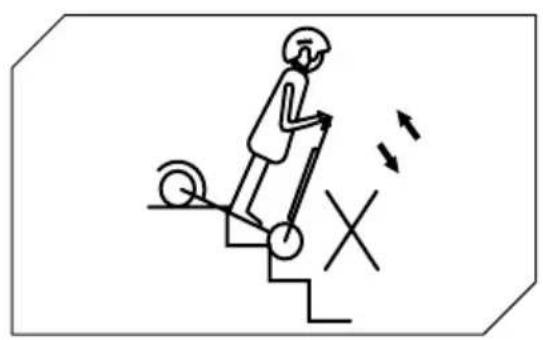

go of the accelerator before braking. Do not travel at the highest speed allowed on obstacles such as steps, borders or bumps.24

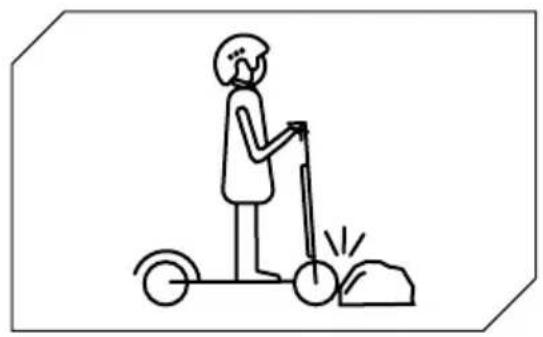

Do not hit obstacles with the wheels.

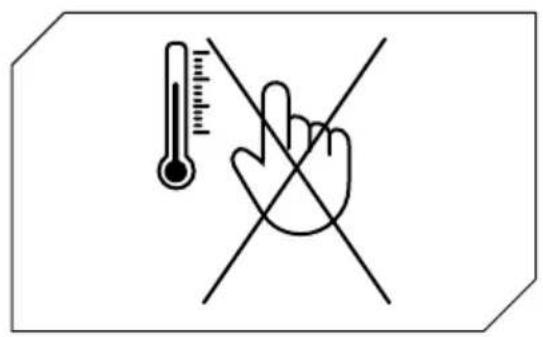

driving, it could be extremely hot. Maintain a minimum safety distance of 5 m from other vehicles.25

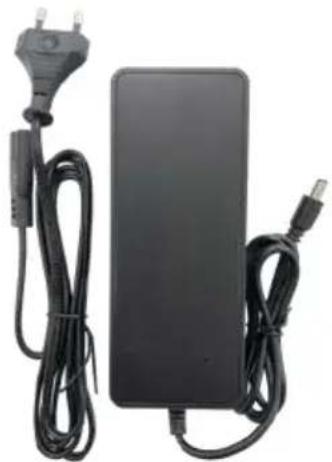

Use only the original charger. Other chargers damage the device and pose other potential risks.

life and may cause other potential risks. Charge the scooter in a dry environment away from flammable materials

15–25°C, but never below 0 °C or above + 45 °C. Do not charge in direct sunlight or near a fire.

DC charging socket with metal objects. Read the charging and storage sections above to ensure you maintain and handle the

may lead to the driver losing control or falling.

voltage over an extended period.

to health and the environment. Do not use the scooter if it emits odours, substances or

The end user is responsible for the disposal of electrical and electronic equipment and

etc. Driving the electric scooter while charging. Using any charger other than the original. The rider is obliged to use the electric scooter with the utmost diligence and in full compliance with current legislation regarding the use, operation and riding of the electric scooter which, merely by way of example, is set out in Italian Legislative

responsibility, as described in the warnings and recommendations section, and to keep all the documentation regarding the maintenance of the electric scooter. The rider must carefully evaluate atmospheric conditions that could make it dangerous to use the electric scooter. To this end, we recommend moderating your speed and maintaining an adequate braking distance if you are in adverse weather

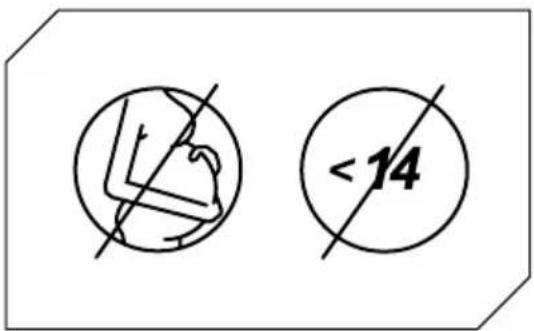

The electric scooter can only be ridden by riders at least 14 years old*. Children under 18 are required to wear a suitable protective helmet. For children under the age of 18, it is advisable to use the electric scooter under adult supervision.

- the product is used improperly or not in accordance with the contents of the instruction manual;

16. Responsibility27

17. Daily maintenance and care

Cleaning and storage

persist, put toothpaste on them, brush with a toothbrush, then wipe with a damp cloth. If there are scratches on the plastic components, use sandpaper or other abrasive material to remove them. Notes: Do not clean the scooter with alcohol, gasoline, kerosene or other corrosive and volatile chemical solvents to avoid serious damage. Do not wash

store it indoors in a cool, dry place. Do not store it outdoors for an extended period of time. Excessive sunlight, overheating and excessive cold accelerate tyre ageing and

• Check the brakes and that they are adjusted correctly.

• Check screws in general

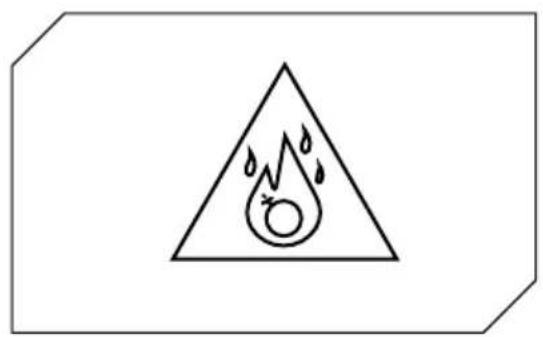

Do not disassemble or puncture the outer casing. Avoid the product coming into contact

4. Use only the original charger to avoid potential damage or fire.

overheating and even a fire. If you do not plan to use the scooter for more than 30

recharge it every 60 days to protect it from damage excluded from the limited warranty.

Motor Net weight General information Electrical system Measurements Gross weight

Product dimensions closed Lights Packaging dimensions Charger Bluetooth Display Brake Product dimensions open front and rear

front and rear LED lights 1150 x 190 x 510mm 30.5V - 32V EU Standard DC 2.1 Charger 42V, 1.5A functionality with app 18A Brushless 100kg 0°C / 45°C IPX4 about 5/6 hours From 14 years of age with the use of helmet and protection**. Check the current legislation in your country

front e-brake and rear disc brake

electronic front brake 1160 x 480 x 1150mm

• In Switzerland, under the current legislation the allowed speed levels are 6-15-20km/h.

Tests to be carried out

decelerate several times.

• Check from time to time that the brakes are working properly. To do this, move the vehicle. Push it manually and suddenly brake to make sure it responds to commands.

• Check that all vehicle components are in place and securely fastened.

• Check tyre wear and pressure.

• Check the wear of the brakes and cables. Error The motor is not running. The rear wheel will not turn. The motor stops while it is running.

the scooter does not turn on The vehicle stops suddenly while it is running Cause

Brake problem Motor overheating

Connection problems Damaged

Damaged power cables and controls Electrical problem. Solution

Check the connectors. Adjust the brakes Release the accelerator and wait for it to cool Request technical assistance from your dealer

Request technical assistance from your dealer Request technical assistance from your dealer

Request technical assistance from your dealer Request technical assistance from your dealer31

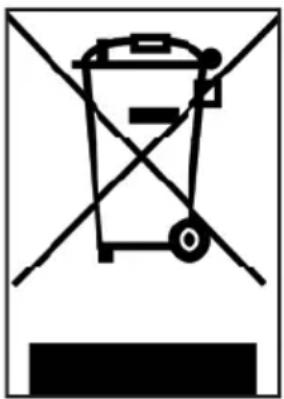

CAUTION Disposing of electrical or electronic devices at the end of their life (applicable in all countries of the European Union and in other European systems with separate collection systems) This symbol on the product or on the packaging indicates that the product should not be considered as normal household waste, but should instead be taken to an appropriate collection point for the

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health which could otherwise be caused by inappropriate disposal. Recycling of materials helps to conserve natural resources. For more detailed information about the recycling of this product, you can contact your local waste disposal service or the outlet where you purchased it. In any case it is necessary to dispose of the product according to the regulations in force in the country of purchase.

of this type of waste separately, in two possible ways:

via the collection services of municipal companies, where these are available.

new one with the same function is purchased. Should you dispose of electrical or electronic equipment in an illegal manner, the penalties provided for by current legislation on environmental protection may be applied

specific separate waste collection.33 CAUTION

pack should not be considered normal household waste. On some

negative consequences for the environment and health which could otherwise be caused by inappropriate waste handling. Material recycling will help to conserve natural

service personnel. At the end of its life, deliver the product to a collection point suitable for the disposal

disposed of correctly.

can contact your local waste disposal service or the outlet where you purchased it. In any case it is necessary to dispose of the product according to the regulations in force in the country of purchase.34 WARNING Read the manual and instructions below in full before using the product. Product name: PRO-II EVO Product type: Electric scooter Year of production: 2021 Note:

• To recharge this electric scooter use ONLY the supplied charger labelled XVE063-4200150 with the following output voltage: 42V–1.5A.

• Using another type of charger can damage the product or pose other potential risks.

• Never leave the product to charge unsupervised.

• The product should only be charged at temperatures between 0 °C and 45 °C.

• The product must be used only at temperatures between -10 °C and 45 °C.

• Do not recharge in sunlight or near open flames.

hour before charging.

This declaration of conformity is issued under the sole responsibility of the Manufacturer Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating: 2006/42/EC Machinery Directive RED 2014/53/EU Radio Equipment Directive 2014/30/EU Electromagnetic Compatibility Directive 2014/35/EU Low Voltage Directive

Factory address: NO.509 Tengyun Road, Jiaojiang District, Taizhou City, Zhejiang, China Date: 29/06/2021

Declaration Place: Bologna, Italy First name and surname: Alessandro Summa Position: CEO

Authorized person: Alessandro Summa Position: CEO NOTE: This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives. Product brand: Product model: Description of product: Ducati PRO-II EVO Electric scooter Alessandro Summa36
