| Product type | Electric scooter |
| Brand | Ducati |
| Model | Corse Air |
| Folded dimensions (L×W×H) | 1057 × 355 × 200 mm |
| Unfolded dimensions (L×W×H) | 889 × 1052 × 200 mm |
| Deck height | 75 mm |
| Net weight | 10,2 kg |
| Maximum load | ~80 kg |
| User height | 140 to 180 cm |
| Maximum speed | 20 km/h (H mode) |
| Range | Up to 15 km (depending on conditions) |
| Motor | 250 W nominal, 24 V |
| Battery | Lithium-ion 5.8 Ah, 24 V, charge 6 h |
| Charger | Input 110-240 V AC, output 29.4 V / 0.8 A (58.8 W) |
| Water resistance rating | IP54 |
| Operating temperature | 0 °C to 50 °C |
| Charging temperature | 0 °C to 45 °C |
| Wheel sizes | Front 6", rear 5.5" |
| Brakes | Rear disc brake |
| Frame material | Aluminum alloy |
| Available colors | Black, Red, White |
| Lighting | LED front light, LED rear light |
| Speed modes | 3 modes : L (6 km/h), M (15 km/h), H (20 km/h) |
| Additional functions | Cruise control, kick start or zero start, km/h or mph unit |
| Cleaning and maintenance | Soft damp cloth; do not use solvents or high-pressure cleaner |
| Spare parts and repairability | Contact customer service via www.ducatiurbanemobility.com |
Frequently Asked Questions - Corse Air DUCATI
User questions about Corse Air DUCATI
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Scooter in PDF format for free! Find your manual Corse Air - DUCATI and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Corse Air by DUCATI.
USER MANUAL Corse Air DUCATI
Please read the user manual and get to know the performance of the intelligent electric scooter before using the product. Don't lend the scooter to the people who can't handle it.
1. Product diagram
- Switch Button
- Display

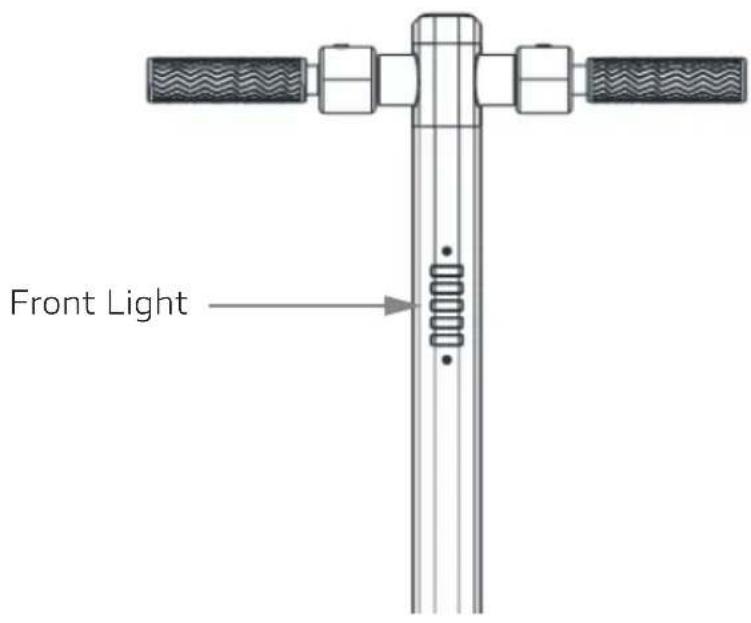

- Power/Front Light
- Right handle bar
- Accelerator
- Hook
- Brake
8.Left handle bar - Front tube
- Front Latch
- Charging port
- Kickstand
- Front fender
- Front wheel
- Deck
- Hook Hole
- Rear fender
- Rear Light
-
Rear wheel
-
Avoid driving in the rain.
- Slow down on bumpy roads, sidewalks or other special road surfaces. On very uneven roads, please maintain a low speed (between 3,11 and 6,21 mph at most). Remaining flexible on the knees makes it easier to adapt to bumpy roads.
- Pay attention to doors or other obstacles in height.
- Do not accelerate downhill.
- Do not press the accelerator when walking beside the vehicle.
- Pay attention to possible obstacles during the use of the device.
- Drive calmly and concentrate, do not do stunts with the device.
- Do not drive on the road.
- Do not change direction abruptly at high speed.
- Do not drive on water, mud or snow.
- Do not climb on the device with a child.
- It is forbidden to position yourself and concentrate your weight on the rear fender.
- Do not touch the disc brake
- Do not let go of the handlebar while driving.
- Do not jump over obstacles and do not walk down stairs with the device. There is a risk of accidents and damage to the vehicle.
- This device is for recreational purposes and is not intended as a passenger vehicle. Any vehicle travelling in public places is risky and potentially dangerous. Please strictly follow the instructions in this manual to guide the device in respect of your own safety and that of others. It is also mandatory to comply with local and national laws for the use of this device.
- You should be aware that when pedaling in a public area you are subject to strict rules but also to the risk of falls, collisions with pedestrians or other vehicles. As with other vehicles, the higher the speed, the longer the braking time. Emergency braking on a smooth surface can cause the device to slip, resulting in falls and injuries. It is therefore very important to adapt driving style and speed and to maintain an adequate safety distance from pedestrians or other means of transport.
- Please respect pedestrians when driving the device. Avoid frightening pedestrians, especially children and the elderly. When overtaking a pedestrian, it is a good idea to slow down and pass as far away as possible.
- The safety instructions in this manual must be strictly followed. The company cannot be held responsible for any injury or accident if the instructions are not followed.
- Do not lend the device to anyone who has not been trained to use it and who is not wearing the appropriate protective equipment.
- Always check the device before use, if you notice that any parts are damaged, that the battery has a very low charging capacity, that the tires are worn or inflated abnormally, or that there is a strange noise or malfunction please do not use the device and contact an authorized repairer.
Cleaning and storage:
- To clean the device it is necessary to use a soft and slightly damp cloth. If cleaning is more difficult than expected, you can use a toothbrush for stubborn dirt.
Caution: Do not use alcohol, petrol or other solvents, corrosive chemicals, otherwise the device may be damaged both in appearance and structure. Do not use high-pressure guns to clean the device. In general, when cleaning the device, make sure that it is switched off, that the charger cable is disconnected and that the rubber cover is closed.
When not in use, store the device in a dry place away from moisture. Do not store the device outdoors. Excessive exposure to the sun, heat or cold can damage the device and accelerate tire and battery wear.
In case of punctures, contact your tyre specialist.
For information, technical support and assistance, please visit www.ducatiurbanemobility.com
- Specification
| Index Item | Specs | |
| Materials & Size | Color | Black / Red /White |
| Material | Aluminum Alloy | |
| Folded Size (mm) | 1057 x 355 x 200mm | |
| Unfolded size (mm) | 889 x 1052 x 200mm | |
| Deck Height (mm) | 75mm | |
| Weight | User height | 140-180cm |
| N.W | 10,2kg | |
| Max Load ~80kg | ||
| Scooter | Speed (km/h) | L: ≤ 6km/h | M: ≤ 15km/h | H: ≤ 20km/h |
| Max incline < 10° | ||
| Using Terrain | Flat road with incline <20° Step height ≤1cm | |
| Max temperature | 0°C - 50°C | |
| Waterproof level | IP54 | |
| Autonomy up to 15km | (subject to be variable by rider weight, road condition, temperature etc.) | |
| Motor | Rated power (W) | 250W |
| Rated Volt (V) | 24V | |
| Rated Currency (A) 13A | ||
| Rated torsion (N.m) | 5Nm | |
| No-load currency | ≤0,9A | |
| No-load rotate speed | 620±5 | |
| Front Wheel Size | 6" | |
| Rear Wheel Size 5,5" | ||
| Battery | Brand | 18650 battery cells 2P7S 14PCS |
| Capacity (Ah) | 5,8Ah | |
| Rated Volt (V) 24V | ||
| Input Volt (V) | 29,4V | |
| Intelligent BMS | Equilibrium/overcharge/over discharge/Over current/short circuit protection | |
| Rechargeable times 500-800 times | ||
| Charger | Rated Power (W) | 58,8W |
| Rated Volt (V) | 110-240V CA 50/60Hz 2A | |
| Rated Currency (A) 0,8A | ||
| Charging time | ~ 6H | |
| Rated output volt (V) | 29,4V | |
| Front light | Working volt | 12V |
| Working currency | 100mA | |
| Rear light | Working volt | 12V |
| Working currency | 30mA |
Close up of the scooter

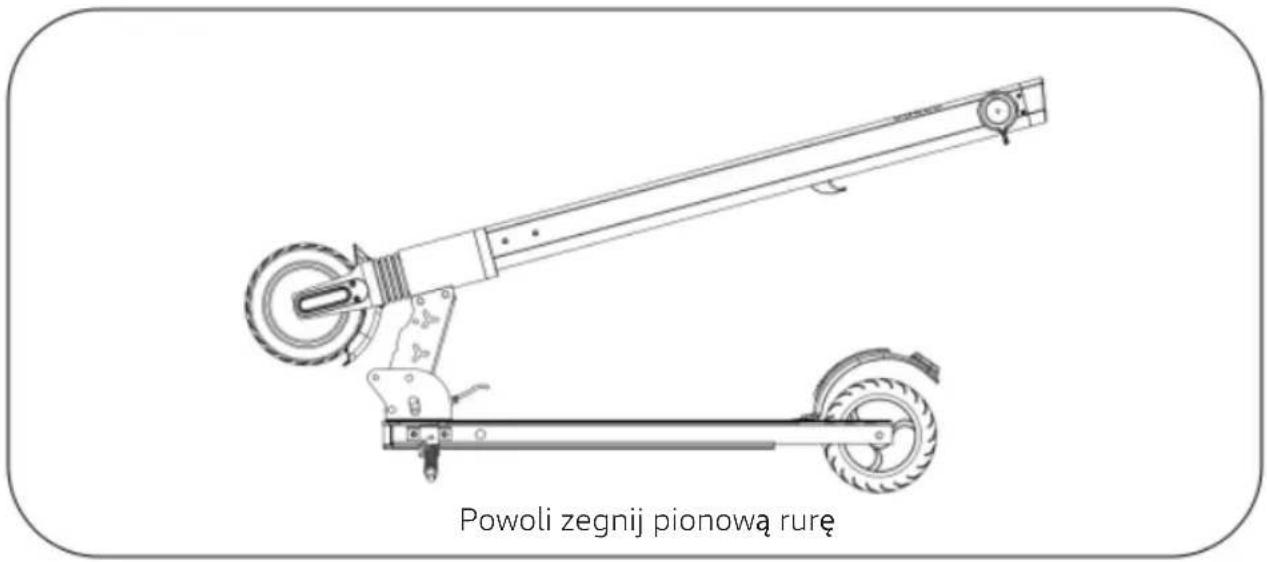

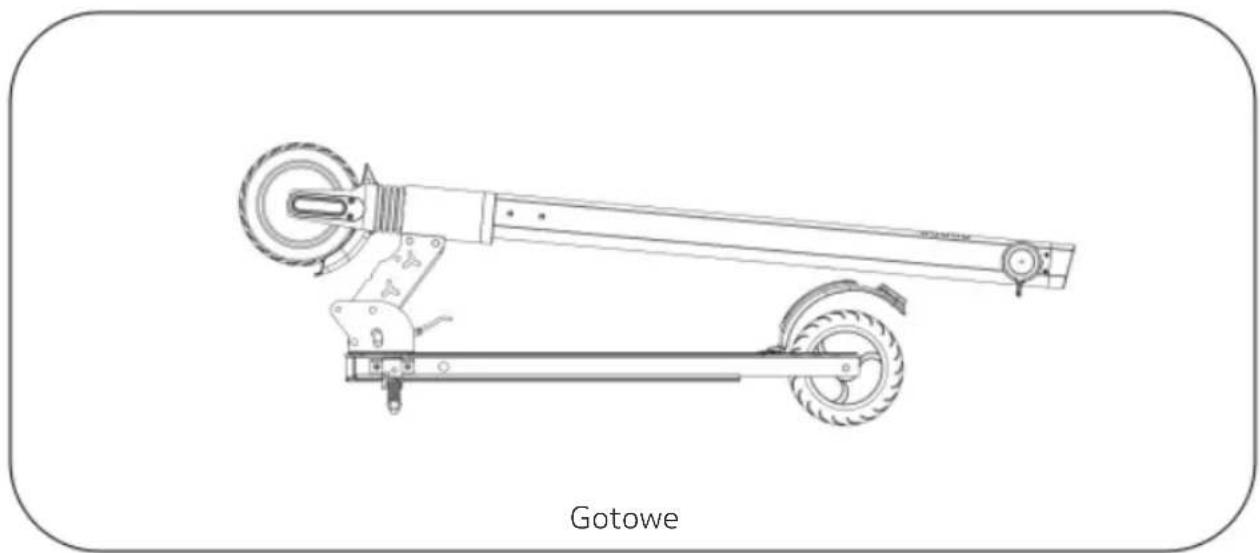

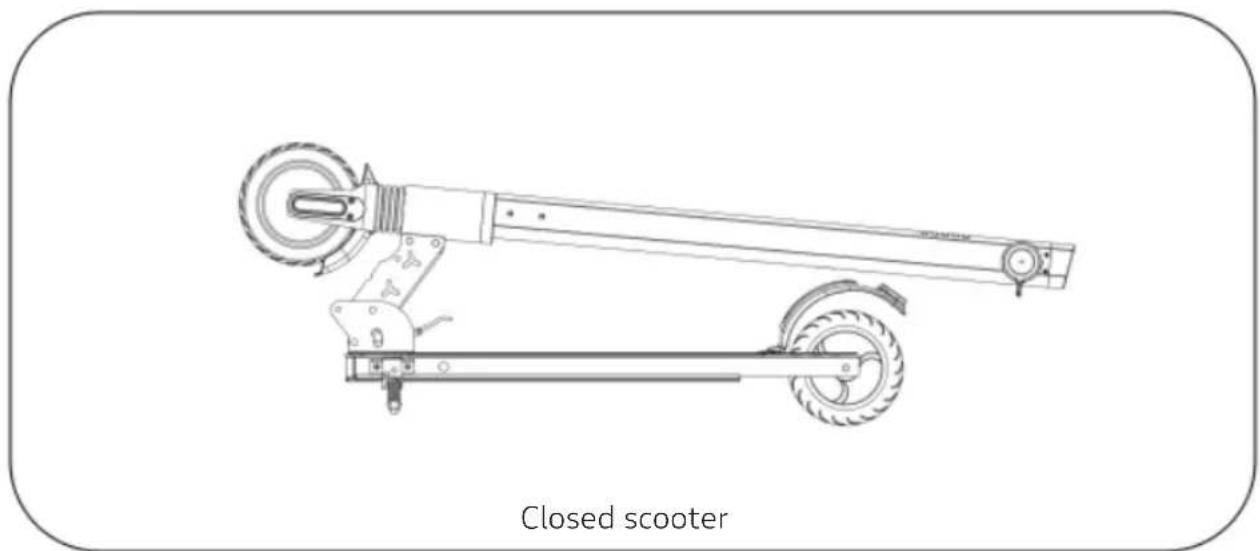

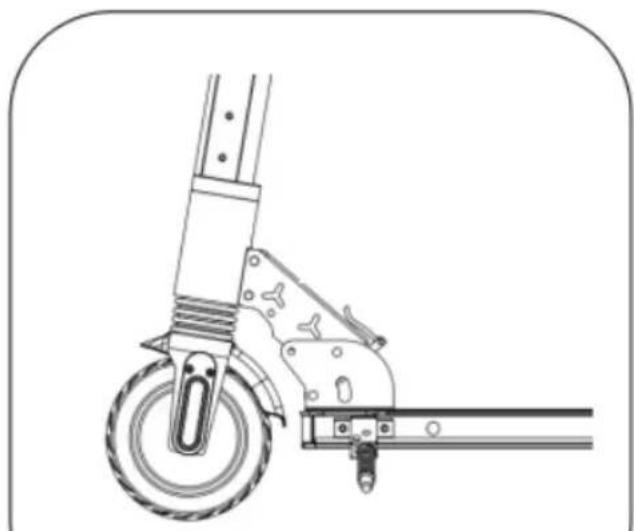

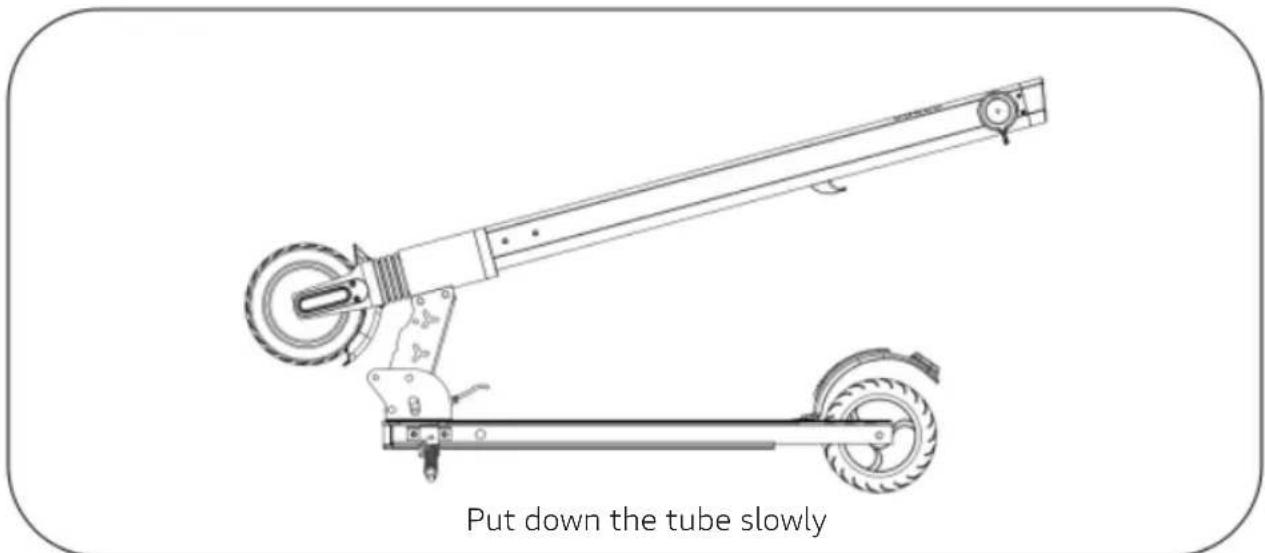

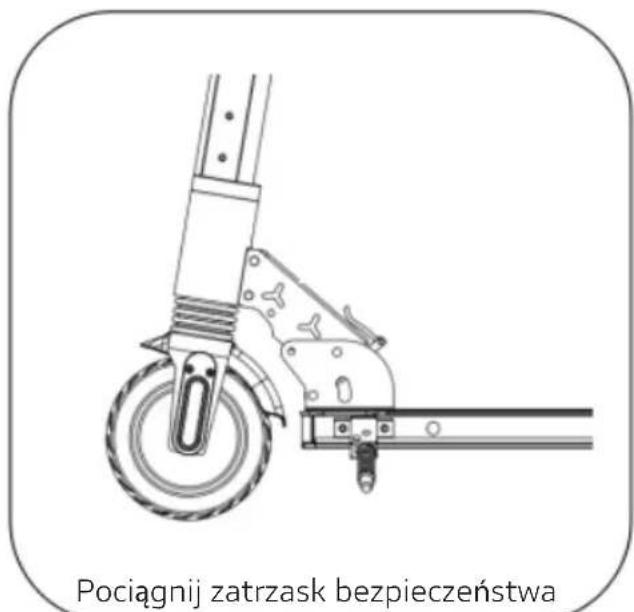

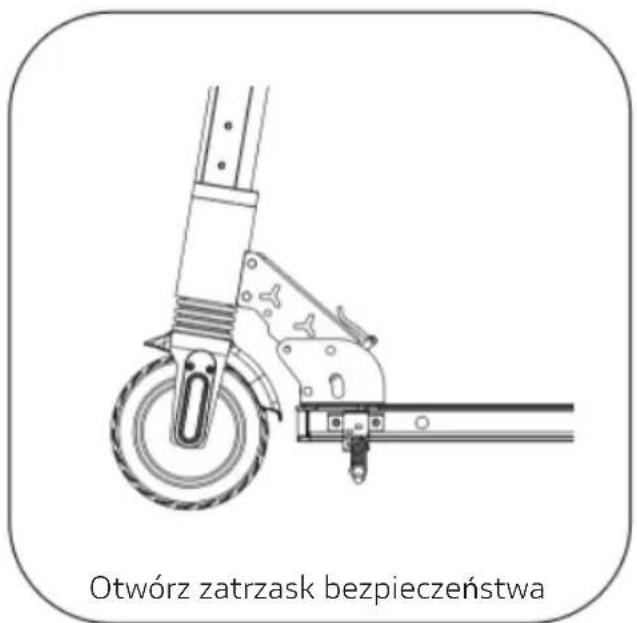

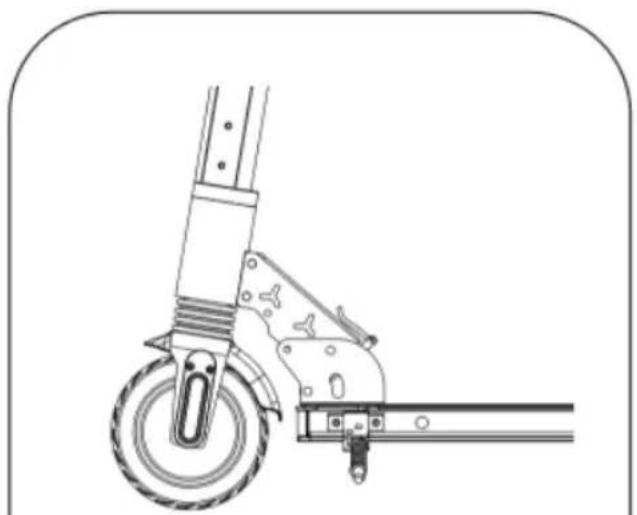

Push the safe latch Open the folding latch
3. Peration steps

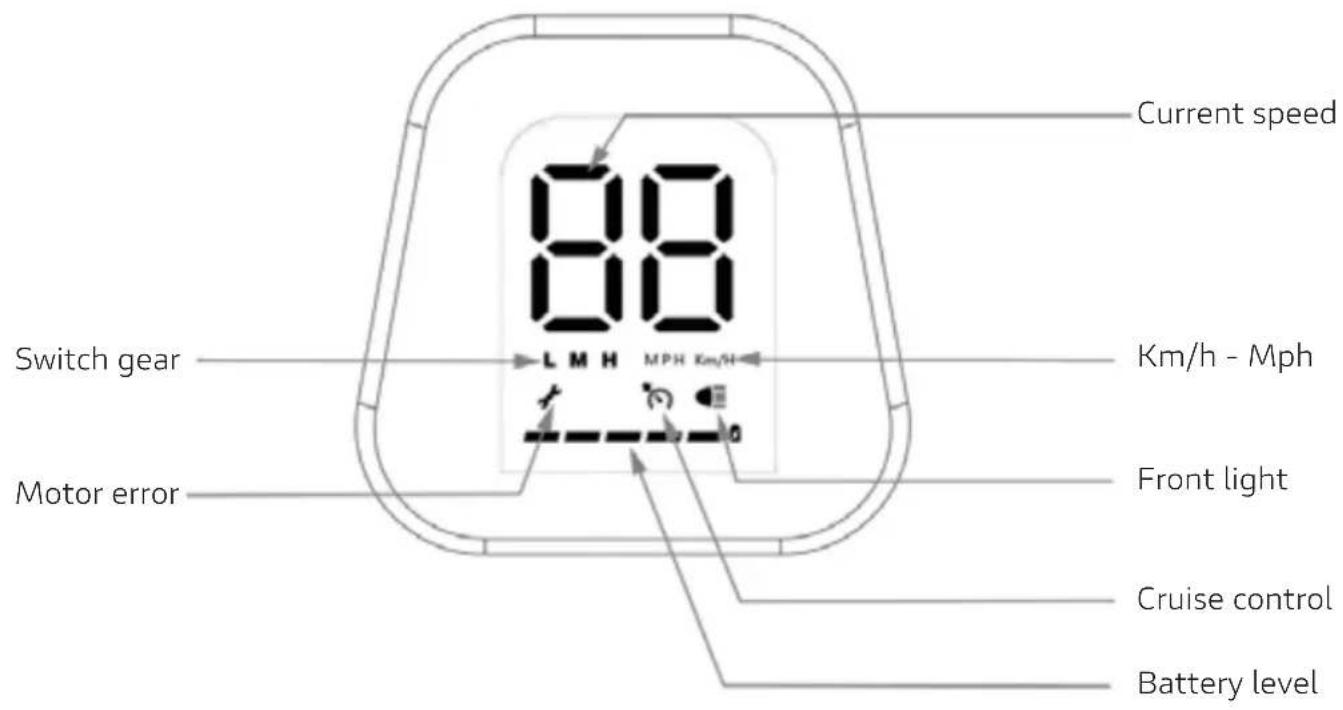

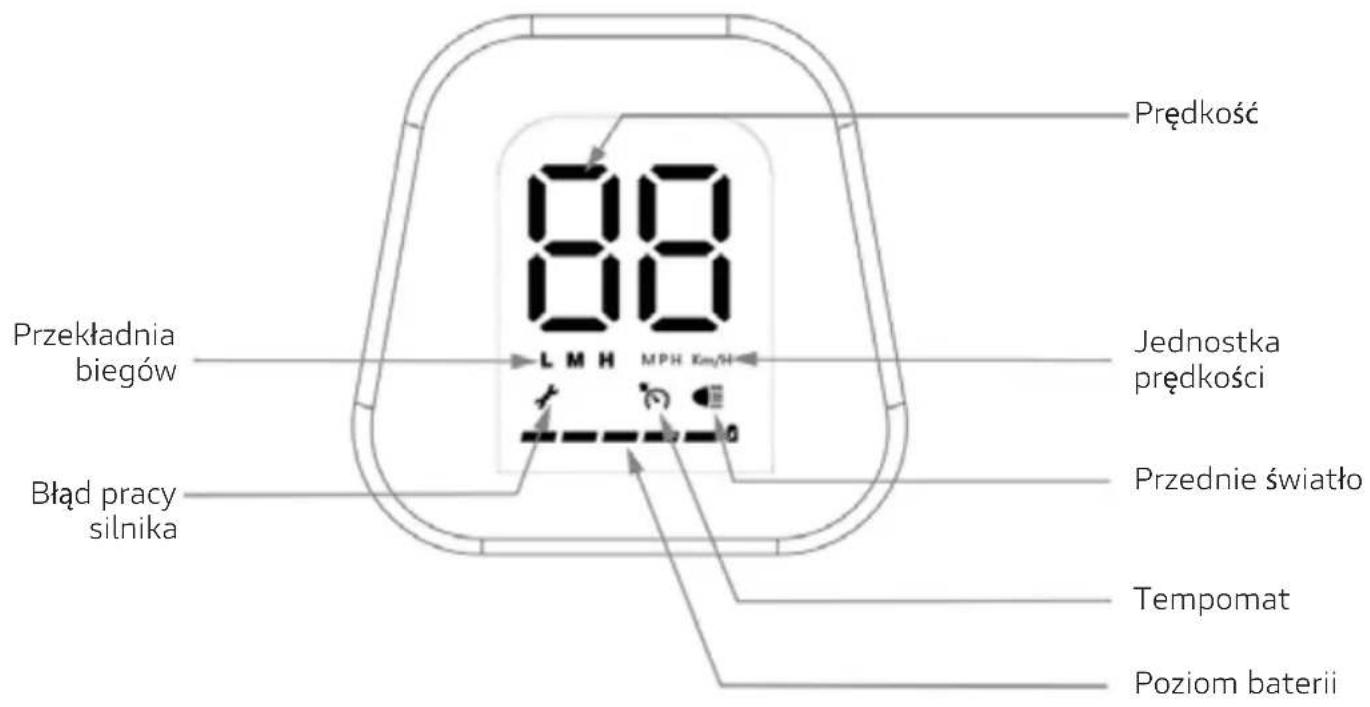

Power button function description
Power on/off: Long press the red button on the right side to turn it on,
Long press again to turn it off.
- Gear switch
Gear switch : Short press the left red button ithe system can be switched among L-M-H three gears.
- Lighting
Turn on/off: In the state of power-on, a short press on the right key can turn it on/off
- Setting status
Long press the key and the key at the same time to enter the "Settings" interface. In the setting state, short press they key to switch between C1 (unit) - C2 (start-up mode) - C3 (cruise control).
a) Unit settings
Switch to C1 state in the "Settings"state: Short press button to switch between KM/H and MP/H
b) Startup mode setting
Switch to C2 state in the "Settings" state: Short press button to set the start mode of the scooter (Slide start/Zero start)
c) Cruise control setting
Switch to C3 state in "Settings" state: Short press key to set turn on/off cruise control
Safe Driving
- Avoid accentuating the body while accentuating or decelerating and do not keep the body weight on the handle
- Riding a standing position, please keep the two feet one after the other, so that riding more stable, and easy to step on the rear brake
- Keep your body and handle parallel when turning. Please confirm the road condition before turning and keep safe.
- Brake - when braking, please shift your body weight back. You'd better learn to control your body's center of gravity when you brake. Otherwise, it will cause two situations:
- Scooter forward, causing personal injury.
- Braking and steering system damage.
ATTENTION
Strictly abide by local laws and regulations and traffic laws.
Do not rid this scooter under the condition of law visibility.
Do not use this car to do stunt, wheel or take-off, it will increase the probability of injury and damage to the scooter. Do not carry passengers.
There is a risk of falling down and injury during the course of study.
Please wear a helmet and protective gear throughout the study.
4. Charging precautions
When charging the electric scooter, please pay attention to the following points:
- Ensure that is changed in dry and clean environment, the input voltage is guaranteed between 110v-240v and the other end connects the charging port of electric scooter. The red light indicates the scooter is being charged.
- The indicator light of the charger shows the green light, indicating that the charging is completed.
- Don't turn on the scooter during charging for your safety.
- Disconnect the scooter from the charger when the charging is complete.
5. Maintenance
a. Battery maintenance: In order to guarantee the battery life, when the battery level is low, please change the scooter timely (Note: when it is not in use for a long time, it is recommended that charge it once a month). If you want to check or replace the battery, please don it with the assistance of professionals. The most suitable temperature of the battery storage is 15^ - 25^ ; don't use and place the scooter when the environmental temperature is higher than 40^ , in order to avoid the lithium battery's failure, and even lead to the combustion. Do not place the scooter in the car during the hot seasons, because it may lead to the lithium battery's failure or even the combustion.
b. Tire maintenance: In order to guarantee the tire life, please check the tires of the scooter regularly. Once the wheel is abnormal, please repair or replace timely.
Failure to observe can result in unnecessary damage during the riding.
c. Appearance maintenance: Swab the scooter body with water or mild detergent, it will make your scooter clean. Please do not clean the scooter with irritating points or an chemical reagents.
6. Common Failures and Solutions
The display board is working but the motor doesn't work
| Reason Analysis | Solutions |
| The break handle is damaged | Pull out the socket of the break handle (normally open type brake handle), if the motor works, then it is the failure of break handle, should replace the break handle. |
| The speed regulating steering handle is damaged | Firstly check the speed regulating steering handle and motor's hall switch are short circuit or not. Generally it is easier to cause the joint short circuit after rain affected with damp, so notice the short circuit of steering handle and the motor hall switch. Otherwise there will be a continuous damage of the replacement controller! |
| The motor is damaged If the motor doesn't work turn, please inspect the motor's hall switch and turning handle's signal. Once the power-on, the controller shall be very hot, generally it is short circuit of the controller internal power tube, should immediately cut off the power. | |
Charging doesn't work
| Reason Analysis | Solutions |
| The battery charging port is loose | Change a good charging port |
| The connection of the charger plug is not well | Change a good charger connector |
Can't turn on the scooter
| Reason Analysis | Solutions |
| The battery is dead | Charge the scooter for 1-2 hours according to the user manual. |
| The power button is out of order | Check the power button which has got stuck or not. |
Treatment of the electrical or electronic device at the end of its life (applicable in all countries of the European Union and in other European systems with separate collection system)
This symbol on the product or on the packaging indicates that the product should not be considered as normal household waste, but should instead be delivered to a collection point approved for the recycling of electrical and electronic equipment (WEEE).
By ensuring that this product is disposed of properly, you will help prevent potential negative consequences for the environment and health that might otherwise be caused by its improper disposal. Recycling materials helps conserve natural resources.
For more detailed information about recycling this product, please contact your local city office, your local waste disposal service or the point of sale where you purchased it.
In particular, consumers are obliged not to dispose of WEEE as municipal waste, but must participate in the separate collection of this type of waste through two modes of delivery:
- at municipal collection centers (also known as recycling depot), directly or through municipal collection services, where these are available;
- at the point of sale of new electrical and electronic equipment. Here you can deliver very small WEEE free of charge (with the longest side less than 9,84in), while larger WEEE can be delivered in 1-on-1 mode, i.e. by delivering the old product when you buy a new one with the same functions.
In case of illegal disposal of electrical or electro-nickel equipment, the sanctions provided for by the current legislation on environmental protection may be applied (valid only for Italy).
Where WEEE contains batteries or accumulators, these must be removed and subject to specific separate collection.
Treatment of spent batteries (applicable in all countries of the European Union and in other European schemes with separate collection systems)
This symbol on the product or on the packaging indicates that the battery should not be considered normal household waste. On some battery types this symbol may be used in combination with a chemical symbol.
Chemical symbols for Mercury (Hg) or Lead (Pb) are added if the battery contains more than 0. 0005% mercury or 0.004% lead.
By ensuring that batteries are disposed of properly, you will help prevent potential negative consequences for the environment and health that might otherwise be caused by improper disposal. Recycling materials helps conserve natural resources. In the case of products which, for safety, performance or data protection reasons, require a fixed connection to an internal battery/battery, it must only be replaced by a qualified service person.
Hand over the product at the end of its life to suitable collection points for the disposal of electrical and electronic equipment: this ensures that the battery inside the product is also treated correctly.
For more detailed information on how to dispose of the used battery or product, please contact your local municipal office, your local waste disposal service or the point of sale where you purchased it.
According to Legislative Decree 49/2014 the product is included in the EEE (electrical and electronic equipment) WEEE management (separate collection).
WARNING
Read the manual and instructions below in full before using the product.
Product name: Ducati CORSE AIR
Product type: Electric scooter
Year of production: 2020
- Note: To charge this electric scooter ONLY use the supplied charger labelled FY0632941500E with the following output voltage: 29.4V - 1.5A .
- Using another type of charger can damage the product or pose other potential risks.
- Never leave the product to charge unsupervised.
- The charging period of the product must not exceed four hours. Stop charging after four hours.
- The product should only be charged at temperatures between 0^ and 45^ .
- If charged at lower or higher temperatures, there is a risk that the battery will suffer reduced performance, potentially resulting in damage to the product and personal injury.
- The product must be used only at temperatures between -10^ and 45^ .
- If used at lower or higher temperatures, there is a risk that the battery will offer reduced performance, potentially resulting in damage to the product and personal injury.
- Store the product at temperatures between 0^ and 35^ (the optimum storage temperature is 25^ )
- Recharge and store in a dry and open place, away from combustibles (i.e. any flammable element).
- Do not recharge in sunlight or near open flames.
- Do not recharge the product immediately after use. Allow the product to cool for an hour before charging.
- If you are away for a certain period of time, for example for holidays, and you entrust the device to a third party, leave it in a partially charged state (20-50% charge). Not fully charged.
- The product is often supplied partially charged. Leave it in this state until it is ready to be used.
C E
EC Declaration of Conformity (Machinery Directive)
The undersigned
Company name: M.T. Distribution S.r.l.
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
certificates
that the design and manufacture of this product
| Product brand: | DUCATI |
| Item model number: | Ducati Corse AIR |
| Product type: | Electric scooter |
complies with the following directives:
Machinery Directive 2006/42/EC
MD Standard:Annexe I of 2006/42/EC,EN ISO 12100:2010,EN
60335-1:2012+A11:2014+A13:2017
and therefore complies with the essential requirements of the Machinery Directive.
MD 2006/42/EC,
LVD (Low Voltage Directive) 2014/35/EU
EMC (Electromagnetic Compatibility Directive) 2014/30/EU
Name and address of the person authorised to sign the declaration and prepare the technical file
Serial no.: DCMN20200500001 to DCMN20200504000
Name: Alessandro Summa
Directive Machines 2006/42/CE
Norme MD : Annexe I de 2006/42/EC, EN ISO 12100:2010,
EN 60335-1:2012+A11:2014+A13:2017
Close up of the scooter
Can't turn on the scooter
Imported and distributed by M.T. Distribution Calderara di Reno, Bologna
