RRT12

Important! It is essential that you read the instructions in this manual before assembling, maintaining and operating the product.

Safety, performance, and dependability have been given top priority in the design of your rotary tool.

INTENDED USE

The rotary tool is intended to be used only by adults who have read and understood the instructions and warnings in this manual, and can be considered responsible for their actions.

With appropriate accessories fitted, the product is designed to perform grinding, sanding, sculpting, polishing, buffing, etching and engraving.

The product is intended for consumer use only.

Do not use the product for any other purpose. Use of the product for operations different from intended could result in a hazardous situation.

⚠ WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fi re and/or serious injury.

Save all warnings and instructions for future reference.

ROTARY TOOL SAFETY WARNINGS

Safety warnings common for grinding, sanding, wire brushing, polishing, carving or abrasive cutting-off operations

This power tool is intended to function as a grinder, sander, wire brush, polisher, carving or cut-off tool. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
- Do not use accessories which are not specifically designed and recommended by the tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation.
- The rated speed of the grinding accessories must be at least equal to the maximum speed marked on the power tool. Grinding accessories running faster than their rated speed can break and fly apart.

- The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately controlled.

The arbour size of wheels, sanding drums or any other accessory must properly fit the spindle or collet of the power tool. Accessories that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control.

■ Mandrel mounted wheels, sanding drums, cutters or other accessories must be fully inserted into the collet or chuck. If the mandrel is insufficiently held and/or the overhang of the wheel is too long, the mounted wheel may become loose and be ejected at high velocity.

- Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, sanding drum for cracks, tear or excess wear, wire brush for loose or cracked wires. If power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no-load speed for one minute. Damaged accessories will normally break apart during this test time.

■ Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.

- Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation.

- Hold power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

■ Always hold the tool firmly in your hand(s) during the start-up. The reaction torque of the motor, as it accelerates to full speed, can cause the tool to twist.

- Use clamps to support workpiece whenever practical. Never hold a small workpiece in one hand and the tool in the other hand while in use. Clamping a small workpiece allows you to use your hand(s) to control the tool. Round material such as dowel rods, pipes or tubing have a tendency to roll while being cut, and may cause the bit to bind or jump toward you.

■ Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning accessory.

■ Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control.

■ After changing the bits or making any adjustments, make sure the collet nut, chuck or any other adjustment devices are securely tightened. Loose adjustment devices can unexpectedly shift, causing loss of control, loose rotating components will be violently thrown.

- Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body.

- Regularly clean the power tool's air vents. The motor's fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards.

- Do not operate the power tool near flammable materials. Sparks could ignite these materials.

- Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock.

KICKBACK AND RELATED WARNINGS

Kickback is a sudden reaction to a pinched or snagged rotating wheel, sanding band, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory's rotation. For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away from the operator, depending on direction of the wheel's movement at the point of pinching. Abrasive wheels may also break under these conditions.

Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

- Maintain a firm grip on the power tool and position your body and arm to allow you to resist kickback forces. The operator can control kickback forces, if proper precautions are taken.

■ Use special care when working corners, sharp edges e Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.

- Do not attach a toothed saw blade. Such blades create frequent kickback and loss of control.

■ Always feed the bit into the material in the same direction as the cutting edge is exiting from the material (which is the same direction as the chips are thrown). Feeding the tool in the wrong direction causes the cutting edge of the bit to climb out of the work and pull the tool in the direction of this feed.

- When using rotary files, cut-off wheels, high-speed cutters or tungsten carbide cutters, always have the work securely clamped. These wheels will grab if they become slightly canted in the groove, and can kickback. When a cut-off wheel grabs, the wheel itself usually breaks. When a rotary file, high-speed cutter or tungsten carbide cutter grabs, it may jump from the groove and you could lose control of the tool.

Safety warnings specific for grinding and abrasive cutting-off operations

■ Use only wheel types that are recommended for your power tool and only for recommended applications. For example: do not grind with the side of a cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding, side forces applied to these wheels may cause them to shatter.
- For threaded abrasive cones and plugs use only undamaged wheel mandrels with an unrelieved shoulder flange that are of correct size and length. Proper mandrels will reduce the possibility of breakage.
- Do not “jam” a cut-off wheel or apply excessive pressure. Do not attempt to make an excessive depth of cut. Overstressing the wheel increases the loading and susceptibility to twisting or snagging of the wheel in the cut and the possibility of kickback or wheel breakage.
- Do not position your hand in line with and behind the rotating wheel. When the wheel, at the point of operation, is moving away from your hand, the possible kickback may propel the spinning wheel and the power tool directly at you.
- When wheel is pinched, snagged or when interrupting cut for any reason, switch off the power tool and hold the power tool motionless until the wheel comes to a complete stop. Never attempt to remove the cut-off wheel from the cut while the wheel is in motion otherwise kickback may occur. Investigate and take corrective action to eliminate the cause of wheel pinching or snagging.
- Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and carefully re-enter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in the workpiece.
■ Support panels or any oversized workpiece to minimize the risk of wheel pinching and kickback. Large workpieces tend to sag under their own weight. Supports must be placed under the workpiece near the line of cut and near the edge of the workpiece on both sides of the wheel.
- Use extra caution when making a “pocket cut” into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback.

Safety warnings specifi c for wire brushing operations

• Be aware that wire bristles are thrown by the brush even during ordinary operation. Do not overstress the wires by applying excessive load to the brush. The wire bristles can easily penetrate light clothing and/or skin.
• Allow brushes to run at operating speed for at least one minute before using them. During this time no one is to stand in front or in line with the brush. Loose bristles or wires will be discharged during the run-in time.
  ■ Direct the discharge of the spinning wire brush away from you. Small particles and tiny wire fragments may be discharged at high velocity during the use of these brushes and may become imbedded in your skin.

ADDITIONAL SAFETY WARNINGS

• Inspect for and remove all nails from the workpiece before using the product. Following this rule will reduce the risk of serious personal injury.
• Do not reach in the area of the spinning bit. The proximity of the spinning bit to your hand may not always be obvious.
  ■ The product is not intended for use as a dental drill or in human or veterinary medical applications. Serious injury may result.
• Do not grind or sand heat flammable materials. Sparks from the wheel could ignite these materials.
• Do not bend the flex shaft with a radius less than 127 mm. The risk of overheating will increase substantially.
• Clamp workpiece with a clamping device. Unclamped workpieces can cause severe injury and damage.
  Injuries may be caused, or aggravated, by prolonged use of a tool. When using any tool for prolonged periods, ensure you take regular breaks.
  ■ Ambient temperature range for tool during operation is between 0^ C and 40^ C.
  ■ Ambient temperature range for tool storage is between 0°C and 40°C.

■ The recommended ambient temperature range for the charging system during charging is between 10°C and 38°C.

ADDITIONAL BATTERY SAFETY WARNINGS

To reduce the risk of fire, personal injury, and product damage due to a short circuit, never immerse your tool, battery pack or charger in fluid or allow a fluid to flow inside them. Corrosive or conductive fluids, such as seawater, certain industrial chemicals, and bleach or bleach-containing products, etc., can cause a short circuit.
■ Ambient temperature range for battery during use is between 0°C and 40°C.
■ Ambient temperature range for battery storage is between 0°C and 20°C.

TRANSPORTING LITHIUM BATTERIES

Transport the battery in accordance with local and national provisions and regulations.

Follow all special requirements on packaging and labelling when transporting batteries by a third party. Ensure that no batteries can come in contact with other batteries or conductive materials while in transport by protecting exposed connectors with insulating, non-conductive caps or tape. Do not transport batteries that are cracked or leaking. Check with the forwarding company for further advice.

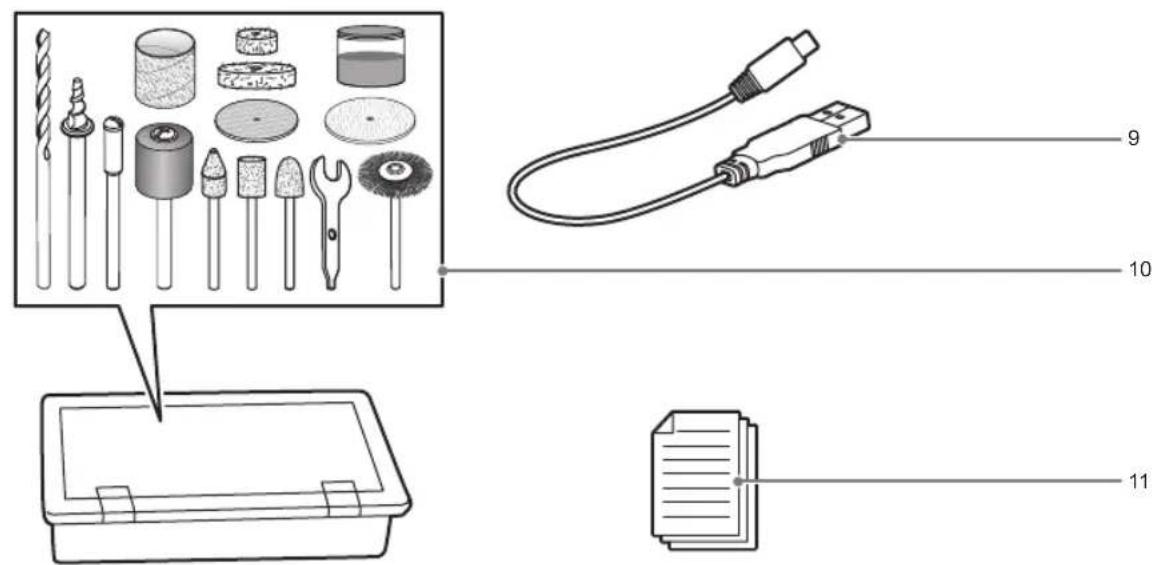

KNOW YOUR PRODUCT

See page 119.

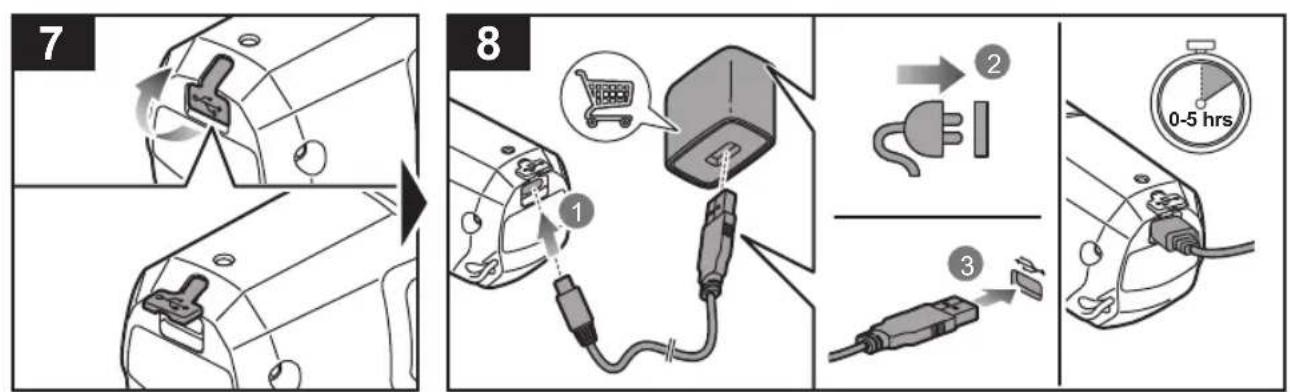

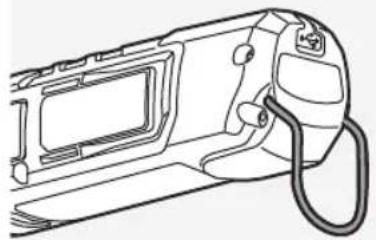

1. USB-C port

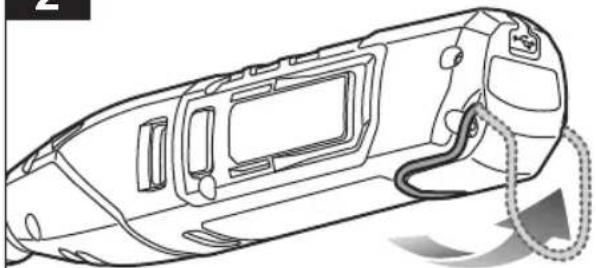

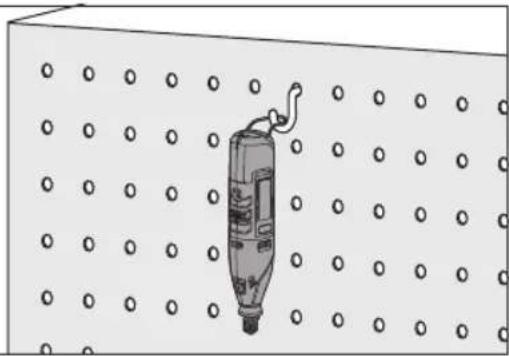

2. Tool hanger

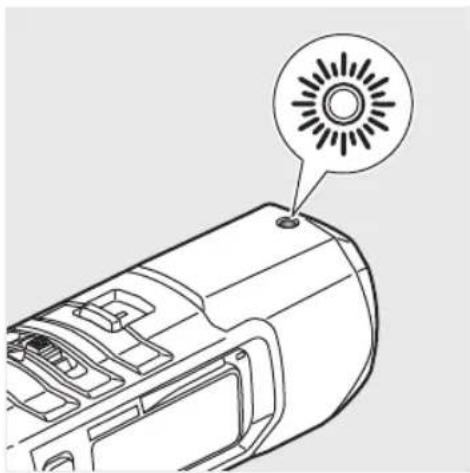

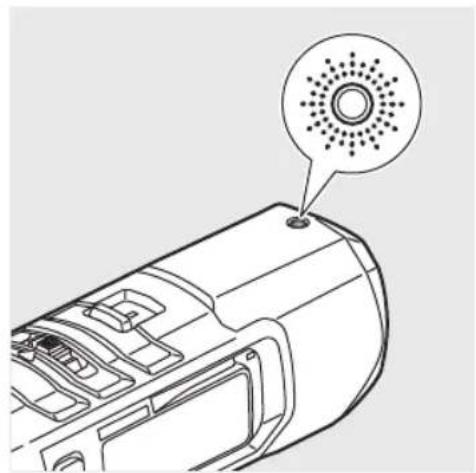

3. LED indicator

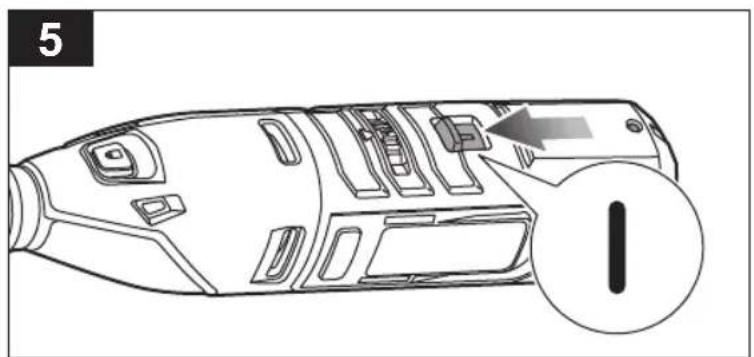

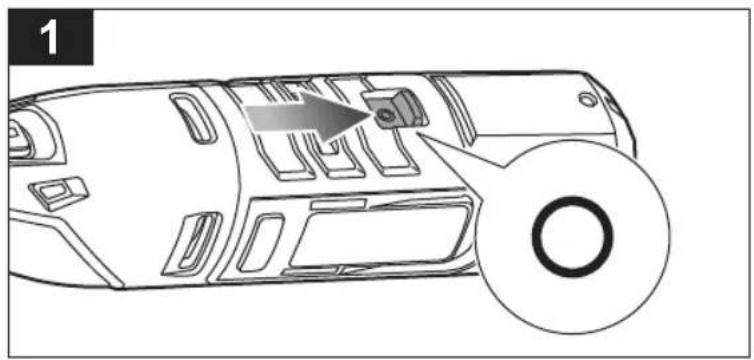

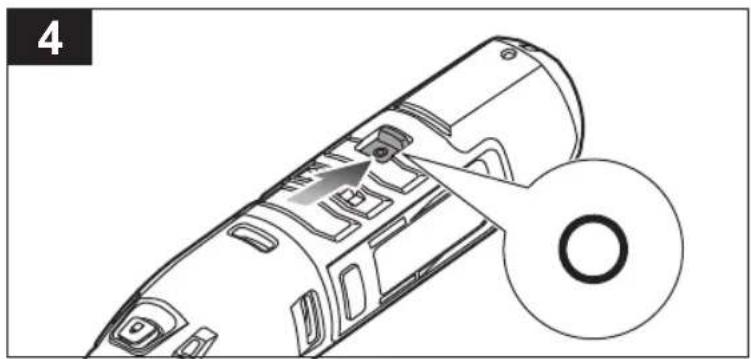

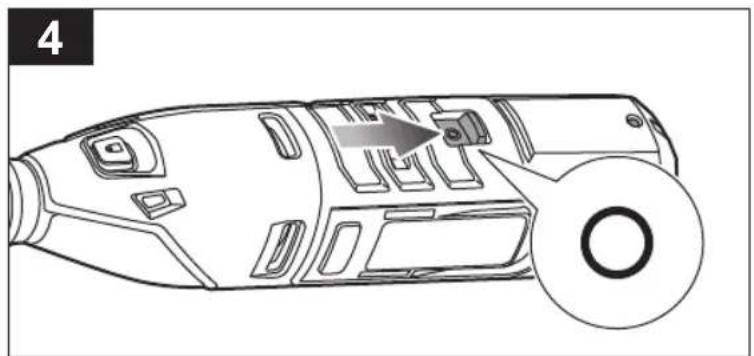

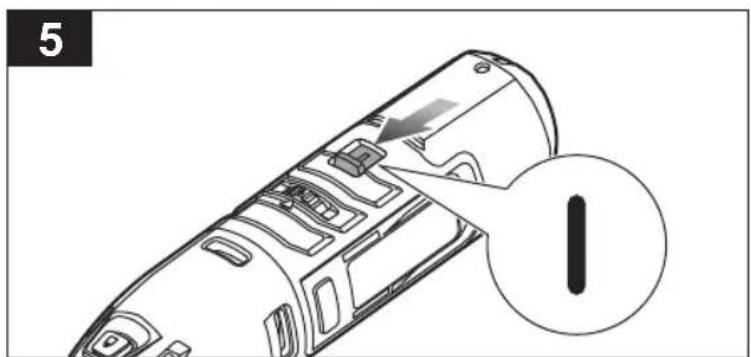

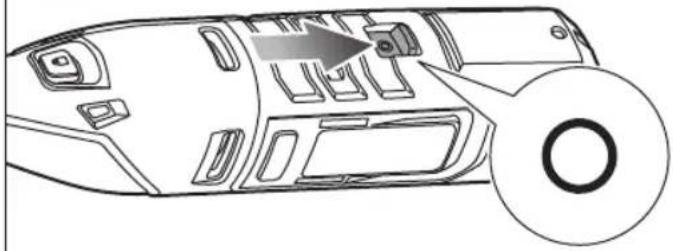

4. On/off switch

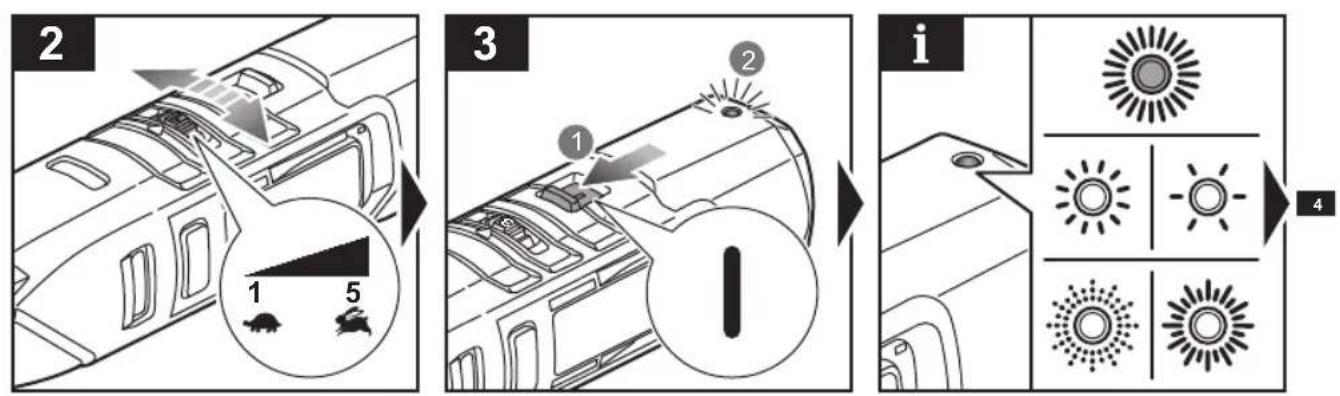

5. Variable speed Dial

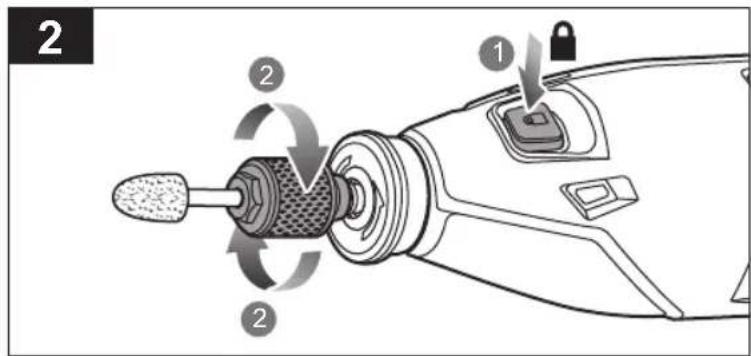

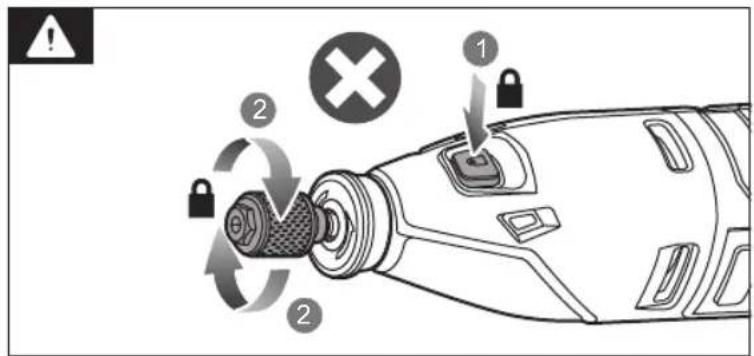

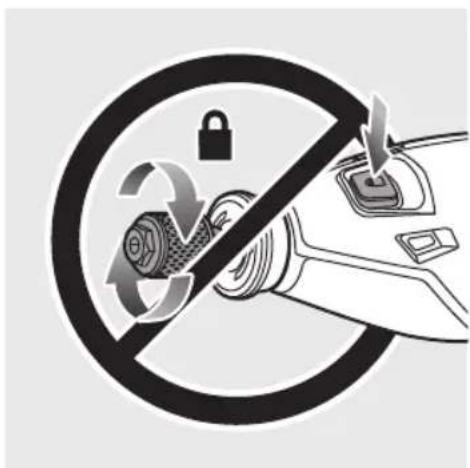

6. Spindle Lock button
7. Collar

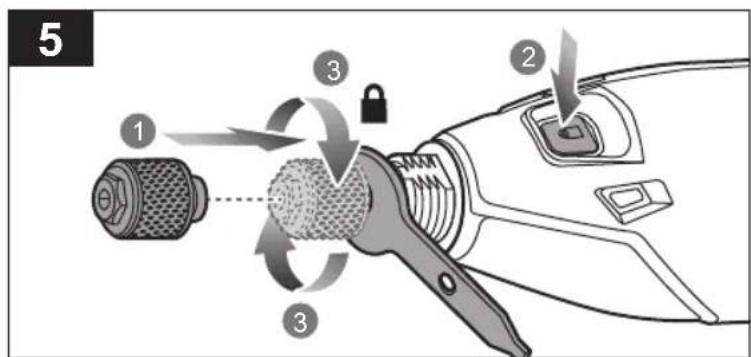

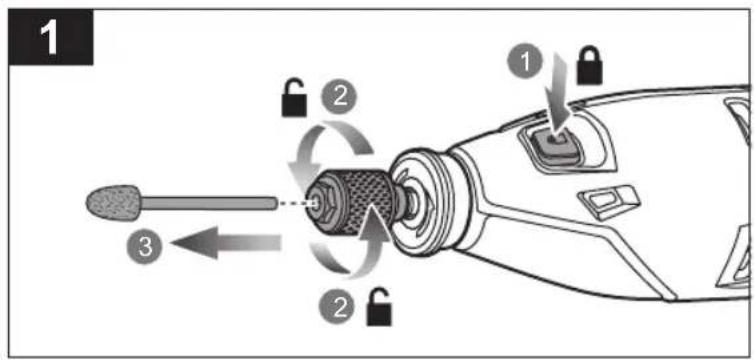

8. Quick-change collet*
9. USB cable

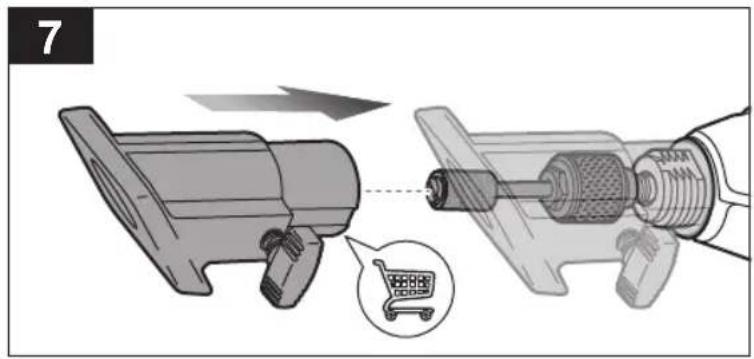

10. Accessories
11. Operator's manual
12. USB power adaptor

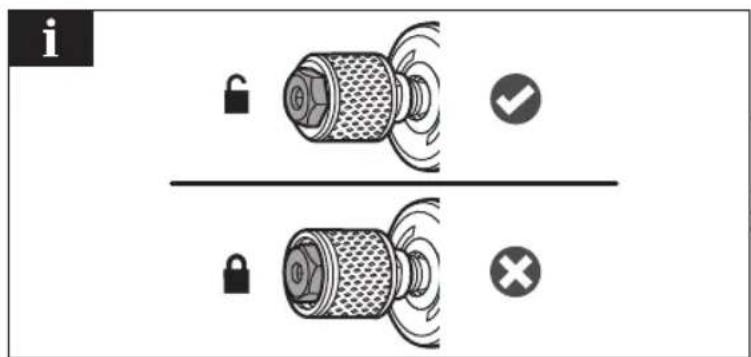

*Note:

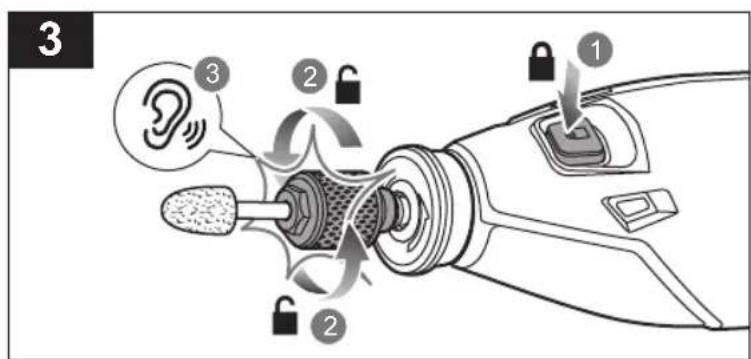

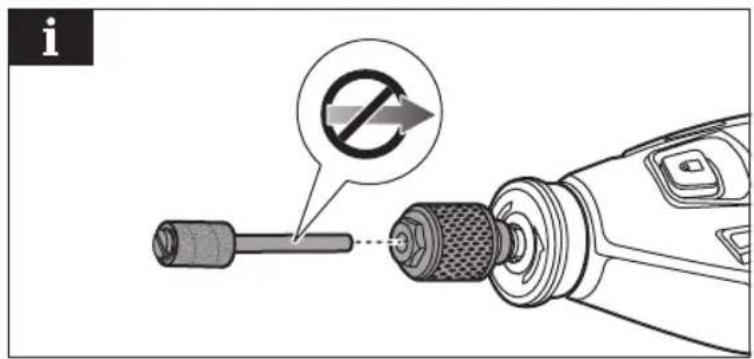

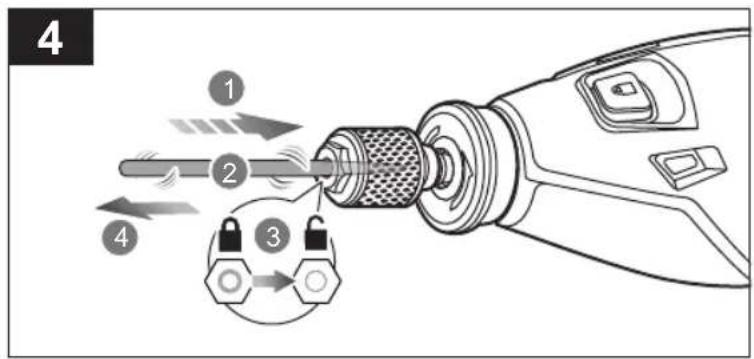

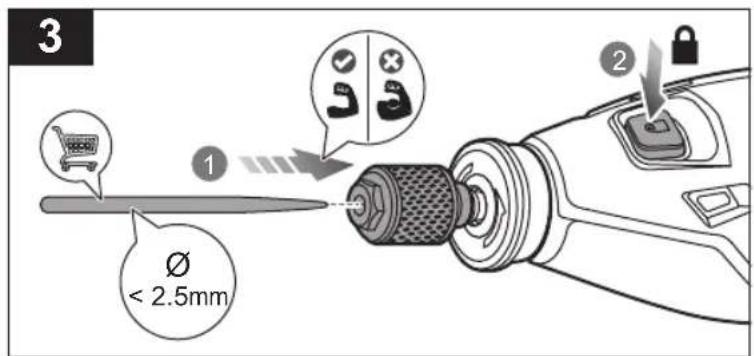

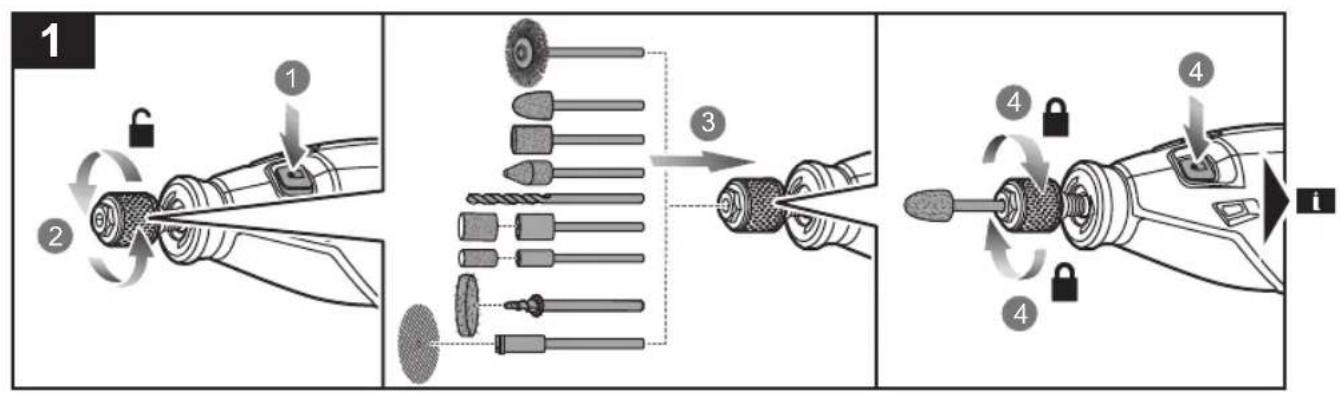

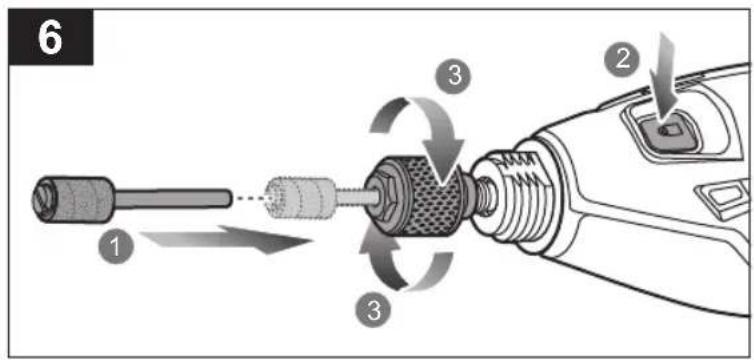

If it is not possible to insert an accessory into the quick-change collet, follow the instructions on page 128.

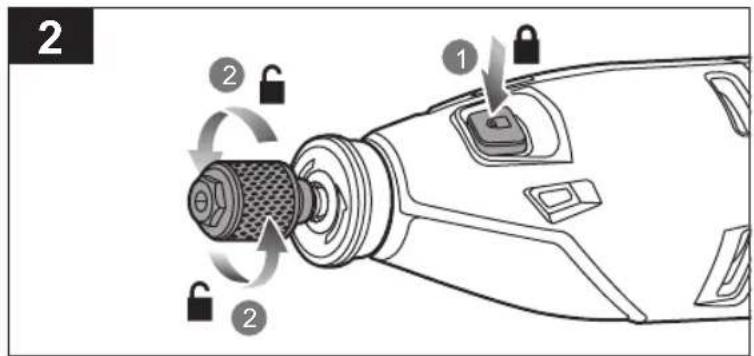

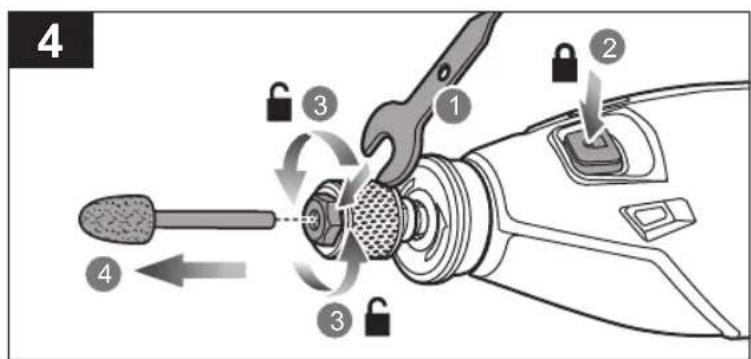

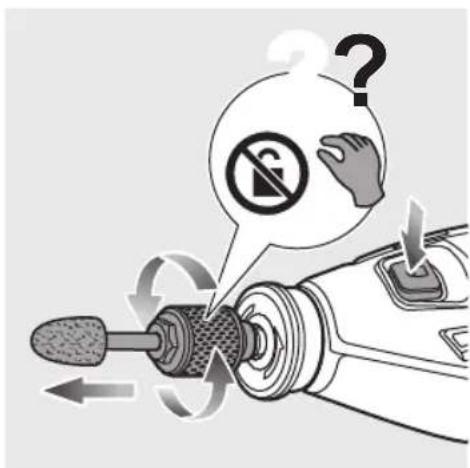

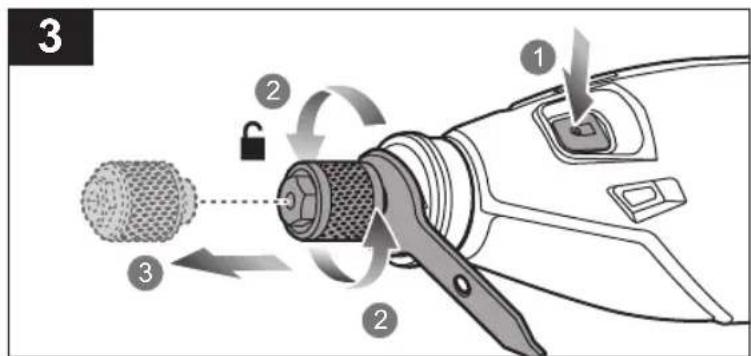

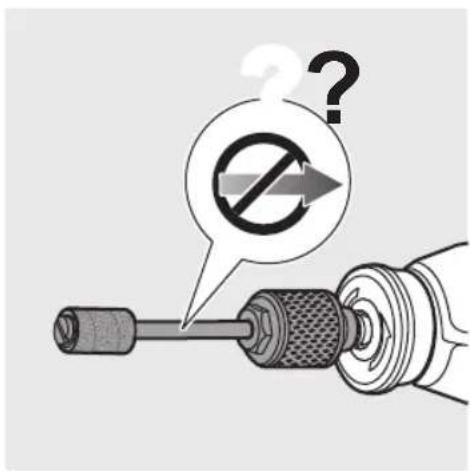

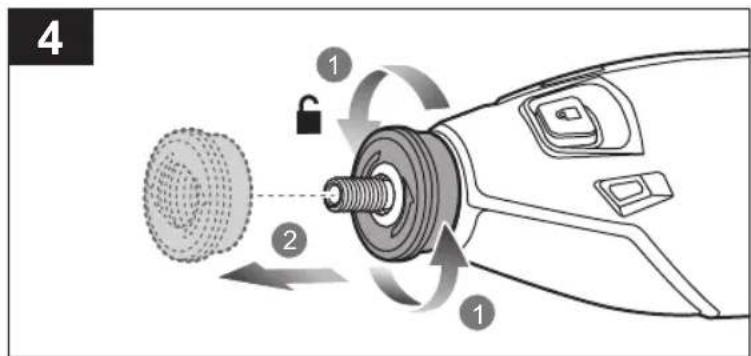

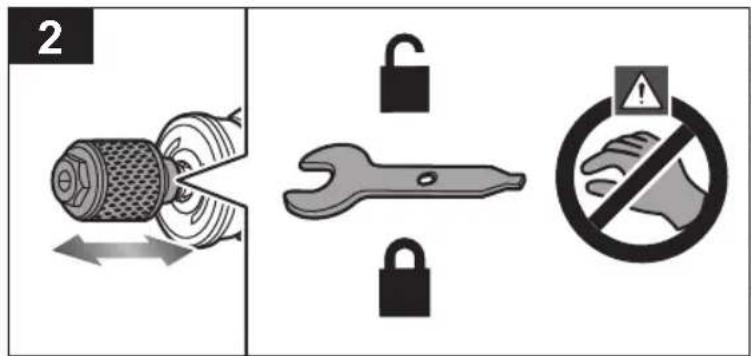

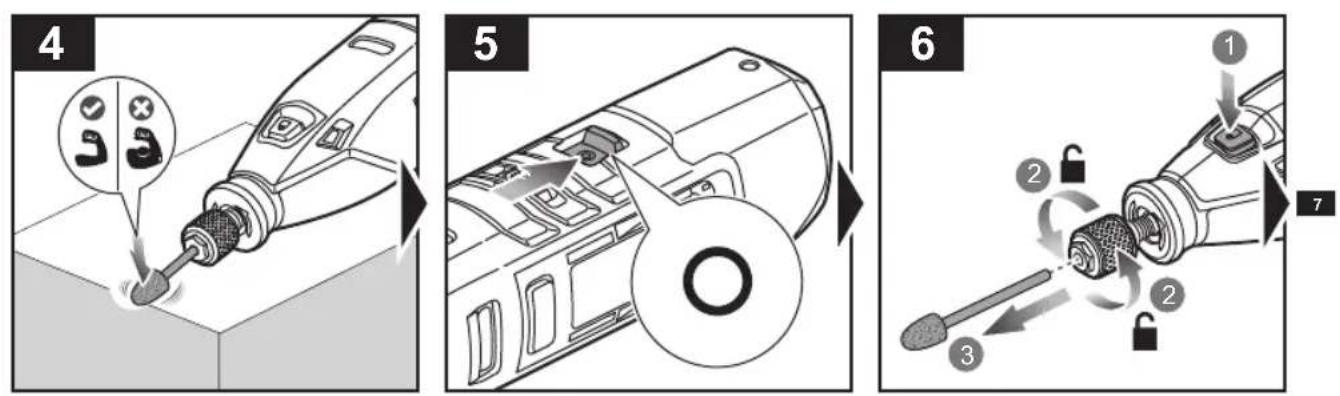

If it is not possible to release an accessory from the quick-change collet, using the provided wrench, follow the instructions on page 129.

MAINTENANCE

The product should never be connected to a power supply when assembling parts, making adjustments, cleaning, performing maintenance, or when the product is not in use. Disconnecting the product from the power supply will prevent accidental starting that could cause serious injury.
- When servicing, use only original manufacturer's replacement parts, accessories and attachments. Use of any other parts may create a hazard or cause product damage.
- Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, carbon dust, etc.
- Do not at any time let brake fluids, gasoline, petroleum-based products, penetrating oils, etc., come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which may result in serious personal injury.
■ For greater safety and reliability, all repairs should be performed by an authorised service centre.

SYMBOLS

Safety alert

Without force

With force

Stop the product.

Direct current

Solid Green - Charged

Solid Red - Low Battery (5- 25%)

Flashing Red (3 Flashes) - Low Battery (0-5%)

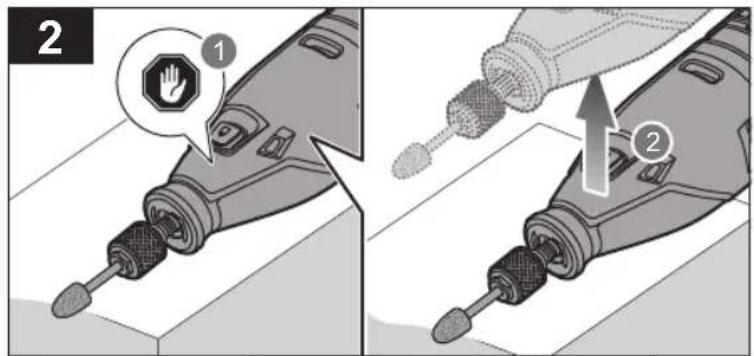

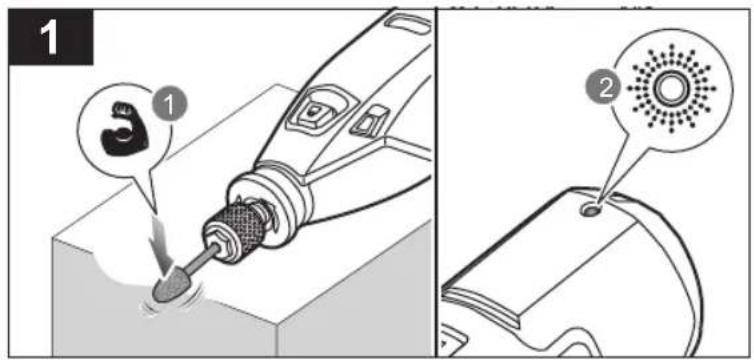

Flashing Red (6 Flashes) - Overload Protection

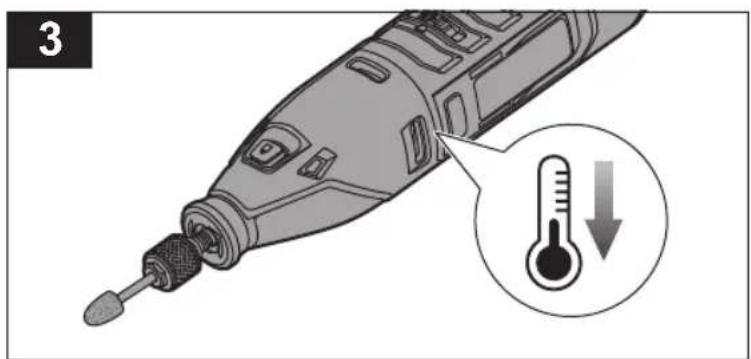

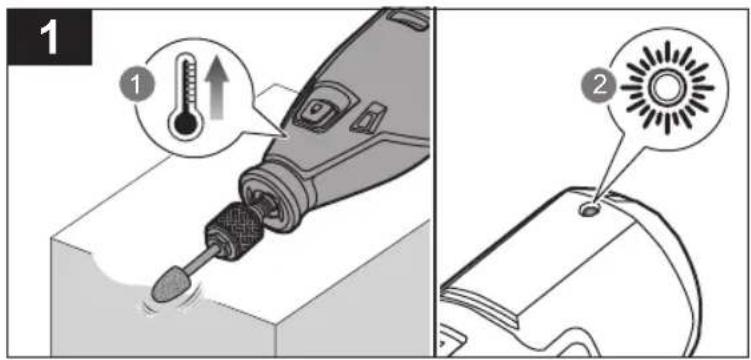

Flashing Red (9 Flashes) - High Temperature Protection

Please read the instructions carefully before starting the product.

Wear eye protection

Wear dust mask

Secure long hair above shoulder level to prevent entanglement in moving parts.

The product contains a Li-ion battery, which is not removable. Do not dispose of the product as unsorted municipal waste. The product must be collected separately. Check with your local authority or retailer for recycling advice and collection point. According to local regulations, retailers may have an obligation to take back the product free of charge. Your contribution to the reuse and recycling of waste batteries and waste electrical and electronic equipment helps to reduce the demand of raw materials. Waste batteries, in particular containing lithium, and waste electrical and electronic equipment contain valuable and recyclable materials, which can adversely impact the environment and the human health if not disposed of in an environmentally compatible manner. Delete personal data from waste equipment, if any.

SPEED DIAL SETTINGS*

Speed
1	2	3	4	5
5000 RPM 12500 RPM	20000 RPM 27000 RPM	35000 RPM

Type of Accessory Soft Wood Hard Wood		Laminates Plastics	Steel	Aluminum, Brass, Etc.	Shell / Stone	Ceramic Glass
Cut-off Discs	15-35K 15-35K 5-15K 35K	35K — — —
Fiberglass Cut-off Wheel	15-35K 15-35K 5-15K 35K	35K — — —
Sanding Drums	15-35K 15-35K 5-15K 15-35K	15-35K	— —
Felt Polishing Wheels	5-15K	5-15K	5-15K	5-15K	5-15K	5-15K	5-15K
Aluminum Oxide Grinding Stones	15-35K 15-35K 5-15K 15-35K	15-35K	— —	—
Silicon Carbide Grinding Stone	—	—	—	15-35K	15-35K	15-35K	—
Drill Bit	35K	35K	15-35K	35K	35K	—	—
Drywall Cutting Bit	35K (Drywall only)

* The settings provided in the chart are recommendations for operating ranges for best performance.

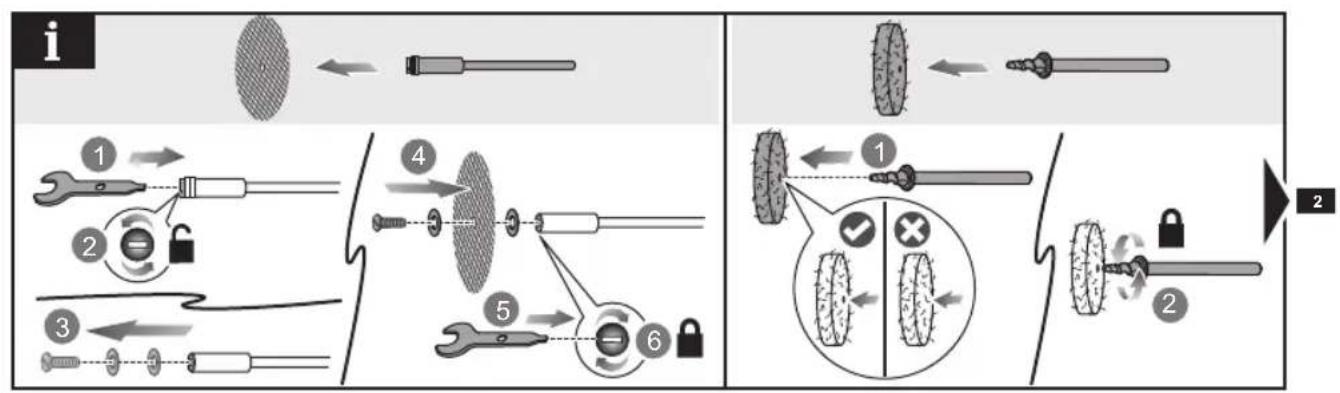

ACCESSORY

Figure Accessory Application			Maximum RPM*
	Drum sander mandrel (Ø 12.7 mm)(Ø 3.2 mm shank/collet)	Attaching to sanding drums 35K
	6.4 mm x 12.7 mm sanding drums(60 grit, 120 grit, 240 grit)used with Drum sander mandrel	Sanding wood 35K
	6.35 mm Pointed grinding stone9.5 mm Conical grinding stone9.5 mm Cylinder grinding stone	Grinding metal 35K
	3.2 mm High speed steel drill bit Drilling	35K
	Screw mandrel (Ø 3.2 mm shank/collet)	Attaching to polishing wheels 15K
	12.7 mm & 25.4 mm Felt polishing wheelsused with Screw mandrel	Polishing and buffi ng metals,stone, glass and ceramics	15K
	Standard Rotary Mandrel (Ø 3.2 mmshank/collet)	Attaching to cut-off discs and cut-off wheels	35K
	24 mm x 0.8 mm Cut-off discs	Cutting nails, screws, thin metal,wood, and plastic	35K
	32 mm x 0.8 mm Fiberglass cut-offwheel	Cutting and trimming metals,plastics and ceramics	35K
	Wire brush wheel Brushing metal 15K

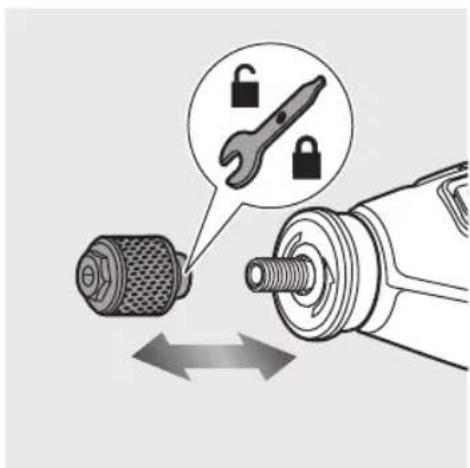

	Wrench	Removing and inserting accessorybits	—
	Polishing compound	Polishing and brightening metalsand plastics.	—

*The maximum RPM provided in the chart are recommended values only.

MACHEN SIE SICH MIT IHREM PRODUKT VERTRAUT

Siehe Seite 119.

DODATNA VARNOSTNA OPOZORILA

OBOZNÁMTE SA S VAŠÍM PRODUKTOM

Vid' strana 119.

1. Port USB-C
2. Vešiak náradia
3. Indikátor LED
4. Hlavný spínač
5. Otočný regulátor volitel'ných otáčok
6. Tlačidlo blokovania vretena
7. Golier
8. Rýchloupínacia objímka*

9. USB kábel

10. Príslušenstvo

11. Návod na obsluhu
12. Napájací USB adaptér

*Poznámka:
