USER MANUAL Passion Clear II HAMA

Line drawings of wireless earbuds and charging case designs (no text or symbols)

GB Operating Instructions D Bedienungsanleitung F Mode d'emploi E Instrucciones de uso

NL Gebruiksaanwijzing I Istruzioni per l'uso PL Instrukcja obsługi H Használati útmutató

RO Manual de utilizare CZ Návod k použití SK Návod na použitie P Manual de instruções

GB Operating Instructions

Thank you for choosing a Hama product.

Take your time and read the following instructions and information completely. Please keep these 2 instructions in a safe place for future reference 3 you sell the device, please pass these operating 4 instructions on to the new owner.

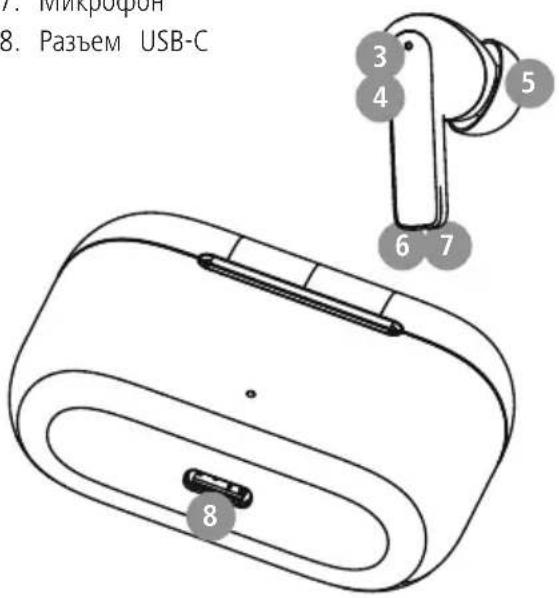

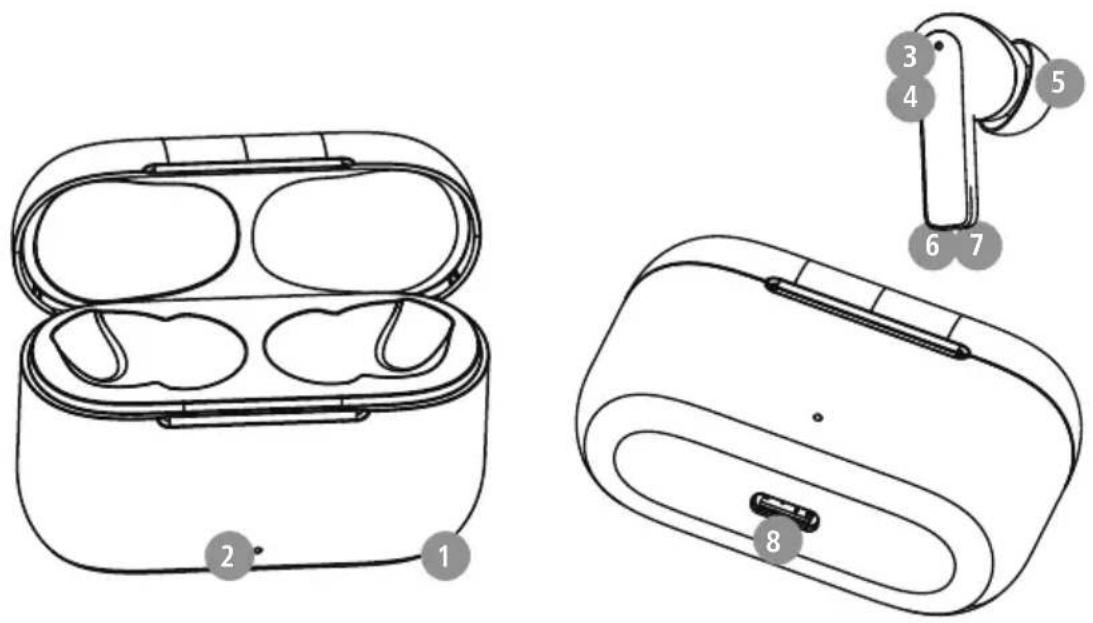

Controls and displays

1\$ . Charging box
2. Charging box status LED
3. Earphones status LED
4. Multi-function touch sensor
5. Silicone ear pads
6. Charging contacts
7. Microphone
8. USB-C connection

Technical diagram of an wireless earbuds with numbered labels indicating component layout

1. Explanation of warning symbols and notes

Warning

This symbol is used to indicate safety instructions or to draw your attention to specific hazards and risks.

Note

This symbol is used to indicate additional information or important notes.

The power delivered by the charger must be between 0 Watts required by the radio equipment, and max.2 Watts in order to achieve the maximum charging speed.

The standardised USB interface means that a charger with a higher output power can also be used.

2. Package contents

1 x "Passion Clear II" True Wireless Bluetooth

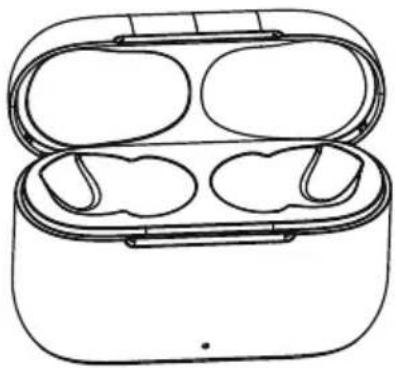

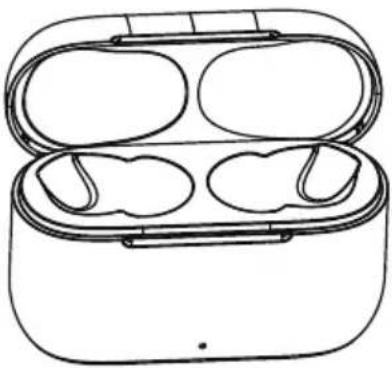

1x charging box
1x USB-C charging cable
3 pairs of ear pads in various sizes (S/M/L)
1x quick guide
1x warning and safety instructions

Two identical line drawings of mechanical components with no text or symbols

Line drawing of an open electronic device with four compartments (no text or symbols)

3. Safety instructions

• The product is intended for private, non-commercial use only

- Use the product only for the intended purpose.

• Children should be supervised to ensure that the do not play with the product

- Do not use the product in areas in which electronic products are not permitted

- Do not attempt to service or repair the product yourself. Leave any and all service work to qualified experts

- Do not open the device or continue to operate it becomes damaged

- Do not bend or crush the cable.

- Do not drop the product and do not expose any major shocks.

- Dispose of packaging material immediately in accordance with the locally applicable regulations.

- Do not modify the product in any way. Doing voids the warranty

- Protect the product from dirt, moisture and overheating and use it in dry environments only

- Do not use the product in the immediate vicinity of heaters, other heat sources or in direct sunlight

- Only use the article under moderate climatic conditions.

- As with all electrical products, this device should be kept out of the reach of children

- Do not operate the product outside the power limits given in the specifications

- Do not use the product in a damp environment, and avoid splashing water

- While driving a car or using sports equipment, do not allow yourself to be distracted by your product and keep an eye on the traffic situation and your surroundings.

- The battery is permanently installed and cannot be removed; dispose of the product as a whole accordance with the statutory regulations

- Do not incinerate the battery or the product.

• Do not tamper with or damage/heat/disassemble the batteries/rechargeable batteries
• Do not use the product during the charging process!

eWarning - rechargeable battery

• Only use suitable charging devices or USB ports to charge the product.
• Do not use defective chargers or USB ports and do not attempt to repair them.
• Do not overcharge the product or allow the battery to completely discharge.
• it Avoid storing, charging and using in extreme temperatures and at extremely low atmospheric pressures (such as at high it abitudes).
• When stored over a long period of time, batteries should be charged regularly (at least every three months).

Warning - magnets

- This product generates magnetic fields. Individuals with cardiac pacemakers should consult a doctor before using this product as it may affect the pacemaker's proper function.

Do not store bank or similar cards with magnetic strips near the charging box or earphones. The data on the cards could be damaged or completely deleted.

Warning - high volume

• High sound pressure!
• There is a risk of hearing damage.
• To prevent any loss of hearing, avoid listening at loud volumes for prolonged periods.

doAlways keep the volume at a reasonable level.

uctloud volumes can damage hearing – even ouver short periods.

• Using this product limits your perception of ambient noise. You should therefore not

inoperate

vehicles or

machines while using them

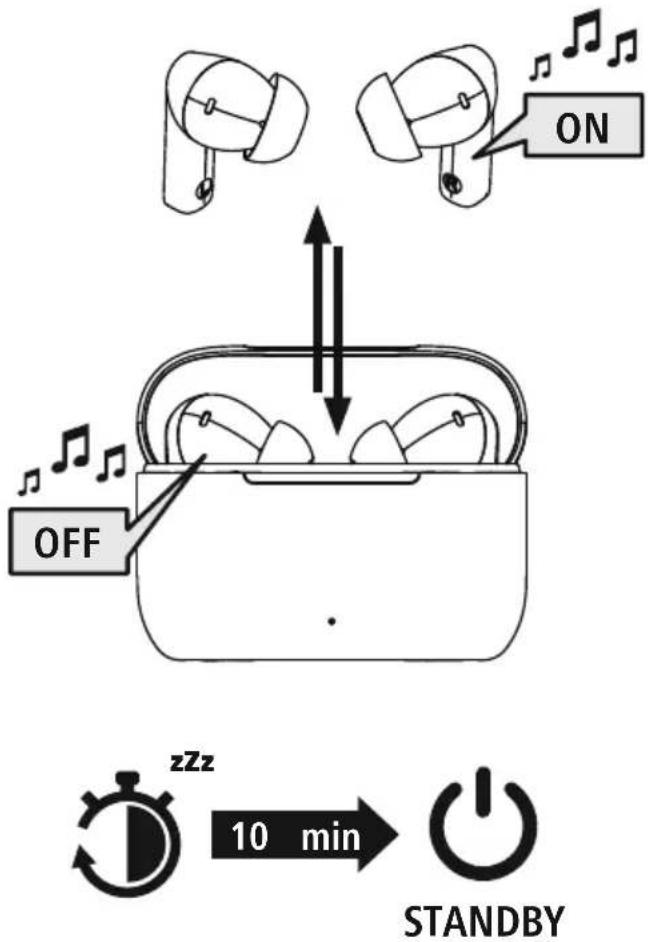

4. Switching on/off

When they are removed from the charging box, the earphones switch on automatically and start the pairing process.

Alternative:

Tap the multifunction touch sensor (4) once to switch on the earphones. You will hear the announcement "Power On".

To switch them off, simply place the earphones back in charging box. Ensure that the earphones are inserted into the correct sides, using the L/R markings as a guide.

Alternative:

With the earphones switched on, hold the multi-function touch sensor (4) on the left or right earphone down for approx. 5 seconds until you hear the announcement "Power Off".

ON OFF zzz 10 min STANDBY

Note - Automatic switch-off of the earphones

The earphones are equipped with an automatic switch-off mechanism there is no connection to your device within 10 minutes, they switch off automatically.

5. Charging

Note

Remove any protective films from the earphones' charging contacts before charging them for the first time.

Fully charge the earphones and the charging box once before using them for the first time.

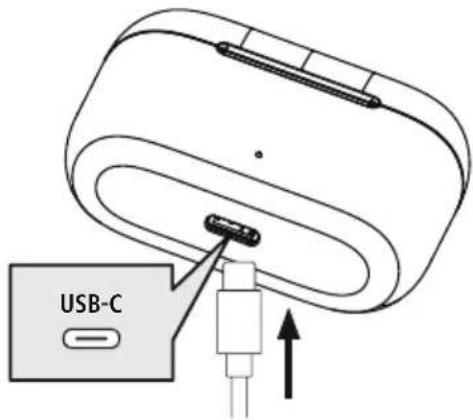

1 Insert the earphones and connect the charging box

USB-C

Place the earphones in the charging box. Ensure that the earphones are inserted into the correct sides, using the L/R markings as a guide.

Connect the USB-C charging cable included to the charging socket (8) on the charging box

Connect the free plug on the USB-C charging cable to a suitable USB charger. To do this, consult the operating instructions for the USB charger you are using.

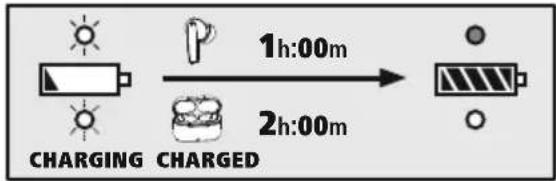

2 Charging procedure for the charging box and earphones

The status LED on the charging box (2) lights up white during the charging process. After the charging box is fully charged, the LED (2) on the charging box lights up solid white.

Once the connection to the charging cable has been cut, the LED (2) on the charging box goes. The status LEDs (3) of the earphones light up solid white during the charging process. Once the earphones are fully charged, the status LEDs (3) go out.

It can take up to 1 hour (earphones) or up to 2 hours (charging box) until the batteries are fully charged.

1h:00m 2h:00m CHARGING CHARGED

3 Battery capacity

Charging box

When battery levels are low, the LED (2) flashes.

Earphones

When the battery level is low (< 10%), the Battery Low announcement is made every 10 minutes and the LED (3) flashes twice every 5 seconds.

The actual battery life varies depending on the use of the device, the settings and the environmental temperatures (batteries have a limited service life).

Note

If you have not used the device for a few months, it can take up to 15 - 30 minutes until status LED (2/3) lights up white during the charging process

6. Bluetooth pairing

Note - pairing

• Ensure that the Bluetooth-enabled device is switched on and that the Bluetooth is activated.
• Please refer to the operating instructions of your device for more information.

The earphones and the device should not be more than 1 metre apart. The shorter the distance, the better.

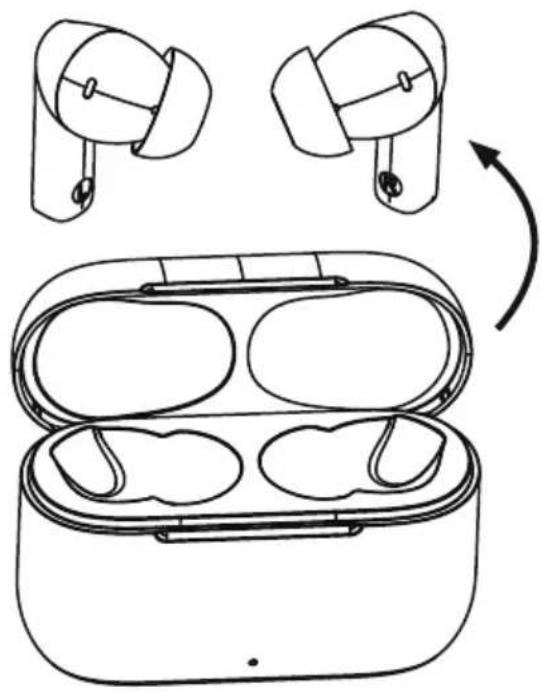

Ensure that the earphones are switched on.

Line drawing of an open earbuds with a device, showing the internal components and a curved arrow indicating rotation (no text or symbols)

1 Check the status of the status LED (3)

If the status LED (3) of an earphone is flashing and the announce "Pairing" is heard:

the earphones are searching for a Bluetooth connection.

LED OFF

If the status LED (3) goes out and the announcement "Connected" is heard:

the earphones are already paired with a Blu® device.

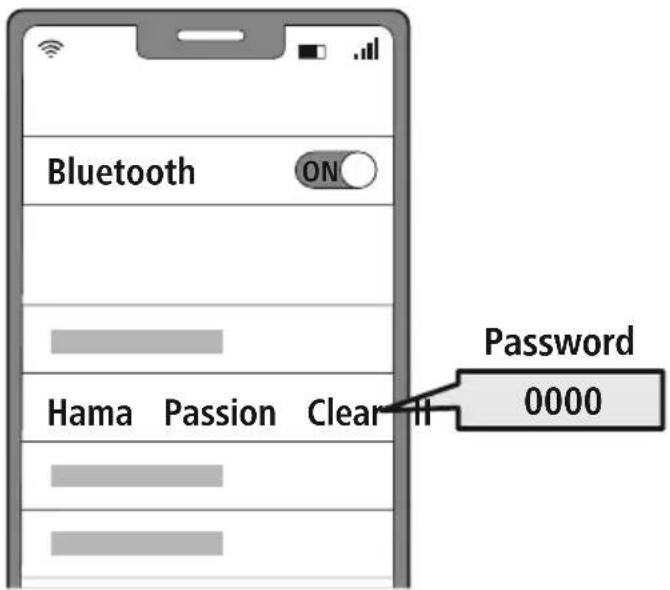

2 Search using your device for the earphones (only required on the first connection)

Open the Bluetoothsettings on your device and wait until the list of found Bluetooth shows Hama Passion Clear II

Select Hama Passion Clear II and wait until the earphones are shown as connected in your device's Bluetooth® settings. You will hear a brief signal tone.

Bluetooth ON Password 0000 Hama Passion Clear Fill

Note - Bluetooth®password

Some devices require a password in order to connect to another ^® deviceeth

- If your device requests a password to connect to the headphones, enter 0000.

6.1 Reset function

If you only want to reset the app settings of the earphones (changed button functions, changed device name, etc.) to the factory settings, you can do this directly in the app (Settings).

To completely reset the earphones to factory settings, first disconnect the Bluetooth ^® connection between the earphones and your device

Then delete the earphones from the app (tap the pencil icon - select "Remove device" in the menu that appears) and from tBluetooth® profile of your device.

RESET

Finally, tap the multi-touch sensor (4) on the left or right earphone eight times You will hear a brief signal sound twice.

The earphones have now been reset to the factory settings

and all settings and saved connections have been deleted.

7. Control elements

Note

• Please be aware that your terminal device must support some functions if they are to be used.
• Please refer to the operating instructions of your device for more information.

7.1 Voice assistant function

Siri/Google

Tap the multi-function touch sensor (4) on the left or right earphone twice to initiate communication with your Siri or Google Assistant You will hear a brief signal tone.

Note - Siri

Siri is only available on suitable devices running iOS 5 (iPhone 4s or later) or higher.

Note - Google Assistant

• The Google Assistant is only available on suitable devices running Android 5.0 or higher with Google Play Services, >1.5 GB of free memory and a minimum screen resolution of 720P.
• The Google Assistant App must be available on your device and be set as the default voice assistant.

7.2 ANC function

The earphones are equipped with an Active Noise Cancelling function (ANC) to reduce unwanted ambient noise. If ANC is activated, noise can be reduced by up to -23dB.

ANC ON/OFF

Tap the multi-function touch sensor (4) on the left earphone three times to switch ANC on .orYouff will hear an announcement of the selected ANC mode.

7.3 Hands-free function

It is possible to use the earphones like a hands-free facility for your device.

1 Make a call

Dial the number directly via your device to make a call.

2 Accept a call

Diagram showing a phone call icon, a hand gesture labeled '1x', and a wireless ear icon with signal symbol.

Tap the multi-function touch sensor (4) on the left or right earphone once during the call to accept an incoming call.

3 Reject a call

× 1-2s

To reject an incoming call, tap and hold the multi-function touch sensor (4) on the left or right earphone for around 1 seconds.

4 End a call

Diagram showing a call with a downward arrow, a hand icon labeled '1x', and a microphone icon.

During the call, tap the multi-function touch sensor (4) on the left or right earphone to end the call. You will hear a brief signal tone

5 Last number redial

You can redial the last number you called via the voice assistant function (7.1).

7.4 Audio playback

1 Start playback on your device.

2 Play / Pause

1x

Tap the multi-function touch sensor (4) on the left or right earphone once to start or stop audio playback.

3 Next track

1-2s R

Tap and hold the multi-function touch sensor (4) on the right earphone for 1-2 seconds to skip to the next track.

4 Previous track

Icon set with left-pointing arrow, play button, and time indicator showing 1-2s

Tap and hold the multi-function touch sensor (4) on the left earphone for 1-2 seconds to skip to the previous track.

5 Equaliser

EQ 3x R

Press the multi-function touch sensor (4) on the right earphone three times to change the set equaliser mode. You can choose between 3 EQ modes (Bass/Vocal/Equal) on the headset. You hear an announcement of the EQ mode selected in each case you can select other modes via the APP on your smartphone.

7.5 Volume control

The volume is controlled by the voice assistant function (7

Alternatively, you can also control the volume via your device.

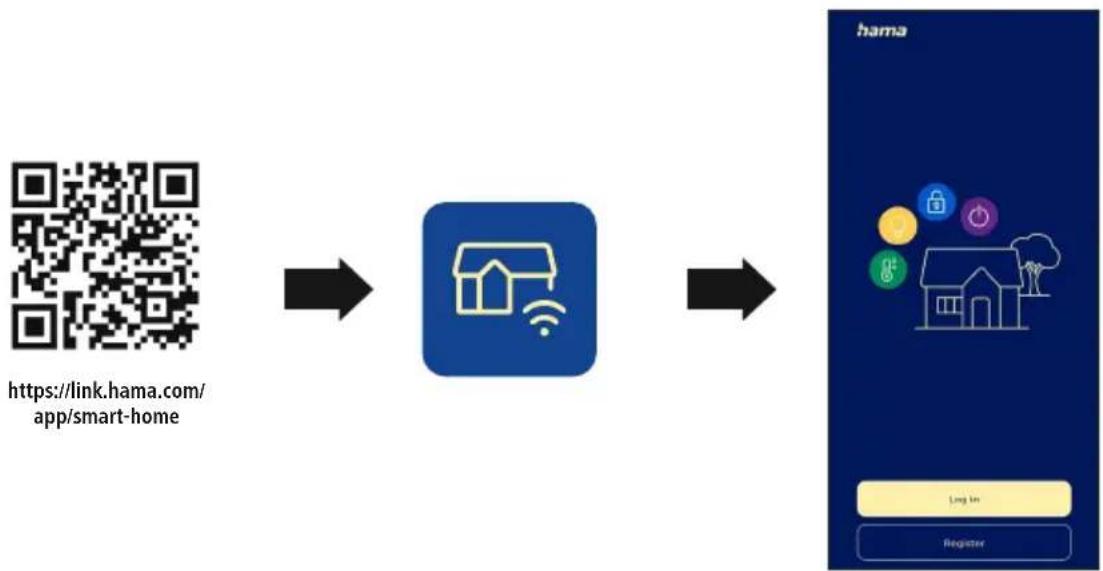

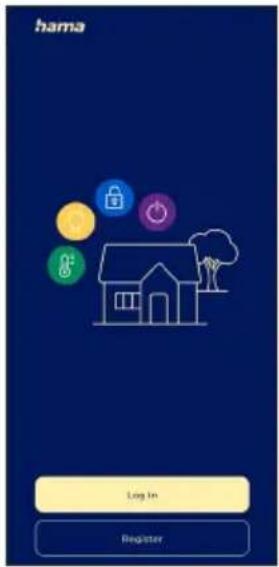

8. Installing the app

- Download the "Hama Home" app using the QR code and install it.

8.1 Integrating the product into the Hama Home app

Note

The earphones must first be connected to your smartphone via BT (see. chapter 6)

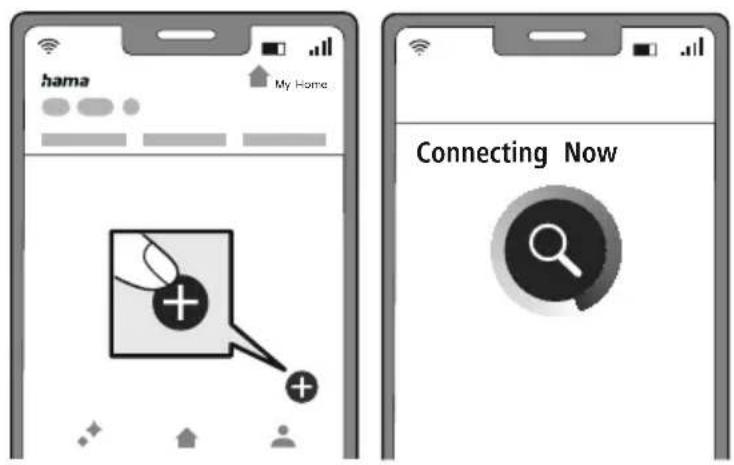

• After installing the app, tap on "Add device" or the "+" sign

1 • Open the app. Your earphones are automatically suggested as a device to add.
- Alternatively, you can tap on "Add device" or "+"
- Select the displayed headphones Hama Passion Clear II by tapping "Add".

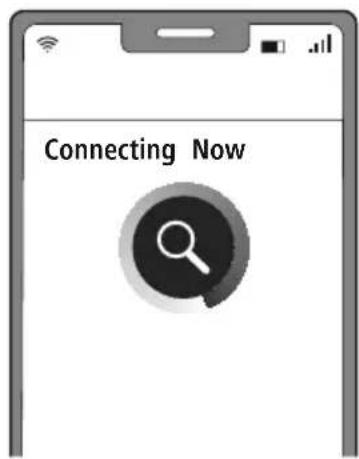

hama My Home Connecting Now

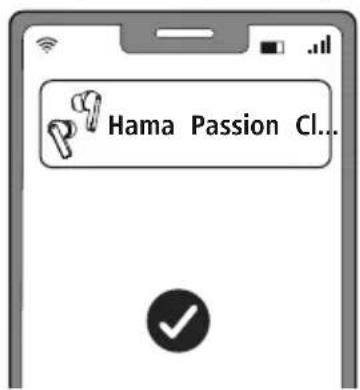

2 • Complete the process by tapping "Finish".

Hama Passion Cl...

3

• The headphones are now successfully connected to the app

Telekom.de 07:12 G 89 % Hello! L 98% R 98% Ambient Sound Commuting Find it • online EQ Default Custom Keys Settings

Ambient Sound

You can easily set the various noise cancelling options via the Ambient Sound menu.

EQ

The EQ menu provides 9 different preset sound profiles and also gives you the option of making your very own sound settings.

Settings

Various system settings can be made in this menu, setting a switch-off timer, changing the BT name, resetting to factory settings.

Find it

The Find It function can help you find your earphones again by showing you where your earphones last connected to your smartphone.

Custom Keys

The Custom Keys section allows you to customise the touch commands to your preference.

∠ Pencil - Further settings and system information

In this menu, you can make further settings and call up additional system information.

Note

Settings via the app are only possible while the earphones are connected to your device via Bluetooth.

1. Technical data

Bluetooth® earphones
Bluetooth technology Bluetooth ® v5.3
Supported profile A2DP V1.3,	AVRCP V1.6, HFP V1.7, HSP
Frequency for Bluetooth Transfers	2402 - 2480MHz
Reach < 10 m
Battery
Battery type 3	.7V Li polymer
Min. capacity Earphones / charging box	37 mAh / 450mAh
Charging box current consumption	max. 5 ¥-350mA
Earphones charging time ~	1 h
Charging box charging time ~ B
Standby * ~ 150 d
ANC -23 dB
Talk time/music time (charging box) / ANC on*	~4 h (+12 h)
Talk time/music time (charging box) / ANC off*	~5 h (+15h)
ANC on ~ 8 h (+24h)
Weight of earphones approx.	4 g per earphone
Weight of charging box incl. earphones	approx. 45 g

* Once fully charged

10. Care and maintenance

Only clean this product using a lint-free, slightly damp cloth and do not use any harsh cleaners.

11. Warranty disclaimer

Hama GmbH & Co KG assumes no liability and provides no warranty for damage resulting from improper installation/mounting, improper use of the product or from failure to observe the operating instructions and/or safety notes

12. Service and support

Please contact Hama Product Consulting if you have any questions about this product.

Hotline: [phone] (German/English)

Further support information can be found here:.hama.com

13. Declaration of conformity

CE Hama GmbH & Co KG hereby declares that the radio equipment type [00221771, 0022177] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following Internet address:

https://support.hama.com/00221771,

https://support.hama.com/00221772

Frequency band(s) 2402MHz - 2480MHz

Maximum radio-frequency power transmitted 2.5mW

14. Specifications according to Regulation (EU) 2023/826

Information regarding energy consumption can be found at:

https://support.hama.com/00221771,

https://support.hama.com/00221772

Technical diagram of an wireless earbuds with numbered labels indicating component layout

Two identical line drawings of mechanical components with no text or symbols

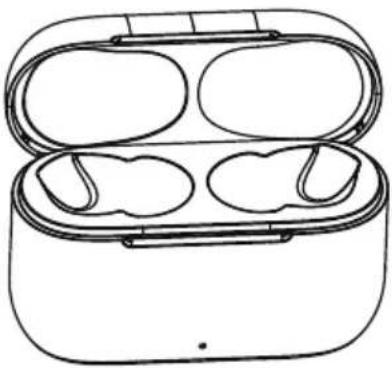

Line drawing of an open electronic device with four compartments (no text or symbols)

1h:00m 2h:00m CHARGING CHARGED

3 Akkukapazität

Ladebox

Line drawing of an open earbuds with a device inside, showing the internal compartments and a curved arrow indicating rotation (no text or symbols)

Icon set showing a telephone handset, hand gesture, and a 1x multiplier arrow pointing to a microphone.

Diagram showing a call with a downward arrow, a hand icon labeled '1x', and a microphone icon.

Icon set with left-pointing arrow, play symbol, and directional arrow labeled '1-2s'

Hama Passion Cl...

3

https://support.hama.com/00221771,

https://support.hama.com/00221772

https://support.hama.com/00221771,

https://support.hama.com/00221772

F Mode d'emploi

Technical diagram of an wireless earbuds with numbered labels indicating component layout

Two identical line drawings of mechanical components with no text or symbols

Line drawing of an open electronic device with four compartments (no text or symbols)

1h:00m 2h:00m CHARGING CHARGED

Line drawing of an open wireless earbuds with a device inside, showing the internal compartments and a curved arrow indicating rotation (no text or symbols)

Remarque - Assistant Google

Icon set showing a phone with an upward arrow, a hand pointing to it, and a 1x speed indicator next to a device icon.

Diagram showing a call with a downward arrow, a hand pointing to the number '1x', and a pair of earbuds.

Icon set with playback control, left arrow, and time indicator showing 1-2 seconds

hama Log In Register

hama My Home Connecting Now

Hama Passion Cl...

3

https://support.hama.com/00221771,

https://support.hama.com/00221772

https://support.hama.com/00221771,

https://support.hama.com/00221772

Technical diagram of an wireless earbuds with numbered labels indicating component layout

Two identical line drawings of mechanical components with no text or symbols

Line drawing of an open electronic device with four compartments (no text or symbols)

1h:00m 2h:00m CHARGING CHARGED

Line drawing of an open earbuds with a device, showing the internal components and a curved arrow indicating rotation (no text or symbols)

Diagram showing a telephone icon with an '1x' speed indicator and a hand icon, next to a device labeled 'P'

Diagram showing a call with a downward arrow, a hand icon labeled '1x', and a microphone icon.

Icon set with left-pointing arrow, speaker symbol, and time-lapse indicator showing 1-2 seconds

hama My Home Connecting Now

Hama Passion Cl...

3

https://support.hama.com/00221771,

https://support.hama.com/00221772

https://support.hama.com/00221771,

https://support.hama.com/00221772

Technical diagram of an wireless earbuds with numbered labels indicating component layout

Two identical line drawings of mechanical components with no text or symbols

Line drawing of an open electronic device with four compartments (no text or symbols)

1h:00m 2h:00m CHARGING CHARGED

Line drawing of an open earbuds with a device, showing the internal components and a curved arrow indicating rotation (no text or symbols)

1 Controleer de status van de status-led (3)

Bluetooth ON Password Hama Passion Clear'll 0000

Icon set showing a phone with an upward arrow, a hand pointing to it, and a device labeled '1x' next to a stylus.

Diagram showing a call with a downward arrow, a hand icon labeled '1x', and a microphone icon.

Icon set with left-pointing arrow, play symbol, and time-lapse indicator showing 1-2s

hama My Home Connecting Now

Hama Passion Cl...

3

https://support.hama.com/00221771,

https://support.hama.com/00221772

Frequentieband(en) 2402 MHz - 2480 MHz

Maximaal radiofrequent vermogen 2,5mW

14. Informatie overeenkomstig Verordening (EU) 2023/826

https://support.hama.com/00221771,

https://support.hama.com/00221772

I Istruzioni d'uso

Technical diagram of an wireless earbuds with numbered labels indicating component layout

Two identical line drawings of mechanical components with no text or symbols

Line drawing of an open electronic device with four compartments (no text or symbols)

1h:00m 2h:00m CHARGING CHARGED

Line drawing of an open wireless earbuds with a handbag, showing the device's internal structure and rotation arrow (no text or symbols)

Icon set showing a telephone with an upward arrow, a hand pointing to it, and a 1x speed indicator next to a stylized microphone.

Diagram showing a call with a downward arrow, a hand icon labeled '1x', and a USB port icon.

Icon set with left-pointing arrow, play button, and directional arrow labeled '1-2s'

hama My Home Connecting Now

Hama Passion Cl...

3

https://support.hama.com/00221771,

https://support.hama.com/00221772

https://support.hama.com/00221771,

https://support.hama.com/00221772

Technical diagram of an wireless earbuds with numbered labels indicating component layout

Line drawing of an open electronic device with four compartments (no text or symbols)

Two identical mechanical components with curved arms and mounting feet (no text or symbols)

1h:00m 2h:00m CHARGING CHARGED

Line drawing of an open earbuds with a device, showing the internal components and a curved arrow indicating rotation (no text or symbols)

Icon set showing a telephone handset, hand gesture, and 1x speed indicator next to a microphone icon

Diagram showing a call with a downward arrow, a hand pointing to the number '1x', and a microphone icon.

Icon set with left-pointing arrow, play symbol, and directional arrow labeled '1-2s'

hama My Home Connecting Now

Hama Passion Cl...

3

https://support.hama.com/00221771,

https://support.hama.com/00221772

https://support.hama.com/00221771,

https://support.hama.com/00221772

Technical diagram of an wireless earbuds with numbered labels indicating component layout

Two identical line drawings of mechanical components with no text or symbols

Line drawing of an open electronic device with four compartments (no text or symbols)

1h:00m 2h:00m CHARGING CHARGED

3 Akkukapacitás

Töltödoboz

Line drawing of an open wireless earbuds with a device inside, showing the internal compartments and a curved arrow indicating rotation (no text or symbols)

Icon set with left-pointing arrow, speaker symbol, and time-lapse indicator showing 1-2s

hama My Home Connecting Now

Hama Passion Cl...

3

https://support.hama.com/00221771,

https://support.hama.com/00221772

https://support.hama.com/00221771,

https://support.hama.com/00221772

RO Manual de utilizare

Technical diagram of an wireless earbuds with numbered labels indicating component layout

Line drawing of an open dental appliance with four compartments (no text or symbols)

Two identical mechanical components with curved arms and mounting feet (no text or symbols)

1h:00m 2h:00m CHARGING CHARGED

Line drawing of an open wireless earbuds with a device inside, showing the internal compartments and a curved arrow indicating rotation (no text or symbols)

Bluetooth ON Password Hama Passion Clear'll 0000

Indicatie – Parola Bluetooth®

Indicatie – Google Assistant

Diagram showing a phone icon with an up arrow and a hand icon labeled '1x', alongside a separate icon of a hand holding a device.

Diagram showing a call with a downward arrow, a hand icon labeled '1x', and a microphone icon.

Icon set with playback control, left arrow, and time-lapse indicator showing 1-2 seconds

hama My Home Connecting Now

Hama Passion Cl...

3

https://support.hama.com/00221771,

https://support.hama.com/00221772

https://support.hama.com/00221771,

https://support.hama.com/00221772

cz Návod k použití

Technical diagram of an wireless earbuds with numbered labels indicating component layout

Two identical line drawings of mechanical components with no text or symbols

Line drawing of an open electronic device with four compartments (no text or symbols)

1h:00m 2h:00m CHARGING CHARGED

Line drawing of an open earbuds with a device inside, showing the internal structure and rotation arrow (no text or symbols)

Diagram showing a phone with an up arrow and a hand icon labeled '1x' pointing right to a device icon.

Icon set with left-pointing arrow, play symbol, and directional arrow labeled '1-2s'

8.1 Integrace produktu do aplikace Hama Home

Upozornění

hama My Home Connecting Now

Hama Passion Cl...

3

https://support.hama.com/00221771,

https://support.hama.com/00221772

Kmitočtové pásmo/kmitočtová pásma 2402MHz – 2480MHz

https://support.hama.com/00221771,

https://support.hama.com/00221772

SK Návod na obsluhu

Technical diagram of an wireless earbuds with numbered labels pointing to different components

Line drawing of an open dental appliance with four compartments (no text or symbols)

Two identical line drawings of mechanical components with no text or symbols

1h:00m 2h:00m CHARGING CHARGED

3 Kapacita batérie

Nabíjací box

Ak je úroveň nabitia batérie nízka, LED dióda (2) bliká

Slúchadlá do uší

Line drawing of an open earbuds with a device, showing the internal components and a curved arrow indicating rotation (no text or symbols)

Simple line drawing of a lamp with 'white' label and abstract geometric shapes (no text or symbols beyond label)

Diagram showing a telephone icon with an '1x' speed indicator and a hand icon pointing to a device labeled 'P'

Diagram showing a call with a downward arrow, a hand icon labeled '1x', and a microphone icon.

Icon set with left-pointing arrow, play symbol, and directional arrow labeled '1-2s'

hama My Home Connecting Now

Hama Passion Cl...

3

https://support.hama.com/00221771,

https://support.hama.com/00221772

https://support.hama.com/00221771,

https://support.hama.com/00221772

Technical diagram of an wireless earbuds with numbered labels indicating component layout

Line drawing of an open dental appliance with four compartments (no text or symbols)

Two simple line drawings of mechanical components with no text or symbols

S M L

CHARGING 1h:00m 2h:00m c

Line drawing of an open earbuds with a device, showing the internal components and a curved arrow indicating rotation (no text or symbols)

1 Verifique o estado do LED de estado (3)

Icon set with left-pointing arrow, play symbol, and time-lapse button labeled '1-2 s'

hama Log In Register

hama My Home Connecting Now

Hama Passion Cl...

3

https://support.hama.com/00221771,

https://support.hama.com/00221772

https://support.hama.com/00221771,

https://support.hama.com/00221772

s Bruksanvisning

Technical diagram of an wireless earbuds with numbered labels pointing to different components

Line drawing of two wireless earbuds with open case compartments (no text or symbols)

3. Säkerhetsinformation

1h:00m 2h:00m CHARGING CHARGED

3 Batterikapacitet

Laddningsbox

Line drawing of an open wireless earbuds with a device inside, showing the internal compartments and a curved arrow indicating rotation (no text or symbols)

Icon set showing a phone with an upward arrow, a hand gesture labeled '1x', and a USB port icon.

Icon set with left-pointing arrow, play symbol, and directional arrow labeled '1-2s'

hama My Home Connecting Now

Hama Passion Cl...

3

https://support.hama.com/00221771,

https://support.hama.com/00221772

Frekvensband 2402 MHz - 2480 MHz

https://support.hama.com/00221771,

https://support.hama.com/00221772

RUS

Line drawing of an open dental appliance with four compartments, labeled 1 and 2 (no text or symbols on the device itself)

7. Микрофон 8. Разъем USB-C 3 4 5 6 7 8

1h:00m 2h:00m CHARGING CHARGED

Line drawing of a smart earbuds with open case and accessories, showing internal compartments and a curved arrow indicating rotation (no text or symbols)

white LED OFF

Icon set showing a phone with an upward arrow, a hand pointing to it, and a device labeled '1x' next to a microphone icon.

Diagram showing a telephone icon with signal symbol, 1x speed indicator, and a hand gesture pointing to a device icon.

Icon set with left-pointing arrow, play symbol, and time-lapse indicator showing 1-2s

hama My Home Connecting Now

Hama Passion Cl...

3

https://support.hama.com/00221771,

https://support.hama.com/00221772

https://support.hama.com/00221771,

https://support.hama.com/00221772

Technical diagram of an wireless earbuds with numbered labels indicating component layout

Two identical line drawings of mechanical components with no text or symbols

Line drawing of an open electronic device with four compartments (no text or symbols)

3. Указания за безопасност

1h:00m 2h:00m CHARGING CHARGED

Line drawing of an open earbuds with a device, showing the internal components and a curved arrow indicating rotation (no text or symbols)

1 Проверете статуса на светодиода за статус (3)

Icon set showing a phone with an upward arrow, a hand pointing to it, and a device labeled '1x' next to a stylus.

Diagram showing a call with a downward arrow, a hand icon labeled '1x', and a microphone icon.

Icon set with left-pointing arrow, play symbol, and directional arrow labeled '1-2s'

hama My Home Connecting Now

Hama Passion Cl...

3

https://support.hama.com/00221771,

https://support.hama.com/00221772

https://support.hama.com/00221771,

https://support.hama.com/00221772

GR Οδηγίες χρήσης

Technical diagram of an wireless earbuds with numbered labels indicating component layout

Two identical line drawings of mechanical components with no text or symbols

Line drawing of an open electronic device with four compartments (no text or symbols)

Line drawing of an open earbuds with a device, showing the internal components and a curved arrow indicating rotation (no text or symbols)

Diagram showing a telephone handset, hand gesture, and 1x speed indicator next to a microphone icon

Icon set with left-pointing arrow, play symbol, and directional arrow labeled '1-2s'

hama My Home Connecting Now

Hama Passion Cl...

3

https://support.hama.com/00221771,

https://support.hama.com/00221772

https://support.hama.com/00221771,

https://support.hama.com/00221772

Technical diagram of an wireless earbuds with numbered labels indicating component layout

Line drawing of an open wireless earbuds with a device inside, showing the internal compartments and a curved arrow indicating rotation (no text or symbols)

Bluetooth ON Password Hama Passion Clear'll 0000

Bilgi - Bluetooth§ifresi

Icon set showing a phone with an upward arrow, a hand gesture labeled '1x', and a device icon with a magnifying glass.

Icon set with left-pointing arrow, play symbol, and directional arrow labeled '1-2s'

QR code image containing encoded data, no visible human-readable text

https://link.hama.com/app/smart-home

hama Log In Register

hama My Home

Connecting Now

2

Hama Passion Cl...

3

https://support.hama.com/00221771,

https://support.hama.com/00221772

https://support.hama.com/00221771,

https://support.hama.com/00221772

FIN Käyttöohje

Technical diagram of an wireless earbuds with numbered labels indicating component layout

Two identical line drawings of mechanical components with no text or symbols

Line drawing of an open electronic device with four compartments (no text or symbols)

1h:00m 2h:00m CHARGING CHARGED

Line drawing of an open wireless earbuds with a device inside, showing the internal compartments and a curved arrow indicating rotation (no text or symbols)

1 Tarkista tila-LEDin (3) tila.

Bluetooth ON Password Hama Passion Clear'll 0000

Huomautus Bluetooth-salasanasta

Icon set showing a phone with an upward arrow, a hand pointing to it, and a device labeled '1x' next to a USB port icon.

Diagram showing a call with a downward arrow, a hand icon labeled '1x', and a stylized device with a loop.

Icon set with left-pointing arrow, play symbol, and directional arrow labeled '1-2s'

hama My Home

Connecting Now

2

Hama Passion Cl...

3

https://support.hama.com/00221771,

https://support.hama.com/00221772

https://support.hama.com/00221771,

https://support.hama.com/00221772
