Product type	Fridge-freezer
Brand	IKEA
Model	TYNNERÅS 805.680.79
Dimensions (H x W x D)	1865 x 597 x 754 mm
Total net volume	286 L
Freezing capacity	17 kg/24h
Autonomy in case of power failure	9 h
Energy class	E
Annual energy consumption	250 kWh/year
Noise level	34 dB(A)
Climate class	SN, N, ST, T (10 °C to 43 °C)
Defrost system (freezer)	Automatic
Refrigerant	R600a (flammable)
Special functions	Fast freezing, error indicator, open door alarm, LED lighting
Foot adjustment	Adjustable front feet
Door opening direction	Reversible
Warranty	5 years (IKEA)
Spare parts available	Thermostats, sensors, electronic boards, handles, hinges, gaskets (7 to 10 years)
Safety	Child lock, gas leak protection, automatic shutdown in case of fault
Recommended cleaning	Warm water and baking soda, do not use abrasives

Frequently Asked Questions - TYNNERÅS 805.680.79 IKEA

What to do if the refrigerator does not work?

Check that the plug is properly inserted into the outlet and that the fuse has not blown. If the problem persists, wait approximately 6 minutes after unplugging for the refrigerant pressure to equalize.

Why is there condensation on the interior walls?

This may be due to frequent door opening, a very humid environment, or uncovered hot food. Reduce openings and make sure food is covered.

The compressor does not start, what to do?

The thermal protection may have been triggered after a power cut. Wait 6 minutes. If the compressor does not restart, contact an authorized service.

How to adjust the freezer temperature?

Press the freezer compartment temperature setting button to choose between -18, -20, -22 or -24 °C. For fast freezing, activate the corresponding function.

What to do in case of odor inside?

Clean the interior regularly with a sponge and warm water mixed with baking soda. Make sure food is stored in closed containers and remove expired products.

The door does not close properly, why?

Check that food packages are not obstructing the closure. Ensure the refrigerator is level by adjusting the front feet. If the gasket is dirty or damaged, clean or replace it.

How to change the door opening direction?

The door opening direction is reversible. Follow the instructions in the manual to disassemble the door and reverse the hinges. If necessary, call an authorized service.

What to do in case of refrigerant leak?

Do not use a flame, do not touch the appliance, ventilate the room without using a fan, and stay away from the gas. Contact an authorized service immediately.

Why is the refrigerator making noise?

Liquid or gas noises are normal. If the noise is abnormal, check that the appliance is stable and level. Make sure no objects are placed on top.

How to clean the exterior of the appliance?

Use a slightly damp microfiber cloth. Do not use abrasive sponges, solvents, or products containing chlorine. For plastic surfaces, avoid contact with unsealed oils.

USER MANUAL TYNNERÅS 805.680.79 IKEA

Safety Information	4	What to do if ...	10
Product description	7	Technical data	14
First Use	7	Environmental concerns	14
Daily use	7	Maintenance and cleaning	15
Before first use		9	IKEA GUARANTEE

Safety Information

• This section includes the safety instructions necessary to prevent the risk of personal injury or material damage.
• Our company shall not be held responsible for damages that may occur if these instructions are not observed.

Always use genuine spare parts and accessories.

Original spare parts will be provided for 10 years, following the product purchasing date.

Do not repair or replace any part of the product unless specified expressly in the user manual.

Do not perform any modifications on the product.

1.1 Purpose of usage

• This product is not intended for commercial use and it shall not be used out of its intended purpose.

This product is intended for operating interiors, such as households or similar.

For example;

• In the staff kitchens of the stores, offices and other working environments,

-In farm houses,

• In the units of hotels, motels or other resting facilities that are used by the customers,
• In hostels, or similar environments,

In catering services and similar non-retail applications.

This product shall not be used in open or enclosed external environments such as vessels, balconies or terraces. Exposing the product to rain, snow, sunlight and wind may cause risk of fire.

1.2 Safety of children, vulnerable persons and pets

• This product may be used by children aged 8 years and older and persons with underdeveloped physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and the hazards involved. Children between 3 and 8 years are allowed to put and take out food to/from the cooler product.
• Electrical products are dangerous for children and pets. Children and pets must not play with, climb on, or enter the product.
• Cleaning and user maintenance should not be performed by children unless there is someone overseeing them.
• Keep the packaging materials away from children. Risk of injury and suffocation.

Before disposing of old products:

1. Unplug the power cord from the mains socket. 2. Cut the power cord and remove it from the appliance together with the plug. 3. Do not remove the racks and drawers from the product to prevent children from getting inside the appliance. 4. Remove the doors. 5. Store the product so that it shall not be tipped over. 6. Do not allow children to play with the scrapped product. - Do not dispose of the product by throwing it into fire. Risk of explosion. - If there is a lock available in the product's door, keep the key out of children's reach.

1.3 Electrical safety

• The product shall not be plugged into the outlet during installation, maintenance, cleaning, repair, and transportation operations.
• If the power cord is damaged, it shall be replaced by authorized service only to avoid any risk that may occur.
• Do not tuck the power cord under the product or to the rear of the product. Do not put heavy items on the power cord. The power cord should not be bent, crushed, and come into contact with any heat source.
• Do not use an extension cord, multi-plug or adaptor to operate your product.
• Portable multi sockets or portable power supplies may overheat and cause fire. Thus, do not have a multi-plug behind or in the vicinity of the product.
• The plug shall be easily accessible. If this is not possible, a mechanism that meets the electrical legislation and that disconnects all terminals from the mains (fuse, switch, main switch, etc.) shall be available on the electrical installation.
• Do not touch the plug with wet hands.
• When unplugging the appliance, don't hold the power cord, but the plug.

1.4 Handling Safety

• This product is heavy, do not handle it by yourself.
• Do not hold the product from its door while handling the product.
• Be careful not to damage the cooling system and the pipes while handling the product. Do not operate the product if the pipes are damaged, and contact an authorized service.

1.5 Installation Safety

• To prepare the product for installation, see the information in the user guide and make sure the electric and water utilities are as required. If the installation is not suitable, call a qualified electrician and plumber to have them make the necessary arrangements. Otherwise, electric shock, fire, issues with the product or injuries may occur.
• Check for any damage on the product before installing it. Do not have the product installed if it is damaged.
• Place the product on a level and hard surface and balance with the adjustable legs. Otherwise, the refrigerator may tip over and cause injuries.
• The product shall be installed in a dry and ventilated environment. Do not keep carpets, rugs or similar floor covers under the product if it is not recommended by the supplier. This may cause risk of fire as a result of inadequate ventilation!
• Do not block or cover ventilation holes. Otherwise, power consumption may be increased and damage to your product may occur.
• Do not connect the product to supply systems such as solar power supplies. Otherwise, damage to your product may occur as a result of the abrupt voltage fluctuations!
• The more refrigerant a refrigerator contains, the bigger its installation room shall be. In very small rooms, a flammable gas-air mixture may occur in case of a gas leak in the cooling system. At least 1 m^3 of volume is required for each 8 grams of refrigerant. The amount of the refrigerant available in your product is specified on the type label.
• The installation place of the product shall not be exposed to direct sunlight and it shall not be in the vicinity of a heat source such as stoves, radiators, etc.

If you cannot prevent installation of the product in the vicinity of a heat source, you shall use a suitable insulation plate and the minimum distance to the heat source shall be as specified below.

• At least 30 cm away from heat sources such as stoves, heating units and heaters, etc.
• And at least 5 cm away from electric ovens.
• Your product has the protection class of I. Plug the product in a grounded socket that conforms with the voltage, current and frequency values specified on the type label. The socket outlet shall be equipped with a fuse with a rating of 10 A - 16 A. Our company shall not be responsible for the damages that shall be incurred as a result of operating the product without ensuring ground and electrical connections made as per local or national regulations.
• The product's power cable must be unplugged during installation. Otherwise, risk of electric shock and injury may occur!
• Do not plug the product into loose, broken, dirty, greasy sockets or sockets that have come out of their seats or sockets with a risk of water contact.
• Place the power cord and hoses (if available) of the product so that they shall not cause a risk of tripping over. Penetration of humidity to live parts or to the power cord may cause short circuit. Thus, do not

use the product in humid environments or in areas where water may splash (e.g. garage, laundry room, etc.) If the refrigerator is wet by water, unplug it and contact an authorized service.

• Do not connect your refrigerator to power saving devices. These systems are harmful for the product.

1.6 Operational safety

• Do not use chemical solvents on the product. These materials contain an explosion risk.
• In case of a failure of the product, unplug it and do not operate until it is repaired by the authorized service. There is a risk of electric shock!
• Do not place a source of flame (e.g. candles, cigarettes, etc.) on the product or in the vicinity of it.
• Do not get on the product. Risk of falling and injury!
• Do not cause damage to the pipes of the cooling system using sharp and piercing tools. The refrigerant that sprays out in case of puncturing the gas pipes, pipe extensions or upper surface coatings may cause irritation of skin and injuries of the eyes.
• Do not place and operate electric appliances inside the refrigerators/deep freezer unless it is advised by the manufacturer.
• Do not jam any parts of your hands or your body to the moving parts inside the product. Be careful to prevent jamming of your fingers between the refrigerator and its door. Be careful while opening or closing the door if there are children around.
• Do not put ice cream, ice cubes or frozen food to your mouth as soon as you take them out of the freezer. Risk of frostbite!
• Do not touch the inner walls, metal parts of the freezer or food kept inside the refrigerator with wet hands. Risk of frostbite!
• Do not place soda cans or cans and bottles that contain fluids that may be frozen to the freezer compartment. Cans or bottles may explode. Risk of injury and material damage!
• Do not use or place materials sensitive against temperature such as flammable sprays, flammable objects, dry ice or other chemical agents in the vicinity of the refrigerator. Risk of fire and explosion!
• Do not store explosive materials such as aerosol cans with flammable materials inside the product.
• Do not place cans containing fluids over the product. Splashing of water on an electrical part may cause the risk of an electric shock or a fire.
• This product is not intended for storage and cooling of medicines, blood plasma, laboratory preparations or similar materials and products that are subject to the Medical Products Directive.
• If the product is used against its intended purpose, it may cause damage to or deterioration of the products kept inside. If your refrigerator is equipped with blue light, do not look at this light with optical devices. Do not stare directly at UV LED light for a long time. Ultraviolet rays may cause eye strain.
• Do not fill the product with more food than its capacity. Injuries or damages may occur if the contents of the refrigerator falls when the door

is opened. Similar problems may occur when an object is placed over the product.

• Ensure that you have removed any ice or water that may have fallen to the floor to prevent injuries.
• Change the locations of the racks/bottle racks on the door of your refrigerator while the racks are empty only. Danger of physical injury!
• Do not place objects that may fall/tipped over on the product. These objects may fall while opening or closing the door and cause injuries and/or material damages.
• Do not hit or exert excessive pressure on glass surfaces. Broken glass may cause injuries and/or material damages.
• The cooling system in your product contains R600a refrigerant. The refrigerant type used in the product is specified in the type label. This gas is flammable. Therefore, be careful not to damage the cooling system and the pipes while operating the product. In case of damage to the pipes;
• Do not touch the product or the power cord,
• Keep the product away from potential sources of fire that may cause the product to catch fire.
• Ventilate the area where the product is placed. Do not use a fan.
• If the product is damaged and you observe gas leak, please stay away from the gas. Gas may cause frostbite if it contacts your skin.

1.7 Maintenance and cleaning safety

• Do not pull by the door handle if you shall move the product for cleaning purposes. Handle may cause injuries if it is pulled too hard.
• Do not clean the product by spraying or pouring water on the product and inside the product. Risk of electric shock and fire.
• Do not use sharp or abrasive tools to clean the product. Do not use materials such as household cleaning agents, detergents, gas, gasoline, alcohol, wax, etc.
• Use cleaning and maintenance agents that are not harmful for food only inside the product.
• Do not use steam or steamed cleaning materials for cleaning the product and thawing the ice inside it. Steam contacts the live areas in your refrigerator and causes short circuit or electric shock! Take care to keep water away from the electronic circuits or lighting of the product.
• Use a clean, dry cloth to wipe the dust or foreign material on the tips of the plugs. Do not use a wet or damp piece of cloth to clean the plug. Otherwise, risk of fire or electric shock may occur.

Installation

To make the product ready for use, be careful that the electrical wiring and plumbing are appropriate by referring to the information in the user manual. If not, call a qualified electrician and plumber and have the necessary arrangements made.

WARNING: The manufacturer is not liable for damages caused by operations by unauthorized persons. To avoid shaking, place the product on a flat surface.

WARNING: During the installation, the power plug of the product should not be plugged in. Otherwise, there is a danger of death or serious injury!

WARNING: If the doorway of the room to where the product will be placed is so narrow that the product cannot pass through, pass the product by turning it to side; otherwise, call an authorized service.

• Do not expose the product to direct sunlight and do not store it in humid place.
• Do not install the product where the temperature drops below 10°C.

Electrical connection

WARNING: Do not make connections to the extension cords or multiple sockets.

WARNING: Damaged power cable must be replaced by an Authorized Service.

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged

• Our company will not be liable for any damages that occur when the product is used without grounding and electrical connections that are according to national regulations.
• The power cord plug must be easily accessible after installation.
• Connect your refrigerator to an outlet with a ground line with 220-240V/50 Hz voltage. Plugs should have a 10-16 A fuse.

Climate Class and Definitions

Please refer to the Climate Class on the rating plate of your device. One of the following information is applicable to your device according to the Climate Class.

SN: Long Term Temperate Climate: This cooling device is designed for use at ambient temperatures between 10 °C and 32 °C.

N: Temperate Climate: This cooling device is designed for use at ambient temperatures between 16 °C and 32 °C.

ST: Subtropical Climate: This cooling device is designed for use at ambient temperatures between 16 °C and 38 °C.

T: Tropical Climate: This cooling device is designed for use at ambient temperatures between 16 °C and 43 °C.

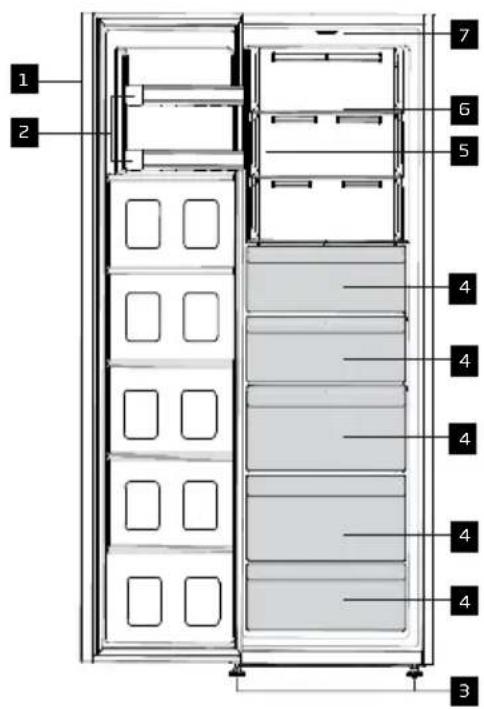

Product description

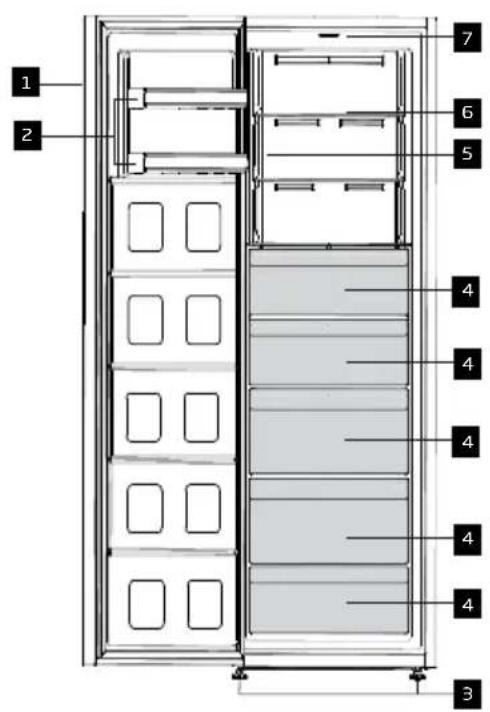

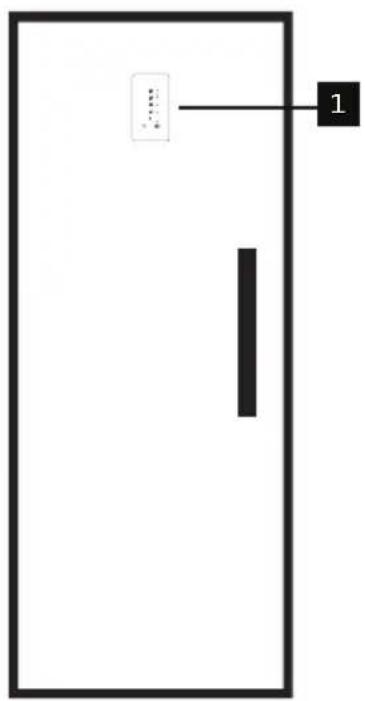

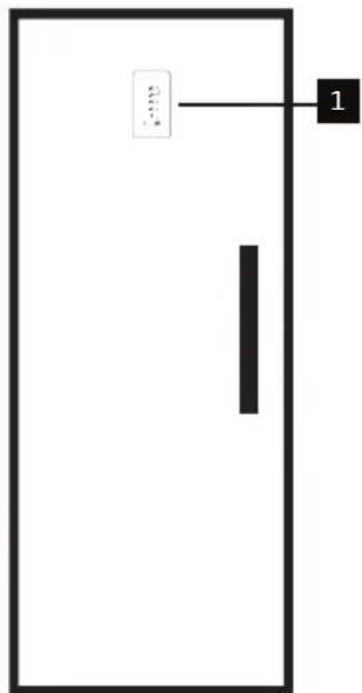

1 Control Panel 2 Door shelf 3 Adjustable front feet 4 Drawers 5 Rating Plate 6 Glass shelves 7 Illumination lamp

First Use

Before using your refrigerator, make sure the necessary preparations are made in line with the instructions in "Safety Information" and "Installation" sections.

If the product is transported horizontally, do not plug the product to power supply for first 4 hours.

Keep the product running without placing any food inside for 12 hours and do not open the door, unless absolutely necessary.

A sound will be heard when the compressor is engaged. It is normal for the product to make noise even if the compressor is not running, as fluid and gas may be compressed in the cooling system.

It is normal for the front edges of the refrigerator to be warm. These areas are designed to warm up in order to prevent condensation.

For some models, the control panel turns off automatically 1 minute after the door closes. It will be reactivated when the door is opened or any button is pressed.

Daily use

Error Status Indicator Quick Freezing Freezer Compartment Temperature Setting

Error Status Indicator A

This indicator A shall be active when your refrigerator cannot perform adequate cooling or in case of any sensor error. When you load the freezer compartment with hot food or if you leave the door open for a prolonged time, an exclamation mark can be lit. This is not a fault; this warning shall be removed when the food is cooled or any key is pressed.

Quick Freezing

When the quick freeze function is pressed, the LED on the key is illuminated and the quick freeze function shall be activated. The freezer compartment temperature is set to -27°C. Press the key again to cancel the function. The quick freeze function will automatically self-cancel after 52 hours. To freeze a large amount of fresh food, press the quick freeze key before placing them in the freezer compartment.

Freezer Compartment Temperature Setting

Temperature setting is made for the freezer compartment. Pressing the key will enable the freezer compartment temperature to be set at -18, -20, -22, -24°C.

Adjusting the feet

If the product is unstable on the place where it is placed, adjust it by turning the front adjustment feet to the right or left.

ENGLISH

Changing door opening direction

Based on where you use it, your refrigerator's door opening direction can be changed.

Changing the illumination lamp

To change the bulb/LED used for illumination of your refrigerator, call your Authorised Service.

The lamp(s) used in this appliance are not suitable for household room illumination. The intended purpose of this lamp is to assist the user in placing foodstuffs in the refrigerator/freezer in a safe and comfortable way.

The lamps used in this appliance are stable under extreme physical conditions such as temperatures below -20°C (only chest and upright freezers).

Door Open Warning

An audio and visual warning signal will be given when the door of your product is left open for at least 1 minute. This warning will be muted when the door is closed or any of the display buttons (if any) are pressed.

Before first use

• For a freestanding appliance: this refrigerating appliance is not intended to be used as a built-in appliance.
• Your refrigerator should be installed at least 30 cm away from heat sources such as hobs, ovens, central heaters, and stoves, and at least 5 cm away from electrical ovens, and should not be located under direct sunlight.
• The ambient temperature of the room where you install your refrigerator should be at least +10°C. Operating your refrigerator under cooler conditions is not recommended with regard to its efficiency.
• Please make sure that the interior of your refrigerator is cleaned thoroughly.
• When you operate your refrigerator for the first time, please observe the following instructions during the initial six hours.
• The door should not be opened frequently.
• It must be operated empty without any food in it.
• Do not unplug your refrigerator. If a power failure occurs out of your control, please see the warnings in the "What to do if" section.
• Original packaging and foam materials should be kept for future transportations or moving.
• The baskets/drawers that are provided with the chill compartment must always be in use for low energy consumption and for better storage conditions.
• Food contact with the temperature sensor in the freezer compartment may increase energy consumption of the appliance. Thus any contact with the sensor(s) must be avoided.

• In some models, the instrument panel on display automatically turns off 1 minute after the door has closed. It will be reactivated when the door has opened or pressed on any key.
• When temperature change caused by door opening/closing frequently, condensation on door/body shelves and the glass containers may be seen.
• Since hot and humid air will not directly penetrate into your product when the doors are not opened, your product will optimize itself in conditions sufficient to protect your food. Functions and components such as compressor, fan, heater, defrost, lighting, display and so on will operate according to the needs to consume minimum energy under these circumstances.
• In case of multiple options are present glass shelves must be placed so that the air outlets at the backwall are not blocked, preferably air outlets are remaining below the glass shelf. This combination may help improving air distribution and energy efficiency.

Installation of the Cooler and Freezer Products Side-by-side

When the freezer and cooler products are installed side by side, the installation should be performed so that the freezer product will be on the left and the cooler product will be on the right. To prevent sweating problems that might occur between products, anticondensation elements are located on the left side of the cooler product.

Please review this list before calling the service. It will save your time and money. This list includes frequent complaints that are not arising from defective workmanship or material usage. Some of the features described here may not exist in your product.

Problems		Solutions
The refrigerator does not operate.	·The plug is not inserted into the socket correctly.	·Insert the plug into the socket securely.
	·The fuse of the socket which your refrigerator is connected to or the main fuse have blown out.	·Check the fuse.
Condensation on the side wall of the fridge compartment (MULTIZONE, COOL CONTROL and FLEXI ZONE).	·Door has been opened frequently.	·Do not open and close the door of refrigerator frequently.
	·Ambient is very humid. ·Do not install your refrigerator into highly humid places.
	·Food containing liquid is stored in open containers.	·Do not store food with liquid content in open containers.
	·Door of the refrigerator is left open.	·Close the door of the refrigerator.
	·Temperature is set to a very cold level.	·Set the temperature to a suitable level.
Compressor is not running	·Protective thermic of the compressor blows out during sudden power failures.	·The refrigerator will start running approximately after 6 minutes.
	·plug-out plug-ins as the refrigerant pressure in the cooling system of the refrigerator has not been balanced yet.	·Please call the service if the refrigerator does not startup at the end of this period.
	·The fridge is in defrost cycle.	·This is normal for a full-automatically defrosting refrigerator. Defrosting cycle occurs periodically.
	·Temperature settings are not made correctly.	·Select the suitable temperature value.
	·There is a power outage. ·Refrigerator returns to normal operation when the power restores.
·The operation noise increases when the refrigerator is running.	·The operating performance of the refrigerator may change due to the changes in the ambient temperature. It is normal and not a fault.
The refrigerator is running frequently or for a long time.	·The room temperature may be high.	·It is normal that the product operates for longer periods in hot ambient.
	·The refrigerator might be plugged in recently or might be loaded with food.	·When the refrigerator is plugged in or loaded with food recently, it will take longer for it to attain the set temperature. This is normal.
	·Large amounts of hot food might be put in the refrigerator recently.	·Do not put hot food into the refrigerator.
	·Doors might be opened frequently or left open for a long time.	·>The warm air that has entered into the refrigerator causes the refrigerator to run for longer periods. Do not open the doors frequently.
	·Freezer or fridge compartment door might be left open.	·Check if the doors are closed completely.
	·The refrigerator is adjusted to a very low temperature.	·Adjust the refrigerator temperature to a warmer degree and wait until the temperature is achieved.
	·Door seal of the fridge or freezer may be soiled, worn out, broken or not properly seated.	·Clean or replace the seal. Damaged/broken seal causes the refrigerator to run for a longer period of time in order to maintain the current temperature.
Fridge temperature is very low while the freezer temperature is sufficient.	·The fridge temperature is adjusted to a very low value.	·Adjust the fridge temperature to a warmer degree and check.
Food kept in the fridge compartment drawers is frozen.	·The fridge temperature is adjusted to a very high value.	·Adjust the fridge temperature to a lower value and check.

Temperature in the fridge or freezer is very low.	·The fridge temperature is adjusted to a very high value.	·Fridge compartment temperature setting has an effect on the temperature of the freezer. Change the temperatures of the fridge or freezer and wait until the relevant compartments attain a sufficient temperature.
	·Doors are opened frequently or left open for a long time.	·Do not open the doors frequently.
	·Door is open. ·Close the door	completely.
	·The refrigerator is plugged in or loaded with food recently.	·This is normal. When the refrigerator is plugged in or loaded with food recently, it will take longer for it to attain the set temperature.
	·Large amounts of hot food might be put in the refrigerator recently.	·Do not put hot food into the refrigerator.
Vibrations or noise.	·The floor is not level or stable.	·If the refrigerator rocks when moved slowly, balance it by adjusting its feet. Also make sure that the floor is strong enough to carry the refrigerator, and level.
	·The items put onto the refrigerator may cause noise.	·Remove the items on top of the refrigerator.
There are noises coming from the refrigerator like liquid flowing, spraying, etc.	·Liquid and gas flows occur in accordance with the operating principles of your refrigerator. It is normal and not a fault.
Whistle comes from the refrigerator.	·Fans are used in order to cool the refrigerator. It is normal and not a fault.
Condensation on the inner walls of refrigerator.	·Hot and humid weather increases icing and condensation. It is normal and not a fault.
	·Doors are opened frequently or left open for a long time.	·Do not open the doors frequently. Close them if they are open.
	·Door is open. ·Close the door	completely.
Humidity occurs on the outside of the refrigerator or between the doors.	·There might be humidity in the air; this is quite normal in humid weather. When the humidity is less, condensation will disappear.

Bad odour inside the refrigerator.	• No regular cleaning is performed.	• Clean the inside of the refrigerator regularly with a sponge, lukewarm water or carbonate dissolved in water.
	• Some containers or package materials may cause the smell.	• Use a different container or different brand packaging material.
	• Food is put into the refrigerator in uncovered containers.	• Keep the food in closed containers. Microorganisms spreading out from uncovered containers can cause unpleasant odours.
	• Remove the foods that have expired best before dates and spoiled from the refrigerator.
The door is not closing.	• Food packages are preventing the door from closing.	• Replace the packages that are obstructing the door.
	• The refrigerator is not completely even on the floor.	• Adjust the feet to balance the refrigerator.
	• The floor is not level or strong.	• Make sure that the product is leveled and capable to carry the refrigerator.
Crispers are stuck. • The	food is touching the ceiling of the drawer.	• Rearrange food in the drawer.
If The Surface Of The Product Is Hot.	• High temperatures may be observed between the two doors, on the side panels and at the rear grill while the product is operating. This is normal and does not require service maintenance!

Technical data

Dimensions (mm) TYNNERÅS
Height(min-max) 1865
Width 597
Depth 754
Net Volume(I)
Fridge -
Freezer 286
Defrost system
Fridge -
Freezer Auto Defrost
Star Rating 4
Rising Time ( h) 9
Freezing capacity(kp/24h)	17
Energy consumption( kwh/Year)	250
Noise level(db) 34dBA
Energy class E

Environmental concerns

Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Maintenance and cleaning

Never use gasoline, benzene or similar substances for cleaning purposes.

We recommend that you unplug the appliance before cleaning.

Never use any sharp abrasive instrument, soap, household cleaner, detergent and wax polish for cleaning.

For non-No Frost products, water drops and frosting up to a fingerbreadth occur on the rear wall of the Fridge compartment. Do not clean it; never apply oil or similar agents on it.

Only use slightly damp microfiber cloths to clean the outer surface of the product. Sponges and other types of cleaning cloths may scratch the surface.

Use lukewarm water to clean the cabinet of your refrigerator and wipe it dry.

Use a damp cloth wrung out in a solution of one teaspoon of bicarbonate of soda to one pint of water to clean the interior and wipe it dry.

Make sure that no water enters the lamp housing and other electrical items.

If your refrigerator is not going to be used for a long period of time, unplug the power cable, remove all food, clean it and leave the door open.

Check door seals regularly to ensure they are cleaned and free from food particles.

To remove door racks, remove all the contents and then simply push the door rack upwards from the base.

• Never use cleaning agents or water that contain chlorine to clean the outer surfaces and chromium coated parts of the product. Chlorine causes corrosion on such metal surfaces.

Do not use sharp, abrasive tools, soap, household cleaning agents, detergents, kerosene, fuel oil, varnish etc. to prevent removal and deformation of the prints on the plastic part. Use lukewarm water and a soft cloth for cleaning and then wipe it dry.

Protection of plastic surfaces

Do not put the liquid oils or oil-cooked meals in your refrigerator in unsealed containers as they damage the plastic surfaces of your refrigerator. In case of spilling or smearing oil on the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.

IKEA GUARANTEE

How long is the IKEA guarantee valid?

This guarantee is valid for five years from the original date of purchase of your appliance at IKEA. The original sales receipt, is required as proof of purchase. If service work is carried out under guarantee, this will not extend the guarantee period for the appliance.

Who will execute the service?

IKEA service provider will provide the service through its own service operations or authorized service partner network.

What does this guarantee cover?

The guarantee covers faults of the appliance, which have been caused by faulty construction or material faults from the date of purchase from IKEA. This guarantee applies to domestic use only. The exceptions are specified under the headline "What is not covered under this guarantee?" Within the guarantee period, the costs to remedy the fault e.g. repairs, parts, labour and travel will be covered, provided that the appliance is accessible for repair without special expenditure. On these conditions the EU guidelines (Nr. 99/44/EG) and the respective local regulations are applicable. Replaced parts become the property of IKEA.

What will IKEA do to correct the problem?

IKEA appointed Service Provider will examine the product and decide, at its sole discretion, if it is covered under this guarantee. If considered covered, IKEA Service Provider or its authorized service partner through its own service operations, will then, at its sole discretion, either repair the defective product or replace it with the same or a comparable product.

What is not covered under this guarantee?

Normal wear and tear. - Deliberate or negligent damage, damage caused by failure to observe operating instructions, incorrect installation or by connection to the wrong voltage, damage caused by chemical or electrochemical reaction, rust, corrosion or water damage including but not limited to damage caused by excessive lime in the water supply, damage caused by abnormal environmental conditions. - Consumable parts including batteries and lamps. Non-functional and decorative parts which do not affect normal use of the appliance, including any scratches and possible color differences. - Accidental damage caused by foreign objects or substances and cleaning or unblocking of filters, drainage systems or soap drawers. - Damage to the following parts: ceramic glass, accessories, crockery and cutlery baskets, feed and drainage pipes, seals, lamps and lamp covers, screens, knobs, casings and parts of casings. Unless such damages can be proved to have been caused by production faults. - Cases where no fault could be found during a technician's visit. - Repairs not carried out by our appointed service providers and/or an authorized service contractual partner or where non-original parts have been used. - Repairs caused by installation which is faulty or not according to specification. The use of the appliance in a non-domestic environment i.e. professional use. - Transportation damages. If a customer transports the product to his home or another address, IKEA is not liable for any damage that may occur during transport. However, if IKEA delivers the product to the customer's delivery address, then damage to the product that occurs during this delivery will be covered by IKEA. - Cost for carrying out the initial installation of the IKEA appliance. However, if an IKEA appointed Service Provider or its authorized service partner repairs or replaces the appliance under the terms of this guarantee, the appointed Service Provider or its authorized service partner will reinstall the repaired appliance or install the replacement, if necessary. - This does not apply within Ireland, customer should contact the local IKEA dedicated after sales line or the appointed Service Provider for further information. (just for GB)

These restrictions do not apply to fault-free work carried out by a qualified specialist using our original parts in order to adapt the appliance to the technical safety specifications of another EU country.

How country law applies

The IKEA guarantee gives you specific legal rights, which cover or exceed all the local legal demands. However, these conditions do not limit in any way the consumer rights described in the local legislation.

Area of validity

For appliances purchased in one EU country and taken to another EU country, the services will be provided in the framework of the guarantee conditions normal in the new country.

An obligation to carry out services in the framework of the guarantee exists only if the appliance complies and is installed in accordance with:

the technical specifications of the country in which the guarantee claim is made; the Assembly Instructions and User Manual Safety Information.

The dedicated AFTER SALES for IKEA appliances

Please don't hesitate to contact the IKEA appointed Authorized Service Centre to:

make a service request under this guarantee; - ask for clarifications on installation of the IKEA appliance in the dedicated IKEA kitchen furniture; ask for clarification on functions of IKEA appliances.

To ensure that we provide you with the best assistance, please read carefully the Assembly Instructions and/or the User Manual before contacting us.

How to reach us If you need our service

Please refer to the last page of this manual for the full list of IKEA appointed Authorized Service Centres and relative national phone numbers.

In order to provide you a quicker service, we recommend to use the specific phone numbers listed on this manual. Always refer to the numbers listed in the booklet of the specific appliance you need assistance for. Please also always refer to the IKEA article number (8 digit code). SAVE THE SALES RECEIPT!

It is your proof of purchase and required for the guarantee to apply. The sales receipt also reports the IKEA name and article number (8 digit code) for each of the appliances you have purchased.

Do you need extra help?

For any additional questions not related to After Sales of your appliances, please contact your nearest IKEA store call centre. We recommend you read the appliance documentation carefully before contacting us.

Spare parts information

The following spare parts: thermostats, temperature sensors, printed circuit boards and light sources, will be available to professional repairers for a minimum period of seven years, after placing the last unit of the model on the market. - The following spare parts: door handles, door hinges, trays and baskets will be available to professional repairers and end users for a minimum period of seven years, and door gaskets for a minimum period of 10 years, after placing the last unit of the model on the market.

This refrigerator contains biocidal products in the following parts to prevent dry film fungal growth or eliminate unwanted odours.

Active Substance: Silver (CAS: 7440-22-4) contains (nano) silver for door handle and carbon filter Active Substance: Titanium dioxide (CAS: 13463-67-7) contains (nano) titanium dioxide for carbon filter Active Substance: IPBC (CAS: 55406-53-6) for seal

The concentrations of biocidal products are very low hence they should not pose unacceptable health risks.

23	...الله��	18	الله��
27	الله��	20	الله��
27	الله��	20	الله��
28	الله��	20	الله��
28	IKEA	22	الله��

###	###	###
###	###	###
###	###	###
###	###	###
###	###	###
###	###	###
###	###	###
###	###	###
###	###	###
###	###	###
###	###	###
###	###	###
###	###	###
###	1.5	###

1. 15.

J 1

aill lal

y

aiiinai

y

iilll lal jas abg jall clal pssil .suiu joll cio yball

Aeennnnnne

y0

y j 1

12 120

IKEA

IKEA

L

They are not intended to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

1.1 Intended use

This product is not intended for commercial use and must be used according to the instructions.

This product is intended for indoor use, as household appliances.

Do not use the product in the presence of children, pets and other people, - all kinds of keys, - in hotel rooms, motels or other places of accommodation used by clients, - in catering establishments, - in catering services and similar annexes to the retail trade.

This product must not be used in open or enclosed spaces, such as fish tanks, balconies or terraces. The product's packaging, cord, light and air can lead to a risk of fire.

1.2 Safety of children and vulnerable people

This product can be used by children aged 8 and above and by persons with reduced physical, sensory or mental capabilities or with a lack of experience and knowledge, if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children less than 8 years old. - Children between 3 and 8 years old may load and unload refrigerators. - Electrical products are dangerous for children and pets. Children and pets must not touch, play with or climb into the product. - Cleaning and user maintenance of the appliance must not be performed by children, unless they are supervised. - Keep the packaging materials away from children. Risk of suffocation and injury.

Before disposing of old products:

1. Unplug the power cord from the outlet. 2. Cut the power cord and remove it from the appliance together with the plug. 3. Do not remove the shelves and compartments from the product, to prevent children from getting inside. 4. Remove the doors. 5. Dispose of the product in such a way that it does not deform. 6. Do not allow children to play with the discarded product.

Do not dispose of the product by throwing it into a fire. Risk of exposure. If the product has a lock, keep the key out of the reach of children.

1.3 Electrical safety

• The product must not be connected to the mains during installation, maintenance, cleaning, repair and transport. If the power cord is damaged, it must be replaced only by an authorized service, to avoid any risk that may arise. Do not pull the power cord to unplug the product. Do not place heavy objects on the power cord. The power cord must not be bent, kinked or come into contact with any heat source. Do not use extension cords, multiple sockets or adapters to operate your product.
• Extension cords and multiple sockets can overheat and cause a fire. Therefore, do not place multiple sockets behind or near the product.
• The plug must be easily accessible. If this is not possible, the electrical installation must have a mechanism that complies with electrical legislation and that disconnects all poles from the electrical supply (fuses, circuit breakers, main switch, etc.).
• Do not touch the plug with wet hands. When unplugging the appliance from the outlet, do not pull the power cord, but the plug.

1.4 Safety during operation

Do not attempt to repair the product yourself. Do not jump over the product while fighting with it. Be careful not to damage the cooling system and the pipes while working with the product. Do not work with the product if the pipes are damaged and contact an authorized service center.

1.5 Installation Safety

To prepare the product for installation, read the information in the user manual and make sure that the electrical and plumbing installations are as required. If the installation is not suitable, contact a qualified electrician or plumber to take the necessary measures. Otherwise, electric shock, fire, or problems with the product may occur. - Check for damage to the product before installing it. Do not install the product if it is damaged. Place the product on a flat and firm surface and balance it with the adjustable feet. Otherwise, the appliance may tip over and cause injury. - The product must be installed in a dry and ventilated area. Do not place the product near heat sources or open flames, unless this is recommended by the supplier. This may cause a fire hazard due to inadequate ventilation! Do not block or cover the ventilation openings. Otherwise, the energy consumption may increase and your product may be damaged. Do not connect the product to solar panels or similar power sources. Otherwise, damage to your product may occur due to voltage fluctuations! The more refrigerant the appliance contains, the larger the installation room must be. In very small rooms, a flammable gas-air mixture may occur in case of refrigerant leakage. A minimum of 1 m³ of volume is required for every 8 grams of refrigerant. The amount of refrigerant in your product is indicated on the type label. The installation location must be exposed to direct sunlight and must not be near heat sources such as stoves, radiators, etc.

If you cannot prevent the product from being installed near heat sources, you must use a suitable insulating plate. The minimum distance to the heat source must be as specified below.

- At least 30 cm away from heat sources such as stoves, heaters, and radiators, etc.

• - At least 5 cm away from electric ovens.

Before connecting and using the product, read the product label. In the event of contact, the voltage, current, and frequency ratings on the label and type plate must be observed. The contact must be equipped with a fuse of 10 A to 16 A. The company is not responsible for damage caused by operating the product without proper grounding and electrical connections, made in accordance with local and national regulations. - During installation, the protective cover and cables of the product must be disconnected. Otherwise, there is a risk of electric shock and injury! Do not connect the product if it is damaged, wet, dirty, or if the contacts are exposed or have come out of their designated places, or if there is a risk of contact with water.

• Install the protective cover and markings (if any) on the product in such a way that they do not create a risk of falling.
• Penetration of moisture into parts under voltage or into the protective cable can cause a short circuit. For this reason, do not use the product in a humid environment or in areas where water may splash (e.g., garage, laundry room, etc.). If the refrigerator is wet from water, disconnect it from the power supply and contact an authorized service. Do not connect the appliance to energy-saving devices. These systems are harmful to the product.

1.6 Electrical safety

Do not place the appliance on top of the product. The material may be explosive. In case of product damage, remove it from contact and do not use it until it has been repaired by an authorized service. There is a risk of electric shock! Do not place the power source on a flame (e.g., candles, cigarettes, etc.) on top of the product or near it. Do not place objects on top of the product. Risk of fire and explosion! Do not use damaged pipes in the cooling system with sharp or pointed instruments. The cooling agent that escapes when puncturing gas pipes, welding pipes, or heating surface coatings may cause fire or explosion. Do not place electrical devices inside the refrigerator/freezer unless recommended by the manufacturer. Do not place any parts of the device or the product inside the product. Be careful to prevent the door from closing on the gap between the refrigerator and the door. Be careful when opening or closing the door if there are children nearby. Do not store glass containers or bottles with carbonated drinks in the freezer compartment as they may explode when removed from the freezer. Risk of frostbite! Do not touch the inner walls, metal parts of the freezer, or stored items in the refrigerator with wet hands. Risk of frostbite! Do not place cans of soda or bottles of beer that contain carbonated drinks in the freezer compartment. Cans or bottles may explode. Risk of explosion of materials! Do not use or place materials sensitive to temperature, such as flammable sprays, flammable items, dry ice, or other chemical agents near the refrigerator. Risk of fire and explosion! Do not store explosive materials such as aerosol cans with flammable materials inside the product. Do not place cans containing flammable substances on top of the product. Water leaking onto electrical parts may cause a risk of electric shock or fire. This product is not intended for storing or cooling medicines, blood plasma, laboratory preparations, or test materials and products that are subject to medical product regulations. If the product is used contrary to its intended purpose, it may cause damage or injury.

Product stored inside.

If the refrigerator is equipped with a lamp, do not look at the lamp with optical devices. Do not look directly at the UV LED light. The control panel may be damaged.

Do not use the product with a load exceeding its capacity. Damage or injury may occur if the refrigerator's contents are not properly arranged. Such problems may occur when an object is placed on top of the product.

• Make sure that any spills or water that may have fallen on the floor are cleaned up to prevent injury.
• Place the shelves/bottle racks on the refrigerator door only when the shelves are empty. Risk of physical injury!

Do not place objects that could fall or slide onto the product. These objects may fall when opening or closing the door and cause injury and/or material damage.

Do not apply excessive pressure on glass surfaces. The tempered glass may break and cause injury and/or material damage.

• The cooling system of the product contains the refrigerant R600a. The type of refrigerant used in the product is indicated on the type label. This gas is flammable. Therefore, be careful not to damage the cooling system and pipes while working with the product. If the pipes are damaged:

- Do not touch the product or the power cord, - Keep the product away from potential sources of fire that could ignite the product.

Ventilate the room where the product is installed. Do not use a fan.

If the product is damaged, avoid ignition of gas. Move away from the gas. The gas may cause an explosion if it comes into contact with skin.

1.7 Safety during maintenance and cleaning

Do not pull the door handle if you are not moving the product with care. The handle may cause injury if pulled forcefully. - Do not clean the product by spraying or pouring water onto the product or inside the product. Risk of electric shock and fire. Do not use sharp or abrasive instruments for cleaning the product. Do not use materials such as household cleaning agents, solvents, gas, benzene, alcohol, wax, etc. - Use cleaning agents that are not harmful to food only inside the product. Do not use steam or steam cleaning materials for cleaning the product. Steam may come into contact with live parts under voltage in the refrigerator and cause short circuit or electric shock! Be careful to keep water away from the electrical circuits and lighting of the product. - Use a dry cloth to remove dust or clean the condenser coils. Do not use a wet or damp cloth for cleaning the condenser. Otherwise, there is a risk of fire or electric shock.

INSTALLATION

To prepare the product for use, ensure that the electrical wiring and water installation are suitable, as per the information in the user manual. If not, contact a qualified electrician and plumber and take the necessary measures.

WARNING: The manufacturer is not responsible for damages or injuries resulting from improper installation. To avoid imbalance, place the product on a level surface.

WARNING: During installation, the protective cover of the product must not be removed. Otherwise, there is a risk of electric shock or serious injury!

WARNING: To return to the place where the product was installed, if it is blocked and cannot pass through, stop the product by turning it off and unplugging it; otherwise, contact authorized service.

Do not expose the product to direct sunlight or store it in a humid place. - Do not install the product in places where the temperature may drop below 10 °C.

Electrical connection

WARNING: Do not connect to extension cables or multiple contacts.

WARNING: A damaged power cord must be replaced by authorized service.

WARNING: When positioning the device, make sure that the power cord is not pinched or damaged.

The manufacturer is not responsible for any damages that may occur if the product is used without grounding and electrical connections in accordance with local regulations.

• The power cord must be easily accessible after installation.

Connect the appliance to a grounded socket with a voltage of 220-240V/50 Hz. The fuse must be 10-16 A.

Climate class

Please check the climate class on the rating plate of your device. One of the following information is attached for your device according to the climate class. SN: Extended temperate climate: This cooling appliance is intended for use at ambient temperatures between 10°C and 32°C. N: Temperate climate: This cooling appliance is intended for use at ambient temperatures between 16°C and 32°C. ST: Subtropical climate: This cooling appliance is intended for use at ambient temperatures between 16°C and 38°C. T: Tropical climate: This cooling appliance is intended for use at ambient temperatures between 16°C and 43°C.

Product description

Control panel 2 Door shelf 3 Adjustable front feet 4 Rating plate Glass shelves Lighting

First use

Before using your appliance, make sure that the necessary preparations have been made in accordance with the instructions in the "Safety information" and "Installation" sections.

To install the product horizontally, do not plug the product in for the first 4 hours.

Let the product work for 12 hours without putting food in it, and do not open the door unless absolutely necessary.

A sound will be heard when the compressor turns on. This is normal for products that emit a sound when the compressor is not working, as the temperature and pressure can be compressed in the cooling system.

The normal sounds of the appliance are due to the compressor. They are designed to be compressed to avoid condensation.

On some models, the control panel turns off automatically 1 minute after the doors are closed. It will reactivate when the doors are opened or a button is pressed.

Daily use

Indicator for the state of the freezer temperature setting

Indicator for the state of the freezer

This indicator should be active when your appliance can provide adequate cooling or in case of a fault in the sensor. If you set the freezer compartment with hot food or if you leave the door open for a long time, the warning light may come on. This is not a defect, it is a warning that should disappear when the food is cooled or a button is pressed.

Fast freezing

When the fast freezing function is pressed,

The button light and the fast freezing function are activated. The temperature of the freezer compartment is set to -27 °C. Press the button again to cancel the function. The fast freezing function will automatically turn off after 52 hours. To freeze a large quantity of fresh food, press the fast freezing button before placing it in the freezer compartment.

Setting the temperature of the freezer compartment

The temperature setting is done for the freezer compartment. Pressing the button will allow the temperature of the freezer compartment to be set to -18, -20, -22, -24 °C.

Adjusting the drawers

If the appliance is not level, adjust it by turning the adjustable feet clockwise or counterclockwise.

Reversing the door opening direction

Depending on what you use, the door opening direction of the appliance can be changed.

Replacing the light bulb

To replace the bulb/light used for illuminating the appliance, contact your authorized service center.

The lamp(s) used in this appliance are not suitable for room lighting. The intended purpose of this lamp is to assist the user in placing food products in the refrigerator/freezer in a safe and comfortable way.

The lamps used in this appliance are resistant to extreme physical conditions such as temperatures below -20°C.

(self-repairing freezer)

Door open warning

An audible and visual alarm will be activated if the appliance door remains open for more than 1 minute. This warning will be triggered when the door is closed or when any button on the display is pressed (if available).

First use

For free-standing appliances: This cooling appliance is not intended to be used as a built-in appliance. The appliance must be installed at least 30 cm away from heat sources such as hobs, ovens, central heating, and at least 5 cm away from electric hobs. It must not be placed under direct sunlight. The ambient temperature of the room where the refrigerator is installed must be at least +10°C. It is not recommended to use the appliance in colder conditions as it may affect its efficiency. - Make sure the ventilation of your refrigerator is not obstructed. When using the appliance for the first time, please follow the instructions carefully during the first six hours. The door should not be opened frequently. - It should operate empty without food. Do not disconnect the refrigerator from the mains. If a power failure occurs, check the warnings in the section and follow the instructions if any. The original packaging and materials should be kept for future transport or moving. The drawers/baskets that are equipped with a separate cooling compartment should be used for lower energy consumption and better storage conditions. - Contact of food with the temperature sensor in the freezer compartment may increase the energy consumption of the appliance. Therefore, any contact with the sensor(s) should be avoided.

• In the event of a power failure, the appliance with the control panel will automatically switch off 1 minute after the door is closed. It will be activated again when the door is opened or when any button is pressed.
• Due to temperature changes caused by opening/closing the doors, condensation may form on the door/cabinet surfaces and glass panels. The appliance is designed to prevent direct contact between the product and the door when the doors are closed, so your product is optimally protected under conditions suitable for food storage. Functions and components such as compressor, fan, heater, defrosting, lighting, and display will operate according to the needs for consumption at minimal energy under these circumstances.

In case of multiple units installed side by side, the units must be positioned so that the ventilation openings in the rear wall are not blocked, and the air inlets should remain under the side panels. This combination can help improve air distribution and energy efficiency.

If the product is not in a balanced position, adjust the front adjustable feet by turning them clockwise or counterclockwise.

When the freezer and refrigerator are installed next to each other, the installation must be carried out so that the freezer is on the left and the refrigerator is on the right. To prevent problems with condensation that may occur between the products, the anti-condensation elements are placed on the left side of the refrigerator.

Before contacting service, please read this list. It will save you time and money. This list includes common issues that are not caused by defective workmanship or use of materials. Some of the functions described here may not exist in your product.

ПюбLEMи		Рeusеня
Хладинкьт не работи.	• Шенильт не e поставенправлино в kohtaразд.	• Поставete сениseл пьтов kohtaразд.
	• Регдаителей на kohtaразд, кьм кочу e CBьрзан BAшягTXладинк, лллгалыгп рagedаитel са Исторл.	• Роверete пегдаитel.
Кондени Stостдану сета нахладиното отдени (МЛТИЗОВА, KOHTPOЛ HA OXIДАДЕ и FLEXI ZONE).	• Вратуа e OTваряна чесу. • He	OTваряte и 3atваряte чесу Вратуа нахладинka.
	• Оkonнaitа среа e Многов Влжнa.	• He мontирaite xладинika си на Meста с Виска Влжност.
	• Xpani, сьдьржаши т教职工с, сьхсан в OTвореци CBдовe.	• He сьхсан вдьржанехраши с т教职工 CBдовe.
	• Вратуа нахладинka e OCTавенha OTвореци.	• 3atворete вратуа нахладинika.
	• Temпературata e Нстroduна на много Ниска сてпен.	• 3адai Te Temпературata на пождюшо Нв.
Компесорьт не работи	• 3ашинота Терміка на komпесора Идухва рри ВHEЗалны пекьсваима на зхсан впспс.	• Xладинкьт ще заочne дapobotni рриблипелно с重点工作 6 минут.
	• Исклочete сени�ite, Тьй като налаяганeto нахладиня arentв Oхладинета состема нахладинka веше оше e балансирано.	• Моля, обаде т се на сервиза, akо xладинкьт не се статур в края на Този п��iod.
	• Xладинкьт в сizкьл на размразявае.	• Тoba e Hopмално за xладинik c habл�но abTomatунho paasmazявае. Lckьлт на размразявае се Истьрша п��iodуно.
	• Hab相对较име на temпературata随意а на паваленправлино.	• Изберete похаяшату Temпературна стойост.
	• Има пегьсвае на тoka. • Xладинкьт се врься сьмHopмално рбота, korato Зхсанванeto се Вьзостанов.
• Шучьп ри рабotinga ce увенива, kогато xладинкьт работи.	• РаботинiteхаразкетерICTIKи на xладинika могат дс сpenomenя поадипроменITEВtemпературatura на okолота среда. Hopмално си не e greshka.
Xlaudinikbtpaobtu cheTo iInpodlbjxiteln Bpeme.	• CtaHaTa TempepaTpa Moxe Da e Bvscoka.	• HopmaJHo e produkTbT da pa6otn 3a no-dbIgIn nepioOnn B ropeua cpeJa.
	• XlaadinHbT Moxe Da e BkIooHe HacKOp OIII Da e 3apeJeH c xpaHa.	• Korato xlaadinHbT e BkIooHe HacKOp OIII e 3apeJeH c xpaHa, ue OTHEme NOBuee Bpeme, doKATO doCTurHe 3adaTeH a TEmpepaTpa. Toba e HopMaJIHo.
	• HacKopo B xlaadinHbKa Moxe Da ce NoCTabRr TOrEmi KOLIYeCTBa rOpeua xpaHa.	• He noctabYnite rOpeuHa xpana B xlaadinHbKa.
	• Bpata Ta Ha OTdeHneHTo Ha φprzepa Ili XlaadinHbKa Moxe Da e OCTaBeHa OTbpeHa.	• > ToPJIpy Bb3dyx, koIto e BIA3bl B xlaadinHbKa, kapa xlaadinHbKa da pa6otn Ha no-dbIgIn nepioOnn. He OTbapYiTe Bpata Te YceTo.
	• Bpata Ta Ha OTdeHneHTo Ha φprzepa Ili XlaadinHbKa Moxe Da e OCTaBeHa OTbpeHa.	• PpOBepTe DaJI NByPata Ce 3ATBpeHn HApblNo.
	• XlaadinHbT e HacTpoEn Ha MHOro HNcKa TempepaTpa.	• PerynpaIte TempepatypaTa Ha xlaadinHbKa Do no-Bvscoka CTepeH n 3UaKaIte, doKATO ce doCTurHe JKeHAnaT a TempepaTpa.
	• UplbTHeHnETo Ha Bpata Ta Ha xlaadinHbKa Ili φprzepa Moxe Da e 3AmbpSeHo, n3HOseHo, chypeHo Ili HnppaBvHnO NoCTaBeHo.	• POnucTeTe Ili Cmehete ynlbTHeHnETo. NobpeDeHo/CchyeH oynlbyTHeHneKap a xlaadinHbKa da pa6otn 3a no-dbIgTr nepioOn ot Bpeme, 3a da noDlbPxa TeKyuUaTa TEmpepaTpa.
TempepatypaB xlaadinHbKa e MHOro HNcKa, doKATO TempepatypaB bVb φprzepa e DoCTaTbUHa.	• TempepatypaB xlaadinHbKa ce peryInpa Ha MHOro HNcKa CTOHocT.	• PerynpaIte TempepatypaTa Ha xlaadinHbKa Do no-Bvscoka CTepeH n pOBepTe.
XpaHata, sbxpaHyaBaHa B cheMeJdxJeTaTa Ha xlaadinHbTO OTdeJeHne, e 3ampa3eHa.	• TempepatypaB xlaadinHbKa ce peryInpa Ha MHOro BvscKa CTOHocT.	• PerynpaIte TempepatypaTa Ha xlaadinHbKa Ha no-Hncka CToiHOCT n npOBepTe.
Temnepatypata B хладилика улл фprizepa e Mhoro Hncka.	• Temnepatypata B хладилиka ce pereynipa ha MHORO BncoKa cTOnHocT.	• Habtrokhata Na temnpatypata Na хладиноTO OTdelenne Oka3Ba BnlyaHne Bbpxy Temnpatypata Na φprizepa. Променete Temnpatypate Na xlaadinliika илл Фprizepa и n3uakaiTe, dokato сьOTbETNite OTdelenne Достигнат doCTaTbUHa Temnpatypa.
	•ВразITE ce OTbaprtЧeCTO илл ce OCTaBrt OTbOpEN 3a Дыго Врeme.	• He OTbaprIte BpATITE ChcTeO.
	•ВразATA e OTbopEna. • 3aTbOpE	• He OTaTATA NaBlnHO.
	•XlaadinliKbT e BkLlOueH нackopo Илл зарEDeN C храHA.	• Toba e HopMaJIHo. KoraTo xlaadinliKbT e ВклчeHннackopo Илл e 3apeDeN C xpaHa, иze OTHEme NOBEe BpeMe, DokATO DOCTINHe ЗадаDEHATA Temnpatypa.
	•Hackopo B xlaadinliNka може дce NOCTABRT ROLEMi КoIIuChECTBA rOpeUa XpHa.	• He NOCTABrIte ropEua xpaHa B xlaadinliNka.
Вибраци пллшum.	• ПовТ He e paBeH пл СтбИнeH.	• АкxlaadinliKbT ce Klatni pri Na bavH ДвИжЕпe, БалансирайTe ro, кato pergynipate Kpauetata My. Сыzo тaka ce уberete, Que NOBt e DOCTaTbUH No 3dpab, 3a дa NOHEse XlaadinliNka, и e NHBeIriPah.
	•АрTKUЛITE, NOCTaBefeni В xlaadinliNka, MOraT da прediZbHKAT Shm.	• OTSTPANETe pdeMHTTE ot rOpHATA qaCT Na хlaadinliNka.
OT xlaadinliNka ИдВа шуМOBe kaTo Teuza teuHOCt,ПрБСКAne I.T.H.	• ПOTOДITe Na TeyHocT i ra3 ce OsbIeCTBЯВAT B cBOTBETCTBVE c prinHcI\PitNe Na paobTa Na BaShia XlaadinliNik. HopMaJIHo e i He e rpeShka.
OT xlaadinliNka ce chyBa сВирЕнe.	• BeHTINATOPITE ce n3noI3BvAT 3a OxlanJdaHne Na xlaadinliNka. HopMaJIHo e i He e rpeShka.
Кондзази по ВьтршинITE StenHi Na хладилиka.	• ГоршOTOи BnaxHNo BpeMe yBvIeUHaba 3aJeJaBaHeto N KOHNH3a. HopMaJIHo e i He OTbaprIte BpATITE ChcTeO. 3aTbOpTe rI, aKO ca OTBOpEH.
	•ВразITE ce OTbaprt ChcTeO илл ce OCTaBrt OTbOpEN 3a Дыго Врeme.
	•ВразATA e OTbOpEna. • 3aTbOpEe	• He OTBaprIte BpATITE ChcTeO. 3aTbOpTe rI, aKO ca OTBOpEH.
ВлajнocTTa ce noяява OT BbHsHnata CTpaHa Na хладилиka ил mexdY ВрATITE.	• Може DA Ima Bnara BbB b3dUxha; TOBa e cBbCem HopMaJIHo pri BnaxHObpeMe. Korato BnaxHocTTa e NO-HnCKA, KOHN3bT ue IN3Ye3He.
Има поша миризma вхладинке.	• He ce Извършва рedingно поочствае.	• Рedingно поочствае Вътrewинocтта нахладинке съба,хладka Вoda плкарбогат,развореньв Вoda.
	• Няков Контейнера плп одановьчни матерпалу могат дд pruchиняг миризma.	• Из pollьайе рadingл лота в за ворени съдове.Мыроограимизmidtу,разпостраимаши се отменокритente контейнера, могат дд pruchиняг. Нерригэн миризм.
	• Xpana tа с постав вхладинке в неpopкту съдове.	• Съхраимьайе xpana та в за ворени съдове. Мыроограимизmidtу,разпостраимаши се отменокритente контейнера, могат дд pruchиняг. Нерригэн миризм.
	• Изадete ot xладинке xpaniteс сизTekл срок на говост и развалени.
Вразatura не се затваря.	• XpaniteлнITE пaketi позвогьат на вразatura дд сизТВори.	• Сmedete onakobkite, кочуат на вразatura.
	• Xладинке Т He e habлно paraben на пода.	• Perugларaite kpaetat, за дд baалансinateхладинке.
	• Побът He e paraben плп Здрав.	• Уberete сe, чe поюкът e 퍙VELINAPIССПОБЕДАНССССССССССССССССССССССССССССССССССССССССССССССССССССССССССССССССССССССССССССССССССССССССССССССССССССCS
ЧекMedжета за зеленчuya на заседали.	• Xpana ДOKOCBA Тава на чекmedжето.	•Прегаредete xpana в чекmedжето.
Ако поьърхостта на рожукta e ropецca.	• Може дс сабл�доват виски TempepaTypem можду дvebete врати, на сtrainichne панели на занatable решетка, дokato produkът рабotи. Тoba eHopmaлно и He nizckba сервиза подрьжka!

Technical data

Never use sharp abrasive instruments, soap, household cleaners, or cleaners containing chlorine for cleaning.

An appliance that is not without a request, on the back wall of the cooling compartment, water and condensate may appear along the width of the appliance. Do not use it; never pour oil or similar substances on it. Use only a slightly damp microfiber cloth to clean the outer surface of the product. Abrasive cloths or sponges may scratch the surface. Use lukewarm water to clean the cabinet and the evaporator and to wipe it dry. Use a damp cloth, dipped in a solution of one teaspoon of bicarbonate of soda to one pint of water, to clean the interior and to wipe it dry. Make sure that no water enters the lamp housing and other electrical components. If your refrigerator is to be used for a long period of time, unplug the power cord, remove all food, and leave the door open. Check the door seals regularly to ensure they are not damaged. To adjust the door height, remove the lower hinge cover and then simply press the door stopper upward from the base. Never use abrasive cleaners or water containing chlorine to clean the outer surfaces and chrome-plated parts of the product. Chlorine causes corrosion of such metal surfaces. Do not use sharp, abrasive instruments, soap, household cleaners, abrasive cleaners, kerosene, diesel, varnishes, etc., to prevent scratching and deformation of the painted parts. Use lukewarm water and a soft cloth for cleaning, and then wipe dry.

Protect plastic surfaces

Do not place hot oils or cooked dishes in the refrigerator in uncovered containers, as they will damage the plastic surfaces of your refrigerator. In case of oil spillage or smearing on plastic surfaces, immediately clean and wipe the affected part of the surface with lukewarm water.

This refrigerator contains bioactive products in the following parts to prevent the growth of dry bacteria and the development of unwanted odors.

ACTIVE SUBSTANCE: Silver (CAS: 7440-22-4) silver (nano) coating for the door and air filter ACTIVE SUBSTANCE: Titanium dioxide (CAS: 13463-67-7)

Titanium dioxide (nano) coating for the air filter

ACTIVE SUBSTANCE: IPBC (CAS: 55406-53-6) for the seal

The concentrations of the biocides are very low, therefore they should not present a risk to health.

WARRANTY

How long is the warranty period?

The warranty is valid for 5 years from the date of purchase of your IKEA appliance. The original sales receipt serves as proof of purchase. Repair work carried out during the warranty period does not extend it.

Who will carry out the repair work?

IKEA after-sales service will carry out the repair work through its own service operations or through the authorized service network.

What does the warranty cover?

This warranty does not cover damage caused by misuse, use contrary to the design or use of materials, or costs incurred for purchasing from IKEA. The warranty applies only if the product is used in a household. The warranty does not cover normal wear and tear, e.g., repairs, spare parts, labor, and transport, which are not covered. Products are available for repair at no extra cost. The warranty is subject to the applicable national regulations (EC 99/44/EC) and corresponding local provisions. Replaced parts become the property of IKEA.

What does IKEA do to fix the problem?

IKEA's service provider will inspect the product and decide on its responsibility under the warranty. If the damage is covered by the warranty, the service provider will, at its own discretion, repair the defective product or replace it with an equivalent product. What is not covered by this warranty?

Warranty limitations. - Damage caused by negligence, damage caused by failure to follow the instructions for use of the device; incorrect installation of the device or connection to an incorrect power supply; damage caused by chemical or electrochemical reactions; damage caused by rust, corrosion, or water, including, but not limited to, damage caused by excessive lime scale in the water supply; damage caused by failure to comply with the operating environment. Consumables, including batteries and lamps. Non-functional and decorative parts that do not affect the normal use of the device, including possible color variations. Damage caused by foreign substances, food deposits, or the use of non-original cleaning agents or detergents. Damage to specific parts: glass, ceramics, accessories, utensils, water supply and drainage hoses, seals, lamp covers, filters, gaskets, and other parts subject to wear. Unless it can be proven that these damages are due to manufacturing defects. Cases where the malfunction cannot be determined at the time of the technician's visit. Repairs carried out by unauthorized service providers or using non-original parts. Repairs resulting from incorrect installation of the device or non-compliance with the specifications. Use of the device in an environment other than domestic, i.e., professional use. Damage occurring during transport. If the customer transports the device themselves or to another address, we are not responsible for damage during transport. If IKEA delivers the device to the customer's specified delivery address, then damage to the device during delivery will be covered by IKEA. Claims for incorrect installation of the device IKEA. If installation is carried out by an IKEA authorized service provider or their authorized service partner, they will repair or replace the device according to the warranty rules. The authorized service provider or their authorized service partner will reinstall the repaired device or install a replacement device, if necessary. This does not apply to devices where the customer has installed them themselves.

Contact your local IKEA store for after-sales service or the authorized service provider for more information. (Only for Great Britain)

These restrictions apply to devices used for purposes other than normal household use, using non-original or replacement parts to adapt the device to the technical safety specifications of another country, or modifications to the device.

How the law of the respective country applies

The IKEA warranty gives you specific legal rights, which cover or exceed all legal claims. These conditions do not in any way limit the rights of consumers as described in local regulations.

Area of validity

For devices purchased in one EU country and brought to another EU country, services will be provided within the framework of the warranty conditions, valid for the new country.

The warranty for the service is valid only in the country of purchase and in accordance with:

The technical specifications of the device, as stated in the warranty; the installation instructions and the safety regulations, as well as the user manual.

For after-sales service, do not hesitate to contact the nearest IKEA service center if you wish to:

For installation of the warranty; request clarification regarding the installation of the device by the appropriate IKEA furniture specialists; request clarification regarding the functions of the device.

To ensure we provide you with the best service, please read the installation instructions and/or the user manual carefully before contacting us.

How to contact us if you need assistance

See the last page of this manual for the list of IKEA service centers, their addresses, and phone numbers.

To serve you faster, we recommend that you use the phone numbers listed in this manual. Please have the model number of the specific device you need assistance with ready. Also, please have the article number of the IKEA device (8-digit code) ready.

The proof of purchase is required for the warranty to be valid. Please note that the IKEA article number (8-digit code) is provided for each device you purchase.

Do you need further assistance?

For any additional questions not related to the after-sales service of your devices, please contact the nearest IKEA store. We recommend that you read the device documentation carefully before contacting us.

Spare parts

Special spare parts: thermostats, temperature sensors, heating elements, and light bulbs must be available to professional service providers for a minimum period of 7 years from the date the model is discontinued. Special spare parts: door hinges, door handles, drawers, and knobs must be available to professional service providers and end users for a minimum period of 7 years, as well as the door gaskets for a minimum period of 10 years from the date the model is discontinued.

Content

This is how IKEA will help you with your purchase;

The IKEA guarantee covers the product and is valid according to the strict judgment of the guarantor, if it is deemed to be defective. If the IKEA product or its authorized representative determines that the product is defective, then during the guarantee period, they will either repair the defective product or replace it with the same product.

What is not covered by this guarantee?

Normal wear and tear. Damage caused by misuse, failure to follow operating instructions, incorrect installation or connection to incorrect voltage, damage caused by chemical or electrochemical reactions, rust, moisture, or damage caused by extreme weather conditions. Wear and tear of moving parts and non-functional and decorative parts that do not affect the normal use of the product. Accidental damage caused by an object or substance, or cleaning agents, abrasive cleaners, or solvents. Damage to the following parts: ceramic glass, accessories, cutlery and cutlery baskets, plastic parts, and packaging. Unless it is proven that these damages were caused by manufacturing defects. Cases where no problem was found during inspection by a technician. Repairs not performed by authorized service providers and/or authorized service partners, or if non-original spare parts were used. Damage caused by installation that is defective or does not comply with the specifications. Use of the product in a commercial environment, e.g., professional use. Damage caused by transportation. If a customer transports the product to their home, IKEA is not responsible for any damage that may occur during transportation. However, if IKEA delivers the product to the customer's delivery address, damage occurring during this delivery is covered by IKEA. Costs for the installation of the original IKEA product. However, an IKEA service provider or an authorized service partner will repair or replace the product within the scope of this guarantee, and the designated service provider or authorized service partner will reinstall the repaired product or install the replacement product if necessary.

For this guarantee to be valid, you must contact the IKEA after-sales service or the designated service provider for more information. (Only for HB)

These terms do not apply to work without defects that are carried out by specialized personnel to adapt the product to the technical safety specifications of other countries outside the EU.

Do not use sharp abrasive instruments, soap, household cleaners, or wax-based products.

In refrigerators without a No Frost system, drops of water form on the back wall of the refrigerator compartment and freeze to the width of a finger. Do not remove this; never apply oil or similar substances in this case.

Use only slightly damp wipes made of microfiber for cleaning the external surfaces of the product. Sponges and other cleaning wipes may scratch the surface.

Use warm water to clean the refrigerator cabinet and wipe it dry.

Use a damp cloth soaked in a solution of one tablespoon of baking soda per liter of water to clean the interior of the refrigerator and wipe it dry.

Make sure that water does not get into the lamp housing or other electrical components.

If the refrigerator will not be used for an extended period, disconnect the power cord, remove all food, clean it, and leave the door open.

Regularly check the door seals to ensure they are clean and free of food particles.

To remove the door shelves, remove all contents, then simply push the door shelf upward from the base.

It is forbidden to use cleaning agents or chlorine water solutions to clean the external surfaces of components with chrome plating. Chlorine causes corrosion of such metal surfaces.

Do not use sharp, abrasive instruments, soap, household cleaning agents, cleaning agents, kerosene, fuel oil, varnish, etc., to prevent damage and deformation of the marking on the plastic part. For cleaning, use warm water and a soft cloth, then wipe it dry.

Protection of plastic surfaces

Do not place liquid oils or products prepared with oil in open or unsealed containers, as they damage the plastic surfaces of your refrigerator. In case of oil spillage or smearing on plastic surfaces, clean and rinse the affected part of the surface immediately with warm water.

WARRANTY

What is the warranty period?

This warranty is valid for five years from the date of the initial purchase of your device at IKEA. As proof of purchase, the original sales receipt is required. The provision of after-sales service under warranty does not constitute acceptance of the warranty device.

Who provides the service?

The supplier IKEA provides service through its own service organization or an authorized service partner network.

What does the warranty cover?

The warranty covers malfunctions of the device caused by defects in materials or manufacturing from the date of purchase at IKEA. The warranty duration applies only to domestic use of the device. Exceptions are listed in the paragraph 'What does the warranty not cover?' During the warranty period, the warranty covers the repair of malfunctions, for example, those related to repair work, spare parts, labor, and transport, provided that the device is repaired without special costs. Under these conditions, the EU directives (99/44/EG) and corresponding national regulations apply. Replaced parts become the property of IKEA.

What will IKEA do to fix the problem?

The authorized IKEA service provider will analyze the product and decide, at its own discretion, regarding the warranty claim. If the warranty claim is recognized, the IKEA service provider or its authorized service partner will, at its own discretion, carry out repair work on the defective product or replace it with an equivalent or similar product.

What does the warranty not cover?

Normal wear and tear. Intentional damage, misuse caused by failure to follow operating instructions, incorrect installation or connection to unsuitable voltage, damage caused by chemical or electrochemical reaction, rust, corrosion or water ingress, including, but not limited to, damage caused by temporary high lime content in the supplied water, abnormal environmental conditions. Wear parts including batteries and lamps. Non-functional cosmetic parts that do not affect normal use of the appliance, including any minor possible color variations. Accidental damage caused by foreign objects or substances, including clogging of filters, blockage of drain systems or pumps. Damage to the following parts: ceramic glass, additional accessories, crockery, cutlery, plastic parts, hoses and drain hoses, seals, lamps and protective covers, screens, handles, and parts of housings. Unless it can be proven that such damage was caused by manufacturing defects. Cases where faults could not be detected during technical maintenance. Repairs performed by unauthorized service providers or third parties not approved by IKEA, or using non-original spare parts. Repair work caused by incorrect installation or violation of technical conditions. Use of the appliance in a non-domestic environment, i.e., professional use. Damage caused by transport. In case of transport of the appliance by the customer to their home or another address, IKEA is not responsible for damage caused by transport. However, in case of delivery of the appliance by IKEA to the customer's address, IKEA is responsible for damage incurred during delivery of the product and will cover the cost of initial installation of the appliance. However, if an authorized service provider or an authorized service partner performs the repair of the appliance under warranty, the authorized service provider or authorized service partner will re-install the repaired or replaced appliance, if necessary.

This does not apply to appliances ordered online; the customer must contact the local IKEA store or the authorized service provider for additional information. (Only for Great Britain) The limitations do not affect the proper functioning of the appliance when installed and used in accordance with the instructions and using original spare parts, and ensure compliance of the appliance with the technical safety standards of the country of use.

The legislation of the country applies.

The IKEA guarantee provides specific legal rights that cover or exceed all local legal requirements. However, these conditions do not limit the rights of the consumer described in local legislation.

Area of validity

For appliances purchased in one EU country and delivered to another EU country, the services will be provided within the framework of the normal guarantee conditions applicable in the new country.

The obligation to provide after-sales services within the framework of the guarantee is fulfilled only if the appliance and its installation comply with the following documents:

Translation of the text from the country where the warranty requirement is specified; installation instructions and operating manual for the equipment, safety precautions.

After-sales service for IKA devices

Please contact the authorized IKA service center to:

Submit a warranty service request; get advice on installing IKA equipment in a special kitchen furniture; request clarifications on the functionality of IKA equipment. For warranty purposes, to provide first-class service, please carefully read the assembly instructions and/or user manual before using the device.

How to contact us if service is needed

A list of authorized IKA service centers and telephone numbers in the respective countries can be found on the last page of this manual.

For faster warranty service, it is recommended to use the special telephone numbers listed in this manual. Always provide the model number printed on the device, which you need for service. Also always provide the IKA model number (type designation).

KEEP THE SALES RECEIPT!

This is proof of purchase and enables warranty service. The sales receipt also shows the name and model number (type designation) of each device you purchased.

Do you need additional help?

If you have additional questions not related to the after-sales service of your device, please contact the telephone center of your local IKA dealer. We recommend that you carefully read the documentation for your device before contacting us. Information on spare parts

Special spare parts: thermostats, temperature sensors, heating elements, and light elements should be available in professional workshops for at least 10 years after the last unit of this model is placed on the market. The following spare parts: door handles, hinges, gaskets, and baskets should be available for professional workshops and end users for at least 7 years, and door locks for at least 10 years after the last unit of this product is placed on the market.

Not for use in explosive atmospheres.

Wipe the inner surfaces with a soft cloth slightly dampened with water, then wipe dry.

Make sure that water does not get inside the housing of the lamp or other electrical components.

If you do not plan to use the refrigerator for a long time, unplug it from the wall outlet, remove all products, defrost it, and leave the doors open.

Regularly check the door seals to make sure they are not damaged and that they close tightly.

To remove the door shelves, take out all the contents, and then simply push the door shelf upward from the bottom.

Do not use cleaning agents containing chlorine or other aggressive chemicals to clean the outer surfaces and parts with chrome plating. Chlorine on such metal surfaces causes corrosion.

To prevent damage and deformation of the plastic parts, do not use sharp, abrasive tools, household cleaning agents, or solvents such as gasoline, oil, or the like. For cleaning, use a soft cloth dampened with warm water, and then wipe dry.

Protection of plastic surfaces

Do not place hot dishes or freshly cooked food in the refrigerator in uncovered containers, as they can damage the plastic surfaces of the refrigerator. If something spills or smears on the plastic surface, clean it immediately and wipe the affected area dry.

WARRANTY

Warranty period

The warranty is valid for 24 months from the date of purchase of your appliance at the IKA store. The original sales receipt is required as proof of purchase. Warranty service does not extend the warranty period of the appliance.

Who performs warranty service?

Warranty service is performed by the IKA company, which provides warranty service through its own service department or an authorized partner service network.

What does the warranty cover?

The manufacturer's warranty does not cover faults caused by incorrect construction, defective materials, or purchases from stores other than IKEA. The warranty does not cover normal wear and tear. Damages caused during the warranty period will be covered by costs for repairing faults, such as repairs, parts, labor, and travel, provided that the appliance is accessible for repair without special expenses. These terms comply with EU Directive 99/44/EG and relevant local regulations. Replaced parts become the property of IKEA.

How can IKEA help with problems?

If you contact IKEA's after-sales service, they will decide, at their own discretion, whether the fault is covered by this warranty. If it is determined that the fault is covered by the warranty, IKEA's after-sales service or an authorized service partner will, at their own discretion, either repair the defective product or replace it with the same or a similar product.

What is not covered by the warranty?

Damage caused by normal wear and tear. Damage caused by improper installation or connection to the electrical network, improper installation or connection to the mains, damage caused by chemical or electrochemical reaction, rust, corrosion, or water, including, but not limited to, damage caused by immersion in water, damage caused by aggressive environmental factors. External parts, including batteries and lamps. Non-functional and decorative parts that do not affect the normal operation of the appliance, including parts that may be subject to normal wear and tear. Damage caused by foreign objects or substances and clogged filters, drainage systems, or hoses. Damage to the following parts: ceramics, accessories, hooks for dishes and cutlery, hinges and drainage pipes, seals, lamps and lamp covers, screens, handles, covers, and cover parts. Defects that cannot be proven to have been caused by manufacturing defects. Cases where it is impossible to determine the malfunction without the intervention of a technical specialist. Repair work performed by non-designated service centers and/or unauthorized contract partners for service maintenance, or cases of using non-original parts. Repair work that has led to incorrect installation or non-compliance with specifications. Use of the appliance not for domestic purposes, but for professional purposes. Damage during transportation. If the customer transports the product themselves or via their own address, the IKEA company is not responsible for any damage that may occur during transportation. However, if the IKEA company delivers the product to the customer's delivery address, damage that occurs during delivery will be covered by the IKEA company. The cost of the first installation of the appliance by the IKEA company. However, if the appliance is recognized by the IKEA company's service center or its authorized service partner for repair

or replacement of the appliance under the warranty terms, the designated service center or its authorized service partner will reinstall the repaired appliance or install a replacement if necessary.

This does not apply to the territory of Great Britain. The customer must contact a specialized IKEA after-sales service network or the service center for additional information. (Name of the country: Great Britain)

These restrictions do not apply to work performed by a qualified specialist using original parts for the purpose of adapting the appliance to the safety regulations of the EU country.

The legislation of the country applies.

The IKEA warranty gives you specific legal rights, which may include or exceed the legal rights provided by law. However, these warranty terms do not limit the rights of the customer, which are included in local legislation.

The territory to which this warranty applies

The warranty for the products transferred to the crane CC, service maintenance is provided under the warranty terms, up to the new crane. The obligations for warranty service are fulfilled if the product meets the following documents and the established requirements:

Technical characteristics of the crane, for which the warranty is provided; - installation and operation instructions, and safety instructions.

Specialized service centers for IKA products

Contact the authorized IKA service centers:

Fill out a warranty service request; get installation consultations for IKA products at specialized IKA centers; get explanations about the operation of IKA products. Before contacting us, make sure we provide maximum assistance, carefully read the installation instructions and/or the user instructions.

Contact us if you need our service

See the last page of these instructions for the full list of authorized IKA service centers and relevant national phone numbers.

To speed up your service, we recommend using the special phone numbers listed in these instructions. Call the numbers indicated for the specific product you need help with. Also, please provide the IKA article number (8-digit code) of the product.

PRODUCT WARRANTY

The purchase receipt is necessary for warranty application. The warranty also specifies the IKA article number (8-digit code) for each product you purchased.

Need quick help?

For quick questions about the product or its service, contact the nearest IKA dealer. Before contacting us, we recommend carefully reading the product documentation.

Information about spare parts

The following spare parts: thermostats, temperature sensors, printed circuit boards and light sources, must be available to repair specialists for at least seven years after the last model is released to the market. The following spare parts: door handles, door hinges, locks and hinges must be available to repair specialists and end users for at least seven years, and door hinges for at least 10 years after the last model is released to the market.

To prevent dry food from getting damp or absorbing unwanted odors, place it in sealed containers in the refrigerator.

Active substance: Silver (CAS: 7440-22-4) metallic silver (nano), used in the first and second carbon filter. Active substance: Titanium dioxide (CAS: 13463-67-7)

Metallic titanium dioxide (nano), used in the carbon filter. Active substance: IPBC (CAS: 55406-53-6) for preservation

The concentration of biocides is very low, so it is not expected that they could pose a health risk.

Summary
