USER MANUAL CT 3674 Elpumps


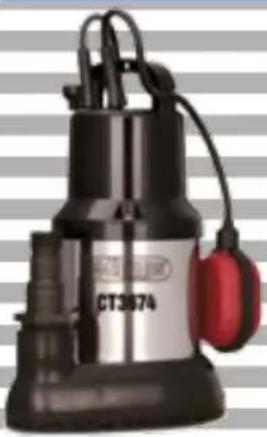

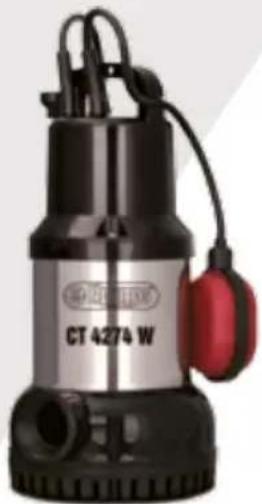

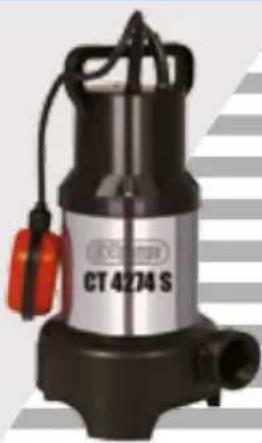

Elpumps® ... The Power of waterCT 2274, CT 3274, CT 4274, CT 2274 S, CT 3274 S, CT 4274 S, CT 2274 W, CT 3274 W, CT 4274 W, CT 3674


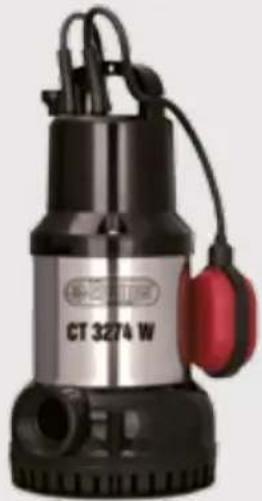

Black and white industrial water purifier with red handle and label 'CT 3274 W' (no additional text or symbols visible)
HASZNÁLATI UTASÍTÁS
USER MANUAL
MANUEL UTILISATEUR
INSTRUCTIUNI DE UTILIZARE
NÁVOD K OBSLUZE
UŽÍVATEL'SKÁ PRÍRUČKA
ATTENTION! Children may use this apparatus from the age of 8 years. Persons who have impaired physical, perception ability or mental efficiency, and persons who do not have sufficient experience and knowledge are allowed to use the apparatus only if they are under supervision, or they receive guidance on the safe use of the device and understand the possible dangers resulting from its use. It is forbidden for children to play with the device. Any cleaning or user maintenance of the device may be done by children only under supervision.
ATTENTION! The pump motor is cooled by the liquid supplied. Flow of cooling agent is ensured by the liquid flowing along the body through a borehole of 2 mm. It does not indicate the defect of the pump, but the proper motor cooling.
Warning: in order to keep personal and material safety, pay special attention to the following signs and regulations.
DANGER! Risk of electric shock! It warns that failure to keep to the regulation involves risk of electric discharge.
DANGER! It warns that failure to keep to the regulation, may result in serious risk to the personal and material safety.
ATTENTION! It warns that failure to keep to the regulation may result in the danger of pump or equipment.
ATTENTION! Prior to starting the installation, read these instructions for use carefully! The guarantee will not cover any damage arising from failing to observe regulations.
ATTENTION! Similarly to other CT pumps, the pump of CT 3674 type with full depression head is also operated automatically by the built-in floating switch in accordance with the change of the water level. For the full depression head, install the floating switch in the plastic piece found on the lug. In case of full depression head, permanent supervision must be ensured.
Contents
Chapter 1: General information
Chapter 2: Application limits
Chapter 3: Installation
Chapter 4: Electrical connection
Chapter 5: Technical data
Chapter 6: Maintenance, troubleshooting
Chapter 1: General information
Submersible pumps of CT2274, CT2274S, CT2274W, CT3274, CT3274S, CT3274W, CT4274, CT4274S, CT4274W, CT3674 type can be used for pumping clean water, rainwater from wells, pits, trenches or cellars, even when installed fix. They are suitable for flooding irrigation of various plants as well. Pumps of CT2274, CT2274S, CT3274, CT3274S, CT4274, CT4274S type are suitable for pumping sewage water, contaminated water as well.
Leakage test and electrical test are done on all electrical pumps when they are assembled.
When the pump is delivered, check whether it was damaged during the transportation; if yes, notify seller immediately. It should be done within eight days from the date of sale.
Chapter 2: Application limits
WARNING! The pump is not suitable for pumping inflammable or dangerous liquids!
WARNING! Avoid dry operation of the pump strictly!
Do not use the pump in garden lakes or swimming pools when persons are staying in them!
• Maximum temperature of the pumped liquid: 35^ C in continuous operation, with the motor fully submerged.
• Maximum depth of submersion: 5 m.
• Length of supply cable: 10 m.
• Maximum number of starts per hour: 20, distributed uniformly.
Chapter 3: Installation
DANGER! Risk of electric shock! Perform each operation of pump installation only after having the mains cable disconnected!
DANGER! In order to avoid serious personal injury, it is strictly forbidden to inspect the suction and delivery opening by hand while the pump is connected to the mains!
For performing any lifting or carrying operation, use the handle which serves for this purpose. In case of permanent installation equipped with fixed pipeline, install a non-return valve which serves for the avoidance of liquid return when the pump is stopped. It is recommended to install a quick connection piece in a place that will help in cleaning and maintenance.
The collecting shaft should have size which makes the least number of starts per hour possible. (See: Application limits) In case of temporary application, it is recommended to use flexible pipe which is fixed to the pump with rubber holder. For handling the pump, use a rope fixed to the handle of the pump! The single-phase pumps CT2274, CT2274S, CT2274W, CT3274, CT3274S, CT3274W, CT4274, CT4274S, CT4274W, CT3674 are equipped with preset floating switch.
WARNING! Make sure that the floating switch stops the pump when reaching the lowest liquid level!
Make sure that there is nothing to hinder the floating switch from moving!
Chapter 4: Electrical connection
WARNING! Make sure that the voltage and frequency indicated in the pump's data plate are the same as those of the supply network!
DANGER! Risk of electric shock! The person responsible for the installation must ascertain of whether the electrical network is equipped with efficient earthing cable in accordance with the current norms.
DANGER! Risk of electric shock! Make sure that the electrical supply system is equipped with highly sensitive leak current protective switch (Fi relay 30mA DIN VDE 01100T739)!
The pumps are single-phase devices, equipped with 2+earthed wall plug at the end of the mains connection cables; in this case the earthing is achieved when the plug is connected to the socket.
Chapter 5: Technical data
| Type CT2274 CT2274S CT3274 CT3274S CT4274 CT4274S | ||||||
| Frequency | 50 Hz | |||||
| Voltage | 230 V ~ | |||||
| Rotational speed | 2800 1/min | |||||
| Power input 600 W 650 W 800 W 850 W 450 W | ||||||
| Shock-proof protection class | I. | |||||
| Protection | IPX8 | |||||
| Operating mode | permanent | |||||
| Operating position | vertical | |||||
| Weight | 4,5 kg 5 kg 5,5 kg | |||||
| Max. flow rate 12 m3/h 14 m3/h | 15 m3/h 16 m3/h | |||||
| Max. delivery head 7 m 8 m | 6 m | 10 m | ||||
| Delivery pipe connection | 1 1/4" | |||||
| Shaft seal | Spring seal ring | Spring seal ring + axial seal | ||||
| Noise level (in 1,5 m distance) | 70 dB(A) 72 dB(A) | |||||
line

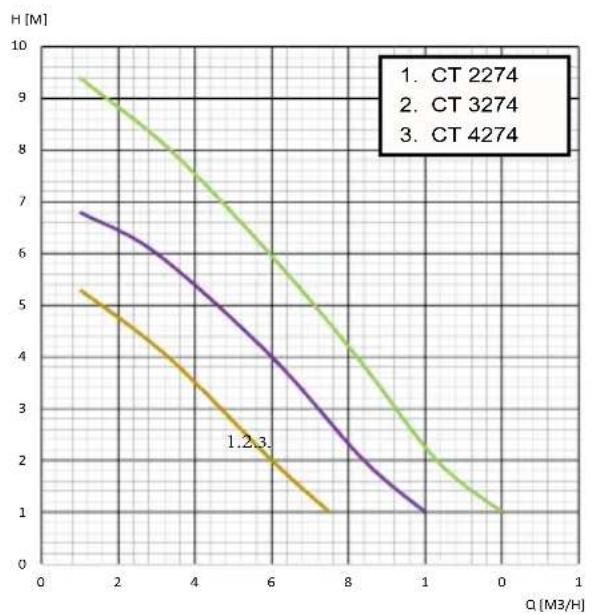

| CT | Q [M3/H] | H [M] | | ---- | -------- | ----- | | 2274 | 0 | 9 | | 3274 | 0 | 8 | | 4274 | 0 | 7 | | 2274 | 6 | 6 | | 3274 | 6 | 5 | | 4274 | 6 | 4 | | 2274 | 1 | 3 | | 3274 | 1 | 2 | | 4274 | 1 | 1 | | 2274 | 0 | 1 | | 3274 | 0 | 1 | | 4274 | 0 | 1 |
line

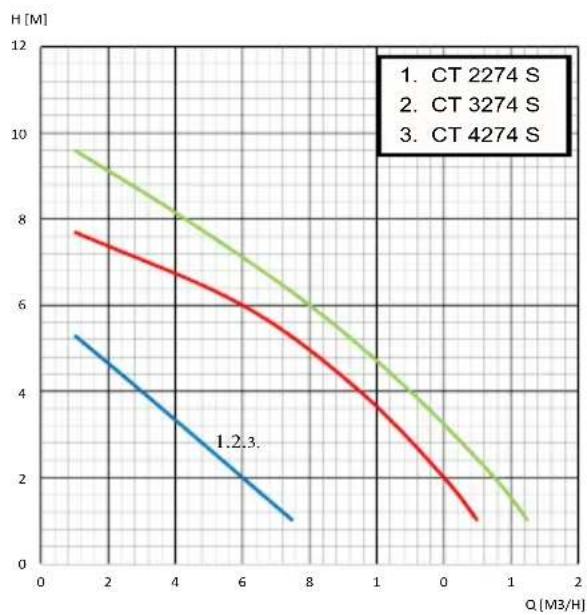

| Q [M3/H] | CT 2274 S | CT 3274 S | CT 4274 S | | -------- | --------- | --------- | --------- | | 0 | 9.5 | 7.8 | 5.3 | | 2 | 8.5 | 7.0 | 4.5 | | 4 | 7.5 | 6.2 | 3.7 | | 6 | 6.5 | 5.4 | 2.9 | | 8 | 5.5 | 4.6 | 2.1 | | 10 | 4.5 | 3.8 | 1.3 | | 12 | 3.5 | 3.0 | 0.5 | | 14 | 2.5 | 2.2 | - | | 16 | 1.5 | 1.4 | - | | 18 | 0.5 | 0.6 | - || Type CT 2274 W CT 3274 W CT 4274 W | |||
| Frequency | 50 Hz | ||
| Voltage | 230 V ~ | ||
| Rotational speed | 2800 1/min | ||
| Power input 450 W 600 W 800 W | |||
| Shock-proof protection class | I. | ||
| Protection | IPX8 | ||
| Operating mode | permanent | ||
| Operating position | vertical | ||
| Weight 4,5 kg 5 kg 5,5 kg | |||
| Max. flow rate 9 m3/h | 10 m3/h | 15 m3/h | |
| Max. delivery head | 7 m | 10 m | 12 m |
| Delivery pipe connection | 1" | 1 1/4" | |
| Shaft seal | Spring seal ring | Spring seal ring + axial seal | |
| Noise level (in 1,5 m distance) | 70 dB(A) | 70 dB(A) | 72 dB(A) |
| Type CT 3674 S | |
| Frequency 50 Hz | |
| Voltage 230 V ~ | |
| Rotational speed 2800 1/min | |
| Power input 600 W | |
| Shock-proof protection class I. | |
| Protection IPX8 | |
| Operating mode permanent | |
| Operating position vertical | |
| Weight 5 kg | |
| Max. flow rate 10,8 m3/h | |
| Max. delivery head 8 m | |
| Delivery pipe connection 1 1⁄4" | |
| Shaft seal Spring seal ring + axial | seal |
| Noise level (in 1,5 m distance) 72 | dB(A) |
line

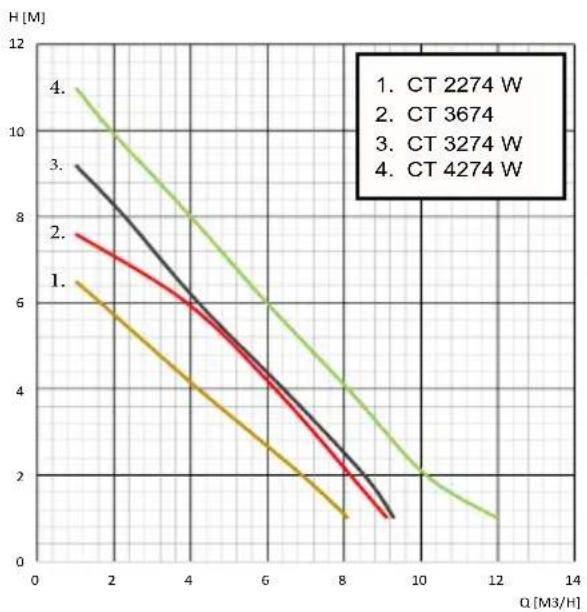

| Q [M3/H] | H [M] (CT 2274 W) | H [M] (CT 3674 W) | H [M] (CT 3274 W) | H [M] (CT 4274 W) | | -------- | ----------------- | ----------------- | ----------------- | ----------------- | | 0 | 11.0 | 9.0 | 7.5 | 6.5 | | 2 | 10.0 | 8.0 | 6.5 | 5.5 | | 4 | 8.0 | 6.5 | 5.5 | 4.5 | | 6 | 6.0 | 5.0 | 4.5 | 3.5 | | 8 | 4.0 | 3.5 | 3.5 | 2.5 | | 10 | 2.0 | 2.0 | 2.0 | 1.5 | | 12 | 1.0 | 1.0 | 1.0 | 1.0 |Overload protection
The single-phase pumps CT2274, CT2274S, CT2274W, CT3274, CT3274S, CT3274W, CT4274, CT4274S, CT4274W and CT3674 are equipped with thermal protection relay which will protect them from any possible overheating.
Chapter 6: Maintenance, troubleshooting
DANGER! Risk of electric shock! Prior to the performance of any maintenance work, disconnect the pump from the electrical network; you can do it by pulling out the connection plug from the socket.
Under normal circumstances, the pumps CT2274, CT2274S, CT2274W, CT3274, CT3274S, CT3274W, CT4274, CT4274S, CT4274W and CT3674 do not require any maintenance. Occasionally it may be necessary to clean the hydraulic part or replace the impeller. If the connection cable or the connector plug gets damaged, its immediate replacement to another cable or plug of the same quality as the original may be done by the manufacturer, the customer service or a skilled technician! The disassembly of the pump may be done only by specialized service repair shop. Following the repair, pressure test must be done again, which is to be certified in writing!
DISPOSAL OF SUPERSEDED ELECTRIC AND ELECTRONIC DEVICES AS WASTE (To be used in the selective waste collection system of the European Union and other countries)
This symbol on the device or the packaging indicates that the product shall not be managed as household waste. Please dispose of it at the collecting place assigned for the collection of electrical and electronic devices.
By proper management of superseded products you can help prevent the environment and human health from damage which would occur if you do not follow the proper way of waste disposal. Recycling of materials helps in the preservation of the natural resources. For further information on the recycling of the product, please contact the competent authorities, the local waste collecting service provider or the shop where this product was bought.
| FAILURE POSSIBLE CAUSE SOLUTION | ||
| The electrical pump does not supply water, the motor does not rotate. | 1) No supply voltage.2) Wall plug is not properly inserted.3) Thermal protection disconnects the motor from the mains.4) Impeller has got stuck.5) Motor or capacitor has got damaged. | 2) Check whether there is supply voltage and insert the wall plug properly!3) Wait until the pump cools down and the motor starts again.4) Remove any possible clogs from the impeller!5) Contact the repair service shop! |
| The electrical pump does not supply water, the motor rotates. | 1) The exhaust grill has clogged.2) The non-return valve has got stuck. | 1) Clean the grill!2) Clean or replace the valve! |
| The pump supplies restricted amount of water. | 1) The exhaust grill has clogged.2) The pipeline has clogged.3) The impeller has worn out. | 1) Clean the grill!2) Remove the causes of clogging!3) Replace the impeller! |
| Bumpy running. 1) | Coarse contamination hinders the impeller from rotating free.2) Liquid temperature is too high.3) The motor has failed. | 1) Remove the causes of clogging!2) Thermal protection of the motor is operating!3) Contact the repair service shop! |
Information concerning the packaging materials: The used packaging materials must be thrown into the relevant waste collector.
DECLARATION: ELPUMPS KFT, 4900 Fehérgyarmat, Szatmári Street, 21, Hungary declares the CE conformity of the product (that is the product meets the relevant European directives) and that the submersible pump is in compliance with the technical data included in the data plate and the Instructions for Use.
This declaration is based on the certification of the TÜV Rheinland InterCert Kft.
