USER MANUAL PM 50MG-22 HILTI

LASER RADIATION DO NOT STARE INTO BEAM CLASS 2 LASER PRODUCT λ=510-530nm / P<0.95mW This product complies with IEC 60825-1: 2014 and 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007 2208357 ④ ③ ② ① ⑤ ⑥ ⑦ ⑧ ⑨

PM 50MG-22

LASER GENERATION 80 NET STAGE INTO SEAM CLASS 2 LASER PROBECT In 197-198-00 - Put Start This installed component with GB 16000-4 GB/T 31.1/4.100.10 and 100.1/10 Insulator for demodulation transmitted to Litter Before No. 50, Duct, Low 25, 2011 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

① Akku

Interior view of a room with walls, door, and camera setup (no text or symbols)

Interior view of a room with windows and a 90-degree angle indicator (no text or symbols beyond the angle marker)

Interior view of a room with a door, window, and ceiling fixtures (no text or symbols)

Architectural diagram showing a room with vertical slats and a horizontal panel, no text or symbols present

Interior view of a room with walls, doors, and a camera on a tripod (no text or symbols)

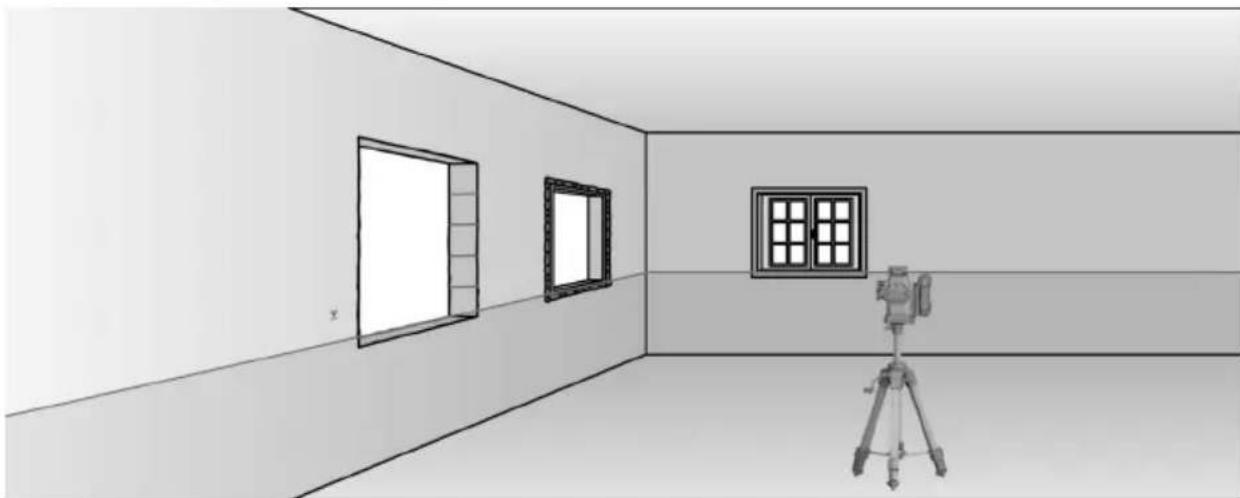

Interior view of a room with two windows and a camera on a tripod (no text or symbols)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Multiline Laser

Products: PM 50MG-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherte(PBDE)
外壳Housing	0	0	0	0	0	0
开关Switch	0	0	0	0	0	0
螺丝Screws	0	0	0	0	0	0
摆体Pendulum	X	0	0	0	0	0
窗罩Lantern	0	0	0	0	0	0
电子器件Electronics	X	0	0	0	0	0
光学件Optics	0	0	0	0	0	0
旋转底座Rotation Base	X	0	0	0	0	0
光学组件Optics housing	X	0	0	0	0	0
导线Cables	0	0	0	0	0	0
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Multiline Laser		型號(型式):Type designation:		PM 50MG-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
外殼Housing	o	o	o	o	o	o
開關Switch	o	o	o	o	o	o
螺絲Screws	o	o	o	o	o	o
鐘擺Pendulum	x	o	o	o	o	o
窗罩Lantern	o	o	o	o	o	o
電子器件Electronics	x	o	o	o	o	o
光學件Optics	o	o	o	o	o	o
旋轉底座Rotation Base	x	o	o	o	o	o
光學組件Optics housing	x	o	o	o	o	o
導線Cables	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Original operating instructions

1 Information about the operating instructions

1.1 About these operating instructions

- Warning! Read and understand all accompanying documentation, including but not limited to instructions, safety warnings, illustrations, and specifications provided with this product. Familiarize yourself with all the instructions, safety warnings, illustrations, specifications, components, and functions of the product before use. Failure to do so may result in electric shock, fire, and/or serious injury. Save all warnings and instructions for future reference.

- HILTI products are designed for professional users and only trained, authorized personnel are permitted to operate, service and maintain the products. This personnel must be specifically informed about the possible hazards. The product and its ancillary equipment can present hazards if used incorrectly by untrained personnel or if used not in accordance with the intended use.

HILTI

• The accompanying documentation corresponds to the current state of the art at the time of printing.
  Please always check for the latest version on the product's page on Hilti's website. To do this, follow the link or scan the QR code in this documentation, marked with the symbol.
• Ensure that these operating instructions are with the product when it is given to other persons.

1.2 Explanation of symbols

1.2.1 Warnings

Warnings alert persons to hazards that occur when handling or using the product. The following signal words are used:

DANGER

DANGER!

- Draws attention to imminent danger that will lead to serious personal injury or fatality.

WARNING

WARNING!

- Draws attention to a potential threat of danger that can lead to serious injury or fatality.

CAUTION

CAUTION!

- Draws attention to a potentially dangerous situation that could lead to personal injury or damage to the equipment or other property.

1.2.2 Symbols in the operating instructions

The following symbols are used in these operating instructions:

Comply with the operating instructions

Instructions for use and other useful information

Dealing with recyclable materials

Do not dispose of electric equipment and batteries as household waste

Hilti Li-ion battery

Hilti charger

1.2.3 Symbols in illustrations

The following symbols are used in illustrations:

2	These numbers refer to the illustrations at the beginning of these operating instructions.
3	The numbers in illustrations refer to important work steps or to components important for the work steps. In the text, the corresponding numbers draw attention to these work steps or components, e.g. (3).
11	Item reference numbers are used in theoverview illustrationand refer to the numbers used in the key in theproduct overviewsection.
!	This symbol is intended to draw your special attention to certain points for handling the product.

1.3 Product-dependent symbols

1.3.1 Symbols on the product

The following symbols can be used on the product:

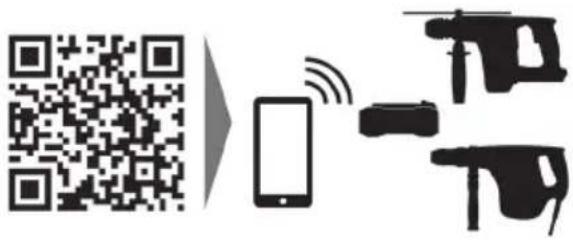

The power tool supports near-field communication (NFC) technology, which is compatible with iOS and Android platforms.

	Direct current (DC)
	Hilti Li-ion battery type series used. Observe the information given in the section headed Intended use
	Pendulum locked (laser beam inclined)
	Pendulum unlocked (self-leveling system active)

1.4 Sticker on the product

Laser information

LASER RADIATION! DO NOT LOOK INTO THE LASER BEAM! LASER CLASS 2 PRODUCT. Laser class 2 based on standard IEC60825-1 / EN60825-1:2014 and compliant with CFR 21 § 1040 (Laser Notice 56).

1.5 Product information

HILTI products are designed for professional users and only trained, authorized personnel are permitted to operate, service and maintain the products. This personnel must be specifically informed about the possible hazards. The product and its ancillary equipment can present hazards if used incorrectly by untrained personnel or if used not in accordance with the intended use.

The type designation and serial number are printed on the rating plate.

Write down the serial number in the table below. You will be required to state the product details when contacting Hilti Service or your local Hilti organization to inquire about the product.

Product information

Multi-line laser PM 50MG-22
Generation 01
Serial no.

1.6 Declaration of conformity

The manufacturer declares, on his sole responsibility, that the product described here complies with the applicable legislation and standards.

The technical documentation is filed here:

Hilti Entwicklungsgesellschaft mbH | Tool Certification | Hiltistrasse 6 | D-86916 Kaufering, Germany

2 Safety

2.1 General safety instructions, measuring tools

WARNING! Read all safety precautions and other instructions. Measuring tools can present hazards if handled incorrectly. Failure to observe the safety instructions and other instructions can result in damage to the measuring tool and/or serious injury.

Keep all safety precautions and instructions for future reference.

Work area safety

• Keep your workplace clean and well lit. Cluttered or poorly lit workplaces invite accidents.
• Do not operate the product in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.
• Keep children and other persons clear when the product is in use.
  ▶ Use the product only within its specified limits.
• Comply with your national accident prevention regulations.

Electrical safety

• Do not expose the product to rain or moisture. Penetrating moisture can cause short circuits, electrical shock, burns or explosions.
  Although the product is protected against the entry of moisture, it should be wiped dry before being put away in its transport container.

Personal safety

• Stay alert, watch what you are doing and use common sense when operating a measuring tool. Do not use a measuring tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating the measuring tool can result in serious personal injury.
• Avoid unusual body positions. Keep proper footing and balance at all times.
  ▶ Wear personal protective equipment. Wearing personal protective equipment reduces the risk of injury.
• Do not render safety devices ineffective and do not remove information and warning notices.
• Avoid accidental starting. Make sure that the measuring tool is switched off before connecting it to the battery and before picking it up or carrying it.
  ▶ Use the product and accessories in accordance with these instructions and in the way specified for this special type of tool. Take the working conditions and the work to be performed into account. Use of products for applications different from those intended could result in hazardous situations.
• Do not lull yourself into a false sense of security and do not flout the safety rules for measuring tools, even if you are familiar with the measuring tool after using it many times. Carelessness can result in serious injury within a fraction of a second.
• Do not use the measuring tool in the vicinity of medical devices.

Using and handling the measuring tool

▶ Use the product and accessories only when they are in perfect working order.
- Store measuring tools out of reach of children when not in use. Do not allow persons who are not familiar with the product or these instructions to operate it. Measuring tools are dangerous in the hands of inexperienced persons.
▶ Measuring tools need care and attention. Check that moving parts operate satisfactorily and do not jam, and make sure that no parts are broken or damaged in such a way that the measuring tool might no longer function correctly. Have damaged parts repaired before using the measuring tool. Many accidents are caused by poorly maintained measuring tools.
- Do not under any circumstances modify or tamper with the product. Changes or modifications not expressly approved by Hilti may restrict the user's authorization to operate the product.

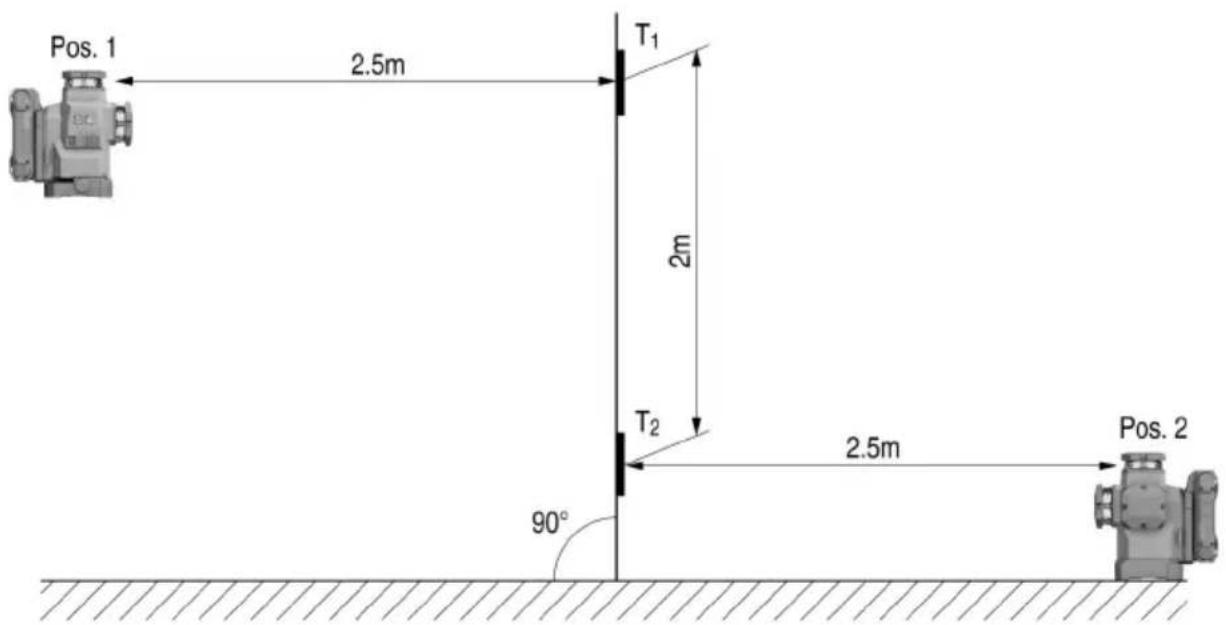

▶ Check the accuracy of the measuring tool before using it for important measurements, and if it has been dropped or subjected to other mechanical stresses.
▶ Due to the measuring principle employed, the results of measurements can be negatively affected by certain ambient conditions. These include, for example, the proximity of devices that produce strong magnetic or electro-magnetic fields, vibrations and temperature changes.
▶ Rapidly changing measuring conditions can falsify the results.
- When the product is brought into a warm environment from very cold conditions, or vice-versa, allow it to become acclimatized before use. Big differences in temperature can lead to incorrect operation and incorrect results.
- When adapters or accessories are used, make sure they are mounted securely.
The measuring tool is designed for the tough conditions of jobsite use, but as with other optical and electrical products (e.g. binoculars, spectacles, cameras) it must be handled with care.
The specified operating and storage temperatures must be observed.

2.2 Additional safety instructions for laser measuring tools

▶ Laser radiation in excess of Class 2 can be emitted if the product is opened without correct procedure being followed. Have the product repaired only by Hilti Service.
- Secure the area in which you will be taking measurements. While setting up the product, make sure that you do not direct the laser beam toward yourself or others. Laser beams should be projected well above or well below eye height.
- Keep the laser exit window clean in order to avoid measurement errors.

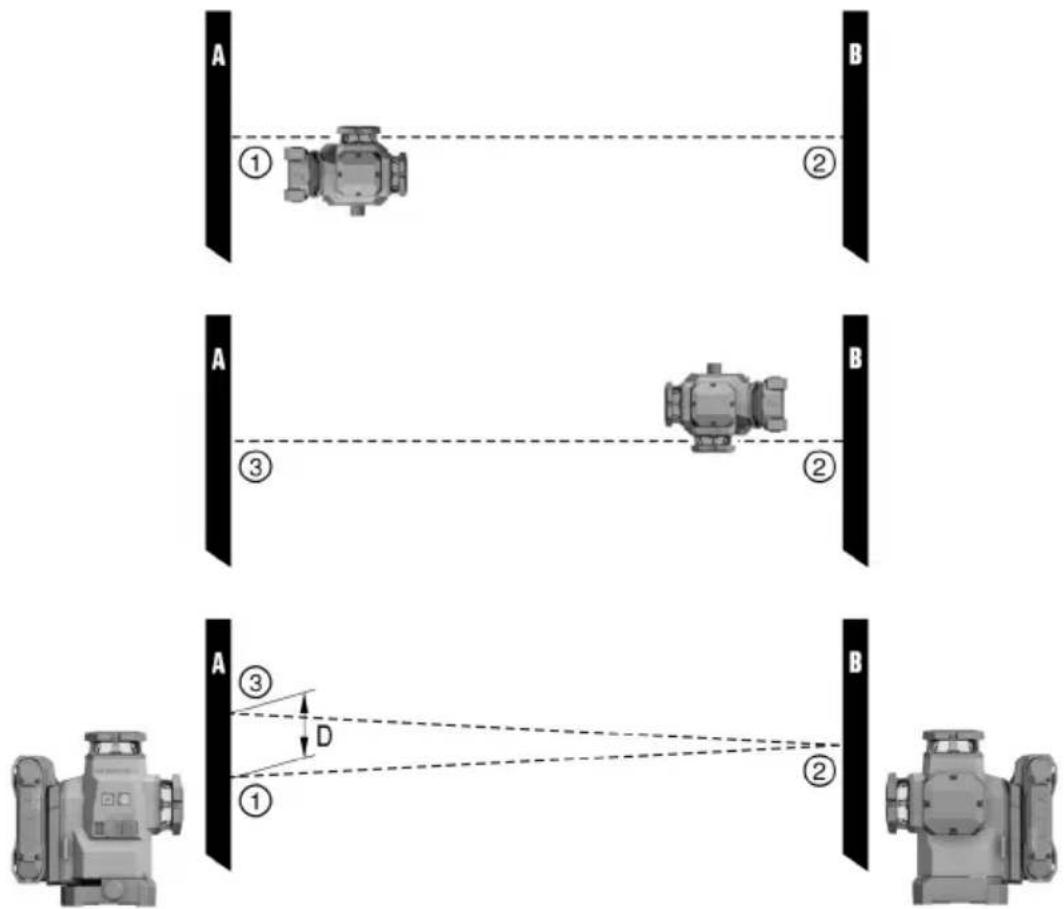

▶ Check the accuracy of the product before use and several times during use.
Readings taken in the vicinity of reflective objects or surfaces, through panes of glass or similar materials can falsify the result of measurement.
▶ Mount the product on a suitable holder or bracket or on a tripod, or set it on a smooth, level surface.
- Do not work with surveyor's staffs in the vicinity of high-voltage electricity cables.
▶ Make sure that no other laser measuring tool that can influence your measurements is in use in the vicinity.
- Do not permit the laser beam to project beyond the controlled area.

2.3 Additional safety instructions

Risk of injury by falling tools and/or accessories. Before starting work, check that the battery and installed accessories are secure.
To achieve maximum accuracy, project the line onto a vertical, flat surface. To do so, set up the product at 90^ to the surface.

2.4 Electromagnetic compatibility

Although the product complies with the strict requirements of the applicable directives, Hilti cannot entirely rule out the possibility of interference to the product caused by powerful electromagnetic radiation, possibly leading to incorrect operation. Check the accuracy of the device by taking measurements by other means when working under such conditions, or if you are unsure. Likewise, Hilti cannot rule out the possibility of interference with other devices (e.g. aircraft navigation equipment).

2.5 Laser classification for Class 2 laser products

The product corresponds to Laser Class 2 in accordance with IEC / EN 60825-1:2014 and in accordance with CFR 21 § 1040 (FDA). This product may be used without need for further protective measures. Nevertheless, as with the sun, do not look directly into the light source. If you do inadvertently look into the laser beam, immediately close your eyes and move your head clear of the laser beam. Do not aim the laser beam at persons.

2.6 Careful handling and use of batteries

• Comply with the following safety instructions for the safe handling and use of Li-ion batteries.
  Failure to comply can lead to skin irritation, severe corrosive injury, chemical burns, fire and/or explosion.
  ▶ Use only batteries that are in perfect working order.
  ▶ Treat batteries with care in order to avoid damage and prevent leakage of fluids that are extremely harmful to health!
• Do not under any circumstances modify or tamper with batteries!
• Do not disassemble, crush or incinerate batteries and do not subject them to temperatures over 80 °C (176 °F).
  ▶ Never use or charge a battery that has suffered an impact or been damaged in any other way. Check your batteries regularly for signs of damage.
  ▶ Never use recycled or repaired batteries.
  ▶ Never use the battery or a battery-operated power tool as a striking tool.
  ▶ Never expose batteries to the direct rays of the sun, elevated temperature, sparking, or open flame. This can lead to explosions.
  Do not touch the battery poles with your fingers, tools, jewelry, or other electrically conductive objects. This can damage the battery and also cause material damage and personal injury.
• Keep batteries away from rain, moisture and liquids. Penetrating moisture can cause short circuits, electric shock, burns, fire and explosions.
  ▶ Use only chargers and power tools approved for the specific battery type. Read and follow the relevant operating instructions.
• Do not use or store the battery in explosive environments.
  If the battery is too hot to touch, it may be defective. Put the battery in a place where it is clearly visible and where there is no risk of fire, at an adequate distance from flammable materials. Allow the battery to cool down. If it is still too hot to touch after an hour, the battery is faulty. Consult Hilti Service or read the document entitled "Instructions on safety and use for Hilti Li-ion batteries".

Observe the special guidelines applicable to the transport, storage and use of lithium-ion batteries. → page 37

Read the instructions on safety and use of Hilti Li-ion batteries that you can access by scanning the QR code at the end of these operating instructions.

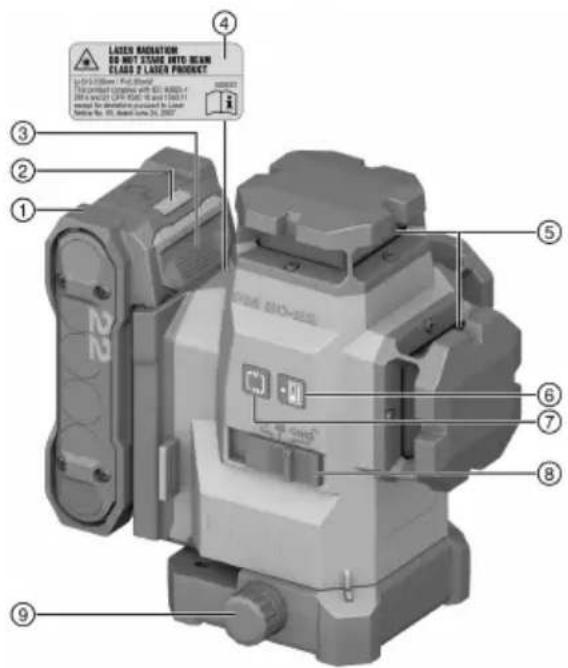

3.1 Product overview

LAYER RADIATION EN NOT EASE INTO BEAM CLASS 2 LASER PROJECT 100000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

① Battery
② Battery status indicator
③ Battery release button
④ Warning sticker
⑤ Laser exit window
⑥ Receiver mode button
⑦ Line mode button
⑧ Selector switch for ON / OFF and lock / unlock pendulum
⑨ Knob for fine adjustment

3.2 Intended use

This tool is a self-leveling multi-line laser level that allows a single person to transfer right angles, level horizontally, carry out alignment work and plumb accurately.

The product is designed for mainly indoor use and is no substitute for a rotating laser. For outdoor use make sure that the boundary conditions are the same as for indoor use, or else use a Hilti laser receiver.

Possible applications are:

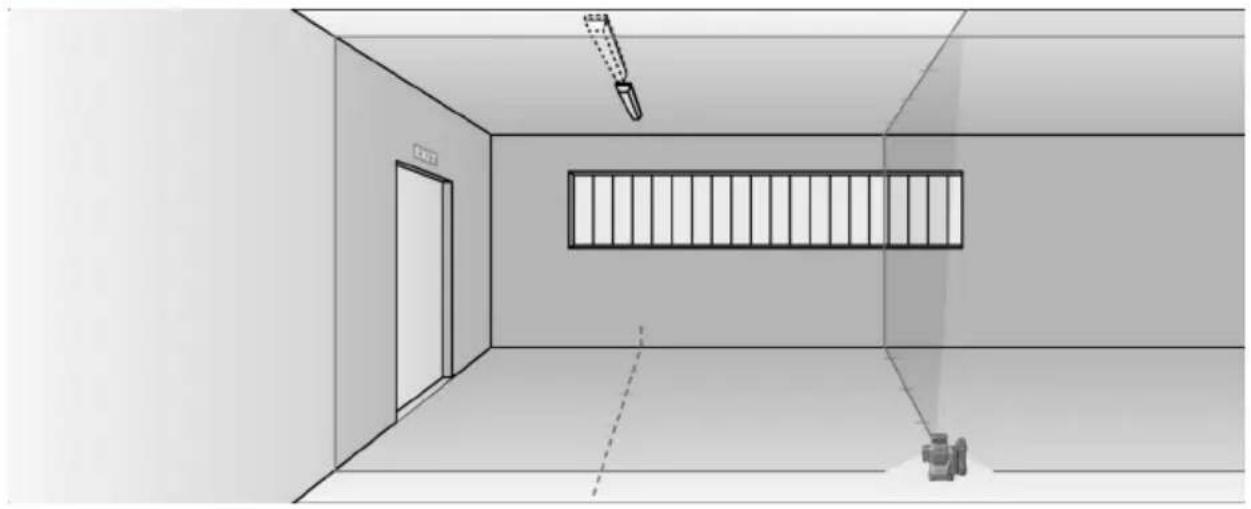

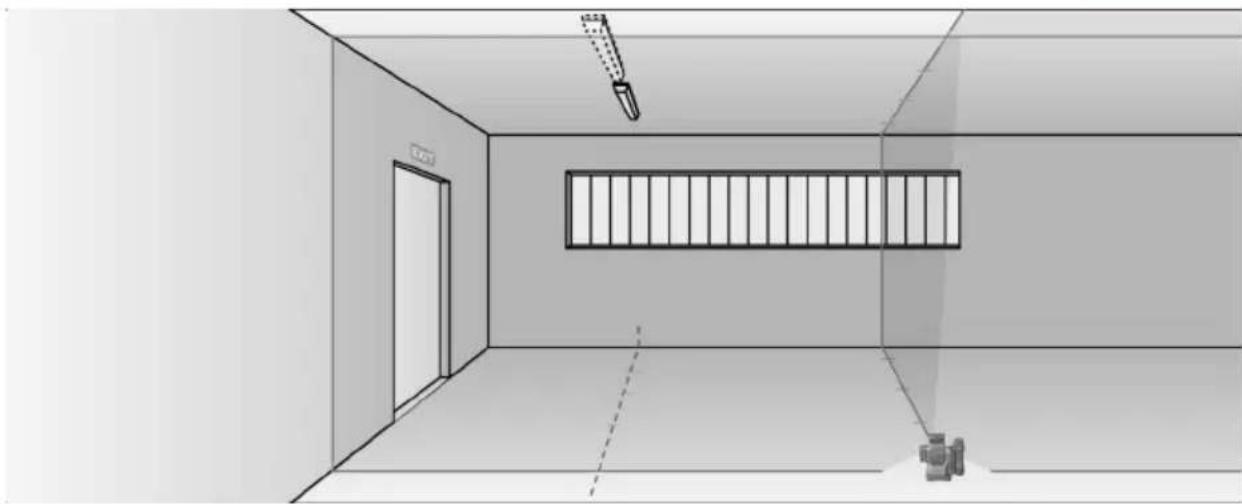

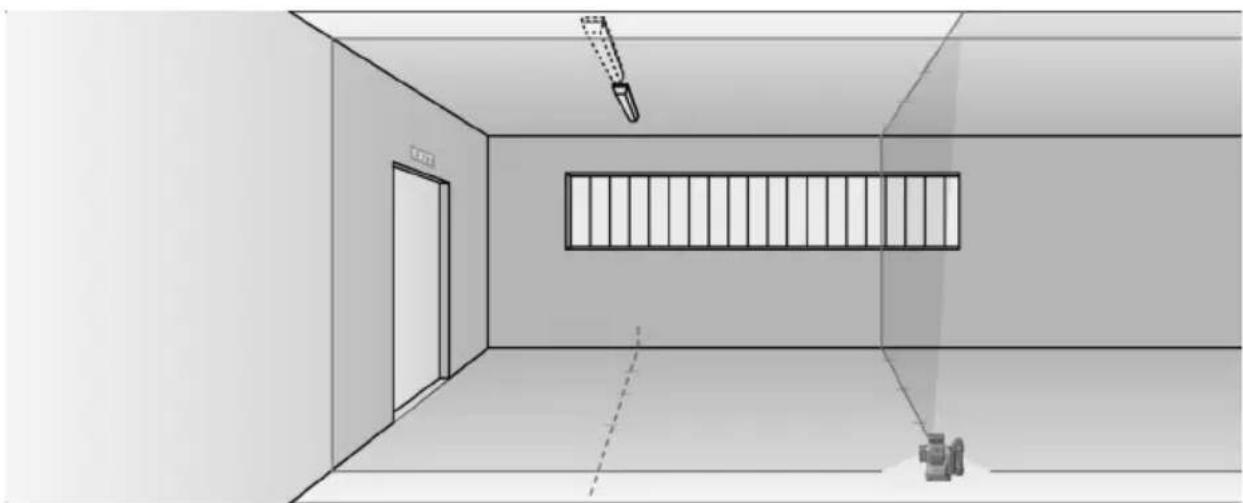

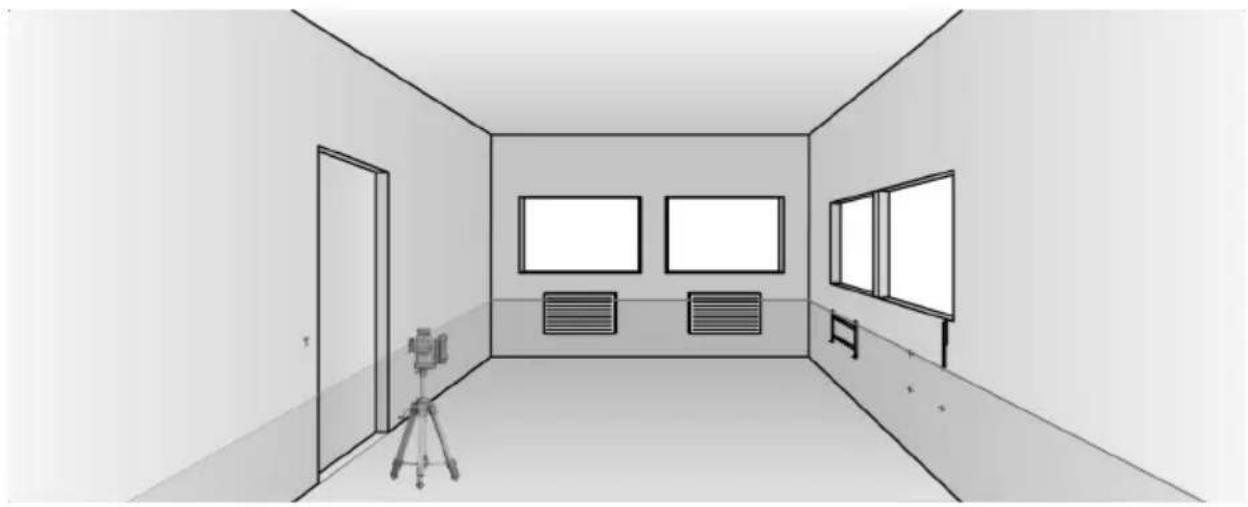

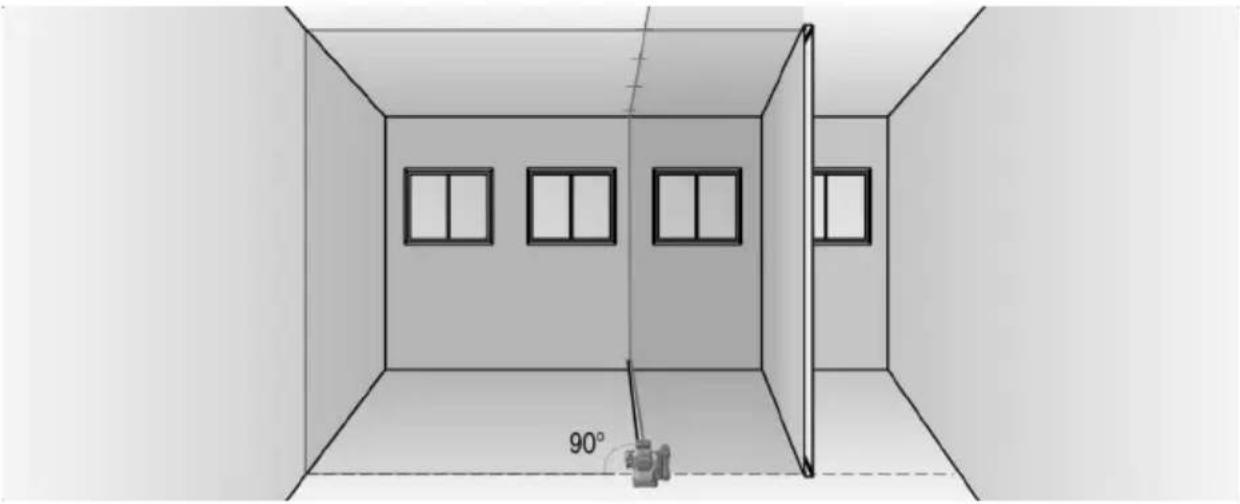

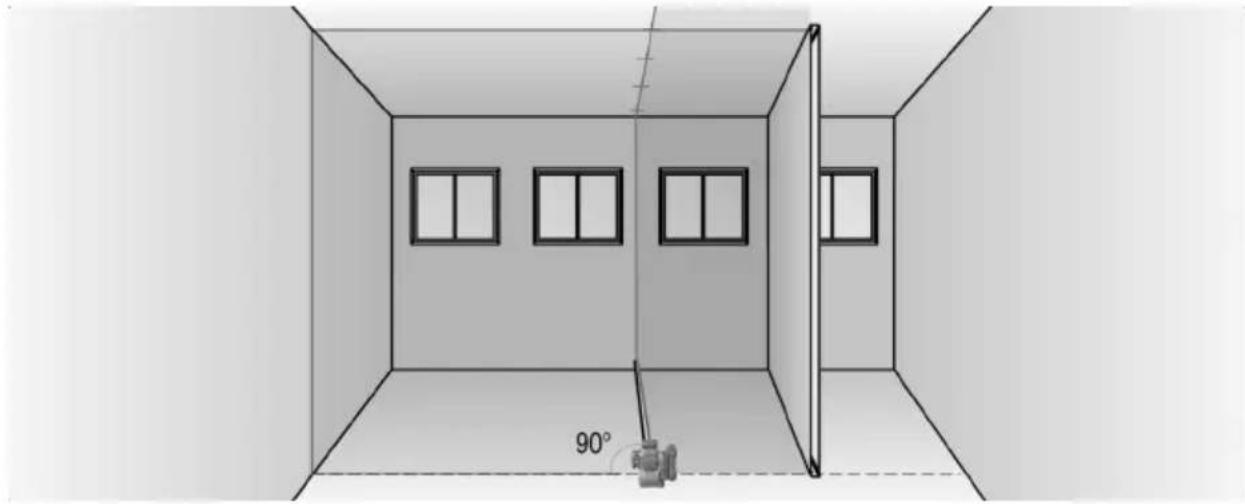

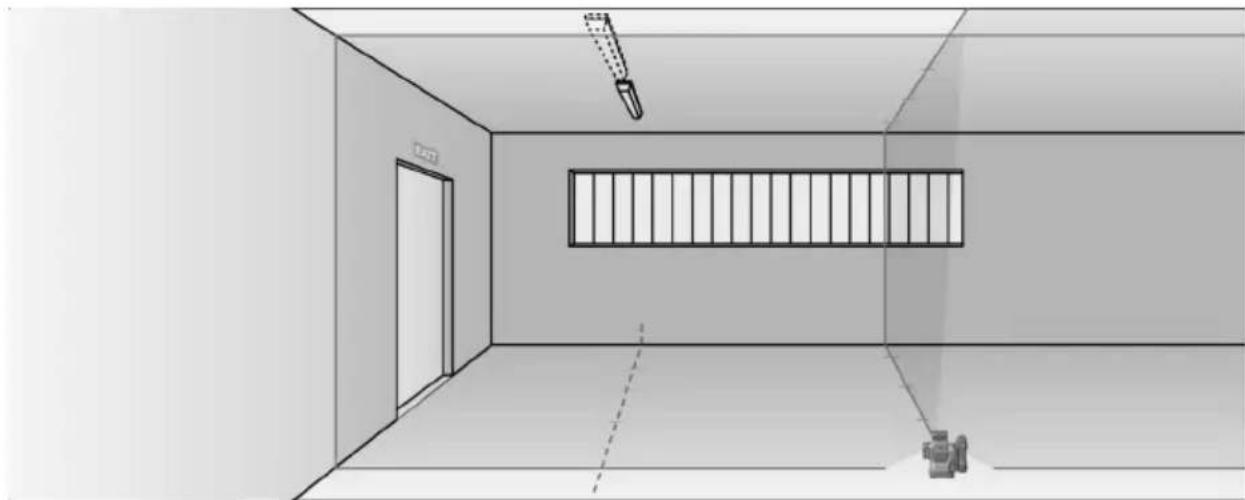

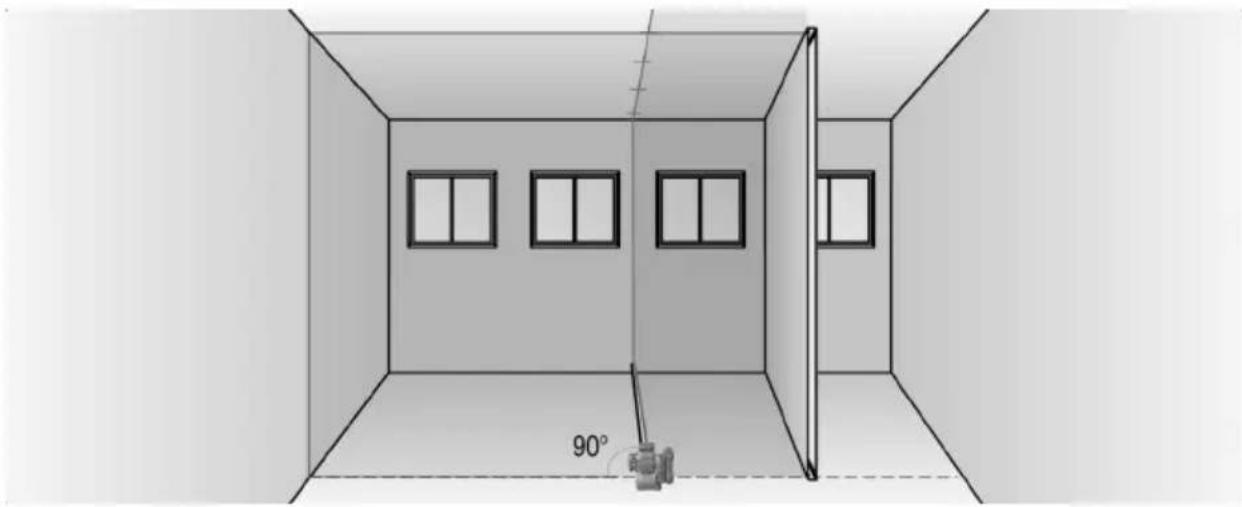

• Marking the position of partition walls (at right angles and in the vertical plane).
• Checking and transferring right angles.

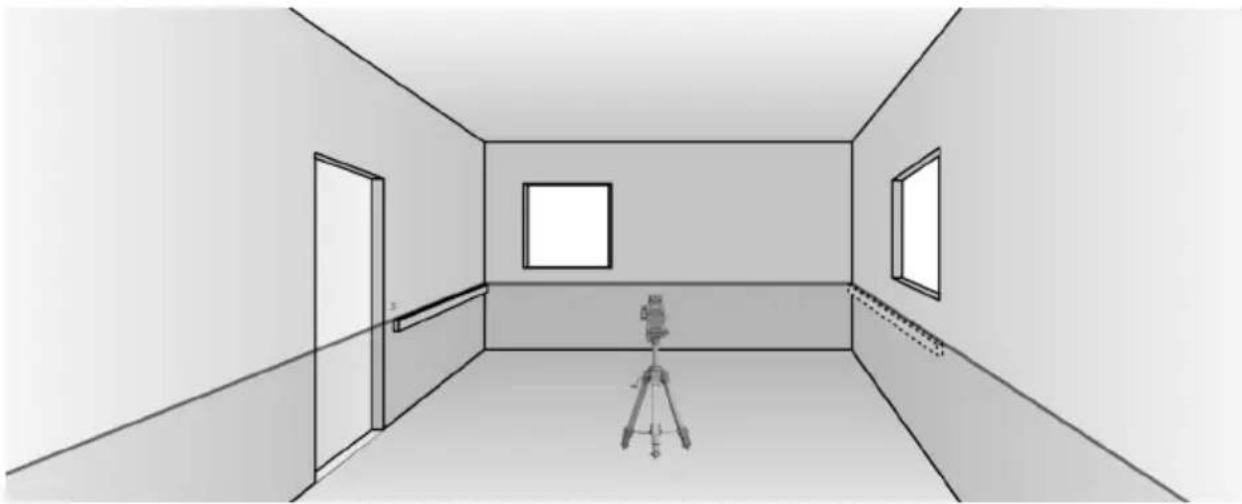

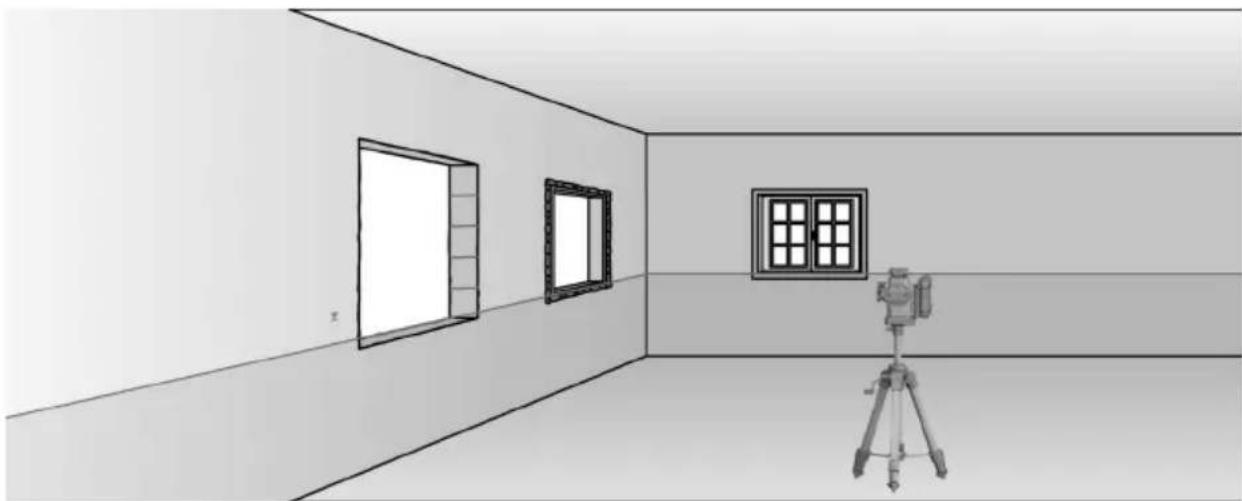

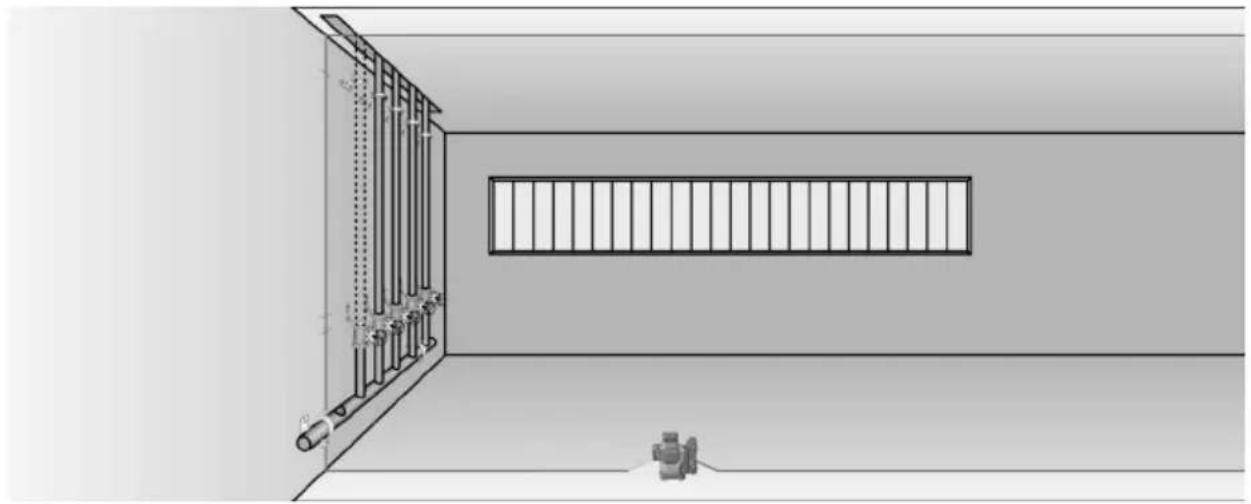

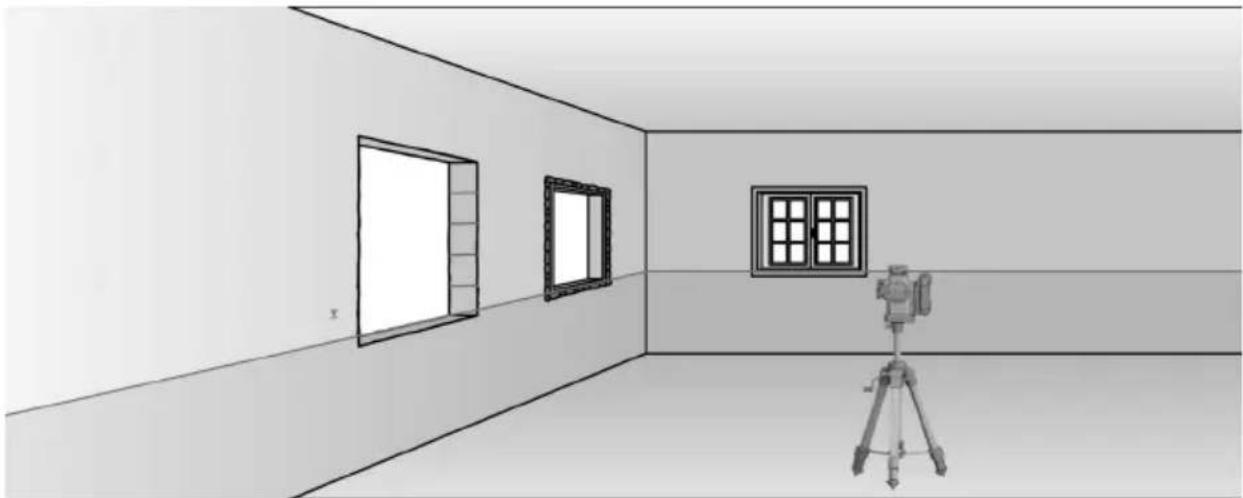

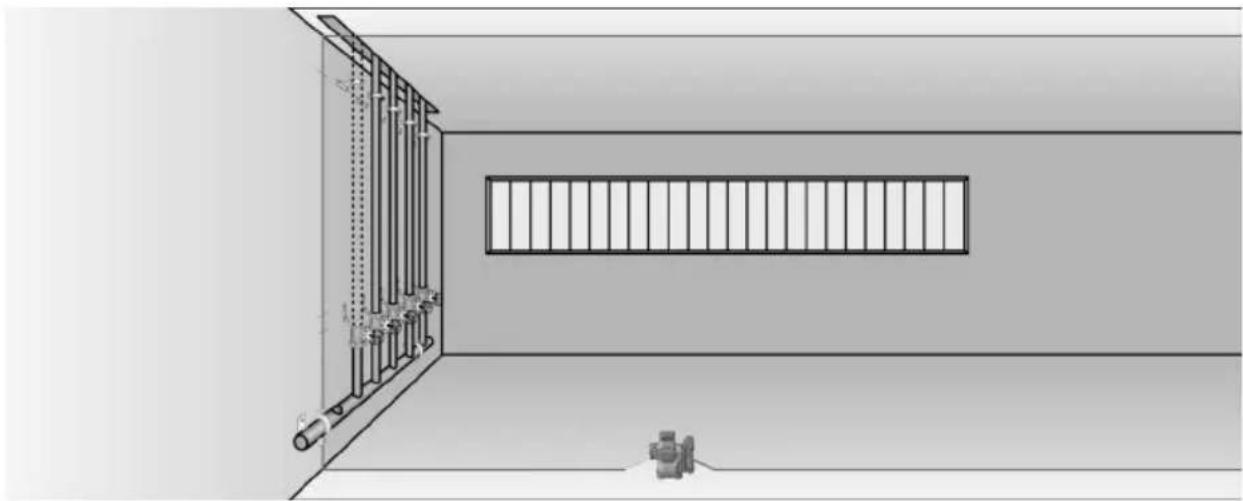

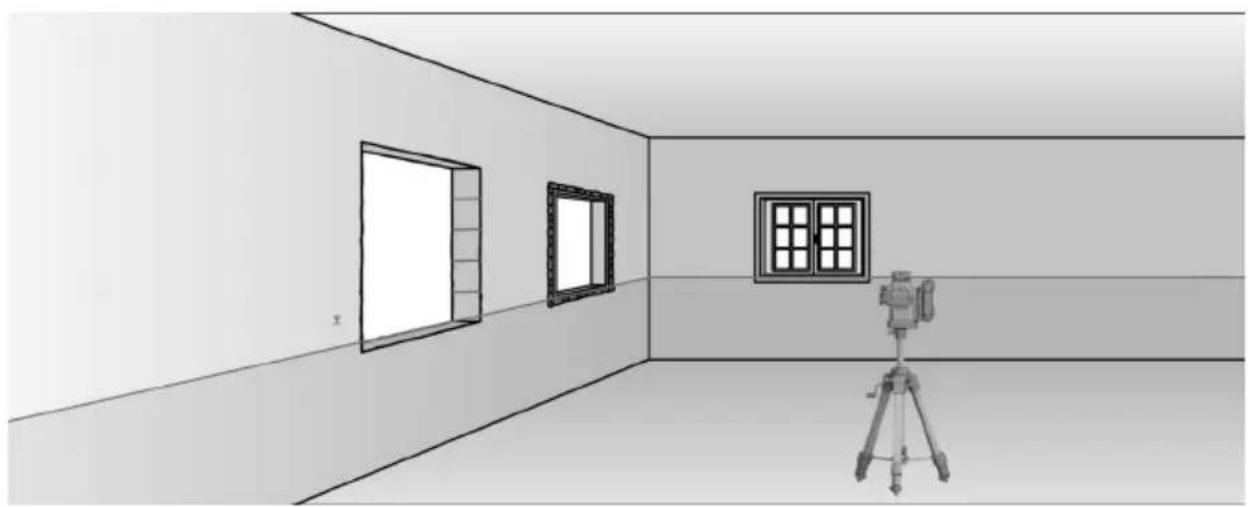

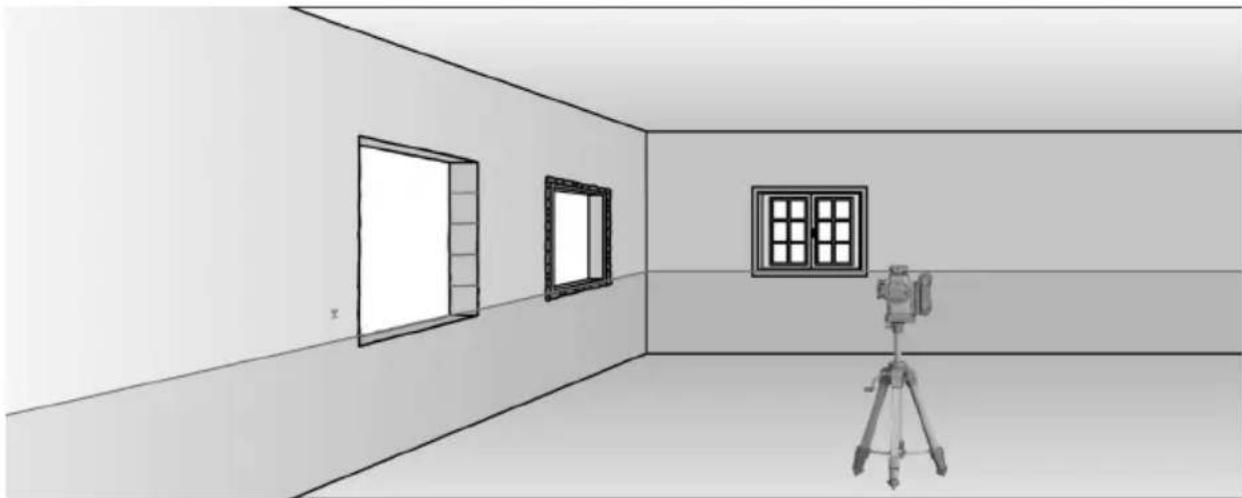

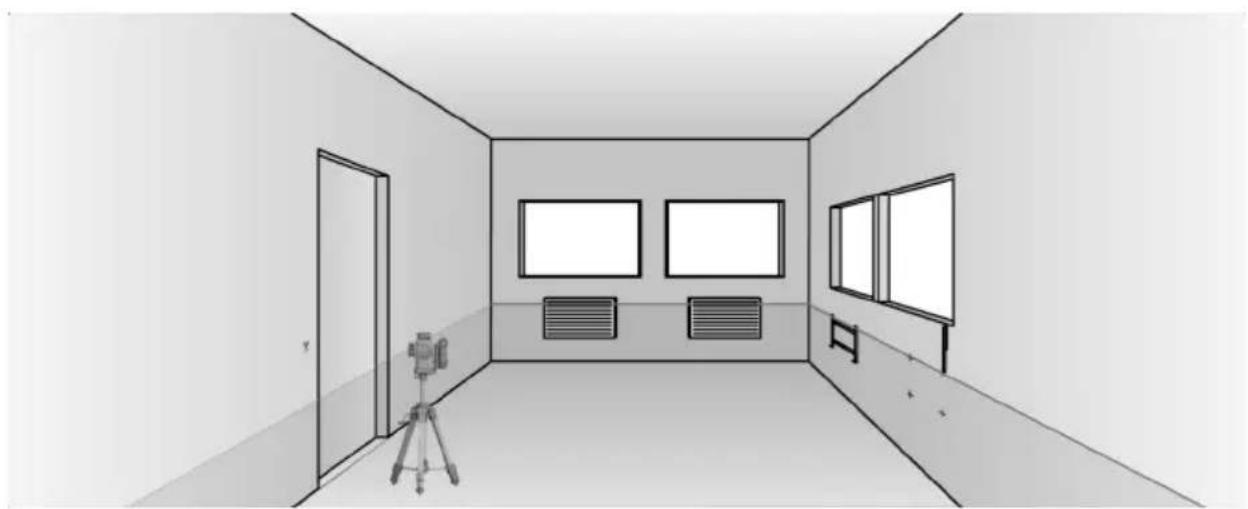

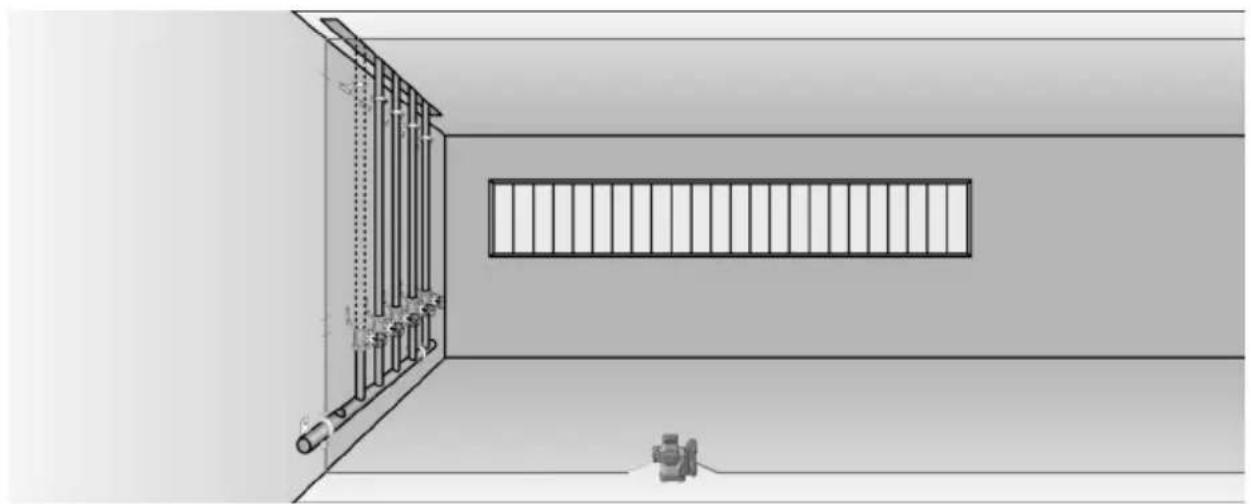

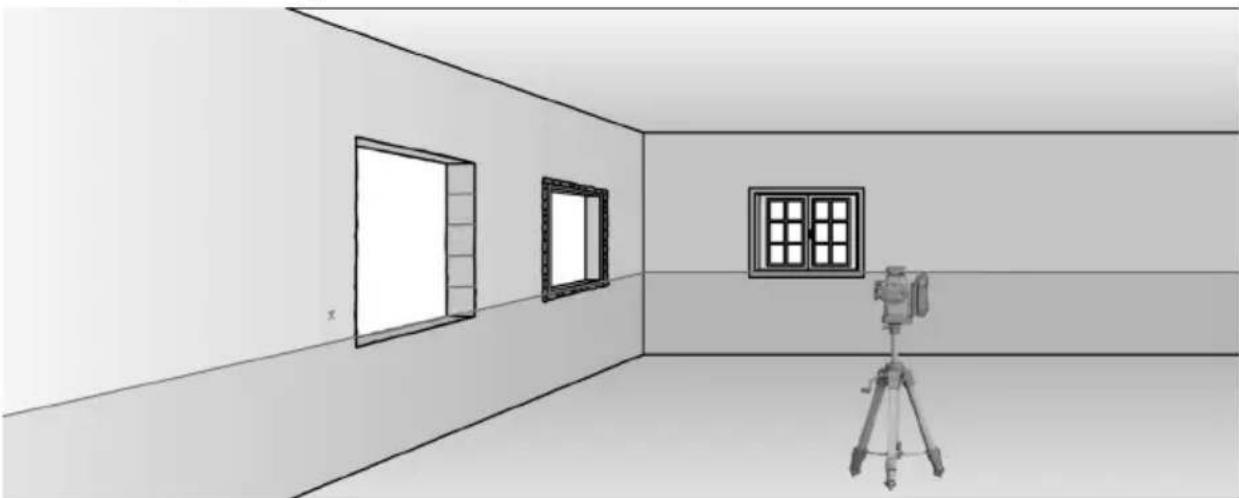

• Aligning components to be installed or sections of a structure in three axes.

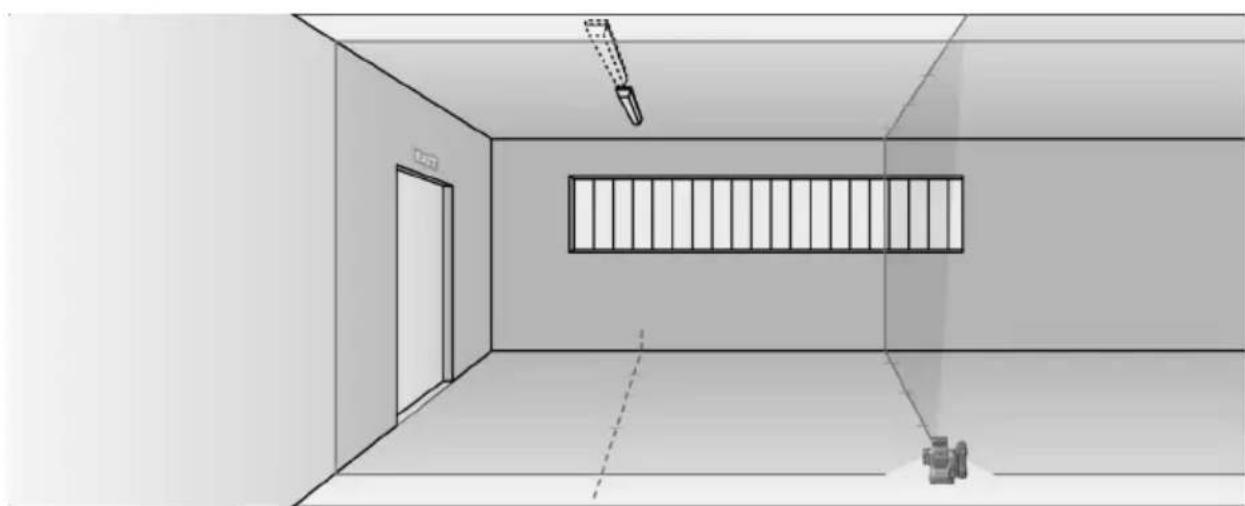

  • Transferring points marked on the floor to the ceiling.
• For this product, use only the Hilti Nuron Li-ion batteries of the B 22 series stated in this table.
• For these batteries, use only Hilti chargers of the type series stated in this table.

3.3 Features

The product has three green 360° laser lines with a range of up to 40 m (131 ft), and five beam intersection points (front, rear, left, right and above). Range depends on the brightness of ambient light.

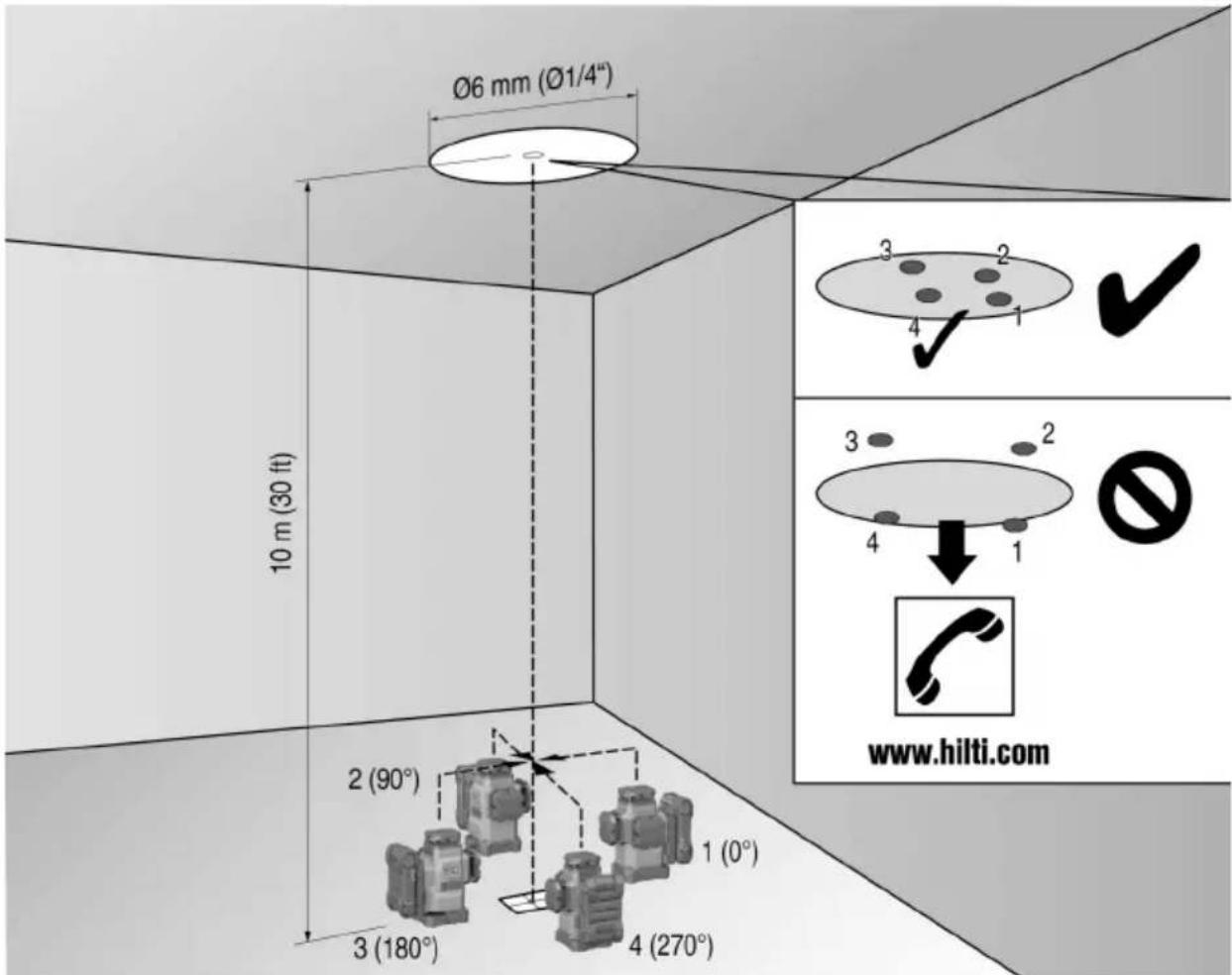

As viewed from the rear, the product has a reference point directed downward on the left-hand front. The rear is the side where the battery is fitted.

The laser lines can be switched on either separately (vertical or horizontal line only) or together. When used with inclination angle, the pendulum for self-leveling is blocked.

3.4 Items supplied

Multi-line laser, toolbox, operating instructions, manufacturer's certificate.

Other system products approved for use with this product can be found at your local Hilti Store or at: www.hilti.group

3.5 Information displayed during operation

Status Meaning
The laser beam blinks twice every 10 seconds (pendulum not locked) or every 2 seconds (pendulum locked).	The batteries are almost exhausted.
The laser beam blinks five times and then remain permanently on.	Activation or deactivation of receiver mode.
The laser beam blinks very rapidly. The tool cannot level itself.
The laser beam blinks every 5 seconds. Inclined	line operating mode; the pendulum is locked, so the lines are not leveled.

3.6 Status indicators of the Li-ion battery

Hilti Nuron Li-ion batteries can indicate state of charge, fault messages and the battery's state of health.

3.6.1 Indicators for state of charge and fault messages

WARNING

Risk of injury by a falling battery!

If the release button is pressed with a battery inserted in the product, subsequently check that the battery is correctly re-engaged and secure.

Short-press the release button of the battery to get whichever of the following status indications is applicable at the time.

State of charge and, if applicable, faults are indicated constantly as long as the connected product is switched on.

Status Meaning
Four (4) LEDs show constantly green State of charge: 100 % to 71 %
Three (3) LEDs show constantly green State of charge: 70 % to 51 %
Two (2) LEDs show constantly green State of charge: 50 % to 26 %
One (1) LED shows constantly green	State of charge: 25 % to 10 %
One (1) LED slow-flashes green	State of charge: < 10 %
One (1) LED quick-flashes green	The Li-ion battery is completely discharged. Recharge the battery.If the LED again starts quick-flashing after the battery has been charged, consultHilti Service.
One (1) LED quick-flashes yellow	The Li-ion battery or the product in which it is inserted is overloaded, too hot or too cold, or experiencing some other fault.Bring the product and the battery to the recommended working temperature and do not overload the product when it is in use.If the message persists, consultHilti Service.
One (1) LED shows yellow	The Li-ion battery and the product in which it is inserted are not compatible. ConsultHilti Service.
One (1) LED quick-flashes red	The Li-ion battery is locked and cannot be used.ConsultHilti Service.

3.6.2 Indicators showing the battery's state of health

To check the battery's state of health, press the release button and hold it down for longer than three seconds. The system does not detect a potential malfunction of the battery due to misuse, for example battery dropped or pierced, external heat damage, etc.

Status Meaning
All LEDs show in sequence, followed by one (1) LED showing constantly green.	The battery can remain in use.
All LEDs show in sequence, followed by one (1) LED quick-flashing yellow.	The check to ascertain the battery's state of health did not complete. Repeat the procedure, or consult Hilti Service.
All LEDs show in sequence, followed by one (1) LED showing constantly red.	If a connected product can still be used, the remaining battery capacity is below 50%. If a connected product can no longer be used, the battery has reached the end of its useful life and has to be replaced. Consult Hilti Service.

4 Technical data

4.1 Product information

Range of the lines and intersection point without laser receiver		≤ 40 m(≤ 131 ft - 3 in)
Range, lines and intersection point with laser receiver		2 m ... 65 m(6 ft - 7 in ... 213 ft - 3 in)
Self-leveling time (typical)		3 s
Self-leveling range (typical)		±4.25°
Accuracy		±3.0 mm in 10 m(±0.12 in in 32 ft - 10 in)
Line width (typical) 5 m (16.4 in)		2.5 mm(0.10 in)
	10 m (32.8 in)	4.0 mm(0.16 in)
Laser class		Class 2, visible, 510-530 nm
Battery life (typical, all lines on) B 22-55		14 h at 24 °C(14 h at 75 °F)
	B 22-85	24 h at 24 °C(24 h at 75 °F)
Battery life (typical, only horizontal or vertical lines on)	B 22-55	22 h at 24 °C(22 h at 75 °F)
	B 22-85	32 h at 24 °C(32 h at 75 °F)
Automatic power-off (activated after)		1 h
Degree of protection (Does not apply for Nuron B 22 battery)		IP 54
Tripod thread		BSW 5/8" | UNC 1/4"
Beam divergence		0.05 ... 0.08 mrad * 180°
Average output power (RE = accessible emission laser output power)		< 2 mWFor laser class 2 the accessible emission limit is AEL class 2 = > 2 mW
Wavelength (λ)		510 nm ... 530 nm± 10 Nm
Pulse duration (tp)		< 80 μs
Pulse frequency (f)		< 12 kHz
Weight in accordance with EPTA procedure 01, without battery		1.29 kg
Dimensions (Length x width x height)		140 mm x 128 mm x 180 mm(5.5 in x 5.0 in x 7.1 in)
Operating status indicator		Laser beams and Nuron B 22 battery status indicator
Operating temperature		-10 °C ... 40 °C(14 °F ... 104 °F)
Storage temperature		-25 °C ... 63 °C(-13 °F ... 145 °F)

4.2 Battery

Battery operating voltage	21.6 V
Weight, battery	See the section headed "Intended use"
Ambient temperature for operation	-17 °C ... 60 °C(1 °F ... 140 °F)
Storage temperature	-20 °C ... 40 °C(-4 °F ... 104 °F)
Battery charging starting temperature	-10 °C ... 45 °C(14 °F ... 113 °F)

5 Preparations at the workplace

CAUTION

Risk of injury by unintended starting!

Before inserting the battery, make sure that the product is switched off.

Observe the safety instructions and warnings in these operating instructions and on the product.

5.1 Charging the battery

1. Before charging the battery, read the operating instructions for the charger.
2. Make sure that the contacts on the battery and the contacts on the charger are clean and dry.
3. Use an approved charger to charge the battery. → page 26

5.2 Inserting the battery

WARNING

Risk of injury by short circuit or falling battery!

Before inserting the battery, make sure that the contacts on the battery and the contacts on the product are free of foreign matter.
▶ Make sure that the battery always engages correctly.

1. Charge the battery fully before using it for the first time.
2. Push the battery into the product until it engages with an audible click.
3. Check that the battery is seated securely.

5.3 Removing the battery

1. Press the battery release button.
2. Remove the battery from the product.

5.4 Fall arrest

WARNING

Risk of injury by falling tool and/or accessory!

▶ Use only the Hilti tool tether recommended for your product.
Prior to each use, always check the attachment point of the tool tether for possible damage.

Comply with the national regulations for working at heights.

As drop arrester for this product, use only a combination of the Hilti retaining strap #2293133 and the Hilti tool tether #2261970.

• Secure the retaining strap to the installation openings for accessories. Check that it holds securely.
• Secure one carabiner of the tool tether to the retaining strap and secure the second carabiner to a load-bearing structure. Check that both carabiners hold securely.

Comply with the operating instructions of the Hilti retaining strap and those of the Hilti tool tether.

6 Operation

CAUTION

Risk of injury! Do not direct the laser beam toward persons.

▶ Never look directly into the source of the laser beam. In the event of direct eye contact, close your eyes and move your head out of the path of the laser beam.

Observe the safety instructions and warnings in these operating instructions and on the product.

6.1 Switching the laser beams on

1. Set the selector switch to the position (ON / unlocked).

▶ The vertical laser lines are switched on.

1. Press the line mode button repeatedly until the desired line mode is set.

The operating modes change in the following sequence and the sequence repeats itself: vertical lines, vertical side line, horizontal line, vertical and horizontal lines.

6.2 Matching two points over distance by fine adjustment

1. Position the device with the lower plumbing beam centered on the reference cross on the ground.
2. Turn the knob for fine adjustment until the vertical laser beam is aligned with the second, remote control point.

6.3 Setting the laser beam for the "Inclined line" function

1. Set the selector switch to the position (ON / locked).
2. Press the line mode button repeatedly until the desired line mode is set. → page 30

When the "Inclined line" function is active, the pendulum is locked and the laser is not leveled. The laser beam(s) blink every 5 seconds.

6.4 Activating or deactivating laser receiver mode

The range of the laser receiver might be restricted on account of the design-related asymmetry of the laser power and possible disruptive external light sources.

To optimize the range, work on a strong side of the line laser and avoid working in direct light. The strong sides are the rear, where the battery is mounted, and the opposing front.

1. To activate the receiver mode, press the receiver mode button. The laser beam flashes five times as confirmation.
2. Press the receiver mode button again to deactivate the receiver mode.

Receiver mode is deactivated when the tool is switched off.

6.5 Switching the laser beams off

1. Set the selector switch to the OFF position.

The laser beam is switched off and the pendulum is locked.

1. The laser beam is switched off automatically when the battery is low.

2. Set the selector switch to the OFF position. ▶ The laser beam is switched off and the pendulum is locked.

3. The laser beam is switched off automatically when the battery is low.

6.6 Examples of applications

6.6.1 Transferring heights

Interior view of a room with walls, door, and camera on tripod (no text or symbols)

6.6.2 Setting up drywall track for a partition wall

Interior view of a room with windows and a 90-degree angle indicator (no text or symbols beyond the angle marker)

Interior view of a room with a door, window, and ceiling fixtures (no text or symbols)

6.6.3 Vertical alignment of pipes

Architectural elevation drawing of a room with vertical pipes and a horizontal window (no text or symbols)

6.6.4 Aligning heating units

Interior view of a room with walls, doors, and wall-mounted screens (no text or symbols)

6.6.5 Aligning door and window frames

Interior view of a room with two windows and a camera on a tripod (no text or symbols)

7 Care and maintenance

WARNING

Risk of injury with battery inserted!

▶ Always remove the battery before carrying out care and maintenance tasks!

Care of the product

- Blow dust off the glass of the laser exit windows. Do not touch the glass surfaces with your fingers.

• Carefully remove stubborn dirt.
• Use only a slightly damp cloth to clean the housing. Do not use cleaning agents containing silicone as these can attack the plastic parts.
• Use a dry, clean cloth to clean the contacts of the product.

Care of the Li-ion batteries

• Never use a battery with clogged air vents. Clean the air vents carefully using a dry, soft brush.
• Avoid unnecessary exposure of the battery to dust and dirt. Never expose the battery to high levels of moisture (e.g. by being dipped in water or left in the rain).

If a battery has been soaked by moisture, treat it as a damaged battery. Isolate it in a non-flammable container and consult Hilti Service.

- Keep the battery free of extraneous oil and grease. Do not permit dust or dirt to accumulate unnecessarily on the battery. Clean the battery with a dry, soft brush or a clean, dry cloth. Do not use cleaning agents containing silicone as these can attack the plastic parts.

Do not touch the contacts of the battery and do not remove the factory-applied grease from the contacts

- Use only a slightly damp cloth to clean the housing. Do not use cleaning agents containing silicone as these can attack the plastic parts.

Maintenance

WARNING

Danger of electric shock! Improper repairs to electrical components may lead to serious injuries including burns.

• Repairs to the electrical section of the tool or appliance may be carried out only by trained electrical specialists.
• Check all visible parts and controls for signs of damage at regular intervals and make sure that they all function correctly.
• Do not use the product if signs of damage are found or if parts malfunction. Immediately have the product repaired by Hilti Service.
• After cleaning and maintenance, install all guards and protective devices and check that they are in full working order.

To help ensure safe and reliable operation, use only genuine Hilti spare parts, consumables and accessories. Spare parts, consumables and accessories approved by Hilti for use with your product can be found at your Hilti Store or online at: www.hilti.group

7.1 Checking

7.1.1 Checking the plumb point

Ø6 mm (∅1/4") 10 m (30 ft) 2 (90°) 3 (180°) 4 (270°) www.hilti.com

1. In a high room (for example in a stairwell with a height of 10 m), make a mark (a cross) on the floor.
2. Place the tool on an even, level surface.
3. Switch the tool on and unlock the pendulum.
4. Position the tool so that the lower plumb beam coincides with the center of the cross marked on the floor.
5. Mark the top point of intersection of the laser lines on the ceiling.
6. Pivot the tool through 90°.

The lower red plumb beam must remain on the center of the cross.

1. Mark the top point of intersection of the laser lines on the ceiling.

2. Repeat the procedure after pivoting the tool through 180° and 270°.

Form a circle on the ceiling from the 4 marked points. Measure the diameter of the circle D in millimeters or inches and the height of the room in meters or feet.

1. Calculate the value R.

The value R should be less than 3 mm (corresponds to 3 mm at 10 m).

The value R should be less than 1/8". R = [1/8 in]2× 30RH[ft] (2)

7.1.2 Checking the leveling of the laser beam

A ① ② B A ③ B ② A ③ D ② B

1. The distance between the walls must be at least 10 m.
2. Place the tool on an even, level surface approx. 20 cm from the wall (A) with the point of intersection of the laser lines directed toward the wall (A).
3. Mark the point of intersection of the laser lines with a cross (1) on wall (A) and with a cross (2) on wall (
4. Place the tool on an even, level surface approx. 20 cm from wall (B) and carefully aim the point of intersection of the laser lines at cross (1) on wall (A).
5. Use the adjustable feet to adjust the height of the point of intersection of the laser lines so that the point of intersection coincides exactly with the mark (2) on the wall (B). In doing so, make sure that the bubble level remains centered.
6. Mark the point of intersection of the laser lines again with a cross (3) on the wall (A).
7. Measure the offset D between the crosses (1) and (3) on the wall (A) (RL = room length).

HILTI

1. Calculate the value R.

▶ The value R should be less than 3 mm.
The value R should be less than 1/8".

$$ R = \frac {D [ m m ]}{2} \times \frac {1 0}{R L [ m ]} \tag {1} $$

$$ R = \frac {D [ 1 / 8 \text { in } ]}{2} \times \frac {3 0}{R L [ f t ]} \tag {2} $$

7.1.3 Checking perpendicularity (horizontal)

1. Position the tool so that the lower plumb beam coincides with the center of a reference cross marked in the middle of a room at a distance of about 5 m from the walls.
2. Mark all 4 points of intersection on the four walls.
3. Rotate the tool through 90^ and make sure that the center of the point of intersection coincides with the first reference point (A).

4. Mark each new point of intersection and measure each offset (R1, R2, R3, R4 [mm]).

5. Calculate the offset R (RL = room length).

The value R should be less than 3 mm or 1/8". R = (R1 + R2 + R3 + R4)[mm]4 × 10RL[m] (1)

$$ R = \frac {(R 1 + R 2 + R 3 + R 4) [ 1 / 8 \text { in } ]}{4} \times \frac {3 0}{R L [ f t ]} \tag {2} $$

7.1.4 Checking the accuracy of the vertical line

Pos. 1 2.5m T₁ 2m T₂ 90° 2.5m Pos. 2

1. Position the tool at a height of 2 m (pos.1).
2. Switch the tool on.
3. Position the first target plate T1 (vertical) at a distance of 2.5 meters from the tool at the same height (2 meters), so that the vertical laser beam strikes the plate. Mark this position.
4. Then place the second target plate T2 at a position 2 meters below the first target plate, so that the vertical laser beam strikes the plate. Mark this position.

5. Mark position 2 at the opposite side of the test setup (mirror image) on the laser line on the floor at a distance of 5 meters from the tool.

6. Now place the tool on the previously marked position (pos. 2) on the floor.

7. Align the laser beam so that it strikes the target plate T1 and the position marked on it.
8. Mark the new position on target plate T2.
9. Read the distance D between the two marks on target plate T2.

If the difference D is greater than 3 mm, the tool must be returned to a Hilti repair center for adjustment.

7.2 Hilti Measuring Systems Service

Hilti Measuring Systems Service checks the scanning tool and, if deviations from the specified accuracy are found, recalibrates it and rechecks to ensure conformity with specifications. The service certificate provides written confirmation of conformity with specifications at the time of the test. The following is recommended:

• Choose a test/inspection interval that matches usage of the device.
• Have the product checked by Hilti Measuring Systems Service after exceptionally heavy use or subjection to unusual conditions or stress, before important work or at least once a year.

Testing and inspection by Hilti Measuring Systems Service does not relieve the user of the obligation to check the scanning tool before and during use.

8 Transport and storage

Transport of cordless power tools and batteries

CAUTION

Accidental starting during transport!

▶ Always transport your products with the batteries removed!

▶ Remove the battery/batteries.
▶ Never transport batteries loose and unprotected. During transport, batteries should be protected from excessive shock and vibration and isolated from any conductive materials or other batteries that may come in contact with the terminals and cause a short circuit. Comply with the locally applicable regulations for transporting batteries.
- Do not send batteries through the mail. Consult your shipper for instructions on how to ship undamaged batteries.
- Prior to each use and before and after prolonged transport, check the product and the batteries for damage.

Storage of cordless power tools and batteries

WARNING

Accidental damage caused by defective or leaking batteries!

▶ Always store your products with the batteries removed!

• Store the product and the batteries in a cool and dry place. Comply with the temperature limits stated in the technical data.
• Do not store batteries on the charger. Always remove the battery from the charger when the charging operation has completed.
  ▶ Never leave batteries in direct sunlight, on sources of heat, or behind glass.
• Store the product and batteries where they cannot be accessed by children or unauthorized persons.
  Prior to each use and before and after prolonged storage, check the product and the batteries for damage.

9 Troubleshooting

If a problem occurs, always observe the status indicator of the battery. See the section headed Status indicators of the Li-ion battery → page 27.

If the trouble you are experiencing is not listed in this table or you are unable to rectify the problem by yourself, contact Hilti Service.

Trouble or fault	Possible cause	Action to be taken
LEDs of the battery show nothing	Battery faulty.	▸ Contact Hilti Service.
Trouble or fault Possible cause Action to be taken
The battery runs down more quickly than usual.	Very low ambient temperature. ▶	Allow the battery to warm up slowly to room temperature.
Battery does not engage with an audible click.	The retaining lug on the battery is dirty.	Clean the retaining lug and re-insert the battery.
The product or battery gets very hot.	Electrical fault. ▶ Switch the product off immediately, remove the battery, keep it under observation, allow it to cool down and contact Hilt Service.

10 Disposal

WARNING

Risk of injury due to incorrect disposal! Health hazards due to escaping gases or liquids.

▶ DO NOT send batteries through the mail!
▶ Cover the terminals with a non-conductive material (such as electrical tape) to prevent short circuiting.
- Dispose of your battery out of the reach of children.
▶ Dispose of the battery at your Hilti Store, or consult your local governmental garbage disposal or public health and safety resources for disposal instructions.

Most of the materials from which Hilti products are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, your old tools, machines or appliances can be returned to Hilti for recycling. Ask Hilti Service or your Hilti sales representative for further information.

- Do not dispose of power tools, electronic equipment or batteries as household waste!

11 Manufacturer's warranty

▶ Please contact your local Hilti representative if you have questions about the warranty conditions.

12 FCC statement (applicable in US)/IC statement (applicable in Canada)

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by taking the following measures:

• Re-orient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment to a power outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced TV/radio technician for assistance.

This device is in compliance with paragraph 15 of the FCC Regulations and RSS-210 of the ISED Regulations. Operation is subject to the following two conditions:

• This device shall cause no harmful interference.
- This device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by Hilti can restrict the user's right to operate the device.

RoHS (Restriction of Hazardous Substances)

根据 SJ/T 11364-2014 的有害物质材料披露
Hazardous substances material disclosure according to SJ/T 11364-2014
Product type: Multiline Laser
Products: PM 50MG-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
外壳Housing	0	0	0	0	0	0
开关Switch	0	0	0	0	0	0
螺丝Screws	0	0	0	0	0	0
摆体Pendulum	X	0	0	0	0	0
窗罩Lantern	0	0	0	0	0	0
电子器件Electronics	X	0	0	0	0	0
光学件Optics	0	0	0	0	0	0
旋转底座Rotation Base	X	0	0	0	0	0
光学组件Optics housing	X	0	0	0	0	0
导线Cables	0	0	0	0	0	0
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

This table is valid for the China market.

限用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Multiline Laser		型號(型式):Type designation:		PM 50MG-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
外殼Housing	o	o	o	o	o	o
開闢Switch	o	o	o	o	o	o
螺絲Screws	o	o	o	o	o	o
鐘擺Pendulum	x	o	o	o	o	o
窗罩Lantern	o	o	o	o	o	o
電子器件Electronics	x	o	o	o	o	o
光學件Optics	o	o	o	o	o	o
旋轉底座Rotation Base	x	o	o	o	o	o
光學組件Optics housing	x	o	o	o	o	o
導線Cables	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

This table is valid for the Taiwan market.

14 Hilti Li-ion batteries

Instructions for safety and use

This documentation uses the term battery to describe rechargeable Hilti Li-ion battery packs containing several Li-ion cells joined together. These batteries are to be used in Hilti power tools exclusively. Use only genuine Hilti batteries!

Description

Hilti batteries have cell-management and cell-protection systems.

The batteries are composed of cells that contain lithium-ion storage materials capable of providing high specific energy density. Li-ion cells have a minimal memory effect, but they are very susceptible to external impact, deep discharge, and high temperatures.

The products approved for use with Hilti batteries can be found in your Hilti Store or at: www.hilti.group

Safety

• Comply with the following safety instructions for the safe handling and use of Li-ion batteries.
  Failure to comply can lead to skin irritation, severe corrosive injury, chemical burns, fire and/or explosion.
  ▶ Treat batteries with care in order to avoid damage and prevent leakage of fluids that are extremely harmful to health!
• Do not under any circumstances modify or tamper with batteries!
• Do not disassemble, crush or incinerate batteries and do not subject them to temperatures over 80 °C.
  ▶ Never use or charge a battery that has suffered an impact or been damaged in any other way. Check your batteries regularly for signs of damage.
  ▶ Never use recycled or repaired batteries.
  ▶ Never use the battery or a battery-operated power tool as a striking tool.
  ▶ Never expose batteries to the direct rays of the sun, elevated temperature, sparking, or open flame. This can lead to explosions.
  Do not touch the battery poles with your fingers, tools, jewelry, or other electrically conductive objects. This can damage the battery and also cause material damage and personal injury.
• Keep batteries away from rain, moisture and liquids. Penetrating moisture can cause short circuits, electric shock, burns, fire and explosions.
  ▶ Use only chargers and power tools approved for the specific battery type. Read and follow the relevant operating instructions.
• Do not use or store the battery in explosive environments.
  If the battery is too hot to touch it may be defective. Put the battery in a place where it is clearly visible and where there is no risk of fire, at an adequate distance from flammable materials. Allow the battery to cool down. If it is still too hot to touch after an hour, the battery is faulty. Follow the instructions in the section headed What to do in case of a battery fire.

What to do in case of damaged batteries

▶ Always contact Hilti when a battery is damaged.
▶ Never use a battery that is leaking fluid.
- Avoid direct eye and/or skin contact with fluid leaking from a battery. Always wear protective gloves and eye protection when undertaking tasks involving battery fluid.
▶ Use a chemical spill cleanup kit to remove leaked battery fluid. Comply with the locally applicable cleanup regulations for battery fluid.
To store a damaged battery, place the battery in a non-flammable container and cover the battery with dry sand, chalk powder (CaCO3) or silicate (Vermiculite). Then seal the lid air-tight and store the container away from flammable gases, liquids or objects.
- Dispose of the container at your Hilti Store, or consult your local governmental garbage disposal or public health and safety resources for disposal instructions. Comply with the locally applicable regulations for transporting damaged batteries!

What to do in case of dysfunctional batteries

▶ Watch for abnormal battery behavior, such as faulty charging, unusually long charging times, noticeable power loss, unusual LED activity, or leaking fluids. These are signs of an internal problem.
▶ If you suspect an internal battery problem, contact Hilti Service.
▶ A battery that no longer works, cannot be recharged or leaks fluid has to be disposed of correctly. See the section headed Maintenance and disposal.

What to do in case of a battery fire

WARNING

Battery fire hazard! A burning battery releases hazardous and potentially explosive liquids and fumes that can lead to corrosion injuries, burns or explosions.

▶ Wear your personal protective equipment when you tackle a battery fire.

• Provide sufficient venting to permit hazardous and potentially explosive fumes to escape.
  Leave the room immediately in case of intense smoke emission.
• Consult a doctor in case of any skin or respiratory irritation.
• Alert the fire service before you start tackling the fire.
  ▶ Use only water to tackle a battery fire and keep as far from the fire as effective extinguishing permits. Powder fire extinguishers and fire blankets are ineffective with Li-ion batteries. Fire in nearby materials can be extinguished with appropriate extinguishing agents.
• Do not try to move large quantities of burning batteries. Instead, isolate the batteries by removing unaffected materials from the immediate vicinity.

In the case of a battery that does not cool down, or a smoking or burning battery:

• Scoop the battery up with a shovel and drop it into a bucket of water, which will reduce the risk of igniting adjacent cells that have not yet reached run-away temperature.
  Leave the battery in the bucket for at least 24 hours until it has cooled down completely.
  ▶ See the section headed What to do in case of damaged batteries.

Shipping and storage

• Ambient operating temperature to be kept between -17°C and +60°C / 1°F and 140°F.
  Storage temperature to be kept between -20°C and +40°C / -4°F and 104°F.
• Do not store batteries on the charger. Always remove the battery from the charger when the charging operation has completed.
• Store batteries in a cool and dry place. Cool storage will increase battery life. Never store batteries where they are exposed to direct sunlight, on sources of heat or behind glass.
• Do not send batteries through the mail. Consult your shipper for instructions on how to ship undamaged batteries.
  ▶ Never transport batteries in bulk form (loose, unprotected). During transport, batteries should be protected from excessive shock and vibration and isolated from any conductive materials or other batteries that may come in contact with the terminals and cause a short circuit. Comply with the locally applicable regulations for transporting batteries.

Maintenance and disposal

• Keep the battery free of oil and grease. Do not permit dust or dirt to accumulate unnecessarily on the battery. Clean the battery with a dry, soft brush or a clean, dry rag.
  ▶ Never use a battery with clogged ventilation slots. Clean the ventilation slots carefully using a dry, soft brush.
  ▶ Prevent unnecessary exposure of the battery to dust or debris and never subject the battery to soaking moisture (e.g., submerged in water or left out in the rain).
  ▶ If a battery is exposed to soaking moisture, treat it as a damaged battery and isolate it in a non-flammable container.

▶ See the section headed What to do in case of damaged batteries.

- Improper disposal may cause health hazards from leaking gases or fluids. Dispose of the battery at your Hilti Store, or consult your local governmental garbage disposal or public health and safety resources for disposal instructions. Comply with the locally applicable regulations for transporting damaged batteries!

- Do not dispose of batteries as household waste.

▶ Dispose of your battery out of the reach of children. Cover the terminals with a non-conductive material (such as electrical tape) to prevent short circuiting.

Laser Irrigation 80 NUT STORE WITH REBEAM CLASS 2 LATOR PRODUCT This product regularly with GB 6005-1 GB/T 21.04 GB/T 13 and T/T 11 re certified for manufacturer pursuant to LATOR Bentley's, 100, diesel, June 25, 2007 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

Interior view of a room with walls, door, and camera on tripod (no text or symbols)

Interior view of a room with windows and a 90-degree angle indicator (no text or symbols beyond the angle marker)

Interior view of a room with a door, wall, and window (no text or symbols)

Architectural elevation drawing showing wall-mounted pipes and a rectangular window (no text or symbols)

6.6.4 Verwarmingselementen uitrichten

Interior view of a room with walls, doors, and a camera on a tripod (no text or symbols)

Interior view of a room with two windows and a camera on a tripod (no text or symbols)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Multiline Laser

Products: PM 50MG-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherte(PBDE)
外壳Housing	0	0	0	0	0	0
开关Switch	0	0	0	0	0	0
螺丝Screws	0	0	0	0	0	0
摆体Pendulum	X	0	0	0	0	0
窗罩Lantern	0	0	0	0	0	0
电子器件Electronics	X	0	0	0	0	0
光学件Optics	0	0	0	0	0	0
旋转底座Rotation Base	X	0	0	0	0	0
光学组件Optics housing	X	0	0	0	0	0
导线Cables	0	0	0	0	0	0
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Multiline Laser		型號(型式):Type designation:		PM 50MG-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
外殼Housing	o	o	o	o	o	o
開關Switch	o	o	o	o	o	o
螺絲Screws	o	o	o	o	o	o
鐘擺Pendulum	x	o	o	o	o	o
窗罩Lantern	o	o	o	o	o	o
電子器件Electronics	x	o	o	o	o	o
光學件Optics	o	o	o	o	o	o
旋轉底座Rotation Base	x	o	o	o	o	o
光學組件Optics housing	x	o	o	o	o	o
導線Cables	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

LASER RADIATION EN NOT STARE INTO BEAM CLASS 2 LASER PROJET 1 2 3 4 5 6 7 8 9 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ This product comprises with EC-4000+ 100% length LAC 100% and P 700x11 except for installation pursuant to Level Baffle Box 10, double line 54.20Hz

Interior view of a room with walls, door, window, and camera setup (no text or symbols)

Interior view of a room with windows and a 90-degree angle indicator (no text or symbols beyond the angle marker)

Interior view of a room with a door, ceiling-mounted fixture, and a window (no text or symbols)

Architectural cross-section diagram showing room layout with vertical and horizontal panels, no text or symbols present

Interior view of a room with walls, doors, and a camera on a tripod (no text or symbols)

Interior view of a room with two windows and a camera on a tripod (no text or symbols)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Multiline Laser

Products: PM 50MG-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
外壳Housing	0	0	0	0	0	0
开关Switch	0	0	0	0	0	0
螺丝Screws	0	0	0	0	0	0
摆体Pendulum	X	0	0	0	0	0
窗罩Lantern	0	0	0	0	0	0
电子器件Electronics	X	0	0	0	0	0
光学件Optics	0	0	0	0	0	0
旋转底座Rotation Base	X	0	0	0	0	0
光学组件Optics housing	X	0	0	0	0	0
导线Cables	0	0	0	0	0	0
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Multiline Laser		型號(型式):Type designation:		PM 50MG-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
外殼Housing	o	o	o	o	o	o
開闢Switch	o	o	o	o	o	o
螺絲Screws	o	o	o	o	o	o
鐘擺Pendulum	x	o	o	o	o	o
窗罩Lantern	o	o	o	o	o	o
電子器件Electronics	x	o	o	o	o	o
光學件Optics	o	o	o	o	o	o
旋轉底座Rotation Base	x	o	o	o	o	o
光學組件Optics housing	x	o	o	o	o	o
導線Cables	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Laser Irrigation 50 NUT STORE WITH BEAM CLASS 2 LAYER PRODUCT This product consists with GB 4680-1 GB/T 21.0/4 GB/T 13 and GB/T 11 receptor for irradiation pursuant to Lazer Beneday, Tex. 10, dated June 25, 2007 PM.90-02 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

Interior view of a room with walls, door, and camera setup (no text or symbols)

Interior view of a room with windows and a 90-degree angle indicator (no text or symbols beyond the angle marker)

Interior view of a room with a door, wall, and ceiling fixtures (no text or symbols)

Architectural floor plan showing room layout with vertical panel and horizontal beam (no text or symbols)

Interior view of a room with walls, doors, and a camera on a tripod (no text or symbols)

Interior view of a room with two windows and a camera on a tripod (no text or symbols)

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
外壳Housing	0	0	0	0	0	0
开关Switch	0	0	0	0	0	0
螺丝Screws	0	0	0	0	0	0
摆体Pendulum	X	0	0	0	0	0
窗罩Lantern	0	0	0	0	0	0
电子器件Electronics	X	0	0	0	0	0
光学件Optics	0	0	0	0	0	0
旋转底座Rotation Base	X	0	0	0	0	0
光学组件Optics housing	X	0	0	0	0	0
导线Cables	0	0	0	0	0	0
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Multiline Laser		型號(型式):Type designation:		PM 50MG-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
外殼Housing	o	o	o	o	o	o
開關Switch	o	o	o	o	o	o
螺絲Screws	o	o	o	o	o	o
鐘擺Pendulum	x	o	o	o	o	o
窗罩Lantern	o	o	o	o	o	o
電子器件Electronics	x	o	o	o	o	o
光學件Optics	o	o	o	o	o	o
旋轉底座Rotation Base	x	o	o	o	o	o
光學組件Optics housing	x	o	o	o	o	o
導線Cables	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Laser Radiation EN NOT STAVE INTO SEAM CLAIM 2 LAYER PROJET

1-3-0/0000 - Part Stated

This product comprises with ISO 40005-1 ISO AND CAF 40005 16 & 170011 reused for deforestation pursuant to Laser Batter No. 10, rated (one 31, 28/2) #1 #2 #3 #4 #5 #6 #7 #8 #9

Interior view of a room with walls, door, and camera on tripod (no text or symbols)

Interior view of a room with windows and a 90-degree angle indicator (no text or symbols beyond the angle marker)

Interior view of a room with a door, wall, and ceiling fixtures (no text or symbols)

Interior view of a room with vertical slats and a horizontal panel, no visible text or symbols

6.6.4 Alinhar radiadores

Interior view of a room with walls, doors, and wall-mounted screens (no text or symbols)

Interior view of a room with two windows and a camera on a tripod (no text or symbols)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Multiline Laser

Products: PM 50MG-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
外壳Housing	0	0	0	0	0	0
开关Switch	0	0	0	0	0	0
螺丝Screws	0	0	0	0	0	0
摆体Pendulum	X	0	0	0	0	0
窗罩Lantern	0	0	0	0	0	0
电子器件Electronics	X	0	0	0	0	0
光学件Optics	0	0	0	0	0	0
旋转底座Rotation Base	X	0	0	0	0	0
光学组件Optics housing	X	0	0	0	0	0
导线Cables	0	0	0	0	0	0
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Multiline Laser		型號(型式):Type designation:		PM 50MG-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
外殼Housing	o	o	o	o	o	o
開關Switch	o	o	o	o	o	o
螺絲Screws	o	o	o	o	o	o
鐘擺Pendulum	x	o	o	o	o	o
窗罩Lantern	o	o	o	o	o	o
電子器件Electronics	x	o	o	o	o	o
光學件Optics	o	o	o	o	o	o
旋轉底座Rotation Base	x	o	o	o	o	o
光學組件Optics housing	x	o	o	o	o	o
導線Cables	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Laser Radiation 50 NUT STAIR WITH REAM LAB 2 LABA PROBOT This product together with GB 4685-1 GB 4685-13 GB 4685-13 W/700-11 receptor for defibrations pursuant to clean Bosette No. 10, closed June 25, 2007 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

Interior view of a room with walls, doors, and a camera on a tripod (no text or symbols)

Interior view of a room with windows and a 90-degree angle indicator (no text or symbols beyond the angle marker)

Interior view of a room with a door, wall, and window (no text or symbols)

Architectural elevation drawing showing wall-mounted pipes and a rectangular structure (no text or symbols)

Interior view of a room with walls, doors, and a camera on a tripod (no text or symbols)

Interior view of a room with two windows and a camera on a tripod (no text or symbols)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Multiline Laser

Products: PM 50MG-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherte(PBDE)
外壳Housing	0	0	0	0	0	0
开关Switch	0	0	0	0	0	0
螺丝Screws	0	0	0	0	0	0
摆体Pendulum	X	0	0	0	0	0
窗罩Lantern	0	0	0	0	0	0
电子器件Electronics	X	0	0	0	0	0
光学件Optics	0	0	0	0	0	0
旋转底座Rotation Base	X	0	0	0	0	0
光学组件Optics housing	X	0	0	0	0	0
导线Cables	0	0	0	0	0	0
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

限用物質含有情況標示聲明書
Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Multiline Laser		型號(型式):Type designation:		PM 50MG-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
外殼Housing	o	o	o	o	o	o
開關Switch	o	o	o	o	o	o
螺絲Screws	o	o	o	o	o	o
鐘擺Pendulum	x	o	o	o	o	o
窗罩Lantern	o	o	o	o	o	o
電子器件Electronics	x	o	o	o	o	o
光學件Optics	o	o	o	o	o	o
旋轉底座Rotation Base	x	o	o	o	o	o
光學組件Optics housing	x	o	o	o	o	o
導線Cables	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

LASES RADIATION EN NOT EDADE INTO BEAM FLASH 2 LASES PROJECT 1-0-3-000mm Full Stamped This is part of the system with ISO 10000-4 ISO 6.0001/4.5000/10.0001/10.0011 and should be disordered pursuant to Level Reference No. 10, Dated, June 24, 2007 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

Interior view of a room with walls, door, and camera setup (no text or symbols)

Interior view of a room with windows and a 90-degree angle indicator (no text or symbols beyond the angle marker)

Interior view of a room with a door, window, and ceiling fixtures (no text or symbols)

Architectural floor plan showing room layout with vertical slats and a central rectangular space (no text or symbols)

Interior view of a room with walls, doors, and a camera on a tripod (no text or symbols)

Interior view of a room with two windows and a camera on a tripod (no text or symbols)

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
外壳Housing	0	0	0	0	0	0
开关Switch	0	0	0	0	0	0
螺丝Screws	0	0	0	0	0	0
摆体Pendulum	X	0	0	0	0	0
窗罩Lantern	0	0	0	0	0	0
电子器件Electronics	X	0	0	0	0	0
光学件Optics	0	0	0	0	0	0
旋转底座Rotation Base	X	0	0	0	0	0
光学组件Optics housing	X	0	0	0	0	0
导线Cables	0	0	0	0	0	0
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Multiline Laser		型號(型式):Type designation:		PM 50MG-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
外殼Housing	o	o	o	o	o	o
開闢Switch	o	o	o	o	o	o
螺絲Screws	o	o	o	o	o	o
鐘擺Pendulum	x	o	o	o	o	o
窗罩Lantern	o	o	o	o	o	o
電子器件Electronics	x	o	o	o	o	o
光學件Optics	o	o	o	o	o	o
旋轉底座Rotation Base	x	o	o	o	o	o
光學組件Optics housing	x	o	o	o	o	o
導線Cables	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Interior view of a room with walls, door, and camera setup (no text or symbols)

Interior view of a room with two windows and a 90-degree angle indicator (no text or symbols beyond the angle marker)

Interior view of a room with a door, window, and wall-mounted equipment (no text or symbols)

Architectural elevation drawing of a room with vertical pipes and a horizontal panel (no text or symbols)

Interior view of a room with walls, doors, and a camera on a tripod (no text or symbols)

Interior view of a room with two windows and a camera on a tripod (no text or symbols)

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherte(PBDE)
外壳Housing	0	0	0	0	0	0
开关Switch	0	0	0	0	0	0
螺丝Screws	0	0	0	0	0	0
摆体Pendulum	X	0	0	0	0	0
窗罩Lantern	0	0	0	0	0	0
电子器件Electronics	X	0	0	0	0	0
光学件Optics	0	0	0	0	0	0
旋转底座Rotation Base	X	0	0	0	0	0
光学组件Optics housing	X	0	0	0	0	0
导线Cables	0	0	0	0	0	0
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Multiline Laser		型號(型式):Type designation:		PM 50MG-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
外殼Housing	o	o	o	o	o	o
開關Switch	o	o	o	o	o	o
螺絲Screws	o	o	o	o	o	o
鐘擺Pendulum	x	o	o	o	o	o
窗罩Lantern	o	o	o	o	o	o
電子器件Electronics	x	o	o	o	o	o
光學件Optics	o	o	o	o	o	o
旋轉底座Rotation Base	x	o	o	o	o	o
光學組件Optics housing	x	o	o	o	o	o
導線Cables	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Interior view of a room with walls, door, and camera setup (no text or symbols)

Interior view of a room with windows and a 90-degree angle indicator (no text or symbols beyond the angle marker)

Interior view of a room with a door, window, and wall-mounted equipment (no text or symbols)

6.6.3 Loddrett nivellering av rørledninger

Architectural elevation drawing of a room with vertical pipes and a horizontal window (no text or symbols)

Interior view of a room with walls, doors, and wall-mounted screens (no text or symbols)

Interior view of a room with two windows and a camera on a tripod (no text or symbols)

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
外壳Housing	0	0	0	0	0	0
开关Switch	0	0	0	0	0	0
螺丝Screws	0	0	0	0	0	0
摆体Pendulum	X	0	0	0	0	0
窗罩Lantern	0	0	0	0	0	0
电子器件Electronics	X	0	0	0	0	0
光学件Optics	0	0	0	0	0	0
旋转底座Rotation Base	X	0	0	0	0	0
光学组件Optics housing	X	0	0	0	0	0
导线Cables	0	0	0	0	0	0
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Denne tabellen gjelder for markedet Kina.

限用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Multiline Laser		型號(型式):Type designation:		PM 50MG-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
外殼Housing	o	o	o	o	o	o
開闢Switch	o	o	o	o	o	o
螺絲Screws	o	o	o	o	o	o
鐘擺Pendulum	x	o	o	o	o	o
窗罩Lantern	o	o	o	o	o	o
電子器件Electronics	x	o	o	o	o	o
光學件Optics	o	o	o	o	o	o
旋轉底座Rotation Base	x	o	o	o	o	o
光學組件Optics housing	x	o	o	o	o	o
導線Cables	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Denne tabellen gjelder for markedet Taiwan.

14 Hilti Li-Ion-batterier

Laser generation BA NOT STAGE WITH BEAM CLASS 2 LAYER PROBOT 6-10-500mm P+0.5 mm This product engages with GB, will be / 400mm and 10.0% width 10 mm and 10.0% in used for device selection pursuant to Laser Description No. 18, model, zone 35.2007 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

Interior view of a room with walls, door, and camera setup (no text or symbols)

Interior view of a room with windows and a 90-degree angle indicator (no text or symbols beyond the angle marker)

Interior view of a room with a door, window, and wall-mounted equipment (no text or symbols)

Architectural elevation drawing of a room with vertical pipes and a horizontal window (no text or symbols)

Interior view of a room with walls, doors, and a camera on a tripod (no text or symbols)

Interior view of a room with two windows and a camera on a tripod (no text or symbols)

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherte(PBDE)
外壳Housing	0	0	0	0	0	0
开关Switch	0	0	0	0	0	0
螺丝Screws	0	0	0	0	0	0
摆体Pendulum	X	0	0	0	0	0
窗罩Lantern	0	0	0	0	0	0
电子器件Electronics	X	0	0	0	0	0
光学件Optics	0	0	0	0	0	0
旋转底座Rotation Base	X	0	0	0	0	0
光学组件Optics housing	X	0	0	0	0	0
导线Cables	0	0	0	0	0	0
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Multiline Laser		型號(型式):Type designation:		PM 50MG-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
外殼Housing	o	o	o	o	o	o
開關Switch	o	o	o	o	o	o
螺絲Screws	o	o	o	o	o	o
鐘擺Pendulum	x	o	o	o	o	o
窗罩Lantern	o	o	o	o	o	o
電子器件Electronics	x	o	o	o	o	o
光學件Optics	o	o	o	o	o	o
旋轉底座Rotation Base	x	o	o	o	o	o
光學組件Optics housing	x	o	o	o	o	o
導線Cables	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

LAYER RADIATION EN NOT EXAMED INTO BEAM FLASH 2 LASER PROJECT 10x10-300mm Full-Shell This component consists with GB-4800+ and GB-5600+ LAF-5600-16 and 1600-17 with the following procedure is to be: Before No. 10, Dashed line 34.2907 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

Interior view of a room with walls, door, and camera setup (no text or symbols)

Interior view of a room with windows and a 90-degree angle indicator (no text or symbols beyond the angle marker)

Interior view of a room with a door, window, and wall-mounted equipment (no text or symbols)

Architectural elevation drawing of a room with vertical pipes and a horizontal window (no text or symbols)

Interior view of a room with walls, doors, and wall-mounted screens (no text or symbols)

Interior view of a room with two windows and a camera on a tripod (no text or symbols)

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
外壳Housing	0	0	0	0	0	0
开关Switch	0	0	0	0	0	0
螺丝Screws	0	0	0	0	0	0
摆体Pendulum	X	0	0	0	0	0
窗罩Lantern	0	0	0	0	0	0
电子器件Electronics	X	0	0	0	0	0
光学件Optics	0	0	0	0	0	0
旋转底座Rotation Base	X	0	0	0	0	0
光学组件Optics housing	X	0	0	0	0	0
导线Cables	0	0	0	0	0	0
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Multiline Laser		型號(型式):Type designation:		PM 50MG-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
外殼Housing	o	o	o	o	o	o
開闢Switch	o	o	o	o	o	o
螺絲Screws	o	o	o	o	o	o
鐘擺Pendulum	x	o	o	o	o	o
窗罩Lantern	o	o	o	o	o	o
電子器件Electronics	x	o	o	o	o	o
光學件Optics	o	o	o	o	o	o
旋轉底座Rotation Base	x	o	o	o	o	o
光學組件Optics housing	x	o	o	o	o	o
導線Cables	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Interior view of a room with walls, door, and window (no text or symbols)

Interior view of a room with windows and a 90-degree angle indicator (no text or symbols beyond the angle marker)

Interior view of a room with a door, window, and wall-mounted equipment (no text or symbols)

Architectural elevation drawing of a room with vertical slats and a horizontal window (no text or symbols)

6.6.4 Apsildes radiatoru nolimenošana

Interior view of a room with walls, doors, and wall-mounted screens (no text or symbols)

6.6.5 Durvju un logu râmju nolîmeņošana

Interior view of a room with two windows and a camera on a tripod (no text or symbols)

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherte(PBDE)
外壳Housing	0	0	0	0	0	0
开关Switch	0	0	0	0	0	0
螺丝Screws	0	0	0	0	0	0
摆体Pendulum	X	0	0	0	0	0
窗罩Lantern	0	0	0	0	0	0
电子器件Electronics	X	0	0	0	0	0
光学件Optics	0	0	0	0	0	0
旋转底座Rotation Base	X	0	0	0	0	0
光学组件Optics housing	X	0	0	0	0	0
导线Cables	0	0	0	0	0	0
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Šī tabula attiecas uz Kīnas tirgu.

限用物質含有情況標示聲明書
Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Multiline Laser		型號(型式):Type designation:		PM 50MG-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
外殼Housing	o	o	o	o	o	o
開關Switch	o	o	o	o	o	o
螺絲Screws	o	o	o	o	o	o
鐘擺Pendulum	x	o	o	o	o	o
窗罩Lantern	o	o	o	o	o	o
電子器件Electronics	x	o	o	o	o	o
光學件Optics	o	o	o	o	o	o
旋轉底座Rotation Base	x	o	o	o	o	o
光學組件Optics housing	x	o	o	o	o	o
導線Cables	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Šī tabula attiecas uz Taivānas tirgu.

14 Hilti litija jonu akumulatori

Interior view of a room with walls, door, and camera setup (no text or symbols)

Interior view of a room with windows and a 90-degree angle indicator (no text or symbols beyond the angle marker)

Interior view of a room with a door, ceiling-mounted fixture, and a window (no text or symbols)

Architectural cross-section diagram showing room layout with vertical panel and horizontal beam (no text or symbols)

Interior view of a room with walls, doors, and a camera on a tripod (no text or symbols)

Interior view of a room with two windows and a camera on a tripod (no text or symbols)

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
外壳Housing	0	0	0	0	0	0
开关Switch	0	0	0	0	0	0
螺丝Screws	0	0	0	0	0	0
摆体Pendulum	X	0	0	0	0	0
窗罩Lantern	0	0	0	0	0	0
电子器件Electronics	X	0	0	0	0	0
光学件Optics	0	0	0	0	0	0
旋转底座Rotation Base	X	0	0	0	0	0
光学组件Optics housing	X	0	0	0	0	0
导线Cables	0	0	0	0	0	0
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Multiline Laser		型號(型式):Type designation:		PM 50MG-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
外殼Housing	o	o	o	o	o	o
開闢Switch	o	o	o	o	o	o
螺絲Screws	o	o	o	o	o	o
鐘擺Pendulum	x	o	o	o	o	o
窗罩Lantern	o	o	o	o	o	o
電子器件Electronics	x	o	o	o	o	o
光學件Optics	o	o	o	o	o	o
旋轉底座Rotation Base	x	o	o	o	o	o
光學組件Optics housing	x	o	o	o	o	o
導線Cables	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Interior view of a room with walls, door, and camera setup (no text or symbols)

Interior view of a room with windows and a 90-degree angle indicator (no text or symbols beyond the angle marker)

Interior view of a room with a door, ceiling-mounted fixture, and a window (no text or symbols)

Interior view of a room with vertical panel and wall-mounted fixtures (no text or symbols)

Interior view of a room with walls, doors, and a camera on a tripod (no text or symbols)

Interior view of a room with two windows and a camera on a tripod (no text or symbols)

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
外壳Housing	0	0	0	0	0	0
开关Switch	0	0	0	0	0	0
螺丝Screws	0	0	0	0	0	0
摆体Pendulum	X	0	0	0	0	0
窗罩Lantern	0	0	0	0	0	0
电子器件Electronics	X	0	0	0	0	0
光学件Optics	0	0	0	0	0	0
旋转底座Rotation Base	X	0	0	0	0	0
光学组件Optics housing	X	0	0	0	0	0
导线Cables	0	0	0	0	0	0
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Multiline Laser		型號(型式):Type designation:		PM 50MG-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
外殼Housing	o	o	o	o	o	o
開關Switch	o	o	o	o	o	o
螺絲Screws	o	o	o	o	o	o
鐘擺Pendulum	x	o	o	o	o	o
窗罩Lantern	o	o	o	o	o	o
電子器件Electronics	x	o	o	o	o	o
光學件Optics	o	o	o	o	o	o
旋轉底座Rotation Base	x	o	o	o	o	o
光學組件Optics housing	x	o	o	o	o	o
導線Cables	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

LAYER RADIATION EN NOT EXAMED INTO BEAM CLAB 2 LASER PROJECT 1-0.5-320mm Full Stove This is connected completely with CLAB 4000-4 100V AC/DC 1.5V AC/DC 10 V DC 100V in the first generation pursuant to Laser Solution No. 10, Dashed Line 24, 2007 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

Interior view of a room with walls, door, and camera setup (no text or symbols)

Interior view of a room with windows and a 90-degree angle indicator (no text or symbols beyond the angle marker)

Interior view of a room with a door, window, and wall-mounted equipment (no text or symbols)

Architectural elevation drawing of a room with vertical pipes and a horizontal window (no text or symbols)

Interior view of a room with walls, doors, and wall-mounted screens (no text or symbols)

Interior view of a room with two windows and a camera on a tripod (no text or symbols)

7 Péče a údržba

VÝSTRAHA

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
外壳Housing	0	0	0	0	0	0
开关Switch	0	0	0	0	0	0
螺丝Screws	0	0	0	0	0	0
摆体Pendulum	X	0	0	0	0	0
窗罩Lantern	0	0	0	0	0	0
电子器件Electronics	X	0	0	0	0	0
光学件Optics	0	0	0	0	0	0
旋转底座Rotation Base	X	0	0	0	0	0
光学组件Optics housing	X	0	0	0	0	0
导线Cables	0	0	0	0	0	0
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Multiline Laser		型號(型式):Type designation:		PM 50MG-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
外殼Housing	o	o	o	o	o	o
開闢Switch	o	o	o	o	o	o
螺絲Screws	o	o	o	o	o	o
鐘擺Pendulum	x	o	o	o	o	o
窗罩Lantern	o	o	o	o	o	o
電子器件Electronics	x	o	o	o	o	o
光學件Optics	o	o	o	o	o	o
旋轉底座Rotation Base	x	o	o	o	o	o
光學組件Optics housing	x	o	o	o	o	o
導線Cables	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Laser generation 60 NUT STAGE WITH BEAM CLASS 2 LAYER PROBOT 4 5 6 7 8 9 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ S-10-50mm P-0.5 mm This product engages with 32.5 mm x 100 mm x 10.5 mm x 10.5 mm x 10.5 mm x 10.5 mm x 10.5 mm x 10.5 mm x 10.5 mm x 10.5 mm x 10.5 mm x 10.5 mm x 10.5 mm x 10.5 mm x 10.5 mm x 10.5 mm x 10.5 mm S-10-50mm P-0.5 mm S-10-50mm P-0.5 mm S-10-50mm P-0.5 mm S-10-50mm P-0.5 mm S-10-50mm P-0.5 mm S-10-50mm P-0.5 mm S-10-50mm P-0.5 mm S-10, 10, 10, 10, 10, 10, 10, 10, 10, 10, 10, 10, 10, 10, 10, 10, 10, 10, 10, 10, 10, 10, 10, 10, 10, 10,

Interior view of a room with walls, door, and camera setup (no text or symbols)

6.6.2 Nastavenie profilov suchej stavby na účel rozdelenia priestoru

Interior view of a room with windows and a 90-degree angle indicator (no text or symbols beyond the angle marker)

Interior view of a room with a door, wall, and ceiling fixtures (no text or symbols)

Architectural elevation drawing of a room with vertical pipes and a horizontal window (no text or symbols)

Interior view of a room with walls, doors, and a camera on a tripod (no text or symbols)

Interior view of a room with two windows and a camera on a tripod (no text or symbols)

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
外壳Housing	0	0	0	0	0	0
开关Switch	0	0	0	0	0	0
螺丝Screws	0	0	0	0	0	0
摆体Pendulum	X	0	0	0	0	0
窗罩Lantern	0	0	0	0	0	0
电子器件Electronics	X	0	0	0	0	0
光学件Optics	0	0	0	0	0	0
旋转底座Rotation Base	X	0	0	0	0	0
光学组件Optics housing	X	0	0	0	0	0
导线Cables	0	0	0	0	0	0
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Multiline Laser		型號(型式):Type designation:		PM 50MG-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
外殼Housing	o	o	o	o	o	o
開關Switch	o	o	o	o	o	o
螺絲Screws	o	o	o	o	o	o
鐘擺Pendulum	x	o	o	o	o	o
窗罩Lantern	o	o	o	o	o	o
電子器件Electronics	x	o	o	o	o	o
光學件Optics	o	o	o	o	o	o
旋轉底座Rotation Base	x	o	o	o	o	o
光學組件Optics housing	x	o	o	o	o	o
導線Cables	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Táto tabul'ka platí pre trh Taiwanu.

LAYER RADIATION EN NOT EXAMED INTO BEAM FLASH 2 LASER PROJECT 10-0.500mm Full Stained This is part of the system with ISO 40000-1 ISO 6.000/1.4/7.000/1.6 & 1.000/1 system for installation pursuant to Level Reference No. 10, Dated, L### 34, 2897 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

Interior view of a room with walls, door, and camera setup (no text or symbols)

Interior view of a room with windows and a 90-degree angle indicator (no text or symbols beyond the angle marker)

Interior view of a room with a door, ceiling-mounted fixture, and a window (no text or symbols)

Architectural elevation drawing of a room with vertical slats and a horizontal panel (no text or symbols)

Interior view of a room with walls, doors, and a camera on a tripod (no text or symbols)

Interior view of a room with two windows and a camera on a tripod (no text or symbols)

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
外壳Housing	0	0	0	0	0	0
开关Switch	0	0	0	0	0	0
螺丝Screws	0	0	0	0	0	0
摆体Pendulum	X	0	0	0	0	0
窗罩Lantern	0	0	0	0	0	0
电子器件Electronics	X	0	0	0	0	0
光学件Optics	0	0	0	0	0	0
旋转底座Rotation Base	X	0	0	0	0	0
光学组件Optics housing	X	0	0	0	0	0
导线Cables	0	0	0	0	0	0
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

限用物質含有情況標示聲明書
Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Multiline Laser		型號(型式):Type designation:		PM 50MG-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
外殼Housing	o	o	o	o	o	o
開闢Switch	o	o	o	o	o	o
螺絲Screws	o	o	o	o	o	o
鐘擺Pendulum	x	o	o	o	o	o
窗罩Lantern	o	o	o	o	o	o
電子器件Electronics	x	o	o	o	o	o
光學件Optics	o	o	o	o	o	o
旋轉底座Rotation Base	x	o	o	o	o	o
光學組件Optics housing	x	o	o	o	o	o
導線Cables	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

LASER SEATION ON NOT STAGE WITH BEAM CLASS 2 LASER PROBEET 5-10-500mm P+0.5 mm This product engages with 3.5 mm x 4.0 mm x 6.0 mm x 8.0 mm x 10.0 mm x 12.0 mm x 14.0 mm x 16.0 mm x 18.0 mm x 20.0 mm x 22.0 mm x 24.0 mm x 26.0 mm x 28.0 mm x 30.0 mm x 32.0 mm x 34.0 mm x 36.0 mm x 38.0 mm x 40.0 mm x 42.0 mm x 44.0 mm x 46.0 mm x 48.0 mm x 50.0 mm x 52.0 mm x 54.0 mm x 56.0 mm x 58.0 mm x 60.0 mm x 62.0 mm x 64.0 mm x 66.0 mm x 68.0 mm x 70.0 mm x 72.0 mm x 74.0 mm x 76.0 mm x 78.0 mm x 80.0 mm x 82.0 mm x 84.0 mm x 86.0 mm x 88.0 mm x 90.0 mm x 92.0 mm x 94.0 mm x 96.0 mm x 98.0 mm x 100.0 mm ③ ② ① ⑤ ⑥ ⑦ ⑧ ⑨ PIM-50-22

Interior view of a room with walls, door, and camera on tripod (no text or symbols)

Interior view of a room with two windows and a 90-degree angle indicator (no text or symbols beyond the angle marker)

Interior view of a room with a door, wall, and window (no text or symbols)

6.6.3 Poravnavanje cevovodov navpično

Architectural elevation drawing showing wall-mounted pipes and a rectangular window (no text or symbols)

6.6.4 Poravnavanje grelnih teles

Interior view of a room with walls, doors, and a camera on a tripod (no text or symbols)

Interior view of a room with two windows and a camera on a tripod (no text or symbols)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Multiline Laser

Products: PM 50MG-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherte(PBDE)
外壳Housing	0	0	0	0	0	0
开关Switch	0	0	0	0	0	0
螺丝Screws	0	0	0	0	0	0
摆体Pendulum	X	0	0	0	0	0
窗罩Lantern	0	0	0	0	0	0
电子器件Electronics	X	0	0	0	0	0
光学件Optics	0	0	0	0	0	0
旋转底座Rotation Base	X	0	0	0	0	0
光学组件Optics housing	X	0	0	0	0	0
导线Cables	0	0	0	0	0	0
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Multiline Laser		型號(型式):Type designation:		PM 50MG-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
外殼Housing	o	o	o	o	o	o
開關Switch	o	o	o	o	o	o
螺絲Screws	o	o	o	o	o	o
鐘擺Pendulum	x	o	o	o	o	o
窗罩Lantern	o	o	o	o	o	o
電子器件Electronics	x	o	o	o	o	o
光學件Optics	o	o	o	o	o	o
旋轉底座Rotation Base	x	o	o	o	o	o
光學組件Optics housing	x	o	o	o	o	o
導線Cables	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Interior view of a room with walls, doors, and a camera on a tripod (no text or symbols)

Interior view of a room with windows and a 90-degree angle indicator (no text or symbols beyond the angle marker)

Interior view of a room with a door, ceiling-mounted fixture, and a window (no text or symbols)

Technical line drawing of a room interior with vertical panel and horizontal door (no text or symbols)

6.6.4 Niveliranje radijatora

Interior view of a room with walls, doors, and a camera on a tripod (no text or symbols)

6.6.5 Niveliranje vrata i prozorskih okvira

Interior view of a room with two windows and a camera on a tripod (no text or symbols)

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
外壳Housing	0	0	0	0	0	0
开关Switch	0	0	0	0	0	0
螺丝Screws	0	0	0	0	0	0
摆体Pendulum	X	0	0	0	0	0
窗罩Lantern	0	0	0	0	0	0
电子器件Electronics	X	0	0	0	0	0
光学件Optics	0	0	0	0	0	0
旋转底座Rotation Base	X	0	0	0	0	0
光学组件Optics housing	X	0	0	0	0	0
导线Cables	0	0	0	0	0	0
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Ova tablica vrijedi samo za kinesko tržište.

限用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Multiline Laser		型號(型式):Type designation:		PM 50MG-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
外殼Housing	o	o	o	o	o	o
開闢Switch	o	o	o	o	o	o
螺絲Screws	o	o	o	o	o	o
鐘擺Pendulum	x	o	o	o	o	o
窗罩Lantern	o	o	o	o	o	o
電子器件Electronics	x	o	o	o	o	o
光學件Optics	o	o	o	o	o	o
旋轉底座Rotation Base	x	o	o	o	o	o
光學組件Optics housing	x	o	o	o	o	o
導線Cables	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

LASER SEATION BA NOT STAGE WITH BEAM CLASS 2 LASER PROBEET 6-10-500mm P-A, 3.5mm This product engages with D.C. reliability v 40mm and 10.0% load, 10 mm and 10.0% load for the 100% used for dislocation protocol to laser Sension No. 10, rated June 28, 2017 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

① Akumulatorska baterija
② Prikaz statusa akumulatorske baterije
③ Tasteri za deblokiranje akumulatorske baterije
④ Upozoravajuća nalepnica
⑤ Izlazni prozor laserskog snopa
⑥ Taster za režim prijemnika
⑦ Taster za linijski režim
⑧ Izborni prekidač Uklj/lsklj i
Blokiranje/Deblokiranje klatna
⑨ Okretni točkić za precizno podešavanje

3.2 Namenska upotreba

Proizvod je samonivelišući multilinijski laser, sa kojim je osoba u stanju da prenese ugao od 90°, da horizontalno niveliše, kao i da sprovodi radove usmeravanja i tačno meri po dubini.

Proizvod se preporučuje za primenu u unutrašnjim prostorima i ne predstavlja zamenu za rotacioni laser. Za spoljašnje primene se mora obratiti pažnja, da okvirni uslovi odgovaraju onima u unutrašnjem prostoru ili da se koristi Hilti laserski prijemnik.

Moguće primene su:

• Oznake položaja razdvajajućih zidova (u desnom uglu i u vertikalnoj ravni).
  • Provera i prenos pravih uglova.
• Usmeravanje delova sistema / instalacija i drugih elemenata strukture u tri ose.
• Prenos označenih tačaka sa poda na plafon.
• Za ovaj proizvod upotrebljavajte samo u ovoj tabeli navedene Hilti Nuron Li-Ion akumulatorske baterije serije B 22.
• Za ove akumulatorske baterije koristite isključivo Hilti punjače sa serijama navedenih u ovoj tabeli.

3.3 Karakteristike

Proizvod ima tri zelene laserske linije od 360° sa dometa do 40 m i pet tačaka ukrštanja zraka (napred, pozadi, levo, desno i gore). Domet zavisi od osvetljenosti okoline.

Gledano sa zadnje strane, proizvod napred sa leve strane ima referentnu tačku usmerenu nadole. Zadnja strana je strana gde se nalazi baterija.

Interior view of a room with walls, door, and camera on tripod (no text or symbols)

6.6.2 Uređivanje profila za suvu gradnju za raspodelu prostora

Interior view of a room with two windows and a 90-degree angle indicator (no text or symbols beyond the angle marker)

Interior view of a room with a door, wall, and window (no text or symbols)

Architectural elevation drawing showing wall-mounted pipes and a rectangular window (no text or symbols)

6.6.4 Usmeravanje elemenata grejanja

Interior view of a room with walls, doors, and a camera on a tripod (no text or symbols)

6.6.5 Usmeravanje vrata i okvira prozora

Interior view of a room with two windows and a camera on a tripod (no text or symbols)

7 Nega i održavanje

UPOZORENJE

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherte(PBDE)
外壳Housing	0	0	0	0	0	0
开关Switch	0	0	0	0	0	0
螺丝Screws	0	0	0	0	0	0
摆体Pendulum	X	0	0	0	0	0
窗罩Lantern	0	0	0	0	0	0
电子器件Electronics	X	0	0	0	0	0
光学件Optics	0	0	0	0	0	0
旋转底座Rotation Base	X	0	0	0	0	0
光学组件Optics housing	X	0	0	0	0	0
导线Cables	0	0	0	0	0	0
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Ova tabelu važi za tržište Kine.

限用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Multiline Laser		型號(型式):Type designation:		PM 50MG-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
外殼Housing	o	o	o	o	o	o
開關Switch	o	o	o	o	o	o
螺絲Screws	o	o	o	o	o	o
鐘擺Pendulum	x	o	o	o	o	o
窗罩Lantern	o	o	o	o	o	o
電子器件Electronics	x	o	o	o	o	o
光學件Optics	o	o	o	o	o	o
旋轉底座Rotation Base	x	o	o	o	o	o
光學組件Optics housing	x	o	o	o	o	o
導線Cables	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Ova tabela važi za tržište u Tajvanu.

14 Hilti Li-Ion akumulatorske baterije

LASER SEATION BA NOT STAGE WITH BEAM CLASS 2 LASER PROVECT 5-10-550mm P-A 3.8mm This product engages with 2.5 mm wide x 40mm wide x 10.4 mm wide x 10.4 mm wide x near for delineation protocol to laser Extricate 10.1 micro zone 10.1.2017 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

Interior view of a room with walls, door, and camera setup (no text or symbols)

Interior view of a room with windows and a 90-degree angle indicator (no text or symbols beyond the angle marker)

Interior view of a room with a door, window, and ceiling fixtures (no text or symbols)

Architectural elevation drawing of a room with vertical slats and a horizontal panel (no text or symbols)

Interior view of a room with walls, doors, and a camera on a tripod (no text or symbols)

Interior view of a room with two windows and a camera on a tripod (no text or symbols)

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherte(PBDE)
外壳Housing	0	0	0	0	0	0
开关Switch	0	0	0	0	0	0
螺丝Screws	0	0	0	0	0	0
摆体Pendulum	X	0	0	0	0	0
窗罩Lantern	0	0	0	0	0	0
电子器件Electronics	X	0	0	0	0	0
光学件Optics	0	0	0	0	0	0
旋转底座Rotation Base	X	0	0	0	0	0
光学组件Optics housing	X	0	0	0	0	0
导线Cables	0	0	0	0	0	0
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Multiline Laser		型號(型式):Type designation:		PM 50MG-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
外殼Housing	o	o	o	o	o	o
開關Switch	o	o	o	o	o	o
螺絲Screws	o	o	o	o	o	o
鐘擺Pendulum	x	o	o	o	o	o
窗罩Lantern	o	o	o	o	o	o
電子器件Electronics	x	o	o	o	o	o
光學件Optics	o	o	o	o	o	o
旋轉底座Rotation Base	x	o	o	o	o	o
光學組件Optics housing	x	o	o	o	o	o
導線Cables	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Laser generation BA NOT STAGE WITH BEAM CLASS 2 LAYER PROBOT 6-10-500mm P+0.5 mm This product engages with GB, will be / 400mm and 10.0% width 10 mm and 10.0% in used for device selection pursuant to Laser Description No. 18, model: June 31, 2017 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

Interior view of a room with walls, door, and window (no text or symbols)

Interior view of a room with windows and a 90-degree angle indicator (no text or symbols beyond the angle marker)

Interior view of a room with a door, ceiling-mounted fixture, and a window (no text or symbols)

Architectural cross-section diagram showing room layout with ventilation ducts and a central rectangular structure (no text or symbols)

Interior view of a room with walls, doors, and a camera on a tripod (no text or symbols)

Interior view of a room with two windows and a camera on a tripod (no text or symbols)

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherte(PBDE)
外壳Housing	0	0	0	0	0	0
开关Switch	0	0	0	0	0	0
螺丝Screws	0	0	0	0	0	0
摆体Pendulum	X	0	0	0	0	0
窗罩Lantern	0	0	0	0	0	0
电子器件Electronics	X	0	0	0	0	0
光学件Optics	0	0	0	0	0	0
旋转底座Rotation Base	X	0	0	0	0	0
光学组件Optics housing	X	0	0	0	0	0
导线Cables	0	0	0	0	0	0
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

限用物質含有情況標示聲明書
Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Multiline Laser		型號(型式):Type designation:		PM 50MG-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
外殼Housing	o	o	o	o	o	o
開關Switch	o	o	o	o	o	o
螺絲Screws	o	o	o	o	o	o
鐘擺Pendulum	x	o	o	o	o	o
窗罩Lantern	o	o	o	o	o	o
電子器件Electronics	x	o	o	o	o	o
光學件Optics	o	o	o	o	o	o
旋轉底座Rotation Base	x	o	o	o	o	o
光學組件Optics housing	x	o	o	o	o	o
導線Cables	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Laser NATION 50 NET STAGE WITH BEAM CLASS 2 LAYER PIN/BOT This product complies with ISO 46001-1 ISO 46001-1/1 PMS 13 and HAN 13 measured for automatic pressure to ensure Bottles: 50, standard (see 24, 2007) PIM 80-22 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

Interior view of a room with walls, door, and camera setup (no text or symbols)

Interior view of a room with windows and a 90-degree angle indicator (no text or symbols beyond the angle marker)

Interior view of a room with a door, window, and ceiling fixtures (no text or symbols)

Architectural elevation drawing of a room with vertical pipes and a horizontal window (no text or symbols)

Interior view of a room with walls, doors, and wall-mounted screens (no text or symbols)

Interior view of a room with two windows and a camera on a tripod (no text or symbols)

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
外壳Housing	0	0	0	0	0	0
开关Switch	0	0	0	0	0	0
螺丝Screws	0	0	0	0	0	0
摆体Pendulum	X	0	0	0	0	0
窗罩Lantern	0	0	0	0	0	0
电子器件Electronics	X	0	0	0	0	0
光学件Optics	0	0	0	0	0	0
旋转底座Rotation Base	X	0	0	0	0	0
光学组件Optics housing	X	0	0	0	0	0
导线Cables	0	0	0	0	0	0
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

限用物質含有情況標示聲明書
Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Multiline Laser		型號(型式):Type designation:		PM 50MG-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
外殼Housing	o	o	o	o	o	o
開闢Switch	o	o	o	o	o	o
螺絲Screws	o	o	o	o	o	o
鐘擺Pendulum	x	o	o	o	o	o
窗罩Lantern	o	o	o	o	o	o
電子器件Electronics	x	o	o	o	o	o
光學件Optics	o	o	o	o	o	o
旋轉底座Rotation Base	x	o	o	o	o	o
光學組件Optics housing	x	o	o	o	o	o
導線Cables	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

LASER GENERATION BIS NET STARS WITH SEAM CLASS 2 LASER PROPOSED To BIS-300mm, Pin 1 should This product consists with BIS-300mm BIS-300mm, Pin 1 should be used for the design of the laser. Exposed for degradation performed to clean Batter for 10 mm, date: Dec 25, 2007 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

Interior view of a room with walls, door, and camera setup (no text or symbols)

Interior view of a room with windows and a 90-degree angle indicator (no text or symbols beyond the angle marker)

Interior view of a room with a door, window, and ceiling fixtures (no text or symbols)

Architectural floor plan showing room layout with vertical slats and a horizontal window (no text or symbols)

Interior view of a room with walls, doors, and a camera on a tripod (no text or symbols)

Interior view of a room with two windows and a camera on a tripod (no text or symbols)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Multiline Laser		型號(型式):Type designation:		PM 50MG-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
外殼Housing	o	o	o	o	o	o
開闢Switch	o	o	o	o	o	o
螺絲Screws	o	o	o	o	o	o
鐘擺Pendulum	x	o	o	o	o	o
窗罩Lantern	o	o	o	o	o	o
電子器件Electronics	x	o	o	o	o	o
光學件Optics	o	o	o	o	o	o
旋轉底座Rotation Base	x	o	o	o	o	o
光學組件Optics housing	x	o	o	o	o	o
導線Cables	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Interior view of a room with walls, door, and camera setup (no text or symbols)

Interior view of a room with windows and a 90-degree angle indicator (no text or symbols beyond the angle marker)

Interior view of a room with a door, window, and ceiling fixtures (no text or symbols)

Architectural floor plan showing room layout with pipes, fixtures, and a window (no text or labels)

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherte(PBDE)
外壳Housing	0	0	0	0	0	0
开关Switch	0	0	0	0	0	0
螺丝Screws	0	0	0	0	0	0
摆体Pendulum	X	0	0	0	0	0
窗罩Lantern	0	0	0	0	0	0
电子器件Electronics	X	0	0	0	0	0
光学件Optics	0	0	0	0	0	0
旋转底座Rotation Base	X	0	0	0	0	0
光学组件Optics housing	X	0	0	0	0	0
导线Cables	0	0	0	0	0	0
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

限用物質含有情況標示聲明書
Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Multiline Laser		型號(型式):Type designation:		PM 50MG-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
外殼Housing	o	o	o	o	o	o
開關Switch	o	o	o	o	o	o
螺絲Screws	o	o	o	o	o	o
鐘擺Pendulum	x	o	o	o	o	o
窗罩Lantern	o	o	o	o	o	o
電子器件Electronics	x	o	o	o	o	o
光學件Optics	o	o	o	o	o	o
旋轉底座Rotation Base	x	o	o	o	o	o
光學組件Optics housing	x	o	o	o	o	o
導線Cables	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

LASER RADIATION EN NOT STAGE INTO BEAR CLASS 2 LASER PROCKET #1-03-03/2014 1-0.5 GB/T This contact corresponds with ISO 40000-1 ISO 40000-1.34 GB/T to ISO 71601.1 stand to delineate pursuant to Laser Service No. 19, master.com (DL: 2897) ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

Interior view of a room with walls, door, and window (no text or symbols)

Interior view of a room with windows and a 90-degree angle indicator (no text or symbols beyond the angle marker)

Interior view of a room with a door, wall, and ceiling fixtures (no text or symbols)

Architectural elevation drawing of a room with vertical pipes and a horizontal panel (no text or symbols)

Interior view of a room with walls, doors, and a camera on a tripod (no text or symbols)

Interior view of a room with two windows and a camera on a tripod (no text or symbols)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Multiline Laser
Products: PM 50MG-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
外壳Housing	o	o	o	o	o	o
开关Switch	o	o	o	o	o	o
螺丝Screws	o	o	o	o	o	o
摆体Pendulum	x	o	o	o	o	o
窗罩Lantern	o	o	o	o	o	o
电子器件Electronics	x	o	o	o	o	o
光学件Optics	o	o	o	o	o	o
旋转底座Rotation Base	x	o	o	o	o	o
光学组件Optics housing	x	o	o	o	o	o
导线Cables	o	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Multiline Laser		型號(型式):Type designation:		PM 50MG-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
外殼Housing	o	o	o	o	o	o
開關Switch	o	o	o	o	o	o
螺絲Screws	o	o	o	o	o	o
鐘擺Pendulum	x	o	o	o	o	o
窗罩Lantern	o	o	o	o	o	o
電子器件Electronics	x	o	o	o	o	o
光學件Optics	o	o	o	o	o	o
旋轉底座Rotation Base	x	o	o	o	o	o
光學組件Optics housing	x	o	o	o	o	o
導線Cables	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

LAYER RADIATION DO NOT STARE INTO BEAM CLASS 2 LAYER PRODUCT To be 0.000mm, Put down. This product consists with ISO 40005-1 ISO 40005-1 (ISO 1996, 18 and 1983) to except to deviation pursuant to Class Basis No. 10, Distant Only No. 2007 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

Interior view of a room with walls, door, and window (no text or symbols)

Interior view of a room with windows and a 90-degree angle indicator (no text or symbols beyond the angle marker)

Interior view of a room with a door, ceiling-mounted fixture, and a window (no text or symbols)

Architectural cross-section diagram showing room layout with vertical panel and horizontal beam (no text or symbols)

Interior view of a room with walls, doors, and a camera on a tripod (no text or symbols)

Interior view of a room with two windows and a camera on a tripod (no text or symbols)

7 Bakım ve onarım

iKAZ

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
外壳Housing	0	0	0	0	0	0
开关Switch	0	0	0	0	0	0
螺丝Screws	0	0	0	0	0	0
摆体Pendulum	X	0	0	0	0	0
窗罩Lantern	0	0	0	0	0	0
电子器件Electronics	X	0	0	0	0	0
光学件Optics	0	0	0	0	0	0
旋转底座Rotation Base	X	0	0	0	0	0
光学组件Optics housing	X	0	0	0	0	0
导线Cables	0	0	0	0	0	0
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Multiline Laser		型號(型式):Type designation:		PM 50MG-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
外殼Housing	o	o	o	o	o	o
開闢Switch	o	o	o	o	o	o
螺絲Screws	o	o	o	o	o	o
鐘擺Pendulum	x	o	o	o	o	o
窗罩Lantern	o	o	o	o	o	o
電子器件Electronics	x	o	o	o	o	o
光學件Optics	o	o	o	o	o	o
旋轉底座Rotation Base	x	o	o	o	o	o
光學組件Optics housing	x	o	o	o	o	o
導線Cables	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

LAYER RADIATION ON NOT STARE INTO SCAN CLASS 2 LASER PROCKET LAYER 25000x1.4.1.0000 This product comprises with BC 1000V~ DCB 4000/DCB 1000V, DCB 1000V, except to detection pursuant to Laser Note No. 10, DIP, DIP, DIP, DIP, DIP, DIP, DIP, DIP, DIP, DIP, DIP, DIP, DIP, DIP, DIP, DIP, DIP, DIP, DIP, DIP, DIP, DIP, DIP, DIP, DIP, DIP, DIP, DIP, DIP, DIP, DIP, DIP, DIP, DIP ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ COSIS ECO-250

و Prescription diagonals Agricultural Workers

Interior view of a room with walls, door, and window (no text or symbols)

Interior view of a room with windows and a 90-degree angle indicator (no text or symbols beyond the angle marker)

Interior view of a room with a door, ceiling-mounted fixture, and a window (no text or symbols)

Architectural elevation drawing of a room with vertical slats and a horizontal window (no text or symbols)

6.6.4

Interior view of a room with walls, doors, and a camera on a tripod (no text or symbols)

Interior view of a room with two windows and a camera on a tripod (no text or symbols)

العناية والصيانة

7

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
外壳Housing	0	0	0	0	0	0
开关Switch	0	0	0	0	0	0
螺丝Screws	0	0	0	0	0	0
摆体Pendulum	x	0	0	0	0	0
窗罩Lantern	0	0	0	0	0	0
电子器件Electronics	x	0	0	0	0	0
光学件Optics	0	0	0	0	0	0
旋转底座Rotation Base	x	0	0	0	0	0
光学组件Optics housing	x	0	0	0	0	0
导线Cables	0	0	0	0	0	0
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

限用物質含有情況標示聲明書
Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Multiline Laser		型號(型式):Type designation:		PM 50MG-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
外殼Housing	o	o	o	o	o	o
開闢Switch	o	o	o	o	o	o
螺絲Screws	o	o	o	o	o	o
鐘擺Pendulum	x	o	o	o	o	o
窗罩Lantern	o	o	o	o	o	o
電子器件Electronics	x	o	o	o	o	o
光學件Optics	o	o	o	o	o	o
旋轉底座Rotation Base	x	o	o	o	o	o
光學組件Optics housing	x	o	o	o	o	o
導線Cables	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Laser NATION ON NET STAGE WITH BEAM CLASS 2 LAYER PROVECT This product consists with 30.0000-5 30.0000-51.0000-14 and 100.0000- used for installation pursuant to Laser Batterflow: 60, Dosec Drive 20, 2017 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

Interior view of a room with walls, door, and camera on tripod (no text or symbols)

Interior view of a room with two windows and a 90-degree angle indicator (no text or symbols beyond the angle marker)

Interior view of a room with a door, wall, and window (no text or symbols)

Architectural elevation drawing of a room with vertical slats and a horizontal window (no text or symbols)

Interior view of a room with walls, doors, and a camera on a tripod (no text or symbols)

Interior view of a room with two windows and a camera on a tripod (no text or symbols)

7 手入れと保守

警告

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherte(PBDE)
外壳Housing	0	0	0	0	0	0
开关Switch	0	0	0	0	0	0
螺丝Screws	0	0	0	0	0	0
摆体Pendulum	X	0	0	0	0	0
窗罩Lantern	0	0	0	0	0	0
电子器件Electronics	X	0	0	0	0	0
光学件Optics	0	0	0	0	0	0
旋转底座Rotation Base	X	0	0	0	0	0
光学组件Optics housing	X	0	0	0	0	0
导线Cables	0	0	0	0	0	0
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

この表は中国市場に適用されるものです。

限用物質含有情況標示聲明書
Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Multiline Laser		型號(型式):Type designation:		PM 50MG-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
外殼Housing	o	o	o	o	o	o
開關Switch	o	o	o	o	o	o
螺絲Screws	o	o	o	o	o	o
鐘擺Pendulum	x	o	o	o	o	o
窗罩Lantern	o	o	o	o	o	o
電子器件Electronics	x	o	o	o	o	o
光學件Optics	o	o	o	o	o	o
旋轉底座Rotation Base	x	o	o	o	o	o
光學組件Optics housing	x	o	o	o	o	o
導線Cables	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

この表は台湾市場に適用されるものです。

Interior view of a room with walls, door, and camera setup (no text or symbols)

Interior view of a room with windows and a 90-degree angle indicator (no text or symbols beyond the angle marker)

Interior view of a room with a door, wall, and ceiling fixtures (no text or symbols)

6.6.3 수직 파이프 라인 정렬

Architectural elevation drawing of a room with vertical pipes and a horizontal window (no text or symbols)

6.6.4 난방 요소 정렬

Interior view of a room with walls, doors, and wall-mounted screens (no text or symbols)

6.6.5 문틀 및 창틀 정렬

Interior view of a room with two windows and a camera on a tripod (no text or symbols)

7 관리 및 유지보수

경고

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
外壳Housing	0	0	0	0	0	0
开关Switch	0	0	0	0	0	0
螺丝Screws	0	0	0	0	0	0
摆体Pendulum	X	0	0	0	0	0
窗罩Lantern	0	0	0	0	0	0
电子器件Electronics	X	0	0	0	0	0
光学件Optics	0	0	0	0	0	0
旋转底座Rotation Base	X	0	0	0	0	0
光学组件Optics housing	X	0	0	0	0	0
导线Cables	0	0	0	0	0	0
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

본 도표는 중국 시장에 적용됩니다.

限用物質含有情況標示聲明書
Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Multiline Laser		型號(型式):Type designation:		PM 50MG-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
外殼Housing	o	o	o	o	o	o
開闢Switch	o	o	o	o	o	o
螺絲Screws	o	o	o	o	o	o
鐘擺Pendulum	x	o	o	o	o	o
窗罩Lantern	o	o	o	o	o	o
電子器件Electronics	x	o	o	o	o	o
光學件Optics	o	o	o	o	o	o
旋轉底座Rotation Base	x	o	o	o	o	o
光學組件Optics housing	x	o	o	o	o	o
導線Cables	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

본 도표는 대만 시장에 적용됩니다.

14 Hilti 리튬이온 배터리

안전 및 사용 관련 지침

LASER RADIATION DO NOT SCALE INTO SEAM CLASS 2 LASER PROCKET 1-0-0.000mm: Full Diameter Technical compression with DC 4005-4 DC 4005-4/21 1.4V 540 V and DC 1600-17 optional for device insertion to lower Solder No. 10, doted code 34, 2887 ③ ② ① ④ ⑤ ⑥ ⑦ ⑧ ⑨

Interior view of a room with walls, door, and camera setup (no text or symbols)

6.6.2 設定隔牆的鎖牆軌跡

Interior view of a room with windows and a 90-degree angle indicator (no text or symbols beyond the angle marker)

Interior view of a room with a door, window, and ceiling fixtures (no text or symbols)

6.6.3 管線垂直校準

Architectural elevation drawing of a room with vertical pipes and a horizontal window (no text or symbols)

6.6.4 校準加熱装置

Interior view of a room with walls, doors, and wall-mounted screens (no text or symbols)

6.6.5 定位門窗框

Interior view of a room with two windows and a camera on a tripod (no text or symbols)

7 維護及保養

警告

電池裝入時有受傷的危險！

▶ 進行維護及保養前，請務必卸下電池！

產品保養

24F., No. 16, Xinzhan Rd., Banqiao Dist., New Taipei City 220, Taiwan (R.O.C.)

Tel. [phone]

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherte(PBDE)
外壳Housing	0	0	0	0	0	0
开关Switch	0	0	0	0	0	0
螺丝Screws	0	0	0	0	0	0
摆体Pendulum	X	0	0	0	0	0
窗罩Lantern	0	0	0	0	0	0
电子器件Electronics	X	0	0	0	0	0
光学件Optics	0	0	0	0	0	0
旋转底座Rotation Base	X	0	0	0	0	0
光学组件Optics housing	X	0	0	0	0	0
导线Cables	0	0	0	0	0	0
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

此表適用於中國市場。

限用物質含有情況標示聲明書
Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Multiline Laser		型號(型式):Type designation:		PM 50MG-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
外殼Housing	o	o	o	o	o	o
開關Switch	o	o	o	o	o	o
螺絲Screws	o	o	o	o	o	o
鐘擺Pendulum	x	o	o	o	o	o
窗罩Lantern	o	o	o	o	o	o
電子器件Electronics	x	o	o	o	o	o
光學件Optics	o	o	o	o	o	o
旋轉底座Rotation Base	x	o	o	o	o	o
光學組件Optics housing	x	o	o	o	o	o
導線Cables	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

此表適用於臺灣市場。

14 Hilti鋰電池

使用與操作說明

Laser NATION ON NOT STAGE WITH BEAM CLASS 2 LAYER PROBERT 5-10-500mm P-A, Stain This product regulates with DC 6000+ mm DC 6000+ mm (DC 6000+ mm) and DC 4000+ mm used for dislocation approach to closed Section No. 18, Induced June 31, 2017 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

Interior view of a room with walls, door, and camera on tripod (no text or symbols)

6.6.2 测定隔断墙的轻隔墙轨迹

Interior view of a room with windows and a 90-degree angle indicator (no text or symbols beyond the angle marker)

Interior view of a room with a door, window, and wall-mounted equipment (no text or symbols)

6.6.3 垂直对准管

Architectural elevation drawing of a room with vertical pipes and a horizontal window (no text or symbols)

6.6.4 对准加热装置

Interior view of a room with walls, doors, and a camera on a tripod (no text or symbols)

6.6.5 对准门和窗框

Interior view of a room with two windows and a camera on a tripod (no text or symbols)

7 维护和保养

-警告-

插入电池时存在人身伤害危险！

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherte(PBDE)
外壳Housing	0	0	0	0	0	0
开关Switch	0	0	0	0	0	0
螺丝Screws	0	0	0	0	0	0
摆体Pendulum	X	0	0	0	0	0
窗罩Lantern	0	0	0	0	0	0
电子器件Electronics	X	0	0	0	0	0
光学件Optics	0	0	0	0	0	0
旋转底座Rotation Base	X	0	0	0	0	0
光学组件Optics housing	X	0	0	0	0	0
导线Cables	0	0	0	0	0	0
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

该表适用于中国大陆市场。

限用物質含有情況標示聲明書
Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Multiline Laser		型號(型式):Type designation:		PM 50MG-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
外殼Housing	o	o	o	o	o	o
開關Switch	o	o	o	o	o	o
螺絲Screws	o	o	o	o	o	o
鐘擺Pendulum	x	o	o	o	o	o
窗罩Lantern	o	o	o	o	o	o
電子器件Electronics	x	o	o	o	o	o
光學件Optics	o	o	o	o	o	o
旋轉底座Rotation Base	x	o	o	o	o	o
光學組件Optics housing	x	o	o	o	o	o
導線Cables	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

该表适用于中国台湾市场。

14 Hilti 锂离子电池

使用和操作说明

.הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה

Laser isolation ON NET STARE INTO BEAM ELAST Z LASER PROBUST In-EN 100000x, Pd. 60mm This product comprises with GB-4000-1 and has 21/24 bits to put HAC 31 amount to disfigure purposes in Laser Re Location: GB, location: GB, 2007 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

תַעְרָה בִי אַבְשׁ

3.2

, 1790-1800, 90°, 75°, 60°, 45°, 30°, 25°, 20°, 15°, 10°, 5°, 2°, 1°, 0.

.(הכלה/הכלה) ⏻הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה

Interior view of a room with walls, door, and camera setup (no text or symbols)

6.6.2

Interior view of a room with windows and a 90-degree angle indicator (no text or symbols beyond the angle marker)

Interior view of a room with a door, window, and ceiling fixtures (no text or symbols)

Architectural elevation drawing of a room with vertical slats and a horizontal window (no text or symbols)

6.6.4"בְרָהוּרִי

Interior view of a room with walls, doors, and a camera on a tripod (no text or symbols)

6.6.5"שנה בְרִי

Interior view of a room with two windows and a camera on a tripod (no text or symbols)

תְקּוֹרָה

אַתְרָה

.1/8" 16 n" 3-7 107 77 R 77

7.1.4

Pos. 1 2.5m T₁ 2m T₂ 90° 2.5m Pos. 2

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
外壳Housing	0	0	0	0	0	0
开关Switch	0	0	0	0	0	0
螺丝Screws	0	0	0	0	0	0
摆体Pendulum	X	0	0	0	0	0
窗罩Lantern	0	0	0	0	0	0
电子器件Electronics	X	0	0	0	0	0
光学件Optics	0	0	0	0	0	0
旋转底座Rotation Base	X	0	0	0	0	0
光学组件Optics housing	X	0	0	0	0	0
导线Cables	0	0	0	0	0	0
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

限用物質含有情況標示聲明書
Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Multiline Laser		型號(型式):Type designation:		PM 50MG-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
外殼Housing	o	o	o	o	o	o
開闢Switch	o	o	o	o	o	o
螺絲Screws	o	o	o	o	o	o
鐘擺Pendulum	x	o	o	o	o	o
窗罩Lantern	o	o	o	o	o	o
電子器件Electronics	x	o	o	o	o	o
光學件Optics	o	o	o	o	o	o
旋轉底座Rotation Base	x	o	o	o	o	o
光學組件Optics housing	x	o	o	o	o	o
導線Cables	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

בְרַעָה בְרַעָה

EC Declaration of Conformity | UK Declaration of Conformity

HILTI

Manufacturer:

Hilti Corporation

Hilti (Gt. Britain) Limited

No. 1 Circle Square, 3 Symphony Park

Manchester, England, M1 7FS

PM 50MG-22 (01)

Serial Numbers: 1-99999999999

2014/30/EU | Electromagnetic Compatibility Regulations 2016

2011/65/EU | The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012

EN 61010-1:2010,

A1:2019, AC2019

EN 55011:2016, A1:2017

EN IEC 61326-1:2021

Dr. Tahar Zrilli

Head of Quality and Process Management Business Area Electric Tools & Accessories

Schaan, 22.12.2023

Sriram Makineedi

Head of BU Measuring Systems

Business Unit Measuring Systems

NURON

B 22-55 (01)	0,56 kg	1.23 lb
B 22-85 (01)	0,77 kg	1.70 lb

C 4-22

C 6-22

C 8-22

HILTI

Hilti Corporation

LI-9494 Schaan

Tel.:[phone]

Fax:[phone]

www.hilti.group

Diagram showing a QR code, smartphone with wireless signal, and three electronic devices with icons
