USER MANUAL VAC 800-EC Flex

Illustration of a portable electrical enclosure with attached cable and a cylindrical device (no text or symbols visible)

de Originalbetriebsanleitung 3
en Original operating instructions 14
fr Notice d'instructions d'origine 24
it Istruzioni per l'uso originali 35
es Instrucciones de funcionamiento originales ..... 46
nl Originele gebruiksaanwijzing 57
da Originale driftsvejledning 68
no Originale driftsanvisningen 79
sv Originalbruksanvisning 89
fi Alkuperäinen käyttöohjekirja 99
pl Instrukcja oryginalna 110

Inhalt

Mechanical assembly diagram showing a motor or fan component with mounting holes and a central rotating shaft (no text or symbols)

■ Abluftflansch montieren.

Illustration of a mechanical device with a hose being inserted into a housing, showing part assembly and insertion process (no text or symbols)

Diagram of a coiled hose assembly with an inset showing the cable being inserted (no text or symbols present)

Diagram of a multi-story industrial or storage unit with ventilation grilles and a directional arrow (no text or symbols)

■ Filter entnehmen.

Diagram showing a warning sign with an exclamation mark above a building interior, indicating an accident or hazard.

Diagram of a building with ventilation grilles and upward arrow, no text or symbols present

Diagram showing a device with warning sign and downward arrow, indicating a hazard or alert scenario.

Diagram showing three steps of a mechanical device with labeled components, including a component with curved cutouts and a circular component inside.

Diagram showing a plug inserted into a device with a close-up view of the internal components (no text or symbols present)

Bolters Q.-1

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

27.03.2019

Symbols used in this manual ..... 14

Symbols on the power tool 14

For your safety 14

Technical specifications ..... 15

Overview 16

Instructions for use 17

Maintenance and care 22

Disposal information 22

C€-Declaration of Conformity ..... 22

Exemption from liability 22

Accessories 23

Symbols used in this manual

WARNING!

Denotes impending danger. Non-observance of this warning may result in death or extremely severe injuries.

CAUTION!

Denotes a possibly dangerous situation. Non-observance of this warning may result in slight injury or damage to property.

NOTE

Denotes application tips and important information.

Symbols on the power tool

Before switching on the power tool, read the operating manual!

For your safety

WARNING!

Before using the air purifier please read the following and act accordingly:

– these operating instructions,
- the "General safety instructions" on the handling of air purifiers in the enclosed booklet (leaflet no.: 315.915),
– the currently valid site rules and the regulations for the prevention of accidents.

This air purifier is state of the art and has been constructed in accordance with the acknowledged safety regulations.

Nevertheless, when in use, the product may be a danger to life and limb of the user or a third party, or the product or other property may be damaged. The air purifier must only be used

– for its intended use,

– in perfect working order.

Faults which compromise safety must be repaired immediately.

Intended use

The air purifier VAC 800-EC is intended

– for commercial use in industry and trade,
– for removing dust, e.g. during renovation work, and unpleasant odours from rooms in order to ensure a room atmosphere that will not endanger health.
When the HEPA/H13 filter class is used, mould spores, asbestos and similar pollutants will be filtered out.

Safety instructions for air purifiers

WARNING!

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference

■ The product must not be operated in the vicinity of flammable or explosive liquids.
■ Avoid suction of explosive vapours or flammable liquids.

■ Do not operate in the vicinity of sources of open flame, such as combustion heater, furnaces etc. to prevent suction of toxic carbon monoxide.
- Inspect the product before use for the first time to ensure that the case, seals and power cord are in good condition. It must not be damaged.
A bent frame or defective seals may result in hazardous dust exposure.
■ Never operate the product with a damaged power cord.
The cord must be inspected regularly and replaced with a new cord if necessary.
■ Faulty products must be sent for repair immediately.
■ The product is intended for operation indoors only and must not be exposed to moisture and must not be placed in puddles or standing water.
If the product accidentally becomes wet, pull out the power plug and leave the product to dry thoroughly before using it again.

■ Make sure that the product is secure during transport.
■ While the product is operating do not place any objects such as clothing on it.
■ The air vents must be kept clear if hoses are not connected.
■ Make sure that clean filters in good condition are used. Blocked filters may cause an overload of the motor. Use only recommended filters in accordance with the specifications for the site.
■ The product must be disconnected from the power supply for maintenance, repairs and cleaning.
■ Gloves and mask must be worn when handling dirty filters.
■ Pack used filters in closed bags for disposal.
■ Use only filters specified for this product.
■ When cleaning the air purifier do not use a water jet or compressed air but only dry vacuum and wipe it with a moist cloth.
- Allow the product to dry before installing new filters.

Technical specifications

		VAC 800-EC
Machine type Air purifier
Dimensions (WxHxD) mm 390x508x373
Weight– with filters (G3 + G4 + H13)– without filters	kg	11.07.2
Air volume– with new filters (G3 + G4 + H13)– with MAX setting and green light– with dirty filters and red warning light	m3/h	approx. 544400 - 544≤400
Dirt-holding capacity of filters Pa approx. 320
Fan motor
Power kW 0,17
Power consumption A 1.7 - 1.45
Mains voltage	V ACHz	23050/60
Speed range of fan rpm approx. 0 - 3,9	30

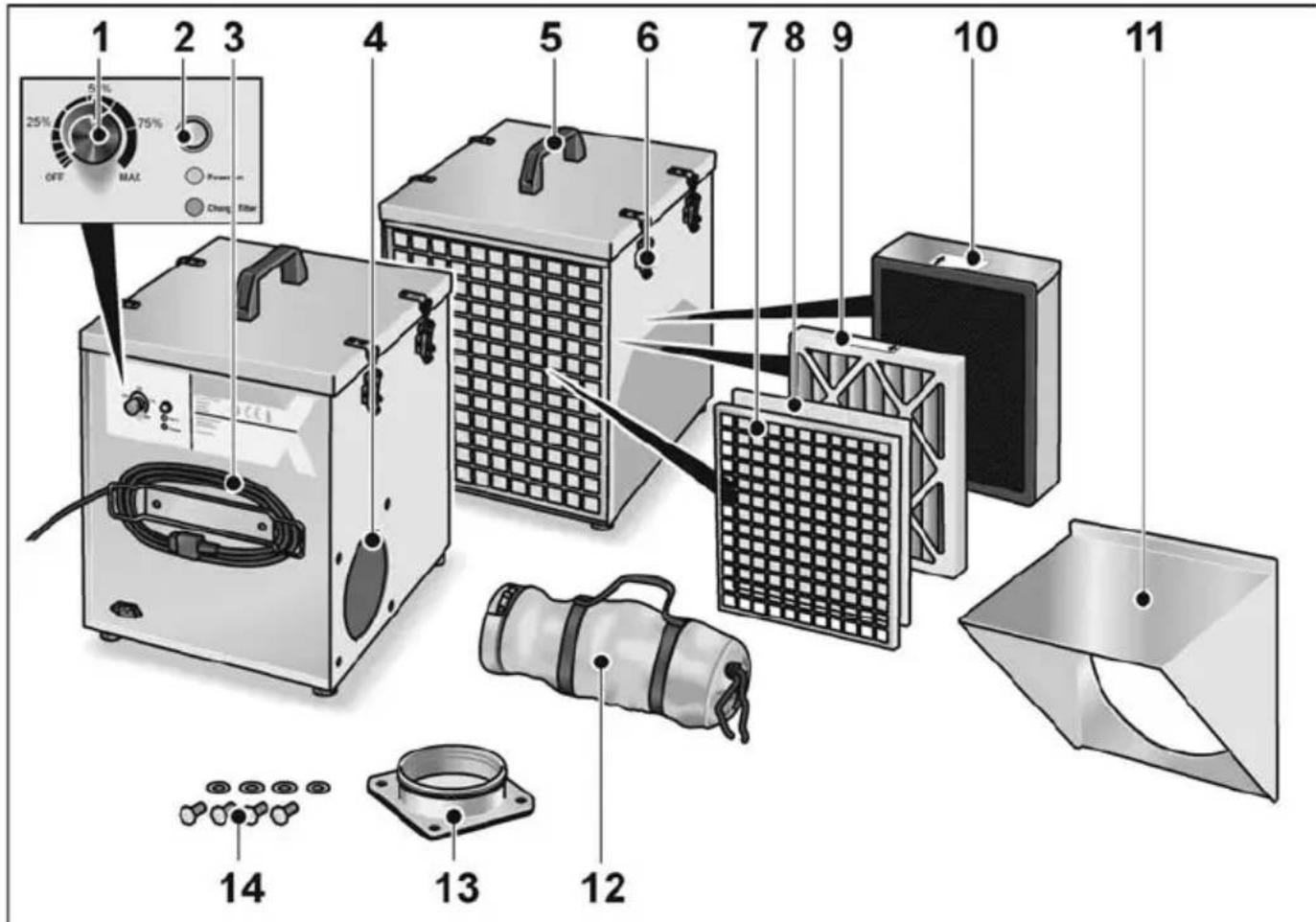

Overview

1 2 3 5 6 7 8 9 10 11 4 5 6 7 8 9 12 13 14 OFF MAL Power Chang Filter 14

1 Control knob for power
2 Control diode for filter change
3 3.5 m power cord with plug
4 Exhaust connection
5 Carrying handle
6 Closure tabs
7 Front grille
8 Pre-filter-fabric G3

9 Coarse dust filter G4, G4-AK or F7
10 Fine dust filter H13 HEPA
11 Exhaust hood for mixing work (e.g. plaster), optional
12 Exhaust air hose, compact, extendable to 5 m
13 Exhaust flange
14 Securing bolts

Instructions for use

WARNING!

Before performing any work on the air purifier, pull out the mains plug.

Before initial operation

■ Unpack the air purifier and accessories, and check that no parts are missing or were damaged during transport.
■ Place air purifier on a solid, level surface.
- Check that all filters are installed in the product. To check briefly remove the top cover, then replace it and secure with the tabs.

Installing exhaust air hose

i NOTE

Connect exhaust air hose and position is correctly to ensure that the filtered air is blown out of the room with the exhaust discharge outside the renovated area.

Mechanical assembly diagram showing a housing with a circular component and bolted joints (no text or symbols)

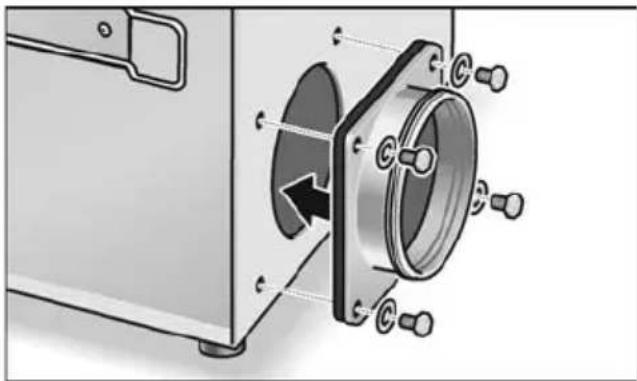

■ Install exhaust flange.

Illustration of a mechanical device with a hose being inserted into a housing, showing part assembly and insertion process (no text or symbols)

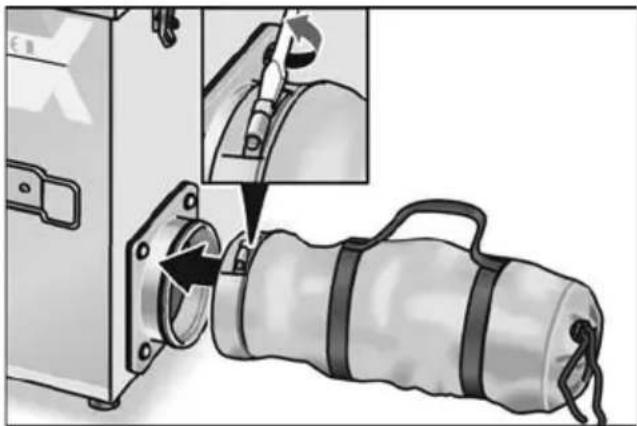

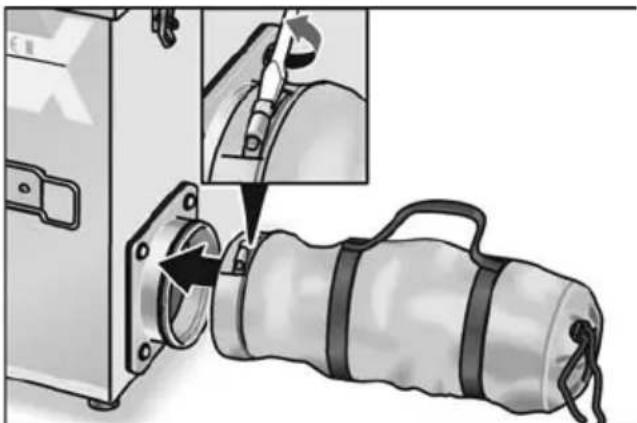

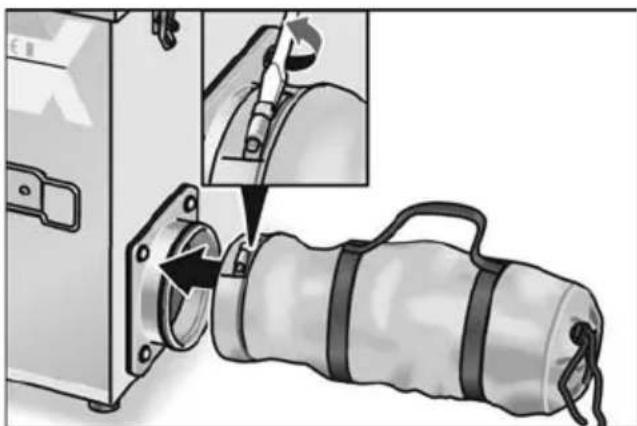

■ Unscrew screw, push exhaust air hose onto the flange and tighten the screw on the clamp.

Diagram of a coiled hose assembly with an inset showing a cable being inserted (no text or symbols present)

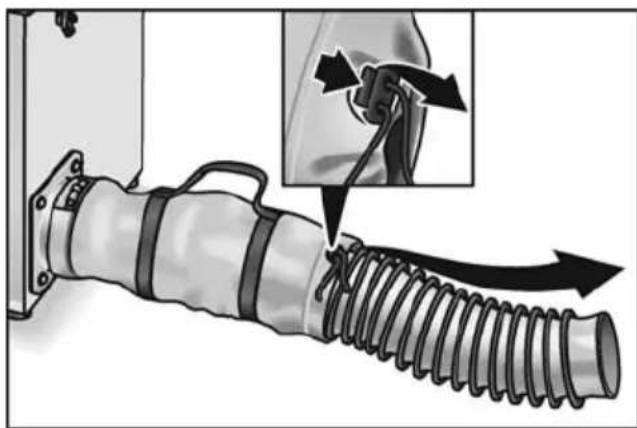

■ Loosen the cords and pull out the exhaust air hose. The exhaust discharge should be outside the room!

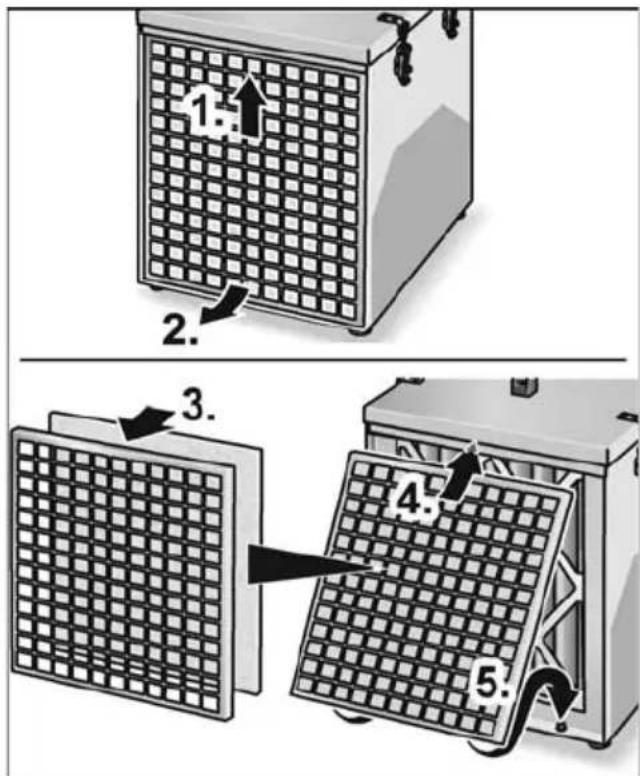

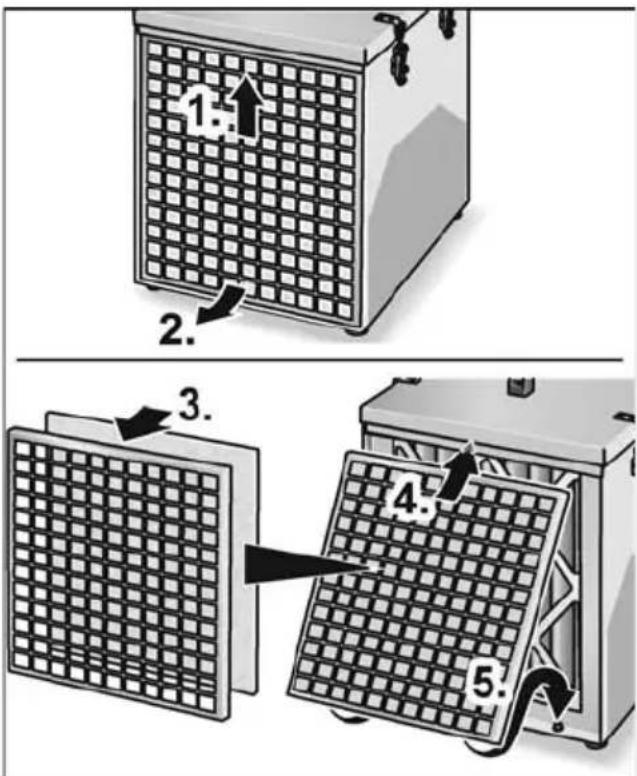

Installing and replacing filters Pre-filter-fabric G3

1. 2. 3. 4. 5.

■ Push the front grille slightly upwards (1.) and remove it forward (2.).
■ Insert pre-filter fabric G3 in the front grille (3.).
■ Push front grille under the rail (4.) and lower it to lock it (5.).

Coarse dust filter G4, activated carbon filter G4-AK, fine dust filter F7

1. 2. 1. 1. 1.

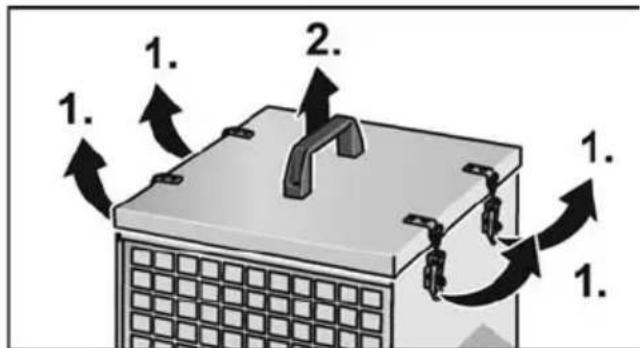

■ Open closure tabs (1.) and remove the cover by the handle (2.).

Diagram of a multi-story industrial or storage unit with ventilation grilles and a black upward arrow indicating airflow or movement (no text or symbols present)

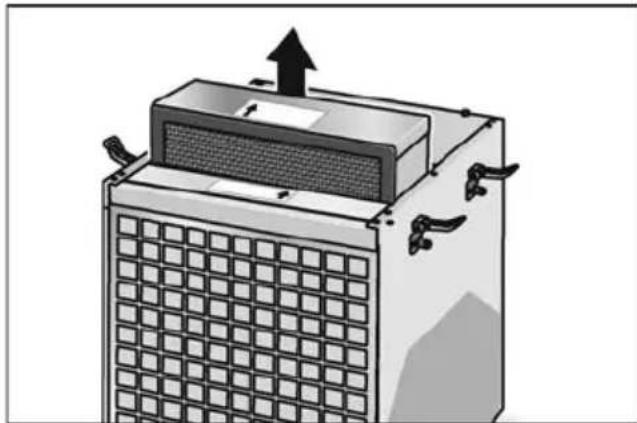

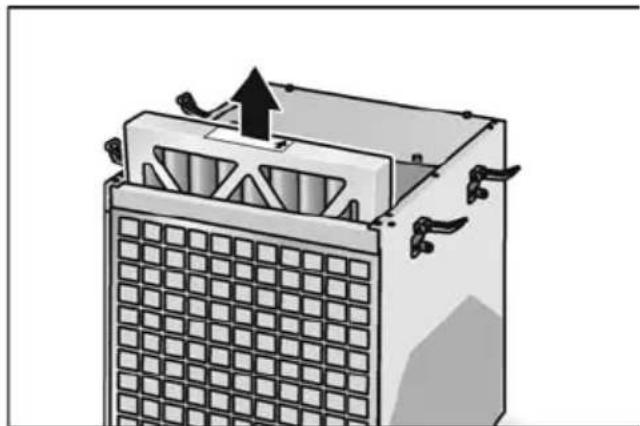

■ Remove filters.

Diagram showing a device with warning sign and downward arrow, indicating a hazard or hazard in operation.

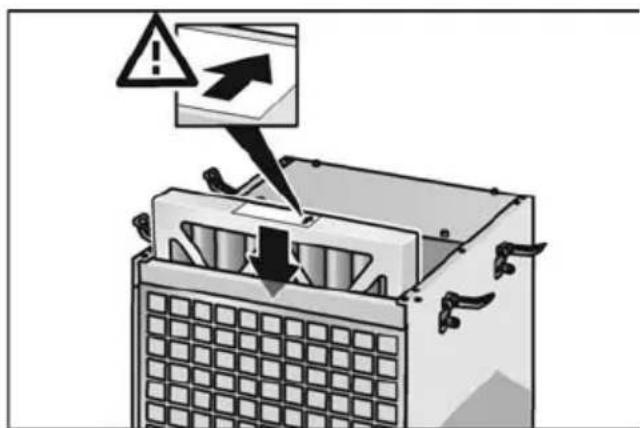

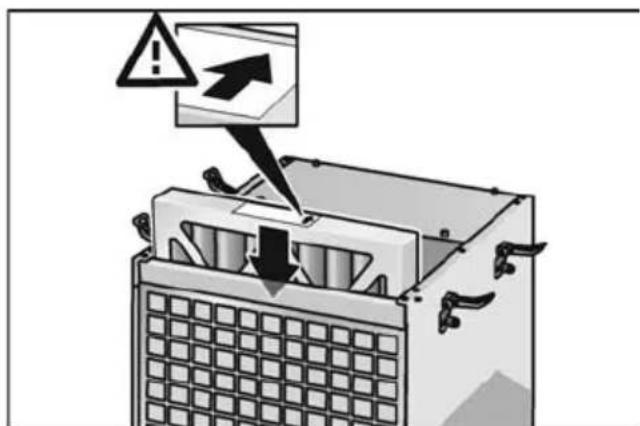

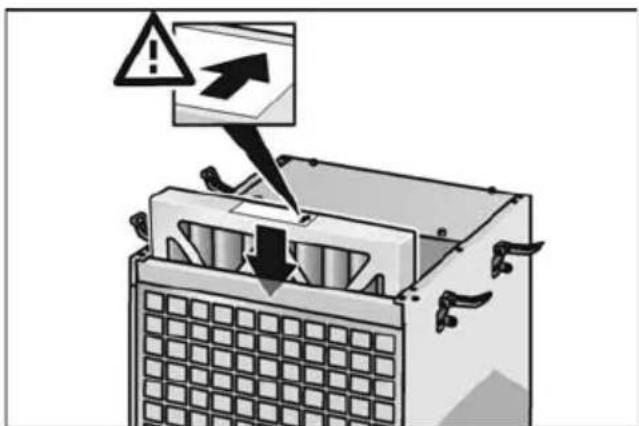

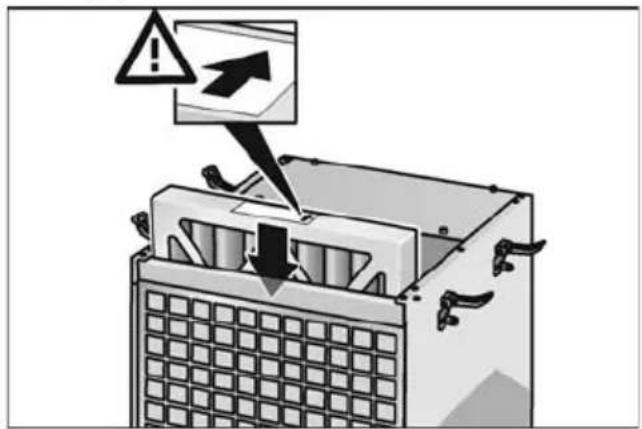

■ Install new filters (coarse dust filter G4, activated carbon filter G4-AK, fine dust filter F7).

Make sure that they are correctly inserted (arrow on filters).

■ Replace cover and close tabs.

HEPA filter H13

1. 2. 1. 1.

■ Open closure tabs (1.) and remove the cover by the handle (2.).

Diagram of a building with ventilation grilles and upward airflow arrows (no text or symbols)

■ Remove HEPA filter H13.

Diagram showing a warning sign with an upward arrow and a warning symbol above a building structure, indicating a hazard or alert scenario.

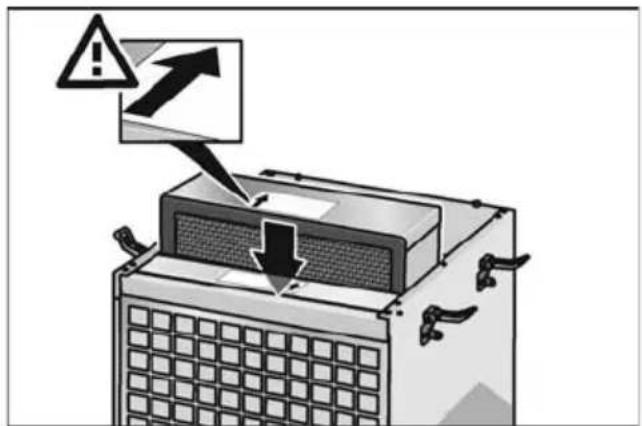

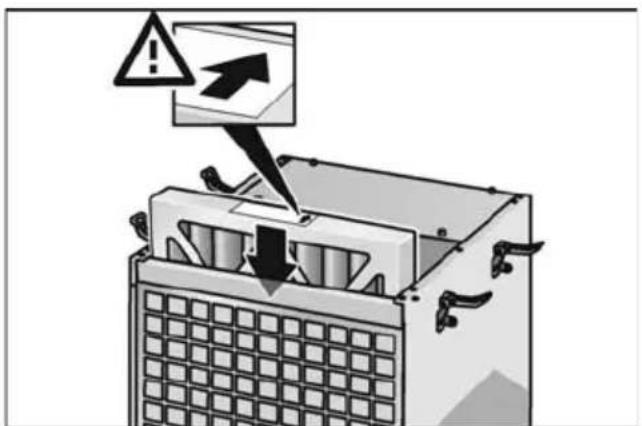

■ Insert new HEPA filter H13. Make sure that it is correctly inserted (arrow on filter).

■ Replace cover and close tabs.

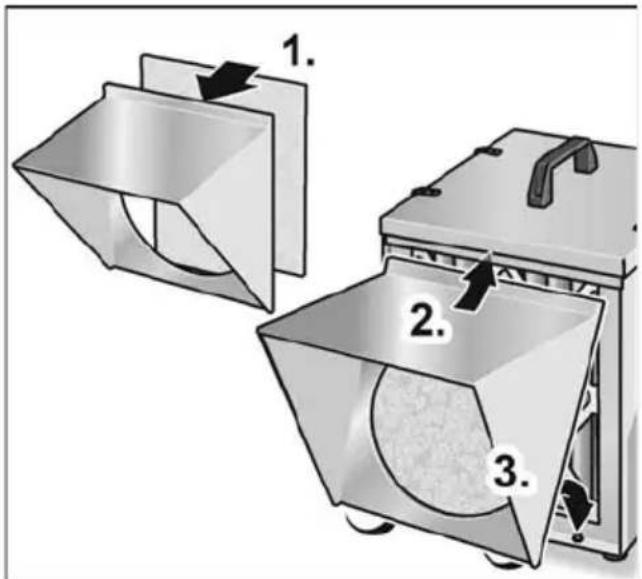

Installing and replacing exhaust hood

Exhaust hood for mixing work

Diagram showing three steps of a mechanical device with labeled components, including a folded panel and a closed chamber.

■ Press pre-filter fabric G3 in exhaust hood for mixing work (1.).
■ Push exhaust hood for mixing work under the rail (2.) and lower it to lock it (3.).

Initial operation

Diagram showing a plug inserted into a device with a cable, no text or symbols present

■ Insert the mains plug into the socket.

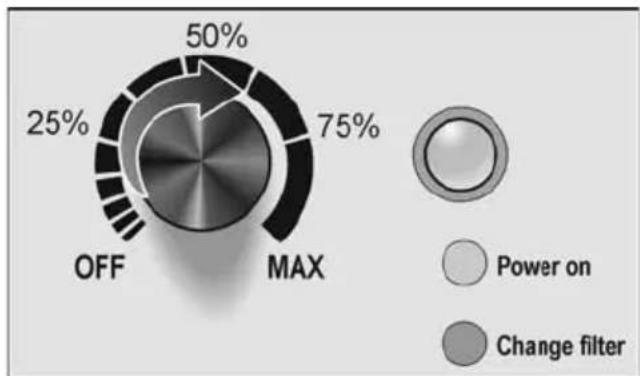

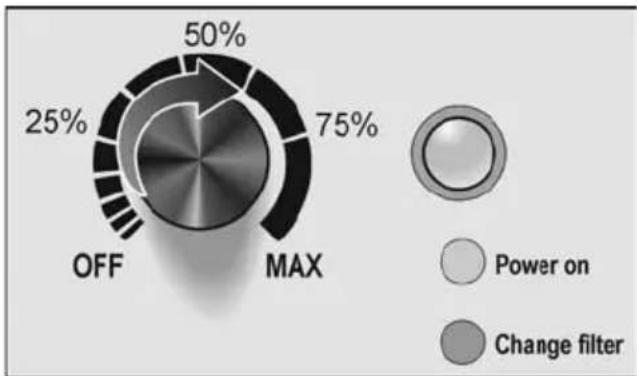

■ Turn control knob to the required power (0-100%). The fan motor only starts after approx. 5-10 s (electronic self-test program runs first)

• Control diode turns green: air flow sufficient and therefore filter OK
• Control diode turns red: air flow too low, change filters.

Operating instructions

When working with renovation machines separate safety exhaust systems are required to exhaust the high volume of dust directly into the machine. The remaining fine dust in the room air is extracted and filtered out by the air purifier. This prevents dust from entering other areas.

The continuing collection of dust clogs the filters more and more over time and the air flow rate is continuously reduced until the red warning light comes on. At this point the filters must be replaced.

The product is fitted with a LED display (green/red), which warns of a blocked filter.

• When the LED turns red, the G3 and G4 filters or F7 must be replaced.
• If the warning light shows red again immediately after replacing the filters, the H13 filter must also be replaced.

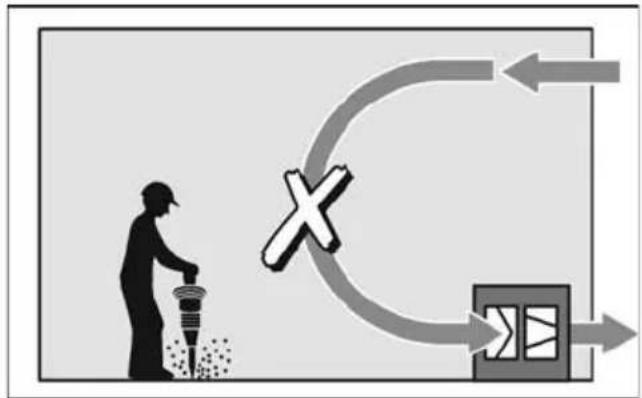

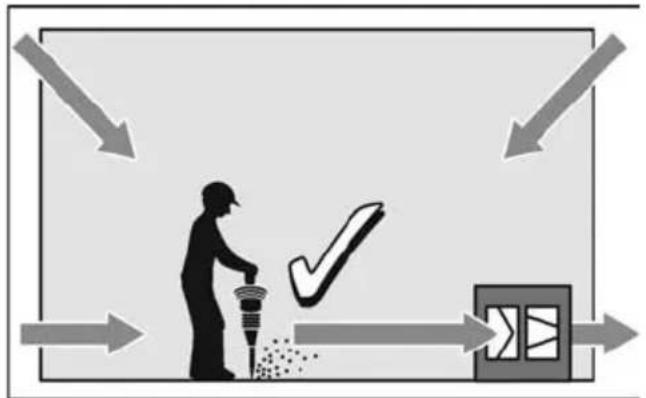

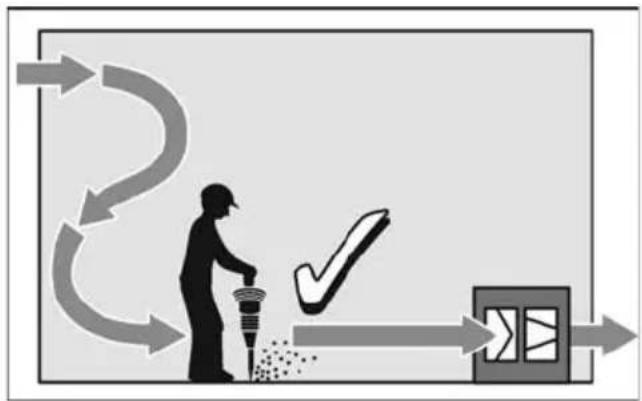

Work area


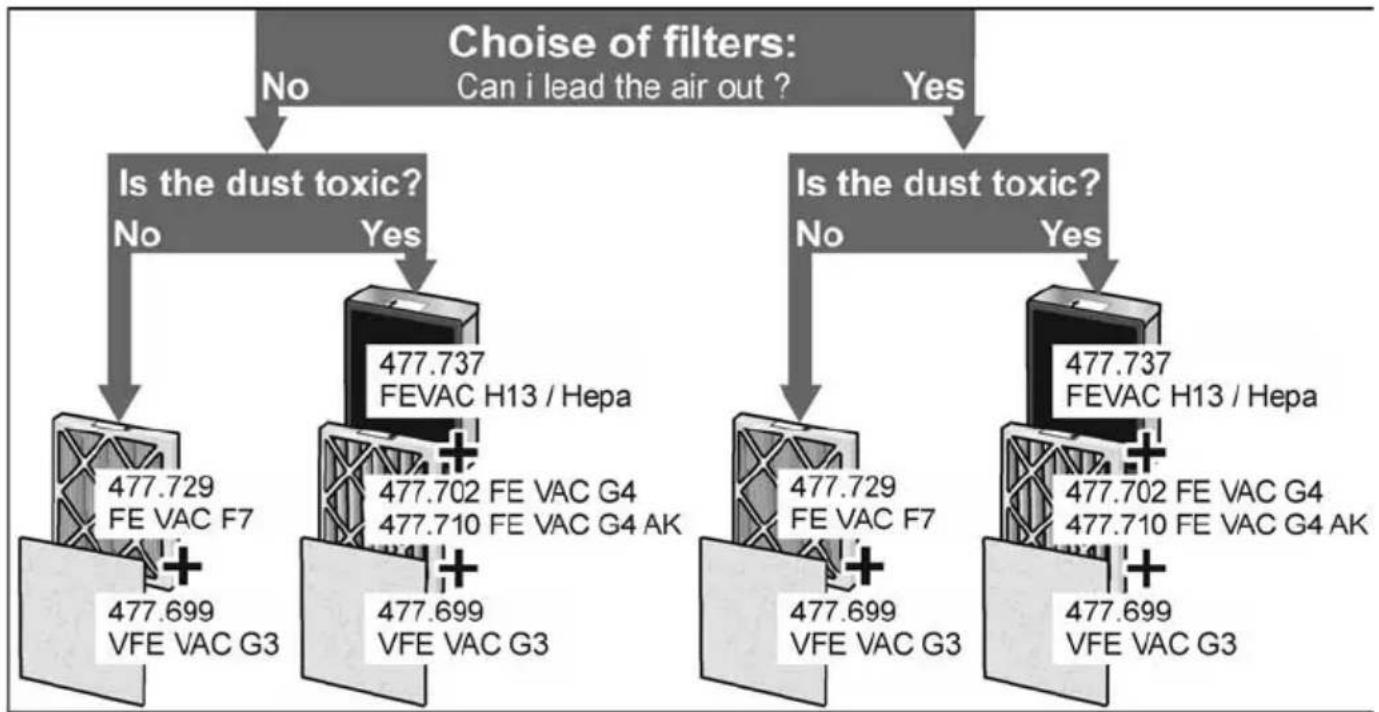

Selection of filters

Applications

Use as negative pressure unit

The product can be used to reduce the air pressure in the renovated room with plastic protection parts and air hoses. The room is sealed off from other areas with plastic walls and the exhaust air hose is led outside or into another area.

i NOTE

The air in the renovated room should be exchanged at least three times per hour. In a room with an area of 30m^2 and a height of 2.50 m the VAC 800-EC can exchange the air more than six times per hour with the new G3 + G4 or G3 + F7 or G3 + G4 + H13 filters.

If you are certain that the dust does not contain any toxic constituents, you can use G3 + F7 filters. However, if there is even the slightest suspicion that the dust contains quartz, mould, creosote or asbestos, G3 + G4 + H13 filters must be used. Please note that only authorised specialist companies are permitted to work in areas that contain asbestos!

During operation the machine is normally operated close to maximum power in order to ensure sufficient negative pressure.

i NOTE

Do not switch off the product overnight, simply reduce the power and leave it running to extract the remaining dust. If the product is shut off overnight, the fine dust will be distributed to other areas once the pressure has equalised.

Use as air purifier

The renovated area cannot always be completely separated from other areas, for example if the room is too large or has a complex shape. In this case the product can be used as an air purifier. Place the product as close as possible to the object that produces the dust.

Recommended use of filters:

– for dust containing brick and plaster etc.:

$$ G 3 + G 4 \text { or } G 3 + F 7 $$

- for hazardous dust such as moulds, asbestos etc.:

$$ \mathrm{G} 3 + \mathrm{G} 4 + \mathrm{H} 1 3 $$

Use as a fan

If efficient ventilation is required on a building site, the product is suitable for this task. Other potential applications include speeding up the drying process of paint or filler materials, ventilation of rooms and removal of chemical vapours from the work area.

i NOTE

The product must not be operated without filters. As a minimum G3 + G4 filters must be used even in dust-free locations.

Air exchange rate/hour	3x 6x 9x 15x
m^2 at H = 2.5 m	53 27 18 11
m^2 at H = 3 m	44 22 15 9

Use for deodorising

Unpleasant odours can be removed from the air with the G4-AK activated carbon filter. The G4-AK activated carbon filter is otherwise identical to the standard G4 filter and is inserted into its slot.

i NOTE

When it is switched off, the product continues to run for a short time.

Information on using the filters

In order to ensure the best possible performance of the product, ensure that dust generated during renovation work with machines is extracted directly into the product with a safety vacuum cleaner.

The FLEX range includes machines fitted with a suction adapter to which mobile L, M, H class safety vacuum cleaners can be connected.

The average estimated filter change intervals are listed below:

Filter High dust volume	Medium dust volume
Pre-filter G3	3/ per day 2/	per day
Coarse dust filter G4	1/ per day 1/	per 3 days
Fine dust filter F7	1/ per day 1/	per 3 days
HEPA filter H13	1/ per month	1/ per 3 months

Filter Low dust volume	Finishing work (finish)
Pre-filter G3 1/ per day 1/ per 2 days
Coarse dust filter G4 1/ per 3 weeks	1/ per 3 months
Fine dust filter F7 1/ per 3 weeks	1/ per 3 months
HEPA filter H13 1/ per 6 months	1/ per 12 months

To maximise the life of fine dust filters we recommend always using a pre-filter G3.

- The pre-filter G3 traps 80% of the particles (dust)

- The coarse dust filter G4 traps 90% of the particles (dust)

- The fine dust filter F7 traps 80% of particles > 0.4 μm

- The HEPA filter H13 traps 99.95% of particle size 0.1 – 0.25 μm and is specified if the presence of quartz, mould or asbestos dust is suspected to ensure that the MPPS dust is correctly filtered.

The filters conform to the requirements of building regulations with reference to the extracted air volume.

Maintenance and care

WARNING!

Before performing any work on the air purifier, pull out the mains plug.

Cleaning

WARNING!

After use the air purifier must be cleaned in the work area.

■ If possible, vacuum it inside and out with a safety vacuum cleaner.
■ Wipe outside of case with a moist cloth.

Repairs

Repairs may be carried out by an authorised customer service centre only.

Spare parts and accessories

For other accessories, in particular tools and polishing aids, see the manufacturer's catalogues.

Exploded drawings and spare-part lists can be found on our homepage:

www.flex-tools.com

Disposal information

WARNING!

Render redundant power tools unusable by removing the power cord.

EU countries only

Do not throw electric power tools into the household waste! In accordance with the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment and transposition into national law used electric power tools must be collected separately and recycled in an environmentally friendly manner.

NOTE

Please ask your dealer about disposal options

C €-Declaration of Conformity

We declare under our sole responsibility that the product described under “Technical specifications” conforms to the following standards or normative documents:

EN 60335 in accordance with the specifications of Directives

EN 60335-1:2002 + A2:2006

EN 60335-2-40:2003 + A11:2004

EN 61000-3-2, EN 61000-3-3

EN 61000-6-2, EN 61000-6-3

EN 1822-4-5, EMC 2014/30/EU

LVD 2014/35/EU, MD 2006/42/EU

2009/125/EU, 327/2011/EU

RoHS 2011/65/EU

Responsible for technical documents:

B. P. Q.-1

Eckhard Rühle

Manager Research &

Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

27.03.2019

Exemption from liability

The manufacturer and his representative are not liable for any damage and lost profit due to interruption in business caused by the product or by an unusable product.

The manufacturer and his representative are not liable for any damage which was caused by improper use of the power tool or by use of the power tool with products from other manufacturers.

Accessories

G3 pre-filter fabric for filter protection approx. 15 Pa	VFE VAC G3 477.699
G4 coarse dust filter approx. 45 Pa FE VAC G4 477.702
G4 activated carbon filter for filtering odours approx. 45 Pa	FE VAC G4-AK 477.710
F7 fine dust filter 350 m3 / 60 Pa	FE VAC F7 477.729
H13 HEPA filter 720 m3 / 190 Pa	FE VAC H13 / HEPA 477.737
Exhaust air hose compact, ∅ 125 mm, extends to 5 m	SH 125 x 5 m C 477.672
Exhaust air hose ∅ 125 mm, length 88 m	SH 125 x 88 m C	477.680
Exhaust hood for mixing work (e.g. plaster dust)	VAC-AT D315 477.664
Dustproof door SH 2.3 x 1.3 m PP 477.753

Table des matières

Mechanical assembly diagram showing a housing with a rotating component and mounting flanges (no text or symbols)

Illustration of a medical device with a bag being inserted, showing a close-up view of the component (no text or symbols present)

Diagram of a coiled hose assembly with a magnified inset showing the cable being inserted (no text or symbols present)

Diagram of a building with ventilation grilles and an upward arrow indicating airflow or heat transfer (no text or symbols)

■ Retirer le filtre.

Diagram showing a device with warning sign and downward arrow, indicating hazard or hazard in operation

Diagram of a building with ventilation duct and upward arrow, no text or symbols present

■ Retirer le filtre HEPA H13.

Diagram showing a device with warning sign and downward arrow, indicating a hazard or alert scenario.

Diagram showing three steps of a mechanical device with labeled components, including a component with curved arrows and a circular component.

Diagram showing a plug inserted into a device with a close-up view of the next component (no text or symbols present)

Mechanical assembly diagram showing a housing with a central rotating component and mounting flanges (no text or symbols)

Illustration of a mechanical device with a hose being inserted into a housing, showing part assembly and insertion process (no text or symbols)

Diagram of a flexible hose assembly with a magnified inset showing the cable being inserted (no text or symbols present)

Diagram of a building with ventilation grilles and an upward arrow, no text or symbols present

Diagram showing a device with warning sign and downward arrow, indicating a hazard or hazard in operation.

Diagram of a building with ventilation duct and upward arrow, no text or symbols present

Diagram showing a device with warning sign and downward arrow, indicating a hazard or alert scenario.

Diagram showing three steps of a device's internal structure, labeled 1, 2, and 3, with arrows indicating movement.

Diagram showing a plug inserted into a device with a close-up view of its connector (no text or symbols present)

B. P. Q. - 1

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

27.03.2019

Mechanical assembly diagram showing a housing with a rotating fan and mounting holes (no text or symbols)

Illustration of a mechanical device with a hose being inserted into a housing, showing part assembly and insertion process (no text or symbols)

Diagram of a coiled hose assembly with an inset showing a cable being inserted (no text or symbols present)

Diagram of a building with ventilation grilles and an upward arrow indicating airflow or heat transfer (no text or symbols)

■ Extraer el filtro.

Diagram showing a device with warning sign and downward arrow, indicating hazard or hazard in operation

Diagram of a building with ventilation grilles and upward arrow, no text or symbols present

■ Extraer el filtro HEPA H13.

Diagram showing a device with warning sign and downward arrow, indicating hazard or hazard in operation

Diagram showing a plug inserted into a device panel, with no visible text or symbols

B. P. C. D.

Eckhard Rühle

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

27.03.2019

Mechanical assembly diagram showing a housing with a central rotating component and bolted joints (no text or symbols)

■ Monteer de luchtafvoerflens.

Illustration of a mechanical device with a hose being inserted into a housing, showing part assembly and insertion process (no text or symbols)

Diagram of a coiled hose assembly with an inset showing a cable being inserted (no text or symbols present)

Diagram of a multi-story industrial or storage unit with ventilation grilles and a central top component, showing airflow direction (no text or symbols)

Diagram showing a warning sign with an exclamation mark above a device, indicating an accident or hazard.

Diagram of a building with ventilation grilles and upward arrow, no text or symbols present

Diagram showing a device with warning sign and downward arrow, indicating a hazard or alert scenario.

Diagram showing three steps of a mechanical device with labeled components and directional arrows indicating process flow.

Diagram showing a plug inserted into a device with a close-up view of the socket (no text or symbols present)

■ Steek de stekker in de contactdoos.

Bolks Q - 1

Eckhard Rühle

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

27.03.2019

Mechanical assembly diagram showing a housing with a rotating fan and mounting holes (no text or symbols)

Illustration of a mechanical device with a hose being inserted into a housing, showing part assembly (no text or symbols)

Diagram of a coiled hose assembly with an inset showing a cable being inserted (no text or symbols present)

Diagram of a multi-story industrial or commercial building with ventilation grilles and a directional arrow (no text or symbols)

■ Tag filteret ud.

Diagram showing a warning sign with an arrow pointing to a device component, indicating hazard or hazard.

Diagram of a building with ventilation grilles and upward arrow, no text or symbols present

Diagram showing a device with warning sign and downward arrow, indicating system hazard or alert

Diagram showing three steps of a mechanical device with labeled components, including a container and a fan-like structure.

Diagram showing a plug inserted into a device with a close-up view of the socket (no text or symbols present)

B. P. Q.-1

Eckhard Rühle

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

27.03.2019

Mechanical assembly diagram showing a housing with a circular component and bolted joints (no text or symbols)

■ Monter flensen for utblåsingsluft.

Illustration of a mechanical device with a bag being inserted, showing a close-up view of the component (no text or symbols present)

Diagram of a flexible hose assembly with a magnified inset showing the cable being inserted (no text or symbols present)

Sette inn / skifte filter

Fleece-forfilter G3

1. 2. 3. 4. 5.

Illustration of a building interior with ventilation grilles and a rising arrow (no text or symbols)

■ Ta ut filteret.

Diagram showing a warning sign with an arrow pointing to a device component, indicating hazard or hazard.

Diagram of a building with ventilation grilles and upward arrow, no text or symbols present

■ Ta ut HEPA-filter H13.

Diagram showing a device with warning sign and downward arrow, indicating a hazard or alert scenario.

Diagram showing three steps of a mechanical device with labeled components, including a container and a fan.

Diagram showing a plug inserted into a device panel, with no visible text or symbols

- Sett skrubryteren på ønsket effekt (0-100 %). Viftemotoren starter ikke før det har gått ca. 5–10 sekunder (kontrollprogrammet for elektronikken kjøres først) - Kontrollysdioden lyser grønt: Tilstrekkelig luftgjennomstrømning, filtrene er dermed i orden.

Silhouette of a person using a tool to generate waste, with arrows indicating direction (no text or symbols)

Valg av filter

Bruksmåter

Bolts Q - 1

Eckhard Rühle

Manager Research &

Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

27.03.2019

Mechanical assembly diagram showing a housing with a rotating component and mounting flanges (no text or symbols)

Illustration of a medical device with a bag being inserted, showing a close-up of the component (no text or symbols present)

Diagram of a coiled hose assembly with an inset showing a cable being inserted (no text or symbols present)

Diagram illustrating five steps of solar panel installation, showing grid layout and cable connection.

Illustration of a building with ventilation grilles and a rising arrow, no text or symbols present

■ Ta ut filtret.

Diagram showing a device with warning sign and downward arrow, indicating a hazard or hazard in operation.

Diagram of a building with ventilation grilles and upward arrow, no text or symbols present

■ Ta ut HEPA-filtret H13.

Diagram showing a warning sign with an exclamation mark above a device, indicating an alert or hazard.

Diagram showing three steps of a mechanical device with labeled components, including a container and fan assembly.

Diagram showing a plug inserted into a device with a close-up view of the next component (no text or symbols present)

Silhouette of a person using a tool to generate waste, with arrows indicating direction and a checkmark symbol (no text or labels)

Välja filter

Användningsområden

B. P. Q.-1

Eckhard Rühle

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

27.03.2019

Mechanical assembly diagram showing a housing with a central rotating component and mounting flanges (no text or symbols)

Illustration of a mechanical device with a hose being inserted into a housing, showing part assembly and insertion process (no text or symbols)

Diagram of a flexible hose assembly with a magnified inset showing the cable being inserted (no text or symbols present)

Diagram of a multi-story industrial or commercial building with ventilation grilles and a black upward arrow indicating airflow or heat transfer (no text or symbols present)

■ Poista suodatin.

Diagram showing a device with warning sign and downward arrow, indicating a hazard or hazard in operation.

Diagram of a building with ventilation grilles and upward airflow arrows (no text or symbols)

Diagram showing a device with warning sign and downward arrow, indicating a hazard or alert scenario.

Diagram showing three steps of a mechanical device with labeled components and directional arrows indicating process flow.

Diagram showing a plug inserted into a device with a cable inserted, no text or symbols present

Käyttötavat

B. P. C. D.

Eckhard Rühle

Manager Research &

Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

27.03.2019

Mechanical assembly diagram showing a rotating component with mounting holes and a central fan (no text or symbols)

Illustration of a mechanical device with a bag being inserted, showing a close-up view of the component (no text or symbols present)

Diagram of a coiled hose assembly with a magnified inset showing the cable being inserted (no text or symbols present)

Illustration of a multi-story building with ventilation grilles and an upward arrow indicating airflow or heat transfer (no text or symbols)

■ Wyjąć filtr.

Diagram showing a device with warning sign and downward arrow, indicating hazard or hazard in operation

Diagram of a building with ventilation duct and upward arrow, no text or symbols present

Diagram showing a plug inserted into a device with a cable, no text or symbols present

Diagram showing a device with warning symbols and an upward arrow, indicating a hazard or alert scenario.

Diagram showing three steps of a material processing or handling process, labeled 1, 2, and 3.

B. P. C. A. D.

Eckhard Rühle

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

27.03.2019
