USER MANUAL LD 24-6 180 Flex

Symbols used in this manual 14
For your safety 14
Noise and vibration 17
Technical specifications 18
Overview 19
Operating instructions 20
Maintenance and care 22
Disposal information 23
Guarantee 23

Symbols used in this manual

WARNING!

Denotes impending danger.

Non-observance of this warning may result in death or extremely severe injuries.

CAUTION!

Denotes a possibly dangerous situation.

Non-observation of this warning may result in slight injury or damage to property.

NOTE

Denotes application tips and important information.

Symbols on the power tool

To reduce the risk of injury, read the operating instructions!

Wear goggles!

Wear ear protection!

Disposal information for the old machine (see page 23)!

Always operate with two hands!

CE label

UKCA label

For your safety

WARNING!

Before using the power tool, please read and follow:

• these operating instructions,
• the "General safety instructions" on the handling of power tools in the enclosed booklet (leaflet-no. 315.915),
• the currently valid site rules and the regulations for the prevention of accidents.

This power tool is state of the art and has been constructed in accordance with the.
acknowledged safety regulations.

Nevertheless, when in use, the power tool may be a danger to life and limb of the user or a third party, or the power tool or other property may be damaged. The power tool may be operated only if it is

-as intended,
- in perfect working order.

Faults which impair safety must be repaired immediately.

Intended use

The concrete grinder LD 24-6 180 is designed

• for commercial use in industry and trade,
• for dry sanding and smoothing of concrete, plaster, screed, sandstone, chamotte and asphalt,
• for grinding paintwork and adhesive residue off concrete or screed,
• for use with diamond-tipped tools which FLEX offers for this power tool and which are authorised to run at a speed of at least 6,500 r.p.m.

It is not permitted to use cutting-off wheels, roughing wheels, fan-like grinding wheels or wire brushes.

When using the concrete grinder LD 24-6 180, connect a Class M dust extractor.

Safety instructions

WARNING!

Read all safety instructions and other instructions. Failure to observe the safety instructions and other instructions may result in an electric shock, fire and/or serious injuries. Keep all safety instructions and other instructions in a safe place for the future.

This electric power tool must be used as a sander. Observe all safety information, instructions, diagrams and data which you receive with the power tool. If you do not observe the following instructions, an electric shock, fire and/or serious injuries may occur.
This electric power tool is not suitable for use with sandpaper, wire brushes, or for polishing and cut-off grinding. If the electric power tool is not used as intended, the user may be exposed to hazards and may be injured.
- Do not convert this power tool to operate in a way which is not specifically designed and specified by the tool manufacturer. Such a conversion may result in a loss of control and cause serious personal injury.
- Never use accessories which the manufacturer did not intend or recommend especially for this electric power tool. Just because you can attach the accessory to your electric power tool does not guarantee safe use.
The permitted speed of the insertion tool must be at least as high as the maximum speed indicated on the electric power tool. An accessory which rotates faster than permitted may shatter and fly off.
- Outer diameter and thickness of the insertion tool must correspond to the dimensions of the electric power tool.

Incorrectly measured insertion tools cannot be adequately shielded or controlled.

• The dimensions of the accessory mounting must fit the dimensions of the mounting hardware of the power tool. Accessories that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control.
• Do not use any damaged insertion tools. Before use, always check insertion tools for splinters and cracks, sanding pad for cracks, wear and severe abrasion. If the electric power tool or the insertion tool is dropped, check for damage or use an undamaged insertion tool. When you have checked and inserted the tool, ensure that you and anybody in the vicinity remain outside the plane of the rotating insertion tool and leave the power tool running for one minute at maximum speed.

Damaged insertion tools usually break during this test time.

• Wear personal protective equipment. Depending on the application, wear full face protection, eye protection or goggles. If appropriate, wear a dust mask, hearing protection, protective gloves and/or a special apron which protect you from small sanding and material particles.

You should protect your eyes from foreign objects which are ejected for different applications. Dust and respirator masks must filter the dust which is generated by the power tool for the particular application. If you are exposed to loud noise for a prolonged period, you may suffer hearing loss.

Ensure that other persons are situated at a safe distance from the work area. Anyone who enters the work area must wear personal protective equipment.

Fragments of the workpiece or broken insertion tools may fly off and cause injuries even outside the direct working area.

If the insertion tool is at risk of coming into contact with concealed power cables or the power cord itself, hold the power tool by the insulated grip surfaces only.

Contact with a live cable may also cause metal parts of the appliance to become live and result in an electric shock.

• Keep the power cord away from rotating insertion tools.

If you lose control of the appliance, the power cord could be severed or become caught and your hand or arm may strike the rotating insertion tool.

• Never put down the electric power tool until the insertion tool has come to a standstill.

The rotating insertion tool may come into contact with the support surface, possibly resulting in you losing control of the electric power tool.

• Never leave the electric power tool running while you are carrying it.

Your clothing may become caught by accidental contact with the rotating insertion tool which may then drill into your body.

Regularly clean the ventilation slots on your electric power tool.

The motor fan draws dust into the housing; a large build-up of metal dust may cause electrical hazards.

Never use the electric power tool near combustible materials.

Sparks may ignite these materials.

• Never use insertion tools which require liquid coolants.

The use of water or other liquid coolants may result in electric shock.

Special safety instructions for sanding

Use only those sanding tools authorised for use with your electric power tool and the guard designated for this sanding tool.

Sanding tools, which are not designated for use with the electric power tool, cannot be adequately shielded and are unsafe.

The guard must be attached securely to the electric power tool and adjusted to ensure maximum safety, i.e. the smallest possible part of the sanding tool is exposed to the operator.

The guard should protect the operator from fragments and accidental contact with the sanding tool.

• Sanding tools may be used for the recommended applications only.

For example: Never sand with the side area of a diamond sanding pad. Diamond sanding pads are designed to remove material with the underside of the sanding pad. If a lateral force is applied to these sanding tools, they may shatter.

Always use undamaged clamping flanges in the correct size and shape for the insertion tool you have selected.

Suitable flanges support the insertion tools and therefore reduce the risk of a break.

• Do not use worn insertion tools from larger electric power tools.

Insertion tools for larger electric power tools are not designed for the higher speeds of smaller electric power tools and may break.

Recoil and appropriate safety instructions

Kickback is the sudden reaction to a pinched or snagged rotating insertion tool, such as a sanding disc, sanding pad, wire brush, etc. Pinching or snagging may cause a rotating insertion tool to stop abruptly. As a result, an uncontrolled electric power tool is accelerated against the direction of rotation of the insertion tool at the blocking point.

For example, if a sanding disc is snagged or pinched by the workpiece, the edge of the sanding disc which is entering the workpiece may become caught and cause the sanding disc to break off or kick back. The sanding disc then moves towards or away from the operator, depending on the direction in which the disc is rotating at the point of pinching.

Sanding discs may also break under these conditions.

A recoil occurs if the electric power tool is used incorrectly or improperly. A recoil can be prevented by appropriate precautions as described below.

Hold the electric power tool firmly and position your body and arms to allow you to absorb kickback forces. If fitted, always use the auxiliary handle to ensure the best possible control over the recoil forces or reaction torques when acceleration occurs.

The operator can control kickback and reaction forces by taking appropriate precautions.

• Keep your hands away from the rotating insertion tool.

The insertion tool may kickback over your hand.

• Keep your body out of the area into which the electric power tool moves when a recoil occurs.

Kickback propels the electric power tool in the direction opposite to the movement of the sanding disc at the point of pinching.

• Work especially carefully near corners, sharp edges, etc. Prevent the insertion tool from recoiling off the workpiece and jamming.

The rotating insertion tool has a tendency to snag on corners, sharp edges or if it bounces. This causes a loss of control or kickback.

■ Do not use a chain or toothed saw blade.

Such insertion tools frequently cause a kickback or the loss of control of the electric power tool.

Additional safety instructions

Use only extension cables permitted for outdoor use.
It is not recommended to sand lead paint. Lead paint should be removed by a specialist only.
- Do not work on materials which release hazardous substances (e.g. asbestos). Take precautions if hazardous, combustible or explosive dust is likely to occur. Wear protective dust mask. Use dust extraction system.

DAMAGE TO PROPERTY!

The mains voltage and the voltage specifications on the rating plate must correspond.

Noise and vibration

The noise and vibration values have been determined in accordance with EN 62841.

The A evaluated noise level of the power tool is typically:

Sound pressure level: 96 dB(A);
Sound power level: 104 dB(A);
Uncertainty: K = 3 dB.
Total vibration value (when sanding concrete areas):
Emission value: a h = 6.7m^2 s
Uncertainty: K = 1.5 m/s

CAUTION!

The indicated measurements refer to new power tools. Daily use causes the noise and vibration values to change.

NOTE

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 62841 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. The declared vibration emission level represents the main applications of the tool.

However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

For a precise estimation of the vibrationload the times should also be considered during which the power tool is switched off or even running, but not actually in use. This may significantly decrease the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

CAUTION!

Wear ear protection at a sound pressure above 85 dB(A).

Technical specifications

Machine type		LD 24-6 180
Product Concrete grinder
Mains voltage V/Hz 230/50
Power input W 2,400
Power output W 1,440
Speed r.p.m. 6,500
Tool holder M14
Max. disc diameter mm 180
Protection class /II		☐
Weight kg 6.6

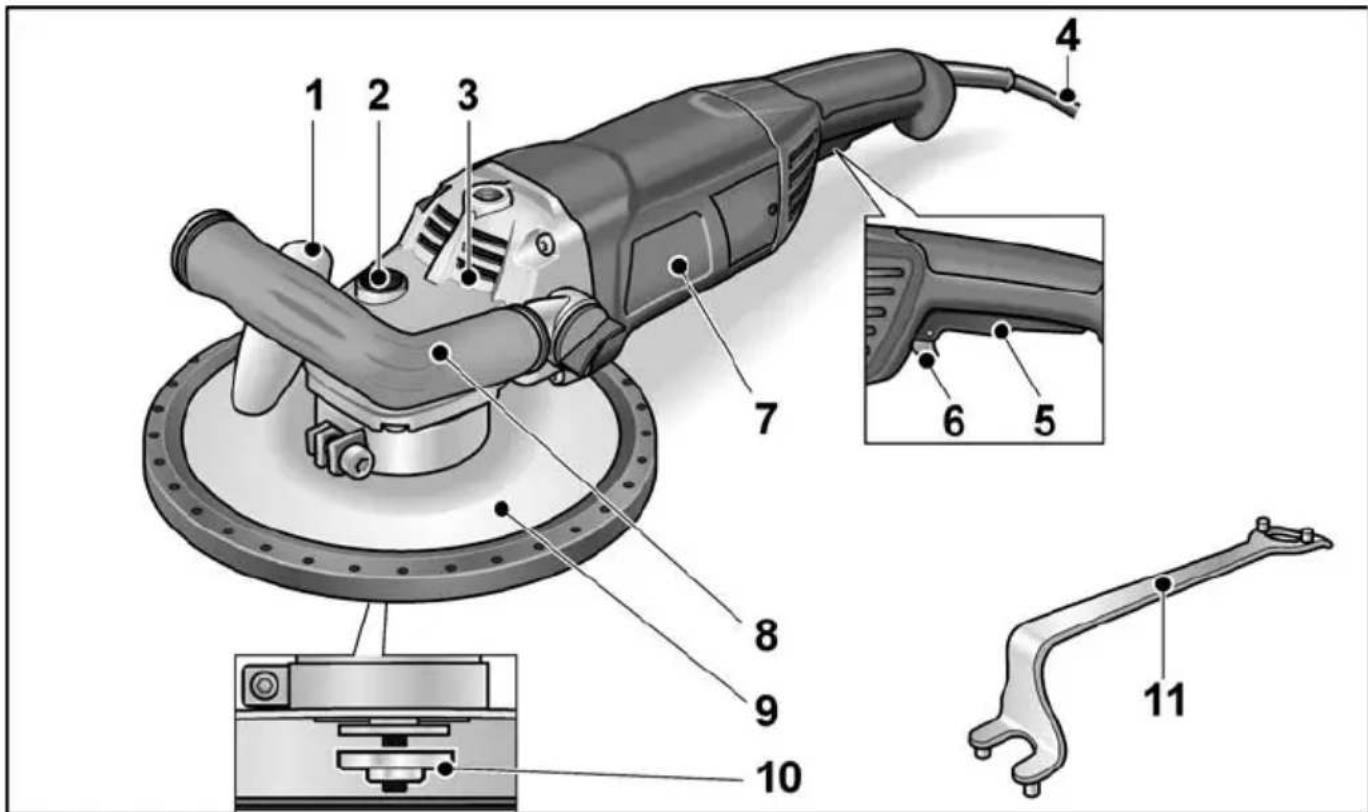

Overview

1 Connection for extractor
2 Spindle lock

Secures the spindle when the tool is changed.

3 Gear head

With air outlet and direction-of-rotation arrow.

4.4.0 m power cord with mains plug
5 On/Off switch
6 Starting lockout/Locking button

Prevents the power tool from starting up unintentionally and locks the switch (5) during continuous operation.

7 Rating plate *
8 Handle, adjustable
9 Guard with rubber extraction ring
10 Clamping nut
11 Clamping nut wrench

• not illustrated

Operating instructions

WARNING!

Before performing any work on the electric power tool, pull out the mains plug.

CAUTION!

The available mains voltage and the voltage specifications on the rating plate must be the same.

Before switching on the power tool

• Unpack power tool and accessories and check that no parts are missing or damaged.

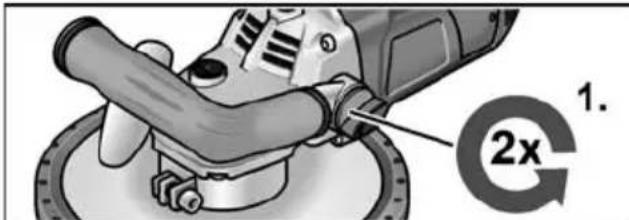

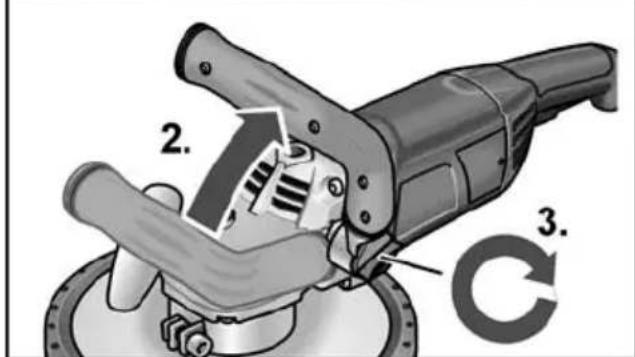

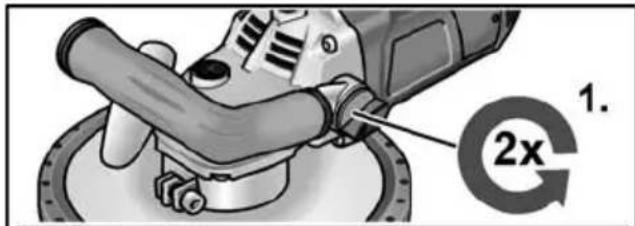

Adjusting the handle

1. Loosen rotary knob for adjusting the handle by turning it approx. 2 revolutions anti-clockwise.
2. Place handle in the required position (15° notch). Ensure that handle engages correctly!
3. Tighten rotary knob for adjusting the handle clockwise.

NOTE

If required, the handle can be moved to the other side of the electric power tool.

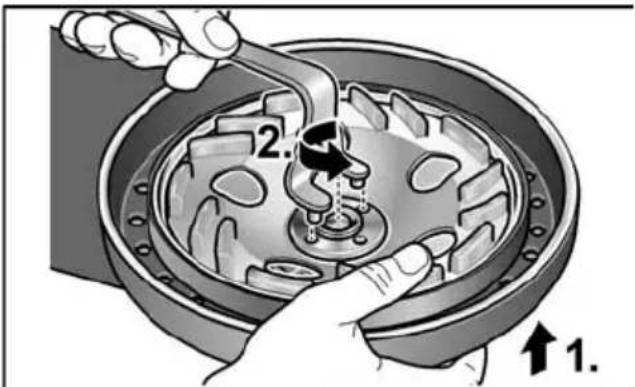

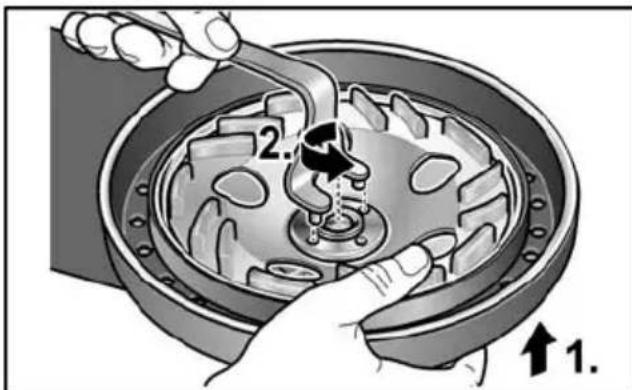

Inserting and changing the sanding tools

Press and hold down the spindle lock (1.).
Using the clamping nut wrench, loosen the clamping nut on the spindle in an anticlockwise direction and remove (2.).

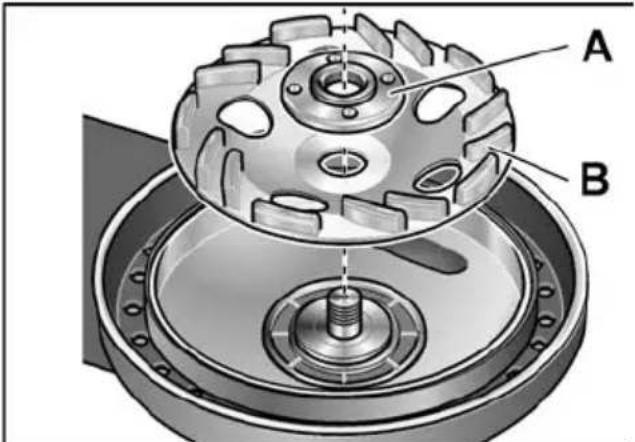

Insert diamond sanding pad (B) correctly.

Screw the clamping nut (A), with flange face up, onto the spindle.
Press and hold down the spindle lock.
Tighten the clamping nut with the clamping nut wrench.

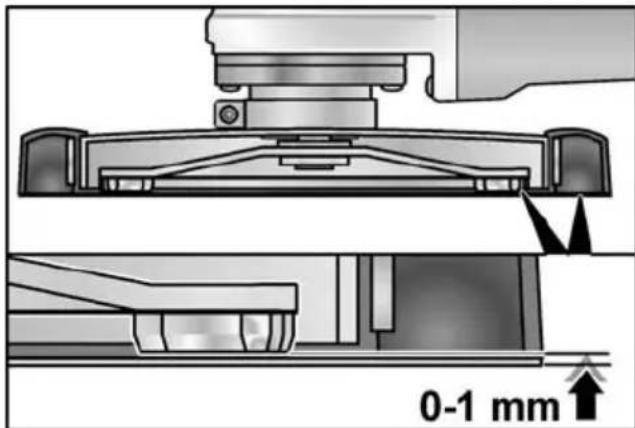

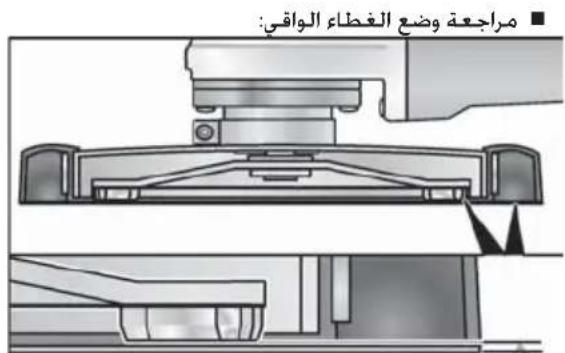

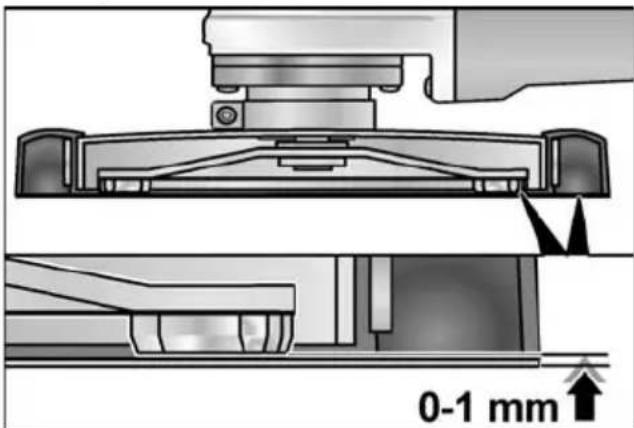

Check position of the guard:

The rubber extraction ring should protrude over the sanding pad by approx. 0 - 1mm If required, correct (see "Adjusting the guard").

Insert the mains plug into the socket.
- Switch on the electric power tool (without locking the button) and leave it running for approx. 30 seconds. Check for imbalances and vibrations.
Switch off the electric power tool.

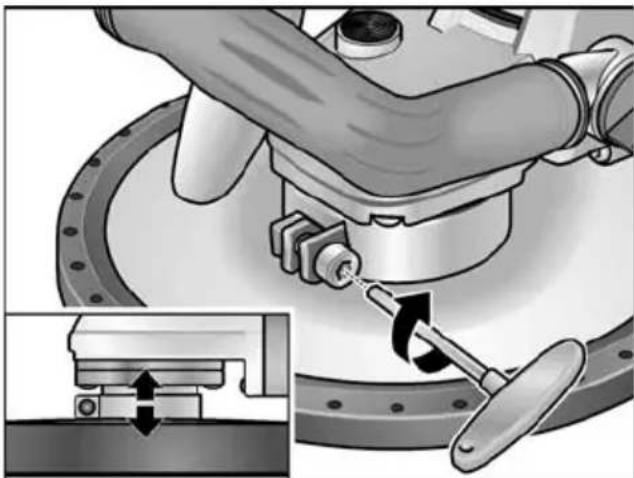

Adjusting the guard

i NOTE

The rubber extraction ring should protrude over the sanding pad by approx. 0 - 1mm To compensate for wear on the diamond sanding pad, the height of the guard can be adjusted.

Loosen the screw connection on the guard.

Set the guard hood to the required height.
Tighten the screw connection.

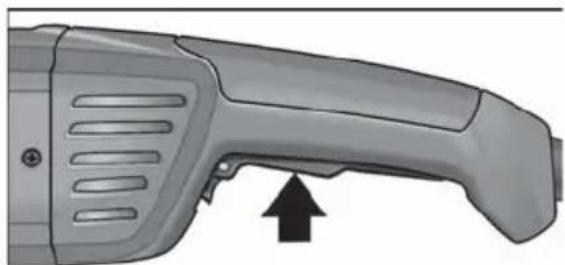

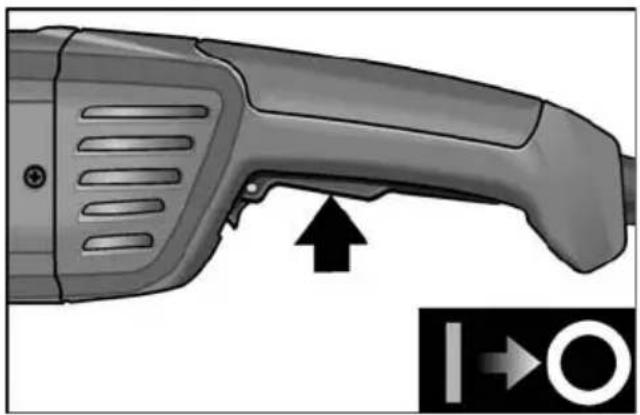

Switching the electric power tool on and off

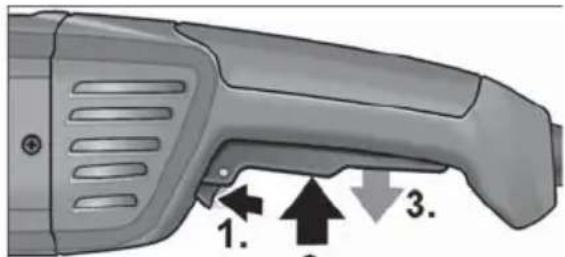

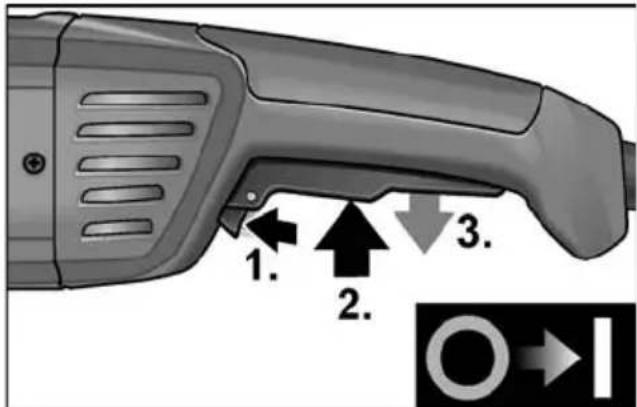

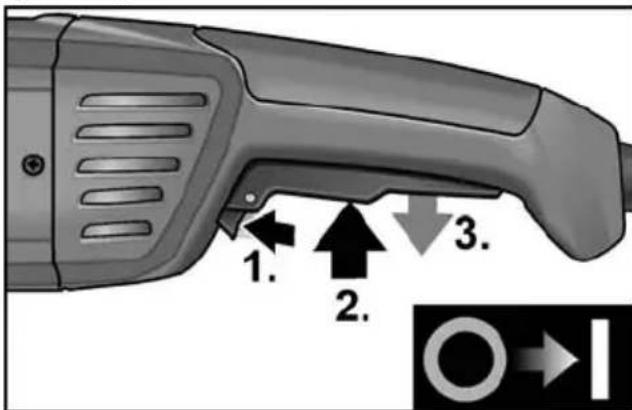

Brief operation without engaged switch rocker:

1. Press and hold down the starting lockout.
2. Press the switch.
3. To switch off, release the switch.

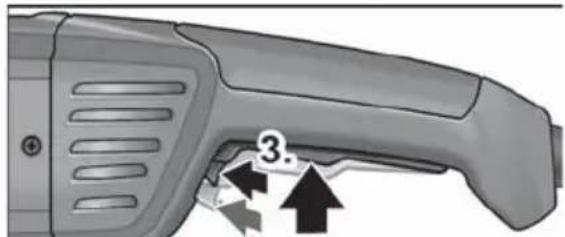

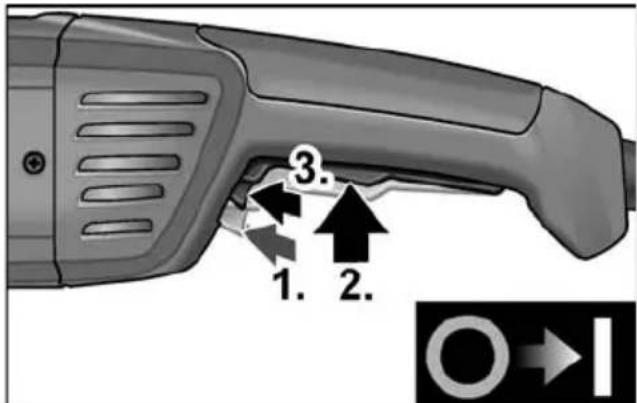

Continuous operation with engaged switch rocker:

1. Press and hold down the starting lockout.
2. Press and hold down the switch.
3. Press the locking button.

1. To switch off, briefly press and release the switch.

Using a dust extraction system

NOTE

It is recommended to use a FLEX Class M dust extractor.

Guide the extraction hose through the hose support and attach it to the connection on the guard.
- Connect extraction hose to the dust extraction system. Follow the operating instructions for the dust extraction system! Check the attachment! If required, use an appropriate adapter.

NOTE

If your dust extractor requires a special connection (i.e. a connection other than the 32mm / 36mm standard connection which is included with the electric power tool), contact your dust extractor supplier to obtain the appropriate adapter.

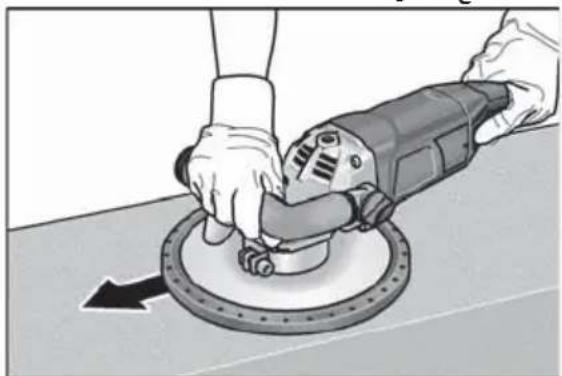

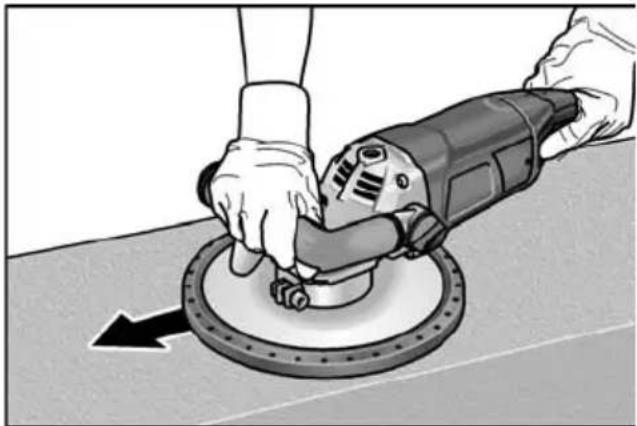

Working with the power tool

WARNING!

The rotating sanding disc must not come into contact with sharp projecting objects. Danger of kickback! Damage to sanding pad. If the sanding pad is damaged or severely worn, it must be replaced.

CAUTION!

Hold the electric power tool with both hands!

1. Attach sanding tool.
2. Connect dust extraction system.

3. Insert mains plug.

4. Switch on dust extraction system.

5. Switch on the device.
6. Place the concrete grinder on the work surface.

The rubber extraction ring must be flush with the work surface.

1. Increase the pressure to bring the sanding pad into contact with the work surface. In doing so, slew the renovation sander with overlapping movements.

Rubber extraction ring

If the rubber extraction ring is damaged or excessively worn, it should be replaced. It is available under order no. 258.626 from any FLEX customer service centre.

Maintenance and care

WARNING!

Before performing any work on the electric power tool, pull out the mains plug.

Cleaning

WARNING!

Do not use water or liquid detergents.

Regularly blow out the housing interior and motor with dry compressed air.
Clean the guard using dry compressed air.

Repairs

Repairs may be carried out by an authorised customer service centre only.

i NOTE

During the warranty period do not loosen the screws on the motor housing. Noncompliance will deem the guarantee obligations of the manufacturer null and void.

Spare parts and accessories

Other accessories, in particular insertion tools, can be found in the manufacturer's catalogues.

Exploded drawings and spare-part lists can be found on our homepage: www.flex-tools.com

Disposal information

WARNING!

Render redundant power tools unusable by removing the power cord.

EU countries only

Do not throw electric power tools into the household waste!

In accordance with the European Directive 2012/19/EC on Waste Electrical and Electronic Equipment and transposition into national law used electric power tools must be collected separately and recycled in an environmentally friendly manner.

i NOTE

Please ask your dealer about disposal options!

Guarantee

When a new machine is purchased, FLEX issues the end user with a 2-year manufacturer's warranty which comes into force on the date the machine was purchased. The guarantee covers only defects which can be attributed to a material and/or production fault as well as non-performance of warranted characteristics. When making a claim under the guarantee, enclose the original sales receipt with purchase date. Repairs under the guarantee may be carried out only by workshops or service centres authorised by Flex. A claim may be made under the guarantee only if the power tool has been used as intended.

The guarantee excludes in particular operational wear, improper use, partly or completely dismantled machines as well as damage caused by overloading the machine, use of non-permitted, defective or incorrectly used application tools.

Damage which is caused by the machine on the application tool or workpiece, use of force, consequential damage which can be attributed to improper or inadequate maintenance on the part of the customer or a third party, damage caused by external effects or foreign objects, e. g. sand or stones, as well as damage caused by non-observation of the operating manual, e. g. connection to an incorrect mains voltage or current type. Claims for insertable tools or accessories can only be made under the guarantee provided they are used with power tools for the intended or permitted use.

Exemption from liability

The manufacturer and his representative are not liable for any damage and lost profit due to interruption in business caused by the product or by an unusable product.

The manufacturer and his representative are not liable for any damage which was caused by improper use of the power tool or by use of the power tool with products from other manufacturers.

Table des matieres

Symbolesutilisés 24

Pourvoiresecurite 24

Varnar for en mojig farlig situation.

Endast for EU-stater

Mn xpnoiopoioite biokouc aauoiaoc n oovtwouc biokouc kottns.

Teioia epyaaleia eapuoyns Ppokaouv ouva avakpuon n aWaleia eEyxou tou nEKTPIKOU epyaieiou.

PepaIepw uToBcEic aOpaAeiaC

XpnoiopoTIOEITE movo kaWdbia TpoektaoNG TOU Eivai EYKekpiEv a YIA EeWTEPIKn XpnoN.
To triiio xpwauw v oalubou ev auviatai. H aTOpakpuovn xpwauw v oalubou TpEeTie va Tpaayatottoietai mOvo aTó Eeikéuévo TpooWTIKo.
Mny y UIAK, aTt oToia EKAIOVTA OUIIEC EITIKIVDUEc YIA TNV UYEIA (TTX. aIiavTO). AABETa avALOya MEa TTPOoTaOIAc, otAV MTOpei VA TPOKAnOuV EITIBAeIC YIA TNV UYEIA, EUKAUOTc N EKPNTIKEc OKOVEc. OPATE TTPOoTATEUTIKn Maoka. XpnoiIpOtIOEITE EYkataoTAcEIC aToppoqnonc.

YAIKEcZnmuieS!

H taon Tou biKtuou Tpoopodooiac kai ta 0toiexia taonC OTNV TIVAKIDA TUOTU PPETEVA OUMWVOUV METAQU TOUC.

Epyaocic to nAektpiKo epyaaleio

IPOEIAOIOIHSHI

O TEPFOEVOG OIOKOS IIAVON 6EV EITIPTETAI VA EPOEIOE ANP N AIXUNPA TPOEEXOVTA AVKEIEMVA. KIVDUVOG avakouon! ZnIEc OTov DIOKO LAIAVON. ZIg NIEs n eYALN OOPa Tou DIOKOU LEIAVON, O DIOKOG PPETEI OTWODNTOTe va AVIKATAOATHEI.

IPOESXH!

Kpatate to nEeKtpiKO epyaIio TAVTOE KAI ME ta duo xepia!

Hrup in tresljaji 214

Tehniceshpecifikacije 216

Pregled 217

Pa6oTeTe c shymo3aInyuIteN!

Yka3aHnna 3a n3XbPnHe Ha CTapn ypeNi (BnxTe cTpaHnua 246)!

Bunhar npabote c DBe pbcie!

CE MapKupobka

UKCA MapKinpobka

3a BaShaTa CNrpyHocT

IPEyIIPEXKDEHNE!

IpeiynyntpebaHa eNektpoHnCTpyMeHTa npoyetete n cneT TOBa DeNCTBaHTe CbrnaCHO:

-HACTOUIOTo yIbTbaHe 3a eknnoaTaun,
-,"ObuTe yka3aHn 3a 6e3OnacHOCT"3a paOTo c eNeKtpnueckn nHcTpymEnTu OT npNIOXeHaTa KHHKkA (U3daHneNr.: 315.915),
-MeCTHInTe DeIcTBaUu IpaBnla N IpeIINsCAHHa 3a IpeDOTBpTaBAHe Ha HeuactTHN Cnyua.

To3n eNektpoHCTpymeHT e KOHCTpyuPAH CbJIaCHO HNBOTO Ha TexHnueCKn PO3HaHnI IN np3HaHHTe npabnla 3a TexHnuecka 6e3onachocT. Bbnpekn TOBa npn N3NOJ3BaHeTO mORaT da Bb3HNKHaT ONaCHOCTn 3a 3dpabETO n XHBOTA Ha N0J3BaTeJIyN Ha TpeTI NlUca, CbOTBeTHO NOBPeDN Ha MaUNHaT a NII dpyTN MaTePnAHHIeT.N ENeKTPoHCTpymeHTbT Tp8Ba Da ce N3NOJ3Ba CamO

-3a npedHa3HaueHHe 3a TOBa CEJI,
-B 6e3ynpeuHO TexHnueckn 13npaBHO CbCTOHHne.

IOBpeHnte, KONTO BnnaT Ha 6e30NaCHOCTTa, ce OTcPaHbAT He3a6abHO.

I3noJ3BaHe no npedHa3HaueHne

БeToHuaT LD 24-6 180 e npedHa3NaueH

• 3a 3aHaTcNcKO n3nOJ3BaHe B INdUcTpna Tn 3aHaTcNCTBOTO,
• 3a cyxo shnaipane He 3arnaqdahe Ha 6eToH, Ma3nIka, NODOBIO NOKPITne, PAcbYnK, OrHeynopHa TInHa n acpaant,
• 3a OTшлпфован He 3amazи И OCTaTbцИ OT Леллл NO 6etOH nIN NOДОВО pOKpNTne,
• 3a IN3NoJ3Ba CДиMaHTeHиHCTpyMeHTn, KOInTo ce npednaIarot FLEX 3a To3n ypeI n 3a ca pa3peWeHn 3a obOpOTn OT MInHMym9000 o6./MInH.

I3noJ3BaHeTo Ha a6pa3nBn, rpy6n I JNCTOBu IINIOBbUHN DnCKOBe NIn TeJeHn YeTKn He e pa3peSeHo.

Ipn n3noJ3BaHe Ha 6eToHnlaNpa LD 24-6 180 Tp6Ba Da ce Cbpxe npaxocMykaUka KnaC M.

Yka3aHnna 3a 6e3OnacHOCT

IPEyIIPEXKDEHNE!

Ipoyete BCnkyka3aHna 3a
6e3oNaCHOCT n npenopbKn. Iponycknte npi
Cn3BaHe Ha yka3aHnraTa 3a 6e3oNaCHOCT n
Ha npenopbKITE MORAT da DOBeaTdo TOKOB
ynap, nokap u/nnu TeKKn HapaHbAHn.
3ana3eTe 3a HnpeD BCNUyka3aHna 3a
6e3oNaCHOCT n npenopbKn.

To3n eJektpoHcTpymeHT Tp86Ba da ce H3NoJ3Ba KaTO uNΦOBbYeH nHCTpyMeHT.Cna3BaIte BCnUKN yKa3aHn 3a 6e3ONaChOCT, npenOpbKn, CXEMn DaHHN, KOnTO cTe NOnyuIN cype da.

Ako He cna3BaTe cIeHnTe npenOpbKn, TOBa MoKe Da IOBeDe Do TOKOB yAp, NOxap N/IN TeKKn HapaHЯBaHn.

To3n eJIeKTpNueCKn HhCTpyMeHT He e npEJaHa3NaueH 3a WJInΦoBaHe, WJInΦoBaHe C WkypKa, pa6Ota c TeJIeHN YETKN I P3aHe.

I3noJ3BaHe, 3a KoETo ypeBt He e npedHa3HaueH, MoKe Da DoBeDe Do ONaCHOCTN I Do HapaHbAHn.

He n3noJ3BaIte npHaJIeXHOCTN, KOINTO He ca n3pUHNo IpeJHa3HaueHn npenOpbUaHN OT npOn3BOuNTeJra 3a To3n eJekTpUeCKn HhCTpyMeHT.

ToBaYeMOKeTe DaNoCTaBnTe npHaIeJXHOCTnTe Ha BaIe IeKTpUeCKn IHCTpymEHT, He BN rapaHTnpa 6e3ONaCHO n3NoI3BaHe.

IOnyuctumnT 6pOHa 0bOpOTNe Ha npunctaBknte Tpa6Ba Da e Hau-MaKTo TOJkoBa BnCOKN, KOJKOTO NocouehnT BbpxyeKeTpneCKn IHHCTpyMeHT MaKcImaJIHn8 6pOHa 0bOpOTNe.

PnHaJIeJXHOCTNTE, KOnTO Ce BbPTT NO6bp3O OT DOynCTMOTO, MORaT Da ce CUnrT N Da N3NETT.

BbHsHnT dNaMeTbp n De6eHHaTa Ha npncTaBknte Tp8Ba Da CbOTBeTCTBaT Ha 3NcKBaHHaTa 3a pa3MepnTe Ha BaShn eJekTpueckn HHCTpymEnT.

Pnctabknte c HeNoDxOJaun pa3Mepn He Morat da nacHaT do6pe NIn He Morat da 6bDaT KOHTpOJInpaHn.

UHIOPOBbUHNTe DnCKOBe,

UHIOBOBcHNTe NOIIOKNIIN Dpyrnte npHaIeXHOCTn Tp6Ba Da nacBat TOHOBbpxy UHHdela Ha Baunr eNEKTPOIHCTpymENT.

Pa6oTHnte INHcTpymeHTn, KOtO He
nacBaT TOUHO Bbpxy UINHdeJa Ha
eJeKTPoIHcTpymeHTa, ce BbptT
HepaBHomepHo, BbPnpat MHorO CNlHO I
MOrat Da DOBeDaT Do 3aRy6a Ha KOHTpOJ.

He n3noJ3BaIte NOBpeDeHn npNCtABKn.
IpeN BCaKO n3NoJ3BaHe
npOBepaIte pa60THnte HNCTpyMeHTn 3a pa3KbPTBAHn I NyKHATnHn,
UINFOBbYHNTe NODIOXKN 3a
nyKHATnHn, IN3HOCBaHE IIN CNJHO
n3TbPKBaHe.AKO eJEKtpNuYeCKnT
HNCTpy-MeHT IIN pa60THnT
HNCTpyMeHT NaHaT, pOBepTe daJIH
He ca NOBpeDeHn IIN N3NOJ3BaIte
HeNOBpeDeH pa6OTe HNCTpyMeHT.

CneI KaTo CTe npOBepnIn N NOCTaBNJn pa6oTHnIHcTpymeHT, n3Je3Te HakapaTe Da n3Je3HaT BCNUKn Ha6n3O Hamupaun Ce JNuca H3-BbH

paBHHaTa Ha BbPTrAaCe pa6o-TeH INCTpymeHT N OCTaBeTe ypeDa Da pa6OTn eHa MNHyTa C MaKcHMaJIHN O6OpOTn.

IobpeHHeHTe npictabKn ObHKHOBeHoCe yynrT no BpeMe Ha To3n Tect.

Hocete JnUHO npedna3Ho
obopydBaHe. B 3aBncmocT OT
pa6oTaTa Hocete nblHa 3aunTa 3a
JnueTo, 3aunTa 3a OUnTe Nn
npedna3Hn OuHa.Ako e Heo6xOIMO,
pa6oTeTe C dnxAteHa MacKa,
7ymo3arLyuHTeN (aHTnfoHn),
pa6oTHN o6yBKn Nn CpeuaJn3nPaHa
npectnJa, KOrTO Bn npedna3Ba OT
MaJKN OTKbPTeHn Pp1 pa6oTaTa
Yactnuk.

OuHTe Tp6Ba Da 6bDaT 3aUHTeHn OT JeTae HAOKOIO UyKdI TeJa, KOnTO ce NOLyuaBt NO BpeMe Ha pa3JIuHNTe BNDObe pa6ToA.Obpa3yBaHnT IO BpeMe Ha pa6ToA npax Tp6Ba Da ce QnITnpaOT 3aUHTHa MACKa 3a npax N 3a DnShaHe. Korato Ce HAnara Dblro BpeMe Da CTe NODIOXKeHN Ha BVcOK Wym, MOKeTe Da N3rY6nte Cnyxa Cn.

Korato mma dpyrnn Inuca, BHNMaBaIte Te da ce HAMnPaT Ha 6e3OnacHO pa3cToHnE OT 3OHaTa Ha BaShaTa pa6ota. BCEKN, KOITOBn3a B 3OHaTa Ha pa6ota, Tp86Ba Da HOcN JNuHo 3aunTHo O6OpyDbaHe.

OtuynennapetaoTobahnnpedmetnnCuyeneH npictabKN MoratdaN3JeTt Da npuHHr HapaHbAHNn3BbH HeNoceDCTBeHaTa pa0THa 30Ha.

Korato cblseCTbByBa onachocT pa60THnI TnHCTpymeHT da nonaHe Ha cKpTN IOD NOBbpxHOCTTa npoBOHNuI NOD HanpeXeHne, dpBXTe eNeKTponHCTpyMeHTa camO 3a eJeTpOn3OJnPaHNTe pbKOXBATKn.

Пи КонтakсnpOBODHnI NOd HAnpeXeHne To MoXe Da ce npedeHa MeTaJIHnTe eJemeHTn Ha eJeKToHnHCTpyMeHTa n TOBa Da npeDn3BnKa TOKOB yIap.

I Na3eTe eNeKtpnueckna Ka6eI daJeUOT Bbptaune Ce npncTAbKn. Ako n3rybnte KoHTpOIN Bbpxu ypeDa, eNeKtpnuecknT Ka6eIMoKe Da 6bnde npepra3an INN 3axBaHaT IN KNTKaTa INI pBkata BN MOrat Da INonAdHAT NOB Bbptaata Ce npncTAbka.
Hnkora He ocTabrYe eJektpnueckn HNCTpymeHT, npEn npncTabKaTa da e cnpraHaIbIHO Da Ce DnXn. Bbptaata ce npctabka moKe da Bne3e B KOHTAKT C MAcTOTO Ha NOCTaBHe N Taka Da N3ry6nte KOHTPOl Bbpxy eJektpnueckn HNCTpymeHT.
He BKJIOUBAIte eJIeKTpNuecKn IHHCTpyMeHT, DOKaTO FO HOCHTe. Ipexnte BN MORAT Da 6bDaT 3axBaHaTN npN Clyuayeh KOHTA K CBpTaTa Ce npNCtAbKa N pncTbKaTa MoKe Da ce 3a6Ne B TAnOTO BN.
I OounCTBaIte peoOBHO Bb3dUwHInTe OTBOpn Ha Baunna eJeKtpueeCKn HNCTpymENT. BeHTnlaTopbT Ha Motopa n3TerJy B Kopnyca npax, KaTo ppekomepHoTO cb6npaHe Ha MeTaJIeH npax MoKe da npedeIN3BnKa eJeKtpueeCKn OnaCHOCTN.
He n3noJ3BaIte eIeKtpnueckn HNCTpyMeHT B 6IIN3OCT DO rOpau mATEpnaII. NCKPte MoRat Da Bb3PiAmEHNr Te3MaTEpnaII.
He n3noJ3BaIe npucTbKn, KOITOMaT HxkdA OT TeuHN OxJaKaAsnBeueCTBa.
H3noJ3BaHeTo Ha BODa INI dpyTN TeuHN OxJaKaAsn BeueCTBa MoKe Da npuHH TOKOB yap.
■ H3noI3BaIte N3KIOUHTeJIHO n cAmO pa3peSeHn 3a Baunra eNEKTPoIHNCTpyMeH NTINΦOBbYHn CpeDCTBA n PpeBnDEHn 3a Te3n IINΦOBbYHn CpeDCTBa npeDna3eH Kanak.
UHnOBoBcHNTe CpeCDtBa, KOITo He ca npEaEN3a eJekTPoHCTpyMeHTa, MORaT Da He ca N3OJIpaHn DOCTaTBuHO do6pe n Da ca HecTa6uHn.

CneuHaHn yka3aHna 3a 6e3oNaChocT 3a WlaH

IpeDn3HnT KanaK Tp6Ba Da ce NOCTABN CnpyphO Bbpxy eJeKTPoHnCtpyMeHTa N Da Ce HAcTpOn TaKa, Ye Da Ce NoCTnRHe MaKcImaJIHa CTeNEH Ha CNpyPHoCT, T.e. Bb3MOxHO Han-MaJka Yact OT UInΦOBbYHOTO cpeDCTB0 Da CE NOKa3Ba KbM onepaTopa.

IpeNa3HnT KanaK Tp6Ba Da npedna3Ba onepaTopa OT OTHyneH Napceta N CnyuaeH KOHTAKC WINFOBbHOTOCpeCTBO.

I UINFOOBbHNTe CpeAcTBA Tp6Ba da ce N3PON3BaT caMo 3a npenopbuaHnte Bb3MOXHOCTN 3a ynoTpe6a.

Hanpimep: Hnkora He IJnaIpaIte cbc CTpaHnUHaTaNOBbPxHOCT Ha DnAmaHTeHa IJNIOBbUHa NOJIOXKa. DnAmaHTeHIne IJNIOBbUHN NOJIOXKc Ca npedHa3HaueHn 3a OTdEJIHe Ha MaTePnA C DoJIHaTa CTPaHa Ha IJNIOBbUHaTaNODIOXKa.

CTpaHnUHOTo DeiCTBne Ha cnJIInTe Bbpyx Te3n UJnaIpaHn TeJa MoKe Da rN cHynn.

BHHaHn H3noJ3BaIte HeNoBpeDeH 3aTeRaTeJIeH fJaHeu B npaBnHInTe pa3Mepn n oOpMa 3a N36paHInTe OT Bac pa60THn HnCTpyMeHTn.

IopxOJaIte fpaHnI npNipat pa60THnTe nHcTpymEnTu nHaMaIraBAt onaCHOCTTa OT cUynBaHe.

He n3noJ3BaIte n3HOceHn pa6oTHn HhCTpyMeHTn OT NO-ROJeMn eJIeKTPoIHcTpyMeHTn.

Pa6oTHnTe HnCtpymeHTn 3a no-roJeMn eJekTPoHnCtpyMeHTn He ca npEaBnDeHn 3a NO-BuCOKn ObOpOTn Ha eJekTPoHnCtpyMeHTn N MoaT Da ce CchynrT.

OTkAT N CbOTBeTHnte yka3aHn8 3a6e30napoCT

OTkaTe BHe3aHnHaTa peakunHa MaunHata BCJeDCTBVe Ha 3aknnHbAne nn 6loKnpaHe Ha BbPTaUe Ce pa6oTeH INcTpymeHT, HAp. abpa3uBeH DnCK, rYMeH NOIIOXeH DnCK, TeLeHa YETKa n dp.n. 3aknnHbAHeTo nn 6loKnpaHeTO BODn Do pR3KOTO CNIPAHe Ha BbPteHoT Ho pa6oTHN INcTpymeHT. Po TO3n NaHH HeKOHTPOJnPaHnT eJIektpnueckn INcTpymeHT ce yCKOpraBa Ha

MЯСТОТо Ha 6ЛOKиранe obpaTHO Ha NOCOKaTHa BbPTeHе Ha npUCTaBkata.

Ako Hanp. abpa3nBEN dNCK ce 3aKnHn Hn6Ioknpa B obpa6oTbAHOT n3dJIne, pb6bT Ha dNcKa, KOITO dOnnpa DeTaJNa, MoKe da ce OByHe N B pe-3yNTaT dNCKbT Da ce ChyIn NN Da Bb3HnKHe OTkAT.

B TaKbB Cnyuayi DnCKbT ce yckopraBa KbMa paboteuia C MaunHaTa NIn B ObaPaHa NOCOKa, B 3aBNCIMOCT OT NOCOKaTa Ha BbTeHe Ha DnCKa N MCArTOHa 3aKnHBAHe.

BtaknBa cnya an abpa3nBHnTe nCKOBemorat n da ce cnynrT.

OTkaTbTepe3yIITaT OT rpeuHOn Hn HnPaBnH0 n3nO13BaHe Ha eJeKtpnueckn HnCTpyMeHT. ToJ MoKe da 6bJe n36eHnat Upe3 NOxODaU npeDOxpaHtEnHm MepKn, KaKTo e ONiCaHO No-DoNy.

Дрьжte eJektpnuecknHcTpymeHT 3dpaBO n npBBeDe TJIOTO n pBcTe B N03nU, OT KOrTO ue MOKeTe da noemete cnJIte Ha otKaTa. BuHaRn N3NoJ3BaIte DoNbJIHNTeJIHaTa dpjxka, aKO nMa TaKaBa, 3a Da nMaTe Bb3MOxHO Hau-ROJAM KOHTPOl HaD CNJIte Ha OTKaTa n HaD MOMENTe Ha peaku npu yCkOpraBaHe.

O6cnykBaIoTO JnCe MoKe Ja OBlaaDee cnInTe Ha OTKaTa Hn Ha peakuny Upe3 NODXODAUN PpeDOxpaHHTEN MepKn.

Hnkora He do6nXaBaTe pKaTa cn Do BbptAunTe ce npncTabKn.

Pn OTKaT npuctaKaTa MoKe Da MHe HaD pKaTa BN.

■ N368raBaiTe C TAnOTo CN 3oHaTa, B KOaTO eJIeKTPnueCKnT nHCTpyMeHT MoKe Da nonaDHe npn OTKaT.

OTkaTbT npemecBa MaunHaTa B Nocoka, Obaatha Ha Nocokata Ha DBNXeHne Ha pa6OTHnI NHCTpyMeHT B 30HaTa Ha 6JOKIPAHe.

Pa6oTeOc06eHnpeDna3nBO B 3OHHe Ha bTn, OCTpN p6oBe n dp.n. N36raBaiTe OTbckBaHeto NN 3aKlnHBaHTo Ha pa6oHTne HHCTpy-MENTn B o6pa6OTbaHnA detaJn.

Pn bI, ocTpn pb6OBe nnn KOraTo ce OTTnaChe Bbptraata ce

npiCTaBkata YeTo ce 3akneuBa.ToBa BOINdo 3aryba Ha KOHTpOIN NIN OTKaT.

He n3noJ3BaIte BepnKeH nn 3b6yAT JNCT 3a HOXOBKa. TaKnBa npNCtABKn YecTo npeDn3BnKBaT OTKaT nn 3aY6a Ha KOHTpoN Bbpxy eJeKTPnueckn INHCTpyMeHT.

Дугун уka3анna 3a 6e3oNaCHOCT

I3noJ3BaIte cAmO yIbJIxITeJIHn Ka6eJI, KOTo ca pa3peWeHn 3a yNoTpe6a Ha OTKpNtO.
I IINIOBOHaTo Ha CbDbPkaU ONoBO 6oHcpe npenopbYBa. OTcTpaHraBaHo Ha CbDbPkaU ONoBO 6oTp8Ba Da ce N3BbPbBa cMo OT cneuaJIncT.
He 6pa6oTbaIte MaTePnaI, npKoNTO ce ocbo6oxJaBaT BpeHn 3a 3dpaBeTo BeIeCTBa (HaNP. a36ecT). B3emTe npedna3Hm MepKn, aKO Morat Da Bb3HNKHAT OnaCHN 3a 3DpaBeTo, 3aNaIMM INI eKcNIO3NBn npaxOBe. HocTe MacKa 3a 3aUHTa OT npax. I3noJ3BaIte CbOpBXKeHn 3a n3CMyKBAHe.

MATEPNAJTHU LETNI

HapexeHneTo Ha eNeKtpnueckata MpeKa n daHHnte 3a HapexeHneTo OT TINOBaTa Tabenka Tpr6Ba Da CbBnaDaT.

Uymn Bn6paun

CTOINHOCTIte Ha IyM N Bn6paun ca yctaHOBeHcBrlacHo EN 62841.

A- npeterIeHTo HnBO Ha 乌Ma Ha ypeHa Bb3JIn3a O6NKHOBeHo Ha:

• Ppar Ha Hajrahe Ha Uyma: 96 dB(A);
  -ПагнаЗвкобаMoцноct:104dB(A);
• HetouhoCT: K = 3 dB.

O6uca cToHocT Ha Bn6paun (npn
IaHae Ha 6eTOHOBn NOBbpxHOCTN): 2
- CToHocT Ha emCnHTe: ah = 6,7 M/c 2
HeTOUHOCT: K = 1,5 M/c

BHIMAHHE!

IocoueHnte CToHOCHTBaxkat 3a HObU ypeu. Ipn u3nOJ3BaHe B eKeJHeBNeTO CToHOCHTe Ha UyM N BuOpauN Ce npomeHt.

YKA3AHHE!

ДадениToTOBa yIbTBaHe HNBO Ha Bn6paun e n3MpeHOB CbOTBcTCTBne C onpeJeHata B EN 62841 npoceDpya no N3MepBaHe n MoKe da ce n3NoJ3Ba 3a cpaBnBaHe Ha eJeKtpnueckn IHCTpyMeHTn. To e nOxODaIO u 3a npedBapnteHa npeEHa BA Bn6paunTe. PocoyeHOTo HNBO Ha Bn6paunnpedCTabry OCHOBHIne TpINOxEHHa Ha eJeKtpnueckn IHCTpyMeHT. Korato oBaue eJeKtpnuecknT INCTpyMeHT ce n3NoJ3Ba 3a dpyrN ueJI, C HeNOxDxOJaU npiCTABKn IIN He npaBUNHO o6CnykBaHe, HNBOTO HA Bn6paunMoKe da e pa3NJuHo. Toba MoKe 3NaHTeHDo a NobuShn Bn6paunTe 3a YJIoTO BpeMe Ha pa6Ota. 3a ToUHa npeEnka Ha Bn6paunTe Tp6Ba Da ce B3eMe npedBvI, n BpeMeTo, ppe3 Koeto UpeDbTe n3KJIOUeH IIN e BKJIOUeH, HO C HeRo B DeIcTBnTEJHoCT He ce pa6Ot. TOBA MoKe 3NaHTeHDo a Hamajn Bn6paunTe 3a ZJIoTO BpeMe Ha pa6Ota.

B3eMeTe DoJIHHTIHN MepKn 3a
6e3OpacHOCT 3a 3aUHTa Ha IOn3BaTeJr OTO
Bb3DeIcTBnETo Ha Bn6paunTe, KaTO
HaInpIMep: ObcnyXbaHe Ha eJeKtpuYeCKn
INCTpymeHr Ha npICTaBKnTe, 3aTOnJIHe Ha
PbUeTe, oprAHn3aUry Ha npOceCa Ha
pa6ota.

BHIMAHME!

PnHaJraHe Ha 85 dB(A) HocTe 3aunTa 3a cnYxa.

TexHnueckn DaHHN

N3KJIIOUyBaHe Ha OTROBOPHOCT

PpOn3BODNTeJIrN HeROBtne PpeCTaBNTeJIr
He OTROBAPrT 3a 5eTN N pOpyChATn POJ3N
Iopadn PpeKpaTBAHe Ha pa6oTaT, KOITo
ca PpUHNHeHOTPOyKTa INN O T
HEb3MOxHOCCTTa Da Ce I3NOJ3Ba PpOdyKTa.
PpOn3BODNTeJIrN HeROBtne PpeCTaBNTeJIr
He OTROBAPrT 3a 5eTN, KOITo Ca PpUHNHeH
OT HEnpaBOMepHO I3NOJ3BaHe INN
I3NOJ3BaHe B KOM6uHaCuNc PpOdyKTn Ha
dpyrN PpOn3BODNTeJIr.

CopepkHne

IcnoJb3yeMbIe CmBOJIbl. 247

TexHnka 6e3oNaChOcTu 247

UmbiBnBnBaun 252

TexHHueckne daHHbIe 253

KpaTkn o63op 254

Hnctpykqna no 3Kcnnyatau .255

YxOuI TexHnueckoe 6cbnyKBaHne.258

Yka3aHnno yTnIn3aun 258

TapaHTnA 259

IcnoJb3yeMbIe cIMBOJIbI

OCTOPOXHO!

Obo3haaet HEnocpeDCTBeHNO yrpoKaHOyU ONaCHOCtB. Pn HecobJIOdeHm Yka3AHn CyueCTByeT ONaCHOCTb NJIyueHn Cepbe3HbIX TpaBM IIN CMEPTbHOrO ICXoJa.

BHUMAHNE!

O603HaayeT BO3MOxHOCtB BO3HnKHOBEHn
OaCHO CHTyaUu. Pn HecO6NIODeHn
Yka3AHn CyueCTByeT ONaCHOCTb
IOnyueHn TpaBM Nm MaTePnaJIbHOrO
Usep6a.

YKA3AHME!

O6o3Haayet COBtI NO IcNoJIb3OBaHnIO IN BaxHyIO NHΦOpMa4NIO.

CnmbolbHa HhctpyMeHTe

UTo6bI CHN3HTb PNCK NOJyueHn TpaBM, N3yUHe INCTpyKcHIO NO 3KcNpyaTcuN!

Hocntb 3aunTHbIe OcKn!

Hocntb 3aunTHbIe HayuHnKn!

Yka3aHne no yTuIN3aCnn 6bIBWeRo B NcNoIb3OBaHn INHCTpyMeNTa! (cm. c. 258)

Pn BbIOJIHeHnn pa6oT BCerda nCNoIb3yIte o6e pykn!

Mapknipobka CE

MapKInpOvKa UKCA

TexHnka 6e3ONaChOCTn

OCTOPOXHO!

Ipeed nCNoJIb3OBAHnEM
3NeKTPoINHCTpymeHTa HeOBxOJIMo
IpoueCTb IpeuNCJIeHHyIO HIXKe
DOKyMeHTaUIO NIOCTyNaTb CORNaCHO
Yka3AHnM, pINBeDeHHbIM:
-B 3TOM pyKOBoIDCTBe IO 3KcIIyatauN;
-B «Obux yka3aHnX IO TexHnke
6e3OnaChOCTn» npu ObpaUeHN C
3NeKTPoINHCTpymeHTAMN B pPUNaRaEMOM
CnpaBOUHOM pyKOBoIDCTBe (DOKyMeHT No :315.915);
- B npaBnIax I NOJoxeHnI X nO npedOTbpaueHnIO HecuaCThblX CnyaEB, pIMHeHmblx B MeCTe NCNoIb3OBaHnI.

3TOT 3NEKTPOHCTpyMeHT N3ROBHeH B COOTBETCTBnC COBpeMeHHbIM yPOBHEM pa3BNTy TEXHNIu COnlaCHO 6Ueepn3HaHHbIM npaBnIam TexHNI 6e3ONaCHOCTN. Tem He MeHee, npu erO INoJIb3OBaHm MOKeT BO3HNKHyTb ONaCHOCTb IINJX3HN U 3DOpOBBy NOJIb3OBaTeJIg INI TpeTBx INI, a TaKke IOBpeXdHne O6OpYIOBaHn INI INHOrOMUyEcTa. 3NEKTPOHCTpyMeHT DOJIxHeh INoJIb3OBaTbCS TOIbKO

-NOHa3HaueHnIO
-BTexHnueCKN NcnpaBHom COCTOHN. He3ameIINTeIbHO yCTpaHnTe HEnCnpaBHOCTN, HApUwAIOune 6e3oNaCHOCTb 3KcIIpyatauN.

IcnoJIb3OBaHHe No Ha3HaueHnIO

MmaHnHa no 6eToHy LD 24-6 180 npedHa3NaueHa

-Дпяпрофессногиьноги NGПОЛьЗOBAHЯВпрмьшлелнOHИ KOMМерчecкOncpepax;
-ДЯ cyxoro шлncpoBaHnI n 3aTnpKn 6eToHa, StTyKaTpyKn, MOHOnIThblIX CTJKeK, NeCauHnka, WAmOta n acpaJIbTa;
-ДЛЯ COUJIФОВБИBAHЯ JAKOKpacOчHBIX NOKpbITN I OCTaTKOB KJIeR C 6TeOHa NJIIM MOHONITHbIX CTJXKE;
-ДЯИСПОЛБ3OBAHNAc aJIMa3HbIMN CMeHHbIMN INHCTpyMeHTaMNI,празлaraemblm FLEXДЯЗTORO 3NeKTPoINHCTpyMeHTa NdoNYuSEHHbIMN ДЯ pa60tI CчaTOTOn BpaUeHnA He MeHee 6500 66/MnH.

IcnoIb3OBAHne OTepe3HbIX,ObInpoHbIX, IeNECTKOBbIX UINΦKpyROB IJI npOBOnOuHbIX UeTOK 3aIpeUeHO.

Pn nCNoJIb3OBAHm IJINΦMaIHHbI NO 6eToHy

LD 24-6 180 cIeNyET noKIOUaTb nbIeCoc Knacca M.

Yka3aHnI NO TexHnke 6e3OnaCHOCTN

OCTOPOXHO!

IpoHTaTe BCE yKa3aHnNo TEXHnke
6e3oNaCHOCTu INHCTpyKUIn. YnyueHnnp
CoBIOHeHn yKa3aHn No TEXHnke
6e3oNaCHOCTu INHCTpyKUIn MOyT
IPNBecTu K NopaxKeHHIO 3JNeKTpNueCKIM
TOKOM, NOxApY W/IN TAgKeJIbIM TpaBMam.
CoxpaHnTe BCE yKa3aHnNo TEXHnke
6e3oNaCHOCTu INHCTpyKUIn DnA Bdyuux
NOb3OBaTeJeN.

ДаHHьзлКТponHCTpyMeHTdoJXeH NCNoIb3OBaTbC8B KaueCTBe шИнФОВАьнOH MaUNHbI.ОБpaNTe BHMMaHHe Ha BCE NOYUeHHbIe BMecTe C 3ЛeKTPoHHCTpyMeHTOM yKa3aHnI NO TexHnke 6e3OanachOCTN, INHCTpyKUnN, N3O6paJxehnI N daHHbIe. HecO6JIHOdEHNHe HIXKePnBEdeHHbIX INHCTpyKUnM MoKET npiVBecTN K NOPaxeHnIO 3ЛeKTPuYeCKIM TOKOM, NOxApy I/INN K TЯxeJIbIM TpaBMam.

Даннызлжктуонстумент He npedha3haueHдяшпфовани Нждачншкypко, pa6otblc npoBOJIOuHbIMN 申购AMN, NOINPOBAHnI a6pa3HBHoro OTpe3aHnI.

IcnoIb3OBAHHe 3JeKtpOHNCTpyMeHTa He IIO Ha3HaueHIO MOKeT PnVBecTI K BO3HnKHOBeHIO ONaChbIX CNTyaCmI N K TpaBMam.

He nbItaTecb nepeo6OpydoBaTb 3TOT 3JIeKTPoHnCTpymEnT dIra pa6Otbl cNoCo6om, He npEdycmOTpeHHbIM erO npOn3BOdnteIem. Tako npeo6pa3OBAHne MOKeT npNBecTI nOTepe KOHTpOJI N cepBe3HbIM TpaBMam.
He nCnoJb3yIte 3JIeKtpoHCTpyMeHT dIa BbINOJIHeHn pa60T, He npEydCMOTpeHHbIX erO n3rTOBNTeIeM.

B npotnbom cnyuae moxno notepeTb KOHTpOJIb HaI Hm I NOJyHTb cepbe3HbIe TpaBMbl.

He nCnoJIb3yIte npnHaJdJIeXHocTn, KOToPbIe He npEydcmOTpeHbI NJIH He peKOMeHDoBaHbI N3rOToBHTeIeM CneuaJIbHO IJa DAHHORO 3JIeKTpOHNcTpymeHTa.

JaKe ecn Bbl CMOrJN 3aKpeNTb
PnHaJIeXHOCTb Ha CBOem
3NeKTponHCTpyMeHTe,3TO eUe He
rapaHTnpyET HAdExHOCTb ee
NCNoJIb3OBaHna.

HnB Koem cIyuae He OTKnaIbIbAaTe 3JIeKTpOHNcTpymENT B CTOPOHy Do Tex nop, noka paOouH INcTpymENT NOJHOCTbIO He OCTaHOBITcra.

Bpaaohuicpaoboun nHcTpymeHT MOKeT COpNIKOCHyTBcC NOBepXHOCTbIO, Ha KOTOpyBO BkI KaJeTe 3JIeKTPOINHCTpymeHT,Bpe3yJbTaTe Yero Bbl MOKeTe NOTepaTb HAD Hm KOHTPOJIb.

He ocTaNJIaIe 3JKeKTPoHnCTpyMeHT BKIOUeHHbIM, KOrDa Bbl erO nepeHocITE.

Pn cnUaHOM KOHTaKTe C BpaUaIOUIMcra pa6OuHM INCTpyMeHTOM Ba7a ODeJdaMOxET 6bITb 3axBaueHa, a pa6OuINHCTpyMeHT MOxET BOH3NTbcra B BaIeTeNo.

PergyIaRHO OuHuaTe BeHTnlaCIOHHbIe npope3N 3JIeKTPoIHhCTpyMeHTa.

BeHTnIaTOp DnIraTeJI BTrnBaET nIbB KOpnyc,a 6oNbUoe cKoPJIeHne MeTaNIIuCeCKO NblIMMOKeT pINBecTNI K 3JIeKTpUeCKO ONaCHOCr.

He nCNoJb3yIte 3JIeKTPoHnCTpyMeHT B6JIN3n rOpOuHX MaTePnaJIOB. NcKpbI MOrTy BOCnJaMeHnTb 3TN MaTePnaJbl.

He nCnoJb3yIte pa6OuNe HNCTpyMeHTbl,ДЯ KOTOpbIX Tpe6yIOTc JxIDKne OXJaXdaIOUne cpeIcTBA.

IcnoJIb3OBaHne BOdbI IIN dpyrNX JnDKNX OXJaKaIOUx CpeIDCTB MOKeT npVBecTN K nopaxeHIO 3JIeKTPuYeCKIM TOKOM.

Oco6bIe yka3aHnNo TExHnKe 6e3oNaChOCTn npu JnΦOBaHHN

IcnoJIb3yIte NCKJIIOHTeJIbHO ⅢJIOBaJIbHbIe KpyrN, DOnyUeHHbIe IaBaeO 3JeKTPoHnHCTpyMeHTa, INpeDyCMOTpeHHbI INJ3TINX ⅢJIOBaJIbHbIX KpyROB 3aUHTbI INKQxX.

HenpeDycmOTpeHHbIe dIpy 3JIeKTPoINHCTpyMeHTa IJINΦOBAJIbHbIe KpyrM OryT HeIOCTaTOUHO 3aKpbIBaTbC8 3aUHTO, I OHN HeHaTeXHbI.

3aunTHbI KoxyXdoJIKeH 6bITb HaJeKHO 3aKpeIJIeH Ha 3JIeKTPoIHcTpymEHTe N OTpeRyJInpOBAH TaKIM O6pa3OM, YTO6bl ObecneYtB MaKcImaJIbHyIO 6e3OnaChOCTb.

OTKpbIToN (B HApBaJIeHn OnepaTopa) DOJXHa OCTaBaTbCЯ JNUsb cAmay MaJaA YacTb a6pa3NBHOr OHCTpyMeHTa.

3aunTHbIKoKxD0JKeH 3aunTaB NOIb3OBaTeJIaOT OCKOJIKB N CnyaHORO COpNKOCHOBEHnA CO UINΦOBaJIbHbIM KpyROM.

A6pa3NBHbIe INHCTpyMeHTbI DOJXHbI NCNoJIb3OBaTbcra TOJIbKO No Ha3HaueHnIO.

Hanpimep: KaTeOpnueckn 3aPeuaeTcR BbIIOJIHrB IJINΦOBAHne 6OKOBoi NOBepxHOCTbIO aJIMa3HORo YaIeUHOr O JIINΦKpyra.ДЯ cBeMa MaTePnaJa npEiHa3HaueHa HIXKHyr CTOPOHa YaIeUHOrO IJINΦKpyra. BokOBoe BO3DeIeCTBHe CINbl Ha 3TN IJINΦKpyrM MoKET CJOMaTb IX.

Bcerda nCloNoJIb3yIte HeIOBpeKdEHHbIe 3aXIMHbIe IaHcbl npaBnIbHOro pa3Mepa N opMbI dIЯ Bbl6paHHoro Bamn pa6Oyero HnCTpyMeHTa.

Iopxodjune pfanucblcnykata InpdepkKmCMeHHbIX INHCTpyMeHTOB,TEM cambIM CHNka ONaCHOCTb IX pa3lOMa.

He nCNoJIb3yIte n3HOWeHHbIe pa6Oue HnHCTpyMeHTbl OT 3JIeKTPoIHcTpyMeHTOB 6OJIbJwero pa3Mepa.

Pa6oUHe nHCTpyMeHTbI dIra 3JIeKTPoINHCTpyMeHTOB 6OJbIomega pa3Mepa He paccuHTaHbI Ha NOBbIWeHHyIO qAcTOTy BpaIeHnA 3JIeKTPoINHCTpyMeHTOB Mehbluxr Ra6apITOB mOryT cIOMaTbcra.

OToaHa n COOTBeTCTByIOUne yKa3aHnNo TexHnke 6e3OnaCHOCTn

OToa npedctabIeT c6oH HeoxuHaHHyU peaknIO, BO3NkaUOuyo npi 3aeDaHm NII 6JOKnpOBKe BpaauOeROc MEnHOro IHCTpyMeNTa (UINΦKpyra, qAweHoro UINΦKpyra, pPOBOJouHOJ uETKn I T. d.). 3aeDAnHe nII 6JOKnpOBKa pInBODaT K BHe3aHNO octAHOBKe BpaauOeROc CMeHNHO rHCTpyMeNTa. B pe3yIbTaTe

HeKoHTpOJIpyeMbI 3JIeKTponHCTpyMeHT yCKopReTcHa MeCTe 6JIokIpOBaHn IpoTnB HAnpaBJIeHn BpaUeHn pa6OyeRo IHCTpyMeHTa.

Ecni, Hanpimep, WnIqKpyr 3aedaeT nII
6bLOkpyeTcB O6pa6aTbIBaEMOM n3deJIIN,
TO norpyxeHHa B O6pa6aTbIBaEMOE n3deJIne
KpOMka WnIqKpyra MoKET 3actPrtb, N B
pe3yJbTaTe 3TOrO WnIqKpyr MoKET
BbICKoHTb nII IN pNBecTN K OTdAue.
WnIqKpyr B 3TOM cIyue A DBnraetcB
HanpaBLeHnn NOJIb3OBaTeJI NII B CTOPOHy
OT Hero, B 3aBnCIMOCtN OT HanpaBNeHn
BpaSeHn Kpyra Ha MeCTe 6bOKIpOBaHn.
PiN 3TOM WnIqKpyr Moryr TaKke
cLOMaTbcra.

OTdaua YBJIeTcCJIeCTBnEM He npabINbHOrO NII OUn6OuHOro IcNoJIb3OBaHnE 3NeKTPoHnCTpyMeHa. Ee MOxHO N36ExaTb, CoJIHOJaMepbl PpeIOCTOpOXHOCTN, ONIcaHHbIe HIXe.

Держinte креник Злесгонстументи рпвдente Сбое Тeно pyknВ NOLOXKeHne, KOTOpoe N03BOJNT npOTNBOCTOЯтс слам OTdauN.

IcnoJb3yUte Bcerda DOnONHHTeJbHyu pyKoTky,ecnOHa eCTb B HAnuH, YTO6bl
OblaaTaMb MaKcImMaJIbHbIM KOHTPOJeM HaCnnAmN OTdauH NIn peAKUHOHHbIMM MOMENTAMN Prn HApope OboPOToB.
Pojb3OBaTeJIb MoKeT CdepxHBaTb CnJIbI OTdauH peAKUIN PnI NOMOUs COOTBETCTByIOUX MEP
PpeOCTOPOXHOCTN.
Hnkorda He noDnOcNte pyky K BpaaioUmmcra pa6oymn HnCTpyMeTAm. Pa6oyn nHCTpyMeHT MOKeT npn OTdaue npoITn PO BaWey pyke.

■Избerte BCem TeJOM TORO yUacTka,В npedeJax KOToporo 3NeKTPoHHCTpymeHT 6yJeT DBnRaTbCBA Cnyuae OTdaUH.

Otdaqa pa3roHareT 3JIeKTPoINHCTpyMeHT B HappaBHeHn, IpOTnBOIOnIOxHOM DvIXeHnIO IInNΦkpyra Ha MeCTe 6JOKIpOBaHn.
Pa6oTaIe Oco6eHNO OCTopoXHO ByrJax,HaOCTpbIX KpOMkAX N T.Д. IpeIoTbpaUaIte OTCKOK pa6OuNX IHCTpyMeHTOB OT obpa6aTbIBaEMORO n3dJIy INx 3aklnINHBaHne. BpaUoUncra pa6OuN IHCTpyMeHT CKIOHeN K 3aknINHbAHIO B yrJax,Ha OCtpbIX KpOMkAx INI npN OTCKOKe. 3To npINBOiNT K NOTepe KOHTPOJIY INI K OTJaue.
He nCnoJIb3yIte ueenHbIe OTpE3HbIe kpyrnn 3y6aTbIe peKyuIe Kpyr. TaKne pa6OuNe INCTpymENTbl Yacto npINBOJrK OTdAue NnN NOTepe KOHTPOJn HaI 3JeKTponHCTpymENTom.

Дугге указаю NO Textнke 6e3onacHOCTn

IcnoIb3yIte ToJIbKO ydIIINHTeJIbHbIe Ka6eI,doNyUeHHbIe InI npIMHeHnB He NOMEuEHN.
He pekomehdyetc coUHIOOBbIbTb CBnHIOBbie KpaCK. YdaJIeHne CBnHIOBbIX KpacOK DOJXHO BblONHrTbcra TOnbKO CpeuHaNCTOM.
He BbINOJHnIte O6pa6OTky MaTePnaIOB, npi pa6Ote C KOTOpbIMN BbIeJIaIOTc ONaChbIe IINr 3dOpOBBy BeIecTBA (HaNPImep, ac6ecT). EcIn npi pa6Ote He NCKIQUHeHO BO3HNKHOBeHne BpeIHOn IINr 3dOpOBBy, JERKOBOcPnAmEHHIOUeIcRy INN B3PbIBOONaCHO NblIN, TO Heo6XoIMO npINr8 3aUHTbIe Mepbl. IcNoIb3yIte PbIJIe3aUHTHyIO Macky. IcNoJIb3yIte CNCTeMbI NblJeYdaJIeHnI.

MATEPNaHbHbI yuepe6! HAnpJxHeNBe B cETn n 3HaueHne HAnpJxHeHn Ha fnpMeHHoT TaBnUyKe DOJIKNbI COBnaDaTb.

UyMbI IN Bn6paunr

3haeHna ypoBnI yMa n Bn6paunn 6blnn OnpedeJIeHbI corJaacHO HopMaTnBHo JOKymentaun EN 62841.

A-ckoppeKTHIPOBaHHbI ypoBeHb 7yMa 3JIeKTponHCTpyMeHTa obIuHO coCTaBnEeT:

• YpoBHeHb 3ByKOBoRo daBNeHnra: 96 dB(A);
• YpOBeHb 3ByKOBoMouHocTn: 104 dE(A);
• NorpewHocTB: K = 3 dB.

Obuee 3NaueHne Bn6paun (npu shnofoBaHn 6eToHHbIX NOBepxHocTei):

• 3NaueHnE Bn6paun: a h=6,7MfC
• IorpeuHocTB: K = 1,5 M/c

BHIMAHHE!

PnBHeEHbI 3MepeHHbI 3HaueHnA
DeiCTBNTeJIbHbI IJIHOBbIX
3NeKTPoNHCTpyMeHTOB. Pn exEJHEBHOM
NCIOJIb3OBAHm 3HaueHn A Wyma N
BnBaqnn 3MeHraOTc.

YKA3AHME!

PnBedeHHbI B daHHO IHCTpyKuIN yPOBeHb Bn6paun 6bl onpeJeH

CTAHdapTn3HPOBaHHbIM MeTODOM N3MepeHnB COOTBETCTBnC HOpMaTHNBHOI DOKyMeHTaUeNe EN 62841 n MoKeT 6bITb NCNoJIb3OBAH dIra CpaBHeHn EJIeKTPoINHCTpymeHTOB dpyr c dpyrom. OH TAKKe IODXoDIT dIЯ ppeDbAPuTeJbHOI OueHKN Bn6paUOHHo Harpy3Kn.

PpNBedeHHbI ypoBeHb Bn6paCmN BO3HnKaeT
PpN nCNoJIb3OBAHn 3JIeKTpOnHCTpyMeHTa NO
OCHOBHOMy Ha3HaueHnIO.

Ondako ecn 3JektpoHnCTpyMeHT
NcnoJIb3yeTcI dIyIpyrIcx ceJeI, c dpYIMPiabOChmN IHCTpyMeHTaM NII B Cnyae erO
HeyIOBJIeTBOpITbHOrTOxHNueCKOR0
ObcIyKINBaHnIy, yPOBeH bN6paCNI MOKeT
6bITb INbIM. 3TO MOKeT 3HaUInTeNbHO
IOBbICHTb BV6paCIOHHyIO HaPry3Ky B
TeueHne BCero nepNoDa pa6oTbI
3JIeKTPoHnCTpyMeHTa.

ДяToCHOrO OnpeIeJIeHnBn6paIIOHNoH HArpy3KN Heo6XoIIMo TaKKe yuHTbIBaTb npomexkyTKn BpeMeHn, B TeueHne KOTOpbIX 3JIeKTPOnHCTpyMeHn HaxODITcB BBIKIIOUeHHOM COCTOAHN IIN pa6oTaET

BXOIOCTyU.3TO MOKeT 3HaUNTeJbHO CHN3nTb
Bn6paHNOHHyU HArpy3ky B TeueHne BCero
IepnoJa pa6oTbI 3JeKTPoINHCTpymeHTa.
PpIMTe DOnONHInTeJbHbIe Mepbl NO
6e3OpacHOCTn Dnla 3aUnTbI NOnb3OBaTeJIa OT
BO3DeiCTBnA Bn6paun, KaK HApPImep:
IpoBeJeHne TexO6cnykBaHnA
3JeKTPoINHCTpymeHTa n pa6oynx
IHCTpymeHTOB, CO3DaHne BO3MOXHOCTN
CoDEpxKaTb pyKn B TeIpe, OprAHn3aCnA
pa6oynx npoceccob.

BHIMAHME!

Pn 3ByKOBOM daBHeHm CbIwe 85 d5(A) CneJyET nCNOJIb3OBA Tb CpeIcTba 3aIITbI OpraHO B cnyxa.

TexHnueckne daHHbIe

• He noka3aHo Ha pncyHke

Hnctpykunno 3Kcnpyaataa

OCTOPOXHO!

Ipeq IIObIMpaOtaMnHaJ 3NEKTPoHCTpyMeHTOM U3BNeKaTb CeTeBOU WTEKeP u3 p03eTKN.

BHUMAHNE!

Hanpajxhe nce cetn doJxHo COOTBeTCTBOBaTb HapjxHeHIO, yKa3aHHOMy Ha 3aBODCKO Ta6nUKe.

Ipeed BBODOMB 3KcnJyaTaunIO

PacnaKOBaTb 3NeKTPoHCTpyMeHT IN npHaIJIeJXHOCTN IN PPOBepNTb NOCTaBky Ha KOMJIeKTHOCTb N OTCyTCTBne BO3MOxHbIX TpaHCnOpTHbIX NOBpeJKeHNI.

PerynipoBka pyKoTkn

1. OTnyctnte pyuKy peRyInpOBKn pyKOaTkn npImepHo Ha dBa o6Opota npOTNb YacobOi CTpeJIKN.
   2.YCTaHOBInTe pyKoTky B HUxHoe nIoXeHne (c 7arom fNkcaunn 15^ - Y6eINTEcbB npabNbHofNkcaunn!
2. 3aTaNHe pyky peRyIInpOBKn pyKoTkn no Yacobov cTpeJIke.

YKA3AHME

Pn Heo6xOJIMOCTN pyKoTky MOXHO nepeCTaBtB Ha npTyO CTOpOH 3NeKTpOnHCTpyMeHTa.

YcTaHOBka N 3aMeHa a6pa3NBHbIX HnHCTpyMeHTOB

HaKMMTe KHOKNy 6NOKINPOBKn 7NNHDeJIy ydePKBaIte ee HAKaToi (1.).
C nOMOuBIO CTONOpHOrO KJIHOa OTKpyTnTe 3aKIMHyO rAIky OT UINHdJeI npOTNB yacOBoCtpeKn (2.).
YCTaHOBnTe aIma3HbI YaUeHbI WInOΦKpyr (B) B npaBnJbHOM NOJIOKeHN.

HaKpyTnte 3axmHyo raKy (A) Ha UHHdJIb 6ypTKOM BBepx.
HaxmTe HaΦnKcaTop UINHdJIa IN ydepXnBaIte B HaxkATOM NOJIOKeHN.
3aTAHnte 3axMMHyO raIky C nOMoUbO cTOnOpHOrO KInOua.

IpoBepbTe pnoJoxKeHne 3aunTHoro KOjxha:

Pe3nHOBoe BCacbIbAIOUe ee KOJIbO DOJXHO BbICTyNaTb npIMepHo Ha 0-1 MM NaI ShINΦKpyrom. Ppr HeOBxODmOCTN CKoppeKTIpyIe erO nOLOKeHne (CM. «IpeceTaHOBka 3aUHTHOrO KOKyxa»).

BCTaBBTe WTeNCEJIbHyIO BUNKy Bpo3eTKy.
BknIOuHTe 3JIeKTpOHnHCTpyMeHT (6e3 cnKcaun) n OCTaBBte ero BKnIOUeHHbIM B TeueHne npImepHo 30 c. IpoBepbTe Ha HauNue dnc6baHa h CnB6paun.
BbIKHIOUHTe 3JIeKTPoINHCTpyMeHT.

IpepecTaHOBka 3aUHTHOrO KOxyXa

i YKA3AHHE!

Pe3HOBoe BCacbIBaIOUeE KOJIbO IOJXHO BbICTyNaTb npIMepHO Ha 0-1 MM HAd UINΦKpyROM.ДЯ KOMIeHcaUN N3HOCA anMa3HORO yAWeuHORO UINΦKpyra 3aunTHbIKoKxMOXHO peYIpOBaTb NO BBICOTE.

OTnyCTIte BnHTOBoe coeHHeHne Ha 3aHTOM KOxYxe.

OtperynnpyTe 3aunTHbI Koxyx B COOTBETCTBn C HxHOB BBICOTOI.
3aTAHNTe BnHTOBoE COeINHeHne.

BkIIOUeHne N BbIKIOUeHne 3JIeKTPoIHcTpymEHTa KpaTKOBpeMeHHbI pexm pa60TbI 6e3 fHKcauN

1. HaxmTe KhoNky 6JOKnPOBKn BKNIOUeHn ydePknBaIte ee HaKaToi.
2. HaxMMTe Ha BbIKNIOuChaTeJb.
   3.ДЯ BBIKJIIOUeHnO TnycTNe BBIKJIIOuATEJIb.

HenpepbIBHbI peXm pa6oTbIC 2nKcaune

1. HaxmTe KHOkky 6JOKnPOBKn BKNIOueHn ydepKnBaIte ee HaKaToi.
2. Haxmte KhoNky npcka n ydepKuBaIte ee.
3. HaxmTe cTOnOpHyIO KhONKy.

4.ДЯВыIKJIIOUeHnRA KOPOTKHOHAKMITEHa BbIKJIIOUaTeIbNOTNYCTNTe.

IcnoIb3OBAHne cncTeMbI nblJeYdaJIeHnI

YKA3AHHE!

PekomeHnyetcNCHONb3ObaHne CnueuNbHoro nbinecoca FLEXKnacca M.

I PpOBeIte BCacbIbAHOuM N UaHr Ype3 IepKaTeJIb UHaHra N PrnKpeNITe erO K CoEINHInTeJbHOMy NaTpy6Ky 3aUHTHOro KOxkyxa.
I OndcoeHnTe 7JnaHr K cnCTeme nblneUdaJIeHnra. C6bnIOdaIte yka3aHnra, npNBBeDEHHbIe B pyKOBoDCTBe no 3KcnIIyatauIN CNCTEmbl NblneUdaJIeHnra! IpoBepbTe npOuHocTb KpePHeHnra! PpN Heo6xOdImocTn HcNoJb3yInTe nOxDxaIaI aIaNTPe.

YKA3AHME!

Ecnn Dnna BaWero NbIeCoca Tpe6yeTcnaHbHbN WtUep OTnnuHbNOT CTaHdapTHoro DnAmetpOM 32 MM nN 36 MM, NOCTabJIeMOROB KOMIIeKTe 3NEKTponHCTpyMeHTa), ObaPATNTecb K NOCTabUHKy NbIeCocca, YTObI NOJYHTb COOTBETCTBYUOHN NEPEXODHVK.

Pa6ota c 3JNeKTpOHHCTpyMeHTOM

OCTOPOXHO!

Bpaaiouincaaueyhbn uinkpyr He dOJxeh cnpukacatbC c octpbIMN BbICTyauoUmm npedMetamn. Onachoctb BCJeDCTBne OTdauH! NobpeKdHna yaueHoro uinkpyra. Ecnu aweuHbI uINkpyr NobpeXdH nn CunbHO n3HOWeH, erO HeOBxOJIMO 3aMeHNTb.

BHUMAHME!

Bcerda depknte 3neKtpOHHCTpyMeHT DByMa pyKaMn!

1. 3aKpEnIte WJINΦOBaNbHoe cpeIcTBO.
2. PoiocoeHHte cncTeMy nbineydaJeHna.
3. BcTaBbTe cTeBOI wTeKeP b po3eTKy.
4. BkIIOUHTe cncTeMy nbJeYdaJeHnA.
5. BkIIOUHTe 3JneKTPoHnHCTpymEnT.
6. Ппстабышлфmaшину К рабой NOBepxHOCTN.

Pe3nHOBoe BCacbIbAHOuEe KOJIbUO DoJIxHOb6bITb 3aOpDnUc c pa6oey IOBepxHOCTbIO.

1. YBENyTe npJxHm Ha JINΦMaunHy dIa KOnTaKTA WInΦKpyra c pa6Oey (o6pa6aTbIbAemO) NOBepXHOCTbIO. Pn3TOM NepemeUaIte WInΦMaunHy nepeKpbIbAOUMN DBNKeHNMy.

Pe3HHOBoe BCacbIBaHOoee KOJIbIO

B clyae noBpeXeHnI nn Ype3MepHoro n3HOca pe3nHOBOE BCacbIBaIOUeK KOJIbTO IOJNeKHT 3aMeHe.

KoIbIcO MoXHo 3aKa3aTb NO KoIy dIra 3aKa3a 258.626 B IIO6OM cepBnCHOM ueHTpe FLEX.

YxOД n TexHnueckoe 06cIyXnBaHne

OCTOPOXHO!

IpeqIIO6bIMpa6oTAMnHaI 3NEKTPoHCTpyMeHTOM N3BNeKaITe CTeBOI UITEKeP I3 PO3ETKU.

YnCTka

OCTOPOXHO!

He nCNoB3yIte Body nn nn kne yNCTaunne CpeDCTBa.

BHytpenHee npoctpaHCTBO kOpnyca n DnIraTeIb cIeIyET peYIpaHNO pOdyBaTb cyXIM CxAtbIM BO3dYxOM.
OuHCTIte 3aUHTbI KOKyX I NOBOPOTbI KOHcEBOI CeMeHT CyXIM CKaTbIM BO3dYxOM.

PemOHThbIe pa60Tbi

PemontbIpe60tIdoJXHbI npoBOHTbcnCKIOUHTeJIbHO B cepBnCHOn MaCTepcKO,ABTOPIN3OBaHHO IN3ROTOBtTeMeM.

YKA3AHME!

BnHTbI, IMeIOUneCra Ha KOpnyce DnBnRaTeNRA TeueHne rapaHTuHoro Cpoka BbIKpyuHBaTb HeJb3ra. HeBbINOnHeHne 3TORO Tpe6OBaHnB Bleuet 3a Co6oI aHHyInpOBaHne rapaHTuHbIX O6ra3aTeNbCTB npOn3BOdntEJa.

3anaChbIe YacTn I npHaJdJIeXHoCTN

Дугп epнадлжхocTи,ВчactHOCTn pa6очne (cMeHHbI) INHCTpyMeHTbl, CM.В KaTaNorax N3ROTOBNTeJI.

NCKJIIOUeHHe OTBeTCTBeHHOCTn

I3ROTOBHTeJIb I erO npEcdTaBHTeJIb He Hecyt OTBETCTBeHHocTn 3a yUep6 u yNyueHnyo np6blb B pe3yJbTaTe IpepbBaHnA DeIOBOi DeTeJIbHOCTn, KOtOpblc6bln OBCNOBHebl N3deJIeM Nlln HEBO3MOXHOCTbIO NCNoJIb3OBAHnN3DeJIInr. I3ROTOBHTeJIb I erO npEcdTaBHTeJIb He Hecyt OTBETCTBeHHocTn 3a NOBpeKdEHnR, BO3HNKUINE B pe3yJbTaTe NCNoJIb3OBAHnN3DeJIInr He N0 Ha3NaueHIO NII npr erO NcNoJIb3OBaHnC N3deJIInr M dpyHX N3ROTOBHTeJIeN.

Sisukord

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

ab ① bab

aalg aalge aalge aalbblal balee

1.4

4021j52000j520g 10A.11111111

.FLEX Loc

aJieJIg aJU

1

A

C. a1 + a2 + a3 + a4 = 5

j5i jii 1

b_1 = 2,b_2 = - 4

1

A

m = 311

#

S_ OBC = 12 · BO · CD = 12 × 2t × 5

y

aill lill g aill aai yie gai gic

1

#

10a1 < a2 < 15,a2 < a3 < a4 且 a5 > a6 > a7 > a_8 > ·s

1

Jolili JIogai 2.2

1J 3

l_2 = 9x - 4( 0 < x < 1)

j4t^4 = j1t^2 + j_3t^3

JooJI 2000

o aolalai aai ala gai alai j

Jaeell chaw

7

JcaiLwjlaasLgcljglj

1

aLgS102g

2.

logaoa baojg Jieyill gLo jc

Clll llebe

1

jooJgio J

1. 2.

1bgiio 4 biinjie 100

1gao 1

C

aai aalgl lal alal

A

0-1 mm

gL 10Jaa aalbll JaaJ

aai 1

aLgSjlg（）

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

1

1 85 2g 2g 2g 2g

a 1000000000000000000000000000000000000000000000000000000000000000000000000000000000

a 10000000000000000000000000000000000000000000000000000000000000000000000000

a a 1c 2000000000000000000000000000000000000000000000000000000000000000000000000000000

Jaeiie aiae aegy ygi gai sio jy Jaeiie iis I Log oLg gI Lg jg lpa Jaeiie cag dnnn n nn Jaoa e 100000000000000000000000000000000000000000000000000000000000000000000000000000

J 1 J 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

sfoLwog jolilgii
y 12000000000000000000000000000000000000000000000000000000000000000000000000

aLo 1111111111111111111111111111111111111111111

L 111111111111111111111111111111111111111111111111111111111111

pssss 1000000000000000000000000000000000000000000000000000

aIwglgll allj8 aauuua 4wlll jyll lss
8jglgall wuii i. cuii jn uai I yll lil
Lswsll n ciuiei yll slaic
Jwagaoowwaiwai Lws po siwli
Ljiajjll jwll owlwii wsiu

1g2yL aolz a5lgim 1w g0j pssu8
a31 auiyg
11 auiygl 11 11 11 11
auiygl 11 11 11 11

alalag aolalag lglalag aalag aalag aalag aalag alalag aalag aalag aalag aalag aalag aalag aalag aalag aalag aalag aalag aalag aalag aalag aalag aalag aalag aalag aalag aalag aalag aalag aalag aalag aalag aalag aalag aalag aalag aalag aalag aalag aalag aallg agaegaae gaaee gaaee gaaee gaaee gaaee gaaee gaaee gaaee gaaee gaaee gaaee gaaee gaaee gaaee gaaee gaaee gaaee gaaee gaaee gaaee gaaee gaaee gaaee gaaee gaaee gaaee gaaee gaaee gaaee gaaee gaaee gaaee gaaee gaaee

UKCA

05:0Lw9 0silo

1.

Lagg aillg 81,8

a 1000

oo

20 Jolell jil: "aolll aolllg 1o81 o8

33 51 24 8 1

( 315.915 : 2g( 0,,2) )

As the manufacturer, we declare under our sole responsibility that the products listed along with the corresponding product types and article and serial numbers comply with all relevant regulations and directives listed and that the following harmonised standards were applied. Responsible for technical documents:

fr Conformité (C)
