USER MANUAL HCE2600 SCHEPPACH

Line drawing of a mechanical water heater device (no text or symbols)

https://www.scheppach.com/de/service scheppach

Made in P.R.C.

HCE2600

GB Electrical high-pressure cleaner | Translation of the original operating instructions | WARNING: READ CAREFULLY BEFORE USE AND STORE IN A SAFE PLACE FOR FUTURE REFERENCE..... 18

Technical diagram of a water heater with numbered parts labeled for identification.

Technical diagram of a robotic device with numbered parts labeled 9, 10, 11, and 12.

2

Technical diagram showing exploded view of various hair tools and accessories with numbered labels

3

Diagram showing a mechanical assembly with labeled parts and a checkmark indicator

Technical diagram of a device with numbered components and directional arrows indicating assembly or movement.

9

4

1 1a 1a

5

12 12a

6

13 14 4a 4 2 2a 2c 2c 18 17 6

7

15 16 2

Inhaltsverzeichnis

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Garantiebedingungen

Revisionsdatum 26.11.2021

https://www.scheppach.com/de/service

https://www.scheppach.com/de/service scheppach

1 Introduction ...... 18
2 Product description (Fig. 1-7).... 18
3 Scope of delivery (Fig. 2) 19
4 Proper use.... 19
5 Safety instructions.... 19
6 Technical data.... 21
7 Unpacking 22
8 Assembly....22
9 Before commissioning.... 22
10 Operation 23
11 Cleaning and maintenance 24
12 Electrical connection 25
13 Repair and ordering spare parts 25
14 Disposal and recycling 26
15 Troubleshooting 26
16 EU Declaration of Conformity.... 27

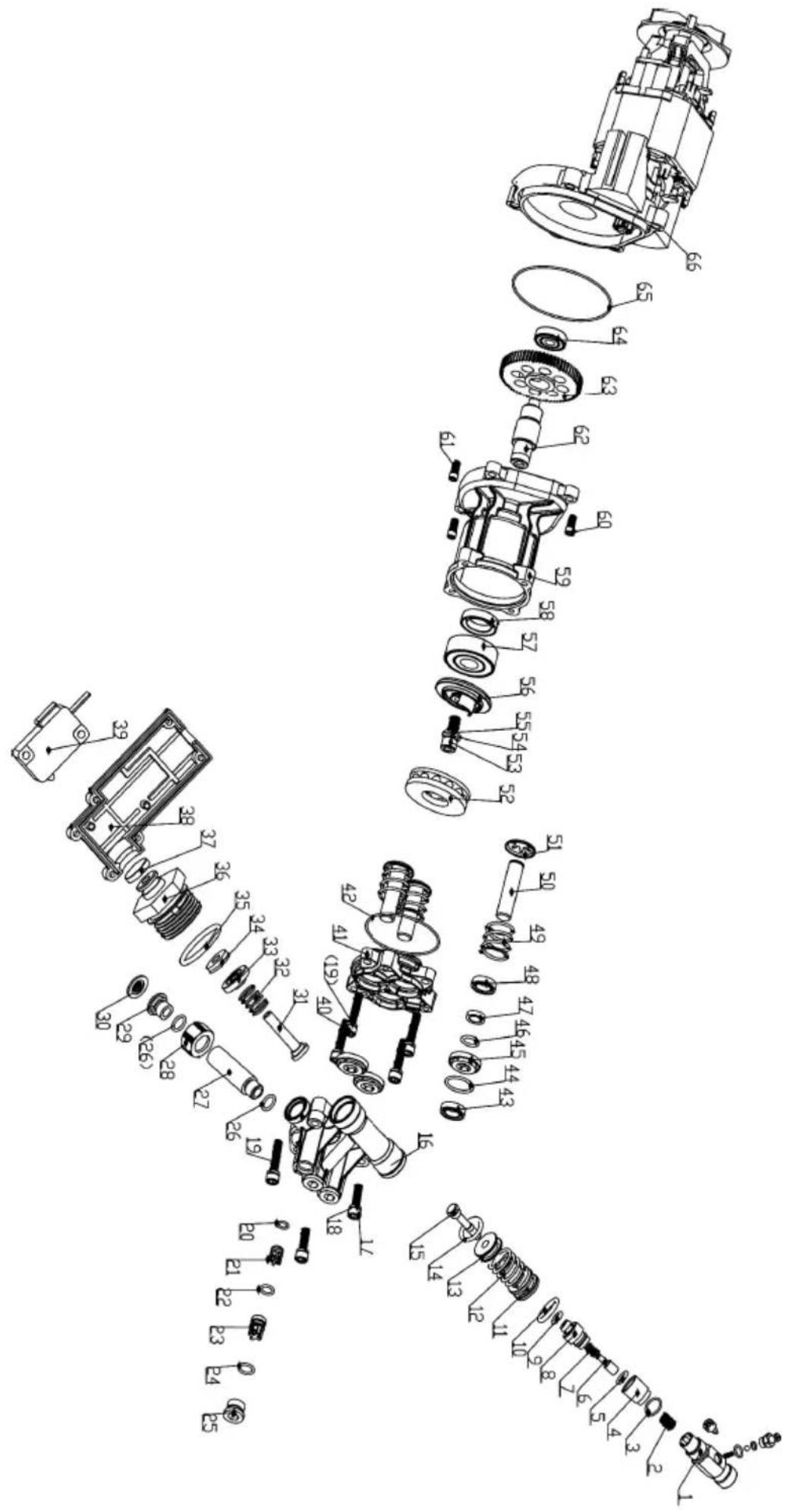

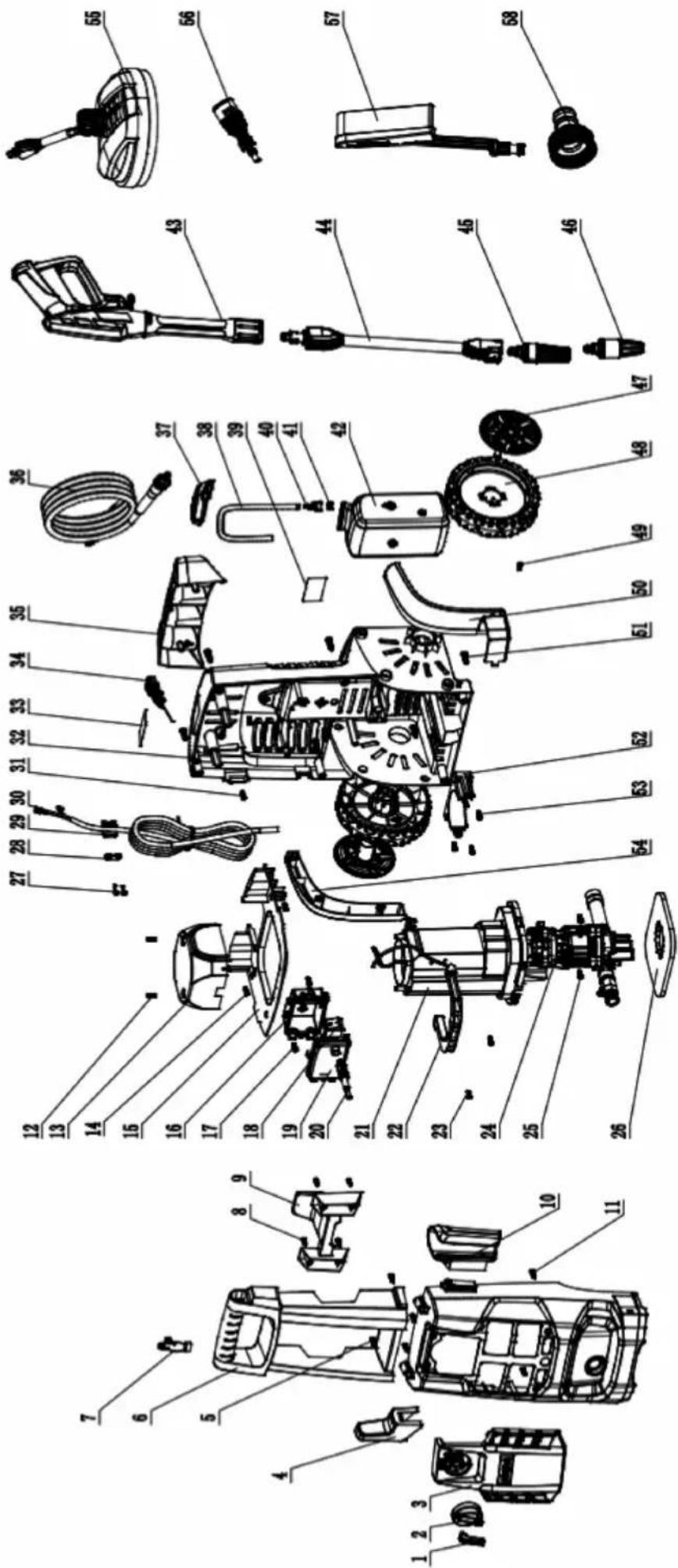

17 Exploded view.... 260

Explanation of the symbols on the product

Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures.

	Before commissioning, read and observe the operating manual and safety instructions!
	Wear safety goggles.
	Wear hearing protection.
	Do not direct the high-pressure jet towards any persons, animals, active electrical equipment or the product itself.
	The product must not be connected directly to the public drinking water network.
	Only carry out maintenance, conversion, adjustment and cleaning work when the product is switched off and the mains plug is disconnected!
	Guaranteed sound power level of the product.
	The product complies with the applicable European directives.

The product complies with the applicable Serbian directives.

1 Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer

We hope your new product brings you much enjoyment and success.

Note:

In accordance with the applicable product liability laws, the manufacturer of this product assumes no liability for damage to the product or caused by the product arising from:

• Improper handling
  • Non-compliance with the operating manual
  • Repairs carried out by third parties, unauthorised specialists
  • Installing and replacing non-original spare parts
• Improper use
• Failures of the electrical system in the event of the electrical regulations and VDE provisions 0100, DIN 57113 / VDE0113 not being observed.

Note:

The operating manual is part of this product.

It includes important instructions for the safe, proper and economic operation of the product, for avoiding danger, for minimising repair costs and downtimes and for increasing the reliability and extending the service life of the product. In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the product in your country.

Familiarise yourself with all operating and safety instructions before using the product. Only operate the product as described and for the specified areas of application. Keep the operating manual in a good place and hand over all documents when passing the product on to third parties.

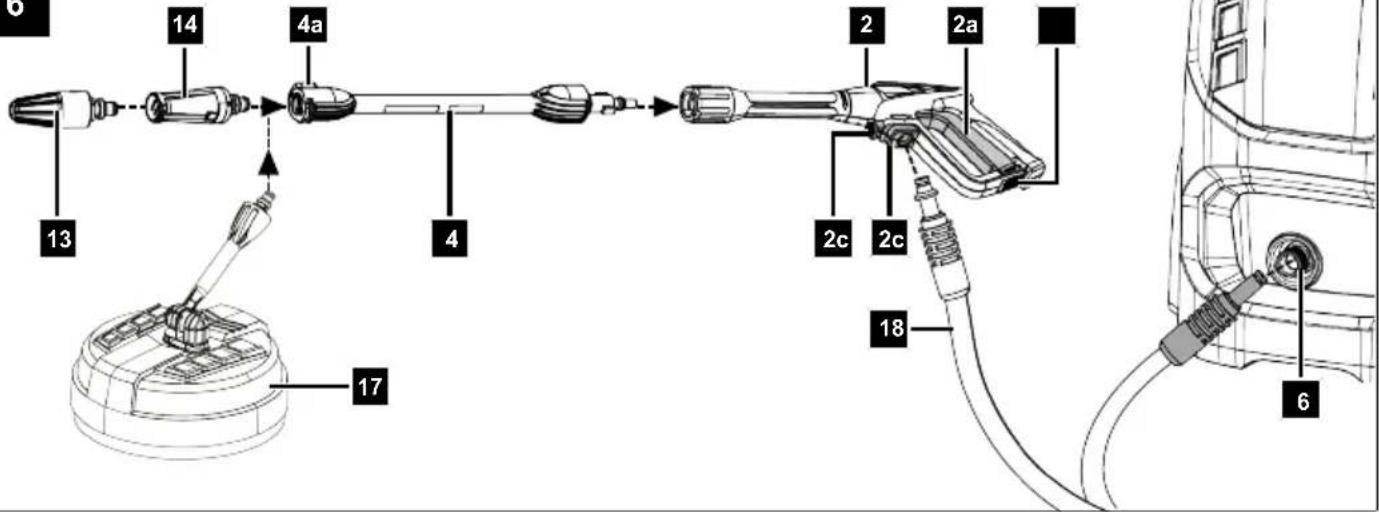

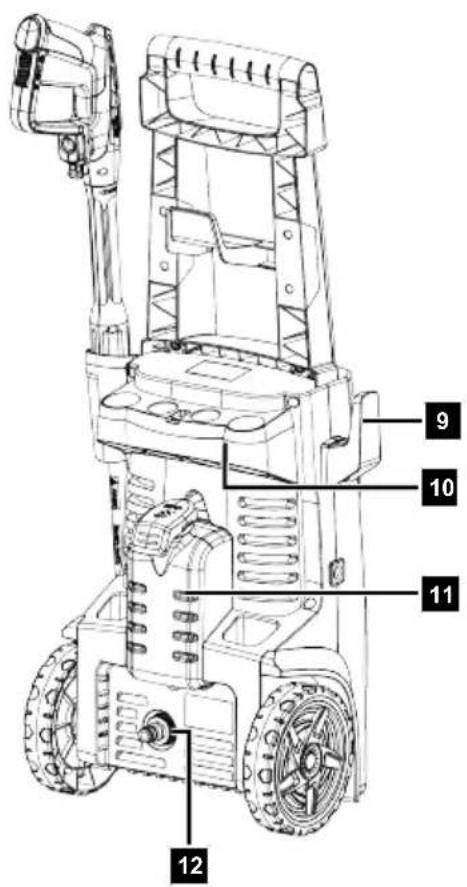

2 Product description (Fig. 1-7)

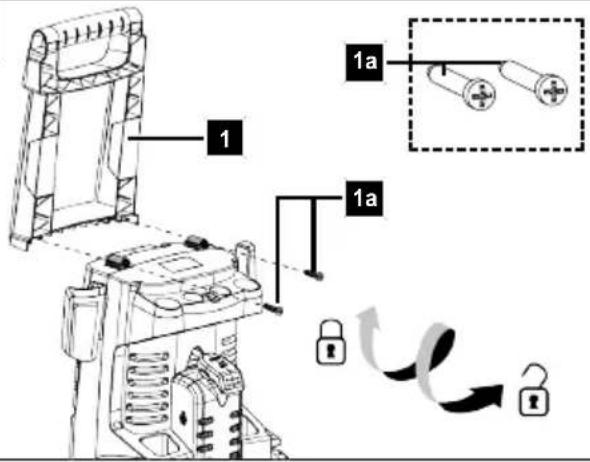

1. Handle
   1a. Screw
2. Spray gun
   2a. Actuation lever
   2b. Switch lock
   2c. Connection
   2d. Unlocking

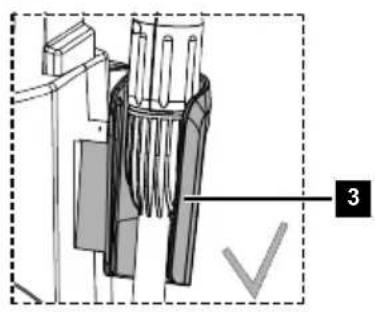

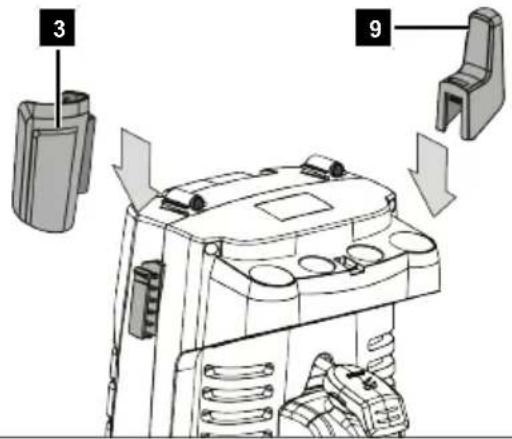

3. Lance holder
4. Lance
   4a. Unlocking
5. Wheels
6. Connection (high-pressure hose)
7. On/off switch
8. Holder (high-pressure hose)

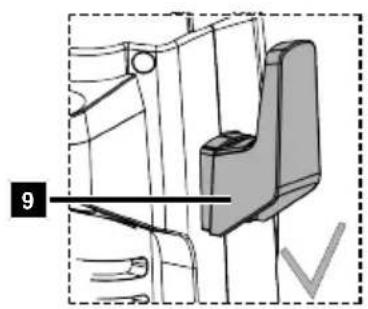

9. Holder (mains connection cable)
   9a. Mains connection cable (not shown)

10. Holder (accessories)

11. Cleaning agent container
    11a. Sealing cap with suction hose

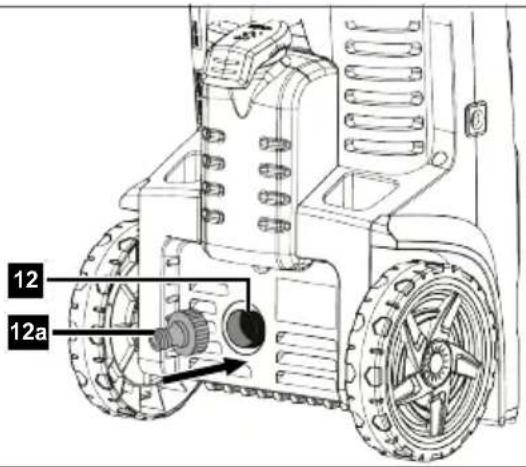

12. Water connection
    12a. Clutch
13. Turbo nozzle
14. Variable nozzle

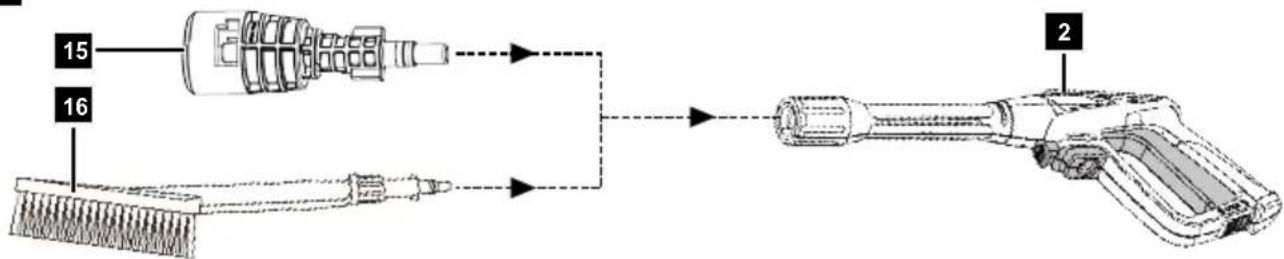

15. Kärcher adapter
16. Washing brush
17. Patio cleaner
18. High-pressure hose
19. Nozzle cleaning needle

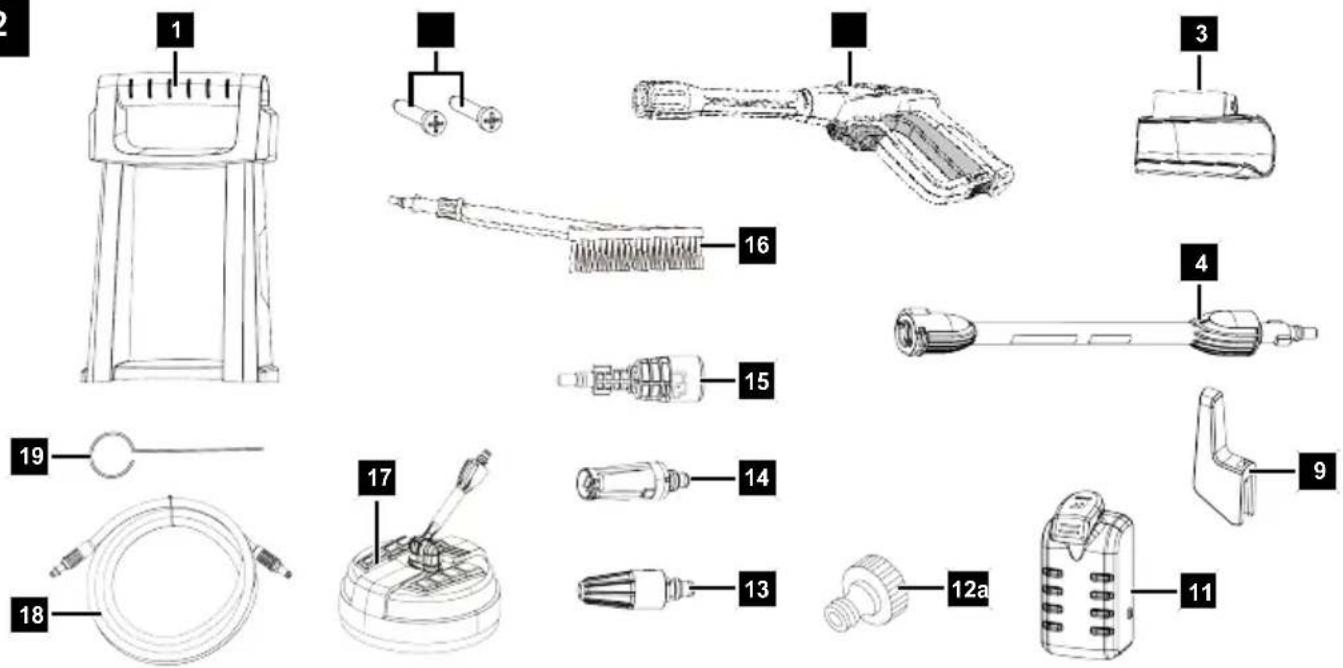

3 Scope of delivery (Fig. 2)

Item Quantity Designation

1. 1 x Handle
   1a. 2 x Screw
2. 1 x Spray gun
3. 1 x Lance holder
4. 1 x Lance
5. 1 x Holder (mains connection cable)
6. 1 x Cleaning agent container
   12a. 1 x Coupling (water connection)
7. 1 x Turbo nozzle
8. 1 x Variable nozzle
9. 1 x Kärcher adapter
10. 1 x Washing brush
11. 1 x Patio cleaner
12. 1 x High-pressure hose
13. 1 x Nozzle cleaning needle

1 x High-pressure cleaner

1 x Operating manual

4 Proper use

The high-pressure cleaner is used:

• For cleaning machines, vehicles, buildings, tools, façades, terraces, garden tools, etc. with high-pressure water jets.
• With original accessories and spare parts.
• In compliance with the manufacturer's instructions for the object to be cleaned.

The product may only be used in the intended manner. Any use beyond this is improper. The user, not the manufacturer, is responsible for damages or injuries of any type resulting from this.

An element of the intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the operating manual.

Persons who operate and maintain the product must be familiar with the manual and must be informed about potential dangers.

The liability of the manufacturer and resulting damages are excluded in the event of modifications of the product.

The product may only be operated with original parts and original accessories from the manufacturer.

The safety, operating and maintenance specifications of the manufacturer, as well as the dimensions specified in the technical data, must be observed.

Please note that our products were not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the product is used in commercial or industrial applications, or for equivalent work.

Explanation of the signal words in the operating manual

DANGER

Signal word to indicate an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in minor or moderate injury.

ATTENTION

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in product or property damage.

5 Safety instructions

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

WARNING

Read all safety warnings, instructions, illustrations and specifications provided with this power tool.

Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

5.1 General safety instructions

• The product must not be used by children. Children should be supervised in order to ensure that they do not play with the product. This product can be used by persons with reduced physical, sensory or mental capabilities or with a lack of experience or knowledge, if they are supervised or if they have been trained in the safe use of the product and understand the resultant hazards. Children may not play with the Product. Cleaning and user maintenance must not be carried out by children unsupervised.
• Persons who are unfamiliar with the operating manual may not operate the product.

WARNING

High-pressure cleaners shall not be operated by children or untrained persons.

- In the event of a disruption or fault during use, switch the product off immediately and pull out the mains plug. Then read the Troubleshooting chapter.

5.2 Working with the product

CAUTION

It will help you avoid accidents and injuries:

WARNING

This product is designed to use the cleaning agents supplied or recommended by the manufacturer. The use of other cleaning agents or chemicals may affect the safety of the product.

WARNING

High-pressure jets can be dangerous when used improperly.

The jet must not be directed towards any persons, active electrical equipment or the product itself.

WARNING

Do not use the product when other people are in range unless they are wearing protective clothing.

WARNING

Do not direct the jet at yourself or others to clean clothing or footwear.

WARNING

Risk of explosion!

Do not spray flammable liquids!

WARNING

The product must not be operated by children or un-trained persons.

WARNING

High-pressure hoses, fixtures and couplings are important for product safety. Only use high-pressure hoses, fixtures and couplings recommended by the manufacturer.

WARNING

To ensure product safety, only use original spare parts from the manufacturer or spare parts approved by the manufacturer.

WARNING

Water that has flowed through the backflow prevention device is considered non-potable.

WARNING

Aerosols may form during use of the product. Inhaling aerosols can be hazardous to health.

WARNING

Depending on the application, spray nozzles with a protective cover can be used for the product, which greatly reduces the emission of aerosol containing water. The use of such a device is not permitted for all applications. If spray nozzles with protective cover for protection against aerosols are not applicable, a respirator mask of class FFP2 or equivalent may be required, depending on the cleaning environment.

• Only use the product upright and on a level and stable surface.
• Wear suitable protective clothing and safety goggles to protect against splashing water or dirt.
  • Take appropriate measures to keep children away from the product while it is running.
• Do not use the product in the vicinity of combustible fluids or gases. There is a risk of fire or explosion if disregarded.
• If you come into contact with cleaning agent, rinse with plenty of clean water.
• Store the product in a dry place and out of reach of children.

CAUTION

In this way you avoid damage to the product and any personal injury resulting from it:

• Do not work with a damaged, incomplete or modified product without the consent of the manufacturer. Before commissioning, have a specialist check that the required electrical protective measures are in place.
• Do not use the product if the mains connection cable, the water supply hose or other important parts such as the high-pressure hose or the spray gun, are damaged.
• Protect the product from frost and dry-running.
• The product may only be opened by an authorised electrician. In the event of repair, always contact our service centre.

5.3 Electrical safety

CAUTION

To avoid accidents and injuries due to electric shock:

- If an extension lead is used, the plug and coupling must be watertight.

CAUTION

Unsuitable extension cables could be dangerous. There is a risk of persons being injured due to electric shock.

• Keep the product away from rain and moisture. Water penetrating the product increases the risk of an electric shock.
• Before commissioning, ensure that the mains voltage matches with the operating voltage on the type plate.
• The mains connection must be carried out by an experienced electrician and meet the requirements of IEC 60364-1.

- Electrical connections must be made by an electrician in accordance with all local and national regulations.

- Use a residual current circuit breaker with a trigger current of 30 mA or less.

- Before each use, check the product, mains connection cable and connectors for damage.

- If the mains connection cable for the product is damaged then it must be replaced by the manufacturer or their customer services personnel or by a similarly qualified person, in order to avoid hazards.

- Do not use the cable to pull the plug out of the socket. Protect the cable from heat, oil and sharp edges.

- Do not carry or fasten the product by the mains connection cable.

- Unsuitable extension cables could be dangerous. If an extension cable is used, it must be suitable for outside use, the connection must be dry and must be raised off the ground. It is recommended to use a cable drum for this, keeping the socket at least 60 mm above the floor. Check the cable for damage.

- Disconnect the mains plug from the socket before carrying out any work on the product, as well as during breaks in work, cleaning and when not in use.

- Extension cables must not have a smaller conductor cross-section than 2 × 2.5 ~mm^2 .

- Wear sturdy footwear to protect against electric shock.

• To protect against electric shock, only operate the product in an upright, standing position.

- Switch off the product if you leave it unattended.

Residual risks

The product has been built according to state-of-the-art and the recognised technical safety rules. However, individual residual risks can arise during operation.

• Health hazard due to electrical power, with the use of improper electrical connection cables.

• Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.

- Residual risks can be minimised if the "Safety Instructions" and the "Intended Use" together with the operating manual as a whole are observed.

- Prevent the product being unintentionally started up.

- Keep your hands away from the working area when the product is in operation.

- Comply with the stipulated maintenance and safety instructions in the operating manual.

WARNING

This power tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain circumstances. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the power tool.

6 Technical data

Rated voltage 230-240 V~/50 Hz
Rated power consumption 2400 W
Protection class	II / ☐(Double insulation)
Protection category IPX5
Length of mains connection cable 5 m
Length of high-pressure hose 8 m
Design pressure / working pressure (p)	120 bar (12 Mpa)
Max. permissible pressure (p max)	180 bar (18 Mpa)
Max. supply pressure (p max) 4 bar
Rated flow rate (Q)	5.5 l/min
Max. flow rate (Qmax)	8 l/min
Max. measurement temperature (T in max)	50°C
Weight	11 kg

Subject to technical changes!

WARNING

Noise can have serious effects on your health. If the machine noise exceeds 85 dB, please wear suitable hearing protection for you and persons in the vicinity.

The noise and vibration values have been determined in accordance with EN 60335-2-79 2012.

Noise data

Sound pressure level L_pA	76 dB
Measurement uncertainty K_pA	3 dB
Sound power level L_wA	92 dB
Guaranteed sound power level L_wA	94 dB
Measurement uncertainty K_wA	3 dB

Vibration parameters (hand/arm vibration)

Vibration a_n	2.5 m/s ^2
Measurement uncertainty K	1.5 m/s ^2

The total vibration emission values specified and the device emissions values specified have been measured in accordance with a standardised test procedure and can be used for comparison of one electric tool with another.

The total noise emission values specified and the total vibration emission values specified can also be used for an initial estimation of the load.

WARNING

The noise emission values and vibration emission value can vary from the specified values during the actual use of the power tool, depending on the type and the manner in which the electric tool is used, and in particular the type of workpiece being processed.

Try to keep the stress as low as possible. For example: Limit working time. In doing so, all parts of the operating cycle must be taken into account (such as times in which the power tool is switched off or times in which it is switched on, but is not running under a load).

7 Unpacking

WARNING

The product and the packaging material are not children's toys!

Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

• Open the packaging and carefully remove the product.
• Remove the packaging material, as well as the packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the product and accessory parts for transport damage. Immediately report any damage to the transport company that delivered the Product. Later claims will not be recognised.
• If possible, keep the packaging until the expiry of the warranty period.
• Familiarise yourself with the product by means of the operating manual before using for the first time.
• With accessories as well as wearing parts and replacement parts use only original parts. Spare parts can be obtained from your specialist dealer.
• When ordering please provide our article number as well as type and year of manufacture for the product.

8 Assembly

WARNING

Danger of injury!

Do not insert the mains plug into the socket until you are ready to use the product.

- Place the product on a level, even surface (such that it cannot topple).

Tool required:

- Phillips screwdriver*

* = may not be included in the scope of delivery!

8.1 Fitting the holders (Fig. 3)

1. Slide the holder (9) for the mains connection cable and the lance holder (3) onto the two connection points on the side of the product.

8.2 Mounting the handle (1) (Fig. 4)

1. Slide the handle (1) onto the connection on the top of the product and fix it with two screws (1a). Use a Phillips screwdriver for it.

8.3 Connecting the coupling (12a) for the water connection (12) (Fig. 5)

1. Remove the cover cap on the water connection (12). Keep the cover cap.
2. Screw the coupling (12a) onto the water connection (12).

9 Before commissioning

In accordance with applicable regulations, the product must never be operated on the drinking water network without a system separator.

A suitable system separator in accordance with EN 12729 type BA must be used.

Water that has flowed through a system separator backflow prevention device is considered non-potable.

A system separator is available from specialist dealers.

A system separator (backflow preventer) prevents water and cleaning agent from flowing back into the drinking water pipe.

- Use a standard 12 " garden hose with a length of at least 5 m for the water inlet. A length of 30 m should not be exceeded.

9.1 Connecting/removing the high pressure hose (18) (Fig. 1, 2)

Connect:

1. Attach the high pressure hose (18) to the connection (6) on the high-pressure cleaner using the screw connection.
2. Connect the coupling plug of the high-pressure hose (18) to the connection (2c) of the spray gun (2). The coupling plug engages audibly.

Remove:

1. Actuate the release (2d) on the spray gun (2) and pull out the high-pressure hose (18).
2. Unscrew the high-pressure hose (18) from the connection (6) on the high-pressure cleaner.

9.2 Connecting/removing the lance (4) (Fig. 1, 2)

Connect:

1. Insert the end of the lance (4) into the connection provided on the spray gun (2).
2. Press the lance (4) firmly into the connection of the spray gun (2) and turn the lance (4) clockwise until it is securely connected to the spray gun (2).

Remove:

1. Press the lance (4) firmly into the connection of the spray gun (2) and turn it anti-clockwise.
2. Pull the lance (4) forwards.

9.3 Selecting the attachment (Fig. 2)

Select the appropriate attachment (13/14/15/16/17) for the work to be carried out:

- Turbo nozzle (13):

The turbo nozzle (13) with its rotating water jet is particularly suitable for removing stubborn dirt.

• Variable nozzle (14):

The variable nozzle (14) with its flat jet is particularly suitable for surface cleaning. The width of the water jet can be adjusted by turning the nozzle tip.

• Kärcher adapter (15):

The Kärcher adapter (15) allows you to use Kärcher brand accessories.

• Washing brush (16):

The washing brush (16) is always used without applying pressure. It is suitable for cleaning sensitive surfaces. The water flows through the bristles, which enables even and gentle cleaning.

- Patio cleaner (17):

With its rotating nozzles, the patio cleaner (17) is suitable for even and thorough cleaning of large, flat surfaces. Move the patio cleaner (17) slowly and evenly over the surface to be cleaned.

9.4 Connecting/removing attachments (13/14/15/16/17) (Fig. 6, 7)

- Select the appropriate attachment (14/15/16/17/18) for the work to be carried out.

- To use the turbo nozzle (13), variable nozzle (14) or the patio cleaner (17), attach the lance (4) to the spray gun (2) as described in 9.2.

- To use the Kärcher adapter (15) and the washing brush (16), remove the lance (4) from the spray gun (2) as described in 9.2.

- You can store attachments (13/14/15/16/17) that you are not using in the holder (10).

Connect:

Turbo nozzle (13) / Variable nozzle (14) / Patio cleaner (17)

1. Fit the appropriate attachment (13/14/17) to the lance (4) and turn the attachment (13/14/17) until you hear it click into place.

Kärcher adapter (15) / Washing brush (16)

1. Insert the appropriate attachment (15/16) into the spray gun (2).

2. Press the suitable attachment (15/16) firmly into the connection of the spray gun (2) and turn the suitable attachment (15/16) until you hear it click into place.

Remove:

Turbo nozzle (13) / Variable nozzle (14) / Patio cleaner (17)

1. Press the release (4a) at the front end of the lance (4) and pull the attachment (13/14/17) forwards.

Kärcher adapter (15) / Washing brush (16)

1. Press the attachment (15/16) firmly into the connection of the spray gun (2) and turn it anti-clockwise.

2. Pull the attachment (15/16) forwards and off.

10 Operation

ATTENTION

Always make sure the product is fully assembled before commissioning!

ATTENTION

Only operate the product in an upright position, never in a lying position.

DANGER

If the product falls over, switch it off immediately and disconnect it from the power supply!

There is a risk of electric shock!

Only now should you return the product to an upright, standing position.

For your own safety, wait about five minutes before re-establishing the electrical connection.

WARNING

Pay attention to the recoil force caused by the emergent water jet.

Ensure that you have secure footing and hold the spray gun firmly.

Otherwise, you could injure yourself or others!

WARNING

If there are leaks in the water system, switch off the product immediately and disconnect the product from the mains immediately.

There is a danger of electric shock!

Start connecting the water connections again.

Note:

Do not operate the product with a closed water tap. Running dry will damage the product.

10.1 Use of cleaning agents (Fig. 2)

Note:

Use only cleaning agents that are suitable for use with the product.

1. To fill the cleaning agent tank (11), pull it out of the holder on the high-pressure cleaner.

2. Remove the sealing cap with suction hose (11a) from the cleaning agent tank (11).

3. Fill the cleaning agent tank (11) with suitable cleaning agent.

4. Fit the cap with suction hose (11a) and put the cleaning agent tank (11) back into the holder on the high-pressure cleaner.

5. Use the washing nozzle (16).

The cleaning agent is sucked in automatically.

10.2 Switching the product on/off (fig. 1, 6)

Switching on

1. Connect a garden hose with quick-release coupling* to the coupling (12a) on the water connection (12).
2. Plug the mains plug into the socket.
3. Open the water tap fully.
4. Switch on the product using the on/off switch (7). Always switch on the product only after you have connected all water connections and checked that they are tight. The motor switches on until the required pressure is built up. Once the pressure has built up, the motor switches off.
5. Unlock the trigger (2a) with the trigger interlock (2b).
6. Press the trigger (2a) on the spray gun (2). The motor starts automatically.
7. By releasing the trigger (2a), the product switches off, the high pressure in the system is maintained.

Switching off

1. Switch the product off with the On/Off switch (7).
2. Remove the mains plug from the socket.
3. Turn off the water tap.
4. Disconnect the high-pressure cleaner from the water supply.
5. Press the trigger (2a) of the spray gun (2) to release the existing pressure in the system.
6. Lock the trigger (2a) with the trigger interlock (2b).

* = may not be included in the scope of delivery!

10.3 Self-priming function

DANGER

The product itself must not be immersed in the open water source. There is a risk of persons being injured due to electric shock.

You can also use the product independently of the water supply (e.g. rain barrel*) thanks to the integrated water suction function.

This function can only be used with a suction hose with filter basket*.

* = may not be included in the scope of delivery!

Note:

• Running dry will damage the product.
• The product should not be higher than the water take-off point.
• Plug the suction hose with filter basket onto the coupling (12a) of the water connection (12).
• Hang the end with the filter basket in the water withdrawal point. Make sure there is a sufficient supply of water and a reliable water supply.

• Remove the lance (4) from the spray gun (2). Press the trigger (2a) of the spray gun (2) and only then switch on the product.

• The product starts to draw in water and the air can escape.

• When there is no more air in the product, you can release the trigger (2a) of the spray gun (2).

10.4 Stop operation

1. After working with cleaning agents, rinse the system with clean water. Remove the cleaning agent tank (12).
2. Switch the product off as described in 10.2.
3. Remove the high-pressure hose (8) as described in 9.1.
4. Remove the attachment from the lance (4) as described in 9.2.
5. Stow the spray gun (2) with the lance (4) in the holder (4a).

11 Cleaning and maintenance

WARNING

Have maintenance and repair tasks that are not described in this operating manual, carried out by a specialist workshop. Use only original spare parts.

WARNING

Improper maintenance or cleaning work can cause injuries!

WARNING

The product may start unexpectedly and cause injuries and burns during cleaning, repair and maintenance work.

• Switch the product off.
  – Pull out the mains plug.
• Allow the product to cool.

11.1 Cleaning

WARNING

Do not spray the product with water or clean it under running water. There is a danger of electric shock and the product could be damaged.

• Keep protective devices, air vents and the motor housing as free of dust and dirt as possible. Rub the product clean with a clean cloth* or blow it off with compressed air* at low pressure. We recommend that you clean the product directly after every use.
• Never immerse the product in water or other liquids for cleaning.
• Clean the product at regular intervals using a damp cloth* and a little soft soap. Do not use any cleaning products or solvents; they could attack the plastic parts of the product. Make sure that no water can penetrate the product interior.
  • Always keep the product clean, dry and free from oil or grease. Remove dust after each use and before storage.

11.1.1 Cleaning the nozzle (Fig. 2)

1. You can remove foreign objects from clogged nozzles (13, 14) with the nozzle cleaning needle (19).
2. Rinse the nozzles (13, 14) with water to remove any foreign objects.

11.1.2 Cleaning the strainer insert (Fig. 1, 2)

1. Clean the strainer insert, which is installed between the coupling (12a) and the water connection (12), at regular intervals.
2. To do this, unscrew the coupling (12a) from the water connection (12).
3. Clean the strainer insert with the nozzle cleaning needle (19).

11.2 Maintenance

The product is maintenance-free.

There are no parts which can be repaired by the user within this product. Contact a qualified professional to have the product checked and repaired.

- Check the product for obvious defects such as loose, worn or damaged parts before each use.

12 Electrical connection

The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions. The customer's mains connection as well as the extension cable used must also comply with these regulations.

• The product fulfils the requirements of EN 61000-3-11 and is subject to special connection requirements. This means that use at any freely selectable connection points is not permitted.
  • The product can cause temporary voltage fluctuations in unfavourable mains conditions.
  • The product is intended exclusively for use at connection points which

a) do not exceed a maximum permitted mains impedance "Z" (Zmax. = 0.471 Ω), or b) have a continuous current carrying capacity of the mains of at least 100 A per phase.

- As the user, you are required to ensure that the connection point at which you wish to operate the product fulfils one of the requirements mentioned, a) or b). If necessary, consult with your energy supplier in this regard.

12.1 Damaged electrical connection cables

The insulation on electrical connection cables is often damaged.

This may have the following causes:

• Pressure points, where connection cables are passed through windows or doors.
• Kinks where the connection cable has been improperly fastened or routed.
• Places where the connection cables have been cut due to being driven over.
  • Insulation damage due to being ripped out of the wall socket.

- Cracks due to the insulation ageing.

Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage.

Check the electrical connection cables for damage regularly. Ensure that the connection cables are disconnected from electrical power when checking for damage.

Electrical connection cables must comply with the applicable VDE and DIN provisions. Only use connection cables of the same designation.

The printing of the type designation on the connection cable is mandatory.

Safety information for replacing damaged or defective mains connection cables

Connection type Y

If it is necessary to replace the mains connection cable, this must be done by the manufacturer or their representative to avoid safety hazards.

12.2 Important information

In the event of overloading, the motor will switch itself off. After a cool-down period (time varies) the motor can be switched back on again.

12.3 AC motor

Connections and repair work on the electrical equipment may only be carried out by electricians.

• The mains voltage must be 230 V - 240V\~
- Extension cables up to 25 m long must have a cross-section of 1.5 mm ^2 .

13 Repair and ordering spare parts

After repairs or maintenance, make sure that all safety-related parts are installed and are in perfect condition. All parts which may cause injury must be kept where they are inaccessible to children or others.

ATTENTION

According to the German Product Liability Act, no liability is accepted for damage caused by improper repairs or by not using original spare parts.

Such work should be performed by a customer service centre or an authorised specialists. The same applies to accessory parts.

Spare parts and accessories can be obtained from our Service Centre. To do this, scan the QR code on the front page.

Connections and repairs

Connections and repair work on the electrical equipment may only be carried out by electricians.

13.1 Ordering spare parts

Please provide the following information when ordering spare parts:

• Model designation
• Item number
• Type plate data

Spare parts / accessories

Variable nozzle - Article no.: 5907702012
Turbo nozzle - Article no.: 5907702013
Patio cleaner - Article no.: 5907702701
Washing brush - Article no.: 5907702702
Rotating brush - Article no.: 5907702703
Cleaning agent tank - Article no.: 5907702704
90° turbo nozzle - Article no.: 5907702705
Kärcher adapter - Article no.: 5907702706
Pipe cleaning hose - Article no.: 5907702709
Lance - Article no.: 5907705006
Intake set - Article no.: 7907713708

14 Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

Notes on the electrical and electronic equipment act [ElektroG]

Waste electrical and electronic equipment does not belong in household waste, but must be collected and disposed of separately!

- Used batteries or rechargeable batteries that are not installed permanently in the old appliance must be removed non-destructively before disposal! Their disposal is regulated by the battery act.

• Owners or users of electrical and electronic devices are legally obliged to return them after use.
• The end user is responsible for deleting their personal data from the old device being disposed of!
• The symbol of the crossed-out dustbin means that waste electrical and electronic equipment must not be disposed of with household waste.
• Waste electrical and electronic equipment can be handed in free of charge at the following places:

– Public disposal or collection points (e.g. municipal works yards)

- Points of sale of electrical appliances (stationary and online), provided that dealers are obliged to take them back or offer to do so voluntarily.

- Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity.

- Further supplementary take-back conditions of the manufacturers and distributors can be obtained from the respective customer service.

If the manufacturer delivers a new electrical appliance to a private household, the manufacturer can arrange for the free collection of the old electrical appliance upon request from the end user. Please contact the manufacturer's customer service for this.

- These statements only apply to devices installed and sold in the countries of the European Union and which are subject to the European Directive 2012/19/EU. In countries outside the European Union, different regulations may apply to the disposal of waste electrical and electronic equipment.

15 Troubleshooting

Fault	Possible cause	Remedy
Product does not run.	Product switched off. On/off switch switched off.	Switch the product on with the On/Off switch.
	Damaged mains connection cable.	Switch the product off and disconnect from the mains. Check for mains connection cable for damage. If necessary, have the mains connection cable replaced by an authorised specialist.
	Faulty power supply.	Check the electrical system for compliance with the specifications on the type plate.
Product has no pressure.	Water supply line pressure drop.	Check the water supply.
Heavy pressure fluctuations.	Nozzle dirty or clogged.	Rinse the nozzle with water. If necessary, clean the nozzle bore with the nozzle cleaning needle.
Leak in the water system.	Connections not fitted correctly.	Switch the product off and disconnect from the mains. Connect the product to the water lines again.

16 EU Declaration of Conformity

Translation of the original Declaration of Conformity

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

We declare under our sole responsibility that the product described here complies with the applicable directives and standards.

Brand: SCHEPPACH

Art. designation: Electrical high-pressure cleaner - HCE2600

Art. no. 5907752901

EU directives:

2014/30/EU, 2006/42/EG, 2000/14/EG_2005/88/EG, 2011/65/EU*,

* The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Applied standards:

EN 60335-1:2012+A11+A13+A1+A14+A2+A15;

Conformity assessment procedure:

2000/14/EG_2005/88/EC - Appendix: V

Guaranteed 94 dB

sound power level ( L_WA ):

Measured 92 dB

sound power level ( L_WA ):

Documentation authorised representative:

Georg Kohler

Günzburger Str. 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Sommaire

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Indice

Günzburger Straße 69

D-89335 Ichenhausen, Germania

Egregio cliente,

Günzburger Straße 69

D-89335 Ichenhausen

2000/14/EG\_2005/88/CE – Allegato: V

Division Manager Product Center

Andreas Pecher

Head of Project Management

Inhoudsopgave

Günzburger Straße 69

D-89335 Ichenhausen

Geachte klant,

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Índice

Günzburger Straße 69

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Índice

Günzburger Straße 69

9.4 Ligar remover os acessórios (13/14/15/16/17) (Fig. 6, 7)

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Obsah

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazníku,

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Obsah

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazník,

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Tartalomjegyzék

Günzburger Straße 69

D-89335 Ichenhausen

Tisztelt Ügyfelünk!

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Spis treści

Günzburger Straße 69

D-89335 Ichenhausen

Szanowny Kliencie

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Popis sadržaja

1 Uvod.... 118
2 Opis proizvoda (sl. 1-7).... 118
3 Opseg isporuke (sl. 2).... 119
4 Namjenska uporaba.... 119
5 Sigurnosne napomene.... 119
6 Tehnički podatci 121
7 Raspakiravanje 122
8 Montaža 122
9 Prije stavljanja u pogon.... 122
10 Rukovanje 123
11 Čišćenje i održavanje.... 124
12 Priključivanje na električnu mrežu.... 125
13 Popravak i naručivanje rezervnih dijelova..... 125
14 Zbrinjavanje i recikliranje.... 126
15 Otklanjanje neispravnosti.... 126
16 EU izjava o sukladnosti.... 127
17 Eksplodirani prikaz.... 260

Günzburger Straße 69

D-89335 Ichenhausen

Poštovani kupče

Želimo vam mnogo zadovoljstva i uspjeha prilikom rada s novim proizvodom.

Napomena:

Prema važećem njemačkom Zakonu o odgovornosti za proizvode, proizvođač ovog proizvoda ne odgovara za štete koje nastanu na ovom proizvodu ili koje ovaj proizvod uzrokuje u slučaju:

• neispravnog rukovanja
• nepridržavanja priručnika za uporabu
• popravaka koje obave drugi, neovlašteni stručnjaci
  • montaže i zamjene neoriginalnih rezervnih dijelova
• nenamjenske uporabe
• kvarova električnog sustava zbog nepridržavanja propisa i odredaba o električnoj energiji VDE 0100, DIN 57113 / VDE0113.

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Kazalo

Günzburger Straße 69

D-89335 Ichenhausen

Spoštovani kupec,

Želimo vam veliko veselja in uspeha pri delu z vašim novim izdelkom.

Napotek:

Proizvajalec tega izdelka skladno z veljavnim zakonom o odgovornosti za izdelke ne jamči za poškodbe na tem izdelku ali poškodbe s tem izdelkom, do katerih pride pri:

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Sisukord

Günzburger Straße 69

D-89335 Ichenhausen

Austatud klient!

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Turinys

Günzburger Straße 69

D-89335 Ichenhausen

Gerbiamas kliente,

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Satura rādītājs

Günzburger Straße 69

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Head of Project Management

Günzburger Straße 69

D-89335 Ichenhausen

Bästa Kund!

Günzburger Straße 69

Division Manager Product Center

Head of Project Management

Sisällysluettelo

Günzburger Straße 69

D-89335 Ichenhausen

Arvoisa asiakas

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Indholdsfortegnelse

Günzburger Straße 69

D-89335 Ichenhausen, Tyskland

Kære kunde

Günzburger Straße 69

D-89335 Ichenhausen, Tyskland

Division Manager Product Center

Andreas Pecher

Head of Project Management

Innholdsfortegnelse

Günzburger Straße 69

D-89335 Ichenhausen

Kjære kunde

Günzburger Straße 69

D-89335 Ichenhausen

Prosedyrer for samsvarsvurdering:

2000/14/EF_2005/88/EF - Vedlegg: V

Garantert

lydeffektnivå (L _WA ): 94 dB

Mält

lydeffektnivå (LWA): 92 dB

Division Manager Product Center

Andreas Pecher

Head of Project Management

Съдържание

Günzburger Straße 69

D-89335 Ichenhausen, Германия

Уважаеми клиенти,

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Günzburger Straße 69

D-89335 Ichenhausen

Αξιότιμε πελάτη

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Cuprins

Günzburger Straße 69

D-89335 Ichenhausen

Stimate client

Günzburger Straße 69

D-89335 Ichenhausen

măsurat ( L_WA ): 92 dB

Division Manager Product Center

Andreas Pecher

Head of Project Management

Sadržaj

1 Uvod....240
2 Opis proizvoda (sl. 1-7).... 240
3 Opseg isporuke (sl. 2).... 241
4 Namenska upotreba.... 241
5 Sigurnosne napomene.... 241
6 Tehnički podaci 243
7 Raspakivanje....244
8 Montaža 244
9 Pre stavljanja u pogon.... 244
10 Rukovanje 245
11 Čišćenje i održavanje.... 246
12 Električni priključak.... 247
13 Popravka i naručivanje rezervnih delova ..... 247
14 Odlaganje na otpad i reciklaža.... 248
15 Pomoć za otklanjanje smetnji.... 248
16 EU izjava o usaglašenosti.... 249
17 Znak eksplozije 260

Günzburger Straße 69

D-89335 Ichenhausen

Poštovani kupče

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

İçindekiler

Günzburger Straße 69

D-89335 Ichenhausen

İthalatçı:

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Exploded view diagram of a mechanical assembly with numbered parts for identification

Exploded view diagram of a water purifier with numbered parts for identification

Garantie DE

Obvious defects must be reported within 8 days after receipt of the goods, otherwise the purchaser loses all claims due to such defects. We guarantee our machines, if handled correctly, for the duration of the statutory warranty period from handover in such a way that we will replace free of charge any machine part that demonstrably becomes unusable within this period as a result of material or manufacturing defects. For parts that we do not manufacture ourselves, we only provide a warranty to the extent that we are entitled to warranty claims against the upstream suppliers. The purchaser shall bear the costs of fitting the new parts. Claims for conversion and reduction and other claims for damages are excluded.

Garantie FR
