USER MANUAL 45218 Wiha

Digitales Multimeter Digital multimeter

wiha SELECT RELATIVE HOLD 10kV A mA + Ω

wiha RELATIVE SELECT RELATIVE HOLD Hz% + Ω

Hold

wiha HOLD SELECT RELATIVE HOLD Hz% + 0 - C A mA

wiha APO SELECT RELATIVE HOLD

Messfunktionen

Introduction / Scope of supply 17

Transport and storage 18

Safety references 18

Operation elements and connections 19

Buttons....19

Measurement modes....21

Carrying out measurements 21

Voltage measurement 21

Frequency measurement 22

Resistance measurement.... 22

Diode test 22

Continuity test.... 22

Capacitance test.... 23

Temperature measurement 23

Current measurement 23

Maintenance 24

Cleaning 24

Fuse replacement 25

Technical Data 26

Service and warranty....28

References marked on instrument or in instruction manual

Warning of a potential danger, follow with instruction manual.

Reference! Please use utmost attention.

Caution! Dangerous voltage. Danger of electrical shock.

Continuous double or reinforced insulation category II IEC 536 / DIN EN 61140.

Complies with EU specifications.

Complies with UK specifications.

Instrument fulfils the standard (2012/19/EU) WEEE. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

CAT IV/300 V; CAT III/600 V

Instrument complies to Measurement category CAT IV/300 V and CAT III/600 V against earth.

Description

CAT II: Measurement category II is applicable to test and measuring circuits connected directly to utilization points (socket outlets and similar points) of the low-voltage MAINS installation.

CAT III: Measurement category III is applicable to test and measuring circuits connected to the distribution part of the building's low-voltage MAINS installation.

CAT IV: Measurement category IV is applicable to test and measuring circuits connected at the source of the building's low-voltage MAINS installation.

The instruction manual contains information and references, necessary for safe operation and maintenance of the instrument. Prior to using the instrument, the user is kindly requested to thoroughly read the instruction manual and comply with it in all sections.

Failure to read the instruction manual or to follow with the warnings and references contained herein can result in serious bodily injury or instrument damage. The respective accident prevention regulations established by the professional associations are to be strictly enforced at all times.

Introduction / Scope of supply

You have purchased a high-quality measurement instrument which will allow you to carryout measurement over a long-time period. The multimeters are universally usable. The multimeters were built after the latest safety regulations.

The multimeters are a valuable help in the handcraft or industrial area as well as for the hobby electronics technician at all standard measurement tasks.

The digital multimeter is characterised by the following features:

• Digital multimeter with extra large display
- 3 34 -digit LC display with 4.000 counts
- Safety according to DIN VDE 0411, EN 61010, IEC 61010, CAT III / 600 V
• Voltage, current and resistance measurement
• Diode and acoustical continuity test function
• Temperature measurement
• Capacity, frequency and duty cycle measurement
• Automatic range selection
- Hold and relative functions
• Auto power-OFF function
- Impact and shock proof due the standard protective holster
- Compact size

Scope of supply

• 1x Digital multimeter 45218
- 1x Protective holster
• 2x Test leads (1x red, 1x black)
• 2x Batteries 1.5 V, IEC LR03
- 1x Instruction manual

Transport and storage

Please keep the original packaging for later transport, e.g. for calibration. Any transport damage due to faulty packaging will be excluded from warranty claims. In order to avoid instrument damage, it is advised to remove accumulators when not using the instrument over a certain time period. However, should the instrument be contaminated by leaking battery cells, you are kindly requested to return it to the factory for cleaning and inspection.

Instruments must be stored in dry and closed areas. In the case of an instrument being transported in extreme temperatures, a recovery time of minimum 2 hours is required prior to instrument operation.

Safety references

The respective accident prevention regulations established by the professional associations for electrical systems and equipment must be strictly met at all times.

The respective accident prevention regulations established by the professional associations are to be strictly enforced at all times regarding body protection in the event of danger of burns.

In order to avoid electrical shock, the valid safety and VDE regulations regarding excessive contact voltages must receive utmost attention, when working with voltages exceeding 120 V (60 V) DC or 50 V (25 V) rms AC. The values in brackets are valid for limited ranges (as for example medicine and agriculture).

Measurements in dangerous proximity of electrical systems are only to be carried out in compliance with the instructions of a responsible electronics technician, and never alone.

If the operator's safety is no longer ensured, the instrument is to be put out of service and protected against use. The safety is no longer insured, if the instrument:

• shows obvious damage.
• does not carry out the desired measurements.
- has been stored for too long under unfavourable conditions.
• has been subjected to mechanical stress during transport.

The instrument may only be used within the operating ranges as specified in the technical data section.

Avoid any heating up of the instrument by direct sunlight to ensure perfect functioning and long instrument life.

The opening of the instrument for fuse replacement, for example, may only be carried out by professionals. Prior to opening, the instrument has to be switched off and disconnected from any current circuit.

The instrument may only be used under those conditions and for those purposes for which it was conceived. For this reason, in particular the safety references, the technical data including environmental conditions and the usage in dry environments must be followed. When modifying or changing the instrument, the operational safety is no longer ensured.

Operation elements and connections

① LC-display
② Measurement function selection switch
③ Input sockets for measurement ranges
④ Ground connection for all measurement ranges
⑤ Input socket for current measurement range 10 A

wiha SELECT RELATIVE HOLD Ha% mA VDC VAC OFF Digital multimeter up to 800 VAC, CAT IV 10A COM VΩ mA°C Hz%-II-III- CAT#600V 4

Buttons

Activate short-press function (SELECT, RELATIVE or HOLD) by pressing the appropriate button and then releasing it after single-beep sound (it will take less than 1 s).

Select

Use SELECT button to cycle through different measurement modes that share the same position on the dial:

• Resistance, continuity, diode, capacitance
• Frequency, duty cycle
• Temperature scales: °C or °F
• AC/DC current measurement (in 10 A and in mA range)

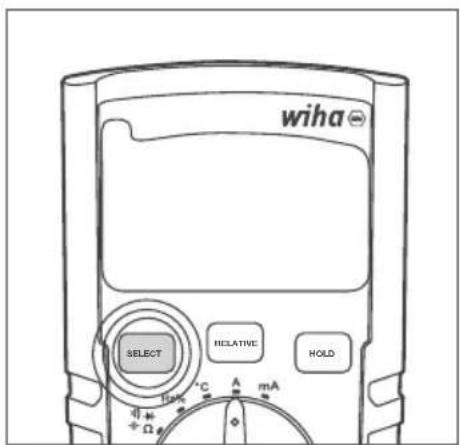

To select desired measurement mode

Apply short press (less than 1 s) on the SELECT button. After one beep sound release the button.

wiha SELECT HICLATIVE HOLD + Ω + C A mA

INSTRUCTION MANUAL

Relative

Use RELATIVE button to activate or deactivate the Relative function.

• Short press (less than 1 s) on RELATIVE button activates Relative.
• Next short press (less than 1 s) on RELATIVE button will exit Relative function.

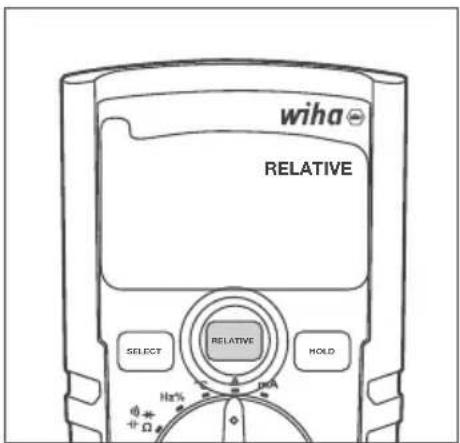

To activate/deactivate Relative function

Apply short press (less than 1 s) on RELATIVE button. After one beep sound release the button.

When enabled, RELATIVE will appear on LCD.

When disabled, it will not be present on LCD.

wiha RELATIVE SELECT RELATIVE HOLD Hz% + Ω

Hold

Use HOLD button to activate/deactivate Hold function.

• Short press (less than 1 s) on HOLD button activates Hold function.
• Next short press (less than 1 s) on HOLD button deactivates Hold function.

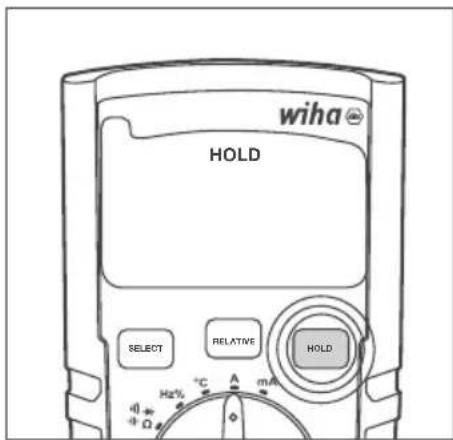

To activate/deactivate Hold function

Apply short press (less than 1 s) on the HOLD button. After one beep sound release the button.

When enabled, HOLD will appear on LCD. When disabled, it will not be present on LCD.

wiha HOLD SELECT RELATIVE HOLD Hz% +Ω °C A mA

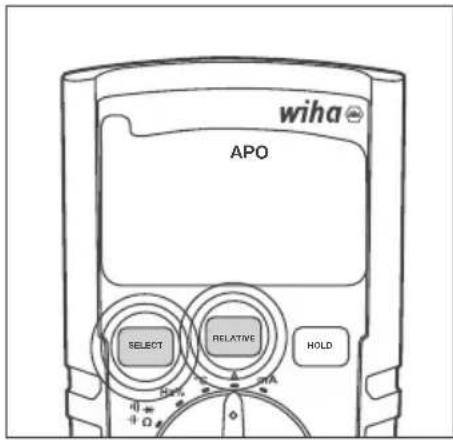

APO (Automatic Power Off)

When on, APO function will power down Multimeter after 15 minutes of inactivity.

APO can be turned off and back on at any time by pressing SELECT and RELATIVE buttons at the same time for longer than 1 s. The LCD will indicate APO function when it is enabled. If it is disabled, APO indication will be missing from the LCD.

Press SELECT and RELATIVE buttons at the same time and hold them pressed until you hear double-beep sound.

When enabled, APO will appear on LCD. When disabled, APO will disappear from the LCD.

wiha APO SELECT RELATIVE HOLD

Measurement modes

Set the desired measurement by turning the dial so it points at the appropriate position. Power off the multimeter by positioning the dial to the OFF position. Dial positions are as follows:

• OFF: Multimeter is turned off.
• V AC: AC voltage measurement.
• V DC: DC voltage measurement.
- Ω + - : Resistance, continuity, diode and capacitance measurements. Use SELECT button to cycle through these measurement modes.
- Hz %: Frequency and duty cycle measurement. Use SELECT button to toggle between these measurement modes.
- °C: Temperature measurement in °C or °F scale. Use SELECT button to toggle between °C and °F measurement scales.
• A: Current measurement in 10 A range.
• mA: Current measurement in mA range.

Carrying out measurements

Commissioning

General Information to carry out measurements:

Measurements in dangerous proximity of electrical systems are only to be carried out in compliance with the instructions of a responsible electronics technician, and never alone.

Test leads and test probes may only be touched at handle surfaces provided. Absolutely avoid the direct contact of the test probes. Prior to switching to a new measurement range or a new type of measurement, remove all connections from UUT.

Measurements have to be carried out by respecting the standards.

Voltage measurement

To avoid electrical shock, the valid safety measures and VDE directives strictly have to be met concerning excessive contact voltage when working with voltages exceeding 120 V (60 V) DC or 50 V (25 V) rms AC. The values in brackets are valid for limited areas (such as e.g. medicine, agriculture).

AC voltage measurement

• Select V AC measurement mode via measurement function selection switch.
• Connect the black test lead to the COM socket and the red test lead to the V Ω mA °C Hz% -||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||
• Connect test leads to UUT (circuit / unit under test).
• Read the measurement result displayed on the display.

DC voltage measurement

• Select VDC measurement mode via measurement function selection switch.
• Connect the black test lead to the COM socket and the red test lead to the V Ω mA °C Hz% →→ socket.
• Connect test leads to UUT.
• Read the measurement result displayed on the display.

Frequency measurement

• Select Hz% measurement mode via measurement function selection switch.
• Connect the black test lead to the COM socket and the red test lead to the V Ω mA °C Hz% -||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||
• Connect the test leads to UUT.
• Read the measurement result displayed on the display.

Resistance measurement

Prior to any resistance measurement it has to be ensured that the resistor to be tested is not live. Failure to comply with this prescription can lead to dangerous corporal user injuries or cause instrument damage. Additionally, foreign voltages falsify the measurement result.

• Select Ω measurement mode via measurement function selection switch.
• Connect the black test lead to the COM socket and the red test lead to the V Ω mA °C Hz% → → socket.
• Connect the test leads to UUT.
• Read the measurement result displayed on the display.

Diode test

Prior to any diode test, it must be ensured, that the diode to be tested is not live. Failure to comply with this prescription can lead to dangerous corporal user injuries or cause instrument damage. Additionally, foreign voltages falsify the measurement result.

Resistors and semiconductor paths in parallel to the diode cause falsified measurement results.

• Select Ω measurement mode via measurement function selection switch.
• If necessary, use SELECT button to set the measurement. Press SELECT button to cycle through resistance, continuity, diode and capacitance measurements.
• Connect the black test lead to the COM socket and the red test lead to the V Ω mA °C Hz% + - ) ➕ socket.
• Connect test leads to UUT.
• Read the measurement result displayed on the display.

Continuity test

Prior to any continuity test, it must be ensured that the resistance to be measured is not live. Failure to comply with this prescription can lead to dangerous corporal user injuries or cause instrument damage. Additionally, foreign voltages falsify the measurement result.

• Select ± 1 Ω measurement mode via measurement function selection switch.
• If necessary, use SELECT button to set the measurement. Press SELECT button to cycle through resistance, continuity, diode and capacitance measurements.
• Connect the black test lead to the COM socket and the red test lead to the V Ω mA °C Hz% →→ socket.
• Connect test leads to UUT.
• Read the measurement result displayed on the display.

Acoustic indication by signal sound if resistance < 30 Ω.

Capacitance test

Prior to any capacity test, it must be ensured, that the capacity to be tested is not live. Failure to comply with this prescription can lead to dangerous corporal user injuries or cause instrument damage. Additionally, foreign voltages falsify the measurement result.

Resistors and semiconductor paths in parallel to the capacity cause falsified measurement results.

• Select Ω measurement mode via measurement function selection switch.
• If necessary, use SELECT button to set the measurement. Press SELECT button to cycle through resistance, continuity, diode and capacitance measurements.
• Connect the black test lead to the COM socket and the red test lead to the V Ω mA °C Hz% + - → socket.
• Connect test leads to UUT.
• Read the measurement result displayed on the display.

Temperature measurement

Prior to any temperature measurement it has to be ensured that the surface to be measure is not live. Failure to comply with this prescription can lead to dangerous corporal user injuries or cause instrument damage.

To avoid burns only touch UUT by means of the thermocouple.

• Select °C measurement mode via measurement function selection switch.
• Connect the minus pole to the COM socket and the plus pole lead to the V Ω mA °C Hz% - + - ) ➕ socket.
  • Temperature probe leads to UUT.
• Read the measurement result displayed on the display.

Current measurement

Ensure that the measurement circuit is not live when connecting the measurement instrument.

The instruments may only be used in current circuits protected with 16 A up to a nominal voltage of 600 V. The nominal cross section of connecting line has to be respected and a safe connection has to be ensured.

After instruments fuse tripping eliminate the cause for the tripping prior to fuse replacement.

INSTRUCTION MANUAL

Current measurement mA AC

• Select mA measurement mode via measurement function selection switch.
• Multimeter will automatically enter mA AC mode.
• Connect the black test lead to the COM socket and the red test lead to the mV Ω μmA °C Hz + - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
• Connect test leads to UUT.
• Read the measurement result displayed on the display.

Current measurement mA DC

• Select mA measurement mode via measurement function selection switch.
• Press "Select" button once to enter DC mode
• Connect the black test lead to the COM socket and the red test lead to the V Ω mA °C Hz% + - )→ socket.
• Connect test leads to UUT.
• Read the measurement result displayed on the display.

Current measurement A AC

• Select A measurement mode via measurement function selection switch.
• Connect the black test lead to the COM socket and the red test lead to the 10 A socket.
• Connect test leads to UUT.
• Read the measurement result displayed on the display.

Current measurement A DC

• Select A measurement mode via measurement function selection switch.
• Press "Select" button once to enter DC mode
• Connect the black test lead to the COM socket and the red test lead to the 10 A socket.
• Connect test leads to UUT.
• Read the measurement result displayed on the display.

Maintenance

When using the instrument in compliance with the instruction manual, no special maintenance is required. Should operational problems occur during daily use, our consulting service (phone [phone]) will be at your disposal. If functional errors occur after expiration of warranty, our sales service will repair your instrument without delay.

Cleaning

If the instrument is dirty after daily usage, it is advised to clean it by using a humid cloth and a mild household detergent.

Prior to cleaning, ensure that instrument is switched off and disconnected from external voltage supply and any other instruments connected (such as UUT, control instruments, etc.).

Never use acid detergents or dissolvants for cleaning.

Calibration interval

The instrument has to be periodically calibrated by our service department in order to ensure the specified accuracy of measurement results. We recommend a calibration interval of two year years.

Battery replacement

Prior to battery replacement, disconnect the instrument from any connected test leads. Only use batteries as described in the technical data section!

• Switch off instrument. Disconnect test leads.
• Remove discharged batteries.
• Insert new batteries 1.5 V IEC LR03.
• Replace the battery cover and retighten the screws.

- Loosen the screws of the battery cover on the instrument rear. Lift the battery cover.

Please consider your environment when you dispose of your one-way batteries or accumulators. They belong in a rubbish dump for hazardous waste. In most cases, the batteries can be returned to their point of sale.

Please, comply with the respective valid regulation regarding the return, recycling and disposal of used batteries and accumulators.

If an instrument is not used over an extended time period, the accumulators or batteries must be removed. Should the instrument be contaminated by leaking battery cells, the instrument has to be returned for cleaning and inspection to the factory.

Fuse replacement

Prior to fuse replacement, ensure that multimeter is disconnected from external voltage supply and the other connected instruments (such as UUT, control instruments, etc.)

Only use fuses as described in the technical data section! Using auxiliary fuses, in particular short-circuiting fuse holders is prohibited and can cause instrument destruction or serious bodily injury of operator.

• Switch off the instrument. Disconnect test leads.
• Loosen the screws on the instrument rear.
• Lift the case cover.
• Remove the defect fuse.
• Insert new fuse.
• Replace the case cover and retighten the screws.

Fuse (A): F 400 mA / 600 V Ceramic 6.3 x 32 mm

Fuse (A): F 10 A / 600 V Ceramic 6.3 x 32 mm

Technical Data

Display 3 ^3/4 -digit, LC display

Total display 4,000 counts

Polarity display automatically

Battery status display battery symbol appears (< 2,4 V)

Measurement category CAT IV/300 V; CAT III/600 V

Pollution degree 2

Power supply batteries, 2 x 1.5 V IEC LR03, AAA

Dimension approx. 150 x 80 x 45 mm incl. holster

Weight approx. 330 g

Ambient conditions

Operation temperature 0...50 °C (0...80 % rel. humidity)

Storage temperature -10...60 °C (0...80 % rel. humidity) (without batteries)

Height above sea level up to 2,000 m

Overload protection

Fuse (A) F 400 mA / 600 V Ceramic 6.3 x 32 mm

Fuse (A) F 10 A / 600 V Ceramic 6.3 x 32 mm

Technical data refer to 23 °C ± 5 °C at < 80 % rel. humidity

Temperature coefficient 0.15 x specified accuracy per 1 °C (< 18 °C and > 28 °C)

	Measuring range	Resolution A	Accuracy
DC voltage	400 mV 0.1 mV		±(1 % of m.v. + 3D)
	4.000 V 1 mV
	40.00 V 10 mV
	400.0 V 100 mV
	600 V 1 V
AC voltage	4.000 V 1 mV		±(1 % of m.v. + 5D)
	40.00 V 10 mV
	400.0 V 100 mV
	600 V 1 V
DC current	40.00 mA 10 μA		±(1.5 % of m.v. + 5D)400.0 mV
	10.00 A 10 mA
AC current	40.00 mA 10 μA		±(1.8 % of m.v. + 5D)400.0 mV
	10.00 A 10 mA
Resistance	400.0 Ohm 0.1 Ohm		±(1.5 % of m.v. + 3D)
	4.000 kOhm 1 Ohm
	40.00 kOhm 10 Ohm
	400.0 kOhm 100 Ohm
	4.000 MOhm 1 kOhm
	40.00 MOhm 10 kOhm
Continuity buzzer < 30 Ohm
Diode test yes, up to 1 V
Capacity test	5.120 nF 0.01 nF	±(5 % of m.v. + 25D)
	51.20 nF 0.01 nF	±(2 % of m.v. + 10D)
	512.0 nF 0.1 nF ±(1.5 % of m.v. + 5D)
	5.120 nF 1 nF ±(1.5 % of m.v. + 5D)
	51.20 nF 10 nF ±5 % typical
	100.0 nF (30 s) 100 nF	±5 % typical
Frequency	5.000 Hz	0.001 Hz	±0.1 % + 1D
	50.00 Hz	0.01 Hz
	500.0 Hz	0.1 Hz
	5.000 kHz	1 Hz
	50.00 kHz	10 Hz
	500.00 kHz	100 Hz
	5.000 MHz	1000 Hz
Temperature measurement	-20...500 °C		±(10 % of m.v. + 1D)
Duty cycle	0.1...99.9 %
Data HOLD	yes
RELATIVE value measurement	yes

INSTRUCTION MANUAL

	Measuring range	Resolution Accuracy
Auto/Manual RANGE selection	only auto range
DMM battery LOW indication	yes
Display 4,000 counts
IP rating IP40
Battery AAA 2x 1.5 V; R03
Standards	EN 61010-1, EN 61010-02-033, EN 61010-031, EN 61326
Overvoltage category	CAT IV/300 V; CAT III/600 V
Pollution degree 2
Operating temperature	0...50 °C
Storage temperature -10...60 °C
Height max. 2,000 m
Robustness requirements	meet standard
Certifications CE, GS
Reference temperature	23 °C ±5 °C at < 80 % rel. humidity

Note: The lowest ranges are specified from 5 % of the range.
Note: AC Voltage and AC Current ranges are specified up to 400 Hz.
As the frequency increases (over 400 Hz), the accuracy deteriorates.

Service and warranty

Should the device no longer work, should you have any questions or require information, contact an authorised customer service point for Wiha power tools:

Customer care

Wiha Werkzeuge GmbH

Obertalstraße 3 – 7

78136 Schonach

GERMANY

Tel.: [phone]

Fax: [phone]

Email: [e-mail]

Website: www.wiha.com

The warranty is voided in the event of injury or damage to property caused due to non-compliance with these instructions. The manufacturer accepts no liability for consequential damage!

Table des matières

wiha SELECT RELATIVE HOLD T0% °C A mA + Ω

wiha HOLD SELECT RELATIVE HOLD Hz% A mA + Q

Activer/désactiver APO

wiha APO SELECT RELATIVE HOLD

Fonctions de mesure

Protection de surcharge

Fusible (A) F 400 mA / 600 V céramique 6,3 x 32 mm

Fusible (A) F 10A / 600V Céramique 6.3 x 32mm

Spanningsmeting....8

frequentie meting....9

Weerstandsmeting....9

Diodetest 9

Continuiteitstest 9

Capaciteit 10

wiha SELECT HICLATIVE HOLD + Ω + C A mA

HANDLEIDING

wiha RELATIVE SELECT RELATIVE HOLD Hz% + Ω

Uitstel

wiha HOLD SELECT RELATIVE HOLD Hz% + 0.0 °C A mA

wiha APO SELECT RELATIVE HOLD

Meetfuncties:

wiha SELECT RELATIVE HOLD

wiha RELATIVE SELECT RELATIVE HOLD Hz% + Ω

Mantener

wiha HOLD SELECT RELATIVE HOLD Hz% + 0 - C A mA

wiha APO SELECT RELATIVE HOLD

wiha SELECT HICLATIVE HOLD

wiha RELATIVE SELECT RELATIVE HOLD Hz% + Ω

Presa

wiha HOLD SELECT RELATIVE HOLD Hz% + O - A mA

wiha APO SELECT RELATIVE HOLD

Funzioni di misura

wiha SELECT RELATIVE HOLD + Ω + C A mA

wiha RELATIVE SELECT RELATIVE HOLD Hz% + Ω

Holde

Brug HOLD-knappen til at aktivere/deaktivere hold-funktionen.

wiha HOLD SELECT RELATIVE HOLD Hz% + 0.5 °C A mA

wiha APO SELECT RELATIVE HOLD

Målefunktioner

wiha SELECT HICLATIVE HOLD

BRUKSANVISNING

wiha RELATIVE SELECT RELATIVE HOLD Hz% + Ω

Håll

wiha HOLD SELECT RELATIVE HOLD Hz% + 0 °C A mA

APO (automatisk avstängning)

wiha APO SELECT RELATIVE HOLD

Mätfunktioner

wiha SELECT RELATIVE HOLD + Ω + C A mA

wiha RELATIVE SELECT RELATIVE HOLD Hz% + Ω

Holde

wiha HOLD SELECT RELATIVE HOLD Hz% + 0.5 °C A mA

wiha APO SELECT RELATIVE HOLD

Målefunksjoner

wiha RELATIVE SELECT RELATIVE HOLD Hz% + Ω

Pidä

wiha HOLD SELECT RELATIVE HOLD Hz% + 0 °C A mA

wiha APO SELECT RELATIVE HOLD

Mittaustoiminnot

wiha SELECT RELATIVE HOLD

wiha RELATIVE SELECT RELATIVE HOLD Hz% + Ω

HOLD

wiha HOLD SELECT RELATIVE HOLD Hz% + 0.5 °C A mA

wiha APO SELECT RELATIVE HOLD

Funkcje pomiarowe

wiha SELECT HICLATIVE HOLD

NÁVOD K POUŽITÍ

wiha HOLD SELECT RELATIVE HOLD Hz% °C A mA

wiha APO SELECT RELATIVE HOLD

Funkce měření

wiha RELATIVE SELECT RELATIVE HOLD Hz% + Ω

Держать

wiha HOLD SELECT RELATIVE HOLD Hz% °C A mA + 0.0

wiha APO SELECT RELATIVE HOLD

Функции измерения

wiha SELECT HICLATIVE HOLD + Ω + C A mA

HASZNÁLATI UTASÍTÁS

wiha RELATIVE SELECT RELATIVE HOLD Hz% + Ω

Tart

wiha HOLD SELECT RELATIVE HOLD Hz% + 0 °C A mA

wiha APO SELECT RELATIVE HOLD

Mérési funkciók

Tools that work for you

Wiha Werkzeuge GmbH

Obertalstraße 3 – 7

78136 Schonach

GERMANY

Tel.: [phone]

Fax: [phone]

Website: www.wiha.com
