General information

Please unpack all parts and check that everything is present and undamaged. Do not use the product if damaged. In this case, contact your local authorised specialist or the service address of the manufacturer. These operating instructions contain important information for the first use and normal operation of this product, referred to in the following text simply as lamp or product. Read through the complete operating instructions carefully before using the product for the first time. Keep these operating instructions for future use or for future users' reference. Failure to follow the operating instructions and safety instructions may result in damage to the product and hazards (injuries) for the operator and other persons. The operating instructions refer to applicable standards and regulations of the European Union. Please also adhere to the laws and guidelines specific to your country.

Symbols in this manual

Please take note of the following symbols and words used in the operating instructions, on the product and on the packaging:

Warning

Attention – Danger!

May result in serious injury or death

Information

Useful additional information about the product

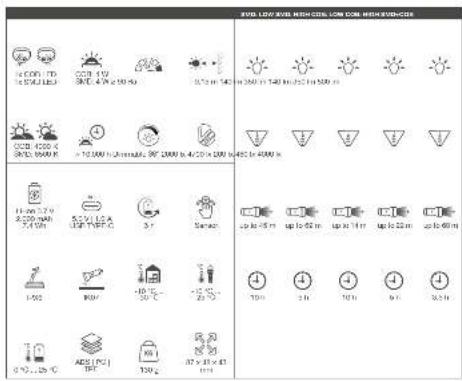

Product description

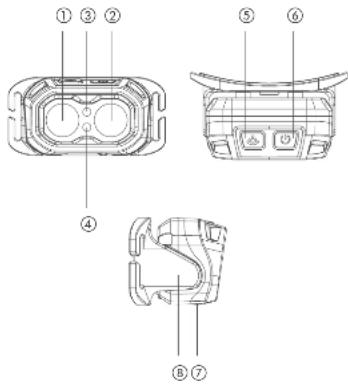

① COB-LED
② SMD LED
③ Sensor active LED
④ Sensor
⑤ Sensor button
⑥ Functions button
⑧ Swivel mount

⑦ USB charge socket with rubber cover + Status LED display

Liability disclaimer

The information contained within these operating instructions can be changed without prior notification. We accept no liability for direct, indirect, incidental or other damage or consequential damage arising though improper handling/use or through disregard of the information contained within these operating instructions.

Proper intended use

The product serves as a mobile light source and is not intended for use in other applications. The product is not suitable for household room lighting and only for use as described in the operating instructions. Use outside that stipulated in the information is improper use and this can result in damage to property or personal injury. We accept no liability for damage caused by incorrect or improper use.

FOR YOUR SAFETY

General safety instructions

• This product may be used by children from the age of 8 and by persons with reduced physical, sensory or mental abilities or lack of experience and knowledge, if they have been instructed on the safe use of the product and are aware of the hazards. Children are not permitted to play with the product. Children are not permitted to carry out cleaning or care without supervision.
• Keep the product and the packaging away from children. This product is not a toy. Children should be supervised in order to ensure that they do not play with the pro-duct or packaging.
• Avoid eye injuries - Never look directly into the beam of light or shine it into other people's faces. If this occurs for too long, the blue light portion of the beam can cau-se retinal damage.

• Never touch a device that is connected to the mains with wet hands, or if it has fallen into water. In this case, first switch off the house circuit breaker and then pull out the mains plug.

• Do not expose to potentially explosive environments where there are flammable li-quids, dusts or gases.

• Never submerge the product in water or other liquids.
• Use only an easily accessible mains socket so that the product can be quickly dis-connected from the mains in the event of a fault.
• All illuminated objects must be at least 10cm away from the lamp.
• Use the product exclusively with the accessories included with it.
• Never try to open, crush or heat a standard/rechargeable battery or set it on fire. Do not throw into a fire.
• The product may only be charged in closed, dry and spacious rooms, away from combustible materials and liquids. Disregard can result in burns and fires.
• Leaking battery fluid can cause irritation if it comes into contact with the skin. Imme-diately rinse affected areas with fresh water and then seek medical attention.
• Do not short-circuit connection terminals or batteries.

OPERATION

EN

Danger of fire and explosion

• Do not use while still in the packaging.
• Do not cover the product - risk of fire.
• Never expose the product to extreme conditions, such as extreme heat/cold etc.
• Do not use in the rain or in damp areas.

General information

• Do not throw or drop
• The LED cover cannot be replaced. If the cover is damaged, the product must be disposed of.
• The LED light source cannot be replaced. If the LED has reached the end of its service life, the complete lamp must be replaced.
• Do not open or modify the product! Repair work shall only be carried out by the manufacturer or by a service technician appointed by the manufacturer or by a similarly qualified person.
• Disconnect the device from the power supply only by pulling on the plug or plug housing, never on the cable.
• Information for the light and mains adapter as well as mains voltage on the socket must match with the type plate.
• The lamp shall not be placed face-down or allowed to topple face-down.

Rechargeable battery pack

The product contains a non-replaceable, rechargeable battery pack. If the rechargeable battery pack is empty, recharge it immediately. Once fully charged, remove from the charger. In the event of liquid leaking from the power source, remove this with protective gloves and a dry cloth. Charge your rechargeable battery at least once every 3 months in order to maintain its service life. Do not open the rechargeable battery! There is a risk of a short circuit. If the rechargeable battery is opened, all warranty claims are void.

Attention: Charging the light on a fireproof surface and under the supervision of an adult!

First use

Charge rechargeable battery pack fully before first use.

Switching on and off:

By briefly pressing the On/Off button.

Dimming function:

Possible in all modes by pressing and holding the on/off button

Hand gesture sensor:

Pressing the button in the respective mode activates the automatic gesture sensor. The light can now be switched on/off by making a hand gesture twice.

Memory function:

If a mode is active for more than 4 seconds, the same mode will be activated again the next time the device is switched on.

LED display:

Battery capacity:

≥ 30 %: LED green

< 30 %: LED red

< 10 %: LED flashes red + main LED flashes quickly 3x

0 %: Main LED flashes quickly 3x and then goes out

During charging: LED red | Rechargeable battery full: LED green

Care and maintenance

If the product is not going to be used, charge the rechargeable battery pack before storage in order to prevent deep discharge. Repeat this process every six months.

DISPOSAL

EN

Environmental information / Disposal

• Dispose of packaging after sorting by material type. Cardboard and cardboard to the waste paper, film to the recycling collection.
• Dispose of the unusable product in accordance with legal provisions. The „waste bin“ symbol indicates that, in the EU, it is not permitted to dispose of electrical equipment in household waste.
• For disposal, pass the product on to a specialist disposal point for old equipment, use the return and collection systems in your area or contact the dealer from whom you purchased the product.
• Batteries and rechargeable batteries contained in electrical appliances must be disposed of separately whenever possible. Always dispose of used batteries & rechargeable batteries (only when discharged) in accordance with the local regulations and requirements.
• Improper disposal may result in toxic ingredients being released into the environment, which may have adverse health effects on humans, animals and plants.
• In this way you will fulfil your legal obligations and contribute to environmental protection.

Batteries containing lithium

• For lithium-containing batteries and rechargeable batteries, tape off the terminals before disposal to avoid an external short circuit. A short circuit can lead to a fire or explosion.
• Only dispose of primary (disposable) batteries and rechargeable batteries in discharged condition.
• Do not dispose of primary (disposable) batteries and rechargeable batteries with the household waste. Consumers are legally obliged to dispose of primary (disposable) batteries and rechargeable batteries separately.
• Primary (disposable) batteries and rechargeable batteries can be handed in free of charge at a collection point in your municipality/district or in shops so that they can be disposed of in an environmentally friendly way and valuable raw materials can be recovered. Improper disposal may result in toxic substances being released into the environment, which may have harmful effects on humans, animals and plants.

CE The product complies with the requirements from the EU directives.

Subject to technical changes. We assume no liability for printing errors.
