USER MANUAL Glassy MySoda

Black cylindrical device with a transparent glass bottle inside, labeled 'mysoda' in the top-left corner (no other text or symbols visible)

SPARKLING

WATER

MAKER

Instruction Manual

English 3

Français 8

Deutsch 13

Suomi 18

Svenska 23

Dansk 28

Norsk 33

Dutch 38

Italiano 43

Polski 48

Magyar 53

Slovenčina 58

Čeština 63

Slovenščina 68

Español 73

Português 78

IMPORTANT SAFEGUARDS

Read the instructions in this manual carefully before using the sparkling water maker. Always follow the instructions and safety precautions. Using the device against the instructions and precautions may result in damage to the device and personal injury. Keep this manual for yourself and other users of the device. The following warnings apply to the use of the sparkling water maker, the water bottles and the carbon dioxide (CO2) cylinders used within it.

WARNINGS FOR THE DEVICE AND THE USE OF IT

1. This product is not designed or intended for use by children under 12 years of age. Adult supervision is necessary when the device is used by children.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. WARNING Do not use the appliance if you notice or suspect a defect or damage. Contact your dealer, importer or manufacturer.
4. Do not make any modifications or repairs to the device and accessories. Repairs may only be made by authorized Mysoda service personnel.
5. Never remove the water bottle during carbonation. Do not discharge a CO2 cylinder unless a Mysoda water bottle is attached to your sparkling water maker.
6. Only carbonate drinking water. Add flavours after carbonation.
7. Always place the device on a level, stable, and water-resistant surface.
8. The device must always be in an upright position when used.
9. Do not immerse the device in water and do not clean it during use.
10. Only use the device when a filled bottle is inserted.
11. Never attempt to carbonate an empty bottle with CO2.
12. Before each use, inspect that the CO2 cylinder is firmly attached to the device.
13. Never transport the device with a full water bottle attached to it.
14. Never transport the device with the CO2 cylinder attached to it.
15. Use only Mysoda water bottles with this device.
16. Never use sharp tools, abrasives or chemical cleaners to clean the device. For cleaning, we recommend a mild hand dishwashing detergent and a soft damp cloth.
17. The device warranty is only valid for non-commercial use.

WARNINGS FOR THE PLASTIC WATER BOTTLES

1. Do not place plastic water bottles in a freezer.
2. Do not store plastic water bottles in a dishwasher or in hot water.
3. Do not store plastic water bottles close to any heat source, such as an oven or stove or inside a hot car.
4. Check the expiration time on the water bottle before using it. The expiry date is indicated in the form of month / year. Do not use an expired bottle after the last month of use.
5. Do not use the plastic water bottle if deformed, scratched, or discoloured, or if the expiration date has passed.

6. In the above cases, replace the plastic water bottle with a new one.

7. Do not wash plastic water bottles in a dishwasher or in hot water. Never use brushes, abrasives, or chemical cleaners. Hand wash bottle with mild detergent and warm water. If necessary, use a soft bottle brush.

WARNINGS FOR THE GLASS WATER BOTTLES

1. Do not place glass bottles in a freezer.
2. Do not expose to extreme temperature changes like adding hot water in a cold glass bottle.
3. Do not use a glass bottle, other than the original Mysoda glass bottle that is suitable for Mysoda Glassy.
4. Do not wash glass bottle caps in a dishwasher or in hot water.
5. Do not use the glass bottle if cracked, chipped or damaged in any way.
6. In the above cases, replace the glass bottle with a new one.
7. In a rare cases that your glass bottle breaks during carbonation inside your device, do not open the device. Any broken glass particles will be safety contained inside the device. Please contact your local Mysoda customer service for assistance.

WARNINGS FOR CARBON DIOXIDE (CO2) CYLINDER

1. Inspect the CO2 cylinder before use. If the cylinder or the valve attached to it is damaged, do not use it, but contact your dealer, importer or manufacturer.
2. Do not attempt to modify, puncture or incinerate the cylinder.
3. Do not throw the cylinder or cause it to fall.
4. Do not store the CO2 cylinder in a freezer

5. If the CO2 cylinder is colder or warmer than room temperature, it must be gradually brought to room temperature. Do not place it in the freezer or on a heat source to speed up the process.

6. WARNING Food Safety Hazard:

7. Use only food / beverage grade carbon dioxide cylinders purchased from an authorized dealer.

8. Never use a carbon dioxide cylinder intended for non-food use.

9. Never use any adapter that permits use of non-beverage grade CO2 or non-beverage CO2 cylinders.

10. WARNING CO2 cylinder contents are under pressure.

11. WARNING Explosion Hazard. Always store CO2 cylinders in a cool, dry place, away from any type of heat exposure. Exposure to heat can cause cylinder pressure to build and release CO2 gas unexpectedly.

12. WARNING Do not touch the cylinder if CO2 is being released; wait until all the CO2 is discharged and the cylinder has come to room temperature. In the event of a leak, ventilate the house or apartment well. If you feel unwell, contact your doctor.

13. WARNING Frostbite injury risk. Rapid depletion of CO2 gas can cause skin to freeze.

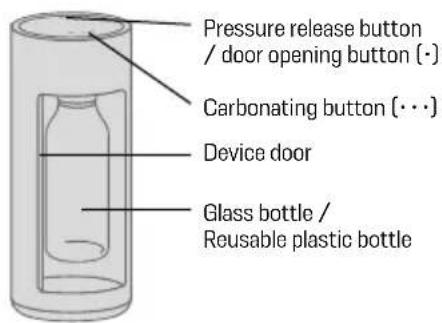

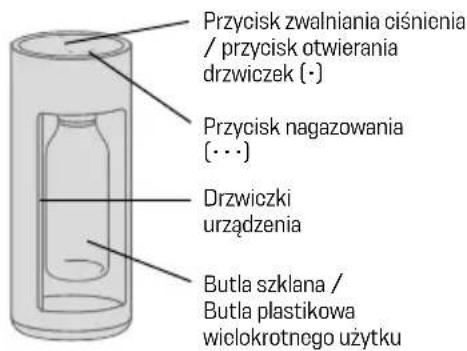

PARTS AND FEATURES

Pressure release button / door opening button (·) Carbonating button (···) Device door Glass bottle / Reusable plastic bottle

SPARKLING WATER MAKER

BEFORE THE FIRST USE: Hand-wash the water bottle with lukewarm water and hand dishwashing detergent. Rinse well and wipe outside with a soft cloth to dry. WARNING: Never wash plastic water bottles or any bottle caps in a dishwasher or in hot water. Harsh chemicals will damage the water bottle.

Bottle cap Max fill level

1L GLASS BOTTLE
1L PLASTIC BOTTLECO2 CYLINDEI

INSTALLING THE CO2 CYLINDER

1. Open the device door by pushing "Pressure Release"-button (·) at the back of the machine top. Let the door open on its own, do not force it.

Simple line drawing of a cylindrical container with a partially open lid and a hand inserting a spring (no text or symbols)

Technical line drawing of a mechanical component with a lever and base (no text or symbols)

bottle and carbonation nozzle towards yourself, and then unscrew it (one quarter clockwise).
3. Remove back cover from the device.2. Remove the w

Simple line drawing of a container with a handle inside, no text or symbols present

1. Unscrew the black thread protective cap on the top part of the device body.

Illustration of a hand holding a gas jar with a lid, no text or symbols present

1. Remove the seal and cap from the CO2 cylinder.

Simple line drawing of a spray bottle with a handle and arrow indicating direction (no text or symbols)

1. Gently tilt the cylinder holder towards you and install the CO2 cylinder by screwing it clockwise. Attach the cylinder firmly enough, but do not tighten too much.

Technical line drawing of a mechanical component with a lever and base (no text or symbols)

Diagram of a mechanical device with a lever and handle, no text or symbols present

1. Carefully insert back cover back to the device.

COMPATIBLE CO2 CYLINDERS

Mysoda Glassy, as well as all the other Mysoda machines, use the most common carbon dioxide cylinder with screw-in system, so that you can always easily find an exchange for your empty cylinder at your nearest store.

After the CO2 cylinder is empty, replace the CO2 cylinder in the same way as the first time you installed the cylinder.

Usage tip: A used CO2 cylinder can be exchanged by a CO2 cylinder dealer near you. Return the empty cylinder so that you only pay for the gas refill.

Usage tip: Keep a spare CO2 cylinder in your home so that you can replace it as soon as you run out of gas. Extra cylinders are available from CO2 cylinder dealers near you.

HOW TO MAKE SPARKLING WATER

	1. Fill the Mysoda water bottle of your choice with cold water up to the filling line.		2. Open the device door by pushing "Pressure Release"-button (·) at the back of the machine top. Let the door open on its own, do not force it.
	3. To insert the water bottle, make sure that the device is in a fully upright position and the bottle quick-lock is angled forward. Then insert the bottle in quick-lock and turn one quarter anti-clockwise to lock it. Push gently the bottle towards the device to a vertical position.		4. Close the door by sliding it to the right, now it is in closed position. Always remember to close the door as the device won't carbonate if the door is open. As a safety feature, the device will just automatically release the pressure if the door is open while you try to carbonate. 5. Now you can start to carbonate
	the water by pushing the carbonating button (···) 2-3 times. Stop when you hear a hissing sound. 6. Open the device door by		pushing "Pressure Release"-button (·) at the back of the machine top. Let the door open on its own, do not force it. 7. Pull the bottle towards yourself
	and turn it one quarter clockwise to release the bottle. 8. Enjoy your carbonated water or		add desired flavor.

CARE AND CLEANING OF YOUR DEVICE

SPARKLING WATER MAKER:

To clean your sparkling water maker, wipe with a damp cloth. Do not immerse the device in water. Do not use any solvents or abrasive cleaners, since this could damage the surface.

CO2 CYLINDER:

A used CO2 cylinder can be refilled by your Mysoda dealer. Return the empty cylinder so that you only pay for the gas refill.

Illustration of a hand holding a bottle with a tube above it, emitting positive charges (no text or symbols)

PLASTIC WATER BOTTLE: GLASS BOTTLE:

Rinse the water bottle with clean water after each use. Wash the bottle by hand with hand warm water and hand dishwashing detergent. Rinse well. Wipe the outside with a soft cloth to dry.

Rinse the water bottle with clean water after each use. Wash the bottle by hand with warm water and hand dishwashing detergent. Rinse well. Wipe the outside with a soft cloth to dry. Mysoda glass bottles can also be washed in a dishwasher. NOTE! That cap should not be washed in a dishwasher.

USEFUL TIPS

	Use as cold water as possible. You can cool down the water in a refrigerator before adding bubbles.
	By using Mysoda drink mixes you can mix your drink directly in the glass. This keeps your water bottles clean and fresh longer.
	Keep an extra CO2 cylinder in your home so that you can replace it as soon as you run out of gas.
	Buy a couple of extra water bottles for your home so that you can provide sparkling water and other fresh beverages for an even larger party.
	Check out the Mysoda drink mix selection. Our range includes naturally sweetened and sugar-free options for many tastes.
	By adjusting the amount of flavour concentrate, you can prepare a drink that tastes just right for you.

TECHNICAL SPECIFICATIONS

Max. operating pressure: 10 bar/145 Psi

Max. operating temperature: 40°C/104°F

Bottle capacity: 1.0 L (33.8 oz.)

Max. filling volume of the bottle: 0.85L (28,7 oz)

Requires no electricity

Mysoda is a registered trademark of Mysoda Oy.

WARRANTY

We want to make sure that you enjoy your Mysoda sparkling water maker for a long time. To ensure a complete user experience for you, our equipment has a twenty-four (24) month warranty from the date of purchase. Our warranty is valid for household use.

The warranty does NOT cover the following:

- Defects caused by carbonating other liquid than water.

- Wear and tear under normal consumer use (e.g. discoloration).

- Defects and damage resulting from the use of a water bottle after expiration time.

- Defects and damage caused by a CO2 Cylinder used past its expiration date.

- Defects due to damage during transport and any abnormal household use.

- Defects due to the use of CO2 cylinders sold by non-authorized dealers.

- Defects due to improper use, modification or commercial use of the sparkling water maker.

If your Mysoda device needs servicing, contact your local Mysoda retailer or contact Mysoda directly by emailing us at [e-mail] or visiting our website: www.mysoda.eu.

TROUBLESHOOTING

ISSUE: PROBABLE CAUSE: SOLUTION:

Water bottle can't be attached to the quick lock	Quick lock is in wrong position	Pull the quick lock and nozzle towards yourself. Attach the bottle by turning one quarter anti-clockwise.
Water bottle can't be released from the quick lock	Water bottle is in wrong position	Gently pull the water bottle towards yourself until it reaches its fully forward tilt position. Release the bottle by turning one quarter clockwise.
Water bottle overflows during the carbonation	Bottle is overfilled.	Fill the bottle with water up to the fill line indicating the maximum level.
	Carbonating button is pressed too long	Do not press the carbonating button for longer than 1–2 seconds at a time.
Water is not well carbonated/bubbly enough	CO2 cylinder is running low	Replace the used CO2 cylinder with a new one.
	Water is too warm	Make sure the water used is as cold as possible as CO2 dissolves better in cold water.
	CO2 cylinder is not screwed in tight enough	Screw the CO2 cylinder tightly into the device.
CO2 cylinder leaks after installation	CO2 cylinder is not screwed in tight	Remove the CO2 cylinder and reattach it securely. Do it by hand, do not use tools. Do not overtight.
Small, white ice particles form around the nozzle during the carbonation	This is normal, especially when the water is cold	Pull the bottle towards you to release the pressure inside the bottle, which also melts the ice particles into the water.
Device makes a whistling noise during the carbonation	This is normal and ends once the carbonation is completed
A small amount of water is formed under the device after carbonation	A small amount is normal, as the water from inside the device should leak outside from the small holes underneath the device.	If the device leaks more water it might be that water bottle is overfilled or carbonating button pressed too long. Check issue “Water bottle overflows during the carbonation”.
