LA 35 - Aroma diffuser BEURER - Free user manual and instructions

Product type	Aroma diffuser
Brand	Beurer
Model	LA 35
Dimensions (L x D x H)	100 mm x 100 mm x 90 mm
Weight (device)	Approx. 240 g
Power supply	Mains adapter: input 100-240 V~50/60 Hz, output 24 V 0.5 A 12 W
Water tank capacity	120 ml
Diffusion technology	Ultrasonic membrane
Operating modes	Continuous mist and intermittent mist (30 s on / 30 s off)
Runtime	Approx. 8 hours continuous, approx. 16 hours intermittent
Coverage area	Up to 20 m²
LED lighting	Yes, adjustable brightness with 3 levels (100%, 50%, off)
Automatic shut-off	When water runs out
Recommended oil type	Water-based aromatic oils
Maintenance	Clean the ultrasonic membrane weekly with a cotton swab; tank after each use with a soft cloth and vinegar/citric acid solution if limescale
Available accessories	Beurer by Taoasis "Vitality" aromatic oil 10 ml (ref. 681.30)
Safety class	Double insulation (class II)
Warranty	See enclosed warranty card

Frequently Asked Questions - LA 35 BEURER

How to turn on the Beurer LA 35 aroma diffuser?

Press the ON/OFF button once to activate continuous mist, twice for intermittent mode (30s/30s), three times to turn off.

How to adjust the LED lighting?

Press the LED button: once for 100% brightness, twice for 50%, three times to turn off the LED.

What essential oils can I use?

Use only water-based aromatic oils. Do not use oils that are not miscible with water.

How to clean the water tank and membrane?

Always empty the tank after use. Clean the ultrasonic membrane weekly with a cotton swab. For limescale, use a citric acid or vinegar solution.

Why is my device not producing mist anymore?

Check that the adapter is plugged in, that the tank contains enough water (without exceeding the MAX mark), and that the membrane is not clogged. If the water is too cold, use lukewarm water (not boiling).

Can I leave water in the tank when not in use?

No, it is recommended to empty the tank after each use to prevent the growth of microorganisms.

What is the water tank capacity?

The tank has a capacity of 120 ml. Do not fill above the 'MAX' mark.

How long can I use the device continuously?

In continuous mode, the runtime is approximately 8 hours. In intermittent mode, it reaches approximately 16 hours.

Does the diffuser turn off automatically?

Yes, the device turns off automatically when there is no more water in the tank.

Where can I buy spare parts or accessories?

Accessories (such as Beurer by Taoasis 'Vitality' aromatic oil 10 ml, ref. 681.30) are available at www.beurer.com or from authorized dealers.

USER MANUAL LA 35 BEURER

Black square electronic device with engraved circuitry and a small logo on its side (no readable text or symbols)

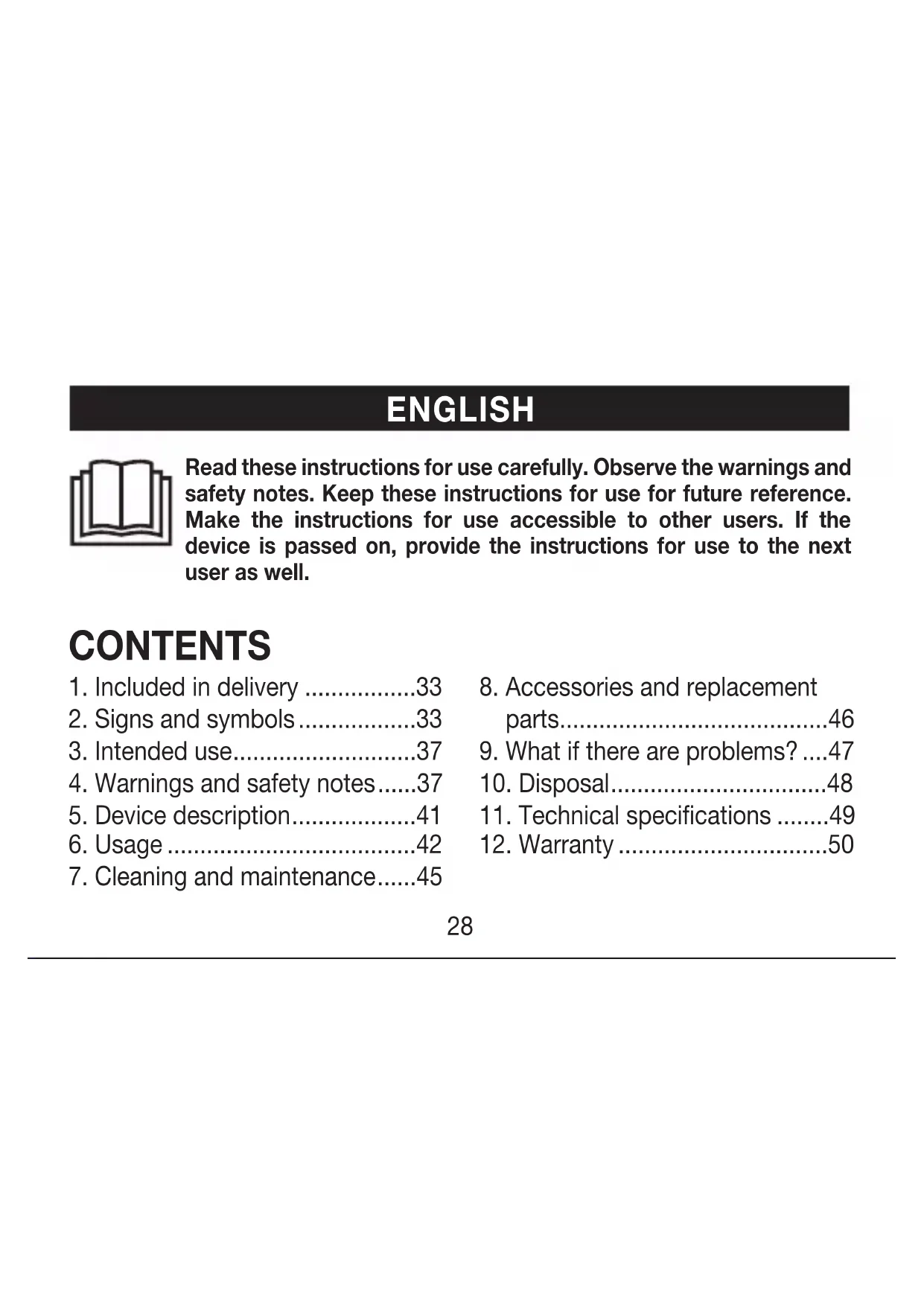

EN Aroma diffuser Instructions for use.....28

Illustration of an open book with visible page lines and a geometric arrow indicating rotation (no text or symbols)

EN Unfold page 3 before reading the instructions for use.

Read these instructions for use carefully. Observe the warnings and safety notes. Keep these instructions for use for future reference. Make the instructions for use accessible to other users. If the device is passed on, provide the instructions for use to the next user as well.

CONTENTS

1. Included in delivery .....33
2. Signs and symbols......33
3. Intended use......37
4. Warnings and safety notes.....37
5. Device description......41
6. Usage 42

7. Cleaning and maintenance.....45

8. Accessories and replacement parts....46

9. What if there are problems? ....47
10. Disposal......48
11. Technical specifications .....49
12. Warranty ....50

WARNING

• This device may be used by children over the age of 8 and by people with reduced physical, sensory or mental skills or a lack of experience or knowledge, provided that they are supervised or have been instructed on how to use the device safely, and are fully aware of the consequent risks of use.
• Children must not play with the device.

• Cleaning and user maintenance must not be performed by children unless supervised.

• Disconnect the device from the mains supply during filling or cleaning.

• Do not use any solvent-based cleaning products.

• Do not allow the area around the device to become wet or damp. If moisture is present, reduce the humidification output of the device. If the humidification output cannot be reduced, temporarily suspend use of the device. Make sure that absorbent materials such as carpets, curtains, drapes or tablecloths do not become damp.

• If the mains connection cable of this device is damaged, it must be disposed of. If it cannot be removed, the device must be disposed of.

• Note that high moisture levels may promote the growth of biological organisms in the environment.

• Never leave water in the tank when the device is not in use.

• Micro-organisms that may be in the water or in the environment where the device is used or stored may thrive in the water tank and become airborne. This can pose serious health risks if the water is not replaced every three days and the tank is not properly cleaned.

• Empty and clean the device before storing it away. Clean the device before the next use.

1. INCLUDED IN DELIVERY

Check that the exterior of the cardboard delivery packaging is intact and make sure that all contents are present. Before use, ensure that there is no visible damage to the device or accessories and that all packaging material has been removed. If you have any doubts, do not use the device and contact your retailer or the customer service address provided.

• 1 aroma diffuser
• 1 mains adapter
  • 1 copy of these instructions for use

2. SIGNS AND SYMBOLS

The following symbols are used on the device, in these instructions for use, on the packaging and on the type plate for the device:

WARNING

Indicates a potentially impending danger. If it is not avoided, there is a risk of death or serious injury.

CAUTION

Indicates a potentially impending danger. If it is not avoided, slight or minor injuries may result.

NOTICE

Indicates a potentially harmful situation. If it is not avoided, the system or something in its vicinity may be damaged.

Product information

Note on important information

Read the instructions

Separate the packaging elements and dispose of them in accordance with local regulations.

Protection class II device

The device is double-insulated and, therefore, is in protection class 2

	Importer symbol		Energy efficiency level 6
	Marking to identify the packaging material.A = material abbreviation,B = material number:1-7 = plastics,20-22 = paper and cardboard		Disposal in accordance with the Waste Electrical and Electronic Equipment EC Directive (WEEE)
	The products demonstrably meet the requirements of the Technical Regulations of the EAEU		Water tank, periodic cleaning
	CE labellingThis product satisfies the requirements of the applicable European and national directives.		Separate the product and packaging elements and dispose of them in accordance with local regulations.
	Manufacturer		Conformity assessed marking for the United Kingdom
	For indoor use only		Polarity of d.c. power connector
	Do not use the power adapter if the plug is damaged.		Power supply unit, switch mode; switch mode power supply unit;
	Safety isolating transformer, short-circuit proof		Tested for safety in accordance with the requirements of the “Produktsicherheitsgesetz” (German Product Safety Act)

3. INTENDED USE

The aroma diffuser is only to be used for improving the ambient scent in a room. The device is intended for private use.

Use the device for the purpose it was developed for only and in the manner specified in these instructions for use. Any form of improper use can be dangerous. The manufacturer is not liable for damage resulting from improper or incorrect use.

4. WARNINGS AND SAFETY NOTES

WARNING

Failure to observe the following information may result in personal injury or material damage.

• Keep packaging material away from children. There is a risk of suffocation!
• If you suffer from a severe respiratory or lung disease, consult your doctor before using the device.
• If you start to feel unwell while the device is in use, stop using it immediately, switch the device off and ventilate the room.
• The device is only to be used with the recommended vaporisation agent. The use of other substances may trigger toxic reactions, or pose a fire risk.

Electric shock

WARNING

• As with every electrical device, use this device carefully and cautiously, in order to avoid hazards due to electric shock.
  • Therefore, observe the following instructions for use:
• Only use this device with the voltage specified on the device
• Never use the device if it shows visible signs of damage
• Do not use the device during a storm
• In the event of defects or operational faults, switch the device off immediately and disconnect it from the mains socket. Do not pull on the mains cable or on the device to disconnect the mains adapter from the socket. Never hold or carry the device by the mains cable.
• Only use the device in dry rooms (e.g. never in the bath, sauna).
• Never pick up a device that has fallen into water. Disconnect the mains adapter immediately.
• Do not drop the device or subject it to any impacts.
• Do not clamp or pinch the mains cable.
• Ensure that the mains cable and mains adapter do not come into contact with water, steam or other liquids.

Repairs

WARNING

Only specialist personnel may perform repairs on electrical devices. Improper repairs may put users in significant danger. For repairs, please contact Customer Services or an authorised retailer.

Risk of fire

WARNING

There may be a risk of fire if the device is used improperly or these instructions for use are ignored.

Therefore, observe the following instructions for use:

• Never use the device underneath a cover, such as a blanket, pillow, etc.
• Never use the device near petrol or other highly flammable substances.

Handling

CAUTION

- The device must be switched off and disconnected after every use and before cleaning.

• Ensure that the mains cable does not pose a trip hazard.
• Do not insert any objects into openings on the device.
• Do not place any objects on the device.

- Ensure that the device is placed on a firm, secure surface that is not susceptible to moisture.

NOTICE

• Do not expose the device to high temperatures.
• Avoid water damage by handling the device carefully (e.g. water damage from splashing in the vicinity of wooden floors).
• If the device should accidentally tip over, water may escape, even if the device is switched off and unplugged.
• The immediate vicinity of the device can become damp.
• Depending on the water quality and temperature, the amount of mist may be lower at the beginning.
• Calcareous water can leave white deposits.
• Do not place the device on the floor, but in a raised position (e.g. on a table or chest of drawers).

• Position the device so that the mist outlet is not directed towards objects.

• Empty any remaining water when the device is not in use.

• The water tank and the cover are made of oil-resistant materials. Keep aroma oils away from other components of the device as these could become damaged by certain ingredients within the oils.

5. DEVICE DESCRIPTION

The associated drawings are shown on page 3.

1 Outlet
2 Cover
3 ON/OFF button
4 LED button
5 Splash protection
6 Ultrasound membrane
7 Water tank

8 sensor area for buttons
9 Air outlet
10 "MAX" marking (maximum fill level)
11 Mains adapter
12 Connection socket
13 Air inlet

6. USAGE

6.1 Initial use

WARNING

• Only fill the device when the mains adapter is unplugged!
• NEVER fill the device when the cover is still attached.
• Only use water-based aroma oils.

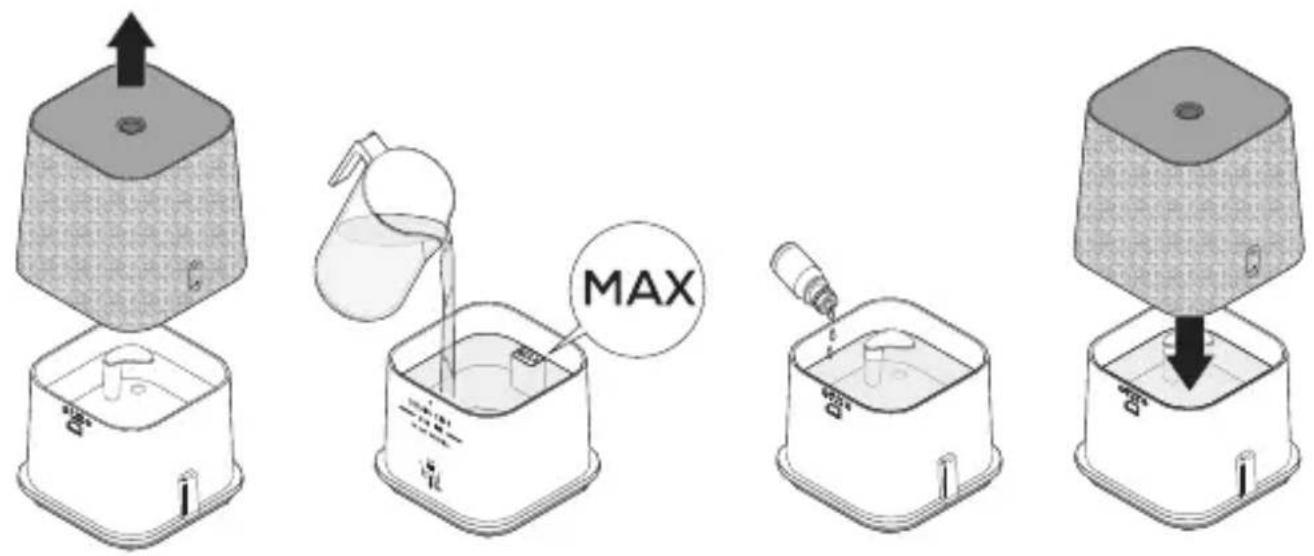

• Open the cardboard packaging, remove all the packaging film and check the device for damage.

• Pull the cover 2 up and off.

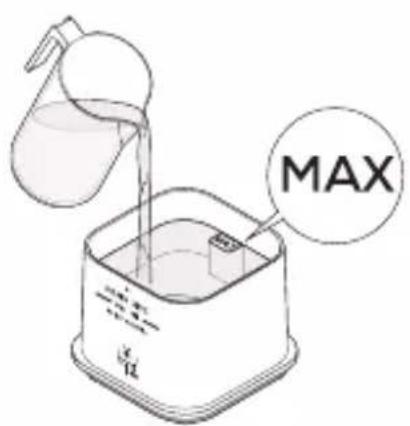

• Fill the water tank 7 with water. Ensure that you do not fill the water tank 7 above the "MAX" marking 10. If the water is very hard, use distilled water.
• Place 2 to 3 drops of the desired aroma oil (water-based) into the water tank 7.

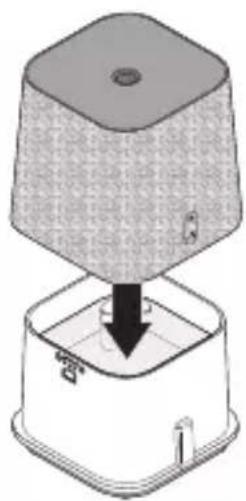

• Replace the cover 2 on the water tank 7 from above. Connect the mains adapter 11 to the connection socket 12 on the underside of the device and to a suitable socket.

6.2 Starting use

Press ON/OFF button 3 once =	Device switches on and operates on highest intensity (continuous mist)
Press ON/OFF button 3 twice =	Intermittent mist(30 Seconds on / 30 seconds off)
Press ON/OFF button 3 three times =	Device switches off

The device switches off automatically if there is a lack of water.

6.3 Adjusting the LED light

The device has an optional LED light.

Press LED button 4 once = LED light intensity 100%

Press LED button 4 twice = LED light intensity 50%

Press LED button 4 three times = LED switches off

6.4 After use

1. Press the ON/OFF button 3 repeatedly until the device is switched off.

2. Disconnect the device from the socket and the mains adapter 11.

3. Pull the cover 2 up and off.

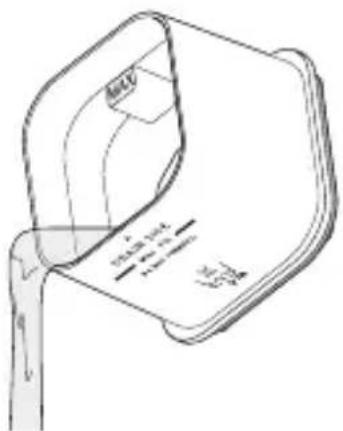

4. Pour any remaining water down the drain as shown. Ensure that the air outlet 9 does not come into contact with water.

7. CLEANING AND MAINTENANCE

CAUTION

Before cleaning the device, ensure that the device is disconnected from the power supply and that there is no water left in the water tank 7. Regular cleaning is a prerequisite for hygienic and fault-free operation. The aroma diffuser can be dismantled for cleaning easily and without tools (see chapter "6.1 Initial use").

- In the middle of the water tank 7, the device has an ultrasound membrane 6. Carefully clean the ultrasound

Technical diagram showing a folded paper or sheet with labeled sections and text, likely illustrating a technical or mathematical concept.

membrane 6 using a cotton bud each week. Depending on the frequency of use, you can also clean the ultrasound membrane 6 several times a week.

• Clean the device after every use using a soft, slightly damp cloth, paying particular attention to the inside of the water tank 7. Never use abrasive, corrosive or solvent-based cleaning products.
• If a layer of limescale forms in the water tank 7, briefly apply a citric acid or vinegar solution beforehand.

8. ACCESSORIES AND REPLACEMENT PARTS

To purchase accessories and replacement parts, please visit www.beurer.com or contact the corresponding service address (according to the service address list) in your country. Accessories and replacement parts are also available from retailers.

Article Article number
Beurer by Taoasis “Vitality” aroma oil (10 ml) 681.30

9. WHAT IF THERE ARE PROBLEMS?

Problem Possible cause Solution
No mist, or very little mist, is coming out of the device.	Mains adapter 11 is not plugged in.	Insert the mains adapter 11 into a suitable socket.
	There is not enough water in the water tank 7.	Fill the water tank 7 up to the “MAX” marking 10.
	There is too much water in the water tank 7.	Pour away excess water from the water tank 7 until it only reaches the “MAX” marking 10.
	Ultrasound membrane 6 is clogged.	Clean the ultrasound membrane 6 as described in chapter “7. Cleaning and maintenance”.
	The outlet 1 on the cover is blocked.	Check that the outlet 1 on the cover is not blocked.
No mist, or very little mist, is coming out of the device.	The water that has been added is too cold.	Pour in warm, but not boiling, water.

If you cannot find a solution to your problem here, contact our Customer Services.

10. DISPOSAL

For environmental reasons, do not dispose of the device in household waste at the end of its service life. Dispose of the device at a suitable local collection or recycling point in your

country. Observe the local regulations for material disposal. Dispose of the device in accordance with EC Directive Waste Electrical and Electronic Equipment (WEEE). If you have any questions, please contact the local authorities responsible for waste disposal. You can obtain the location of collection points for old devices, for example, from the local or municipal authorities, local waste disposal companies or your retailer.

1. TECHNICAL SPECIFICATIONS

Product name LA 35
Power supply Input: 100–240 V, ~50/60 Hz, 0.4 AOutput: 24.0V —— 0.5 A; 12.0 W
Water tank capacity 120 ml
Room size Up to approx. 20 m	^2
Operating principle Ultrasonic atomiser
Mist settings Continuous mist and intermittent mist
Running time Approx. 8 hours of continuous mistApprox. 16 hours of intermittent mist
Weight LA 35: approx. 240 g	Adapter: approx. 82 g
Dimensions 100 mm x 100 mm x 90 mm
Average efficiency during operation ≥ 83.13 %
Efficiency at low load (10%) ≥ 75.32 %
No-load power consumption ≤ 0.10 W
Mains adapter Manufacturer:	Dong Guan City GangQi Electronics Co. Ltd.Model number:EU (100.34): GQ12-240050-AGUK (100.35): GQ12-240050-AB

Subject to technical changes.

12. WARRANTY

Further information on the warranty and warranty conditions can be found in the warranty leaflet supplied.

FRANÇAIS

Diagram of a mechanical device with a top component and internal components, showing an upward arrow (no text or symbols)

MAX s L

Simple line drawing of a dropper pouring liquid into a square container (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating force or movement (no text or symbols present)

MAX 100mm x 100% 100mm x 100%

7. NETTOYAGE ET ENTRETIEN

ATTENTION

Diagram of a mechanical device with a top component and internal components, showing an upward arrow (no text or symbols)

MAX s L

Simple line drawing of a dropper pouring liquid into a square container (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating force or movement (no text or symbols present)

MAX MAX MAX MAX

7. LIMPIEZA Y CUIDADO

ATENCIÓN

Diagram of a mechanical device with a top component and internal components, showing an upward arrow (no text or symbols)

MAX s L

Simple line drawing of a dropper pouring liquid into a square container (no text or symbols)

Diagram of a mechanical device with a conical top and base, showing a downward force or compression operation (no text or symbols present)

Diagram of a mechanical device with a top component and base, showing an upward arrow and internal components (no text or symbols)

MAX

Simple line drawing of a container with liquid being poured into it (no text or symbols)

Illustration of a mechanical device with a downward arrow indicating compression or disassembly (no text or symbols present)

MAX 100% 100% 100% 100%

7. TEMİZLİK VE BAKIM

DIKKAT

Diagram of a mechanical device with a top component and internal components, showing an upward arrow (no text or symbols)

MAX s L

Simple line drawing of a dropper pouring liquid into a square container (no text or symbols)

Diagram of a mechanical device with a conical top and base, showing a downward force or compression operation (no text or symbols present)

MAX 12.5 mm x 100% 12.5 mm x 100%

7. CZYSZCZENIE I KONSERWACJA

UWAGA

5. BESCHRIJVING VAN HET APPARAAT

Diagram of a mechanical device with a top component and internal components, showing an upward arrow (no text or symbols)

MAX s L

Simple line drawing of a dropper pouring liquid into a square container (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating force or movement (no text or symbols present)

6.2 Gebruik starten

MAX 100% 15% 20% 30% 40%

7. REINIGING EN ONDERHOUD

VOORZICHTIG

Diagram of a mechanical device with a top component and internal components, showing an upward arrow (no text or symbols)

MAX s L

Simple line drawing of a dropper pouring liquid into a square container (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating force or movement (no text or symbols present)

6.2 Start programmet

MAX MAX MAX

7. RENG∅RING OG VEDLIGEHOLDELSE

FORSIGTIG

Diagram of a mechanical device with a top component and internal components, showing an upward arrow (no text or symbols)

MAX s L

Simple line drawing of a dropper pouring liquid into a square container (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating force or movement (no text or symbols present)

MAX 100% 100% 100% 100%

7. RENGÖRING OCH UNDERHÅLL

VAR FÖRSIKTIG

Diagram of a mechanical device with a top component and internal components, showing an upward arrow (no text or symbols)

MAX s L

Simple line drawing of a dropper pouring liquid into a square container (no text or symbols)

Diagram of a mechanical device with a conical top and base, showing a downward force or compression operation (no text or symbols present)

6.2 Starte apparatet

6.3 Stille inn LED-lys

Diagram of a mechanical device with a top component and internal components, showing an upward arrow (no text or symbols)

MAX s L

Simple line drawing of a dropper pouring liquid into a square container (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating force or movement (no text or symbols present)

BEURER UK Ltd., Suite 16, Stonecross Place

Yew Tree Way

WA32SH Golborne

United Kingdom
