USER MANUAL LA 40 BEURER

Instructions for use 19

Read these instructions for use carefully and keep them for later use, be sure to make them accessible to other users and observe the information they contain.

Table of contents

1. Signs and symbols 22
2. Intended use 23
   3.Notes 23
3. Device description 26
4. Initial use 27
5. Operation 29

6.1 Switching on the device 29
6.2 Setting the timer and mood light 29
6.3 Setting the mist intensity 29

1. Cleaning and maintenance 31
2. Replacement parts and additional items 31
3. Disposal 31
   10.What if there are problems? 32
4. Technical data 32
   12.Warranty 33

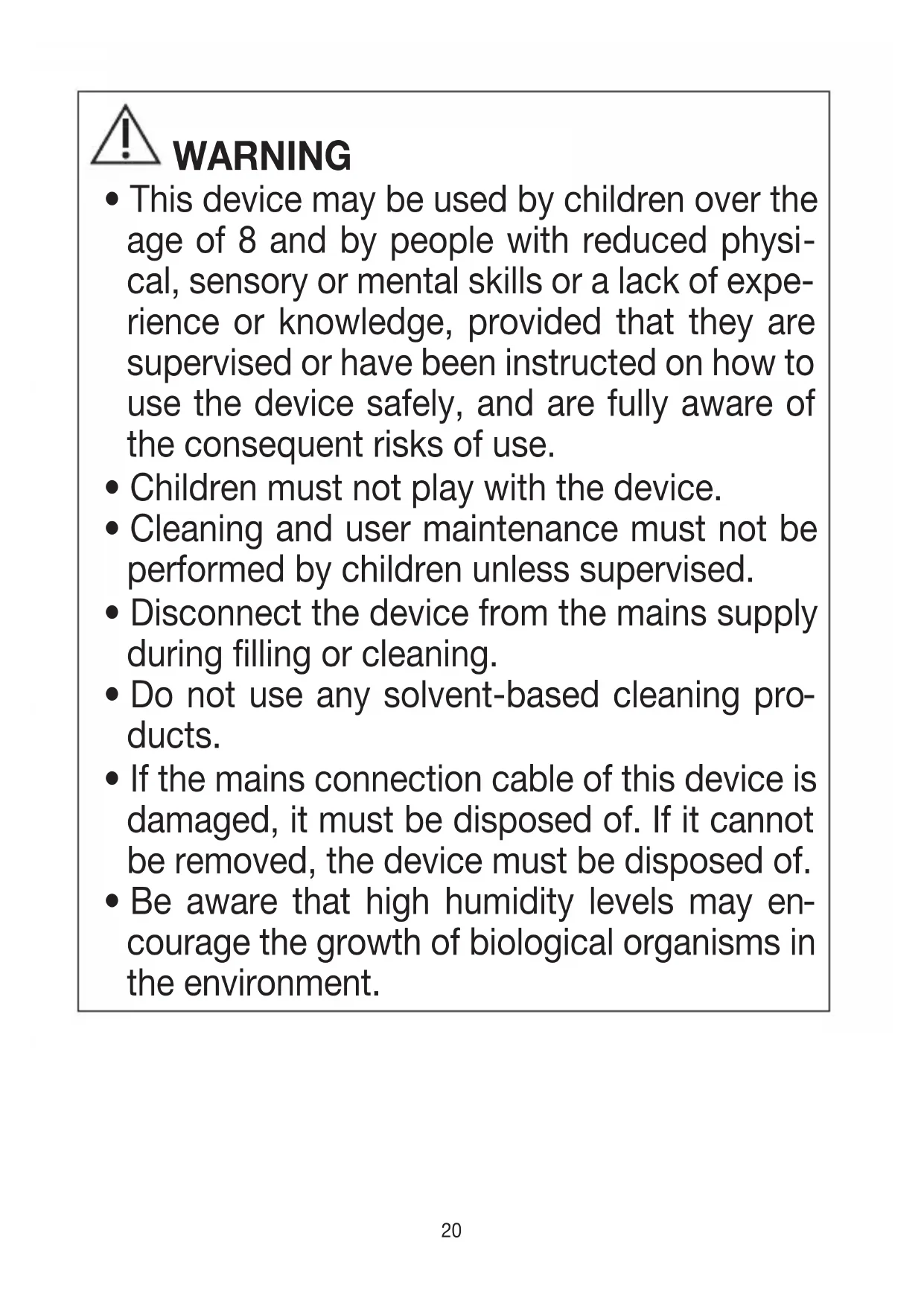

WARNING

• This device may be used by children over the age of 8 and by people with reduced physical, sensory or mental skills or a lack of experience or knowledge, provided that they are supervised or have been instructed on how to use the device safely, and are fully aware of the consequent risks of use.
• Children must not play with the device.
• Cleaning and user maintenance must not be performed by children unless supervised.
• Disconnect the device from the mains supply during filling or cleaning.
• Do not use any solvent-based cleaning products.
• If the mains connection cable of this device is damaged, it must be disposed of. If it cannot be removed, the device must be disposed of.

• Be aware that high humidity levels may encourage the growth of biological organisms in the environment.

• Do not permit the area around the device to become damp or wet. If dampness occurs, turn the output of the device down. If the output volume cannot be turned down, use the device intermittently. Do not allow absorbent materials, such as carpeting, curtains, drapes, or tablecloths, to become damp.

• Never leave water in the reservoir when the appliance is not in use.
• Empty and clean the device before storage. Clean the device before next use.
• Micro-organisms that may be present in the water or in the environment where the appliance is used or stored, can grow in the water reservoir and be blown in the air causing very serious health risks when the water is not renewed and the tank is not cleaned properly every three days.

Included in delivery

Check that the exterior of the delivery cardboard packaging is intact and make sure that all contents are present. Before use, ensure that there is no visible damage to the device or accessories and that all packaging material has been removed. If you have any doubts, do not use the device and contact your retailer or the specified Customer Service address.

1 x Aroma diffuser
1 x Mains adapter
1 x Set of these instructions for use

1. SIGNS AND SYMBOLS

The following symbols appear in these instructions for use and on the device:

	WARNING Warning notice indicating a risk of injury or damage to health.
	IMPORTANT Safety note indicating possible damage to the device/accessory.
	Product information Note on important information.
	Read the instructions
	Disposal in accordance with the Waste Electrical and Electronic Equipment EC Directive - WEEE
CE	CE labelling This product satisfies the requirements of the applicable European and national directives.
UKCA	United Kingdom Conformity Assessed Mark
	Manufacturer
B A	Marking to identify the packaging material. A = Material code, B = Material number: 1-7 = Plastics, 20-22 = Paper and cardboard
EAC	The products demonstrably meet the requirements of the Technical Regulations of the EAEU.
VI	Energy efficiency class 6
	Water tank, periodical cleaning
	Separate the product and packaging elements and dispose of them in accordance with local regulations.
	Importer symbol
	For indoor use only
	Do not use the power adapter if the plug is damaged·
	Safety isolating transformer, short-circuit proof
	Polarity of d.c. power connector
	Switch mode power supply unit
	Tested for safety in accordance with the requirements of the “Produktssicherheitsgesetz” (German Product Safety Act)

2. INTENDEDUSE

The aroma diffuser is only to be used for improving the ambient scent in a room. The device is intended for private use.

Use the device for the purpose it was developed for only and in the manner specified in these instructions for use. Any form of improper use can be dangerous. The manufacturer is not liable for damage resulting from improper or incorrect use.

3. NOTES

Non-observation of the following information may result in personal injury or material damage.

Safety notes

WARNING

• Keep packaging material away from children. Choking hazard!
• If you suffer from a severe respiratory or lung disease, consult your doctor before using the device.
• If you start to feel unwell while the device is in use, stop using it immediately, switch the device off and ventilate the room.
• The device is only to be used with the recommended vaporisation agent. The use of other substances may trigger toxic reactions, or pose a fire risk.

Electric shock

WARNING

As with every electrical device, use this device carefully and cautiously, in order to avoid hazards due to electric shock.

• Therefore:

• Only use this device with the voltage specified on the device

• Never use the device if it shows visible signs of damage

• Do not use the device during a storm

• In the event of defects or operational faults, switch the device off immediately and disconnect it from the mains socket. Do not pull on the mains cable or on the device to disconnect the mains adapter from the socket. Never hold or carry the device by the mains cable.

• Only use the device in dry rooms (e.g. never in the bath, sauna).
• Never reach for a device that is submerged in water. Disconnect the mains adapter immediately.
• Do not drop the device or subject it to any impacts.
• Do not clamp or pinch the mains cable.
• Ensure that the mains cable and mains adapter do not come into contact with water, steam or other liquids.

Repairs

WARNING

Only specialist personnel may perform repairs on electrical devices. Improper repairs may subject users to considerable danger. For repairs, please contact Customer Services or an authorised retailer.

Risk of fire

WARNING

There is a risk of fire if the device is used improperly or these instructions for use are ignored. Therefore:

• Never use the device underneath a cover, such as a blanket, pillow, etc.
• Never use it near petrol or other highly flammable substances.

Handling

IMPORTANT

• The device must be switched off and disconnected after every use and before cleaning.

• Ensure that the mains cable does not pose a trip hazard.

• Do not insert any objects into openings on the device.

• Do not place any objects on the device.
• Ensure that the device is placed on a firm, secure surface that is not susceptible to moisture.
• Do not expose the device to high temperatures.
• Avoid water damage by handling the device carefully (e.g. water damage from splashing in the vicinity of wooden floors).
• If the device should accidentally tip over, water may escape, even if the device is switched off and unplugged.
• The immediate vicinity of the device can become damp.
• Depending on the water quality and temperature, the amount of mist may be lower at the beginning.
• Calcareous water can leave white deposits.
• Do not place the device on the floor, but in a raised position (e.g. on a table or chest of drawers).
• Position the device so that the mist outlet is not directed towards objects.
• Empty any remaining water when the device is not in use.
• The water tank and the cover are made of oil-resistant materials. Keep aroma oils away from other components of the device as these could become damaged by certain ingredients within the oils.

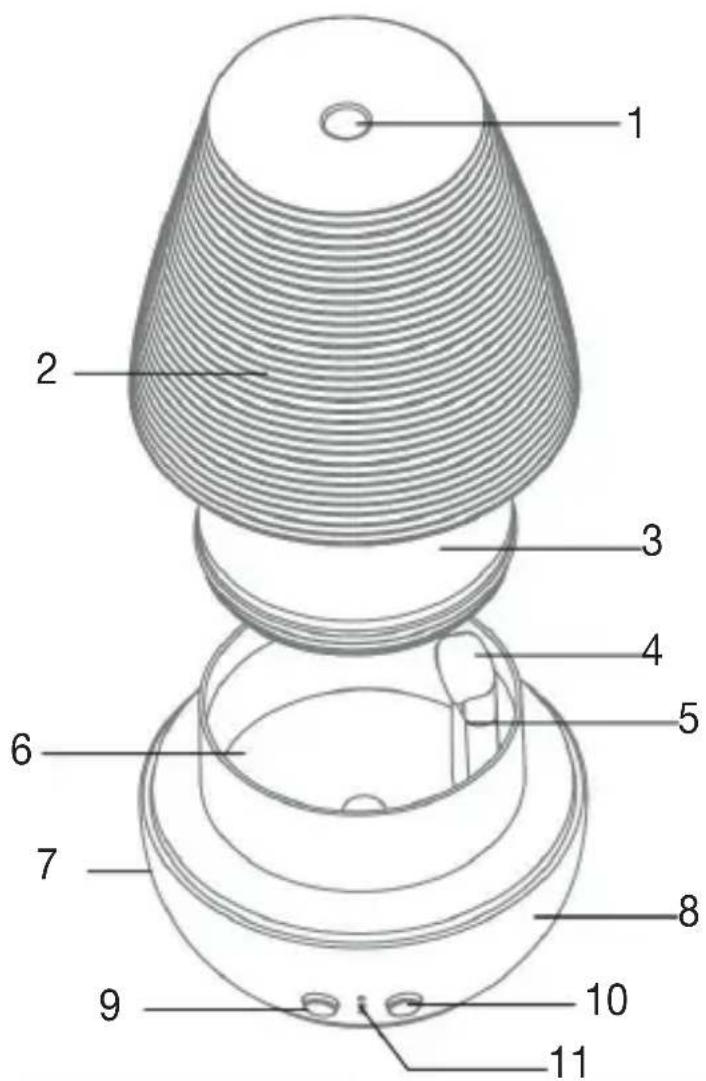

4. DEVICEDESCRIPTION

1 Outlet 7 Connection socket (on the rear)
2 Porcelain cover 8 Base unit
3 Inner cover 9 Mist/timer button
4 Ventilation cover 10 Mood light button
5 Ventilation opening 11 Timer display
6 Water tank

5. INITIAL USE

WARNING

• Only fill the device when the mains adapter is unplugged.
• NEVER fill the device when the porcelain cover is still attached.
• When using aroma oils, always observe the manufacturer's instructions regarding proper use.
• Open the cardboard packaging, remove all the packaging film and check the device for damage.

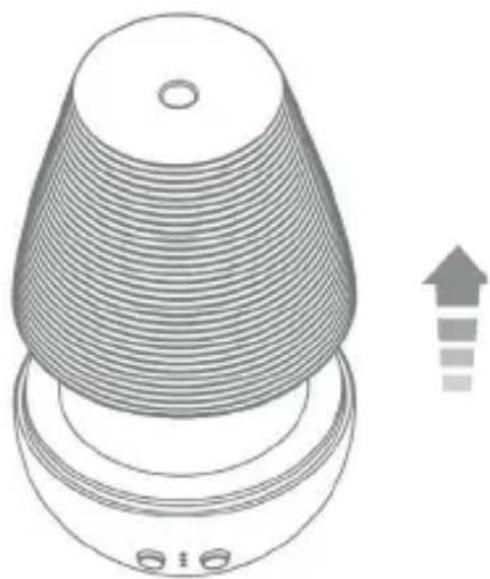

1.Pull the porcelain cover up and off.

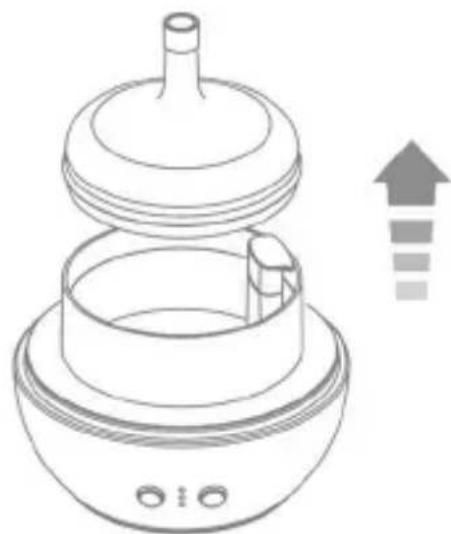

1. Pull the inner cover up and off.

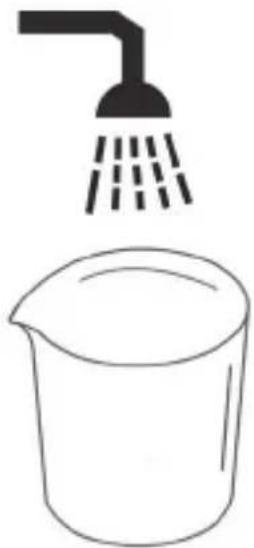

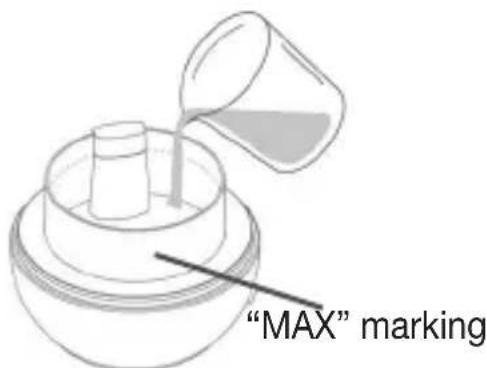

1. Fill a measuring jug with water. 4.

Carefully pour the water from the measuring jug into the water tank. Ensure that you do not fill the water tank above the "MAX" marking.

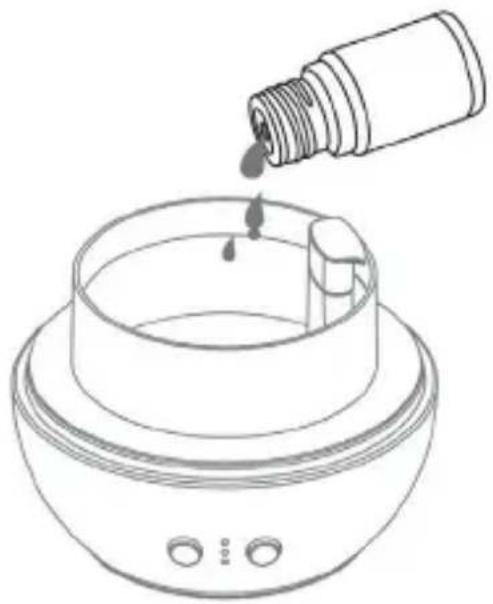

1. Place 5 - 10 drops of the desired aroma oil into the water tank.

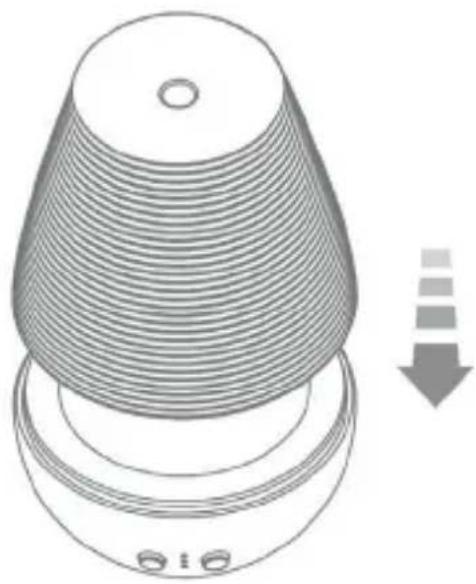

1. Carefully place the porcelain cover onto the inner cover from above.

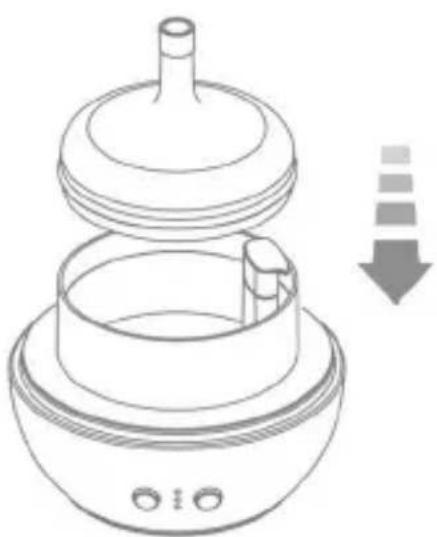

1. Firmly place the inner cover on to the water tank.

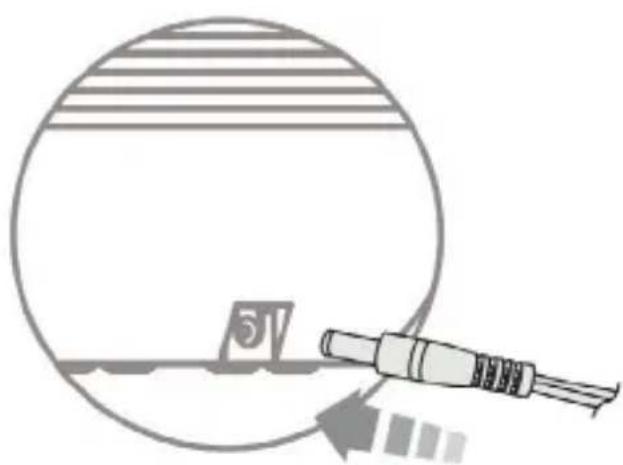

1. Plug the mains cable of the mains adapter into the connection socket on the rear of the device. Insert the mains adapter into a suitable socket.

6. OPERATION

6.1 Switching on the device

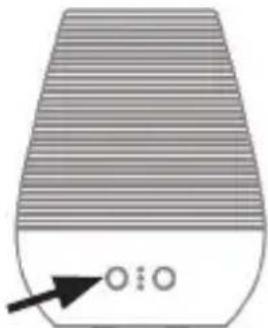

• Press the Mist/timer button to switch on the device.

6.2 Setting the timer and mood light

The device has the following functions:

Mood light buttonMist/timer button

Setting the timer Setting the mood light

Press 1x Continuous mist	*
Press 2x 1 hour of mist	○
Press 3x 3 hours of mist	○
Press 4x 7 hours of mist	*
Press 5x Device switched off	○

Press 1x Warm, bright light

Press 2x Mood light with change of colour

Press 3x Current mood light continuously

Press 4x Mood light switched off

6.3 Setting the mist intensity

To change between intermittent and continuous mist, press and hold the Mist/timer button for 2 seconds until the timer display starts to flash.

Intermittent mist continuous mist (30 seconds on/30 seconds off)

After use

1. Disconnect the device from the socket and the mains adapter.
2. Remove the porcelain cover and the inner cover in an upward direction.
3. Pour any remaining water down the drain.

IMPORTANT

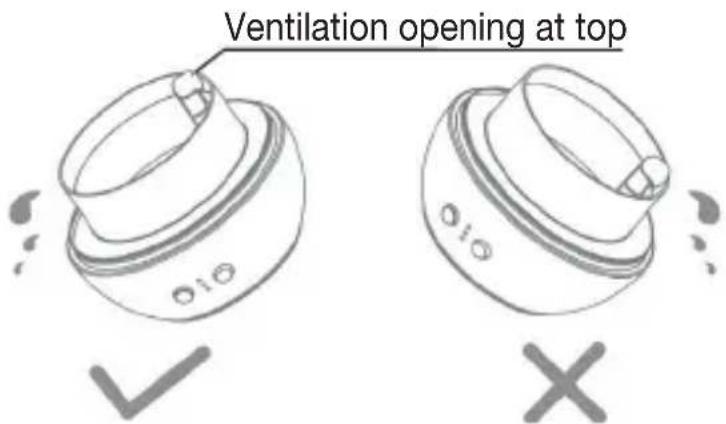

When pouring out the water, ensure that the ventilation opening is located at the top. Ensure that the ventilation opening does not come into contact with water.

1. Clean the device as described under "Cleaning and maintenance".

What to do if the device tips over during use

If the device should tip over during use, then water may enter the ventilation opening. In the event of this, there is a water drainage hole on the underneath of the device so that the water can drain out of the ventilation opening. To drain the water from the water drainage hole, proceed as follows:

1. Remove the mains adapter from the mains socket.

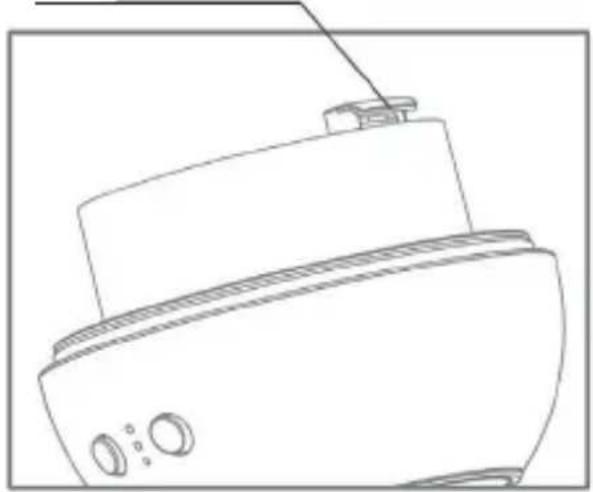

2. Empty the water tank with the ventilation opening at the top so that no water can enter the ventilation opening.

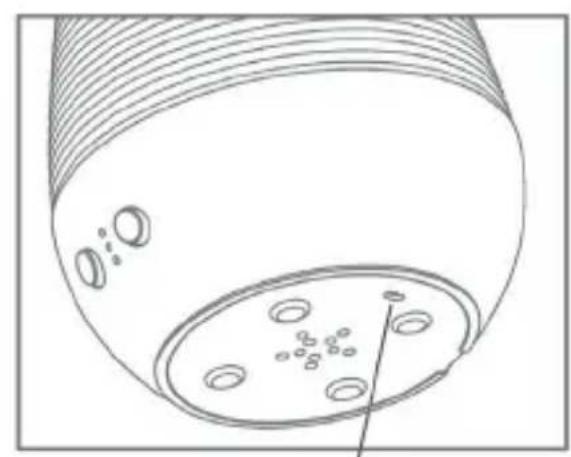

3. Tip the device in the direction of the water drainage hole so that the water can drain.

Ventilation opening

Water drainage hole

1. Allow the device to dry for at least 24 hours.

7. CLEANING AND MAINTENANCE

Note

Before cleaning the device, ensure that the device is disconnected from the power supply and that there is no water left in the water tank. Regular cleaning is a prerequisite for hygienic and fault-free operation. The aroma diffuser can be dismantled for cleaning easily and without tools (see chapter „Initial use“).

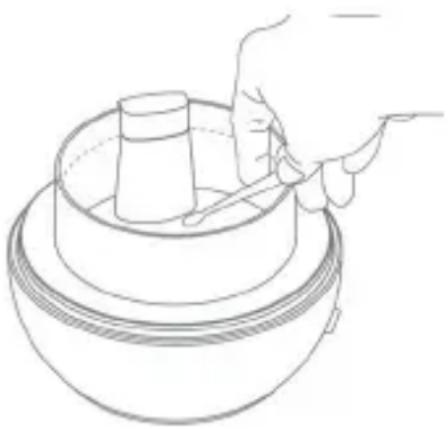

• The device has an ultrasonic vaporiser in the middle of the water tank. Carefully clean the ultrasonic vaporiser using a cotton bud each week. Depending on the frequency of use, you can also clean the ultrasonic vaporiser several times a week.
• Clean the device after every use using a soft, slightly damp cloth, paying particular attention to the inner cover and the inside of the water tank. Never use abrasive, corrosive or solvent-based cleaning products.

8. REPLACEMENT PARTS AND ADDITIONAL ITEMS

To purchase accessories and replacement parts, please visit www.beurer.com or contact the corresponding service address (according to the service address list) in your country. Accessories and replacement parts are also available from retailers.

Item Item number
Beurer by Taoasis “Vitality” aroma oil (10 ml) 681.30

9. DISPOSAL

For environmental reasons, do not dispose of the device in the household waste at the end of its useful life.

Dispose of the device at a suitable local collection or recycling point in your country. Dispose of the device in accordance with EC Directive - WEEE (Waste Electrical and Electronic Equipment).

If you have any questions, please contact the local authorities responsible for waste disposal.

10. WHAT IF THERE ARE PROBLEMS?

Problem Cause Solution
No mist is being emitted from the device.	Mains adapter is not plugged in.	Insert the mains adapter into a suitable socket.
	There is not enough water in the water tank.	Fill the water tank up to the “MAX” marking.
Only a small amount of mist is being emitted from the device.	There is too much water in the water tank.	Pour away excess water from the water tank until it only reaches the “MAX” marking.
	Ultrasonic vaporiser is blocked.	Clean the ultrasonic vaporiser as described in the “Cleaning and maintenance” chapter.
The LED of the Mist/timer button is illuminated and the device is running, but no mist is emitted.	The outlet in the porcelain cover is blocked.	Check that the outlet in the porcelain cover is not blocked.
	Condensation is blocking the ventilation opening in the water tank.	Open the ventilation cover and remove the condensation at the ventilation opening.

If you cannot find a solution to your problem here, contact our Customer Services.

11. TECHNICALDATA

Product name LA 40
Supply Input: 100 – 240 V, ~50/60	Hz, 0.4 A max Output: 24.0 V ——0.5 A, 12.0 W
Water tank capacity 180 ml
Room size Up to approx. 20 m	2
How it works Ultrasonic atomiser
Mist settings Continuous mist and intermittent mist
Running time approx. 9 hours of continuous mist approx. 18 hours of intermittent mist
Timer duration 1 hour, 3 hours, 7 hours, continuous operation
Weight LA 40: approx. 508 g, Adapter: approx. 80 g
Dimensions Ø 129 mm x 167 mm
Average active efficiency	≥ 83.13 %
Efficiency at low load (10 %) ≥ 75.32 %
No-load power consumption ≤ 0.088 W
Mains part Manufacturer:	Dong Guan City GangQi Electronics Co. Ltd. Model no.: EU (606.26): GQ12-240050-AG UK (606.27): GQ12-240050-AB

12. WARRANTY

Further information on the warranty and warranty conditions can be found in the warranty leaflet supplied.
