LA 50 - Aroma diffuser BEURER - Free user manual and instructions

Product type	Ultrasonic aroma diffuser
Brand	Beurer
Model	LA 50
Dimensions (L x W x H)	116 x 112 x 162 mm
Weight (device)	approx. 295 g
Weight (adapter)	approx. 113 g
Power supply	AC 220-240 V / DC 24 V, 50/60 Hz
Rated power	12 W
Tank capacity	100 ml
Recommended area	up to 15 m²
Operating time	approx. 4 to 8 hours
Technology	Ultrasonic nebulizer
Operating modes	3 modes (blue LED on/off, sleep mode)
Automatic shut-off	Yes, when tank is empty (2-3 seconds)
Materials	Oil-resistant (tank and lid)
Cleaning	Soft damp cloth or provided brush, after each use
Included accessories	Power adapter, measuring cup, cleaning brush, instruction manual
Compatible oils	Water-based aromatic oils (e.g., Beurer by Taoasis)
Safety	Use by children aged 8 and above under supervision, unplug before filling/cleaning
Protection class	IP50 (dust protection)
Reparability	Repair by authorized specialist only
Spare parts	Available aromatic oils (ref. 681.30, 681.31, 681.32)

Frequently Asked Questions - LA 50 BEURER

How to use the LA 50 diffuser?

Remove the lid, fill the tank with water up to the MAX mark using the measuring cup, add 3-5 drops of water-based aromatic oil, close the lid, plug in the power adapter and press the On/Off button. The device offers 3 operating modes: diffuser only, diffuser + LED, or sleep mode.

What type of oil can I use?

Use only water-based aromatic oils. Oily or alcohol-based oils can damage the device. Recommended oils are Beurer by Taoasis references (Vitality, Harmony, Relax).

How to clean the diffuser?

Unplug the device and empty residual water. Clean the lid and the inside of the tank with a slightly damp soft cloth or the provided cleaning brush. Do not use abrasive products or solvents. Perform this cleaning after each use.

Why is my diffuser not producing vapor?

Check that the power adapter is properly plugged in and that the tank contains enough water (without exceeding the MAX mark). Make sure the outlet opening on the lid is not blocked. The device automatically shuts off when the tank is empty.

What is the operating time?

The diffuser can operate continuously for 4 to 8 hours, depending on the mode selected. It automatically stops when the water tank is empty.

Can I leave the diffuser on all night?

Yes, but ensure the tank is filled and the device is placed on a stable surface out of reach of children. The automatic shut-off when the tank is empty provides additional safety.

Is the diffuser suitable for children?

Yes, from 8 years of age under adult supervision. Children should not play with the device and cleaning should not be done by children without supervision.

What to do if the device falls into water?

Never touch the device if it has fallen into water. Immediately unplug the power adapter from the outlet. Then have the device checked by a specialist before reuse.

Where can I buy replacement aromatic oils?

Beurer by Taoasis aromatic oils are available from Beurer customer service or in stores. References are: Vitality (681.30), Harmony (681.31) and Relax (681.32).

How to dispose of the diffuser at end of life?

In accordance with the European WEEE directive, do not dispose of the device with household waste. Return it to a recycling center or collection point for electrical and electronic equipment.

USER MANUAL LA 50 BEURER

Instructions for use 12

Read these instructions for use carefully and keep them for later use, be sure to make them accessible to other users and observe the information they contain.

Table of contents

1. Signs and symbols 14
2. Intended use 14
3. Notes 15
4. Unit description 17
5. Initial use 18
6. Operation 19
7. Cleaning 20
8. Replacement parts and additional items 20
9. Disposal 20
   10.What if there are problems? 21
10. Technical data 21

Dear customer,

Thank you for choosing one of our products. Our brand stands for well-engineered, quality made products; driven by innovation and safety. Our product range encompasses a wealth of products for health and well-being in the heat, weight, blood pressure, body temperature, pulse, gentle therapy, massage, beauty, baby and air sectors.

With kind regards,

Your Beurer team

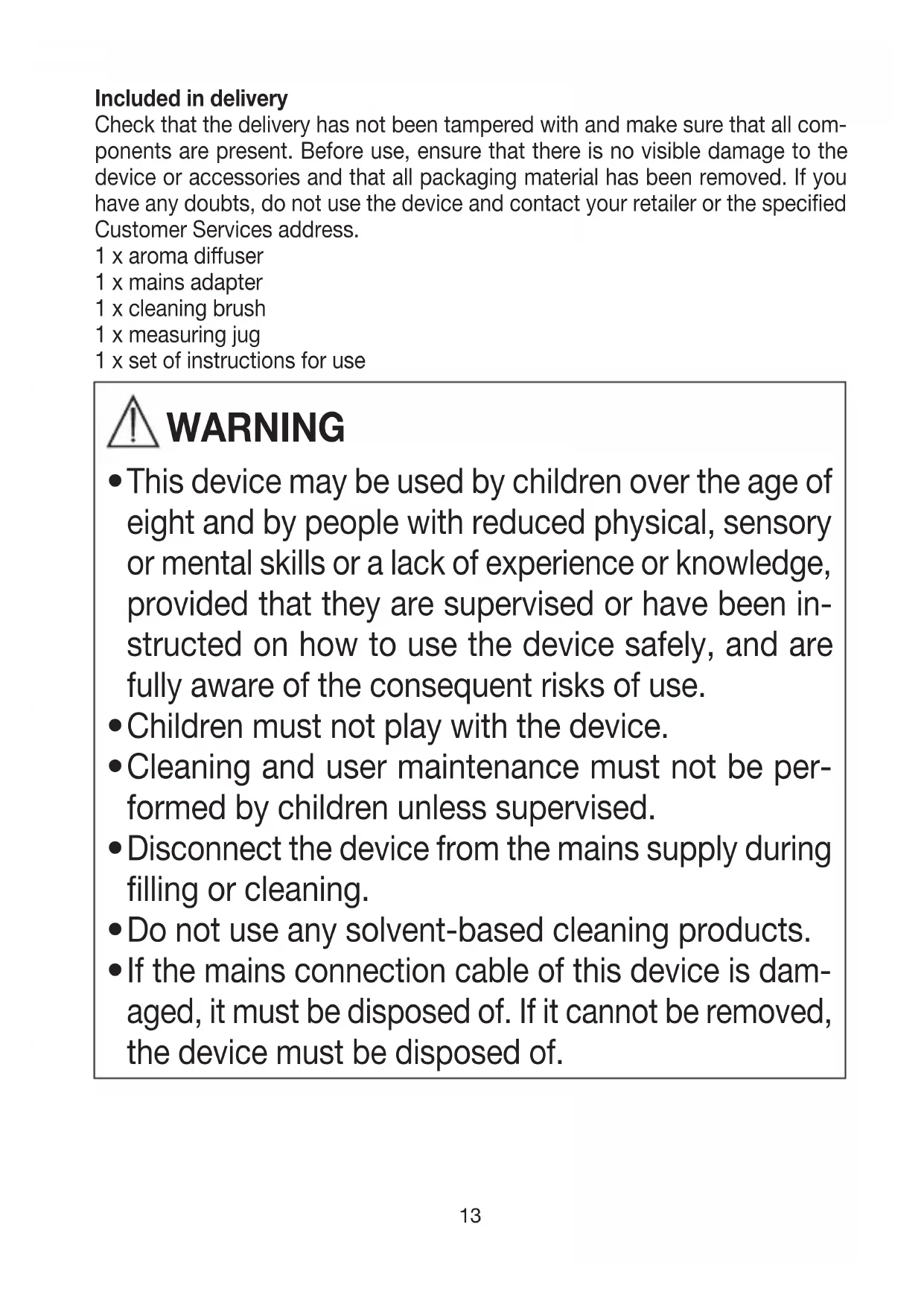

Included in delivery

Check that the delivery has not been tampered with and make sure that all components are present. Before use, ensure that there is no visible damage to the device or accessories and that all packaging material has been removed. If you have any doubts, do not use the device and contact your retailer or the specified Customer Services address.

1 x aroma diffuser
1 x mains adapter
1 x cleaning brush
1 x measuring jug
1 x set of instructions for use

WARNING

• This device may be used by children over the age of eight and by people with reduced physical, sensory or mental skills or a lack of experience or knowledge, provided that they are supervised or have been instructed on how to use the device safely, and are fully aware of the consequent risks of use.
• Children must not play with the device.
• Cleaning and user maintenance must not be performed by children unless supervised.
• Disconnect the device from the mains supply during filling or cleaning.
• Do not use any solvent-based cleaning products.
• If the mains connection cable of this device is damaged, it must be disposed of. If it cannot be removed, the device must be disposed of.

1. Signs and symbols

The following symbols appear in these instructions for use and on the device:

	WARNING Warning notice indicating a risk of injury or damage to health.
	IMPORTANT Safety note indicating possible damage to the device/accessory.
i	Note Note on important information.
	Observe the instructions for use
	Disposal in accordance with the Waste Electrical and Electronic Equipment EC Directive – WEEE
CE	This product satisfies the requirements of the applicable European and national directives.
	Manufacturer

2. Intended use

The aroma diffuser is only to be used for improving the ambient scent in a room. The device is intended for private use.

Use the device for the intended purpose only and in the manner specified in these instructions for use. Any form of improper use can be dangerous. The manufacturer is not liable for damage resulting from improper or careless use.

3. Notes

Non-observation of the following information may result in personal injury or material damage.

Safety notes

WARNING

• Keep packaging material away from children! Choking hazard!
• If you suffer from a severe respiratory or lung disease, consult your doctor before using the device.
• If you start to feel unwell while the device is in use, stop using it immediately, switch the device off and ventilate the room.

Electric shock

WARNING

As with every electrical device, use this device carefully and cautiously, in order to avoid hazards due to electric shock.

• Therefore, observe the following instructions for use:

• Only use this device with the voltage specified on the device

• Never use the device if it shows visible signs of damage

• Do not use the device during a thunderstorm

• In the case of defects or operational faults, switch the device off immediately and disconnect the device from the mains socket. Do not pull on the mains cable or on the device to disconnect the mains adapter from the socket. Never hold or carry the device by the mains cable.

• Only use the device in dry rooms (e.g. never in the bath, sauna).
• Never reach for a device that has been submerged in water. Disconnect the mains adapter immediately.
• Do not drop the device or subject it to any impacts.
• Do not clamp or pinch the mains cable.
• Ensure that the mains cable and mains adapter do not come into contact with water, steam or other liquids.

Repairs

WARNING

Only specialist personnel may perform repairs on electrical devices. Improper repairs may subject users to considerable danger. For repairs, please contact Customer Services or an authorised retailer.

Risk of fire

WARNING

There is a risk of fire if the device is used improperly or these instructions for use are ignored.

Therefore, observe the following instructions for use:

• Never use underneath a cover, such as a blanket, pillow, etc.
• Never use near petrol or other highly flammable substances.

Handling

IMPORTANT

• The device must be switched off and disconnected from the mains every time after use and before cleaning.
• Ensure that the mains cable does not pose a trip hazard.
• Do not insert any objects into openings on the device.
• Do not place any objects on the device.
• Do not expose the device to high temperatures.
• Avoid water damage by handling the device carefully (e.g. water damage from splashing in the vicinity of wooden floors).
• If the device should accidentally tip over, water may escape, even if the device is switched off and unplugged.
• The immediate vicinity of the device can become damp.
• Calcareous water can leave white deposits.
• Do not place the device on the floor, but in a raised position (e.g. on a table or chest of drawers).
• Position the device so that the mist outlet is not directed towards objects.
• Empty any remaining water when the device is not in use.
• Do not expose the device to high temperatures.
• The water tank and the cover are made of oil-resistant materials. Keep aroma oils away from other components of the device as these could become damaged by certain ingredients within the oils.

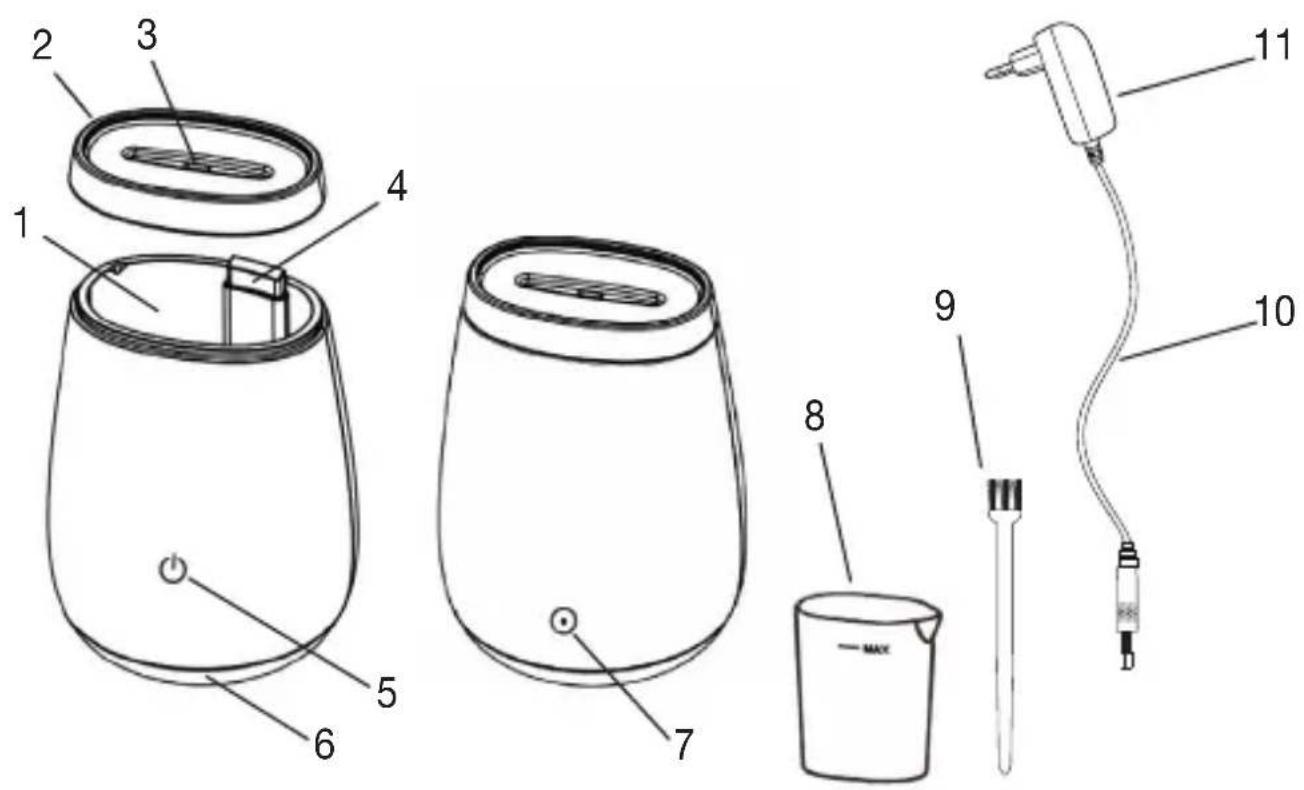

4. Unit description

1 Water tank 7 Connection socket
2 Cover 8 Measuring jug
3 Outlet 9 Cleaning brush
4 Wind channel 10 Mains cable
5 ON/OFF button 11 Mains adapter
6 LED light

5. Initial use

WARNING

• Only fill the device when the network adapter is unplugged.

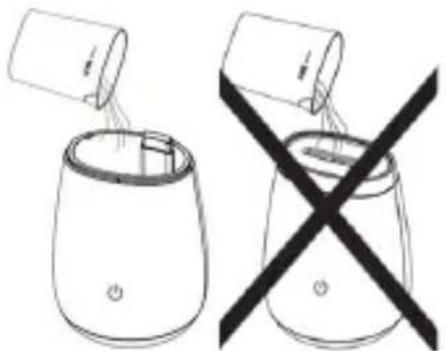

• Never fill the device when the cover is still on.
• Only use for water-based aroma oils.

• Open the cardboard packaging, remove all the packaging fi lm and check the device for damage.

• Pull the cover upwards to remove it.

1. Fill the measuring jug with water up to the "MAX" marking.

1. Carefully pour the water from the measuring jug into the device. Observe the "MAX" marking in the device.

1. Add three to five drops of the (water-based) aroma oil that you want to use.

1. Replace the cover. 6.

Insert the mains cable into the rear of the device and connect to a socket.

6. Operation

Press the ON/OFF button to switch on the device (1)

Note

The device has three different modes:

Aroma diff user Blue LED light

Press the ON/OFF button (▲) 1x	ON OFF
Press the ON/OFF button (▲) 2x	ON ON
Press the ON/OFF button (▲) 3x	OFF OFF

The device has an automatic switch-off function. If the tank is empty, the device switches itself off after 2-3 seconds.

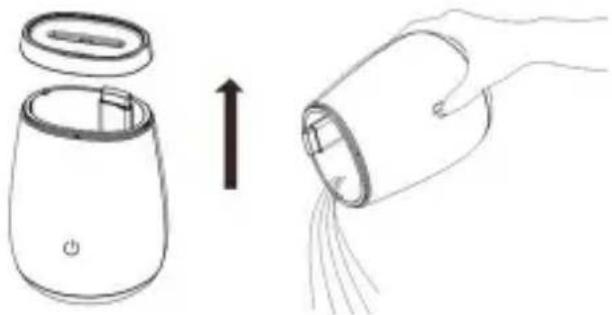

After use

1. Disconnect the device from the socket.
2. Remove the cover from the device in an upward direction.
3. Pour any remaining water down the drain.
4. Clean the device as described under "7. Cleaning".

7. Cleaning

Note

Before cleaning the device, ensure that the device is disconnected from the power supply and that there is no water left in the water tank. Regular cleaning is a prerequisite for hygienic and fault-free operation. The aroma diffuser can be dismantled for cleaning easily and without tools.

• Clean the device after every use using a soft, slightly damp cloth or the cleaning brush included in the delivery, paying particular attention to the cover and the inside of the water tank. Never use abrasive, corrosive or solvent-based cleaning products.

8. Replacement parts and additional items

Replacement parts and additional items are available from the corresponding service address (according to the service address list). Please state the corresponding item number. Replacement parts and additional items are also available from retailers.

Item Item number
Beurer by Taoasis “Vitality” aroma oil (10 ml) 681.30
Beurer by Taoasis “Harmony” aroma oil (10 ml) 681.31
Beurer by Taoasis “Relax” aroma oil (10 ml) 681.32

9. Disposal

Dispose of the device in accordance with EC Directive - WEEE (Waste Electrical and Electronic Equipment). If you have any questions, please contact the local authorities responsible for waste disposal.

10. What if there are problems?

Problem Cause	Solution
No mist is being emitted from the device	Mains adapter is not plugged in.	Insert the mains adapter into a suitable socket.
	There is not enough water in the water tank.	Fill the water tank up to the “MAX” marking.
	There is too much water in the water tank.	Pour away excess water from the water tank until it only reaches the “MAX” marking.
	The outlet in the cover is blocked.	Check that the outlet in the cover is not blocked.

If you cannot find a solution to your problem here, contact our Customer Services.

11. Technical data

Product name LA 50
Mains voltage/frequency 220-240 V AC / 50/60 Hz DC:24 V
Water tank capacity 100 ml
Nominal power 12 W
Room size up to approx. 15 m	2
How it works Ultrasonic atomiser
Run time approx. 4-8 hours
Protection class	IP50, protection against harmful quantities of dust, no protection against water.
Weight	LA 50: approx. 295 g adapter: approx. 113 g
Dimensions 116 x 112 x 162 mm

FRANÇAIS

Chere cliente, cher client,

aromatico	LED blu
ON OFF
ON ON
OFF OFF

Ürün Adı LA 50
Şebeke gerilimi/frekansi 220-240 V AC	/ 50/60 Hz DC:24 V
Su haznesinin hacmi 100 ml
Nominal güç 12 W
Oda buyüklugu yakkık 15 m	2
Çalisma seksli Ultrasonik nedülizatör
Çalisma s uresi yakı. 4-8 saat
Koruma Sinificant	IP50, zaralar miktarda tozaXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXY
Ağırkı L A 50: yaki. 295 g, adaptor: yaki. 113 g
Ölcüler 116 x 112 x 162 mm
