USER MANUAL LA 20 BEURER

White spherical device with concentric ridges and a 'beurer' label on the front face (no other text or symbols visible)

EN Aroma diffuser Instructions for use ..... 15

Line drawing of a hand touching a circular object with horizontal stripes (no text or symbols)

Hinweis

Diagram of a lid with a curved lid and an upward arrow, no text or symbols present

Line drawing of a hand holding a circular object with internal lines and a small object inside (no text or symbols)

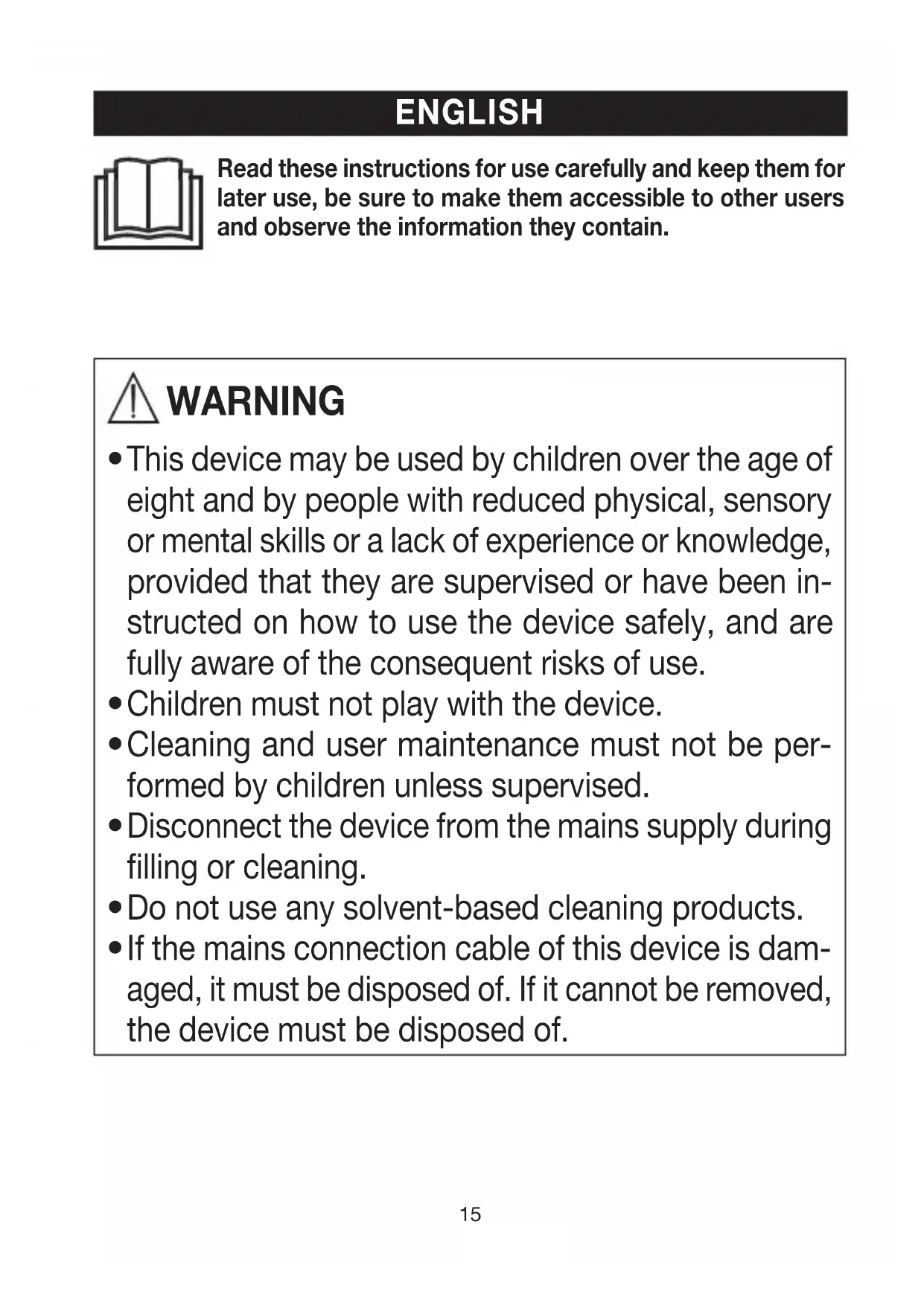

Read these instructions for use carefully and keep them for later use, be sure to make them accessible to other users and observe the information they contain.

WARNING

• This device may be used by children over the age of eight and by people with reduced physical, sensory or mental skills or a lack of experience or knowledge, provided that they are supervised or have been instructed on how to use the device safely, and are fully aware of the consequent risks of use.
• Children must not play with the device.
• Cleaning and user maintenance must not be performed by children unless supervised.
• Disconnect the device from the mains supply during filling or cleaning.
• Do not use any solvent-based cleaning products.
• If the mains connection cable of this device is damaged, it must be disposed of. If it cannot be removed, the device must be disposed of.

Dear customer,

Thank you for choosing one of our products. Our brand stands for well-engineered, quality made products; driven by innovation and safety. Our product range encompasses a wealth of products for health and well-being in the heat, weight, blood pressure, body temperature, pulse, gentle therapy, massage, beauty, baby and air sectors.

With kind regards,

Your Beurer team

Table of contents

1. Included in delivery .....16
2. Signs and symbols ......17
   3.Warnings and safety notes .....17
3. Intended use 19
4. Device description .....20
5. Initial use ......20

6. Usage....22

7. Cleaning and maintenance .....23

8. Accessories and replacement parts ....24
9. What if there are problems? ...24
   11.Disposal....24
10. Technical specifications .....25
11. Warranty / Service 25

1. Included in delivery

Check that the delivery has not been tampered with and make sure that all components are present. Before use, ensure that there is no visible damage to the device or accessories and that all packaging material has been removed. If you have any doubts, do not use the device and contact your retailer or the specified Customer Services address.

1 x aroma diffuser
1 x mains adapter with USB connection
1 x USB cable
1 x measuring jug
1 x set of instructions for use

2. Signs and symbols

The following symbols appear in these instructions for use and on the device:

	WARNINGWarning notice indicating a risk of injury or damage to health.
	IMPORTANTSafety note indicating possible damage to the device/accessory.
	NoteNote on important information.
	Observe the instructions for use
	Disposal in accordance with the Waste Electrical and Electronic Equipment EC Directive – WEEE.
	CE labellingThis product satisfies the requirements of the applicable European and national directives.
	Manufacturer
	Dispose of packaging in an environmentally friendly manner.
	The products demonstrably meet the requirements of the Technical Regulations of the EAEU.
	Energy efficiency class 6

3. Warnings and safety notes

Non-observance of the following information may result in personal injury or material damage.

Safety notes

WARNING

• Keep packaging material away from children! Choking hazard!

• If you suffer from a severe respiratory or lung disease, consult your doctor before using the device.

• If you start to feel unwell while the device is in use, stop using it immediately, switch the device off and ventilate the room.

• Keep the device out of the reach of children and animals.
• The appliance is only to be used with the recommended vaporizing medium. The use of other substances may give rise to a toxic or fire risk.

Aroma oil

WARNING

- The aroma oil must not come into direct contact with the skin or eyes and must not be swallowed. See the safety notes of the respective aroma oil.

Electric shock

WARNING

As with every electrical device, use this device carefully and cautiously, in order to avoid hazards due to electric shock.

- Therefore, observe the following instructions for use:

• Only use this device with the voltage specified on the device
• Never use the device if it shows visible signs of damage

• Do not use the device during a thunderstorm

• In the case of defects or operational faults, switch the device off immediately and disconnect the device from the mains socket. Do not pull on the mains cable or on the device to disconnect the mains adapter from the socket. Never hold or carry the device by the mains cable.

• Only use the device in dry rooms (e.g. never in the bath, sauna).
• Never reach for a device that has been submerged in water. Disconnect the mains adapter immediately.
• Do not drop the device or subject it to any impacts.
• Do not clamp or pinch the mains cable.
• Ensure that the mains cable and mains adapter do not come into contact with water, steam or other liquids.

Repairs

WARNING

Only specialist personnel may perform repairs on electrical devices. Improper repairs may subject users to considerable danger. For repairs, please contact Customer Services or an authorised retailer.

Risk of fire

WARNING

There is a risk of fire if the device is used improperly or these instructions for use are ignored.

Therefore, observe the following instructions for use:

• Never use underneath a cover, such as a blanket, pillow, etc.
• Never use near petrol or other highly flammable substances.

Handling

IMPORTANT

• The device must be switched off and disconnected from the mains every time after use and before cleaning.
• Ensure that the mains cable does not pose a trip hazard.
• Do not insert any objects into openings on the device.
• Do not place any objects on the device.
• Do not expose the device to high temperatures.
• Avoid water damage by handling the device carefully (e.g. water damage from splashing in the vicinity of wooden floors).
• If the device should accidentally tip over, water may escape, even if the device is switched off and unplugged.
• The immediate vicinity of the device can become damp.
• Calcareous water can leave white deposits.
• Do not place the device on the floor, but in a raised position (e.g. on a table or chest of drawers).
• Position the device so that the mist outlet is not directed towards objects.
• Empty any remaining water when the device is not in use.
• The water tank and the cover are made of oil-resistant materials. Keep aroma oils away from other components of the device as these could become damaged by certain ingredients within the oils.

4. Intended use

The aroma diffuser is only to be used for improving the ambient scent in a room. The device is intended for private use.

Use the device for the intended purpose only and in the manner specified in these instructions for use. Any form of improper use can be dangerous. The manufacturer is not liable for damage resulting from improper or careless use.

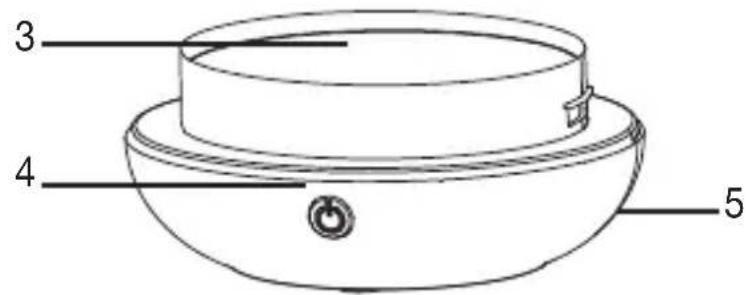

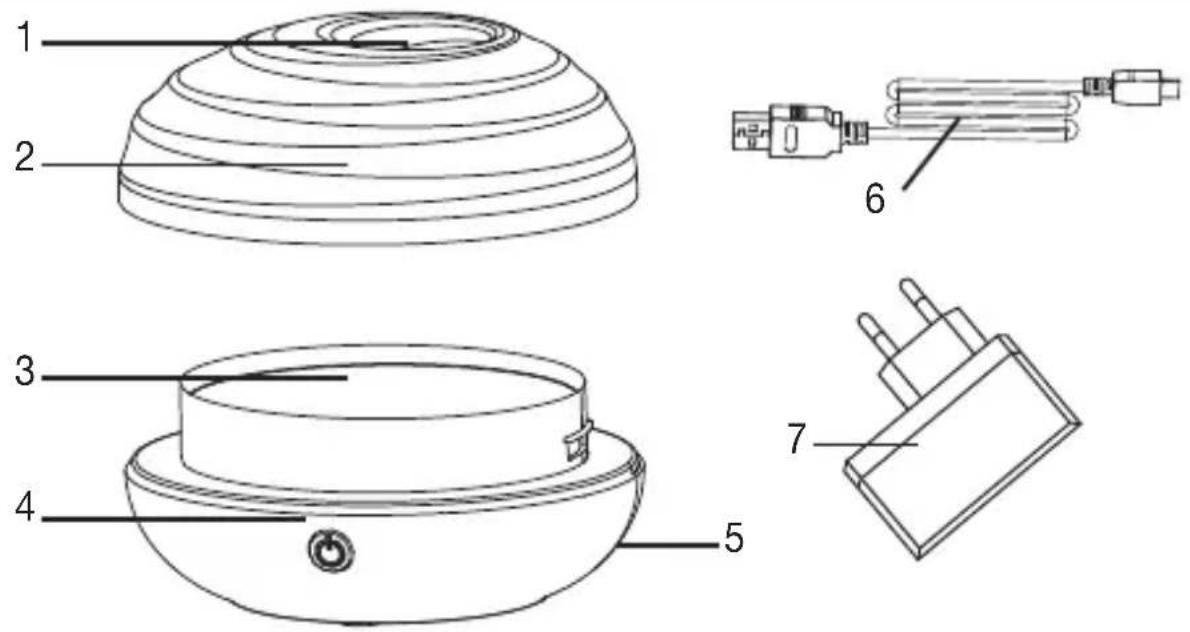

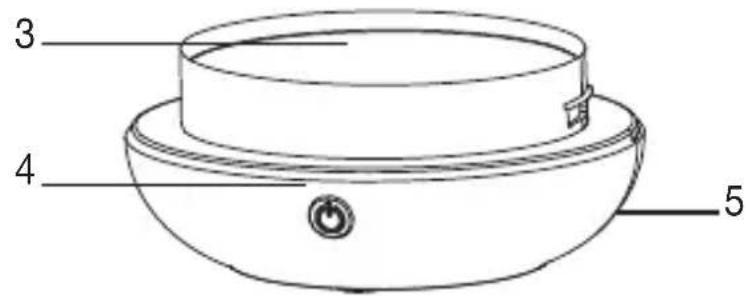

5. Device description

1. Outlet 5. Connection socket for USB cable

2. Outer cover 6. USB cable

3. Water tank 7. Mains adapter with connection

4. ON/OFF button

6. Initial use

WARNING

• Only fill the device when the network adapter is unplugged.
• Never fill the device when the cover is still on.
• Only use for water-based aroma oils.
• Open the cardboard packaging, remove all the packaging film and check the device for damage.
• Never fill the device with hot water as it may leak.
• The water tank must be cleaned before the aroma oil is changed each time, as described under “8. Cleaning and maintenance”.

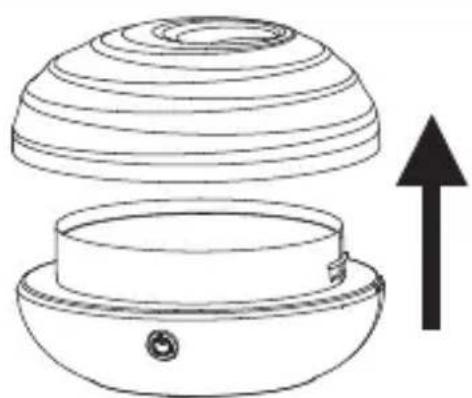

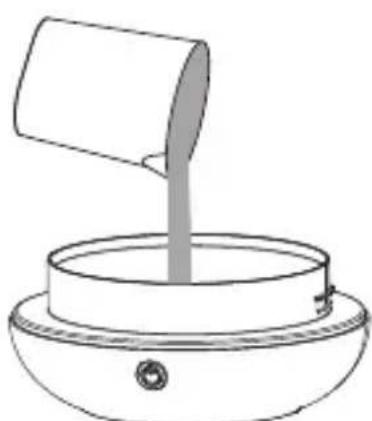

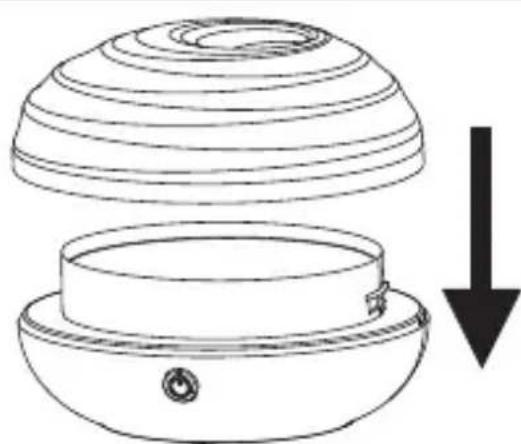

1. Pull the outer cover upwards to remove it.	2. Carefully pour the water from the measuring jug into the water tank. Observe the “MAX” marking in the device. The water level may only go up to this MAX marking, and must not exceed it.

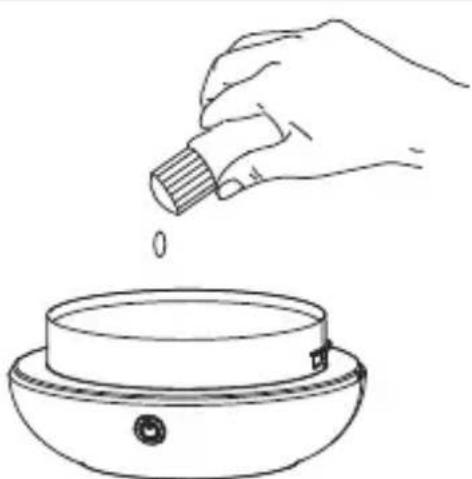

3. Add three to five drops of the (water-based) aroma oil that you want to use.	4. Replace the outer cover.

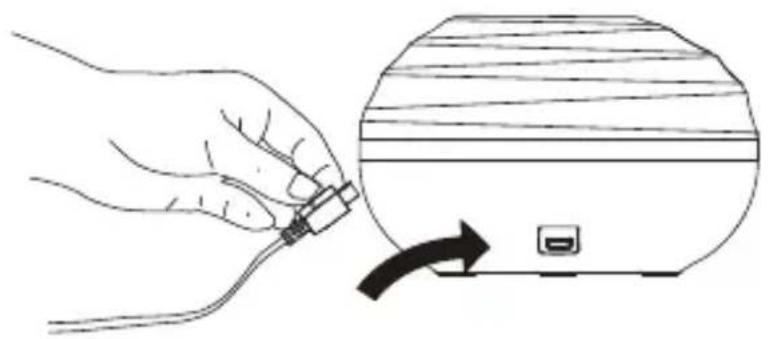

5. Insert the USB cable into the connection socket.

7. Usage

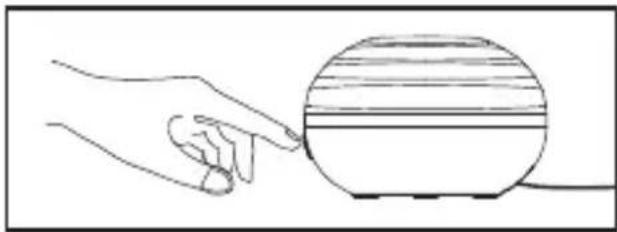

Press the ON/OFF button to switch on the device (!!)

Line drawing of a hand holding a circular object with horizontal stripes (no text or symbols)

Note

The device has three different modes:

Aroma diffuser Mood light with

		change of colour
Press the ON/OFF button (⏻) 1x	ON ON
Press the ON/OFF button (⏻) 2x	ON OFF
Press the ON/OFF button (⏻) 3x	OFF OFF

The device has an automatic switch-off function. If the tank is empty, the device switches itself off after 2-3 seconds.

Power source

The power output should be at least 5 V, 1 A. Low power reduces the nebulisation performance. For example, the power from a laptop is sufficient but that of a PC is not.

After use

1. Disconnect the device from the power source.

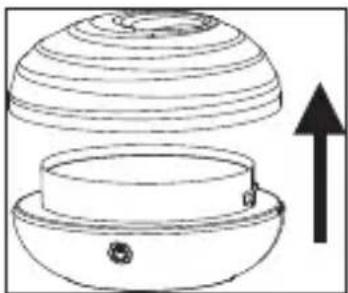

2. Remove the outer cover from the device in an upward direction.

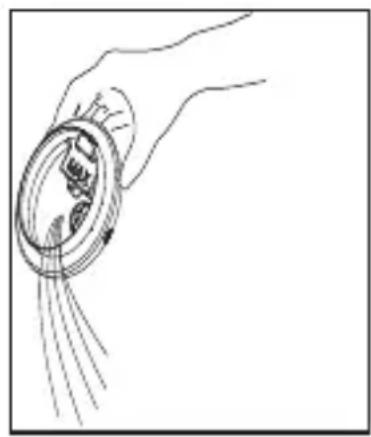

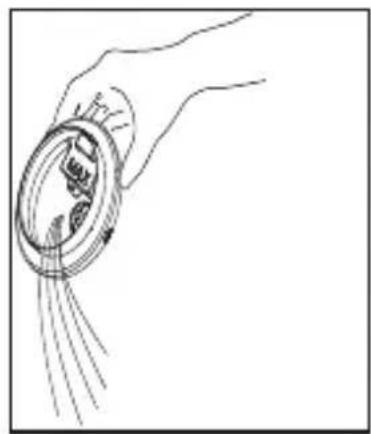

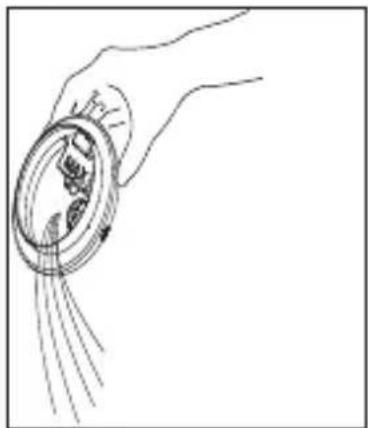

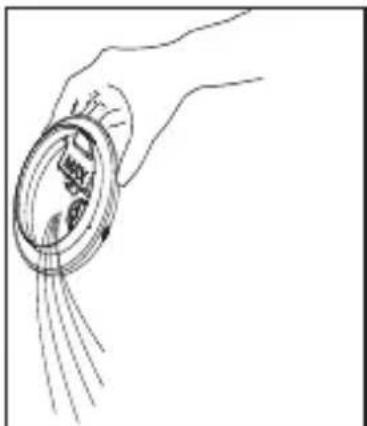

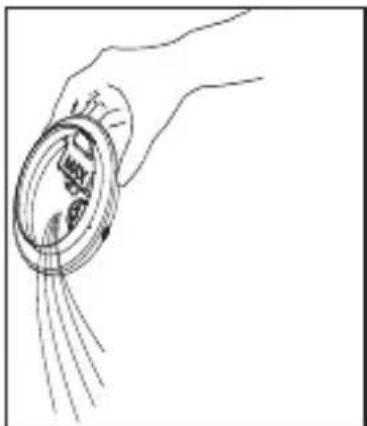

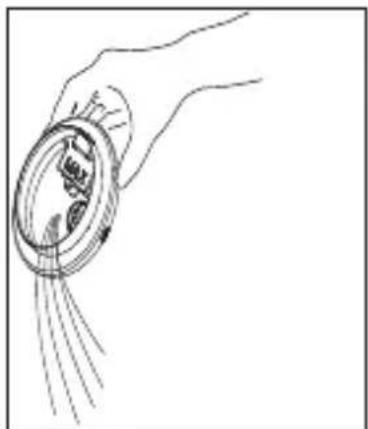

3. Pour any remaining water down the drain.
4. Clean the device as described under "8. Cleaning and maintenance".

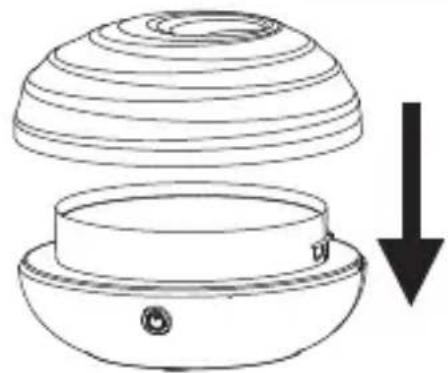

Simple line drawing of a lid with an upward arrow, no text or symbols present

Line drawing of a hand holding a circular object with internal lines, no text or symbols present

8. Cleaning and maintenance

Note

Before cleaning the device, ensure that the device is disconnected from the power supply and that there is no water left in the water tank. Regular cleaning is a prerequisite for hygienic and fault-free operation. The aroma diffuser can be dismantled for cleaning easily and without tools.

• Clean the device after every use using a soft, slightly damp cloth to remove deposits (e.g. limescale), paying particular attention to the cover and the inside of the water tank. Never use abrasive, corrosive or solvent-based cleaning products.

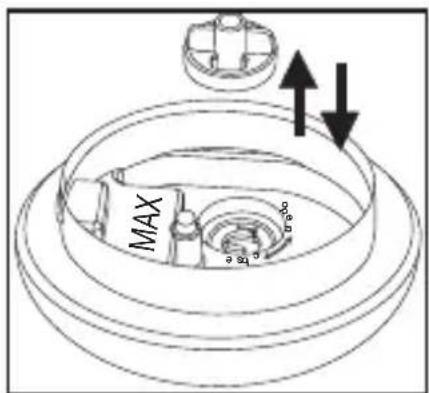

• To clean the ultrasonic membrane (figure A), remove the ultrasonic cap (figure B) with a quarter turn anti-clockwise and then clean the membrane. Then return the ultrasonic cap and secure it with a quarter turn clockwise.

MAX

fig. A

open dose

fig. B

Descaling

Descaling the ultrasound membrane

Hard water can cause limescale to build up in the device and, especially, on the ultrasound membrane. This forms white deposits. Descale the device regularly.

Drop some descaler onto the ultrasound membrane.

Leave it to take effect for 2 to 5 minutes.

Rinse the base unit twice with clean, fresh water.

9. Accessories and replacement parts

For replacement parts and additional items visit www.beurer.com or contact the corresponding service address in your country (according to the service address list). Replacement parts and additional items are also available from retailers.

Item Item number
Beurer by Taoasis “Vitality” aroma oil (10 ml) 681.30
Beurer by Taoasis “Harmony” aroma oil (10 ml) 681.31
Beurer by Taoasis “Relax” aroma oil (10 ml) 681.32
Beurer by Taoasis “Sleep Well” aroma oil (10 ml) 681.33

10. What if there are problems?

Problem Cause	Solution
No mist is being emitted from the device	Mains adapter is not plugged in.	Insert the mains adapter into a suitable socket.
	There is not enough water in the water tank.	Fill the water tank up to the “MAX” marking.
	There is too much water in the water tank.	Pour away excess water from the water tank until it only reaches the “MAX” marking.
	The outlet in the cover is blocked.	Check that the outlet in the cover is not blocked.
	Water too cold.	Pour in warm, but not boiling, water.
	Air bubbles under/on the ultrasonic cap.	Remove the ultrasonic cap and then reinsert it.

If you cannot find a solution to your problem here, contact our Customer Services.

11. Disposal

For environmental reasons, do not dispose of the device in the household waste at the end of its useful life. Dispose of the unit at a suitable local collection or recycling point. Dispose of the device in accordance with EC Directive – WEEE (Waste Electrical and Electronic Equipment). If you have any questions, please contact the local authorities responsible for waste disposal.

12. Technical specifications

Product name LA 20
Supply Input: 100-240V AC/50/60Hz 0.5AOutput: 5.0 V = = = 1.0 A, 5.0 W
Water tank capacity 80 ml
Room size up to approx. 10 m	2
How it works Ultrasonic atomiser
Run time approx. 3-6 hours
Protection class	IP50, protection against harmful quantities of dust, no protection against water.
Weight LA 20: approx. 170 g
Dimensions 135 x 120 x 79 mm
Average active efficiency	≥ 73.8 %
Efficiency at low load (10 %)	≥ 68.0 %
No-load power consumption	≤ 0.09 W
Mains part Manufacturer:	Xiamen Innov Electronics Tech Co., Ltd.1F/3F-5F, BLDG 5, No. 943-5,Tonglong 2nd Rd, Torch Hi-tech Industrial Zone(Xiang'an), Xiamen, 361000, P.R. ChinaModel no.:EU (606.29) IVP0500-1000GUUK (606.28) IVP0500-1000B

13. Warranty / Service

Beurer GmbH, Söflinger Straße 218, 89077 Ulm, Germany (hereinafter referred to as “Beurer”) provides a warranty for this product, subject to the requirements below and to the extent described as follows.

The warranty conditions below shall not affect the seller's statutory warranty obligations which ensue from the sales agreement with the buyer.

The warranty shall apply without prejudice to any mandatory statutory provisions on liability.

Beurer guarantees the perfect functionality and completeness of this product.

The worldwide warranty period is 3 years, commencing from the purchase of the new, unused product from the seller.

The warranty only applies to products purchased by the buyer as a consumer and used exclusively for personal purposes in the context of domestic use.

German law shall apply.

During the warranty period, should this product prove to be incomplete or defective in functionality in accordance with the following provisions, Beurer shall carry out a repair or a replacement delivery free of charge, in accordance with these warranty conditions.

If the buyer wishes to make a warranty claim, they should approach their local retailer in the first instance: see the attached “International Service” list of service addresses.

The buyer will then receive further information about the processing of the warranty claim, e.g. where they can send the product and what documentation is required.

A warranty claim shall only be considered if the buyer can provide Beurer, or an authorised Beurer partner, with

- a copy of the invoice/purchase receipt, and

- the original product.

The following are explicitly excluded from this warranty:

- deterioration due to normal use or consumption of the product;

- accessories supplied with this product which are worn out or used up through proper use (e.g. batteries, rechargeable batteries, cuffs, seals, electrodes, light sources, attachments and nebuliser accessories);

- products that are used, cleaned, stored or maintained improperly and/or contrary to the provisions of the instructions for use, as well as products that have been opened, repaired or modified by the buyer or by a service centre not authorised by Beurer;

- damage that arises during transport between manufacturer and customer, or between service centre and customer;

- products purchased as seconds or as used goods;

- consequential damage arising from a fault in this product (however, in this case, claims may exist arising from product liability or other compulsory statutory liability provisions).

Repairs or an exchange in full do not extend the warranty period under any circumstances.

FRANÇAIS

Pure electrical circuit lines without any symbols

3 4 5

Technical line drawing of a mechanical component with three pins and a labeled section (7), no text or symbols present.

Line drawing of a hand holding a small electronic component connected to a device with an arrow indicating rotation (no text or symbols)

7. Utilisation

Line drawing of a hand pointing at a circular object with horizontal stripes (no text or symbols)

Simple line drawing of a lid with an upward arrow, no text or symbols present

Line drawing of a hand holding a circular object with internal components (no text or symbols)

close open

ill. B

Détartrage

Line drawing of a hand holding a small object near a spherical object (no text or symbols)

Nota

Diagram of a mechanical component with a dome and base, showing an upward arrow (no text or symbols)

Line drawing of a hand holding a circular object with internal components, no text or symbols present

Pure electrical circuit lines without any symbols

3 4 5

Technical line drawing of a mechanical component with three pins and a labeled section (7), no text or symbols present.

Line drawing of a hand pressing a button into a circular object (no text or symbols)

Nota

Simple line drawing of a container with a lid and an upward arrow, no text or symbols present.

Line drawing of a hand holding a circular object with internal lines, no text or symbols present

8. Pulizia e cura

Nota

Line drawing of a hand touching a spherical object with horizontal stripes (no text or symbols)

Simple line drawing of a lid with a curved lid and an upward arrow, no text or symbols present.

Line drawing of a hand holding a circular object with internal components, no text or symbols present

close open

Şekil. B

Kireçten Arındırmak

Line drawing of a hand pouring liquid from a bottle into a bowl (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating compression or disassembly (no text or symbols present)

Line drawing of a hand holding a small electronic component next to a device with an arrow indicating rotation (no text or symbols)

7. Применение

Line drawing of a hand pointing at a spherical object with horizontal stripes (no text or symbols)

Ультразвуко-

Simple line drawing of a dome-shaped container with an upward arrow, no text or symbols present

Line drawing of a hand holding a circular object with internal components (no text or symbols)

8. Очистка и уход

Указание

close open

рис. В

Line drawing of a hand touching a circular object with horizontal stripes (no text or symbols)

Line drawing of a lid with an upward arrow indicating growth or direction (no text or symbols)

Line drawing of a hand holding a circular object with internal components (no text or symbols)

MAX S S S S

rys. A

open close

rys. B

Usuwanie kamienia
