GB Operating Instructions High-Pressure Cleaner

mobile, complete with lance, hose and foam spray attachment

Illustration of a red industrial vacuum cleaner with attached hoses and control unit (no text or symbols)

HR 1700-F

D

Technical diagram of a hair dryer with labeled parts including hose, hose reel, and spray bottle

Installation

13 mm ① ② ③ ④ INLET ⑤ ⑥ OUTLET ⑦

Technical diagram of a mechanical device with labeled parts including threaded rod, spring, and spray bottle

Inbetriebnahme

Line drawing of a handheld electric shaver with a labeled 'S' mark (no text or symbols beyond the label)

Line drawing of a hairdryer tool with a spray bottle attached (no text or symbols)

Wartung

Schmierung

Line drawing of a hand using a tool to lift a small cylindrical device (no text or symbols present)

Wagen Kit

Illustration of a hand pressing down on a small mechanical device with an upward arrow, no text or symbols present

Safety warning illustration showing hand holding a device with warning symbol and crossed-out cross symbol

GB

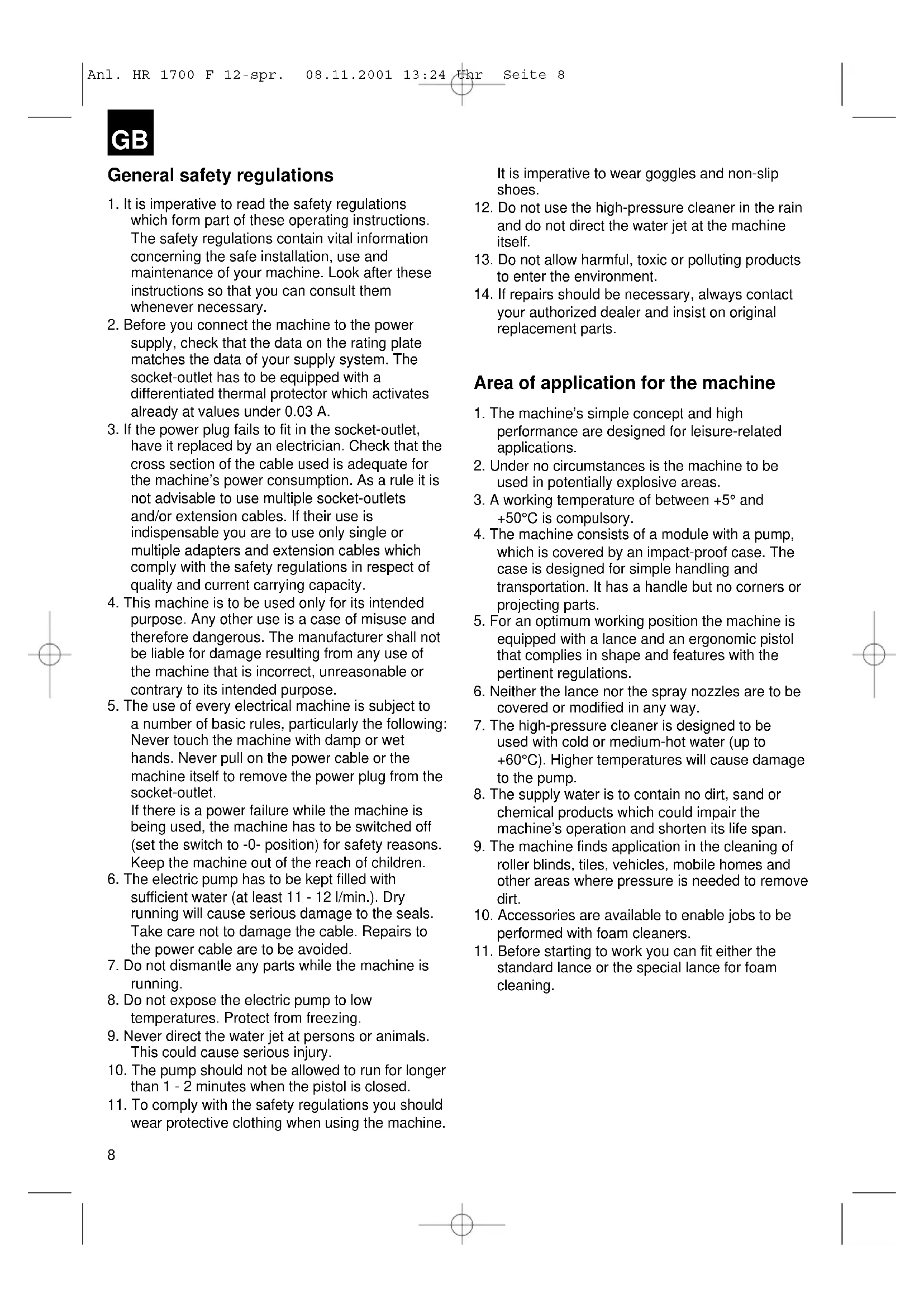

General safety regulations

1. It is imperative to read the safety regulations which form part of these operating instructions. The safety regulations contain vital information concerning the safe installation, use and maintenance of your machine. Look after these instructions so that you can consult them whenever necessary.
2. Before you connect the machine to the power supply, check that the data on the rating plate matches the data of your supply system. The socket-outlet has to be equipped with a differentiated thermal protector which activates already at values under 0.03 A.
3. If the power plug fails to fit in the socket-outlet, have it replaced by an electrician. Check that the cross section of the cable used is adequate for the machine's power consumption. As a rule it is not advisable to use multiple socket-outlets and/or extension cables. If their use is indispensable you are to use only single or multiple adapters and extension cables which comply with the safety regulations in respect of quality and current carrying capacity.
4. This machine is to be used only for its intended purpose. Any other use is a case of misuse and therefore dangerous. The manufacturer shall not be liable for damage resulting from any use of the machine that is incorrect, unreasonable or contrary to its intended purpose.
5. The use of every electrical machine is subject to a number of basic rules, particularly the following: Never touch the machine with damp or wet hands. Never pull on the power cable or the machine itself to remove the power plug from the socket-outlet. If there is a power failure while the machine is being used, the machine has to be switched off (set the switch to -0- position) for safety reasons. Keep the machine out of the reach of children.
6. The electric pump has to be kept filled with sufficient water (at least 11 - 12 l/min.). Dry running will cause serious damage to the seals. Take care not to damage the cable. Repairs to the power cable are to be avoided.
7. Do not dismantle any parts while the machine is running.
8. Do not expose the electric pump to low temperatures. Protect from freezing.
9. Never direct the water jet at persons or animals. This could cause serious injury.
10. The pump should not be allowed to run for longer than 1 - 2 minutes when the pistol is closed.
11. To comply with the safety regulations you should wear protective clothing when using the machine.

It is imperative to wear goggles and non-slip shoes.

1. Do not use the high-pressure cleaner in the rain and do not direct the water jet at the machine itself.
2. Do not allow harmful, toxic or polluting products to enter the environment.
3. If repairs should be necessary, always contact your authorized dealer and insist on original replacement parts.

Area of application for the machine

1. The machine's simple concept and high performance are designed for leisure-related applications.
2. Under no circumstances is the machine to be used in potentially explosive areas.
3. A working temperature of between +5° and +50°C is compulsory.
4. The machine consists of a module with a pump, which is covered by an impact-proof case. The case is designed for simple handling and transportation. It has a handle but no corners or projecting parts.
5. For an optimum working position the machine is equipped with a lance and an ergonomic pistol that complies in shape and features with the pertinent regulations.
6. Neither the lance nor the spray nozzles are to be covered or modified in any way.
7. The high-pressure cleaner is designed to be used with cold or medium-hot water (up to +60°C). Higher temperatures will cause damage to the pump.
8. The supply water is to contain no dirt, sand or chemical products which could impair the machine's operation and shorten its life span
9. The machine finds application in the cleaning of roller blinds, tiles, vehicles, mobile homes and other areas where pressure is needed to remove dirt.
10. Accessories are available to enable jobs to be performed with foam cleaners.
11. Before starting to work you can fit either the standard lance or the special lance for foam cleaning.

GB

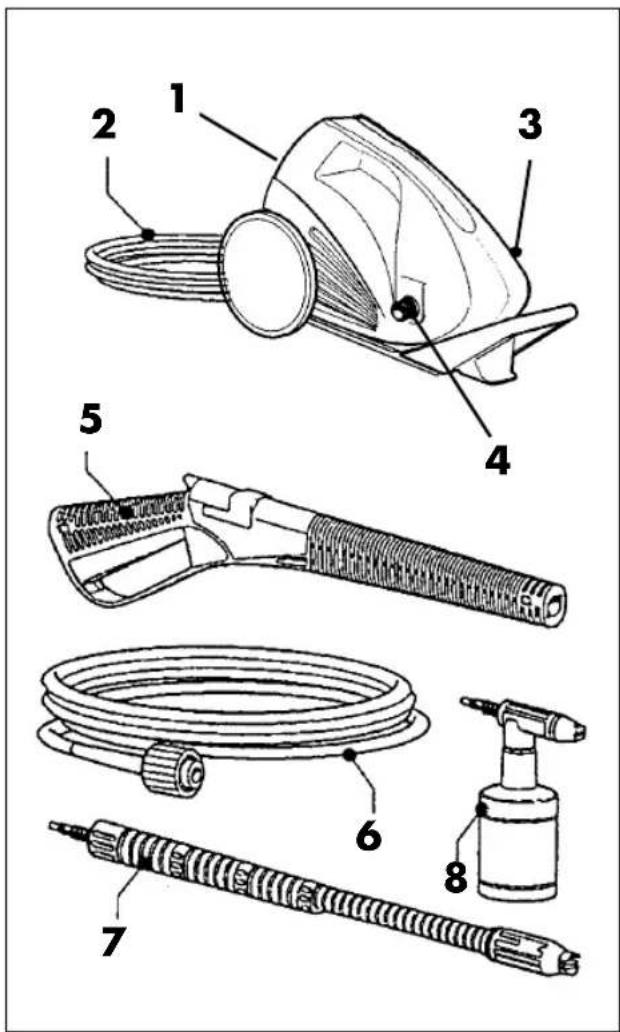

Layout

1. On/Off switch
2. Power cable with plug
3. Water outlet
4. Water inlet + filter
5. Pistol
6. High-pressure hose
7. Lance
8. Foam spray attachment

Technical diagram of a hair dryer with labeled parts including hose, hose reel, and spray bottle

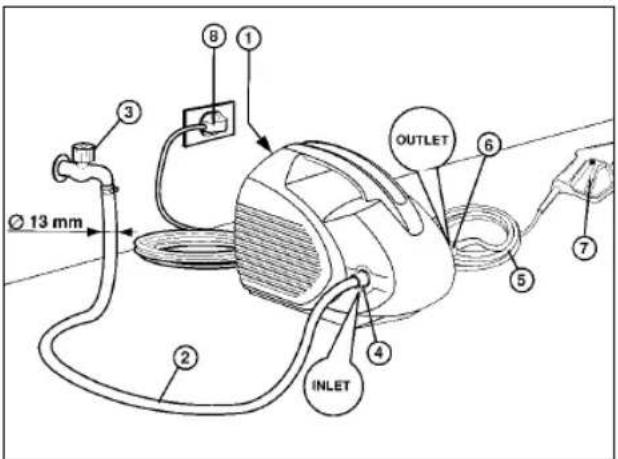

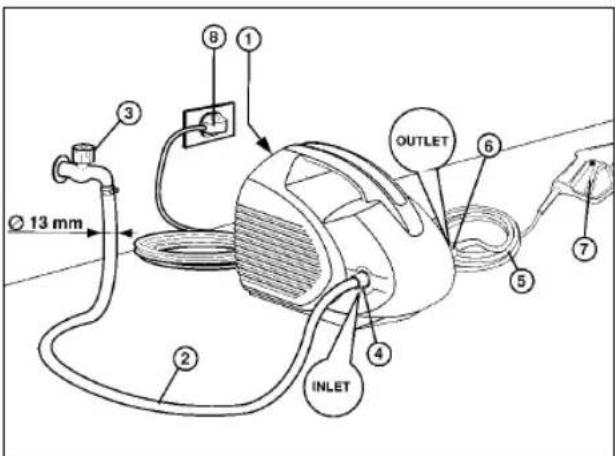

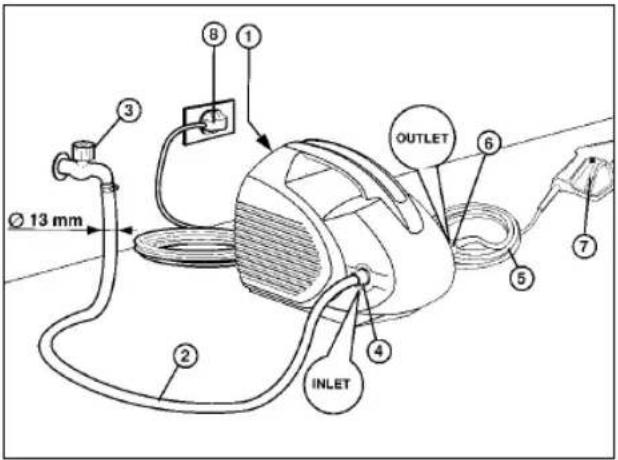

Installation

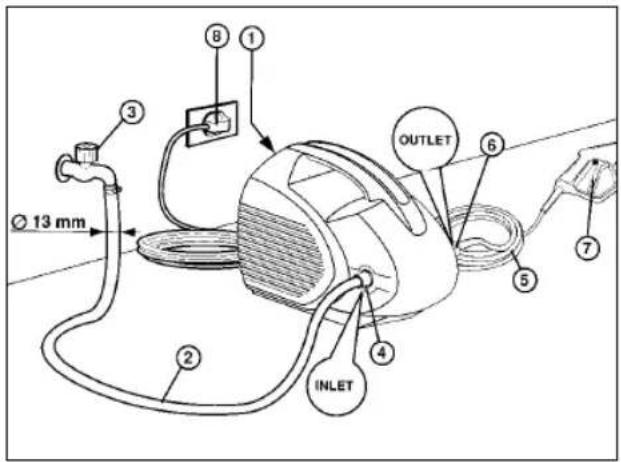

13 mm 2 3 4 5 6 7 INLET 8 1 OUTLET

1. The main switch has to be in position '-O-'.
2. The water supply hose (item 2) has to be connected to the INLET (item 4). Use a hose of at least 13 mm (1/2") inner diameter designed for a minimum capacity of 15 bar.
3. Plug the lance on the pistol.
4. Connect the high-pressure hose (item 5) to the OUTLET (item 6). The water temperature is not to exceed 60^ C in continuous operation.
5. Turn on the water tap (item 3).
6. Press the pistol trigger (item 7) until water emerges from the lance nozzle and flushes out any residues from the pipe work.
7. Insert the power plug in the socket-outlet (item 8).
8. Switch on the machine by moving the switch to position '-I-'. Before switching on, press the pistol trigger. Starting is then easier and the machine is placed under less strain.

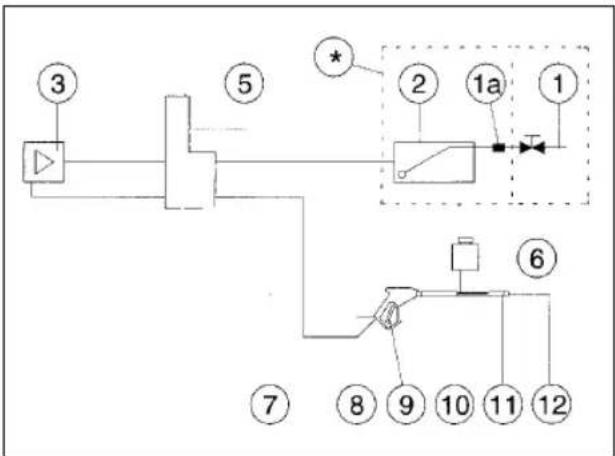

Water connection diagram

GB

* These components cannot be supplied.

1 Water supply
1a Non-return valve with pipe vent
2 Intermediate container
3 High-pressure water pump
5 Pressure valve
6 Detergent container
7 High-pressure hose
8 Pistol
9 Pistol lever
10 Lance
11 Nozzle head
12 Nozzle

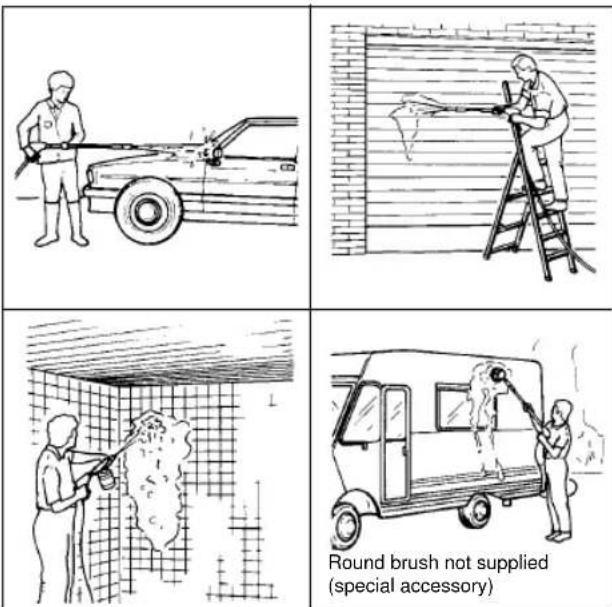

How to use the machine correctly

The high-pressure cleaner has to be stood horizontally on a flat, firm surface.

It is advisable to adopt the correct working position whenever you actuate the machine: One hand holding the pistol and the second hand holding the lance.

Never direct the water jet at electric cables or at the machine itself.

Four-panel diagram illustrating different types of cleaning and installation methods: dust removal, surface cleaning, round brush installation, and special accessory.

Technical diagram of a mechanical device with labeled parts including a spring, hose, and spray bottle

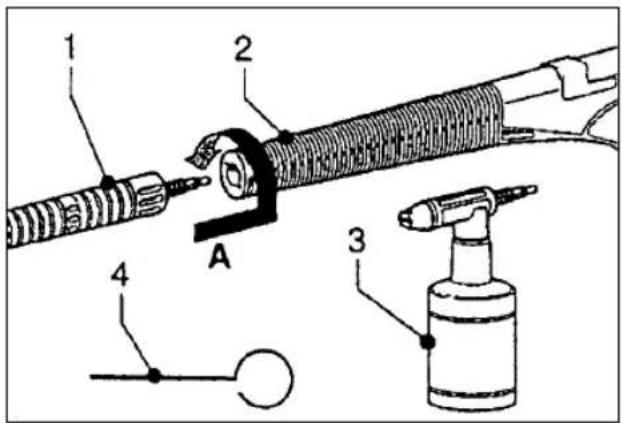

Fitting the lance

The lance has a shaped element (item 1) for latching on the spray pistol (item 2). First turn the lance in the direction of the arrow 'A' and then turn it clockwise approx. 15° until the two components are fully connected (cf. the figure below).

Dirt which may collect in the nozzle can be removed with the nozzle cleaning needle (item 4). Caution! Be sure to turn off the machine and disconnect the water supply first.

Starting

After connecting the high-pressure cleaner to the power supply and the water supply, proceed as follows:

1. Open the water tap.
2. Press the pistol trigger to allow any air to escape.
3. Set the on/off switch to '-1-'.

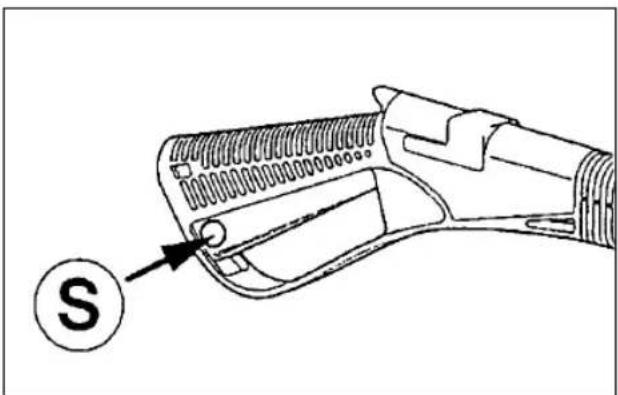

Pistol safety device

It is imperative to actuate the safety catch (S) on the pistol whenever you stop the machine. This will prevent the machine starting accidentally.

Line drawing of a firearm with a labeled handle and circular arrow pointing to the letter 'S' (no text or symbols beyond the label)

GB

Taking in detergent

Foam spray lance

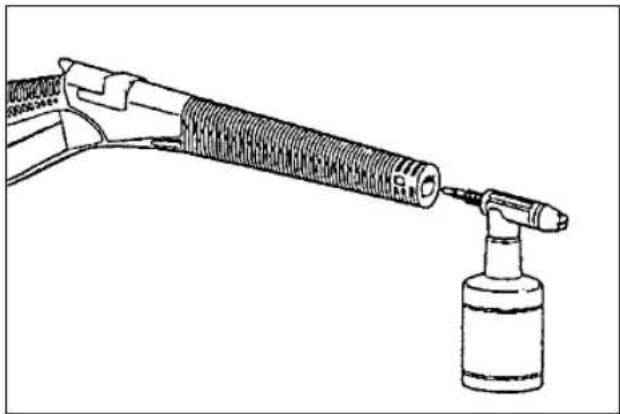

For using various detergents (see the figure below).

Line drawing of a hairdryer tool with a spray bottle nearby (no text or symbols)

Maintenance

Lubrication

The electric pump is equipped with a closed-circuit lubrication system. Oil grade: 15W40

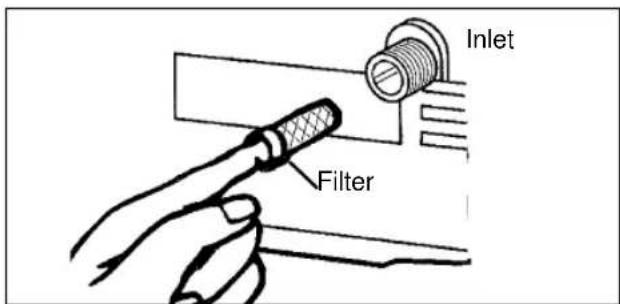

Inspecting the water intake filter

Check the intake filter periodically in order to prevent clogging which could jeopardize the pump's operation (see the figure).

Inlet Filter

Electric motor

The electric motor is equipped with a motor circuit-breaker. If the motor overheats, it will be brought to a standstill by this circuit-breaker. You must then wait 5-10 minutes before re-starting the machine. Find the cause of the overheating.

Power cable

The power cable is not to be damaged in any way. A damaged cable has to be replaced by a qualified electrician.

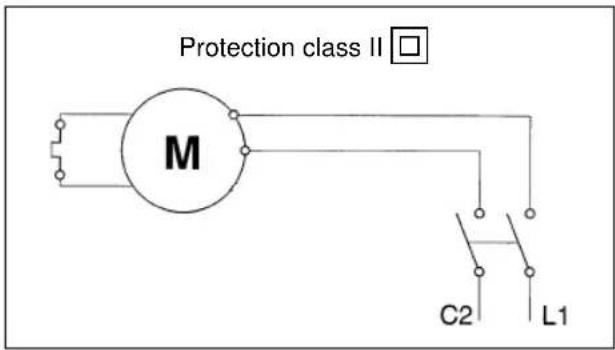

Terminal diagram

Protection class II M C2 L1

Repairs and replacement parts

Please contact our service centre if any faults arise or should you need any replacement parts.

Disposing of the machine

You must take the following steps when the machine is not to be used again:

●Pull out the power plug and render the machine inoperable.
●Store the machine in a place that is inaccessible to children.
●No parts of the old machine are to be used as replacement parts for another machine.
- Dismantle the machine and dispose of its individual parts in accordance with your country's statutory regulations.

GB

Faults and their remedies

Fault Cause Remedy
The electric pump does not run when the switch is pressed	●Plug is defective●Voltage is too low●Pump is blocked●Thermal cut-out has responded	●Check whether the plug is in good order●Turn the motor by hand●Allow the motor to cool●Keep the lance open
The electric pump runs but no pressure is generated	●Intake filter is clogged●Air is being drawn in through the connectors●Intake and outlet valve are clogged or worn●Nozzle hole is too wide	●Clean the filter●Check the intake and hose connectors●Clean or repair●Check and replace
Irregular operating pressure	●Air is being drawn in●Valves are clogged and worn●Seals are worn	●Check the intake connectors●Clean and replace●Check and replace
The motor does not start any more	●Thermal cut-out has responded due to overheating	●Check the voltage. Turn the switch to OFF and wait a few minutes.
The pump drips	●Seals are worn	●Check and replace
The pressure drops	●Worn nozzle●Dirty or clogged valves●Worn valve seals●Worn seals●Clogged filter	●Change the nozzle●Check, clean, replace●Check and/or replace●Check and/or replace●Check and/or replace
Very noisy	●Air is being drawn in●Worn, dirty or clogged valves●Worn bearings●Water temperature is too high●Filter is dirty	●Check the intake lines●Check, clean, replace●Check and/or replace●Lower the temperature to below 50°C●Check and/or replace
Water escapes from the head	●Worn seals●O-ring of the seal set is worn	●Change the seals●Change the O-ring
When the switch is actuated the motor runs but does not start	●Voltage is lower than the specified value●Pump is blocked or frozen●Cross section of the electric extension cable is too small	●Check the system's specifications●Replace the extension cable with one of the correct size

GB

Technical data:

Maximum operating pressure in bar: 100

Maximum volumetric flow in l/min.: 7.5

Power supply: 230 V \~ 50 Hz

Motor rating in kW: 1.7

Protection type: IP 44

Insulation class: F

Maximum temperature of water supply in C°: 60

(temporary operation)

Maximum pressure of water supply in bar: 10

Fusing in amps: 16

Motor speed in rpm: 2800

Motor circuit-breaker: thermal overload

protection in winding

Weight of unit in kg: 7

The power of recoil is less than 20 N

The workplace-related noise level is 79 dB(A).

Illustration of a hand using a tool to lift a small object, with an arrow indicating direction (no text or symbols present)

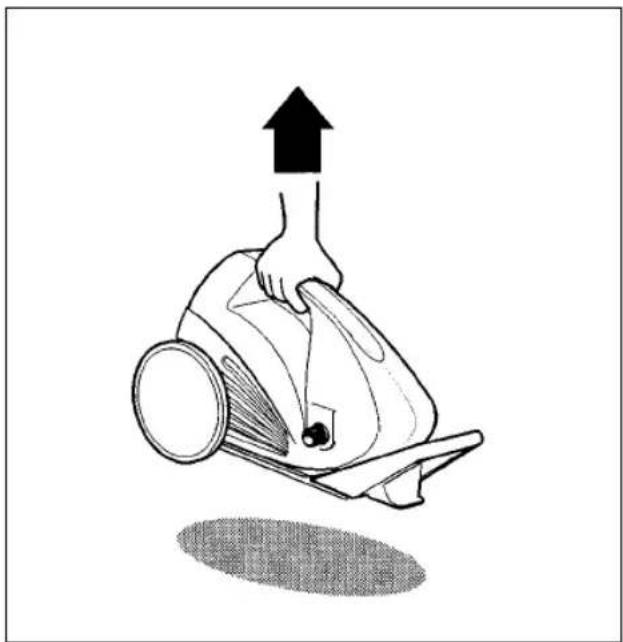

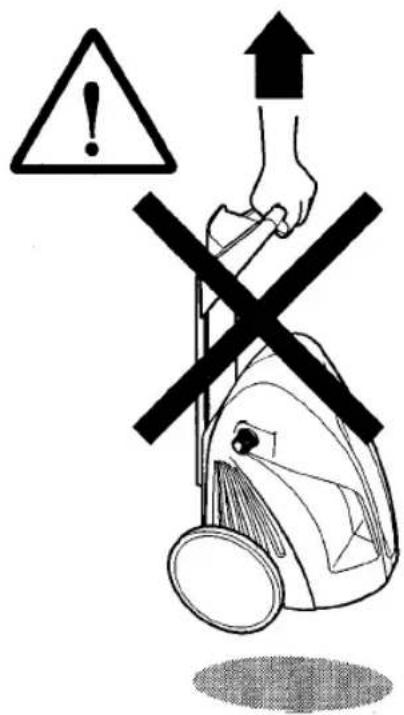

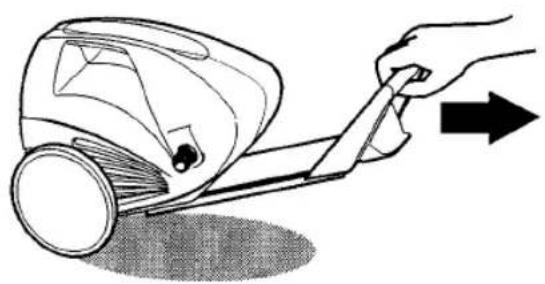

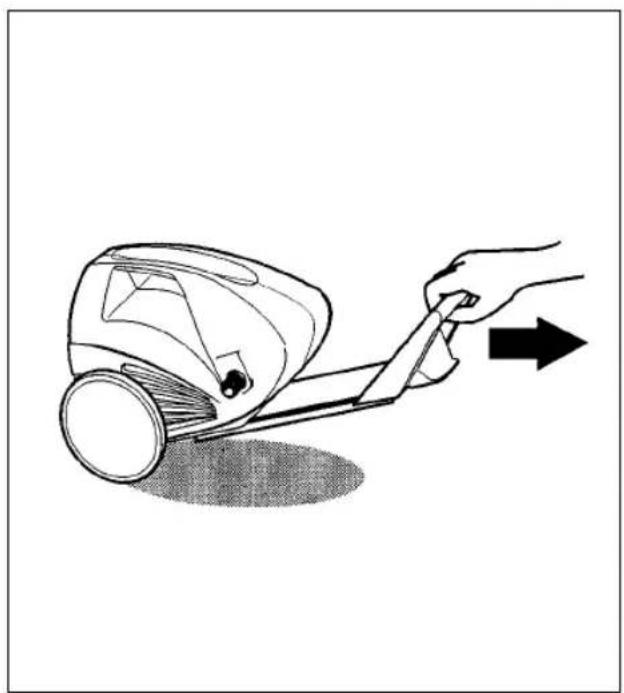

Trolley kit

Illustration of a hand using a device to lift a surface, with an upward arrow indicating motion (no text or symbols)

Safety warning sign with warning triangle, hand holding cross, and downward arrow over a device with warning symbol

F

Technical diagram of a hair dryer with labeled parts including hose, hose reel, and spray bottle

Installation

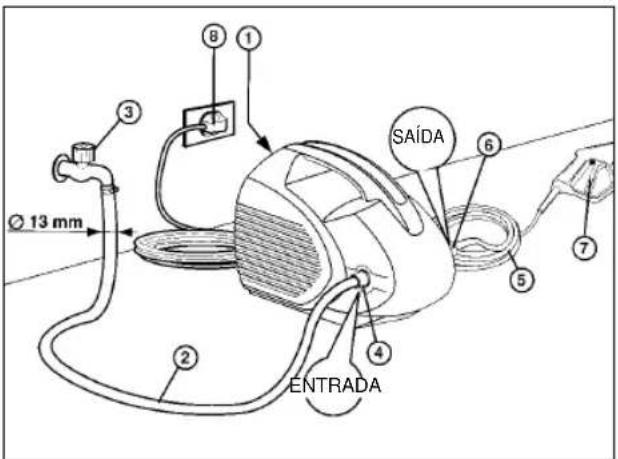

13 mm ① B ③ ② INLET ④ OUTLET ⑥ ⑤ ⑦

Technical diagram of a mechanical device with labeled parts including a threaded rod, spring, and spray bottle

Mise en service

Line drawing of a firearm with a labeled circular arrow pointing to the handle (no text or symbols beyond the label)

Line drawing of a hairdryer tool with a spray bottle attached (no text or symbols)

Entretien

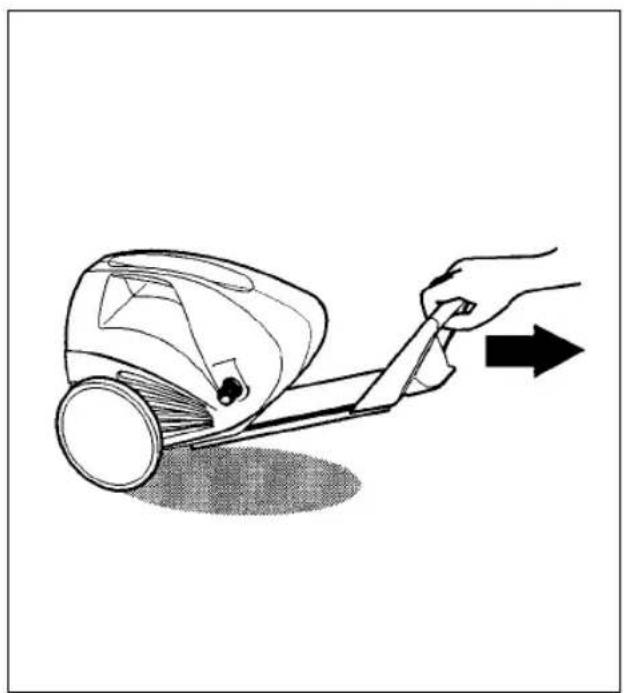

Graissage

Illustration of a hand using a vacuum cleaner to lift a surface, with an upward arrow and shadow (no text or symbols)

Line drawing of a hand using a handheld device to lift a small cylindrical object, with an arrow indicating direction (no text or symbols)

Safety warning sign with warning triangle, hand holding cross, and upward arrow over a device

NL

Technical diagram of a hair dryer with labeled parts including hose, hose reel, and spray bottle

Installatie

13 mm ① ② ③ ④ INLET ⑤ ⑥ OUTLET ⑦

Four-panel diagram showing different methods for cleaning a vehicle, including dust removal, dust spraying, and dust removal.

Montage van de lans

Technical diagram of a mechanical device with labeled parts including threaded rod, spring, and spray bottle

gescheiden.

Inwerkingstelling

Line drawing of a firearm with a labeled arrow pointing to the handle (no text or symbols present)

Line drawing of a hairdryer tool with a spray bottle, no text or symbols present

Onderhoud

Smering

overbelasting in wikkeling

Illustration of a hand using a handheld device to lift a car (no text or symbols present)

Wagen Kit

Illustration of a hand pressing down on a small mechanical device with an upward arrow, no text or symbols present

Safety warning illustration showing hand holding a device with warning symbols and an upward arrow, indicating hazard or caution.

E

Technical diagram of a hair dryer with labeled parts including hose, hose reel, and spray bottle

Instalación

13 mm ① ② ③ ④ INLET ⑤ ⑥ OUTLET ⑦

Technical diagram of a mechanical device with labeled parts including a threaded rod, spring, and spray bottle.

Puesta en marcha

Line drawing of a handheld electric shaver with a labeled 'S' mark and arrow pointing to the handle (no text or symbols beyond the label)

Line drawing of a hairdryer tool with a spray bottle attached (no text or symbols)

Line drawing of a hand using a handheld device to lift a vacuum cleaner (no text or symbols present)

Sistema portátil

Illustration of a hand pressing down on a small mechanical device with an upward arrow, no text or symbols present

Safety warning illustration showing hand holding a device with warning symbols and an upward arrow, indicating hazard or caution.

P

Avisos gerais

Technical diagram of a hair dryer with labeled parts including hose, hose reel, and spray bottle

Instalação

13 mm ENTRADA SAÍDA

Technical diagram of a mechanical device with labeled parts including a threaded rod, spring, and spray bottle

Line drawing of a handheld electric shaver with a labeled arrow pointing to the handle (no text or symbols beyond the label)

Line drawing of a hairdryer tool with a spray bottle nearby (no text or symbols)

Manutenção

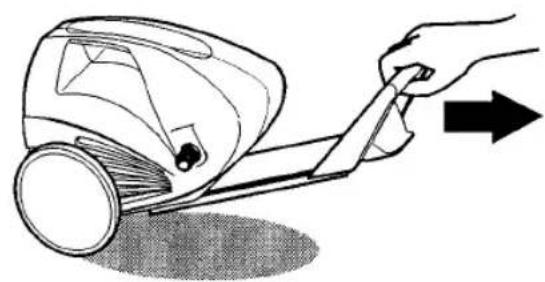

Lubrificação

Regime do motor, rpm: 2800

Illustration of a hand pressing down on a small mechanical device with an upward arrow, no text or symbols present

Line drawing of a hand using a handheld device to lift a small cylindrical object (no text or symbols)

Safety warning illustration showing hand holding a device with warning symbol and crossed-out cross indicating no hazard

S

Technical diagram of a hair dryer with labeled parts including hose, hose reel, and spray bottle

Installation

13 mm 2 3 4 5 6 7 8 INLET OUTLET

Technical diagram of a mechanical device with labeled parts including a threaded rod, spring, and spray bottle

Driftstart

Line drawing of a handheld device with a circular indicator labeled 'S' pointing to a button (no text or symbols on the device itself)

Line drawing of a hairdryer tool with a spray bottle attached (no text or symbols)

Service

Smörjning

Line drawing of a hand using a handheld device to lift a small object, with an arrow indicating direction (no text or symbols)

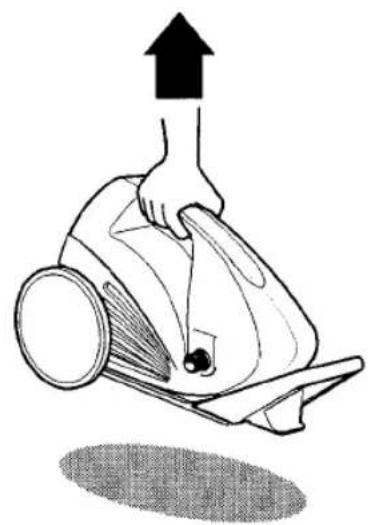

Vagnsats

Illustration of a hand pressing down on a small device with an upward arrow, no text or symbols present

Safety warning illustration showing hand holding a device with warning symbol and crossed-out cross, indicating no hazard or absence of liability.

Technical diagram of a hair dryer with labeled parts including hose, hose reel, and spray bottle

Asennus

13 mm 2 3 4 5 6 7 INLET 8 1 OUTLET

Technical diagram of a mechanical device with labeled parts including a spring, hose, and spray bottle

Käyttöönotto

Line drawing of a firearm with a labeled circular arrow pointing to the handle (no text or symbols beyond the label)

Puhdistusaineen imu

Line drawing of a hairdryer tool with a spray bottle, no text or symbols present

Huolto

Voitelu

Illustration of a hand using a handheld device to lift a small object, with no visible text or symbols.

Vetokahva

Illustration of a hand pressing down on a small mechanical device with an upward arrow, no text or symbols present

Safety warning illustration showing a hand holding a device with an explosion symbol and crossed-out 'No' sign, indicating no hazard or absence of hazard.

N

Technical diagram of a hair dryer with labeled parts including hose, hose reel, and spray bottle

Installasjon

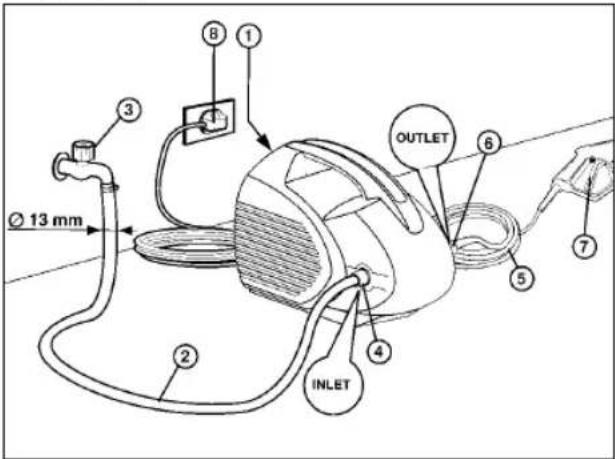

13 mm 2 3 4 5 6 7 8 INLET OUTLET

Four-panel illustration showing a person cleaning a car, a worker applying a spray, and a van spraying water; includes text labels in English.

Lansemontasje

Technical diagram of a mechanical device with labeled parts including a threaded rod, spring, and spray bottle.

Igangsetting

Line drawing of a firearm with a labeled circular indicator (S) pointing to the handle area (no text or symbols beyond the label)

Line drawing of a hairdryer tool with a spray bottle attached (no text or symbols)

Vedlikehold

Smøring

Line drawing of a hand using a handheld device to lift a car (no text or symbols)

Bærbart apparat

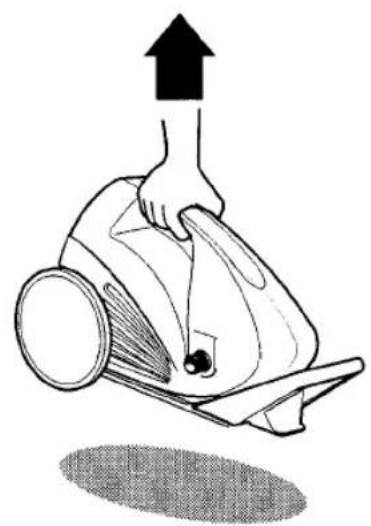

Illustration of a hand pressing down on a small vacuum cleaner with an upward arrow, no text or symbols present

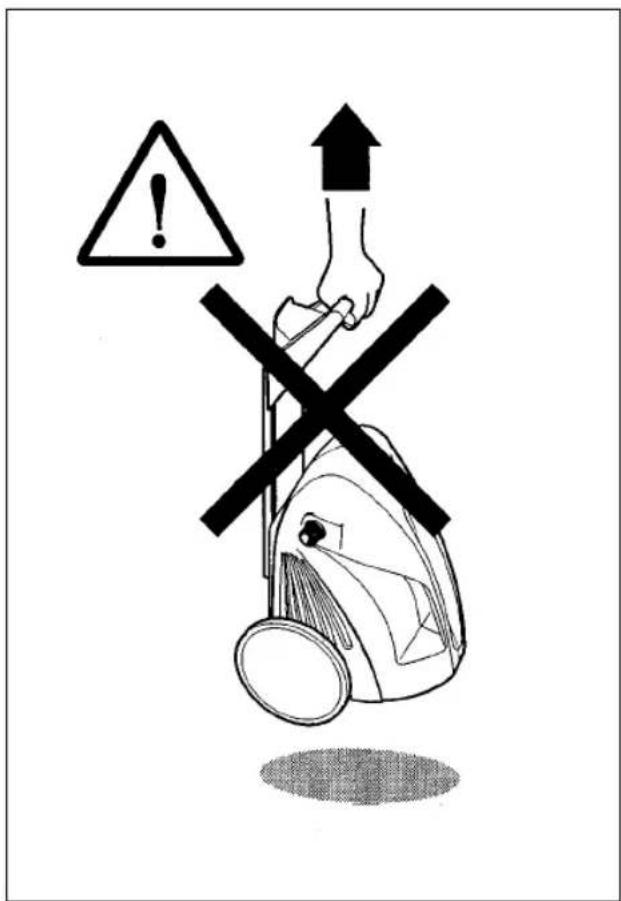

Safety warning illustration showing hand holding a device with warning symbol and crossed-out cross, indicating no hazard or absence of liability.

GR

Technical diagram of a hair dryer with labeled parts including hose, hose reel, and spray bottle

13 mm ① ② ③ ④ INLET ⑤ ⑥ OUTLET ⑦

Technical diagram of a mechanical device with labeled parts including threaded rod, spring, and spray bottle

Λειτουργία

Line drawing of a handheld electric shaver with a labeled arrow pointing to the handle (no text or symbols beyond the label)

Line drawing of a hairdryer tool with a syringe nearby (no text or symbols)

Συντήρηση

Λίπανοη

Katnyopia aospaleias II M C2 L1

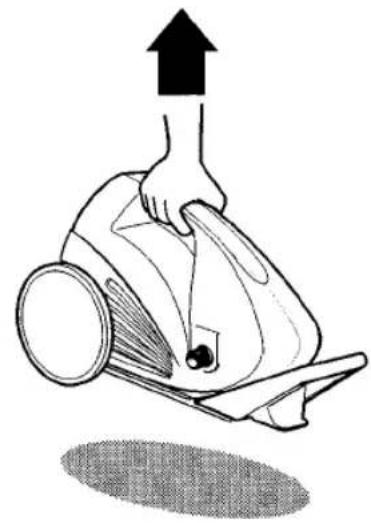

Illustration of a hand pressing down on a mechanical device with an upward arrow, no text or symbols present

Line drawing of a hand using a tool to lift a small cylindrical device, with an arrow indicating direction (no text or symbols)

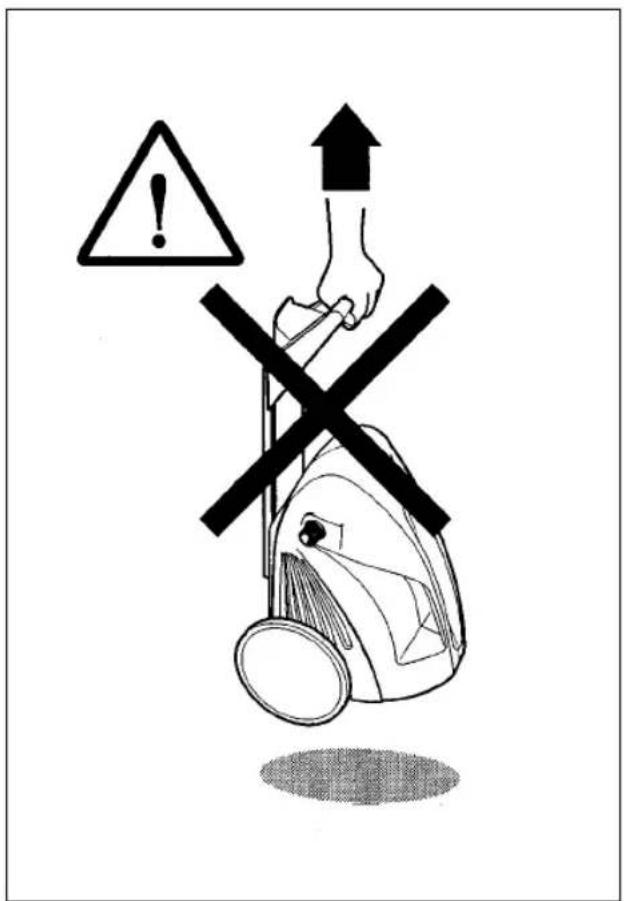

Safety warning sign with warning triangle, hand holding cross, and upward arrow over a device

Technical diagram of a hair dryer with labeled parts including hose, hose reel, and spray bottle

Installazione

13 mm ① ② ③ ④ INLET ⑤ ⑥ OUTLET ⑦

Technical diagram of a mechanical device with labeled parts including a threaded rod, spring, and spray bottle

Messa in funzione

Line drawing of a handheld electric shaver with a circular indicator labeled 'S' pointing to the handle (no text or symbols beyond the label)

Line drawing of a hairdryer tool with a spray bottle nearby (no text or symbols)

Manutenzione

Lubrificazione

Line drawing of a hand using a tool to lift a small cylindrical device (no text or symbols)

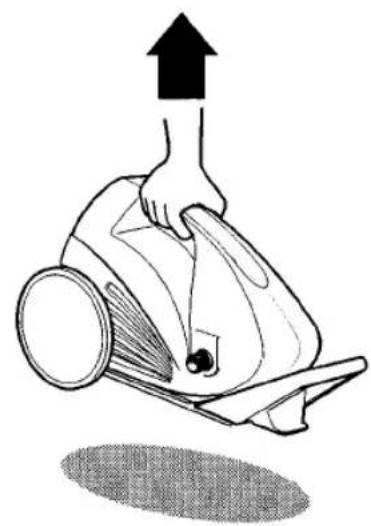

Illustration of a hand pressing down on a small mechanical device with an upward arrow, no text or symbols present.

Safety warning illustration showing hand holding a device with warning symbol and crossed-out cross, indicating no hazard or absence of liability.

DK

Technical diagram of a hair dryer with labeled parts including hose, hose reel, and spray bottle

Tilslutning

13 mm 2 3 4 5 6 7 8 INLET OUTLET

Technical diagram of a mechanical device with labeled parts including threaded rod, spring, and spray bottle

Line drawing of a handheld electric shaver with a labeled arrow pointing to the handle (no text or symbols beyond the label)

Line drawing of a hairdryer tool with a lit barrel, no text or symbols present

Vedligeholdelse

Smøring

Line drawing of a hand using a handheld device to lift a circular object, with an arrow indicating direction (no text or symbols)

Illustration of a hand pressing down on a small mechanical device with an upward arrow, no text or symbols present

Safety warning illustration showing hand holding a device with warning symbols and an upward arrow, indicating hazard or caution.

Exploded view diagram of a mechanical device with numbered parts for identification

Labeled diagram of a firearm with numbered parts for identification

Labeled diagram of a spray gun assembly with numbered parts for identification

Exploded view diagram of a mechanical device with numbered parts for identification

The guarantee period begins on the sales date and is valid for 1 year.

Responsibility is assumed for faulty construction or material or functional defects.

Any necessary replacement parts an necessary repair work are free of charge.

We do not assume responsibility for consequential damage.

Your customer service partner

F GARANTIE EINHELL

⑤ EINHELL GARANTIBEVIS

DK EINHELL GARANTIBEVIS

Eschenstraße 6 · D-94405 Landau/Isar (Germany)

15 Warwick House Ind. Park, Banbury Road,

Sautham, Warwickshire CV 33 OPS

Technical changes subject to change
