NHR 130 - Pressure washer EINHELL - Free user manual and instructions

Product Type	Pressure Washer
Brand	Einhell
Model	NHR 130
Rated Pressure	130 bar
Max Pressure	150 bar
Water Flow Rate	450 L/h
Rated Power	2000 W
Power Supply	230 V / 50 Hz
Dimensions (L x W x H)	35 x 30 x 55 cm
Weight	8.5 kg
Hose Length	8 m
Nozzles Included	Adjustable, Rotary, Foam
Detergent Tank	0.5 L
Material	Plastic Chassis with Metal Pump
Safety Features	Thermal Overload Protection, Safety Lock Trigger
Maintenance	Clean filters regularly, check oil level (pump)
Spare Parts Available	Nozzles, Hoses, O-Rings, Pump Kit
Warranty	2 Years (subject to registration)
Application	Patio, Car, Garden Furniture, Driveways

Frequently Asked Questions - NHR 130 EINHELL

How do I connect the pressure washer to the water supply?

Connect the garden hose to the water inlet of the pressure washer. Ensure the hose is not kinked and the water supply is turned on. The unit requires a minimum water flow of 450 L/h.

What type of detergent can I use?

Use only pH-neutral detergents specifically designed for pressure washers. Do not use bleach or solvents. Fill the detergent tank and select the low-pressure nozzle for application.

How do I change the nozzle?

Turn off the unit and disconnect the spray lance. Pull back the quick-connect collar to remove the nozzle. Select the desired nozzle (e.g., rotary for stubborn dirt, adjustable for general cleaning).

Why is the pressure washer not starting?

Check the power supply and ensure the trigger safety lock is disengaged. Also verify that the thermal overload protection has not tripped; if so, wait 15 minutes to cool down. Inspect the fuse.

How do I clean the inlet filter?

Unscrew the water inlet connection and remove the filter using pliers. Rinse it under running water to remove debris. Reinstall the filter before using the pressure washer again. Clean it every 3 months or as needed.

Can I use hot water with this pressure washer?

No, the Einhell NHR 130 is designed for cold water only. Using hot water can damage the pump seals and void the warranty.

What is the correct way to store the pressure washer?

Drain all water from the hoses and pump. Disconnect the hoses and store the unit in a dry, frost-free place. Wind the cable and hose neatly to avoid damage.

How do I replace the pump oil?

Refer to the maintenance section of the manual. Typically, you need to unscrew the oil cap, drain the old oil, and refill with SAE 30 non-detergent oil. Dispose of oil responsibly.

The pressure washer is leaking water. What should I do?

Check all connections for tightness. Inspect the O-rings and seals on the hose and lance. If leaking from the pump, the seals may be worn; contact Einhell support for spare parts.

Where can I find spare parts?

Spare parts are available from authorized Einhell dealers or online. Common parts include nozzles, hoses, O-rings, and pump kits. Have your model number (NHR 130) ready.

USER MANUAL NHR 130 EINHELL

Powerful, mobile and eco friendly!

Orange Sinhell New Generation 130 water heater with black cable and orange body (no visible text or symbols on device body)

Mobile high-pressure cleaner made with impact-resistant plastic housing. High performance tool with induction motor for versatile application such as e.g. cleaning yards, terraces and vehicles. The high-pressure cleaner features automatic motor shut-down with spray gun-controlled engine activation and deactivation. This not only saves a trip to the tool but also dramatically cuts down on water and power costs and is easy on the environment. The high-pressure cleaner has an integrated detergent tank (2 litres), which automatically adds the detergent during low-pressure operation.

Garden scene showing a water hose spraying green shrubs on a paved path (no text or symbols visible)

Close-up of a hand using a power tool to clean or wash the white car surface (no text or symbols visible)

Red and black lawn mower on grass, no visible text or symbols

NHR 130 High Pressure Washer

Logistic Information:

Type: NHR 130

Art. No.: 41.404.37

Ident. No.: 01015

Bar Code: 4006825 515541

Packing: 470 x 375 x 535 mm

Sales unit: 1 pc

20": 287 pcs

40": 575 pcs

40`HC: -- pcs

Weight: 20.3 kgs (gross)

Powerful, mobile and eco friendly!

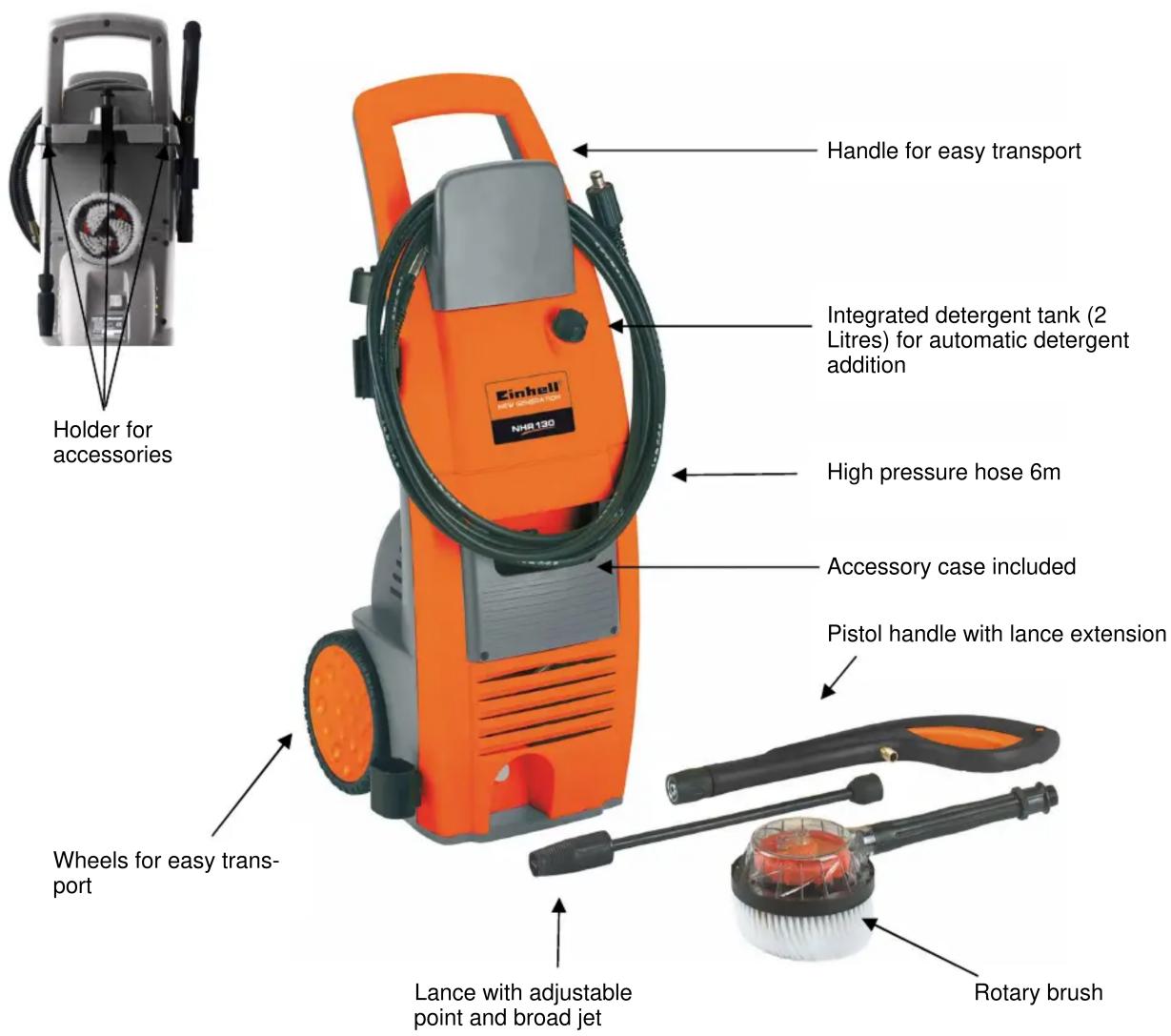

Features:

• 3-cylinder piston pump
• Automatic cut-off in no-load position
• 6m high-pressure hose
• Integrated detergent tank (2 Litres) for automatic detergent addition
• Connection nipple for hose coupling
• Pistol handle with lance extension
• Lance with adjustable point and broad jet
• Rotary brush
• Accessory case included

Logistic Information:

Type: NHR 130

Art. No.: 41.404.37

Ident. No.: 01015

Bar Code: 4006825 515541

Packing: 470 x 375 x 535 mm

Tool:

VE: 1 pc

20": 287 pcs

40": 575 pcs

40`HC: -- pcs

Weight: 20.3 kgs (gross)

Technical Data:

• Main: 230 V\~50Hz
• Power: 1700 watts
• No load speed: max. 2800min
• Pressure: max. 130 bar
• Water throughput: 400 l/h
• max. water temperature: 60°C
• max. water inlet pressure: 7 bar
