RT-HP 1545 - Pressure washer EINHELL - Free user manual and instructions

Product Type	High Pressure Washer
Model	RT-HP 1545
Article Number	41.405.30
Barcode	4006825 554328
Power Supply	230 V ~ 50 Hz
Power Consumption	2100 W
Max. Operating Pressure	150 bar
Rated Pressure	100 bar
Water Throughput	450 l/h
Max. Water Temperature	40°C
Max. Supply Pressure	10 bar
High Pressure Hose Length	6 m
Supply Cable Length	5 m
Detergent Tank Capacity	0.3 L
Net Weight	7.3 kg
Gross Weight	8.8 kg
Packaging Dimensions (L x W x H)	380 x 290 x 560 mm
Included Nozzles	Rotating nozzle, spot and wide jet nozzle
Additional Features	Water pre-filter, quick coupling, hose rewind, cable rewind, accessory brackets, wheels
Transport	Handle and wheels for easy mobility

Frequently Asked Questions - RT-HP 1545 EINHELL

How do I start the pressure washer?

Connect the high pressure hose and supply cable to a suitable power outlet. Turn on the water supply, then press the trigger gun to release air. Switch the motor on using the on/off switch.

What detergent can I use?

Use only biodegradable detergents designed for pressure washers. Fill the detergent tank with the recommended solution, attach the low-pressure nozzle, and apply the detergent before rinsing.

How do I change the nozzle?

Ensure the pressure washer is turned off and trigger gun is depressed to release pressure. Pull back the quick-connect collar on the lance, remove the current nozzle, and attach the desired nozzle (rotating, spot, or wide jet). Release the collar to lock.

What is the maximum water temperature?

The maximum water temperature allowed is 40°C. Using hotter water can damage the pump and seals.

How should I store the high pressure hose?

After use, turn off the water and motor, then press the trigger gun to release residual pressure. Use the hose rewind feature to neatly coil the 6 m hose onto the holder. Store the unit in a dry, frost-free place.

Can I use the pressure washer with a water tank?

Yes, but ensure the water supply can provide at least 450 l/h at a maximum pressure of 10 bar. A pre-filter is recommended to prevent debris from entering the pump.

What is the maximum operating pressure?

The maximum operating pressure is 150 bar. The rated pressure for continuous use is 100 bar. Adjust the nozzle or pressure regulator as needed.

How do I clean the inlet pre-filter?

Disconnect the water supply and unscrew the quick-coupling to access the pre-filter. Rinse it under running water to remove any dirt or debris. Reinstall before next use.

Is the supply cable long enough for typical use?

The supply cable is 5 m long, providing good mobility within typical work areas. For greater reach, use an extension cable suitable for outdoor use.

How do I transport the pressure washer?

Use the handle and wheels to roll the unit to the desired location. Before transporting, ensure the detergent tank is empty and hoses are secured on their rewind brackets.

USER MANUAL RT-HP 1545 EINHELL

Abstract geometric logo with white letter 'E' on red background (no text or symbols)

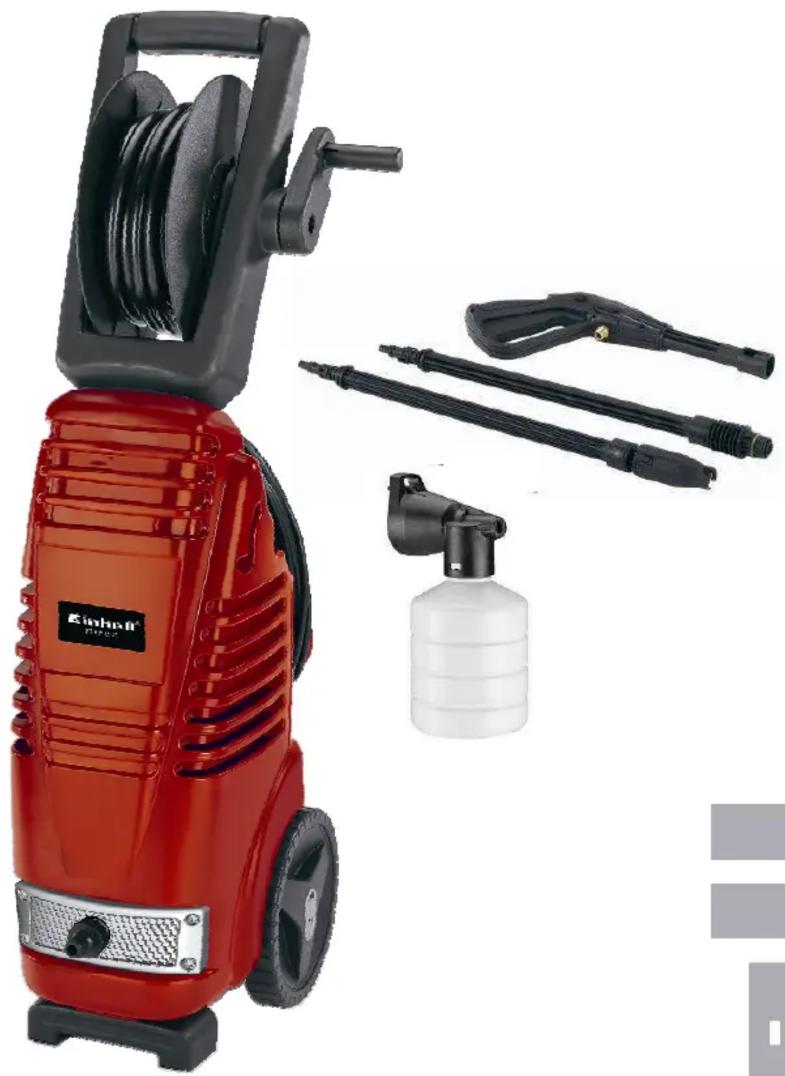

This high pressure cleaner with its powerful motor delivers pressure for many applications.

In the scope of delivery is a lance for spot and wide jet as well as a rotating nozzle for insistent contamination included.

Additionally the RT-HP 1545 is, in connection with the detergent tank also concerted to the cleaning of vehicles.

Due to the amply 6 m high pressure hose, 5 m supply cable and wheels enough mobility is warranted.

Close-up of a black mechanical component labeled 'ROTOR' with a mesh-like structure inside (no other text or symbols visible)

Close-up of a black tool tip with a metallic bracket and a triangular component labeled 'VARIABLE' (no other text or symbols visible)

Close-up of a red industrial vacuum cleaner with a hand adjusting its side panel (no visible text or symbols)

Exterior view of a red Einheit air purifier with attached hoses and a water bottle (no text or symbols visible)

Features

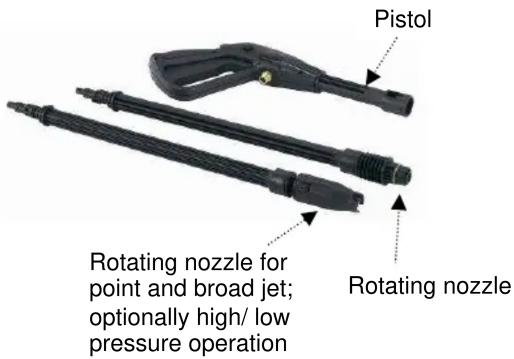

■ Rotating nozzle, spot and wide jet nozzle
■ 6 m high pressure hose

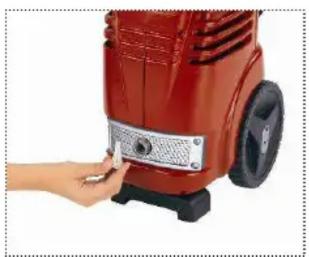

Water pre-filter
Quick coupling

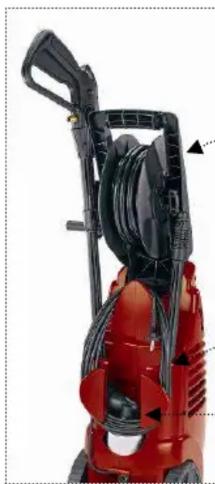

■ Hose rewind
Cable rewind
Detergent tank
■ Accessory brackets

Abstract geometric logo with white letter 'E' on red background (no text or symbols)

Red electric water heater with black spray filter and attached hose (no visible text or symbols)

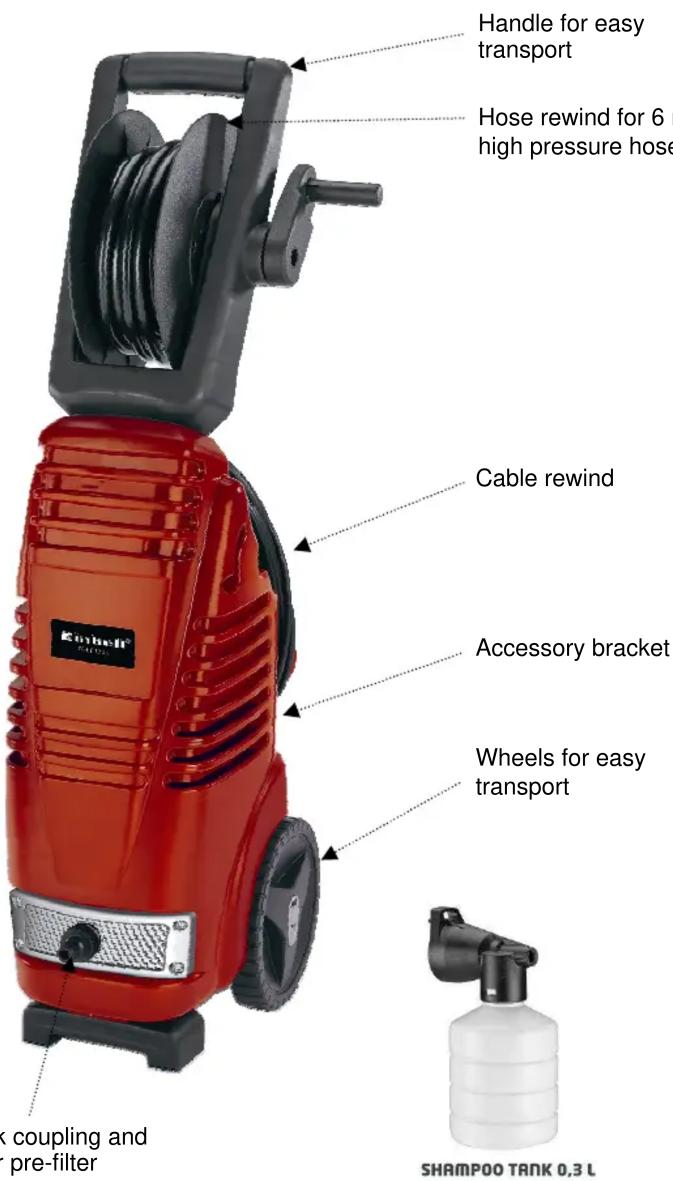

Hose rewind for 6 m high pressure hose
Cable rewind
Accessory bracket

Logistic Information

Type: RT-HP 1545

Art.-No.: 41.405.30

Ident-No.: 01018

Bar code: 4006825 554328

Packaging: 380 x 290 x 560 mm

Sales unit: 1 pc

20": --- pcs

40": --- pcs

40" HC: --- pcs

Net weight: 7.3 kg

Gross weight: 8.8 kg

Technical Data

■ Mains: 230 V \~ 50 Hz
Power: 2,100 W
■ Operating pressure: max. 150 bar (EW)
■ Rated pressure: 100 bar
■ Water throughput: 450 l / h
■ High pressure hose: 6 m
■ Max. water temperature: 40°C
■ Max. supply pressure: 10 bar
