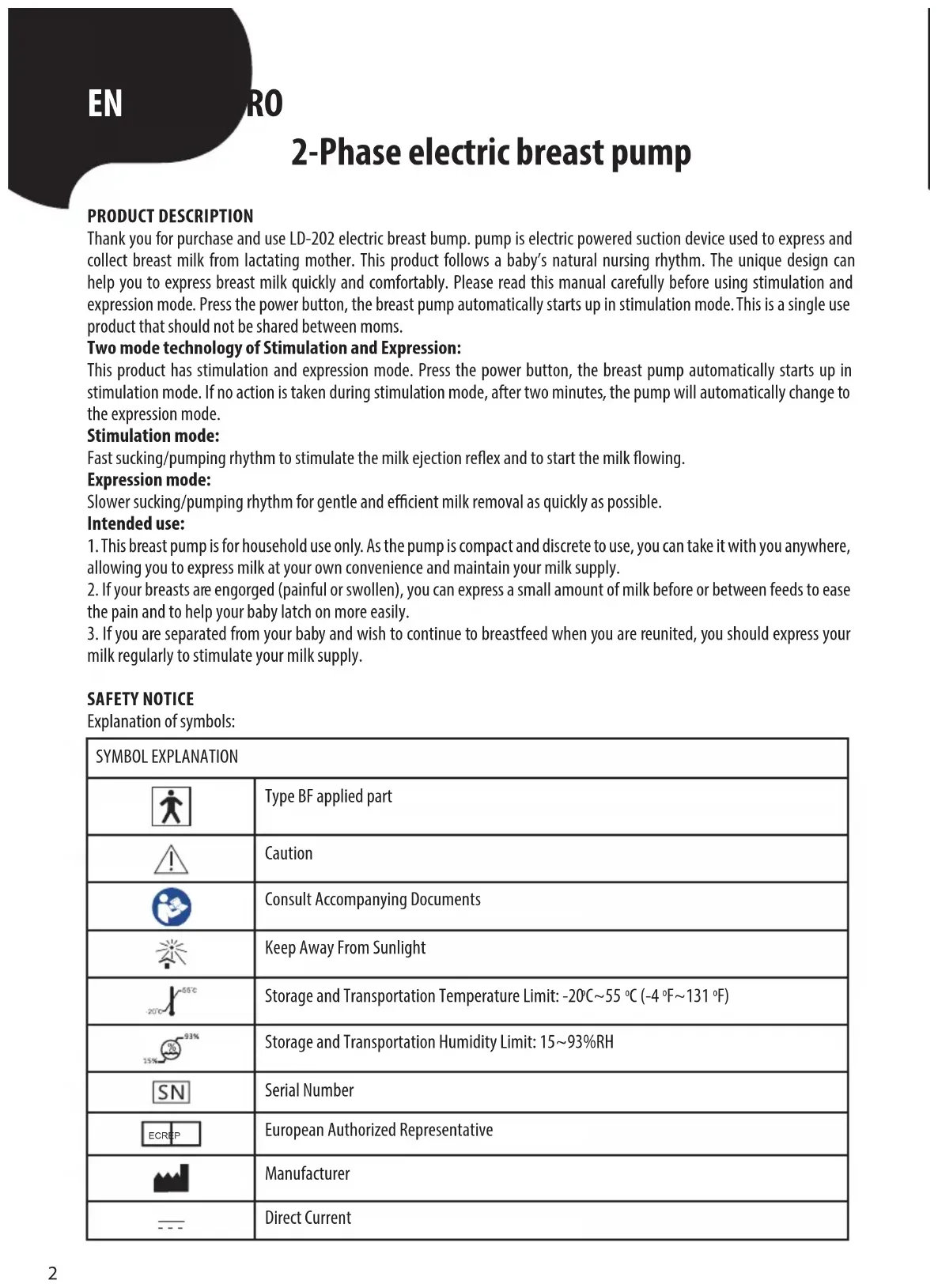

PRODUCT DESCRIPTION

Thank you for purchase and use LD-202 electric breast bump. pump is electric powered suction device used to express and collect breast milk from lactating mother. This product follows a baby's natural nursing rhythm. The unique design can help you to express breast milk quickly and comfortably. Please read this manual carefully before using stimulation and expression mode. Press the power button, the breast pump automatically starts up in stimulation mode. This is a single use product that should not be shared between moms.

Two mode technology of Stimulation and Expression:

This product has stimulation and expression mode. Press the power button, the breast pump automatically starts up in stimulation mode. If no action is taken during stimulation mode, after two minutes, the pump will automatically change to the expression mode.

Stimulation mode:

Fast sucking/pumping rhythm to stimulate the milk ejection reflex and to start the milk flowing.

Expression mode:

Slower sucking/pumping rhythm for gentle and efficient milk removal as quickly as possible.

Intended use:

1. This breast pump is for household use only. As the pump is compact and discrete to use, you can take it with you anywhere, allowing you to express milk at your own convenience and maintain your milk supply.
2. If your breasts are engorged (painful or swollen), you can express a small amount of milk before or between feeds to ease the pain and to help your baby latch on more easily.
3. If you are separated from your baby and wish to continue to breastfeed when you are reunited, you should express your milk regularly to stimulate your milk supply.

SAFETY NOTICE

Explanation of symbols:

SYMBOL EXPLANATION
	Type BF applied part
	Caution
	Consult Accompanying Documents
	Keep Away From Sunlight
	Storage and Transportation Temperature Limit: -20°C~55 °C (-4 °F~131 °F)
	Storage and Transportation Humidity Limit: 15~93%RH
	Serial Number
	European Authorized Representative
	Manufacturer
[c6w8]	Direct Current

Caution

1. Use the product only for its intended use as described in this manual.
2. Please check that all the parts of breast bump is in before using.
3. Do not use attachments not recommended by the manufacturer.
4. Do not attempt to remove the breastshield from your breast while pumping.

Turn the breastpump off and break the seal between your breast and breastshield with your finger, then remove breastshield from your breast.

1. Never use the breast pump while you are pregnant, as pumping can induce labor.
2. Inspect all appropriate pump components before each use.
3. Clean and sanitize all parts that come in contact with your breast and breastmilk prior to first use.
4. Wash all parts that come in contact with your breast and breastmilk after every use.
5. For hygienic reasons, this product is intended for use by a single user.
6. Do not allow children or pets to play with the motor unit, the adapter or accessories.
7. Remove the batteries if they are not going to be used for an extended period of time.
8. Although the breast pump is compliant with applicable EMC directives, it may still be susceptible to excessive emissions and/or may interfere with other equipment. A consequence can be that the breast pump turns off or goes into error mode. To prevent interference, keep other electric equipment away from the breast pump during expressing.
   13.Do not use the device in the MR environment.

POWER ADAPTER USE ATTENTION POINTS

Use only the power adapter that comes with the product.

Make sure the voltage of the power adapter is compatible with the power source.

This product should never be left unattended when plugged into an electrical outlet.

Always unplug the breast pump immediately after use.

UNIT ILLUSTRATION

Exploded diagram of a baby washing machine with numbered parts and control panel

① 1× Seal cover
② 1× Connection tube
③ 1× Elastic diaphragm
④ 1× Seal seat
⑤ 4× Seal hoops
⑥ 1× Breastshield
⑦ 1× Pump body
⑧ 2× Valves
⑨ 4× White membranes
⑩ 1× Breastmilk bottles
⑪ 1× Bottle stand
⑫ 1× Motor unit
⑬ 1× Plugs
⑭ 1× Dome cap
⑮ 1× Nipple
⑯ 1× Screw ring
⑰ 1× Lids
⑱ 1× Power Adaptor

INSTALLATION INSTRUCTIONS

Product Assembly

Note: Make sure you have cleaned and optionally disinfected the appropriate parts of the breast pump.

After cleaning, follow these steps to assemble your collection units:

STEP 1:

Insert breastshield into the funnel-shaped section of the pump body

Technical line drawing of a spray gun with a magnified inset showing concentric rings (no text or symbols)

STEP 2:

Please install the white membrane on valve smoothly.

Make sure the white membrane won't curl up.

Diagram showing a mechanical component with a circular component and an arrow indicating direction, possibly illustrating a process or assembly.

STEP 3:

Insert the valve into pump body the from underneath. Push the valve in as faras possible.

Simple line drawing of a megaphone with an arrow indicating upward motion, no text or symbols present.

STEP 4:

Screw the pump body clockwise onto the bottle until it is securely fixed.

Diagram of a spray gun with directional arrow indicating motion (no text or symbols)

STEP 5:

Put the Elastic diaphragm into the seal seat, make sure the daphragm edge and seal seat edge close fitting. Then seal by the seal cover make it as a sealed isolation assembly.

If there is no „0” - shaped sealing ring on the plug at the bottom of the sealing seat, please set the seal hoop into the groove in the plug position.

Figure 5-1 Figure 5-2 Figure 5-3 Figure 5-4

STEP 6:

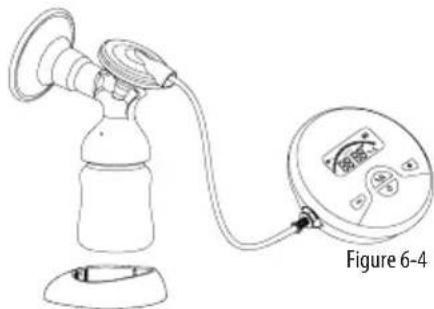

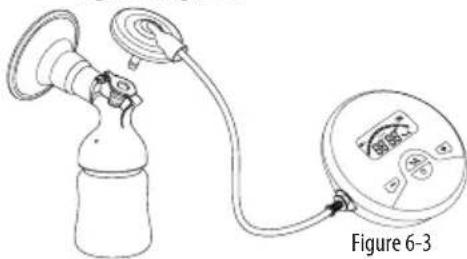

Make one side of c without plug insert into seal cover and make another side of connection tube insert into motor unit. Then insert the whole isolation assembly into connector.

Line drawing of a medical or laboratory device with tubing and a digital display (no text or symbols)

Figure 6-1 Figure 6-2

Medical device setup with a pump and digital display (no text or symbols visible)

Line drawing of a baby washing machine connected to a digital display (no text or symbols on device)

Battery Installation

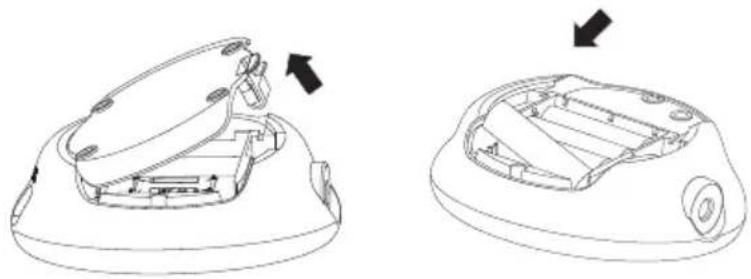

This product can use 4 AA alkaline batteries as power supply. Please install the battery according to the direction of the battery polarity shown at the bottom of the unit.

Technical line drawing of a device casing with internal components and mounting holes (no text or symbols)

Do not reverse polarity.

Do not mix old and new batteries.

Do not mix alkaline, standard(carbon-zinc) or rechargeable batteries.

Each set of batteries will provide approximately 1.5 hours of pumping time. For battery operation, the motor unit LCD will display the battery symbol. If the battery symbol flashes, which means the battery remaining is not enough for breast bump normal work, please replace the batteries.

The Power Adapter

Although the design of the product can be used in the battery inside the unit power adapter, meanwhile, we recommend that remove the battery before use the power adapter. If you need to use power adapter when you using battery, please shut down the breast bump then access external power supply and turn on the product. When the external power supply is used, the battery symbol will not show on the screen. At the same time the external power symbol will light up.

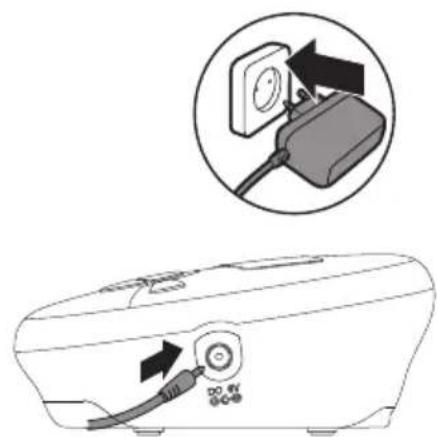

Diagram showing a device with an electrical outlet connected to a power plug, with an inset image highlighting the electrical component.

Please don't insert or pull out the power adapter with wet hand. Please don't plug the power adapter with the power supply for a long time.

USING THE BREAST BUMP

Display information and button function

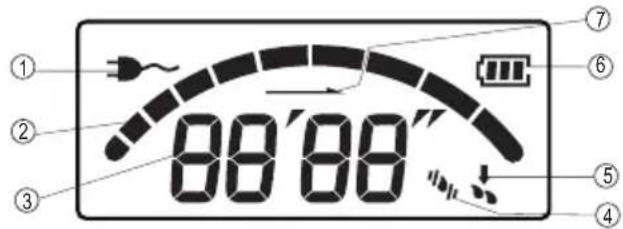

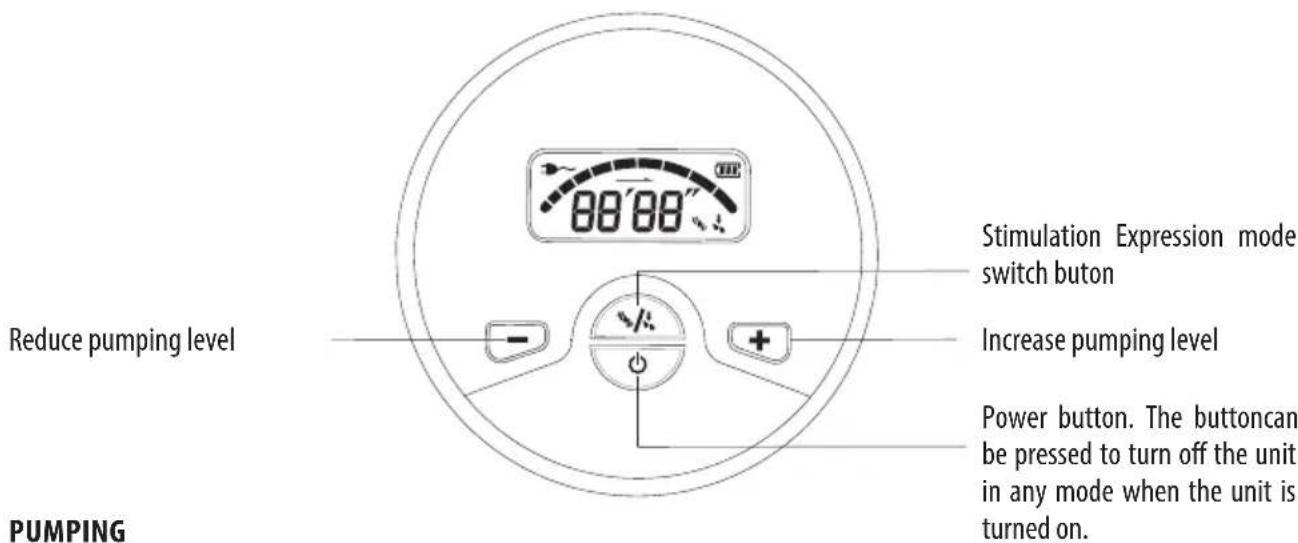

① ② ③ 88'88' ④ ⑤ ⑥ ⑦

① The external power supply indicator
② Pumping level indicator
③ Continuity work time, "minute" in front, "second" behind
④ Stimulation mode
⑤ Expression mode
⑥ Battery indicator
⑦ Level increasing direction

Reduce pumping level Stimulation Expression mode switch button Increase pumping level Power button. The buttoncan be pressed to turn off the unit in any mode when the unit is turned on. PUMPING

Relax in a comfortable chair (you may wish to use cushions to support your back).

a. Press the assembled pump body against your breast. Make sure that your nipple is centered. Hold the breastshield onto your breast with your thumb and index finger. Support your breast with the palm of your hand.

Line drawing of a hand holding a spray bottle with a hose and bulb (no text or symbols)

b. Press the ⏻ button, the breast pump automatically starts up in stimulation mode as per preset level and the stimulation indicator lights up. If the the breast bump used before without
c. Once your milk starts flowing, please press the Stimulation/Expression button to enter into expression mode. You can switch the stimulation mode and expression mode by press the "Stimulation/Expression" button as per your requirement. If no action is taken during stimulation mode, after two minutes, the pump will automatically change to the expression mode.

d. Depending on your own personal comfort, you can press the +" or "-" button to adjust the suction level. Long press the button can help you adjust the level quicker.

e. Close the bottle with a lid after pumping. Turn off the breast pump. Disassemble and clean the parts that contact breast and milk.

Diagram of a bottle with a lid and arrow indicating rotation (no text or symbols)

Please keep the airway clear and unobstructed during sucking, prevent air path blocked. Use bottle holder to prevent the bottle from tipping over. Do not fill the bottle too full to o prevent overfilling and spillage. The unit can turn off the power itself about 30 minutes no operation.

SIZE OF BREASTSHIELD

Make sure that your nipple fits correctly in the breast shield. Not too tight, it is important that the nipple can move freely, while expressing breast milk. The breastshield should not be too large, because this can cause pain or less effective expression.

Diagram illustrating a medical procedure with labeled components and cross marks, including a magnified view of the device.

If there is any pain or discomfort during pumping, please consider to choose a larger or smaller size.

CLEANING

Caution:

1. Only use drinking-quality tap or bottled water for cleaning.
2. Take apart and wash all parts that come in contact with the breast and breastmilk immediately before and after use to avoid dry up of milk residues and to prevent growth of bacteria.
3. Please disassemble all parts which require clean to make sure cleaning thoroughly.
4. Please place parts on a clean environment to avoid being polluted.
5. Never put breastpump motor unit and AC adapter in water or a sterilizer, as you can cause permanent damage to the breastpump.

Cleaning before use:

1. Take apart and wash all parts that come in contact with the breast and breastmilk.
2. Put all seperated parts into pot. Fill in the pot with enough dringkingquality tap or bottled water to cover all parts.
3. Bring the water to boil. Place parts in boiling water for 5 minutes.
4. Allow water to cool and gently remove the parts from the water. Be careful and don't scald your skin.
5. Place the parts neatly on a clean paper towel or in a clean drying rack and allow them to air dry. Avoid using cloth towels to dry the parts because they can carry germs and bacteria that are harmful to your baby.

5 min.

Illustration of a cooking pot with various kitchenware and a stove (no text or symbols)

Cleaning after use:

1. Take apart and wash all parts that come in contact with the breast and breastmilk.
2. Rinse in cool water all separated parts that came in contact with breast and breastmilk in order to remove breastmilk residue.
3. Place the parts neatly on a clean paper towel or in a clean drying rack and allow them to air dry.

TROUBLE SHOOTING

Abnormal phenomenon Cause analysis Solutions
Low or No Suction Connection points is	loose Inspect all connection points to ensure attachment is secure
	The valve is chipped or cracked or there's holes or tears on membrane	Replace valve and/or membrane prior to pumping
	Breastshield size is not fit Replace a appropriate size breastshield
Shows “Err” Power problems Please replace batteries or power		adapter
Battery symbol flash Voltage is too low	Please replace batteries

TROUBLE SHOOTING

WASTE TREATMENT

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

This marking shown on the product indicates that it should not be disposed with other household waste at the end of its life. To prevent potential harm to the environment or to human health, please separate this product from other types of wastes and recycle it responsibly. When disposing this type of product, contact the retailer where product was purchased or contact your local government office for details regarding how this item can be disposed in an environmentally safe recycling center. Business users should contact their supplier and check the terms and conditions of the purchasing agreement. This product should not be mixed with other commercial wastes for disposal. This product is free of hazardous materials.

MAINTENANCE

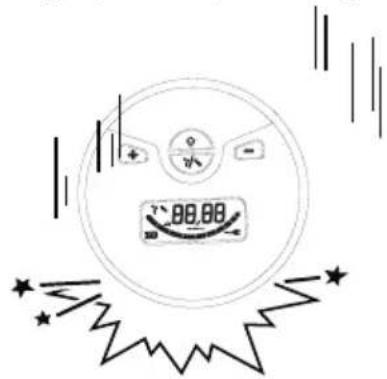

1. Avoid dropping, slamming, or throwing the unit.

80.88

1. Avoid extreme temperatures. Do not expose unit directly under sunshine.

Weather warning symbol showing sun and X sign indicating no weather or pollution

1. When cleaning the unit, use a soft fabric and lightly wipe with mild detergent. Use a damp cloth to remove dirt and excess detergent.

Diagram showing a hand cleaning a shoe with a digital display showing temperature reading and control buttons below.

1. Do not use petrol, thinners or similar solvents.

Simple line drawing of three containers with a black X symbol crossed out (no text or labels)

1. Remove batteries when not in operation for an extended period of time.

Line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

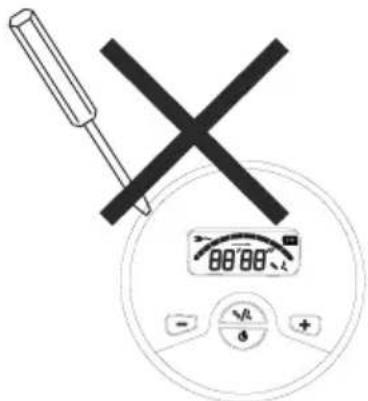

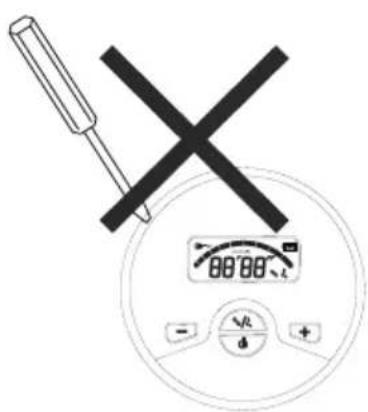

1. Do not disassemble product.

Diagram showing a screwdriver crossed over a digital display with '88' and '0' labels, indicating a resistance or threshold.

SPECIFICATIONS

Product Description Electric Breast Pump
Model LD-202
Intermittent Vacuum Stimulate mode	Approx. -60~-130mmHg
	Expression mode Approx. -60~-250mmHg
Vacuum Levels Stimulate mode 10 Levels
	Expression mode 10 Levels
Cycles Per Minute Stimulate mode 100 C.P.M.
	Expression mode 29~73 C.P.M.
Breastshield Sizes 24 mm
Power Source 4 AA batteries (not provided) or AC Adapter (DC6.0V, 1000mA)
Battery Life Approximately 1.5 hours different types of batteries may affect battery life
Additional Function Automatic Power-Off
Unit Weight Approx. 265g (9.35oz)(excluding battery)
Unit Dimensions 129 x 129 x 55mm (L x W x H)
Operating Environment	Temperature	5 °C - 40 °C (41 °F-104 °F)
	Humidity	15-93 %RH
	Pressure	700 hPa-1060 hPa
Storage Environment	Temperature	-20 °C-55 °C (-4 °F-131 °F)
	Humidity	≤93 %RH
Expected Service Life	Your appliance has been designed and developed with the greatest possible care and has an expected service life of 400 hours.
Ingress Protection Rating	IP 21
Classification	Internal Powered Equipment,Type BF

Specifications are subject to change without notice.

This appliance conforms to the following standards: EN 60601-1-11 Medical electrical equipment —Part 1-11: General requirements for basic safety and essential performance – Collateral Standard: Requirements for medical electrical equipment and medical electrical systems used in the home healthcare environment and complies with the requirements of EN 60601-1-2(EMC), IEC/EN60601-1(Safety) standards. And the manufacturer is ISO 13485 certified.

WARRANTY

We warrant this product to be free from manufacturing defects for a period of one year for pump mechanism (90 days for parts and accessories) from the original date of consumer purchase. We gladly offer a free exchange and lifetime repair due to manufacturing defects. This warranty does not apply to batteries and any product which has been subjected to misuse, abuse or alteration. Please contact local retailer for details.

Contact Information

The lay operator or lay responsible or ganization should contact the manufacturer or the representative of manufacturer.

- for assistance, if needed, in setting up, using or maintaining the product, or

- to report unexpected operation or events.

No.365, Wuzhou Road, Yuhang Economic Development Zone, Hangzhou city, 311100 Zhejiang, China Email: [e-mail]

Telefon: [phone]

0197 The product is in compliance with the requirements of MDD 93/42/EEC, "0197" is the identification number of notify body.

ELECTROMAGNETIC COMPATIBILITY INFORMATION

The device satisfies the EMC requirements of the international standard IEC 60601-1-2. The requirements are satisfied under the conditions described in the table below. The device is an electrical medical product and is subject to special precautionary measures with regard to EMC which must be published in the instructions for use. Portable and mobile HF communications equipment can affect the device. Use of the unit in conjunction with non-approved accessories can affect the device negatively and alter the electromagnetic compatibility. The device should not be used directly adjacent to or between other electrical equipment.

Table 1

Guidance and declaration of manufacturer-electromagnetic emissions
The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment
Emissions test Compliance Electromagnetic environment	-guidance
Radiated emissionCISPR 11	Group 1,class B.	The device uses RF energy only for its internal function.Therefore, its emissions are very low and are not likely to cause any interference in nearby electronic equipment.
Conducted emissionCISPR 11	Group 1,class B.	The device is suitable for use in all establishments, including domestic establishments and those directly connected to the public low-voltage power supply network that supplies buildings used for domestic purposes.
Harmonic emissionsIEC 61000-3-2	Class A
Voltage fluctuations/ flicker emissionsIEC 61000-3-3	Complies

Table 2

Guidance and declaration of manufacturer-electromagnetic immunity (For home healthcare environment)
The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment.
IMMUNITY test IEC 60601	test level	Compliance level	Electromagnetic environment - guidance
Electrostatic discharge (ESD) IEC 61000-4-2	±8 kVcontact±2 kV,±4 kV,±8 kV,±15 kV air	±8 kVcontact±2 kV,±4 kV,±8 kV,±15 kV air	Floors should be wood, concrete or ceramic tile. If floors are covered with synthetic material, the relative humidity should be at least 30%.
Electrostatic transient/burst IEC 61000-4-4	±2 kV,100kHz, forAC power port	±2 kV,100kHz, forAC power port	Mains power quality should be that of a typical commercial or hospital environment.
Surge IEC 61000-4-5 ±0.5kV,	±1kV(differentia mode)	±0.5kV, ±1kV(differentia mode)	Mains power quality should be that of a typical commercial or hospital environment.
Voltage dips, short interruptions and voltage variations on power supply input lines IEC 61000-4-11	0 % UT;0,5 cycleAt 0°, 45°, 90°,135°, 180°, 225°, 270° and 315°0 % UT; 1 cycle and70 % UT;25/30 cyclesSingle phase:at 0°0 % UT;250/300 cycle	0 % UT;0,5 cycleAt 0°, 45°, 90°,135°, 180°, 225°, 270° and 315°0 % UT; 1 cycle and70 % UT;25/30 cyclesSingle phase:at 0°0 % UT;250/300 cycle	Mains power quality should be that of a typical commercial or hospital environment.
Power frequency (50/60 Hz) magnetic field IEC 61000-4-8	30 A/m; 50Hz or 60Hz 30 A/m	50Hz or 60Hz Power frequency	magnetic fields should be at levels characteristic of a typical location in a typical commercial or hospital environment.

Table 3

Guidance and declaration of manufacturer-electromagnetic immunity( For home healthcare environment)
The device is intended for use in the electromagnetic environment specified below.The customer or the user of the device should assure that it is used in such an environment.
IMMUNITY test IEC 60601 test level Compliance level Electromagnetic environment -guidance
ConductedRF IEC61000-4-6Radiated RF IEC61000-4-3	3V for 0.15-80MHz; 6V inISM and amate-ur radio bandsbetween0.15-80MHz385MHz,27V /m450MHz,28V/m710MHz,745MHZ,780MHz9V/m810MHz,870MHZ,930MHz28V/m1720MHz,1845MHZ,1970MHz28V/m2450MHz,28V/m5240MHz, 5500MHZ,5785MHz9V/m	3V for 0.15-80MHz; 6V inISM and amate-ur radio bandsbetween0.15-80MHz385MHz,27V /m450MHz,28V/m710MHz,745MHZ,780MHz9V/m810MHz,870MHZ,930MHz28V/m1720MHz,185MHz,1970MHz28V/m2450MHz,28V/m5240MHz, 5500MHZ,5785MHz9V/m	Portable and mobile RF communications equipment should be used no closer to any part of the device, including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter.Recommended seperation distance 80 MHz to 800 MHz d = [ 3.5E_1 ] 800 MHz to 2.7 Ghz d = [ 7E_1 ] where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer and d is the recommended separation distance in metres (m).Field strengths from fixed RF transmitters, as determined by an electromagnetic site survey, a should be less than the compliance level in each frequency range.Interference may occur in the vicinity of equipment marked with the following symbol:[IMAGE]

Table 4

Recommended separation distances between portable and mobile RF communications equipment and the device ( For home healthcare environment)
The device is intended for use in an electromagnetic environment in which radiated therefore disturbances are controlled. The customer or the user of the device can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the device as recommended below, according to the maximum output power of the communications equipment.
Rated maximum output power of transmitter W	Separation distance according to frequency of transmitter m
	80 MHz to 800 MHz 80 MHz to	2.7 Ghz
0.01 0.12 0.23
0.1 0.38 0.73
1 1.2 2.3
10 3.8 7.3
100 12 23
For transmitters rated at a maximum output power not listed above, the recommended separation distance d in metres (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer. NOTE1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies. NOTE2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.

PL

Exploded diagram of a baby washing machine with numbered parts for identification and assembly reference.

Technical line drawing of a mechanical component with a 24 mm circular inset (no text or symbols on the diagram itself)

KROK 2:

Diagram showing a mechanical component with a circular component and an arrow indicating direction, possibly illustrating a process or assembly.

KROK 3:

Simple line drawing of a megaphone with an arrow indicating upward motion (no text or symbols)

KROK 4:

Diagram of a spray bottle with a funnel and arrow indicating motion (no text or symbols)

KROK 5:

Technical line drawing of a device casing with internal components, showing two views (top and side) with arrows indicating direction of movement or assembly.

Diagram showing a device with a close-up view of its electrical socket and cable, labeled 'DO BY 8000'

① ② ③ 88'88' ④ ⑤ ⑥ ⑦

Line drawing of a hand holding a spray bottle with a hose and bulb (no text or symbols)

Diagram of a bottle with a lid and arrow indicating rotation (no text or symbols)

Medical procedure diagram showing three stages of a nasal tube insertion with a magnified inset illustrating the measurement of 24mm diameter.

Weather warning illustration showing sun, digital display, and prohibition symbol with Chinese text

Diagram showing a hand cleaning a cloth with a digital display showing '00:00' and control buttons below.

Simple line drawing of two containers with a black X symbol crossed out (no text or labels)

Line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Diagram showing a crossed-out X-shaped switch and a digital timer with reading '80' and control buttons below

SPECYFIKACJA

No.365, Wuzhou Road, Yuhang Economic Development Zone, Hangzhou city, 311100 Zhejiang, China

Email: [e-mail]

Telefon: [phone]

Exploded diagram of a baby washing machine with numbered parts for identification and assembly reference.

Technical line drawing of a spray gun with a magnified inset showing concentric circular components (no text or symbols)

СТЪПКА 2:

Diagram showing a mechanical component with a pulley and a circular component, labeled with Chinese characters.

СТЪПКА 3:

Diagram of a spray gun with an upward arrow indicating motion or force (no text or symbols)

СТЪПКА 4:

Line drawing of a spray bottle with a bell and arrow indicating motion (no text or symbols)

СТЪПКА 5:

Line drawings of a device's internal components, showing open and closed views with arrows indicating assembly (no text or symbols)

Diagram showing a device with an electrical plug inserted into a socket, and its wiring being inserted into a device labeled 'DO' (Device).

① ② ③ 88'88" ④ ⑤ ⑥ ⑦

Line drawing of a hand holding a spray bottle with a hose and bulb (no text or symbols)

Diagram of a bottle with a lid and arrow indicating rotation (no text or symbols)

Medical procedure diagram showing three stages of a nasal tube insertion with a magnified inset illustrating the measurement of 24mm diameter.

Weather warning symbol showing sun and nozzles with a digital display, indicating no weather or pollution.

Diagram showing a hand cleaning a floor with a digital display showing temperature reading and control buttons below.

Simple line drawing of two containers with a black X symbol crossed out (no text or labels)

Line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Diagram showing a crossed-out X-shaped switch and a digital timer with reading '88' and control buttons below

No.365, Wuzhou Road, Yuhang Economic Development Zone, Hangzhou city, 311100 Zhejiang, China

Email: [e-mail]

Telefon: [phone]

Exploded diagram of a baby washing machine with numbered parts and control panel

Technical line drawing of a spray gun with a magnified inset showing concentric rings (no text or symbols)

KROK 2:

Simple line drawing of a mechanical component with a circular base and arrow indicating direction (no text or symbols)

KROK 3:

Simple line drawing of a funnel-shaped object with an arrow pointing to a small circular component (no text or symbols)

KROK 4:

Diagram of a spray bottle with a bell and arrow indicating motion (no text or symbols)

KROK 5:

Technical line drawing of a device casing with internal components and mounting holes (no text or symbols)

Diagram showing a device with a plug inserted into a socket, and its wiring diagram illustrating electrical connections.

① ② ③ 88'88' ④ ⑤ ⑥ ⑦

Line drawing of a hand holding a spray bottle with a hose and bulb (no text or symbols)

Diagram of a bottle with a lid and arrow indicating rotation (no text or symbols)

Medical procedure diagram showing three steps of a nasal pressure regulator with labeled valve positions and a magnified inset showing concentric rings.

Diagram showing a digital thermometer with sun and cross symbols, indicating weather or safety warning.

Diagram showing a hand cleaning a floor-mounted digital dashboard with temperature and scale indicators

Simple line drawing of two containers with a black X symbol (no text or labels)

Line drawing of a mechanical device with internal components and an arrow indicating rotation (no text or symbols)

Diagram showing a crossed-out X-shaped switch and a digital timer with reading '80' and control buttons below

SPECIFIKACE

No.365, Wuzhou Road, Yuhang Economic Development Zone, Hangzhou city, 311100 Zhejiang, China

Email: [e-mail]

Telefon: [phone]

Fax: [phone]

Shanghai International Holding Corp. GmbH(Europa)

Exploded diagram of a baby washing machine with numbered parts and control panel

Technical line drawing of a spray gun and a circular component with 24 mm diameter (no text or symbols on the diagram itself)

2.

Simple line drawing of a mechanical component with a circular base and arrow indicating direction (no text or symbols)

3.

Simple line drawing of a funnel-shaped object with an arrow pointing to a small container (no text or symbols)

4.

Diagram of a spray bottle with a bell nozzle and directional arrow indicating motion (no text or symbols)

5.

Technical line drawing of a device showing internal components and a close-up view (no text or symbols)

Mitte sisestada patareisid valet pidi.

Diagram showing a device with an attached lamp and a close-up view of its internal components, including a label 'DO BY SOD' on the device.

RINNAPUMBA KASUTAMINE

① ② ③ 88'88' ④ ⑤ ⑥ ⑦

Line drawing of a hand holding a spray bottle with a hose and bulb (no text or symbols)

Diagram of a bottle with a lid and arrow indicating rotation (no text or symbols)

Medical procedure diagram showing three stages of a nasal tube insertion with a magnified inset illustrating the measurement of 24mm diameter.

Diagram showing a digital thermometer with sun and cross symbols, indicating weather or climate conditions.

Diagram showing a hand cleaning a cloth next to a digital display with temperature reading and control buttons below.

Simple line drawing of three containers with a black X symbol crossed out (no text or labels)

Technical line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Diagram showing a crossed-out X-shaped switch next to a digital display with temperature reading and control buttons

SPETSIFIKATSIOONID

No.365, Wuzhou Road, Yuhang Economic Development Zone, Hangzhou city, 311100 Zhejiang, China

Email: [e-mail]

Telefon: [phone]

Technical line drawing of a spray gun with a magnified inset showing concentric rings (no text or symbols)

ÉTAPE 2:

Diagram showing a mechanical component with a circular component and an arrow indicating direction, possibly illustrating a process or assembly.

ÉTAPE 3:

Simple line drawing of a spray gun with an upward arrow and a circular button at the base (no text or symbols)

ÉTAPE 4:

Diagram of a spray gun with directional arrows indicating motion (no text or symbols)

ÉTAPE 5:

Figure 5-1 Figure 5-2

Figure 5-3 Figure 5-4

ÉTAPE 6:

Figure 6-1 Figure 6-2 Figure 6-3 Figure 6-4

Technical line drawing of a device casing with internal components and mounting holes, shown from two different angles (no text or symbols)

Diagram showing a device with a cable inserted into a housing, and an inset image of a mounted device with a magnified view (no text or symbols)

① ② ③ 88'88' ④ ⑤ ⑥ ⑦

Line drawing of a hand holding a spray bottle with a hose and cable (no text or symbols)

Diagram of a bottle with a lid and arrow indicating rotation (no text or symbols)

Medical procedure diagram showing three stages of a nasal tube insertion with a magnified inset illustrating the measurement of 24mm diameter.

Diagram showing a digital thermometer with sun and X symbols, indicating weather or monitoring context.

Diagram showing a hand cleaning a cloth on a digital display with temperature reading and control buttons below.

Simple line drawing of three containers with a black X symbol (no text or labels)

Line drawing of a mechanical device with internal components and an arrow indicating rotation (no text or symbols)

Diagram showing a crossed-out X-shaped switch and a digital reading with '80' and 'R' labels, likely indicating a resistance or measurement setup.

No.365, Wuzhou Road, Yuhang Economic Development Zone, Hangzhou city, 311100 Zhejiang, China

E-mail: [e-mail]

Exploded diagram of a baby washing machine with numbered parts and control panel

① 1× Poklopac brtve
② 1× Priključna cijev
③ 1× Elastična dijafragma
④ 1× Sjedalo brtve
⑤ 4× Brtveni obruči
⑥ 1× Štitnik za grudi
⑦ 1× Tijelo pumpe
⑧ 2×Ventili
⑨ 4× Bijele membrane
⑩ 1× Bočica za majčino mlijeko
⑪ 1× Stalak za boce
⑫ 1× Motorna jedinica
⑬ 1× Priključci
⑭ 1× Kupolasta kapa
⑮ 1× Bradavica
⑯ 1× Vijčani prsten
⑰ 1× Poklopci
⑱ 1× Adapter za napajanje

UPUTE ZA INSTALACIJU

Sastavljanje proizvoda

Napomena: Provjerite jeste li očistili i po želji dezinficirali odgovarajuće dijelove pumpice za grudi.

Technical line drawing of a spray gun with a magnified inset showing concentric rings (no text or symbols)

KORAK 2:

Molimo da glatko postavite bijelu membranu na ventil.

Pazite da se bijela membrana ne sklupča.

Diagram showing a mechanical component with a circular component and an arrow indicating direction, possibly illustrating a process or assembly.

KORAK 3:

Umetnite ventil u tijelo pumpe odozdo. Gurnite ventil što je više moguće.

Simple line drawing of a funnel-shaped object with an arrow pointing to a small container (no text or symbols)

KORAK 4:

Line drawing of a spray bottle with a bell and arrow indicating motion (no text or symbols)

KORAK 5:

Technical line drawing of a device with open lid and internal structure, showing two views (no text or symbols)

Instalacija baterija

Ovaj proizvod može koristiti 4 AA alkalne baterije kao napajanje. Molimo instalirajte baterije prema smjeru polariteta baterije prikazanom na dnu jedinice.

Nemojte mijenjati polaritet.

Nemojte miješati stare i nove baterije.

Nemojte miješati alkalne, standardne (ugljik-cink) ili punjive baterije.

Svaki set baterija će osigurati otprilike 1,5 sat vremena pumpanja. Za rad na baterije, LCD jedinica motora će prikazati simbol baterije. Ako simbol baterije treperi, što znači da preostala baterija nije dovoljna za normalan rad prsne pumpe, zamijenite baterije.

Adapter za napajanje

lako se dizajn proizvoda može koristiti s baterijama unutar adaptera za napajanje jedinice, u međuvremenu preporučamo da uklonite baterije prije upotrebe adaptera za napajanje. Ako trebate koristiti adapter za napajanje kada koristite baterije, isključite pumpu za grudi, a zatim pristupite vanjskom napajanju i uključite proizvod lako se dizajn proizvoda može koristiti s baterijama unutar adaptera za napajanje jedinice, u međuvremenu preporučamo da uklonite baterije prije upotrebe adaptera za napajanje. Kada se koristi vanjski izvor napajanja, simbol baterije se neće prikazati na zaslonu. Istovremeno će zasvijetliti simbol vanjskog napajanja

Diagram showing a device with an attached lamp and a close-up view of its internal components, including a dial indicator.

Nemojte umetati ili vaditi adapter za napajanje mokrim rukama.

① ② ③ 88'88' ④ ⑤ ⑥ ⑦

① Indikator vanjskog napajanja
② Indikator razine pumpanja
③ Vrijeme kontinuiteta rada, "minuta" ispred, "sekunda" iza
④ Način stimulacije
⑤ Način ekspresije
⑥ Indikator baterija
⑦ Smjer povećanja razine

Smanjite razinu pumpanja Gumb za uključivanje. Stimulacija/Ekspresija Povećajte razinu pumpanja Gumb za uključivanje. Gumb se može pritisnuti za isključivanje jedinice u bilo kojem načinu rada kada je jedinica uključena. PUMPANJE

Opustite se u udobnoj stolici (možda ćete htjeti koristiti jastuke za podupiranje leđa).

a. Pritisnite sastavljeno tijelo pumpe na svoje grudi. Pazite da vam je bradavica centrirana. Držite štitnik za dojku palcem i kažiprstom. Poduprite dojku dlanom.

Line drawing of a hand holding a spray bottle with a funnel and hose (no text or symbols)

Diagram of a bottle with a lid and arrow indicating rotation (no text or symbols)

Medical procedure diagram showing three steps of a nasal pressure regulator with marked cross symbols and a magnified inset illustrating the measurement.

Weather warning symbol showing sun, digital display, and 'X' crossed out, indicating no clear weather warning.

3.

Prilikom čišćenja jedinice koristite meku tkaninu i lagano obrišite blagim deterdžentom. Koristite vlažnu krpu za uklanjanje prljavštine i viška deterdženta.

Diagram showing a hand cleaning a cloth with a digital display showing '00:00' and control buttons below.

4.

Nemojte koristiti benzin, razrjeđivače ili slična otapala.

Simple line drawing of two containers with a black X symbol crossed out (no text or labels)

5.

Line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

6.

Diagram showing a crossed-out X-shaped switch and a digital display with '88' and '0' labels, alongside a control panel with directional indicators.

TEHNIČKI PODACI

Opis proizvoda Električna pumpa	za grudi
Model LD-202
Povremeni vakuum Način stimulacije	Ok. -60~-130mmHg
	Način ekspresije Ok. -60~-250mmHg
Poziomy próžni Način stimulacije 10 razina
Ilość cykli na minutę Način stimulacije	100 C.P.M.
Veličine štitnika za grudi 24 mm
Izvor pojačanja 4 AA baterije (nisu pri ožene) ili AC adapter (DC6.0V, 1000mA)
Život baterija Približno 1,5 sat, različite vrste baterija mogu utjecati na trajanje baterije
Dodatna funkcija Automatsko isključivanje
Težina jedinice Približno 265 g (9,35 oz) (bez baterija)
Dimenzije jedinice 129 x 129 x 55mm	(L x W x H)
Środowisko pracy Temperatura	5 °C - 40 °C (41 °F-104 °F)
	Vlažnost	15-93 %RH
	Pritisak	700 hPa-1060 hPa
Radno okruženje	Temperatura	-20 °C-55 °C (-4 °F-131 °F)
	Vlažnost	≤93 %RH
Očekivani vijek trajanja	Vaš je uređaj dizajniran i razvijen s najvećom mogućom pažnjom i ima očekivani vijek trajanja od 400 sati.
Stupanj zaštite od ulaska IP 21
Klasifikacija	Oprema s unutarnjim napajanjem, tip BF

Specifikacije su podložne promjenama bez prethodne najave.

No.365, Wuzhou Road, Yuhang Economic Development Zone, Hangzhou city, 311100 Zhejiang, China

Email: [e-mail]

Telefon: [phone]

Exploded diagram of a baby washing machine with numbered parts and control panel

Technical line drawing of a spray gun with a magnified inset showing concentric rings (no text or symbols)

LÉPÉS 2:

Diagram showing a mechanical component with a circular component and an arrow indicating direction, possibly illustrating a motion or assembly.

LÉPÉS 3:

Simple line drawing of a megaphone with an arrow indicating upward motion (no text or symbols)

LÉPÉS 4:

Line drawing of a spray bottle with a funnel and arrow indicating motion (no text or symbols)

LÉPÉS 5:

Technical line drawing of a device with open lid and internal compartments, showing two views (no text or symbols)

Diagram showing a device with a plug inserted into a housing, and a magnified view of the plug being inserted (no text or symbols present)

① ② ③ 88'88' ④ ⑤ ⑥ ⑦

Line drawing of a hand holding a spray bottle with a hose and bulb (no text or symbols)

Simple line drawing of a jar with a lid and arrow indicating rotation (no text or symbols)

Medical procedure diagram showing three stages of a nasal pressure regulator with valve placement and a magnified inset of the device.

Weather warning illustration showing sun, digital display, and prohibition symbol with Chinese text

Simple line drawing of three containers with a black X symbol crossed out (no text or labels)

Line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Diagram showing a crossed-out X-shaped switch next to a digital timer reading '80' and a meter dial with scale markings.

No.365, Wuzhou Road, Yuhang Economic Development Zone, Hangzhou city, 311100 Zhejiang, China

Email: [e-mail]

Telefon: [phone]

Fax: [phone]

Shanghai International Holding Corp. GmbH (Európa)

Exploded diagram of a baby washing machine with numbered parts and control panel

Technical line drawing of a spray gun with a 24 mm scale indicator (no text or symbols on the diagram itself)

PASSO 2

Diagram showing a mechanical component with a circular component and an arrow indicating direction, possibly illustrating a process or assembly.

PASSO 3

Simple line drawing of a spray gun with an arrow indicating upward motion (no text or symbols)

PASSO 4

Diagram of a spray gun with directional arrows indicating motion (no text or symbols)

PASSO 5

Technical line drawing of a device casing with internal components and mounting holes, shown from two different angles (no text or symbols)

Diagram showing a device with an attached electrical socket and its cable, with an inset magnified view highlighting the socket's internal structure.

① ② ③ 88'88' ④ ⑤ ⑥ ⑦

Line drawing of a hand holding a spray bottle with a hose and bulb (no text or symbols)

Diagram of a bottle with a lid and arrow indicating rotation (no text or symbols)

Medical procedure diagram showing three stages of a nasal tube insertion with a magnified inset illustrating the measurement of 24mm diameter.

Diagram showing a digital temperature meter with sun and crossed-out X symbol, indicating thermal resistance or noise.

Diagram showing a hand cleaning a cloth with a digital display showing reading '00' and control buttons below.

Simple line drawing of three containers with a black X symbol crossed out (no text or labels)

Line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Diagram showing a switch crossed over a digital timer with '80' and '0' labels, indicating a resistance or disaturation mechanism.

SPECIFICA

No.365, Wuzhou Road, Yuhang Economic Development Zone, Hangzhou city, 311100 Zhejiang, China

Email: [e-mail]

Telefono: [phone]

Fax: [phone]

Shanghai International Holding Corp. GmbH(Europa)

Eiffestrasse 80, 20537 Hamburg, Germany

Exploded diagram of a baby washing machine with numbered parts and control panel

Technical line drawing of a spray gun with a 24 mm scale indicator (no text or symbols on the diagram itself)

2 ŽINGSNIS

Simple line drawing of a mechanical component with a circular base and arrow indicating direction (no text or symbols)

3 ŽINGSNIS

Simple line drawing of a mechanical component with an arrow indicating upward motion (no text or symbols)

4 ŽINGSNIS

Diagram of a spray bottle with a funnel and directional arrow indicating motion (no text or symbols)

5 ŽINGSNIS

Technical line drawing of a device showing two views of internal components with arrows indicating direction (no text or symbols)

Diagram showing a device with an attached electrical outlet and a close-up of its internal components, likely illustrating a power or circuit connection.

① ② ③ 88'88' ④ ⑤ ⑥ ⑦

Line drawing of a hand holding a spray bottle with a funnel and hose (no text or symbols)

Simple line drawing of a bottle with a lid and arrow indicating rotation (no text or symbols)

Medical procedure diagram showing three stages of a device with cross marks and a magnified circular component labeled '24mm'.

Diagram showing a hand cleaning a floor-mounted digital dashboard with temperature and scale indicators

Simple line drawing of three containers with a black X symbol crossed out (no text or labels)

Technical line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Diagram showing a screwdriver crossed over a digital display with '80' and '80' labels, symbolizing resistance or status.

SPECIFIKACIJOS

No.365, Wuzhou Road, Yuhang Economic Development Zone, Hangzhou city, 311100 Zhejiang, China

Email: [e-mail]

Telefon: [phone]

Technical line drawing of a spray gun with a magnified inset showing concentric rings (no text or symbols)

2. SOLIS:

Simple line drawing of a mechanical component with a circular component and an arrow indicating direction (no text or symbols)

3. SOLIS:

Simple line drawing of a megaphone with an arrow indicating upward motion (no text or symbols)

4. SOLIS:

Diagram of a spray gun with a downward arrow indicating motion (no text or symbols)

5. SOLIS:

Technical line drawing of a device showing internal components and a close-up view (no text or symbols)

Diagram showing a device with an electrical outlet connected to a plug, and a close-up of its cable being inserted (no text or symbols present)

① ② ③ 88'88' ④ ⑤ ⑥ ⑦

Line drawing of a hand holding a spray bottle with a hose and bulb (no text or symbols)

Diagram of a jar with a lid and arrow indicating rotation or movement (no text or symbols)

Medical procedure diagram showing three stages of a nasal pressure regulator with a 24mm diameter indicator below.

Diagram showing a digital thermometer with sun and wind lines, and a crossed-out X symbol indicating no change or failure.

Diagram showing a hand cleaning a floor-mounted digital display with temperature and scale markings

Simple line drawing of two containers with a black X symbol crossed out (no text or labels)

Line drawing of a mechanical component with internal structure and directional arrow (no text or symbols)

Diagram showing a switch crossed over a digital display with '88' and 'R' indicators, symbolizing resistance or resistance.

No.365, Wuzhou Road, Yuhang Economic Development Zone, Hangzhou city, 311100 Zhejiang, China

E-pasts: [e-mail]

Telefons: [phone]

Fakss: [phone]

Shanghai International Holding Corp. GmbH (Europe)

Exploded diagram of a baby washing machine with numbered parts and control panel

① 1× Tampa com revestimento
② 1× Tubo de ligação
③ 1× Diafragma elástica
④ 1× Assento selado
⑤ 4× Aros selados
⑥ 1× Funil de medela
⑦ 2× Plugues
⑧ 2× Válvulas
⑨ 4× Membranas brancas
⑩ 1× Garrafas de leite de peito
⑪ 1× Estande para garrafa
⑫ 1× Unidade de motor H8
⑬ 1× Corpo da bomba
⑭ 1× Tampa da cúpula
⑮ 1× Funil
⑯ 1× Anel de parafuso
⑰ 1× Tampas
⑱ 1× Adaptador de corrente

Technical line drawing of a spray gun with a magnified inset showing concentric rings (no text or symbols)

PASSO 2:

Por favor, instalar a membrana branca na válvula suavemente.

Diagram showing a device with a circular component and an arrow pointing to it, labeled with '0' on the device.

PASSO 3:

Diagram of a spray gun with an arrow indicating upward motion, no text or symbols present

PASSO 4:

Diagram of a spray gun with directional arrow indicating motion (no text or symbols)

PASSO 5:

Technical line drawing of a device showing internal components and a close-up view (no text or symbols)

Diagram showing a device with an electrical outlet connected to a power plug, with an inset magnified view highlighting the circuit.

① ② ③ 88'88' ④ ⑤ ⑥ ⑦

Line drawing of a hand holding a spray bottle with a hose and bulb (no text or symbols)

Diagram of a jar with a lid and arrow indicating rotation or movement (no text or symbols)

Medical procedure diagram showing three steps of a nasal pressure regulator with a magnified inset showing concentric rings and a 24mm diameter measurement.

Diagram showing a sun, a digital meter, and a cross symbol indicating solar radiation or thermal resistance.

Diagram showing a hand cleaning a cloth with a digital display showing temperature reading and control buttons below.

Simple line drawing of two containers with a black X symbol crossed out (no text or labels)

Line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Diagram showing a crossed-out X-shaped switch and a digital timer with reading, indicating a resistance or disaturation mechanism.

No.365, Wuzhou Road, Yuhang Economic Development Zone, Hangzhou city, 311100 Zhejiang, China Email: [e-mail]

Telephone: [phone]

Fax: [phone]

Shanghai International Holding Corp. GmbH(Europe)

Exploded diagram of a baby washing machine with numbered parts and control panel

① 1× Capac etanşare
② 1× Tub de conectare
③ 1× Diafragmă flexibilă
④ 1× Suport de etanşare
⑤ 4× Inele etanşare
⑥ 1× Scut de sân
⑦ 1× Corpul pompei
⑧ 2×Valve
⑨ 4× Membrane albe
⑩ 1× Sticlă de lapte
⑪ 1× Suport sticlă
⑫ 1× Unitate de motor
⑬ 1× Mufe
⑭ 1× Capac calotă
⑮ 1×Mamelon
⑯ 1× Inel de înşurubare
⑰ 1× Capace
⑱ 1× Adaptor de alimentare

INSTRUCTIUNI DE MONTARE

Technical line drawing of a mechanical component with a 24 mm scale indicator (no text or symbols on the diagram itself)

PASUL 2:

Diagram showing a mechanical component with a circular component and an arrow indicating direction, possibly illustrating a process or assembly.

PASUL 3:

Simple line drawing of a spray gun with an upward arrow and a circular button (no text or symbols)

PASUL 4:

Diagram of a spray gun with directional arrows indicating motion (no text or symbols)

PASUL 5:

Technical line drawing of a device with open lid and internal compartments, showing two views (no text or symbols)

Diagram showing a device with an attached device and its internal connection, including a magnified view of the device's electrical outlet.

① ② ③ 88'88' ④ ⑤ ⑥ ⑦

Line drawing of a hand holding a spray bottle with a funnel and hose (no text or symbols)

Simple line drawing of a jar with a lid and arrow indicating rotation (no text or symbols)

Medical procedure diagram showing three stages of a nasal tube insertion with a magnified inset illustrating the measurement of 24mm diameter.

88.00 -12

Diagram showing a hand cleaning a cloth with a digital display showing temperature reading and control buttons below.

Simple line drawing of three containers with a black X symbol crossed out (no text or labels)

Line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

1. Nu dezasamblati produsul.

Diagram showing a screwdriver crossed over a digital display with '80' and '0' labels, indicating a resistance or safety warning.

SPECIFICATII

No.365, Wuzhou Road, Yuhang Economic Development Zone, Hangzhou city, 311100 Zhejiang, China E-mail: [e-mail]

Telefon: [phone]

Fax: [phone]

Shanghai International Holding Corp. GmbH(Europe)

Eiffestrasse 80, 20537 Hamburg, Germania

Exploded diagram of a baby washing machine with numbered parts and control panel

Technical line drawing of a spray gun with a magnified inset showing concentric rings (no text or symbols)

ШАГ 2:

Simple line drawing of a mechanical component with a circular base and arrow indicating direction (no text or symbols)

ШАГ 3:

Simple line drawing of a spray gun with an arrow indicating upward motion (no text or symbols)

ШАГ 4:

Diagram of a spray bottle with a funnel and directional arrow indicating motion (no text or symbols)

ШАГ 5:

Technical line drawing of a device with open lid and internal compartments, showing two views (no text or symbols)

Diagram showing a device with an electrical plug inserted into a box, with an inset magnified view highlighting the plug's internal structure.

① ② ③ 88'88' ④ ⑤ ⑥ ⑦

Line drawing of a hand holding a spray bottle with a hose and bulb (no text or symbols)

Diagram of a bottle with a lid and arrow indicating rotation (no text or symbols)

Medical procedure diagram showing three stages of a nasal tube insertion with a magnified inset illustrating the measurement of 24mm diameter.

Diagram showing a digital thermometer with sun and wind lines, and a crossed-out X symbol indicating no change or failure.

Diagram showing a hand cleaning a floor-mounted digital dashboard with temperature and scale indicators

Simple line drawing of two containers with a black X symbol crossed out (no text or labels)

Line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Diagram showing a crossed-out X-shaped switch and a digital timer with reading '80' and control buttons below

No.365, Wuzhou Road, Yuhang Economic Development Zone, Hangzhou city, 311100 Zhejiang, China

Email: [e-mail]

RITNING AV APPARATEN

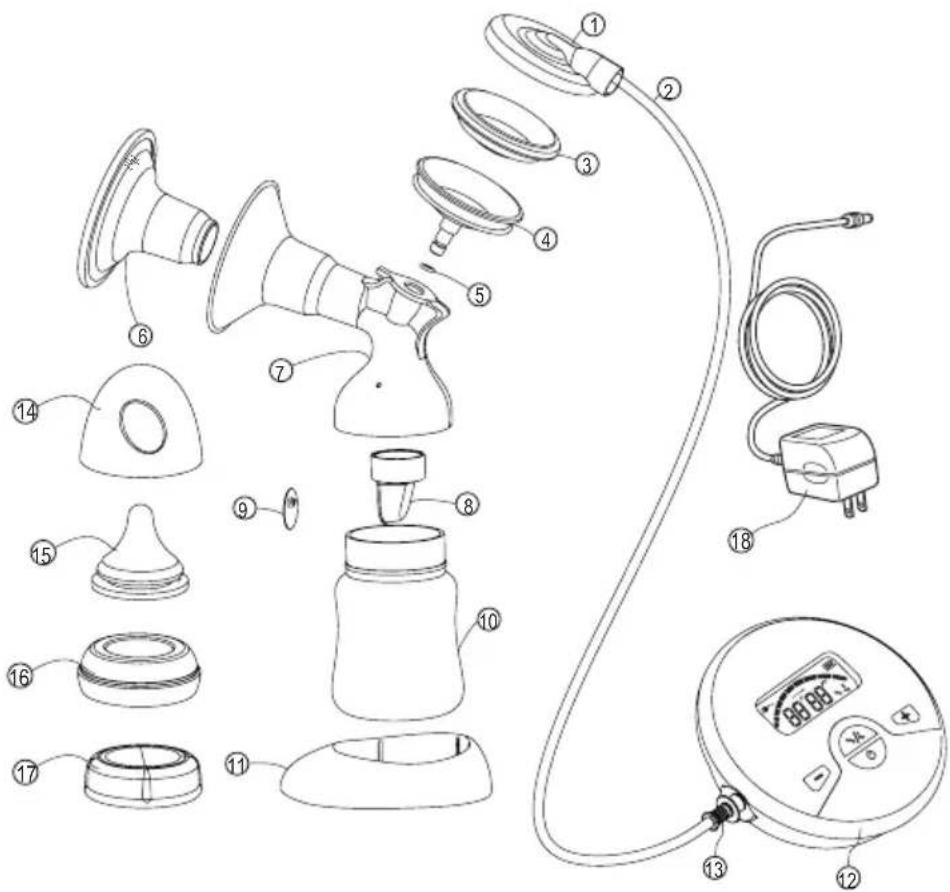

Exploded diagram of a baby washing machine with numbered parts and control panel

① 1×Tätningslock
② 1× Anslutningsrör
③ 1× Elastiskt membran
④ 1×Tätningssäte
⑤ 4× Tätningsringar
⑥ 1× Brösttratt
⑦ 1× Pumpkropp
⑧ 2× Ventiler
⑨ 4×Vita membran
⑩ 1× Bröstmjölksflaska
⑪ 1× Flaskställ
⑫ 1× Drivenhet
⑬ 1× Pluggar
⑭ 1× Kupollock
⑮ 1× Napp
⑯ 1× Skruvring
⑰ 1×Lock
⑱ 1× Nätadapter

MONTERINGSANVISNINGAR

Technical line drawing of a spray gun with a 24 mm circular component (no text or symbols on the diagram itself)

STEG 2:

Diagram showing a mechanical component with a circular component and an arrow indicating direction, possibly illustrating a process or assembly.

STEG 3:

Simple line drawing of a funnel-shaped object with an arrow pointing to a small container (no text or symbols)

STEG 4:

Skruva pumpkroppen medurs på flaskan tills den sitter fast ordentligt.

Diagram of a spray bottle with a funnel and directional arrow indicating motion (no text or symbols)

STEG 5:

Technical line drawing of a device showing two views: top view with internal components and arrow indicating direction (no text or symbols)

Diagram showing a device with a plug inserted into a socket, and its cable being inserted into a device labeled 'MIL'.

① ② ③ 88'88' ④ ⑤ ⑥ ⑦

Line drawing of a hand holding a spray bottle with a hose and bulb (no text or symbols)

Simple line drawing of a bottle with a lid and arrow indicating rotation (no text or symbols)

Diagram illustrating a medical procedure with labeled components and a magnified circular component labeled '24mm'.

Diagram showing a digital thermometer with sun and X symbols, indicating solar radiation or thermal resistance.

Diagram showing a hand cleaning a cloth with a digital display showing 00:00 and control buttons below.

Simple line drawing of three containers with a black X symbol crossed out (no text or labels)

Line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Diagram showing a screwdriver crossed over a digital display with '80' and '80' labels, indicating no change or error.

SPECIFICATIONER

No.365, Wuzhou Road, Yuhang Economic Development Zone, Hangzhou city, 311100 Zhejiang, Kina

E-post: [e-mail]

Telefon: [phone]

Fax: [phone]

Shanghai International Holding Corp. GmbH(Europa)

Eiffestrasse 80, 20537 Hamburg, Tyskland

Exploded diagram of a baby washing machine with numbered parts and control panel

Technical line drawing of a spray gun with a magnified inset showing concentric rings (no text or symbols)

KROK 2:

Diagram showing a padlock with a circular component and an arrow indicating direction, likely illustrating a physical or engineering concept.

KROK 3:

Simple line drawing of a megaphone with an arrow indicating upward motion, no text or symbols present.

KROK 4:

Diagram of a spray bottle with a funnel and arrow indicating motion (no text or symbols)

KROK 5:

Technical line drawing of a device with open lid and internal compartments, showing two views (no text or symbols)

Diagram showing a device with an attached electrical outlet and a close-up of its internal components, including a label 'DO PV 8000'.

① ② ③ 88'88" ④ ⑤ ⑥ ⑦

Line drawing of a hand holding a spray bottle with a hose and bulb (no text or symbols)

Diagram of a bottle with a lid and arrow indicating rotation (no text or symbols)

Medical procedure diagram showing three stages of a nasal pressure regulator with cross marks and a 24mm diameter reference.

Diagram showing a sun and a cross symbol with a digital display, indicating weather or solar exposure.

Diagram showing a hand cleaning a floor with a digital display and control buttons below

Simple line drawing of three containers with a black X symbol crossed out (no text or symbols)

Line drawing of a mechanical device with internal components and a scroll arrow indicating rotation (no text or symbols)

1. Výrobok nerozoberajte.

Diagram showing a crossed-out X-shaped sign and a digital display with '80' and 'R' indicators, suggesting a resistance or safety warning.

ŠPECIFIKÁCIA

No.365, Wuzhou Road, Yuhang Economic Development Zone, Hangzhou city, 311100 Zhejiang, China

Email: [e-mail]

Telefón: [phone]

Fax: [phone]

Shanghai International Holding Corp. GmbH(Europa)

Eiffestrasse 80, 20537 Hamburg, Nemecko

Exploded diagram of a baby washing machine with numbered parts and control panel

Technical line drawing of a spray gun with a magnified inset showing concentric rings (no text or symbols)

KPOK 2:

Diagram showing a mechanical component with a circular component and an arrow indicating direction, possibly illustrating a process or assembly.

KPOK 3:

Simple line drawing of a spray gun with an arrow indicating upward motion (no text or symbols)

KPOK 4:

Diagram of a spray bottle with a funnel and directional arrow indicating motion (no text or symbols)

KPOK 5:

Technical line drawing of a device casing with internal components and directional arrows indicating assembly (no text or symbols)

Diagram showing a device with a plug inserted into a box, and an inset view of a mounted device (no text or symbols present)

① ② ③ 88'88' ④ ⑤ ⑥ ⑦

80'80" - /+ +

Line drawing of a hand holding a spray bottle with a hose and bulb (no text or symbols)

Diagram of a bottle with a lid and arrow indicating rotation (no text or symbols)

Medical procedure diagram showing three stages of a nasal tube insertion with a magnified inset illustrating the measurement of 24mm diameter.

Diagram showing a digital thermometer with sun and wind lines, alongside a crossed-out 'X' symbol indicating no change.

Diagram showing a hand cleaning a cloth with a digital display showing '00:00' and control buttons below.

Simple line drawing of two containers with a black X symbol crossed out (no text or labels)

Line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Diagram showing a screwdriver crossed over a digital timer with '80' and '0' labels, indicating no change or reset.

No.365, Wuzhou Road, Yuhang Economic Development Zone, Hangzhou city, 311100 Zhejiang, China

Email: [e-mail]
