Product Type	5-in-1 Swing Bouncer
Included Features	Bouncer, swing, cradle, baby bed, chair
Age of Use	From birth up to 18 kg
Maximum Allowed Weight	18 kg
Product Weight	5.75 kg
Backrest Recline Positions	3 (sitting, semi-reclined, lying)
Oscillation Modes	2 (fixed, rocking)
Length in Baby Bed Mode	75 cm
Unfolded Length	100 cm
Width	50 cm
Safety Harness	3-point with soft crotch protection
Included Accessories	Activity arch with 3 toys and mirror, mosquito net, protective canopy, mattress
Covers	Removable, machine washable
Safety Standards	EN 12790, EN 1130
Package Dimensions	97 x 57 x 13 cm

Frequently Asked Questions - Unimo Up Kinderkraft

From what age can the Kinderkraft Unimo Up be used?

The Unimo Up can be used from birth until the baby reaches 18 kg. It is perfectly suitable for newborns thanks to its fully reclined position and included soft mattress.

What are the 5 functions of the Kinderkraft Unimo Up?

The Unimo Up transforms into 5 different configurations:

• Bouncer
• Rocker
• Cradle
• Baby cot
• Chair

Switching from one mode to another takes just a few seconds without tools.

How to activate the rocking mode on the Unimo Up?

The Unimo Up has 2 rocker positions: a fixed position and a rocking position. Simply tilt the rockers to the desired position to activate or deactivate the gentle rocking.

How to adjust the backrest inclination?

The Unimo Up offers 3 inclination positions: sitting, semi-reclined, and reclined. Use the adjustment mechanism located on the backrest to switch between positions according to the baby's comfort.

What safety standards does the Unimo Up comply with?

The product complies with European standards EN 12790 and EN 1130. It is equipped with a 3-point harness with a soft crotch protection to keep the baby secure in all positions.

How to correctly adjust the 3-point harness?

Pull or release the adjustment straps located under the seat to adapt the straps to the baby's morphology. The harness is well-adjusted when you can slide two fingers between the strap and the baby's body without forcing.

How to clean the Unimo Up covers?

The Unimo Up covers are easily removable and machine washable. Check the care labels sewn onto the covers for the recommended temperature and program.

What accessories come with the Unimo Up?

The Unimo Up comes with:

• A play arch with 3 toys and a mirror
• A mosquito net
• A protective canopy (sun and wind)
• A soft mattress

Can the Unimo Up replace a night bed for the baby?

No, the Unimo Up does not replace a night bed and should not be used for long periods of unattended sleep. It is designed for short naps and supervised awake moments.

How to fold the Unimo Up for transport?

First fold down the backrest, then activate the frame folding mechanism. Once folded, the Unimo Up measures 100 cm in length and remains compact for storage and transport.

Can the Unimo Up be used outdoors?

Yes, the Unimo Up can be used outdoors under parental supervision, on a stable and flat surface. The included protective canopy offers shelter from the sun and wind, and the mosquito net protects the baby from insects.

When should the Unimo Up no longer be used?

Stop using the Unimo Up as soon as the baby can sit up alone and stand up unaided, even if the 18 kg limit has not yet been reached, to avoid any risk of tipping over.

USER MANUAL Unimo Up Kinderkraft

WATCH MANUAL VIDEO

Line drawing of a children's backpack seat with straps and two circular objects on the backrest (no text or symbols)

kinderkraft.com

/kinderkraftofficial

kinderkraft

@kinderkraftofficial

(AR) في 1 المتسكع

(CZ) LEHÁTKO 5 v 1

(DE) BABYWIPPE 5 in 1

(EN) RECLINED CRADLE 5 in 1

(ES) HAMACA 5 en 1

(FR) TRANSAT 5 en 1

(HU) PIHEHŐSZÉK 5 in 1

(IT) SDARIO 5 in 1

دليل الاستخدام

NÁVOD K OBSLUZE

BEDIENUNGSANLEITUNG

USER MANUAL

MANUAL DE USO

GUIDE D'UTILISATION

HASZNÁLATI ÚTMUTATÓ

ISTRUZIONI PER UTENTE

(NL) WIPSTOEL 5 in 1

(PL) LEŻACZEK 5 w 1

(PT) BERÇO 5 in 1

(RO) \$EZLONG 5 w 1

(RU) ШЕЗЛОНГ 5 in 1

(SK) LEŽADLO 5 V 1

(SV) LOUNGER 5 i 1

GEBRUIKSAANWIJZING

INSTRUKCJA OBSŁUGI

MANUAL DE INSTRUÇÕES

INSTRUCTIUNI DE UTILIZARE

Close-up of white plastic or wire-like objects with no visible text or symbols, labeled A1.1 and A1.2 at the bottom (no other text or symbols)

Illustration of a frog climbing a curved metal object (no text or symbols)

Close-up of a dark fabric garment with visible folds and stitching, labeled A1.3 A1.4 at bottom (no other text or symbols)

Simple hand-drawn sketch of a cloud shape with arrows pointing to a circular object (no text or symbols)

Top-down view of a mechanical device with straps and a central body (no visible text or symbols)

A1.5

Close-up of a medical or surgical device with directional arrows indicating movement (no text or symbols visible)

Illustration of a baby seat with a black arrow indicating direction, mounted on a wooden stand (no text or symbols)

A2 A3

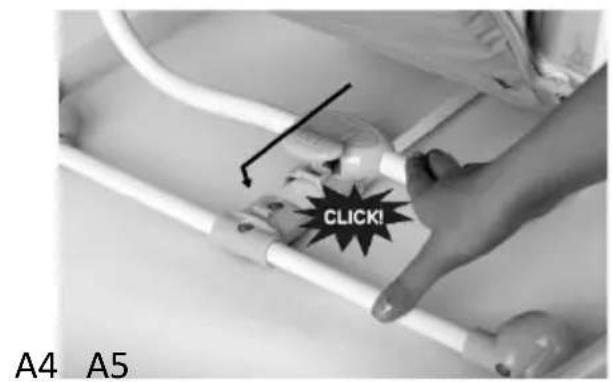

CLICK! A4 A5

Black-and-white photo of a baby crib with adjustable arms and a flat seat (no text or symbols visible)

Close-up of a medical device with a white tool and circular components, placed on a textured fabric surface (no visible text or symbols)

Exterior view of a gray portable chair with a flat top and side legs (no text or symbols visible)

Black-and-white photo of a baby crib with a vertical guide rod inserted into the seat (no text or symbols visible)

3D rendered image of a wooden frame structure with a black arrow indicating rotational direction (no text or symbols)

A8 B0 B1 B2

Close-up of a fabric or cushion strip with a zipper, showing layered texture and a small knuckle (no text or symbols visible)

Close-up of hands adjusting a belt buckle with arrows indicating movement (no text or symbols)

Close-up of hands assembling a mechanical component with arrows indicating assembly direction (no visible text or symbols)

Black-and-white photo of a baby crib with a baby on top, labeled C1 and C2 (no text or symbols on the object itself)

Close-up of a person wearing a white chairbelt and holding a flexible tool, with no visible text or symbols.

Close-up of a robotic arm gripping a circular component, with a black arrow pointing to a small hole (no text or symbols visible)

Close-up of hands holding a white plastic rod with a curved arrow indicating rotation (no text or symbols visible)

Grayscale medical scan image showing anatomical structures with no visible text or symbols

Black-and-white photo of a decorated coffee cup with animal silhouettes and tree patterns (no text or symbols)

Black-and-white photo of a children's backpack with animal silhouettes and forest background (no text or symbols)

Black and white photo of a baby crib with a simple netting device (no text or symbols visible)

3D rendered model of a mechanical device with folded top and support structure (no text or symbols visible)

Medical procedure images showing a patient undergoing surgery with an arrow indicating direction and a 'CLICK!' button (no text or symbols on main subjects)

Close-up of a bundle of white cables with metal clamps, no visible text or symbols

Black-and-white photo of a baby crib with a metal stand and cloth, no visible text or symbols

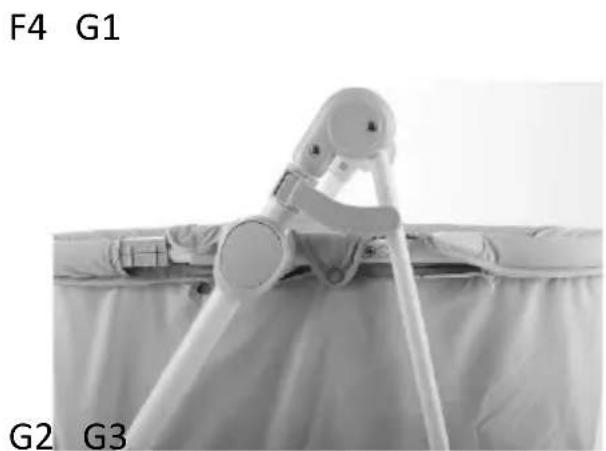

Close-up of a medical or surgical device with labeled parts F4, G1, G2, G3 (no readable text or symbols on the device itself)

Close-up of a person adjusting a white mechanical device (no visible text or symbols)

AR

عميلنا المحترم!

نشکرک على اقتاء منتجات شركة Kinderkraft.

Diagram illustrating human behavior with stick figures and directional arrows, possibly indicating movement or interaction.

Warning symbol depicting a person climbing a window inside a triangle (no text or numbers present)

Diagram illustrating human behavior with a stick figure, diagonal line, and directional arrow, possibly indicating movement or interaction.

Warning symbol depicting a person climbing a ladder inside a triangle (no text or numbers present)

Diagram illustrating human movement and safety rules with labeled figures and directional arrows

Warning symbol depicting a person climbing a ladder inside a triangle (no text or numbers present)

Thank you for purchasing a Kinderkraft product. Our products are designed to help your child – we always care about safety and quality, thus ensuring the comfort of the best choice.

IMPORTANT! KEEP FOR FUTURE REFERENCE. Read carefully!

SAFETY INSTRUCTIONS AND PRECAUTIONS

WARNING!:

- It is dangerous to use this product on an elevated surface, e.g. a table.

• To avoid injury when folding and unfolding the product, make sure that children are not in the vicinity.
• Do not move or lift the product with the baby inside.
• Never use the toy bar to carry the product.
• Be aware of the risk of open fires and other sources of strong heat, such as electric bar fires, ets. In the near vicinity of the product.
• Do not use the product if any parts are damaged or missing.
• Do not use accessories or replacement parts other than those approved by the manufacturer.

For the Recliner/Rocker function : WARNING!:

• Never leave the child unattended.
• The Recliner/Rocker is suitable from birth (up to a maximum weight of 9 kg or when the child begins to sit independently).

Safety warning illustration showing pictograms of a person using a tool to avoid crossing a road, with directional arrows indicating safety.

• This reclined cradle does not replace a cot or a bed. Should your child need to sleep, then its should be placed in a suitable cot or bed.
• This reclined cradle is not intended for prolonged periods of sleeping.
  • Always use the restraint system.

For cot and crib functions: WARNING!

• Used as a cot or a crib, the product is designed for children up to 9 kg.
• Do not use this product without reading the instructions for use first.
• Stop using the product as soon as the child can sit or kneel or pull itself up.
• Placing additional items in the product may cause suffocation.

- Do not place the product close to another product, which could present a danger of suffocation or strangulation, e.g. strings, blind/curtain cords, etc.

- Do not use more than one mattress in the product.

- The product should be placed on a horizontal floor.

- Young children should not be allowed to play unsupervised in the vicinity of the crib.

- The crib should be locked in the fixed position when the child is left unattended.

- All assembly fittings should always be tightened properly.

- Care should be taken that no screws are loose, because a child could trap parts of the body or clothing (e.g. strings, necklaces, ribbons for babies' dummies, etc.), which would pose a risk of strangulation.

- Be aware of the risk of burning cigarettes, open fires and other sources of strong heat, such as electric bar fires, gas fires, etc. in the near vicinity of the crib

• DO NOT use crib if any parts are missing, damaged, or broken. Contact 4Kraft Sp. z o.o. for replacement parts and instructional literature if needed. DO NOT substitute parts.
• Only use the mattress sold with this crib, do not add a second mattress on this one, suffocation hazards.

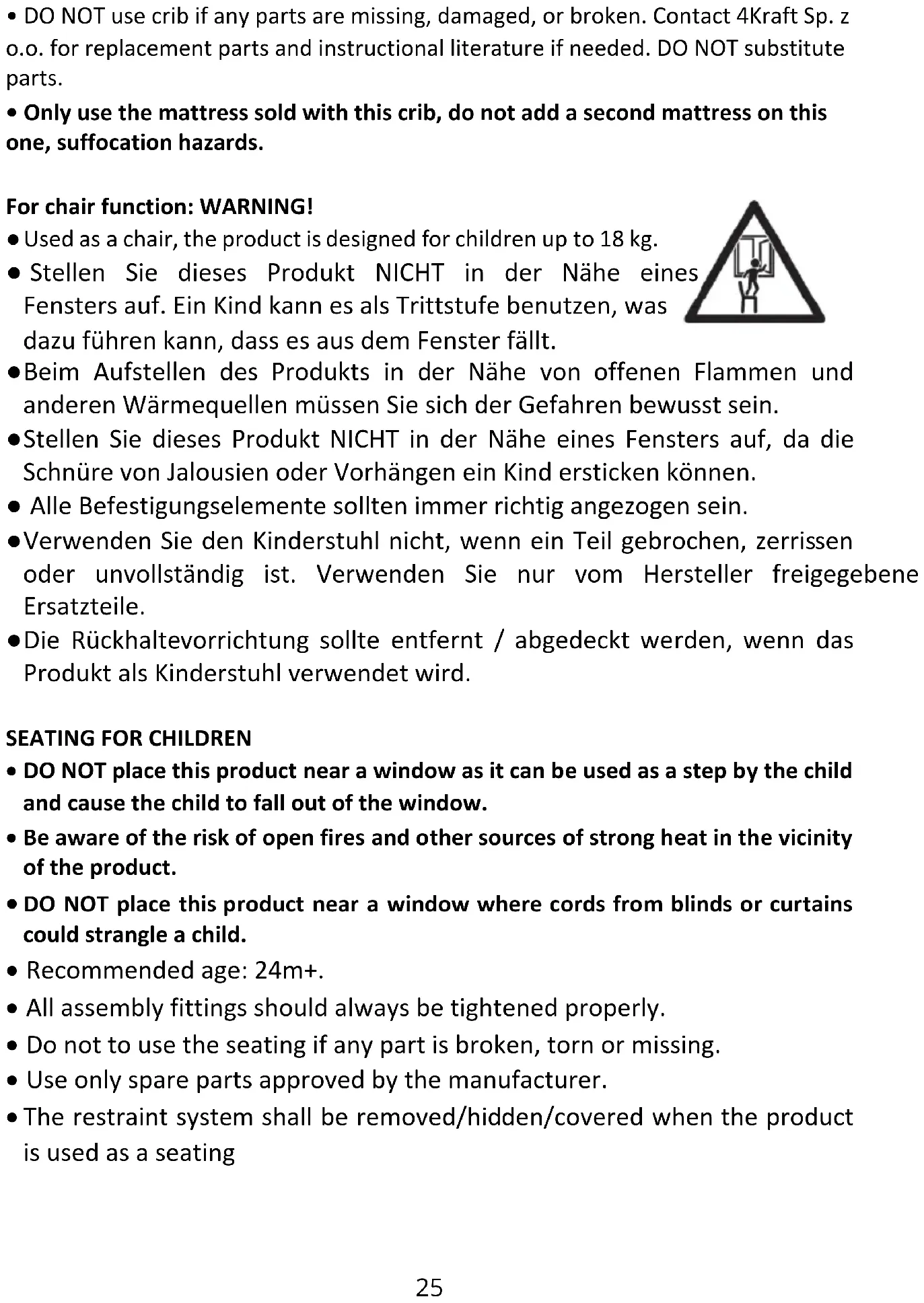

For chair function: WARNING!

• DO NOT place this product near a window as it can be used as a step by the child and cause the child to fall out of the window.
• Be aware of the risk of open fires and other sources of strong heat in the vicinity of the product.
• DO NOT place this product near a window where cords from blinds or curtains could strangle a child.
• Recommended age: 24m+.
• All assembly fittings should always be tightened properly.
• Do not to use the seating if any part is broken, torn or missing.
• Use only spare parts approved by the manufacturer.
• The restraint system shall be removed/hidden/covered when the product is used as a seating

es

Main parts:

• cradle (A1.1)
• toy bar (A1.2)
• canopy (A1.3)
• mosquito net (A1.4)
• seatbelts (A1.5)

A. Assembly

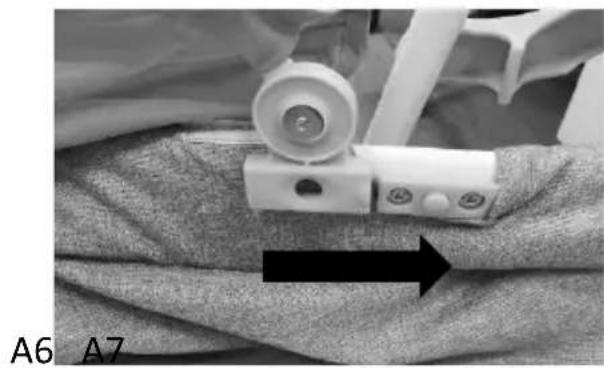

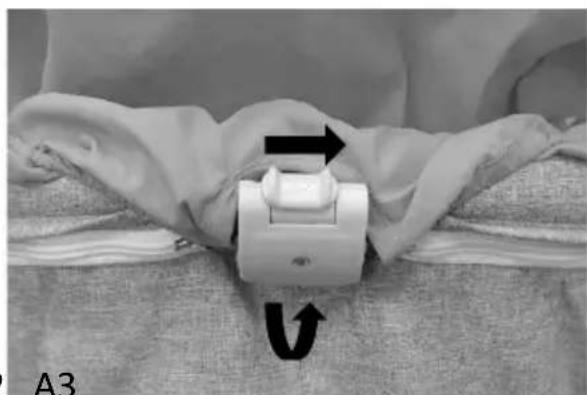

Install the product on a flat surface. Use the handle for changing the inclination of the backrest (fig. A2) to adjust the backrest as shown in fig. A3. To be able to change the inclination of the backrest, move the button to the side (in the direction of the arrow) and hold it, while lifting the handle up, set the desired inclination angle. Then lock the base until you hear a locking noise (fig. A4). Again, use the seatback angle handle (fig. A2) to adjust the backrest horizontally (fig. A5). In order to assemble the roof, slide the plastic catches into the slots on the frame on both sides until you hear the click of the latch (fig. A6). Then hook the Velcro fasteners and the rear part of the sunroof around the backrest adjustment lever (fig. A7). Fasten the buckle on the side of the cot and adjust the straps so that the structure is stiff and stable (fig. A8). The product is in the cot function position (H1).

B. Positioning

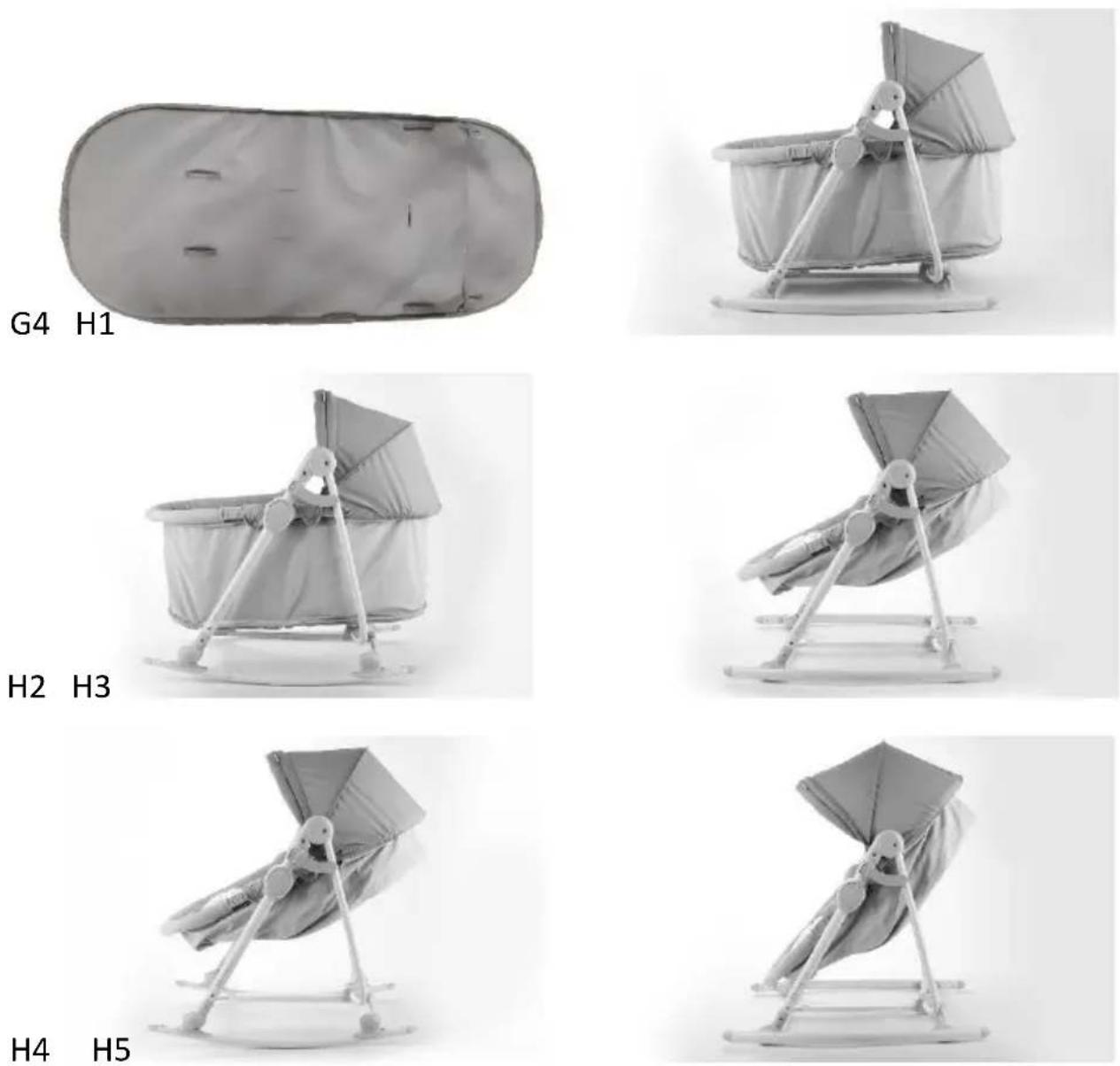

The product has three backrest positions: lying, reclining and sitting positions.

The starting position is the crib (lying) function (fig. H1). In order to adjust the product to the function of the chair (fig. H5), unfasten the calamari belt on the side of the product. Turn the product so that the seat is on the floor. Remember that the floor is clean and dry. Remove the stiffening board through the Velcro opening on the back of the backrest (fig. B0). NOTE! The product also has an insole with a soft filling, it should not be removed. Then raise the backrest to its highest position with the changeover handle (fig. A2). Pull out the adjusting belts located behind the zippers on both sides of the product (fig. B1). There should be three belts on each side (NOTE! The belts may be tucked deep under the fabric). Connect the male and female buckles, passing each through the loops under the cover and on the edge of the bottom (fig. B2). The belts must be fastened under the backrest (fig. B3) and in two places under the seat (fig. B4). Adjust the backrest to the sitting position by properly tightening the straps behind the backrest and the seat. Install the seat belts (Fig. A1.5) in the pocket on the side of the product. Start the assembly by passing the lap belts through the holes in the backrest. Then put the crotch strap through the hole in the seat (fig. E1, E2,). Remember to adjust the length of the straps to the size of the child by tightening or loosening the straps at the buckles (fig. E3). The reclining function is achieved by changing the position of the backrest from the chair function, using the adjustment handle (fig. A2), to the middle position (fig. H3).

C. Install accessories

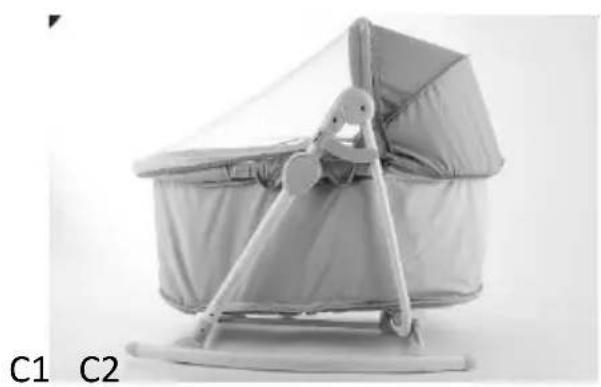

Install the insect screen with the roof in place (fig. C1). Attach the snaps at the corners of the net to the roof (fig. C2), making sure that the longer side is surrounded by the footrest, and the shorter - by the roof.

The toy bar should be inserted into the socket on the product frame (fig. C3).

D. Rocking skids

To use the product as a crib (Fig. H2) or a rocker (Fig. H4) change the position of the skids starting from the function of the cot and cradle respectively. Press the release button and change the position of the skids (fig. D1).

E. Fastening and unfastening the seat belts (fig. E.1).

To attach the lap belts to the buckle of the crotch belt, fasten the buckle by inserting and pressing the buckle. Repeat on the other side of the crotch strap. Adjust the length of the straps to the size of the child by tightening or loosening the straps at the buckles.

Disassembly of the belts: to disassemble the belts, put the plastic elements at the ends of the belts through the holes on the back of the seat and backrest.

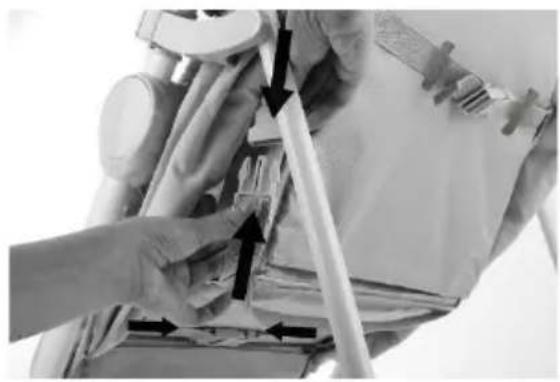

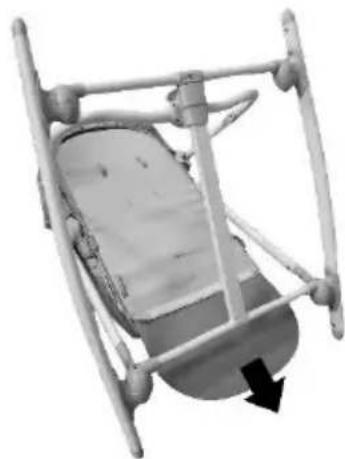

F. Folding

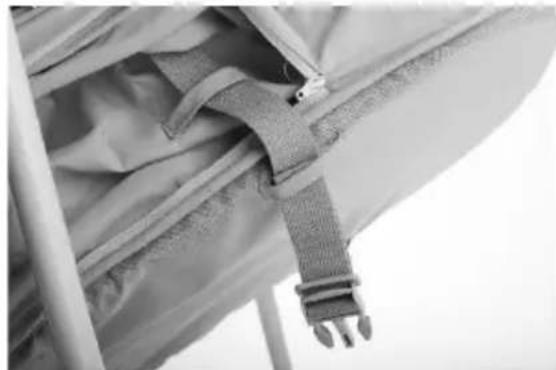

To fold the product, undo all the straps at the bottom, hide them and secure with locks. In addition, remove the baby bow and insect net, and spread the skids (Fig. F1). Then lift the backrest to its highest position (Fig. F2) using the adjuster (Fig. A2). Release the lock in two places: at the stroller frame and on the side of the product (Fig. F3). Fold the product (Fig. F4).

G. Cleaning

Remove the baby bow, insect net and cover. Release the straps under the high chair and backrest and secure it with a lock (Fig. G1). Undo the press studs on both sides of the frame and locks around the backrest (Fig. G2). Slide the cover in the direction of the footrest and unlock the latches on both sides of the footrest frame (fig. G3). Remove the cover and the stiffening boards hidden behind the Velcro fasteners (Fig. G4).

Maintenance and cleaning

Seat: Hand wash at max. 40^ C. Do not bleach. Do not dry in a tumble dryer. Do not iron. Do not dry clean.

The baby bow and toys: Do not wash. Do not bleach. Do not dry in a tumble dryer. Do not iron. Do not dry clean. Clean with a clean and damp cloth using mild soap. Allow to air dry. Do not immerse in water.

Frame: Clean the metal frame with a soft, clean and damp cloth using mild soap.

Storage

Keep out of the reach of children.

Warranty

1. All Kinderkraft products are covered by a 24-month warranty. The warranty period begins on the date of releasing the product to the Buyer.

2. The warranty is valid for products sold in the following countries: France, Spain, Germany, Poland, United Kingdom, Italy.

3. In countries not listed above warranty terms and conditions are determined by the Seller.

4. It is possible to extend the warranty period to 120 months (10 years). Full text of the terms and conditions and warranty extension registration form are available at

WWW.KINDERKRAFT.COM

1. The warranty is valid only in the country where the purchase was made.
2. Complaints should be submitted by completing the form available at WWW.RMA.KINDERKRAFT.COM
3. The warranty shall not cover:

a. claims arising from product specifications, as long as they comply with those specified by the manufacturer in the instruction manual or other documents of a legislative nature;
b. product damage caused by improper maintenance or use of inadequate chemicals;
c. colour change (discolouration) when the product has been exposed to direct sunlight against the instructions provided in the instruction manual;
d. tear, wear, crack of fabric/plastic that is the fault of the Customer;
e. reduction in the quality of the product and consumables due to normal wear and tear;
f. products which have not been used according to specifications;

1. The warranty period for accessories attached to the device is 6 months from the date of sale, with the exception of mechanical damage.
2. These guarantee terms and conditions are complementary to the Customer's rights in relation to 4KRAFT sp. z o.o. The warranty shall not exclude, limit or suspend the rights of the Customer arising from the provisions on the warranty for defects in the goods sold.
3. Full text of Warranty Terms and Conditions is available at WWW.KINDERKRAFT.COM

All rights to this data are entirely reserved to 4Kraft Sp. z o.o. Any unauthorized use or misuse, including usufruct, copying, duplication and sharing, wholly or partially, without consent of 4Kraft Sp. z o.o. may result in legal consequences.

ES

¡Estimado Cliente!

Diagram illustrating human behavior with stick figures and directional arrows, possibly indicating movement or interaction.

Warning symbol depicting a person climbing a window inside a triangle (no text or numbers present)

ASIENTOS PARA NIÑOS

Diagram illustrating human behavior with a stick figure, diagonal line, and directional arrows indicating movement or force

Diagram illustrating human behavior with a stick figure, walking person, and child, showing directional arrows for movement.

Diagram illustrating human behavior with stick figures and directional arrows, possibly indicating movement or interaction.

Warning symbol depicting a person climbing a ladder inside a triangular frame (no text or numbers)

SEDUTE PER BAMBINI

Diagram illustrating human behavior with stick figures and directional arrows, possibly indicating movement or interaction.

Warning symbol depicting a person climbing a ladder inside a triangular frame (no text or numbers)

Diagram illustrating human behavior with a stick figure, diagonal line, and directional arrows indicating movement or force

Diagram illustrating human behavior with a walking person, child, and adult, showing directional arrows and symbols

Warning symbol depicting a person climbing a ladder inside a triangle (no text or numbers present)

Diagram illustrating human movement and safety rules with labeled figures and directional arrows

Warning symbol depicting a person climbing a ladder inside a triangular frame (no text or numbers)

LOCURI PENTRU COPII

Diagram illustrating human and child walking safety rules with directional arrows and a person climbing a slope.

Diagram illustrating human behavior with a person assisting another, showing directional arrows and symbols

Warning symbol depicting a person climbing a chair inside a triangular frame (no text or numbers present)

Diagram illustrating human behavior with stick figures and directional arrows, possibly depicting a physical or social interaction scenario.

Warning symbol depicting a person climbing a ladder inside a triangular frame (no text or numbers)

(EN) In the interests of our Clients - we are at your disposal! If you have a problem with the product you received, contact us in the most convenient way for you!
