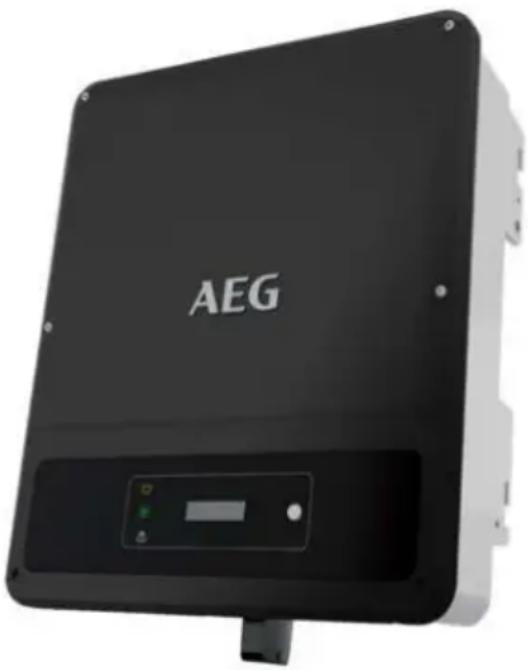

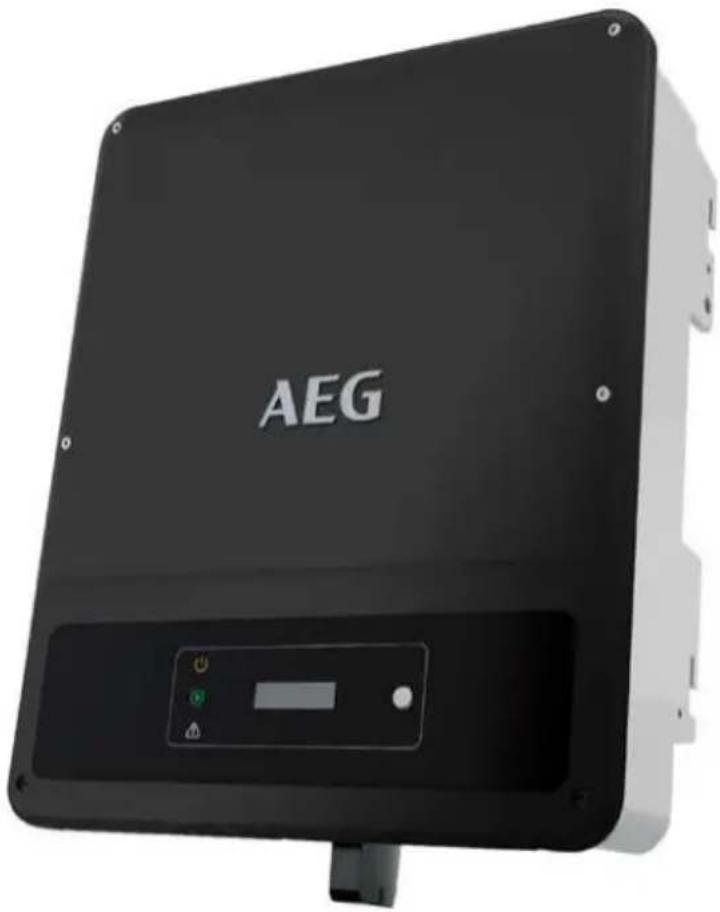

AS-IC02-12000-2 - Solar inverter AEG - Free user manual and instructions

Product type	Solar inverter
Brand	AEG
Model	AS-IC02-12000-2
Rated power	12,000 W
Maximum DC input voltage	600 V
AC output voltage	230 V single-phase
Output frequency	50/60 Hz
Connectivity	Built-in Wi-Fi, RS485
LED indicators	Power (green), operation (green), fault (red)
Dimensions (W x H x D)	600 x 400 x 200 mm
Weight	25 kg
Protection class	IP65
Cooling	Natural convection
Operating temperature	-25 °C to +60 °C
Relative humidity	0% - 95% non-condensing
Safety standards	IEC 61730, CE, RoHS
Built-in protection	Anti-islanding, overvoltage protection, ground fault detection
Maintenance and cleaning	Clean the ventilation slots with a dry cloth. Check connections every 6 months.
Safety	Disconnect power before intervention. Wait 5 minutes after power-off. Use PPE.
Spare parts and repairability	Contact an authorized technician. Parts available from the manufacturer.
General information	Installation guide and user manual downloadable from AEG Industrial Solar website.

Frequently Asked Questions - AS-IC02-12000-2 AEG

How to connect the inverter to the electrical grid?

Connection must be made by a qualified technician. Ensure that the grid voltage and frequency match the specifications (230 V, 50/60 Hz). Use an AC circuit breaker calibrated at 1.25 times the rated current. Securely connect the PE protective cable (impedance less than 10 Ω).

What is the commissioning procedure?

After installation, check the points on the checklist: clean environment, correct connections, intact cable ties, sealed unused ports, and compliant grid voltage. Then power on the inverter. The LEDs should indicate normal operation (power LED lit).

What to do in case of inverter failure?

If the fault LED is on, consult the manual to identify the error code. Cut off power and wait 5 minutes before any intervention. Check the DC and AC connections. If the problem persists, contact an authorized technician. Do not attempt repair yourself.

How to interpret the LED indicators?

The inverter has three LEDs: Power (solid green = Wi-Fi connected, blinking = Wi-Fi fault), Operation (solid green = energy production), Fault (solid red = fault). LED off means corresponding inactive state.

What regular maintenance is required?

Regularly clean the ventilation slots with a dry cloth to prevent overheating. Check every 6 months the electrical connections and cable condition. Ensure warning labels remain legible.

Can I install the inverter myself?

No, installation must be carried out by a trained and competent technician familiar with local standards. The manufacturer disclaims all liability for non-compliant installation. Use insulated tools and personal protective equipment.

What to do if Wi-Fi does not connect?

Check that the router is within 30 m of the inverter. If the Power LED blinks 2 times, Wi-Fi is not connected to the router. Reset the Wi-Fi system following the manual procedure. You can also add a low-pass EMI filter if interference is present.

What safety precautions should be taken?

Before any intervention, cut off power and wait 5 minutes for components to discharge. Wear antistatic gloves, clothing, and wrist strap. Do not touch the device while operating (burn risk). Follow grounding instructions. Solar modules must be class A according to IEC 61730.

Is the inverter compatible with all solar panels?

The inverter is compatible with photovoltaic modules of class A according to IEC 61730. Ensure that the open-circuit voltage of the panels does not exceed the maximum DC input voltage (600 V). Observe polarity when connecting.

Where to download the full manual?

The full manual is available in PDF format on the site notice-facile.com for model AEG AS-IC02-12000-2. You can also consult the AEG Industrial Solar website in the downloads section.

USER MANUAL AS-IC02-12000-2 AEG

VERSION: PD202206 V1-22

INVERTER SERIES:

AS-IC02-2

AS-IC02-4000-2 | AS-IC02-5000-2 | AS-IC02-6000-2 |

AS-IC02-8000-2 | AS-IC02-10000-2 | AS-IC02-12000-2 |

AS-IC02-15000-2 | THREE-PHASE, 2 MPPT

Thank you for choosing the reliability of AEG grid-tied solar inverters. This guide is intended for distributors and installers involved in the planning, installation and commissioning of photovoltaic systems. AEG grid-tied solar inverters are tested and approved by acknowledged independent certification authorities and can only be installed by qualified professional companies. Please observe the standards and regulations applying to photovoltaic systems in the relevant countries, as well as the rules of the employers' liability insurance associations for accident protection. Failure to comply with these can result in major injuries and damage. Keep this guide in a safe place for further reference as it contains important information for product care, maintenance and disposal.

Table of contents | Съдържание | | Obsah | Indholdsfortegnelse | Inhaltsverzeichnis | Πίνακας περιεχομένων | Tabla de contenidos | Sisukord | Sisällysluettelo | Table des matières | Sadržaj | Tartalomjegyzék | Índice dei contenuti | Satura rādītājs | Turinys | Inhoudsopgave | Spis treści | Índice | Cuprins | Obsah | Kazalo | Innehållsförteckning |

1. Safety precautions ...2 EN ...30 SK ...60

EN ...3 HR ...33 SL ...63

BG ...6 HU ...37 SV ...66

CZ ...9 IT ...39 2. Product introduction ...69

DA ...12 LT ...42 3. Inverter installation ...70

DE ...15 LV ...45 4. Electrical connection ...74

EL ...18 NL ...48 5. Power on / off ...81

ES ...21 PL ...51 6. Commissioning ...82

ET ...24 PT ...54 7. Further information ...83

FI ...27 RO ...57

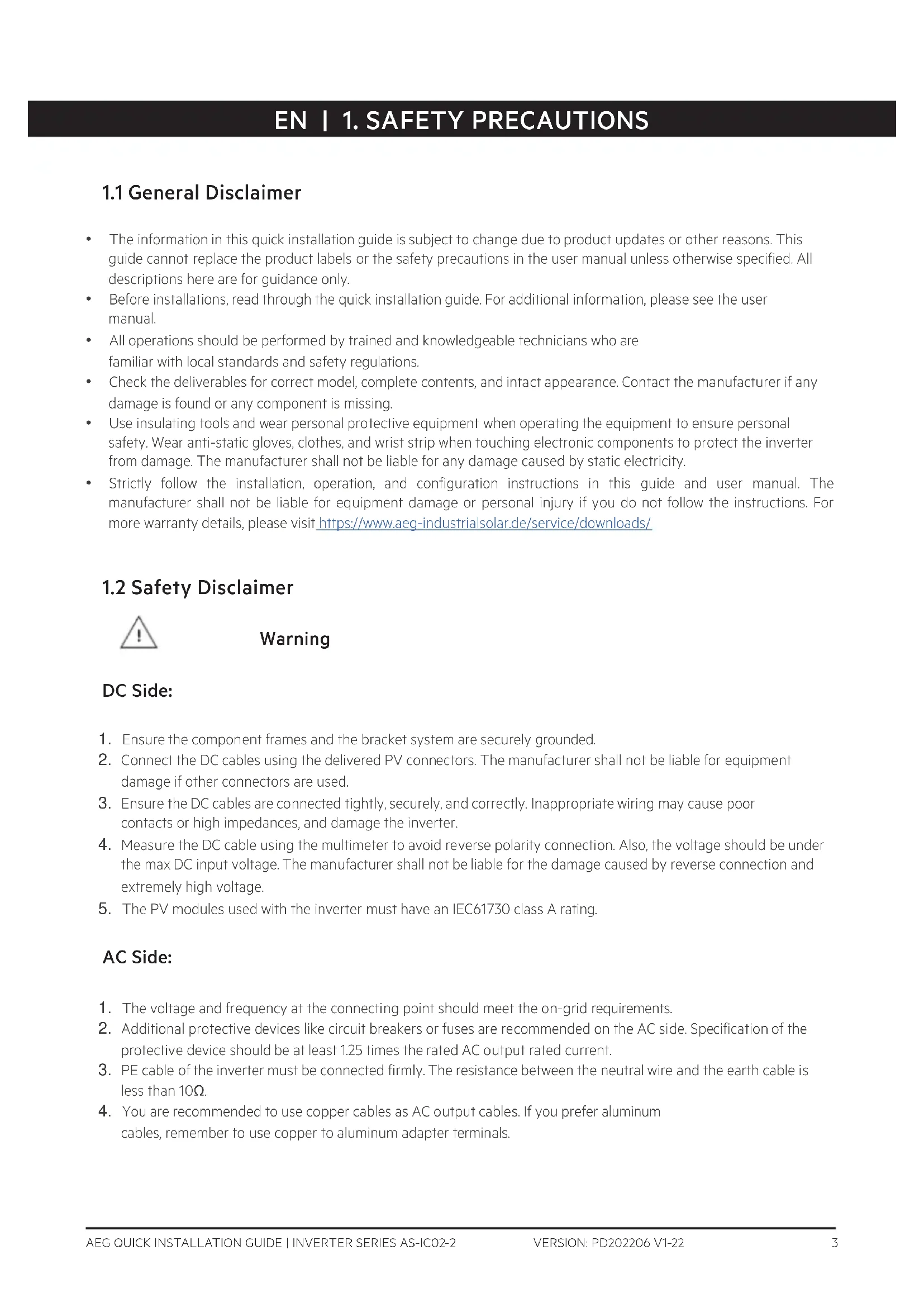

1. Safety precautions

1.1 General Disclaimer

• The information in this quick installation guide is subject to change due to product updates or other reasons. This guide cannot replace the product labels or the safety precautions in the user manual unless otherwise specified. All descriptions here are for guidance only.
• Before installation, read through the quick installation guide. For additional information, please see the user manual.
• All operations should be performed by trained and knowledgeable technicians who are familiar with local standards and safety regulations.
• Check the deliverables for correct model, complete contents, and intact appearance. Contact the manufacturer if any damage is found or any component is missing.
• Use insulating tools and wear personal protective equipment when operating the equipment to ensure personal safety. Wear anti-static gloves, clothes, and wrist strap when touching electronic components to protect the inverter from damage. The manufacturer shall not be liable for any damage caused by static electricity.
• Strictly follow the installation, operation, and configuration instructions in this guide and user manual. The manufacturer shall not be liable for equipment damage or personal injury if you do not follow the instructions. For more warranty details, please visit https://www.aeg-industrialsolar.de/service/downloads/

1.2 Safety Disclaimer

Warning

DC Side:

1. Ensure the component frames and the bracket system are securely grounded.
2. Connect the DC cables using the delivered PV connectors. The manufacturer shall not be liable for equipment damage if other connectors are used.
3. Ensure the DC cables are connected tightly, securely, and correctly. Inappropriate wiring may cause poor contacts or high impedances, and damage the inverter.

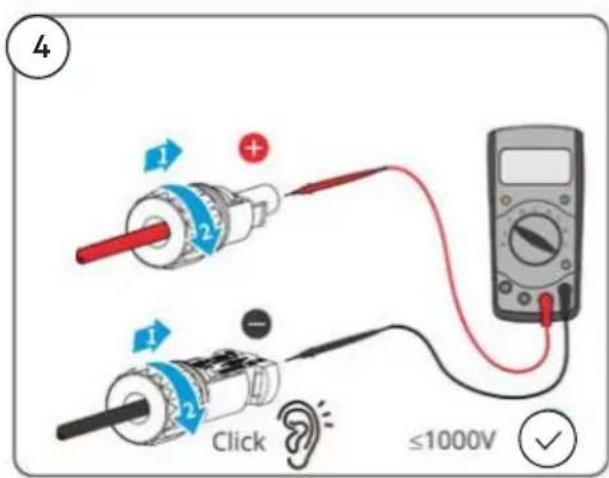

4. Measure the DC cable using the multimeter to avoid reverse polarity connection. Also, the voltage should be under the max DC input voltage. The manufacturer shall not be liable for the damage caused by reverse connection and extremely high voltage.
5. The PV modules used with the inverter must have an IEC61730 class A rating.

AC Side:

1. The voltage and frequency at the connecting point should meet the on-grid requirements.
2. Additional protective devices like circuit breakers or fuses are recommended on the AC side. Specification of the protective device should be at least 1.25 times the rated AC output rated current.
3. PE cable of the inverter must be connected firmly. The resistance between the neutral wire and the earth cable is less than 10Ω .
4. You are recommended to use copper cables as AC output cables. If you prefer aluminum cables, remember to use copper to aluminum adapter terminals.

Product :

1. Do not apply mechanical load to the terminals, otherwise the terminals can be damaged.
2. All labels and warning marks should be visible after the installation. Do not scrawl, damage, or cover any label on the device.
3. Unauthorized dismantling or modification may damage the equipment, the damage is not covered under the warranty.
4. Install the inverter away from high magnetic field to avoid electromagnetic interference. If there is any radio or wireless communication equipment below 30MHz near the inverter, you have to:

• Install the inverter at least 30m far away from the wireless equipment.

- Add a low pass EMI filter or a multi winding ferrite core to the DC input cable or AC output cable of the inverter.

1. Warning labels on the inverter are as follows.

	HIGH VOLTAGE HAZARD.Disconnect all incoming power and turn off the product before working on it.		Delayed discharge. Wait 5 minutes after power off until the components are completely discharged.
	Read through the guide before working on this device.		Potential risks exist. Wear proper PPE before any operations.
	High-temperature hazard. Do not touch the product under operation to avoid being burnt.		Grounding point. Indicates the position for connecting the PE cable.
	CE marking		Do not dispose of the inverter as household waste.Discard the product in compliance with local laws and regulations, or send it back to the manufacturer.

1.3 Check before power-on

No		Check item
1	☐	The product is firmly installed at a clean place that is well-ventilated and easy-to-operate.
2	☐	The PE, DC input, AC output, and communication cables are connected correctly and securely.
3	☐	Cable ties are intact, routed properly and evenly.
4	☐	Unused ports and terminals are sealed.
5	☐	The voltage and frequency at the connection point meet the inverter grid connection requirements.

1.4 EU Declaration of Conformity

Solar Solutions hereby declares that the inverter with wireless communication modules sold in the European market meets the requirements of the following directives:

• Radio Equipment Directive 2014/53/EU (RED) • Restrictions of Hazardous Substances Directive 2011/65/EU and (EU) 2015/863 (RoHS) • Waste Electrical and Electronic Equipment 2012/19/EU • Registration, Evaluation, Authorisation and Restriction of Chemicals (EC) No 1907/2006 (REACH)

Solar Solutions hereby declares that the inverter without wireless communication modules sold in the European market meets the requirements of the following directives:

• Electromagnetic compatibility Directive 2014/30/EU (EMC) • Electrical Apparatus Low Voltage Directive 2014/35/EU (LVD) • Restrictions of Hazardous Substances Directive 2011/65/EU and (EU) 2015/863 (RoHS) • Waste Electrical and Electronic Equipment 2012/19/EU • Registration, Evaluation, Authorization and Restriction of Chemicals (EC) No 1907/2006 (REACH)

You can download the EU Declaration of Conformity on https://www.aeg-industrialsolar.de/service/downloads/.

1.5. LED Indicators

Indicator	Status	Description
Power		ON = WiFi is connected/active.
		BLINK 1 = WiFi system is resetting.
		BLINK 2 = WiFi not connect to the router.
		BLINK 4 = WiFi server problem.
		BLINK = RS485 is connected.
		OFF = WiFi is not active.
Operating		ON = The inverter is feeding power.
		OFF = The inverter is not feeding power at the moment.
[ZZ6A]Faulty		ON = A fault has occurred.
		OFF = No fault.

1.2 Safety Declaration

Warning

N = Quantity depends on the inverter model

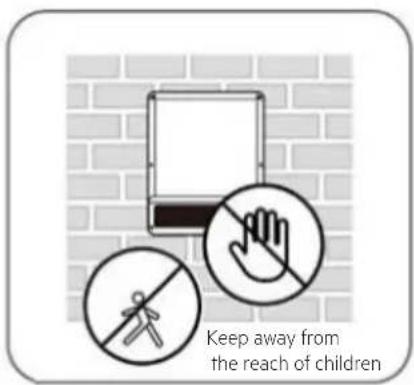

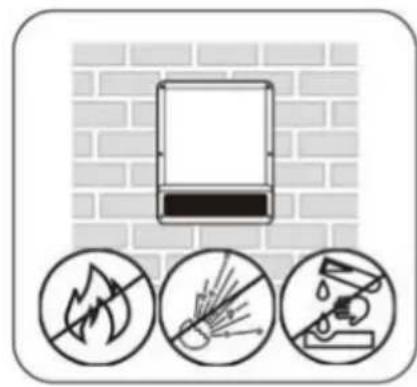

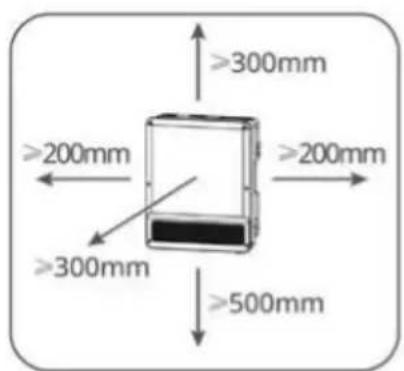

Space Requirements

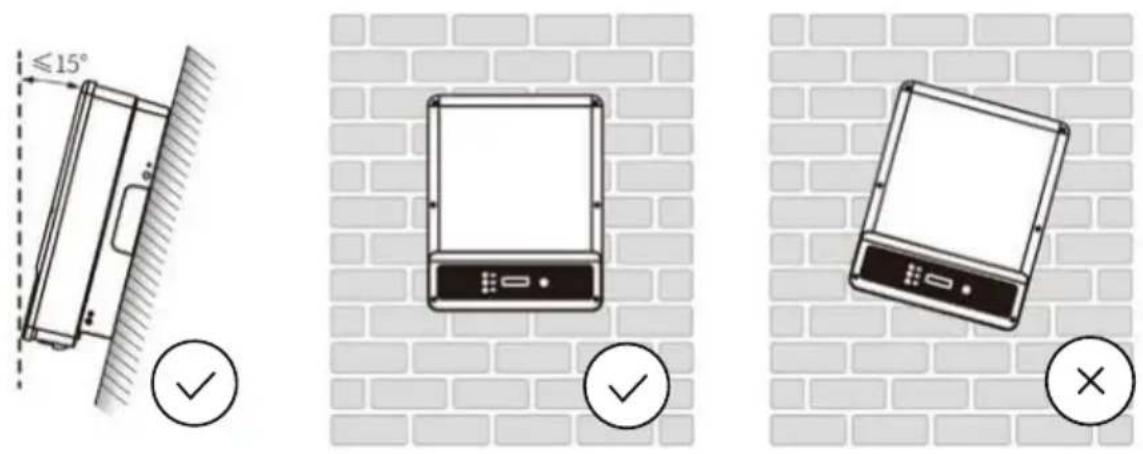

Angle Requirements

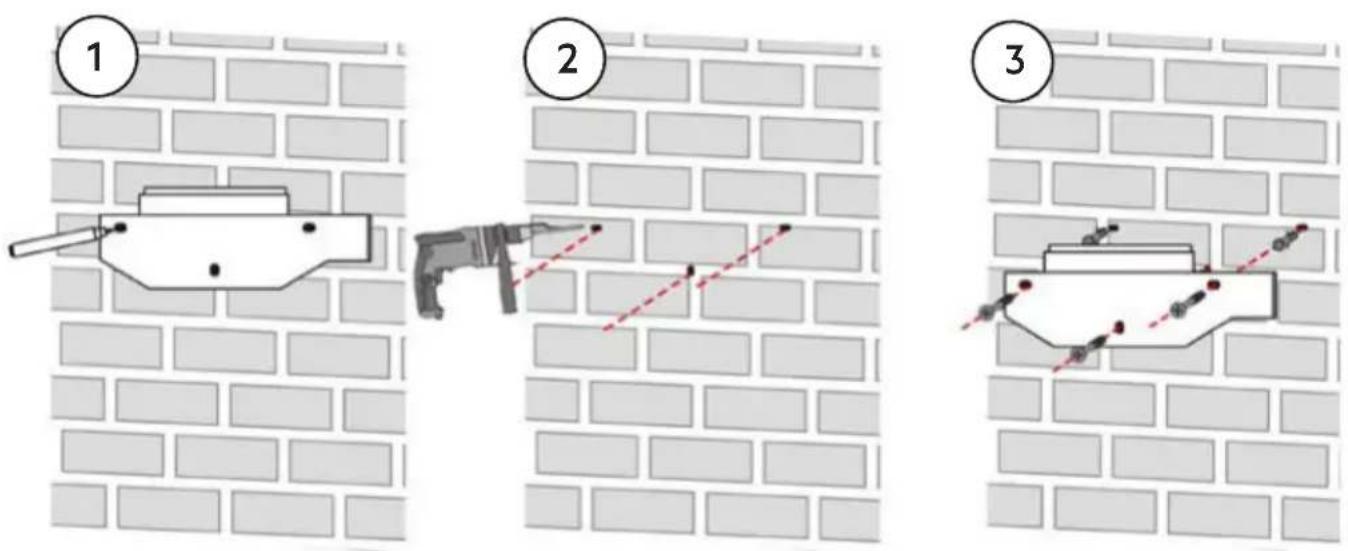

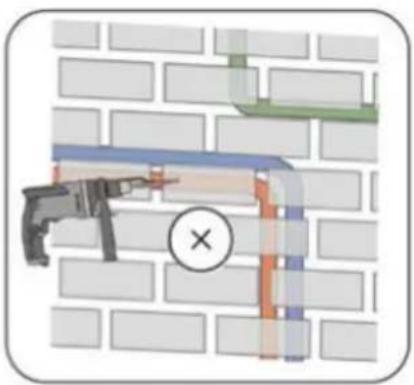

Installing the Inverter

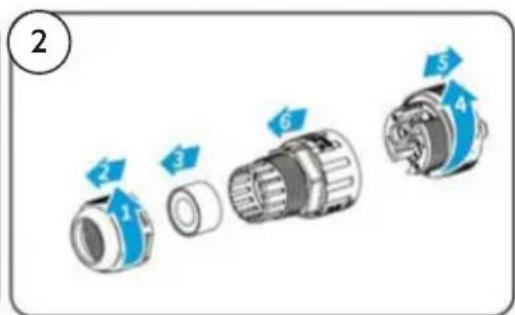

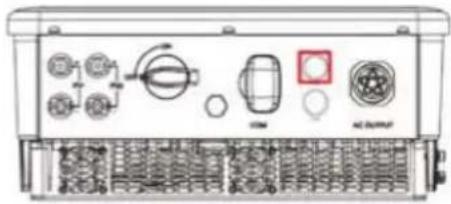

1. Electrical Connection

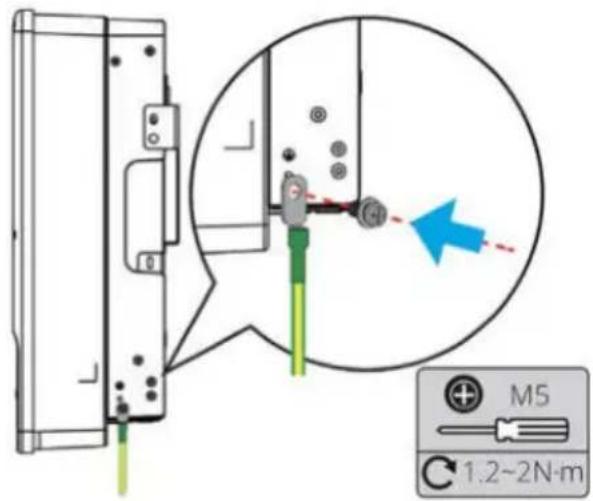

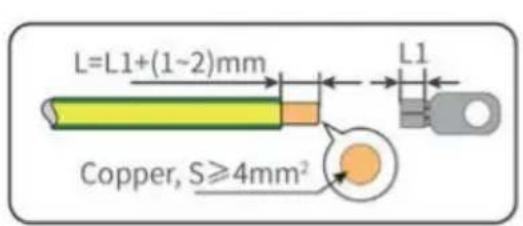

PE Cable

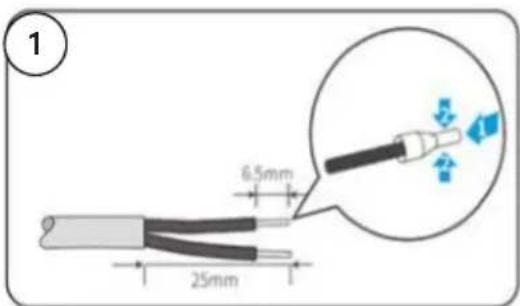

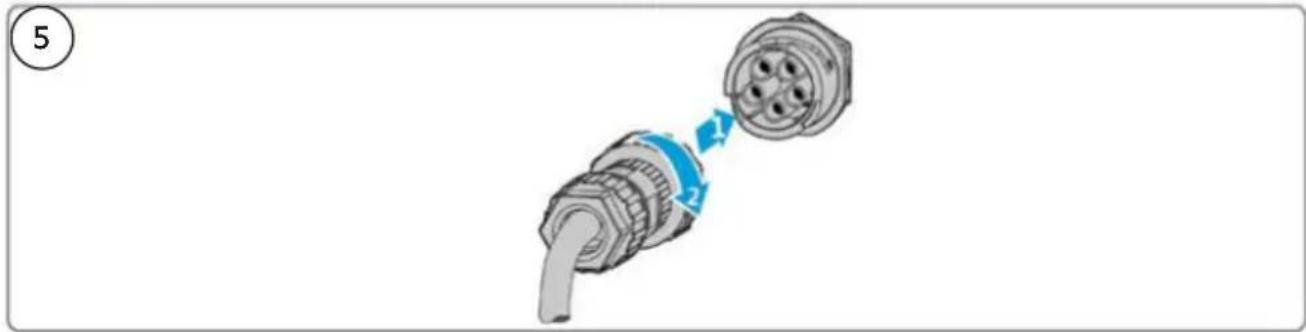

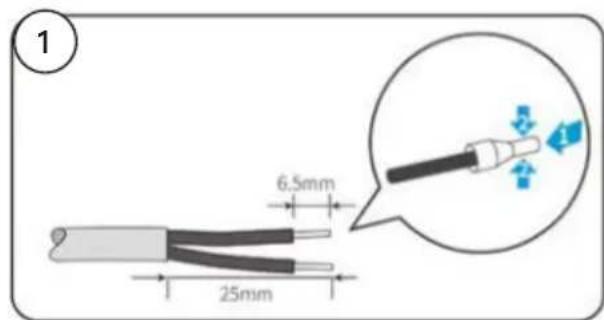

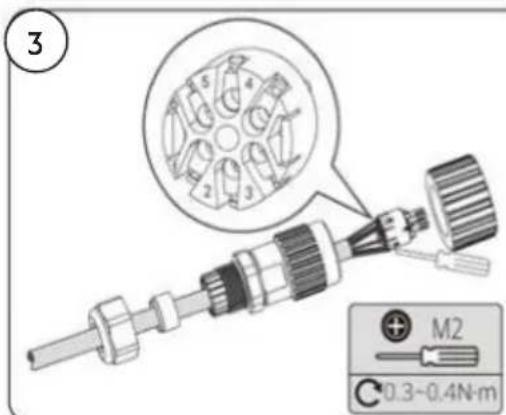

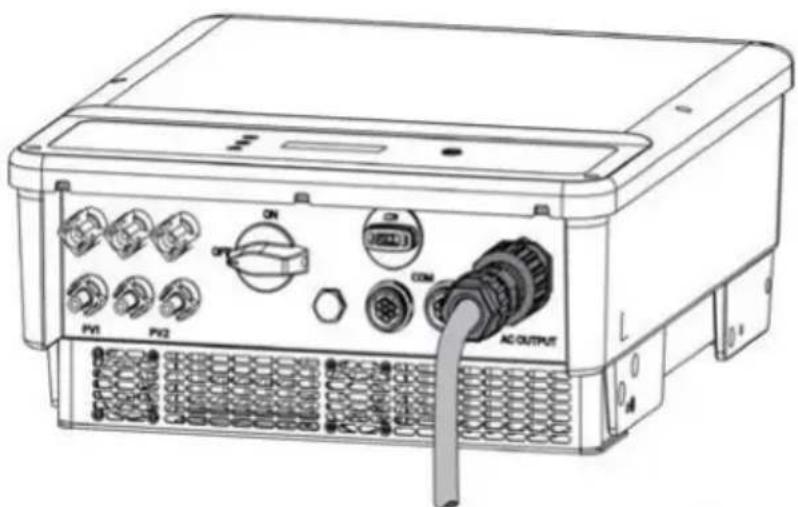

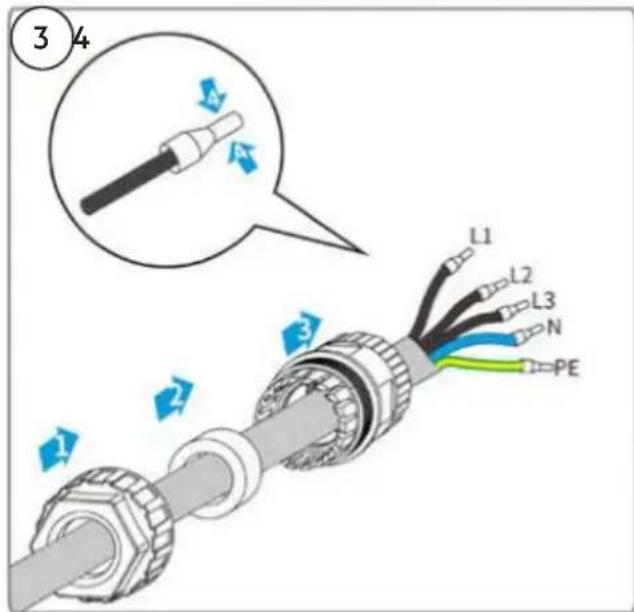

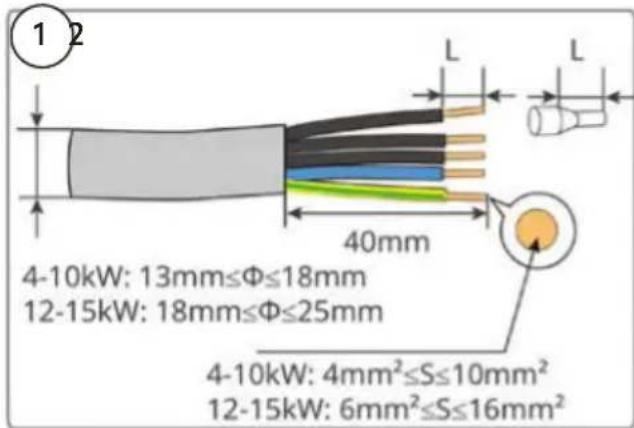

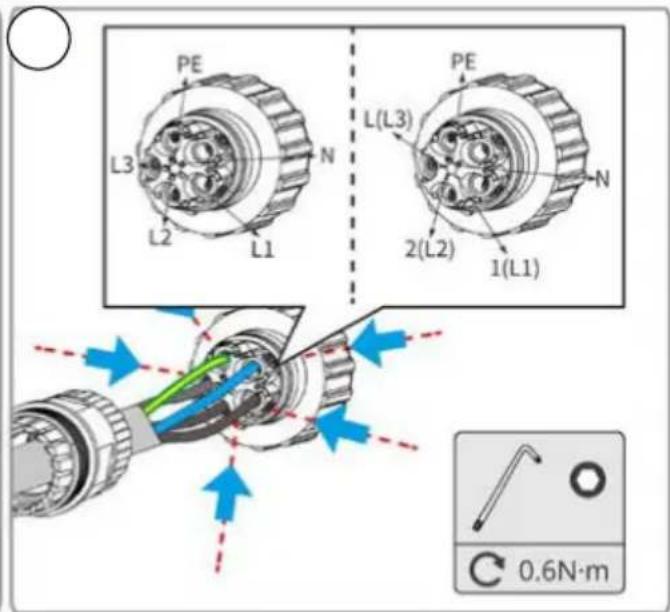

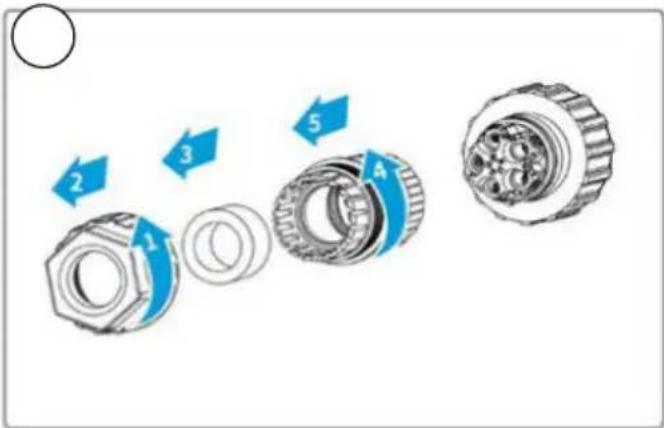

AC Cable

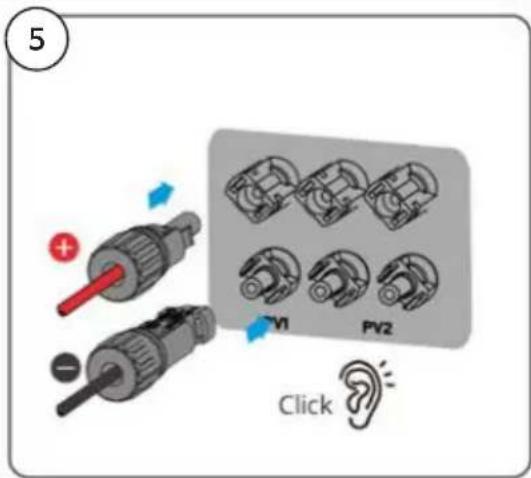

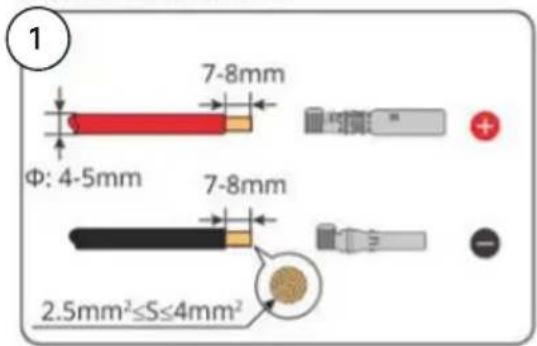

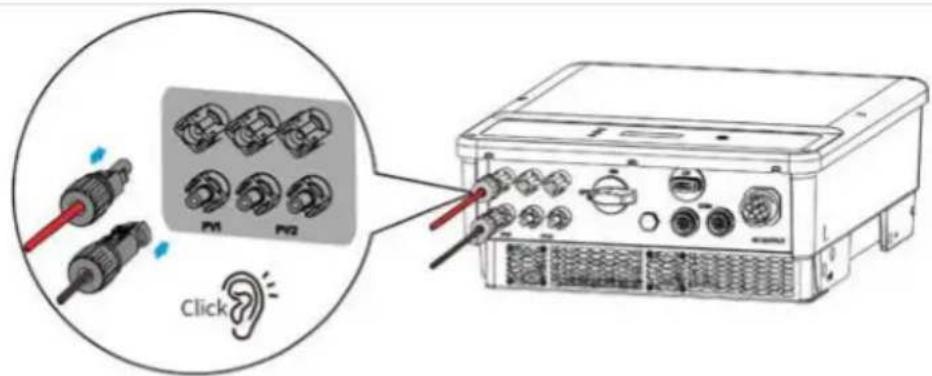

DC Cable

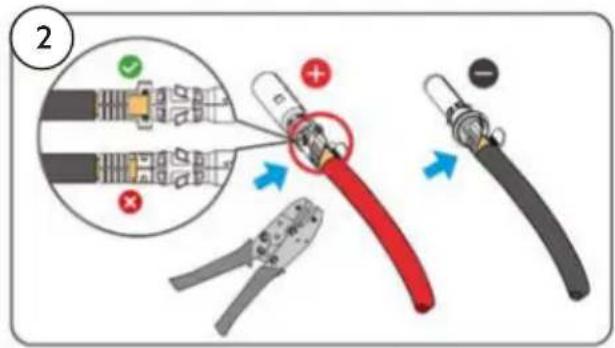

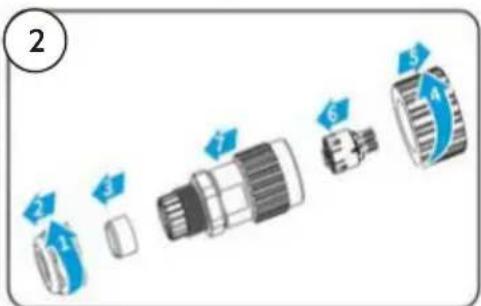

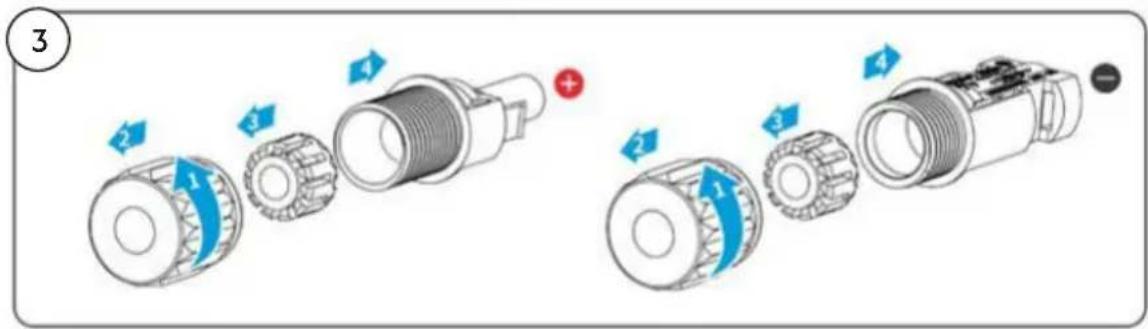

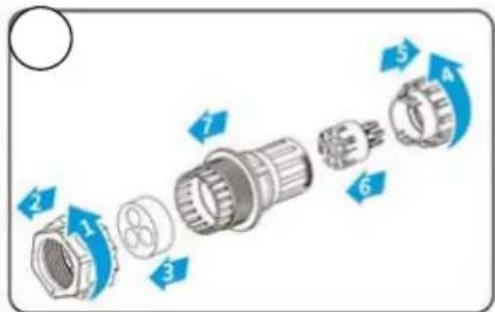

Devalan DC Connector

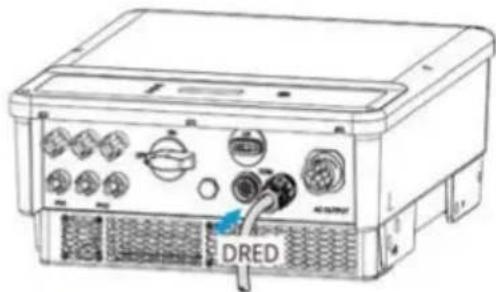

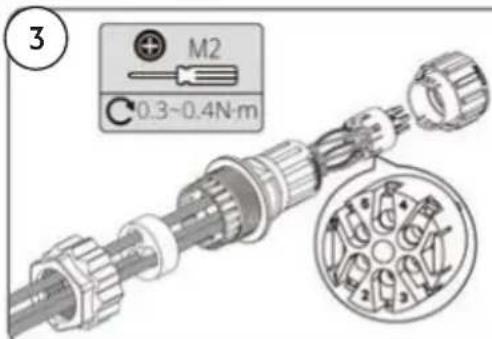

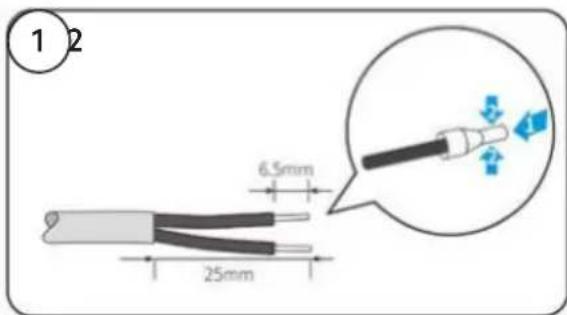

6-pin terminal 1: DRED Cable

Terminal 1 de 6 pines: Cable DRED

AS-IC02-4000-2 | AS-IC02-5000-2 | AS-IC02-6000-2 | AS-IC02-8000-2 | AS-IC02-10000-2

AS-IC02-12000-2 | AS-IC02-15000-2

DRED: For Australia only.

No.	DRED
1	DRM1/5
2	DRM2/6
3	DRM3/7
4	DRM4/8
5	REFGen
6	COM/DRM0

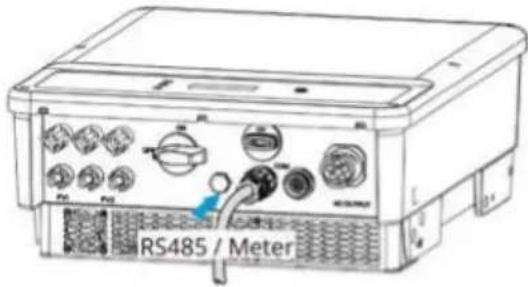

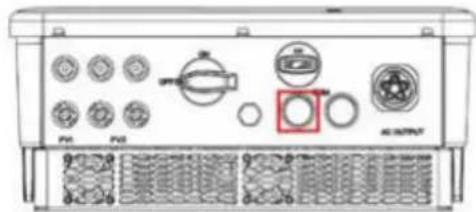

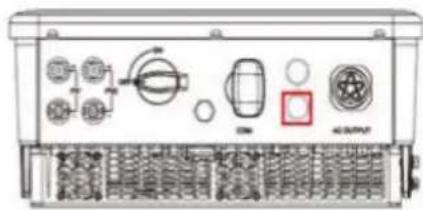

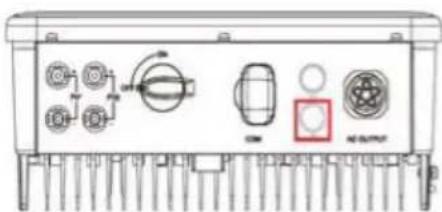

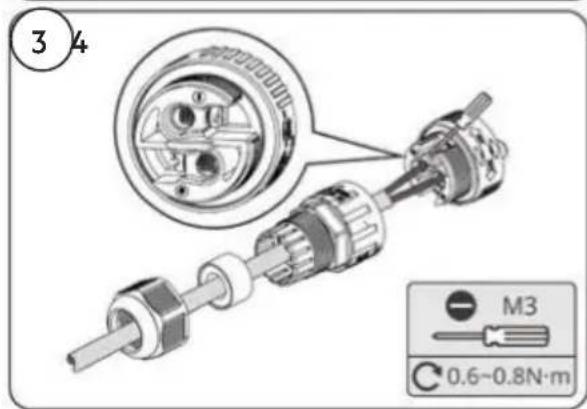

6 pin terminal-2: Smart Meter, RS485 Cable

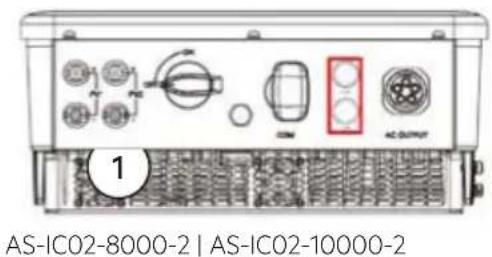

AS-IC02-8000-2 | AS-IC02-10000-2

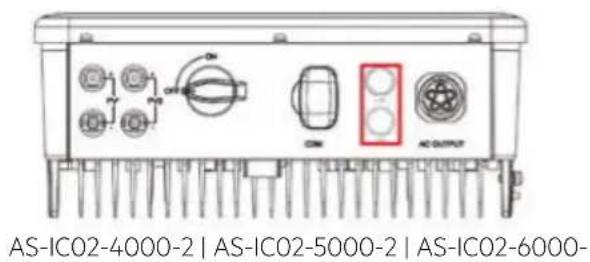

AS-IC02-4000-2 | AS-IC02-5000-2 | AS-IC02-6000-

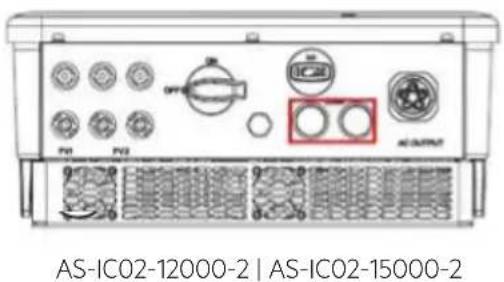

AS-IC02-12000-2 | AS-IC02-15000-2

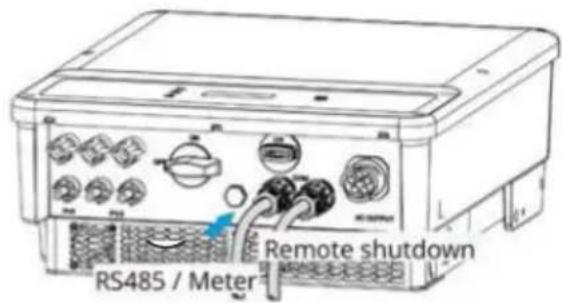

2-pin terminal: Remote Shutdown, Smart Meter/RS485 Cable

No.	Meter/RS485
+	METER+/RS485 A
-	METER-/RS485 B

No.	Remote shutdown
+	DRM4/8
-	REFGen

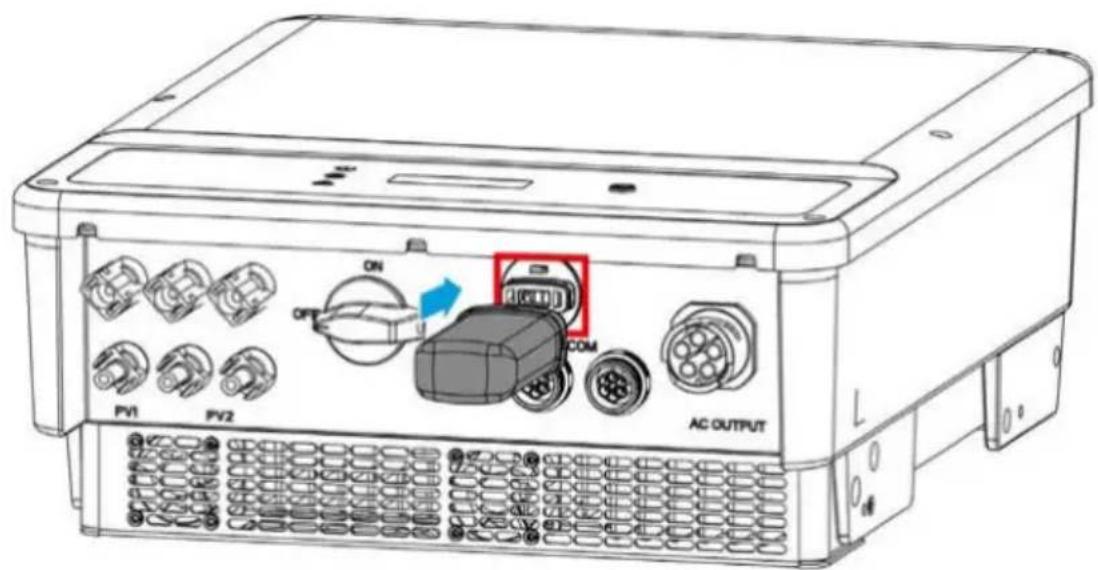

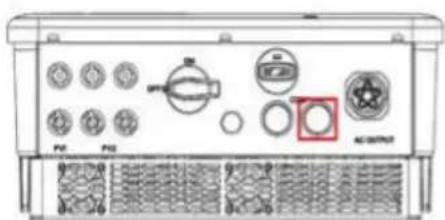

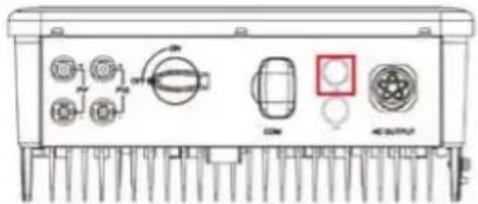

Installing the Communication Module

Communication Module

WiFi kit, 4G kit, LAN kit, GPRS, Wi-Fi/LAN Kit module: optional.

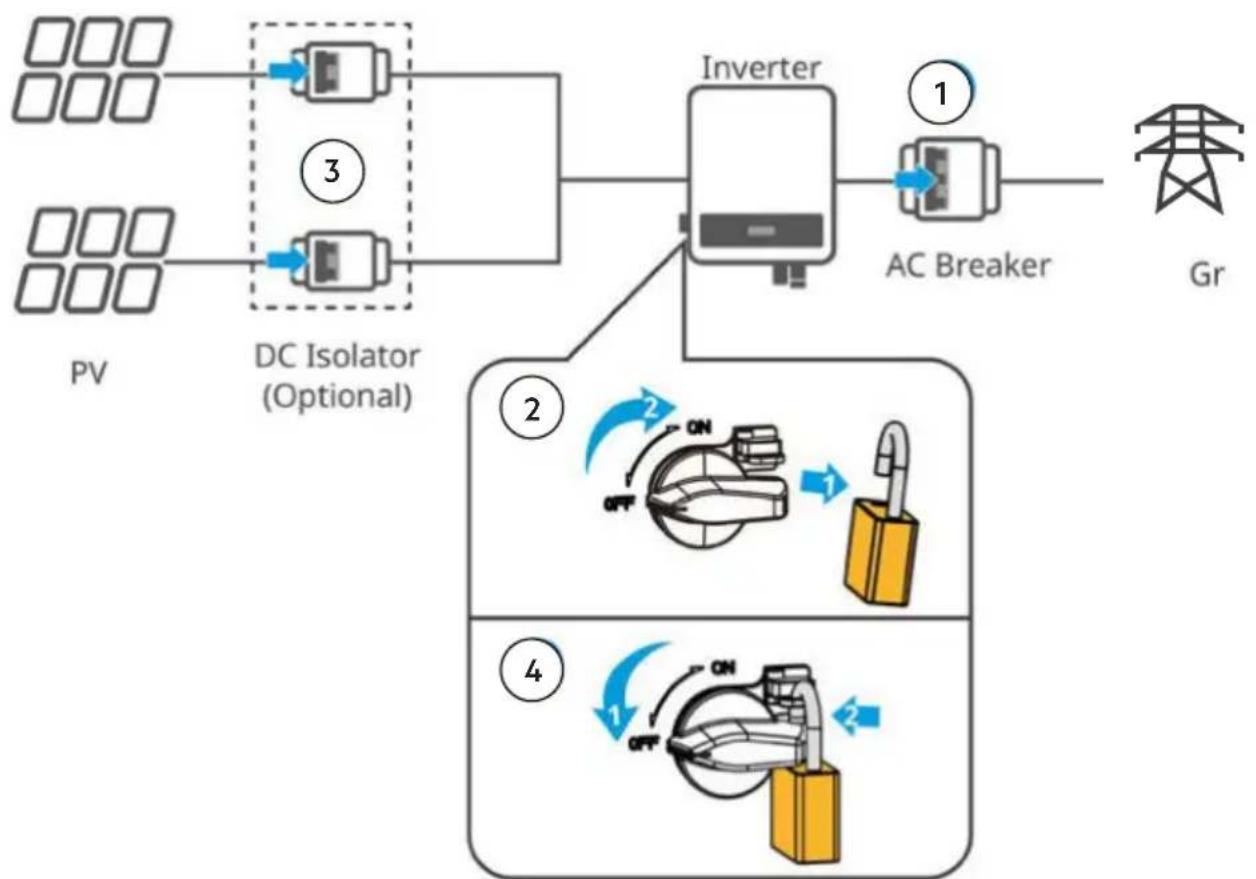

1. Power On and Off

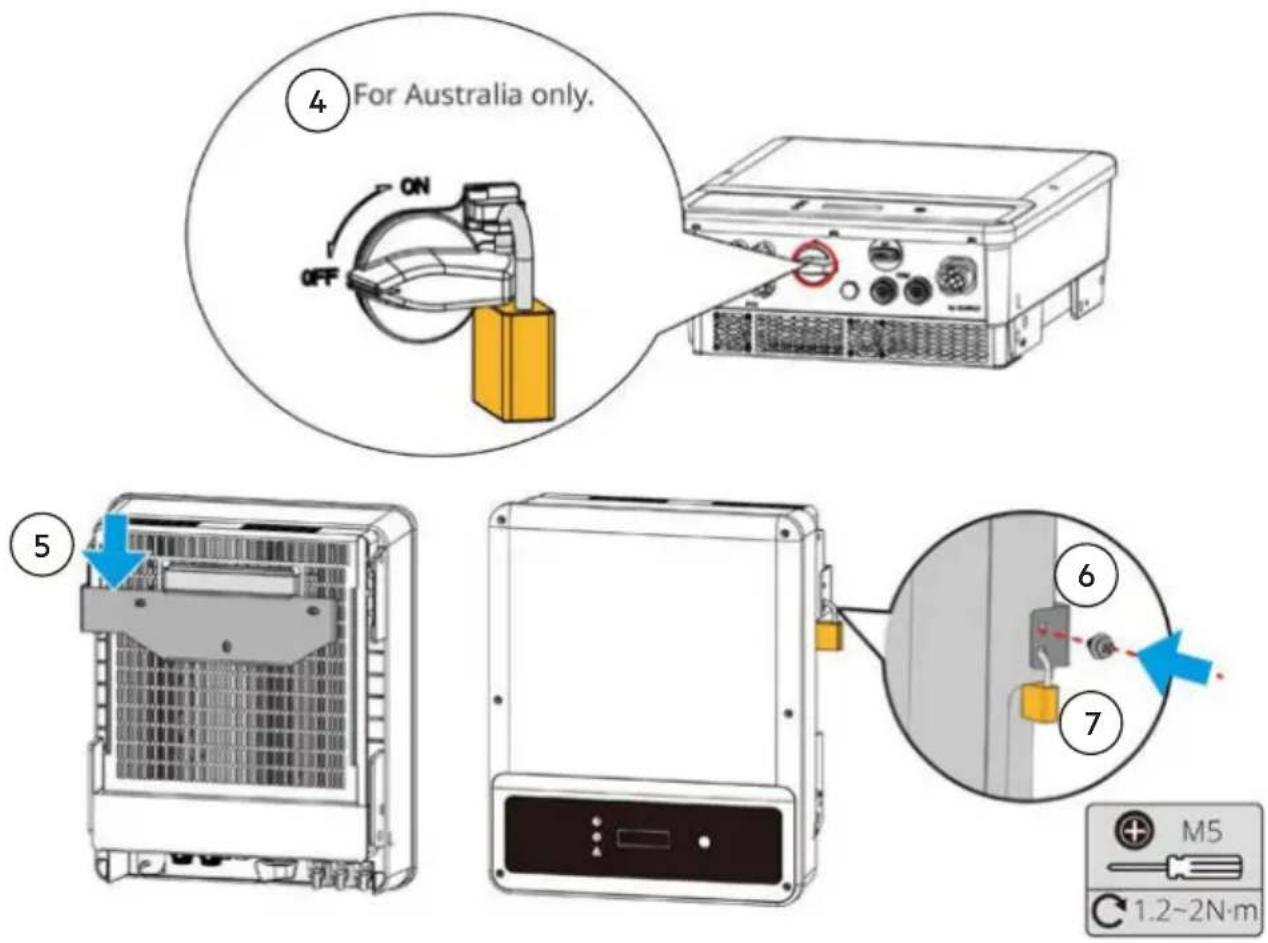

The DC switch locking hole is for Australia only.

1. Commissioning

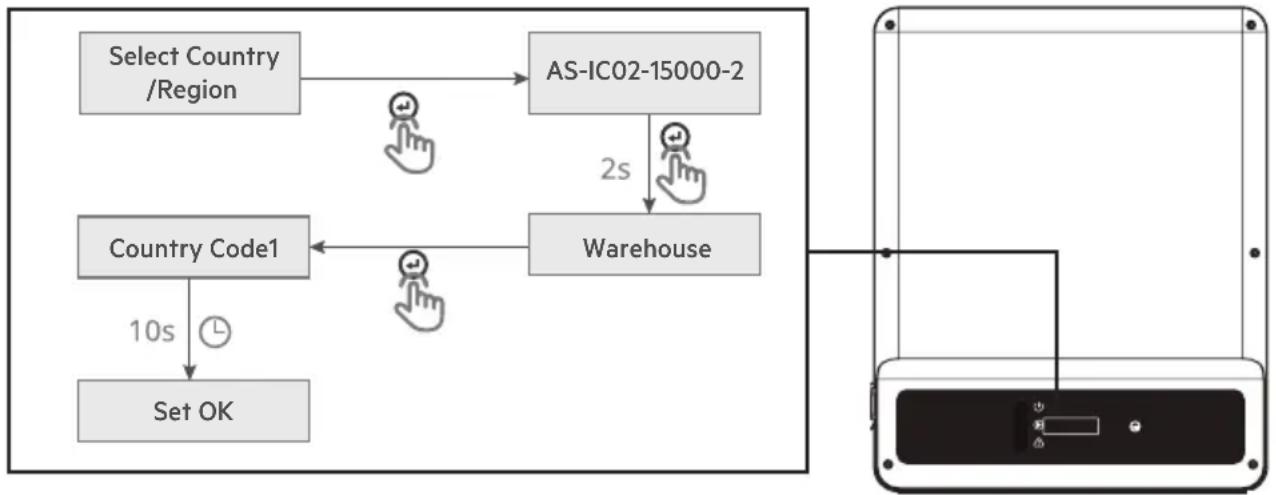

Commissioning via LCD

Set country code:

For WI-FI Configuration refer to:

SolarPortal

1. Further information

For more detailed instructions see:

www.aeg-industrialsolar.de/solar-inverters/ www.aeg-industrialsolar.de/service/downloads/

Choose the appropriate model

Solar Solutions Products BV

Finlandlaan 1 2391PV Hazerswoude-Dorp The Netherlands

[e-mail] | www.aeg-industrialsolar.de

AEG is a registered trademark used under license from AB Electrolux (publ).
