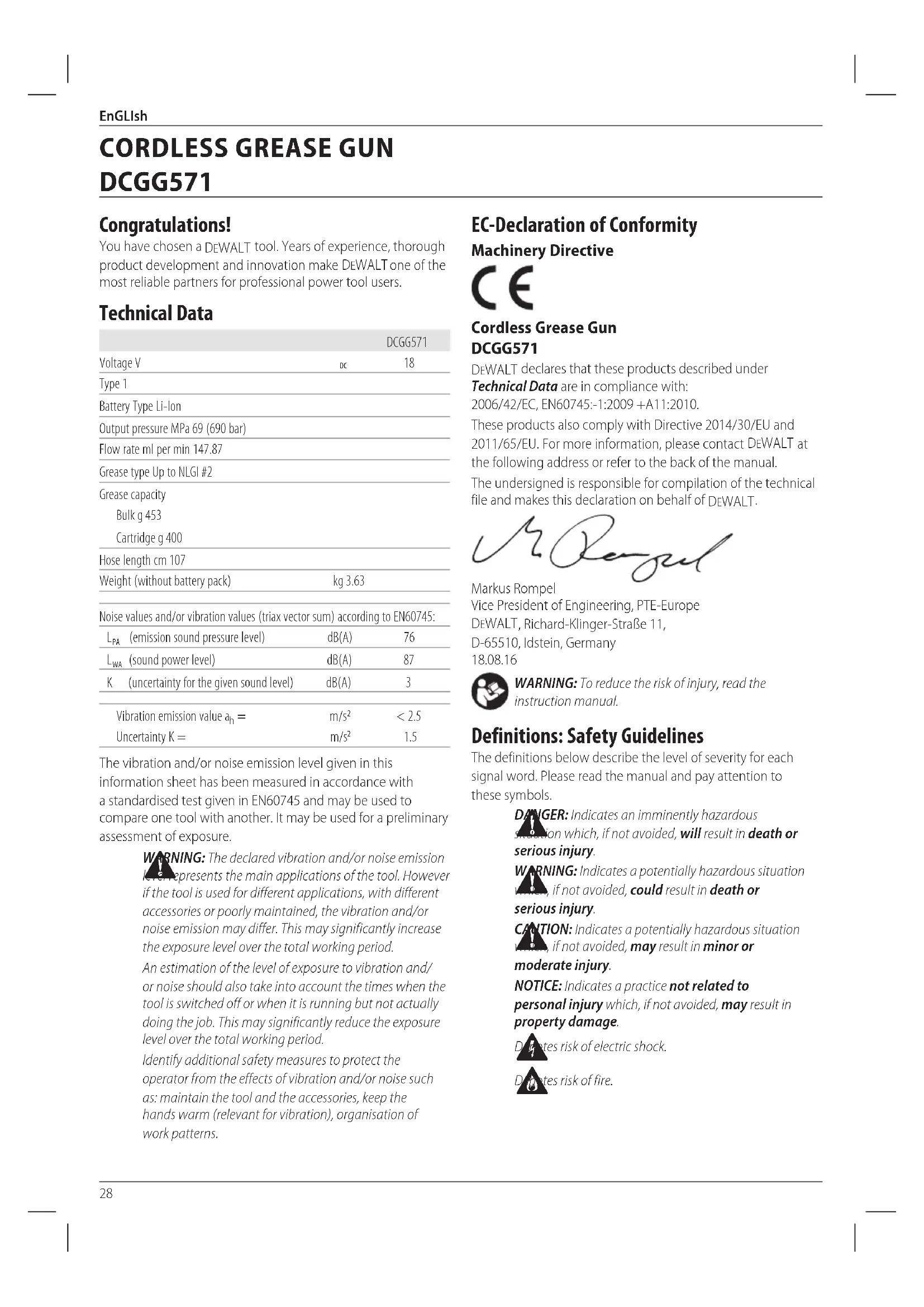

USER MANUAL DCGG571 DEWALT

DCGG571 EC-Declaration of Conformity Machinery Directive Cordless Grease Gun DCGG571 DeWALT declares that these products described under Technical Data are in compliance with: 2006/42/EC, EN60745:-1:2009 +A11:2010. These products also comply with Directive 2014/30/EU and 2011/65/EU. For more information, please contact DeWALT

the following address or refer to the back of themanual. The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of DeWALT

WARNING: To reduce the risk of injury, read the

instructionmanual. Definitions: Safety Guidelines The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to thesesymbols.

DANGER: Indicates an imminently hazardous

situation which, if not avoided, will result in death or seriousinjury.

WARNING: Indicates a potentially hazardous situation

which, if not avoided, could result in death or seriousinjury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderateinjury. NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in propertydamage.

Denotes risk of electricshock.

Denotes risk offire. English (original instructions) Congratulations! You have chosen a DeWALT tool. Years of experience, thorough product development and innovation make DeWALT one of the most reliable partners for professional power toolusers. Technical Data DCGG571 Voltage V

(emission sound pressure level) dB(A) 76

(sound power level) dB(A) 87 K (uncertainty for the given sound level) dB(A) 3 Vibration emission value a

< 2.5 Uncertainty K = m/s

The vibration and/or noise emission level given in this information sheet has been measured in accordance with a standardised test given in EN60745 and may be used to compare one tool with another. It may be used for a preliminary assessment ofexposure.

WARNING: The declared vibration and/or noise emission

level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration and/or noise emission may differ. This may significantly increase the exposure level over the total workingperiod. An estimation of the level of exposure to vibration and/ or noise should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total workingperiod. Identify additional safety measures to protect the operator from the effects of vibration and/or noise such as: maintain the tool and the accessories, keep the hands warm (relevant for vibration), organisation of workpatterns.29 EnGLIsh

WARNING: Read all safety warnings, instructions,

illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or seriousinjury.

SAVE ALL WARNINGS AND INSTRUCTIONS

FOR FUTUREREFERENCE. The term “power tool” in the warnings refers to your mains- operated (corded) power tool or battery-operated (cordless) powertool.

a ) Keep work area clean and well lit. Cluttered or dark areas inviteaccidents. b ) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust orfumes. c ) Keep children and bystanders away while operating a power tool. Distractions can cause you to losecontrol.

2) Electrical Safety

a ) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electricshock. b ) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed orgrounded. c ) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electricshock. d ) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electricshock. e ) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electricshock. f ) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electricshock.

a ) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personalinjury. b ) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personalinjuries. c ) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invitesaccidents. d ) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personalinjury. e ) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpectedsituations. f ) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in movingparts. g ) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-relatedhazards. Batteries Chargers/Charge Times (Minutes) Cat # V

Weight *Date code 201911475B or later **Date code 201536 or later30 EnGLIsh h ) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of asecond.

4) Power Tool Use and Care

a ) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it wasdesigned. b ) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must berepaired. c ) Disconnect the plug from the power source and/ or the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power toolaccidentally. d ) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrainedusers. e ) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained powertools. f ) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier tocontrol. g ) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardoussituation. h ) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpectedsituations.

5) Battery Tool Use and Care

a ) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another batterypack. b ) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury andfire. c ) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or afire. d ) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation orburns. e ) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk ofinjury. f ) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may causeexplosion. g ) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

a ) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool ismaintained. b ) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized serviceproviders. Additional Specific Safety Rules for Grease Guns

• Parts of the tool or the hose assembly can break or rupture due to high pressure. Risk of serious injury may occur. Before using, always inspect the tool and hose assembly for damage or wear. Never use if any part of the tool is damaged orworn.

WALT-approved flexible hoses. Hold the hose only by the flexible hose safety spring guard to avoid personal seriousinjury.

• If the hose kinks or is damaged, a rupture may occur which could cause serious injury. Replace the hose at the first sign of wear, kink ordamage.

• Only use the grease recommended in this manual (refer to Technical Data).

• To reduce the risk of serious personal injury, do not use the grease gun around or on moving parts, mechanisms or runningequipment.

• Air vents often cover moving parts and should be avoided. Loose clothes, jewelry or long hair can be caught in movingparts.

WARNING: Risk of injection or severe injury. Rupture

of components can inject grease into skin or eyes, causing serious injury or infection. Do not treat as a simple cut. Seek immediate medicalattention.

WARNING: Output can be at high pressure. Do not

direct discharge at yourself orothers.

WARNING: The grease gun may generate high

pressure—up to 69MPa (690 bar). Always wear gloves during operation. Keep hands clear of the exposed rubber portion of thehose.31 EnGLIsh

WARNING: Grease and lubricants may be flammable.

Do not expose to flame or heat source. Follow all warnings and instructions from grease and lubricantmanufacturer. Residual Risks In spite of the application of the relevant safety regulations and the implementation of safety devices, certain residual risks cannot be avoided. These are:

• Risk of personal injury due to flyingparticles.

• Risk of burns due to accessories becoming hot duringoperation.

• Risk of personal injury due to prolongeduse.

SAVE THESE INSTRUCTIONS

Chargers DeWALT chargers require no adjustment and are designed to be as easy as possible tooperate. Electrical Safety The electric motor has been designed for one voltage only. Always check that the battery pack voltage corresponds to the voltage on the rating plate. Also make sure that the voltage of your charger corresponds to that of yourmains. Your DeWALT charger is double insulated in accordance with EN60335; therefore no earth wire isrequired. If the supply cord is damaged, it must be replaced by a specially prepared cord available through the DeWALT

serviceorganisation. Mains Plug Replacement (U.K. & Ireland Only) If a new mains plug needs to be fitted:

• Safely dispose of the oldplug.

• Connect the brown lead to the live terminal in theplug.

• Connect the blue lead to the neutralterminal.

WARNING: No connection is to be made to the

earthterminal. Follow the fitting instructions supplied with good quality plugs. Recommended fuse: 3A. Using an Extension Cable An extension cord should not be used unless absolutely necessary. Use an approved extension cable suitable for the power input of your charger (see Technical Data). The minimum conductor size is 1mm

; the maximum length is30m. When using a cable reel, always unwind the cablecompletely. Important Safety Instructions for All Battery Chargers SAVE THESE INSTRUCTIONS: This manual contains important safety and operating instructions for compatible battery chargers (refer to TechnicalData).

• Before using charger, read all instructions and cautionary markings on charger, battery pack, and product using batterypack.

WARNING: Shock hazard. Do not allow any liquid to get

WARNING: We recommend the use of a residual current

device with a residual current rating of 30mA orless.

CAUTION: Burn hazard. To reduce the risk of injury, charge only DeWALT rechargeable batteries. Other types of batteries may burst causing personal injury anddamage.

CAUTION: Children should be supervised to ensure that they do not play with theappliance. NOTICE: Under certain conditions, with the charger plugged into the power supply, the exposed charging contacts inside the charger can be shorted by foreign material. Foreign materials of a conductive nature such as, but not limited to, steel wool, aluminum foil or any buildup of metallic particles should be kept away from charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug charger before attempting to clean

• DO NOT attempt to charge the battery pack with any chargers other than the ones in this manual. The charger and battery pack are specifically designed to worktogether.

• These chargers are not intended for any uses other than charging DeWALT rechargeable batteries. Any other uses may result in risk of fire, electric shock orelectrocution.

• Do not expose charger to rain orsnow.

• Pull by plug rather than cord when disconnecting charger. This will reduce risk ofdamage to electric plug andcord.

• Make sure that cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage orstress.

• Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire,electric shock, orelectrocution.

• Do not place any object on top of charger or place the charger on a soft surface that might block the ventilation slots and result in excessive internal heat. Place the charger in a position away from any heat source. The charger is ventilated through slots in the top and the bottom of thehousing.

• Do not operate charger with damaged cord or plug— have them replacedimmediately.

• Do not operate charger if it has received a sharp blow, been dropped, or otherwise damaged in any way. Take it to an authorised servicecentre.

• Do not disassemble charger; take it to an authorised service centre when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution orfire.

• In case of damaged power supply cord the supply cord must be replaced immediately by the manufacturer, its service agent or similar qualified person to prevent anyhazard.

• Disconnect the charger from the outlet before attempting any cleaning. This will reduce the risk of32 ENGLISH electric shock. Removing the battery pack will not reduce thisrisk.

• NEVER attempt to connect two chargerstogether.

• The charger is designed to operate on standard 230V household electrical power. Do not attempt to use it on any other voltage. This does not apply to the vehicularcharger. Chargers DeWALT chargers require no adjustment and are designed to be as easy as possible tooperate. Charging a Battery (Fig.B)

1. Plug the charger into an appropriate outlet before inserting

into the charger, making sure the battery pack is fully seated in the charger. The red (charging) light will blink repeatedly indicating that the charging process hasstarted.

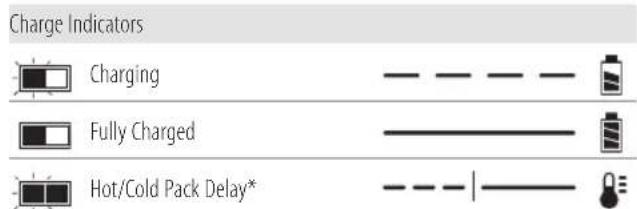

3. The completion of charge will be indicated by the red

light remaining ON continuously. The battery pack is fully charged and may be used at this time or left in the charger. To remove the battery pack from the charger, push the battery release button

on the batterypack. NOTE: To ensure maximum performance and life of lithium-ion battery packs, charge the battery pack fully before firstuse. Charger Operation Refer to the indicators below for the charge status of the batterypack. Charge Indicators Charging Fully Charged Hot/Cold Pack Delay*

• The red light will continue to blink, but a yellow indicator light will be illuminated during this operation. Once the battery pack has reached an appropriate temperature, the yellow light will turn off and the charger will resume the chargingprocedure. The compatible charger(s) will not charge a faulty battery pack. The charger will indicate faulty battery by refusing tolight. NOTE: This could also mean a problem with acharger. If the charger indicates a problem, take the charger and battery pack to be tested at an authorised servicecentre. Hot/Cold Pack Delay When the charger detects a battery pack that is too hot or too cold, it automatically starts a Hot/Cold Pack Delay, suspending charging until the battery pack has reached an appropriate temperature. The charger then automatically switches to the pack charging mode. This feature ensures maximum battery packlife. A cold battery pack will charge at a slower rate than a warm battery pack. The battery pack will charge at that slower rate throughout the entire charging cycle and will not return to maximum charge rate even if the battery packwarms. The DCB118 charger is equipped with an internal fan designed to cool the battery pack. The fan will turn on automatically when the battery pack needs to be cooled. Never operate the charger if the fan does not operate properly or if ventilation slots are blocked. Do not permit foreign objects to enter the interior of thecharger. Electronic Protection System XR Li-Ion tools are designed with an Electronic Protection System that will protect the battery pack against overloading, overheating or deepdischarge. The tool will automatically turn off if the Electronic Protection System engages. If this occurs, place the lithium-ion battery pack on the charger until it is fullycharged. Wall Mounting These chargers are designed to be wall mountable or to sit upright on a table or work surface. If wall mounting, locate the charger within reach of an electrical outlet, and away from a corner or other obstructions which may impede air flow. Use the back of the charger as a template for the location of the mounting screws on the wall. Mount the charger securely using drywall screws (purchased separately) at least 25.4mm long with a screw head diameter of 7–9mm, screwed into wood to an optimal depth leaving approximately 5.5mm of the screw exposed. Align the slots on the back of the charger with the exposed screws and fully engage them in theslots. Charger Cleaning Instructions

WARNING: Shock hazard. Disconnect the charger

from the AC outlet before cleaning. Dirt and grease may be removed from the exterior of the charger using a cloth or soft non-metallic brush. Do not use water or any cleaning solutions. Never let any liquid get inside the tool; never immerse any part of the tool into aliquid. Battery Packs Important Safety Instructions for All Battery Packs When ordering replacement battery packs, be sure to include catalogue number andvoltage. The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below. Then follow charging proceduresoutlined.

READ ALL INSTRUCTIONS

• Do not charge or use battery in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery from the charger may ignite the dust orfumes.

• Never force battery pack into charger. Do not modify battery pack in any way to fit into a non-compatible charger as battery pack may rupture causing serious personalinjury.

• Charge the battery packs only in DeWALT chargers.

• DO NOT splash or immerse in water or otherliquids.33 ENGLISH

• Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 40 ˚C (104 ˚F) (such as outside sheds or metal buildings in summer).

• Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and materials are created when lithium-ion battery packs areburned.

• If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation ceases. If medical attention is needed, the battery electrolyte is composed of a mixture of liquid organic carbonates and lithiumsalts.

• Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persists, seek medicalattention.

WARNING: Burn hazard. Battery liquid may be flammable

if exposed to spark orflame.

WARNING: Never attempt to open the battery pack for

any reason. If battery pack case is cracked or damaged, do not insert into charger. Do not crush, drop or damage battery pack. Do not use a battery pack or charger that has received a sharp blow, been dropped, run over or damaged in any way (i.e., pierced with a nail, hit with a hammer, stepped on). Electric shock or electrocution may result. Damaged battery packs should be returned to service centre forrecycling.

WARNING: Fire hazard. Do not store or carry the

battery pack so that metal objects can contact exposed battery terminals. For example, do not place the battery pack in aprons, pockets, tool boxes, product kit boxes, drawers, etc., with loose nails, screws, keys,etc.

CAUTION: When not in use, place tool on its side on a stable surface where it will not cause a tripping or falling hazard. Some tools with large battery packs will stand upright on the battery pack but may be easily knockedover. Transportation

WARNING: Fire hazard. Transporting batteries can

possibly cause fire if the battery terminals inadvertently come in contact with conductive materials. When transporting batteries, make sure that the battery terminals are protected and well insulated from materials that could contact them and cause a shortcircuit. NOTE: Lithium-ion batteries should not be put in checkedbaggage. DeWALT batteries comply with all applicable shipping regulations as prescribed by industry and legal standards which include UN Recommendations on the Transport of Dangerous Goods; International Air Transport Association (IATA) Dangerous Goods Regulations, International Maritime Dangerous Goods (IMDG) Regulations, and the European Agreement Concerning The International Carriage of Dangerous Goods by Road (ADR). Lithium-ion cells and batteries have been tested to section 38.3 of the UN Recommendations on the Transport of Dangerous Goods Manual of Tests andCriteria. In most instances, shipping a DeWALT battery pack will be excepted from being classified as a fully regulated Class 9 Hazardous Material. In general, only shipments containing a lithium-ion battery with an energy rating greater than 100 Watt Hours (Wh) will require being shipped as fully regulated Class 9. All lithium-ion batteries have the Watt Hour rating marked on the pack. Furthermore, due to regulation complexities, DeWALT

does not recommend air shipping lithium-ion battery packs alone regardless of Watt Hour rating. Shipments of tools with batteries (combo kits) can be air shipped as excepted if the Watt Hour rating of the battery pack is no greater than 100Whr. Regardless of whether a shipment is considered excepted or fully regulated, it is the shipper's responsibility to consult the latest regulations for packaging, labeling/marking and documentationrequirements. The information provided in this section of the manual is provided in good faith and believed to be accurate at the time the document was created. However, no warranty, expressed or implied, is given. It is the buyer’s responsibility to ensure that its activities comply with the applicableregulations. Transporting the FLEXVOLT

Battery The DeWALT FLEXVOLT

battery has two modes: Use andTransport. Use Mode: When the FLEXVOLT

battery stands alone or is in

DeWALT 18V product, it will operate as an 18V battery. When the FLEXVOLT

battery is in a 54V or a 108V (two 54V batteries) product, it will operate as a 54Vbattery. Transport Mode: When the cap is attached to the FLEXVOLT

battery, the battery is in Transport mode. Keep the cap for shipping. When in Transport mode, strings of cells are electrically disconnected within the pack resulting in 3 batteries with a lower Watt hour (Wh) rating as compared to 1 battery with a higher Watt hour rating. This increased quantity of 3 batteries with the lower Watt hour rating can exempt the pack from certain shipping regulations that are imposed upon the higher Watt hour batteries. For example, the Transport Wh rating might indicate 3x36 Wh, meaning 3 batteries of 36 Wh each. The Use Wh rating might indicate 108Wh (1battery implied). Storage Recommendations

1. The best storage place is one that is cool and dry away

from direct sunlight and excess heat or cold. For optimum battery performance and life, store battery packs at room temperature when not inuse.

2. For long storage, it is recommended to store a fully charged

battery pack in a cool, dry place out of the charger for optimalresults. Example of Use and Transport Label Marking34 EnGLIsh nOTE: Battery packs should not be stored completely depleted of charge. The battery pack will need to be recharged beforeuse. Labels on Charger and Battery Pack In addition to the pictographs used in this manual, the labels on the charger and the battery pack may show the following pictographs: Read instruction manual beforeuse. See Technical Data for chargingtime. Do not probe with conductiveobjects. Do not charge damaged batterypacks. Do not expose to water. Have defective cords replacedimmediately. Charge only between 4 ˚C and 40 ˚C. Only for indooruse. Discard the battery pack with due care for theenvironment. Charge DeWALT battery packs only with designated DeWALT chargers. Charging battery packs other than the designated DeWALT batteries with a DeWALT charger may make them burst or lead to other dangeroussituations. Do not incinerate the batterypack. USE (without transport cap). Example: Wh rating indicates 108 Wh (1 battery with 108 Wh). TRANSPORT (with built-in transport cap). Example: Wh rating indicates 3 x 36 Wh (3batteries of 36 Wh). Battery Type The DCGG571 operates on an 18 volt batterypack. These battery packs may be used: DCB181, DCB182, DCB183, DCB183B, DCB184, DCB184B, DCB185, DCB187, DCB189, DCB546, DCB547, DCB548. Refer to Technical Data for moreinformation. Package Contents The package contains: 1 Grease gun 1 Charger 1 Li-Ion battery pack (C1, D1, L1, M1, P1, S1, T1, X1, Y1 models) 2 Li-Ion battery packs (C2, D2, L2, M2, P2, S2, T2, X2, Y2 models) 3 Li-Ion battery packs (C3, D3, L3, M3, P3, S3, T3, X3, Y3 models) 1 Instruction manual nOTE: Battery packs, chargers and kitboxes are not included with N models. Battery packs and chargers are not included with NT models. Bmodels include Bluetooth® batterypacks. nOTE: The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth®, SIG, Inc. and any use of such marks by DeWALT is under license. Other trademarks and trade names are those of their respectiveowners.

• Check for damage to the tool, parts or accessories which may have occurred duringtransport.

• Take the time to thoroughly read and understand this manual prior tooperation. Markings on Tool The following pictograms are shown on the tool: Read instruction manual beforeuse. Date Code Position (Fig.A) The date code

, which also includes the year of manufacture, is printed into thehousing. Example: 2019 XX XX Year of Manufacture Description (Fig. A, E)

WARNING: Never modify the power tool or any part of it.

Damage or personal injury couldresult. Fig. a

LED worklight button

Flexible hose safety spring guard

Flexible hose coupler

Battery release button

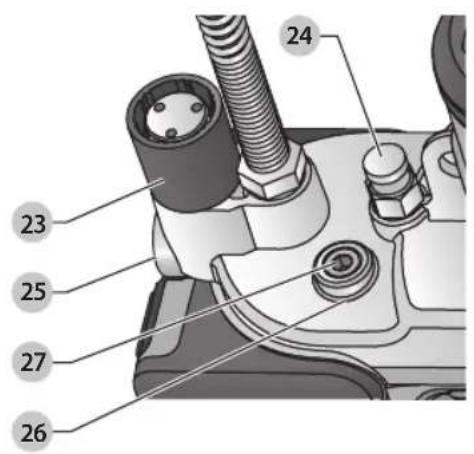

1/8" NPT fill port plug35 ENGLISH Intended Use This grease gun is designed for professionally dispensinglubricant. DO NOT use under wet conditions or in the presence of flammable liquids orgases. This grease gun is a professional powertool. DO NOT let children come into contact with the tool. Supervision is required when inexperienced operators use thistool.

• Young children and the infirm. This appliance is not intended for use by young children or infirm persons withoutsupervision.

• This product is not intended for use by persons (including children) suffering from diminished physical, sensory or mental abilities; lack of experience, knowledge or skills unless they are supervised by a person responsible for their safety. Children should never be left alone with thisproduct. LED Worklight (Fig. A, C) There is an LED worklight

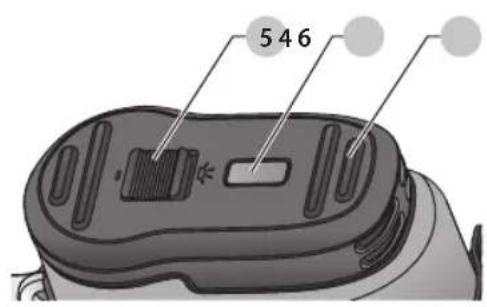

located on the top cap

. The worklight is activated when the trigger switch is depressed and when the LED worklight button

is in the ON position. When the LED worklight button is in the OFF position, the LED worklight will not turn on when the trigger is depressed. The worklight will automatically turn off 20 seconds after the trigger switch is released. If the trigger switch remains depressed, the worklight will remainon. NOTE: The worklight is for lighting the immediate work surface and is not intended to be used as aflashlight. Variable Speed Trigger Switch (Fig. A, D) Lock-Off Button and Trigger Switch Your grease gun is equipped with a lock-off button

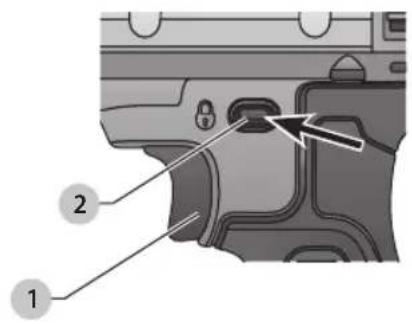

To lock the trigger switch, press the lock-off button as shown in FigureD. Always lock the trigger switch

when carrying or storing the tool to eliminate unintentional starting. The lock- off button is coloured red to indicate when the switch is in its unlockedposition. To unlock the trigger switch, press the lock-off button as shown in FigureD. Squeeze the trigger switch to turn the motor ON. Releasing the trigger switch turns the motorOFF. NOTE: The variable speed trigger switch will give you added versatility. The further the trigger is depressed the higher the output ofgrease.

WARNING: This tool has no provision to lock the switch

in the ON position, and should never be locked ON by any othermeans. Pressure Relief Valve (Fig. E) The pressure relief valve

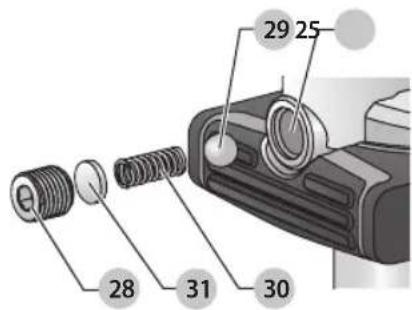

is set at the factory to relieve pressure above 69 MPa (690 bar). Grease coming out of the pressure relief valve indicates a clog in the fitting, line or bearing. Any of these conditions must be corrected beforeproceeding.

WARNING: The grease gun may generate high

pressure. Do not remove or tamper with the pressure relief valve. Serious injury mayoccur. Shoulder Strap (Fig. A) Your grease gun comes with a shoulder strap. Hook the shoulder strap clips into the shoulder strap clip holes

found on the shoulder strap mount

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal

injury, turn tool off and disconnect battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start-up can causeinjury.

DeWALT battery packs andchargers. Inserting and Removing the Battery Pack from the Tool (Fig. F) NOTE: Make sure your battery pack

is fullycharged. To Install the Battery Pack into the Tool Handle

with the rails inside the tool’s handle (Fig.F).

2. Slide it into the handle until the battery pack is firmly seated

in the tool and ensure that you hear the lock snap intoplace. To Remove the Battery Pack from the Tool

1. Press the battery release button

and firmly pull the battery pack out of the toolhandle.

2. Insert battery pack into the charger as described in the

charger section of thismanual. Fuel Gauge Battery Packs (Fig.F) Some DeWALT battery packs include a fuel gauge which consists of three green LED lights that indicate the level of charge remaining in the batterypack. To actuate the fuel gauge, press and hold the fuel gauge button

. A combination of the three green LED lights will illuminate designating the level of charge left. When the level of charge in the battery is below the usable limit, the fuel gauge will not illuminate and the battery will need to berecharged. NOTE: The fuel gauge is only an indication of the charge left on the battery pack. It does not indicate tool functionality and is subject to variation based on product components, temperature and end-userapplication. Installing a Grease Cartridge (Fig. A, E, G)

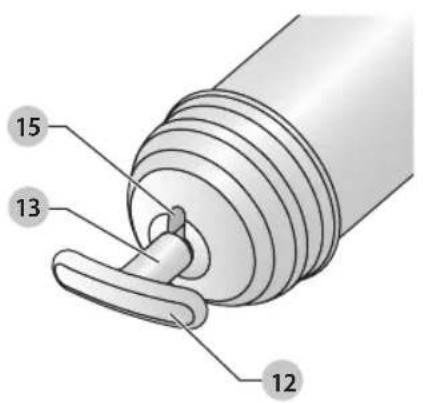

1. Pull the grease tube handle

out as far as it will go, then secure the grease tube rod

into the retaining slot

moving the rod to the side. Ensure the rod is placed securely in the slot to prevent it fromdisengaging.

2. Unscrew the grease tube assembly

3. Remove the plastic cap from the grease cartridge, then

insert the cartridge, open end first, into the grease tube

4. Remove the seal from the other end of the greasecartridge.36

5. Thread the grease tube assembly

back into the grease gun and screw it insecurely.

6. Release the grease tube rod

from the retaining slot

and slowly press it back into thetube.

, Fig.E) to bleed off any air that may be trapped in the cartridge. Refer to Purging AirPockets. IMPORTANT: The grease gun will lose its prime if there are air pockets in thelubricant. Removing Empty Grease Cartridge (Fig. A)

1. Pull the grease tube handle

out as far as it will go, then secure the grease tube rod

into the retaining slot

moving the rod to the side. Ensure the rod is placed securely in the slot to prevent it fromdisengaging.

2. Unscrew the grease tube assembly

from the grease gun andremove.

3. Gently release the grease tube handle

to expel the empty cartridge from the greasetube. Filling the Grease Gun from a Bulk Container (Fig. A, G–J) Preparing the Grease Gun for Suction and Filler Pump Filling (Fig.A,H) NOTE: Be sure the grease gun is empty of grease before beginning thisprocess.

1. Unscrew the grease tube

from the grease gun assembly

from the grease tube

and pull out the grease rod

3. Using your thumb and forefinger, flip the rubber seal

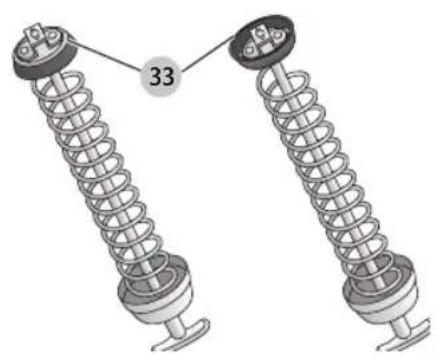

from the rear to the front. Refer to FigureH. NOTE: The seal resembles a cup, which should open toward the top cap (

, Fig.A) when prepared for suction and filler pumpfilling.

back into the grease tube

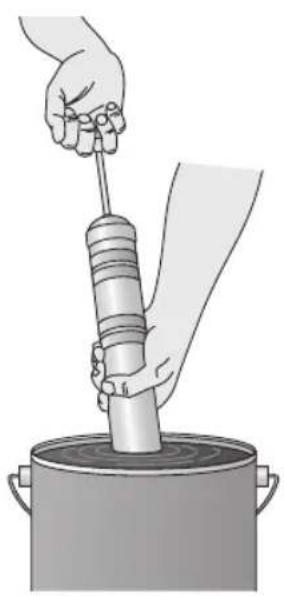

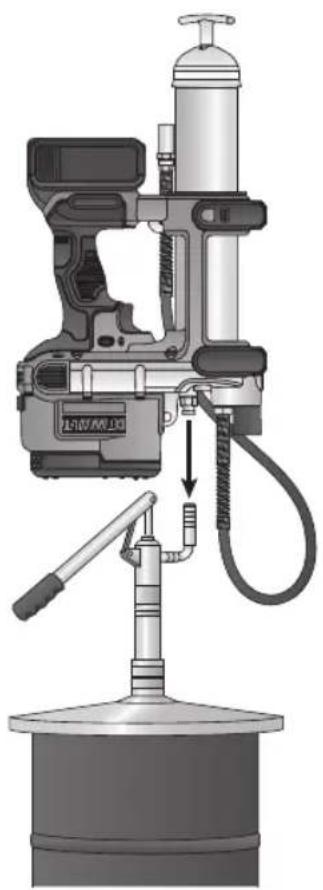

Suction Filling from a Bulk Container (Fig.A,E,G,I)

1. Put the open end of the grease tube assembly into the

2. Slowly pull back the grease tube handle

to suction the lubricant into the greasegun. NOTE: Be sure to keep the open end of the grease tube assembly far enough into the lubricant to prevent air pockets in the greasetube.

is fully extended, secure it into the retaining slot

4. Remove the grease gun tube assembly from the bulk

lubricant and wipe off excessgrease.

5. Screw the grease gun tube assembly

back into the greasegun.

6. Release the grease tube rod

from the retaining slot

and slowly press it back into thetube.

, Fig.E) to bleed off any air that may be trapped in the cartridge. Refer to Purging AirPockets. Filler Pump Filling From a Bulk Container (Fig.A,E,G,I) This tool comes with a 1/8" NPT fill port (

, Fig.E) for attaching a low pressure fill coupler onto theunit.

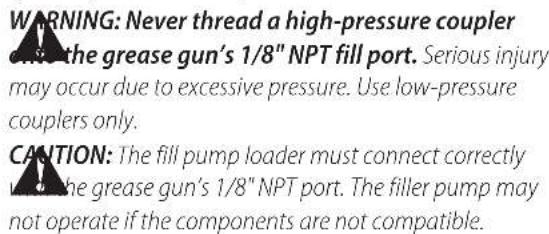

WARNING: Never thread a high-pressure coupler

onto the grease gun’s 1/8" NPT fill port. Serious injury may occur due to excessive pressure. Use low-pressure couplersonly.

CAUTION: The fill pump loader must connect correctly with the grease gun’s 1/8" NPT port. The filler pump may not operate if the components are notcompatible. Installing The Low Pressure Coupler (Not Supplied With The Tool)

1. Thread the grease tube assembly

back into the grease gun and screw it insecurely.

2. Pull the grease tube handle

out as far as it will go, then secure the grease tube rod

into the retaining slot

moving the rod to the side. Ensure the rod is placed securely in the slot to prevent it fromdisengaging.

4. Thread the appropriate low pressure coupler onto the 1/8"

5. Release the grease tube rod

from the retaining slot

and slowly press it back into thetube.

to bleed off any air that may be trapped in the cartridge. Refer to Purging AirPockets. Filling The Tool From The Low Pressure Filler Pump (Fig.A,J)

1. Pull back on the grease tube handle slowly and rotate the

rod until it is secure inplace. NOTE: Do not lock the rod into the retaining slot

2. Connect the low pressure fitting on the grease gun to the

appropriate low pressure fitting on the filler pump. These fittings DO NOT lock together. This prevents the grease gun cartridge from being overfilled.

3. Fill until the rod is pushed out of the grease tube

approximately 20cm. Do not overfill. If the rod fails to move during the filling process, stop. This indicates that the rod is not connected to the plunger and step one must be repeated beforeproceeding.

4. Rotate rod to release and carefully push rod back into the

to bleed off any air that may be trapped in the cartridge. Refer to Purging AirPockets. Purging Air Pockets (Fig. A, E) IMPORTANT: Air pockets in the grease can cause the grease gun to lose prime. Eliminate air pockets after each refill or if the grease gun fails to pump grease:

without removing it, until all air hasescaped.

2. Tighten the purge valve

4. If grease fails to flow through the hose, repeat from step1.

NOTE: This tool has been tested at the factory, which may result in a small amount of grease left in the grease tube and hose assembly. It is recommended to purge the tool with the brand of grease to be used before firstuse. OPERATION Instructions for Use

WARNING: Always observe the safety instructions and

applicableregulations.

WARNING: To reduce the risk of serious personal

injury, turn tool off and disconnect battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start-up can causeinjury. Proper Hand Position (Fig. A, K)

WARNING: To reduce the risk of serious personal injury,

WARNING: To reduce the risk of serious personal

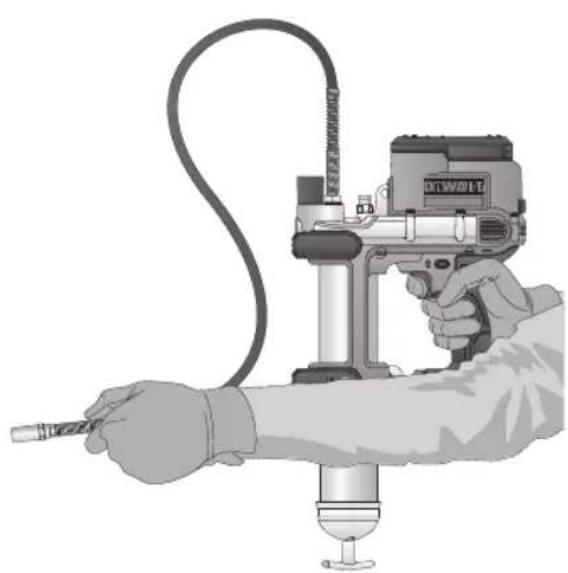

injury, ALWAYS hold securely in anticipation of a suddenreaction. Proper hand position requires one hand on the flexible hose safety spring guard

with the other hand on the handle

WARNING: To reduce the risk of serious personal

injury, always maintain a grip on the handle when operating the grease gun or positioning the hose ontofittings. To operate the grease gun, hold the grease gun by the handle

, or place it on a stable surface upright on its rubber feet

maintaining a grip on the handle. Holding the hose by the flexible hose safety spring guard

, connect the flexible hose grease coupler

or other appropriate grease coupler, onto the grease fitting to be filled. Carefully depress the variable speed trigger switch to begin the filling process. Once the correct amount of grease has been dispensed, release the trigger and remove the coupler from the grease fitting. If the coupler does not release, there may still be residual pressure in the line. Moving the coupler from side to side can relieve the residual pressure so it can be removed from the coupling. If the coupler leaks excessively or does not hold on to the grease fitting, it should bereplaced. MAINTENANCE Your DeWALT power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regularcleaning.

WARNING: To reduce the risk of serious personal

injury, turn tool off and disconnect battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start-up can causeinjury. The charger and battery pack are notserviceable. Lubrication Your power tool requires no additionallubrication. Cleaning

WARNING: Blow dirt and dust out of the main housing

with dry air as often as dirt is seen collecting in and around the air vents. Wear approved eye protection and approved dust mask when performing thisprocedure.

WARNING: Never use solvents or other harsh chemicals

for cleaning the non-metallic parts of the tool. These chemicals may weaken the materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into aliquid. Cleaning Contaminants from the Grease Gun Cleaning Contamination from the Check Valve (Fig.L) Should the grease gun fail to dispense grease, the check valve

and check valve ball

and the check valve area in the maincasting.

4. After all grease is cleaned from the area, reinstall the check

Cleaning Contamination from the Filter (Fig.A,G,M) Should the grease gun fail to dispense grease, clean the filter

NOTE: If there is still grease in the tube, open the purge valve prior to pulling the tubehandle.

1. Pull the grease tube handle

out as far as it will go, then secure the grease tube rod

into the retaining slot

moving the rod to the side. Ensure the rod is placed securely in the slot to prevent it fromdisengaging.

2. Unscrew the grease tube assembly

from the grease gun andremove.

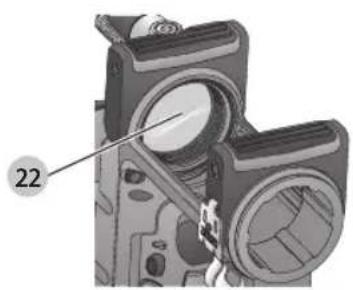

3. Using a small flat-blade screwdriver or pick, carefully pop

4. Wipe off the filter using a soft cloth. If the filter still has

debris in it after wiping, a soft brush or swab may beused.38 ENGLISH

5. Once clean, reinsert the filter into the round groove,

ensuring it is fully seated, and reattach the grease tube assembly to the greasegun. Optional Accessories

WARNING: Since accessories, other than those offered

DeWALT , have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only DeWALT recommended accessories should be used with thisproduct. Consult your dealer for further information on the appropriateaccessories. Protecting the Environment Separate collection. Products and batteries marked with this symbol must not be disposed of with normal householdwaste. Products and batteries contain materials that can be recovered or recycled reducing the demand for raw materials. Troubleshooting Problem Possible Cause Possible Solution Unable to pull back rod Vacuum build up Unscrew the purge valve to release vacuum. Unable to push rod forward Pressure build up Unscrew the purge valve to release pressure. Rod is still connected to plunger Rotate grease tube handle 90 degrees to disengage it. No grease when trigger is pulled Grease tube is empty Add grease. Air pockets in the grease tube Refer to Purging Air Pockets. Check valve is clogged Refer to Cleaning Contamination from the Check Valve. Filter is clogged Refer to Cleaning Contamination from the Filter. Grease appears in relief valve Zerk fitting is blocked Disconnect coupler from fitting, clean zerk fitting and grease path. Motor does not run when trigger is pulled Battery Make sure the battery is fully charged. Grease leaks out of the back of the grease tube Rubber seal is flipped the wrong direction Refer to Preparing the Grease Gun for Suction and Filler Pump Filling. Please recycle electrical products and batteries according to local provisions. Further information is available at www.2helpU.com. Rechargeable Battery Pack This long life battery pack must be recharged when it fails to produce sufficient power on jobs which were easily done before. At the end of its technical life, discard it with due care for our environment:

• Run the battery pack down completely, then remove it from thetool.

BEWAAR ALLE WAARSCHUWINGEN
