KC150.9 - Grass trimmer KRESS - Free user manual and instructions

Product type	Cordless grass trimmer
Brand	Kress
Model	KC150.9
Rated voltage	60 V (max 60 V, nominal 54 V)
Battery type	Li-Ion
Compatible batteries	KAC804 (4.0 Ah), KAC810 (11.0 Ah)
Recommended charger	KAC840 (30 A)
Cutting speed	3 speeds: 3000 / 3600 / 4200 rpm
Blade diameter	20 cm (8 inches)
Protection rating	IPX4
Weight (tool only)	5.3 kg
Sound power level	90.6 dB(A) (K=3 dB(A))
Sound pressure level	77.6 dB(A) (K=3 dB(A))
Vibration (total value)	< 2.5 m/s² (K=2.5 m/s²)
Bluetooth	Band 2400-2483.5 MHz, max power 8 dBm
Main functions	Grass edge cutting, depth adjustment, speed selection
Safety	Operator presence button, blade stop, anti-restart protection
Maintenance and cleaning	Lubricate mechanism every 50 h, clean with damp cloth
Spare parts and repairability	Replaceable blade and bolts, repair by authorized center
General information	Cordless use, compatible with optional backpack harness
Warranty	Consult retailer or customer service

Frequently Asked Questions - KC150.9 KRESS

Which battery to use with the KC150.9?

Use exclusively the recommended Kress batteries: KAC804 (4.0 Ah) or KAC810 (11.0 Ah). Never use any other battery.

How to adjust the cutting depth?

Turn off the tool and remove the battery. Loosen the wing nut, push the wheel up to increase depth or down to reduce it. The blade should lightly touch the ground or penetrate by max 5 mm.

What to do if the LED indicator flashes?

A flashing battery light indicates low voltage: recharge the battery. A flashing red light signals overload or temperature issue: clean the cutting attachment and let it cool down.

How to replace the blade?

Turn off the tool and remove the battery. Align the adapter hole with the housing notch, insert a locking tool, loosen the nut, replace the blade, and tighten the bolt to 15-20 Nm.

What is the battery runtime?

Runtime depends on battery capacity and usage conditions. With a 4.0 Ah battery, runtime is about 30 to 40 minutes under normal use. With an 11.0 Ah battery, it can reach 80 to 100 minutes.

How to maintain the grass trimmer?

Clean the machine after use with a damp cloth and mild detergent. Lubricate the drive mechanism every 50 operating hours with 5 g of grease (type SHELL Gadus S2 V220 1). Store in a dry place.

Can the grass trimmer be used in the rain?

No, do not use the machine in rain or wet conditions. The IPX4 rating protects against splashes, but use in wet weather increases the risk of electric shock.

How to start the trimmer?

Insert the battery, hold the on/off switch until the green LED lights up. Then press the operator presence button first, then the throttle lever to start.

What to do in case of excessive vibrations?

Stop the machine immediately and remove the battery. Check blade balance and condition, clean the blade guard. If the problem persists, contact an authorized repairer.

Can I use another charger?

No, use only the Kress KAC840 (30 A) charger or a charger specified by the manufacturer. Using another charger may damage the battery and pose a fire risk.

USER MANUAL KC150.9 KRESS

Mechanical device with a 60° angle sensor and attached probe (no visible text or symbols)

Lawn Edger	EN	P03
Rasenkantenschneider	D	P17
Taille-bordure de jardin	F	P32
Tagliabordi per giardino	I	P46
Perfiladora	ES	P59
Aparador de Extremidades de Relva	PT	P73
Kantensnijder	NL	P87
Gyepszegélynyíró	HU	P100
Trimmer pentru gazon	RO	P114
Krawędziarka do trawników	PL	P128
Zarovnávač trávníku	CZ	P142
Orezávač trávnikov	SK	P155
Prirezovalnik robov trate	SL	P169
Trimer za rubove travnjaka	HR	P182
Plænekantklipper	DK	P195
Nurmikon reunaleikkuri	FIN	P208
Plenkanttrimmer	NOR	P221
Kantskärare	SV	P234

KC150 KC150.X

TABLE OF CONTENTS

Introduction....3

Component List....4

Product Safety....5

Assembly & Operation....8

Transportation....11

Maintenance....11

Cleaning....12

Storage....12

Troubleshooting....12

Technical Data....13

Environmental Protection....14

Declaration of Conformity....15

INTRODUCTION

Dear Customer,

Thank you for buying this Kress Commercial product. We are dedicated to developing high quality products to meet your commercial landscaping requirements.

The Kress brand is synonymous with premium quality service. Over the years of your product's life, if you have any questions or concerns about your product, please contact your dealer or our Customer Service Team for assistance.

We are confident you will enjoy working with your Kress product for years to come.

INTENDED USE

This machine is intended for edging along sidewalks, driveways. curbs and patios.

Technical diagram of a mechanical device with numbered components for identification and assembly reference.

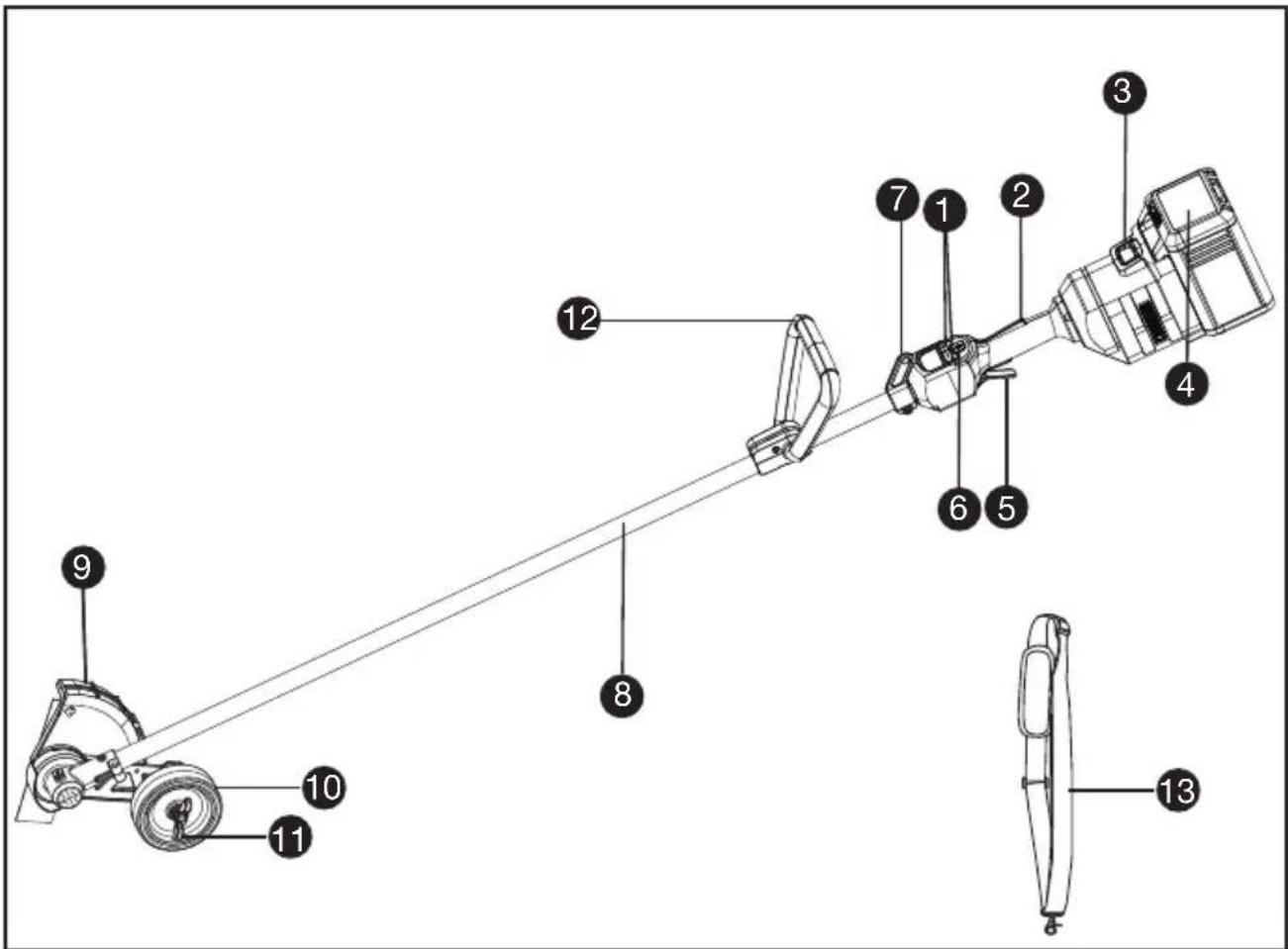

COMPONENT LIST

1. SPEED CONTROL
2. OPERATOR PRESENCE SWITCH
3. BATTERY PACK RELEASE
4. BATTERY PACK *
5. THROTTLE TRIGGER
6. ON / OFF SWITCH
7. SHOULDER STRAP MOUNT
8. SHAFT
9. DEBRIS GUARD
10. SUPPORT WHEEL
11. SUPPORT WHEEL ADJUSTMENT WING NUT
12. FRONT HANDLE
13. SHOULDER STRAP *

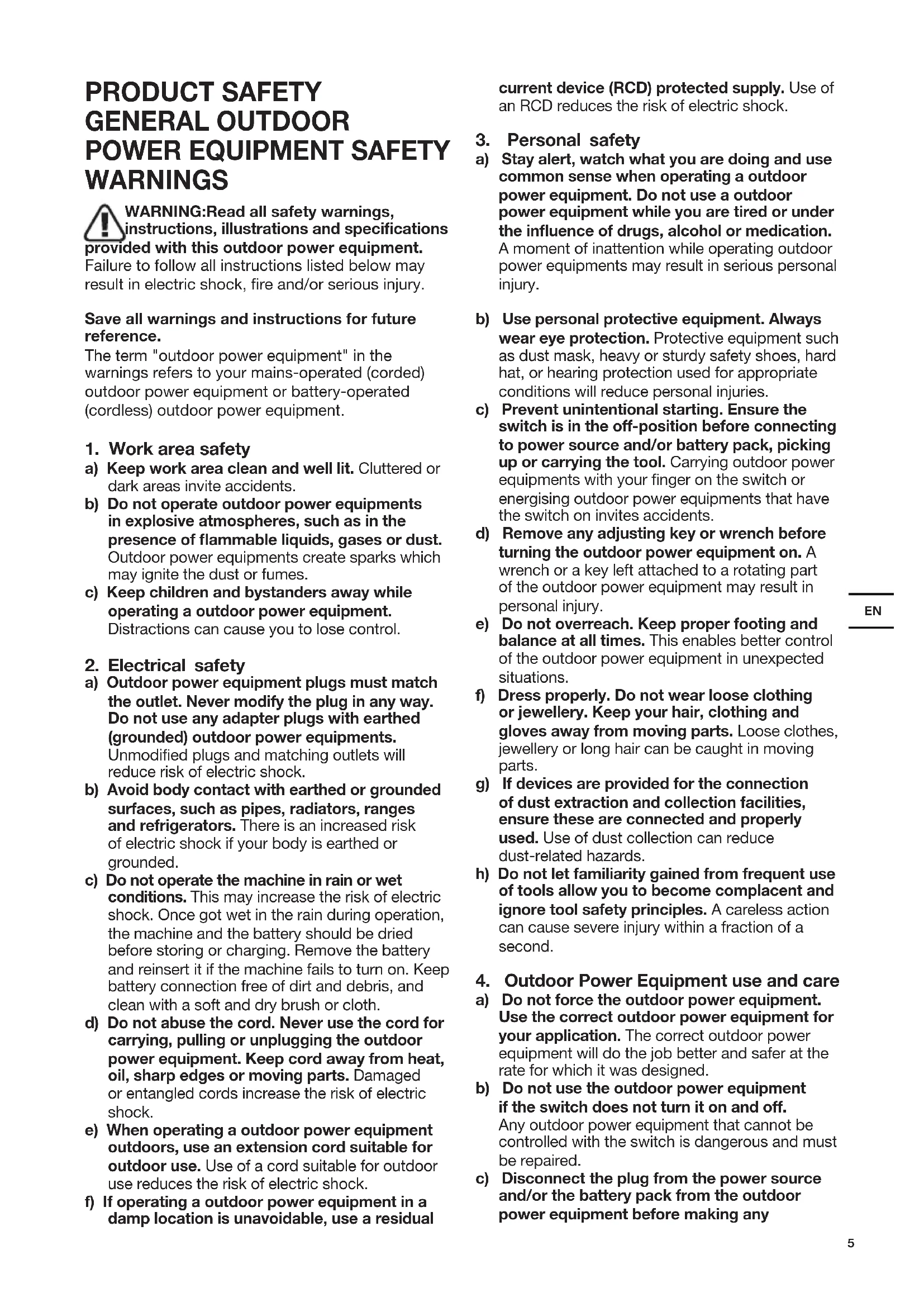

PRODUCT SAFETY GENERAL OUTDOOR POWER EQUIPMENT SAFETY WARNINGS

WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this outdoor power equipment.

Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "outdoor power equipment" in the warnings refers to your mains-operated (corded) outdoor power equipment or battery-operated (cordless) outdoor power equipment.

1. Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate outdoor power equipments in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Outdoor power equipments create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a outdoor power equipment. Distractions can cause you to lose control.

2. Electrical safety

a) Outdoor power equipment plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) outdoor power equipments. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not operate the machine in rain or wet conditions. This may increase the risk of electric shock. Once got wet in the rain during operation, the machine and the battery should be dried before storing or charging. Remove the battery and reinsert it if the machine fails to turn on. Keep battery connection free of dirt and debris, and clean with a soft and dry brush or cloth.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the outdoor power equipment. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a outdoor power equipment outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a outdoor power equipment in a damp location is unavoidable, use a residual

current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a outdoor power equipment. Do not use a outdoor power equipment while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating outdoor power equipments may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, heavy or sturdy safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying outdoor power equipments with your finger on the switch or energising outdoor power equipments that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the outdoor power equipment on. A wrench or a key left attached to a rotating part of the outdoor power equipment may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the outdoor power equipment in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4. Outdoor Power Equipment use and care

a) Do not force the outdoor power equipment. Use the correct outdoor power equipment for your application. The correct outdoor power equipment will do the job better and safer at the rate for which it was designed.

b) Do not use the outdoor power equipment if the switch does not turn it on and off. Any outdoor power equipment that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the outdoor power equipment before making any

adjustments, changing accessories, or storing outdoor power equipments. Such preventive safety measures reduce the risk of starting the outdoor power equipment accidentally.

d) Store idle outdoor power equipments out of the reach of children and do not allow persons unfamiliar with the outdoor power equipment or these instructions to operate the outdoor power equipment. Outdoor power equipments are dangerous in the hands of untrained users.
e) Maintain outdoor power equipments. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the outdoor power equipment's operation. If damaged, have the outdoor power equipment repaired before use. Many accidents are caused by poorly maintained outdoor power equipments.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the outdoor power equipment, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the outdoor power equipment for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5. Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use outdoor power equipments only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion.
g) Follow all charging instructions and do not charge the battery pack or tool outside

the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

6. Service

a) Have your outdoor power equipment serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the outdoor power equipment is maintained.
b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

SAFETY INSTRUCTIONS FOR EDGERS

1. Training

a) Read the instructions carefully. Be familiar with the controls and the proper use of the equipment.
b) Never allow children or people unfamiliar with these instructions to use the edger. Local regulations may restrict the age of the operator.
c) Never edge while people, especially children, or pets are nearby.
d) Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.

2. Preparation

a) While edging, always wear eye and ear protection, substantial foot wear, and long trousers.
b) Thoroughly inspect the surface where the equipment is to be used and remove all stones, sticks, wires, bones and other foreign objects.
c) Before using, always visually inspect to see that the blades, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance.
d) Use only manufacturer-recommended replacement parts and accessories.

3. Operation

a) Edge only in daylight or in good artificial light.
b) Always be sure of your footing on slopes.
c) Walk, never run.
d) Use extreme caution when reversing or pulling the edger toward you.
e) Make sure the blade has stopped before crossing surfaces other than grass and when transporting the edger to and from the area to be edged.
f) Never operate the edger with defective, missing or incorrectly fitted guards.
g) Switch on the motor carefully according to instructions and with feet well away from the blade(s).
h) Do not tilt when switching on the motor, unless the edger has to be tilted for starting. In this case, do not tilt it more than absolutely necessary and lift only the part which is away from the operator.
i) Do not switch on the motor when a bystander is standing in front of the blade(s).

j) Do not put hands or feet near or under rotating parts.
k) Always switch off the electric motor and remove battery pack from the machine:
1) before clearing blockages;
2) before checking, cleaning or working on the blade(s);
3) after striking a foreign object: inspect the blade(s) for damage and make repairs before restarting and operating the edger;
4) if edger starts to vibrate abnormally (check immediately).
I) Always remove battery pack from the machine whenever you leave the edger.
m) Always ensure that the ventilation openings are kept clear of debris.

4. Maintenance and storage

a) Keep all nuts, bolts and screws tight to be sure the equipment is in safe working conditions.
b) Replace worn or damaged parts.
c) Do not attempt to repair the machine unless you are competent to do so.
d) Use only manufacturer-recommended replacement parts and accessories.
e) When not in use, store the edger out of the reach of children.
f) Inspect and maintain the edger regularly. Have the edger repaired only by an authorized repairer.

SAFETY WARNINGS FOR BATTERY PACK

a) Do not dismantle, open or shred cells or battery pack.
b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.

d) Do not subject battery pack to mechanical shock.

e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.

f) Keep battery pack clean and dry.

g) Wipe the battery pack terminals with a clean dry cloth if they become dirty.

h) Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure.

i) Do not maintain battery pack on charge when not in use.

j) After extended periods of storage, it may

be necessary to charge and discharge the battery pack several times to obtain maximum performance.

k) Recharge only with the charger specified by Kress. Do not use any charger other than that specifically provided for use with the equipment.

I) Do not use any battery pack which is not designed for use with the equipment.

m) Keep battery pack out of the reach of children.

n) Retain the original product literature for future reference.

o) Remove the battery from the equipment when not in use.

p) Dispose of properly.

q) Do not use battery packs of different manufacture, size or type.

r) Keep the battery away from microwaves and high pressure.

SAVE THESE INSTRUCTIONS

USER MANUAL REQUIREMENTS FOR WIRELESS PRODUCT

a) Operation of this device is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
b) Caution: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
c) NOTE: This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

SYMBOLS

	To reduce the risk of injury, user must read instruction manual
	Wear ear and eye protection
	Direction of edger blade rotation
	Keep bystanders at a safe distance
	Thrown objects
	Rotating cutting blade
	Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice.
	Li-Ion battery This product has been marked with a symbol relating to ‘separate collection’ for all battery packs and battery pack.
Li-Ion	It will then be recycled or dismantled in order to reduce the impact on the environment. Battery packs can be hazardous for the environment and for human health since they contain hazardous substances.
	Do not burn
	Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste.

Wear protective gloves

Remove battery from the socket before carrying out any adjustment, servicing or maintenance.

NOTE: Before using the tool, read the instruction book carefully.

BEFORE OPERATION:

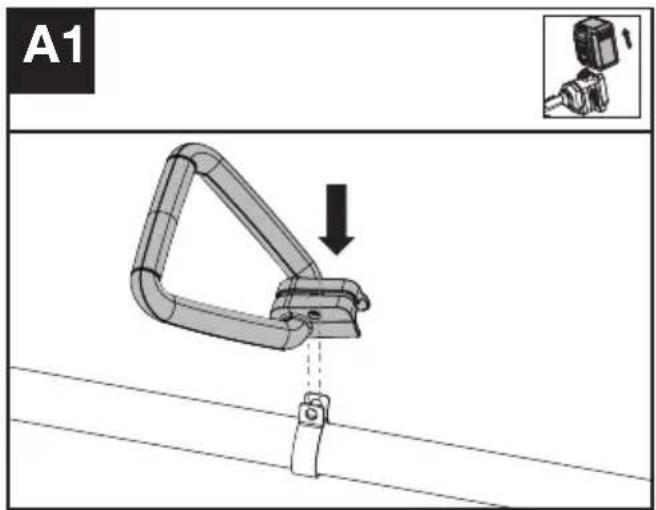

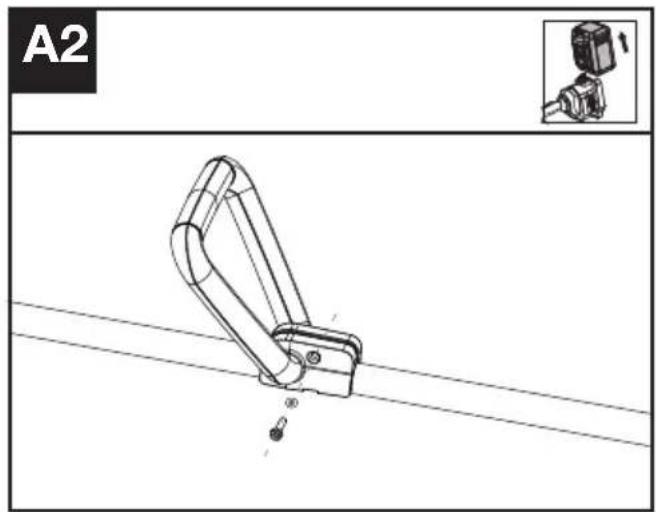

Assembling the Front Handle (See Fig. A1, A2)

A1

A2

1. Remove the tape.
2. Attach the Front Handle and lower clamp on the shaft.
3. Put the bolt through the holes.
4. Tighten the Front Handle.

WARNING: Adjust the Front Handle as desired so as to make sure your front arm is it when using the edger.

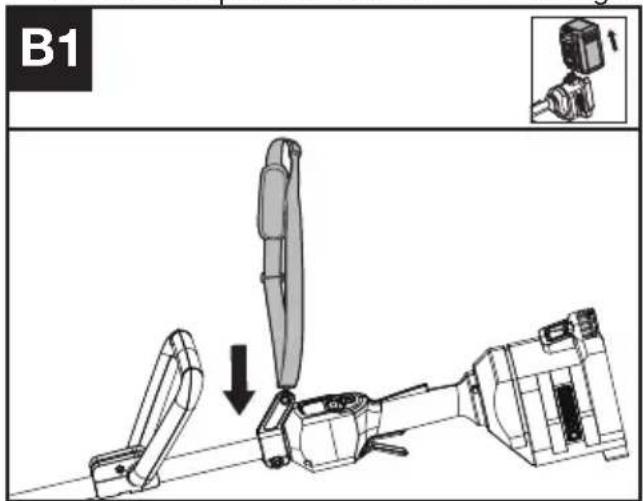

Fitting the shoulder strap (Sold Separately) (See Fig. B1)

1. Adjust the length of shoulder strap to make sure that the carabiner is about a hand's width below the top of your hip.
2. Connect the carabiner of shoulder strap to the Shoulder Strap Mount on the shaft of the edger.

B1

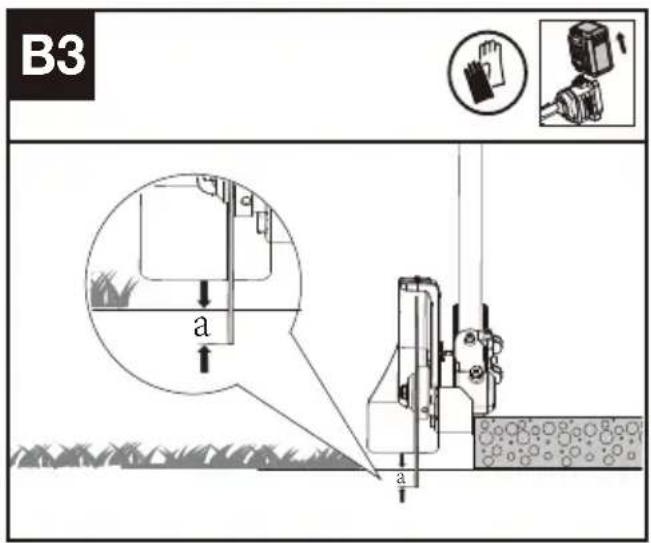

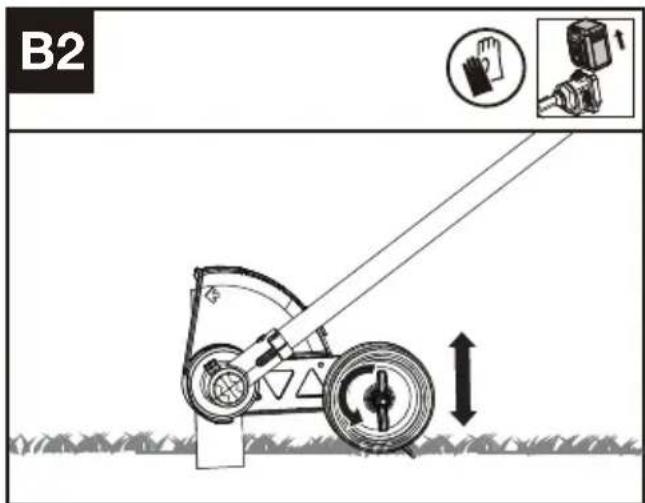

Adjust the cutting height (See Fig.B2,B3)

1. Turn off the power tool and remove the battery.
2. Loosen the wing nut. Push the wheel upwards to increase the cut depth (a) or downward the wheel to reduce the cut depth (a).
3. It is recommended to adjust the depth wheel so that the edger blade just touching the ground or breaks the surface of the soil by no more than 0.2 in. (5 mm)
4. Tighten the wing nut. Check the depth of cut while standing in the normal working position and correct it if necessary.

B2

B3 a a

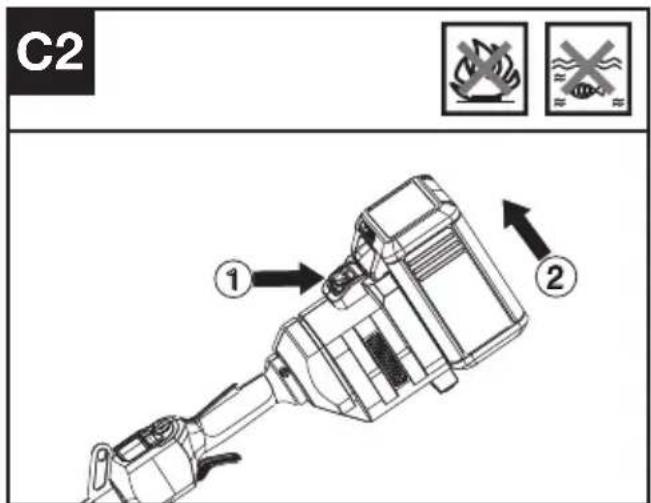

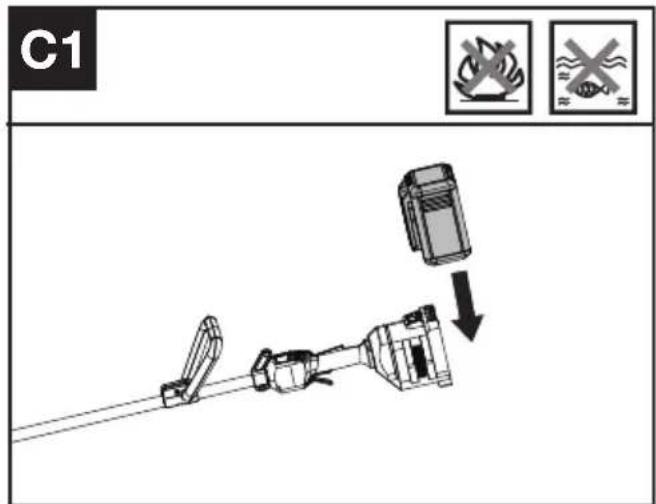

Installing & removing the battery pack (See Fig. C1, C2)

C1

C2 ① ②

1. Slide the battery pack into the battery compartment until you hear a click.
2. Press the battery release button to release battery pack from your tool.

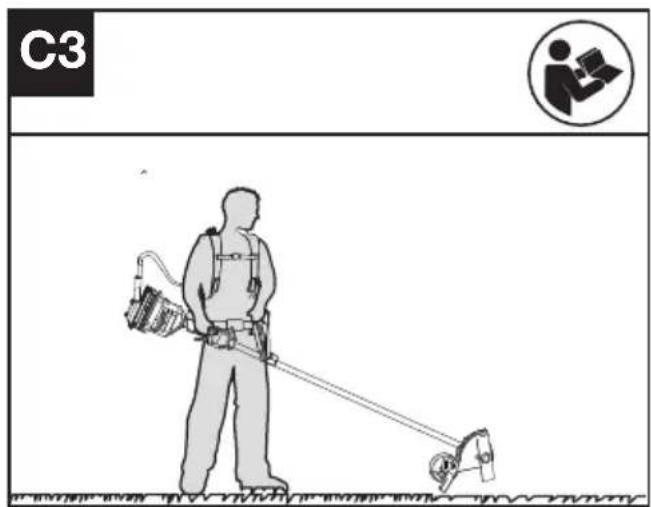

Connecting with the backpack harness (See Fig. C3)

The edger can be connected with an accessory backpack harness (not supplied). Refer to the backpack harness manual for more information.

C3

Testing the edger and battery (See Fig. D)

Checking the controls

Operator Presence Switch and Throttle Trigger

1. Remove the battery.
2. Try to press the Throttle Trigger. If the Throttle Trigger can be pressed, the Operator Presence Switch is defective. Stop using the edger and contact the service agent.
3. Hold and press the Operator Presence Switch first, then press the Throttle Trigger.
4. Release the Throttle Trigger and the Operator Presence Switch. If the Throttle Trigger or the Operator Presence Switch is stuck and cannot spring back to its original position. Stop using the edger and contact the service agent.

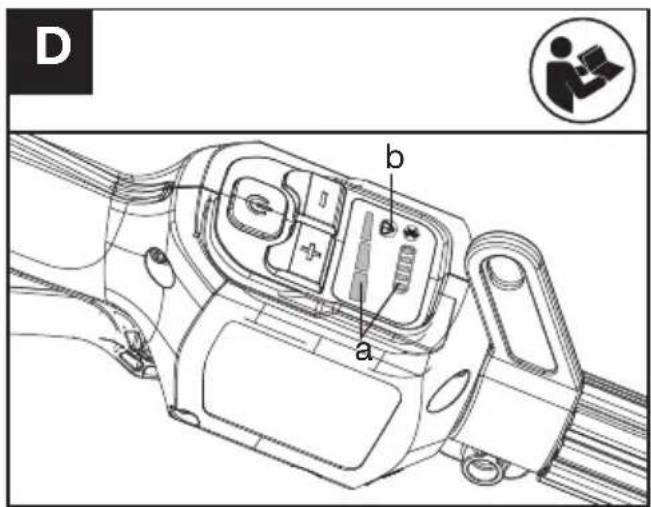

Checking the display

1. Insert the battery.
2. Hold and press the On / Off Switch.
   The product is switched on when the LED (a) is lit.
   The product is switched off when the LED (a) is out.
3. Press the Operator Presence Switch first, then press the Throttle Trigger to start the machine. The Edger Head rotates.
4. If the warning indicator (b) lights up or is flashing, refer to Troubleshooting for solutions.
5. Release the Throttle Trigger. The Edger Head stops rotating after a short delay. If the Edger Head continues to rotate, remove the battery and contact the service agent.

D b a

OPERATION:

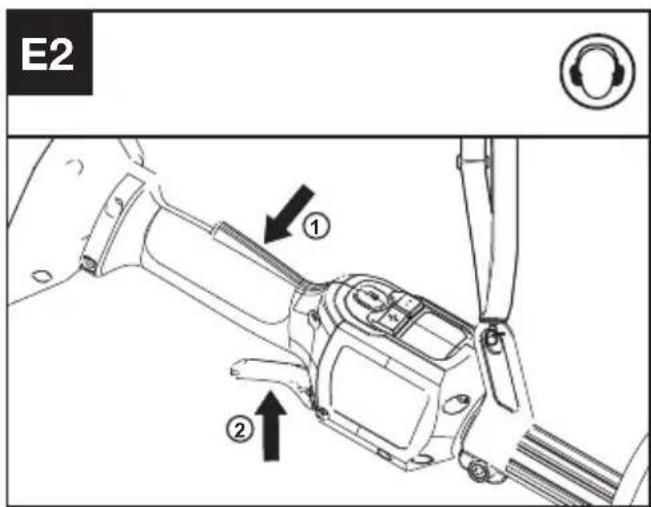

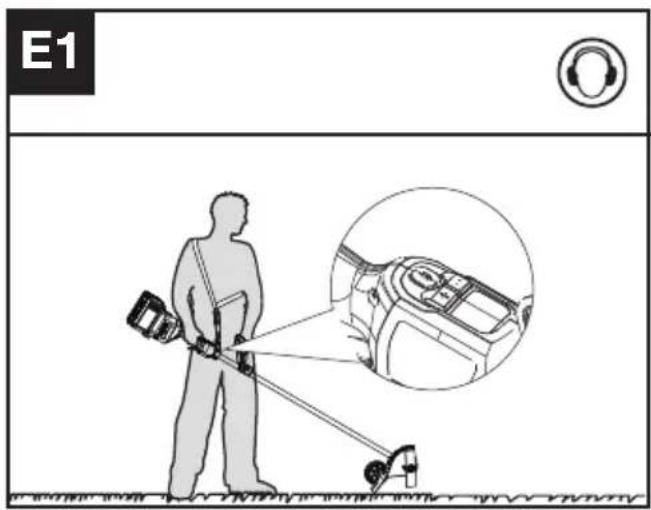

Starting the edger (See Fig. E1, E2)

E1

E2 ① ②

1. Hold the edger firmly with your right hand on the control handle – wrap your thumb around the handle. Hold the edger with your left hand on the auxiliary handle– wrap your thumb around the handle.
2. Hold and press the On / Off Switch until the green LED is lit. The green LED shows the power level.
3. If the Edger is left unattended, or the operator presence switch is not depressed, for 5 seconds, the green LED for start/stop indication goes out

and the edger will need to be re-started before use.

NOTE: The Operator Presence Switch is designed to prevent accidental operation. When you press the Operator Presence Switch it releases the Throttle Trigger.

Selecting the speed

Depending on the application, 3 Power Levels can be selected depending on the application. Use the +/- to control the speed, which is as indicated by the LEDs. The higher the power level, the faster the tool runs.

Stopping the edger

Release the Throttle Trigger to stop the machine.

WARNING! The cutting head continues to rotate after the edger has been switched off; wait until it has completely stopped then lay down the tool.

For Battery tools

The recommended ambient temperature range for discharging is -4^ 113^ ( -20^ 45^ ). The recommended ambient temperature range for the charging system during charging is 23^ 113^ ( -5^ 45^ ).

TRANSPORTATION

Transporting the edger

1. Switch off the edger and remove the battery.
2. When transporting your edger by hand, hold the middle of shaft to make sure that your machine is parallel to the ground.
3. When transporting your edger in a vehicle, secure and position it to prevent movement or damage.

Transporting the battery

1. Ensure the battery is in a safe condition.
2. Use non-conductive packaging when transporting the battery.
3. The contained Li-Ion batteries are subject to the dangerous goods legislation requirements.
   Transport batteries only when the battery housing is undamaged. Pack up the batteries in such a manner that cannot move around in the packaging.

MAINTENENCE

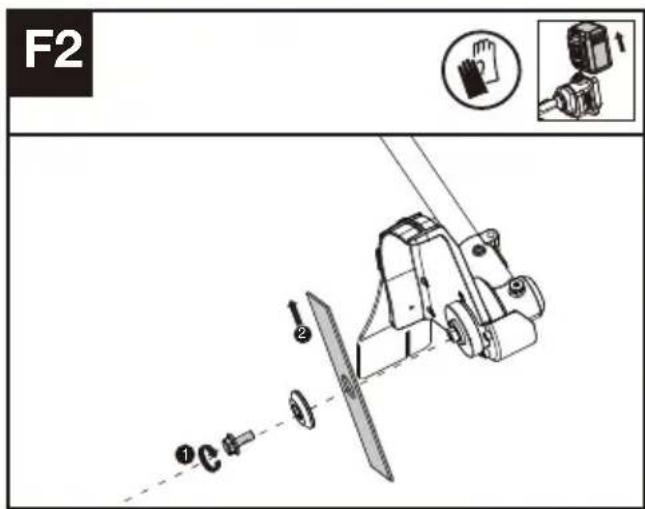

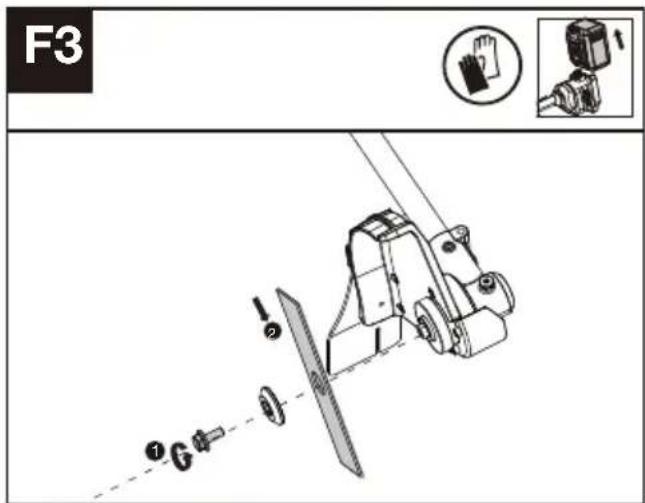

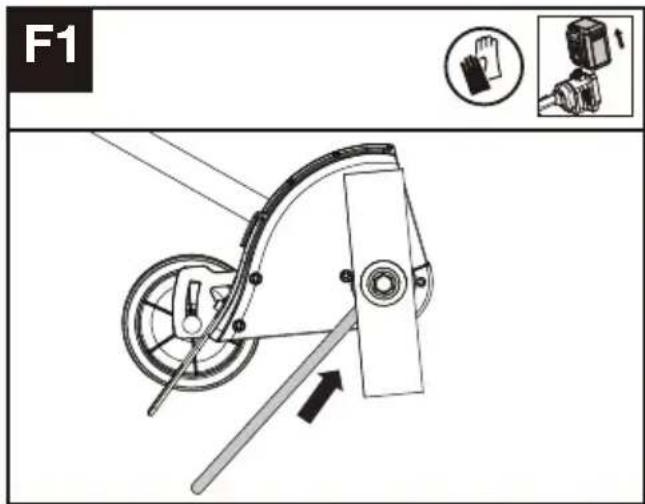

Replacing the blade (See Fig. F1,F2,F3)

F1

F2 ① C ② ③ ④

F3

1. Align hole in inner blade adapter with notch in gear housing, and insert locking tool to prevent from rotating.
2. Loosen the bolt.
3. Replace the blade and tighten the bolt to 15\~20 Nm (11\~15 ft-lb).

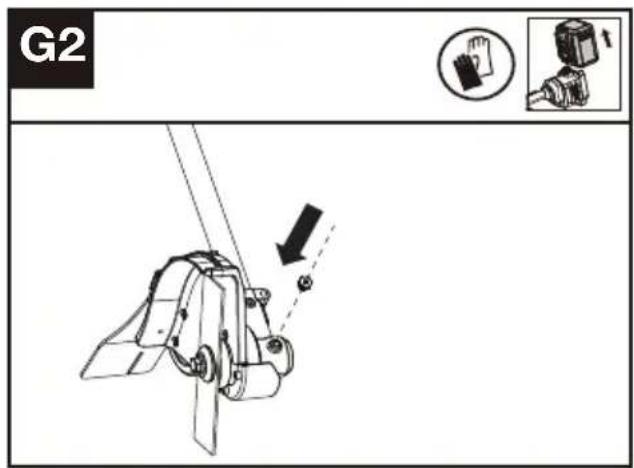

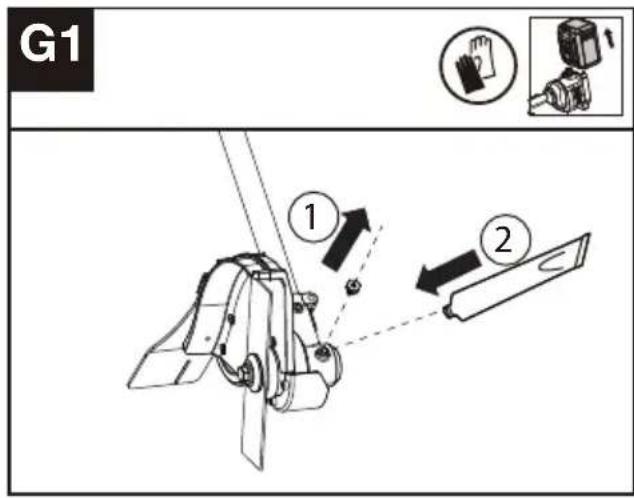

Lubricating the Gear Box (See Fig. G1, G2)

G1 ① ②

G2 ↓

1. Remove the screw plug from the gear housing and inject about 5g of grease into gear case every time.
2. Tighten the screw.

NOTE: Lubricating the gear case through the oil-hole after every 50 hours operation. For best operation and longer lifetime, it is recommended to lubricate the Lawn Edger gear case with dedicated grease(SHELL Gadus S2 V220 1).

CLEANING

1. Switch off the edger and remove the battery.
2. Do not use aggressive detergents or solvents. Clean the machine after use with a damp cloth dipped in mild detergent.
3. Keep battery connection free of dirt and debris, and clean with a soft and dry brush or cloth.
4. Do not spray water onto the motor and electrical components.
5. Do not use pressure washer to clean your machine.

STORAGE

1. Remove the battery pack from the edger before storage.
2. Store the edger and the battery in a dry and secure place that is inaccessible to children and other unauthorized people.

Remove the cutting attachment if no use for a long time.

1. Store the battery only within a temperature range between 41°F (5°C) and 77°F (25°C). As an example, do not leave the battery in the car in summer time.
2. Once got wet in the rain during operation, the machine and the battery should be dried before storing or charging. Remove the battery and reinsert it if the machine fails to turn on.

TROUBLESHOOTING

The following table gives problems and actions that you can perform if your machine does not operate correctly.

WARNING: Switch the machine off and remove the battery prior to any

troubleshooting.

EDGER

Problems Possible Causes	Corrective Action
Battery indicator LED flashing	Low battery voltage. Charge the battery.
Red error LED flashing	Overload. The cutting attachment is jammed. Deactivate the product. Remove the battery. Clean the cutting attachment from unwanted materials.
	Temperature issue. Let the product cool down.
	The Throttle Trigger and the start/stop button are pressed at the same time. Release Throttle Trigger. Perform the starting sequence again.
	Other problems Contact Service Agent

The product does not start	Debris in the battery connectors.	Clean the battery connectors with compressed air or a soft brush.
	The power of the battery pack has been run out.	Charge the battery pack.
	Other problems	Contact Service Agent.
Edger runs intermittently	The battery is not fully inserted to the machine.	Remove & reinsert battery fully.
	Potential electrical issue.	Contact Service Agent.
Excessive vibrations/ noise.	Blade balance issue.	Evaluate blade for damage, replace blade.
	Soil/debris build-up in blade guard.	Clean blade guard, remove debris.
	Cutting attachment issue. Machine defective.	Replace cutting attachment. Contact Service Agent.

BATTERY

Problems	Possible Causes	Corrective Action
Error LED lit	The battery is discharged	Charge the battery or check the charger for proper operation. If battery fails to charge, contact your Service Agent.
	Temperature issue.	Use the battery in surroundings where temperatures are between 23°F to 113°F (-5°C and 45°C) for charge; -4°F to 113°F (-20°C to 45°C) for discharge.
	Others Contact your Service Agent.

TECHNICAL DATA

Type Designation: KC150 KC150.X (150-designation of machinery, representative of Lawn Edger)

	KC150 KC150.X **
Voltage	60 V --- MAX ***
Cutting Speed	3000 / 3600 / 4200 rpm
Blade Size	8'' (20 cm)
Degree of protection	IPX4
Machine Weight (Bare tool)	11.7 lbs (5.3 kg)

** X=1-999,A-Z,M1-M9 they are only used for different customers, there are no safety relevant changes between these models.
*** Voltage measured without workload. Initial battery voltage reaches maximum of 60 volts. Nominal voltage is 54 volts.

SUGGESTED BATTERIES AND CHARGERS

Battery Capacity Charger Amperage
KAC804 4.0 Ah	KAC840 30 A
KAC810(With Backpack Harness)	11.0 Ah

We recommend that you purchase your accessories from the same Dealer that sold you the tool. Refer to the accessory packaging for further details. Your Dealer can assist you and offer advice.

TECHNICAL DATA FOR BATTERY PACK (OPTIONAL)

Frequency bands for Bluetooth	2400-2483.5 MHz
Maximum Transmitted Power for Bluetooth	8 dBm

NOISE INFORMATION

A weighted sound pressure	L_pA = 77.6 dB(A)
K_pA	3 dB(A)

EN

A weighted sound power	_wA =90.6 dB(A)
K_wA	3 dB(A)
Wear ear protection

VIBRATION INFORMATION

Vibration total values (triax vector sum) determined according to EN 62841:

Typical weighted vibration	a	_h < 2.5 m/s^2
Uncertainty K < 2.5 m/s2

The declared vibration total value and the declared noise emission value have been measured in accordance with a standard test method and may be used for comparing one tool with another.

WARNING: The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used dependant on the following examples and other variations on how the tool is used: How the tool is used and the materials being cut or drilled.

The tool being in good condition and well maintained The use the correct accessory for the tool and ensuring it is sharp and in good condition.

The tightness of the grip on the handles and if any anti vibration accessories are used.

And the tool is being used as intended by its design and these instructions.

This tool may cause hand-arm vibration syndrome if its use is not adequately managed.

WARNING: To be accurate, an estimation of exposure level in the actual conditions of use should also take account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Helping to minimise your vibration exposure risk.

ALWAYS use sharp chisels, drills and blades Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate) If the tool is to be used regularly then invest in anti vibration accessories.

Plan your work schedule to spread any high vibration tool use across a number of days.

ENVIRONMENTAL PROTECTION

Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your

local authorities or retailer for recycling advice.

DECLARATION OF CONFORMITY

We,

Positec Germany GmbH

Postfach 32 02 16, 50796 Cologne, Germany

On behalf of Positec declare that the product, Description Battery operated lawn edger Type KC150 KC150.X (150-designation of machinery, representative of Battery operated lawn edger)

Function trimming grass edger

Complies with the following Directives:

2006/42/EC, 2014/30/EU, 2011/65/

EU&(EU)2015/863, 2000/14/EC amended by 2005/88/EC

2000/14/EC amended by 2005/88/EC:

- Conformity Assessment Procedure as per Annex V

- Measured Sound Power Level 90.6 dB (A)

- Declared Guaranteed Sound Power Level 94 dB (A)

Standards conform to,

EN 62841-1, ISO 11789, EN ISO 3744,

EN 55014-1, EN 55014-2

The person authorized to compile the technical file,

Name Marcel Filz

Address Positec Germany GmbH

Postfach 32 02 16, 50796 Cologne, Germany

M C E

2022/11/17

Allen Ding

Deputy Chief Engineer Testing & Certification

Positec Technology (China) Co., Ltd

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

DECLARATION OF CONFORMITY

We,

Positec (UK & Ireland) Ltd

PO Box 6242, Newbury, RG14 9LT, UK

On behalf of Positec declare that the product,

Description Battery operated lawn edger

Type KC150 KC150.X (150-designation of machinery, representative of Battery operated lawn edger)

Function trimming grass edger

Complies with the following regulations:

Supply of Machinery (Safety) Regulations 2008

Electromagnetic Compatibility Regulations 2016

The Restriction of the Use of Certain Hazardous

Substances in Electrical and Electronic Equipment Regulations

Noise Emission in the Environment by Equipment for Use Outdoors Regulations

- Conformity Assessment Procedure as per SCHEDULE 8

- Measured Sound Power Level 90.6 dB (A)

- Declared Guaranteed Sound Power Level 94 dB (A)

Standards conform to,

BS EN 62841-1, BS ISO 11789, BS EN ISO 3744,

BS EN 55014-1, BS EN 55014-2

The person authorized to compile the technical file, Name Jim Kirkwood

Address Positec (UK & Ireland) Ltd,

PO Box 6242, Newbury, RG14 9LT, UK

A#20

UK CA

2022/11/17

Allen Ding

Deputy Chief Engineer Testing & Certification

Positec Technology (China) Co., Ltd

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

INHALTSVERZEICHNIS

Einführung....16

Komponenten....17

Technical diagram of a mechanical device with numbered components for identification and assembly reference.

KOMPONENTEN

F3 ① G ② ③

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

SOMMAIRE

Introduction....31

Technical diagram of a mechanical device with numbered components for identification and assembly reference.

LISTE DES COMPOSANTS

1. BOUTONS DE RÉGLAGE DE LA VITESSE
2. INTERRUPTEUR MARCHE/ARRÊT
3. VERROU DE PACK BATTERIE
4. PACK BATTERIE *
5. MANETTE DES GAZ
6. INTERRUPTEUR MARCHE/ARRÊT
7. SUPPORT DE BANDOULIÈRE
8. FLASQUE
9. PROTECTION ANTI-DÉBRIS
10. ROUE DE SOUTIEN
11. ÉCROU À AILETTES DE RÉGLAGE DE LA ROUE DE SOUTIEN
12. POIGNÉE AVANT
13. BANDOULIÈRE *

NOTICE ORIGINALE AVERTISSEMENTS DE SÉCURITÉ SÉCURITÉ DU PRODUIT AVERTISSEMENTS GÉNÉRAUX DE SÉCURITÉ POUR L'OUTIL

INFORMATIONS RELATIVES AU BRUIT

INFORMATIONS RELATIVES AUX VIBRATIONS

DÉCLARATION DE CONFORMITÉ

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

INDICE

Introduzione....45

Technical diagram of a mechanical device with numbered components for identification and assembly reference.

ELEMENTI DELL'APPARECCHIO

1. CONTROLLO DELLA VELOCITA'
2. INTERRUTTORE DI PRESENZA DELL'OPERATORE
3. SERRATURA A SCATTO UNITÀ BATTERIA
4. UNITÀ BATTERIA *
5. GRILLETTO DELL'ACCELERATORE
6. INTERRUTTORE ON/OFF
7. SUPPORTO PER TRACOLLA
8. ALBERO
9. PROTEZIONE ANTI-DETRITI
10. RUOTA DI SUPPORTO
11. DADO A FARFALLA PER LA REGOLAZIONE DELLA RUOTA DI SUPPORTO
12. MANIGLIA ANTERIORE
13. TRACOLLA *

AVVISI GENERALI PER LA SICUREZZA E PER LA SICUREZZA DEGLI UTENSILI A MOTORE

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

ÍNDICE

Introducción....58

Lista de componentes....59

Technical diagram of a mechanical device with numbered components for identification and assembly reference.

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

ÍNDICE

Introdução....72

Lista de componentes....73

Technical diagram of a mechanical device with numbered components for identification

Positec Technology (China) Co., Ltd 18, Dongwang Road, Suzhou Industrial Park, Jiangsu 215123, P. R. China

PT

INHOUDSOPGAVE

Inleiding....86

Technical diagram of a mechanical device with numbered components for identification and assembly reference.

DRIE SNELHEIDSINSTELLINGEN

1. SNELHEIDSREGELING
2. AANWEZIGHEIDSSCHAKELAAR
3. ONTGRENDELPAL ACCU
4. ACCUPACK *
5. GASHENDEL
6. AAN/UIT-SCHAKELAAR
7. SCHOUDERRIEMBEVESTIGING
8. SCHACHT
9. BESCHERMKAP
10. STEUNWIEL
11. AFSTELLING STEUNWIEL VLEUGELMOER
12. VOORSTE HANDGREEP
13. SCHOUDER RIEM *

ORIGINAL INSTRUCTIONS VEILIGHEIDSWAARSCHUWINGEN ALGEMENE VEILIGHEIDSWAARSCHUWINGEN VOOR VERMOGENSMACHINE

WAARSCHUWING: Lees alle

WAARSCHUWING: Voor de

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

NL

TARTALOMJEGYZÉK

Bevezető....100

Technical diagram of a mechanical device with numbered components for identification and assembly reference.

F3 ① G ② ③

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

CUPRINS

Introducere....114

Technical diagram of a mechanical device with numbered components for identification and assembly reference.

RO

LISTA DE COMPONENTE

1. CONTROLUL VITEZEI
2. COMUTATORUL DE PREZENTĂ A UTILIZATORULUI
3. BUTON DE ELIBERARE A ACUMULATORULUI
4. ACUMULATOR *
5. BUTONUL DE ACCELERATIE
6. BUTON DE PORNIRE/OPRIRE
7. SUPORT CUREA DE UMĂR
8. ARBORE
9. PROTECTIEI ÎMPOTRIVA RESTURILOR
10. ROATĂ DE SUPORT
11. PIULITĂ -FLUTURE PENTRU REGLAREA ROTII DE SUPORT
12. MÂNERULUI FRONTAL
13. CUREA DE UMĂR

INSTRUCTIUNI ORIGINALE SECURITATEA PRODUSULUI AVERTISMENTE GENERALE DE SIGURANTĂ PENTRU UNELTE ELECTRICE

F3 ① G ② ③

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

RO

SPIS TREŚCI

Wprowadzenie....128

Technical diagram of a mechanical device with numbered components for identification and assembly reference.

PL

LISTA KOMPONENTÓW

Technical line drawing of a mechanical bracket assembly with mounting holes and a small inset view (no text or symbols)

18, Dongwang Road, Suzhou Industrial

OBSAH

Úvod....142

Technical diagram of a mechanical device with numbered components for identification and assembly reference.

SEZNAM KOMPONENT

1. REGULACE RYCHLOSTI
2. SPÍNAČ PŘÍTOMNOSTI OBSLUHY
3. UVOLŇOVACÍ TLAČÍTKO BATERIE
4. AKUMULÁTOR *
5. SPOUŠT ŠKRTICÍ KLAPKY
6. HLAVNÍ VYPÍNAČ
7. DRŽÁK NA RAMENNÍ POPRUH
8. RUKOJETI
9. OCHRANNÉHO KRYTU PROTI NEČISTOTÁM
10. OPĚRNÉ KOLO
11. KŘÍDLOVÁ MATICE PRO SEŘÍZENÍ OPĚRNÉHO KOLA
12. PŘEDNÍ RUKOJETI
13. RAMENNÍ POPRUH *

PŮVODNÍ NÁVOD K POUŽÍVÁNÍ BEZPEČNOST VÝROBKU OBECNÁ BEZPEČNOSTNÍ UPOZORNĚNÍ PRO ELEKTRICKÉ NÁSTROJE

INFORMACE TÝKAJÍCÍ SE HLUČNOSTI

Positec Technology (China) Co., Ltd 18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

OBSAH

Úvod....155

Technical diagram of a mechanical device with numbered components for identification and assembly reference.

ZOZNAM SÚČASTÍ

1. OVLÁDANIE RÝCHLOSTI
2. SPÍNAČ PRÍTOMNOSTI OPERÁTORA
3. UVOLŇOVACÍ TLAČÍTKO BATERIE
4. BATÉRIOVÝ *
5. ŠKRTIACA KLAPKA
6. TLAČIDLO ZAPNÚŤ/VYPNÚŤ
7. DRŽIAK NA RAMENNÝ POPRUH
8. TYČ
9. OCHRANNÉHO KRYTU PROTI ÚLOMKOM
10. OPORNÉ KOLESO
11. KRÍDLOVÁ MATICA NASTAVENIA PODPORNÉHO KOLESA
12. PREDNEJ RUKOVÄTE
13. RAMENNÝ POPRUH *

PÔVODNÝ NÁVOD NA POUŽITIE BEZPEČNOSTŠT VÝROBKU VŠEOBECNÉ BEZPEČNOSTNÉ UPOZORNENIA

Technical line drawing of a mechanical bracket assembly with mounting holes and a close-up inset showing a component (no text or symbols)

F3 ① G ② ③

1. Zarovnajte otvor vo vnútornom adaptéri čepele so zárezom v kryte prevodovky a vložte uzamykací nástroj, aby ste zabránili otáčaniu.
2. Uvol'nite skrutku.
3. Vymeňte nôž a utiahnite skrutku na 15-20 Nm (11-15 ft-lb).

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

KAZALO VSEBINE

Uvod....169

Sestavni deli....170

Varnost izdelka....171

Sestavljanje in delovanje....175

Transport....177

Vzdrževanje....177

Čiščenje....178

Shranjevanje....179

Technical diagram of a mechanical device with numbered components for identification and assembly reference.

SESTAVNI DELI

1. KRMILNIK HITROSTI
2. STIKALO PRISOTNOSTI ZA UPRAVLJAVCA
3. GUMB ZA SPROSTITEV AKUMULATORJA
4. AKUMULATOR *
5. SPROŽILEC PLINA
6. STIKALO ZA VKLOP/IZKLOP
7. NASTAVEK ZA NARAMNICO
8. GREDI
9. ŠČITNIKA ZA OBREZKE
10. OPORNO KOLO
11. NASTAVNA KRILATA MATICA OPORNEGA KOLESA
12. SPREDNJEGA ROČAJA
13. NARAMNI PAS *

IZVIRNA NAVODILA VARNOST IZDELKA SPLOŠNA VARNOSTNA OPOZORILA

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

SADRŽAJ

Uvod....182

Popis komponenti....183

Sigurnost proizvoda....184

Sastavljanje i rad....187

Transport....190

Održavanje....191

Čišćenje....191

Skladištenje....191

Otklanjanjepoteškoća....192

Tehnički podaci....193

HR

Zaštita okoliša....194

Izjava o sukladnosti....194

UVOD

Poštovani,

Technical diagram of a mechanical device with numbered components for identification and assembly reference.

HR

POPIS KOMPONENTI

1. KONTROLA BRZINE
2. PREKIDAČ PRISUTNOSTI RUKOVATELJA
3. OTVARANJE BATERIJSKOG MODULA
4. BATERIJSKI KOMPLET *
5. AKTIVATOR GASA
6. PREKIDAČ ON/OFF (UKLJUČENO/ISKLJUČENO)
7. MONTIRANJE NARAMENICE
8. OSOVINA
9. ŠTITNIK OD KRHOTINA
10. POTPORNI KOTAČ
11. LEPTIRASTA MATICA ZA PRILAGOĐAVANJE POTPORNOG KOTAČA
12. PREDNJA RUČKA
13. NARAMENICA*

ORIGINALNE UPUTE ZA RAD SIGURNOST PROIZVODA UOBIČAJENA SIGURNOSNA UPOZORENJA ZA ELEKTRIČNE ALATE

UPOZORENJE Pročitajte sva sigurnosna upozorenja, upute,

ilustracije i specifikacije koje se isporučuju s ovim električnim alatom. Nepoštivanje dolje navedenih uputa može uzrokovati električni udar, požar i/ili ozbiljne ozljede.

F3 ① G ② ③

Deputy Chief Engineer Testing & Certification

Positec Technology (China) Co., Ltd

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

INDHOLDSFORTEGNELSE

Introduktion....195

Lista de componentes....196

Technical diagram of a mechanical device with numbered components for identification and assembly reference.

F3 ① G ② ③

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

SISÄLLYSLUETTELO

Johdanto....208

Komponenttiluettelo....209

Technical diagram of a mechanical device with numbered components for identification and assembly reference.

KOMPONENTTILUETTELO

1. NOPEUDENSÄÄTÖ
2. KÄYTTÄJÄN LÄSNÄOLOKYTKIN
3. AKKUYKSIKÖN VAPAUTUSPAINIKE
4. AKKUYKSIKKÖ *
5. KAASULIIPAISIN
6. ON/OFF-VIRTAKYTKIN
7. OLKAHIHNAN ASENNUSKOHTA
8. VARI SI
9. ROSKASUOJA
10. TUKIPYÖRÄ
11. TUKIPYÖRÄN SÄÄTÖSIIPIMUTTERI
12. ETUKAHVA
13. OLKAHIHNA *

ALKUPERÄISET OHJEET TURVALLISUUSOHJEET TUOTETURVALLISUUS YLEISET SÄHKÖTYÖKALUJEN TURVALLISUUTEEN LIITTYVÄT VAROITUKSET

F3 ① G ② ③

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

MPÄRISTÖN SUOJELU

Transportation....229

Vedlikehold....229

Rengjøring....230

Lagring....230

Feilsøking....231

Technical diagram of a mechanical device with numbered components for identification and assembly reference.

APPARATELEMENTER

1. HASTIGHETSKONTROLL
2. BRYTER FOR OPERAT∅RTILSTEDEVÆRELSE
3. LÅS FOR BATTERIPAKKE
4. BATTERIPAKKE *
5. GASSBRYTER
6. AV/PÅ-BRYTER
7. SKULDERSTROPPFESTE
8. AKSEL
9. BESKYTTELSESSKJERMEN
10. STÖTTEHJUL
11. VINGEMUTTER FOR JUSTERING AV ST∅TTEHJUL
12. HÅNDTAKET FORAN
13. SKULDERREM *

ORIGINAL DRIFTSINSTRUKS PRODUKTSIKKERHET GENERELLE ADVARSLER FOR ELEKTROVERKT∅Y

ADVARSEL Les alle

Positec Technology (China) Co., Ltd 18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

INNEHÅLLSFÖRTECKNING

Introduktion....234

Komponenter....235

Produktsäkerhet 236

Transportation....242

Underhåll....242

Rengöring....243

Förvaring....243

Felsökning....243

Tekniska data....244

Miljöskydd....246

Technical diagram of a mechanical device with numbered components for identification and assembly reference.

KOMPONENTER

1. HASTIGHETSKONTROLL
2. GASSPÄRREN
3. BATTERIPAKETETS LÅSNING
4. BATTERIPAKET *
5. GASREGLAGE FÖR DRIFT
6. STRÖMBRYTARE PÅ/AV
7. AXELREMSFÄSTE
8. SKAFT
9. SKRÄPSKYDD
10. STÖDHJUL
11. VINGMUTTER FÖR JUSTERING AV STÖDHJUL
12. FRÄMRE HANDTAG
13. AXELREM *(SÄLJS SEPARAT)

BRUKSANVISNING I ORIGINAL SÄKERHETSVARNINGAR GENERELLA SÄKERHETS-VARNINGAR FÖR ELVERK-TYG

WARNING! The cutting head continues to rotate after the edger has been switched off; until it has completely stopped then lay down vol.

För batteriverktyg

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

Kress Commercial
